Notes: Bohm:Performer is a mixer for both the main Bohm Stereo kick module and the Bohm: groove expander, blending dual kick engines with external stereo input, offering precise side-chain ducking, intuitive one-touch DJ effects (filters, beat/slip rolls), and full CV assignabilityiempowering live performers with seamless, dynamic mix control.

Notes: The LedPressor is a full stereo Diode-based compressor module.
Its unique core adds character and color to any signal passed through it.
The LedPressor can be used as a normal compressor with low input levels, but as the input volume increases and the "nuke" LED lights up, it enters a new territory that combines compressor and overdrive, creating a dynamic overdrive effect.

Get it pumping with the Side Chain
The module features an external sidechain input that accepts audio and CV signals. Only the sidechain signal passes through a high pass filter, which gives the user greater control over the sound shape. The audio signal itself is not affected by the filter.
Parallel compression
The module also includes a mix knob that can be controlled with a dedicated mix CV input, allowing for greater flexibility when blending dry and wet signals. Additionally, it features a momentary bypass button to easily adjust the levels of dry and wet signals.
Feed-Back Or Feed-Forward - it's your choice
The module can be configured with a feed-back or feed-forward topologies with a jumper in the back.
Reverse polarity protection
The module have proper reverse current and over current protection in its power input stage to protect the module in case it was connected the wrong way or connected to a faulty power supply.
Dimensions
Width
: 12HP
Depth
: 34mm
Current Draw
+12V
: 20mA
-12V
: 15mA

Notes: Reduxer is a stereo sample reducer effect module.

Depends on it's signal, It can produce dynamic range of sounds from knurly bitcrushing to formant/vowel style effects.

Extra resolution

Custom made Redux potentiometer with 300 degrees rotation for extra crashing resolution.

Double the power

Two proprietary sample reduction circuits with extra offset control on channel 2 via the "Spread", lets you create motion in the streo field for wider effect.

Stereo operation

Inputs are normelized - supporting mono to stereo configuration.

Reduction under control

Redux CV input with attenuator for external control of the bit reduction rate.

Reverse polarity protection

The module have proper reverse current and over current protection in its power input stage to protect the module in case it was connected the wrong way or connected to a faulty power supply.

Dimensions

Width: 8HP
Depth: 20mm

Current draw

+12V: 25mA
-12V: 25mA

Notes: Motion Pictures

(Delay And Reverb)

Motion Pictures combines lush delay and reverb with intuitive, powerful controls within a 10HP module. Choose between a crisp digital delay or a warm analogue delay and pair it with a spacious, large-hall stereo reverb. Delay and reverb levels can be adjusted independently, allowing you to use them separately or together. The delay time can be controlled using a knob, tap tempo, or CV. You can even send opposing CV signals to the tap tempo and delay time for glitchy, pitch-bending, rhythmic effects. Additionally, CV control extends to the feedback, delay, and reverb levels, providing greater flexibility. Motion Pictures offers rich ambient sounds in a compact design, combining delay and reverb in one module to optimize rack space while preserving sonic depth.

Notes: This is a revision 02 of ADDAC's Power Starvation module.

It provides an "ideal" way to power starve other modules, starving modules means the modules will receive less voltage than the standard +/-12V supply.

Power starvation is the first hack that any "DIY'er" learns. It's also one of the hacks that can generate some of the most interesting sonic effects in circuit bending.

Plug any module below +/-200mA through it and independently tune it's supply power. This will have most interesting effects in analog modules: filters, delays, mixers... They can either go silent or start screaming at your ears, going berserk with the lack of current to behaving normally, making them cough, choke... Something like a safely induced heart attack...

While revision 01 was a simple circuit with pot working as a voltage divider, this upgraded version uses a DC to DC converter that receives its input from the +12V power rail and outputs a bipolar 15V supply. This DC-DC converter also offers short circuit and overcurrent protection. The +/-15V lines are then sent through variable analog voltage regulators that can output a range of 2.5V to 13.5V.

In other words, the module features a +/-200mA PSU with variable voltage outputs.

Safety disclaimer:

While using ADDAC300 should be safe for any module, there may be specific modules where its use may not be advised.

!! Use at your own risk !!

ADDAC System won't be responsible for any issue that may arise while using ADDAC300 power starvation.

If in doubt contact ADDAC prior to any connection.

Tech Specs:

6HP
4.5cm deep

UP TO 600mA +12V (Depending on the starving module connected)
0mA -12V

Notes: Alpha Duo is a stereo precision VCA with ring modulation, overdrive and distortion.

Alpha Duo's VCAs have three modes:

1) Two quadrant, for classic VCA behaviour
2) Four quadrant, where the VCA responds to both positive and negative Gain CVs. This creates a classic ring modulator.
3) In four quadrant separate (4S) mode, each of the two VCA channels is controlled by separate gain CVs, turning Alpha Duo into two independent VCA/ring modulators.

Alpha Duo also features three drive modes.

1) In Drive Mode zero the overdrive circuit is not active, giving a clean signal.
2) Drive Mode One is a tube style soft overdrive. Like a tube, the positive and negative parts of the waveform are distorted differently, producing a pleasing, warm fuzz.
3) Drive Mode Two is a harder clip - more like a transistor amplifier - for a harder edged distortion.

Alpha Duo's signal path is DC coupled, so it's great for processing CVs as well as audio.

Specifications:
Width: 10HP
Depth: 22mm excl. power cable. Approx 32mm inc. shrouded power cable
Power Requirements:
+12v: 200mA
-12v: 50mA
+5v: 0mA

Inputs:
Signal (Zero attenuation): +/-5v nominal, +/-12v max
GainCV [Zero attenuation]: +/-5v nominal
Pan CV [Zero attenuation]: +/-5v nominal

Outputs:
Dual/Stereo: +/-5v nominal, +/-11v max

Notes: A typically clever approach to modulation from Make Noise, the MultiMod takes a control signal and modifies it into eight related outputs, adjustable by phase and timing. Hugely versatile.

Supplier's Notes:
With MultiMod...from one control signal, we create many.

In a modular synthesiser, it is easy to create complex results via complex means - patching an elaborate network of independent control signals, for example. This can be very powerful but also cumbersome to set up, and potentially difficult to control in a meaningful way. MultiMod represents a new approach: it takes a single control signal and copies it 8 times, not unlike a simple mult, except that it allows you to modify those copies by weighted adjustment of their relative phase and speed. The result is modulation that is related to the source, but not identical at each destination.

Phase sets the spacing of the signal copies in time, weighted by channel, with each progressive channel getting more out of phase from the original signal and from each other. Spread allows for varispeeding the copies by different amounts, with each getting progressively faster or slower than the original Signal. Time determines the range of time captured at the input and therefore also the depth of modulation across copies of the input signal when Phase and Spread are manipulated. MultiMod also includes Tempo, Hold, and Reset features, and a variety of Read Shapes for temporal rearrangement of input signals.

When the input is not patched, MultiMod generates an LFO that is copied eight times and manipulated in the same ways.

MultiMod is built with the latest DSP hardware which offers eight high resolution outputs, with signal input and output ranges approaching the upper limits of the analogue eurorack modular system. All I/O is capable of a 20V range at +/-10V, greatly exceeding the typical 0-5V CV input ranges on typical digital modules.

Specifications

Width: 10hp
Max depth (incl power cable): 39mm

Power:
195mA @+12V
10mA @-12V

Notes: Packed with powerful features while maintaining intuitive playability, Strymon's Magneto module is a stereo multi-head tape delay that also functions as a looper, phrase sampler, vintage spring reverb unit, phase-aligned clock multiplier, chaotic oscillator, zero latency sub-oscillator and more, with extensive CV I/O.

Turn simple monophonic signals into complex orchestrations. Create new oscillator tones using self-oscillation. Add rich stereo dimension to your sound, and enjoy the inherent warmth and sweet, subtle distortion characteristics of magnetic tape. Magneto transforms even the smallest rack into a fully expressive, immersive instrument.

To capture the full experience and complexity of a vintage tape echo machine, every last tape system attribute was relentlessly studied and faithfully recreated. From the sought-after natural saturation and soft clipping of magnetic tape when driven hard, to hands-on real-time controls for tape age, tape crinkle, and mechanical wow and flutter, Magneto delivers a rich multi-head delay experience that adds life and vibe to your sound.

Every function, control, gain stage, and signal path component in Magneto works together to respond musically and smoothly, even during the wildest live modular improvisations. All this is combined with a luxurious spring reverb to take the sound of your modular setup to a new level, and your sonic explorations into far-out territories.

Not only does Magneto deliver the warm, luscious delay signals that tape delays are known for, it is also capable of a high degree of saturation. Turn up the Record Level knob to send a hot signal to the record head for any amount of tape saturation you desire. Turn up the Tape Age control for warmer repeats. Add some truly beautiful Spring Reverb. Magneto adds organic heart and soul to the sound of your modular.

The effect of the Low Cut and Tape Age knobs are explored, followed by the mechanical 'deterioration' of the machine with the Crinkle and Wow and Flutter controls. The Speed knob is put to use for sonic enhancement.

In a typical digital effect the dry signal gets converted to digital, causing conversion noise and latency. Signals are often attenuated before combining digital dry and wet, with makeup gain amplifying the conversion noise. To avoid this scenario, Strymon have equipped Magneto with a completely analog dry path. Why go to all this trouble? Because the improvements in dynamic range and reduction in noise are so dramatic.

Strymon have outfitted Magneto with the powerful Analog Devices SHARC ADSP-21369 processor, which provides a 366 MHz core instruction rate, and an incredible 2.4 Gigaflops of peak performance. Thanks to this high-powered technology platform within Magneto, we had the freedom to craft our processor-intense tape echo algorithms without compromise.

Notes: Expand the sound of your modular rack with incredibly lush, ethereal reverbs. Enhance signals with gorgeous chorus, flanging, and modulated delays. Create uniquely expressive synth voices with Karplus-Strong string synthesis. StarLab is a single module that will completely transform your modular rack.

The seemingly simple idea of allowing the pre-delay signal to be fed directly to the module's output led to the development of rich sounding delay, chorus, and flanger effects, all of which can be used together with or independent of the reverb.

While experimenting with short delay times using feedback and filtering, Strymon began finding very musical and expressive Karplus-Strong string synthesis sounds, and realized that StarLab could move beyond signal processing and become a truly unique voice module as well. All this ultimately resulted in the creation of a module that is equal parts reverb, delay/ modulation, and playable instrument.

From patch creation to live performance, StarLab's powerful features are easily accessible at the turn of a knob or the touch of a button. With no menus to wade through, StarLab's interface is designed for intuitive hands-on sonic exploration, while every function and control works together to respond musically and smoothly.

From perfectly voiced room ambience to vast, immersive, nearly infinite decays, StarLab offers the pinnacle of premium reverb sounds with unparalleled depth and spaciousness. Add musical intervals to the reverb signal with Shimmer, and enhance the harmonic spectrum with Glimmer, while enjoying real-time control over the size/pitch of the reverb process.

StarLab has vastly expanded what reverb pre-delay can do by allowing you to bus the pre-delay signal to the output while making the pre-delay time a modulation target. This results in the ability to create rich choruses, sweeping flanger effects, and beautiful modulated delays, while also processing signal through the reverb.

In addition to input signal processing, StarLab is a powerful Karplus-Strong string synthesis voice module that allows freely alternating bowing and plucking as well as dynamic string damping. This results in an astoundingly expressive and lifelike instrument with a unique voice all its own, which can be enhanced and expanded by the full range of StarLab's reverb capabilities.

Notes: Enter a galaxy of rich and vibrant delays. The Dreadbox Nostalgia 3 Stage Delay is a superb effect module that can give you amazing results in moments. Delay is a true staple in the effects world and it can take your modular music to the next level via just a few cables.

The Dreadbox Nostalgia 3 Stage Delay is ideal for a range of modular music styles, from ambient to acid house. This 10HP module fits snugly in your system and has enough CV control to keep even the most avid patcher satisfied.

117 mA +12V
25 mA -12V
35 mm deep
10HP

Notes: A spin-off from the brilliantly experimental Strega synth, the Bruxa module offers a different type of 'Time/Filter Experiment' designed to warp and twist sounds from other modules. Excellent creative stuff.

Supplier's Notes:
Check Make Noise's website for content and pictures!

The Bruxa music synthesiser module is an audio alchemical experiment. Spill your sound into time, and let it decay through the filters to hear the results.

Bruxa is a collaboration between Make Noise and Alessandro Cortini. Inspired by Cortini's music and sonic experimentations, Bruxa embodies the seen and unseen, the sign and magic, the alchemy of sound. It is a new evolution of Tony and Alessandro's original prototype circuits which eventually became the Strega's Time/Filter Experiment. It is a multi-tap delay line with over a dozen unique feedback paths and multiple filters within those feedback paths aligned to allow for accumulation of noise, saturation and signal degradation.

While Strega is a complete synthesiser in a tabletop form factor, Bruxa is a Eurorack module designed to be used as one part of a Eurorack modular synthesiser. You will discover a number of differences in layout, signals, and sound. Living inside the Eurorack modular system, Bruxa encourages you to patch your own sound and modulation sources, yielding results surprisingly distinct from Strega.

Echoverb signal processor which shares origins with Strega
Well tuned to work nicely in a Eurorack modular system
All analogue dry signal path blended with digital/ analogue hybrid signal processor
Analog CV inputs with wide range capable of audio rate modulation
Time control with massive, smoothly variable range
Linear FM input with attenuator allows for fluttering of Time
Absorb and Filter controls dramatically shape the echo tone and reflections
New unique CV outputs for use in self-patching or mutual patching with other modules
Pairs well with DPO, STO, MATHS, Prss Pnt, modDemix and more!

Specs:

Width: 18hp
Max Depth (incl. power cable): 48mm

Power:
140mA @ +12V
90mA @ -12V

Notes: End-of-chain stereo effects are on tap with this compact and powerful module, built around a large central control knob for quick hands-on tweaking of effects like DJ-style filtering, reverb, and loops.

Supplier's Notes:
The Best Eurorack Performance FX Module

Meta is the all-in-one solution for creating smooth transitions, exciting drops, and other creative live performance effects.

Meta controls are easy to understand and use. Its feature-rich compact size saves you space and time setting up various modules or expensive effects hardware.

This is the perfect performance effect module for you.

Designed for Performance by Performers

OXI Meta is designed to be easily operated with one hand, and the effects algorithm is built to work specifically for transitions between tracks, building up a drop, intros, or outros with effects like a DJ filter, risers, loopers, and more.

The Solution for Transitions in Eurorack

OXI Meta is an end-of-chain effects processor with a highly performative interface in only 6 HP. Blend your songs and build tension like a professional without all the expensive, bulky gear.

Effect Scenes Breakdown

Meta FX Scenes were crafted and tested to deliver premium level FX- with simplicity, but also allowing to tweak enough to fit your taste and technical needs.

Space

Send your mix into the outer realms with this reverb effect.

Choose from two types of reverbs, a classic long tail reverb with tone and filter control or an experimental reverb from shimmery to deep/black-hole textures.

Riser

One of the most effective ways to create tension for drops and transitions. The OXI Meta riser features two modes both with a high-pass filter & reverb. Mode 1 adds noise and mode 2 adds a Shepard tone-style effect.

DJ filter

A DJ style filter is must have for any live performer. OXI Meta provides you with a high-pass and low-pass filter for the ultimate in transitions.

Loop

Loop small sections of audio in forward or reverse order to create head-nodding breaks and rhythms.

Delay

A high-pass or low-pass clockable delay algorithm with a splash of reverb wash to help glue this classic effect into the mix.

Gater-roller

A unique dual gater effect for exciting audio. Turn the knob right for a gater with division control and built-in high-pass filter, or go left with a snare roll build up with reverb and built-in high-pass filter.

Technical specifications

Width: 6 Hp
Depth: 22 mm
Audio: 24bit, 48KHz

Power consumption:

+12 V: 110 mA
-12 V: 20 mA
+5 V: 0 mA

Notes: The hands-on control of hardware meets the versatility of software. Bridging the gap between Eurorack and VCV Rack, the MetaModule includes over 160 built-in modules plus access to over 200 third-party options.

Supplier's Notes:
The MetaModule puts real knobs and jacks on virtual software modules. Step back from the computer and make music with hardware, while keeping the flexibility and expandability of software.

The MetaModule comes with over 160 built-in modules from 4ms Company, Befaco, HetrickCV, NonlinearCircuits, and Scanner Darkly, plus clones of popular classics such as the Mutable Instruments eurorack modules, fun physical modeling algorithms, and lots of handy utilities.

All of the included modules are also available on the computer using the free program VCV Rack. Whether you make patches on VCV Rack and transfer them to the MetaModule, or if you just create patches directly on the MetaModule, there are plenty of creative modules to inspire new ways to make music.

MetaModule Plugins

If the 160+ built-in module aren't enough, you can load more modules as plugins. Already there are over 200 modules in third-party plugins from Bogaudio, Valley, ChowDSP, NANO Modular, and the list is growing. 4ms have an SDK available to make it easy for VCV Rack plugin developers to convert their plugin to a MetaModule plugin. 4ms' licensing terms are non-restrictive: developers are welcome to distribute their plugin in any way they wish, commercially or not.

Mapping Knobs and Jacks

The MetaModule has 12 knobs that can be mapped to virtual knobs. Each knob can be mapped to up eight virtual knobs, and each mapping can have a different range and offset. You also can save a group of mappings as a Knob Set and switch between Knob Sets with the encoder. You also can map the 8 inputs and 8 outputs to virtual module jacks. Also, the MetaModule is a USB MIDI host, so you also can map MIDI CC, note, gate, and other parameters to knobs and jacks.

Expanders

There are lots of ways to customize your MetaModule. A Wifi expander allows you to wirelessly transfer patches from your computer. Add eight more knobs with the Knob expander, or buttons with the Button expander. A CV/Audio expander adds more high-resolution inputs and outputs, and the Gate In/Out expander adds not only gate jacks but also TRS MIDI and I2C.

Under the Hood

There are six CV/Audio inputs, two gate inputs, and six CV/Audio outputs. The CV/Audio jacks are all 24-bit, 48kHz DC-coupled, -10V to +10V. A USB-C jack accepts MIDI devices and thumb drives. Patches and plugins can be loaded via a USB drive or microSD Card, and internal flash memory lets you save patches you always want to come back to.

The processor is more advanced than anything 4ms has used in the past, and is among the most powerful processors found in Eurorack. Startup time and latency are blazingly fast.

Modules

160 built-in modules
Over 200 3rd-party module plugins available so far, and the ecosystem is growing
Create patches using VCV Rack or directly on MetaModule

Patches

Patches are loaded from microSD Card, USB drive, or via the Wifi expander
Patches can be optionally saved onto internal flash memory
Create patches using VCV Rack or directly on MetaModule
Patches can be given a name and description

Mappings

Map each physical knob to up to 8 virtual knobs
Set range and offset for each mapping, including inverted control
Knob mappings are grouped into Knob Sets, and changing Knob Sets can be done quickly without menu-diving
Map physical jacks to virtual jacks, seamlessly making splits/mults
Add or edit modules, cables, and mappings in real-time while the patch is playing
Create alias names for mappings like "Kick Drum Level"

Interface

Simple, intuitive graphical interface lets you zoom in on details, or zoom out to get a big picture
Patch View displays the patch as faceplates and cables, with knobs, buttons, and lights animating in real-time
Knob Set View simplifies the display, showing only the mapped knobs for the current Knob Set
Module View shows just one module and lists the names of each jack, knob, and control legibly
Mapping View lets you adjust details of a knob mapping
Adjust styles and visual preferences to your liking
Save, rename, duplicate, and delete patches
Firmware updater and plugin loader read from microSD Card or USB drive

Hardware

12 Knobs
8 CV/Audio outputs, 24-bit 48kHz, -10V to +10V, DC-coupled
6 CV/Audio inputs, 24-bit 48kHz, -10V to +10V, DC-coupled
2 Gate inputs
USB-C jack: MIDI Host or MSC (External drive) Host
microSD Card slot
Internal Flash RAM for additional patch storage
Dual-core 800MHz Cortex-A7 plus Cortex-M4 co-processor
512MB DDR3 533MHz RAM
Bare-metal operation for fast startup and low latency

26hp

Notes: T-spectrum takes the concept of merging modulation sources and destinations into a single module.

T-spectrum is a spectral processor, an organic sound sculpting tool transforming drastically what passes through it.

The powerful modulation engine lets you hear frequency bands dance, smoothly or frantically. Bring life to your patches with free running or resettable custom drawn modulations.

Maximum automation recording length of 20s for each parameter.

MODE allows to change between 1/2/4/16 (max) bands

FREQ moves the filter initial frequency

SPREAD changes the bandpass filters Q peak

TILT moves the selected peaks around the spectrum.

The integrated touch lightstrip controllers can drive four parameters with looping or one-shot recording playback mode on each track with global RESET input.

Secondary distorted output.

Current draw: 150 mA (+12 V) / 20 mA (-12 V)
Width: 8 HP
Depth: 34 mm

Notes: Stereo version of the HUE module, the CLRS does what it says on the tin, adding colour via effects including filtering, overdrive, sample rate and bit depth reduction, plus one-knob compression and CV modulation of parameters.

Supplier's Notes:
C Introducing the CLRS (pronounced colours) module by Modbap, a powerful 10HP reimagining of the HUE eurorack module, now expanded to stereo.

At the core of CLRS is a versatile DJ-style filter, equipped with a single large top-centre knob that controls both the high pass and low pass filters. With the low pass to the left and the high pass to the right, effortlessly sculpting your sound in the stereo field becomes second nature. Find the ideal frequency balance and bring your audio creations to life with a seamless and harmonious blend.

Experience a transformative sonic journey with the Drive effect. From subtle saturation to edgy distortion, CLRS's Drive empowers you to sculpt the ideal sonic character that complements your creative vision. It adds warmth, character, and texture, taking your sound to harmonically rich territories.
The newly added stereo width control enables precise adjustments to the stereo field, providing greater control over the spatial aspects of your audio.

The Lofi effect on CLRS is a powerful feature that introduces a lo-fi or low-fidelity aesthetic to your audio. By reducing the sample rate, the "Lofi" knob emulates the characteristics of lower-quality audio recordings or older digital devices. This reduction in sample rate produces a vintage, degraded, or "lo-fi" sound, perfect for creating a nostalgic or retro vibe in your recordings.

The Bit Depth knob decreases the bit depth. This introduces a sort of aliasing sound and distortion, adding to the lo-fi character of the audio. The result is a gritty, distorted, or "bit-crushed" sound reminiscent of older digital devices or low-quality audio formats.
The Lofi CV input affects the combination of sample rate reduction and bit depth, opening up a range of possibilities to explore vintage recordings, nostalgia, and unique audio textures.

The "Mag" effect, short for "Magnet," combines the characteristics of tape saturation and tape distortion into a single control knob. Adjusting the "Mag" knob introduces a magnetic-like effect to the audio signal, emulating the warmth, saturation, and subtle distortion associated with analogue tape recordings. This feature allows you to add vintage and analogue-style tonal qualities to your audio, bringing warmth and depth to digital recordings or achieving a vintage vibe. The "Mag" effect can also introduce light tape distortion, adding a touch of grit, character, and a slight edge to the sound, imparting a vintage or lo-fi aesthetic.

CLRS offers an intuitive one-knob compressor, effortlessly controlling your audio dynamics. Elevate your mix to a professional level with depth and balance. The newly integrated 3-way switch for ratio control provides the freedom to choose between light, medium, and heavy compression settings. Also included in this expanded Compressor is a 'Duck' input which simulates side chain compressions allowing you to send LFOs, envelopes and the like to control the side chaining. Whether you seek gentle levelling or impactful squashing, CLRS's compressor adapts to your musical needs.

In addition, CLRS features CV inputs for modulation of the filter, drive, mag, and lo-fi effects. This allows for dynamic and expressive control over your sound, adding an extra layer of creativity to your music production.

Whether you're using CLRS in a Eurorack modular system or in your groovebox signal chain, it seamlessly integrates into your setup, providing you with a versatile and powerful tool for end-of-chain audio processing. Its CV inputs for modulation of the filter, drive, mag, and lo-fi effects add an extra layer of expressiveness and creativity to your music production, allowing you to dynamically shape and transform your sound.

Experience the flexibility of audio processing with CLRS and unlock a world of sonic possibilities for your Eurorack or groovebox setup. From side chain compression and shaping frequencies to adding warmth, character, and vintage vibes, CLRS is the ultimate companion for taking your music to new heights.

Features

Audio processing effect
DJ Style Filter (HP and LP)
Tape Saturation (mag), Drive, and Lofi effects
One knob compressor with switchable ratio
Ducking input
Width Control - stereo field widening parameter
CV inputs for Filter, Mag, Drive, Lofi.
Stereo input and output

Tech Specs

Width: 10HP
Depth: 24 mm
Power: 110mA +12V, 8mA -12V

Notes: The insert module allows you to connect stereo effects to your CGM setup, either by inserting them between two points of the internal summing bus or by placing them in parallel, as in a rudimentary stereo send-and-return.

It consists of two couples of outputs and inputs with dedicated gain switches. The first O/I stereo couple is the insert circuit, while the second is the parallel circuit.

The Insert module can be used:

between a group and a master;
between a group and a group;
between a channel and a group;
between a channel and a channel;
between a channel and a master (without a group).
The Insert module ships with two Insert cables compatible with every member of the CGM family, including the discontinued ones.

Flexible placement

The insert can effortlessly sit between every CGM module. Use it between a group and a master as an end-of-chain bus, or between two series of channels of the same group to create a channel subgroup with independent solo-in-place controls.

Stereo insert circuit

This circuit overrides the internal summing bus and allows you to route whatever sum goes into the insert module through your favourite stereo effects.

Stereo parallel circuit

A second out-in circuit remains parallel to the main one, excellent for adding stereo ambiance effects to the main sum.

Gain switches

The outputs and inputs provide three degrees of attenuation and matching amplification to scale the signal to most of the audio equipment out there.

Specifications:

Size: 6 HP
Depth: 38 mm
Current draw: 35 mA @ +12 V / 35 mA @ -12 V

Recommended warmup time: 30 min
Audio input impedance: > 30 KO (mono)
Audio output impedance: =100 O
Maximum output level before clipping: = 17 dBu
Frequency response: 0.01 to 40 KHz
Harmonic distortion: < 0.3 %

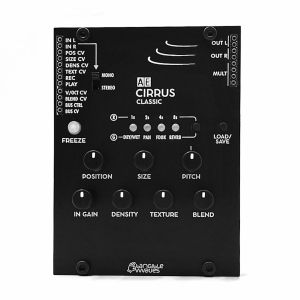

Notes: CIRRUS is a real-time granular processor for audio signals. This module is a 100% adaption of Mutable Instruments' Clouds module, a well known module in the Eurorack world.

The incoming audio signal is divided into separate short particles of selectable size, pitch and shape; these so called "grains" are then recombined in real-time in various assignments and by different algorithms, resulting in interesting, moving textures. This is even more intensified by allpass filters and a reverb, so even a short input pulse results in a huge wash of sound.

The audio processing works on up to 32kHz sampling rate in stereo and 16bit resolution for input and output (and can be reduced to 16kHz, 8bit mono for an increased sampling time of 8 seconds). Even with a mono input signal, a wide stereo output is simulated by randomly panning grains and the reverb.

A freeze button freezes the audio buffer and the sonic qualities can still be explored with the parameters in real-time..

All parameters can be CV controlled, of course.

Notes: Really neat stuff from Hexinverter. Designed with synth sounds and drum processing in mind, the Hot Glue is a unique twist on a four-channel mixer, helping to integrate effects and voltage-controlled distortion alongside built-in bus compression.

Supplier's Notes:
The Mutant Hot Glue is a versatile bus mixer for analogue effects chain design. The included analogue compressor offers series or parallel compression and a sidechain input, making it particularly well suited to drum processing. The voltage controlled distortion is based on ideas borrowed from the guitar pedals responsible for a lot of yesterday's acid style techno sounds, but improved over the guitar equivalents, and made specifically for synthesizer and drum processing. The distortion can be used in its default position, normalized to the effects send, or like every other part of the module, broken out and used elsewhere in your modular system.

Features

4 Channel Mixer with Effects Send

4 input channels, each with their own level and effects send control
Channel A mixer bypass switch and dedicated output for easy sidechain compression
Channel B is dual input, but shares level/send controls (for dual output modules, like the Mutant Hihats)
Channel C+D summed output
Main mixer output normalized to compressor input

Hi-Fidelity Analogue Compressor

Soft-knee compressor based on the same family of premium audio ICs used in some 500 Series studio gear
Dedicated threshold and compression ratio controls
Gain control dials in up to +40dB of compressor make-up gain
Compressor sidechain input for creating pumping effects
LED indicator actively displays the amount of compressor gain reduction

Voltage Controlled Analogue Distortion

A classic distortion topology reborn for modular analogue synthesizers and drum processing
In/Outputs are conveniently normalized to the module's send and return jacks
Blend control lets you adjust the mix of distorted and clean input signal
Fast responding CV input allows for complex modulation patterns and even modulating with audio signals

By default, the 4 channel mixer's output conveniently feeds into the compressor's input, giving access to easy New York style parallel compression by way of the compressor blend control. The dedicated output and mixer bypass switch for channel A allow you to use it as a sidechain source for the compressor. An effects send and return allow you to create complex effects routings within your modular system. With the number of excellent DSP and other effects modules on the market today, this makes it easy to combine modules to great effect, all within the eurorack modular domain.

Redesigned by Erica Synths in close collaboration with Hexinverter. Minor alterations were made in mechanical assembly and digital controls to address Erica synths manufacturing routines and chip shortages, but the analogue signal path is 100% identical to the original version.

In September 2022 Stacy Gaudreau - the founder of Hexinverter Electronique, announced closing down the operations. Following their announcement, Erica Synths in cooperation with Hexinverter Electronique saw a way for their incredible and truly unique music instruments to keep on inspiring musicians and finding a home in countless studios to come.
The effort and innovation incorporated in Hexinverter Electronique eurorack modules are far too great to prematurely become history. Erica Synths will take over the manufacturing, sales, and support of several Hexinverter Electronique modules. While retaining all functionality of Hexinverter Electronique modules, Erica Synths redesigned the hardware of modules and will provide support for reissue modules only.

Technical specifications

Width: 24HP | Depth: 30mm
Current draw: +70mA, -70mA @ 12V

Notes: Take up to two CV signals and this passive module converts them to TRS outputs in order to control effects pedal modulation inputs, with attenuation on both channels. Simple, straightforward stuff.

Supplier's Notes:
ADDAC309 CV to Expression allows a simple and straight forward connection between modular and effect pedals that features expression pedal TRS inputs.

Instead of using an expression pedal into the effects pedal the user can use this module in between a CV source and the Effects pedal to be controlled.

This is a great way to control the available parameters on the effects pedals straight from a CV source.

ADDAC309 features 2 channels each with a CV Input with attenuator and a 1/4" jack output.

This is a passive module, the power needed for operation is taken from the pedal power instead of the modular frame, this allows for perfect matching of the pedal's operating voltage which can range from 3.3v to 9v.

Tech Specs:
4HP
3,5cm deep
Passive module

Notes: With the MORPHEUS digital filter module, Rossum are finally able to unleash the full power of the 14-pole Z0-Plane Filters that Dave invented for the E-mu Morpheus synthesizer.

The MORPHEUS Eurorack module includes over 280 filter configurations, which are called Cubes. Each Cube is composed of up to 8 complex filters that you can picture as being at the corners of a three dimensional cube (hence the name). Morpheus gives you the ability to smoothly interpolate between those 8 filters within the cube's three dimensional space.

Due to processor limitations back in the day, the original Morpheus was capable of real-time morphing in one dimension, but interpolation in the frequency and transform dimensions were set at note-on and remained static for the remainder of the note. But even with that limitation, Morpheus offered sonic capabilities that are unmatched to this day.

With the MORPHEUS filter module, you now have simultaneous real-time CV control of all three dimensions, for dynamic timbral effects unlike anything you've ever heard before. In stereo.

Like all Rossum Electro-Music digital modules, all parameters are available for adjustment with a single button press. No menu diving.

Morpheus Specifications

Filter cubes: 289
Filters: 1000
Filter sequences: 200
Sequence steps: 20,000 Dynamically Allocated

Inputs: Audio L/R
2x 3.5mm mono socket
100kO Input Impedance

Full Level Frequency CV
1x 3.5mm mono socket
100kO Input Impedance

Attenuverted Frequency CV
1x 3.5mm mono socket
100kO Input Impedance

Attenuverted Morph CV

1x 3.5mm mono socket
100kO Input Impedance

Attenuverted Transform/Distortion CV

1x 3.5mm mono socket
100kO Input Impedance

Filter Sequencer Dec

1x 3.5mm mono socket
100kO Input Impedance
1.6V threshold

Filter Sequencer Inc

1x 3.5mm mono socket
100kO Input Impedance
1.6V threshold

Filter Sequencer Reset

1x 3.5mm mono socket
100kO Input Impedance
1.6V threshold

Outputs

Audio L/R
2x 3.5mm mono socket
1kO Impedance

Power requirements
+/-12V via 16-pin, Doepfer-style connector

Current draw
135mA +12V, 25mA -12V (maximum)

Dimensions
18HP (W); Panel to power connector (with connector plugged in) 25mm (D)

Supplied accessories
1x 16-pin, Doepfer-style cable
4x M3 screws
4x M2.5 screws
4x Nylon washers
1x Quickstart Guide

Notes: The TBD module is a multifunctional DSP (digital signal processing) module that includes more than 30 different synthesis and audio processing plugins. It is a collaboration project between CTAG Kiel (an academic working group of Kiel University of Applied Sciences), instrumentsofthings.com (who produce this module for Eurorack) and tangiblewaves.

The module looks quite simplistic with it's only three knobs and three buttons, but the power lies in the web based user interface for editing and storing the parameters. For editing, the module is connected via USB to your computer and a small software tool running here is the bridge to the editing of the parameters via your web browser. IMPORTANT TO KNOW: When the editing is done, the module runs autonomously, without a computer!

Up to 10 favourites can be stored on the module and be chosen by the CONFIG button.

Dynamic control of the modules' parameters works via the two CV inputs and two trigger inputs (which are linked to two buttons), and two knobs are also available for live tweaking parameters. The assignment of inputs/knobs to actual parameters is done in the web based user interface.

Please note that the TBD module has mono audio input and output (compared to the Eurorack version which is stereo); plugins that do stereo audio work also in the AE TBD, but only on one channel. ("Why only mono?" you might ask; the limitation to mono is due to licensing agreements to keep the module price in the usual AE range.

The contained plugins are:

Talkbox (Vocoder), MSxxNoise (MS20 filter and Stone Phaser), Antique (Old Record / Tape Effect), Subotnik (Huge Modulations), VctrSyn, SpaceFX, Formantor, Bjorklund, Karpuskl, APCpp, Retroactor, Rompler (sample playback), WTOsc (custom wavetable), Claude (ported MI granular audio processor), BBeats, CStrip, CStripM, EveryTrim, MISVF, TBD03, PolyPad, TBDings (ported MI resonator), TBDaits (Ported MI Macro Oscillator), TBDeeps (ported MI Wavetable Oscillator), DustLoop, Dust, SubSynth, Sine Source, Simple VCA, SDelay, Plate Reverb, Pink Noise, MiVerb, MiVerb2, MiPShift, MiEnsemble, MiChorus, HiHat1, G-Verb, Freeverb, FBDlyLine, EChorus, Progen Reverb, CDelay

Notes: The Tiptop Audio Buchla Model 296t is a 16 band spectral resonator & vocoder based on the original Buchla 296.

The 296 was first introduced in 1978 and very few were ever made. Making a module of such complexity at a time when electronic schematics were drawn with pencils, with 48 filters that were most likely hand-calculated is just incredible.

The 70's were a great era of exploration and proof of audio electronics scientific theories, but for Don Buchla it seems like it was always something beyond theory.

The 296 might at first look like an equalizer, but Don Buchla had totally different ideas for it. He managed to pack into it a 16-band analogue modular spectral processor, a cross-band vocoder, plus a massive amount of patch points to work with his synthesizer system.

Notes: Oof. Frap casually serve up one of the best filters we've seen in a long time. Quad multimode circuits with saturation and feedback give you extensive routing options. Delicious.

Supplier's Notes:
cunsa /'cu?nsa/ s.f. [dialect of Modena of uncertain etymology, probably from a Latin *comptiare, derived from comptus, participle of comere 'organize,' 'decorate'] i curing, seasoning (of foods), tanning (of leathers).

Seasoning is crucial for cooking. It is a process that enhances the flavors, glues the ingredients together, and even adds some unexpected kick.

From a gentle refining touch to a shovelful of spice, CUNSA is the perfect seasoning tool for your patches. It can sweeten a sour lead or beef up an insipid bass line, and anything in between.

And, just like a good oil, you can even taste it by itself!

CUNSA is a quadruple analog pingable multimode resonant filter, saturator, mixer, and oscillator.

It is Frap Tools' sound seasoning tool: it can gently even a patch, applying a final touch, or it can set it on fire with a ridiculous amount of spice. It's up to you and your cooking style!

It consists of four multimode resonant filters with a custom saturation and feedback control that you can use independently or in various combinations and roles thanks to a series of seminormalizations.

Four Analogue Resonant Multimode Filters

CUNSA features four state-variable filters that can be used independently or linked and mixed. Each filter provides three behaviors simultaneously: lowpass, bandpass, and highpass. Each behavior has a 12 dB/oct slope, except for the lowpass, which can be either 12 or 24 dB/oct.

Unique 'Character' Circuit for Feedback and Distortion

CUNSA handles feedback and gain staging with extreme control and versatility. Besides the usual Q control that emphasizes the cutoff frequency, the Character circuit defines the amount of soft clipping when the filter overloads. High clipping guarantees a controlled behavior with fat tone and pure resonance, while low or no clipping lets the signal saturate the filter stages and make it scream.

V/oct Tracking and Quadruple Oscillator

Each filter responds to the V/oct signal with excellent tracking. It is thus possible to move the cutoff frequency along with the main melody or make CUNSA resonate with no input and transform it into a multiple oscillator. The V/oct inputs are seminormalled so you can control more filters with the same CV. Easy chords stabs!

Ping and Ring

CUNSA is ideal for percussive and organic tones. The Ping circuit offers a behavior similar to the BRENSO but AC-coupled. Instead of shooting the frequency to the moon with any trig, CUNSA gently responds to different incoming gates with a selectable decay curve. The Ping circuit can thus create natural decay sounds when fed with trigs or smoother envelopes with any other voltage, like a linear integrator with a custom decay.

Besides this, you can also feed the filter's audio input with trigs and make it ring at high Q settings.

Linked or Individual Filtering

The four filters can work independently or arranged in groups through seminormalled inputs and sum outputs. CUNSA can thus be a 4×1, 2×2, or a massive 1×4 filter. Even odd configurations are possible, like 1+2+1 or 3+1. Mono, stereo, or quadraphonic audio is at your fingertips.

Filter and Combo Behaviour

When the filter behavior is set to COMBINED, every control of the cutoff frequency also affects the input VCA, reducing the signal amplitude and saturation as it approaches the lowest range. It can make organic decays with the ping circuit or tame the low range at high Q and Character settings.

Four Seminormalizations for Group Use

Four inputs have a cascaded seminormalization: audio inputs, VCA CV, V/oct, and Ping. Every signal patched to a filter will thus feed also those at its right, making simultaneous use even simpler. To remove a seminormalization, simply patch a dummy cable to the corresponding input.

Analog Mixing Stage and Group Outputs

Every filter output can be routed to an analogue mix bus that sums the four filters and outputs them in three combinations: all, 1+2, and 3+4. These outputs allow for versatile audio processing. Just like we did with FUMANA, we added a gentle shelving EQ for the higher frequencies of the All output to provide additional timbral variety.

CV Inputs with Attenuators

Besides the seminormalled inputs, every filter features additional CV inputs for cutoff frequency, Q, and Character, each with a dedicated attenuverter.

Notes: Stonk it's a joystick controller with 2 channels of CV and 2 of audio. It's a CV generator, looper & audio processor.

Very hands on module which can be a chaos pad or DJ looper.

Features:

2 audio in & out (AC coupled)
2 CV in & out (DC coupled) i5V
2 extra CV outputs +/-10V
12 illuminated push buttons
CV & Audio looper (2:30 per channel)
LFO
Euclidean envelope generator
Multimode Filter
Stereo Reverb
Wave
VCA

The audio AD/DA is 24 bit, 48 KHz, the internal audio handle is 32 bit float.

The CV AD/DA is 16/12 bits, 12 KHz.

The extra CV outputs are the analogue sum and difference of the CV outputs 1 & 2.

Each channel has 6 modes available. By default 2 parameters are assigned to the horizontal & vertical axes but this can be easily tweaked, so it's possible to control any of them (frequency, symmetry, offset or amplitude of the LFO, for example) not only with the joystick but with the 2 CV inputs.

The polarity control & offset of every parameter can also be modified on every mode and every channel.

6 presets for store and recall not only the joystick assignment and settings but all the parameter values for all modes and channels.

Size 12 HP
mA +12V
mA -12V

Notes: The Morphor Ensemble is an 8-voice fully analogue chorus effect module. The module can truly upgrade any input audio into a sound with body. Transform your creations into warm and full sounds as if a whole orchestra is playing them.

Morphor Ensemble features extensive control over your effect with number of voices selection, CV-able spread, two full-featured LFOs and control over the amount of dry-add signal. This way it is possible to create a wide range of effects, from subtle broadening or humanisation of your sound up to pitch-bending craziness.

The module features a true analogue audio path based on eight BBD devices, known for their authentic and warm timbre. In summary, the Morphor Ensemble is a high-end, flexible chorus module for every analogue lover.

Weight: 167 g
Dimensions: 128.5 × 60.6 × 40 mm
Width: 12 HP

Notes: GOBLET is an analogue filter and distortion unit with some added quirks and extra controls.

Why:

To make stuff sound filthy.
To shape the output of an oscillator.
To live interact with the sound during a performance.
To soft sweep the cutoff thanks to the optocouplers logarithmic response.

With:

Simple waves - make them unrecognizable.
Complex waves - shape them into something new.
Percussions - crank the resonance and give an acid twist to a beat.
No input - play with the feedback and the touch controls.

Dimensions:

8 HP
18 mm deep

Current Draw:

45 mA +12V
25 mA -12V

Whichever power connector you use should work fine with the polarity.

Notes: Module A-101-8 is a 8-stage phase shifter which uses light-sensitive resistors (LDR) and is a replica of the Compact Phasing A manufactured by the company Schulte in the seventies. The actual phasing circuit is identical to the historic model. Only the illumination control of the LDRs is different: the A-101-8 uses LEDs to illuminate the LDRs, the historic model used incandescent miniature lamps. And the A-101-8 has no built-in LFO but can be controlled by any external control voltage source (e.g. LFO, ADSR, random, Theremin, ribbon controller, sequencer, midi). The phasing offset (i.e. the base value for the phase shifting) and the modulation depth of the external control signal can be adjusted separately. The Compact Phasing A had no offset control but only a depth control for the built-in LFO. Feedback and mixing ratio of the output signal are set by two controls. The audio input is equipped with an attenuator. The module has two audio outputs available (same as the historic model) and a visual display of the phase shifting.

The module has these controls and in/outputs available:

Control Man. : manual control of the phase shift offset (base value)

Control CV: attenuator for the signal applied to the CV socket

Control Feedb.: Feedback or Resonance (similar function as filter resonance/feedback/emphasis)

Control Mix: sets the mixing ratio between original and phase shift signal appearing at output 1

fully CCW: only the modified input signal appears at output 1 (see note below *)

center: a mixture between the modified input signal and the phase shift signal appears at output 1, that's the standard position for the classical phasing effect

fully CW: the pure phase shifted signal appears at output 1 (e.g. for vibrato effects)

Control Input Level: attenuator for signal applied to the In socket

Socket In: audio input

Socket CV: control voltage input

Socket Out 1: audio output 1 (mix signal)

Socket Out 2: audio output 2 (modified input signal)

LED: visual control of the phase shift

The module has some peculiarities (same as the historic model):

The input signal is processed at first by a pre-stage which outputs a "modified" input signal (*). This signal is not processed by the phase shift stages but is affected by the feedback setting. Only when feedback is set to zero this signal is identical to the input signal. Otherwise it contains feedback components.

This signal is output on socket Out 2.

When both output sockets Out 1 and Out 2 are used as stereo channels one obtains a spatial stereo sound effect.

The same signals is also used for the CCW position of the mix control. With mix control fully CCW the unmodified signal appears only if the feedback control is set to zero. Otherwise it contains feedback components.

The historic model had two audio inputs: one 5-pin DIN socket and a 1/4" jack socket. The DIN socket was intended for high-level line signals. When the 1/4" jack socket was used the amplification of the pre-stage increased by about 100. The 1/4" jack socket was intended for low level signals (e.g. electric guitars or microphones). For this feature the A-101-8 has an internal jumper that can be used to increase the amplification. As long as the module is used within the A-100 system usually the lower amplification is used to avoid distortion.

The 8 photo resistors and LEDs are assembled within an small lighproof box. In addition the pc boards are made of lighproof black material to avoid interfering light from other modules or the bus board.

Dimensions
4 HP
45 mm deep

Current Draw
30 mA +12V
30 mA -12V

Notes: A really clever take on looping, falling somewhere closer to granular synthesis depending on how you use it. Layer and repeat multiple sound sources to create textures, chords and unique timbres.

Supplier's Notes:
Endless Processor is a dual-channel infinite sound sustainer machine.

Put your favourite instruments, unique timbres, or field recordings - virtually any sound - and make it last forever.

It is not a looper in the usual sense - Endless Processor resynthesizes your sounds to create a perfect clickless stream while preserving the timbral and tonal character of the original.

Endless Processor always listens to audio input and keeps a most recent history. Experiment with sustaining little bits of a sample or make a massive wall of sound with the ability to select how much memorized audio to process.

Stack your sounds to create harmonies, textures, or drones with 5 layers per channel. Each layer can be re-processed or cleared while keeping other ones in place. Set fade-in and fade-out time to quickly or gradually introduce a new layer or remove the existing one.

Additional controls will help you to adjust or shape a channel volume (think built-in VCA).

Dimensions
16 HP
25 mm deep

Current Draw
125 mA +12V
10 mA -12V

Notes: Cutting Room Floor V3 Eurorack Module

(Vintage Reel-to-Reel Tape, Echo, and Stutter)

The Cutting Room Floor was designed to emulate the sound and functionality of vintage reel-to-reel tape overdrive and echo. This eurorack module reaches into the 21st century with customized features that traverse the world of modulation and delay. Imagine an abandoned factory with a fluttering tape machine left on repeat.

The Cutting Room Floor provides beautifully marred saturated tape tone, and ethereal repeats in a streamlined 6hp interface. Other features include a freeze button that traps any tone while still playing and CV control for time.

Designed and assembled in Seattle, Washington. Includes a limited 1-year warranty, if registered within 30 days of purchase.

6hp, 43mm deep, 150ma current draw.

Notes: Tiptop Audio's Z-DSP is a cartridge-based open source digital sound processing and effects generating platform for your modular synthesizer. Lush audio processing, greater stereo depth and a unique set of digital synthesis is what the Z-DSP is all about.

The Z-DSP has a stereo digital sound processor with 24-bit sampling, 15kHz of bandwidth, voltage-controlled parameters of stereo feedback, program switching, DSP parameters, equal power crossfading dry/wet mixing, as well as sequential program control switching and a clear display - all in Eurorack format. A dedicated clocking input for the DSP chip does wonders to passing sound by bending the algorithms in an unexpected way, a hardware technique computer plugins can't do and is unique to the Z-DSP.

In a recent update, the Z-DSP (NS) got an all new design of its analogue circuitry, contributing to a lower noise signal path, clearer sound of the entire frequency range, lower distortion and better immunity to noise emitted by other modules sharing the same power supply. A new analogue dry/wet circuit has been implemented to remove the 3db gain drop when the mix knob passes through the centre of the dial making the use of this function more practical in a live application. A reverse polarity protection has been added as well. The new front-panel matches Tiptop's colourful design, and a single printed circuit board and surface mount technology improve reliability during production and use. The powerful Z-DSP engine remains the same as the original Z-DSP module and all cards are compatible across both versions.

Notes: Get glitchy with it.

The 2hp Slice is a compact beat repeat/glitch engine built to add clickless stutters, digital glitches, and more to your patch. With an onboard Triplet button, seamlessly switch between straight beat repeats to offset triplets, perfect for those trap style fills you can't live without. With massive repeat range, and CV/Gate inputs for complex glitch sequencing, Slice is everything you need to get glitchy with it, all in 2HP.

Tech Specs

Width: 2HP
Depth: 45mm
Power Consumption: +12V=83mA, -12V=8mA, +5V=0mA

The 2hp Slice will be available in both Silver aluminium and Black PCB front panels.

The 2hp Slice ships with a 10-16 power cable and 2 Silver M3 mounting screws.

Notes: Collabing with YouTube sensation Andrew Huang, Endorphin.es offer up this impressive multipurpose processor module. Building blocks of stereo filtering, compression, reverb and more offer huge creative potential.

Supplier's Notes:
In collaboration with Andrew Huang, based on his modern music production techniques, Endorphin.es developed a creative audio processor with multiple blocks that can be moved around in order to achieve different flavours for sound design.

Processing unit without fixed structure: intuitively create astonishing and ephemeral timbres, from atmospheric rumbles to heavy or distorted textures.
Creative stereo effect processor with delay, reverb, filter and distortion with quickly explorable routing chain with single button press.
New generation ARM Cortex - M7 processor with 96 kHz 32 bit internal processing.
Lush hall and whooshing reverse reverbs with audio freeze and pre-delay.
Sidechain audio ducking envelope available both internally and externally with additional one knob single band compressor.
Tap delay with maximum delay time up to 2.5 seconds, external clock input with onboard clock divider and 1v/oct time control.
8x oversampled distortion algorithm.
Pre- and post - VCA, tone and volume controls with extra gain.

Power consumption:
135 mA +12V
35 mA -12V
0 mA 5V

Dimensions:
16 HP
26 mm deep with power ribbon cable connected.

Notes: Collabing with YouTube sensation Andrew Huang, Endorphin.es offer up this impressive multipurpose processor module. Building blocks of stereo filtering, compression, reverb and more offer huge creative potential.

Supplier's Notes:
In collaboration with Andrew Huang, based on his modern music production techniques, Endorphin.es developed a creative audio processor with multiple blocks that can be moved around in order to achieve different flavours for sound design.

Processing unit without fixed structure: intuitively create astonishing and ephemeral timbres, from atmospheric rumbles to heavy or distorted textures.
Creative stereo effect processor with delay, reverb, filter and distortion with quickly explorable routing chain with single button press.
New generation ARM Cortex - M7 processor with 96 kHz 32 bit internal processing.
Lush hall and whooshing reverse reverbs with audio freeze and pre-delay.
Sidechain audio ducking envelope available both internally and externally with additional one knob single band compressor.
Tap delay with maximum delay time up to 2.5 seconds, external clock input with onboard clock divider and 1v/oct time control.
8x oversampled distortion algorithm.
Pre- and post - VCA, tone and volume controls with extra gain.

Power consumption
135 mA +12V
35 mA -12V
0 mA 5V

Dimensions
16 HP
26 mm deep with power ribbon cable connected.

Notes: This is an exact hardware replica of the Mutable Instruments Clouds.

Notes: FX AID Pro:

OLED screen shows current effect's number, name and its three parameters

200 onboard effects which can be arranged in any order via the online editor https://fxaid.app/pro

Instant switching of the effects or seek then activate option

Stereo input level control

SRR input can also be routed to parameters 1-3 or effect selection

Advanced internal lfo which can be routed to the Sample Rate, parameters 1-3 or effect selection

Manual control of the Sample Rate with one click for default position

10 user storable presets with handy indicator lines for each stored parameter

Screensaver with 1, 10, 30, 60 minutes options

Easy update by playing wav file, level indicator for proper volumes matching

Notes: Librae Legio is a dynamics processor designed to take a whole patch to the next level. Compression, expansion, limiting, noise gating, and two styles of gentle distortion: Librae is the perfect tool to bring your mix together. And while it can do extreme limiting and really squash your sounds together, Noise Engineering developed it with transparency in mind - whether you want to hard-limit your techno mix or gently bring the sounds in your ambient patch together, Librae is the end-of-chain dynamics processor you've been looking for.

Notes: Another cracker from Xaoc, the Timiszoara is a take on digital multi-effects with stereo in and out, an intuitive interface and CV control of effect parameters. Big power with 176 factory programs.

Supplier's Notes:
Timiszoara is a stereo, Eurorack compatible, voltage-controlled multi-effect signal processor based on the popular Spin Semiconductor FV-1 DSP chip. It features a full stereo signal path with two adjustable audio inputs, two outputs, and a stereo voltage-controlled wet/dry mixer. In addition, there is a microSD memory card slot on the front panel that allows for loading factory and custom effects without any restrictions or copyright protection, which means you can use many effects available on the Internet and even create your own.

Effect programs are organized in banks of 8 and can be selected using a rotary encoder, as well as CV and trigger signals. Timiszoara features a crisp OLED screen that displays the program parameters and its name. It also facilitates navigating the list of banks. Up to three parameters per effect can be controlled from the front panel with illuminated slider potentiometers and dedicated CV inputs.

Xaoc Devices have prepared quite a few banks of algorithms (176 in total) that cover most effects needs: delays, reverbs, filters, modulation effects (such as choruses and flangers), pitch shifters, and, of course, shimmers (no multi-effects unit would be complete without its share of those). However, Xaoc Devices wanted to ensure that users had access to some more adventurous programs, so some special banks have been created to allow you to take a walk on the wild side.

For detailed description, please refer to the manual.

Technical details:

10hp, skiff friendly
Current draw: +120/-45 mA
Reverse power protection

Notes: Very nice old-school vocoder for Eurorack, featuring a built-in mic pre-amp and full 10-band patch bay. Internal VCO and straightforward control setup help simplify operation.

Supplier's Notes:
The VXC-2220 is an 10-band analogue vocoder with patch-bay for each individual filter section. VXC-2220 vocoder is based on the iconic classics 222 vocoder. For stand alone usage the VXC-2220 is equipped with an internal oscillator generating saw and pulse waves form C1 to C6. A simple and efficient vocoder.

Specifications

Microphone input for speech signal
Line input for speech signal
Line input for carrier signal
Input level control for speech and carrier signal
Output level control
Line output
10-Band analyzer outputs
10-Band synthesizer input
Internal VCO (1 semi-nut step size);
* Saw wave (C1 - C6)
* 3x 10% Pulse wave (C1+C2+C3 - C4+C5+C6 )
* White noise
- Synthesis for 's' and 't' sounds
- Feed-trough level control for speech and carrier channel
- Bypass switch
- 10pin power connector (+/-12V)

Dimensions:
(36HP) 128,5×182.5mm (depth: ca. 35mm incl. power connector)

Power Consumption:
+12V = 125mA
-12V = -125mA

Notes: Reverb. Well...kind of.

Welcome to Aurora, a spectral reverb capable of a wide palette of sounds: from lush caverns and whale songs, to alien textures you've never created before. And likely, will invoke a hunger for exploration you felt when you first touched a modular synth.

Aurora uses a phase vocoder audio engine which separates the input signal's time and pitch domains. By blurring these signals you can achieve beautiful time-stretched tails, or cybernetic metallic effects.

Since Aurora's sonic response is entirely dependent on the input signal, no two patches will sound alike, lending itself to an infinite world of surprise and discovery.

Discovery. It's why we are all here.

A portion of all Aurora proceeds will help the fight against shrinking ice caps and dwindling polar bear populations.

Tech Specs

Width: 12HP
Depth: 22mm
Power Consumption: +12V=215mA, -12V=5mA, +5V=0mA

Notes: If you can code it, you can make it.

The patch.Init() is ElectroSmith's exploratory modular interface for the Daisy Patch Submodule. Open-source both in hardware and firmware, the patch.Init() is the perfect jumping off point for your next modular DSP project. From ethereal reverbs, glitchy processors, comprehensive samplers, and complex oscillators, the patch.Init() can be any module you need it to be. Looking to create your own commercial module? The front panel design is completely open-source (MIT). Just create your interface, add the Patch Submodule to the back, and you are off to the races with industry leading specs in an accessible, affordable package.

The patch.Init() comes with x1 Daisy Patch Submodule.

Check out the Patch Submodule here.

Get the Design Files here.

Eurorack development platform for the Daisy Patch Submodule

High Fidelity Daisy architecture: 24-bit, 96kHz sample-rate, 64MB SDRAM, STM32 H7 processor

Stereo I/O

Utilitarian design, with code-matching front panel parameter names

Tech Specs

Width: 10HP

Depth: 31mm

Power Consumption*: +12V=90mA, -12V=5mA, +5V=0mA

*Power consumption is firmware dependent

Notes: The MFX is a compact 6HP Eurorack stereo digital audio multi effects processor.

It offers 14 different full featured effects programs plus a number of metering utilities.
Inspired by ALM's favourite classic hardware effects processors, the MFX incorporates DSP technologies from the dawn of digital effects in the 70s to the present day. This combines with ALM character and uniqueness to form a highly useful, fun and practical Eurorack effects module.

Reshape sounds with the distortion and dynamics engines. Bend time, space and pitch with multiple feature rich reverb and delay engines. Modulate signals with the flexible panner, frequency shifter, and range of ensemble effects. Fracture sounds with the one of a kind granular and glitch engines. Check signals and tune oscillators with various utilities.

The MFX user interface is designed to be familiar, quick and easy to use. Each program contains a wide range of controllable parameters both directly editable or freely assigned to CV or clocked control. Additionally, each program includes factory presets as well as the ability to store and recall user presets. All states are preserved across power cycles.

Effect Program List

Digi-PCM Echo
Feature rich digital delay taking inspiration from early prime time rack delay units with added modern features.

Tape-Tech Echo
Tape style delay with a digital pitch shifter bolted on.

Crumbular Echo
More experimental granular style echo.

Ursa Minor Echoverb
Emulation of the classic Ursa Major 'Space station' providing more delays and reverb type effects.

Pocket PL8 Reverb
Emulation of very early digital style reverbs with a dense metallic sound.

Almicon Reverb
Emulation of 80s studio style reverb great for bright rooms and vast synthetic spaces.

Quaidra Reverb
Emulation of a popular 90s rack reverb. Excels at creating airy, atmospheric reverbs.

TY-50 Compressor
Flexible modern compressor great for adding punch, smoothing transients or as a clean mix bus compressor.

Transient Shaper
Fast acting dynamics processor for reshaping the attack and release envelope of any sound.

TH-30 Distortion
A versatile distortion program with distortion types ranging from analog style saturation to intense digital wavefolding.

2051 Bit Corrupter
Real-time audio buffer designed to imitate malfunctioning digital audio equipment.

Modulating Panner
Clock-syncable mono or stereo auto-pan with an additional scan mode that cross fades between 2 input signals. Use for VCA, Panner, crossfader, tremolo type effects.

Ring + Freq Modulator
Pair of classic modulation effects in stereo, tailored towards otherworldly and dissonant sounds.

Ensembles Ensemble
Simulation of classic chorus and ensemble effects. An added digital pitch shifter takes the effect beyond traditional chorus circuits.

Utilities
Simple oscilloscope and VCO tuner.

Technical Specifications

Supply: +12V 50mA Max / -12v 15mA
Size: 6 HP
Depth: 32mm
16 Bit / 44.1Khz Stereo processing

Notes: Quasar brings 3D spatial audio to the Eurorack world. It is a two-channel audio mixer that uses binaural algorithms. You can seamlessly move sounds around your head, dynamically change the angle, height and distance in real time.

** Includes 3mm screws, 16-Pin to 10-Pin eurorack power cable, USB cable for firmware updates **

Main functions
2 mono inputs
Stereo output (two single jacks + headphone stereo jack)
2 CV inputs
24Bit 48kHz inputs and outputs, 32Bit internal signal processing
Dynamic 3D positioning in three dimensions (height, angle, distance)
Room reverb can be applied for better localization
Internal LFOs with flexible routing
External CVs can be flexibly routed to all parameters, multiple destinations per CV, individual intensity
Different 3D transfer functions to choose from
Two large endless encoders with aluminum knobs, RGB LED rings for setting and displaying parameters
OLED display for navigation and to show which parameter the encoders are currently controlling
Flat menu structure, no deep dives neccessary
" User presets can be flexibly created and recalled
" Potentiometers for volume control of the three positions Quasar 1, Quasar 2 and Center

Quasar creates a 3D sound image by binaural audio processing. Two positions named Quasar 1 and Quasar 2 are available, which you can virtually place and move at any angle, height and distance around your head. Room reverb can be added as a further aid to distance perception. The audio signals at input 1 and input 2 can be flexibly routed to either or both positions via an internal matrix mixer. The coordinates of the positions can be set manually or be modulated by internal LFOs or external CVs. For example, you can have sounds orbiting around you, coming from above or below, front or back, and moving toward or away from you. Likewise, a centre position is available as a routing destination that leaves the signal without sonic processing to create a dry/wet mix.

Quasar features two CV inputs which can be flexibly routed to any target inside the module. In fact, each CV can have up to four different targets, which enables a very flexible design of auditory 3D-scenes.

Internal LFOs can be used to add dynamic movement and to create spectacular three-dimensional scenes. There are a variety of standard and advanced waveforms that can be routed to the position coordinates. LFOs can also be triggered and reset by external CVs.

Quasar can add some reverb to the signal. While not being a reverberation module in the first place, Quasar's reverb can improve distance estimation, but also be used to create impressing ambient stereo soundscapes.

All inputs also have digital high and low pass filters, so you can decide which frequency bands go to which position. However, in addition to Quasar 1 or Quasar 2, you can also route the audio to the center position. The center position takes the input signal and distributes it equally to the left and right ears without further processing. For example, you can route the low frequencies to the center position and have the higher frequencies distributed to the outer positions Quasar 1 and Quasar 2. That way, the bass stays centered and mono-compatibility is preserved.

As soon as a three-dimensional virtual scene has been created, it can be saved to the module's preset list. That way, scenes can be recalled at any time. Quasar also features some factory presets as a starting point and to show off the module's capabilities.

The module works best with headphones, as the algorithm basically mimics the shape of the head and the pinnae, which are responsible for our directional hearing. But even if you play the sound through speakers, you will hear a significant difference from classic panning.

As spatial hearing is a psychoacoustic effect that everybody perceives in a slightly different way, Quasar offers several transfer functions for different ear types to choose from. This way, the intensity of the 3D effect can be adjusted to personal needs and fits with the processed audio signal.
With its large aluminum knobs, LED rings, rubber potentiometers and mechanically solid components, Quasar is fun to use and invites creative work.

Notes: Desmodus's Aggressive Reverb/Delay Counterpart.

Not quite a reverb, not quite a delay, it's Desmodus's more aggressive clocked counterpart. More distortion, more in-your-face atmospheres, and synced delays for creating your tails in a whole new way. Use Electus Versio as a spacey clocked delay, as a reverb that starts with some synced echoes, or as a completely new way to create evolving spaces.

Notes: LYRA8-FX is a processor that can give you a significant part of the mysterious LYRA-8 sound thanks to the FX section from the LYRA-8, expanded with CV controls and packed into a Eurorack module.

It contains a double modulated lo-fi delay with cross-feedback and the unique possibility of self-modulation, where the delay output signal modulates its own sample rate. Also, it packs a parallel distortion with CV control of the drive. The distortion is after the delay. It's much more than a delay - you can get a simple reverb, comb filter, chorus and much more cool FXs which are hard to describe.

It has a famous LYRA-8 build quality - no SMD, no twisted plastic shafts.

Pots:
IN volume
Stage 1 delay time
Stage 2 delay time
Stage 1 delay time modulation depth
Stage 2 delay time modulation depth
Delay feedback
Delay feedback CV amount
Delay mix
Distortion drive
Distortion mix
Distortion drive CV amount

Switches:
- Stage 1 delay time modulation source
Stage 2 delay time modulation source

Ins:
Audio in
Delay time CV
Delay feedback CV
Distortion drive CV

Outs:
Main audio out
Delay only out

Dimensions:
Width: 20HP
Depth:40mm

Power consumption:
+12V - 90ma
-12V - 20ma

Notes: User-friendly mid/side processing module. Tweak the stereo image or split a stereo signal into mid and side elements then route out to other modules for further processing before summing back together. Powerful.

Supplier's Notes:
Minsk is a stereo image processor. It is a hybrid tool that combines digital and analog processing to facilitate advanced mid/side (M/S) manipulation of a stereo signal pair. It allows for separate treatment of the mid and side components, which affects the depth and width of the auditory scene. Minsk offers both manual and voltage control of the stereo width, as well as two dimension effects for enhancing the existing stereo image or creating a faux stereo image based on the stereo or mono input source. Minsk is especially handy during the preparation of a vinyl release or before a club concert, because it can eliminate out-of-phase low-end frequencies (high pass filter at 300Hz with the filter slope 12dB/oct, 50Hz with the filter slope 24dB/oct).

Dimensions:
6 HP

Current Draw:
140 mA +12V
40 mA -12V
0 mA 5V

Notes: Endlessly customisable digital 'modular system within a modular system'. Includes more than 80 modules, allowing you to create effects, synths, control devices, oscillators, filters and much more.

Supplier's Notes:
What's a Euroboro?

The ZOIA Euroburo is a digital modular system that can be placed in your modular system, a real Russian nesting doll situation. We added a headphone output and a super-slim optional case so the Euroburo can live happily on your desktop or be easily mounted in a Eurorack case. Hence the euro + buro, pronounced "bureau"...get it!?

Create unique signature effects, synthesizers, sequencers and more while using 4 freely assignable CV ins and 4 outs to interface with other CV enabled devices. The additional headphone output and powered 9v case makes the module even more desktop friendly. With over 90 modules from CV utilities to audio effects, oscillators and envelopes to MIDI, the Euroburo can do almost anything to fill the gaps in your setup.

There's no need to worry about getting bogged down with endless menus or a cluttered interface. Creating patches and performing with the ZOIA is a tactile experience. Patching, deleting or moving modules and editing values can all be done quickly using the push-button grid and a flick of the encoder. With the addition of dedicated push buttons for the CV and Audio I/O, patching on the ZOIA has never been faster.

Notes: Rich distinctive sounds. Compact size. Meet Dreadbox's Euphoria 8-Stage Phaser. Made from only the finest components, Euphoria is built using premium grade OTA chips. Yes, you read that right. These chips ensure you achieve that warm analogue sound at a price which won't break the bank. Thanks to its compact 10HP design, you can guarantee that the module will easily fit within your set-up with absolutely no rearrangements needed.

Use this module to create the most intricate of phase-shifted AM tones by manipulating the in-built LFO or an external modulator. Take your sound further by embracing the feedback back control, this allows you to increase the amount of harmonics present in your sound. Incredibly versatile, Euphoria is able to accept signal from modular and line-level sources, enabling you to incorporate your favourite instruments into your set-up.

58 mA +12V
52 mA -12V
mA 5V
35 mm deep
Current consumption: 58mA@+12v , 52mA@ -12v
10HP

Notes: Clouds

This is a new build of a Mutable Instruments Clouds. This module is identical to the now discontinued factory made Clouds. This module loads parasites 2.01 Firmware by default.

The module is fully assembled, tested, and calibrated. Eurorack power cable is included.
