New releases today: Studio Equipment

Notes: Your versatile production companion for on-the-go!

The Xsynth may look like a master keyboard, but it's so much more: As a fully-fledged synthesizer, it's perfect for sketching ideas and turning them into reality - anytime, anywhere. Based on the acclaimed Xkey series, this portable synthesizer offers not just unmatched mobility but also an integrated MIDI and audio interface. Whether in the studio, on the road, or at home, the Xsynth is the ideal solution for those who value performance, flexibility, and sleek design.

4-in-1 Mobile Production Companion

Your ultimate production companion for creative freedom on the go! Combining a 25-key keyboard with polyphonic aftertouch, a MIDI interface, an audio interface, and a built-in synthesizer, Xsynth serves as your musical sketchbook, expanding your creative horizons. Wherever you go, Xsynth goes with you - it operates as a standalone synthesizer or seamlessly integrates with a DAW and other hardware as a versatile controller. Soon, Xsynth will become the cherished centerpiece of your setup.

Connectors

Xsynth is very thin, and still has all the connectors you need.

Multi-sensitive Keys

Xsynth comes with 25 velocity sensitive keys that follow exactly the octave range of traditional pianos. Despite the slim design they even provide polyphonic aftertouch.


Encoders and Display

All synthesiser functions and parameters can be accessed quickly via the encoders with real time updates and information on the Xsynth display.

Smart Buttons

Durable rubber smart buttons provide features like Pitch Bend, Modulation, Hold, allow the change of the keyboard Octave range, Glide and you can enable or disable the powerful integrated Arpeggiator of Xsynth.

Bundled Software

In order to get you started right out of the box, Xsynth ships with a powerful software package for professional recording, creation of your own songs, mixing of any audio content and much more. The following applications are currently included:

Bitwig Studio 8-Track - the trim and effective DAW to start producing, performing, and designing sounds like a pro for use on up to eight tracks of audio / MIDI, incl. the Bitwig Essentials Package, a versatile selection of handpicked presets and sounds. Record instruments, create your arrangements, design new sounds, or just jam - every feature has been developed by musicians, for musicians!

Cubasis LE is the compact version of Steinberg's mobile multitouch sequencer, providing the same look and feel of its bigger brother Cubasis. Specially designed for quick and easy operation, Cubasis LE makes recording, editing and mixing a breeze, no matter where you are, right there on an iPhone or iPad when connecting Xsynth.

Whether you are a hobby musician, home studio owner, freelancer or podcaster - WaveLab LE helps you to bring your music, voice and sound recordings to a more professional level. This easy-to-use mastering and audio editing software from Steinberg turns your computer with Xsynth into an audio analyzing, editing and publishing studio.

Notes: The first outing for KMA's unique and custom AI driven True Double Tracker technology was in the ENDGAME, their powerhouse end-of-chain pedal. KMA designed their dead-simple-to-use, TDT Algorithm in ENDGAME to be as authentic to the doubling recording process as possible, but they realise that not everybody needs all the bells and whistles of such an all-encompassing device.

However, the processing power requirements required for TDT meant a simpler device wasn't yet possible. But as demand from the community grew, KMA's team worked hard to squeeze it down and make it happen.

So, meet GEMINUS - all of KMA's True Double Tracker goodness in a compact pedal that's suitable for any board. Whether playing live or recording with a single instrument, GEMINUS is the perfect solution for adding "fatness" and "width" to your performances - it really does feel like you are playing the same riff twice!


Enabled via the soft bypass footswitch, GEMINUS accurately replicates the minor differences that exist between two separate recordings. The TDT WIDTH control spreads your doubled tracks, anywhere from completely centred (0%) to 50% left and right (centre indent) and 100% left and right split.



KMA has carried out extensive research on how to make double tracking sound exactly how they think it should perform. In the process, they've spent thousands of engineering hours working on our own proprietary technology, even developing their own custom neural network AI with onset detection in the process for our algorithms.

The mode for the TRS input and output jacks is selected by the toggle switch. You can choose between stereo in and out, mono in and stereo out or mono in to mono out, so no matter your signal and tonal desires, GEMINUS will fit into your rig with ease.

For the most accurate performance (and just like the real double tracking scenario in the studio), their custom True Double Tracker algorithm should ideally be fed with a mono signal. Obviously if you are trying to emulate what traditionally happens in the studio, you wouldn't normally double up a stereo source. Having said that, the TDT algorithm has been optimised to still have a useful and very pleasing widening effect on stereo input signals, just take care that using too much doubling on some stereo sources may cause your carefully crafted reverb, delay or other modulation effects to turn to mush or even add phase issues.

To help tailor the Doubling to your own taste, the TIME control changes the timing range of the doubled AI-driven onset detection. Essentially, it's all about the tightness of the doubled signal to fit differing playing styles. Variable from an extra tight mode, that's perfect for extra fast riffs, to a looser timing that can just the right amount of density to more open playing styles, this control is a powerful weapon to make your riffs fit your musical goals. The centre detent is GEMINUS' default factory position, but turning the knob left will give a tighter feel. Crank the knob to the right and the doubled signal becomes much more relaxed.


While the LEVEL control affects the balance of the doubled signal against the original source. Useful for those times where you might want maximum width, but a little less (or even more) of the sound to be doubled against the original. Centre detent of the knob is GEMINUS' default factory position. There's some clever panning stuff going on under the hood here too, so neither the doubled or original signal is louder on one side or the other, when in Stereo.

Finally, the new PITCH selector switch can add some additional movement to your doubled signal, extending the usefulness of GEMINUS beyond standard doubling. When the switch is at the centre default position (-) there is no pitch adjustment, (~) adds some subtle modulation, while (?) adds even more wobble. In this mode, it doesn't mean that your second guitarist will sound like they are off on a quest for enlightenment all on their own (!), it is just super handy for those times when you want more chaos and instability in your ensemble.

To top it all off, they've added a switchable real True/Buffered bypass and 'silent' relay-based soft switching. When KMA were testing our new pedal platform, they really loved the clarity and signal integrity of KMA's Buffered Bypass, plus there are zero clicks and pops when switching in this mode, which is why it is the recommended and default mode on shipping. However, they know some players have some special devices like extra fussy vintage fuzz pedals and the like, so they added the ability to select True Bypass mode via an internal dip switch.

Phew, seems that there's quite a lot going inside GEMINUS then. We believe our True Double-Tracker in this pedal is the best sounding, yet easiest to use doubler you'll ever play - period.


Go forth and multiply your riffs!


Product Type:

Stereo True-Double-Tracker (Proprietary Doubler) pedal

Bypass Type:

Switchable True/Buffered Bypass with 'silent' relay-based soft switching

Power Supply Requirements:

9 V DC - Centre (-) negative 2.1mm

Current Draw (max):

< 100 mA

Product Dimensions / Weight:

H: 60 mm / 2.36 inch
W: 74 mm / 2.91 inch
D: 128 mm / 5.04 inch
Weight: 350 g / 12.35 ounces

Notes: Bye bye is a simple but efficient analog line and phone stereo output with a header on the back to connect it to the Supamix and a led indicator showing clipping.

Notes: Levers is a compact dual VCA for your 1U rack. It is simple and efficient for modulating signal levels.

Notes: Mixy is a simple mixer to sum your signals in your 1U row. Since it is DC coupled, you can mix audio or fixed signals.

Mini and useful:

Mix your signal: the 3 first inputs are attenuated, the 4th input is summed without attenuation.

Connect it: you can connect the mixy to the bye bye module with its back header

Notes: Oscy is here when you need a compact analog oscillator.

Mini but nice:

Choose your waveform: with its 2 outputs, you can route it to differents modules

Go for sub: the square output has a potentiometer to mix a square waveform with a one octave lower sub square waveform

Oscy is perfect to create a small analog voice or to modulate other oscillators.

Notes: SIFTER is compact but fat. it has been created to get that warm analog filter sound without using to many HPs

Mini and filtery:

Split your signal: with its 2 poles highpass and lowpass outputs, you can split your signal and treat the low and high in parallel

Make it shine: the resonance control will add some whistle to your sound

Sifter is perfect for the ones who need to have fat filtering in compact cases

Notes: Black version of Arturia's superb KeyLab MK3, one of the best MIDI controllers around. 88 full-sized keys with fully weighted Fatar keybed, plus the option to use pads, rotaries, faders, built-in arpeggiator and other performance features.

Supplier's Notes:
Building on the success of their recent rev3. releases (Minilab 3, Keylab Essential 3 and Keylab MK3) Arturia are delighted to share their next gen 88 note controller keyboard, the Keylab 88 MK3.

With a full-size hammer-action aftertouch keybed and next-level software integration encased in hard wearing high-quality materials and hard-wood panelling - KeyLab mk3 88 not only looks the part but will stand the test of time on stage and in the studio.

Keylab 88 MK3 features all of the refinements found in the other MK3 keyboards, but it sports a massive upgrade to it's keybed over previous models, now equipped with a FATAR TP/110 the Keylab 88 MK3 delivers a stunning playing experience, unlike any other 88 note controller on the market.

With a stunning visual display that shows a range of contextual information on-screen alongside touch-sensitive controls and advanced creative features; it enhances every aspect of the music-making process. From integrating effortlessly with Analog Lab Pro and all major DAWs to supporting musical ideation, keyboardists, producers and composers alike can take full command of their setup like never before.

From customizable MIDI settings and intuitive controls to advanced creative features that support musical ideation - KeyLab mk3 is a powerful ally both in the studio and on stage

KeyLab mk3 offers advanced connectivity with all major DAWs including MCU/ HUI protocols, allowing you to view contextual information on-screen, create user programs and have complete control of your music making software and instruments.

With Analog Lab Pro, Ableton Live Lite and a range of timeless instruments from the world-renowned V Collection, discover a suite of pro-grade software to start making music right away.

Main features

Redesigned Keybed

88-note fully-weighted Fatar TP/110 keybed with aftertouch

Pads & controls

1 clickable encoder
9 360- rotary encoders
9 x 50mm faders
8 transport switches
4 command switches
1 modulation wheel & pitch wheel
12 touch & pressure-sensitive pads

Advanced display

Full Color 3.5" 320x480px screen with 8 contextual buttons for intuitive control and feedback

Smart features

Multi-mode arpeggiator
Chord mode with smart voicing
Scale mode
Hold function

Software integration

Seamless integration with Analog Lab V and V Collection instruments: select sounds, browse presets, smart-assigned controls
Advanced integration with FL Studio, Logic Pro, Ableton Live, Cubase, Bitwig Studio
Also compatible with MCU/HUI control
Up to 6 user presets for a totally customizable experience

Included Software titles & services

Analog Lab Pro software with 2000+ sounds
Ableton Live Lite
Mini V, Augmented Strings, Piano V, Rev PLATE-140
2-month Loopcloud subscription
Melodics subscription for 40 lessons

Connectivity

USB-C connects to computers and MIDI Control Center
MIDI 5-pin DIN output for connection to external instruments, gear
Control input for pedal: sustain, modulation and expression plus an additional Aux-in
USB-C powered

Platform specifications

Windows

Win 10+ (64bit)
4 GB RAM
4 cores CPU, 3.4 GHz (4.0 GHz Turbo-boost)
3GB free hard disk space
OpenGL 2.0 compatible GPU
ARM processors not supported on Windows

Apple

Mac OS 11+
4 GB RAM
4 cores CPU, 3.4 GHz (4.0 GHz Turbo-boost) or M1 CPU
3GB free hard disk space
OpenGL 2.0 compatible GPU

Required configuration


Works in Standalone, VST, AAX, Audio Unit.
Analog Lab not compatible with NKS

Work with ASC

An elegant and simple solution to help you install, activate, and update your Arturia software instruments.

Box contents

KeyLab 88 mk3 Unit
Laptop plate
Musical sheet holder
USB-C to USB-A cable
Registration card
QuickStart

Size & weight for 88 keys

Size : 50.98 x 12.72 x 4,45 inches (1295 x 323 x 113mm)
Weight : 34.6 lbs. (15.7 Kg)

Notes: MicroLab mk3 is designed for today's modern creatives. Its ultra-compact form factor, high-quality keybed, and intuitive controls make it the perfect MIDI controller for producers working in small studios, on the go, or just starting their music production journey.

With a durable, lightweight design and plug-and-play USB connectivity, MicroLab mk3 fits seamlessly into any workflow - empowering you to start making music instantly. Enjoy complete integration with leading software including Analog Lab Intro and Ableton Live Lite, and extend your creativity with features like chord mode and dual touch strips for expressive performance.

Small, lightweight, durable, and USB-powered - ideal for mobile music-making and compact studio setups.

With a high-quality slim keybed, MicroLab mk3 delivers a responsive and true playing experience that your music deserves.

MicroLab mk3 delivers big sound with 500 curated presets from Analog Lab Intro, intuitive control via four buttons and two touch strips, and instant music production with Ableton Live Lite.

Its plug-and-play USB connectivity and intuitive features ensures you can start creating music right away - no hassle, no setup.

Main Features

High quality keybed

25-note velocity-sensitive slim keyboard, responsive and expressive.

Controls

2 touch strips for pitch bend and modulation.
4 control buttons for octave shift and navigation.

Smart features

Chord Mode - Play full chords with a single key
Hold function
Octave up and down buttons
Semitone transpose

Software integration

Seamless compatibility with all major DAWs and soft synths.
Analog Lab & V Collection browsing - Explore 500 curated sounds instantly.

Included Software titles & services

Analog Lab Intro - 500 sounds from iconic synths and keyboards.
Ableton Live Lite - Essential tools for recording and producing music.

Connectivity

USB-C powered for instant plug-and-play operation.
MIDI class-compliant - Multiclient MIDI driver for Windows.
Compatible with iPads & Android devices (via adapter).
Sustain pedal input - Connect a sustain or expression pedal for enhanced performance.

Size & weight

Size (mm): 406 x 39 x 125 mm
Size (in): 15.98 x 1.54 x 4.92 in
Weight (kg): 0.62 kg
Weight (lb): 1.37 lb

Notes: MicroLab mk3 is designed for today's modern creatives. Its ultra-compact form factor, high-quality keybed, and intuitive controls make it the perfect MIDI controller for producers working in small studios, on the go, or just starting their music production journey.

With a durable, lightweight design and plug-and-play USB connectivity, MicroLab mk3 fits seamlessly into any workflow - empowering you to start making music instantly. Enjoy complete integration with leading software including Analog Lab Intro and Ableton Live Lite, and extend your creativity with features like chord mode and dual touch strips for expressive performance.

Small, lightweight, durable, and USB-powered - ideal for mobile music-making and compact studio setups.

With a high-quality slim keybed, MicroLab mk3 delivers a responsive and true playing experience that your music deserves.

MicroLab mk3 delivers big sound with 500 curated presets from Analog Lab Intro, intuitive control via four buttons and two touch strips, and instant music production with Ableton Live Lite.

Its plug-and-play USB connectivity and intuitive features ensures you can start creating music right away - no hassle, no setup.

Main Features

High quality keybed

25-note velocity-sensitive slim keyboard, responsive and expressive.

Controls

2 touch strips for pitch bend and modulation, 4 control buttons for octave shift and navigation

Smart features

Chord Mode - Play full chords with a single key
Hold function
Octave up and down buttons
Semitone transpose

Software integration

Seamless compatibility with all major DAWs and soft synths.
Analog Lab & V Collection browsing - Explore 500 curated sounds instantly.

Included Software titles & services

Analog Lab Intro - 500 sounds from iconic synths and keyboards.
Ableton Live Lite - Essential tools for recording and producing music.

Connectivity

USB-C powered for instant plug-and-play operation.
MIDI class-compliant - Multiclient MIDI driver for Windows.
Compatible with iPads & Android devices (via adapter).
Sustain pedal input - Connect a sustain or expression pedal for enhanced performance.

Size & weight

Size (mm): 406 x 39 x 125 mm
Size (in): 15.98 x 1.54 x 4.92 in
Weight (kg): 0.62 kg
Weight (lb): 1.37 lb

Notes: A contemporary reboot of the 1970s miniKORG 700, the 700Sm introduces a second oscillator, MIDI, arpeggiator and spring reverb. All the features of 2021's limited-edition 700FS reboot in a more compact, portable package.

Supplier's Notes:
The miniKORG 700Sm is a compact tribute to the iconic miniKORG 700, the very origin of Korg's analogue synth history, enhanced to meet the needs of today's musicians. Featuring two oscillators for thick, detuned sounds, the miniKORG 700Sm sees the return of the signature Traveler controller, allowing for expressive filter adjustments. With advancements like aftertouch, spring reverb, an arpeggiator, and a range of connectivity options including USB and MIDI, this synth is both a powerful standalone instrument and an excellent companion to stage keyboards. Complete with a custom soft case and a free software bundle, the miniKORG 700Sm brings vintage analogue sound into the present day.

Released in 2021, the miniKORG 700FS was a spectacular recreation of the legendary 1970s miniKORG 700S analogue synthesizer, enhanced with additional functionality that wasn't possible in the original. The miniKORG 700FS was so popular that its limited production run sold out quickly, with significant demand for increased production. Korg has a long history of groundbreaking analogue synthesizers. The miniKORG 700Sm is a tribute to the miniKORG 700, the very origin of Korg's analogue synth history, while being enhanced to meet the needs of today's musicians.

Downsizing the miniKORG 700FS

The miniKORG 700Sm retains all the features of the miniKORG 700FS in an instrument approximately 86% the size of the original. Additionally, the miniKORG 700Sm weighs just 5.8 kg (12.8 lbs), making it easy to transport.

The elements vital to an analogue synth

The character and richness of the sounds produced by the miniKORG 700 could not be realized through analogue modelling. Although it's possible to replicate a circuit by using the same parts and copying the design schematics or circuit board, there's no guarantee that this will reproduce the original sound. This is because the components age over time, dramatically altering the sound. To accurately recreate the original sound, Korg had to rely on the experience and skill of the technicians who worked on the original product.

Korg were able to bring the original sound to life thanks to their team of technicians, who have gained invaluable expertise over the years through their work on numerous synthesizer revival projects. This team was guided by the legendary Fumio Mieda, a Korg engineer since the early 1970s and one of the designers of the original miniKORG 700S. Working closely with Korg's sound designers, they meticulously reproduced the original sound as faithfully as possible. Those who play the miniKORG 700Sm will experience it as a beautifully crafted and authentic recreation of the original.

Beautiful synth leads, thick bass - and more

The miniKORG 700 was Korg's first synthesizer, and produced some of the most recognizable, rich and fattest analogue sounds of the time. The new miniKORG 700Sm features oscillators with an unmistakeable tone and an authentic recreation of the Traveler controller- a signature element of the miniKORG 700- designed to add extraordinary colour and expression to performances. Its sound fits seamlessly in today's music, especially with its standout lead and bass synth tones.

Secondary keyboard possibilities

The miniKORG 700 was originally designed as a secondary keyboard, often placed on top of an organ to expand their sound palette. The miniKORG 700Sm, with its compact and portable form factor, stands out as a powerful solo instrument but also complements stage keyboards like electric pianos and organs perfectly.

The controls on the miniKORG 700 were laid out below its keys in a row, allowing players to easily access them when it was placed on top of another instrument. This intuitive layout remains unchanged, offering simplicity, ease of use, and a unique look that sets it apart from any other instrument.

Expanded functionality When the miniKORG 700 was originally released, electronic components were larger in size, limiting functionality due to the small space inside. Thanks to advancements in technology, there is now room to include a spring reverb as well as a joystick for pitch bend and modulation. The new version also features aftertouch for added expressiveness, as well as an arpeggiator, USB port, MIDI IN connector and a CV/GATE IN jack. Korg have also added memory programs to store settings, something that wasn't available in the early 1970s.

Traveler controller

A unique feature of the miniKORG 700, the Traveler controller, consisted of two parallel sliders located below the keyboard. With these controls, players could adjust the cutoff frequency, with the upper lever controlling the low-pass filter and the lower lever controlling the high-pass filter. This gave players the freedom to adjust the expressive character of the sound according to the position of the levers. By moving the levers to the left and right while playing the keys, wah-wah and muted sounds could be created along with the iconic "traveling" sound.

Since the sound passing through the filter has a lower cutoff frequency and higher cutoff frequency than the frequencies set by the sliders, all frequencies are filtered and thus no sound is heard when the positions of the two sliders are inverted. In other words, making the two sliders cross would in theory produce no sound. To address this, the original miniKORG 700 featured protrusions on the sliders to physically prevent them from crossing.

The design was both a benefit and limitation of analogue circuitry. In the past- and even today- it's impossible to design a filter with perfect characteristics. During the time that the miniKORG 700 was sold, some players would shave off the protrusions on the sliders to allow them to cross, in an attempt to create new sounds. In fact, some models sold internationally did not even have the protrusions to begin with. The miniKORG 700Sm also does not have the protrusions, opening endless sound design possibilities and allowing players to create patches in unique ways.

A second oscillator The miniKORG 700 was a single-oscillator mono synth. One year later 1974, the miniKORG 700S was released with more space added to the left of the keyboard for a controller. This version also introduced a second oscillator, a ring modulator, and other enhancements. The new Sm model is a revival of the 700S, with its expanded functionality, including two oscillators that deliver powerful detuning and thick, penetrating sounds, particularly for bass and lead sounds.

Includes a made-to-fit soft case

The miniKORG 700Sm comes with a custom-made soft case designed to perfectly fit the instrument, ensuring both protection and portability. This case makes it easy to take your miniKORG 700Sm wherever you go, whether you're performing, recording, or traveling, keeping your synth safe and secure.

Free music software bundle

The miniKORG 700Sm comes with a diverse variety of music software including Izotope (featuring "Ozone Elements" which lets you not only create songs but also master them using AI), "Skoove" which will help you improve your keyboard playing skills, "miniKORG 700S" from the Korg Collection software, as well as a wide range of software synths from Korg and other developers.

Specifications

Keyboard: 37 keys (Slim-key, with aftertouch, no velocity sensitivity)
Range: 7 octaves
Waveform: Triangle wave, Square wave, Sawtooth wave, Chorus I, Chorus II
Programs: 14
Input: USB connector (Type B), MIDI IN connector, SYNC IN and SYNC OUT jack (3.5mm monaural mini phone jack), CV IN and GATE IN jack (3.5mm monaural mini phone jack), AUDIO IN jack (6.3mm monaural phone jack, TS unbalanced)
Output: OUTPUT L/MONO and R jack (6.3mm stereo phone jack, TS unbalanced), Headphones jack (6.3mm stereo phone jack)
Power supply: AC adapter (DC 12V)
Power consumption: 9W
Dimensions (W × D × H): 641 x 228 x 107 mm/25.24" x 8.98" x 4.21"
Weight: 5.8 kg/12.79 lbs.
Included items: AC adapter, Traveler knob (without protrusions type) x 2, Soft case Accessories (sold separately)
SQ-CABLE-6 (Patch Cable)

Notes: One of the most reliable brands of portable recorders turn out the goods once again. The H5studio records up to six tracks simultaneously, and also functions as a 4-in/2-out USB interface. High quality and versatile.

Supplier's Notes:
The H5studio was made for seamless and professional production. Creators can record flawless audio with stunningly clear microphones, studio-grade preamps, and 32-bit float recording.

The 19.4mm microphones capture audio with incredible frequency response, 140 dB max SPL, and an expansive dynamic range. Their increased size captures recordings with unmatched depth and clarity.

The H5studio features Zooms F-series preamps, giving your audio unmatched clarity (-127 dBu EIN). With dual AD converters and 32-bit float, it delivers an impressive 132dB dynamic range, capturing everything without noise or distortion.

32-bit float and 16/24-bit formats each have their advantages. 32-bit float prevents clipping but requires post-production. 16/24-bit eliminates the need for post-processing but requires gain adjustment to prevent clipping. The H5studio offers the best of both worlds with 32-bit float and dedicated gain knobs - no clipping and no need for post-production.

The H5studio captures up to six tracks (four iso-tracks plus a stereo mix) with sample rates up to 192 kHz.

Carefully engineered RF shielding keeps interference from smartphones and Wi-Fi routers out of your recordings, anywhere you go.

The H5studio features "advanced look-ahead" limiters which anticipate potential overloads and prevent distortion before it reaches your track.

The two locking XLR/TRS inputs support +48V phantom power and +4dBu line level. There is also a 3.5mm stereo jack with plug-in power.

The H5studio's 3.0 capsule system supports 32-bit float and gives creators more options to use the right mic for their recording.

Monitor input levels and real-time waveforms with the full color LCD, making it easy to adjust and monitor audio in real time.

Use the loud 20 mW headphone output to monitor or listen back to your recordings in any environment.

Use the 3.5mm stereo LINE OUT to connect directly to a camera, easily syncing your audio and video.

The built-in speaker has a maximum output of 250mW for previewing recordings on the spot.

The H5studio is a 4-in/2-out USB audio interface for Mac, Windows, iOS, and Android, supporting 32-bit float and 16/24-bit recording. Stream live and simultaneously record a backup to microSD.

Notes: Rack power bringing 2.5A (2500mA) on both the +12V and -12V rails. There is a 5V rail, but it pulls from the +12V rail, up to 750mA. So only use the +5V rail if you have to.

Comes with 12-position flying bus cable and wall power supply. The wall power supply is the same unit as After Later Audio use on their cases, so there's plenty of headroom and you don't have to worry about memorizing which amperage is for which.

This should be roughly enough for 2 rows of modules in a 104hp case. If you just need power for 1 row, check out our Warp Drive module.

Notes: Rack power bringing 1.25A (1250mA) on both the +12V and -12V rails. There is a 5V rail, but it pulls from the +12V rail, up to 750mA. So only use the +5V rail if you have to.

Comes with 12-position flying bus cable and wall power supply. The wall power supply is the same unit as After Later Audio use on their cases, so there's plenty of headroom and you don't have to worry about memorizing which amperage is for which.

This should be roughly enough for 1 rows of modules in a 104hp case. If you need power for 2 rows, check out The Force module.

Notes: Euphoria is a full analogue 8-stage phaser, delivering rich, vintage phase shifting with deep modulation capabilities.

A versatile phaser perfect for lush movement and evolving soundscapes in Eurorack setups.

Specifications & connections

8-Stage Phase Shifter
OTA-Based
1 Input for eurorack level (10pp IN)
1 Input for instrument level (500mVpp)
Built-in LFO
Current Draw: 58mA (+12V), 52mA (-12V)

Included in the box:

Euphoria Eurorack module
1x Ribbon cable
4x 3mm Screws

Requirements:

Eurorack case and power supply
Monitor or Amp.

Notes: Upgraded version of WMD's excellent performance mixer module, the PM MKII features four stereo or dual mono channels, CV control of levels, panning and aux sends, plus soft mutes per channel.

Supplier's Notes:
Need More Inputs?

Add four channels at a time to your Performance Mixer MKII setup, or you can use the Channels MKII as a standalone four channel mixer.

The expansion is simple -- identical channels, just more of them. Four at a time, up to four Channels units, for 24 total stereo channels.

A simple 16 pin 2mm pitch expansion cable is provided and is the only connection necessary. Units can be daisy-chained easily resulting in a clean setup.

Additionally, the outputs on Channels MKII still work when connected to the PM MKII. So you get a submix of AUX1, AUX2, and MIX available for whatever you may want to do, drum submixing, FX routing, etc.

Not Just an Expansion -- Standalone Operation
As a standalone unit, you get three stereo outputs, MIX, AUX1, AUX2. The buttons are soft mutes. It's a robust four channel setup.

FYI -- You can not connect CHANNELS MKIIs together without a PM MKII. The summing, buttons, and control brain is in the master section of the PM MKII.

Recording Outputs:

Pre and Post fade headers are available on the rear for connection to the DB25 MKII. Each Chanels MKII will fill 1/2 of a DB25 with the Pre or Post connections.

Specifications:

24HP
36mm Depth behind Panel Including Cables
Board Height Between Rails 111.5mm
Channel Input Gain: -12dB to +20dB
Fader Gain: -100dB to +5dB (Applies to Aux1, Aux2 also)
Pan Curve: -100dB at Hard L/R, -3dB at Center
All Inputs and Outputs (Including Sends, Inserts, Headers, etc) are IN PHASE
HPF: -1.3dB at 20Hz

Notes: Uranograph is a musical instrument that merges the expressive depth of classical instruments with the limitless possibilities of synthesis. Its capacitive tactile keys, instant note articulation, and MPE-inspired keyboard encourage musicians to develop a deep connection with its behavior, refine its technique, and master its nuances. With its ability to effortlessly reproduce microtonal notes, Uranograph is well-suited for exploring diverse musical expressions and cultural scale. Designed as a self-contained sonic ecosystem, Uranograph integrates an extensive 5 voices synthesis core, FX processing (both for internal and external sources), and looping into a seamless creative tool.

Uranograph's dual keyboards layout is more than just an input devices - it's the expressive heart of the instrument, offering an intuitive yet deeply responsive interface for performance and sound exploration. Their stainless steel touch plates provide an ultra-sensitive playing experience, responding to the most delicate gestures with precision and nuance. Unlike conventional mechanical keybeds, Uranograph's capacitive surface allows immediate, fluid articulation, enabling new microtonal performance, dynamic phrasing, and real-time sound shaping possibilities.

Uranograph's keyboard is highly responsive to touch, velocity, and aftertouch pressure. Each press translates into a continuous, organic sound variation, making it possible to shape phrases naturally, much like on stringed or wind instruments.By default, pressure is routed to the instrument's VCA/filter, and the envelope sustains level volume. An additional routing can be set to send the intensity of pressure to whatever other parameters you prefer, a dedicated knob is also implemented for instant control of the amount of this. This continuous pressure-sensitive surface offers a playing experience closer to acoustic instruments, bridging the gap between electronic synthesis and natural musical expression.

Uranograph notes output takes advantage of a series of prepared Keyboard, where each key can be easily assigned to any pitch or pure frequency, offering complete keyboard design and tuning flexibility. Whether adhering to traditional Western tuning, exploring Arabic maqams, Indian ragas, Just Intonation, or experimental microtonal divisions, Uranograph provides an expansive range of tonal possibilities. Preloaded with 50+ keyboard layouts Customizable keyboards allow users to design and store personalized layouts. Instant recall ensures seamless transitions between different tonal systems.This adaptability makes Uranograph an ideal instrument for non-standard tuning, enabling deep engagement with diverse musical traditions and avant-garde soundscapes.

Beyond pitch control, Uranograph features a dedicated control keyboard designed for dynamic, hands-on sound transformation. Unlike traditional mod wheels or faders, this touch-based control surface enables intuitive, real-time interaction with synthesis parameters, allowing for expressive, gestural modulation.
The control keyboard is divided into three functional sections: Articulation, Octave Shift, and ModKeys.

Three dedicated articulation plates provide instant access to advanced phrasing techniques and canonic musical articulations found in stringed instruments: glissando, trillo, and staccato:

Glissando: Enables smooth pitch slides between notes

Staccato: Shortens note duration, creating a percussive attack

Trillo: Rapidly alternates between notes

Each articulation can be activated momentarily (by holding the plate) or latched (by tapping once), offering precise control over phrasing. This flexibility allows musicians to engage articulations selectively, shaping expression dynamically within a phrase. They can introduce variation within a note and the successive one or as a general character of the part.
Three faders are implemented on the panel to quickly change the articulation's behaviors.

Four ModKeys serve as fully assignable, pressure-sensitive controllers for precise real-time modulation of synthesis parameters. Each plate dynamically responds to pressure, enabling simultaneous control over multiple parameters. By integrating expressive modulation gestures with the performance keyboard, players can shape fluid, evolving textures that respond organically to touch - enhancing expressivity and immediacy in synthesis. ModKey destinations and maximum values can be adjusted in the menu and stored during pattern changes.

At the bottom, two integrated octave shift plates provide instant transposition, allowing players to increase or decrease the octave range in momentary or latching modes:

Momentary Mode: Holding a plate temporarily shifts the octave.

Latching Mode: Tapping once locks the new octave until changed.

Bend Mode: Pressing both octave plates simultaneously activates the pitch bend feature, allowing for fluid and expressive pitch manipulation, similar to bending notes on stringed instruments.

Uranograph's core is built on additive and phase morphing synthesis, offering an innovative approach to shaping its five oscillators. The primary sound source is a core oscillator that starts as a pure sine wave and transforms through multiple synthesis techniques, generating a spectrum of timbres from warm, organic tones to sharp, digital textures. Uranograph provides multiple methods to modify the primary sine wave, introducing even and odd harmonics and sidebands, shaping both harmonic and inharmonic spectra. By altering the phase of a sine wave without changing its fundamental frequency, Uranograph transforms simple waveforms into dynamically evolving textures that range from warm and bell-like to metallic and aggressive:

Size (Phase Warping & Spectral Expansion): Stretches waveforms, altering harmonics similar to pulse-width modulation.

Tilt (Asymmetric Amplitude Distortion): Inspired by the Casio CZ series, this phase distortion skews waveforms asymmetrically, generating sounds from soft and vocal-like to harsh and metallic.

Fold (Wave Folding): Nonlinear reflection of signals creates a harmonic-rich spectrum, akin to West Coast synthesis.

The core oscillator can be split and harmonized into three voices, each following a chromatically quantized deviation from the main frequency set by the keyboard. This deviation can be changed trough two multi function programmable faders. This creates chord-like voicings, which are ideal for harmonic layering and ensemble effects. This enables Uranograph to function more as a harmonizer effect than a standard polyphonic synth. The three voices are direct copies of the primary waveform and inherit all parameter modifications from the panel, ensuring a cohesive harmonic response across all voices.

The central core oscillator works in a dual-spectrum configuration with a dedicated sub-octave oscillator. While the core oscillator's rich harmonics define the upper-frequency spectrum, the sub-generator reinforces lower frequencies, ensuring depth and body. Waveforms: Sine, saw, and square waveforms selectable via a switch. Selectable Sub Frequencies: unison, one or two octave below.

Completing the architecture, a dedicated modulation oscillator serves as either an additional fifth voice or a modulation source. Frequency follows the keyboard, but its base rate is controlled via the speed knob. The frequency range is 0.001 Hz to 3,000 Hz, allowing for both slow-evolving modulation and audio rate for rich spectral transformations. Waveforms: Sine, saw, and random noise selectable via a dedicated switch. A dedicated modulation amount knob determines how the modulator interacts with different synthesis parameters selected through a rotary potentiometer: AM, FM, Size, Tilt, Fold, or mix. This final layer opens the door to classic and unconventional sonic textures, making the Uranograph a versatile tool for sound design exploration and experimental synthesis.

In Uranograph's additive and phase-morphing synthesis architecture, the filter plays a different role than in traditional subtractive synthesis. Unlike classic synths where filtering is crucial for shaping harmonics, Uranograph's core oscillators inherently define the harmonic content through their phase manipulation and additive processes. As a result, harmonic reduction and spectral shaping are already embedded in the sound generation itself. After the summation of the core oscillator, SUB, and MOD, Uranograph features a versatile circuit that functions as a VCA / Low Pass Gate (LPG) hybrid. The resonance, ranging from subtle warmth to highly aggressive self-oscillation, add an organic response to dynamic playing.

Uranograph's core sound engine is enhanced by a suite of tailored DSP effects, meticulously designed to shape and refine every aspect of its timbres. These effects are fully integrated into the synthesis architecture, ensuring seamless interaction with the instrument's dynamic sound design. From spatial depth to harmonic reinforcement, these tools expand the Uranograph's sonic capabilities, offering immersive and evolving textures. Uranograph's stereo delay system is engineered for rhythmic enhancement and spectral manipulation, seamlessly blending traditional echo effects with Karplus-Strong-style resonation.
DeltaT knob controls delay time with two distinct behaviors: in the first 25% of its range, time adjustment functions as a micro-timed continuous shift, allowing the delay to function as a resonator, producing rich tonal textures.

Notes: A Streamlined Classic! Maander-M Wavetable Synth with Analog Filterbank & Sequencer

The Flame MAANDER-M is a compact reimagining of a well-regarded classic from the Flame lineup - now more affordable and streamlined, but still packed with the same sonic depth. At its core is a wavetable synth engine, fed into the 12-channel analog bandpass filter bank, controlled by the internal pattern sequencer.

Sound sources include a polyphonic wavetable and FM oscillator, an analog white noise generator and an external audio input. The internal sequencer offers one polyphonic note track (up to 4-voice chords) and 14 mono tracks. The latter are dedicated to the filter channels, the audio input, and the noise source. Each track has its own VCA with individual envelope control and is accessible via MIDI notes.

Patterns can be created and saved as patches, and played live with ease. The built-in arpeggiator and keyboard scaler make the MAANDER a powerful tool for live jamming and generative sequencing. Updates, patch management, and wavetable loading are handled conveniently via MIDI SysEx.

New in this version: direct oscillator output, stereo noise output, and stereo audio input. Maander comes fully mounted in a powered 56HP wooden skiff to get started right away.

Notes: Module A-155-2 is a small, very compact designed analog sequencer with a lot of features. The sequence length is 8 steps. Each step has available a control for the adjustment of the control voltage for this step and an illuminated momentary switch (button). The buttons are used in the standard running mode to turn on/off the gate of the step in question (button illuminated = gate on, not illuminated = gate off). In combination with other controls at the bottom of the front panel the buttons are used for additional functions: depending on the position of the Program toggle switch the button Function is used to program the length of the sequence (switch position Limit), the running direction (switch position Direct.) or to call up the preset management (switch position Preset)

When function Direct (Direction) is selected these running modes are available:

Up

Down

2 x Up (each step is played twice with the normal tempo, not to be confused with Ratcheting x2, see below)

2 x Down (each step is played twice with the normal tempo, not to be confused with Ratcheting x2, see below)

Pendulum type 1 (start and end step are played twice)

2 x Pendulum type 1 (each step is played twice with the normal tempo, start and end step are played 4x)

Pendulum type 2 (start and end step are played once)

Random (Rnd)

When function Preset is selected the illuminated buttons are used to call up one of the 8 presets. In each preset these parameters are stored: active steps, running direction, length of the sequence, ratcheting. To call up one of the 8 stored presets one has to push and hold the button Function and then operate short-time one of the buttons 1 - 8 while the toggle switch Program is in position Preset. To store the present paramaters in one of the 8 presets the procedure is similar but one has to operate one of the buttons 1 - 8 for a longer time (approx 3 seconds).

Depending on the position of the Program toggle switch the Ratcheting button is used to program the ratcheting feature (x2, x3, x4) individually for each step of the sequence (toggle switch Program in position Rx2, Rx3 or Rx4). In case that at the step in question another ratcheting is already programmed (eg x2 or x3 when x4 is chosen) the other ratcheting is overwritten (kind of radio button function between the ratchetings x2, x3 and x4). Details about the ratcheting function are explained at the module A-160-5.

The button Start/Stop is used to start or stop the sequence manually. Button Reset sets the sequence to the first step. For this also the external input Reset can be used.

The module does not feature built in clock generator. Rather an external Clock signal is used. The positive edge of the incoming clock signal triggers the advance of the sequence to the next step.

The voltage range of the control voltage generated by the module can be switched to 3 different ranges by the toggle switch Range: 0 - +1V / 0 - +2V / 0 - +4V. The control voltage is available at socket CV. The voltage is not quantized. But there is an internal pin header available that outputs the data via Midi (note on/off from Midi note 36. Midi channel 1). It can be used to control a MIDI-to-CV interface if quantized control voltages are required, eg the planned Micro-CV-Interface A-190-9)

The Gate signal appears at socket Gate. The pulsewidth of the gate signal is defined by the pulsewidth of the clock signal provided that ratcheting is not active at the step in question.

Controls and displays:

1 - 8 (rotary controls): manual adjustment of the control voltage for each step

1 - 8 (illuminated momentary switches/buttons): manual gate setting for each step, also used for special functions in combination with other controls (setting of first/last step, running direction, ratcheting)

Range: toggle switch for selection of the control voltage range

Program: toggle switch for selection of a function in combination with the buttons Ratcheting and Function

Ratcheting: button for the programming of ratcheting in combination with the toggle switch Program

Function: button for the programming of sequence length (Limit) and running direction (Direct) as well as for the Preset management (Preset)

Sta/Stp: button for the manual control of Start and Stop, in running state the LED of this button displays the state of the Gate output (ie it flashes in the rhythm of the Gate output)

Reset : manual reset button

CV : control voltage output

Gate : gate output

Clock: clock input, the pulsewidth of the clocjk signal defines the pulsewidth gate signal

Reset: reset control input, reset type selectable via internal jumpers (eg positive edge triggers the jump to first step/positive leveltriggers the jump to first step and remains at first step as long as the reset input is high/waiting for the next positive edge of the clock signals before reset is carried out)

Notes: Module A-155-2 is a small, very compact designed analog sequencer with a lot of features. The sequence length is 8 steps. Each step has available a control for the adjustment of the control voltage for this step and an illuminated momentary switch (button). The buttons are used in the standard running mode to turn on/off the gate of the step in question (button illuminated = gate on, not illuminated = gate off). In combination with other controls at the bottom of the front panel the buttons are used for additional functions: depending on the position of the Program toggle switch the button Function is used to program the length of the sequence (switch position Limit), the running direction (switch position Direct.) or to call up the preset management (switch position Preset)

When function Direct (Direction) is selected these running modes are available:

Up

Down

2 x Up (each step is played twice with the normal tempo, not to be confused with Ratcheting x2, see below)

2 x Down (each step is played twice with the normal tempo, not to be confused with Ratcheting x2, see below)

Pendulum type 1 (start and end step are played twice)

2 x Pendulum type 1 (each step is played twice with the normal tempo, start and end step are played 4x)

Pendulum type 2 (start and end step are played once)

Random (Rnd)

When function Preset is selected the illuminated buttons are used to call up one of the 8 presets. In each preset these parameters are stored: active steps, running direction, length of the sequence, ratcheting. To call up one of the 8 stored presets one has to push and hold the button Function and then operate short-time one of the buttons 1 - 8 while the toggle switch Program is in position Preset. To store the present paramaters in one of the 8 presets the procedure is similar but one has to operate one of the buttons 1 - 8 for a longer time (approx 3 seconds).

Depending on the position of the Program toggle switch the Ratcheting button is used to program the ratcheting feature (x2, x3, x4) individually for each step of the sequence (toggle switch Program in position Rx2, Rx3 or Rx4). In case that at the step in question another ratcheting is already programmed (eg x2 or x3 when x4 is chosen) the other ratcheting is overwritten (kind of radio button function between the ratchetings x2, x3 and x4). Details about the ratcheting function are explained at the module A-160-5.

The button Start/Stop is used to start or stop the sequence manually. Button Reset sets the sequence to the first step. For this also the external input Reset can be used.

The module does not feature built in clock generator. Rather an external Clock signal is used. The positive edge of the incoming clock signal triggers the advance of the sequence to the next step.

The voltage range of the control voltage generated by the module can be switched to 3 different ranges by the toggle switch Range: 0 - +1V / 0 - +2V / 0 - +4V. The control voltage is available at socket CV. The voltage is not quantized. But there is an internal pin header available that outputs the data via Midi (note on/off from Midi note 36. Midi channel 1). It can be used to control a MIDI-to-CV interface if quantized control voltages are required, eg the planned Micro-CV-Interface A-190-9)

The Gate signal appears at socket Gate. The pulsewidth of the gate signal is defined by the pulsewidth of the clock signal provided that ratcheting is not active at the step in question.

Controls and displays:

1 - 8 (rotary controls): manual adjustment of the control voltage for each step

1 - 8 (illuminated momentary switches/buttons): manual gate setting for each step, also used for special functions in combination with other controls (setting of first/last step, running direction, ratcheting)

Range: toggle switch for selection of the control voltage range

Program: toggle switch for selection of a function in combination with the buttons Ratcheting and Function

Ratcheting: button for the programming of ratcheting in combination with the toggle switch Program

Function: button for the programming of sequence length (Limit) and running direction (Direct) as well as for the Preset management (Preset)

Sta/Stp: button for the manual control of Start and Stop, in running state the LED of this button displays the state of the Gate output (ie it flashes in the rhythm of the Gate output)

Reset : manual reset button

CV : control voltage output

Gate : gate output

Clock: clock input, the pulsewidth of the clocjk signal defines the pulsewidth gate signal

Reset: reset control input, reset type selectable via internal jumpers (eg positive edge triggers the jump to first step/positive leveltriggers the jump to first step and remains at first step as long as the reset input is high/waiting for the next positive edge of the clock signals before reset is carried out)

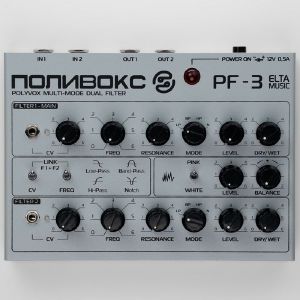

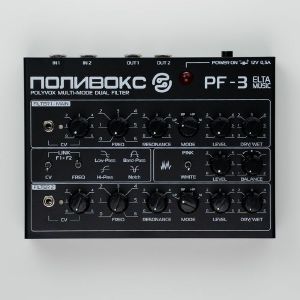

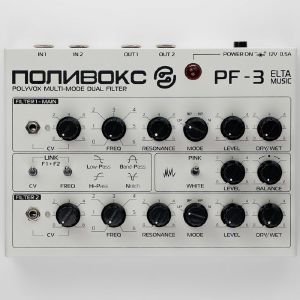

Notes: The POLYVOX PF3 is a double-stereo filter module featuring two independent 12dB multi-mode filters that can be controlled by a single cutoff knob. Turning the filter into a 24dB filter, when connected in series. When connected in stereo, you can achieve interesting effects by using different modes to each channel. A noise generator is on board pre-filter and can be used separately as a source of white and pink noise. Volume as well as clean and processed signal balance per channel. Can be used as two independent filters or stereo mode.

WARNING! Before using the device, turn it on for 5-7 minutes and let it stand. The control transistor should warm up. If you overdo it. The UD1208 chips used in the filter are very sensitive and are never the same. Therefore you will not mathematically get two identical filters. Which is an advantage when using the unit in stereo.

Notes: The POLYVOX PF3 is a double-stereo filter module featuring two independent 12dB multi-mode filters that can be controlled by a single cutoff knob. Turning the filter into a 24dB filter, when connected in series. When connected in stereo, you can achieve interesting effects by using different modes to each channel. A noise generator is on board pre-filter and can be used separately as a source of white and pink noise. Volume as well as clean and processed signal balance per channel. Can be used as two independent filters or stereo mode.

WARNING! Before using the device, turn it on for 5-7 minutes and let it stand. The control transistor should warm up. If you overdo it. The UD1208 chips used in the filter are very sensitive and are never the same. Therefore you will not mathematically get two identical filters. Which is an advantage when using the unit in stereo.

Notes: The POLYVOX PF3 is a double-stereo filter module featuring two independent 12dB multi-mode filters that can be controlled by a single cutoff knob. Turning the filter into a 24dB filter, when connected in series. When connected in stereo, you can achieve interesting effects by using different modes to each channel. A noise generator is on board pre-filter and can be used separately as a source of white and pink noise. Volume as well as clean and processed signal balance per channel. Can be used as two independent filters or stereo mode.

WARNING! Before using the device, turn it on for 5-7 minutes and let it stand. The control transistor should warm up. If you overdo it. The UD1208 chips used in the filter are very sensitive and are never the same. Therefore you will not mathematically get two identical filters. Which is an advantage when using the unit in stereo.

Notes: The POLYVOX PF3 is a double-stereo filter module featuring two independent 12dB multi-mode filters that can be controlled by a single cutoff knob. Turning the filter into a 24dB filter, when connected in series. When connected in stereo, you can achieve interesting effects by using different modes to each channel. A noise generator is on board pre-filter and can be used separately as a source of white and pink noise. Volume as well as clean and processed signal balance per channel. Can be used as two independent filters or stereo mode.

WARNING! Before using the device, turn it on for 5-7 minutes and let it stand. The control transistor should warm up. If you overdo it. The UD1208 chips used in the filter are very sensitive and are never the same. Therefore you will not mathematically get two identical filters. Which is an advantage when using the unit in stereo.

Notes: The POLYVOX PF3 is a double-stereo filter module featuring two independent 12dB multi-mode filters that can be controlled by a single cutoff knob. Turning the filter into a 24dB filter, when connected in series. When connected in stereo, you can achieve interesting effects by using different modes to each channel. A noise generator is on board pre-filter and can be used separately as a source of white and pink noise. Volume as well as clean and processed signal balance per channel. Can be used as two independent filters or stereo mode.

WARNING! Before using the device, turn it on for 5-7 minutes and let it stand. The control transistor should warm up. If you overdo it. The UD1208 chips used in the filter are very sensitive and are never the same. Therefore you will not mathematically get two identical filters. Which is an advantage when using the unit in stereo.

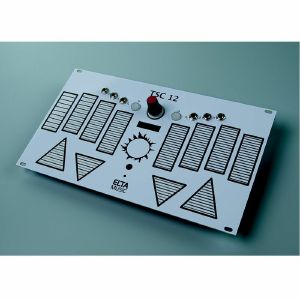

Notes: The TSC-12 module, based on Solar-42 Ambient Machine keyboard is a performance oriented touch controller featuring 12 capacitively sensitive plates, equipped with highly accurate Volt/octave outputs, ready to connect to your modular setup also. It's touch sensitive controls offer an unprecedented level of control over your modular setup, allows for various playing styles, and boasts a sequencer, arpeggiator, vibrato, portamento, pressure control, quantizer and clock.

Notes: The TSC-12 module, based on Solar-42 Ambient Machine keyboard is a performance oriented touch controller featuring 12 capacitively sensitive plates, equipped with highly accurate Volt/octave outputs, ready to connect to your modular setup also. It's touch sensitive controls offer an unprecedented level of control over your modular setup, allows for various playing styles, and boasts a sequencer, arpeggiator, vibrato, portamento, pressure control, quantizer and clock.

Notes: Germaniac is a discrete VCA/warmer module build around with the sound characteristic of the vintage Russian germanium transistors.

Warm things up:

That fat Analog Character: It's not question here be in the area of the "most transparent VCA ». We specifically select our transistors to add harmonics and give a rich and thick saturation.

Variable Texture Control: Choose the amount of distortion with the "Warmth" knob, providing from a very soft and subtle one to a heavily pronounced distortion. you can also CV control this warmth variation to play with.

Some Applications:

Classical VCA

CV controllable distortion

Notes: OpticShifter is a 20-Stage optical Phaser with flexible feedback and pole selection. Drawing inspiration from classic 70's era phase shifters, it combines vintage charm with modern versatility. Whether you're aiming for subtle movement or dramatic swooshing and whooshing, from phasing to vibing, OpticShifter creates an immersive Phase Shifting experience.

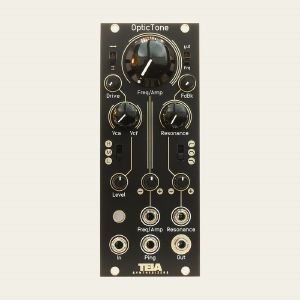

Notes: The OpticTone MK2 is an improved revision of our original module, combining a 12dB multi-mode Vactrol VCF and a Vactrol VCA. This unique circuit is inspired by the distinct characteristics of Vactrols and Lowpass gates, celebrated for their fluid and natural character.

Notes: EGL-1 is a desktop analogue synthesiser that is ideal for a variety of duties. The unit's sub-oscillator can be configured to determine the emitted waveform and decays when the Push switch is pressed. There are four LFOs routed to the primary VCO for bountiful modulation capabilities. The VCO itself is routed through a boost circuit for a some extra flair that's sure to punish listeners in all the right ways.

EGL-1 Features

VCO routed through boost circuit
4 LFOs provide ample modulation possibilities
Integrated sub-oscillator
Push switch causes the sub-oscillator to decay
Two types of modulation can be applied to the MAIN VCO (oscillator).

The bottom stage mixes four LFOs and allows you to adjust the input level to the MAIN VCO with the level.

The middle stage allows you to input a WAVE to the SUB OSC (another oscillator) with adjustable rise and fall of the oscillator, which can then be fed into the MAIN VCO.

The push-button in the top right-hand corner rapidly decays the power of the SUB OSC as long as it is pressed. While it decays, it has an effect on the sound of the MAIN VCO.

The MAIN VCO output also has an output circuit to make the sound more powerful.

The EGL-1 operates from a 9V centre-minus or battery. Neither is included.

Notes: It is powered by a center negative DC 9V adapter or a single 9V battery.

It contains two VCOs (oscillators) with a wide range.

The SUB oscillator has a different frequency and waveform, and is input to the main, respectively. Each of them has a range switch, so it works like an LFO under the switch. The color of the range switch (white, black) corresponds to the color of the SUB.1 and SUB.2 on-off switches next to the FREQ knob of the main oscillator.

When the WAVE switch is turned on, the WAVE knob is activated, and the SUB OSCILLATOR.1 and 2 are shaken.

The main VCO×2 is mixed and fed into the strain + filter circuit. This special filter has a FREQ knob and a TUNE knob. The TUNE knob powerfully amplifies the input signal while also tracking specific pronunciations.

The filter is a circuit that has been fine-tuned so that it can very effectively enhance the bass and treble of this input signal.

Unlike other switches, the noise-on switch moves sideways, left (VCO.1), middle (OFF), and right (VCO.2). They are populated in VCO.1 and 2, respectively.

It is a noise machine that can output a very strong signal that generates a variety of noise sounds.

This analogue synth runs on DC9V negative center or a 9V battery.

The main 2 VCOs can receive 2 oscillators and noise generator inside and go to 2 different filters.

2 oscillators can be tuned with each two FREQ. knobs and controlled with the wave knob.

RED switch is for wave knob working.

Black and White for tone of oscillators

Notes: ***B-STOCK: Slight surface marks ***


Part of Sonicware's brilliant Liven series of affordable, creative groove boxes, the Ambient O packs in layers of drone, textures and noise sources to create engrossing soundscapes. Creative, experimental fun.

*** Firmware version 1.5 update- March 2025 ***

Temperament Settings for Each Track

In addition to the standard 12-tone equal temperament, you can now set 7 different temperaments per pattern, including Pure intonation, Pythagorean tuning, and Solfeggio frequencies.

64 Sound Pattern Palettes

Featuring 32 newly added sounds & patterns, along with 16 Sound Healing Vibes sounds.

Relaxation Playback Mode

Arrange your favourite patterns, set repeats and fade-outs, then let it gently fill your space with ambient sound. (Seamless pattern changes improved: if sound settings remain the same, transitions will now be smooth without audio interruptions.)

Master Tune Now Adjustable in Hz?Master tuning, previously adjustable in cents, can now also be set in Hz increments (410 - 470 Hz).

Line In Selectable on NOISE Layer

The NOISE layer can now be selected to Line In, allowing the application of Filter, LFOs, and other track-level controls to the input signal.

New LFO Waveforms & Assignment

Added three slow LFO waveforms (L.SIN, L.TRI, L.S.RN). Additionally, oscillator level can now be assigned as an LFO destination.

Pitch Bend Range Setting

You can now configure the pitch bend range in the system settings.

Changes in Oscillator Usage

Due to specification changes, the NOISE layer now consumes only one oscillator, while the ATMO 2 structure now consumes three oscillators.

Bug Fixes & Improvements

Fixed MIDI CC issues and addressed other minor bugs.


Supplier's Notes:
Your Personal Soundscape:

Conversations between Oscillating Tones and Your Mind

Immersive Ambient Generator

4 layers of tone and texture-Drone, Pad, Atmos, and Noise-merge to generate deep resonance and continuous transformation.

Ambient O (zero) is incredibly easy to use. Start by playing a tone from one layer using the note hold function. While listening closely, simply tweak the knobs to modify the tone and add other layers to shape a pleasing sound.

Blendwave Modulation Synthesis

Sonicware conducted extensive research into creating undulating and fluctuating tones for Ambient O, resulting in the development of a new wavetable-based synthesis.

Blendwave Modulation Synthesis combines 6 unique structures with 32 WAVEs featuring complex harmonic transitions, making it easy to create powerful low drones, lush pads, and transparent pizzicatos, perfect for Ambient Music.

4 knobs/8 parameters offer a wide range of tone creation.

A WAVE contains 128 harmonic tables, allowing for diverse tonal changes such as moving from basic waveforms to complex harmonics. The WAVE is represented by a yin-yang icon, with the yin representing moves in the reverse direction through the tables during modulation.

6 Structures - Each structure has a different number of oscillators and modulation circuits. ATMOS 1 applies ring modulation, while ATMOS 2 applies FM modulation.

Noise and Space

The Noise layer includes 8 specially selected nature sounds, offering noise blending, pitch adjustment and modulation to infuse unique spatial characteristics.

Additionally, it allows for up to 8 seconds of stereo sampling from the line input, letting you create personalized textures.

Extensive Effects Section

Ambient O is equipped with 9 types of lush reverb, each offering unique spatial dimensions and brightness settings. You can individually adjust the reverb send and shimmer send (for layering octaves) for each layer.

In addition to the reverb, the Ambient O offers an effect unit with Tape Delay, Reverse Delay, and 4 master effects; Overdrive, Bit/Rate Crush, Tilt EQ, and Stereo Chorus.

Sequence up to 64 steps per pattern.
Random playback of sequence phrases.
Probability of notes sounding can be set from 25 - 100%.
Program notes step by step or record them in real time. Additionally, you can also input notes to specific steps while the sequencer is playing to add variation.
Overwrite notes in real-time with one touch while playing back sequence phrases.
The Parameter Lock function allows you to record knob changes into your patterns. This can be recorded live, or programmed in step by step.

Specifications

[Synthesiser]

- Note Hold function
- 128 Sound Pattern Palettes (incl. 16 types of preset palettes)
- Mixing including level/pan for each layer
- Layer (Sound) copy and paste function
- Tune All function changes the pitch of all layers (i1 octave in 20-cent steps, adjustable in 1-cent step)
- Standard polyphony: 10 voices (depending the structure's oscillators x simultaneous voices)

4 Layer Construction
Drone, Pad, Atmos Layers
- New Blendwave Modulation Synthesis for creating undulating and fluctuating tones
- 6 Structures, 32 Waves
Drone 1: 2 oscillators, modulates Detune
Drone 2: 2 oscillators, modulates Harmonics
Pad 1: 3 oscillators, modulates Harmonics
Pad 2: 3 oscillators, modulates Harmonics
Atmos 1: 1 oscillator, ring modulation on output
Atmos 2: 2 oscillators (frequency modulation), modulates Pitch

- Polyphonic mode
- Mono mode (adjustable glide time)
- Legato mode (adjustable glide time)
- Unison mode (adjustable detune)
- Arpeggiator modes (Up, Down, UpDown, DownUp, Up&Down, Down&Up, Up+1, Up+2, Down-1, Down-2, Random, Play Order)

Noise Layer
- 1 Structure, 8 Waves
Noise: 1 oscillator, modulates Pitch
- Loop or One-shot playback, White noise mixing
- 16bit - 32kHz Linear PCM sampling (stereo)
- Up to 8 seconds of sampling per sample (crossfade settings from 1 to 4 seconds)
- Auto start sampling function with the input level (input level can be set)
- Import and export of a slot of samples (via MIDI)
*Import of audio files from PC/Mac is not supported.

- Polyphonic mode
- Mono mode (adjustable glide time)
- Legato mode (adjustable glide time)
- Arpeggiator modes (Up, Down, UpDown, DownUp, Up&Down, Down&Up, Up+1, Up+2, Down-1, Down-2, Random, Play Order)
Each layer has its own envelope, filter and 2LFOs.

- Attack
- Release

- Low Pass Filter
- High Pass Filter
- Band Pass Filter

- 2 LFOs assignable to various parameters (individually adjustable)
- Adjustable LFO Shapes and trigger count

[Effects]
9 types of high-quality reverb (Send amount to reverb and shimmer adjustable per layer)
- Small.L
- Small.M
- Small.H
- Large.L
- Large.M
- Large.H
- Infinity.L
- Infinity.M
- Infinity.H
6 types of diverse master effects
- Tape Delay
- Reverse Delay
- Overdrive
- Bit/Rate Crush
- Tilt EQ
- Stereo Chorus
The above reverb and master effects can also be applied to external sources from the LINE IN.

[Sequencer]
- 4 tracks (1 track on each layer)
- Up to 64 steps per pattern
- Step length can be set from 1/1 to 1/32 or 2/1(Breve) to 8/1(Maxima)
- Real-time recording
- Overwrite REC function for real-time sequence replacement
- Directly enter notes for each step when playback is on or off
- Enter longer notes (Tied notes)
- Metronome and pre-count function
- Step copy and paste function
- Track copy and paste function
- Duplicate to extend a sequence
- Transpose function
- Pattern BPM / Global BPM can be set
- Pattern chain function (Loop playback possible)
- Track level and pan can be set independently
- Parameter Lock function to record parameter settings for each step
- Sound Lock function to record sound settings for each step
- Note playback probability can be set from 25 to 100% for each step
- RANDOM function to play back steps in random order

[MIDI]
- Notes, control changes, clock input/output
- Import and export user data
- Firmware update via Sysex

[Unit]

27 keys (with a hold function)


- 15 physical control knobs
- Optional LATCH function prevents jumps in value when knob position and parameter values do not match.
- One physical encoder for fine adjustments.
- LCD dot indicates when a parameter value matches the saved value, or when the value has been changed.

Notes: A sequencer and a filter-bank got together...

...And a love child was born !

Introducing NIGHT RIDER, from RYK Modular

Four multi model filters with stereo capability, combined with a six-stage four-channel modulation sequencer.

Finally a filter bank that unifies the control of multiple parameters, enabling a spaghetti-free approach to formant animation fun.

NIGHT RIDER cleverly turns the dials to where you want them, when you want, via it's unique modulation sequencer

Create dreamy swooshing 70's phaser filter sweeps
Phenomenal for phoneme vocal formant rasps and wheezes
Plucking great for strumming Karplus Strong twangs, and pinging filter pings!
Or, turn your silk into shredded cabbage, with the built in bad-ass clipping-saturator

Technical specifications

Frequency range - from rumble to wispy
Resonance/Feedback range - from tame to insane
Individual Filter levels - silent to beyond 11, for serious saturation-clipped sonic destruction

Features:

Four filter blocks, with multiple models , including:
6db BPF [ pingable ]
12db BPF [ pingable ]
12db variable width BPF
Comb Filter for Karplus Strom [ pluckable & flanger vibes ]
All Pass filter [ crazy Phaser vibes ]

Dual Input and Stereo output, with Pan control for each filter in the stereo field. Input can
be Mono [ CH1 - 1,2,3,4 ] or Dual [ CH1-1,2 CH2 - 3,4 ]
Modulation Sequencer capable of being clocked, scanned, and interpolated
CV inputs for sequencer Interpolated scanning, 1V/Oct frequency offset, Slew amount,
Resonance amount, Clock or MIDI clock input for sequence animation, MIDI CC
Memory slots for storing and retrieving Filter and animation setups, and retrieving preset formant, and chord based Filter setups

Vital stats:

Width 16 HP
Depth 25mm

52mA +12V
9mA -12V
0mA 5V

Notes: FM & Vector Synthesis

Two icons of the '80s in one unit

Introducing Vecor Wave from RYK Modular bringing together the awesome power of 16 oscillator FM, combined with Vector synthesis OR true multi voice polyphony.

The Vector Wave is a feature packed compact Eurorack module, which can be used as a stand alone synth-voice without the need for external VCA,ENV, LFOs etc.

Features

16 oscillators, divided into 4 banks, oscillators can freely configured into series or parallel combinations for complex FM or additive synthesis

A cute Vector Joystick for morphing between oscillator banks, for cool performance timbre sweeps and sonic movement
Vectors can be recorded from the joystick and replayed from trigger sources, or animated from external or internal modulation sources

Super cool retro Big-Pixel screen, ideal for nostalgia freaks or the visually impaired

Wave Warping brings grit and aggression to the FM synthesis with oscillators continuously variable between Sine,Tri-ish Saw, Pulse waveforms

Wave Folding for subtle to extreme sonic bending

Two Envelope generators [ per voice in polyphonic modes ], and two LFOs with all controls assignable as modulation destinations

Intuitive Modulation Slot patching from external and internal sources to be routed to any parameter within the Vector Wave

30 User Voice storage spaces for storing your synth masterpieces to internal memory, enabling you to impress your friends at a later date

Thee modes of oscillator bank allocation Monophonic Vector, and Polyphonic Voice, and Multitimbral Polyphonic

MIDI input for a spaghetti-free Polyphonic setup, velocity, aftertouch and MIDI CCs avail- able as modulation sources

Slim but handsome Expander Module also available that adds 3 more V/oct and Gate inputs, for maximum mutli-voice multitimbral melodious mayhem!

Notes: Add 3 more V/Oct and Gate inputs to your Vector Wave with the Expander

The Vector Wave Expander module from RYK Modular allows you to use CV and Gate to control the Vector Wave as a 4 Voice multi-timbral synth module.

And it looks nice.

Features:

3HP

Notes: How many times have you sat in front of your favorite ambient pedal and felt like you need weeks of training at NASA to use it? Knobs, switches, sliders - It's often SO hard and frustrating to find a usable tone on those things quickly - Keeping that firmly in mind, when Wampler first considered making an ambient pedal, ease of use was a top priority, right up there with top tier quality tone on par with pedals at twice the price.

How do you describe a pedal like the Wampler Ethereal? Does ambient heaven cover it? Is it the gateway between real life and the astral plane? Or is it just gorgeous? It's hard to know which phrase to use when talking about it, because they all match it perfectly - plus, of course, so easy to use you'll be getting those perfectly Ethereal tones instantly.

When designing the Ethereal these were the EXACT thoughts running through the mind of Brian Wampler. He wanted to make a delay that is as pure as you could want, with a time of up to 1s, a reverb that is thick and then have the option to mix them all up and put them together in one glorious effect that will send you away - all the way away while making it as easy to use and easy to find those perfect tones as possible.

It's been a bit of a secret, there isn't one delay lurking within the Ethereal, there are two! The first delay constantly sits there like a heartbeat, coming back at you at quarter notes, Wampler then layer another over the top - that one can be put into a triplet pattern, or a dotted 8th (so you can get that beautiful quarter + dotted 8th mix) and even a self-oscillating dotted eighth pattern that just takes you away and leads you over the edge and down the rabbit hole into perfect ambience - Things can get a little crazy when that one is selected, so you know, knock yourself out - it's there to make some incredibly strange yet beautiful sounds - See that little switch down there? Yep, that's the one, just to the right of the stomp - that's a trails button. When this is used the delay patterns and reverbs sing out after the pedal has been deactivated, so you can even control what you want to come back at you.

While you are enjoying the delay patterns, sitting underneath is that beautifully cavernous plate style reverb that is alive with character and shape, that can be brought in to exactly the right level (whether that be under your guitar, the same level - unity, or even considerably louder) to compliment the delay.

As you can imagine, this has been some feat of engineering (definitely worth waiting for) as we wanted all this to happen from a regular sized box, with the purity of tone and response you would expect from a Wampler. So, as with our other time pedals, we split the signal going in, the effected signal is then laid back on top of the original base tone, making sure that YOUR guitar sounds exactly how it does going in.

The Wampler Ethereal. Not only can it be used a stand alone reverb or delay pedal, it can be combined for you to worship, to get lost in, to even help you inspect your shoes - but most of all, it was designed to inspire.

Technical Details

Built in the U.S.A.
High grade components picked for their superior sound and response
Relay true bypass with soft switch (buffered bypass in trails mode)
Top mounted input and output jacks 9v power jack
Power draw: 64mA (at 9v) and 68mA (at 18v)
Allows for you to use reverb and two delays simultaneously
Maximum 1 second delay
Second delay can be layered on top in 3 different patterns
Relay True/Buffered Bypass
Includes Wampler's limited 5-year warranty
2.50" x 4.50" x 1.5" (63.5mm x 114.3mm x 38.1mm) - height excludes knobs and switches

Notes: The Faux Spring Reverb has been a staple on many players boards for many years now, and when it was discontinued a few years ago Brian Wampler received numerous requests to bring it back since then. Not being one to be content with just reissuing something, Brian decided to take all of the feedback from players he had received and give it a bit if an upgrade.

The result was the birth of the Mini Faux Spring Reverb. Following the idea of - If it's not broke, don't fix it - he just added more of what players love. More decay, more drippiness and more of that bouncy spring tone players love in the bigger Reverb tanks. Despite sounding bigger and fuller, he decided to condense it down into a mini enclosure to fit perfectly at the end if any chain to grab and go.

When the moment calls for the sound of spring reverb, you'll be glad you have this little guy. With an extended decay time, the Mini Faux Spring Reverb pedal serves up authentic tones that drip with boing (Don't you love spring reverb adjectives?) just like a great spring tank. And thanks to an easy-to-navigate control layout, you'll have your perfect tone pulled up in no time.

For years, the Wampler Faux Spring Reverb was the very best spring reverb pedal available, Brian Wampler updated it, made it smaller, made it bouncier - made it even more perfect for your rig!

There no denying the popularity and convenience of this pedal's mini design. Not only does it fit wonderfully on even the most cramped pedalboards, but it's easy to throw in the back of your open-back combo when running in the amp's effects loop.

Brian Wampler's attention to detail and commitment to bringing you the best-sounding & most usable Effects Boxes on the market is nothing new. Those qualities are on full display within the Mini Faux Spring Reverb. We're all tone-freaks, and we're always trying new things, but we hope this pedal finds it's forever home on your pedalboard, so we built it to last that long.

Technical Details

Built in the U.S.A.
High-grade components picked for their superior sound and response
True bypass Small profile, ideal for pedal board placement
Signal is split, core tone is unchanged through the pedal, the effect is laid on top of your tone
Volume, Depth, and Tone control allowing you full control of your reverb trail
9v power jack (no battery connector inside)
3PDT True Bypass
Includes Wampler's limited 5-year warranty
Power draw: 64.3mA (at 9v) and 69.5mA (at 12v)
1.50" x 3.50" x 1.5" (38.1mm x 88.9mm x 38.1mm) - height excludes knobs and switches

Notes: When Wampler decides to jump into the multiFX market, they do it in style. 11 custom designed effects blocks, from Flanger to Phaser, Chorus to U-Vibe, Harmonic Tremolo to Envelope Filter, you know everything about it is going to be perfect.

In one incredibly small package, you can control any of the 8 presets via midi, you can assign an expression pedal to control ANY of the main five controls, you can run it in full glorious stereo or keep it in mono - you can even split that mono signal to route some effects to go before your drive pedals, or amp gain, and have the rest follow behind or in your effects loop!

When you put the Terraform into your rig, you know that not only will you get that legendary Wampler tone, but you will get the most easy to use, hugely versatile and best sounding collection of modulations you could ever want.

Each of the 11 effect blocks have been designed and realized in-house by the tone chasing freaks at Wampler. Each one has been inspired by many individual stomps, both modern and vintage, to bring you the best version of them all.

There are 8 presets to store your favorite sounds - you can recall them via the fully mappable midi, via the button on the front and even from the stomps! The expression pedal can control ANY of the 5 controls and you can even set the heel and toe point!

If you want true Stereo, you got it - You want basic mono, you got it.. You can even split that mono signal so you can put some effects in front of your drive section and the others behind, or going into the front of your amp with the rest in the effects loop. However you like to route your signal, the Terraform has you covered.

Brian Wampler's attention to detail and commitment to bringing you the best-sounding & most usable Effects Boxes on the market is nothing new. Those qualities are on full display within the Terraform. We're all tone-freaks, and we're always trying new things, but Wampler hope this pedal finds it's forever home on your pedalboard, so it was built to last that long.

Technical Details

Built in the U.S.A.
High grade components picked for their superior sound and response
Relay true bypass with soft switch (buffered bypass in trails mode)
Top mounted input and output jacks 9v power jack
Power draw: 64mA (at 9v) and 68mA (at 18v)
Allows for you to use reverb and two delays simultaneously
Maximum 1 second delay
Second delay can be layered on top in 3 different patterns
Relay True/Buffered Bypass
Includes Wampler's limited 5-year warranty
2.50" x 4.50" x 1.5" (63.5mm x 114.3mm x 38.1mm) - height excludes knobs and switches

Notes: For decades now, professional users all around the world have placed their trust in our classic range: Dt 770/880/990 PRO. These benchmark-setting studio headphones boast extremely detailed resolution and very transparent sound. The DT 990 PRO headphones is the range's open-back model offering impressive spaciousness.

These open-back studio headphones are a reliable tool for any sound enthusiast. The wide stereo image and three-dimensional sound reproduction make the beyerdynamic DT 990 PRO headphones a loyal companion for producers. Outstanding tonal depth ensures that even small changes in the positioning of the acoustic source can be perceived while mixing.

With it's open design, the circumaural receiver has outstanding spatialityand detailed depth gradation. The 80 ohm version impresses with the proven sound signature of the DT 990 PRO: prominent bass and extroverted highs. Compared to the 250 ohm version, the high frequencies are slightly reduced.

The soft velour ear pads also offer breathability for a high level of comfort and long-lasting durability. The robust spring steel hoop gives the headphones a secure fit. At 375 grams - including the cable - the headphones are surpisingly light and yet sturdy - so nothing stands in the way of long studio sessions.

The DT 990 PRO headphones are and alwaus have been handcrafted in Germany. With their high-quality materials and meticulous workmanship, these studio headphones are a sound, long-term investment.

Notes: Introducing SSL 18 - a new era in rackmount production technology from Solid State Logic. Developed from our unmatched expertise in analogue and digital design, SSL 18 offers exceptional audio performance with a studio session-ready feature set, delivered with the signature SSL sound and premium quality that professionals trust. Whether you are recording, producing or mixing, SSL 18 enhances production workflows while elevating the performance of your creative space, it's the ultimate centrepiece for your studio. Welcome to a new era in rack mount interface performance.

Next-generation 32-bit/192 kHz converters provide the platform for SSL 18's analogue design to shine, with unrivalled dynamic range performance of 120 dB across all microphone, line-level and instrument inputs - capture your sources like never before. Experience 125 dB dynamic range on the monitor and line outputs to hear your music with uncompromised fidelity. Need to work on headphones? No problem, with the unbeatable 120 dB dynamic range on offer from the dual-headphone outputs.

SSL 18 features eight high-performance SSL-designed mic pre's, with switchable Mic/Line configuration. Leveraging our renowned engineering expertise, they deliver ultra-low noise recordings and a huge dynamic range, making sure you capture every detail of the performance with stunning accuracy. Their advanced 2-stage circuitry ensures ultra-low distortion while maintaining the natural character of the source - or flip them into Legacy 4K Mode to add real analogue saturation and the iconic 4000 series sound to vocals, drums, and more. What's more, in Line mode the mic preamp stage is completely bypassed - perfect for connecting external outboard gear. Located on the front of the unit, inputs 1 & 2 also offer instrument/Hi-Z inputs to capture DI'd guitars and vintage synths/drum machines.

SSL 18 comes equipped with ten balanced line-level outputs located on the rear of the unit. To ensure optimal signal integrity and maximise headroom, line outputs 1&2 and 3&4 can be configured between +9 and +24 dBu, providing seamless compatibility with a wide range of studio monitors and vintage equipment operating at lower levels. Outputs 3 to 10 operate at +24 dBu, perfect for integrating professional outboard equipment. For producers, all outputs are DC-coupled and capable of sending control voltage to synthesizers and modular rigs.

Custom headphone mixes with two independent headphone outputs, configurable for different types with 'Standard', 'High Sensitivity', and 'High Impedance' settings. SSL 18's headphone outputs can also be repurposed as line-level outputs for added flexibility.

SSL 18 features a full monitor controller section with built-in talkback input. Line outputs 1&2 and 3&4 offer alternative speaker switching with Alt and Cut accessible via the monitor controls located on the front panel. Alternatively, customise the monitor controls via SSL 360 and tailor them to your workflow. SSL 18 also features a dedicated talkback input channel that can operate in MIC or LINE mode. LINE mode is great for re-processing audio through the classic Listen Mic Compressor - crush drums, parallel vocals, and more.

The SSL 4000 series consoles (often referred to as '4K') are renowned for imparting a unique 'mojo' to sounds and instruments that pass through them. This mojo comes from multiple stages of harmonic distortion from compressor VCAs, VCA faders, and other crucial components such as the transistor mix amps. Using modern components, SSL has developed a circuit that distils the two essential characteristics of the 4K sound into a single design. Legacy 4K Analogue Enhancement injects a controlled amount of finely-tuned, sweet-sounding harmonic distortion and a 'forward' yet musical high-frequency EQ boost into the signal path, giving your sound the 4K mojo and presence that artists and engineers have loved for decades.

A host of digital audio connections means that SSL 18 is ready to expand your I/O count whenever you are, with an additional 16 channels via ADAT and a further two via S/PDIF. SSL 18's dedicated Word clock output provides rock-solid clocking for integrating external digital devices into your system.

The SSL 18 mixer offers comprehensive management of all inputs and outputs, as well as detailed, scalable input metering in SSL 360-. In the SSL 18 mixer you can create and manage the control room monitor mix, as well as configure up to four independent mixes for performers. In addition, a flexible Mirror Routing system allows you to route any input or aux master directly to an output - perfect for feeding personal monitoring systems, external metering and outboard FX. Create different templates for tracking, mixing and more, then save them as a profile in the SSL 18 mixer.

Designed by the same engineering teams behind the esteemed range of analogue and digital mixing consoles, SSL's rich heritage can be found throughout the design and feature set. SSL 18 is the only product in its category that is designed to properly integrate with professional outboard gear, thanks to the +24 dBu capable inputs and outputs.

Notes: To the casual observer SiX looks like any other compact desktop mixer. Look a little closer and like all SSL consoles, SiX reveals a carefully considered feature set that is driven by an obsessive desire for total flexibility, to encompass every creative eventuality. It may be small but SiX is a classic SSL design. It carries the DNA of 40 years of true expertise in creative studio workflow. Listen to SiX and you will experience the impeccable sonic performance that is the hallmark of every SSL console. It is powerful and intuitive. Inspired and rewarding.

SiX is a condensed professional console for use in the studio, in post-production, on stage, and for podcasting. SiX offers big console sound and an impressive set of utility features in a format that is small enough to stick in a bag a go wherever you need it. SiX is stunning value; it offers two recording channels with SuperAnalogueTM mic pres, two band EQ, an essential one knob version of the classic SSL Channel Compressor, a new two-band Channel EQ, inserts and 100mm faders.

There is a two-knob version of the legendary G-Series Bus Compressor on the main mix bus and the unique Listen Mic Compressor on the Talkback. In mixdown mode it is a very capable twelve channel summing system that offers analogue detail, depth and width to your mixes

SiX is an SSL SuperAnalogue design - it gives you the sonic signature of a large format SSL console on your desktop or in your backpack. Its signal path is fully balanced from front to back on everything except the headphone output. It delivers pristine, detailed audio with wide dynamic range, ultra-low noise, ultra-low distortion and superb imaging. If you want to know more about the technical reasons why SSL mixers sound so good read our Lifting The Veil document.

In addition to Mic Pre's, SiX's SuperAnalogue Recording channels feature classic SSL feed-forward Channel Compressor circuit and two band SSL EQ with shelf and bell curves. It has two mono SuperAnalogue - Mic' Pre's taken from large-format duality and AWS consoles, offering phantom power, 75Hz HPF and independant line-level inputs.

SiX has a G Series Bus Compressor on the main mix bus. This uses the same circuit design as the legendary SSL Bus Compressor from our larger consoles but with a fixed ratio, attack, and release settings and a more modern quad-VCA chip. Easy to get that SSL glue and punch on your master bus. It has two mono channels with SSL SuperAnalogue - Mic' Pre's; these are transparent, fast and have a much wider available gain range than you would typically get on a compact desktop mixer - 66dB of gain compared to the more typical mid-40s or 50dB found in desktop mixers. They have phantom power, 75Hz high pass filter and an independent line-level input which can be switched to instrument level input with high impedance.

Moving down the channel strip we have a brand-new one knob compressor circuit. This design is based on and has the same sound as the classic SSL feed-forward Channel Compressor circuit. It has a program-dependent attack time, a fixed release time and fixed ratio. Simply adjust the threshold, watch the traffic lights flash to see how much compression is happening and rely on the circuit to automatically adjust gain to match input levels. This is a cool-sounding circuit that makes it simple to dial in a consistent level and get signals sitting right in the sweet spot.

Both mono channels have a new two-band SSL EQ that may be independently switched between shelf and bell curves, with different centre frequencies for each type. This approach draws upon the SSL design legacy of specifying response curves and centre frequencies for channel EQ that are immediately intuitively pleasing in their response; these curves and frequencies were selected by our team as the most "musically useful" for a wide range of sources.

SiX has 100mm faders. We spent some time working on alternate fader tapers and settled on a law that gave us the most control over the most useable gain range, making on-stage level control far easier than it would be with a rotary or a 60mm fader as found on other compact mixers. Each channel has a fully balanced insert point for integrating other signal processors which is after the EQ and Compressor circuits, and like all SSLs the insert send is always active - meaning you can use this as a "dry" record send to your DAW if required. At the bottom of the mono channels we have an ALTernate input switch which can source 2 extra mono channels from a connector on the rear of the console which can be used at mixdown.

SiX has two stereo input channels with -10/+20 dB trim for line sources such as synthesisers, drum machines, output from soundcards etc. These have their own balance controls and 100mm faders. If only the Left input of a stereo channel is connected (and the right left free) the channel will automatically switch to mono, panned centre. While SiX might be small it can handle a lot of inputs at mix-down! Using the two mono input and the two stereo input channels gives SiX its name, but we also have two stereo EXTernal inputs (with volume controls in the master section) which can be sent to the mix bus. Include the ALT inputs and we have up to 12 channels that can be summed into the main mix bus.

SiX has a collection of professional routing & monitoring features taken directly from our large format console heritage. It has two Stereo Cue buses (with level and pan controls) for individual artist foldback mixes. The Master Section has main and alternate monitor outputs with a proper monitor source matrix, as well as mono check, dim and cut. The fader channels all have proper PFL and a Mute button that routes the muted signal to a 'Bus B'. Bus B can be used as a convenient DAW record send but it can also be routed to the monitor matrix. This means that the muted signal can be monitored without it feeding the main mix bus and then switched in to the main mix with the Mute button - perfect for live webcasting because a remote feed can be monitored 'offline' and punched in to the broadcast feed. There is a talkback mic' input with phantom power and SSL's unique, crunchy Listen Mic Compressor, which of course also serves as a unique processing tool that delivers that classic 1980's slammed drums sound.

Notes: The idea behind Eclipse is to combine the raw character of vintage analog oscillators with modern features for crafting rich, complex, and expressive sounds.

Eclipse's development started with a high-precision analog triangle oscillator that tracks accurately over 10 octaves, with all the I/O expected from a premium analog oscillator.

While looking for ways to generate complex harmonics without relying on a classic wavefolder, we came across the VCS3's waveshaper. This unique feature of the EMS synth sparked the idea to design our own waveshaper from scratch, opening up a wide range of sonic possibilities and dynamic control to bring sound to life.

During the design process, we discovered the waveshaper's unique potential for stereo processing, which led to a dedicated stereo section to spread and move waveforms across the stereo field while maintaining perfect balance at any setting.

Eclipse offers full CV control across all parameters, with smart normalization enabling global modulation from a single source. With many special features like XFM, ULFO, Stereo Pulse Array Modulation, Stereo Pulsed Saw Modulation, RM/AM capabilities, Eclipse is much more than just a VCO.

Notes: Excellent value all-rounders from Rode, the NTH-50s offer precise, detailed sound to match their slick, stylish looks. Custom 40mm drivers and ergonomic design provide a nice combination of sound and comfort.

Supplier's Notes:
The NTH-50 professional on-ear headphones combine exceptional sonic performance, superior comfort, and a sleek and durable design that make them the perfect companion for DJs, music producers, content creators and audiophiles. The custom driver array features a revolutionary acoustic design with an innovative resonant chamber, and is precision-tuned for incredibly accurate and detailed audio reproduction with ultra-low distortion. Not only does this result in a more natural sound signature than other on-ear headphones, but it also offers superior external noise isolation. To minimise wearing fatigue and ensure optimal comfort, they feature a contoured headband and an ergonomic earcup structure to reduce pressure on your head and ears during longer sessions. With a lightweight, compact design combined with premium materials and a rugged build, the NTH-50 headphones are with you for the long-haul, ready for the rigours of the road and the studio alike, day in, day out.

Acoustic & electrical specifications

Transducer Size: 40mm
Transducer Type: Dynamic
Operating Principle: Closed
Ear Coupling: Supra-Aural/On-Ear
Frequency Response: 5Hz - 35Khz
Impedance: 32 O
Sensitivity @1mW / 500Hz: 102 dB SPL Sensitivity @1V (RMS) / 500Hz: 117 dB SPL
Total Harmonic Distortion @1mW: < 0.2 % @100Hz < 0.03% @500Hz
Total Harmonic Distortion @100Hz: 0.05% @100dB SPL 0.5% @120dB SPL
Short Term Max Input Power: 100 mW
Long Term Max Input Power: 50 mW
Max SPL: 124 dB SPL
Ambient Noise Attenuation: 21 dBA
Connection Type: Dual TRRS Cable Attachments

Mechanical specifications

Weight (grams): 220
Cable Length: 1.7m coiled cable
Included Accessories:
1 x Headphone Cable
1 x 3.5mm to 1/4-inch Adaptor
1 x Storage Pouch
1 x COLORS ID Set

What's in the box

1 x NTH-50 Headphones
1 x Storage Pouch
1 x Headphone Cable
1 x COLORS ID Set
1 x 3.5mm to 1/4-inch Adaptor

Notes: Designed by Synth Cables using our specialist high quality shielded flexible TPE cable.

Perfect for groove boxes, synthesisers, mixers, audio speakers, computers, headphones and any device that accepts 3.5mm stereo connection.

Works with all Teenage Engineering devices (KO II, Pocket Operators, TX-6, OP-Z) Roland Aira compact series and any synth that takes a 3.5mm connection for audio, midi or sync.

Notes: Designed by Synth Cables using our specialist high quality shielded flexible TPE cable.

Perfect for groove boxes, synthesisers, mixers, audio speakers, computers, headphones and any device that accepts 3.5mm stereo connection.

Works with all Teenage Engineering devices (KO II, Pocket Operators, TX-6, OP-Z) Roland Aira compact series and any synth that takes a 3.5mm connection for audio, midi or sync.

Notes: Designed by Synth Cables using our specialist high quality shielded flexible TPE cable.

Perfect for groove boxes, synthesisers, mixers, audio speakers, computers, headphones and any device that accepts 3.5mm stereo connection.

Works with all Teenage Engineering devices (KO II, Pocket Operators, TX-6, OP-Z) Roland Aira compact series and any synth that takes a 3.5mm connection for audio, midi or sync.

Notes: Designed by Synth Cables using our specialist high quality shielded flexible TPE cable.

Perfect for groove boxes, synthesisers, mixers, audio speakers, computers, headphones and any device that accepts 3.5mm stereo connection.

Works with all Teenage Engineering devices (KO II, Pocket Operators, TX-6, OP-Z) Roland Aira compact series and any synth that takes a 3.5mm connection for audio, midi or sync.

Notes: Designed by Synth Cables using our specialist high quality shielded flexible TPE cable.

Perfect for groove boxes, synthesisers, mixers, audio speakers, computers, headphones and any device that accepts 3.5mm stereo connection.

Works with all Teenage Engineering devices (KO II, Pocket Operators, TX-6, OP-Z) Roland Aira compact series and any synth that takes a 3.5mm connection for audio, midi or sync.

Notes: Designed by Synth Cables using our specialist high quality shielded flexible TPE cable.

Perfect for groove boxes, synthesisers, mixers, audio speakers, computers, headphones and any device that accepts 3.5mm stereo connection.

Works with all Teenage Engineering devices (KO II, Pocket Operators, TX-6, OP-Z) Roland Aira compact series and any synth that takes a 3.5mm connection for audio, midi or sync.
