Notes: Mr. Phil Ter is a module that does a whole bunch of analog and digital stuff, in not a lot of HP.

Phil's digital bits are solely comprised of the envelope generator, for your envelopy pleasure.

The analogue bits, developed in partnership with the folks at Pittsburgh Modular Synthesizers, and are comprised of a voltage controlled amplifier circuit (VCA) as well as an extra juicy old-school transistor ladder filter, perfect for those of you who are not afraid of ladders or transistors.

Anyway, pair Mr. Phil Ter up with any oscillato,r or crank up its own filter section's resonance, and self-oscillate, get crazy.

Width = 12hp

Depth = 26mm

Envelope facts

Voltage range: 0-10V

Gate trigger threshold voltage: +5V

Attack, Release, and Decay times 0-10s (slow). 0-5s (fast)

Easter egg mode - quantize itself to 7bit for a steppy sample & hold effect

VCA facts - It's a VCA, not YMCA or YWCA, but made with love. Sound or voltage goes in, and it will come out, or not. Control it with voltage or not. You can never have too many VCA's, and this a good one.

Filter facts - Classic low-pass transistor ladder filter design, also will self-oscillate when resonance is cranked, creating a super clean trackable sine wave

33mA power draw when running +12V rail

22mA power draw when running +5V rail

36mA power draw when running -12V

Notes: A cousin to the more complex Pressure Points, the PRSS PNT offers a single touch-sensitive copper pad which generates up to four channels of CV and gate signals based on the placement of your finger.

Supplier's Notes
The PrssPnt music synthesiser module is a controller in which several signals are generated by touching the printed copper wire at the bottom of the instrument. Touching PrssPnt, you become part of the circuit, generating a total of four simultaneous signals (two CV, two Gate).

The basic function of PrssPnt will be familiar to anyone who has used Pressure Points or 0-CTRL. It could be seen as a single "souped-up" channel of one of these devices. Since it is a single channel, the tuned voltage outputs are not relevant, and instead are replaced with more playable sensitivity controls and alternate pressure and gate outputs.

Features:

Momentary Gate output remains high as long as it is being pressed
Toggled Gate output goes high and low with each successive press of the plate: press it to make it go high, press it again to make it go low
Pressure output generates a positive control signal proportional to the amount of Pressure applied, further tailored by the Sensitivity Panel Control
Smooth Touch Function recreates the useful patch of sending a Pressure Output through a carefully tuned slew limiter for extended function generation
Turning up the Slew amount will allow for larger than life functions with very long decay to be generated by hand.
All four outputs available simultaneously

Specifications:

Width: 4hp
Max Depth (incl. power cable): 30mm
Power:14mA @+12V / 0mA @-12V

Notes: ***B-STOCK: Box opened, product in perfect working order***


The Morphor Envelope - Dual ADSR is a slim (6 HP) dual envelope generator. Each channel features standard ADSR (Attack, Decay, Sustain, Release) analogue circuitry, providing the classic, rich envelope shaping tools essential for any modular enthusiast. It features separate control knobs for the attack, decay, sustain and release parameters, two independent channels for versatile envelope shaping and each channel comes equipped with gate, re-trigger, output, and an inverted output.

On the back of the module you can find tiny switches for each channel to change the overall length of the complete envelope:
Short: 5 ms - 30 s
Med: 25 ms - 60 s
Long: 60 ms - 200 s (=3.3 min)

Features

100% analogue
Dual channel
Attack length control
Decay length control
Sustain level control
Release length control
Inverted output
Re-trigger

Specifications

Panel width: 6 HP
Panel height: 3 U
Module depth: 40 mm
Current draw: 12 V : 32 mA | -12 V : 32 mA | +5 V : 0 mA
Dimensions: 128.5 x 30.3 x 40 mm
Weight: 111 g
Power Socket : 16-pin

Notes: For Intellijel's 1U rack format, Mosaic serve up a handy quantiser with a clever built-in arpeggiator, meaning you can generate melodic sequences from within the module.

Supplier's Notes:
Craft melodic sequences out of random voltage, LFOs, and more with the Mosaic Quantizer. Don't have a voltage source? Enter Arpeggiator mode to create a sequence from your current scale or note pattern, and modify it on the fly using the chromatic note interface. Pull musicality out of the unknown with Quantizer!

Tech Specs:
Width: 20HP
Depth: 38mm
Front Panel: Intellijel format, Pulp Logic replacement panels available here.

Notes: Erica Pico VCF1, is a younger brother of Erica Black Polivoks VCF, designed on the similar topology using rare Russian op amps. As result you get a filter great for acid bass lines, screaming resonance sweeps and deep wobbles.

Features:
- Lowpass and bandpass modes
- Self oscillation
- Rare russian opamps used
- Input protection against overvoltage

Dimensions
3 HP
35 mm deep

Current Draw
12 mA +12V
11 mA -12V

Notes: With the ADDAC304 Manual Gates, you'll be getting 8 manual gates (0 +5v) in a nifty package - a perfect way to perform on and control your modular system.

The ADDAC304 comes with an interesting twist: 4 out of the 8 available gates can act as momentary switches, outputting the signals in their respective inputs when each gate's button is pressed.

MECHANICAL:
Format: Eurorack
Width: 8 HP
Depth: 2.5 cm

CONTROL VOLTAGE I/O:
CV inputs: i 10v
Gate outputs: 0 +5v

ELECTRICAL:
Max current: 10mA

Notes: Remote extension module that allows to connect 16 signals (audio, CV, gate or whatever) between large or spread-out cases.

To avoid bleeding, signals are isolated with a ground line between them (both in the ribbon cable and the printed circuit).

The bundle consists in two XT modules and two ribbon cables (1, 1.5 or 2 meters depending on the option selected).

This is a passive module, it does not draw any current.

5 HP

Notes: This all analog voltage controlled oscillator revolves around the reissue of the legendary Curtis CEM3340 IC, which is found in synthesizers such as the Prophet 5, Roland Jupiter Series, and more.

CEM3340 based VCO (triangle core)
Waveforms: Sine, Triangle, Sawtooth, Square
Linear and Exponential FM
PWM
Sync capability
1V/Oct tracking over 10 octaves

Tech Specs:
Width 20HP
Depth: 38mm
Current Consumption: +12V = 27mA, -12V = 24mA

Notes: Bring the boom with the Mosaic Bass Drum. Bass Drum is a dedicated kick voice, and an essential piece of any percussive section. With v/oct tracking, Bass Drum can play the role of both rhythm and melody, rounding out the low end of your patch. With control over character and dampening, your kicks can shake the house, or sit in the pocket.

Tech Specs:
Width: 14HP
Depth: 28mm
Front Panel: Intellijel format, Pulp Logic replacement panels available here.

Notes: An exact hardware replica of the Mutable Instruments Ears, which is based on the Music Thing Modular's Mikrophonie.

The ridges on the panel are less defined than on the Mutable version, so the texture is a bit more subtle.

Notes: Easily connect your modular system to the rest of your setup with Out, a compact 2HP stereo line output and headphone module. Despite its small size, it includes everything you need for clear, convenient listening.

The top section features stereo modular-level inputs with LED indicators for quick level monitoring. From there, the signal is routed to both a stereo line output and a dedicated headphone jack, each with independent volume control. Whether you're sending your modular through external effects, recording into an interface, or just monitoring with headphones, Out keeps things simple and efficient.

Notes: The MetaModule Wi-Fi Expander lets you connect to your MetaModule wirelessly using a web browser.

Quickly transfer patches you created on the computer and play them on your MetaModule without swapping disks or USB drives.

4 HP
Power consumption: +12V max 50mA. -12V: none. -5V: none.

Notes: Based on similar circuits to the legendary Maths module, the CH.SVR ('channel saver' is a three-part function generator module based around sum/offset/attenuversion features. Great value for an accessible entry point to CV signal processing.

Supplier's Notes:
The Ch.Svr music synthesiser module is a small utility module, offering several channels of signal-processing that will be useful in just about any modular system. As a condensation/extension of the sum/offset/attenuversion aspects of MATHS, it continues the great tradition of sculpting the control signals we use to sculpt our sound signals.

Features:

Scale, amplify, attenuate, or invert an incoming signal using Channels 1 or 2
Generate DC offsets when Channel 1 or 2 is unpatched
Crossfade between two signals, or attenuate one signal, using Channel 3
SUM and INVerted Sum Bus for addition, subtraction, mirroring, inversion etc.
Individual Channel Outputs for Channels 1 and 2 allow independent use of all three channels
Anywhere you need more subtle modulation, Ch.Svr is there for you... now all your eurorack slivers may have subtle and intentional modulation they deserve!

Specifications:

Width: 6hp
Max Depth (incl. power cable): 30mm
Power: 20mA @+12V / 10mA @-12V

Notes: The FILTERBANK914 is designed after the famous Moog 914 Fixed Filterbank. It includes 12 bandpass filters with fixed center frequencies and additionally a lowpass- and a highpass filter. Control knobs for all the frequency bands allow individual mixing of the bands. This is especially useful for shaping the sound spectrum similar to acoustic instruments - they get their character by certain frequency peaks, so called "formants".

This module is different to (and not a good choice as) a multiband equalizer. The equalizer can increase/decrease certain bands in the range of e.g. -12...+12dB, with the signal unchanged with all controls in center position. In contrast, the FILTERBANK914 controls are attenuators over the full level, meaning the individual band is completely muted when the knob is turned completely counter-clockwise.

As a special feature, the module has separate outputs for "even" and "odd" bands, meaning that one output only contains the sum of half the bandpasses, the other one the remaining ones. This leads to some type of "pseudo stereo".

Notes: The Row Power 25 is a clean, regulated, and protected power supply module for Eurorack systems. It requires a barrel-style power brick (15V - 20V DC) and supplies power to modules via flying bus cables, direct connection, and/or bus boards.

The Row Power 25 provides 25W of power for any Eurorack modules (typically 4-10 modules*):

+12V @ 1.4A maximum, 1.0A recommended
-12V @ 0.8A maximum, 0.5A recommended
+5V @ 1.0A maximum, 0.8A recommended

*number of modules can vary depending on each module's power consumption.

Simply plug a universal power supply (laptop style) into either of the barrel plugs on the 4HP panel. Connect your modules via flying-bus cables or the Bus Stick.

Multiple Row Power modules can be powered from a single power brick by daisy-chaining with an inexpensive barrel cable. The Row Power 25 can also be daisy-chained to Pods. Each Row Power and Pod will be independently regulated and protected for ultra-low cross-talk between rows.

Notes: Module A-130-2v is composed of two identical voltage controlled amplifiers (VCA). Each VCA has a manual gain control (also named Initial Gain) and a control voltage input with attenuator. The character of the control scale can be switched to linear or exponential. All inputs and outputs are DC coupled. Consequently the VCAs can be used to process both audio and control voltages (e.g. for voltage control of the level of LFO or envelope signals). The signal input has no attenuator available but is capable to process up to 16Vpp signals (i.e. -8V...+8V) without distortion. For the processing of higher levels an external attenuator (e.g. A-183-1) is recommended.

The amplification range is 0...1. Even with a higher external control voltage the amplification remains at 1 (kind of "amplification clipping" at 1).

Controls (for each of both units):

Gain: manual gain control (Initial Gain) in the range 0...1
CV: attenuator for the CV input
lin/exp: switches the VCA characteristic to linear or exponential, in center position the VCA is off (mute function)
Inputs and outputs (for each of both units):

CV: control voltage input, min. +5V required for max. amplification (1) with CV control fully CW and Gain fully CCW
In: signal input, max. 16Vpp (+8V...-8V) without distortion
Out: signal output

A-130-2v is the slim version of module A-132-3 and offers essentially the same features. But the distances between the controls are smaller and rubberized small-sized knobs are used. In return the front panel has 4 HP only which is half the width of the A-132-3. The module is primarily planned for applications where only limited space is available.

Power consumption: 30mA at +12V and 30mA at -12V

Depth: 50mm

HP : 4

Notes: The Source D'Energie is a power supply module designed to power up to a 6U case with +/-12v and 5v rails. Wall wart plugs can be used for a skiff or case with few modules, but for anything more than that, Eowave recommend a 4A power supply.

The Source D'Energie has two 16 pin headers, perfect for powering two rows of your system. LED's on the panel indicate the health of each rail at a glance.

15 VDC Input
+12V 1.5A
-12V 1A
+5V 0.5A

Depth: 40mm
5 HP

Notes: Module A-160-2 is an enhanced version of the standard clock divider A-160. The module is a frequency divider for clock/trigger/gate signals, designed to be a source of lower frequencies, particularly for rhythm uses. The Clock input will take any digital signal from, eg. LFO, MIDI sync, or the gate from a MIDI-CV interface. At the outputs, you have access to three sets of seven different sub-divided clock signals, from half the clock frequency down to 1/128. The low/high levels of the output signals are 0V and about +10V.

The A-160-2 also has a reset input. Whenever a reset signal is sensed, all outputs are set to certain levels which depend upon the selected mode.

These are the most important features of the module:

Three different sets of dividing factors, selected by a three-position switch at the front panel:
- Power of two: 2, 4, 8, 16, 32, 64, 128
- Prime numbers: 2, 3, 5, 7, 11, 13, 17
- Integer: 2, 3, 4, 5, 6, 7, 8

Two output modes, selected by a two-position switch at the front panel:
- Gate mode: outputs act like the outputs of typical binary dividers
- Trigger mode: in this mode the outputs are AND-wired with the clock signal (i.e. the clock pulsewidth affects the pulsewidth of the outputs)
- Clock edge type selected by a jumper on the pc board:
- Positive: the rising edge of the clock signal triggers the state change of the outputs
- Negative: the falling edge of the clock signal triggers the state change of the outputs

Reset behaviour by two jumpers on the pc board:
- Level triggered: the level at the Reset input triggers the Reset
- Edge triggered: the edge of the signal at the Reset input triggers the Reset
- Positive: a high level (> 2.5V) or the rising edge at the Reset input triggers the Reset
- Negative: a low level (< 1 V) or the falling edge at the Reset input triggers the Reset

Output polarity selected by a jumper on the pc board:
- Positive: non-inverted outputs
- Negative: all seven outputs are inverted

Width: 4HP / 20mm
Depth: 35mm (Measured from the rear side of the front panel)
Current: +12V: +50mA, -12V: -0mA

Notes: Module A-130-4 contains four linear VCAs with a common level control section for all four VCAs. It can be used for all applications of simultaneous amplitude/level control of up to four different audio or CV signals. A-130-4 is the replacement of the no longer available module A-132-2. Compared to the A-132-2 the width has been reduced from 8HP to 4HP.

The module has these controls and in/outputs available:

Control Man.: manual control of the amplification

Control CV: attenuator for the control voltage applied to socket CVo socket Input 1

Sockets In 1...4: VCA inputs 1...4

Sockets Out 1...4: VCA outputs 1...4

Application examples:

simultaneous amplitude/level control of up to four different audio or CV signals

polyphonic application 1: simultaneous control of the frequency modulation depth of 4 VCOs (Quad-LFO A-145-4 or Quad-VCLFO A-147-5 > A-130-4 > FM inputs A-111-4)

polyphonic application 2: simultaneous control of the pulsewidth modulation depth of 4 VCOs (Quad-LFO A-145-4 or Quad-VCLFO A-147-5 > A-130-4 > PWM inputs A-111-4)

simultaneous control of quadrophonic signals

Technical notes:

The maximum amplification for each VCA is about 1 ("Man." control fully CW). Even with an external control voltage applied to the CV input the maximum amplification is limited to 1.

The module is equipped with two internal connectors (pin headers with 4 pins each). Pin header #1 can be used to normalize the four inputs to other modules (e.g. Quad LFO A-145-4 or A-147-5, Quad ADSR A-143-2). Pin header #2 can be used to connect the four outputs to other modules.

The max. level at the VCA inputs without clipping/distortion is about 20Vpp or +/-10V.

Width: 4 HP / 20.0 mm
Depth: 45 mm (measured from the rear side of the front panel)
Current: +30 mA (+12V) / -30 mA (-12V)

Notes: The 2hp VCA is a dual, linear VCA. It uses the renowned 2164 SSM architecture, giving it extremely low distortion and high quality audio outputs. With a CV input attenuator, and DC-coupled inputs this is your new go-to module for voltage controlled amplification of audio or CV.

Notes: A Low Pass Gate (LPG) can be a low pass filter, a VCA or a combination of both. This means both the harmonic content and volume can be controlled simultaneously which resembles the behaviour of many instruments: the louder, the more harmonics.

The A-101-2's mode of operation is set with a switch: left position is low pass, right is VCA and the combo mode is in the centre. Alternatively, you can activate the modes with gate signals which is the reason for two gate inputs; this is very interesting in combination with clock dividers or trigger sequencers.

- Gate 1 high & gate 2 low = low pass mode
- Gate 1 low & gate 2 high = VCA mode
- Both Gate 1 & 2 high = combo mode

The A-101-2 has an aggressive sound, compared to other LPGs and its resonance goes up to self-oscillation which not many LPGs offer. The oscillation is rather dirty and far from being a sine wave.

3U Eurorack module, 8HP wide, 50mm deep.

Notes: Out is a 1U stereo output module designed to convert audio signals from your modular to line-levels. The module is designed to be used on cases with onboard Jack connectors or Intellijel 7U and Palette series, as it uses the same pinout. The module also includes a high-quality Headphone amplifier with an auxiliar monitoring CUE input.

Features:

High-quality Headphones amplifier
Monitoring CUE Input with source selector
Fully compatible with Intellijel 7U and Palette cases rear Jack connectors.
1U Intellijel format.

Specs:

Current needs: +12V: 30mA, -12V: 30mA
Width: 16 HP
Depth: 30mm (including power connector)
Aluminium, heat-treated front panel
Designed, kits prepared and completed modules assembled in Barcelona

Notes: Isolator is your 4 HP solution for galvanic isolation between its inputs and 1/4 TRS balanced outputs, interfacing your Eurorack modular system without electric connection with the external equipment, which prevents possible ground loop issues.

If no signal is plugged to the right input, then the left input will be sent to both Left and Right outputs. "Level" knob adjusts output level for Left and Right channels, Phones knob sets the level for the headphones output.

Specs

50 mA +12V
50 mA -12V
45 mm Depth
4 HP wide

Notes: Erica Synths Black VCO Expander essentially is an advanced waveform mixer plus two octaves down suboscillator, it allows you to explore wave design in brand new areas.

Features
Waveform mixer/inverter
Sine/Triangle/Tits waveform switch
Transistor-based -2 octave suboscillator
-1 and -2 octave suboscillator crossfade
Suboscillator lowpass filter
Diode limiter on output signal amplitude
Three simultaneous outputs

Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we did not economise on the module width, we put design and usability first. Big knobs are assigned to functions that make difference in sound. Together the Erica Black series are a range of modules that make an entire synthesizer.

NB! This expander module can be connected only to Black VCO and Black VCO2. It will not work as a standalone eurorack module.

Dimensions
10 HP
25 mm deep

Current Draw
5 mA +12V
5 mA -12V

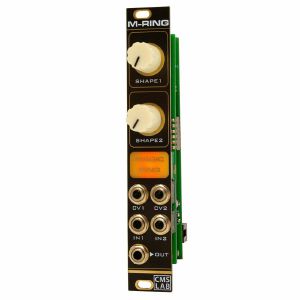

Notes: A ring modulator based on logic chip but with a twist.

Magic Ring will produce sounds ranging from familiar ring mod sounds to complex evolving modulated timbres.

This ring modulator is really magic because it will work with sine, triangle, saw, ramp, etc. waves, but that is not everything.

The real magic is that it will change its timbre (spectral content) depending on the position of the two SHAPE pots and/or by modulating the CV inputs.

CMS-LAB module

Tech specs:

-Width: 4HP
-35mm depth behind the panel
-Standard 10 pin euro power (+12V / -12V)
-Power consumption: +12V 20mA , -12V 15mA

Notes: Octo I/O is a bi-directional passive Polytip to 3.5mm expander and a Polytip Mult. The expander section lets you break out to each individual voice from a polyphonic module. The mult section lets you mult Polytip polyphonic signals from one source to multiple destinations. For example patching the OCTOSTAGES envelopes to control both your OCTOPASS filters and HEXAGAIN VCAs.

Dimensions:

6HP - Depth: 15mm

Current Draw:

Module does not draw current

Notes: Operation of the Astra is both simple and straightforward - the large touch panel on the front will respond gradually to soft and firm touches, making it easy to inject some human feeling into your compositions.

Being fully analogue, the controller uses an internal vactrol and slew rate limiter to make it easy for you to create smooth transitions - when used without an input, the MMI Astra uses an internal 5v source as the basis of its signal, allowing you to easily generate complex CV to control other modules, in order to create intermittent filter sweeps, resonance peaks and much more.

By using the input, you can route in both CV and audio to destinations of your choosing, attenuating and amplifying by varying pressure and position on the touch plate. Easily introduce LFOs, create huge reverb or volume swells, or intermittently introduce fading soundscapes as you play.

The front facing LED gives you immediate visual feedback on the status of the module as you play, making it easy to control the MMI Astra. It's the MMI you've wanted for years, finally made real.

Sixe: 4HP

Notes: The M module is a 5-way Polytip signal multiplier. It takes a single polyphonic audio, CV, or gate signal set and routes it to up to five multiple outputs. The module is completely passive and requires no power. Like all Polytip jacks on Tiptop Audio modules, the jacks on the M module are top-quality components made in Japan.

Size: 4HP - Depth: 15mm

Power: no power required

Notes: CEQ is an analogue 3-band Equalizer and Compressor module in 4HP. Enhance your synth voices, get some punch and have fun playing with the DJ-style EQ.

CEQ is perfect for your final live mix or you can even use several on individual synth voices.

Great versatility.

CEQ Compressor can be used to subtly tune the dynamics of your voice, saturate or distort it heavily and everything in between. Want to sound a little fatter? This one is for you.

Synth tracks will love it.

Thanks to a switch on the back of the module, you can adjust the compression speed between FAST and SLOW depending on your needs.

CEQ is an analogue module.
NO digital noise.
BIG headroom.

Specifications:

EQ Cuttoff Frequency
High: 2567Hz
Mid: 256Hz to 2567Hz
Low: 256Hz
Filter type Sallen Key configuration.
Filter Q 0.5

Dimensions 4HP - 20×128,5mm

Notes: Remote extension module that allows to connect 16 signals (audio, CV, gate or whatever) between large or spread-out cases.

To avoid bleeding, signals are isolated with a ground line between them (both in the ribbon cable and the printed circuit).

The bundle consists in two XT modules and two ribbon cables (1, 1.5 or 2 meters depending on the option selected).

This is a passive module, it does not draw any current.

5 HP

Notes: The 2hp VCA is a dual, linear VCA. It uses the renowned 2164 SSM architecture, giving it extremely low distortion and high quality audio outputs. With a CV input attenuator, and DC-coupled inputs this is your new go-to module for voltage controlled amplification of audio or CV.

Notes: The 333 is a summing and distribution module for Eurorack modular systems.

It is composed of three identical sections, the red, yellow and green, each of those featuring three inputs summing amplifier with three independently buffered outputs.

Derived directly from the CGM creative mixer series, the sum section is DC coupled, allowing the sum of control voltages as well as audio signals.

With an extremely low tolerance in both sum and output sections, it is suitable also for summing quantized voltages like the ones coming out from the quantized outputs of the SAPEL.

In case CVs or audio signals are particularly hot, the 6dB attenuator might be helpful to reduce exactly by 50% the incoming signals.

Red and yellow output are also normalled to the 1st jack socket of the yellow and green input: in this way this module can also work as a 1 to 9 buffered multiple.

Notes: The ZONE B.F. module is an element of the Capsule TITAN. Zone basses frequences stands for low frequency zone. This module is composed of 2 LFOs, both LFOs have 16 sync-able waveforms

Speed : speed of the LFO, range from 0.1 Hz to +/-200 Hz

Wave (LFO 1 & 2) : 16 Syncable waveforms;
- Triangle
- Sine
- Dome
- Ramp down
- Ramp up
- Stepped ramp up
- Square
- Short impulse square'
- Short impulse triangle
- Stepped square ramp down
- Random stepped
- Growing random ramp up (staircase)
- Random impulse size squares
- Random impulse size triangles
- Noise
- Pitched noise

The ZONE B.F. (black edition onwards) now features an additional mode. On the back of the PCB you will find two jumpers, marked as JP1. CV1 is LFO channel 1 and CV2 is LFO channel 2. By moving the jumper so it sits on one leg (rather than 2 as when you have received the module), the Sync input for either LFO channel now becomes LFO speed input, controllable via CV.

2 LFOs
16 waveforms per LFO
sync or speed CV control

5 HP
40 mA +12V
10 mA -12V
0 mA 5V

Notes: This module connects via 3 pin cable to the Intellijel Pedal I/O 1U module.

It provides the 1/4" TS interface for connecting guitar pedals or instruments.

Dimensions: 8 HP
44 mm deep

Module is a 1U tile.

Current Draw: Module does not draw current

Notes: The Voltage Controlled Amplifier or "VCA" is one of the most essential and useful building blocks in a synthesis patch. The DUAL VCA 1U packs two high quality, DC coupled, linear VCAs into a very compact 1U package.

The two VCAs can be used completely independently or in tandem via the handy signal normalling. The DC coupling means that the VCA can be used for the amplitude control of both control voltages (CV) and audio signals.

Some application/use examples:

- Dual, independent VCA for dynamic level control of two different audio or cv sources
- Stereo VCA (use the CV normalling where CV A normals to CV B) for processing stereo sources or CV pairs.
- CV/Audio summing (when Out A is not patched, it normals to sum with OUT B, CV A and B control the independent levels)
- Voltage/signal doubling (use input A only and the doubled voltage will appear at OUT B when a CV of +5V applied to CV A)

Notes: A-101-6 is a new filter module that uses so-called opto FET's to control the filter frequency. Opto FET's are very similar to Vactrols, but use light dependent field effect transistors (FET's) instead of light dependent resistors (LDR's). An opto FET is a combination of a light-dependent FET and an LED, both put into a small light-proof case. The advantage, compared to vactrols, is a much faster response of opto FET's compared to LDR's - this allows much faster attack/decay times and even FM effects.

The variable resistors corresponds to the opto FET. The brightness of the Opto FET LED's, and consequently the filter frequency, can be adjusted manually (Frequ. control) and controlled by means of an external control voltage (CV) with attenuator. The LED at the front panel reflects the LED brightness inside the opto FET's.

The type of filter is chosen by jumpers on the PC board (factory setting: low pass). The type of filter determined by the jumpers positions can be marked by means of a water-resistant felt pen at the front panel.

The resonance is controlled by the Feedback control up to self-oscillation. By means of a trimming potentiometer the maximal feedback can be adjusted. High feedback values can be used mainly in the all-pass mode to obtain very extreme self-oscillation sounds. Even an external feedback signal can be used instead of the internal feedback connection (FB In socket). Whenever the filter type is changed by means of the jumpers the trimming potentiometer for the maximal feedback has to be re-adjusted.

The Mix control is used to pan between the original signal (CCW position) and the effect signal (CW position). In filter mode (LP/HP) this control is usually set fully CW. In the all-pass modes one obtains phasing sounds at centre position or "pure" all-pass sound in fully CW position.

Notes: This Expander module provides hands-on adjustment over all bands' boost and cut without the need to select bands via pushbuttons on the Graphic Resonant Filterbank module. This makes sound design with the Graphic Resonant Filterbank much easier.

NB! The Expander works exclusively with the Graphic Resonant Filterbank!

Notes: Arad is an expander for the Oradea quadruple resonator. It adds three additional features. Arad features direct audio inputs for individual channels, so you can use each channel for a different audio source (the individual channel outputs are already incorporated into the main module). There are buttons and gate inputs for manual and/or remote clickless muting and unmuting of the channels. Another group of four buttons acts in parallel to the EXCITE inputs of Oradea, allowing for manual triggering.

Technical details
Eurorack synth compatible
6hp, 30mm deep (incl. ribbon bracket)
Current draw: +10mA / -0mA
Reverse power protection

Notes: This small utility is the pedal's lover best friend, it allows 2 diferent chains of pedals to be independently connected to your synth.

The Send channels attenuate the synth level to instrument level.

The Return channels amplify the signal from instrument to synth level.

Specs:
- Width: 4 HP
- Depth: 3 cm
- Max current: 10mA

Notes: A passive module to allow easy connection from Modular to Eurorack, avoid flimsy hook probes or alligator wires with a robust connection that will keep your signal intact.

Features:

3.5mm jack to BNC including 50O male-male cables.
Ships calibrated set to 10x as default, user's can select 1x but soldering a smd jumper.

Specs:

4HP
15mm deep
Passive

Notes: Want some distorted drums or thicken up the final mix but you are short in rack space? Pico Drive is the answer! Pico Drive is combined wavefolder overdrive module that features manually adjustable Gain and Drive level, CV control over Gain and Drive adds more expression, while built in limiter prevents output signal to run into undesired clipping.

Features:
Manual Gain and Drive controls
CV control over Gain and Drive
Wavefolder
Output signal limiter
Input and output protection against undesired overvoltage

Technical specifications:
Audio output level: -5...+5V
CV level (full span): -5V - +5V
Power consumption: 29mA @ +12V, 29mA @ -12V
Module width: 3HP
Module depth: 35mm

Notes: Volume 1 pot: regulates the volume for the mini jack input 1.

Volume 2 pot: regulates the volume for the mini jack input 2.

Volume 3 pot: regulates the volume for the mini jack input 3.

Send out the mixer signal before the resonant equalizer, mini jack out, to use with external effect or as mixer dry out.

Return pot: regulate the volume for the mini jack return input, to use with external effect or as a 5- input.

Resomix has one mono mini jack out.

High pass, band pass, low pass switch; selects the filter type.

High, mid, low switch; selects the filter frequency range.

Cutoff pot: regulates the cutoff frequency of the filter, the 0-10v CV input affects the cutoff frequency to obtain the CV in maximum effect keep the cutoff pot to 0.

Resonance pot: regulates the resonance level.

Gain pot: regulates the gain level at the filter input, work as general mixer gain.

Resomix works with a +/-12v 10pin modular connector.

Dimensions

8 HP
38 mm deep

Notes: Module A-101-8 is a 8-stage phase shifter which uses light-sensitive resistors (LDR) and is a replica of the Compact Phasing A manufactured by the company Schulte in the seventies. The actual phasing circuit is identical to the historic model. Only the illumination control of the LDRs is different: the A-101-8 uses LEDs to illuminate the LDRs, the historic model used incandescent miniature lamps. And the A-101-8 has no built-in LFO but can be controlled by any external control voltage source (e.g. LFO, ADSR, random, Theremin, ribbon controller, sequencer, midi). The phasing offset (i.e. the base value for the phase shifting) and the modulation depth of the external control signal can be adjusted separately. The Compact Phasing A had no offset control but only a depth control for the built-in LFO. Feedback and mixing ratio of the output signal are set by two controls. The audio input is equipped with an attenuator. The module has two audio outputs available (same as the historic model) and a visual display of the phase shifting.

The module has these controls and in/outputs available:

Control Man. : manual control of the phase shift offset (base value)

Control CV: attenuator for the signal applied to the CV socket

Control Feedb.: Feedback or Resonance (similar function as filter resonance/feedback/emphasis)

Control Mix: sets the mixing ratio between original and phase shift signal appearing at output 1

fully CCW: only the modified input signal appears at output 1 (see note below *)

center: a mixture between the modified input signal and the phase shift signal appears at output 1, that's the standard position for the classical phasing effect

fully CW: the pure phase shifted signal appears at output 1 (e.g. for vibrato effects)

Control Input Level: attenuator for signal applied to the In socket

Socket In: audio input

Socket CV: control voltage input

Socket Out 1: audio output 1 (mix signal)

Socket Out 2: audio output 2 (modified input signal)

LED: visual control of the phase shift

The module has some peculiarities (same as the historic model):

The input signal is processed at first by a pre-stage which outputs a "modified" input signal (*). This signal is not processed by the phase shift stages but is affected by the feedback setting. Only when feedback is set to zero this signal is identical to the input signal. Otherwise it contains feedback components.

This signal is output on socket Out 2.

When both output sockets Out 1 and Out 2 are used as stereo channels one obtains a spatial stereo sound effect.

The same signals is also used for the CCW position of the mix control. With mix control fully CCW the unmodified signal appears only if the feedback control is set to zero. Otherwise it contains feedback components.

The historic model had two audio inputs: one 5-pin DIN socket and a 1/4" jack socket. The DIN socket was intended for high-level line signals. When the 1/4" jack socket was used the amplification of the pre-stage increased by about 100. The 1/4" jack socket was intended for low level signals (e.g. electric guitars or microphones). For this feature the A-101-8 has an internal jumper that can be used to increase the amplification. As long as the module is used within the A-100 system usually the lower amplification is used to avoid distortion.

The 8 photo resistors and LEDs are assembled within an small lighproof box. In addition the pc boards are made of lighproof black material to avoid interfering light from other modules or the bus board.

Dimensions
4 HP
45 mm deep

Current Draw
30 mA +12V
30 mA -12V

Notes: Enter a galaxy of rich and vibrant delays. The Dreadbox Nostalgia 3 Stage Delay is a superb effect module that can give you amazing results in moments. Delay is a true staple in the effects world and it can take your modular music to the next level via just a few cables.

The Dreadbox Nostalgia 3 Stage Delay is ideal for a range of modular music styles, from ambient to acid house. This 10HP module fits snugly in your system and has enough CV control to keep even the most avid patcher satisfied.

117 mA +12V
25 mA -12V
35 mm deep
10HP

Notes: Analogue VCO with range from 16Hz up to 32.000Hz.

Variable Voltage Controlled Wave Shaper.

Advanced pitch control with Voltage Controlled Quantizer, so it is always in tune.

Hard Sync Input.

Separate Pulse Output, for use as a clock or to sync other oscillators
.
Power Consumption: 114mA @ +12V , 46mA @ -12V.

35mm depth.

Notes: Junction requires a +12V / -12v power supply with a 2x5 pin ribbon cable (included). The red line of the ribbon cable must be aligned with the -12V marking next to the module's power header and on your case's power distribution board. Junction draws 23mA from the +12 rail and 20mA from the -12 rail. Please ensure you have
enough power available before installing.

About Junction

Junction is a compact, 4 channel attenuverter, cascading mixer and multiple designed to fine tune the control voltages in your rack to the perfect range for their destinations. Junction can be used as a source of fixed voltage, offset another voltage, or mix multiple voltages together to create complex and dynamic modulation.

Features

Each channel on Junction has a knob (1) that acts as a manual control for the attenuverter. Center position (12 o clock) is 0V. The first channel input (2) is normalized to +5V when no cable is plugged into it.

A buffered copy of the input signal of the first channel is present on all of the other inputs from from the first (2) to the last (8). This duplication is "cascading" as shown by the arrow graphics on the panel - if a cable is patched into any input, it "breaks" the cascading multiple - all unpatched inputs carry the signal present at the uppermost patched input (or +5V if no inputs are patched). For example, if a signal is patched into the second channel's input (4) the third (6) and fourth (8) channel inputs would carry a copy of the second channel's input instead of the first channel input.

Junction's channels are mixed on the outputs. The output mixer is also "cascading" - when a cable is patched into an output, it carries a mix of it's own output and all unpatched channel outputs above it. For example, if only the last channel output (9) is patched, this output will carry a mix of all of the outputs. Patching the first channel output (3) would remove it from this mix.

Even though Junction's inputs cascade and outputs mix, Junction's output will clip at the Eurorack power rail voltages of +12 and -12V. It is not possible to output a voltage outside of this range, regardless of the signals patched into Junction.

23mA +12 / 20mA -12 4 HP / 25mm
Deep Reverse Power Protection

Notes: GETREKT is a full analogue waveshaper - an aggressive one.

Why:

To add saturation and harmonics.
To disrupt - folding - and cut into pieces - clipping.
To generate square waves from other control voltage signals or audio sources.
To invert the polarity of a trigger or other kind of pulses.

With:

Sine waves - hear them scream.
Human voices - fracture them in pieces with clipping as a good ol' broken tape would do.
Complex audio sources - to control and flatten them.
Envelopes going to a drum module - rectify or fold that decay tail.

Dimensions:

4 HP
18 mm deep

Current Draw
35 mA +12V
30 mA -12V

Notes: Bad Comrade V3 Eurorack Modular Device

(Glitch, Pitch, Slice, and Dice)

The Bad Comrade is a powerful glitch, delay, and chaotic distortion tool, packed in a tiny 4hp module. Freeze wrecked blips and oscillations in place, create scrambled gated delays, and straight-up over-the-top distortion, all mixed to taste with the original signal. CV available for mix and delay time.

Designed and assembled in Seattle, Washington. Includes a limited 1-year warranty, if registered within 30 days of purchase.

4hp, 30mm deep. 20ma current draw.

Notes: The RS808 is a Eurorack module that brings the TR-808's analogue Rimshot and Claves sounds to your modular drum machine at a low cost. It offers the classic sounds plus two unique snappy "click" variations. Two control knobs, labeled Pitch and Snap, adjust the oscillator frequency and envelope decay, providing greater sound variation and control.

The RS808 faithfully reproduces the original 1980s TR-808 circuit and includes a high-powered gain stage for hot, distortable signals. It features a dual input pulse-shaper for stable triggering from various pulse sources. These enhancements make the RS808 an easy and powerful addition to any modular synth setup, delivering authentic analogue drum sounds.

TR-808 is a Trademark of Roland Corp Japan

Size: 4HP
Depth: 14mm
Power: +12V 14ma / -12V 13ma
