Notes: The legendary Buchla 259 complex oscillator gets the officially licensed Eurorack treatment from TipTop Audio. One of the most versatile and characterful VCOs ever made, with endless cross-modulation options and wave shaping features. Iconic.

Supplier's Notes:
The 259t is the largest and most complex analogue oscillator from Don Buchla's legendary 200 modular synthesiser. The 259 originated the concept of the "Complex Oscillator" in the 1970s and has been reissued by Buchla and Tiptop Audio in Eurorack format. The module consists of two oscillators, called the Modulator and Principal, with a middle section that provides voltage control over the internal modulation paths between the two oscillators, resulting in highly complex timbres. Additionally, the principal oscillator passes through multiple unique voltage-controlled waveshapers and crossfaders for further signal processing. The module's pitch can be controlled with 1V/OCT or via its internal auto-tuner and ART control to create precisely pitched notes.

Notes: A typically clever approach to modulation from Make Noise, the MultiMod takes a control signal and modifies it into eight related outputs, adjustable by phase and timing. Hugely versatile.

Supplier's Notes:
With MultiMod...from one control signal, we create many.

In a modular synthesiser, it is easy to create complex results via complex means - patching an elaborate network of independent control signals, for example. This can be very powerful but also cumbersome to set up, and potentially difficult to control in a meaningful way. MultiMod represents a new approach: it takes a single control signal and copies it 8 times, not unlike a simple mult, except that it allows you to modify those copies by weighted adjustment of their relative phase and speed. The result is modulation that is related to the source, but not identical at each destination.

Phase sets the spacing of the signal copies in time, weighted by channel, with each progressive channel getting more out of phase from the original signal and from each other. Spread allows for varispeeding the copies by different amounts, with each getting progressively faster or slower than the original Signal. Time determines the range of time captured at the input and therefore also the depth of modulation across copies of the input signal when Phase and Spread are manipulated. MultiMod also includes Tempo, Hold, and Reset features, and a variety of Read Shapes for temporal rearrangement of input signals.

When the input is not patched, MultiMod generates an LFO that is copied eight times and manipulated in the same ways.

MultiMod is built with the latest DSP hardware which offers eight high resolution outputs, with signal input and output ranges approaching the upper limits of the analogue eurorack modular system. All I/O is capable of a 20V range at +/-10V, greatly exceeding the typical 0-5V CV input ranges on typical digital modules.

Specifications

Width: 10hp
Max depth (incl power cable): 39mm

Power:
195mA @+12V
10mA @-12V

Notes: A really interesting synth voice module from Befaco, the Oneiroi specialises in ambient pads, drones and soundscapes thanks to a combination of oscillators, looping, effects and randomisation. True stereo textures from a single module.

Supplier's Notes:
Experimental synth voice focused on ambient pads and drone-like soundscapes.

Shape your performance

At its core, there is a Sine Wave Oscillator, Wavetable/Supersaw, and a joyful Looper. This is followed by an FX section featuring a Multimode filter, a Resonator, a Delay, and a Reverb.

His randomizer creates instant patches at the touch of a button.

The Looper can record the external input or the output with "Sound On Sound" looping.

5-second Looper records either the stereo input or the module's output, the Wavetable oscillator uses the Looper buffer

The atmosphere creator

A full-stereo synthesiser that easily creates dense atmospheres for hypnotic music or cinematic sound design.

Featuring three oscillators, four effects, a looper, modulation with complex routing, and a randomizer.

Powerful randomizer with four different targets that acts in different ways depending on the position of the two switches, three levels of intensity and undo/redo.

Specs

Current needs: +12V=200mA, -12V=60mA
Width: 30 HP
Depth Assembled Version: 25mm
Designed, kits prepared and assembled in Barcelona.

Notes: Another iconic Buchla module gets the Eurorack reissue treatment courtesy of TipTop. The 242t is the brand's unique voltage-controlled clock and trigger module, generating pulses based on a 4x12 matrix.

Supplier's Notes:
The Buchla and Tiptop Audio 242t Programmable Pulser is a reissue of the time-event-based generator from the 1970s 200 series. At its center is the Pulser, a voltage-controlled clock oscillator with a wide frequency range, extending up to audio frequencies, numerous outputs, and start/stop controls. The Pulser drives a programmable matrix with three rows of up to 12 stages: (A), (B), and (C). Stages are activated using the X/Y coordinate controls, and the total number of stages can be set using the (n) row. Clock and Reset inputs allow the 242t to sync with other devices, while the Reset input can also be used to control the number of stages with external pulses.

Notes: Tiptop's reissues of iconic Buchla modules continue with the 285 frequency shifter. Edgy, twangy harmonic modulation with ring mod options and stereo operation via sum and difference outputs.

Supplier's Notes:
The 285t combines two sets of functions: the top section features a frequency shifter, while the lower section includes both balanced modulation and classic ring modulation, all with voltage control. The frequency shifter can shift incoming audio using either its internal oscillator or external audio. Both SUM and Difference outputs are available simultaneously for analogue stereo widening effects and more.

As Tiptop Audio continues its aural odyssey of preserving and transforming the hallmark engineering prowess of Don Buchla's namesake synthesizer modules, the 285t brings a constellation of blistering sonic-contouring tools to your Eurorack array. Like its predecessor, the Tiptop Audio Buchla 285t is a menagerie of modulation madness, offering variable degrees of ring, frequency, and amplitude styles of modulation. Plus, its dyad of modulation sub-modules operates independently, with dedicated audio and CV I/O for each, functionally giving you the sum of performance possibilities you'd get with two modules, all in one instrument. Suffice it to say: Sweetwater's synthesists commend Tiptop Audio on capturing the electric magic of Don Buchla's imaginative engineering while transposing it for the world of Eurorack to experience. For a constellation of timbral sculpting and summitting heretofore unknown peaks of daring synthesis exploration, the Tiptop Audio Buchla 285t Frequency Shifter module is your key. Discover what awaits at the fringes of Eurorack possibility!

Note: This module is not compatible with Buchla system voltages. CV signals require a distinct connectivity configurations. Please contact your Sweetwater Sales Engineer with any questions or concerns regarding compatibility or use in your Eurorack case.

Type: Frequency Shifter
Depth: 1.77" (45mm)
HP Size: 18HP
Power Usage: +12V/70mA, -12V/40mA
Power Supply: Requires Eurorack Case and Power Supply
Manufacturer Part Number: 285t

Notes: Updated Atlantix module is an even better synth voice than the original Atlantis. Based on the Roland SH-101 formula, it's a monster with dual VCOs, legendary filter and built-in envelope generator. All you need for iconic analogue sounds.

Supplier's Notes:
Atlantix

Dual Oscillator Subtractive Analogue Synth Voice

It's Massive

The Atlantix is a complete analogue synth voice. It's quick to dial in huge bass or lead sounds, and easy to push it into new sonic territory. Dual VCOs, Multimode VCF, VCA with Drive, and an ADSR envelope; all of the building blocks needed to expand or start making sound in your rack. With 32 patch points and a selection of routing switches, you can remix these blocks into something all your own.

Reimagining a Reimagined Classic

The Atlantix is the highly-anticipated successor to the Intellijel Atlantis which was originally inspired by the classic Roland SH-101. Despite the SH-101's seemingly limited architecture, it produces various creative and musically useful sounds that have inspired generations of artists and countless hits. The Atlantix is just as immediate for dialling in beautifully rich bass and lead sounds. The thoughtful design, numerous additional features, and flexible patching options open up a massive amount of new sonic territory to explore as well.

The Atlantix is an analogue, complete subtractive synthesizer voice condensed into a single 42HP module. It provides all the fundamental building blocks needed to make sounds in Eurorack: VCOs, VCF, VCA, S&H, Noise, and an Envelope.

Oscillators - Advanced TZFM and Flexible Mixer

The Atlantix uses two triangle core voltage controlled oscillators (VCO) which respond in a musically pleasing way to frequency modulation. The Atlantix primary VCO (VCO A) is capable of thru-zero frequency modulation and has a dedicated amplifier for controlling FM depth (FM INDEX). The modulation oscillator (VCO B) can be used as either an LFO or VCO. The highly flexible architecture allows you to route VCO B as a modulation source or stack it as a secondary VCO all by the flick of a switch or slider. VCO B also has a bonus "spike" waveform output which is a square wave with fixed HPF, similar to the Buchla Easel. Both oscillators track very precisely over eight or more octaves.

In the mixer section, you can adjust the balance of the primary oscillator's waveforms, sub-oscillator noise, and two auxiliary inputs that are normalled to additional VCO A waveforms or VCO B waveforms. The auxiliary inputs also allow you to patch other external signals into the mix.
The second Auxiliary input has a switch that allows you to route the source between the mixer sum or directly into the VCA (post-VCF). The latter is a way to pass an unfiltered fundamental signal to the final VCA stage and then blend it with filtered audio from the VCF. This draws inspiration from the architecture of the CS-80 where a sine wave is mixed with the filtered audio to make glassy tones with some added harmonics.

Multimode Filter - From Drips to Growls

The filter section (VCF) is a discrete cascaded 4-pole multimode filter with lowpass, bandpass, highpass, and phaser (multi-notch) modes. The filter can self-oscillate which produces a very clean sine wave that also tracks 1V/Oct. The VCF has three frequency modulation sources, two of which are normalled to the external pitch and envelope and have switches for polarity.

Add Atlx for dedicated outputs from each mode.

Envelope - A Classic ADSR

The envelope section is an analogue ADSR with three timing ranges: slow, medium, and fast. It can be gated externally or via a manual gate button located in the centre of the panel. The ADSR is routed through a VCA which can be used for level or velocity control.

Modulation - Random, Feedback, and Built-in Routing

Two eight-position rotary switches allow you to select from eight different modulation sources and route them to outputs MOD X and MOD Y. Each switch also has a polarity control and an option to level shift between unipolar and bipolar operation. MOD X is normalled to VCO A frequency modulation and MOD Y is normalled to VCF frequency modulation. The dedicated outputs allow for further creative modulation patching.

Four of the Input jacks have normal switches to change your patch without the need for cables.

The analogue Sample and Hold (S&H) circuit is normalled to the white noise source and can be clocked by VCO B, an external clock source, or via the gate input for per-note synced randomization.

Atlx - Expander w/ Ring Mod (Optional) ***Sold separately ***

The Atlx expander provides 16 additional jacks to the Atlantix, including: dedicated waveform outputs for A and B oscillators, filter outputs, and a ring modulator. Atlx adds many new possibilities for self-patching, advanced routing, and connections to other modules.

Specs + Downloads

Width: 42HP
Depth: 25mm
Power: 140mA @ +12V
138mA @ -12V

Notes: A super impressive offering from Xaoc, the Samarkanda is a quad delay module designed for hands-on, real-time performance. Dial in everything from loops to stereo delays, resonators, modulation effects and much more.

Supplier's Notes:
Xaoc Devices Samarkanda is a digital quad delay module with extensive patching capabilities and a lot of flexibility for signal mangling. It can be used as four entirely independent delays, a dual stereo delay, a complex/multi-tap or multi-channel delay, a quad/polyphonic resonator, dual chorus, dual flanger, reverb, looper (with sound on sound!), and granulator, or any combination of those. You can reverse the delayed signal, hold it, squeeze and stretch it beyond all recognition and still go back to the original piece of audio captured in the buffer! The internal lossless normalization (the signal doesn't leave the digital domain) combined with top-notch components (including 24-bit AKM converters and 32-bit internal processing) are responsible for high sound quality. Samarkanda has been conceived in the truly modular spirit. Not only can you control almost all its features remotely with CV/gates, but the external feedback path gives you the opportunity to process the delayed signal with other modules.

Samarkanda offers a wide range of delay times beginning at a mere 0.5ms and reaching up to 15 seconds per channel. That means that, by stacking its four channels, you can achieve up to one minute delay! There are two operating modes switchable individually for each channel. Analogue delivers pitch changes that resemble classic analogue tape and BBD delays. When you combine it with the looping Hold function, you can play Samarkanda with any 1V/octave CV source. By using the Sync function you can even loop single wave cycles. The Digital mode gives you a granular buffer-scrubbing effect (no pitch change) across the whole delay time range. You can seamlessly switch back and forth between modes without losing any information. You can use Samarkanda for multiple tasks at the same time - from four independent delay lines through any combination of channels processing the same signal up to a quad behemoth. You can also use the linking feature for ease of operation (the first channel in the chain acts as the main control source for the others).

As most settings operate on a per-channel basis, you can freely combine different features (such as analog/digital behaviour, delay time range, reverse and hold functions, etc.) in a configuration of your choosing. You can synchronize each of its channels separately to a different source, either via the Sync input, or by using the tap-tempo functionality (with multiplication and division galore). Should you ever get lost, the Purge button comes in handy when/if things start to spiral out of control!

Notes: The hands-on control of hardware meets the versatility of software. Bridging the gap between Eurorack and VCV Rack, the MetaModule includes over 160 built-in modules plus access to over 200 third-party options.

Supplier's Notes:
The MetaModule puts real knobs and jacks on virtual software modules. Step back from the computer and make music with hardware, while keeping the flexibility and expandability of software.

The MetaModule comes with over 160 built-in modules from 4ms Company, Befaco, HetrickCV, NonlinearCircuits, and Scanner Darkly, plus clones of popular classics such as the Mutable Instruments eurorack modules, fun physical modeling algorithms, and lots of handy utilities.

All of the included modules are also available on the computer using the free program VCV Rack. Whether you make patches on VCV Rack and transfer them to the MetaModule, or if you just create patches directly on the MetaModule, there are plenty of creative modules to inspire new ways to make music.

MetaModule Plugins

If the 160+ built-in module aren't enough, you can load more modules as plugins. Already there are over 200 modules in third-party plugins from Bogaudio, Valley, ChowDSP, NANO Modular, and the list is growing. 4ms have an SDK available to make it easy for VCV Rack plugin developers to convert their plugin to a MetaModule plugin. 4ms' licensing terms are non-restrictive: developers are welcome to distribute their plugin in any way they wish, commercially or not.

Mapping Knobs and Jacks

The MetaModule has 12 knobs that can be mapped to virtual knobs. Each knob can be mapped to up eight virtual knobs, and each mapping can have a different range and offset. You also can save a group of mappings as a Knob Set and switch between Knob Sets with the encoder. You also can map the 8 inputs and 8 outputs to virtual module jacks. Also, the MetaModule is a USB MIDI host, so you also can map MIDI CC, note, gate, and other parameters to knobs and jacks.

Expanders

There are lots of ways to customize your MetaModule. A Wifi expander allows you to wirelessly transfer patches from your computer. Add eight more knobs with the Knob expander, or buttons with the Button expander. A CV/Audio expander adds more high-resolution inputs and outputs, and the Gate In/Out expander adds not only gate jacks but also TRS MIDI and I2C.

Under the Hood

There are six CV/Audio inputs, two gate inputs, and six CV/Audio outputs. The CV/Audio jacks are all 24-bit, 48kHz DC-coupled, -10V to +10V. A USB-C jack accepts MIDI devices and thumb drives. Patches and plugins can be loaded via a USB drive or microSD Card, and internal flash memory lets you save patches you always want to come back to.

The processor is more advanced than anything 4ms has used in the past, and is among the most powerful processors found in Eurorack. Startup time and latency are blazingly fast.

Modules

160 built-in modules
Over 200 3rd-party module plugins available so far, and the ecosystem is growing
Create patches using VCV Rack or directly on MetaModule

Patches

Patches are loaded from microSD Card, USB drive, or via the Wifi expander
Patches can be optionally saved onto internal flash memory
Create patches using VCV Rack or directly on MetaModule
Patches can be given a name and description

Mappings

Map each physical knob to up to 8 virtual knobs
Set range and offset for each mapping, including inverted control
Knob mappings are grouped into Knob Sets, and changing Knob Sets can be done quickly without menu-diving
Map physical jacks to virtual jacks, seamlessly making splits/mults
Add or edit modules, cables, and mappings in real-time while the patch is playing
Create alias names for mappings like "Kick Drum Level"

Interface

Simple, intuitive graphical interface lets you zoom in on details, or zoom out to get a big picture
Patch View displays the patch as faceplates and cables, with knobs, buttons, and lights animating in real-time
Knob Set View simplifies the display, showing only the mapped knobs for the current Knob Set
Module View shows just one module and lists the names of each jack, knob, and control legibly
Mapping View lets you adjust details of a knob mapping
Adjust styles and visual preferences to your liking
Save, rename, duplicate, and delete patches
Firmware updater and plugin loader read from microSD Card or USB drive

Hardware

12 Knobs
8 CV/Audio outputs, 24-bit 48kHz, -10V to +10V, DC-coupled
6 CV/Audio inputs, 24-bit 48kHz, -10V to +10V, DC-coupled
2 Gate inputs
USB-C jack: MIDI Host or MSC (External drive) Host
microSD Card slot
Internal Flash RAM for additional patch storage
Dual-core 800MHz Cortex-A7 plus Cortex-M4 co-processor
512MB DDR3 533MHz RAM
Bare-metal operation for fast startup and low latency

26hp

Notes: The brilliant Perkons drum machine comes to Eurorack. A single hybrid drum voice with digital sound engine and analogue filter/overdrive, the Perkons Voice is flexible and supremely powerful.

Supplier's Notes:
Erica Synths Perkons Voice is a eurorack incarnation of the percussion voices from the PERKONS HD-01 Drum machine. Like on the drum machine, the module has hybrid architecture, featuring a digital sound engine followed by an analogue multimode filter and overdrive. Users can select among 13 sound generation algorithms and save up to 99 presets that can be recalled easily. Tune and Patch CV inputs are configurable for various CV settings and are tuned to 1V/oct. Module also features a 4-voice poly overlap mode and samples on the "Rompler" engine can be easily replaced.

Specifications:

Audio output: 10Vptp
CV levels configurable: -5V - +5V
Power consumption: +59mA, -30mA
Module width: 14HP
Module depth: 35mm

Notes: A spin-off from the brilliantly experimental Strega synth, the Bruxa module offers a different type of 'Time/Filter Experiment' designed to warp and twist sounds from other modules. Excellent creative stuff.

Supplier's Notes:
Check Make Noise's website for content and pictures!

The Bruxa music synthesiser module is an audio alchemical experiment. Spill your sound into time, and let it decay through the filters to hear the results.

Bruxa is a collaboration between Make Noise and Alessandro Cortini. Inspired by Cortini's music and sonic experimentations, Bruxa embodies the seen and unseen, the sign and magic, the alchemy of sound. It is a new evolution of Tony and Alessandro's original prototype circuits which eventually became the Strega's Time/Filter Experiment. It is a multi-tap delay line with over a dozen unique feedback paths and multiple filters within those feedback paths aligned to allow for accumulation of noise, saturation and signal degradation.

While Strega is a complete synthesiser in a tabletop form factor, Bruxa is a Eurorack module designed to be used as one part of a Eurorack modular synthesiser. You will discover a number of differences in layout, signals, and sound. Living inside the Eurorack modular system, Bruxa encourages you to patch your own sound and modulation sources, yielding results surprisingly distinct from Strega.

Echoverb signal processor which shares origins with Strega
Well tuned to work nicely in a Eurorack modular system
All analogue dry signal path blended with digital/ analogue hybrid signal processor
Analog CV inputs with wide range capable of audio rate modulation
Time control with massive, smoothly variable range
Linear FM input with attenuator allows for fluttering of Time
Absorb and Filter controls dramatically shape the echo tone and reflections
New unique CV outputs for use in self-patching or mutual patching with other modules
Pairs well with DPO, STO, MATHS, Prss Pnt, modDemix and more!

Specs:

Width: 18hp
Max Depth (incl. power cable): 48mm

Power:
140mA @ +12V
90mA @ -12V

Notes: On the surface, Xaoc Devices Berlin is a simple compact VCO offering square and saw waves with hard sync, FM input and octave switching. The most interesting part lies behind the panel and that is the Leibniz Binary Subsystem interface, namely LBZ out and LBZ in. The front panel LBZ LINK button and its corresponding gate input switch between the default saw wave and a signal that has been passed through any Leibniz module (or a combination of Leibniz modules) connected to Berlin. Add Xaoc Devices Jena for wave processing and the output is no longer a simple saw wave - you now have a vintage-style wavetable oscillator with a penchant for the experimental due to its open, hackable nature.

Berlin operates in a way similar to the classic PPG Wave and Fairlight CMI synths and employs a variable sample rate of an extremely wide-range internal clock. As the sample rate changes with the oscillator frequency, Berlin's internal square and saw waves exhibit no aliasing effect. The whole frequency range spans from 30 seconds in LFO mode up to 250 kHz (!) with the clock reaching an astounding 20 MHz. Add to that voltage control over all parameters and the result is a highly versatile module capable of creating a significantly diverse palette of unusual waveforms. To better understand the device and avoid common pitfalls, it is strongly advised that you read through the entire manual before using the module.

Technical details:

8hp, 30mm deep (including the ribbon cable and bracket)
Current draw: +40mA/-20mA
Reverse power protection

Connectivity:

Berlin connects to all modules compatible with the Leibniz Binary Subsystem: Drezno II, Lipsk, Gera, Jena, Erfurt, Poczdam, Rostock, Ostankino II, and Odessa.

Notes: Meet Stardust, a cosmic tape looper.

The foundation of Stardust is a stereo looper with all the essential controls to record and manipulate sound, while supporting click-less looping transitions, an ultra-low noise floor, and high-fidelity audio hardware. However, getting the perfect loop is only half of the equation, Stardust also focuses on the texture and vibe of your recordings. Dial in a classic tape machine style warmth with wow & flutter/tape hiss controls, or take Stardust to new horizons with DSP effects. And, much like the tape-machines it takes it's inspiration from, Stardust can splice and rearrange its loops at the twist of a knob.

With an impressive set of front panel controls, the ability to save, recall, or export recordings, load samples via an included USB flash drive, and a host of configurable settings via our web editor Narwhal, Stardust is a comprehensive looper device.

Power Consumption: +12V=201mA, -12V=13mA, +5V=0mA

Notes: A visit to the Hainbach Studio Complex two years ago, led to a collaboration that would result in what is perhaps Joranalogue's finest design yet. United by a common passion for vintage test gear, the Joranalogue team joined forces with artist and YouTube sensation Hainbach.

Collide 4 builds upon on the lock-in amplifier concept, and brings it into the Eurorack world. These atomic age physics research instruments are known for their raw power when used in musical applications. Soon, any synthesist can experience this for themselves, at a fraction of the size and weight of a vintage unit, and with full voltage control.

The result is a wholly new kind of synth voice and audio processor, unlike any other. It's a perfect union of Hainbach's extensive experience in exploring the deepest musical realms contained within vintage test equipment, and profound knowledge of audio design and production.

'Quadrature spectral computer' is how you could describe this new kind of musical generator and processor. The sound? Quite simply: it's smashing!

Specs

Modern, fully analogue re-imagining of the lock-in amplifier concept, expanded to new heights.
Pingable variable bandwidth filter with self-oscillation capability.
Pre- and post-filter gain stages, for a total of up to 130 dB of amplification!
Through-zero sine/cosine quadrature oscillator.
Hilbert transform network for use as a frequency shifter.
Dual ring modulators with output lowpass filters.
Extensive output section, including magnitude and phase analogue computing outputs.
Unique X/Y quadrature topology, ideal for stereo use.
Handsome (and useful) signal level/overload LED indicator.
CV control over everything, with temperature compensation and excellent volt/octave pitch tracking.
20 HP, 30 mm deep. Over 600 components, yet a fraction of the weight and size of a vintage Model 124A lock-in amplifier unit.

Notes: Patching Heaven

Adds 14 dedicated outputs and a Ring Mod to the already powerful Atlantix module.

The Atlx expander provides 16 additional jacks to the Atlantix, including: dedicated waveform outputs for A and B oscillators, filter outputs, and a ring modulator. Atlx adds many new possibilities for self-patching, advanced routing and connections to other modules.

Filter Outs

Lowpass
Highpass
Bandpass
Phazor

Ring Mod

X In
Y In
RING Out

Oscillators A/B Outs

Sine
Triangle
Saw
Square (w/ PWM on A)
Sub Square (A only)

Notes: Great value from Xaoc's pingable dual VCA, capable of creating organic, acoustic-style decay curves which replicate the dynamics of real-life instruments. Ideal for processing audio as well as CV.

Supplier's Notes:
Xaoc Devices Lublin is a high-quality dual VCA module with exponential CV inputs. On top of that, its two identical channels feature additional inputs for pinging. These inputs use an elaborate analogue circuit to model the dynamic behaviour of vactrols, allowing you to trigger a carefully crafted gain response that mimics the natural decay of plucked and struck acoustic instruments. Unlike lowpass gate modules though, Lublin reduces gain while retaining the full frequency bandwidth, so it is perfect for harmonically rich signals, like our Odessa additive VCO. The vactrol-like behaviour is just a starting point as the envelope may be varied within a wide range using a switch (natural, shortened and prolonged response) and a potentiometer, so you are not stuck with one decay characteristic. Therefore, you can use it not only to create bongos, but also for fat compressed kicks! The built-in gain control circuit (saturating CV instead of the audio signal) prevents distortion from excessive amplification. Lublin is DC-coupled, so you can use it to process CV as well as audio signals.

Width 6HP, Depth 33mm (including cable bracket)
40mA/-20mA

Notes: Quad random, highly controllable, quantized-voltage generator and generative CV sequencer

Gamut Repetitor is a four-channel random quantized voltage generator with looping, range, key, and scale settings. It features a built-in quantizer with 27 scales grouped across a selection of three CV-controllable switches, so it's easy and fun to generate patterns you'll love. The trigger outputs can simply pass through the input trigger or they can generate random triggers for more modular merrymaking.

Patching GR is as simple as sending in a trigger pattern and turning Length up. Then you can use the built-in quantizer, key, and range controls to change the way voltages are generated. Once you hear something you like, turn the Length down to a sequence length you like (up to 32) and loop away!

Size and Power

10HP Eurorack
+12v: 55mA
-12v: 15mA
Gamut from medieval Latin: "a complete scale of musical notes; the compass or range of a voice or instrument."

Repetitor from Latin repetito with suffix -tor to make the noun: "thing which repeats"

"Thing which repeats all the things"

What's in the box
Module
Power cable

*** Noise Engineering no longer include screws with newly packaged modules. Bulk screws are available for purchase. ***

Notes: A rock-solid all-rounder of a VCO, the Cycle 5 is a triangle-core oscillator with morphable wave shapes as well as conventional sine, triangle, saw and pulse outputs. Switchable octaves and 5th transposition make the module even more user friendly.

Supplier's Notes:
A small Eurorack oscillator that packs a punch: that's the best way to summarise Cycle 5.

At its heart lies a refined high-stability triangle core voltage controlled oscillator (VCO), with performance matching or exceeding that of much bigger and costly oscillator modules.

Instead of a coarse frequency knob, a 7-position octave switch is provided. This in combination with a perfect fifth transposition switch and factory pitch tuning, makes Cycle 5 an exceptionally straightforward and musical VCO to use: simply centre the fine tune knob, and the module will be instantly tuned to reference C.

Meanwhile, its dual precision volt per octave inputs add a great deal of versatility. For example, one could be used for pitch sequencing and the other as a generic exponential FM input, or both sequenced together for transposition effectsithe dual inputs serving as a built-in precision adder.

Sporting all the classic waveforms, ranging from sine wave, triangle, saw and square/saw, as well as a hard sync input and low frequency oscillator (LFO) mode, Cycle 5 makes for a real workhorse VCO. The novel trigonometric waveshaper results in a very clean sine wave, ideal for sub bass duty.

Cycle 5's highlight however, is its vari-wave feature. By adjusting the vari-wave knob, the waveform on the matching output will smoothly morph from sine, to triangle, saw, square and finally a very narrow pulse. The vari-wave parameter can be CV controlled, up to audio frequencies for some intense timbres.

Equally at home as a modest modulation companion to big VCOs, as being in the spotlight in miniature or polyphonic systems, Cycle 5 might just be the most multi-talented tiny analogue oscillator yet.

6 HP | +12: 75 mA, -12: 70 mA

Notes: Part of TipTop's exceptional series of Eurorack-format Buchla modules, the 264t provides four sample-and-hold circuits, plus a logic circuit designed to control polyphonic patches. Deceptively simple but surprisingly creative, like most Buchla modules.

Supplier's Notes:
Four independent sample-and-hold circuits, plus a specialized logic circuit for expediently implementing polyphonic patches.

Sample-and-hold's are essentially one-cell analog memories. They are useful for "remembering" the instantaneous value of a control voltage (a detected envelope, for example), for generating equally spaced steps from a constant slope input (as from a 281t envelope generator), and for converting any continuously changing voltage (a random voltage, for instance) into a series of discrete values.

The 264's sample-and-hold circuits have two operating modes: sample and track. In the sample mode, the value of the input is sampled and applied to the output whenever a pulse is received. The output remains at this value until the next pulse arrives. The track mode diers in that an input is applied to the output for the duration of the pulse. The output tracks the input until the end of the pulse and remains at a constant value until the next pulse.

To use the 264t as four independent channels set the separate/common switch to separate. A single CV can be set to all four channels by setting the operate/common to common and plug CV in the the back jack on the with right side.

The Model 264t includes a polyphonic adaptor, which performs the logic necessary to implement four-voice polyphony. Facilities are incorporated for fine tuning and f.m. modulating the oscillators; light emitters display the adaptor's operation.

Specifications:

Size: 18 HP - Depth: 45mm
Power: +12V 60mA / -12V 30mA

Notes: Tiptop bring the iconic low-pass gate to their range of Buchla reissues. The 292t offers four channels which can be mixed or treated individually, with adjustable modes for low-pass filtering, VCA or the classic low-pass gate combo.

Supplier's Notes:
The 292t is a reissue of Don Buchla's low-pass gate from the 1970s, adapted for the Eurorack modular format. The module consists of four independent low-pass gates (LPGs) and retains the natural, percussive sounds of the original, all of which can be manipulated in real time using control voltages. The 292t allows you to mix up to four sounds from their individual outputs or through a summed output, functioning as a mixdown. Each channel can operate in one of three modes: a low-pass filter with a variable cutoff, a VCA with controllable gain, or a combination of both, producing Buchla's classic low-pass gate effect.

Notes: Excellent value here. Analogue filterbanks tend to be pricy affairs but Erica's Resonant FB gives you all that creative control of dynamic equalisation with the convenience of digital control.

Supplier's Notes:
The Graphic Resonant Filterbank (FB) is a ten-band analogue filterbank with digital control over each bands' boost or cut. Each band can be controlled individually via CV or manually, while complex control configurations turn the filterbank into an unconventional multimode filter and even an instrument in its own right when played with various resonance settings. The Expander module (works exclusively with the Graphic Resonant Filterbank and is available separately) provides hands-on adjustment of boost and cut for all bands.

Specifications:

Audio signal amplitude: 10Vptp
Bandpass filter frequencies: 29Hz,61Hz,115Hz,218Hz,411Hz,777Hz, 1,5kHz, 2,8kHz, 5,2kHz,11kHz +-10%
CV input amplitude (configurable): -10V - +10V
Number of presets: 128
Panel width: 20HP
Module depth: 30mm
Power consumption (with EXP): 138(145)mA@+12V,50mA@-12V

Notes: Designed for Make Noise's New Universal Synthesizer System but compatible with all Eurorack modules, the Jumbled is a 6-in/6-out VCA-based signal router, designed to manipulate and reimagine control voltage signals.

Supplier's Notes:
The Jumbler music synthesiser module is a six by six channel analogue signal combiner and distributor for the New Universal Synthesizer System or any Eurorack modular synthesiser. Jumble is one of the N.U.S.S. concepts where the routings of a patch could be re-configured, or jumbled, instantly via voltage control to produce variations on a theme.

Jumbler gives you powerful two-parameter access to the rearrangement of both origins and destinations for up to six modular signals. One to six inputs are routed to one to six outputs, in an order determined by the Rotate control, and combination determined by the Radiate control. Unlike a simple switch module, Jumbler's analogue VCA-based design is specially geared for smooth transitions and hybrid signals.

Jumbler is a great module for hybrid control voltage mashing, complex waveform mixing, on-the-fly effects re-routing, gate and clock re-combinations and more. Some folks have said it is like patching a stack of 6 RxMx circuits.

Width: 10hp
Max Depth (incl. power cable): 43 mm

Power:
178mA@ +12V
92mA @ -12V

Notes: Ohm Force's genre-defining 'shaper' distortion plugin comes to Eurorack in this neatly designed module. Over 100 distortion programs in full stereo, with plenty of hands-on control and extensive CV modulation options.

Supplier's Notes:
Time to get away with murder

From the plugin that redefined distortions forever

111 different distortions and shapers in one single 14hp module

Full stereo

Advanced performer modes

Back on Eurorack

Ohmicide Eurorack is an adaptation of the legendary distortion plugin that defined the now well populated category of "shaper" effects. Amongst the numerous things that made it a hallmark plugin was the carefully crafted distortion library covering all things known and many more unknown. All of those 111 distortions are now ready to burn your finger tips in a remarkably versatile module delivering huge sonic possibilities. ant let you change the texture of your VCOs, drums and samples in subtle or brutally unsubtle ways. Use all sorts of distortions, including bitcrusher, freezer, filtering and jellyfish variety.

Wiggle. Listen. Drool.

With a routing redesigned for Eurorack you'll need little learning to go straight to soundscape heaven (or hell, preference may vary). Shape the frequencies you want with the XOVER and the two Low Pass Filters. Explore the impact on all of your sounds, from mono VCO to stereo drums loops. Cycle through TYPE to find a fit or get nice surprises then tweak BIAS and MOD to explore new forms of madness.

It's alive

Ohmicide Eurorack features CV for all of its parameters including four with attenuverters. It also has automatic gain staging that is essential to the distortion delivering texture, not just loudness. And for your live experience we incorporated a performer mode that let you store and even automate preset switching. Ohmicide is lovingly crafted based on decades of experience in distortions. It's a module to lose yourself in for long sessions of sound exploration - or simply to get uniquely aggressive leads and drones.

Specifications:

Width: 14HP
Depth: 26mm
+12V: 120mA
-12V: 10mA
+5V: 0mA

Audio

Sample Rate: 48kHz
Hardware audio converters bit-depth: 24-bit
Internal processing bit-depth: 32-bit floating point
True Stereo Audio
High fidelity Texas Instruments Burr-Brown audio converters

Controls

Knob resolution: 16-bit (65536 distinct values)
CV inputs
Voltage: +5V (0..5V compatible)
Resolution: 16-bit (65536 distinct values)

Memory

Current distortion type, screen contrast and saver mode, TYPE and FAM CV +5V or 0..5V options
16 sequences
8 steps, each step being a snapshot of all knobs and switches
All knob options
Sequence length
Step reset mode

USB Port

Type: Micro-B
The USB port is only used to update the module firmware.

Notes: Silver version of Cosmotronic's Messor module, offering stereo compression and transient shaping in just 8 hp. Ideal for mix buss compression, whether full stereo mix or drum/synth submixes.

Supplier's Notes:
Messor is an analogue stereo compressor with lots of tricks up its sleeve, in only 8HP.

From squashing drums, sidechaining kicks and sculpting transients, to glueing a mix together, it's a very versatile dynamics manager.

At its core it's a VCA based feed-forward compressor with a low noise signal path. The magic is in the internal sidechain that shapes the gain reduction envelope. This starts with a a switchable high-pass / low-pass filter, before going into a precision envelope follower, controlled by familiar parameters: the attack, release, threshold, ratio and makeup gain.

The ratio can go past limiting and into over-compression, which can completely reshape transients, a great tool for sound design.

Being modular, of course there are CV inputs for Attack, Release and the side-chain Filter cutoff. The Gain CV controls the makeup gain, but also doubles as a Stereo VCA with the Gain knob turned fully CCW.

The gain reduction envelope is also available as an output, for turning filters or other VCA's into compressors for example, or as a standalone envelope follower.

There's a bypass switch, and a Warm mode, that can bring in a bit of additional saturation and compression in the form of analog tube simulation circuitry.

Lastly there's the possibility to insert an external sidechain, for that classic kick sidechain compression.

Dimensions
8 HP
25 mm deep

Current Draw
45 mA +12V
26 mA -12V

Notes: Expander for the 4-channel sequencer that provides CV inputs and controls for each sequencer to enable complex pattern generation, waveshaping oscillators, ratcheting sequence effects, sequence step address re-ordering, gate length control and more.

Depth (internal from panel): 27mm
-12V @ 30mA
+12V @ 63mA
+5V @ 8mA

Weight = 0.171kg not including packaging or cables

Notes: The aux mix 1U is a 3-channel stereo mixer module with a stereo auxiliary send bus. The routing options on this mixer module make using aux mix 1U for send FX, parallel processing, feedback mixing, and more possible. It is designed for audio signals only (not for mixing CV). It is AC-coupled, and uses audio-grade, logarithmic attenuators for a smooth, even response across the entire volume range.

Each channel has a dedicated pair of inputs for stereo audio sources. The left channel inputs are normalled to the right for mono audio sources. All three channels feature a precise level attenuator, a mute switch, and an LED input activity level indicator. The three stereo channels are mixed and summed to the main outputs, where they can be patched out to a wider Eurorack system or external pro-audio equipment. The output stage features soft-clipping diodes for smoother saturation when signal levels are very high.

In addition to the main mix controls, channels 1 & 2 also feature an aux level attenuator with a pre/post switch. These can be used to create an independent aux mix which is routed to another pair of outputs, separate from the main mix. The aux output stage also features the same soft-clipping diodes as the main output. aux mix 1U has four 3-pin connectors on the rear side for directly routing audio between other Intellijel cases & modules - without the need for patching cables. Connections include aux in, aux out, chain in & chain out. This also allows you to chain multiple aux mix 1U modules together to form even bigger mix chains.

Notes: The MetaModule Audio Expander (MetaAIO) adds an additional 6 CV/Audio inputs and 8 CV/Audio outputs to your MetaModule patches, via a ribbon cable connected to the main MetaModule. The MetaAIO provides the same high-quality as the MetaModule's Audio/CV jacks (24-bit, 48kHz default, up to 96kHz).

Notes: Dive into the world of subtle tone modulation with the revolutionary 2HP Eurorack compatible Slew Limiter. This compact but powerful module is the secret weapon in your synth setup to create smooth transitions between your sounds, giving you the opportunity to expand your musical expression in a unique way.

With its slim design of only 2HP, the Slew Limiter fits seamlessly into any Eurorack system without taking up valuable space.

Create smooth transitions between notes or modulate CV signals to create organic, vibrant effects such as portamento/glide, or complex modulated patches.

Adjustable rise and fall times give you complete control over the speed of signal changes, from instant jumps to smooth, slow transitions. Versatile uses: Whether for smoothing control voltages, creating legato effects for monophonic melodies or for creative sound design - this slew limiter is a true all-rounder.

Thanks to its clean layout and simple controls, you can make the settings you want instantly, making it ideal for live performances and studio sessions.

CV control via rise/fall

A unique feature is the ability to control rise and fall times via external CV signals, allowing you to dynamically react to your performance or patch.

Shape Control

The Shape slider allows you to fine-tune transitions over a wide area. Whether it's a slow exponential increase, linear transitions, or a subtle adjustment through the logarithmic characteristic, it's all at the service of the music

Notes: End-of-chain stereo effects are on tap with this compact and powerful module, built around a large central control knob for quick hands-on tweaking of effects like DJ-style filtering, reverb, and loops.

Supplier's Notes:
The Best Eurorack Performance FX Module

Meta is the all-in-one solution for creating smooth transitions, exciting drops, and other creative live performance effects.

Meta controls are easy to understand and use. Its feature-rich compact size saves you space and time setting up various modules or expensive effects hardware.

This is the perfect performance effect module for you.

Designed for Performance by Performers

OXI Meta is designed to be easily operated with one hand, and the effects algorithm is built to work specifically for transitions between tracks, building up a drop, intros, or outros with effects like a DJ filter, risers, loopers, and more.

The Solution for Transitions in Eurorack

OXI Meta is an end-of-chain effects processor with a highly performative interface in only 6 HP. Blend your songs and build tension like a professional without all the expensive, bulky gear.

Effect Scenes Breakdown

Meta FX Scenes were crafted and tested to deliver premium level FX- with simplicity, but also allowing to tweak enough to fit your taste and technical needs.

Space

Send your mix into the outer realms with this reverb effect.

Choose from two types of reverbs, a classic long tail reverb with tone and filter control or an experimental reverb from shimmery to deep/black-hole textures.

Riser

One of the most effective ways to create tension for drops and transitions. The OXI Meta riser features two modes both with a high-pass filter & reverb. Mode 1 adds noise and mode 2 adds a Shepard tone-style effect.

DJ filter

A DJ style filter is must have for any live performer. OXI Meta provides you with a high-pass and low-pass filter for the ultimate in transitions.

Loop

Loop small sections of audio in forward or reverse order to create head-nodding breaks and rhythms.

Delay

A high-pass or low-pass clockable delay algorithm with a splash of reverb wash to help glue this classic effect into the mix.

Gater-roller

A unique dual gater effect for exciting audio. Turn the knob right for a gater with division control and built-in high-pass filter, or go left with a snare roll build up with reverb and built-in high-pass filter.

Technical specifications

Width: 6 Hp
Depth: 22 mm
Audio: 24bit, 48KHz

Power consumption:

+12 V: 110 mA
-12 V: 20 mA
+5 V: 0 mA

Notes: AUTOPILOT 1U is an innovative tuner module. Tune your oscillators fast, just apply the AUTOPILOT 1U in between the pitch CV and apply the reference waveform. Previously available as a dual autotuner AUTOPILOT in 3U version (4hp) and now as a single autotuner 1U Intellijel format version (6hp).

440 A-note or 261.62 Hz C-note scales: selected mode saved on next power up

Tune your oscillators instantly, just apply the Autopilot in between the pitch CV and apply the reference wave

Play the reference note from your sequencer or CV keyboard. Now a single tap on the button tunes your oscillator to the closest A/C note.

Power consumption:
20 mA +12V
10 mA -12V
0 mA 5V

Dimensions
6 HP
35 mm deep

Notes: Full synth voice with MIDI connection!

The voice is inspired by the classic West Coast synthesis approach.

Five oscillators from the popular Verbos Foundation oscillator are used. The oscillator has controls such as timbre and richness to shape the sound. With Timbre, the waveform can be faded from sine to sawtooth. The voice also has a spread control that can be controlled via CV. Another nice feature is the Auto-Tune function.

All parameters can be controlled via MIDI CC, which is great for sequencing different parameters.

There are two AD envelopes built in, which can also be cycled and generate frequencies up to 500hz.

The module can be used as a standalone unit with the Verbos Blackbox or as a standard Eurorack module.

Power consumption: +30mA at +12V and -10mA at -12V
Depth: 22mm
42 HP

Notes: The Morphor Sequencer - Quad Gate/CV is a versatile tool for both live Eurorack performances and songwriting. This module can be configured as a 2-, 3-, or 4-track sequencer, depending on the selected output configuration. With flexible track configurations and intuitive real-time step editing, this sequencer offers a handy approach to sequencing in modular systems being only 4 HP wide.

Whether you're controlling gates, CVs, or a combination of both, this module adapts to your creative needs with ease. Key features include up to 4 independent tracks, each capable of holding up to 16 pages containing up to 16 steps. Users can configure tracks as gate, CV, or combined gate/CV tracks, and even set up triad chords. The module supports customizable step lengths, glide times, individual track playback orders and reset behaviors making it ideal for creative sequences.

This module can operate as a standalone unit using its internal clock or be easily synchronized with an external clock source for integrated use within a larger system. The clock and reset jacks can function as both inputs or outputs, allowing flexible configuration to match your setup.

For expanded setups, multiple Morphor Sequencer modules can be daisy-chained via the bus connection on the back, ensuring that clock and reset signals are shared seamlessly across all connected modules. This makes it easy to sync multiple sequencers for complex, multi-track performances or compositions.

Specifications

Panel width: 22 HP
Panel height: 1 U
Module depth: 33 mm
Dimensions: 39.65 x 111.4 x 33 mm
Mass: 56 g
Power Socket: 16-pin

Current draw:
12 V: 95 mA
-12 V: 11 mA
+5 V: 123 mA

Notes: For anyone who has ever struggled with finding their way around a Eurorack synthesiser on a dark stage or a dimly lit studio, Dim 2 presents an illuminating experience. In just 4 HP, it provides a complete solution to upgrade your modular system with a pair of dimmable console lights.

The high-efficiency PWM dimmers run at high frequency, ensuring flicker-free and noise-free operation. Additionally, extensive line filtering keeps your Eurorack power supply happy and clean.

Not limited to just manual control, both dimmers also feature control voltage (CV) inputs, turning the connected lamps from simple light sources to voltage controlled audio-visual spectacles.

While the use of the included BNC LED lamps is recommended in order to keep power consumption low, halogen lamps may be used as well. Provided your power supply is beefy enough, up to 6 W of power may be drawn from each output. This even makes it possible to drive 12 V LED strips, truly making your patches shine bright.

4 HP | +12: 150 mA, -12: 5 mA | JORD2

Notes: Part of Knobula's excellent polyphonic Eurorack range, the Monumatic is an eight-voice poly/monophonic synth module with 16 oscillator modes, covering everything from virtual analogue to cutting-edge tone generation algorithms.

Supplier's Notes:
Monumatic is a fully polyphonic 8-voice synthesiser and a monophonic synthesiser packed into a compact 12HP module.

It features16 selectable oscillator modes to provide a diverse range of both classic and futuristic tone generation using exclusively virtual analog algorithms. These include; Roland super-saw, Polymoog vox humana, Casio phase distortion, Solina string synth, percussive drawbar organs , "noisy cassette" strings, pulse width modulation and some gnarly asymmetric sync oscillators, all modelled without samples and each one of these customisable using the Detune control and each providing the foundation for further signal processing though the filter and effects sections.

6 powerful filter types are provided, including a vocal vowel filter, a 24db/oct Butterworth low pass filter, a dual peak notch filter and a phase shifter, each of which features an overdrive setting.

Like its sibling module Poly Cinematic, Monumatic is designed to be simple to use yet versatile, offering minimal controls to access a wealth of sounds, avoiding the need to scroll through 1000s of complex presets.

Monumatic supports full analog control of every parameter, with two instantly assignable CV inputs, as well as dedicated CV inputs for Gate, V/Oct and Filter cutoff, with additional digital control using comprehensive Midi CC and MPE implementation. An altogether unparalleled potential for expansion and integration into the eurorack universe.

As well as full midi capability, the 8 built-in chord presets can be custom programmed to provide polyphonic stabs and pads and using a single CV/Gate input, arpeggios can be layered polyphonically or "plucked" using long release times. The mono/poly function allows the Monumatic to switch between a fully capable poly synth or a mono synth at the touch of a button.

In polyphonic mode Monumatic introduces an advanced micro-tuning system to modular synthesis, it can replicate the organic drift of vintage analogue oscillators or it can apply realtime tuning temperaments to enhance harmonic authenticity using 'just' intonation, this parameter can even be assigned to CV control.

Notes: Module A-124-2 is a special 12dB multimode filter using the "strange" filter circuit of the "EDP Wasp" (an analog synthesizer with black/yellow case built end of the seventies, manufactured by the UK company "Electronic Dream Plant").

The A-124-2 is the Slim Line version, which is only 4hp wide.

This design "abuses" digital inverters as analog operational amplifiers leading to distortions and other "dirty" effects that generate the specific sound of this filter. The filter is equipped with a band pass output and a combined low/notch/high pass output. For this output a control knob defines the relation between low and high pass signal. If both signals appear at the same level (i.e. middle position of the Mix knob) one obtains a notch filter. Otherwise the low or high pass signal predominates. The module does not feature self oscillation in contrast to most of the other filters of the A-100 system.

Dimensions:
4 HP
20 mm deep

Notes: Super Sawtor is the module designed to produce unison like waveforms from the incoming signal. The best results are achieved using sawtooth, triangle or sine waveforms as an input signal. Unison spread has been tuned to give almost the same type of harmonics smearing as the famous Roland JP80X0 Supersaw oscillator. Thus feeding the Super Sawtor with a sawtooth waveform will result in a typical Supersaw output.

Though having some common features with sawtooth animators, Super Sawtor gives that vivid tension of the Supersaw waveform, which is different to imitation of the multiple oscillators sound most sawtooth animators capable of doing. The main difference is in the approach used: sawtooth animators tend to recreate continuously moving phase shift of the slightly detuned / drifting oscillators; super Sawtor in its turn creates additional pitched shifted harmonics to the input signal, which gives a different sonic character compared to sawtooth animators.

It is also should be mentioned that Super Sawtor is a completely analogue circuit free of aliasing.

No external modulation sources are required for proper operation of the module. However the user can add changes and modulation to the manually set "Spread" amount by using "Cv" input and adjusting "Cv" knob to the desired degree.

Specifications:
Input level: -5v... + 5v (can also accept inputs ranging from [-2.5v... +2.5v] To [-15v...+15v] Using onboard trimmers)
Output level: averages around -5v ... + 5v
Output impedance: 1 kohm
Module depth: 3 cm or 1,5"
Power consumption: +85 /-85 ma at +/-15 VDC through dotcom standard 6 pin mta-100 connector for dotcom format
+45 /-45 ma at +/-15 VDC through MOTM standard 4 pin mta-156 connector
+45 /-45 ma at +/-12 VDC through euro standard 10 pin connector
4HP

Notes: Peak performance auto-tuning thru-zero VCO

Revolutionary, literally instant auto-tuning to the nearest C, G or A notes
Pitch knob lock - go on hard performance without the risk of accidentally break the tune
MIDI IN and MIDI THRU with selectable A or B TRS-MIDI standard
Thru-zero linear FM with CV-controlled FM index with internal modulator creates compact 2-operator FM voice
Sine/fold output features famous westcoast Furthrrrr Generator folder
Odd/even output has a pre-patched -1/-2/-3 octaves sub-oscillator and a noise for essential east coast monosynth voice

Power consumption:
65 mA +12V
40 mA -12V
0 mA 5V

Dimensions:
6 HP
30 mm deep

Notes: Introducing the HATS909, part of TipTop's new series of drum modules that brings those classic percussion sounds into the modular synth world, instantly turning your system into a self-contained music machine.

The HATS909 is the TR-909's original Closed and Open Hi-Hats circuits adapted for use in Eurorack modular synthesizer format and was designed to sound like a machine coming fresh off the assembly line back in the 80's. Improving on the original, TipTop have added some great new features that expand the sound palette that can be produced with this small, powerful module.

The original TR-909 circuit is made with a combination of low-fi sound samples that pass through a series of analogue elements to provide envelope and filtering to the source sound. The HATS909 module allows for manual and voltage control of the sample's tuning, which provides anything from crushed hats and short ticks to the original sound and anything between. Additional controls allow you to send a voltage control signal to either the tune input or the internal VCA for modulation with external control signals and, using a modulation switch, add AM or FM synthesis in the audio range from external oscillators, other drum sounds, or just about any other sound source. Lastly, HATS909 also offers a switch that allows you to tap directly into the raw output of the module for a unique sound source that can used throughout your system.

Just like the other drums in this series, the HATS909 high-powered output gain stage allows you to further harmonize the sound through distortion and clipping. On each gate input, Tiptop have designed a dual pulse-shaper circuit so you can trigger your HATS909 with trigger/gate signals from step sequencers, clock dividers, or any other pulse/clock sources.

TR-909 is a Trademark of Roland Corp Japan

Size: 8HP
Depth: 36mm
Power: +12V 33ma / -12V 22ma

Notes: This Expander module provides hands-on adjustment over all bands' boost and cut without the need to select bands via pushbuttons on the Graphic Resonant Filterbank module. This makes sound design with the Graphic Resonant Filterbank much easier.

NB! The Expander works exclusively with the Graphic Resonant Filterbank!

Notes: Typically creative stuff from Frap Tools, the Bagai offers analogue sample and hold, but crushing and down sampling, but its combination of six interlinked, CV-controlled sections is capable of much more.

Supplier's Notes:
bagai / ba'ga?i / s.m. [modenese dialect, from a late Latin bagagium 'baggage', formed after the late Latin baga, deriving presumably from the Anglo-Saxon bag (see ancient French bague, Provencal bagua, 'bundle'), whose root may be traced down to the Indo-European *pac, 'to tie,' from which also 'package,' 'pact'] - 'thing,' 'thingamabob.' A term used when the actual name of a thing or a person does not come to mind.

A module that is at the same time a clock burst, S&H, audio bitcrush, or fluctuating random voltage generator is indeed a bit elusive to describe in a single word. Even if one tries, some aspects will always be missing.

Why bother, then? Let's just call it "that thingamabob," or better, "that bagai."


Bagai is an analogue sample and hold, bitcrusher, and downsampler for Eurorack systems, also capable of generating clock bursts, fluctuating random voltages, and coloured noise.

It consists of six highly intertwined sections:

A clock with straight and random outputs (yellow)

An analogue noise generator with variable colour (grey)

A bipolar fluctuating random voltage generator (white) with variable rate

A sample and hold the circuit (orange) with selectable time scale, slow for modulation, or fast for audio sampling up to 48 kHz.

An 8-bit quantized version of the orange S&H circuit with variable bit depth (red)

A clock burst section (green).

By default, it outputs bipolar random voltages and triggers. The voltages are fluctuating, stepped, and quantized with selectable bit depth. The clocks are straight, randomized, or "burst."

Once you start patching, you can use it as a S&H, audio downsampler, and bitcrusher, with a sample rate of 48 kHz.

All its major parameters are voltage controllable.

It belongs to the same family as Sapel, with the following differences.

Sample and Hold with an 8-Bit Quantiser

Bagai features two stepped S&H circuits with open input (semi-normalled by default to an analogue noise source).

The quantized one has a LSB selector that defines its bit depth, from 1 to 8 bits.
Random Triggers & Clock Bursts

Besides the well-known "main," "more than," and "less than" modes, Bagai also features a clock burst circuit that creates super fast and unpredictable streams of gates that you can combine with the main clock or to any other trigger you want.

Voltage-Controllable Bitcrusher

When used with audio signals, the 8-bit quantized S&H becomes a warm bitcrusher effect with voltage-controllable bit depth!

Dynamic Downsampler

Bagai's internal clock can switch to an audio rate mode going up to 34 kHz. Patching audio signals into the S&H input will transform Bagai into an analog audio downsampler.

Open Signal Path

Lots of semi-normalled connections allow you to use Bagai in infinite ways: cross-patching has never been this fun.

Start and Stop Controls

You can control both the main clock and the clock bursts via external gates. The main clock also features a button to manually hold it.

Analogue Noise

At Bagai's core is a thermal noise generator that feeds the S&H circuit, creating random voltage streams. The noise output features a knob that changes its colour, emphasizing the high or low frequencies.

Fluctuating random voltages and Global Rate of Change

The feature that was so loved on Sapel, now bipolar and with extended range!

Clock generators: 1
Clock range: ~0.05-75 Hz / ~0.025-34 kHz
Fluctuating random voltage circuits: 1
Fluctuating random voltage type: Bipolar (extended range)
Quantized random voltage circuits: 1 Bipolar
Quantization approach: Fixed source amplitude, variable bit depth (1-8 bit)
Unquantized S&H circuits: 1
Unquantized S&H type: Bipolar
S&H source: Built in Thermal noise or any external signal
Random clocks: 1 section with Simultaneous More than, less than, and burst
Probability distribution: On the fluctuating random voltage
Burst Section: 1
Noise Sources: With tone control
Noise Generators: 1 built in thermal noise

Specifications:

Size: 12 HP
Depth: 38 mm

Current draw: 190 mA @ +12 V / 90 mA @ -12 V
Recommended warmup time: 30 min
CV input impedance: >90 KO
Clock input impedance: >100 KO (on positive pulses), ~30 KO (clamping negative pulses)
Built-in clock frequency (1): ~TBA- >70 Hz
Clock output (period): ~2 ms
Clock output (amplitude): ~10 V
Sampling glitch: filtered
Noise output level: 10 dBU RMS
Noise output tolerance: +/-3 dB

Notes: MEGA-TANG Expander MT-EX1 is a new expander module for the MEGA-TANG mixer.

The MT-EX1 adds 4 additional inputs. It also adds a mono line level input with level and send controls, two extra fixed inputs each with send controls and a fixed stereo input. Note the MEGA-TANG only supports a single expander at any time.

Technical Specs

Size: 4HP
Depth: 32mm (approx)

Notes: Emulate the nostalgic sounds of old audio equipment with the 2hp Lo-Fi. Finding inspiration in quirks and happy accidents found in audio devices of the past, Lo-Fi can take any sound and give it the magic of tasteful degradation.

Lo-Fi carries two degradation modes: Analog and Digital. In the analogue mode, control the amount of wow and flutter for anything from subtle to dynamic pitch fluctuations, tickle the sonic spectrum with ASMR hiss and crackles, and warm up the coldest sounds with tape compression and saturation. In digital mode, dial in BitCrush amount, sample-rate reduction, and the wildest distortion in 2hp to cover your sound in digital crunch, or emulate blown out speakers.

With CV control over each function, and an ultra-crisp audio pass through, take your patch from hi-fi to lo-fi at a moment's notice. Get reel with the 2hp Lo-Fi!

Tech Specs: Width: 2HP, Depth: 45mm, Power Consumption: +12V=82mA -12V=4ma +5V=0mA

Notes: Enter a galaxy of rich and vibrant delays. The Dreadbox Nostalgia 3 Stage Delay is a superb effect module that can give you amazing results in moments. Delay is a true staple in the effects world and it can take your modular music to the next level via just a few cables.

The Dreadbox Nostalgia 3 Stage Delay is ideal for a range of modular music styles, from ambient to acid house. This 10HP module fits snugly in your system and has enough CV control to keep even the most avid patcher satisfied.

117 mA +12V
25 mA -12V
35 mm deep
10HP

Notes: The WT-QUAD-LFO module consists of four individual, digital, wavetable based low frequency oscillators (LFO) with an easy and intuitive featuring a 1.8" OLED color display. The module can be updated easily by inserting a flash drive with the firmware files in the USB port on the front panel.

The oscillators and their respective controls, inputs and outputs are organized in four channels. The frequency of each oscillator can be linearly or exponentially (1V/Oct.) controlled through the voltage applied to the corresponding CV input.

Each LFO channel can output one of the predefined waveforms (including sawtooth, ramp, square, sine, triangle), morph between two different waveforms or generate a random waveform. It can be externally reset through the sync input.

Each trigger output can be set to output a specific phase of the corresponding waveform.

The module offers cross frequency modulation (FM) and internal sync between LFO channels. It features also phase distortion and phase spreading of the outputs, including a classical quadrature mode (90- phase spread). Frequency relationships between the four LFOs can also be set.

Hardware

4x CV inputs -5 V to +5 V
4x Sync inputs 0 V to 5 V, active low or active high
4x Clock inputs 0 V to 5 V, active low or active high
4x LFO outputs -5 V to +5 V
4x Trigger outputs 0 V to 10 V, active low or active high
1.8" OLED Display with 160 x 128 pixel
4x push encoder
USB port for firmware update
Size: 14HP
WT-QUAD LFO - Features list:

Wavetable based, 4 channel LFO
Default waveforms: SAW, SQUARE, SINE TRIANGLE
Random waveform generation
Custom wavetables can be loaded using USB flash drive
LFO output: offset and attenuation programmable
LFO Frequency range from 0,0032 Hz to 4 kHz
Frequency free (Hz) or quantized (note)
Presets can be selected through CV input
LFO channel can be internally synced and cross modulated
Single shot modus

Notes: THE SBG-PRO supports mono, stereo, balanced, and unbalanced input and output via 6.35mm jacks with level matching controls with clipping indication. The module features both direct and voltagecontrolled equal power crossfading between wet and dry sources.

Additionally, an expression input, along with the included 'floating ring' cable and conditioned output, ensures safe, voltage-limited CV control of external devices from your modular system.

The module extends its sibling, the original S.B.G, by adding full size stereo balanced jack connections and voltage control focusing more on connectivity with not just pedals but also pro audio equipment including rack effects, 500 Series modules and mixing consoles.

Notes: Inspired by vintage tape echoes and spring reverbs, the Echo Cinematic combines EQ, delay, reverb, filtering and extensive automation options to create a highly playable echo module. From dub madness to more subtle ambience, this one's a real beauty.

Supplier's Notes:
Echo Cinematic is a practical stereo effects device inspired by the dub music culture that emerged from Jamaica and landed in London during the early 1980s. Analogue tape delays were routinely patched into the mixing desk through a channel strip, to be EQ'd and fed back to themselves via the FX send bus. The engineer could manipulate the EQ and FX send controls to create a constantly evolving rhythmic texture, a feedback loop teetering on the edge of self-oscillation. Echo Cinematic does away with the need for a sophisticated mixing desk and expands on this principle with a versatile resonant filter and five independent sources of automation built into the module; two LFOs for both EQ and delay modulation, a 30 second knob recorder capable of simultaneously controlling every knob on the front panel, and two external CV inputs, instantly assignable to any control as you insert a patch cable.

The EQ section features three filter types: a high/low-pass filter, a peak/notch filter, and a classic comb filter. Each of these can be patched into either the feedback loop (Dub Mode), the delay output, or the entire signal path, including the dry signal. The delay section offers up to two seconds of delay with a tap delay facility that also applies grid snapping, allowing your delay settings to be constantly locked to your beat or to a clock signal. Reverb duties are taken care of by the lush 24-bit stereo reverb, as featured on Knobula's other cinematic modules.

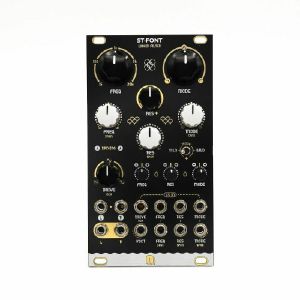

Notes: ST.FONT is a stereo liquid filter that takes the beloved core of our FONT module and expands it into a powerful stereo filtering tool.

With a dual filter core (one for each channel), it offers a massive liquid sound with smooth resonance, adding warmth and depth to any audio signal.

Independent filter cores for left and right channels with Low Pass, Band Pass, and High Pass modes, plus seamless crossfading between filter outputs.

Built-in VCA with soft clipping for rich sound shaping, plus CV control.

Switch between Mild for traditional resonance or Wild for extreme distortion and aggressive filtering.

Dedicated FREQ Span, RES Span, and MODE Span knobs allow you to create a wide, immersive stereo field by adjusting the spread of parameters across both channels.

Notes: The Endorphin.es 1U Cockpit X Black is a newly designed 6-channel stereo mixer with transparent VCAs, featuring four inputs on the front and two auxiliary inputs on the rear. Sidechain ducking makes it easy to get a great balanced sound, just input the trigger of your sound and you are good to go.

The perfect mixer for summing signals in your system while patching, or even as an end-of-chain mixer to go into your interface, mixer... whatever you fancy.

Power consumption: 55mA at +12V and 35mA at -12V

Depth: 30 mm

24 HP

Notes: The CP909 is the TR-909's analogue clap sound generator in Eurorack format. This is yet another low-cost analogue drum generator from a legendary drum machine in your modular synthesizer, expanding your Tiptop Audio modular drum machine even further.

The CP909 is an exact reproduction of the original analogue circuit and with the addition of just one extra knob, "trashing" the frequency of the internal noise generator, Tiptop have added greatly to the spectrum of sounds that can be generated. All that without compromising the signature sound of the TR-909.

The CP909 clap effect is made by a special triple-saw envelope generator that controls the gain of a VCA. The sound source feeding into the VCA is made by a quasi-random logic- based noise generator. Some might call it "digital noise", though this term might be misleading in today's world of microcontrollers and sound samples. What really makes the noise generator is a ring of logic gates, so primitive, so 80s, and so much the sound of the 909 Clap!

The CP909 includes a high-powered output gain stage capable of producing hot signals. On the inputs, Tiptop have designed a pulse-shaper circuit so you can trigger the CP909 with trigger/gate signals from step sequencers, clocks, dividers, or any other pulse/clock sources. This eliminates the need to shape pulses sent to the module and ensures the same stable sound at peak power, regardless of your pulse source. Based on the architecture of the 909, the Accent input is versatile and able to take in both CV and Gate signals for continuously changing dynamics. All these unique features make integrating this legendary sound generator into your modular synth easy, unleashing the power of real analogue drums.

TR-909 is a Trademark of Roland Corp Japan

Size: 4HP
Depth: 36mm
Power: +12V 6ma / -12V 10ma

Notes: MEGA-TANG Expander MT-EX2 is a new expander module for the MEGA-TANG mixer.

The MT-EX2 adds an extra effects send/return for all channels. It also adds an extra send and return to your MEGA-TANG. Note the MEGA-TANG only supports a single expander at any time.

Technical Specs

Size: 4HP
Depth: 32mm (approx)

Notes: Expand the sound of your modular rack with incredibly lush, ethereal reverbs. Enhance signals with gorgeous chorus, flanging, and modulated delays. Create uniquely expressive synth voices with Karplus-Strong string synthesis. StarLab is a single module that will completely transform your modular rack.

The seemingly simple idea of allowing the pre-delay signal to be fed directly to the module's output led to the development of rich sounding delay, chorus, and flanger effects, all of which can be used together with or independent of the reverb.

While experimenting with short delay times using feedback and filtering, Strymon began finding very musical and expressive Karplus-Strong string synthesis sounds, and realized that StarLab could move beyond signal processing and become a truly unique voice module as well. All this ultimately resulted in the creation of a module that is equal parts reverb, delay/ modulation, and playable instrument.

From patch creation to live performance, StarLab's powerful features are easily accessible at the turn of a knob or the touch of a button. With no menus to wade through, StarLab's interface is designed for intuitive hands-on sonic exploration, while every function and control works together to respond musically and smoothly.

From perfectly voiced room ambience to vast, immersive, nearly infinite decays, StarLab offers the pinnacle of premium reverb sounds with unparalleled depth and spaciousness. Add musical intervals to the reverb signal with Shimmer, and enhance the harmonic spectrum with Glimmer, while enjoying real-time control over the size/pitch of the reverb process.

StarLab has vastly expanded what reverb pre-delay can do by allowing you to bus the pre-delay signal to the output while making the pre-delay time a modulation target. This results in the ability to create rich choruses, sweeping flanger effects, and beautiful modulated delays, while also processing signal through the reverb.

In addition to input signal processing, StarLab is a powerful Karplus-Strong string synthesis voice module that allows freely alternating bowing and plucking as well as dynamic string damping. This results in an astoundingly expressive and lifelike instrument with a unique voice all its own, which can be enhanced and expanded by the full range of StarLab's reverb capabilities.
