Notes: Module A-149-4 generates four triggered random voltages which meet the criteria choosen by several controls.

Manual controls for the criteria selection:
Octave range (manual control "Oct."): this parameter defines how many octaves are covered by the random voltages (0 ... +5V, with "Oct." control fully CCW only 0V are generated)
Grid (6 illuminated radio buttons): this parameter defines the grid of the random voltages:
Octaves (Oct)
Octaves + Quin (Quint)
Chords (Major or Minor chords)
Scale (Major or Minor scale)
Semitones
continuous (i.e. stepless)
Minor / Major (2 illuminated radio buttons): this parameter defines in case of chords or scales if they are minor or major. For all other grids this parameter has no meaning
Sixth / Seventh (2 illuminated separate buttons): these parameters defines if the sixth or seventh is added. Valid only if Oct, Quint, Chord or Scale is chosen as grid.

The output voltages follow the 1V/octave standard (i.e. 1/12 V voltage differenc per semitone) with exception of the Continuous mode. The voltages in this mode are totally random and do not follow the 1V/oct standard (i.e. not a multiple of 1/12V).
The generation of a new random voltage at the output (CV Out 1...4) is triggered by the rising edge of the signal applied to the corresponding trigger input (Trig. In 1...4). The trigger inputs are normalled top down. The minimum trigger level is +2.5V, the maximum level is +12V.

Applications:
random polyphonic structures (in combination with the polyphonic modules A-111-4, A-105-4, A-132-8, A-141-4 and e.g. A-157 as trigger source and A-173-1/2 for transposition of the polyphonic structures)
any application that requires several random voltages
four digital pseudo noise signals when higher trigger frequencies are used

Width: 4 HP / 20.0 mm
Depth: 50 mm (measured from the rear side of the front panel)
Current: +50A (+12V) / -10mA (-12V)

Notes: Clock generation meets waveform manipulation in this analogue harmonic oscillator. Combine with the Tobinski sequencer and/or interpolating scanner modules for the best creative results.

Supplier's Notes:
The Harmonic Timing Generator is a versatile Eurorack module that combines advanced clock generation with harmonic waveform manipulation. Combined with the Tobinski Sequencer, the module is a great tool for rhythmic and sonic creativity in the modular system.

As a reference clock generator, the Harmonic Timing Generator produces a base frequency with analogue multipliers (x1 to x8) to generate complex timing signals. Three selectors provide manual or voltage-controlled frequency switching, offering flexibility for intricate sequencing patterns. An LFO mode enables slower clocking rates, ideal for driving sequencers or generating modulation sources.

When used with the Interpolating Scanner, the sawtooth outputs of the Harmonic Timing Generator are transformed into sine waves. This allows the module to function as a harmonic oscillator at audio rates or as a versatile modulation source in LFO mode. Its dual functionality ensures that it can adapt to a wide range of patching needs, from rhythm generation to rich harmonic exploration.

The Harmonic Timing Generator is a versatile and creative tool, offering rhythmic and harmonic possibilities that complement any modular synthesizer setup. Its integration with other Tobinski modules ensures a cohesive and expansive sonic palette.

Power consumption: 235mA at +12V and 176mA at -12V and 20mA at +5V

Depth: 27mm

18 HP

Notes: Tobinski 8-Channel interpolating scanner with integrated VCAs

This Eurorack module combines an 8-channel interpolating scanner with a powerful array of 8 independent VCAs, providing unparalleled flexibility for dynamic audio and CV routing for creative sound design.

Key Features:

1. Interpolating Scanner

8-Channel Interpolation: Smoothly blend between up to 8 stages with high precision, using either bipolar CV or manual control.

Scan Stage & Width Control: Dedicated controls for selecting active stages and defining the range of the interpolation window.

Multiple Outputs: Individual outputs for odd stages, even stages, and a combined all stages output provide versatile routing options.

2. Integrated VCAs

8 VCAs with CV Control: Each VCA has its own dedicated control voltage input, allowing for intricate amplitude shaping.

Mix Outputs: Summed outputs for odd channels, even channels, and all channels, perfect for mixing duties or creating complex stereo effects.

Subtractive Mixing: Individual VCA outputs are excluded from the mix outputs when patched, allowing for flexible routing and advanced signal processing.
3. Parallel and Flexible Signal Flow

Parallel Input Routing: The 8 inputs feed both the scanner and VCAs simultaneously, making it easy to use the module in multiple roles at once.

Switchable Sliders: 8 high-quality sliders can control input levels to the scanner, the VCAs, or both, adapting to your workflow needs.

Creative Patching Examples:

Stereo Mixer:
Use 2 scanner channels and route their outputs through the odd and even mix outputs to create a dynamic stereo mix.

4-Channel Mixer:
Combine 4 inputs through the VCA sections and use the mix outputs to create a versatile sub-mixer for blending multiple signals.

VCA Control:

Independently use 2 or more VCAs for precise amplitude modulation of separate signals.
All the above options can be implemented simultaneously, making this module an exceptionally powerful tool for complex patches.

Expandable with Tobinski Harmonic Timing Generator (HTG):

This module seamlessly integrates with the Tobinski Harmonic Timing Generator (HTG) via an internal ribbon cable that goes to the switched (normalled) connections of the input jack sockets. The scanner inputs automatically link to the HTG outputs via sine shaping circuitry, enabling the two modules to function as a sinewave harmonic oscillator. This pairing unlocks harmonic interpolation and complex timbre creation, expanding your sonic palette.

Connections:

Inputs:
8 for audio or CV

Outputs:
8 individual VCA outputs

Mix outputs for odd, even, and all channels
Scanner outputs for odd stages, even stages, and all stages

Control Inputs:
Bipolar CV for scan stage and scan width

Dedicated CV inputs for each VCA
Sliders: 8, switchable between scanner, VCAs, or both

Power consumption: 205mA at +12V and 190mA at -12V

Depth: 27mm

18 HP

Notes: For Intellijel's 1U rack format, Mosaic serve up a handy quantiser with a clever built-in arpeggiator, meaning you can generate melodic sequences from within the module.

Supplier's Notes:
Craft melodic sequences out of random voltage, LFOs, and more with the Mosaic Quantizer. Don't have a voltage source? Enter Arpeggiator mode to create a sequence from your current scale or note pattern, and modify it on the fly using the chromatic note interface. Pull musicality out of the unknown with Quantizer!

Tech Specs:
Width: 20HP
Depth: 38mm
Front Panel: Intellijel format, Pulp Logic replacement panels available here.

Notes: ALM's first analogue oscillator is a typically smart design, featuring thru-zero FM, continuously morphing wave shapes, dual subs and voltage-controlled FM index.

Supplier's Notes:
The 'TAZM-O' is an analogue triangle core oscillator featuring through-zero frequency modulation and a collection of some of ALM's favourite features of classic oscillator designs.

It includes a continuous morphing wave/pulse width shape control inspired by the Serge NTO, dual SH-101 style varied pulse sub octave outputs, a voltage controlled FM Index typically found in larger complex oscillators, a built in output level VCA and voltage controlled octave transposition similar to the multipliers found on Akemie's Castle digital FM VCO.

Designed to act as the primary oscillator in your system the 'TAZM-O' offers a wide range of timbral and patch flexibility within a relatively compact 12HP size, making it the perfect fit for any modular system.

Continuous crossfading wave shape with direct and voltage control.
Through-zero FM input with direct and voltage controlled mod index.
Dedicated outputs for sine (or triangle), saw and square sub-1 & sub-2.
Primary output with level VCA.
V/Oct input with approx 8 octave range.
Octave transpose CV input ranging 3 octaves.
Hard Sync input.
LFO mode with bipoler LED indication.
Rear switches for selecting Sub-2 pulse width, and sine/triangle waves.
Skiff friendly with reverse power polarity protection.
Made in England.

Dimensions
12 HP
38 mm deep

Current Draw
70 mA +12V
60 mA -12V

Notes: *** Firmware 2.32 Update- August 2024 ***

Automatic Backup

All settings are saved when the module is turned off.

Skippy then restarts directly with these same active settings. However, it is possible to revert to the default configuration at startup with the NEW function or even return to the "factory settings" by pressing buttons 2 and 4 simultaneously at startup.

New Patterns in JAZZY

New patterns are regularly added to JAZZY, based on customer requests.

New "polystep"

Input Clock is added to the two existing clocks "poly" and "matrix".

It acts as a clock divider within the limits of time division possibilities (for example, the Gaussian function will always act progressively based on an average clock, as with the "poly" clock). Thus, it falls between "poly", which produces an average of the received beats (and for example, will not account for small variations like external swing), and "matrix", which strictly applies the received beats identically to all tracks.

"Polystep" will strictly use the beats from track 1 and adapt the timing of the other tracks according to their parameters.

The "polystep" and "matrix" clocks are only useful if you want to control Skippy with an external clock. Leave it on "poly" for internal use or to use Skippy's clock as the Master for your system (in fact, Skippy performs best in the GAUSS and POLYR functions with this clock selected).

New TILES

Kaona have added the following divisions: 2/1, 3/1, 3/2, 4/3.

New ROLL Function

Beats can now be divided by two (2 "gates" instead of one) or by three (3 "gates" instead of one).

It is possible to choose a "roll" randomly: "1/??" and "2/??" add respectively 1 or 2 extra beats, randomly. You can also choose to add these "rolls" every 2, 3, 4, 6, 8, 12, or 16 "steps". It is also possible to add a "roll" with each screen rotation. To synchronize the start of "rolls" on all tracks, use the Reset function (or with Skippy Live), otherwise, each "roll" starts when the option is set (for example, to avoid setting "rolls" per turn all at the same time).

The beat times of the "rolls" depend on the duration of each gate. It is therefore recommended to take a slightly longer gate for the effect to start being noticeable (from 60-70 and up).

The new "proportional gate" function is also taken into account (thus divided by 2 or by 3).

New Proportional GATE

The function that allows choosing the gate length for each track has been extended.

It is now possible to choose it in proportion to the existing time between two beats. This can be very useful for melodic sequences (with Zazou for example).

You can thus alternate between quarter notes and half notes, or eighth notes and whole notes, etc.

Each of Skippy's four tracks can have a different setting, including with variable time functions (GAUSS, POLYR...), which promises infinite explorations.

Access proportional gates by turning the encoder in GATE mode to the left: instead of stopping at 10 as in the previous version, the percentage of active gate time is displayed. You can choose the percentage in steps of 10, from 10% to 90%.

Description:

Skippy is a matrix and non-matrix polyrhythmic sequencer (linear and logarithmic) which offers four completely independent tracks with a very simple interface: one button per track, one function per screen, no sub-menus.

Possible saving of 64 configurations.

Internal connection with expander module (coming soon) and with Zazou, generative composition module (coming end of 2023).

Functions per track

- BPM (10 to 400)
- Number of steps (1 to 64)
- Linear or log
- Random function
- Chaotic function
- Direction: clockwise, counterclockwise, ping-pong, pause
- Number of steps before the start of the sequence
- Number of steps before the end of the sequence
- Gate duration

Specific algorithms

- Euclidean (Bjorklund)
- Matrix Patterns
- microtiming patterns
- matrix rotation

Clock

- External clock input or Reset
- Clock output
- 1/1, 1/4, etc.

Menus

- BPM
- STEP
- BEGIN
- END
- GATES
- PROBA
- CHAOS
- WAY
- SWING
- GAUSS
- EUCLID
- TILES
- POLYR
- JAZZY
- SPIN
- PAUSE
- RESET
- SYS: save, load, new, clk/rst, clk

Tech Specs

Width: 10 HP
Depth: 32 mm

Current Draw:
+12 V 0 mA
-12 V 0 mA

Notes: Full synth voice with MIDI connection!

The voice is inspired by the classic West Coast synthesis approach.

Five oscillators from the popular Verbos Foundation oscillator are used. The oscillator has controls such as timbre and richness to shape the sound. With Timbre, the waveform can be faded from sine to sawtooth. The voice also has a spread control that can be controlled via CV. Another nice feature is the Auto-Tune function.

All parameters can be controlled via MIDI CC, which is great for sequencing different parameters.

There are two AD envelopes built in, which can also be cycled and generate frequencies up to 500hz.

The module can be used as a standalone unit with the Verbos Blackbox or as a standard Eurorack module.

Power consumption: +30mA at +12V and -10mA at -12V
Depth: 22mm
42 HP

Notes: Legendary Vermona drum synthesis circuits get reimagined for Eurorack. The Bass/Drum reworks the kick and 'drum' circuits from the DRM-1 for extra modular flexibility, maintaining the powerful analogue sound.

Supplier's Notes:
With BASS|DRUM, Vermona have transferred the sonic foundation of the DRM1's KICK and DRUM instrument channels to the Eurorack format. They reworked the existing circuitry in key areas to optimize it for the modular context. The result is an Eurorack sound generator that clearly reveals its origins and at the same time surpasses them many times over.

The modulation possibilities of BASS|DRUM offer enormous flexibility. Many parameters like the pitch of the oscillator, the decay time and the integrated wave shaper can be controlled by external voltages. For example, you can create rhythmically alternating long and short or low and high kicks or tonal variations by modulating the waveform.

Use the DYNAMIC input to control the amount of force your trigger source applies to the internal circuitry of BASS|DRUM. This not only changes the volume, but also many different nuances of the sound.

Bass or drum? BASS|DRUM can do both, without compromise. If you need drum sounds that follow the tuning of your music, you'll find what you're looking for here. At the same time, the module serves as a full-featured audio oscillator that can be used to create bass lines or melodies.

From deep, powerful bass drums, toms and tom-toms to high-frequency pings and percussive chirps - no problem with BASS|DRUM! In combination with other modulation sources, this spectrum can be extended infinitely. The module is also an excellent oscillator for anything other than classic analog drum sounds.

Notes: Multi-operator phase-modulation platform oscillator ideal for lovers of drone

Toros Iteritas Alia is a multi-operator, three-algorithm phase-modulation oscillator. Taking inspiration from Nosie Engineering's favourite things about FM synthesizers and doing away with complicated interfaces and mysterious controls, Toros prioritizes immediacy and, of course, epic sounds.

The unique Blendex controls allow the user to route each oscillator to be a PM for the next oscillator in the algorithm or direct to the output. Fine-tune the output for your needs with the frequency controls that constrain the range to span a minor third, an octave, or two octaves. Dial in and morph between anything from dark and noisy to tonal to sub-shaking sounds with ease with the completely CV-able interface.

Designed with drones in mind, Toros is the perfect tool for long, evolving textures and dark drones - or big, clangorous tones if that suits your patch better.

Toros Iteritas Alia is available on Noise Engineering's 10HP Alia oscillator platform. Buy an Alia module and use the included USB cable to connect to the Firmware Swap app and check out any other Alia firmware, free of charge, any time. More info can be found on the World of Alia page here.

Hotswappable overlays are coming in January, so you can easily panel your module to match your firmware, no assembly required.

Size and Power
10HP Eurorack
+12v:100mA
-12v: 15mA
Toros - perforated lizard - from Latin Torosaurus "foundation" with suffix -lus "small"

Iteritas - repetitiousness - from Latin itero "repeat" with suffix -tas "state of being"

Alia - supreme, from Latin alia

"Lizards reign supreme, as always"

What's in the box?

Module
Power cable
Micro USB cable

Noise Engineering no longer include screws with newly packaged modules, but Bulk screws are available for purchase.

Notes: Simple, straightforward and cascadable, the ADDAC813 is all about no-nonsense stereo mixing. Four stereo channels with adjustable gain, one without, master output control, LED metering and mono send/return.

Supplier's Notes:
ADDAC813 is a straight forward stereo mixer. Featuring 5 stereo channels, 4 of them with attenuators, a mono send/return path for parallel processing plus stereo and mono outputs

Four channels with stereo input and gain knob. Fifth channel with stereo input without gain knob, which are the prefered inputs to cascade several ADDAC813s when more channels are needed. Master Output controls the level of the Inputs mix. Two LEDs monitor the inputs mix.

Mono Send / Return return path allows for easy integration of mono effects in a stereo chain. Plug your favorite module through it (filter, bbd delay, spring reverb...) or any mono pedal.

The Return Gain works in parallel with the Master Output, just like regular wet / dry controls.

The send output can be configured to be line or synth level via a jumper in the back.

Stereo output sums the Inputs Mix with the Return signal.

The Mono output is the sum of Left and Right outputs

Effect Pedals

Using the send output at Line level, the user can connect the send output directly into mono effect pedals and have the pedals output connected directly into the return input without the need of an attenuator/amplifier module.

Tech Specs:
8HP
4 cm deep
50mA +12V
50mA -12V

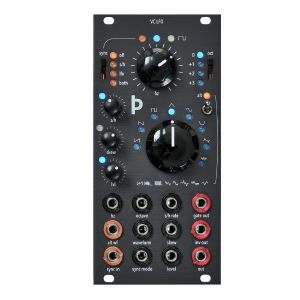

Notes: The core idea behind this module is all about control voltage. Hence all features are individually broken out to CV inputs, making the most use possible of the benefits of the digital wavetable oscillator. This means that the design is geared towards allowing hands-off control of all aspects and some concessions have been made to that effect.

Initial setup basically consists of connecting the power cable to the module and your bus. The cable has a slotted socket for correct orientation, but mind that the red stripe faces the white line on the edge of the PCB. The included screws are nylon in order to minimise rack-rash.

Tuning the module is possible by adjusting the small SMD trim potentiometer on the back. It adjusts the offset voltage that affects the centre point of the LFO oscillations. It should be close to its three o'clock position, but you can adjust it by turning the module on, reducing the output level to almost zero and turning the trim potentiometer until you find the point where the gate output led just barely turns off.

The LFO sync type is hard sync, meaning that it resets the current cycle to the beginning of the waveform. It does not control the duration of the cycles. This allows you to further shape the output to, say, three quarters of a sinewave by using external sync and adjusting the HZ knob so the duration of a cycle is just a little longer than the time between incoming sync pulses.

Colour coded nuts indicate the type of jack, with gold representing Gate/Trigger input, black is +-5v CV inputs and red jacks are outputs.

The CV inputs are scaled down to +-2.5v and added/subtracted with the knob setting, meaning that to sweep the full range of the parameter with CV, the knob should be in centre position. The inputs are clipped to the allowed range after mixing, so you can apply any eurorack voltage here.

The module's core processor is socketed, so using a simple PIC programmer and some basic Assembly knowledge you can modify its functionality to suit your needs.

The code is written by Electric Druid who supplies me the chips preprogrammed.

Fully voltage controllable Eurorack format, externally syncable, 16 waveform low frequency oscillator with built-in VCA and sample & hold.
Powered by a socketed VCLFO10 IC from Electric Druid.

Suitable for precision modulation, live performance as well as educational purposes.

Height: 3U (128.5mm)
Width: 12hp (60.6mm)
Depth from panel: 31mm
Depth total: 51mm
+12v: 80mA
-12v: 60mA

Notes: 32 unique audio effects arranged in 4 banks of 8 effects. Three effect controls plus analogue Dry/Wet control with dedicated CV input. High quality stereo signal pass. Assignable CV input to effect controls or to Sample Rate reducer (changes internal clock). Four user storable presets - stores selected program and all three controls. Spin FV-1 based.

The last used effect, assigns and presets are always remembered.

32 effects are simultaneously available, but FX AID can be reflashed with other effects in any order.

Reflashing procedure is quite easy: playing 40 sec long .wav file of line level amplitude to CV input.

Reflashing mode: hold both buttons for 10 sec.

By default it runs on 32.77 kHz and, if sample rate reduction assign is used, this sample rate can be decreased down to 2000 Hz or brought up to 48 kHz.

Dimensions

24 HP
40 mm deep
Module is a 1U tile in Intellijel format

Current Draw

80 mA +12V
30 mA -12V

Notes: The Wave Transformer is a complex single oscillator with 7 audio outputs. Its method of wave shaping differs from other complex oscillators in that it is not based upon classic wave folding such as is common in West Coast synthesis, or filtration such as is common in East Coast synthesis.

This analogue, vintage-voiced, voltage-controlled oscillator features over 8 octaves of accurate pitch tracking. Its 7 simultaneous wave outputs include a unique Complex output. This strange and novel output varies between a simple waveform (triangle, unless you patch a signal into the Shape Insert jack) and a complex transformation of the harmonic structure of the original waveform. It contains a unique mixture of the fundamental frequency, odd order harmonics, even order harmonics and subharmonics. The Sub Octave panel control will determine whether the sub harmonics are derived from one octave down, two octaves down, or are muted altogether. It will vary from a simple waveform to a silhouette of your cat watching you as you react to a "present" that it left for you on the counter. No, seriously.

The module's Transform control morphs from a basic waveform through many strange iterations into a complex, gnarled mass of audio mutations at the Complex output using an asymmetrical multi differential audio transmutation circuit. You can yield countless variations on these permutations by combining this novel circuit with Hard Sync, Soft Sync, Linear FM and Exponential FM.

Additionally, you can mute the source waveform to use the circuit as a harmonic gate/VCA, rendering the Wave Transformer a voice unto itself.

If that is not enough, there is a Shape Insert that allows you to transform external oscillations and modular-level audio sources.

Notes: Really clever stuff here. The Octaves VCO takes an additive approach, layering harmonics on top of a fundamental frequency to create complex tones. Control the six bands via CV to adjust the harmonic content.

Supplier's Notes:
A harsh and funky take of an additive Oscillator.

Pile up multiplications of your frequency to get a lo-fi-retro wall of squared sound!

You get six doubled frequency pulses, or octaves, with common PWM and volume control for each of them.

The output of each is cascaded to the next one, so you can either have one output with all frequencies or break the chain and get several sums and modulate each independently!

Features
Six bands, multiple of the base frequency.
Square wave oscillator with Octaves selector PWM control and sync.
Range control for Tune pot.
Volume CV control and individual output for each band
Cascaded summing outputs.

Specifications
Current needs: +12V: 110mA, -12V: 84mA
Width: 12 HP
Depth: 22mm (assembled and DIY), including power connector
Aluminium, heat-treated front panel
Designed, kits prepared and completed modules assembled in Barcelona

Notes: Sampler legend Dave Rossum's ultra-powerful Assimil8or module gets a black makeover. Eight-channel multi-timbral design with extensive CV control and clever sound manipulation options.

Supplier's Notes:
Designed to provide a powerful, flexible sampling engine for modular synthesis, the ASSIMIL8OR Multi-Timbral Phase Modulation Sampler module is the latest incarnation of Dave Rossum's decades-long pioneering of affordable professional sampling technology.

ASSIMIL8OR provides eight independent channels of sampling with sound quality that can range from extremely hi-fi to low fi, all with extensive real-time CV control.

Assimil8or Specifications

Sample memory
2,300 seconds at 48kHz mono, freely allocatable between the 8 channels

Sample rates
48kHZ, 96kHZ, 192kHZ

A/D & D/A
24 Bits

Internal processing
32 Bits

Latency
100 microseconds at the Mix Outputs
180 microseconds at the Individual Outputs

Inputs

Sample L/R
2x 3.5mm mono socket
100kO Input Impedance

Gate/Trigger 1-8
8x 3.5mm mono socket
100kO Input Impedance
1.6V threshold

Control Voltage A 1-8
8x 3.5mm mono socket
100kO Input Impedance
96 kHz sample rate
Anti-alias filtered to 20kHz bandwidth

Control Voltage B&C 1-8
16x 3.5mm mono socket
100kO Input Impedance
48 kHz sample rate
No anti-alias filtering

Outputs

Mix Outputs L/R
2x 3.5mm mono socket
1kO Impedance

Individual Outputs
8x 3.5mm mono socket
1kO Impedance

Power requirements: +/-12V via 16-pin, Doepfer-style connector
Current draw: 220mA +12V, 30mA -12V
Dimensions: 28HP (W); Panel to power connector (with connector plugged in) 25mm (D)

Supplied accessories:
1x Micro SD card
1x 16-pin, Doepfer-style cable
4x M3 screws
4x M2.5 screws
4x Nylon washers
1x Quickstart Guide

Notes: Expand the sound of your modular rack with incredibly lush, ethereal reverbs. Enhance signals with gorgeous chorus, flanging, and modulated delays. Create uniquely expressive synth voices with Karplus-Strong string synthesis. StarLab is a single module that will completely transform your modular rack.

The seemingly simple idea of allowing the pre-delay signal to be fed directly to the module's output led to the development of rich sounding delay, chorus, and flanger effects, all of which can be used together with or independent of the reverb.

While experimenting with short delay times using feedback and filtering, Strymon began finding very musical and expressive Karplus-Strong string synthesis sounds, and realized that StarLab could move beyond signal processing and become a truly unique voice module as well. All this ultimately resulted in the creation of a module that is equal parts reverb, delay/ modulation, and playable instrument.

From patch creation to live performance, StarLab's powerful features are easily accessible at the turn of a knob or the touch of a button. With no menus to wade through, StarLab's interface is designed for intuitive hands-on sonic exploration, while every function and control works together to respond musically and smoothly.

From perfectly voiced room ambience to vast, immersive, nearly infinite decays, StarLab offers the pinnacle of premium reverb sounds with unparalleled depth and spaciousness. Add musical intervals to the reverb signal with Shimmer, and enhance the harmonic spectrum with Glimmer, while enjoying real-time control over the size/pitch of the reverb process.

StarLab has vastly expanded what reverb pre-delay can do by allowing you to bus the pre-delay signal to the output while making the pre-delay time a modulation target. This results in the ability to create rich choruses, sweeping flanger effects, and beautiful modulated delays, while also processing signal through the reverb.

In addition to input signal processing, StarLab is a powerful Karplus-Strong string synthesis voice module that allows freely alternating bowing and plucking as well as dynamic string damping. This results in an astoundingly expressive and lifelike instrument with a unique voice all its own, which can be enhanced and expanded by the full range of StarLab's reverb capabilities.

Notes: Expand the capabilities of your Eurorack system with the 2HP Eurorack compatible Single Buffered Multiple. This compact but powerful module is the perfect solution to multiply and distribute your signals without losing quality. It is specially designed for synth lovers who want to optimize their signal chain and shape their soundscapes with precision.

Ultra-compact design

With a width of only 2HP, this module fits seamlessly into any Eurorack setup, maximizing the space available for further creative expansion.

Seven outputs

Equipped with seven outputs, our Single Buffered Multiple allows simultaneous signal distribution to multiple modules. Perfect for complex patches where you want to send a signal to different destinations.

Buffered Outputs

The buffered outputs ensure that signal integrity is maintained even when distributed across multiple modules. Enjoy precise control and stability in your signal chain without sacrificing signal quality.

LED indicator for positive input signals

A special feature is the integrated LED, which lights up as soon as a positive input signal is detected. This visual feedback is not only convenient, but also makes it easier to troubleshoot complex patches and improve the user experience.

Optimal flexibility

Whether you want to route audio signals, control voltages or triggers, our Single Buffered Multiple offers the flexibility you need to meet your creative needs.

Notes: The Subharmonic Oscillator is one of Serge's latest inventions and also one of his most extraordinary designs. 7 accurate analogue VCOs tied at the waist- in unison, yet their frequencies can open up like a fan, creating complex clusters. Each voice generates a pulse wave. It is temperature compensated and follows exceptional 1V/Octave tracking.

In addition, each voice provides (voltage controlled) pulse width modulation or subharmonic division as well as an individual output. The precision of these voices in combination with a global Spread control and various FM inputs opens up an enormous sonic range from massive unisono sounds to dissonant, orchestra-style textures.

The ODD and EVEN outputs enable the use as a stereo oscillator.

MEDUSA for eurorack:

Original Serge 2023 design
100% analogue
Eurorack format (3U), 42 hp
Power consumption: 220mA @ +12V, 200mA @ -12V
Skiff-friendly: < 25mm (1")

Notes: Saturation is a sound designer's best friend. As applying saturation to a sound can make it sound warm, rich and defined. But without any other processing the opposite can happen; making the sound harsh, destroyed and undefined. An often used technique in music production is to saturate specific parts of the spectrum, adding harmonics to enrich the sound but not lose its original quality.

Wyvern takes this technique and makes it a creative sound design tool. When deconstructed Wyvern is built out of a specific chain: Filter EQ, Saturation, VCA, Dual Filter, Dry/Wet Balance. Different combinations of these stages can be used for a variety of sound design and patch situations. And it is all in stereo, so you can apply it to your final mix and stereo signals with ease too!

The Filter EQ stage has a high-shelf, low-shelf and bell curve to boost or diminish parts of the spectrum. When the gain is set to a minimum the EQ curves turn into low-pass, high-pass and notch respectively. A Resonance control puts emphasis on a certain frequency, or it can be used to make Wyvern scream. This is then sent to a Saturation stage. The Drive control sets the amount of Saturation of one of the three

Saturation types

Soft clipping puts more emphasis on the third harmonic and compresses the sound.

Hard clipping puts emphasis on odd harmonics. Finally an Allpass distortion adds phase shifts and distortion. The Saturation stage also has a level control which can be used to decrease the gain after saturation is applied and can function as a unipolar VCA. The Saturation stage is also accompanied with a clip indicator led and a boost switch to scale input signal correctly or simply add more or less harmonics.

The Post-Saturation stage is a high-pass and low-pass combo. Allowing you to select a frequency band from the previous stages. Along with a balance control to adjust the balance between the dry and wet signal.

Whether you are looking to destroy your sound or go for subtle analogue warmth; Wyvern has got you covered. Even when not used for saturation alone. It can be a Stereo Tone Controller, EQ, Filter, VCA and Phaser, all and anything in between. Making it a very fun and powerful sound design tool!

Features

- Filter EQ with Low-shelf, High-shelf, Bell, Low-pass, High-pass and Notch curves.
- Resonance to add emphasis on a frequency or to make it scream.
- Soft clipping, Hard clipping and Allpass distortion for a variety of flavors.
- Boost switch and clip indicator led to set Saturation scale.
- Level and VCA to adjust level while Saturation amount remains the same.
- High-pass and Low-pass combo to select a part of the spectrum.
- Dry/wet control to dial in the right amount of processed signal.
- Gain with increased and adjustable center detent position.
- V/oct tracking with temperature compensation.

165mA @ +12V // 150mA @ -12V

Notes: Ornament & Crime for 1U Intellijel format

This is functionally identical to the 3U version, just re-oriented to fit in 1U racks. Ornament & Crime is designed by mxmxmx.

The apps currently available in Ornament & Crime:

CopierMaschine is an enhanced version of the original quantising digital emulation of a four stage analogue shift register (ASR).

Harrington 1200 provides basic neo-Riemannian Tonnetz transformations of triadic chords, triggered by the digital (gate/trigger) inputs.

Automatonnetz combines Tonnetz transforms with a "vector" sequencer - it can be both a chord sequencer and a melody sequencer, but not of the usual kind.

Quantermain is a quad pitch quantiser for external voltages, with editable scales; it can do clocked (trigger-driven) quantising, or continuous quantising, with a latency of under 100 microseconds; it also features quad Turing Machines, May-Verhulst logistic maps or byte beats as optional, semi-random, internally generated CV sources.

Meta-Q is a dual-channel quantiser, similar to Quantermain, but also offering scale and note mask sequencing.

Quadraturia is a wavetable quadrature LFO, based on the "Easter egg" in the Mutable Instruments Frames module.

Low-rents is a dual Lorenz and Rossler (strange attractor) modulation generator, partially based on the "Easter egg" in the Mutable Instruments Streams module.

Piqued is a quad voltage-controlled envelope generator, based on envelope generator code from the Mutable Instruments Peaks module, but extending it with voltage control, additional envelope types, including re-triggering (looping) envelopes, additional segment shapes, adjustable trigger delays, and a unique Euclidean "trigger filter" which turns the app into a Euclidean rhythm generator which can output envelopes, not just gate or trigger pulses.

Sequins is a dual-channel step sequencer offering 4 "tracks" of up to 16 steps each; tracks can themselves be sequenced.

Dialectic Ping Pong is a quad bouncing ball envelope generator, based on a hidden mode of the Mutable Instruments Peaks module.

Viznutcracker, sweet! is a quad "byte beat" equation generator, which can be used as an audio source to generate curious but often interesting 8-bit noises and tunes, or which can be clocked by an external source to produce "byte beat" control voltage sequences. "Byte beats" were first described in 2011 by viznut (aka Ville-Matias Heikkila).

Acid Curds is both a chord quantiser (sometimes called a "harmonic quantiser" for external pitch voltages), and a chord progression sequencer.

References is an utility app that outputs specific reference voltages on each channel to help tune or calibrate VCOs and other modules. It also includes a high-precision frequency meter and note tuner, a high-precision BPM (beats per minute) tempo meter, and a closed-loop calibration mode.

Width: 30hp
12V: 85mA
-12V: 10mA

Notes: Revised take on the excellent Benjolin dual oscillator and filter from Rob Hordijk, featuring the 'rungler' stepped CV generator and extensive output options.

Supplier's Notes:
Benjolin V2 - Rob Hordijk's latest revision of the classic Benjolin. The core of the Benjolin continues to be two oscillators, the rungler (stepped CV generator), and a multimode filter.

This latest revision adds:

Reworked oscillator and filter sections

All levels are adjusted to eurorack standards

Two different steps modes (8/16 and 127)

Double and single clock rate

Externally clockable

External filter input with blend control

Notes: Now slimmed down to 2HP! The '07 is a precision buffered multiple, perfect for your 1V/O sources. An LED on each channel indicates positive or negative incoming voltage: red is positive, green is negative. Channel one cascades into channel two, giving you up to 7 outputs.

Specifications:
Current draw: +12V: 15mA, -12V: 15mA
Depth: 22mm
Width: 2HP

Notes: Expand your modular synth world with the 2HP Eurorack-compatible Dual Buffered Multiple. This versatile and space-saving module is a must-have for those who want to distribute their signals with precision and flexibility. Whether you want to synchronize multiple oscillators, control filters in parallel signal paths, or create complex modulation setups, our Dual Buffered Multiple gives you the reliability and versatility you need.

Compact design

With its slim 2HP width, this module fits seamlessly into any Eurorack system without taking up valuable space.

Normalized Second Input

The input of the second channel is normalized, which means that a signal is automatically distributed to both channels if only the first input is used. This simplifies simultaneous signal distribution and increases creative freedom without the need to use multiple patch cords.

Dual operation

Equipped with two channels, our Buffered Multiple offers the freedom to distribute signals either as 2x 1->3 or as 1x 1->6 for maximum flexibility. This allows for a wide range of patching options and maximizes the efficiency of your system.

Buffered Outputs

Each output is buffered, which means your signal is amplified without any loss of quality or voltage drop. This is especially important if you want to send precise control signals (such as pitch CV) to multiple targets.

Versatile applications

Whether you want to build complex modulation routings, control multiple synth voices at the same time, or simply distribute a signal across multiple effects modules, this module gives you the flexibility you need.

Content:

Module
Bus cable 16-pin > 10-pin, 30cm
2x Screw M2.5x9 Phillips
2x Screw M3x9 Phillips

Notes: The VCA Matrix from 4ms is a playable 4x4 matrix of 16 VCAs.

Four CV or audio inputs can be routed in any amount/combination to four outputs, using the 16 CV control jacks, Level knobs, and Mute buttons.

Notes: Announcing the Dual Looping Delay from 4ms Company, designed by Gary Hall!

The 4ms Dual Looping Delay (or DLD) is an advanced audio processor for creative synthesis. Not a tape or analog emulation but a modern crystal-clear digital delay, the DLD combines features of delay, looping, and sample-tight synchronization for powerful and dynamic sound capture and modification. The DLD is designed to integrate seamlessly with modular time-base and sequencing devices such as the 4ms Quad Clock Distributor (QCD), etc.

What is a "Looping Delay"?
Modern looping devices grew directly from hardware digital delays of the late 70s and early 80s. A looping delay, modelled on units such as the classic Lexicon PCM42, has the very long storage times associated with dedicated looping, but without triggered record and playback functions.

By default, a looping delay records and plays continuously, though recording can be suspended at any time with Infinite Repeat. Sustain of delays and loops is mainly accomplished with regeneration, allowing an organic, evolving approach to sound creation as new material replaces old, more or less gradually. The 4ms Dual Looping Delay also provides advanced clock input and output facilities that allow for locking delayed and looped material with sequencers and rhythm devices of all descriptions.

The 4ms Dual Looping Delay is conceived and designed by Gary Hall. Implemented and manufactured by 4ms Company

Notes: With our MORPHEUS digital filter module, we're finally able to unleash the full power of the 14-pole Z-Plane Filters that Dave invented for the E-mu Morpheus synthesizer.

The MORPHEUS Eurorack module includes over 280 filter configurations, what we call Cubes. Each Cube is composed of up to 8 complex filters that you can picture as being at the corners of a three dimensional cube (hence the name). Morpheus gives you the ability to smoothly interpolate between those 8 filters within the cube's three dimensional space.

Due to processor limitations back in the day, the original Morpheus was capable of real-time morphing in one dimension, but interpolation in the frequency and transform dimensions were set at note-on and remained static for the remainder of the note. But even with that limitation, Morpheus offered sonic capabilities that are unmatched to this day.

With the MORPHEUS filter module, you now have simultaneous real-time CV control of all three dimensions, for dynamic timbral effects unlike anything you've ever heard before. In stereo.

Notes: This module allows you to interface your Eurorack modular system to the pro balanced line level world (+4 dBu). You can send audio out to rack mount/desktop FX units, patch to external line-level instruments like synths and drum machines, interface to a DAW, and much more.

Features:

1 x Eurorack modular level signals to Balanced TRS 1/4? output path
Uses a high quality THATCorp balanced line driver IC
Output path steps a nominal Eurorack level (10 Vpp) down to +4 dBu with up to +6 dB gain.

Notes: This useful module is a Bipolar Mixer, DC voltage source and Linear DC coupled VCA.

- With no input to channel 1 the Input 1 pot becomes a voltage source with a range of +/- 6V.
- The control pot and input for channel 4 can be switched to become an offset control and/or a second CV input for the VCA.
- Input 3 has 2x gain, so it can amplify lower level CV's too.
- All inputs are bipolar, which means that either non-inverted or inverted version of the input signal can be added to the mix depending upon the Input control being turned clockwise (non-inverting) or anti-clockwise (inverted). The 12'o'clock position is zero.

Notes: Noise Random Tools comprises a collection of useful utility blocks that you could use in many of your patches - Clock, Random Pulse, Analog Noise, Sample and Hold, and Slew.

Features:

- Clock and Random pulse source with adjustable rate
- Analog pink and white noise source with very accurate spectrum
- Analog sample / track and hold with very low droop
- Analog slew with adjustable slew rate

Notes: 32 unique audio effects arranged in 4 banks of 8 effects. Three effect controls plus analog Dry/Wet control with dedicated CV input. High quality stereo signal pass. Separate modulation inputs for all three effect parameters plus Sample Rate Reducer (SRR) input - changes internal clock. Four user storable presets - stores selected program and all three controls. Spin FV-1 based.

The last used effect, and presets are always remembered.

32 effects are simultaneously available, but FX AID can be reflashed with other effects in any order.

Reflashing procedure is quite easy: playing 40 sec long "wav" file of line level amplitude to SRR input.

Reflashing mode: hold both buttons for 10 sec.

By default it runs on 32.77 kHz and, this sample rate can be decreased down to 150 Hz or brought up to 48 kHz via SRR input.

Please note the reverse CV operation of the Dry/Wet control: positive CV crossfades from Wet to Dry, and negative CV crossfades from Dry to Wet.

80 mA +12V
30 mA -12V
45 mm deep

Notes: VU meter for eurorack.

BLINKS is a VU meter for eurorack with 24 RGB leds per channel, function is pretty easy, it has 2 inputs, one for each led column (no output).

PATT button changes the led pattern ( 6 patterns to choose ).

SENS button changes the input sensitivity, cycling in 7 steps.

Long pressing the PATT button enters the color scheme selection.

Long pressing SENS button enters the brightness adjustment. Most probably you'll prefer the lowest setting.

The module has a 5v regulator in case you don't have 5v in you eurorack PSU. A jumper in the back select if the led board would be powered by the 5v rail or the internal regulator (which works with the +12v rail)

Up to 3 stereo signals can be connected to a buffered input using the rear headers.

Easy DIY with only a few components, the led board is already assembled.

5v not indispensable
+5v: 30 mA (on lowest brightness)
+12v: 4mA (or ~40mA if 5v rail is not used)

Notes: Dual tidal modulator with max, min & mix outs

FranKinksTides is a 18hp dual Tides (based on the Swirls pcb layout) with the max/min circuit from Kinks and some switches for sync, quadrature, pll and fm operation . It can be a double/complex oscillator, a dual function generator or any combination of oscillator, Lfo and Envelope generator with lots of cv control plus some interesting cross-modulation and sync features.

Some improvements in version 1.2:

-Mix output is now buffered, no signal bleeding on single outs.
-Mix pot controls also the balance of the signals sent to the max/min circuit.
-Uni/bi switch now also determines the signal sent to FM1.
-Clock/sync switch has now a center OFF position, no need of plugging a dummy cable in the Clock1 when using Sheeps firmware to avoid ultra fast sound bank changes.
small improvements for DIY:
-Bigger font size on the pcb.
-Parts renumbered for easy DIY.

Original design by Emilie Gillet
Available assembled and DIY (pcb+panel)
+12v
-12v

Notes: Updated version of the excellent Bitbox sampler module offers more powerful sound processing and an improved touch screen. Improved effects and mixing with all the same creative power of the original.

Supplier notes:
Bitbox mk2 delivers powerful sampling and mangling for Eurorack. With this module you can add recording, sample playback, clip launching, slicing, granular sounds and musically intelligent looping capabilities to your Eurorack rig. With a 3.5 inch touchscreen, bitbox mk2 makes easy work of selecting, editing, and tweaking your samples. You can stream large samples of up to 4 GB file size straight from the microSD card. Interact with other musical components via CV and MIDI. Tweak your configurations to get them just right, then save them to multiple presets for future reuse. With the new bitbox mk2 hardware, you can now do more with the new more powerful processor.

Sample Playback
Play up to 24 polyphonic notes when your samples fit in the 64 MB of internal memory or up to 8 larger samples streaming directly from the microSD card
Configure 16 sample pads per preset as single or multi-samples, clips, slicers, granular or new recordings
Stream long samples from the microSD card with a max sample size of 4 GB, which can be many hours of audio
Trigger samples with the touch screen, CV gate inputs, or MIDI input
Use MIDI for polyphonic playback of samples or slices
Control how samples start and stop by choosing from one-shot, toggle, and gate launch modes
Tweak playback through a variety of sample parameters, including start position, length, pitch, gain, filter, loop mode, launch quantization, ADSR, Exclusive Grouping, clip synchronization, slice placement and sequencing, grain size, grain spread, grain count, and MIDI note and channel mapping

Record Eurorack level audio straight into the module:

Record samples from a stereo audio input pair
Configure each pad for stereo or mono recording with the option to synchronize the start and stop times to clock inputs
Trigger recording via audio level threshold
Create perfectly sized loops by setting the recording length
Enable immediate playback after recording for live looping capabilities
Make recordings up to 4 hours in length
Store recorded samples as WAV files on the micro SD card then remove the card to transfer them to your computer
Sample Modes
Find creative ways of using your samples with our 5 sample playback modes:

Trigger one shots or launch loops using sample mode
Load a folder of samples into a sample mode pad to improve the quality of the pitch shifting when playing a sample chromatically or to trigger different samples with each note
Play time-synchronized loops with constant pitch time shifting in clip mode
Skip between slices of a WAV using slicer mode
Create rich textures and other worldly sounds with granular mode
Inputs and Outputs
Connect up to 8 CV modulators to control numerous sample parameters
Trigger each of the 16 pads with a dedicated gate input
Record through the dedicated stereo audio input pair
Use CV to keep time through the dedicated clock input
Confidently connect with both TRS MIDI Type A and Type B, no adapter needed
Route the audio from each pad out to one of 2 stereo audio output pairs or any of the corresponding single channels
Inputs and outputs are DC coupled so you can record and play out CV signals

External Control and Synchronization
Playback can be immediate or synchronized to internal clock, TRS clock in, or MIDI clock in and out
Trigger each pad independently through a dedicated gate input
Use MIDI to trigger pads via a note per pad
Play a single or multi-sample pad pitch shifted using MIDI notes or CV
Trigger different sample slices using MIDI notes or CV
Modulate a wide variety of sample parameters through the MIDI input and up to 8 CV signals
Quickly set up MIDI modulation using Learn mode- no need to look up CC numbers
Module Features
Use the 3.5? diagonal touch screen to intuitively explore the features of the module
Get more creative with double the processing power of the original bitbox
Fill out your sound with reverb and delay
Import or export WAV files with your Mac or PC using a microSD card
Save and recall multiple presets
Increase your capacity with larger microSD cards
Select Flipped UI mode to mount the unit with the screen on the bottom and use the screen, knobs, buttons, and CV jacks as you normally would

Notes: Eight independent fixed-frequency filter bands combine with linear VCAs to create massive sonic potential. VCAs also double as envelope followers, with a CV output per band.

Supplier's Notes:

The ADDAC601 Analog Filterbank will have you shaping the spectrum of your sound "tout de suite".

With its 8 fixed frequencies, this very special filterbank has two additional features that you won't find anywhere else. Each of the 8 band volumes can be controlled through a linear high performance VCA, which adds great dynamics and new abilities to the art of filtering. Additionally this module also doubles as an envelope follower, with a dedicated CV output per band.

It features numerous output options: you can select between individual bands, the full processed sound, a wet/dry signal and even choose between odd or even frequencies.

Plus you can add up to two different signals, which are mixed internally by the ADDAC601 inputs.

- Format: Eurorack
- Width: 20 HP
- Depth: 5.5 cm

Control Voltage I/O:
- CV inputs: i 5v
- CV outputs: 0 - 10v

Electrical:
. Compatible with +-12v and +-15v power supplies
. Max current: +340mA/-350mA
. Bus Board Cable: 8 × 2 IDC (Doepfer style) connector

Notes: Kermit is a 4-channel programmable supermodulator with morphing wavetable generator and internal modulation matrix. Four channels operate as LFOs, audio rate oscillators (with 1v/octave response on two channels), 1-shot envelopes, random voltage generators, or sample-and-holds, all responding to manual control, external control voltages, or synchronization to the module's master tap tempo clock. Designed for maximum patching power in small systems, Kermit carries an unmatched functionality-per-HP factor with an easily readable display that shows parameters in their real-world units.

The module has a 16-bit DAC to accurately render subtle changes of voltage at extremely low frequencies. The oscillator mode is best suited for bass frequencies, and the waveform "character" modes restrict the morph behavior or degenerate the audio to a minimum of 8 bits with limited horizontal resolution, like the Konami SCC chip used with the MSX computer. The tap tempo facility features an input jack and a manual button. The tempo is shown on the OLED display in BPM. The relevant units (hertz, seconds, volts, etc) or selected waveform of each channel are contextually shown on the display as the user programs the module.

List of operating modes per channel:

LFO (1 volt/octave)
LFO (with reset)
Tap tempo LFO
Audio oscillator
Audio oscillator (unison)
Code scan
1-shot envelope
Gated repeat envelope
Tap tempo envelope
Smooth random
Stepped random
Tap tempo stepped random
Sample-and-hold
Track-and-hold
Tap Tempo sample-and-hold

Three parameters on each channel can be modulated: frequency, amplitude, or waveform. Both external CV input and internal cross modulation are programmable with hotkeys. For example: assign the output of Channel B to morph the waveform of Channel A by holding the Channel B button while turning the Channel A Waveform knob. All channels have manual control of frequency (coarse and fine), phase, wave bank, waveform morph, and amplitude. Channels A and B have full controls, C and D have single knob controls with deep parameters accessible by hotkey combinations. Still deeper functions are accessible through the Mark III menu system.

Kermit has a microSD card slot for loading custom waveforms, like its big brother Piston Honda. The SD card accepts one .WAV file in WaveEdit format (free software editor) containing 64 waveforms, also compatible with several other Eurorack modules. When loaded into Kermit, the waveforms are organized into 8 banks of 8 waveforms each. Each oscillator can select any of the 8 banks, and the 8 constituent waves can be smoothly morphed from one to another.

The Mark III morphing preset manager is in full effect on Kermit. The discrete preset mode quickly and reliably recalls all parameters in response to triggers or CV, accessing the true power of the module as detailed, carefully programmed settings are effortlessly loaded and changed. The morphing mode causes delightfully unexpected variations of the basis preset.

Insert a master clock signal and you're ready to go. Kermit is a reliable provider of endless rhythmically coherent modulation voltages and a reasonably competent "voice module" providing most common synthesis functions on each channel with an internal modulation matrix.

Notes: Mult is a 2 input, 6 output signal splitter. Channel 1 is normalled to channel 2 when no cable is present, allowing the user to split an input signal six ways, or two input signals with three outputs each.

Notes: Great for generating random voltages from white noise, arpeggios from sawtooth waves, and downsampling audio signals.

Notes: CR-78 inspired 7-voice hybrid drum generator module with filter & effects

7 drum voices in the analog kit: bass drum, snare, tambourine, closed and open hi-hats, metal beat and cymbal;
Hybrid sound generation: band-limited digital noise with spectrum animation, injected into analog circuits
Full discrete analog generation part, using inductor coils instead of op-amps
On-board effect processor with drum-oriented 8 effects with additional auxiliary input and firmware update over audio same as in Queen of Pentacles / Milky Way / Grand Terminal
Drums that have character: fit all styles of music - specifically tuned for darkwave and techno
Separate analog outputs and isolator-style resonance filter for main mix outputs

Power consumption:
240 mA +12V
75 mA -12V
0 mA 5V

Dimensions:
30 HP
18 mm deep

Notes: Module A-134-2 contains two identical voltage controlled crossfader units.

Each unit has two voltage controlled amplifiers (VCAs) with opposite control behaviour available. The outputs of the two VCAs are mixed together to obtain a common output. The behaviour of the control voltage inputs can be chosen with an internal jumper:

Symmetrical mode: If the corresponding jumper is not set both VCAs of the crossfader have the same 50% amplification with zero CV. If the applied CV becomes positive the amplification of VCA1 decreases and those of VCA2 increases in the same way. A negative CV has the opposite result. The CV voltage range to obtain the maximum/minimum positions of the crossfader is about -2.5....+2.5V. This mode is useful for bidirectional (i.e. positive and negative) control voltages, for example LFO or joy stick (adjusted to 0V CV in centre position).

Asymmetrical mode: If the corresponding jumper is set VCA2 is fully closed and VCA1 has full 100% amplification with zero CV. If the applied CV becomes positive the amplification of VCA1 decreases and those of VCA2 increases in the same way. The CV voltage range to obtain the maximum/minimum positions of the crossfader is about 0...+5V. A negative CV has no function in this mode. This mode is useful for unidirectional (i.e. only positive) control voltages, for example ADSR, ribbon controller or Theremin control voltage.

The CV input of the upper unit (CV1) is normalled to the CV input of the lower unit (CV2). I.e. if no plug is inserted to CV2 the CV input of the upper unit (CV1) also controls the lower unit.

The second signal input of the upper unit (In1B) is normalled to the first signal input of the lower unit (In2A). I.e. if no plug is inserted into In2A the signal In1B is used as the first signal input of the second unit.

As the inputs and outputs are DC coupled the module can be used for both audio and control voltage signal processing.

Notes: The Listen Four Quarters is a four channel stereo mixer with 1/4" (6.35mm) TRS balanced outputs and 1/8" (3.5mm) headphones output. Two mono channels with Pan knobs and two stereo channels with dual inputs provide optimal compatibility with both stereo and mono signals. The Listen Four Quarters can be daisy-chained to other Listen modules to create a larger mixer with sub-mix outputs.

Notes: The Control Voltage Processor from Verbos Electronics GmbH is a suite of control voltage processing possibilities divided into 3 sections in a slim 18HP package. The lower 2 sections are DC coupled mixers that allow mixing, inverting, offsetting, scaling, multiplying, dividing, crossfading or a combination of these functions. The top section is a voltage controlled slewing processor with independent control of Positive and Negative slew rate, with some unique tricks. The Positive and Negative slew, or Rise and Fall rates if you like, have reversing attenuators. The slopes can be blended from linear to RC curves (starting all slides fast and ending slow, like a proper "East Coast" Portamento) without a change in speed. It can be triggered like an AD envelope and has a Gate out that goes high when the CV out is below 100mV. Of course it can loop by patching the Gate out to the Trigger in. The Bounce control adds a unique flare of overshoot to CV changes, a bit like the effect of stopping a tape reel from turning and then letting it go. The combination of multiple voltage processors offers the user the functions of analogue computer.

Notes: One of the most exciting oscillator modules we've seen in a long time, taking a unique approach to a complex VCO. Based around two thru-zero triangle core oscillators with a wealth of timbre shaping options.

Supplier notes:
Brenso is Frap Tools' primary analog source of articulated waveforms whose degree of entanglement can be precisely set by the musician.

Its concept developed from a reflection on the very meaning of the word 'complex,' which comes from the Latin verb plector, literally meaning 'to braid', or 'to weave.' The purpose of Brenso is to update the usual approach to 'complex oscillator' by offering many threads to be woven together, rather than a pre-defined plait of controls and waveforms: this to improve clarity, manageability and offer more sonic options to the artist.

Brenso consists of three sections: two for sound generation (yellow and green), and one for sound processing (white and red).

The generation sections allow control over the two triangle-core oscillators, which can be modulated from external sources and can modulate each other's frequency too. The frequency modulation can be any combination of exponential and/or linear through zero.

The processing section is composed of a waveshaping section (white) and a last stage of amplitude modulation (red): the first provides further degrees of modulation using two parallel wave-shapers and includes PWM, blends these two with a mixer and everything is passed into a wave folder with symmetry control and a dedicated clock input with shapeable nonlinear behavior.

The result of this is passed into an amplitude modulation section (red) which can be unbalanced (AM) or balanced (RM).

The white section modulations inputs are semi-normalled by a timbre bus, which is semi-normalled to the green sine wave.

Every oscillator has a button that locks its coarse frequency to the current value. From this moment on, every twist of the 'Coarse' knob will be ineffective (but The Fine knob is still available, from small adjustments).

BRENSO's oscillators are exceptionally stable and provide rich harmonic content. This happens thanks to the two thru-zero triangle cores, which guarantee the most playable behavior and the best response to audio-rate modulation.

You won't need to find a sweet spot because BRENSO is calibrated to sound 'as expected' in any setting.

Many controls allow for complex and detailed FM sound shaping. It is possible to set the amount of exponential and linear thru-zero FM independently per each oscillator and control their amount of 'deviation' through two separate knobs or CV inputs.

(The green oscillator can also work at sub-audio rate, and can therefore become a super complex LFO.)

BRENSO's 'complex' signal path is expanded on the front panel and grouped in four 'modulation buses': two for modulating frequencies, one for modulating timbre and one for AM and RM.

The green oscillator is always the semi-normalled modulator, but any other source can be used.

The timbre modulation section has been designed from scratch and offers a versatile blend of two wavefolders, a waveshaper, and a PWM circuit.

A dedicated VCA controls the global amount of modulation to be sent to each modulation section, but the semi-normalization can be broken anytime.

An analog circuit was designed from scratch that, when excited by an external trig, opens the wavefolder above its maximum level and then closes it down with a non-linear slope, whose length can be manually regulated.

This solution can generate percussive tones with a very organic decay.

HP : 30

Notes: Loop is a high fidelity looper with four unique recording modes and an intuitive user interface. It can capture up to five minutes of audio with reverse, and half-speed playback accessible. Each recording can use one of four modes: Sound on Sound, Dub, Replace, and Infinite (i.e. Frippertronics). Whether you're looking for minimal part layering, or full blown ambient soundscapes, Loop will take your patch for a ride.

High fidelity audio - 24-bit, 48kHz with five minutes of recording time
Four recording modes: Sound on sound, Dub, Replace, and Frippertronics
Intuitive interface
Half speed and reverse playback

Tech Specs:
Width: 2HP
Depth: 42mm

Notes: Delta-V is a fully analogue dual-channel function generator, featuring a dedicated VCA and LFO cycle switch for each channel. It packs a great deal of functionality in only 10HP, and will surely find use in almost every patch.

Generate envelopes, slew gates and signals, or run LFOs with precise control over attack and decay times. Using the SHAPE knob, Delta-v can create a wide range of envelopes, from very snappy exponential curves for percussion to logarithmic thumps for bass lines.

If VCA's input is unpatched, the module outputs a regular voltage envelope. When an audio signal is patched into the VCA input, the output signal becomes the audio signal amplified by the envelope.

Sending other envelopes or an LFO to VCA input lets you modulate those modulators, quickly creating complex control voltages that go beyond the usual attack-decay envelope.

Combine this with the SUM output, which sums the two channels, and the attenuverters, which can quickly attenuate or invert the signal, and you have a whole array of signal processing capabilities.

The TRIGGER input fires a Attack-Decay envelope, while the SLEW input will affect the rate of change of the signal.

The trigger for channel 1 and 2 can be linked together, so you can fire two envelopes with one patch cable.

Each channel has an End of Cycle output, (EOC) this outputs a short trigger at the end of each envelope cycle.

The output voltage ranges from -10 to +10 volts, set with handy output attenuverters.

The CYCLE switch starts looping the envelope, creating LFO's that go up to audio rate, and that can also be used as an interesting sound source.

There are many ways to utilise Delta-V.

Challenge yourself to explore new, unconventional territories!


Width: 10HP
Depth: 27MM
Power: +12V 70 MA
Power: -12V 70 MA
Power 5V: 0 MA

Notes: uBurst

This is a new build of the micro version of Mutable Instruments Clouds. The module retains all the functions of the original Clouds, taking up significantly less rack space.

These modules use tall bushing potentiometers to offer a more stable feel.

The module is fully assembled, tested, and calibrated. Eurorack power cable is included.

Notes: Now available in Intellijel's 1U format, the Milky Way is Endorphin.es's stereo effect module, featuring 16 programs: reverbs, delays, chorus, flanger, compressor and more. Versatile.

Supplier's Notes:
Tasty multi-effects module in Intellijel's 1U format. Eight stereo effect programs include meta CV scanning along with Airways and Darkwaves banks borrowed from the Blck_Noir and Grand Terminal modules.

Supplier's Notes:
Milky Way is a stereo FX module already know from the Blck_Noir and the Grand Terminal. It offers 8 types of effects.


simple and effective 6hp stereo FX module
8 types of effects available with meta CV scanning, 2 famous Airways and Darkwaves banks (more banks coming soon)
volume control with VCA
Airways:

Hall Reverb
Shimmer Reverb
Stereo Room Reverb
Plate Reverb
Spring Reverb
Ping-Pong Delay
Tape Echo Delay
Chorus
Darkwaves:

Gated Reverb
Spring Reverb
Ping-Pong Delay
Flanger
Ring Modulator
Overdrive
Compressor
Freezer
Power consumption: 117mA at +12 V and 12mA at -12 V

Depth: 42mm

HP : 22

Notes: Erica Synths Black Mixer is compact, high quality audio mixer with bonus features - mute switch on each input and three buffered outputs. This allows you to add audio signals to your mix instantly and in exactly right level, plus you can send signals to several post-mixer devices simultaneously, for example, split the output signal to LP and HP VCFs and create advanced bandpass and notch filters.

Technical specifications:
Max input level: -10V - +10V
Mixer gain: 1
Power consumption : +8mA, -8mA
Module width: 6HP
Module depth: 25mm

Notes: The Erica Synths Black Ring-Xfade is an extremely versatile module for sound shaping. It consists of two unconventional ringmodulators/waveshapers, a crossfader that works both for audio and CV and a VCA. Unlike conventional ringmodulator that works only with a signal present on both signal and carrier inputs, the Black Ring-Xfade passes through the signal without alteration, if no carrier is present, but low level signals on the carrier input result in unique waveshaping. Add the crossfader between two ringmodulators (or as a separate unit) topped up with the VCA, and you have an amplitude modulation powerplant in 10HP!

Ring1 CV; Ring2 CV
These are the ringmodulator carrier (CV level) level controls. Unlike conventional ringmodulator, this one passes signal unaltered, if RING CV is turned down. With increasing Ring CV level a slight waveshaping turns into proper ringmodulation.

Xfade
This is a manual Crossfade control. This fades smoothly between signals patched into XFADE IN1 and XFADE IN2. The XFADE CV is added to the knob position.

Coupling
Set the Crossfader mode - AC is optimized for use with the audio signals, DC - for control voltages (but it will work fine with audio, as well).

Ring 1; Ring 2
The green LEDs give visual feedback on signal levels, applied to XFADE IN1 and XFADE IN2 respectively.

Vol CV
Select the VCA CV response. A 0-10V setting is intended for use with the envelope generator, a -5V - +5V setting - for nice tremolos with a LFO.

Xfade IN1; Xfade IN2
These are the Crossfader inputs. They are normalled to the Ringmodulator ouputs, so, if nothing is patched here, you can crossfade between two ringmodulated signals.

Xfade CV
This is the Crossfader CV input. The CV is added to the XFADE knob setting.

VOL CV
This is the VCA CV input. The VCA is post-crossfade - it controls the amplitude of a resulting signal after the crossfader. It will also work with low frequency control voltages applied to the XFADE Ins - nice for designing unconventional modulations.

Ring1 Out; Ring2 Out
These are the ringmodulator outputs.

Xfade Out
This is the Crossfader output and the main output of the module.

Ring2 In; Ring2 CV
These are the second Ringmoduator signal and carrier inputs respectively. These two are normalled to the RING1 inputs, and if no signal is patched here, the duplicate the first Ringmodulator. Interesting trick is to set RING CVs at different levels and crossfade between two ringmodulator signals.

Ring1 IN; Ring1 CV
These are the first Ringmoduator signal and carrier inputs respectively.

Fade L; Fade R
The red LEDs indicate the crossfader position.

Xfade CV LVL
This is a crossfade CV level attenuator. By adjusting it you can control a span of fading between inputs.

Specs:
Audio level 10Vptp
CV level (full span) -5V - +5V
Power consumption +38mA, -32mA
Module width 10HP
Module depth 35mm

Notes: Running Order is a two track trigger sequencer. It can be a precise master clock or manipulate incoming clock signal and works great in use as a sub-sequencer/divider in your Eurorack environment.

Zero-jitter clock generation: less than 50 microseconds internal clock jitter
101 style 1/16th note input mode (step/rest) with manual or CV controllable amount of triggers repeats when the active trigger step happens
Euclidean mode enabled for each track where we set Euclidean total steps amount in the circle and then amount of triggers happening in that circle.
Per step trigger probability in 101 mode and global probability in Euclidean mode.
Separate synchronization (reset) inputs, sync for track 1 is normalled to sync track 2
Clock divider for incoming external clock allows to quickly obtain various musical divisions on the fly incl. triplets of course, but more importantly tuplets mode allows you to stretch desired amount of triggers happening into a single bar
Separate mute buttons for each track
8 patterns of triggers sequences stored in the module and recalled on the next power up
Available in 3U / 6HP version

Power consumption:
30 mA +12V
10 mA -12V
0 mA 5V

Dimensions
22 HP
26mm deep with power ribbon cable connected

Notes: The Z8000 Matrix Sequencer is a modulation source like no other: The 16 knobs of the Z8000 are accessed by ten sequencers with their own clock, direction and reset inputs. The ten sequencers are as follows:

Four 4 step CV sequencers on the horizontal.
Four 4 step CV sequencers on the vertical.
One 16 step CV sequencer on the horizontal.
One 16 step CV sequencer on the vertical.

The Z8000 can simultaneously modulate up to 10 CV parameters poly-rhythmically, with unprecedented motion complexity. One knob affects all 10 CV outputs! Imagine modifying 10 parameters from one knob. With its 30 gate and clock inputs and 10 CV outputs one can only imagine the possibilities, and all clock inputs can even be driven at audio rates! The Z8000 pairs well with the Trigger Riot and Circadian Rhythms and using it with the QuantiZer extends its capabilities as a high-precision 1V/Oct note sequencer.

Introduced in 2017, a new version of the Z8000 maintains the original circuitry but adds output range adjustment switches on the back and Tiptop's new colored look, which helps highlight the sections, on the front.

Size: 28HP
Depth: 15mm
Power: +12V 70ma / -12V 10ma
