Notes: The TSC-12 module, based on Solar-42 Ambient Machine keyboard is a performance oriented touch controller featuring 12 capacitively sensitive plates, equipped with highly accurate Volt/octave outputs, ready to connect to your modular setup also. It's touch sensitive controls offer an unprecedented level of control over your modular setup, allows for various playing styles, and boasts a sequencer, arpeggiator, vibrato, portamento, pressure control, quantizer and clock.

Notes: The TSC-12 module, based on Solar-42 Ambient Machine keyboard is a performance oriented touch controller featuring 12 capacitively sensitive plates, equipped with highly accurate Volt/octave outputs, ready to connect to your modular setup also. It's touch sensitive controls offer an unprecedented level of control over your modular setup, allows for various playing styles, and boasts a sequencer, arpeggiator, vibrato, portamento, pressure control, quantizer and clock.

Notes: OpticShifter is a 20-Stage optical Phaser with flexible feedback and pole selection. Drawing inspiration from classic 70's era phase shifters, it combines vintage charm with modern versatility. Whether you're aiming for subtle movement or dramatic swooshing and whooshing, from phasing to vibing, OpticShifter creates an immersive Phase Shifting experience.

Notes: The idea behind Eclipse is to combine the raw character of vintage analog oscillators with modern features for crafting rich, complex, and expressive sounds.

Eclipse's development started with a high-precision analog triangle oscillator that tracks accurately over 10 octaves, with all the I/O expected from a premium analog oscillator.

While looking for ways to generate complex harmonics without relying on a classic wavefolder, we came across the VCS3's waveshaper. This unique feature of the EMS synth sparked the idea to design our own waveshaper from scratch, opening up a wide range of sonic possibilities and dynamic control to bring sound to life.

During the design process, we discovered the waveshaper's unique potential for stereo processing, which led to a dedicated stereo section to spread and move waveforms across the stereo field while maintaining perfect balance at any setting.

Eclipse offers full CV control across all parameters, with smart normalization enabling global modulation from a single source. With many special features like XFM, ULFO, Stereo Pulse Array Modulation, Stereo Pulsed Saw Modulation, RM/AM capabilities, Eclipse is much more than just a VCO.

Notes: The new ADDAC220 Dual Envelope Follower + is ADDAC's latest stereo envelope follower, which can generate CV from two simultaneous envelopes, enabling the user to control any range of other instrument/module parameters. The module is an analog/digital hybrid, allowing greater precision and analysis of an incoming signal.

The level of an incoming audio signal gain can be set by using the Gain control. Then, the signal is then fully rectified and passed through an analog envelope follower with a fixed short attack and decay. The analog signal is then sent into a 12bit ADC (analog to digital converter) of an MCU (microcontroller unit), and hereafter the signal is processed digitally. Whenever the ADC detects audio clipping the Clip led will light up.

Then, the digitized signal is then passed through a Savitsky-Golay filter for noise reduction smoothing of the incoming signal, before it is slewed using the Attack and Decay controls. The MCU keeps a history of the last sampling points and detects the minimum and maximum values, which reflect the current dynamic range and maps the signal minimum and maximum amplitude to 0V and the maximum voltage detected.

This new mapped signal is then processed via the Response Curve control balacing the response like one would with a standard AD envelope with LOG/EXP control. The Envelope Gain attenuverter control goes up to x2 amplification and sets the attenuation / amplification factor of the output range, while the red LED monitors this level with precise visualization across the full output range

Notes: Ripsaw is a 6hp stereo super saw/square oscillator just like chainsaw with a few extra additions:

- 4x voices of 7 detunable saw/square waves to allow for more complex chords

- unique "display" built from 77 blue LEDs

- manual and CV control over wave shape and spread like chainsaw

- a new "shift" parameter that offsets the frequency of a second oscillator that hard syncs each waveform for a unique "supersync" sound

- waves panned across stereo outputs like chainsaw

- fine tune adjustment and optional onboard semitone quantization selectable on the encoder/display

Notes: The Ohm Force Bohm is a stereo dual-voice kick synthesis and percussion module with nine different synthesis modes for all sorts of sounds, plenty of CV-modulation options and hands-on knob control over all of the key parameters. Precision sound-shaping knobs with wide sweet spots make flawless tweaks effortless. The Bohm has multiple CV ooptions for triggering the main kick voice, controlling the length and sustain.

There are two optional expanders for the Bohm, the Bohm Groove expander and the Bohm Performer expander. The Bohm Groove is a rhythm expander that adds a secondary kick voice triggered by clock divisions for rhythmic bass and percussion additions. The Bohm Performer expander adds a stereo FX input for processing, a volume fader, side-chain ducking and various DJ-style effects.

Notes: Oscar Tria packs a lot of VCO into 10HP. There are three main modes described below.

Green Mode:

A 'traditional' stereo oscillator. In Green Mode you get the usual three waveforms - saw, triangle and square (with variable pulse width, of course) but you can continuously vary the waveform between the three. For instance, by turning the waveform knob to be just to the saw side of triangle, you get a sound very much like the Minimoog's 'shark tooth'. Green mode also gives you a square wave sub oscillator - one octave below the main oscillators - and a sub sub, two octaves below. Oscar Tria is stereo, of course, so you can detune one oscillator for a rich stereo image - or sum the two outputs to mono and you have two oscillators with two subs, for a BIG sound. Green mode also features through zero FM, and hard sync.

Yellow Mode:

Super-saw! And super-square! And super-triangle! With a sub (of course). Yellow mode allows you to control the number of oscillators making up the super-whatever, from one (not really super) to 24! Again, being stereo you get up to 12 oscillators in one channel and 12 in the other. Add the sub for a HUGE sound.

Orange Mode:

This is a chord engine, with 20 selectable chords. There are controls to select which chord you want and how many notes are played (over two octaves). CV control allows you to set pitch and chord independently, so you can set up a polyphonic sequence, for instance. Again, the output is stereo with detune control of one output.

Notes: Polyphonic sequencing from Elektrofon, the Klang allows you to program and perform chords and multi-layered harmonies. Circular clock-style display gives visual feedback and real-time indication of chord progressions.

Supplier's Notes:
«Klang» is a 4 voice polyphonic controller. It stores, traverses and manipulates chord progressions.

Overview

«Klang» is a unique take on polyphonic control within Eurorack.

Displaying chords in a circular clock-like display, and giving the user immediate control over every aspect without "menu diving" makes for an easy to use and inspiring module.

The module can store up to 99 chords, where each chord is made up of 4 voices.

Each voice is represented by a colored indicator on the clock-face which in turn is controlled by an encoder.

The indicators points to notes on the chromatic scale drawn in 360- around the clock-face.

Interface

The big grey encoder in the middle of the module lets you browse the chords - the active chord and total chord count is shown just above the encoder on the display.

The + button lets you ad a new chord. The new chord is added after the currently active chord, and the new chord is then set as the active chord.

The - button removes the current chord.

Inputs

The module has 3 inputs - 1 trigger input and 2 bipolar CV inputs.

Trigger input

The trigger input triggers a chord change.

If the direction input is unconnected, a single trigger results in a single step in the forwards direction.

Direction input (+-5V)

The direction input normalizes to a single step in the forwards direction.

You can feed this input a bipolar CV (+-5V).

Direction maps the total chord count to 5V. This means that +5V results in a single trigger progressing +n steps, where n is the total chord count.

A negative voltage will do exactly the same but resulting in backwards stepping.

0V equals no movement.

Transpose input (+-5V)

This bipolar CV lets you transpose the current chord up or down within 1 octave.

It is therefore a 5V/oct input.

The reason for this is that it is intended to be used with an analoge voltage source like the Pressure Points from Make Noise, or any other analoge sequencer.

It is much easier to fine tune a 5V/oct signal with a regular potentiometer than a 1V/oct signal.

Outputs

Each voice has a separate color coded 1V/oct CV output.

Notes: In only 12hp, Axis condenses all the classical blocks for the audio amplitude management, redefining the classical envelope -> vca -> mixer path. The idea is to manipulate a sound over three axes: its length, its volume, and its place inside the stereo field.

Axis is a dual envelope generator that features an integrated VCA, a crossfader, and a voltage-controllable mixer section. The initial concept was to combine digital control over an analog VCA to closely emulate the classic Vactrol sound. After more than a year of refinement, Axis has evolved into more than just that. It offers exceptional versatility, providing a wide range of waveforms and the unique capability to simulate the natural percussive qualities of different materials. All this is in a complete analog path.

For the function generator section, we choose a faster method over the classic AD/ ADSR style: a selection of waveforms studied to give back a precise musical effect can be selected with the shape knob. The function length is independent from the actual wave shape and can be settled with the fader timeX from 30hz to 15 seconds. Also, setting the timeX fader at its maximum level will leave the VCA open.

A more typical collection of envelopes can be found in the first half of the dial. All kinds of sounds, from plucked notes to long volume swells passing through lead-friendly lines, can be obtained here.

More unusual, the last section of the knob is thought to simulate the acoustic vibration of a percussed object. Starting with a triangular envelope, from this point on, the more you turn the knob, the more rebounds will be added, simulating the natural ring of a material. Using this section at low rates can generate complex envelopes that could also be suitable for the vibrato-style AM effect. The envelope generator section includes a mode switch (cycle,trigger,hold), a trigger/gate input, an EOC trigger out, a function output, a CV for the envelope shape selection, and one CV for time.

As a cherry on the cake, a crossfader is placed at the end of the chain, blending both Axis halves. With a dedicated fader and CV control, raising it will invert the L/R output, creating nice stereo effects or moving the voices around the stereo field.

The VCA section is more straightforward: it has an audio input/output[1] and a VCA CV input[3].

You can plug the audio I/O to use Axis in its completeness and eliminate a lot of cables and mess!

Soundwise, here at Clank, we are all about vactrols LPGs, but since we knew it's not the most versatile option on the market, we came up with a different design. Blending together a VCA with a not-so-step filter, we obtained a VCA with a nice mild LPG flavor: enough to sound not so "clicky" but not too slow to inficiate really fast sounds.

By default, the envelope created by the function generator is normalized to the CV in of the VCA. Plugging a cable into the VCA in breaks the normalization, in this way you can use a different source to control the VCA and free the function generator for LFOs or modulation duties.

The range Y fader sets the strength of the envelope, but you can also see this control as a volume fader, which is nice since you won't necessarily need an additional volume for your voice after the Axis. Take into consideration that since the Axis VCA is actually a low-pass gate, lowering the rangeY fader also affects the cutoff frequency. The range fader also has its CV control to program dynamic changes to the sound. Basically, it's a VCA over a VCA that permits every note to be at different intensities. Last but not least, Range CV can also be fed by a unipolar modulation CV to obtain vibrato effects or audio rate AM modulations

Notes: Chaos is excellent for modulation purposes or as a clock multiplier/ divider, but that's only scratching the surface... It takes a different approach to writing sequences than traditional sequencers, as it is built on six touring machines combined with an effective pattern and clock generator. One of the biggest challenges in electronic music production, especially when it comes to sequencing, is finding that sweet spot between hands-on control and possibilities.

It can be frustrating because many sequencers with lots of fun and playable controls don't always pack the punch you need. On the flip side, you have those bigger menu-based sequencers with tons of options but can feel overwhelming with all the programming they require. It's designed to help you overcome these challenges and make your music-making experience smoother and more enjoyable, whether you're jamming or writing a song you want to execute live.

Typically, a sequencer starts with a blank canvas. However, with Chaos, you begin with all possibilities at your disposal and can easily narrow them down to fit your vision with just a few adjustments. This makes creating a sequence that conveys a specific mood quick and straightforward. Once you have established this initial mood, you can loop it from the last step to step 32 whenever you hear something you like. At this point, you can choose to modify the entire loop or adjust the parameters of any individual step. There is no need for extensive menu navigation; simply pressing a button and turning the encoder gives you control over parameters such as gate time, gate probability, gate width, gate ratcheting, gate swing, notes, scale, slew, and slew amount.

The LED bar continuously displays the voltage output of the selected channel, as well as the gate and each parameter's value, eliminating the need for a screen. You can save and recall the entire sequence of its six channels at any time. Additionally, there is an internal function that allows you to randomize all parameters or just a select few within a specified range, helping you discover new melodies to work with.

Chaos is an endless reservoir of tunes and is incredibly quick and powerful for composing sequences, gate patterns, or modulation. In a short time, it will become the brain of your system.

Six CV outputs can be used for a wide range of applications; everything from chaotic modulations to fine-tuned sequences can be obtained. Thanks to its interface you can quickly adjust the voltages from where the random engine picks new values and then edit them in every aspect.In addition, Slew amount, Quantization, and external sampling are available on every channel.

Thanks to its 6 gate outputs, Chaos can be used as your system's quick and effective clock manager and gate pattern generator. Chaos also provides a stable master clock (10mS to 10Sec) from a separate output and can be clocked from external devices. On every channel, you can set Probability, Width, Swing, Ratcheting, and Time as a multiplier/divider of the master clock or unquantized in mS.

You can freeze the last 1 to 32 steps of randomly generated CVs and Gates in a locked loop when you hear something you like. Loops are not static; every parameter of Chaos can be used again to change the loop behavior in a non-destructive way.

Entering sequencer mode means taking control of every aspect of the looped sequence generated by the random engine. You can change time, width, probability, ratcheting, slew, slew amount, note, note deviation, etc., for each of the 32 steps of all six channels.

Thanks to the external input, you can substitute the random generator with external voltages, transpose a sequence on the fly, and a lot more.

If you're more into generative stuff or want to add a bit of craziness to the patch, you can use the Chaos function to randomize all the parameters on a channel. A sophisticated control named entropy is available on every parameter to set the distance of the new value from the last one.

Chaos can save and recall 10 slots where you can save entire sets or preferred channel behavior. Recall can also be done with an external voltage.

Notes: The name, indeed, comes from ancient Greek mythology since Proteo was a shapeshifter who could assume whatever shapes he preferred. In this way, our Proteo, has not a precise sound on its own but a clever mechanism that permits to acquire and transform every signal into waveforms. What if you can use your envelopes, LFOs or any other signal as a sound source?

What sets it apart from other oscillators? What's very different in Proteo is its internal pseudo-tape recorder, which is capable of continuously acquiring and transforming any external signal into waveforms and morphing them from a basic sine.

In Proteo, waveforms are not a static digital representation of a sound; they can continuously evolve in a very organic way, and tape loop time is a fundamental factor: changing it will drastically affect the resulting output even with the same sources at the inputs. Slowing down the time will capture a bigger portion of the incoming source with more harmonics. As a result, increasing it allows to capture up to low audio rate signals or really small fragments of the signal.

Exploring the interaction between Proteo, the sources and the time will force you to change your mind about how sounds and harmonics can be generated: visualizing how different shapes can sound and looking for new sources to generate YOUR waveform is the fundamental idea behind Proteo.

Proteo is also stereo, thanks to the Span knob you can easily detune one oscillator from the other to create nice stereo effects. Beside the common pitch the two oscillators have independent acquisition paths and morph controls, each one can emit different waveform.

Notes: Multi-model stereo delay with reverb, featuring tape, bucket brigade and crossfading digital models, plus saturation, filters, internal modulation plus tons of CV control. Vibey as hell.

Supplier's Notes:
It's all gone a bit wobbly

Intellijel's design goal for Sealegs was to create the warmest, most musical and organic delay module possible - something that would sweeten and enhance any audio one chose to feed into it. As such, great care has gone into modelling the most distinctive and desirable sonic characteristics of three different types of delay circuits: Tape; Bucket Brigade, and Crossfading Digital.

A plethora of onboard controls enable you to dial in exactly the sound you want; synced or un-synced delays times (for both left and right channels); a built-in modulator with seven morphing waveshapes, a Wow & Flutter emulation, and an envelope follower; plus dedicated low- and high-pass filters; built-in hiss & crackle noises; per-model colour controls; a spacious reverb; and a re-configurable signal flow through the unit. In addition, attenuverted modulation inputs abound - ensuring the delay ebbs and flows with your musical needs.

Features
Three Unique delay models with per-model "Color", modulation behaviour, and saturation/limiting
Three Stereo configurations (PONG, L/R, Time/Width)
Built-in modulator with multiple, morphing wave shapes
Lush, routable 1970s-inspired reverb
Noise control to introduce hiss and crackle.
Highpass and lowpass filters for filtered repeats
Input drive with level trim
Per-model Freeze functionality for holding the delay contents and looping
Delay times up to 6 sec (L channel) and 8 sec (R channel, Width adds 33% to Time)
9 CV inputs (with attenuverters)
Stable external clock syncing (or tap tempo)
96 kHz, 32-bit stereo floating point processing

Size: 20HP
Depth: 29mm
Power: 116mA @ +12V 10mA @ -12V

Notes: A typically clever approach to modulation from Make Noise, the MultiMod takes a control signal and modifies it into eight related outputs, adjustable by phase and timing. Hugely versatile.

Supplier's Notes:
With MultiMod...from one control signal, we create many.

In a modular synthesiser, it is easy to create complex results via complex means - patching an elaborate network of independent control signals, for example. This can be very powerful but also cumbersome to set up, and potentially difficult to control in a meaningful way. MultiMod represents a new approach: it takes a single control signal and copies it 8 times, not unlike a simple mult, except that it allows you to modify those copies by weighted adjustment of their relative phase and speed. The result is modulation that is related to the source, but not identical at each destination.

Phase sets the spacing of the signal copies in time, weighted by channel, with each progressive channel getting more out of phase from the original signal and from each other. Spread allows for varispeeding the copies by different amounts, with each getting progressively faster or slower than the original Signal. Time determines the range of time captured at the input and therefore also the depth of modulation across copies of the input signal when Phase and Spread are manipulated. MultiMod also includes Tempo, Hold, and Reset features, and a variety of Read Shapes for temporal rearrangement of input signals.

When the input is not patched, MultiMod generates an LFO that is copied eight times and manipulated in the same ways.

MultiMod is built with the latest DSP hardware which offers eight high resolution outputs, with signal input and output ranges approaching the upper limits of the analogue eurorack modular system. All I/O is capable of a 20V range at +/-10V, greatly exceeding the typical 0-5V CV input ranges on typical digital modules.

Specifications

Width: 10hp
Max depth (incl power cable): 39mm

Power:
195mA @+12V
10mA @-12V

Notes: Serious versatility from AJH here. Based on the circuits from the Oberheim Matrix 12, the Matrix VCF offers a whopping 16 different fully analogue filter modes, each with two different resonance models. All bases covered.

Supplier's Notes:
Presenting the new AJHSynth Matrix VCF - this may well be the most versatile Eurorack VCF ever.

This amazing multimode filter and VCA offers sixteen different filter types, and two different resonance models on each, totalling an incredible thirty two assorted resonant filters to choose from. AJH Synth have also included manual and CV control of filter type selection, along with 16 LED's that give a clear visual indication of which filter type is currently selected.

The filter core circuitry is based on that of the rare and highly sought after Oberheim Matrix 12 synthesiser, and of course has an all analogue signal path. The Matrix 12 VCF originally offered fifteen filter types, however AJH Synth have expanded this to 16 with the addition of AP4, a full four pole all pass phaser mode.

AJH Synth have added a unique P-Vox resonance distortion and overdrive circuit that changes the character of the resonance completely, and can force all of the filter modes into self oscillation. This effectively doubles the filter variants and hugely broadens what is already a very impressive sound pallet.

Other features include an inbuilt VCA with Input and Output Level controls, a Peak level LED, CV control of resonance, and of course the legendary AJHSynth build quality.

The Matrix VCF in depth

After two years of development AJH Synth have finally released what they consider to be the most versatile Eurorack VCF & VCA ever. Like many other AJHSynth modules it uses the very best vintage analogue circuitry as the starting point for the design, and in this case, the filter was chosen from the rare and very desirable Oberheim Matrix 12 synthesiser. AJH Synth expanded this from the original fifteen filter compliment to sixteen distinct filter types by adding in a really useful four pole phaser!

So, behind the compact 14hp front panel lies sixteen distinct filter types, including all of the favourites: Low Pass filters with a choice of one, two, three or four poles, Band Pass filtering with two or four poles, High Pass filtering with one, two or three pole options, along with Notch filtering and four complex, combination filter types. Finally, a four stage phaser with two types of emphasis that can be forced into tuneful self-oscillation!

However, this is far from the end of the story. AJH Synth decided to use their design expertise to add in some crazy resonance distortion circuitry, that could be switched on from the front panel. This was inspired by the filter from the Soviet Polivoks synthesiser, but again the implementation used here is considerably changed, improved, and best of all this can be applied to all filter types! This completely changes the filter character when engaged, and it forces all of the filters into self-oscillation at higher resonance settings. Better still, the oscillation waveforms are more harmonically rich than the usual sine waves - everything from gloriously fat to screaming and angry! Best of all, this takes the number of different filters up to a massive thirty two variations!

AJH Synth put a lot of thought into the ergonomics and how to select the individual filter type. Filter type can be changed either with the front panel Mode knob, or by using a control voltage patched to the MODE CV input. The selected filter mode is displayed by the LED next to the filter in use. This is also very helpful when using a step sequencer to change filter mode as it gives a real time display of the filter chosen as you take the step CV voltage up or down, while setting up each individual step.

Lastly, AJH Synth have also included a VCA hard-wired to the output - simply patch an envelope or an LFO to the VCA input, connect a VCO to the audio input and you have a synth voice (with a choice from 32 different filters!) using only three modules!

Thirty two Eurorack VCF's and a VCA would most certainly take up a lot of rack space - AJH Synth have got all of this into 14hp and managed to have a really finger-friendly user interface, without it feeling cramped.


Sixteen distinct filter modes to choose from

Here's a list of the different filter modes that are available:
1 - Four Pole Band Pass
2 - Three Pole High Pass combined with One Pole Low Pass
3 - Three Pole All Pass combined with One Pole Low Pass
4 - Two Pole Notch combined with One Pole Low Pass
5 - Two Pole Low Pass
6 - Four Pole All Pass (Phaser)
7 - Four Pole Low Pass
8 - Two Pole Band Pass
9 - Two Pole High Pass combined with One Pole Low Pass
10 - Three Pole High Pass
11 - Three Pole All Pass
12 - Two Pole Notch
13 - One Pole Low Pass
14 - Two Pole High Pass
15 - Three Pole Low Pass
16 - One Pole High Pass

All of the above filter types can be further altered by switching in P-Vox mode, this doubles the list up to thirty two different filter variants!

P-VOX MODE

Transforming the resonant character of every filter type

This magical switch completely transforms the resonance of the filter core by overdriving it in a similar fashion to the filter from the Soviet Polivoks synthesiser, which was renowned for it's powerful, aggressive character.
In common with the Oberheim Matrix 12 VCF, some of the sixteen filter types will not normally go into self-oscillation, however when you switch on P-Vox mode all sixteen filter types can be forced into self-oscillation at higher resonance settings. But that isn't the only change, the self-oscillation waveform is not the usual sine waveform, it is a rather more interesting and harmonically rich waveform that varies according to the filter type chosen - generally Low Pass modes produce the nearest to regular sine waves, whereas other filter types can produce very much more complex waveforms as can be seen in the diagrams below. It does not require any audio input for this, it can be a stand alone oscillator. Most of the filter types will track 1V/Oct reasonably well over a three to five octave range, so it can be used as a VCO with a few interesting waveshapes!

Of course, P-Vox mode isn't just useful for self-oscillation, it adds lots of character to any audio signal as P-Vox resonance is switched in.

Module Width: 14hp
Module Depth: 29mm (Including power lead)
Current Usage: 56mA Positive, 36mA Negative

Notes: Clever sequential signal processing from Joranalogue, capable of a range of functions including toggling signal muter/attenuator, clock divider, rotating shift register or programmable voltage bank.

Supplier's Notes:
Sequencers, sequential switches, counters, analogue shift registers... Modular synthesisers provide a wealth of creative sequential functions for controlling and processing signals. Choosing which of these to include in a system can be a bewildering task.

Except when you don't have to choose. Step 8 represents a new type of modular building block: a sequential tracking/sampling register, which can be configured to provide any of these functions, and many more.

At its heart lies an analogue 1-to-8 signal switch feeding an octet of high-stability track/sample-and-hold stages. Each of these has its own analogue output with an attenuation slider, in addition to a gate output. LEDs visualise the status of each stage in real time. The switch can be controlled sequentially using the built-in 8-step counter, or addressed directly by an analogue control voltage (CV).

Numerous advanced circuit techniques are used to avoid the issues that often plague analogue switching and memory modules. The result: totally transparent signal paths with low noise, distortion and voltage 'droop', yet high bandwidth and precision.

Add to this the ability to 'mute' the inactive stages, pause the counter, reset it, change its direction or even shift the stages on each step, and the possibilities quickly become near-endless. A scanning output takes things even further, particularly making sequencer or addressed voltage source use easy and intuitive.

For those who are feeling adventurous, there are always more applications to try: configurable voltage mapper, hocketing controller, clock divider, graphic waveshaper, multi-output analogue downsampler... Discover a new world of sequential synthesis with Step 8.

16 HP
+12: 110 mA, -12: 45 mA

Notes: Another cracker from Xaoc, the Timiszoara is a take on digital multi-effects with stereo in and out, an intuitive interface and CV control of effect parameters. Big power with 176 factory programs.

Supplier's Notes:
Timiszoara is a stereo, Eurorack compatible, voltage-controlled multi-effect signal processor based on the popular Spin Semiconductor FV-1 DSP chip. It features a full stereo signal path with two adjustable audio inputs, two outputs, and a stereo voltage-controlled wet/dry mixer. In addition, there is a microSD memory card slot on the front panel that allows for loading factory and custom effects without any restrictions or copyright protection, which means you can use many effects available on the Internet and even create your own.

Effect programs are organized in banks of 8 and can be selected using a rotary encoder, as well as CV and trigger signals. Timiszoara features a crisp OLED screen that displays the program parameters and its name. It also facilitates navigating the list of banks. Up to three parameters per effect can be controlled from the front panel with illuminated slider potentiometers and dedicated CV inputs.

Xaoc Devices have prepared quite a few banks of algorithms (176 in total) that cover most effects needs: delays, reverbs, filters, modulation effects (such as choruses and flangers), pitch shifters, and, of course, shimmers (no multi-effects unit would be complete without its share of those). However, Xaoc Devices wanted to ensure that users had access to some more adventurous programs, so some special banks have been created to allow you to take a walk on the wild side.

For detailed description, please refer to the manual.

Technical details:

10hp, skiff friendly
Current draw: +120/-45 mA
Reverse power protection

Notes: The perfect pairing of a virtual analogue kick drum and side chain compressor. Designed as a single, easy-to-control module, Kickain revolutionizes your kick drum workflow by managing low-frequency artifacts and transients. The result? A cleaner, tighter mastering-standard mix featuring a truly powerful kick drum.

Spectral Compression

Kickain offers two spectral compressor modes that intelligently EQ the mix to fit around the triggered drum sound, adjusting continuously thousands of times a second. This optimizes the kick's loudness without intrusive 'pumping,' ensuring tracks sound tighter and richer in the low end.

Reverb

A 24-bit stereo drum room simulator, linked to the decay envelope, provides ambient reflections or explosive bass drops.

Notes: Vinia is a new powerful 8-channel audio generator and processor for Eurorack. Each channel is independent and has its own signal chain. This can be a multi-engine instrument, an FX processor, a combination of both, or a chain of several FX.

The sound generator section offers 2 sample players (one plays from the 16 MB internal flash memory and the other directly from the microSD card), various VCOs (VCO, multi-VCO, harmonic VCO), Karplus, a Chord generator, noise, a drum synth and modulation generators (LFO, envelope follower, envelope).

Each of these generators has a rich set of parameters for setting up your sounds. Then, there is a powerful multi-FX processor.

Tesseract Modular has added 20 different algorithms in Vinia: FM operator, filters (multimode, ladder, rubber, bandpass), a wave folder, tube saturation, delays (filter delay, delay, long delay), reverb, metallizer, grain pitch shift, and more.

These can be flexibly set in a chain per channel and offer many customization possibilities. The module also hosts a mixer. You can also save your channels in presets and work with macro parameters.

Each of the 8 channels can be independently configured as a multi effect processor, VCO, sample player...

Audio outputs are DC coupled so it can be used to generate complex CV modulation sources too.

There are 2 types of modulation in Vinia, the first is stepped (occurs every 1,4 milliseconds approx.) and very flexible, any modulation source can modify any parameter of any track. The second is the 'audio rate' one (44,1 KHz), only a few parameters admit this type and both sources and destinations will be within the same track.

Audio sources: Audio Input, Flash Sample Player, MicroSD Sample Player, VCO, Multi VCO, Harmonic Oscillator, Karplus, Chords, LFO, Envelope Follower, Envelope, Noise, Drum Synth

Audio processors: FM Operator, Multimode Filter, Ladder Filter, Rubber Filter, Bandpass Filter, VCA / Polarizer, Folder, Tube Saturation, Exponential Envelope, Delay, Filter Delay, Long Delay, Long Filter Delay, Reverb, Metalizer, Chorus, Modulator, Vocoder 16, Vocoder 32, Bit Crusher, Rectifier, Grain Pitch Shift, Ring Modulator

Notes: A powerful utility module:

The 2+2 Mixer (left side) is a combo of two DC coupled 2-channel mixers with a sum out. For audio or CV purposes.

The Dual VCA is the audiophile and distortion friedly VCA taken from the Stereo Mixer. It has a special exponential response that imitates the behavior of the early Serge VCAs and allows massive amplification and overdrive. Beware - the resulting signal can get very high amplitudes (up to 16Vpp) and allows squaring of a sine or triangle wave.

Serge 2+2 Mixer / Dual VCA for eurorack:

Designed for audio performance
Eurorack format (3U), 18 hp
Power consumption: 55mA @ +12V, 50mA @ -12V
(NEW) Skiff-friendly: < 25mm (1")

Notes: Eight channels of audio and CV sampling with real-time editing and processing. Does basic sampling well but quickly gets creative and weird.

Supplier's notes:
The 'Squid Salmpler' is a Eurorack 8 channel audio & CV sampler. It is designed for immediate real time sampling, editing and mangling within a modular context.

Taking influence from early hardware samplers, The Squid Salmple focuses on usability and instinctive operation, incorporating a proven Pamela's Workout style user interface for minimal screen dependence and a fun, hands on experience.

With support for sampling and playback for both audio and CV, as well as CV control of all parameters, on-the-fly bank loading and saving to USB, The Squid Salmple brings a unique take on old school sampling into the modular realm.

The Squid Salmple comes with a USB Stick containing approximately 90 banks of original carefully curated royalty free samples. This includes a wide range of sounds from classic drum machines and weird synths to field recordings and CV modulations. Banks are provided by both ALM and some of our favourite artists and friends including Mumdance, Solid Blake, Russell Haswell, Lauren Flax, Dave Burraston (NYZ), Sue Zuki, Dungeon Acid, Sasha Lewis and Andrew Duff.

Notes: Killer physical modelling module collab from two of the biggest names in their respective fields of hardware and software. Generates a huge range of percussion instruments plus synths and bass tones.

Supplier's notes:
Plonk uses a technique known as physical modelling to synthesize, with great realism, the way in which sound is produced by acoustic instruments. The Plonk module is, itself, focused primarily on creating percussive sounds - both pitched and un-pitched; natural and unnatural; acoustic-sounding or totally electronic.

Plonk does this by breaking sound creation into two distinct elements - the exciter and the resonator. The exciter is a mathematical model of the device used to strike a particular surface. Plonk, because it's percussion oriented, has two types of exciters: one modelled on a mallet, and the other providing a noise source. The resonator is a virtualization of the object being struck, which vibrates, resonates and creates the body of a sound. Plonk offers several types of resonators: beam; marimba; drumhead; membrane; plate; and string.

Plonk provides numerous parameters that let you shape, mould and design both the exciter and the resonator, thus enabling you to synthesize the sound of striking or scraping almost any type of object - real or imagined. In this way, Plonk can accurately model the sounds of kicks, snares, toms, cymbals, claps, tablas, congas and all manner of traditional percussion instruments. It can also model pitched percussive instruments, like vibes, marimbas, and even bass or guitar-like tones. Of course, it additionally excels at modelling instruments that heretofore never existed.

Best of all, the sounds created by Plonk are not static - any sound you design can respond dynamically to velocity, as well as four different modulation inputs. This means the sound of Plonk can change completely from note-to-note (or strike-to-strike). Because of this, Plonk is actually a duophonic (2-voice) module, which lets the sound of one note decay naturally when a second note (possibly employing an entirely different set of modelling values) is struck. Thus, hitting a new note does not choke the sound of the previously struck note (unless you want it to, of course)!

Plonk stores up to 128 patches in its internal memory, and ships with many presets programmed by professional sound designers and composers. You may overwrite these patches if you wish, and banks of patches may be transferred via MIDI System Exclusive over Plonk's built-in mini-USB port to facilitate offline storage by programs or websites that support this capability.

Plonk was developed in cooperation with Montreal-based Applied Acoustics Systems - physical modelling pioneers, and the creators of Tassman, Lounge Lizard, String Studio, Ultra Analog, Chromaphone and numerous other plugins. It is with great pleasure that Intellijel brings the potential of this physical modelling technology to a hands-on, CV-laden device capable of the sort of dynamic control and sonic exploration that modular synthesists demand.

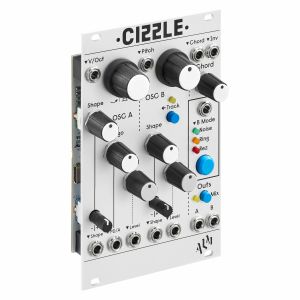

Notes: Another banger from ALM. Based on the oscillators from the classic 1980s Casio CZ series, the Cizzle uses phase distortion synthesis for characterful, FM-adjacent synth tones.

Supplier's Notes:
The 'CIZZLE' is a dual digital 'phase distortion' VCO inspired by the classic Casio 'CZ' series synthesizers. It brings the specifics of 'CZ' style phase distortion (PD) synthesis into Eurorack with the inclusion of primary and secondary oscillator layering and detuning (with up to 8 voice chord generation), extended morphable PD wave generation algorithms, unique resonance wave generation, plus specific 'end of chain' ring modulation and noise modes that are key to the CZ sound.

The voices also feature built in VCAs and various modulation controls and inputs, a cv-able chord mode, tracking ability, triggered mode switching and can be output independently or mixed with stereo widening.

The 'CIZZLE' finally brings characteristic CZ style synthesis to Eurorack with a rich palette of sounds from mellow ambient tones, 90s Detroit Techno inspired chords, Reese style basses, and synth tones with unique faux resonance squelch.

Ideal For

Flexible and precise primary digital voice duties in a Eurorack system.
Creating basslines, rich chords, drones, morphing tones, percussive hits etc.
Unique digital squelch.

Tech Specs
Supply: +12V 65mA / -12V 25mA
Size: 16HP
Depth: 32mm

Notes: Tiptop Audio's Z-DSP is a cartridge-based open source digital sound processing and effects generating platform for your modular synthesizer. Lush audio processing, greater stereo depth and a unique set of digital synthesis is what the Z-DSP is all about.

The Z-DSP has a stereo digital sound processor with 24-bit sampling, 15kHz of bandwidth, voltage-controlled parameters of stereo feedback, program switching, DSP parameters, equal power crossfading dry/wet mixing, as well as sequential program control switching and a clear display - all in Eurorack format. A dedicated clocking input for the DSP chip does wonders to passing sound by bending the algorithms in an unexpected way, a hardware technique computer plugins can't do and is unique to the Z-DSP.

In a recent update, the Z-DSP (NS) got an all new design of its analogue circuitry, contributing to a lower noise signal path, clearer sound of the entire frequency range, lower distortion and better immunity to noise emitted by other modules sharing the same power supply. A new analogue dry/wet circuit has been implemented to remove the 3db gain drop when the mix knob passes through the centre of the dial making the use of this function more practical in a live application. A reverse polarity protection has been added as well. The new front-panel matches Tiptop's colourful design, and a single printed circuit board and surface mount technology improve reliability during production and use. The powerful Z-DSP engine remains the same as the original Z-DSP module and all cards are compatible across both versions.

An assortment of interchangeable cards, programmed by Tiptop Audio and specialists like Valhalla DSP, provide a wide range of boutique effects algorithms such as Halls of Valhalla, Time Fabric, Clocked Delays and Grain De Folie. Tiptop Audio also offers blank Z-DSP cartridges and a development tool called NumberZ for developers, students and power users who want to design their own effects and cards with the FV-1 DSP chip programming language. Blank cards can be loaded using programs that are freely available for non-commercial use and can be found in the modular community through online forums. With each card swap, the Z-DSP takes on new effect algorithms, changing like a digital chameleon and bringing colourful digital effects processing to your Eurorack setup.

The Z-DSP comes included with 2 cards: Halls of Valhalla and Dragonfly Delay MKII.

Notes: Introducing the TOMS909, the warmth of the classic, all-analogue, punchy tom-toms from the TR-909 drum machine. The TOMS909 contains all three of the TR-909's original LOW, MID and HIGH tom-tom circuits adapted for use in the modular format. The module was designed to sound like a fresh machine coming off the assembly line back in the 80's. To add flavour to the beast, Tiptop have extended each tom's tuning range so it's easier to dial soft bass drums on the low end and high-pitched toms on the other.

The toms circuitry is made up of 9 triangle oscillators and a stack of filters, VCAs, and envelopes which, in total, took about half of the space on the original 909's circuit board. Utilizing the latest in electronic design technology, Tiptop have managed to squeeze this enormous circuit, consisting of more than 450 components, into an area only 16HP wide. It is a beautiful board with hundreds of tiny, shiny components: it's a little analogue jewel.

Each tom includes a trigger and accent input with accent level control, manual tune, voltage-control tune input with attenuator and independent audio out. In addition, a MIX out is available that sums all three toms together as well as access to the MIXZ MixBus on the back. On each gate input, Tiptop have designed a dual pulse-shaper circuit so you can trigger your TOMS909 with trigger/gate signals from sequencers or any other pulse/clock sources.

TR-909 is a Trademark of Roland Corp Japan

Size: 16HP
Depth: 51mm
Power: +12V 120ma / -12V 100ma

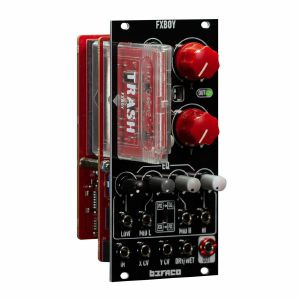

Notes: Befaco's unique GameBoy-based effects module allows you to change effects by swapping cartridges, all with CV control over key parameters. Effects include Skuara's harsh fuzz, Instruo's micro phaser and much more.

Supplier's Notes:
A crazy idea with the support of a bunch of crazy people.

A Multi FX module based on game carts!

FxBoy is a multi-FX module designed in collaboration with several talented manufacturers.

This is an effect unit with CV control over the parameters and Dry/wet control, with a Built-in CV controllable four bands EQ.

Each effect is physically hosted in a hot-swappable game cart and designed by a different manufacturer: Touell Skouarn with Skuara a harsh fuzz with overdrive, Instruo with micro Phaser, a two-flavoured Phaser, Feedback modules with a vintage Flanger, XOR with FX-Girl, a digital double effect module: Delay + Granularizer, Making sound machines with an analogue Wave folder, Tesseract with a bit crusher and Befaco Trash distortion!

What have these crazy people put in their cartridges?

Trash

Trash is a harmonic distortion that combines both clipping and folding flavours. Modes A and B will select between aggressive and more aggressive flavours!

Flanger

Analogue Wavefolder

Eskuara

AVMA
AVMA by Tesseract Modular is a bipolar VCA with one switchable wavefolder stage followed by an analogue frequency reducer. The VCA gain is x2, it can be used with i5V oscillator signals at the CV input for ring modulation effect.
Micro Phaser

Three cascaded all-pass filters, a built-in LFO and a saturator in the feedback path.

The purpose for this cartridge is to completely f&%k your phase up!

Instruo - We make sounds with the things that we make to make sounds with.

Technical Specifications

CV control over all parameters and Dry/wet
CV controllable four-band EQ, routable post or pre-effect.
Hot swap for all carts.
Selector for two different flavours of each cart.
Open specifications to design your own carts

Specs

Current needs: +12V: 125mA, -12V: 100mA, 5v: 0mA
Width: 12 HP
Depth: 35 mm (including power connector)
Aluminium, heat-treated front panel.
Designed and assembled in Barcelona.

Notes: The Stereo Triggered Sampler can record high quality stereo files, while simultaneously playing two different stereo files. A maximum of 600 samples can be loaded from the removable/swappable microSD card, in a variety of formats up to 96kHz/32-bit/stereo WAV. All sample parameters (1V/oct pitch, sample file selection, length, and start position) are CV controllable.

600 Samples:
A maximum of 600 samples can be loaded at once, arranged into banks of 10 samples each. Samples and banks can be re-arranged on the fly using the simple on-board Edit features. Newly recorded samples can be instantly played back and re-pitched, reversed, chopped up, etc... the result of which can even be bounced down and re-recorded to as a new sample! Sample files are limited to 4GB each, which is over 6 hours at 44k/16b/stereo.

Two Stereo Playback Channels:
Each playback channel has a knob and CV jack for Sample File selection, as well as a Start Position knob and CV jack for controlling where in the sample playback will begin. The Length knob and CV jack determine how much of the sample is played back: from tiny grains, to percussive hits, to longer loops... or just the entire file. These are powerful tools for re-arranging a sample, joining multiple samples, and creating dynamically re-sized loops within a larger sample. Combined with the Play Trigger jack and the 1V/oct jack, the STS can be two complete multi-timbral pitch-tracked stereo voices!
There's also a Reverse button and jack for backwards playback, and an End Out jack for synchronizing loops, or cascading sample playback with other events.

Looping and Sync:
Looping is easy: just hold the PLAY button down for two seconds to toggle loop or one-shot. The loop timing clock will output from the End Out jack. Or, send a clock into the Play Trig jack to sync the loop to external timing.

Stereo Recording:
Whether you patched 47 modules to create the ultimate percussive blast, or you want to capture your four hour ambient performance, recording high-quality .wav files on the STS is simple. Just hit the REC button or fire a trigger and a new stereo .wav file will be created on the SD card. Do as many takes as you need: the STS never deletes your files. Re-ordering or re-arranging samples into banks is easy, even without a computer.
You can even fill a bank with 10 different variations and immediately use them for playback.
By default the STS records at 44.1kHz/16-bit, with an option for 24-bit (a future update may increase the sample rate to 96kHz)

Easy sample loading:
Using a computer is completely optional with the STS, since samples can be recorded directly to the module and placed into the bank of your choosing. But for users with large existing sample banks, the intuitive automatic bank loading features make dragging and dropping your entire sample library a snap. You never have to rename your files again!

Notes: Announcing the Dual Looping Delay from 4ms Company, designed by Gary Hall!

The 4ms Dual Looping Delay (or DLD) is an advanced audio processor for creative synthesis. Not a tape or analog emulation but a modern crystal-clear digital delay, the DLD combines features of delay, looping, and sample-tight synchronization for powerful and dynamic sound capture and modification. The DLD is designed to integrate seamlessly with modular time-base and sequencing devices such as the 4ms Quad Clock Distributor (QCD), etc.

What is a "Looping Delay"?
Modern looping devices grew directly from hardware digital delays of the late 70s and early 80s. A looping delay, modelled on units such as the classic Lexicon PCM42, has the very long storage times associated with dedicated looping, but without triggered record and playback functions.

By default, a looping delay records and plays continuously, though recording can be suspended at any time with Infinite Repeat. Sustain of delays and loops is mainly accomplished with regeneration, allowing an organic, evolving approach to sound creation as new material replaces old, more or less gradually. The 4ms Dual Looping Delay also provides advanced clock input and output facilities that allow for locking delayed and looped material with sequencers and rhythm devices of all descriptions.

The 4ms Dual Looping Delay is conceived and designed by Gary Hall. Implemented and manufactured by 4ms Company

Notes: Ornament & Crime for 1U Intellijel format

This is functionally identical to the 3U version, just re-oriented to fit in 1U racks. Ornament & Crime is designed by mxmxmx.

The apps currently available in Ornament & Crime:

CopierMaschine is an enhanced version of the original quantising digital emulation of a four stage analogue shift register (ASR).

Harrington 1200 provides basic neo-Riemannian Tonnetz transformations of triadic chords, triggered by the digital (gate/trigger) inputs.

Automatonnetz combines Tonnetz transforms with a "vector" sequencer - it can be both a chord sequencer and a melody sequencer, but not of the usual kind.

Quantermain is a quad pitch quantiser for external voltages, with editable scales; it can do clocked (trigger-driven) quantising, or continuous quantising, with a latency of under 100 microseconds; it also features quad Turing Machines, May-Verhulst logistic maps or byte beats as optional, semi-random, internally generated CV sources.

Meta-Q is a dual-channel quantiser, similar to Quantermain, but also offering scale and note mask sequencing.

Quadraturia is a wavetable quadrature LFO, based on the "Easter egg" in the Mutable Instruments Frames module.

Low-rents is a dual Lorenz and Rossler (strange attractor) modulation generator, partially based on the "Easter egg" in the Mutable Instruments Streams module.

Piqued is a quad voltage-controlled envelope generator, based on envelope generator code from the Mutable Instruments Peaks module, but extending it with voltage control, additional envelope types, including re-triggering (looping) envelopes, additional segment shapes, adjustable trigger delays, and a unique Euclidean "trigger filter" which turns the app into a Euclidean rhythm generator which can output envelopes, not just gate or trigger pulses.

Sequins is a dual-channel step sequencer offering 4 "tracks" of up to 16 steps each; tracks can themselves be sequenced.

Dialectic Ping Pong is a quad bouncing ball envelope generator, based on a hidden mode of the Mutable Instruments Peaks module.

Viznutcracker, sweet! is a quad "byte beat" equation generator, which can be used as an audio source to generate curious but often interesting 8-bit noises and tunes, or which can be clocked by an external source to produce "byte beat" control voltage sequences. "Byte beats" were first described in 2011 by viznut (aka Ville-Matias Heikkila).

Acid Curds is both a chord quantiser (sometimes called a "harmonic quantiser" for external pitch voltages), and a chord progression sequencer.

References is an utility app that outputs specific reference voltages on each channel to help tune or calibrate VCOs and other modules. It also includes a high-precision frequency meter and note tuner, a high-precision BPM (beats per minute) tempo meter, and a closed-loop calibration mode.

Width: 30hp
12V: 85mA
-12V: 10mA

Notes: Sarajewo is an analog delay module based on old school (but newly manufactured) BBD (Bucket Brigade Delay) chips. It features three delay taps, an external clock input with various tempo sync factors, and a wide range of settings controllable via CV. It is based on high quality components with maximum effort put towards the highest sound quality possible, while still preserving the charm of the BBD technology. The module offers a clean and warm analog sound with tons of character and a comfortable user interface with a tap tempo button, signal level indicators, sync and CV inputs, four signal outputs, and an adjustable feedback filter.

TECHNICAL DETAILS:
Eurorack synth compatible
12hp, skiff friendly
Current draw: +180mA / -120mA
Reverse power protection

Notes: Belgrad is an all-analogue voltage controlled filter module which - on par with our other modules - brings something new to the table. While it can be used as a traditional VCF for "academic" subtractive synthesis, we guarantee countless hours of exciting timbral explorations thanks to its unique character, flexibility, and features. The most prominent feature is that it offers a multitude of frequency responses with two resonant peaks.

- Eurorack synth compatible
- 14HP, skiff friendly
- Current draw: +45mA / -42mA
- Reverse power protection

Notes: The MATHS music synthesizer module is an analogue computer designed for musical purposes. Amongst other things, it will allow you to:

Features

Generate a variety of linear, logarithmic, or exponential triggered or continuous functions

Integrate an incoming signal

With no signal applied, generate a variety of linear, logarithmic, or exponential functions

Add, subtract and OR up to 4 signals

Generate analogue signals from digital information (Gate / Clock)

Generate digital information (Gate / Clock) from analogue signals

Delay digital (Gate / Clock) information

If the above list reads like science rather than music, here is the translation:

Voltage Controlled Envelope or LFO as slow as 25 minutes and as fast as 1khz

Apply Lag, Slew or Portamento to control voltages

Change the depth of modulation and modulate backwards!

Combine up to 4 control signals to create more complex modulations

Musical Events such as Ramping up or Down in Tempo, on command

Initiating Musical events upon sensing motion in the system

Musical note division and / or Flam

Perfect for modulating the DPO and just about anything else

Page for Classic version of MATHS

Specifications

Width: 20hp
Max Depth
(incl. power cable): 32mm
Power:
60mA@ +12V
50mA @ -12V

Notes: A true legend of modular synthesis, Make Noise's Maths is arguably the definitive Eurorack function generator. Based on analogue computing circuits, Maths draws on Buchla-style techniques to offer countless ways of generating and processing modulation signals.

Supplier's Notes:
The MATHS music synthesizer module is an analogue computer designed for musical purposes. Amongst other things, it will allow you to:

Features

Generate a variety of linear, logarithmic, or exponential triggered or continuous functions

Integrate an incoming signal

With no signal applied, generate a variety of linear, logarithmic, or exponential functions

Add, subtract and OR up to 4 signals

Generate analogue signals from digital information (Gate / Clock)

Generate digital information (Gate / Clock) from analog signals

Delay digital (Gate / Clock) information

If the above list reads like science rather than music, here is the translation:

Voltage Controlled Envelope or LFO as slow as 25 minutes and as fast as 1khz

Apply Lag, Slew or Portamento to control voltages

Change the depth of modulation and modulate backwards!

Combine up to 4 control signals to create more complex modulations

Musical Events such as Ramping up or Down in Tempo, on command

Initiating Musical events upon sensing motion in the system

Musical note division and / or Flam

Perfect for modulating the DPO and just about anything else

Specifications
Width: 20hp
Max Depth
(incl. power cable): 32mm

Power:
60mA@ +12V
50mA @ -12V

Notes: A spin-off from the brilliantly experimental Strega synth, the Bruxa module offers a different type of 'Time/Filter Experiment' designed to warp and twist sounds from other modules. Excellent creative stuff.

Supplier's Notes:
Check Make Noise's website for content and pictures!

The Bruxa music synthesiser module is an audio alchemical experiment. Spill your sound into time, and let it decay through the filters to hear the results.

Bruxa is a collaboration between Make Noise and Alessandro Cortini. Inspired by Cortini's music and sonic experimentations, Bruxa embodies the seen and unseen, the sign and magic, the alchemy of sound. It is a new evolution of Tony and Alessandro's original prototype circuits which eventually became the Strega's Time/Filter Experiment. It is a multi-tap delay line with over a dozen unique feedback paths and multiple filters within those feedback paths aligned to allow for accumulation of noise, saturation and signal degradation.

While Strega is a complete synthesiser in a tabletop form factor, Bruxa is a Eurorack module designed to be used as one part of a Eurorack modular synthesiser. You will discover a number of differences in layout, signals, and sound. Living inside the Eurorack modular system, Bruxa encourages you to patch your own sound and modulation sources, yielding results surprisingly distinct from Strega.

Echoverb signal processor which shares origins with Strega
Well tuned to work nicely in a Eurorack modular system
All analogue dry signal path blended with digital/ analogue hybrid signal processor
Analog CV inputs with wide range capable of audio rate modulation
Time control with massive, smoothly variable range
Linear FM input with attenuator allows for fluttering of Time
Absorb and Filter controls dramatically shape the echo tone and reflections
New unique CV outputs for use in self-patching or mutual patching with other modules
Pairs well with DPO, STO, MATHS, Prss Pnt, modDemix and more!

Specs:

Width: 18hp
Max Depth (incl. power cable): 48mm

Power:
140mA @ +12V
90mA @ -12V

Notes: Black version of Bitbox's excellent sampling module. Touchscreen-based design allowing up to eight stereo samples, recording directly or loaded from SD card.

Supplier's Notes:
Bitbox micro provides Eurorack sampling for smaller racks and smaller budgets. In only 18 HP of rack space you can get a touch screen based sampler with support for 8 stereo sample pads. Now you can record samples directly into the module or load them from the microSD card. Trigger your samples via CV or MIDI, then apply effects and mix the outputs. Save your configurations to multiple presets for later reuse.

Powerful Sampling Capabilities in a Smaller Form Factor

With the sampling features of Bitbox micro you can add interesting new ways of generating sound and music to your Eurorack. Trigger one shots, play time synched loops or record live looping. Bitbox micro is equally at home in your studio or as a component of your live performance.

Features

Sample Playback
Play up to 24 stereo polyphonic notes when your samples fit in the 64 MB of internal memory or up to 8 larger stereo samples streaming directly from the microSD card
Configure 8 stereo sample pads per preset as single or multi-samples, clips, slicers, granular or new recordings
Stream long samples from the microSD card with a max sample size of 4 GB, which can be many hours of audio
Trigger samples with the touch screen, CV gate inputs, or MIDI input
Control how samples start and stop by choosing from one-shot, toggle, and gate launch modes
Tweak playback through a variety of sample parameters, including start position, length, pitch, gain, filter, loop mode, launch quantization, ADSR, Exclusive Grouping, clip synchronization, slice placement and sequencing, grain size, grain spread, grain count, and MIDI note and channel mapping

Sample Recording

Record Eurorack level audio straight into the module:
Record samples from a stereo audio input pair
Configure each pad for stereo or mono recording with the option to synchronize the start and stop times to clock inputs
Trigger recording via audio level threshold
Create perfectly sized loops by setting the recording length
Enable immediate playback after recording for live looping capabilities
Make recordings up to 4 hours in length
Resample the master output without patching
Automate recording of a multi-sample bank via MIDI and CV
Store recorded samples as WAV files on the micro SD card then remove the card to transfer them to your computer

Sample Modes

Find creative ways of using your samples with our 5 sample playback modes:
Trigger one shots or launch loops using sample mode
Load a folder of samples into a sample mode pad to improve the quality of the pitch shifting when playing a sample chromatically or to trigger different samples with each note
Play time-synchronized loops with constant pitch time shifting in clip mode
Skip between slices of a WAV using slicer mode
Create rich textures and other worldly sounds with granular mode

Inputs and Outputs

Use the 8 inputs the way you want: assignments include a stereo audio input, up to 8 gate inputs, up to 8 CV inputs and 1 clock input.
Route the audio from each pad out to one of 3 stereo audio outputs or one of 6 mono audio outputs
Listen to all of the pad outputs combined on the master stereo output
Inputs and outputs are DC coupled so you can record and play out CV signals
External Control and Synchronization
Playback can be immediate or synchronized to internal clock, TRS clock in, or MIDI clock in and out
Confidently connect with both TRS MIDI Type A and Type B, no adapter needed
Play a single or multi-sample pad pitch shifted using MIDI notes or CV
Trigger different sample slices using MIDI notes or CV
Modulate a wide variety of sample parameters through the MIDI input and up to 8 CV signals
Quickly set up MIDI modulation using Learn mode i no need to look up CC numbers

Module Features

Use the 2" diagonal touch screen to intuitively explore the features of the module
Get more creative with double the processing power of the original bitbox
Refine your sound with reverb and delay
Import or export WAV files with your Mac or PC using a microSD card
Save and recall multiple presets
Increase your capacity with larger microSD cards
Compare to Our Other Samplers
Our Sampler Selection Guide shows you how bitbox micro compares to our other samplers.

What Is Included

When you purchase bitbox micro, you will receive:

a bitbox micro Eurorack module
a microSD card with a bank of demo presets and samples loaded on it
a Eurorack power cable
a bitbox micro Quick Start guide
a MIDI Adapter
Firmware Updates
Get new features by downloading firmware updates from forum.1010music.com.

Documentation and Video Tutorials

The Bitbox Micro Support page has links to videos, the quick start guide and the full user manual to get you up and running quickly and answer your detailed questions. If you can't find answers there, reach out to the community with questions on the 1010 Music forum.

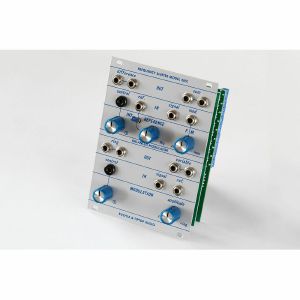

Notes: Tiptop's reissues of iconic Buchla modules continue with the 285 frequency shifter. Edgy, twangy harmonic modulation with ring mod options and stereo operation via sum and difference outputs.

Supplier's Notes:
The 285t combines two sets of functions: the top section features a frequency shifter, while the lower section includes both balanced modulation and classic ring modulation, all with voltage control. The frequency shifter can shift incoming audio using either its internal oscillator or external audio. Both SUM and Difference outputs are available simultaneously for analogue stereo widening effects and more.

As Tiptop Audio continues its aural odyssey of preserving and transforming the hallmark engineering prowess of Don Buchla's namesake synthesizer modules, the 285t brings a constellation of blistering sonic-contouring tools to your Eurorack array. Like its predecessor, the Tiptop Audio Buchla 285t is a menagerie of modulation madness, offering variable degrees of ring, frequency, and amplitude styles of modulation. Plus, its dyad of modulation sub-modules operates independently, with dedicated audio and CV I/O for each, functionally giving you the sum of performance possibilities you'd get with two modules, all in one instrument. Suffice it to say: Sweetwater's synthesists commend Tiptop Audio on capturing the electric magic of Don Buchla's imaginative engineering while transposing it for the world of Eurorack to experience. For a constellation of timbral sculpting and summitting heretofore unknown peaks of daring synthesis exploration, the Tiptop Audio Buchla 285t Frequency Shifter module is your key. Discover what awaits at the fringes of Eurorack possibility!

Note: This module is not compatible with Buchla system voltages. CV signals require a distinct connectivity configurations. Please contact your Sweetwater Sales Engineer with any questions or concerns regarding compatibility or use in your Eurorack case.

Type: Frequency Shifter
Depth: 1.77" (45mm)
HP Size: 18HP
Power Usage: +12V/70mA, -12V/40mA
Power Supply: Requires Eurorack Case and Power Supply
Manufacturer Part Number: 285t

Notes: Quad random, highly controllable, quantized-voltage generator and generative CV sequencer

Gamut Repetitor is a four-channel random quantized voltage generator with looping, range, key, and scale settings. It features a built-in quantizer with 27 scales grouped across a selection of three CV-controllable switches, so it's easy and fun to generate patterns you'll love. The trigger outputs can simply pass through the input trigger or they can generate random triggers for more modular merrymaking.

Patching GR is as simple as sending in a trigger pattern and turning Length up. Then you can use the built-in quantizer, key, and range controls to change the way voltages are generated. Once you hear something you like, turn the Length down to a sequence length you like (up to 32) and loop away!

Size and Power

10HP Eurorack
+12v: 55mA
-12v: 15mA
Gamut from medieval Latin: "a complete scale of musical notes; the compass or range of a voice or instrument."

Repetitor from Latin repetito with suffix -tor to make the noun: "thing which repeats"

"Thing which repeats all the things"

What's in the box
Module
Power cable

*** Noise Engineering no longer include screws with newly packaged modules. Bulk screws are available for purchase. ***

Notes: Gross, gritty, and dark industrial-strength voice on a swappable oscillator platform. Pangolin approved.

Manis Iteritas Alia is a voice based on the architecture of Basimilus. It was designed to be grittier and more aggressive by using only sawtooth waves that are manipulated, modulated, and distorted through a rethought interface. Manis Iteritas Alia is fantastic for leads, basslines, drums, darkness, detuned swarminess, or pure mayhem. Plus, MIA's dedicated envelope output is a great modulation source for the rest of your patch.

MIA is available on Noise Engineering's 10HP Alia oscillator platform. Buy an Alia module and use the included USB cable to connect to the Noise Engineering Customer Portal to check out any other Alia firmware, free of charge, any time.

A portion of the proceeds of every Manis Iteritas Alia sold goes to pangolin conservation.

Width: 10HP
Depth: 22mm

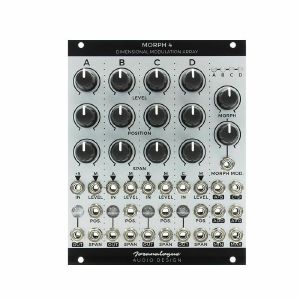

Notes: A multi-VCA module on steroids, the Morph 4 is designed as a modulation hub for an entire Eurorack system, capable of working in coutnless different ways. Proper versatile business.

Supplier's Notes:
Modulation is the core concept of modular synthesis: parameters changing over time, adding movement and musical interest to what would otherwise be merely static sounds. Being able to control the amplitude of signals throughout a patch is therefore essential, and one can never have too many voltage controlled amplifiers (VCAs).

Designed as a fully-featured modulation hub for Eurorack synthesisers, Morph 4 takes the basic concept of the multi-VCA module to the next level.

Four linear amplitude modulators are controlled by a master 'morph' parameter. The response of each modulator to this parameter is completely variable, both manually and under voltage control, and can be overridden if desired. Each response is triangular, with the 'position' parameter setting the maximum point along the morph axis, while 'span' determines the width of the triangle's base.

In addition to separate signal inputs and outputs, a variety of combined outputs is available as well: A+B, C+D, add (unity gain) and averaging mixes, and instantaneous minimum and maximum. Input normalisation makes it easy to send the same signal to multiple modulators, while output and modulator response LEDs provide essential visual feedback.

The combination of master control, fully flexible modulators and multiple combined outputs creates a module truly embodying the spirit of 'patch programmable' modular synthesis. Use Morph 4 as a voltage controlled mixer, dual crossfader, dual panner, interpolating scanner, interpolating distributor, quad VCA, quadraphonic controller, slope modifier, rectifier, complex waveshaper or something in between any of those- the choice is yours.

Notes: The Gemini 2412 is a creamy, extremely fat sounding dual filter based on vintage Oberheim SEM circuits. In addition to high-pass, band-pass and low-pass, there is the infamous variable filter type, which allows you to blend between several characteristics. Thanks to its dual concept, serial and parallel modes of operation and an ingenious modulation system, the Gemini 2412 should not only be able to achieve classic, extremely bulbous results, but also wafting stereo effects and lively formant sounds.

Notes: The Furthrrrr Generator has a main oscillator (carrier) with an extensive and fully voltage controllable wave multiplier and a modulation oscillator (modulator) that can cross-modulate the carrier. Each oscillator has hard and soft sync and also features an integrated tuner: if both LEDs are lit the VCO is at note A. Left LED is lit at note Ab and right LED at A#. Frequency potentiometers are ten-turn models and thus allow for easy tuning. Frequency range of the VCOs is 10Hz-10kHz (and much lower in modulator's LFO mode). Both VCOs feature 2 frequency CV inputs (1x with bipolar attenuator, 1x with 1V/octave), one FM input (jumper selectable between linear and exponential FM) as well as separate input for hard and soft sync. The voltage characteristic can be selected between 1V/octave and 1.2V/octave (Buchla norm).

The main oscillator (carrier) outputs the waveforms sine, saw, square and white noise. The two outputs marked with the magic eye are outputs of the "harmonic section" that generates very complex sounds by the wave multiplier and its parameters symmetry, order and Furthrrrr in the module's right-hand section. Symmetry lowers the level of even harmonics and amplifies the odd harmonics (this affects the pulse wave's width as well). Order adds saturation to the high order harmonics and resembles a low pass filter. Furthrrrr alters the level of harmonics set by the other parameters and produces very interesting, partly brute sounds with lots of harmonics by clipping and folding the wave. All three parameters can be voltage controlled. The carrier oscillator also has inputs for hard and soft sync, the sync-switch can synch directly to the modulator.

The modulation oscillator (modulator) has three wave forms with direct outputs: sine, saw and square. Using the internal modulation via the "mood section" the waveform is selected with a button; an additional staircase wave form is available here, but it can be overridden by inserting a signal into the external input socket. A switch activates the LFO mode.

The Mood section is responsible for the internal modulation of the carrier by the modulator. Switches determine the modulation destination(s) that can be activated simultaneously. These are the Furthrrrr parameter of the harmonic section, the amplitude and the frequency of the carrier oscillator. The "balanced" switch activates the ring modulation between both VCOs. intensity of modulation is controlled by the "mood index" potentiometer and the according CV input with bipolar attenuator.

Notes: 909 inspired drum module with 3 analogue sound sources & 4 sample based sound sources

3 Analogue-based discrete analog TR-909 drums: bass drum, snare drum and hand clap circuits with advanced noise spectrum animation
4 sample-based drums (e.g. hi-hats, ride and crash cymbal, or simply use your own samples via SD card), including a set of freshly recorded samples for modern electronic music using handcrafted Paiste 602 15" and 18" cymbals
Zero-latency sample playback directly from SD card
Hybrid analog sound generation: 3x band-limited LSRF binary noise generators with spectrum animation, injected into discrete analog circuits
On-board effect processor with 2 banks consisting of 16 effects in total, including additional auxiliary input and firmware update over audio
Master isolator-style LP/HP filter with VCA control and saturator booster
Drums that make you dance: Fit all music styles of music, specifically tuned for EDM and Techno
Factory sample banks by Nicolas Bougaieff (Mute, Novamute) including processed custom sampled Paiste 602 cymbals
Wide-pallete sample library available from Nero Bellum, Maman Kusters
Effect processor as found in famous Grand Terminal / Milky Way / Blck_Noir

Power consumption:
350 mA +12V
90 mA -12V
0 mA 5V

Dimensions:
30 HP
26 mm deep with inserted power cable

Notes: If we're honest we don't really understand fractals. Something to do with maths, apparently. But that doesn't really matter because we do understand this sequencer module, which is ideal for randomly twisting and morphing sequences.

Supplier notes:
Bloom is a fractal sequencer capable of generating infinitely evolving melodies with a host of musical features.

At its core is a powerful 32 step sequencer with two independent channels and an intuitive interface. What makes the Bloom come alive are its fractal algorithms which can transform existing sequences into powerful melodies, or even generate new patterns altogether. The base sequence is known as the Trunk and can be programmed by hand, or automatically generated with the Mutate function. Once a Trunk sequence is in place, fractal transformations are only a knob turn away by using the Branch and path controls. Each new Branch adds a complete variation to the base sequence and Path determines its passage through the set of recursively generated sub-sequences, offering a unique take on the melody with each turn of the knob.

Bring your sequencing to life with Bloom.

Notes: 4 Voices of Quantization with a 10 octave range.

Mechanical:

Format: Eurorack
Width: 10 HP
Depth: 5.2 cm

Control Voltage I/O:
CV inputs: i 5v
CV outputs: +10v

Electrical:
Max current: +140mA/-70mA
Bus Board Cable: 8 × 2 IDC (Doepfer style) connector

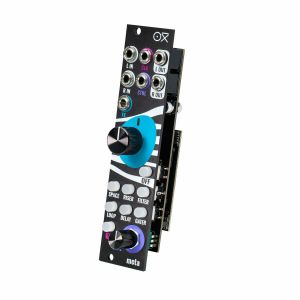

Notes: End-of-chain stereo effects are on tap with this compact and powerful module, built around a large central control knob for quick hands-on tweaking of effects like DJ-style filtering, reverb, and loops.

Supplier's Notes:
The Best Eurorack Performance FX Module

Meta is the all-in-one solution for creating smooth transitions, exciting drops, and other creative live performance effects.

Meta controls are easy to understand and use. Its feature-rich compact size saves you space and time setting up various modules or expensive effects hardware.

This is the perfect performance effect module for you.

Designed for Performance by Performers

OXI Meta is designed to be easily operated with one hand, and the effects algorithm is built to work specifically for transitions between tracks, building up a drop, intros, or outros with effects like a DJ filter, risers, loopers, and more.

The Solution for Transitions in Eurorack

OXI Meta is an end-of-chain effects processor with a highly performative interface in only 6 HP. Blend your songs and build tension like a professional without all the expensive, bulky gear.

Effect Scenes Breakdown

Meta FX Scenes were crafted and tested to deliver premium level FX- with simplicity, but also allowing to tweak enough to fit your taste and technical needs.

Space

Send your mix into the outer realms with this reverb effect.

Choose from two types of reverbs, a classic long tail reverb with tone and filter control or an experimental reverb from shimmery to deep/black-hole textures.

Riser

One of the most effective ways to create tension for drops and transitions. The OXI Meta riser features two modes both with a high-pass filter & reverb. Mode 1 adds noise and mode 2 adds a Shepard tone-style effect.

DJ filter

A DJ style filter is must have for any live performer. OXI Meta provides you with a high-pass and low-pass filter for the ultimate in transitions.

Loop

Loop small sections of audio in forward or reverse order to create head-nodding breaks and rhythms.

Delay

A high-pass or low-pass clockable delay algorithm with a splash of reverb wash to help glue this classic effect into the mix.

Gater-roller

A unique dual gater effect for exciting audio. Turn the knob right for a gater with division control and built-in high-pass filter, or go left with a snare roll build up with reverb and built-in high-pass filter.

Technical specifications

Width: 6 Hp
Depth: 22 mm
Audio: 24bit, 48KHz

Power consumption:

+12 V: 110 mA
-12 V: 20 mA
+5 V: 0 mA

Notes: A typically well thought-out approach to matrix mixing from ADDAC, the 814 is a stereo, expandable 6x6 design with separate control and in/out modules. Suitable for line/synth level audio or CV.

Supplier's Notes:
Introducing ADDAC's take on matrix mixers, a 6x6 stereo matrix easily expandable to larger configurations.

Matrix mixers may need some time to get used to, but they are very much self-explanatory, each knob controls the volume of a matrix point routing the respective input to the desired output. The flexibility of a matrix mixer is far superior to a standard mixer, the possibility to route any input to any single or multiple outputs allow for very complex chains, combining parallel and series processing while easily reconfigurable without any extra patching.

All Inputs Left channels are normalled to the Right Inputs.

Blank areas on the left and bottom edges of the panel allow for the user to write all the inputs and outputs sources that each channel is connected to.

Different coloured knobs for faster visual recalling: Black for A,C,E Outputs Dark Red for B,D,F Outputs Cream knobs for potential feedback diagonal: 1A, 2B, 3C, 4D, 5E, 6F.

DC coupled circuitry, can be used to mix both audio or cv signals.

Jumpers on the back of both modules allow the user to set each channel independently to Line or Synth Level, making it easier to integrate with external sources, sound processors or guitar pedals.

Internal connections

The control and input modules are connected via a large 34 wire ribbon cable, only the control module needs to be connected to the Busboard.
Extra IDC sockets are used for connecting larger configurations like 12x12 or 18x18.
Other configurations are also possible: 6x12, 12x6, 12x12, etc...
Up to 12x12 all ribbon cables are provided, for larger matrixes custom ones will be necessary, contact us directly if planning to go BIG.

Potentiometers

Although ADDAC System are using Thonk's Tall Trimmer Topper for Knobs all potentiometers used have metal shaft and are not plastic trimmer potentiometers.

Tech Specs: 25HP + 8HP (33HP total, 4.5cm deep, 140mA +12V, 140mA -12V

Notes: Nicely thought out four-voice sample playback module from Parisian innovators Squarp. Load up a microSD card with samples (up to 2600 kits), then trigger and process. Neat.

** Firmware update- February 2024 ***

Thanks to a major rework of the OS, this upgrade includes an overall better sound quality and an improved latency.

Moreover, the effects Freeze and Bitcrusher have been redesigned, and the parameters Start and Sample Length are now exponential to facilitate the fine-editing of your samples.

Supplier's Notes:

Rample waves system

Eurorack 4-voice sample player & audio processor

Versatile sample machine

From percussive drum-machine kits to synth samples, breakbeats to sound FX, backing tracks to hour-long audio music, Rample can play up to 4 .wav files on independent audio outputs :

These samples are stored inside the provided SD card, and organized as kits, from A00 to Z99... allowing up to 2600 banks of 4 voices, with on-the-fly loading! The SD card is preloaded with tons of samples, and we made it very easy to import your own kits.

Thanks to the DC coupled audio outputs, it's also possible to play CV waveforms.

Effects rack

Each voice has its own "rack" of effects, and all audio effects can be enabled at the same time, allowing you to manipulate your samples in real time, from a gentle lowpass to massive destruction!

pitch - a great sounding pitch engine, based on a 6-pole interpolator, which ranges from -1 octave to +1 octave.

bits - two different bitcrushing algorithms, based on sample rate and resolution reduction. It produces distortion and warms the audio signal.

filter - a low resonance filter, DJ-style, cutting off the high frequencies or the low frequencies.

freeze - sample and loop a fraction of the played waveform, creating a glitching effect.

levels - decrease the gain or drive the signal.

It's also possible to edit 'advanced parameters' like the start point, sample length, attack/decay and run mode, and create mute groups without breaking a sweat.

Finally, thanks to the 4 CV inputs, any of the effects (or advanced parameters) can be assigned to create amazing modulations!

Multi-layer sampling

One of the key feature is the ability to "multi-sample" your kits, multiplying Rample's potential. Each voice supports up to 12 samples, can be played randomly or in a controlled fashion. It's a great way to add complexity and variations, to create organic/acoustic sounding drums, or simply to increase the number of samples per kit (up to 48).

As an example, Squarp are providing a multi-layered drum kit, with 12 different recordings of a kick, 12 different recordings of a snare, etc. Sequencing them randomly leads to a more natural drum playing.

Another kind of multi-layered acoustic drum kit is also provided, where each drum is recorded with 12 levels of velocity. Controlling the layer to be played leads to intricate, convoluted drums programming.

Of course, it's very easy to create your own multi-layered kit, and you can use this method to perform multiple synth chords, sound glitches, voices, breakbeats, ...

CV/Gate and Midi interface

Rample is designed to be the perfect rhythmic companion of your eurorack system thanks to its Gate (trig samples) and CV (modulate samples) connectivity.

You can also use it as a standalone midi machine, without using the CV/Gate connectivity: the midi in port allows you to trig & control all samples parameters + effects values at the same time. Each Rample comes with a 'stereo jack to midi DIN' and 'stereo jack to jack' adapters, easing the chaining of multiple modules in order to create an 8-voice, 12-voice, 16-voice (or more) midi drum machine!

SD card preloaded with 200+ kits from artists and sound designers, covering a large range of audio samples

Notes: This new device is a powerful new CV controlled effects unit for your electronic music setup and pairs extremely well with the KOMA Field Kit.

- Looper
- Frequency Shifter
- Sample Rate Reducer/Bitcrusher
- Digital Delay
- Analogue Spring Reverb
- 4 Channel VCA Mixer
- 4 Step Mini Sequencer
- Envelope Generator

All of this, combined with the new 4 Channel CV Interface which allows you to route four CV signals throughout the device, means an incredible control over sound and timbre and a great addition to your mobile performance rig.

The Field Kit FX is built up from 7 separate functional blocks all focused on mangling and changing incoming audio and CV signals. They are designed to operate together as a coherent addition to our Field Kit Electroacoustic Workstation or alternatively together with other pieces of music electronics with the ability to use control voltage signals.
