Notes: Desktop module version of Intellijel's popular Metropolix sequencer, one of the best options for generating and performing melodies and patterns via MIDI or CV.

Supplier's Notes:
The Metropolix Solo is a unique and powerful desktop multitrack MIDI and CV musical sequencer. With an abundance of hands-on, tactile controls and a wealth of internal and external modulation possibilities, you can quickly and easily create infectious sequences.

Even the simplest melody can be brought to life with seemingly endless options to create variations or real-time manipulations. In the studio or in a live performance, the Metropolix is sure to become a staple source of fresh ideas and killer riffs in your creative process.

CV and MIDI Sequencing on your desktop

Intellijel have set Metropolix free from the rack, in a small desktop case, allowing you to interface with your DAW or other hardware music machines without needing a full eurorack system.

Connections

Metropolix Solo has all the connections you need for USB MIDI, Serial MIDI (TRS or DIN with Adaptors) and CV/GATE for modular systems. Use CV/Gate, TRS and USB MIDI all at the same time.

Top Panel (CV/Gate)
A/B Assignable CV Outputs
X/Y/Z CV Modulation Inputs
CLK Sync and Reset Input
CLK Sync Output
Track 1 and 2 Pitch and Gate
Rear Panel (MIDI/Power)
MIDI TRS: In / Out / Thru
MIDI USB-C
2.1mm DC for Power Supply

Let's talk about Metropolix

Performance Controls

Metropolix is an interactive sequencer optimized for live performance, jamming, and improvisation i with configurable, hands-on control of all the most essential performance parameters. Sequences transform and mutate with just the twist of a knob; a flick of a switch; a nudge of a slider; or an injection of CV. With Metropolix, your music is as dynamic and evolving as your imagination.

Two Tracks, Interconnected

Two tracks (TRK 1 and TRK 2) are variants of a main pitch/gate sequencer, which is programmed via the PITCH sliders, PULSE COUNT and GATE TYPE switches. Each track interprets the main sequence in a variety of ways i creating complementary variations that enable you to generate counterpoint, polyrhythms, and all manner of sonic movement (both subtle and extreme).

Each of these tracks has its own playback ORDER, sequence LENgth, clock DIVision, SWING amount, SLIDE time, and track GATE lengths. Other track-based sequence variables are accessible from the TRACK MENU, and include Pitch Slider inversion; sequence note range; track transposition; and more. In addition, both tracks have multiple lanes of per-stage playback parameters, including: GATE override; PITCH override; RATCHet count; PROBability of playback; ACCUMulating transposition, and a dedicated CV/CC lane. Each stage also has a SKIP feature, and a pitch SLIDE option.

The Accumulator

Automate pitch movements on a per-track or per-stage basis. Use various trigger types and increments to control variation on your tracks.

Eight Modulation Lanes

Eight Separate modulation lanes are accessed via the MOD button. Each MOD lane has 8-stages of modulation values and its own playback ORDER, LENgth, and clock DIVision; and each lane is routable to one of Metropolix' two assignable outputs, MIDI CC, and dozens of internal destinations, allowing for sophisticated and powerful self-modulation.

Three AUX Inputs and Two CTRL Knobs

A trio of AUX inputs allows for external modulation of user-assignable sequencer parameters for even greater variation, while two assignable CTRL knobs give you direct access to the parameters you want to adjust most frequently during a performance. With dedicated Pitch/Gate outputs for both Track 1 and Track 2; two totally user-assignable outputs (A and B); and internal MOD routing, Metropolix features a wealth of patching opportunities.

100 User Defined Scales

Design and modulate between your own custom scales and root note.

Modulate BPM

Use the CTRL Knobs, AUX Inputs, or Mod Lanes to modulate the BPM of your track and the clock outputs of the Metropolix.

Loopy - Performance Looping

Metropolix also features a Loopy mode, allowing you to instantly play back short sub-sequences, or even "play" the stage buttons directly (like a 'keyboard').

64 Total Recall Presets & Preset Chaining

Metropolix stores up to 64 preset configurations (in 8 banks of 8 presets), and all live settings are stored on the module, ensuring that your Metropolix will always power up exactly as you left it i even if you haven't saved them to a preset. By default presets can change all the structural (menu-based) elements of your sequencer without overwriting the front panel controls, but full recall is also available.

Chain Presets to go hands free while you twiddle other knobs on your synth.

Specs

Width: 34HP
Solo Kit Only: Metropolix Solo Enclosure
USB-MINI-MINI internal connection cable
MIDI to 3.5mm TRS (A) Adaptor
15V/0.4A AC Adaptor (Euro/American prongs included)

Height: 66mm (from rubber foot to top of knobs)
Width: 175mm
Depth: 140mm (front to rear jacks).
Power: 15V DC/0.4 A (minimum) center-pin-positive.

Notes: Great value mid-range rotary mixer from Omnitronic, a big step up from the popular TRM-202. Large format two-channel design, featuring three-band channel EQs, master isolator, multi-mode filter and dedicated channel VU meters.

Supplier's Notes:
Rotary in its most beautiful form: Omnitronic TRM-222

With the TRM-222, Omnitronic presents an analogue rotary mixer that has been developed with direct feedback from the community.

Proven features have remained

Like its predecessors, the TRM-222 is equipped with a 3-band master frequency isolator, which uses classic ALPS rotary potentiometers (Blue Velvet RK27) for precise sound control. The kill characteristic allows bass, midrange and treble to be completely cancelled out, giving DJs creative freedom in shaping their sound.

The switchable filter section with HPF, BPF, LPF, resonance and sweep controls allows creative processing of the frequency bands. Two stereo input channels with gain control, clip LED, 3-band EQ and phono/line switching as well as a microphone input channel with gain control, 2-band EQ and on-air switch extend the mixer's range of applications. The LED level display for the master signal (L+R) and cue signal provide a good overview.

New functions at the request of users

During the further development of the mixer, great importance was attached to feedback from the community. New functions such as the VU meter display per channel, dipswitches for individual adjustment of the EQ curve and a booth output (XLR or RCA) with 2-band EQ and volume control testify to the sophisticated functionality of the TRM-222. At the request of the fans, the mixer now has a crossfader in VCA technology with adjustable crossfade characteristics, an adjustable send-return effect path and an adjustable record-out.

In addition, the TRM-222 offers two direct outputs for timecode applications and a variety of outputs: Master and Booth (XLR/ RCA L/R), Record (RCA L/R), Master Insert Send/Return (RCA L/R) and FX In/Out (stereo jack).

Technical specifications

Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 15 W
Protection class: Protection class I
Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Cable length: 1,5 m detachable
Frequency range: 20 - 20000 Hz
S/N ratio: >100 dB
THD: <0,05 % at 1 kHz
Gain: Line -12 dB to +12 dB
Phono -40 dB to +5 dB
FX 20 dB
Microphone: 55 dB
DJ filter: Routable: LPF, HPF,
Isolators: Master Gain:- 8 bis +9
Low/mid 300 Hz, 18db/oct , Butterworth
Mid/high 4000 Hz, 18db/oct , Butterworth
Housing colour: Black; silver
Control elements: Power switch, source selector, Crossfader, Crossfader selector switch, Crossfade curve switch; Cue mix split function, tone control
Status LED: Power, master level meter, clip, CUE

Connections:

Input: line via 2 x stereo RCA
Input: line/phono via 2 x stereo RCA
Input: Microphone via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Input: AUX returns via 2 x 6.3-mm-jack (bal.)
Output: Timecode via 2 x stereo RCA
Output: headphones via 2 x 6.3 mm jack socket (stereo) mounting version
Output: headphones via 1 x 3.5 mm jack (stereo) mounting version
Output: rec. via 1 x stereo RCA
Output: booth via 2 x 3-pin XLR
Output: booth via 1 x stereo RCA
Output: master via 2 x 3-pin XLR
Output: master via 1 x stereo RCA
Output: AUX sends via 2 x 6.3-mm-jack (bal.)

Channels:

Input channel: 2 x stereo with Line-Line/Phono switch via RCA, channel control via Rotary, 3-band tone control EQ, source selector, gain control, CUE switch, FX routing switch
Microphone channel: 1 x mono via Combination socket (XLR/jack), channel control via Rotary, 2-band tone control EQ, ON AIR switch
Master output: 1 x stereo via XLR or RCA, channel control via Rotary
Booth output: 1 x stereo via XLR or RCA, channel control via Rotary, 2-band tone control EQ
Rec. output: 1 x stereo via RCA, channel control via Rotary

Headphones output: stereo via Jack, channel control via Rotary
Max. level: Output: +21 dBu
Material: Metal; aluminium
Housing design: Desktop console housing

Dimensions:

Width: 45 cm
Depth: 26 cm
Height: 16 cm

Weight: 5,80 kg

Notes: Limited edition Stellar version of the excellent MiniFreak, Arturia's hybrid digital/analogue six-voice polysynth. Versatile and distinctive thanks to a wide range of digital oscillator engines.

Supplier's Notes:
Dark sky synthesis

MiniFreak Stellar is a special edition of the mighty polyphonic hybrid keyboard. The same dual digital sound engines, gnarly analogue filters, advanced modulation, sequencing and stereo effects, but with a dark intergalactic edge that will take your sound into deep space and beyond.

T Minus

2 Engines, 6 voices

The same powerful hybrid instrument loved the world over, redesigned to take your studio beyond convention and your sound, beyond the stratosphere.

Space age look

Discover a synth with a striking all-black exterior, decorated with stylish and characterful graphics that reflect the controls.

Hybrid polysynth power

With 2 engines, 6 voices and 23 oscillator modes, MiniFreak stellar is a compact synth powerhouse that just keeps getting better with ongoing free firmware updates.

Mirrored in software

Enjoy the same wild hybrid sound in your DAW of choice, complete with modelled analogue filters, with MiniFreak V, a like-for-like VST. Use the same presets physically or virtually, and tweak the VST with MiniFreak Stellar's controls for a seamless creative flow.

Outer space free bank

MiniFreak Stellar comes with a free sound bank designed for outer space sonic exploration.

Featuring a range of synths, leads, sequences and SFX - travel beyond the event horizon and discover an otherworldly realm of ambient and atmospheric sounds.

Dark Sky style

From the resonance UFO to the ADSR rocket launch - take command of your sound with an out-of-this-world attitude.

It's not just the sleek all-black keys that stand out. MiniFreak Stellar is adorned with playful graphics that bring the signal chain to life and symbolize the unique effect of each control.

Extraterrestrial Sound

MiniFreak Stellar comprises a vast constellation of sounds that unite, merge and mutate for totally playful and daring results.

From ethereal wavetable sweeps to gritty noise-driven textures, 8-bit superwave basslines to crisp Karplus-Strong plucked strings, combine MiniFreak Stellar's arsenal of 23 distinct engines in any way you see fit, for an impressive array of synthesis.


Between the proprietary algorithms and exclusive oscillator modes crafted by module-masters Noise Engineering and Mutable Instruments, a plethora of impactful and inspiring sounds await your discovery.

More than meets the eye

MiniFreak Stellar packs a punch with a range of scintillating digital and wavetable oscillators, cutting-edge FX and a simple-yet-powerful modulation matrix. But that's not all.

Inject movement and momentum into your sound design with advanced sequencing and arpeggiation, and seamlessly integrate with any DAW using MiniFreak's VST-twin.

Melodic propulsion

Effortlessly take your sound in a new direction.

MiniFreak Stellar's sequencer and arpeggiator allows you to lock variety into your patterns, introduce dramatic octave jumps, and drop-in repeats and mutations on the fly.

A sequence that never fully repeats, thanks to MiniFreak's Spice & Dice randomization and one-touch mutations.

Virtual Doppelganger

Explore the power of MiniFreak Stellar in your favorite DAW with mirrored sound and architecture.

MiniFreak V is a comprehensive standalone instrument, perfect for taking your Freak-infused production on-the-go, as well as offering seamless integration between hardware and software for a workflow that can suit your every need. Simply click Link to MiniFreak, and you're all set!

Platform Specifications

Windows
Win 10+ (64bit)
2.5 GHz CPU
4 GB RAM
2GB free hard disk space
OpenGL 2.0 compatible GPU
ARM processors not supported on Windows

Work with ASC
An elegant and simple solution to help you install, activate, and update your Arturia software instruments

Required configuration
VST, AAX, Audio Unit

What's in the box

Box content
MiniFreak Unit
Universal PSU - 12V 1A
USB A to USB 2.0
Registration card

Instrument dimensions

Size: 22.75 x 9.09 x 1.57 inches (578 x 231 x 55mm)
Weight: 6.48 lbs. (2.94 Kg)

Notes: Updated Atlantix module is an even better synth voice than the original Atlantis. Based on the Roland SH-101 formula, it's a monster with dual VCOs, legendary filter and built-in envelope generator. All you need for iconic analogue sounds.

Supplier's Notes:
Atlantix

Dual Oscillator Subtractive Analogue Synth Voice

It's Massive

The Atlantix is a complete analogue synth voice. It's quick to dial in huge bass or lead sounds, and easy to push it into new sonic territory. Dual VCOs, Multimode VCF, VCA with Drive, and an ADSR envelope; all of the building blocks needed to expand or start making sound in your rack. With 32 patch points and a selection of routing switches, you can remix these blocks into something all your own.

Reimagining a Reimagined Classic

The Atlantix is the highly-anticipated successor to the Intellijel Atlantis which was originally inspired by the classic Roland SH-101. Despite the SH-101's seemingly limited architecture, it produces various creative and musically useful sounds that have inspired generations of artists and countless hits. The Atlantix is just as immediate for dialling in beautifully rich bass and lead sounds. The thoughtful design, numerous additional features, and flexible patching options open up a massive amount of new sonic territory to explore as well.

The Atlantix is an analogue, complete subtractive synthesizer voice condensed into a single 42HP module. It provides all the fundamental building blocks needed to make sounds in Eurorack: VCOs, VCF, VCA, S&H, Noise, and an Envelope.

Oscillators - Advanced TZFM and Flexible Mixer

The Atlantix uses two triangle core voltage controlled oscillators (VCO) which respond in a musically pleasing way to frequency modulation. The Atlantix primary VCO (VCO A) is capable of thru-zero frequency modulation and has a dedicated amplifier for controlling FM depth (FM INDEX). The modulation oscillator (VCO B) can be used as either an LFO or VCO. The highly flexible architecture allows you to route VCO B as a modulation source or stack it as a secondary VCO all by the flick of a switch or slider. VCO B also has a bonus "spike" waveform output which is a square wave with fixed HPF, similar to the Buchla Easel. Both oscillators track very precisely over eight or more octaves.

In the mixer section, you can adjust the balance of the primary oscillator's waveforms, sub-oscillator noise, and two auxiliary inputs that are normalled to additional VCO A waveforms or VCO B waveforms. The auxiliary inputs also allow you to patch other external signals into the mix.
The second Auxiliary input has a switch that allows you to route the source between the mixer sum or directly into the VCA (post-VCF). The latter is a way to pass an unfiltered fundamental signal to the final VCA stage and then blend it with filtered audio from the VCF. This draws inspiration from the architecture of the CS-80 where a sine wave is mixed with the filtered audio to make glassy tones with some added harmonics.

Multimode Filter - From Drips to Growls

The filter section (VCF) is a discrete cascaded 4-pole multimode filter with lowpass, bandpass, highpass, and phaser (multi-notch) modes. The filter can self-oscillate which produces a very clean sine wave that also tracks 1V/Oct. The VCF has three frequency modulation sources, two of which are normalled to the external pitch and envelope and have switches for polarity.

Add Atlx for dedicated outputs from each mode.

Envelope - A Classic ADSR

The envelope section is an analogue ADSR with three timing ranges: slow, medium, and fast. It can be gated externally or via a manual gate button located in the centre of the panel. The ADSR is routed through a VCA which can be used for level or velocity control.

Modulation - Random, Feedback, and Built-in Routing

Two eight-position rotary switches allow you to select from eight different modulation sources and route them to outputs MOD X and MOD Y. Each switch also has a polarity control and an option to level shift between unipolar and bipolar operation. MOD X is normalled to VCO A frequency modulation and MOD Y is normalled to VCF frequency modulation. The dedicated outputs allow for further creative modulation patching.

Four of the Input jacks have normal switches to change your patch without the need for cables.

The analogue Sample and Hold (S&H) circuit is normalled to the white noise source and can be clocked by VCO B, an external clock source, or via the gate input for per-note synced randomization.

Atlx - Expander w/ Ring Mod (Optional) ***Sold separately ***

The Atlx expander provides 16 additional jacks to the Atlantix, including: dedicated waveform outputs for A and B oscillators, filter outputs, and a ring modulator. Atlx adds many new possibilities for self-patching, advanced routing, and connections to other modules.

Specs + Downloads

Width: 42HP
Depth: 25mm
Power: 140mA @ +12V
138mA @ -12V

Notes: Limited-edition Lamborghini model of the superb SL-1200MK7. The unique SL-1200M7B model combines the Italian marque's legendary styling with the tried-and-tested performance of Technics.

Supplier's Notes:
Design Inspired by Lamborghini DNA

The functions of the SL-1200M7B are based on the SL-1200MK7/SL-1210MK7 models, while the design is inspired by Automobili Lamborghini's iconic Y-shape pattern. Orange, Green and Yellow are the colours of the SL-1200M7B, based on the most iconic liveries of the Italian automotive super sports cars brand. Automobili Lamborghini and Technics operate in completely different markets but share the same values with cutting-edge ideas and approaches: disruptive technological development, a corporate culture rooted in a spirit of uncompromising craftsmanship, and the pursuit of emotional sounds inspiring customers-with Automobili Lamborghini, the sound of its engines, and with Technics, the sound of its audio. The SL-1200M7B is the powerful result of the collaboration and innovative ideas of the two brands.

*Consumption and emission values of Revuelto: Fuel consumption combined: 11,86 l/100km; Power consumption combined: 10,1 kWh/100 Km; CO2-emissions combined: 276 g/km; Efficiency class combined: G; Fuel consumption with discharged battery combined: 17,8 l/100km; CO2 efficiency class with discharged battery: G; WLTP values

Exclusive Gifts

The SL-1200M7B comes with an original vinyl record containing the powerful V12-engine and driving sounds of six different Lamborghini super sports cars, a slipmat and two stickers with Automobili Lamborghini and Technics logos. The picture disc features a design inspired by the tires of one of the Lamborghini's latest models, the Revuelto. As you listen to the sounds of Lamborghini V12-engines, you can also enjoy the visual effect of the tire spinning on your turntable.

Coreless Direct Drive Motor Achieving Stable Rotation

The direct drive system uses a slow-turning motor to directly drive the platter. This system has various advantages. It offers high performance, such as rotation accuracy and powerful torque, does not require replacement of parts and maintains high reliability over a long period of time. On the other hand, the direct drive system was said to produce a rotation irregularity called cogging. For the SL-1210MK7, a new coreless direct drive motor was developed. This motor employs a coreless stator. The removal of the core (iron core) from the stator eliminated the root cause of cogging. Furthermore, the magnetic force of the rotor magnets was improved to the highest possible level, and the gap between the coreless stator and rotor magnets was optimised, thus achieving high-torque-performance equalling that of the SL-1210MK5. Boasting smooth rotation and powerful torque, this motor reproduces sound accurately and faithfully from the groove on an analogue record.

Diverse New Functions Adapt to Various Playing Styles

Torque / Brake Speed Adjustment

The newest digital motor control technology, accumulated through the development of Blu-ray disc products, is applied to improve adjustment by allowing the torque and brake speed to be adjusted individually in four steps.

The Pitch Control Function

The pitch control function allows fine adjustment of the rotation speed within i8% / i16%. It does this through digital control, from positional detection of the slider to rotational control of the motor, eliminating the unnecessary DA conversion. This greatly improves tracking performance to achieve accurate and stable pitch adjustment.

Reverse Play Function

The reverse play function, which brings forth new possibilities of creative performance, makes its first appearance in the SL-1210 Series. In addition to 33-1/3 rpm and 45 rpm, a rotation speed of 78 rpm is supported.

*The torque / brake speed adjustment, rotation speed switch, and reverse play can be adjusted by switches on the main unit.

High Sensitive Tonearm

The tonearm, which has continued to support the leading edge of the DJ scene for many years, inherits the highly reliable static-balance universal S-shape tonearm. Using high-precision bearings, it achieves a higher initial-motion sensitivity than the SL-1210MK6. This accurately tracks the groove on the phonorecord to assure excellent tracking performance with minimum stylus jumping even in harsh playing conditions such as scratching.

Stylus Illuminator Featuring a High-brightness and Long-life White LED

The stylus illuminator features a new push-type structure for intuitive operation, and employs a high-brightness and long-life white LED. The illumination area and intensity were reviewed to provide improved visibility of the stylus tip even in a dark environment.

Specifications

Technics for Automobili Lamborghini collaboration model

Coreless Direct-Drive Motor Achieving Stable Rotation

Diverse New Functions Adapt to Various Playing Styles

High Sensitive Tonearm

Stylus Illuminator Featuring a High-brightness and Long-life White LED

High-rigidity Cabinet and High-damping Insulator

Tech Specs

General

Power Supply: AC 120 V, 60 Hz
Power Consumption: 8 W Approx. 0.2 W (Standby)
Dimensions (W x H x D): 453 x 169 x 353 mm
Weight: Approx. 9.6 kg
Accessories: Turntable, Slipmat, Slipsheet, Dust cover, Technics sticker for limited edition, EP record adaptor, Balance weight, Head shell, Screw set for cartridge, PHONO cable, PHONO earth lead, AC power supply cord, Control vinyl stickers, Owner's Manual

Terminals

Audio Output: PHONO (Pin Jack) x 1, EARTH TERMINAL x 1

Tonearm Section

Type: Universal Static Balance
Effective Length: 230 mm
Overhang: 15 mm
Tracking Error Angle: Within 2 degreees 32'?(at the outer groove of 30cm (12") record), Within 0 degrees 32'?(at the inner groove of 30cm (12") record)
Offset Angle: 22-
Arm-height Adjustment Range: 0 - 6 mm
Stylus Pressure Adjustment Range: 0 - 4 g (Direct Reading)
Head Shell Weight: Approx. 7.6 g
Applicable Cartridge Weight Range: 5.6 - 12.0 g (without auxiliary weight), 14.3 - 20.7 g (including head shell)

Turntable Section

Type: Direct Drive Manual Turntable
Turntable Speeds: 33-1/3, 45 rpm (with switch 78 rpm)
Starting Torque: 0.18 N*m / 1.8 kg*cm
Build-up Characteristics: 0.7 s. from standstill to 33 1/3 rpm
Wow And Flutter: 0.025% W.R.M.S.
Turntable Platter: Aluminum diecast
Diameter : 332 mm
Weight : Approx. 1.8 kg (Including slipmat and slipsheet)

Notes: The legendary Buchla 259 complex oscillator gets the officially licensed Eurorack treatment from TipTop Audio. One of the most versatile and characterful VCOs ever made, with endless cross-modulation options and wave shaping features. Iconic.

Supplier's Notes:
The 259t is the largest and most complex analogue oscillator from Don Buchla's legendary 200 modular synthesiser. The 259 originated the concept of the "Complex Oscillator" in the 1970s and has been reissued by Buchla and Tiptop Audio in Eurorack format. The module consists of two oscillators, called the Modulator and Principal, with a middle section that provides voltage control over the internal modulation paths between the two oscillators, resulting in highly complex timbres. Additionally, the principal oscillator passes through multiple unique voltage-controlled waveshapers and crossfaders for further signal processing. The module's pitch can be controlled with 1V/OCT or via its internal auto-tuner and ART control to create precisely pitched notes.

Notes: The WT-QUAD-LFO module consists of four individual, digital, wavetable based low frequency oscillators (LFO) with an easy and intuitive featuring a 1.8" OLED color display. The module can be updated easily by inserting a flash drive with the firmware files in the USB port on the front panel.

The oscillators and their respective controls, inputs and outputs are organized in four channels. The frequency of each oscillator can be linearly or exponentially (1V/Oct.) controlled through the voltage applied to the corresponding CV input.

Each LFO channel can output one of the predefined waveforms (including sawtooth, ramp, square, sine, triangle), morph between two different waveforms or generate a random waveform. It can be externally reset through the sync input.

Each trigger output can be set to output a specific phase of the corresponding waveform.

The module offers cross frequency modulation (FM) and internal sync between LFO channels. It features also phase distortion and phase spreading of the outputs, including a classical quadrature mode (90- phase spread). Frequency relationships between the four LFOs can also be set.

Hardware

4x CV inputs -5 V to +5 V
4x Sync inputs 0 V to 5 V, active low or active high
4x Clock inputs 0 V to 5 V, active low or active high
4x LFO outputs -5 V to +5 V
4x Trigger outputs 0 V to 10 V, active low or active high
1.8" OLED Display with 160 x 128 pixel
4x push encoder
USB port for firmware update
Size: 14HP
WT-QUAD LFO - Features list:

Wavetable based, 4 channel LFO
Default waveforms: SAW, SQUARE, SINE TRIANGLE
Random waveform generation
Custom wavetables can be loaded using USB flash drive
LFO output: offset and attenuation programmable
LFO Frequency range from 0,0032 Hz to 4 kHz
Frequency free (Hz) or quantized (note)
Presets can be selected through CV input
LFO channel can be internally synced and cross modulated
Single shot modus

Notes: ***B-STOCK: Item refurbished, repaired and in perfect working order.***


Nicely creative sequencer module based around controlled randomness. Build patterns and then morph them in real time. Great for live performance as well as studio use.

Supplier notes:
The Eloquencer is a powerful and versatile eurorack sequencer that can be used both as a performance and a composition tool. It's designed to be intuitive, easy to use, and quick to edit. It has been built around the "controlled chance" concept. This means you can decide when and where there will be randomness and how much this randomness will affect your sequences. It features 8 tracks of CVs and Gates in a 16 step disposition, but with the ability to define larger bar counts or chaining patterns to build multiple song parts of 256 steps each.

INPUTS AND OUTPUTS
8 V/oct CV Output
8 Trigger / Gate Output
Reset Input
External Clock Input (configurable. i.e: can be used as a clock divider / multiplier)
Accent Output (configurable)
Clock Output (configurable. i.e: can be used as a clock divider / multiplier)
2 CV Input (assignable to different parameters)

Notes: ***B-STOCK: Box opened, but product is in excellent condition and in perfect working order***


A legendary past, a powerful future.

microKORG is one of the world's most successful synths, having helped to shape music production for more than twenty years. Merging the essence of what made the original a global success with an array of powerful new features, the microKORG 2 once again redefines the landscape of music creation. It maintains the essence that has made its predecessor a mainstay in studios and on stages while introducing innovative, contemporary elements that resonate with today's musicians. The microKORG 2 is not just a new instrument; it's a new chapter in synth history.

Seamlessly sculpt your sound with refined controls

Dive into the microKORG 2 and discover how easy and intuitive creating the perfect sound can be. Korg have equipped it with five dynamic knobs, each one a gateway to fine-tuning your sound across any musical genre with speed and precision. Whether you're crafting lush pads or searing leads, the expanded bank selection puts every era of music right at your fingertips.

The centrepiece of the microKORG 2 is its stunning 2.8-inch colour display. It's not just about looks; this display makes tweaking your sound a visually immersive experience. Watch parameters come to life with animated effects, giving you instant visual feedback as you shape your sound. And for those who love to see music as well as hear it, a quick tap switches you to an oscilloscope view, literally showing you how your soundwaves evolve and change.

Korg have packed the microKORG 2 with the latest tech, but don't worry, it's all about enhancing your experience, not complicating it. Whether you're a synth veteran or just starting, you'll find its interface welcoming, straightforward, and comprehensive, letting you dive deep into sound creation without getting lost in the technicalities. It's all about keeping the joy in music making - and the microKORG 2 does just that.

Crafting vocal perfection: the new vocal processor

The original microKORG is renowned for making complex vocal synthesis accessible and fun. Known as the synthesiser with its own mic, it has been the choice for producing unique robotic voices for over two decades - a feat typically reserved for specialized equipment. The true magic of the microKORG has always been in its ability to simplify complex sound engineering. Taking a leap forward, Korg have outfitted the microKORG 2 with a new vocal processor that goes well beyond the beloved classic vocoder effects. Korg are introducing advanced vocal processing technology at your fingertips, including hard-tune pitch correction for creating smooth and polished vocal tracks. Additionally, the new harmonizer feature allows you to layer and pitch-shift your vocals, enriching your music with depth and complexity.
As for effects, the microKORG 2 offers a rich array of options. Layer your vocals with immersive reverb, crisp delay, and a diverse range of sonic textures to fully realise your creative vision. The iconic gooseneck mic, now featuring a stylish metallic neck, is the perfect complement to this powerful vocal processor. Whether you're aiming for rich harmonies or contemporary auto-tuned effects, the microKORG 2's vocal processor is a versatile tool for unleashing your vocal creativity.

Master live performances with loop recording and arpeggiator

Discover a new level of musical creativity with microKORG 2's loop recorder. This feature brings a familiar yet powerful tool for modern musicians into the microKORG world. Ideal for crafting layered backing tracks, the loop recorder allows you to loop segments of music and overlay your own performance, enhancing your creative expression in real-time. While loop recorders are well-known in the music world, their integration into the microKORG 2 opens up new avenues for experimentation and performance, perfectly complementing the synthesiser's robust capabilities.

The loop recorder is designed for simplicity and ease of use, featuring three simple buttons: record, play/stop, and undo/redo. The user interface is streamlined for immediate understanding and use- long-pressing the buttons reveals recording and playback settings, ensuring you're always in control and can focus on your performance.

The microKORG 2 also includes an arpeggiator, perfect for adding rhythmic complexity to your compositions. Activate it with a simple press of one of the eight program number buttons, and watch as it infuses your music with intricate patterns and textures. The combination of the loop recorder and arpeggiator opens up a world of possibilities, allowing you to craft a performance that is truly and uniquely yours.

Explore sounds across the ages

Discover microKORG 2's rich tapestry of sounds, where you get to play with a whole new range of tones. It's all about choice here - the new program selector is your gateway to genres far and wide. Fancy a bit of retro?

Specifications

Keyboard: 37 keys (velocity sensitive mini keys)

Synthesiser
Sound Engine: Analogue modelling synthesis system
Number of Timbers: Max. 2 (when Dual)
Maximum number of voices: Single 8 voices, Dual 4 voices

Vocal Processor
Maximum Polyphony: Vocoder 8 voices, Hard Tune 4 voices, Harmonizer 4 voices, Hard Tune & Harmonizer 2 voices

Effect types: Modulation, Delay, Reverb, Equalizer
Arpeggiator: 10 types, step arpeggiator function
Programs 256 programs (4 Banks x 8 Categories x 8 Programs)
Display: 2.8-inch IPS LCD display
Inputs/Outputs: OUTPUT - L/MONO, R terminals: 6.3mm TS phone jack, unbalanced
HEADPHONES jack: 6.3mm stereo phone jack, unbalanced
MIC IN - CONDENSER: +5V 3.5mm TRS mini phone jack, unbalanced
MIC IN - DYNAMIC: 6.3mm TS phone jack, unbalanced
AUX IN: 3.5mm mini stereo phone jack, unbalanced
DAMPER/SWITCH: 6.3 mm phone jack
MIDI IN,OUT
USB Type C

Power supply: 9V DC (AC adapter), six AA batteries (alkaline or NiMH)
Battery life: Approximately. 4 hours or more (when using alkaline batteries)
Dimensions (W x D x H) 542 x 238 x 65 mm
Weight: 2.1 kg (without batteries and microphone)
Included items Condenser microphone, AC adapter (DC 9V)

Notes: Extremely versatile signal routing is the name of the game here. Eight inputs and eight outputs are connected via the matrix, allowing you to route and mix audio, CV, triggers and gates via the buttons.

Supplier's Notes:
Like four 4x4 Switch Matrix set side by side, the Discrete Isoline Summation Matrix is a true matrix mixer powerhouse, a mad dream and an science experiment gone too far all in one.

As the name implies, the unit contains eight individual inputs and outputs, all of which can be individually routed by way of the isolinear switch matrix on the front panel. Inputs are arranged in rows, while outputs are assigned to columns, making it easy and intuitive to quickly route any given input to any given output. All inputs and outputs are individually buffered, and each mechanical switch offers both tactile and visual feedback in the form of a soft, audible click as well as a connected LED turning on or off to indicate the state of the current junction.

Like it's predecessor, the 4x4 Switch Matrix, the Discrete Isoline Summation Matrix is a DC coupled summing mixer, allowing both CV and audio to be mixed interally, with virtuous or disastrous results.. Finally, the unit is compact at only 28hp, and pairs perfectly with the Qatt quad attenuator, Stum quad mute and 180- quad inverter for greater control over your inputs and outputs.

You already know what you are going to be doing with this - whether your plan is to mix an ungodly amount of CV, create an incredible amount of new trigger patterns, have a massive FX routing setup, or some manner of unspeakable matrix mixer situation on your hands, you will be armed to the teeth with the Discrete Isoline Summation Matrix.

Notes: Unassuming looks conceal the excellent EaganMatrix sound engine, offering USB-powered synth creativity perfectly matched to Haken's own Warbl Wind Controller but also compatible with MIDI and MPE.

Supplier's Notes:
EaganMatrix Micro

The power of EaganMatrix Sound Technology in Haken's smallest product ever! The EaganMatrix Micro is a full-featured EaganMatrix sound engine in a small self-contained form factor, and is powered and controlled via USB.

The EaganMatrix Micro provides a truly versatile framework for both studio and live performance, with a robust implementation of MPE and MPE+ Midi.

The EaganMatrix Micro is a perfect companion to the amazing Warbl Wind Controller.

The fingering holes on the Warbl are not just switches. You can hear that the pitch starts off a bit as the finger gets close to the hole (like it would on an acoustic wind instrument) and hits the final pitch once the hole is covered. It's a subtle effect but important. The following video shows 15 Presets from the Micro's demo assortment that Edmund Eagan skillfully customized to take advantage of the Warbl's specific sensing technology. In the future there may be demo assortments customized for the sensing technologies of other devices.

Hundreds of System Presets are included with the EaganMatrix Micro. An external cross-platform (Mac and PC) Haken Editor may be connected to modify and customize the supplied EaganMatrix System Presets, or create completely new presets from scratch.

The EaganMatrix Sound Technology, originally created for the highly sensitive Continuum, is now available to you in this compact form factor.

EaganMatrix Micro Connections
1. USB Power and Midi (shown connected).
2. Foot Pedal or Haken Audio CVC communication.
3. Stereo Audio Out.

Haken Audio's EaganMatrix Micro offers:
Polyphony: Nominal 1-3, Maximum 8
Stereo Audio Output: 3.5 mm TRS
EXT Connection: 3.5 mm TRS

Can be used as a pedal input (Yamaha FC3A with HOSA MHE-100.5 is recommended),
or it can be configured for a Control Voltage Converter.

Seven Segment Display: Preset navigation and settings
USB Power: 500 mA (190 mA average actual usage), via Mini USB connector
USB Midi: via Mini USB connector (USB-A to Mini USB cable included with purchase)
Allows bidirectional MPE and MPE+ connection to other devices; allows connection to the Haken Editor for editing and archiving EaganMatrix presets
Dimensions: 11.3 x 5.8 x 1.9 cm (4.4 x 2.3 x 0.75 inches)
Weight: 0.075 kg (2.6 oz)

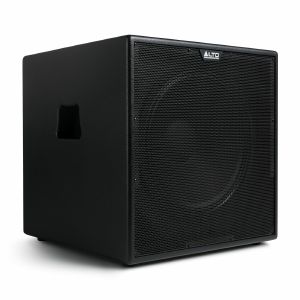

Notes: Huge low-end power in a compact 18-inch design, the TX18S features versatile options for live music and DJ performances, solid build quality and easy integration with your audio setup.

Supplier's Notes:
The Alto Professional TX18S brings much more to the table than sheer sonic force. This unit can handle deep bass frequencies and project them into any large-scale venue, nightclub, house of worship, or place of business with pristine clarity and nuance. DJs and musicians who are tasked with carrying their own equipment from location to location rejoice-not only is the TX18S optimized for portability, but it is also designed to integrate seamlessly into just about any audio setup in any number of settings and rooms. Those who are looking to install the TX18S as a permanent fixture of their restaurant, bar, cafe, gym, or venue will be relieved at just how easy this unit is to use. The controls are simple yet effective, ensuring impressive low-end response regardless of your technical know-how or audio experience.

Thanks to an 18-inch driver with a 3-inch voice coil, the TX18S can handle the nuanced, deep bass frequencies that are all too commonly lost when using standard full-range speakers. The powerful onboard 900W amplifier comes equipped with circuitry and overload protection that will ensure your low end is clean and clear even at full blast.

One of the TX18S's most powerful features is its two different Live and Music EQ voicing modes and selectable Low Pass Filters. This allows users to switch the subwoofers frequency response to seamlessly integrate with any speaker it is being used alongside and where the music is being played. These pared down and straightforward parameters change the EQ to fit your surroundings with the press of a button as opposed to having to fuss with complicated, multifaceted controls.

The TX18S is built to withstand any wear and tear that may occur. The subwoofer's enclosure is made from fiberboard that is durable, resonant-free, and actually enhances the unit's inherent acoustic qualities. In addition, this subwoofer and all other products in the TX Series are designed and tuned in the United States.

Notes: Vortex 6 us a polyphonic 6-voice wavetable oscillator inspired by the hardware design and sound of the PPG Wave 2.2, and it is the only oscillator of this type that uses true 8-bit vintage audio converters from the '80s. Dozens of wavetables are provided internally, and user tables can be loaded via an SD card. VORTEX6 has built-in vibrato, glide, and six wavetable-scrolling envelopes, all with CV. The ART-in jack and a built-in voice manager take care of incoming notes and distribute them to audio, gate, and velocity outsieither through per-voice 3.5mm jacks or the Polytip jacks. Together with OCTOPUS, one or more OCTOSTAGES, OCTOPASS, and OCTOGAIN, along with a few Polytip patch cables, it forms the world's first complete six-voice polyphonic modular synth. Alternatively, VORTEX6 can be patched to discrete mono modules or use its voice mix-out for paraphonic soundscapes with up to 12 oscillators in detune mode.

Size: 20HP - Depth: 40mm

Power: +12V 190mA / -12V 50mA

Notes: ***B-STOCK: Item refurbished, repaired and in perfect working order.***

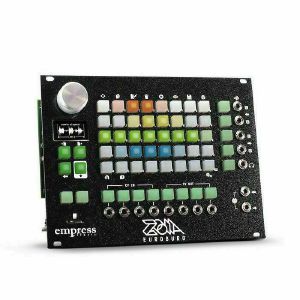

Endlessly customisable digital 'modular system within a modular system'. Includes more than 80 modules, allowing you to create effects, synths, control devices, oscillators, filters and much more.

Supplier's Notes:
What's a Euroboro?

The ZOIA Euroburo is a digital modular system that can be placed in your modular system, a real Russian nesting doll situation. We added a headphone output and a super-slim optional case so the Euroburo can live happily on your desktop or be easily mounted in a Eurorack case. Hence the euro + buro, pronounced "bureau"...get it!?

Create unique signature effects, synthesizers, sequencers and more while using 4 freely assignable CV ins and 4 outs to interface with other CV enabled devices. The additional headphone output and powered 9v case makes the module even more desktop friendly. With over 90 modules from CV utilities to audio effects, oscillators and envelopes to MIDI, the Euroburo can do almost anything to fill the gaps in your setup.

There's no need to worry about getting bogged down with endless menus or a cluttered interface. Creating patches and performing with the ZOIA is a tactile experience. Patching, deleting or moving modules and editing values can all be done quickly using the push-button grid and a flick of the encoder. With the addition of dedicated push buttons for the CV and Audio I/O, patching on the ZOIA has never been faster.

Notes: Super versatile granular filtering. Incoming sounds are granulated, then processed with eight contrasting filters. Hands-on and CV controls allow you to manipulate and modulate the output.

Supplier's Notes:
Sisyphus is built around a granular engine and a palette of eight original filters. Its granular system allows multiple grains to coexist within a single stereo audio stream, where they combine and interact with each other.

This filter is based on a comprehensive granular approach to sound: rather than a granular engine followed by a filter, it offers true integration of filtering into the grain-generation process. Each generated grain carries the filtering characteristics defined by the musician and will be combined with other grains according to evolving, configurable patterns.

These filters have been developed entirely from scratch in-house, without using typical filter libraries, so they each have their own unique color for you to explore!

Filters

Lowpass: Attenuates high frequencies above the cutoff frequency. 12 dB/oct slope.
Highpass: Attenuates low frequencies below the cutoff frequency. 12 dB/oct slope.
Bandpass: Lets through a band of frequencies around the cutoff frequency. 12 dB/oct slope.
Notch: Dips around the cutoff frequency while letting the rest of the spectrum pass through.
Peak: Boosts the band around the cutoff frequency while allowing the rest of the spectrum to pass without a drastic cut.
Comb: Creates a series of cancellations and resonances based on an internal delay and feedback.
Karplus (Karplus-Strong: Simulates the vibration of a string or looping resonance by combining a short delay, feedback, and damping.
Ladder: Inspired by Moog-style analogue filters, with four stages in cascade. Features a steep slope (24 dB/oct) and a distinctive resonance that can reach self-oscillation.

Filter Controls

Cutoff (Cutoff Frequency):Defines the filter's cutoff frequency or center frequency (depending on filter type), ranging from 10 Hz to 20 kHz.

Resonance: Emphasises frequencies near the cutoff frequency, from a slight bump up to the edge of self-oscillation.

Feedback: Re-injects part of the output back into the filter input.

Variations: Introduces an instability in the setting of the cutoff frequency, resonance, or feedback (depending on the selected filter), allowing for a more or less "organic" filter character.

Grain Controls: The incoming sound is continuously sampled and segmented into buffers. Each segment is analysed, filtered, and then extracted to become a grain. You can change the length of each grain, the interval between grains, the way grains follow one another, how they are arranged in relation to each other, and their density (number and influence).

Grain Length: Adjusts the length of the audio grains. The shorter the grains, the more the sound fragments into a "grained" granular texture; the longer the grains, the closer the result is to the original sound, but filtered and delayed. When multiple grains are played simultaneously, longer grains make echo effects more noticeable.

Grain Interval: Determines the time between the start of two successive grains (or the probability of automatic triggering).

Pattern: Grains are organized according to predefined, adjustable patterns. Several scenarios allow you to explore different ways grains can combine, from highly organized to more chaotic.

Density: Determines how many grains are played simultaneously and their intensity.

Variability: Sets the magnitude of the special effects specific to each pattern.

Transition: Defines the shape of the envelope applied to the grains as they link together.

Input and Output: Sisyphus works with two parallel channels that share the same settings. You can use it either in stereo mode or as two separate mono audio channels.

CV Inputs: Four CV inputs allow control of Sisyphus using other Eurorack modules. These inputs accept the standard Eurorack voltages (0 to 8 V).

The four basic parameters that can be controlled via CV are: Grain Length, Density, Cutoff, and Resonance.

However, you can configure the module differently using an external file on an SD card. In that case, any CV input can be assigned to any control, the input voltage range (from 1 to 8 V) can be set, LED brightness can be adjusted, and more.

Specifications

Width: 24 HP

Power Consumption:
+12 V: 200 mA
-12 V: 10 mA
+5 V: 0 mA

Depth: 28 mm

Carefully built in France, with all potentiometers bolted to the front panel, and shipped in a metal storage box.

Power cable and knurlies included.

Notes: Based on technology from the award-winning LVX and MercuryX pedals, the Enzo X is a superbly powerful six-voice modular synth, with polyphonic pitch detection and no special pickup needed on your guitar.

Supplier's Notes:
Combining 5 synth modes, Enzo X incorporates each of these into a modular system UI/architecture from both the award-winning LVX and MercuryX pedals.

In addition to being a 6-voice poly synth, Enzo X includes 3 reverbs which are adapted from Mercury X (Prism algorithm), 5 Drives (including Bitcrush), a full stereo 2.5 second Delay and 5 modulation types.

To make this complex system immediately intuitive to navigate, Meris again leveraged the simple and easy to use UI first developed for LVX.

Notes: ***B-STOCK: Box damaged, but product is in excellent condition and in perfect working order***

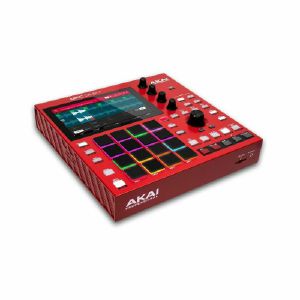

Updated version of Akai's excellent MPC One features increased storage, WiFi, Bluetooth and a striking new colour scheme. Full standalone beat creation masterpiece.

*** Introducing MPC Stems- March 2024 ***

Akai Professional now introduces the next chapter of sampling innovation and production powered by the groundbreaking MPC Stems bringing sampling into a new chapter.

With MPC Stems, you can access the raw building blocks of any sample or vinyl record, isolating the DNA of any record. Producers can now manipulate the Drums, Bass, Music, and Vocals, opening new creative possibilities.

Akai Professional introduces the ultimate creative workflow with Stems Separation seamlessly integrated into the leading MPC series, powered by MPC 2 Desktop Software.

With MPC Stems, producers and beat-makers can now unlock unmatched sampling creativity by easily isolating drums, bass, music, and vocals from any audio, vinyl recording, or sample revolutionizing the art of sampling.
Experience lightning-fast workflow with superior sound quality, keeping you inspired throughout the creative process.

Slice and isolate samples while maintaining chop regions across each of the four stem layers.

Take complete control with direct manipulation of stem layers from the pads, adjusting volume, pitch, pan, start, and end points with instant responsiveness.

MPC Stems requires MPC 2 Desktop Software running 2.14 or higher, compatible with MPC Live, MPC Live 2, MPC One, MPC One +, MPC X, MPC XSE, MPC Key 37, MPC Key 61, MPC Studio Mk 2 in Controller Mode.

Supplier's Notes:
MPC One +

Standalone MPC with 7" touchscreen / WiFi & Bluetooth

Supercharge your beats

Standalone supercharged

The new MPC One+ brings a jolt of energy to the standalone workflow to enhance creative speed and efficiency. With MPC One+, beatmakers producers to live performers can enjoy the creative journey like never before.

Pure standalone power in your hands

At the heart of MPC One+ is the powerful multi-core processor, the same featured in the flagship MPC X. This isn't a scaled down little brother, but a production unit built with the same DNA for high-level music creation. Instruments, audio, MIDI, and effects processing to bring the music to life. With an upgraded 16GB of internal storage, create and store more of your inspired moments right in MPC One+ for immediate access and recall.

Wireless for the future

New Wi-Fi and Bluetooth connectivity opens a new world of possibilities for your creative workflow. With Wi-Fi, you now have access to Ableton Link 3 to wirelessly connect and sync all your capable devices. Lock patterns and grooves for a mega creation without any cables or connections. Grab your Bluetooth enabled MIDI controller to lay down synths and melodies while your infectious rhythms have you vibing to the beat. Pair with a wireless QWERTY keyboard to search through folders and libraries accurately. With Wi-Fi and Bluetooth, your MPC One+ may be untethered but you are locked right into the music.

The centre of your creativity

MPC One+ is meant to be the focal point of your creative workspace. Whether you need compact, efficient beat-making or expanded interconnected production and composition, MPC One+ is versatile enough to accommodate any need. Connect your studio speakers to Stereo Outputs for accurate monitoring. A pair of Line Level Inputs are ready for keyboards, synths, instruments, hardware processors, and more. Expand your I/O with support for ClassCompliant Devices via a USB A host port. Connect your favorite plug-and-play USB MIDI Controllers, Audio Interface Devices, or removable storage drives, and take your production up another level with ease.

The workflow that sparks inspiration

MPC is the premier platform for all pattern-based music from EDM to Electro, Hip-Hop to House, and beyond. With 128 MIDI and 8 Audio Tracks per project, MPC One can capture any idea just as fast as you can think it. Browse thousands of MPC Plugin Instrument Presets to find that perfect sound to build melodies or shape harmonic phrases with massive sonics. Lay down serious drums and percussion with the signature MPC groove and precision. 16 Levels, Note Repeat, and Time Correct have defined the rhythmic feel for generations and continue to be the foundation for hit song after hit song. Use the pads in combination with Notes and Chords modes to unlock a completely new world of pad performance using the 16 velocity-sensitive RGB backlit pads.

One place for your sounds, samples, and songs

MPC One+ grows with you as you evolve on your music production journey. Update features, sounds, and samples wirelessly thanks to built-in Wi-Fi. When new MPC plugin instruments are available, you'll enjoy instant notifications as well as downloads and software authorizations right from your MPC One+. Browse and sync your curated Splice loops and samples and give your productions a breath of fresh inspiration whenever you need it. Keep all your sounds and instruments right within reach to instantly capture the most inspired moments anytime.

The next step of your MPC journey

MPC One+ is here for the producers and beatmakers ready to take the next step in the journey. Upgrade to MPC One+ from MPC Beats and load your old projects seamlessly on MPC One+. Your MPK mini or other class-compliant controller connects for powerful keyboard control of popular MPC plugin instruments like Hype, Mellotron, or Odyssey. For a limited time, receive a voucher for a free MPC Plugin instrument download from the MPC Store with the purchase and registration of a new MPC One+. MPC One+ has arrived and the musical possibilities ahead of you are endless with the power of its supercharged standalone workflow.

Technical Specifications

Pads
(16) velocity- and pressure-sensitive pads, RGB-backlit
(8) banks accessible via 4 Pad Bank buttons

Knobs
(4) 360- touch-sensitive Q-Link knobs for parameter adjustment
(1) data encoder for value adjustment and selection via push

Buttons
(31) dedicated-function buttons

Display
7.0" / 177 mm (diagonal)
5.9" x 3.7" / 151 x 94 mm (width x height)
Full-colour LED-backlit display with touch interface

Memory
Processor: Quad-core ARMr processor
RAM: 2 GB
Storage: 16 GB (over 7.8 GB available for user storage)

Power via power adapter (12 V, 3.0 A, center-positive, included)

Connections
(2) 1/4" (6.35 mm) TRS inputs (1 stereo pair)
(2) 1/4" (6.35 mm) TRS outputs (1 stereo pair)
(1) 1/8" (3.5 mm) stereo headphone output
(1) 5-pin MIDI inputs
(1) 5-pin MIDI output
(4) 4 TRS CV/Gate Jacks, 8 Outputs Total
(1) USB Type-A port
(1) USB Type-B port
(1) SD Card slot
(1) Power Adapter input

Dimensions (width x depth x height)
10.7" x 10.7" x 2.1"
272 x 272 x 53 mm

Weight
4.7 lbs / 2.1 kg

Notes: ***B-STOCK: Box opened, product in perfect working order***


Welcome to the world of sound of LYRA-8, the unique organismic analogue synthesiser designed by Vlad Kreimer. "Organismic" means that LYRA uses some principles that lie in the base of living organisms. The way how LYRA's modules interacting between each other and the behaviour of the instrument resembles a live conversation.

LYRA-8 is based on eight generators, which will be referred to as voices. Their design is not like a traditional subtractive synthesis VCO. Instead of having a linear or logarithmic dependency on control voltage, they resemble the tone generators in old electric organs. Hence the use of the term "voices" instead of "VCOs". Lyra uses non-linearity a lot, and the voices are constructed in such a way that allows for non-linearity to express itself.

The voices are divided into four pairs (12, 34, 56, 78). All the pairs are divided in two groups, with two pairs in each (1234, 5678), creating tree-like structure.

The voices can function either in an electric organ mode or in an FM synthesis mode with each of the voices and its envelope acting as a separate FM operator. The voice's impact on FM synthesis will decrease along with the decay of its envelope.

LYRA-8 also has the next blocks:

The HYPER LFO is a complex low-frequency generator, whose waveform is synthesized from two simple LFOs by summation or multiplication of their frequencies. It also has a sync mode. The LFO can modulate the selected pairs of voices and the MOD DELAY.

The MOD DELAY consists of two lines of delay with cross-feedback and a special architecture that enables resonance between the two lines. Each line's delay time can be individually modulated from various sources, including external ones. The delay has a unique possibility of self-modulation where the output signal modulates the delay sample rate, creating cool effects.

The DISTORTION is last in the chain, after the delay. It enables the delay to also influence the distortion.

For all its experimental character, LYRA is a professional instrument. Its output dynamics and frequency response are balanced and ready for a live performance or studio recording without any additional processing.

Specifications:

Max output voltage: 2 v 0-to-peak
Output connector: mono 6.3 mm TS or TRS (balanced) jack
Output resistance: 100 Ohm
EXT IN: 1 v 0-to-peak
EXT IN connector: 6.3 mm TS jack
HOLD GATE: full HOLD volume +5 V
HOLD GATE connector: 6.3 mm TS jack
CV DELAY : unipolar, range of 0 to +5 volt
CV DELAY connector: 6.3 mm TS jack
CV VOICES: unipolar, range of 0 to +5 volt
CV VOICES connector: 6.3 mm TS jack
Power supply: stabilised, +12 V, 0.2 A, centre positive
Power Consumption: 2 watt
Dimensions: 266 x 266 x 62 mm
Weight (without power supply and packaging): 2.5 kg

Notes: More than just master keyboards, the SL mk2 series is a new chapter in musical keyboard controllers. From the innovative UX Logic interface, seamless integration with the Numa Player, high-definition MIDI 2.0, to the immersive realism of our new keybeds, every detail is crafted to bring your music to life.

The SL gets smarter. With the revolutionary Studiologic UX Logic, first introduced with the Numa X Piano, the SL mk2 series redefines simplicity and elegance. A sleek, modern control panel empowers your creativity, making navigation intuitive and effortless. Create, explore, and control with unparalleled ease.

SL Link, Studiologic's groundbreaking protocol, bridges the gap between your gear and your imagination. With compliant external apps taking full control of the SL mk2, every nuance of your performance stays in perfect sync.

Seamlessly connect the SL mk2 with Numa Player 2, our cutting-edge music software is built now to complement the SL series perfectly.

Numa Player is cross-platform and designed for ultimate versatility, offering a rich selection of high-quality sound libraries. Best of all, these libraries are free for every SL user1, providing you with a full musical experience straight out of the box. Whether you're composing, performing, or exploring, SL Link and Numa Player ensure your creativity knows no bounds.

The SL mk2 takes a leap into the future with MIDI 2.0. Unlock the full potential of your music with greater resolution, richer dynamics, and unprecedented precision. It's not just MIDI; it's music at its most expressive.

Take charge of your studio with dedicated DAW transport controls. From playback to recording, essential features are just a touch away, so you stay immersed in the creative process without breaking stride.

The SL mk2 doesn't just control; it delivers. With dual audio outputs and a headphone jack, it functions as a professional-grade audio interface. Powered entirely by USB-C, it delivers pristine sound from computer or mobile device directly to your speaker system ino extra hardware needed.

Equipped with the TP/110, a high-end, weighted mechanismcombining feather-light portability with robust playability. With reduced bounce and aftertouch triggered by hammer action, every note feels authentic and effortless

Notes: Analogue discrete Synthvoice with two VCOs, three SUB-VCOs, Wavefolder, Noise, Ring Modulator, two loopable ADRS, two LFOs/VCOs, MIXER, 24db Lowpass VCF, VCAOur new Eurorack flagship hits stores this summer. Very compact (pre-patched) discrete synth voice module with excellent analogue technology for endless soundscapes at a reasonable price.

Two discrete VCOs with highly stable tracking

Three analogue Suboscillators (3/4-1/2-1/4 with SQUARE, SAW, TRI) + Gravity Mix -Sync

Wavefolder (VCO 1 TRI WAVE)

White Noise

XOR Ringmodulator

Discrete VCA

24dB LP VCF with overdrive

Dual analogue LFO (one also usable as VCO) with incredible range and keytracking -Two superfast and punchy analog ADSR sections with LOOP function and four TRG outputs (End of ATT, End of DEC)

Mixer section with Master level -Glide presets and huge Patchfield to communicate with other Eurorack Modules.

Screwed metal shaft potentiometer

Rackspace: 36TE
Depth: 25mm

Notes: ***B-STOCK: Box opened, product in perfect working order***


Valve-based pre-amps meet cabinet simulation in this ultra-flexible pedal. Dial in your tone, patch in effects, and control the lot via MIDI or USB. A brilliant combination of analogue and digital.

Supplier's Notes:
Tsakalis is proud to release their most ambitious product to date. Seamlessly blending the authentic analogue warmth of real tubes with a highly configurable cabinet simulator, plus flexible outputs and control options, the MOTHERSHIP - Real Tube Preamp stands out as possibly the most highly featured and flexible front end for any guitar rig currently available.

The MOTHERSHIP is a complete solution for authentic vintage and modern genuine tube amp tones, in a user-friendly and lightweight, yet rugged package that is designed to slot in easily into any setup.

Both channels on the MOTHERSHIP are identical, yet highly configurable.

Featuring three gain modes (High, Medium and Low) on each channel, along with a toggle switch for selecting between your three chosen speaker simulations, the MOTHERSHIP can conjure up a multitude of both iconic, familiar and unique tones easily and intuitively. Each channel also features two master gain controls along with two master volumes, allowing four different voices to be instantly recalled, either by pressing the relevant footswitch or via MIDI command.

Demonstrating its prowess as a fully comprehensive plug and play device, the MOTHERSHIP also features over 70 free custom cabinet simulations to choose from (when connected to Tsakalis' own TAW Editor app via USB), separate dedicated simultaneous outputs for both the cabinet simulator and a "dry" output for your amp of choice, MIDI control of channel, A/B selection and bypass and also a serial mono FX loop for added tonal versatility.

Fully-featured all-analogue real tube preamp design

The MOTHERSHIP represents the perfect "amp-in-a-box" pedal, seamlessly blending a beautifully designed, real tube front end with a highly flexible cabinet modelling solution. However, it also shines as a genuine tube overdrive pedal when connected to the front of your amplifier, or when running it as the tone defining preamp section of your setup, directly into your power amp. It can also do both of these things simultaneously.

Quad channel tube preamp and drive

This preamp pedal has two completely independent channels, each featuring a four-band EQ, two different Gain/Volume sections, three selectable gain-stages and three selectable cabinet simulations, plus a serial mono effects-loop for your external effects, MIDI in and free access to Tsakalis Audioworks' full free online library of carefully selected and curated digital cabinet simulations.

The MOTHERSHIP's two independent channels were carefully designed with a real tube audio path, providing a huge range of tones from warm or sparkling cleans all the way to high gain tube driven distortion. The two ECC83 (12AX7) tubes, run at a comfortable 240 Volts, providing touch sensitivity, headroom and plenty of gain and tube sag as required.

Each channel features a four band EQ (Bass, Mid, Treble and Presence) and two different Gain and Volume controls (Gain A-Volume A / Gain B-Volume B) transforming the MOTHERSHIP into a quad channel powerhouse.

The dedicated MODE switch for each channel is responsible for the tube audio path structure, giving 3 different gain modes L = Low, M = Mid and H = High, allowing you to easily customize completely different lead and rhythm tones with different gain structures as well as a solo volume boost for each and access them on-the-fly by simply pressing the relevant footswitch.
