Notes: Patch cable for ultra short connections in the modular synthesiser 8.5 cm, white mono jack plugs 3.5 mm at both ends

Notes: Introducing ADDAC's Cable Tester, a desktop utility that provides a reliable means to test the integrity of both mono jacks and ribbon cables, ensuring that every connection is secure and electrically sound.

Individual Wire Testing - Featuring the ability to test each wire within the ribbon cables independently with dedicated LEDs for every wire, providing a clear visual indication of the status of each connection, wires are also tested against their neighbouring wires to detect shorts.

Busboard monitor

The busboard monitor LEDs allows the user to check the state of the busboard power lines as well as the special CV/Gate functions. If the busboard has no +5v supply the led will be off likewise for the CV/Gate functions if not in use.

This is a desktop device, ADDAC provide a long power cable so that it can still be plugged into your rack.

As a safety precaution only power this board when you need to test a cable. Leaving it ON at all times can lead to unintended problematic misuses which, in a worst case scenario, can shorten your Eurorack PSU,

! WARNING !
DO NOT POWER MODULES FROM THE TEST SOCKETS!!

Compatible with all ADDAC System ribbon cables (power, expansions and interconnectivity: 112, 213, 807).

Also compatible with any standard Eurorack power ribbon cable (2x5 to 2x8 or 2x8 to 2x8).

! WARNING !
NOT ALL MANUFACTURERS FOLLOW THESE STANDARDS!
ALLWAYS NOTICE THE ORIENTATION OF THE HEADERS IF YOUR CABLE DO NOT FOLLOW THE STANDARD THEN MOST PROBABLY IS NOT COMPATIBLE.

Tech Specs:
30mA +12V
30mA -12V

Notes: 2mm thick aluminium panel, in bath-anodized finish, with high-quality light-grey printing.

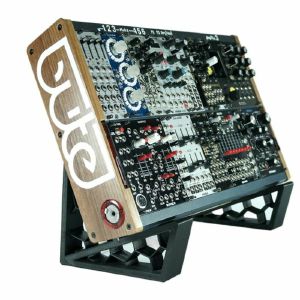

Notes: The Eurostand support is designed to hold Eurorack-style synthesizers, with specific features to ensure user comfort and equipment stability. Two sturdy feet connected by rods can support cabinets of up to 7u. This rod system allows adjusting the width of the stand according to the size of the cabinet you have.

The angle of inclination makes it ideal for use standing or sitting.

A durable and resistant plastic material, such as PLA, is used to 3D print the stand. This ensures it can support the weight of multiple Eurorack modules without deforming or breaking.

In summary, the ergonomic Eurostand support for Eurorack-style synthesizers is designed to provide a safe and comfortable platform for organizing and efficiently using these devices.

*** Please note: The synth modules are not inlcuded, they are shown for demonstration purposes only. ***

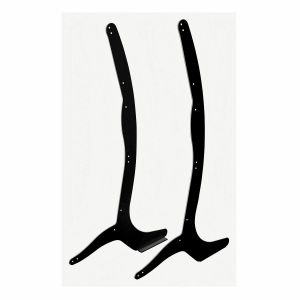

Notes: The 3-Tier Mantis Studio Brackets pair lets you connect three Mantis together in a robust and elegant solution. This setup is fixed and is recommended mainly for studio use. The brackets are cut precisely by laser from a sturdy metal and then coated twice for a nice smooth finish that matches the Mantis light gray colour. They come with twenty screws and special washers that help hold the screw in place during assembly and keep a tiny gap between the brackets and the Mantis. Installation is fairly simple and takes about 30 minutes to complete.

Notes: Especially when adding new modules to your AE modular system, it's recommended to check the status of the supply voltage. When too many modules are supplied by one MASTER or POWER module, the supply voltage can drop too low below 5 volts; this can cause some issues like oscillators losing the tracking/calibration, digital modules can show some malfunction and so on.

To make the voltage check convenient, you can use the VOLTAGE TESTER: You can plug it either into a free socket on the bus cable, or via the included adapter, to the extension header at the front/rear side of the case. Then, 5 LEDs show the supply voltage, either green for "ok" (supply voltage is in the range of 4.9 - 5.1 volts), or other colours for too high or too low voltage in steps of 0.1 volts.

Notes: ***B-STOCK: Box opened, product in perfect working order***

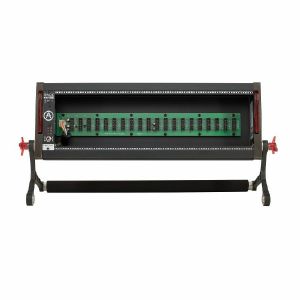

RackBrute 6U

Armoured Eurorack carrier

RackBrute 6U is an all-inclusive Eurorack case ensuring the total security of your modules and maximum practicality in all conditions of use. Its multi-position configuration and included dependable power supply make it the true specialist solution.

Artists may have a bodyguard; modules deserve armour-plating.

RackBrute 6U provides you with 176HP to store and secure your enviable collection of Eurorack modules in an everlasting yet lightweight aluminium chassis flanked by two wood panels. Once you're locked and loaded, your modular setup will look and feel like a monolith, yet more flexible than ever thanks the Link fastening system and the paired handle. When on the move, it will make the transport of your modular equipment a walk in the park. When in position, it will let you organize your command centre the way you want it. Modules don't live on love alone, and RackBrute 6U keeps everything alive with its +12V / -12V / +5V power supply.

When you have to hold your position for hours, it's better to be well set up and to have a clear view of the surroundings. For this reason, we developed the Link system, a convenient and simple-to-use fastening system that allows you to orientate the dedicated handle so that you can give your modular the most tactically advantageous position. Whether prone, crouching, or standing to attention, RackBrute 6U will always be on the lookout, ready for orders.

Troops are nothing if they are not properly fed. No problem, RackBrute 6U is not just a box. It includes a formidable +12V / -12V / +5V power supply ensuring your firepower up to 1600mA. This is coupled with a military-grade power rail with 32 available slots, including advanced noise filtering technology that guarantees optimum conditions.

With RackBrute 6U, even the most headstrong modules fall into line.

Uniting your forces under the same banner
May all modular units meet at the rallying point and be ready for further orders!

The RackBrute 6U fully takes advantage of the Link System, and it's not alone. You'll also find the Arturia Link on the more compact RackBrute 3U, as well as the self-contained MiniBrute 2 and MiniBrute 2S synthesizers. What solution will you go for? Will your field of operations be fully based on Eurorack, or the powerful force of analogue monosynth flagship supported by a fleet of complementary modules?

This technology is the brainchild of our secret research department, but we wanted it to be patent-free so that all our allies could adopt and benefit from it. The modular music battleground is likely to get crowded with an ever-growing variety of Link-enhanced system.

You are not alone on this mission. You have your trustworthy equipment to keep you company.

Equipment checking!

All present and correct, ready for inspection. We trust you'll find everything to your liking.

Go, go, go!

Don't worry, RackBrute 6U will keep mishaps at bay.

The success of your operation depends on your sensitive material arriving in perfect working order. RackBrute 6U is up to the challenge. The handle, the chassis, the threaded nut strips, each of its strategic components is made aluminium or steel. RackBrute will carry your setup no matter the context, not matter the weight, the distance and the destination. The built-in spacers will also make sure that no collisions occur when transporting two RackBrute units or a RackBrute and MiniBrute 2. Maybe you also want to keep your modular away from prying eyes. Then, trust the optional RackBrute Travel Case for more covert missions.

RackBrute 6U is the complete transport solution for when you need to take your show on the road.

What's in the box:

Box content
RackBrute 6U unit
Power cord

Instrument dimensions
Size : 19 x 13.2 x 3.3 inches (484 x 300 x 83mm)
Weight: 8.3 lbs. (3.76 Kg)

Main Features

Eurorack format, 176 HP
Aluminium Chassis
Provided with a 5 HP power module
Up to 1600mA on +12V and 1600mA on -12V (4 separate circuits of 800mA)
Up to 900mA on 5V
Power rail with
Noise filtering
32 standard power slots
20-slot zone with up to 800mA on +12V and -12V
12-slot zone with up to 800mA on +12V and -12V
Link system and smart handle to fasten a MiniBrute 2/2S or another RackBrute unit in various configurations
Built-in Spacers for the highest protection in transport configuration

Notes: ***B-STOCK: Box damaged, product unused & in perfect condition***


RackBrute 3U is a comprehensive Eurorack housing, transport, and protection solution. Featuring configurable positions, dependable power supply, and maximum practicality, you can be assured your precious modules will be well guarded.

Don't worry; your beloved modules are under heavy guard.

Modular gear is a precious commodity, and you need a versatile housing and security system to accommodate them. A first glance, you'll see that this is a perfectly fitted 3U, 88 HP case made of a light but strong aluminium chassis, fitted with wood side panels.

Deceptively simple, RackBrute is far more than a simple box. It includes many smart additions, such as the included +12V / -12V / +5V power supply that ensures that keeps everything up and running, and the multi-position handle system that not only lets you carry your collection with ease, but also lets you deploy an optimal operating angle, whatever your preference.

Ready for anything

Secure an unobstructed viewpoint over the theatre of operation, and hold the position 'til further orders.

In addition to keeping your modules safe and secure, RackBrute 3U gives you total control of the situation, no matter the context. The first of its secret weapons is the Link fastening system. Paired with the included handle, it will let you choose one of several configurations and orientations for your modular arsenal. Whether you want your gear stealthy and prone, or standing to attention, RackBrute is at your command.

The second trick up its sleeve is the stalwart, ever-reliable, power supply module. Including two independent circuits to supply common modular voltages, it will more than cover your need for +12V, -12V and +5V, providing up to 1600mA in total.

Thirdly, its robust power rail includes a sophisticated noise-filtering technology, and provides 20 standard slots to leave plenty of space for your collection.

Once you're powered, in position, and locked down, you'll feel like your modular rig could withstand a siege.

Joining forces with allies

Always remember the Modular Republic's motto: Unity is strength.

The Link fastening system not only equips the RackBrute 3U, but also its large-calibre sibling, RackBrute 6U as well the MiniBrute 2 and MiniBrute 2S. No matter the combination you go for, you can make the most out of your extensive module collection, or create a powerful EcoSystem with the extensive CV/Gate connectivity of the MiniBrute 2 and 2S.

It's also worth noting that although this technology comes straight from the top secret Arturia research labs, they are working for the greater good. The Link system is patent-free, so you can expect more and more Link-enhanced equipment to become available in the near future.

Do not wait for reinforcements, bring them yourself.

Let's move out

Arturia have made sure that your gear would arrive without any scratches.

When carrying precious cargo, dozens of fragile modules, a unique and irreplaceable collection, you need to be certain of their safety. With RackBrute 3U, you have nothing to fear: from the handle, all the way to the threaded nut strips, you'll find strong aluminum and steel. Wherever you go, however long your journey, however heavy your setup, RackBrute was built to last. Even transporting two RackBrutes or a RackBrute and a MiniBrute 2 is totally risk-free thanks to the built-in Spacers, eliminating any chance of collision.

If you are planning an undercover mission, the dedicated, discrete RackBrute Travel Case will keep your precious equipment free from harm.

When you need to take your show on the road, rehearse, or even just rearrange your creative space, you can depend on RackBrute.

What's in the box

Box content:

RackBrute 3U unit
Power cord
Instrument dimensions
Size : 19 x 6.6 x 3.3 inches (484 x 167 x 83mm)
Weight : 4.7 lbs. (2.1 Kg)

Main Features:

Eurorack format, 88 HP
Aluminum Chassis
Provided with a 5 HP power module
Up to 1600mA on +12V and 1600mA on -12V (2 separate circuits of 800mA)
Up to 900mA on 5V (USB + 5V modules)
Power rail with noise filtering
20 standard power slots with up to 800mA on +12V and -12V
Link system and smart handle to fasten a MiniBrute 2/2S or another RackBrute unit in various configurations
Built-in Spacers for the highest protection in transport configuration

Notes: The uBASE-QS 2 module is the carrier (or BASE) for four micro modules and explicitly designed for use in the QUICKSWAP CASEs. This carrier module can be plugged into the QS case as any other module; then, the uModules can be plugged in and removed itself into it, even with the AE system running, so you can reconfigure or add needed functions in form of micro modules "on the fly".

A number of sockets provide access to the bus signals, like CV, gate, cotroller, MIDI start/stop/clock.

Included is a small "key" to lift also modules without knobs in an easy way.

Notes: ***B-STOCK: Box opened, product in perfect working order***

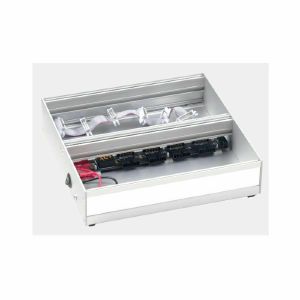

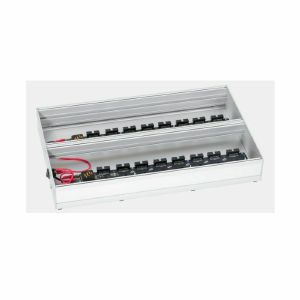

ALM Eurorack cases are available in a range of sizes all including an integrated powered bus boards.

The cases all feature anodised aluminium construction, an on/off switch, rubber feet, and high quality switched powered bus boards with numerous keyed headers and ample power capacity.

These are simple and compact Eurorack cases, perfect for small, focused systems, taking along on travels, or as a tabletop addition to a larger setup.

Cases are available in 4 sizes; 3U 84HP / 6U 84HP / 3U 52HP / 6U 52HP sizes. They all offer 1 Amp on both the -12V and +12V rails per row.

Great modern cases

The ALM powered Eurorack case was originally designed for the System Coupe. Wider interest has seen it evolve into a range of different sized cases being made available by themselves.

A fixed solid bus board provides quality ample power and plentiful keyed power connectors. The shielded DC/DC power converter is low noise and includes overload and short circuit protection. Fixed, quality mounting rails are used over sometimes frustrating sliding nuts. The case has a great looking all anodised aluminium construction that is both strong and light.

The case proportions are designed to look great on a table or desk (not too deep, just enough) and also be easy to fit in a bag and transport.

Decksaver case covers are available currently for the 3U/84HP, 6U/52HP, and 6U/84HP cases.

6U / 84HP

Provides up to 2 Amp power total on each -12V & +12V rails (1 Amp total per row)
Connections for up to 32 modules.
Includes 5 Amp power 'brick'

Notes: ***B-STOCK: Item refurbished, repaired and in perfect working order.***

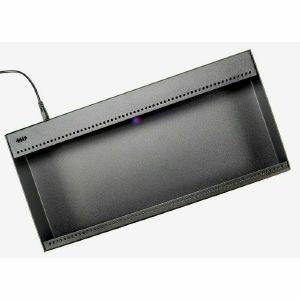

Low-cost, portable, compact enclosure that turns Eurorack modules into table-top instruments.

The Pod64X is 64HP with 2.16" (55mm) of available module depth. The built-in power supply has four power connectors and can be daisy-chained to other Pods. More power connectors can be added with the Multi Power Cable accessory.

Pods require a power brick, or a barrel cable to daisy-chain to a Pod or Row Power that's already powered.

Pods are a perfect way to get started in Eurorack, or add a couple more modules to your monster system!

Made from 100% anodized aluminum, Pods are light, tough and perfect for on-the-go set ups. The power supply can handle up to 1.4A of +12V, which is plenty of juice for even the most modern digital modules. (Or if you prefer to DIY your power supply, Pods are also available unpowered)

Each Pod64X typically will house up to six modules, but more can be accommodated using a multi-power cable accessory.

Mix and match your Pods with desktop synths, effect pedals, drum machines or any musical gear for a flexible modular system. Pods can even daisy- chain with the 4ms Row Power system making them a convenient outboard mini-skiff. Need to add another module? Just add a Pod! Need to pack light for a live set? Just grab the Pods you need and go!

Basic Features:

64 HP of Eurorack modular space
Extra room for deep modules
Standard M3 threaded holes
100% lightweight anodized aluminum
Built-in Power supply
Red, White, and Blue LED power indicators

Includes:

64HP Pod, black anodized aluminum
Built-in power supply with six Eurorack power headers
Extra deep (2.16"/55mm) fits virtually every Eurorack module
M3 x 8mm pan-head screws, stainless steel (20)
Adhesive rubber feet (4)
Does not include barrel cable or power brick
Power Supply:

Four 16-pin Eurorack power shrouded headers
+12V max 1.4A
-12V max 0.67A
+5V max 1.0A
Power input: Two barrel jacks for daisy-chaining
15V-20VDC, 2.1mm positive tip
Exterior dimensions:
Width: 329.7mm (12.98")
Height: 159.5mm (6.28")
Depth: 57mm (2.24")
Interior dimensions:
Max module depth: 55mm (2.16")
Module width: 64HP
Weight:
0.5 kg = 17 oz

Notes: ***B-STOCK: Box damaged, item shows signs of use but product in perfect working order***


RackBrute 6U

Armoured Eurorack carrier

RackBrute 6U is an all-inclusive Eurorack case ensuring the total security of your modules and maximum practicality in all conditions of use. Its multi-position configuration and included dependable power supply make it the true specialist solution.

Artists may have a bodyguard; modules deserve armour-plating.

RackBrute 6U provides you with 176HP to store and secure your enviable collection of Eurorack modules in an everlasting yet lightweight aluminium chassis flanked by two wood panels. Once you're locked and loaded, your modular setup will look and feel like a monolith, yet more flexible than ever thanks the Link fastening system and the paired handle. When on the move, it will make the transport of your modular equipment a walk in the park. When in position, it will let you organize your command centre the way you want it. Modules don't live on love alone, and RackBrute 6U keeps everything alive with its +12V / -12V / +5V power supply.

When you have to hold your position for hours, it's better to be well set up and to have a clear view of the surroundings. For this reason, we developed the Link system, a convenient and simple-to-use fastening system that allows you to orientate the dedicated handle so that you can give your modular the most tactically advantageous position. Whether prone, crouching, or standing to attention, RackBrute 6U will always be on the lookout, ready for orders.

Troops are nothing if they are not properly fed. No problem, RackBrute 6U is not just a box. It includes a formidable +12V / -12V / +5V power supply ensuring your firepower up to 1600mA. This is coupled with a military-grade power rail with 32 available slots, including advanced noise filtering technology that guarantees optimum conditions.

With RackBrute 6U, even the most headstrong modules fall into line.

Uniting your forces under the same banner
May all modular units meet at the rallying point and be ready for further orders!

The RackBrute 6U fully takes advantage of the Link System, and it's not alone. You'll also find the Arturia Link on the more compact RackBrute 3U, as well as the self-contained MiniBrute 2 and MiniBrute 2S synthesizers. What solution will you go for? Will your field of operations be fully based on Eurorack, or the powerful force of analogue monosynth flagship supported by a fleet of complementary modules?

This technology is the brainchild of our secret research department, but we wanted it to be patent-free so that all our allies could adopt and benefit from it. The modular music battleground is likely to get crowded with an ever-growing variety of Link-enhanced system.

You are not alone on this mission. You have your trustworthy equipment to keep you company.

Equipment checking!

All present and correct, ready for inspection. We trust you'll find everything to your liking.

Go, go, go!

Don't worry, RackBrute 6U will keep mishaps at bay.

The success of your operation depends on your sensitive material arriving in perfect working order. RackBrute 6U is up to the challenge. The handle, the chassis, the threaded nut strips, each of its strategic components is made aluminium or steel. RackBrute will carry your setup no matter the context, not matter the weight, the distance and the destination. The built-in spacers will also make sure that no collisions occur when transporting two RackBrute units or a RackBrute and MiniBrute 2. Maybe you also want to keep your modular away from prying eyes. Then, trust the optional RackBrute Travel Case for more covert missions.

RackBrute 6U is the complete transport solution for when you need to take your show on the road.

What's in the box:

Box content
RackBrute 6U unit
Power cord

Instrument dimensions
Size : 19 x 13.2 x 3.3 inches (484 x 300 x 83mm)
Weight: 8.3 lbs. (3.76 Kg)

Main Features

Eurorack format, 176 HP
Aluminium Chassis
Provided with a 5 HP power module
Up to 1600mA on +12V and 1600mA on -12V (4 separate circuits of 800mA)
Up to 900mA on 5V
Power rail with
Noise filtering
32 standard power slots
20-slot zone with up to 800mA on +12V and -12V
12-slot zone with up to 800mA on +12V and -12V
Link system and smart handle to fasten a MiniBrute 2/2S or another RackBrute unit in various configurations
Built-in Spacers for the highest protection in transport configuration

Notes: ***B-STOCK: Box opened, product in perfect working order***


The Eurostand support is designed to hold Eurorack-style synthesizers, with specific features to ensure user comfort and equipment stability. Two sturdy feet connected by rods can support cabinets of up to 7u. This rod system allows adjusting the width of the stand according to the size of the cabinet you have.

The angle of inclination makes it ideal for use standing or sitting.

A durable and resistant plastic material, such as PLA, is used to 3D print the stand. This ensures it can support the weight of multiple Eurorack modules without deforming or breaking.

In summary, the ergonomic Eurostand support for Eurorack-style synthesizers is designed to provide a safe and comfortable platform for organizing and efficiently using these devices.

*** Please note: The synth modules are not inlcuded, they are shown for demonstration purposes only. ***

Notes: Omnitone designed these M3 screws so we don't have to deal with cumbersome screwdrivers anymore. Comes in a black tin with an Omnitone sticker on to (peels off cleanly if you would like to use for other things).

Notes: They are not just blanks, they are MULTS! Each white line connects holes which are electrically connected. Nicely fits the tip of a patch cable for a quick-n-easy signal splitting.

OR

The holes are sized for screws to fit, but not fall through, acting as a handy screw holder!

OR

Use it as a vent for your toasty warm skiff!

Notes: Add some hand-drawn art to your setup. These blank panels come as a set of 5: 10HP, 8HP, 6HP, 4HP, and 2HP. They connect together to show a 2 larger pictures, but also each look great on their own. Drawn with love by Liz.

Notes: ***B-STOCK: Box opened, product in perfect working order***


Make Noise's 208hp 7U 4 Zone CV Bus Case arrives ready to use. Just add modules, patch cables and inspiration. The powder coated metal construction offers excellent mechanical durability. The lid is removable and can be closed with the system fully patched. The sleek matte black finish was selected to match Make Noise's line of Black & Gold modules, and it looks great with just about any module installed. This finish will show the story of your modular synth's travels over the years.

The Make Noise 4 Zone Power Bus Board is a new approach to accommodating the ever-growing universe of Eurorack modules. The multi-zone solution is like having 4 independent bus boards in a convenient single bus board package. Each Zone features isolated +12 VDC and -12VDC supplies and a dedicated ground return path. The +5VDC supply is shared amongst all 4 zones.

The multiple section of the CV Bus was originally designed in 2013 for Alessandro Cortini's personal Make Noise system. It provides visual indication of level, rate and polarity for up to 4 control signals that will be shared throughout a patch. These 4 control signals are colour coded and distributed across the centre of the system allowing for quick, clean and intuitive patching. The distribution method is unlike the typical multiple since the control signals will appear beneath their possible destinations allowing for the use of shorter patch cables. The colour coding and visual indication makes navigating complex patches easier and more intuitive. Typically, the CV Bus would be used to share the most important control signals in a patch such as your Master Clock.

This new version of the CV Bus also includes useful modular utilities:

The Voltage Math is found at the left end of the CV Bus. Like the similar circuit on the 0-Coast, it is a small collection of universally useful modular utilities. The two inputs are summed at the output, one at unity and one adjusted by the input attenuverter. The attenuverted input is also normalled to a DC offset, for purposes of level shifting, voltage mirroring etc. The output strength and polarity is indicated by the Green and Red output LEDs.

A high quality Stereo Line Driver converts powerful modular synthesizer signal levels to the commonly used Line Level. There are mini-jack inputs for Left or Mono, and Right for Stereo sound, a single master volume control, as well as a stereo line output pair, and finally a TRS line/headphone out on a single jack. This output is capable of driving a long cable out to a PA System or a set of Headphones. It is AC coupled with a built-in limiting circuit (with visual indication) that prevents damage to ears and PA system when the patching gets experimental.

Includes

Two 104 hp 3U rows for Eurorack modules, One 104hp 1U row fitted w/ CV Bus
Hybrid switched/linear power solution for low noise and excellent load regulation
Multi-Zone, allowing isolation of noise-prone modules from noise-sensitive ones
Black powder coated metal w/ embossed logo on lid
Sealed to keep dust out during travel or storage
Lid offers space to close w/ your system patched
Recessed side mounted on/off switch and power inlet for safe travel
Locking power connector helps prevent on-stage power loss accidents
Solid carrying handle and rubber feet so the case travels w/ ease
Meets carry-on luggage size requirements for most airlines
Universal AC power adapter works world wide (Need IEC Cable for non-US outlets)
Blued Steel Stand sold separately

Specifications

Size: 7U
Total HP: 208 @ 3U, 104 @ 1U
Outer Dimensions:
22.25" x 14" x 7.25" w/ lid
Max Module Depth: 2.5"
Weight: 12.75 lbs. (w/ powered bus board, CV Bus installed)
Power: +12VDC @ 4A, -12VDC @ 2.4A and +5VDC @ 1A
Connectors: 32
Includes: CV Bus, Powered Bus Board, 120 Sliding M2.5 nuts w/ Black screws, AC Adapter

Notes: The 1-row QUICKSWAP CASE for AE Modular is the high-end case for AE Modular. It is based on a sturdy metal chassis with a beautiful matte black powder coating and - allows to plug in AE modules without any screws, which is a key feature of this case! The design makes sure that the modules sit firmly inside the case and the bus connection is established automatically by the integrated bus board, so need for the separate bus cable known from the standard AE cases. Rearranging your modular system can't be easier!

This case is developed by Kyaa, a 3rd party AE module developer; Tangible Waves is producing the case.

With a connector kit, another QUICKSWAP CASE of same width can be attached at certain angles, depending on the connector - and the power supply is linked between the cases, also via the connector.

Other utilities, like a handle for carrying a folded case, are coming soon.

Please note: This rack does not include the Master or Power module.

To connect the case to power you have the following options:

Install the Master Module
Install the Power Module
Connect to another, already powered QUICKSWAP CASE
Connect to another AE case via the RACKLINK module kit

*** Please note: the modules are not included, they are shown for demonstration purposes only. ***

Notes: ***B-STOCK: Box damaged, product in perfect working order***


RackBrute 3U is a comprehensive Eurorack housing, transport, and protection solution. Featuring configurable positions, dependable power supply, and maximum practicality, you can be assured your precious modules will be well guarded.

Don't worry; your beloved modules are under heavy guard.

Modular gear is a precious commodity, and you need a versatile housing and security system to accommodate them. A first glance, you'll see that this is a perfectly fitted 3U, 88 HP case made of a light but strong aluminium chassis, fitted with wood side panels.

Deceptively simple, RackBrute is far more than a simple box. It includes many smart additions, such as the included +12V / -12V / +5V power supply that ensures that keeps everything up and running, and the multi-position handle system that not only lets you carry your collection with ease, but also lets you deploy an optimal operating angle, whatever your preference.

Ready for anything

Secure an unobstructed viewpoint over the theatre of operation, and hold the position 'til further orders.

In addition to keeping your modules safe and secure, RackBrute 3U gives you total control of the situation, no matter the context. The first of its secret weapons is the Link fastening system. Paired with the included handle, it will let you choose one of several configurations and orientations for your modular arsenal. Whether you want your gear stealthy and prone, or standing to attention, RackBrute is at your command.

The second trick up its sleeve is the stalwart, ever-reliable, power supply module. Including two independent circuits to supply common modular voltages, it will more than cover your need for +12V, -12V and +5V, providing up to 1600mA in total.

Thirdly, its robust power rail includes a sophisticated noise-filtering technology, and provides 20 standard slots to leave plenty of space for your collection.

Once you're powered, in position, and locked down, you'll feel like your modular rig could withstand a siege.

Joining forces with allies

Always remember the Modular Republic's motto: Unity is strength.

The Link fastening system not only equips the RackBrute 3U, but also its large-calibre sibling, RackBrute 6U as well the MiniBrute 2 and MiniBrute 2S. No matter the combination you go for, you can make the most out of your extensive module collection, or create a powerful EcoSystem with the extensive CV/Gate connectivity of the MiniBrute 2 and 2S.

It's also worth noting that although this technology comes straight from the top secret Arturia research labs, they are working for the greater good. The Link system is patent-free, so you can expect more and more Link-enhanced equipment to become available in the near future.

Do not wait for reinforcements, bring them yourself.

Let's move out

Arturia have made sure that your gear would arrive without any scratches.

When carrying precious cargo, dozens of fragile modules, a unique and irreplaceable collection, you need to be certain of their safety. With RackBrute 3U, you have nothing to fear: from the handle, all the way to the threaded nut strips, you'll find strong aluminum and steel. Wherever you go, however long your journey, however heavy your setup, RackBrute was built to last. Even transporting two RackBrutes or a RackBrute and a MiniBrute 2 is totally risk-free thanks to the built-in Spacers, eliminating any chance of collision.

If you are planning an undercover mission, the dedicated, discrete RackBrute Travel Case will keep your precious equipment free from harm.

When you need to take your show on the road, rehearse, or even just rearrange your creative space, you can depend on RackBrute.

What's in the box

Box content:

RackBrute 3U unit
Power cord
Instrument dimensions
Size : 19 x 6.6 x 3.3 inches (484 x 167 x 83mm)
Weight : 4.7 lbs. (2.1 Kg)

Main Features:

Eurorack format, 88 HP
Aluminum Chassis
Provided with a 5 HP power module
Up to 1600mA on +12V and 1600mA on -12V (2 separate circuits of 800mA)
Up to 900mA on 5V (USB + 5V modules)
Power rail with noise filtering
20 standard power slots with up to 800mA on +12V and -12V
Link system and smart handle to fasten a MiniBrute 2/2S or another RackBrute unit in various configurations
Built-in Spacers for the highest protection in transport configuration

Notes: ***B-STOCK: Box opened, product in perfect working order***


ALM Eurorack cases are available in a range of sizes all including an integrated powered bus boards.

The cases all feature anodised aluminium construction, an on/off switch, rubber feet, and high quality switched powered bus boards with numerous keyed headers and ample power capacity.

These are simple and compact Eurorack cases, perfect for small, focused systems, taking along on travels, or as a tabletop addition to a larger setup.

Cases are available in 4 sizes; 3U 84HP / 6U 84HP / 3U 52HP / 6U 52HP sizes. They all offer 1 Amp on both the -12V and +12V rails per row.

Great modern cases

The ALM powered Eurorack case was originally designed for the System Coupe. Wider interest has seen it evolve into a range of different sized cases being made available by themselves.

A fixed solid bus board provides quality ample power and plentiful keyed power connectors. The shielded DC/DC power converter is low noise and includes overload and short circuit protection. Fixed, quality mounting rails are used over sometimes frustrating sliding nuts. The case has a great looking all anodised aluminium construction that is both strong and light.

The case proportions are designed to look great on a table or desk (not too deep, just enough) and also be easy to fit in a bag and transport.

Decksaver case covers are available currently for the 3U/84HP, 6U/52HP, and 6U/84HP cases.

6U / 52 HP

Provides up to 1 Amp power on each -12V & +12V rails.
Connections for up to 9 modules on busboard, with additional 'flying bus board' included that adds up to 12 connectors.
Includes 2 Amp power 'brick'

Notes: ***B-STOCK: Box damaged, product unused & in perfect condition***


RackBrute 3U is a comprehensive Eurorack housing, transport, and protection solution. Featuring configurable positions, dependable power supply, and maximum practicality, you can be assured your precious modules will be well guarded.

Don't worry; your beloved modules are under heavy guard.

Modular gear is a precious commodity, and you need a versatile housing and security system to accommodate them. A first glance, you'll see that this is a perfectly fitted 3U, 88 HP case made of a light but strong aluminium chassis, fitted with wood side panels.

Deceptively simple, RackBrute is far more than a simple box. It includes many smart additions, such as the included +12V / -12V / +5V power supply that ensures that keeps everything up and running, and the multi-position handle system that not only lets you carry your collection with ease, but also lets you deploy an optimal operating angle, whatever your preference.

Ready for anything

Secure an unobstructed viewpoint over the theatre of operation, and hold the position 'til further orders.

In addition to keeping your modules safe and secure, RackBrute 3U gives you total control of the situation, no matter the context. The first of its secret weapons is the Link fastening system. Paired with the included handle, it will let you choose one of several configurations and orientations for your modular arsenal. Whether you want your gear stealthy and prone, or standing to attention, RackBrute is at your command.

The second trick up its sleeve is the stalwart, ever-reliable, power supply module. Including two independent circuits to supply common modular voltages, it will more than cover your need for +12V, -12V and +5V, providing up to 1600mA in total.

Thirdly, its robust power rail includes a sophisticated noise-filtering technology, and provides 20 standard slots to leave plenty of space for your collection.

Once you're powered, in position, and locked down, you'll feel like your modular rig could withstand a siege.

Joining forces with allies

Always remember the Modular Republic's motto: Unity is strength.

The Link fastening system not only equips the RackBrute 3U, but also its large-calibre sibling, RackBrute 6U as well the MiniBrute 2 and MiniBrute 2S. No matter the combination you go for, you can make the most out of your extensive module collection, or create a powerful EcoSystem with the extensive CV/Gate connectivity of the MiniBrute 2 and 2S.

It's also worth noting that although this technology comes straight from the top secret Arturia research labs, they are working for the greater good. The Link system is patent-free, so you can expect more and more Link-enhanced equipment to become available in the near future.

Do not wait for reinforcements, bring them yourself.

Let's move out

Arturia have made sure that your gear would arrive without any scratches.

When carrying precious cargo, dozens of fragile modules, a unique and irreplaceable collection, you need to be certain of their safety. With RackBrute 3U, you have nothing to fear: from the handle, all the way to the threaded nut strips, you'll find strong aluminum and steel. Wherever you go, however long your journey, however heavy your setup, RackBrute was built to last. Even transporting two RackBrutes or a RackBrute and a MiniBrute 2 is totally risk-free thanks to the built-in Spacers, eliminating any chance of collision.

If you are planning an undercover mission, the dedicated, discrete RackBrute Travel Case will keep your precious equipment free from harm.

When you need to take your show on the road, rehearse, or even just rearrange your creative space, you can depend on RackBrute.

What's in the box

Box content:

RackBrute 3U unit
Power cord
Instrument dimensions
Size : 19 x 6.6 x 3.3 inches (484 x 167 x 83mm)
Weight : 4.7 lbs. (2.1 Kg)

Main Features:

Eurorack format, 88 HP
Aluminum Chassis
Provided with a 5 HP power module
Up to 1600mA on +12V and 1600mA on -12V (2 separate circuits of 800mA)
Up to 900mA on 5V (USB + 5V modules)
Power rail with noise filtering
20 standard power slots with up to 800mA on +12V and -12V
Link system and smart handle to fasten a MiniBrute 2/2S or another RackBrute unit in various configurations
Built-in Spacers for the highest protection in transport configuration

Notes: ***B-STOCK: Product with some signs of usage but in perfect working order***


NiftyBUNDLE is a collection of Cre8audio's most essential euro rack synth components:

Case, modules, power, MIDI to CV, and "enough patch cables to get into trouble" are all included.

The NiftyBUNDLE is made up of the following Cre8audio components:

NiftyCASE

The Cre8audio NiftyCASE is a moderately sized euro rack case with HUGE possibilities!

NiftyCASE is more than just a basic eurorack case; it provides all the power and connection possibilities you could possibly ask for. NiftyCASE offers a beefy 2A of cumulative current via its +12v -12v and +5v power rails, ideal for all your modules.

Connecting your NiftyCASE to computers or MIDI devices is a breeze thanks to the built-in MIDI to CV conversion. NiftyCASE takes either DIN-MIDI from any DIN-MIDI device or USB-MIDI from your computer and turns it into eurorack compatible CV, gate, mod, and clock signals.
NiftyCASE's DIN-MIDI thru lets you easily daisy-chain multiple NiftyCASES and easily integrate NiftyCASE with your MIDI equipment.

The NiftyCASE is the perfect size for a portable eurorack case being 84hp wide; that means NiftyCASE isn't super tiny or super huge- it's just the right size for all of the cardboard boxes they're shipped in.

Chipz and Cellz modules

Chipz is a chiptune-inspired eurorack synth module, which will take you back to the halcyon sounds of the '80s.

Cre8audio describe chips as ideal for those who speak "bleep blop". They say that Chipz is "full of heaping piles of beeps, blops, and probably some other stuff too. It's got a couple of voices and some wacky LFO junk, perfect for getting your body wobbling"

Putting all of that into language you might understand a little more, Chipz is a dual VCO and dual LFO module with each offering sine, triangle, saw, square, and noise waveforms.

Cellz is another wacky module from the deranged minds over at Cre8audio. A programmable CV touchpad where each touch segment can be tuned to 2 different CV values then played by hand, sequenced, and arpeggiated.

Box 'O' Cables & Blanking Panels

To get you up and running, the NiftyBUNDLE also comes with Cre8audio's Box 'O' Cables, allowing you to get patching and making noise straight away. The NiftyBUNDLE also includes some Cre8audio branded panel blanks to fill empty eurorack space.

Included in the NiftyBUNDLE:
NiftyCASE
NiftyCASE 15v 2.4A PSU
Chipz
Cellz
Box 'O' Cables
2x Cre8audio "8" panel blanks

Specifications:

Useable case area = 84hp
Internal depth = 55mm
Weight = 1.8kg
6.8cm x 44.6cm x 18.6cm
Range of cv out 1 = 0-10V
Range of cv out 2 = 0-10V
Voltage output gate 1 - off =0 on =5?off = 0 on = 4.65?
Voltage output gate 2 - off =0 on =5?off = 0 on = 4.65?
Voltage output mod = 1-10V
Voltage output clock - off =0 on =5
Power output for modules
+12V - 1500mA peak output**
-12V - 500mA peak output**
+5V - 500mA peak output**
1/4" ts mono output on rear
MIDI in via USB and 5 pin Din
MIDI thru via 5 Pin Din and USB

Notes: ***B-STOCK: Box damaged, but product is in excellent condition and in perfect working order***


These cables are designed to interconnect pro audio gear with balanced phone jacks. They are ideal for use with balanced phone patch bays. Features include:

- Nickel-plated plugs for rugged durability and efficient signal transfer
- Oxygen-Free Copper (OFC) conductors for enhanced signal clarity
- OFC spiral shields for effective EMI and RFI rejection and flexibility

Connectors: 1/4 in TRS to Same
Conductors: 26 AWG x 2 OFC
Shield: 85% OFC Spiral
Quantity: 8 pc

Notes: ***B-STOCK: Box opened, product in perfect working order***


With Mantis, Tiptop took their years of experience with Eurorack to create a low-cost case that makes the Eurorack modular synthesizer look, work, and feel like a professional instrument. Mantis is an instrument that is at home on stage, touring, or in the center of the studio.

Mantis has two rows of 104HP for you to rack your modules. It comes fully powered and assembled, just drop in your modules and play.

Using its sophisticated leg mechanism, you can set it to three different positions: 0, 45, and 90 degrees.

Power Power and more Power! With Mantis, say bye-bye to the tedious, never-ending calculation of current consumption for the i12V power. Mantis comes with a juicy Zeus power supply that delivers plenty of power both now and for the future.

Mantis is beautiful and the color contrast between legs and body gives it its identity. Legs are offered in 4 different colors so anyone can find the right look.

Mantis comes with real Z-Rails made according to Eurorack enclosure standards. No sliding nuts or wrong spacing! It also has keyed power connectors to help protect your modules from damage from plugging the power in in reverse.

Using the optional bracket accessory Mantis can be doubled up to 416HP! Multiply your Mantis and watch your studio setup grow...

Weighing only 3kg/6.5lb, Mantis is so light, traveling has never been so relaxed.

The Dual Mantis Studio Brackets pair lets you connect two Mantis together in a robust and elegant solution. This setup is fixed and is recommend mainly for studio use. The brackets are cut precisely by laser from a sturdy metal and then coated twice for a nice smooth finish that matches the Mantis light gray color. They come with sixteen screws and special washers that help hold the screw in place during assembly and keep a tiny gap between the brackets and the Mantis. Installation is fairly simple and takes about 30 minutes to complete.

***UPDATE - MAY 2021 ***
As of May 2021, all Mantis cases shipped have a small update to the design. The connector for SyncBus is no longer included. This connector was never used as Tiptop didn't develop the cable for it, and the connector is no longer in production by the manufacturer so it was removed. The Mantis still has the same power supply and functions as before.

Notes: The uCASE is designed to hold AE micro modules of 1/3 size. It is available in the same widths like the other AE cases (12, 16, 20 units). It contains sockets for uModules over the whole width, so no need for extra carriers for the uModules. The uModules can be plugged in and removed easily, even with the AE system running, so you can reconfigure or add needed functions in form of micro modules "on the fly".

The bus connection to the parent case is made with a short ribbon cable, so the uCASE gets it's power supply plus other bus lines from there.

The functionality is basically the same as the uBASE module; here, to groups of four uModules the bus lines lie CV, GATE, MIDI clock etc. can be assigned individually (not used by the currently available uModules, but will become relevant for future uModules).

Included is a small "key" to lift also modules without knobs in an easy way.

Notes: The 1-row QUICKSWAP CASE for AE modular is the high-end case for AE modular. It is based on a sturdy metal chassis with a beautiful matte black powder coating and - the key feature of this case - allows to plug in AE modules without any screws! The design makes sure that the modules sit really firm in the case and the bus connection is established automatically by the integrated bus board, so need for the separate bus cable known from the standard AE cases. This means, rearranging your modular system can't be easier!

This case is developed by Kyaa, a great 3rd party AE module developer; tangible waves is producing the case. We are happy about this great cooperation and this marvellous addition to our product range!

With a connector kit, another QUICKSWAP CASE of same width can be attached at certain angles, depending on the connector - and the power supply is linked between the cases also via the connector.

Other utilities, like a handle for carrying a folded case, are coming soon.

Please note: This rack does not include the Master or Power module.
To connect the case to power you have the following options:
install the Master Module
install the Power Module
connect to another, already powered QUICKSWAP CASE
connect to another AE case via the RACKLINK module kit

Notes: ***B-STOCK: Box opened, product in perfect working order***


This AC Power Adapter comes with a locking DC extension cable. The connector of the DC extension cable screws down to the DC jack, preventing noise interference when the cable is bumped.

There are two voltage options:
12V: used with original 5A Power Supply and newer Five Amp Power.
19V: used with Deluxe Power, Super Power, Case Power Mini and Case Power.
Note: If you are replacing a power brick on a Synthrotek power supply, use the same voltage as was originally sent (unless the brick is 15V, then change to it to 19V).

AC input: 100-240V, 1.6A, 50-60Hz

DC output:
12V at 5A
19V at 4.74A

Center positive 2.1mm pin

Comes with a 3-prong power cable, which will work in the US and some other countries. If you are in Europe, etc. you can get a separate volex connector that will work in your country. We don't carry international connecting cables, but you can find them easily on the web.

Notes: polytip is Tiptop Audio's new type of modular synthesiser patch cable that can pass multiple audio channels using minimal panel space. This innovative design finally adds to modular the capability to patch more than one signal at a time and unleash the full potential of polyphonic patching between modules. Polytips uses the industry standard USB Type C connector although it is not a USB cable (and USB cables do not work with Polytip). Internally multiple lines of shielded analog audio lines pass from end to end with excellent sound quality.

Notes: Polytip is Tiptop Audio's new type of modular synthesiser patch cable that can pass multiple audio channels using minimal panel space. This innovative design finally adds to modular the capability to patch more than one signal at a time and unleash the full potential of polyphonic patching between modules. Polytips uses the industry standard USB Type C connector although it is not a USB cable (and USB cables do not work with Polytip). Internally multiple lines of shielded analogue audio lines pass from end to end with excellent sound quality.

Notes: Polytip is Tiptop Audio's new type of modular synthesiser patch cable that can pass multiple audio channels using minimal panel space. This innovative design finally adds to modular the capability to patch more than one signal at a time and unleash the full potential of polyphonic patching between modules. Polytips uses the industry standard USB Type C connector although it is not a USB cable (and USB cables do not work with Polytip). Internally multiple lines of shielded analogue audio lines pass from end to end with excellent sound quality.

Notes: Polytip is Tiptop Audio's new type of modular synthesiser patch cable that can pass multiple audio channels using minimal panel space. This innovative design finally adds to modular the capability to patch more than one signal at a time and unleash the full potential of polyphonic patching between modules. Polytips uses the industry standard USB Type C connector although it is not a USB cable (and USB cables do not work with Polytip). Internally multiple lines of shielded analogue audio lines pass from end to end with excellent sound quality.

Notes: Polytip is Tiptop Audio's new type of modular synthesiser patch cable that can pass multiple audio channels using minimal panel space. This innovative design finally adds to modular the capability to patch more than one signal at a time and unleash the full potential of polyphonic patching between modules. Polytips uses the industry standard USB Type C connector although it is not a USB cable (and USB cables do not work with Polytip). Internally multiple lines of shielded analogue audio lines pass from end to end with excellent sound quality.

Notes: It's always nice to have some extra power cables handy. Omnitone's standard modular power cables come in a pack of 5. Each power cable is 26cm (~10 inches) long.

Notes: ***B-STOCK: Box opened, product in perfect working order***


This is the powered version that includes the case as described here, a Strom+ module, a Strom power supply (AC/DC adapter) and a Strom busboard with connector cable. You only need to plug modules into the case and you’re ready to go!

One case fits 84HP of modules with a depth of 70mm.

The cases can be used with an incredible amount of flexibility to swap in an out full rows and create larger setups using the Case Connectors and Case Standoffs.

The side cheeks are made of high-quality Finnish plywood and are coated with a durable transparent melamine film. The black surface is hardwearing and crack resistant as well as easy to clean.

All cases are shipped with a set of 4 rubber feet and 50 x M3 screws.

Notes: The 1-row QUICKSWAP CASE for AE modular is the high-end case for AE modular. It is based on a sturdy metal chassis with a beautiful matte black powder coating and - the key feature of this case - allows to plug in AE modules without any screws! The design makes sure that the modules sit really firm in the case and the bus connection is established automatically by the integrated bus board, so need for the separate bus cable known from the standard AE cases. This means, rearranging your modular system can't be easier!

This case is developed by Kyaa, a great 3rd party AE module developer; tangible waves is producing the case. We are happy about this great cooperation and this marvellous addition to our product range!

With a connector kit, another QUICKSWAP CASE of same width can be attached at certain angles, depending on the connector - and the power supply is linked between the cases also via the connector.

Other utilities, like a handle for carrying a folded case, are coming soon.


Please note: This rack does not include the Master or Power module. To connect the case to power you have the following options:
Install the Master Module
Install the Power Module
Connect to another, already powered QUICKSWAP CASE
Connect to another AE case via the RACKLINK module kit
