エフェクト・ペダル

Notes: With 11 reverb types and a ton of "hidden" functionality, the Electro-Harmonix Oceans 11 reverb pedal could be your new go-to reverb pedal. You can tap into classic tones like hall, plate, and spring reverbs, including a brand-new spring reverb algorithm that sounds gloriously complex and rich - you can even double-tap the footswitch to "crash" the spring reverb. And you'll be able to cover a huge range of modern tones with a variety of modulated reverbs, shimmer reverb, reverse reverb, and more. A mode switch offers access to variations on many of the 11 reverb types. Complete with an infinite reverb mode for freeze-style effects, there is vast creative potential in the Electro-Harmonix Oceans 11 reverb pedal.

Reverb types:

Hall - rich and full sound of a grand concert hall
Spring - brand-new tube spring reverb emulation
Plate - lush and warm plate reverb
Reverse - each note fades in backwards
Echo - recirculates echoes through the plate reverb algorithm
Trem - hall reverb plus tremolo
Mod - modulated reverb
Dyna - swells, gates, and ducks in response to your playing dynamics
Auto-Inf - auto-infinite reverb, triggers a wash of reverb with each new note or strum
Shim - shimmer reverb with an octave-shifted wash that blooms behind your core tone
Poly - polyphonic reverb with two pitch shifts operating on your pre-reverb guitar tone

Notes: The Pitch Fork transposes an instrument's pitch over a +/- three octave range and features three modes which allow the pitch to be transposed up, down or both, simultaneously. The pitch shift amount can be set to a fixed interval or continuously varied by an expression pedal or control voltage.

The controls are straightforward and intuitive. An 11-position Shift switch selects the maximum transposition interval ranging from D (Detune), a shift of 17 cents, through Minor 2nd, Major 2nd, Major 3rd, Perfect 4th, Perfect 5th, Major 6th, Minor 7th, 1 Octave, 2 Octaves and 3 Octaves. A three position toggle switch controls whether the pitch is transposed up, down or both. In Dual mode, two pitch-shifted signals are output. One follows the shift knob as if in the Up position while the other creates a harmony. Dual Mode settings include M3 up + P5 up, P5 up + 1 Oct down, 1 Oct up + 1 Oct down and many others. A Blend knob controls the mix of the dry signal and the effected signal, and an EXP jack enables the player to control pitch and glissando with an expression pedal.

The Latch button selects Latch or Momentary mode which affects how the footswitch and EXP input behave. In Latch mode, the footswitch toggles between effect on and buffered bypass each time it's pressed and the EXP input continuously varies pitch. In Momentary mode the effect is only on while the footswitch is depressed and when it is released the Pitch Fork goes into bypass.

In Latch mode the EXP input controls pitch shift amount, ranging from unity to the interval set by the Shift knob, and pitch varies continuously throughout the expression pedal's range. In Momentary mode the EXP input controls glissando rate for the Pitch Fork's footswitch. When the bypass footswitch is pressed, the Pitch Fork jumps from bypass to the interval set by the Shift knob. The amount of time it takes to reach that new note is the glissando rate. When the footswitch is released the pitch will return to unity at the same rate. That glissando time can vary between 4 milliseconds to two seconds depending on the heel/toe position of the expression pedal. The default glissando rate is 60 milliseconds when nothing is plugged into the EXP input.

The Pitch Fork comes equipped with an EHX 9.6DC-200mA power supply and also runs on a 9Volt battery.

*UK 230V power adapter included*

Notes: A typically unique take on multi-effects from Soma, designed to induce meditative states. Hybrid analogue-digital delay/reverb/granular processing gives a range of creative approaches.

Supplier's Notes:
COSMOS is a drifting memory station designed to work with meditative states through music. The design of the controls, functions and generated soundscapes are intended to evoke, in both performer and listener, states and experiences inherent in meditation, such as limitless space, fluidity, spontaneous development, presence, the ability to hear, tranquility, the experience of subtle harmony and happiness enveloping the whole world.

From a functional point of view, COSMOS is a large array of sound memory, in which recorded sounds undergo constant recombinations, spontaneously generating an ever-changing soundscape. This is achieved in three ways - by a mathematical shift based on the relationships between large prime numbers (the size of all delay lines are different primes), an asynchronous operation of the LFO, and modulation with a slowly changing chaotic signal. As a result, it allows the endless layering and processing of various sounds, as in a looper, but without an intrusive, repetitive loop.

COSMOS generates rich, fluid and evolving soundscapes perfect for ambient music. Using COSMOS, you can play an entire meditative solo concert while being in a spontaneous flow and without using studio-prepared sequences, backing tracks and other things that can't be a reflection of the "here and now".

Specifications

Minimum input voltage: 0.35 V peak-to-peak
Maximum output voltage at line outputs: 11.3 V peak-to-peak
The maximum output voltage at the headphones output: 10.4 V peak-to-peak
Frequency response: 10-22000 Hz
Sound memory: 44.7 sec
Supply voltage: 12 V *
Power connector polarity: centre plus
Current consumption: 0.25 A
Dimensions: 342 x 153 x 68 mm
Weight: 2.2 kg

* Use only the power supply supplied with the device! In case of failure, it can be replaced with a high-quality modern switched-mode power supply with an output voltage of DC 12 volts, the center is plus and an output current of at least 0.5 amperes (more is fine). The power supply must have a wide AC input voltage range of 100-240 volts. Such power supplies have excellent output voltage stabilization required for the device. It is forbidden to use COSMOS with nonstabilized voltage from transformer power supplies. It can lead to damage to the device, which is not covered by the warranty repair!

Notes: Multi Delay and Reverb effect pedal with inside routing and secondary reverb effects. One of the best Delay and Reverb algorithms in a metal box. Special select 3 classic Delays & 3 classic Reverbs . . . and we added a bonus "Shimmer" and "Freeze" effects which let you create a dreamy waterfall shimmer~ especially handy for intros, interludes, and endings. And now, because of NUX's latest Core Image Technology, the new Verdugo Series effect pedals offer pro-level sound enhancement.

Notes: Raise the bar when it comes to creating synth effects, sound layers, glissandos, infinite sustain and more!

Building on the synthesis platform of the award-winning Superego, the EHX Superego+ Synth Engine raises the bar when it comes to creating synth effects, sound layers, glissandos, infinite sustain and more. Plus, we've added a complete effects section featuring 11 effects types, an EXP input for effect parameter control/preset recall and an EXT jack for a 3-button controller.

The Superego+ is equipped with the following effects:
DETUNE: pitch detune, EXP pedal controls pitch
DELAY: warm, analog sounding delay, feedback is preset, EXP controls delay time up to 2 seconds
ECHO: pristine digital delay, feedback is preset, EXP pedal controls delay time up to 2 seconds
FLANGE: Electric Mistress style w/filter matrix, rate and feedback. EXP pedal controls rate
PHASE: Small Stone style phase shifting with rate and depth control. EXP controls rate
MOD: pitch-based vibrato or chorus. EXP controls rate
ROTARY: rotary speaker style sound. Depth controls tweeter/horn balance. EXP pedal controls rate
TREM 1: sine wave tremolo. EXP controls rate
TREM 2: square wave tremolo. EXP controls rate
PITCH: pitch shifting effect over a +/- one octave range. EXP controls whammy
FILTER: resonant low-pass filter. EXP pedal controls frequency

The pedal provides enough sound shaping control to please the most sonically adventurous player and is equipped with Dry, Effect, Attack, Decay, Threshold, Layer and Gliss knobs, plus Rate and Depth knobs for the Effects Section. Four foot-switchable Freeze modes: Moment, Sustain, Auto and Latch, plus a Live Effects mode where the dry signal is routed thru the built-in effects and the internal synth engine is disabled, are included.

The polyphonic Superego+ works with guitar as well as other instruments including bass, keyboards, vocals, drums, etc. and comes equipped with an EHX 9.6DC-200 AC Adaptor.

Creates synth effects, sound layers, glissandos, infinite sustain and more
Four Freeze modes
Built-in effects section with 11 effect types
EXP input for effect parameter control
EXP Presets sweep between snapshots of 7 knob parameters; create and save one set of snapshots for each FX type
Live Effects mode where the dry signal is routed thru the built-in effects and the internal synth engine is disabled
EXT jack for a 3-button controller
Power adapter included

Specifications
Circuit: Digital
Bypass: Buffered Bypass
Audio: Mono
Effects Loop: Yes
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 5.75 x 4.75 x 2.5
Current Draw: 140mA
Year Released: 2017

Notes: The DigiTech FreqOut Natural Feedback Creator allows you to get sweet, natural feedback at any volume, with or without distortion. The FreqOut is perfect for situations where volume must be controlled like in the studio, with in ear monitors, or low-volume performance and practice. However, the FreqOut can also be used at gig volume to focus out-of-control feedback on a preferred harmonic at any stage position. The FreqOut uses a 9VDC power supply to easily integrate into your existing pedalboard.

General Specifications
ControlsFeedback, Momentary On/Off, Dry On/Off, Gain, Onset, Type, Effect On/Off
Signal to Noise Ratio> -106dB (A weighted); ref = max level, 22 kHz bandwidth
THD0.004% @ 1 kHz; ref = 1 dBu w/ unity gain
A/D/A Conversion24-bit
Power Consumption2.1 Watts (235 mA typical @ 9 VDC)
Power Requirements9 VDC External Adapter (sold separately)
Power Adapter (Sold Separately)PS0913DC-04 (US, JA, EU, AU, UK)
Power Adapter Output9 VDC 1.3 A
Dimensions
Length4.75"
Width2.875"
Height1.75"
Weight0.8 lbs.
Audio Output
Output Type1/4" Unbalanced TS (Tip-Sleeve)
Max Output Level+10 dBu
Output Impedance1 kO (Effect enabled or effect bypassed w/ Momentary switch on) ; True Bypass (Effect bypassed w/ Momentary switch off)
Audio Input
Input Type1/4" Unbalanced TS (Tip-Sleeve)
Max Input Level+5 dBu
Input Impedance1 MO (Effect enabled or effect bypassed w/ Momentary switch on) ; True Bypass (Effect bypassed w/ Momentary switch off)

Notes: Legendary fuzz with added features like a Bass Boost, Noise Gate, and adjustable Mids section for the most versatile Muff ever!

Long revered for its sweet singing tone and violin-like sustain, the classic three-knob Big Muff Pi has helped define the sound of rock guitar for over 50 years. Now, we've added some extras for those who crave more sound shaping control. The EHX Deluxe Big Muff Pi delivers all the classic sounds of the original NYC Big Muff Pi, plus more.

Added footswitchable Mids sections boosts or cuts an adjustable mids frequency for added definition or massive scooped tones. Add an optional expression pedal and turn the Deluxe Big Muff into an extreme fuzzed out wah!

The Attack control preserves pick attack with an enhanced version of your dry signal while the Bass Boost adds rumble at higher tone settings. The Gate removes unwanted hiss for a more dynamic performance.

This is the most versatile Big Muff ever!

Specifications:

Circuit: Analogue
Bypass: True Bypass
Audio: Mono
Power Supply: 9V battery included (optional 9.6VDC-200mA power adapter not included)
Dimensions (in): 5.75 x 4.75 x 2.5
Current Draw: 22mA
Year Released: 2014

Notes: The EHX Bass Mono Synth transforms your bass into eleven great sounding synthesizers... from vintage synth emulations to thick, stacked voices to deep pulsing sounds and more.

Its intuitive layout makes it easy to use and easy to dial in good sounds quickly. DRY controls the volume of your dry bass signal at the Synth Output. SYNTH controls the volume of the Synthesizer sound at the Synth Output. Used together they let you create just the right mix. The SENS control, short for sensitivity, adjusts how your playing dynamics trigger the synthesizer and allows you to fine tune the way the pedal responds to your bass rig and playing style.

With the CTRL knob you can adjust a key parameter for each of the eleven synth types. It varies depending on the preset and provides more tweakability for customizing your sound. There’s also an EXP input which lets you control an entirely different parameter in real-time with an expression pedal!

Using the built-in Preset footswitch, a user customizable preset for each of the eleven synth sounds can be created, saved and recalled. The factory presets are also easy to restore should you wish to.

From lush, warm sounds to sharp, percussive stabs, the Bass Mono Synth puts a collection of cool bass synths at your fingertips.

Notes: The BeatBuddy is a drum machine in a stompbox, or a drummer pedal for short. Use this drum pedal for guitar and many other instruments. Further, we've meticulously recorded professional drummers and paired their samples with an algorithm that results in the best sounding drum machine you've ever heard.

In addition to being the most realistic drum machine on the market, it's also the easiest guitar drum pedal to use. That is to say, there's no fussing around with sequencers, and controlling the beat during a live performance is as easy as stomping on the pedal to add fills, transitions, and outros.

Notes: Plumesr is a unique, all-analog approach to a classic tube-like overdrive circuit offering 3 different clipping voices, loads of headroom and almost three-dimensional clarity that will push your amp over the edge. The reimagined tone control is finely tuned to sculpt low end, clear top end, and focus midrange with blooming sustain.

Controls:
1. Level: This controls the output volume.

2. Gain: This controls the amount of drive.

3. Tone: More bass to the left, more middles in the middle and more treble to the right.

4. Clipping Modes (3-Way Toggle):

1. Symmetrical LED clipping - More Crunch and Compression.

2. No clipping - Wide open OpAmp drive for clean boost.

3. Asymmetrical silicon diode clipping - More transparency with a loose feel.

Tech Specs:
Flexi-Switchr Technology
This device features Flexi-Switchr Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.

For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.

For momentary operation, hold the footswitch down for as long as you'd like to use the effect. Once you release the switch the effect will be bypassed.

Since the switching is relay based, it requires power to pass signal.

Power
This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. Pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies are always recommended. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!

Dimensions: 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs
Current Draw: 25 mA
Input Impedance: 10 MO
Output Impedance: 100 O

Notes: Little box, big reverb. Specially designed for huge, cavernous echo effects and ideal for infinite tails and frozen sounds, the Blackhole is an exceptionally high quality pedal at a very reasonable price.

Supplier's Notes:
Create haunting echoes, ethereal landscapes and otherworldly ambience with Blackhole, a reverb pedal as big and as mysterious as the cosmos. Blackhole takes you there - beyond the ambience of mere earthly Halls, Rooms, Plates or Springs. Blackhole will take you on a journey from cathedral-type spaces to a universe of out-of-this-world soundscapes.

It includes onboard tone controls, modulation, and infinite reverb settings with mono or stereo operation, MIDI control, preset storing, and most importantly a new compact, easy-to-use interface.

Blackhole features two types of infinite reverb. Infinity mode continuously layers new sound on top of a suspended reverb. Freeze mode holds the effect allowing you to play over the reverb tail. The Freeze Footswitch allows instant access to this feature.

Unlike other reverbs which may offer pre or post modulation, Blackhole features modulation built into the reverb structure itself. It's essentially a big multi-voice chorus, with unique tone-shaping ability. You can utilize extreme settings to smooth out the edges.

Like all Eventide pedals, Blackhole allows you to fine tune every aspect of the effect. With a new, user-friendly, intuitive interface, just about anyone can shoot for the moon and land beyond the stars.

Input: 1/4" TRS / Mono = Tip, Stereo = Tip & Ring
Out 1: 1/4" TS Mono / Mono Output
Out 2: 1/4" TS Mono / Stereo Output
EXP: 1/4" TRS / Expression pedal, Aux Switch or MIDI I/O
Mono/Stereo Switch: Sets Input to Mono (Tip) or Stereo (Tip + Ring)
Guitar/Line Level Switch: Optimizes internal gain structure
Mini USB Software updates, MIDI I/O
DC Input Jack: 5.5mm / 2.1mm plug / Center Negative (-)

Input Impedance: 700k ohms Mono, 990k ohms Stereo
Max Input, Guitar: +8dBu
Max Input, Line: +14dBu
Output Impedance: 220 ohms
Recommended Load Impedance: 10k ohms

Power: 9V DC @ 200mA / Center Negative (-)
Dimensions (product): 4" W x 4.25" D x 1.68" H / 102 mm x 108 mm x 43 mm
Weight (product): 1.06 lb / 0.48 kg
Dimensions (package): 7.7" W x 4.75" D x 2.8" H / 178 mm x 121 mm x 71 mm
Weight (package): 1.68 lb / .77 kg

Notes: Well on its way to becoming a cult favourite already, Empress's Zoia brings modular synthesis to a compact pedal format. Create effects, synths, controllers or modules to integrate with other instruments.

Supplier's Notes:

The ZOIA is basically a modular synthesizer in pedal form. Instead of being a delay effect or tremolo, the ZOIA provides the modules necessary to build a delay or tremolo from the ground up. But since you're the one building it, you can make it do whatever you want. With the ZOIA you can build your own custom effects, synthesizers, midi controllers, and virtual pedal boards. And to make life a little easier, these modules have been created for all your standard guitar effects. So for instance, if you want a phaser, you can just plop down a phaser. You don't have to break out the textbooks to learn that they're built out of all-pass filters. (Of course, if you're a nerd like us, you can use the ZOIA to build them out of all-pass filters).

Input Impedance: >= 1M ohms
Output Impedance: 100 ohms
Frequency Response (-3dB): 10Hz - 23.4kHz
Total Harmonic Distortion: 0.22%
Dynamic Range: 105.5 dBA
Input Headroom (no pad): +0.5 dBu
Input Headroom (6dB pad): +5.7 dBu
Input Headroom (12dB pad): +10.8 dBu
Output Headroom: +16.2dBu
Power Input Connector: 2.1mm Barrel Connector
Power Input Voltage: 9V DC (center negative)
Required Current: 300mA
Height (enclosure only): 1.75"
Height (including controls): 2.625"
Length: 5.7"
Width: 3.75"
Weight: 1.5lbs

Notes: The DigiTechr Drop is a dedicated polyphonic drop tune pedal that allows you to drop your tuning from one semitone all the way down to a full octave. Get down-tuned chunk without having to change guitars! The Drop also features a momentary/latching switch. With the switch set to momentary, you can turn the Drop into a true performance pedal. Fast trills and roller-coaster pitch dips are at the tip of your toes.

General Specifications
Input1/4" Unbalanced (Tip-Sleeve)
Output1/4" Unbalanced (Tip-Sleeve)
ControlsAmount, Momentary On/Off
A/D/A Converter24-bit
Sampling Rate44.1 kHz
Power SupplyPS0913DC-01 (US, JA); PS0913DC-02 (EU, AU, UK)
Drop Tune Range1-7 Semitones Down, Octave Down, Octave Down + Dry
Dimensions
Length4.75"
Width2.875"
Height1.75"
Weight0.36 lbs.

Notes: Electro-Harmonix has reissued their late-1970's era Op-Amp Big Muff Pi. Sometimes also referred to as the IC or V4 Big Muff, the original circuitry has been faithfully re-created while several practical enhancements have been added including a compact, die-cast chassis and true bypass switching.

According to Electro-Harmonix founder, Mike Matthews, "The Op-Amp Big Muff was popularized by the brilliant Billy Corgan who first used it on the Smashing Pumpkins' epic 1993 album Siamese Dream. After he was videotaped playing and talking about the reissue, Billy stated: "The magic's still in the box, I can still get what I'm looking for!"

The pedal relies on op-amps rather than transistors and three gain stages rather than four, to create its signature sound. It's a sound that's been described by noted Big Muff collector and historian, Kit Rae, as: "a huge, crushing Big Muff sound with more crunch...great for grungy, wall-of-sound distortion, heavy rhythm playing and heavy leads."

The Op-Amp Big Muff Pi features standard controls: Sustain, Tone and Volume, plus a Tone switch for bypassing the tone circuit. It comes equipped with a 9V battery or can be powered by an optional 9-volt AC adapter.

Notes: Get the sound that made the Classic 1970 Small Stone famous!

The EHX Small Stone Phase Shifter generates thick sweeping phase shifting with liquid transparency. Feedback colour control adds a tingling swirl. Blues players dig the Stone's rapid rotating speaker effect. Country players add tasty seasoning to their chicken pickin'. Metal-heads dig its jet plane swoosh.

Variable rate control allows slow and smooth to rapid edge frequency sweeps
Colour switch turns up the feedback for a more pronounced phase shifter effects
Tough and compact die-cast chassis
9V battery included

Specifications:

Circuit: Analogue
Bypass: True Bypass
Audio: Mono
Power Supply: 9V battery included (optional 9.6VDC-200mA power adapter not included)
Dimensions (in): 4.5 x 2.75 x 2.1
Current Draw: 10mA
Year Released: 2006

Notes: A unique take on delay and looping, the Meris LVX is designed for ultimate flexibility when processing guitar, synth or line level sources. Stereo in/out, fully customisable signal path and supreme sound quality.

Supplier's Notes:
Meris LVX Modular Delay System

LVX is a Modular Delay System which breaks the paradigm of pre-set delay types in favor of freedom and flexibility.

A completely new UI and user experience has been designed from the ground up to make LVX immediately intuitive to navigate. The architecture of LVX allows ultimate creative freedom to design a custom delay.

The pedal features discrete processing elements and control signal modifiers that can be connected as desired for nearly infinite flexibility in crafting custom sounds. Make room for new memories.

Specs

Conversion: 24 bit A/D and D/A
DSP: 32 bit floating point
Sample Rate: 48000 Hz
Input Impedance: 1 Meg Ohm
SNR: 115 dB Typical
Frequency Response: 20Hz-20kHz
Max Input Level: +9 dBu (instrument level setting), +12.5 dBu: (line/synth level setting)
Power: 9V DC center-negative, 300mA, 2.1mm jack
Bypass: Selectable True Bypass (Relay) or Analog Buffered Bypass
Dimensions 7.25" wide, 4.5"" long, 2" tall. (Same depth and height as all other pedals.)
Weight: 24 ounces

Notes: A powerful effects creation and mixing hub with flexible controls for multiple configurations!

The EHX TriParallel Mixer is a powerful effects creation and mixing hub with three separate FX loops and flexible controls allow for multiple configurations.

The Tri Parallel Mixer is surprisingly compact considering the level of functionality it provides, while its intuitive controls and I/O make it easy to operate.

Use it to switch between or mix up to three separate effects loops. Send a guitar or other instrument out to three separate amplifiers, or input three separate instruments to switch between or mix to a single output. Mix effects in parallel to create sounds and allow for options not possible when using effects in series (one after another).

Run up to three FX Loops in parallel and create sounds that are not possible by connecting effects in series
Switch seamlessly between FX Loops in XOR mode
Send one instrument out to three separate amplifiers
Mix three instruments into a single output
Power supply included

Specifications

Circuit: AnalogAnalog w/ Digital Control
Bypass: Buffered Bypass
Audio: Mono
Effects Loop: Yes
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 5.75 x 4.75 x 2.5
Current Draw: 45mA
Year Released: 2019

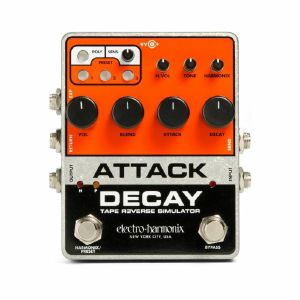

Notes: Produces volume and reverse swells, backward tape sounds, artificially short staccato notes and bowed instrument effects!

The circa-1980 Electro-Harmonix Attack Decay is a sought after prize among vintage pedal aficionados. Originally called a Tape Reverse Simulator, it's known for producing volume and reverse swells, backward tape sounds, artificially short staccato notes and bowed instrument effects. The freshly designed EHX Attack Decay reinterprets the classic and keeps its cool factor, but adds some modern features for convenience and enhanced functionality.

It can produce a single volume envelope like the original, or, with Poly engaged, put separate volume envelopes on each note you play. The built-in Harmonix fuzz is now a fully controllable distortion with gain, tone and volume controls. The effects loop allows the musician or sound designer to place the volume envelope onto whatever signal is present at the Return jack. Expression pedal/CV input and three user presets give the user total control over their Attack Decay!

Volume envelope manipulation with adjustable Attack and Decay times
Mono mode: one volume envelope at a time, the envelope resets when you play a new note
Poly mode: gives each note you play its own envelope
Built-in, fully adjustable, Harmonix fuzz enhances the volume envelope effect and produces bowed instrument sounds
Built-in effects loop allows for your own pedals to be inserted onto the volume envelope
Expression pedal or CV control over every knob on the Attack Decay
Save and recall up to three presets
Power adapter included

Specifications

Circuit: Digital
Bypass: Buffered Bypass
Audio: Mono
Effects Loop: Yes
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 4.75 x 4.13 x 2.25
Current Draw: 140mA
Year Released: 2019

Notes: The DigiTechr Mosaic Polyphonic 12-String effect pedal sets you upon the path of creating lush 12-string sounds with either 6-string electric or amplified acoustic guitars. Immediately identifiable 12-string tones are now yours with octave low strings and doubled high strings. Single notes and full chordal strums shine with polyphonic richness and celestial movement that will inspire you. The Mosaic's balanced low-end response with crisp octave shimmer produces a tone that's lush and articulate, just as with a 12-string guitar.

Tailor the Mosaic's sound with the independent Level and Tone controls. Level will control the 12-string effect intensity while Tone shapes the overall brightness of the effect. The Mosaic will give you a richer, more resonant and full tone than a standard six-string guitar. It is true bypass and uses a 9V DC power supply to easily integrate into your existing pedalboard.


General Specifications
SAMPLE RATE

44.1 kHz
FREQUENCY RESPONSE

20 Hz-11 kHz (Effect Enabled)
SIGNAL TO NOISE RATIO

> -105 dB (A weighted); ref = max level, 22 kHz bandwidth
THD

0.004% @ 1 kHz; ref = 1 dBu w/ unity gain
A/D/A CONVERSION

24-bit
INPUT

1/4" Unbalanced (Tip-Sleeve)
OUTPUT

1/4" Unbalanced (Tip-Sleeve)
CONTROLS

Level, Tone
TRUE BYPASS

Yes. True bypass circuitry preserves your tone when the pedal is not in use.
Dimensions
LENGTH

4.75" (120mm)
HEIGHT

1.75" (44mm)
WIDTH

2.875" (73mm)
WEIGHT

0.36 lb. (163g)

Notes: When you pair the Footswitch+ with the BeatBuddy or BeatBuddy MINI it gives you even more control over the beat. Right out of the box you get the ability to trigger accent hits, pause/unpause the beat, and navigate songs, genre, and tempo. However, when used with the BeatBuddy, you can do even more with the Footswitch+ like setting it to act as the main pedal.

But, it doesn't stop there! The Footswitch+ is hands down the best multipurpose 2 button footswitch on the market. It's built like a tank, is more comfortable than a footswitch has any right to be, and offers quiet, momentary switches.

Notes: Spanning the gamut of known delay possibilities and beyond, the Echosystem could be the ultimate delay-crafting tool. Faithful emulations of classics like digital, tape and analog delays are numerous, as well as Empress' own take on each of these delay styles. Moving beyond the traditional, the vast amount of sonic ground the Echosystem can cover becomes apparent. Check out the ambient modes when you're feeling chilled out, or perhaps a visit to the multi tap modes for a taste of inspiration.

The Dual Engine functionality allows any 2 of these delays to be used together, routed in either parallel, series, or left/right configurations.

In addition to delays, there's the super-useful reverb combos, which will elevate any guitar part. Oh, and don't forget Whisky mode, best accompanied by a dram of whatever you've got!

The pedal has 12 algorithm types, all with multiple variations. For example, there are 4 different tape delays on tap.

Emulations of classic tape and analog units are available, as well as our take on these types of delay.

All the algorithm controls are sitting on a knob in front of you, no fiddling through laborious menus.

Global tap tempo as well as local tempo with lots of subdivisions are available on all modes, in addition to being able to set the delay time directly with the knob.

Features a signal to noise ratio of >104dB and maintains an analog dry path.

2 delays can be used at the same time, each with its own full set of controls and routed in serial, parallel or left/right.

Settings can be saved to 35 presets. With three stomp switches, accessing the presets is easy.

Bank style or scrolling style preset modes.

It can be configured to run with true bypass or buffered bypass if you want to hear trails.

Cabinet Simulator - 3 variations to choose from, perfect for recording, practicing or for gigs without an amp.

Get hum-free operation when operating in stereo with two amps. Output 2 is isolated with a transformer to eliminate nasty ground loops.

48kHz sampling, with 24 bit conversion and 32 bit internal processing.

Dry signal is left untouched, and blended with the wet signal using VCA. (no zipper noise, hooray!)

The Universal Control Port allows you to connect an expression pedal, external tap switch, control voltage, external audio input and MIDI - all using a standard 1/4" jack!

The Advanced configuration menu lets you configure how your delay works. Select from true or buffered bypass, 0-35 presets, MIDI configuration, Control Port(expression pedal, external tap, control voltage and MIDI) as well as which style of preset system to use, input signal pad, output transformer enable and more!

The enclosure measures approximately 5.7" by 3.75" by 1.75", which is delightfully small when considering all the features packed into this unit.

Notes: The Pitch Forkr+ features two independent pitch shifting engines with full control over each. Both will transpose your pitch up or down over a +/- three octave range and detune +/-99 cents. With rock solid tracking, an organic, musical tone and extensive control, it's your ultimate harmonizer.

Notes: A sophisticated noise gate that can tame a single pedal or an entire effects loop! The Silencer's three-control layout provides precise fine-tuning to fit your system, axe and playing style. Threshold adjusts how much level is required to open the noise gate and allow a signal to pass thru. Reduction regulated the degree to which the gated signal is reduced and is variable between -70dB and +4dB. Release controls how long the gate remains open after the signal drops below the Threshold. Release time is variable between 8ms and 4 seconds.

I/O includes 1/4" Input, Output, Send and Return jacks. The footswitch selects whether The Silencer is engaged or in bypass mode; buffered bypass allows the effects loop to remain in your signal path when the gate is bypassed. A built-in AC jack accepts a standard power supply like the EHX 9.6DC unit (optional) and the pedal comes with a 9V battery.

Conquer noise with The Silencer!

Notes: MG-30 is the flagship modelling effect processor in the NuX range. Dual high speed processing offers accurate modelling of 30 different amplifier options, including bias tweaking for an extra dimension of response adjustment, all using the proprietary NuX TSAC-HD algorithm. Impulse response programming presents a choice of 8 guitar cabinets, 8 bass cabinets, 8 microphones in 3 different axis positions and even 3 acoustic guitar emulation profiles. Once the main guitar tone is programmed, there are 8 effects blocks which can be assigned to different positions in the signal chain, including WAH, CMP, GATE, EFX, EQ, MOD, DLY & RVB. An expression pedal covers wah and swell effects amongst other possibilities. Each has modes and/or parameters which can be adjusted and saved within the patch as needed. Real-time editing uses rotary encoders and switches, making for a natural and organic process and all prameters and graphics are displayed on a vibrant 4" colour display. Add to this a fully functioning USB audio interface, phrase looper, PC/Mac editor/librarian/updater, aux input, effects loop, drum machine and NMP-2 footswitch control and the MG-30 covers practically all bases. This unit provides all the processing power and audio quality that could be asked from any professional guitar processor at a fraction of the price of its component features.

Specifications:

Power supply: 9Vdc, 400mA pin-negative (adaptor included)
Inputs: 6.3mm jack (guitar), 3.5mm jack (aux input)
Outputs: 2 x 6.3mm jack (L/mono + R) to amp or mixer
Sends: returns: 6.3mm jack send (1k ohm) & return (220k ohm)
Headphone output: 3.5mm stereo jack
USB port: USB type-C for audio interface, PC/Mac editing & updating
Remote control connection: EXP1 TRS 6.3mm jack
Sampling format: 48kHz, 32-bit
Frequency response: 20Hz - 20kHz (i1dB)
Input impedance: 1M ohm
Output impedance: 1k ohm
Dynamic range: 110dB
Dimensions: 313 x 166 x 54mm
Weight: 1.5kg

The box for this item contains :

MG-30 multi-effects modeler pedal
1 x 9Vdc power adaptor (UK)
1 x NMP-2 dual footswitch (173.352UK)
1 x patch cable
1 x USB cable

Notes: The most compact Bass Big Muff Pi ever is packed with the ginormous Bass Big Muff sound!

The huge Bass Big Muff sound now in a nano-sized package. Voicing inspired by the tank green Russian Big Muff with the classic Big Muff Pi layout of Sustain, Tone and Volume controls.

Controls for Volume, Tone and Sustain let you sculpt your distortion and drive, while the Dry switch mixes your dry bass with the EHX Nano Bass Big Muff's distortion.

Tailor your drive/distortion sound with Sustain, Tone and Volume knobs
Features a Dry switch that mixes your dry bass, at unity level, with the Nano Bass Big Muff's distortion
True bypass for maximum signal path integrity
Road worthy die-cast chassis
9V battery included

Specifications:
Circuit: Analogue
Bypass: True Bypass
Audio: Mono
Power Supply: 9V battery included (optional 9.6VDC-200mA power adapter not included)
Dimensions (in): 4.5 x 2.75 x 2.1
Current Draw: 4mA
Year Released: 2014

Notes: Part of Dreadbox's impressive effects line-up, the Disorder is a rowdy fuzzbox crossed with a self-oscillating filter, serving up some pleasingly nasty tones. An envelope follower with CV output adds versatility.

Supplier's Notes:
The disturbance in physical or mental health or functions. It could be defined as a set of problems, which result in causing significant difficulty, distress, impairment and/or suffering in a person's daily life.

Dreadbox Disorder is a very aggressive fuzz pedal with a twist. It is equipped with a self-oscillating filter, that allows you to produce oscillating fuzz sounds.

Additionally it has a low pass and high pass filter, that makes it suitable for guitar and bass as well. Finally an envelope follower is also present, allowing you to create wah-wah sounds.

Specifications

Circuit: Analogue
Bypass: CMOS
Audio: Mono
Inputs / Outputs
IN/OUT: TS Unbalanced 6.4mm jack
Power Supply: 9VDC BOSS style center pin negative 2.1mm (Not included)
Dimensions (cm): 14 x 10 x 5.6
Current Draw: 50mA

Notes: A typically unique take on multi-effects from Soma, designed to induce meditative states. Hybrid analogue-digital delay/reverb/granular processing gives a range of creative approaches.

Supplier's Notes:
COSMOS is a drifting memory station designed to work with meditative states through music. The design of the controls, functions and generated soundscapes are intended to evoke, in both performer and listener, states and experiences inherent in meditation, such as limitless space, fluidity, spontaneous development, presence, the ability to hear, tranquility, the experience of subtle harmony and happiness enveloping the whole world.

From a functional point of view, COSMOS is a large array of sound memory, in which recorded sounds undergo constant recombinations, spontaneously generating an ever-changing soundscape. This is achieved in three ways - by a mathematical shift based on the relationships between large prime numbers (the size of all delay lines are different primes), an asynchronous operation of the LFO, and modulation with a slowly changing chaotic signal. As a result, it allows the endless layering and processing of various sounds, as in a looper, but without an intrusive, repetitive loop.

COSMOS generates rich, fluid and evolving soundscapes perfect for ambient music. Using COSMOS, you can play an entire meditative solo concert while being in a spontaneous flow and without using studio-prepared sequences, backing tracks and other things that can't be a reflection of the "here and now".

Specifications

Minimum input voltage: 0.35 V peak-to-peak
Maximum output voltage at line outputs: 11.3 V peak-to-peak
The maximum output voltage at the headphones output: 10.4 V peak-to-peak
Frequency response: 10-22000 Hz
Sound memory: 44.7 sec
Supply voltage: 12 V *
Power connector polarity: centre plus
Current consumption: 0.25 A
Dimensions: 342 x 153 x 68 mm
Weight: 2.2 kg

* Use only the power supply supplied with the device! In case of failure, it can be replaced with a high-quality modern switched-mode power supply with an output voltage of DC 12 volts, the center is plus and an output current of at least 0.5 amperes (more is fine). The power supply must have a wide AC input voltage range of 100-240 volts. Such power supplies have excellent output voltage stabilization required for the device. It is forbidden to use COSMOS with nonstabilized voltage from transformer power supplies. It can lead to damage to the device, which is not covered by the warranty repair!

Notes: The best delay and reverb programs from the Nemesis Delay and Ventris Dual Reverb are combined to create a potent, versatile new pedal. Create soundscapes and ambiences from vintage effects to modern experimentalism.

Supplier's Notes:
Design complex soundscapes in seconds with the Collider Delay+Reverb. Source hand-picked 12 standout delay and reverb effects from the award winning Nemesis Delay and Ventris Dual Reverb, and put them together in one compact housing with massive power and dead simple control. The Collider's intuitive control surface makes it easy to mix-and-match any two-engine combination of delay and reverb. Dual footswitches provide individual Engage/Bypass control over each effect, making it a perfect choice for live performance.

The Collider offers an exceptional collection of rich, spacious tones, including realistic reproductions of vintage Analog, Tape, and Oil Can Delays, classic models of Spring and Plate Reverb, natural replications of large and small acoustic spaces, and an intriguing and highly musical selection of "unnatural" tones including a tripped-out Reverse Delay and an other-worldly Shimmer Reverb.

Collider takes supremely high-end delay and reverb effects and offers them in a sleek and powerful design with massive processing muscle and clean functionality. The Collider features two completely independent 56-bit signal processors, essentially housing a high-powered reverb AND a high-powered delay pedal in a single box. This means that it is possible to create magnificent tones with any two-effect combination of delay/reverb, delay/delay, or reverb/reverb.

This extremely versatile pedal offers a long list of useful features, including analog dry through, stereo inputs and outputs, the option of true or buffered bypass, 8 user presets (or 128 with MIDI), full MIDI functionality, delay tap tempo, reverb hold (a.k.a. "freeze"), external expression capabilities, external preset switching capabilities and extra editing and signal routing options via the Neuro Desktop and Mobile App Editors.

The sound engineering team of Bob Chidlaw and Jesse Remignanti were relentless in their pursuit of perfection with each and every one of the Collider's delay and reverb effects. Whether it's beautifully capturing every minute detail of vintage units or bringing exceptional depth and richness to the contemporary effects, the Collider delivers excellence.

Includes 9v DC power supply (300mA / Negative Tip)
Includes 1/8" to 1/4" cable for Neuro Mobile App connection.
Power Consumption - 300mA
USB port i Connects to Mac or Windows PC for MIDI control of firmware updates.
Brushed anodized aluminum housing.
Dimensions: L: 4.5 in./11.4cm x W: 4.5 in./11.4cm x H: 2 in./5.1cm (including knobs)
Weight: 1 lb./0.45 kg.

Notes: When Empress released the original Compressor back in 2011, it quickly became a favourite among guitar and bass players alike who were searching for something more than the typical oversimplified controls found on most compressor pedals. Although our original Compressor sounded great on bass (and still does!) we set out to do even better.

On top of the full range of features and controls normally only seen in high end studio equipment, such as input and gain reduction metering, independent attack and release controls, a mix knob for parallel compression, and an external sidechain insert, we've now added a fully variable sidechain high pass filter, and a two position 'tone + colour' circuit which adds gentle tone sculpting and harmonic distortion, giving your bass some delicious character.

Specifications:
Input Impedance 1M
Output Impedance 2.2k
Frequency Response (-3dB) 10Hz - 20kHz
Distortion less than 0.1%
Noise -101dB
Power Input Voltage 9 - 18 V DC (Negative tip)
Power Input Connector 2.1mm barrel connector (Negative tip)
Power Consumption ~ 100mA
Enclosure Material Die Cast Aluminum
Input connector 1/4" Jack
Output connector 1/4" Jack
Height (Enclosure only) 1.5"
Height (including controls) 2.5"

Notes: The finest analogue chorus!

The EHX Small Clone Chorus is a reissue of the classic analogue chorus pedal popularised by Kurt Cobain. Depth and Rate controls create the finest sounds, from clear, rich and dimensional to warm pulsating warbles.

True bypass
9V battery included

Specifications

Circuit: Analogue
Bypass: True Bypass
Audio: Mono
Power Supply: 9V battery included (optional 9.6VDC-200mA power adapter not included)
Dimensions (in): 5.25 x 3.38 x 2.75
Current Draw: 12mA
Year Released: 2000

Notes: MOOER's reverb effects have been substantially upgraded in the first reverb pedal from The New Micro Series. This sparkling gem features seven different reverb effects catering to the far-out guitar astronauts and the psychedelic space cadets. Go to infinity and beyond with the Infinite Trail fade out or keep things brief with the traditional Trail On feature. The shimmering blue finish also adds a bit of sparkly flare to any pedal setup.

Features:
*7 different reverb effects from classic to psychedelic.
*INFINITE trail function.
*Trail On function allows effects to fade out naturally.
*Supports buffer bypass or true bypass.
*Storable preset for each effect.
*Firmware updatable via USB.

Specifications:
*Input: 1/4" mono jack (impedance 2.2M Ohms)
*Output: 1/4" mono jack (impedance 100Ohms)
*Power supply: 9V DC transformer (internal negative external), MOOER Micro
*Power is recommended
*Current Draw: 200mA
*Dimensions: 93.5mm(D) x 42mm(W) x 52mm(H)
*Weight: 155g
*Accessories: User Manual

Notes: The Whammy Ricochet lets you bounce your playing up or down in pitch in controlled or crazy shifts. A momentary switch and customizable independent rise and fall time ballistics, allow you to get the Whammy action you know and love without the use of a treadle. Just hold your foot on the footswitch and let the Ricochet do the rest. Seven pitch selections - 2nd, 4th, 5th, 7th, Octave, Double Octave, and Octave+Dry, as well as a toggle to select up or down for the selected pitch. The Whammy Ricochet also has latching footswitch mode so you can rise or fall to pitch and stay there, and an LED ladder that shows your shift trajectory at all times. All these controls combine to create classic Whammy pitch-shifting as well as new sounds never heard before.

General Specifications
ControlsBallistics Control, Pitch Control, Range Switch, Momentary Switch, Effect On/Off
Sample Rate44.1 kHz in classic mode, 22 kHz in chords mode
Frequency Response20 Hz-16 kHz (classic mode), 20 Hz-11 kHz (chords mode)
Signal to Noise Ratio> -106dB (A weighted); ref = max level, 22 kHz bandwidth
A/D/A Converter24-bit
THD0.004% @ 1 kHz; ref = 1 dBu w/ unity gain
Power Consumption2.1 Watts (235 mA typical @ 9 VDC)
Power Requirements9 VDC External Adapter (sold separately)
Power SupplyPS0913DC-01 (US, JA, EU); PS0913DC-02 (AU, UK)
Power Adapter Output9 VDC 1.3 A
Dimensions
Length4.75"
Width2.875"
Height1.75"
Weight0.8 lbs.
Audio Output
Output1/4" Unbalanced (Tip-Sleeve)
Max Output Level+10 dBu
Output Impedance1 kO (Effect enabled or effect bypassed w/ Momentary switch on) True Bypass (Effect bypassed w/ Momentary switch off)
Audio Input
Input1/4" Unbalanced (Tip-Sleeve)
Max Input Level+5 dBu
Input Impedance1 MO (Effect enabled or effect bypassed w/ Momentary switch on) True Bypass (Effect bypassed w/ Momentary switch off)

Notes: The Mod 11 is packed with 11 different modulation effects that range from classic to exotic plus advanced functionality all in a compact pedal. It gives you access to powerful yet intuitive "hidden" parameters accessible through its Secondary Knob Mode which let you take even greater control over its effects.

The Mod 11's modulation effects are:

1. TREM: Tremolo modulates your signal's volume. Selectable modes allow your playing envelope to control modulation rate or depth.
2. HARM: Harmonic tremolo. The signal is split into high and low frequency bands and modulated between the two. Selectable modes allow your playing envelope to control modulation rate or depth.
3. VIBR: Vibrato modulates your instrument's pitch. Selectable modes allow your playing envelope to control modulation rate or depth.
4. UNI: pays homage to the classic Univiber. Includes "Chorus" and "Vibrato" modes plus added overdrive
5. CHORUS: Warbling, doubling, chorus effect like the EHX Small Clone. Extra modes include tri-chorus and bass chorus effects
6. ROTARY: Rotary speaker cabinet simulation. Extra functionality includes overdrive plus envelope control over rotation speed
7. FLANGE: Flanging with modes for both additive and subtractive flanger. Multiple LFO shapes, including envelope follower
8. TZF: Through Zero Flanger. A flanger effect that crosses through the "zero point" of the sweep where the modulated delayed signal meets back with the dry signal. Modes for both additive and subtractive flanger, plus barber-pole flanger
9. PHASE: Choose from 4, 6, or 8 stage phaser. Multiple LFO shapes including envelope follower
10. PITCH: Modulated pitch shifter. Select your main pitch shift and modulate around it. Extra functionality includes a dry blend and stepped pitch modes
11. FILT: Modulated filter effects like those on classic analogue synths. Low Pass, High Pass and Band Pass. Multiple LFO shapes available including a Q-Tron style envelope follower

The Mod 11's Momentary Mode lets you seamlessly switch in and out of effects mode for quick accents. It also features Tap Tempo controllable via the built-in footswitch or an external one. The Mod 11 is modulation with warp drive!
11 modulation types with multiple modes for each
Intuitive "hidden" parameters accessible through its Secondary Knob Mode
Tap Tempo via the built-in footswitch or an external one
Momentary Mode to switch effects in or out
Comes with a standard EHX EHX 9.6DC200mA power supply
Compact and rugged
Power adapter included

Specifications:
Circuit: Digital
Bypass: Buffered Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 4.5 x 2.75 x 2.1
Current Draw: 150mA
Year Released: 2019

Notes: Sophisticated, professional stereo compressor limiter!

The EHX Platform Stereo Compressor/Limiter presents you with a versatile and powerful studio-quality compressor enclosed in a stompbox-sized package. Use the Platform's compressor/limiter on any instrumentisuch as guitar, bass or keyboardsifor precise and powerful control of your signal's volume. Engage the Drive and Swell functions to further tailor and enhance your sound. Whether you're on stage, in the studio, putting together a podcast or creating your next YouTube masterpiece, the Platform will help you get the job done.

Studio-quality compressor/limiter lets the user precisely tune dynamics regardless of the instrument or situation.
The compressor/limiter includes a full complement of controls: Volume, Attack, Release and Sustain, plus pushbuttons for Hard or Soft Knee and the Limiter
Foot-switchable overdrive section adds versatility and includes dedicated controls for Volume, Tone and Drive. Together with the compressor it produces a sound that's saturated, smooth and slippery
Adjustable Swell function creates bowed, fade in and reverse effects
True stereo operation, can be used as Mono In and Out, Mono In and Stereo Out, or Stereo In and Stereo Out
Features a three color, eight LED compression meter that displays the compressor's actual gain reduction in real-time
Stereo buffered bypass that's great for keeping your signal pristine with multiple pedal setups and long cable runs
Power adapter included

Specifications
Circuit: Digital
Bypass: Buffered Bypass
Audio: Stereo
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 4.75 x 4.13 x 2.25
Current Draw: 125mA
Year Released: 2017

Notes: Five decades of sound processing expertise distilled into a compact multi-effects pedal. Huge processing power derived from the H9000 Harmonizer, featuring classic algorithms and new effects.

*** Two new algorithms for the Eventide H90 Harmonizer- Update April 2024 ***

Aggravate

Aggravate is an octave fuzz inspired by famous classic analog octave fuzzes from the '70s. Satisfy all your fuzz needs with its versatile controls and rich feature set.

Features
Screaming fuzz tone with 3 voices - Thick: off, Thick: On and Thick: MoreOn which adds a rich low end to your signal
Octave is based on an 'absolute value' style octave meaning that it sounds much more organic than a pitch shifted octave up
Envelope follower to achieve some dirty Queens-like tone. The filter can go from positive to negative envelopes and has 2 shapes, linear and exponential
Pump controls allow you to duck your signal on rhythm via a rate or tempo knob OR you can manually pump your signal by assigning Pump to a performance switch or an external controller
Tone and mid controls for the fuzz
Bias control to make the fuzz more 'spitty', reminiscent of a dying battery on a classic fuzz pedal

Sticky Tape

Sticky Tape is a new tape algorithm based on the same emulation technology as the H90-exclusive, Head Space. It opens up a world of tape tone possibilities - all the character, grit, and modulation of those classic reel-to-reel tape machines without the bother.

Features
One-knob compressor based on the compression section of DBX companders found in many tape machines
Two tape machines with an adjustable offset to get a wide range of doubling or slap back echo effects
4 different tape speeds for a variety of tone and character
Wow and Flutter controls which can be used to create lo-fi detuning, subtle flanging, gooey chorus, or the extreme sounds of a machine that's in desperate need of a tune-up
Flange performance parameters to get that classic, dramatic, studio style tape flange
Separate tunings of the algorithm for Bass and Guitar depending on the Instrument Type for best possible tone no matter the instrument

Supplier's Notes:
Beyond the Effect Horizon

The H90 Harmonizer is Eventide's next-generation multi-effects pedal. Whether you want high-quality bread and butter effects or experimental sounds unheard, the H90 has everything you need to inspire your creativity with an intuitive UI designed with players in mind. Discover why top artists and producers have chosen Eventide through the years with 62 effect algorithms and hundreds of Program combinations curated for a variety of instruments and genres. With its comprehensive I/O and flexible routing options, the H90 is designed to be the heart of your rig.

New Technology, New Effects

H90 Harmonizer features modern ARM-based architecture derived from the world's most powerful effects processor, Eventide's flagship H9000 Harmonizer. This paves the way for the ongoing creation of more advanced effects processing techniques. As a result, the pedal not only offers the iconic reverbs, delays, modulation, and pitch shifting effects of the H9 Max but goes far beyond with 10 new powerful algorithms including state-of-the-art, fast-tracking, and warble-free Polyphonic Pitch Shifting. Eventide's proprietary SIFT (Spectral Instantaneous Frequency Tracking) technology clears the road ahead for next-gen effects both long imagined and unimaginable.

Live Performance Machine

The H90 Harmonizer is a live performance powerhouse! The front panel has been reimagined with five push knobs, seven LED buttons, and a hi-res OLED display for greater hands-on control and parameter feedback. Two large push knobs allow you to switch between SELECT, BANK, and PERFORM modes with ease. In PERFORM mode, you get six programmable footswitches. Map functions like tap tempo, preset, insert bypass or momentary states; use them to engage options like reverb freeze, pitch flex, or delay repeat; make multiple instantaneous parameter changes with three Hot Switches .The comprehensive UI allows you to control any parameter with ease. Adjust expression mappings by hand with the PERFORM HotKnob and engage up to six individual assignable parameters with the three push-button Quick Knobs. Get even more control with two inputs for expression pedals or auxiliary switches with up to three buttons. If that wasn't enough, take advantage of the pedal's extensive MIDI control. The H90 comes with hundreds of factory Programs which can be loaded using either SELECT or BANK mode. In SELECT mode, you can navigate your Playlist sequentially without ever missing a detail thanks to the OLED display. In BANK mode, you can quickly load from a bank of 3 Programs, perfect for cueing up a range of sounds for a song. Organizing your favourite sounds has never been easier, simply load a new Playlist and you're ready for the next gig!

Specifications

Inputs 1 - 4: 14 inch TS mono jack
Outputs 1-4: 14 inch TS mono jack
Exp/Ctl 1-2: 14 inch TRS / Expression pedal or Aux Switch
USB Type-C: Use USB 2.0 for control, updates, and MIDI
MIDI In: Five-pin DIN (Female)
MIDI Out/Thru: Five-pin DIN (Female)
DC Input Jack: 5.5/2.5mm plug / Center Positive (+)
Input Impedance (Inst. Level: >600k ohms
Input Impedance (Line Level): >80k ohms
Output Impedance: 220 ohms
Recommended Load Impedance: 10k ohms
Maximum Input Level (Inst): +4dBu
Maximum Input Level (Line): +14dBu

Power
12V DC @ 1A / Center Positive (+), 5.5/2.5mm jack

Dimensions (Product)
English: 6.5" (W) x 5.25" (D) x 2.5" (H)
Metric: 170 (W) x 136 (D) x 68 (H) mm

Dimensions (Package)
English: 10.5" (W) x 7" (D) x 3" (H)
Metric: 265 (W) x 180 (D) x 75 (H) mm
Weight (Product): 1.85 lbs / 0.84 kg
Weight (Package): 3 lbs / 1.36 kg
Shipping Contents: H90, Eventide Sticker, 4x Rubber feet, Guitar pick, Universal power supply with plugs (US, UK, EU, AUS), USB A to Type-C cable, Quick Reference Guide

Notes: EarthQuaker Devices Special Cranker

An Overdrive you can trust

The Special Cranker is an all-discrete analogue distortion enhancement device designed to give your signal some extra grit and boost without drastically altering your tone and retaining all of the natural nuances and character of your amp. Think of it as sticking an extra preamp tube in your amplifier for more saturation. Single notes will blossom and bloom with rich harmonics and singing sustain with responsive, tube-like sag. Power chords will sound thicker and crunchier, a little more ragged around the edges. Complex chords will remain distinct and complex, as the Special Cranker is designed to preserve your tone's integrity without muddying up the low-end or smearing the midrange.

The Special Cranker picks up where the beloved Speaker Cranker left off. It has the same spongy, dynamic, and touch-sensitive character of the original but with more gain, double the output volume (now with a user-friendly Level control), an added Tone control to shape your signal, and a diode selector switch featuring the original asymmetrical Silicon diodes as well as a hot, new Germanium diode option.

The More control goes from nearly clean to a medium gain overdrive when at maximum. This control adjusts the bias of the transistor, so you may hear a little noise as you turn the control. Don't freak out; it's totally fine. The gain characteristics are dependent on which diodes are chosen. When the Germanium diodes are selected, the Special Cranker delivers a softer, more rounded response with tamed highs and lower output, while the Silicon diodes add a brighter, more modern edge and higher output. Both are exceptionally responsive to playing dynamics and have excellent clarity. The Tone control gives the user full command over treble frequencies, cutting the highs when counter-clockwise and adding a slight high-frequency boost when turned clockwise. The Level control adjusts the output from nothing to nearly double at maximum.

Tech Specs:

Dimensions: 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs
Current Draw: 15 mA
Input Impedance: 5M P
Output Impedance: <25 kO

Flexi-Switchr Technology
This device features Flexi-Switchr Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.

For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.

For momentary operation, hold the footswitch down for as long as you'd like to use the effect. Once you release the switch the effect will be bypassed.

Since the switching is relay based, it requires power to pass signal.

Power:

This device should be powered a standard 9-volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise.

The Special Cranker can be safely operated from 9-18 volts.

Notes: Endorphin.es present the rather simple but ever so useful PLUS 3 - desktop expression and sustain pedal that adds controls and unlocks features in MIDI controllers, synthesizers, effects pedals and semimodular/eurorack instruments, some in ways previously not possible

PLUS 3 is designed for musicians who prefer compact desktop control of features accessible via the sustain and expression jacks of their instruments, as opposed to using their feet or bulky sustain and expression pedals on their desk.

PLUS 3 includes a high-quality fader for expressive performance and automation, a momentary sustain key, and an innovative "drone mode" toggle switch, which lets you free your hands and hold notes indefinitely. In drone mode, the momentary key's functionality changes, to let you swap droned notes with new ones.

PLUS 3 is totally passive, meaning it doesn't require any power to work. It's made of aluminium, so it's sturdy, light, and portable. Its sustain key is based on standard mechanical keyboard-style keys, so you can customize it and swap the key out to make the pedal your own with your key of choice.

Capabilities PLUS 3's sustain side unlocks for instruments with a sustain jack, subject to the instruments capabilities are among other:

A momentary sustain button for instruments that don't have a dedicated physical sustain control (most don't!)

A dedicated drone/hold/arp latch switch for instruments that don't have one (many don't!). It's important to note that even if an instrument has a hold button, its sustain jack may unlock additional functionality or behaviour (for example, a button that simply holds notes does not cause Piano VSTs to resonate sympathetic strings in the way using sustain does.

Momentary and toggle control of any parameter mappable in your DAW synth's mod matrix/menu system, or effect pedal (for example, sostenuto, a freeze effect, dry/wet bypass, swapping presets, etc)
Capabilities PLUS 3's expression side unlocks for instruments with an expression jack are, among other:

PLUS 3 is particularly useful for adding an expressive physical fader to MIDI controllers that don't already have faders, but have an expression jack (for example, Native Instruments Kontrol MK3, or M32; or Korg's KeyStage).

Use PLUS 3's fader for direct access and expressive control of any single parameter mappable in your DAW, effects pedal or synth in ways not possible with a regular keyboard (for example, bowing a violin, an orchestral swell, fine tuning a track's level in the mix)

For DAWs, synths with a mod matrix or effect pedals with expression jack mapping capabilities (e.g. many Chase Bliss, Boss, EHX pedals, and the GHOST and GOLDEN MASTER pedals), use PLUS 3's fader as a macro control to change multiple parameters at once - almost similar to preset morphing, based on your instruments ability to map its expression input to multiple parameters

Notes: Hizumitas was designed for the one and only Wata from the legendary experimental band Boris, one of the heaviest bands ever to come out of Japan. The trio of guitar sorceress Wata, drummer and vocalist Atsuo, and double-neck bassist, guitarist and vocalist Takeshi has almost 100 releases filled with genre and brain-melting music.

In their nearly three decades together, Boris has infused doom, hardcore, thrash, noise-core, ambient, free improv, drone, psychedelia, and more into their extensive discography. Boris is also known for their unique collaborations with mutually adventurous artists, including American Doom mongers Sunn O))), noise legends Merzbow, Keiji Haino, and Ian Astbury of The Cult.

Wata, always seen and heard on stage wielding her black Les Paul Custom, mixes killer riffs with searing, fluid, or jaggedly melodic leads and controlled walls of feedback, often with help from an EBow. It's a connection of chaos and melody that has enchanted Boris fans worldwide and influenced many bands that have followed in their considerable wake. Simply stated, no other band sounds like Boris, and no other guitarist rocks like Wata.

But with EQD's Hizumitas fuzz on your pedalboard, you can carve out your own singular, mega-heavy tone.

Hizumitas is a faithful recreation of Wata's go-to distortion pedal, the Elk BM Sustainar. The Elk is a Japanese variant of the very well-known "Triangle" BMP. The designers at EQD tried several vintage BMP's during development, found that each pedal was wildly different and realized that to truly capture the magic they needed the original. Wata graciously sent her beloved pedal halfway around the world, and EQD discovered that it had something special the others didn't have: heavy saturation with a gritty edge and massive bottom while maintaining a clear and dynamic tone with enough mids and top end to cut through any sludge. The studious wizards at EQD have built all of those characteristics into the Hizumitas.

Notes: Amp Academy Pedal

The Amp Academy is a complete valve amp modelling rig in a compact stomp box format. 3 storable scenes with 2 channels, selectable from 6 separate classic amplifier models. Each patch has Gain, Master and Boost for overdriven tones and 3-band EQ + Presence control. As with a real professional tube amp, there is an effects loop and internal rever effect. The addition of a noise gate helps to keep everything silent when no notes are played. Balanced or unbalanced outputs give flexible options for live performances via FRFR speakers, mixing console, or even for direct recording. All settings are fully editable via USB using the proprietary Amp Academy software and even self-made or third party IRs can be loaded for custom amp modelling. Next time you are carrying your heavy valve amplifier around, consider this incredibly flexible and pocket-sized alternative.

Power supply: 9Vdc, 100mA (min) pin-negative (not included)
Controls: Gain, Master, Boost, NR, Bass, Middle, Treble, Presence
Connections: Guitar in/out (6.3mm), Loop (6.3mm TRS), Aux (3.5mm), DI (XLR)
Dimensions: 115 x 105 x 58mm
Weight: 440g

Notes: Pedal version of the excellent Golden Master module, featuring multi-band end-of-chain processing with EQ, compression and mid/side stereo widening effects. Ideal for bass or guitar.

Supplier's Notes:
On-stage mastering

Based on Endorphin.es' Golden Master eurorack module and our experience in electronic live music performances, Endorphin.es developed Golden Master - a multiband processor pedal to deliver high pressure audio for live concerts and venues: sound loud without overloading the master limiter.

Multiband processor consists of EQ, compressor and mid-side

24 bit 96 kHz audio I/O with 32 bit internal processing

Stereo enhancer for each of the 3 bands

High impedance inputs, pseudo-balanced outputs: works also as a DI-box on stage

One knob compressor per band along with global threshold allows you to intuitively achieve results

Dedicated expression pedal for master volume control

Two footswitches let you select presets and bypass with your feet

Notes: Seeking to recreate the sounds of the Klon Centaur overdrive pedal and Dumble guitar amps, the Crazy Tube Unobtanium combines the holy grails of germanium diodes and all-analogue amp-in-a-box tone. Incredible value.

Supplier's Notes:
Introducing the Unobtanium, a rare sonic element born out of legendary tones.

A mythical overdrive meets the tone and feel of two iconic amplifiers. Crazy Tube Circuits have accurately recreated the circuit of the high headroom overdrive with the magic blend of clean and overdriven tones and added extra features for versatility. The amp-in-a-box section uses an all-analogue circuit to capture the essence of two legendary D-style tube amplifiers. From tube-like compressed fat clean to sweet singing overdrive with blooming harmonic overtones. Combine both sides for near infinite smooth sustain and enter sonic bliss while a passive series effects loop gives you the option to connect your beloved pedals between the overdrive and amp section, building your ideal rig

Right side: K-style pedal overdrive circuit including the fabled germanium diodes
Controls: gain, treble (tone), volume, bypass mode and clipping / compression
Wide gain range control: from transparent boost to high headroom overdrive
Treble control is an active circuit to boost or cut treble
Volume knob sets overall output. Huge amount of dB boost available
Toggle switch to select between the original buffer bypass to add clarity and run long cables or
true bypass
Toggle switch to select between stock clipping / compression or enhanced gain and
headroom/output

Left side: D-style Amp in a box overdrive
Controls: gain, emphasis, tone, volume, amplifier voicing toggle
Gain control: from clean boost to sweet singing overdrive
Emphasis control is a pre-drive EQ to control presence and bottom end response
Tone knob controls the amount of post overdrive high end frequencies
Volume knob sets overall output. Match bypassed volume or use as a clean boost or preamp
Toggle switch selects between 2 distinct D-style overdrive circuits
SSS: clean and transparent overdrive with natural organic compression
ODS: higher gain overdrive with enhanced mid frequencies and harmonic overtones
External footswitch input to select amplifier voicing (bypasses on board toggle switch)
Internal trimmers adjust EQ and volume boost of D-style overdrive voicings

Features:

Dual overdrive with independent operation
Two legendary sonic elements combined in one device
Passive series effects loop to connect other pedals between the two sections or use them separately
Runs internally at 18V DC for higher headroom and tube-like performance
Exceptional pick attack response - almost infinite smooth sustain when both sides are combined
Top mounted jacks
Click-less True Bypass design via high quality relay
Power Supply: Use only 9V DC center negative power supply (not included)
Current consumption 83mA
Pebble grey die-cast enclosure with black ink in old school type print
Made in Greece

Notes: Meris describe the MercuryX as the most flexible studio reverb pedal ever made. A bold claim, but hear them out. Immense power with eight custom algorithms in a modular architecture. Full stereo with a wealth of programs from lush plates and twangy springs to experimental weirdness.

Supplier's Notes:
The Meris MercuryX takes the heart and soul of Mercury7 and expands it far beyond sci-fi into the highest quality and most flexible studio reverb ever created in a pedal format. Its modular reverb system format breaks the paradigm of pre-set reverb types and inspires new discoveries. MercuryX features the same easy to use UI as LVX, making it immediately intuitive to navigate.

All of Meris' passion for pro audio has made it into both the algorithms and hardware performance of this pedal. MercuryX combines 8 custom Meris reverb algorithms and incorporates those into a modular system architecture that first introduced with the award winning LVX pedal. It features discrete processing elements and control signal modifiers that can be connected as desired for infinite flexibility in crafting custom reverbs.

Here is a deep dive into the 8 different reverb structures in MercuryX. Each Reverb Structure has Gate controls that can be used to dial in a range of gated reverb effects including the classic percussive gate sound, reverse tail reverb sounds, and slow breathing textures.

Similar to the Dry Blend control of the Predelay, each Reverb Structure features a Predelay Blend control that allows you to put some or all of the predelay reflections in parallel with the reverb tank.

Ultraplate - Adapted from Mercury7, Ultraplate is an inspiring and lush plate with a fast build. Use the Ultraplate's flexible decay range to create a wide range of studio textures.

Cathedra - Adapted from Mercury7, Cathedra is a massive and ethereal algorithm with a slow build. Cathedra is perfect for scifi textures and recreating C-beams glittering in the dark near the Tannhauser gate.

Spring - A flexible algorithm that can be voiced to replicate both the amp based reverb sounds and the classic studio spring tanks featured on early recordings.

78 Room - A lively and direct sound. This algorithm is great for transforming static sounding virtual amps into the difficult to capture sound of a great amp live in the room with you. The Room algorithm features a unique infinite mode (Maxed out Decay controls) that interacts with the Tank Mod to provide deep chorused and flanged reflections.

78 Plate - Fast and dense, the 78 Plate algorithm is a good match for beefing up percussion and vocals.

78 Hall - A large hall with a medium build up of reflections. Great for building up ambient walls of sound. The Hall algorithm's extended reflections are a great base for sculpting with the Bass/Mids/Cross controls. Deep rumbling bass caverns and ethereal upper mid emphasized halos of sound are easy to create. Explore the additional sparse mode for the Hall when Diffusion is set Low.

Prism - The Prism Strucure is an dual tank that allows you to build your own geometric rooms by specificying the size and distance and reflectivity. Prism features a highly configurable modulation section which allows different modulation phases per side to further increase the stereo image.

Gravity - The Gravity Structure works by accelerating indivual windows of your signal and stretching them across the horizon.

Notes: E7 is the MOOER Polyphonic Guitar Synth Pedal is the second pedal of MOOER New Micro series. As a brand-new design Micro series, we have added 7 LED indicators on the right side of the shell, providing more possibility to the New Micro series.
E7 can transform your guitar into a typical electronic synthesizer, without the need for special pickups or instrument modifications. It is named as E7, for its seven different MOOER custom synthesizer tones. Each tone with an individual arpeggiator, high/low frequency cut, attack, speed function, allow users to shape the tone in their mind easily, explore the horizon of tone with the E7.

Features:
*7 different types of brand-new MOOER SYNTH tones
*Individual Arpeggiator for each tone
*7 slots for storing users' presets
*Firmware upgradeable via USB

Specifications:
*Input: 1/4" mono jack (impedance 2.2M Ohms)
*Output: 1/4" mono jack (impedance 100Ohms)
*Power supply: 9V DC transformer (internal negative external), MOOER Micro Power is recommended
*Current Draw: 150mA
*Dimensions: 93.5mm(D) x 42mm(W) x 52mm(H)
*Weight: 155g
*Accessories: User Manual

Notes: Realistic simulations of spaces, as well as never-before-heard surreal ambiances are represented with stunning sound quality. Sporting stereo ins and outs, a small footprint and all the controls at your finger-tips, it strikes the perfect balance of control and ease of use, avoiding laborious menus. Presets, the versatile control port, and MIDI open up a world of possibilities for live performances. Whether you're looking for a classic spring, realistic room or new sonic flavors to expand your creativity, this pedal delivers. And....it's got a beer mode!

The pedal has 12 algorithm types, some include multiple variations. For example, vintage and studio plate, dark and bright springs. Also, as more algorithms get added you can update your pedal via the SD Card. It's the pedal that keeps on giving.

Pristine sounding classic hall, plate, spring and room sounds that rival or surpass studio units costing many times more.

A complete palette of tweak-able ambient sounds that offer the creative player so much territory to explore and make their own.

All the algorithm controls are sitting on a knob in front of you, no fiddling through laborious menus.

Many algorithms have infinite hold settings or the ability to tap in delay time.

Features a signal to noise ratio of >104dB and maintains an analog dry path.

Settings can be saved to 35 presets. With three stomp switches, accessing the presets is easy.

Bank style or scrolling style preset modes.

It can be configured to run with true bypass or buffered bypass if you want to hear trails.

3 variations to choose from, perfect for recording, practicing or for gigs without an amp.

Get hum-free operation when operating in stereo with two amps. Output 2 is isolated with a transformer to eliminate nasty ground loops.

48kHz sampling, with 24 bit conversion and 32 bit internal processing.

Dry signal is left untouched, and blended with the wet signal using VCA. (no zipper noise, hooray!)

The Universal Control Port allows you to connect an expression pedal, external tap switch, control voltage, external audio input and MIDI - all using a standard 1/4" jack!

The Advanced configuration menu lets you configure how your reverb works. Select from true or buffered bypass, 0-35 presets, MIDI configuration, Control port control(expression pedal, external tap, control voltage and MIDI) as well as which style of preset system to use, input signal pad, output transformer enable and more!

The enclosure measures approximately 5.7" by 3.75" by 1.75", which is delightfully small when considering all the features packed into this unit.

Notes: Pigtronix Infinity 2 is a stereo looping pedal with two independent loops and a streamlined user interface that has been designed to provide an intuitive musical workflow, right out of the box.

The Infinity 2 enables musicians to seamlessly switch between parts, even during initial recording or while overdubbing. This Verse / Chorus type of workflow is further expanded by the ability to delete the loop that is not currently playing - freeing up an open slot for a new loop to be created, without interrupting playback.

Nearly all actions taken by the Infinity 2 occur at the loop boundary. This allows the musician to cue an overdub, switch between loops or stop precisely at the end of a loop, without having to worry about hitting the footswitch at precisely the correct time. Simply tell the machine what to do and it will occur at the end of the current loop. This is the general rule of thumb for all commands, with a few exceptions such as instant stop and fade out, which take place immediately when activated.

A small push-button switch, located above the left footswitch, allows the user to change the functionality of this footswitch to perform various Stop, Stutter and Octave Shift effects. A TRS remote jack allows these special features to be triggered by an external switch. Undo / Redo functionality can also be assigned to the left footswitch, allowing the musician to remove previous overdubs and add them back as desired.

In addition to a dedicated knob for loop Volume, the Infinity 2 also features a Decay knob that causes loop audio to fade out progressively during overdub. With the Decay knob set fully clockwise, the layers pile up at full volume. With the Decay knob set fully counter-clockwise, each overdub lasts for only one loop cycle. With the Decay knob set anywhere in-between those extremes, overdubbing on the Infinity 2 creates constantly evolving loop textures that can be instantly snapped back to a previous state using the Undo function.

The Infinity 2's full-range, high-headroom audio inputs will accept mono or stereo instruments as well as line-level signals. The dual outputs of the Infinity 2 can be routed for stereo output with pass-through and loop audio mixed together, or they can be configured for discrete Wet / Dry operationiwhere the loop audio is summed to one output, and pass-through audio is sent to the other.

Infinity 2 combines the high-fidelity audio and ultra-low-latency looping engine of the original award-winning Pigtronix Infinity Looper, with a much smaller form factor and a user interface specifically designed to make looping fun and musical for everyone.

Notes: Provides boost and definition, and improves the gain and saturation of your amp!

An exact re-creation of the original LPB-1 circuit, which ushered in the age of overdrive in 1968. Put the EHX LPB-1 in front of any effect to dramatically increase definition from its cleaner and heavier input drive. Control the gain and saturation of any amp. The LPB-1 puts impact into your tone.

True bypass
Tough and compact die-cast chassis
9V battery included

Specifications

Circuit: Analogue
Bypass: True Bypass
Audio: Mono
Power Supply: 9V battery included (optional 9.6VDC-200mA power adapter not included)
Dimensions (in): 4.5 x 2.75 x 2.1
Current Draw: 1mA
Year Released: 2006

Notes: Buzz. Beep and bloop. Get high on the lo-fi sounds of "old-school" games, toys and terminals!

The Mainframe provides sample rate reduction ranging from 48kHz to 110Hz. A little background... the sample rate is the number of times per second that a sample or snapshot of an analogue signal is taken. For example, CDs (remember them?) had a sample rate of 44.1kHz which means that the original analogue signal is sampled 44,100 times per second.

The sample rate defines the frequency range that can be reproduced while maintaining good fidelity. When the sample rate is reduced the quality of the audio is degraded and aliasing occurs. Aliasing means audible artifacts created when higher frequencies are sampled at an inadequate rate and the result is distortion. The Mainframe's sample rate range is wide enough to take you from sounds that are quite pristine to sounds that are unrecognizable when compared to the input signal.

It also provides bit crushing ranging from 24-bit to 1-bit. What does that mean? Bit crushing is bit depth reduction. Back to the CD example... CDs used a 16-bit bit depth meaning that each of its samples was represented by 16-bits of information. Higher bit depths can accurately represent a greater dynamic range while bit crushing increases the number of sampling errors and creatively degrades the sound to bring us back to those nasty "old school" sounds we love.

The Mainframe's selectable High/Low/Band-Pass filter lets the user shape the artifacts of the bit crushing and sample rate. Another very cool feature is its Sample Rate Tuning Mode where the pedal analyses your input signal in real-time and sets the sample rate to match the pitch of your signal, or a set interval above your signal. This allows you to set the sample rate to match the key of a song, or it will continually adjust the sample rate based on what you play!"

Specifications

Circuit: Digital
Bypass: Buffered Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 4.5 x 2.75 x 2.1
Current Draw: 90mA
Year Released: 2020

Notes: Instantly create matching harmonies to what you play.

The EHX Intelligent Harmony Machine instantly creates matching harmonies to what you play. It's like having one - or even two - guitarists jamming with you at the same time and always in perfect sync. The Intelligent Harmony Machine opens a door to the music of great multi-lead guitar bands and multi-part harmonized solos. Plus, its ability to apply harmonies ranging from simple to sophisticated will totally transform what you play. Of course, it also boasts EHX's renowned impeccable tracking and genuine musical tone.

Select your key and the Intelligent Harmony Machines will generate single note, diatonic harmonies* with a huge range of choices that includes both two- and three-part harmonies. Here are your choices:

1: 6th Down
2: Perfect 4th Down
3: 3rd Down
4: 3rd Up
5: Perfect 4th Up
6: Perfect 5th Up
7: 6th Up
8: 7th Up
9: 3rd Up + 5th Up
10: 3rd Up + 7th Up
11: Perfect 5th Up + Octave Up

These sound so cool that EHX have included them as extra options for the multi-harmony parts (selections 9, 10 and 11) to give you even more choices:

9 optional: 4th Down + 3rd Up
10 optional: 3rd Up + 6th Up
11 optional: Octave Down + 5th Up
9 optional: 6th Down + 4th Down
10 optional: 3rd Down + 3rd Up
11 optional: Octave Down + 4th Down
The Intelligent Harmony Machine also performs perfect polyphonic pitch shifts so the pitch shifts you dial up are applied to chords as well as single notes. We've even included a Major/Minor switch so you can select whether 2nds and 3rds will be major or minor. Here are the interval selections that are available:

1: Doubler
2: Perfect 4th Down
3: 3rd Down (minor on major)
4: 3rd Up (minor or major)
5: Perfect 4th Up
6: Perfect 5th Up
7: 2nd Down (minor or major)
8: 2nd Up (minor or major)
9: Octave Down
10: Octave Up
11: Perfect 5th Up + Octave Up

The Intelligent Harmony Machine's Moment Mode lets you instantly change pitch by simply depressing the pedal's footswitch. The pitch shift is engaged as long as you hold down the F/S. There's also an option so you can apply a user-set sweep time between dry and effect. Choose instant pitch changes or control the time it takes for the Intelligent Harmony Machine to sweep up and down between the set interval and the dry signal!

EHX Founder, Mike Matthews said: "We designed the Intelligent Harmony Machine for the player who craves maximum power, but in a minimal footprint. You'll dig its sweet, musical tone and spotless tracking!"

*Diatonic harmony means notes within a specific key that relate to each other.

Compact harmony generating, pitch-shifting powerhouse
Impeccable tracking and superb musical tone
Two distinct modes: Intelligent Harmony and Polyphonic.
Intelligent Harmony Mode generates diatonic harmonies in a set key based on the single notes you play. Key Selector and #/- switches provide access to all 12 keys.
In Polyphonic Override Mode you can play single notes and chords. The IHM's 11-position Interval Selector switch lets you select the harmony.
In Momentary Mode the effect is only active when the footswitch is depressed. Choose from instant shifts or set the time it takes the signal to sweep up and down.
Mix control sets the mix between your dry and shifted signals. Dry output adds signal routing and control options and flexibility
Comes equipped with an EHX 9 Volt power supply, can also run on 9 Volt battery

Specifications

Circuit: Digital
Bypass: Buffered Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included (optional 9V battery not included)
Dimensions (in): 4.5 x 2.75 x 2.1
Current Draw: 26mA
Year Released: 2021

Notes: Psychdelic Vocal Trip

Designed for vocals, the Echo Master is a lo-fi, analogue tape-style delay unit that can transform your voice into a chaotic realm of noise and feedback. The effects loop allows additional effects to be placed in the signal chain, making it easy to use with any of your favourite effects pedals on your vocal sound without any adapters.

The Echo Master is not just a delay unit, however. It utilizes matched Bourns transformers on the input to create a vibrant-sounding and feedback-minimizing preamp to bring you phenomenal vocal quality before you even hit the PA. Your sound engineer will hate you because you'll sound better than ever without their help. Top it off with high-quality Neutrik XLR jacks and the Echo Master is the ultimate tool for taking total control of the sound of your voice.

Controls

Time: Controls the delay time, with numbers labelled in milliseconds. In the Red Zone, the delay chip is pushed to the extreme. The signal decreases in fidelity as the time increases.

F-Back: Controls the number of repeats in the delay circuit, anywhere from one to an infinite to a wall of oscillation.

Mix: Controls the level of the delayed channel in comparison to the dry signal, from fully dry to an equal mix.

Send/Receive: Plug out of the Send jack into any additional effects, then back into the Return jack to introduce new sounds into your vocals. This loop is before the delay line, allowing you to affect your dry vocals as well as the delay generated by the Echo Master.

*Alternate Backplate: Back in stock baby! The Echo Master can also be purchased with a backplate that mounts to your mic stand. Puts the pedal within hands reach to maximize live performance tweak-ability. This recently upgraded V3, comes with a handgrip screw for more torque (although it resembles the V1, this is a much sturdier model). **Please note- cords, microphone, and stand are not included.

Specifications

Dimensions: 6.09" x 3.45" x 2.75" (including hardware).
Weight: 16oz. (w/ Alternate Back Plate 30oz.)
Power: 9V (runs on standard 2.1mm negative center 9V adapter).
Current Draw: 25 mA.

Notes: Expanded Freeze in a lowball-sized package!

Meeting between the original Freeze and Superego pedals is the Pico Deep Freeze Sound Retainer. With the ability to freeze a moment in sound, the Deep Freeze can act as a sustain pedal for holding chords and notes as backing for your playing or as a platform to manipulate your tone into new sounds impossible with a normal guitar. In addition to the original Freeze's abilities, the Deep Freeze features layering, adjustable attack/decay speeds, glissando, dedicated volume controls, and 3 modes: Latch, Moment, and Auto, making it powerful pedal punching well above its weight.

The Deep Freeze allows for instant sound freezing in three modes of operation. Latch freezes sound each time the footswitch is pressed until the effect is bypassed, while Moment mode freezes sound only while the footswitch is held down. Auto mode captured sound automatically each time it senses signal above its threshold for virtually foot-free freezes. These three modes make it easy to operate the Deep Freeze in a way that fits any playing style.

Controls on the Deep Freeze let you further tailor the operation of the effect. Separate DRY and EFFECT volume controls let you blend signals from subtle backing to 100% effect experimentation. GLISS adjusts the morph time between freeze sounds creating otherworldly soundscapes. The SPEED/LAYER knob adjusts either the attack/decay time of the effect in Moment and Auto modes, or the amount of layering possible in Latch mode which makes playing impossible chords possible!

Specifications

Circuit: Digital
Bypass: Buffered Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 3.65 x 2.0 x 2.0
Current Draw: 100mA
Year Released: 2023
