Notes: One of the best solutions for 7"/10"/12" record cleaning, HumminGuru's ultrasonic approach automatically restores your records, cleaning and drying within 7 to 15 minutes per disc. Simple, easy to use and effective.

Supplier's Notes:
The HumminGuru Ultrasonic Vinyl Record Cleaner

An all-in-one ultrasonic vinyl cleaning machine that automatically cleans and dries your record in just 7 to 15 minutes. It is compact, lightweight, quiet and compatible with 100v-240v.

HumminGuru ultrasonic vinyl record cleaner not only brings your dirty records back to life; its ease of use and intuitive design also makes record cleaning a more pleasant experience. It has been designed to clean and dry the vinyl records in one step using ultrasonic cleaning system. With 40kHz frequency, it is effective to remove the contaminants and dust on the record without causing any damage to the surface of the record. Less is more. Its lightweight and compact design make it easy to transport and creates more space to store. The simple yet elegant look was created to intuitively fit into your lifestyle. HumminGuru would be your best option in quality for price and value.

Maintenance Features

Air Filtration - To prevent external dust from blowing back onto the record during the drying process. The filter is washable and replaceable, which makes for easy maintenance.
Water Filter - A detachable water filter in the water tank gives an option to reuse the cleaning water. The filter is washable, which makes for easy maintenance.
Removable water tank - Water tank is removable for easy cleaning and maintenance
Replaceable rotation wheels - Easy to replace with HumminGuru assigned maintenance tool

Specifications

Item Name: HumminGuru Ultrasonic Vinyl Record Cleaner
Net Weight: 3.1 kg
Material: ABS & Stainless Steel
Colour: The New Blue
Dimensions: 34 x 15 x 28 cm
Adapter (Supported Voltage): 100 - 240 V AC 50-60 Hz
Water Tank Capacity: 400 ml
Ultrasonic Frequency: 40 kHz
Packing Volume: 38 x 21 x 37 cm
Packing Weight: 4.88 kg
Cbm: 0.03
Certifications: RoHS Directive 2011/65/EU, (EU) 2015/863
1 Year Warranty: HumminGuru comes with 1 year world-wide warranty.

Humminguru supports all commonly used voltage standards from 100v-240v.

The package comes with:

Ultrasonic Vinyl Record Cleaner
A Cleaner Lid
Power Cord
Manual Instruction
Removable Water Tank x 1
Maintenace Tool x 1
Replacement kit (2 pairs of rotation wheels, 5 pcs of air filters and 5 pcs of water filters) x1
Adapters for 7" and 10" records

Notes: The legend is back. Updated and re-engineered for the 21st century, the classic Technics DJ turntable remains the industry standard. Top sound, top build quality.

Supplier notes:
The SL-1210MK7 is the newest model of the SL-1210 Series. For the development of this model, all that modern-day DJs need and want was reviewed from the ground up. At the drive section of the MK7 is a coreless direct drive motor. While achieving both stable rotation and powerful torque, this has successfully eliminated a rotation irregularity called cogging, which was the only drawback of the direct drive system. As a result, sound quality was further improved. The pitch control incorporates digital control to achieve improved tracking performance and accuracy. The buttons and tonearm are black to complete the all black design, and the LED light can be set to illuminate in red or blue. A reverse play function has been added to expand the breadth of DJ play style. With those features and functions, the MK7 aims to set a new standard for DJ turntables.

Notes: Hotly anticipated rotary goodness from Spanish pro audio specialists Ecler. Simple, pure two-channel design with three-band channel EQs, three-band isolator and quality sound.

Supplier's Notes:
Two-Channel Analogue Rotary Mixer

WARM2 is a professional two-channel analogue rotary DJ mixer, designed and manufactured by ECLER in Barcelona. Featuring two phono/line channels and a micro/line channel, classic sharp filters, a 4th order Isolator and a narrow portable format, it will deliver a warm and crystal clear analogue sound.

Audio Performances

Inputs Sensitivity nom/Impedance:

LINE : 0dBV/50kO
PHONO : -40dBV/50kO
MICRO : -50dBV/>1kO
FX RETURN : 0dBV/>6kO

Outputs Level/Minimum Load:

HOUSE (BAL) : 0dBV/600O 1V *(+12dB 4V)
HOUSE (UNBAL) : 0dBV/2.2kO 1V *(+12dB 4V)
BOOTH (UNBAL) : 0dBV/2.2kO 1V *(+12dB 4V)
REC : 0dBV/10kO
HEADPHONES : 200mO/200O THD 1%
FX SEND : 0dBV/2.2kO

Frequency Response:

LINE : 10Hz#30kHz -1dB
MICRO : 10Hz#25kHz -1dB
PHONO : RIAA i0.5dB
FX RETURN : 10Hz#50kHz -1dB

THD-N:

LINE : <0.006%
MICRO : <0.9%
PHONO : <0.08%
FX RETURN : <0.005%

CM MR:

MICRO: >70dB @ 1kHz

Signal Noise Ratio:

LINE: >99dB
MICRO: >85dB
PHONO: >98dB
FX RETURN: >100dB

Max Undistorted Output Level:

HOUSE (Electr.BAL): 21dBV (23dBu)
HOUSE (UNBAL): 21dBV (23dBu)
BOOTH (UNBAL): 21dBV (23dBu)

Trim control:

INPUTS 1-2: - 15dB
INPUT 3: - 20dB

Tone control Inputs 1-2:

BASS: +10/-30dB
MID: +10/-25dB
TREBLE: +10/-30dB


Tone control Isolator:

BASS: +12/-70dB
MID: +12/-40dB
TREBLE: +12/-70dB

Tone Filter cut frequency at -6dB (slope 12dB/oct):

BASS: 200Hz
MID: 200Hz#6.8kHz
TREBLE: 6.8kHz

Isolator cut frequency at -6dB (slope 24dB/oct):

BASS: 300Hz
MID: 300Hz#4kHz
TREBLE: 4kHz

Connectors

Inputs:

LINE 1-2-3: RCA STEREO
PHONO 1-2: RCA STEREO
MICRO 3: 6.3mm TRS BAL. JACK
FX RETURN: RCA STEREO

Outputs:

HOUSE (BAL): XLR STEREO
HOUSE (UNBAL): RCA STEREO
BOOTH: RCA STEREO
FX SEND: RCA STEREO
REC: RCA STEREO
HEADPHONES: 6.3mm/3.5mm STEREO JACK

Miscellaneous

Control Mode: Rotary with Alps Blue Velvet Potentiometers
Phantom Voltage: 18VDC/5mA Max (Default ON)
MIX and PFL VU-Meter: LED 12 segments (-30dBV # +20dBV)

Operation

Operation Temperature: -5-C - 45-C / 23-F - 113-F
Humidity: 20 - 90% RH (no condensation)

Supply

Mains voltage: 90-264VAC 47-63Hz
Rated power consumption: 30VA

Mechanical

Dimensions (without wooden sides): 400 x 185 x 100mm / 15.7" x 7.2" x 3.9"
Weight : 3.6Kg / 7.94 lbs

Notes: Innovative little sampler groovebox. Works as a standalone unit or as a sequencer for other gear. A nice left-field alternative to the usual MPCs and Electribes.

Supplier's notes:
Blackbox is a portable sampler and groovebox that lets you record, save/load, apply effects and edit one-shot samples and beat-sliced loops. Create sequences with samples by tapping on pads, playing a virtual keyboard, using external MIDI controllers or by drawing-in notes using a standard Piano Roll editor on a fast touchscreen interface. Sequences can be played back to create song sections and entire compositions. Finish your song by mixing it, adding stereo effects and by saving it as a Preset for fast and easy recall.

Perform songs live and trigger samples on the fly. Blackbox makes it easy to create and perform music anywhere thanks to its compact and rock-solid hardware design. Just throw it in a backpack and hit the club.

Record hours of song ideas, jam sessions, and performances thanks to a microSD slot that enables you to expand internal memory.

Blackbox comes with gigabytes of premium samples and loops by SoundTrack Loops and Loopmasters to let you start making beats right out of the box.

Blackbox - your own personal sampler.

What Is Included:

- Blackbox compact sampling studio
- MicroSD card with blackbox firmware, about 60 presets and approximately 900 WAV files
- USB power cable and USB wall wart with 3 international adapters
- 2 MIDI Adapters - Male 3.5mm TRS to Female 5 pin DIN, MIDI Class B standard
- Quick Start guide to get you playing right away

Notes: Mid-range DJ mixer from the leading UK brand. Fully analogue four-channel design with A&H's much-loved Xone filter section. Very tempting alternative to the flagship Xone:96. Excellent value.

Supplier notes:
Created for DJs and electronic music purists, Xone:43 is a 4+1 channel DJ mixer that offers the very best of analogue audio quality, including the legendary Xone filter with resonance control, 3 band EQ, crossfader with three curve settings and X:FX for send/return to your favourite FX unit.

The crossfader has three switchable curve settings for blending or scratching styles and can be easily replaced or upgraded to a custom Innofader for ultimate crossfader performance.

With balanced XLR main outputs, independent booth and record outputs, Xone:43 excels in the club and in high end personal DJ setups.

Notes: A digital mixer at heart but so much more. 1010's unique take on mixing and recording includes built-in effects and EQ, compression, headphone/monitor mixes and output routing. Clever stuff.

Supplier's Notes:
Bluebox is the portable digital audio mixer that lets you get the most out of your electronic music gear. Connect your eurorack, sampler, drum machine and synthesizer outputs to 6 stereo, 3.5 mm TRS inputs and map them to 12 mono tracks or 6 stereo tracks, all with independent control for recording and playback. It's that keyboard mixer with live performance features that you always hoped someone would make.

Connect the output of your electronic music gear to Bluebox, and then route each track independently to the three outputs and effects sends. Each track offers control of volume, gain, 4 band parametric EQ, pan, mute and solo functions. Apply high-quality global reverb and delay effects along with 4 band EQ per track to add new depth to your sound with total control to quickly tweak incoming audio or track playback as needed.

With Bluebox you can record independent tracks or the Main mix using a standard microSD card. Capture your jam session for later review, or record the ultimate mix of the tracks for your song.

Bluebox's compact 5.5h x 5h x 2h case lets you tuck it into a crowded tabletop studio or throw it in your pack for the next gig.

Interact with the dynamic visual interface on the 3.5h touchscreen along with physical knobs, navigation buttons and transport buttons to quickly access the most important functions. MIDI input and output allow you to sync the clock with external gear for synchronized effects and metronome.

Add Some Colour to Your Mix:
Mix 12 mono/6 stereo tracks of live or prerecorded sound.
Independently route each track to any combination of three stereo TRS outputs:

Stereo Output 1 - Main mix
Stereo Output 2 - Assignable, with dedicated sub-mixer (pre or post fader)
Stereo Output 3 - Headphone output, with dedicated sub-mixer (pre or post fader)
Control one parameter for multiple tracks at once in Mixer mode.
Focus on one track at a time in Track mode.
Adjust the level or mute state of each output independently.
Use touch gestures or knobs to tweak your sound with four band EQ per track with support for Low Cut/Low Shelf, Parametric, and High Shelf/High Cut settings for each band.
Apply high-quality Reverb and Delay effects with independent effects sends for each track.
Override the headphone output with the Main mix on demand.
Maximize the loudness and unify your mix with the built-in global compressor
Sync to external clocks through the MIDI Input and Output.
Record hours of music as 48k, 24 bit WAVs directly to the microSD card as multi-track or as the main stereo mix.
Playback a previously recorded track while recording new ones.
Load firmware updates through the microSD card.
Mix electronic music gear such as the 1010music blackbox, eurorack modules, drum machines, samplers and synthesizers.
Save and recall Project settings including all parameters for tracks, outputs, EQ and effects.
Copyright 1010music LLC 2020 --- CONFIDENTIAL ---
Copyright 1010music LLC 2020 --- CONFIDENTIAL UNTIL 10/10/2020 ---
Fit it into a small spot on your desk and then tuck it in your pack for the next gig.

What is Included:
Bluebox digital recording mixer
A microSD card with bluebox firmware and pre-loaded project files
A USB power cable and AC adapter with 3 international adapters
2 MIDI Adapters . Male 3.5 mm TRS to Female 5 pin DIN, MIDI Class B standard
A Quick Start guide to show you the basics (full user manual available online)

Specs:
6 stereo 3.5 mm TRS inputs
12 mono tracks, 6 stereo tracks or something in between
3 independently controlled stereo 3.5 mm TRS outputs
3.5h touch screen, 4 knobs, 8 navigation buttons and 3 transport buttons
3 effects: reverb, delay and compressor
Records and plays back 48k, 24-bit audio WAV files
4 band EQ per track
MIDI In and Out for beat syncing effects
Dimensions: 5.5 x 5 x 2 (14 cm x 13 cm x 5 cm), 1 lb (450 grams)
Durable aluminum case

Notes: Classy stuff from the London label's debut collab with one of our favourite synth brands. Classy stereo delay with analogue filtering and creamy valve distortion. Perfect for studio or live use.

Supplier's Notes:
Ninja Tune - an English independent record label based in London and Erica Synths have teamed up to create a custom dub delay effects unit, the Zen Delay.

Features
Controls: delay time, feedback, delay mod (5 presets), tap button, dry/wet, bypass switch, filter cutoff, resonance, drive, input level, filter mode

Inputs
Stereo In: 2x standard jack

MIDI In: standard MIDI socket

CV In: standard jack

Outputs

Stereo Out: 2 x standard jack

Delay times: 1-5000ms with 1/8...x8 of clock/tap rate in beat mode

Inspired by a trip to Berlin's trailblazing music hardware trade show Superbooth, Coldcut's Matt Black and longtime friend Dr Walker (Liquid Sky artist collective / Air Liquide) envisaged the exciting possibilities of a custom hardware effects unit. The result is the creation of the Zen Delay i the first-ever hardware effects unit produced in collaboration with an electronic music label.

Bringing together the best of the digital and analogue worlds, the Zen Delay is a BPM-synced stereo delay line, combining extreme feedback ranges for dub and experimental lo-fi effects with a multi-mode 24 dB synth filter and valve overdrive.

Created and manufactured by Erica Synths, the unit is housed in a metal case with Erica Synths' signature bakelite knobs and a valve circuit for extra analogue warmth. While sonically versatile, it is incredibly easy to use each function has a physical knob that you can play around with without diving into manuals or scrolling through menus on a tiny screen.

Crafted in close collaboration with DJs and producers, the Zen Delay was uniquely developed with both live and studio use in mind and is suitable for many different performance situations, musical styles and instruments. While most delay devices are designed as 'stomp boxes' for guitarists, the device is equally powerful in the hands of electronic music producers, artists and DJs, adding a unique, warm and powerful sonic character to drum machines, loops, vocals, synths, samples or any other source. Even full tracks or a live stereo mix can be enhanced by the combination of analogue and digital circuitry, breathing new life into iPad performances and giving traditional digital synths and drum machines a huge kick.

The Zen Delay is a product of our expertise on vacuum tube designs, our powerful, custom DSP platform and the great sound of our filter ICs made and developed in Latvia. It by far exceeded expectations in terms of how it sounds and feels when played. - Girts Ozolin

The Zen Delay is the analogue delay unit I've been waiting for. Stereo warmth, tone and texture. Perfect for live abusage, and studio madness love it - The Bug

The Zen excels at the sort of extreme dub possibilities Coldcut love. Feed it back! - Matt Black

For years I have dreamed of a state-of-the-art stereo valve dub delay for my MPC that perfectly masters all sound aesthetics from "badass" to "psychedelic hypnotically trashed" and now, have a look! There it is... the Zen Delay! - Dr Walker

Power: 12v (power supply for worldwide use is included)
In/Out levels: 3.2v peak to peak
DAC
114 dB dynamic range

-100dB THD+N

ADC
108 dB dynamic range

-98 dB THD+N

Dimensions: 21 x 15 x 5 cm
Weight: 870g

Notes: DFAM is the first addition to the Mother-32 family of synthesizers and presents an expressive hands-on approach to percussive pattern creation. It requires no patching, and absolutely no experience is needed for human-beings of any age to quickly begin synthesizing new and unique rhythmic compositions.

Activated by an easy-to-use analogue sequencer, DFAM's emotive sound begins with a white noise generator and two wide-range analogue oscillators - effortlessly transitioning between rhythmic pulsations, resounding bass and resonant bells in an instant. DFAM's distinctive voice is then shaped by a classic Moog Ladder filter with two selectable modes: Low Pass mode imparts impact and dimension to each sound it touches, while High Pass mode opens the door to naturally expressive strikes, spikes and clangorous accentuations.

DFAM behaves much like a living organism, reacting in different ways to different individuals. 3 dedicated analogue envelopes work dynamically with the sequencer to ensure that tribal toms breathe, industrial impacts evolve, and cacophonous chaos can be spawned or subdued at the turn of a knob.Each DFAM ships with a package of Moog patch cables that unlock access to the 24-point modular patchbay. Use it to create new sounds or bizarre behaviours, synchronize an unlimited number of DFAM and Mother-32 units together, or fully integrate your analogue instrument into a modular Eurorack production environment.

Through exploration and experimentation, the vast potential of this expressive analogue instrument is realised.

Specifications

Sound engine: Analogue
Analogue sequencer: 8-Steps With Pitch and Velocity Per-Step
Sequencer panel controls: Tempo, Run/Stop, Trigger, Advance
Sound sources: 2 Oscillators With Square and Triangle Waveforms, 1 White Noise Generator, 1 External Audio Input
Frequency control: +/- 5 Octaves (10 Octave Range)
Mixer: Level controls for Oscillator 1, Oscillator 2 and White Noise/External Audio Input
Filter: 20Hz-20KHz Switchable Low Pass / High Pass 4-Pole Transistor Ladder Filter

Notes: The Minitaur is an inconspicuously compact, subharmonic bass machine designed to effortlessly integrate into any performance and computer-based music solution. Just as its progenitors, the Minitaur effortlessly does one thing above all others... wall splitting analogue BASS.

For over 40 years, the Moog Taurus has been the secret weapon of artists and producers around the globe for generating earth-shaking bass.

The Minitaur is the newest addition to the Taurus family of Analogue Bass Synthesisers. It is an inconspicuously compact, subharmonic bass machine designed to integrate seamlessly into any performance or computer-based music workflow . Just as its progenitors, the Minitaur effortlessly does one thing above all others... wall splitting analogue BASS.

The solid steel enclosure of the Minitaur is deceptively simple - offering immediate access to critical sound design and performance controls only. This makes Minitaur extremely fast and easy to use--but just under the surface lies a vast expanse of dynamic and inspirational power that is instantly accessible from almost any laptop or MIDI controller.

The free Minitaur Editor software truly unlocks Minitaur's power and flexibility by making DAW integration and control completely seamless on both Mac and Windows machines. Load and save up to 128 presets onto your Minitaur, select from 6 different modulation waveshapes , engage Hard Sync, access full ADSR envelopes, MIDI sync the LFO, reset oscillator waveform cycles, polychain with other Moog synthesizers and more. Every feature can be manipulated, automated and recalled instantly.

Minitaur v2.2

The new Minitaur v2.2 update expands this powerful analogue bass synthesiser with a host of new performance elements and user requested features, including front-panel access to new LFO wave-shapes, oscillator hard-sync and much more--and Minitaur's new Librarian/Editor Software makes DAW integration seamless between your synthesizer and Mac or Windows machine.

Specs

Sound engine: Analogue
Presets: 128 Presets
Polyphony: Monophonic (Can be poly-chained)
External controller response: Keyboard, Pitch Bend, Mod Wheel, After Pressure and Velocity
Sound sources: 2 Waveshape Oscillators with Square and Saw waveshapes

Notes: The Mother-32 is a distinctive analog instrument that brings raw sound, step-sequencing and extensive interconnectivity to any electronic or modular ecosystem. This expansive live performance and production synthesizer is designed to provide experimental musicians and synthesists with a diverse array of creative tools to inspire new ideas, unique sound and endless sonic exploration.

Drive synchronized sound with Mother 32's powerful step sequencer while utilizing its modular patchbay and assignable output to spawn a living, breathing organism with dynamic and modifiable sound processing. Patch multiple control and sound sources into Mother-32's voltage controlled mixers and truly unlock the vast potential of this powerful instrument, or pull all of the patch cables, plug in a MIDI cable and simply drive your Mother-32 from any MIDI-equipped device.

The Mother-32 is secured in an extruded aluminum enclosure with wood sides, but can also easily be relocated to almost any Eurorack enclosure.

During the prototype phase, Moog worked with 3 unique synthesists: Erika (Interdimensional Transmissions), Max Ravitz (Ghostly International), and Bana Haffar to produce a video that explores Mother-32's vast capabilities. Through performance and sound design, each artist displays the extensive vocabulary found within Mother-32. All patches were performed live, with no overdubs.

Specs

Sound Engine: Analogue
Polyphony: Monophonic
Keypad: 13 Note
Step sequencer: 32-Step with 64 Sequence Locations, Keyboard and Step Edit Modes
Sequencer panel controls: Tempo, Swing, Run/Stop, Hold, and Reset
Sound sources: 1 Oscillator With Pulse and Saw Waveforms, 1 White Noise Generator, 1 External Audio Input
Oscillator range: 8Hz-8KHz (16KHz max with LFO/CV)

Notes: One of our favourite synths of 2019 and still amazing value. Analogue meets digital, offering hugely versatile sound in the same compact, user-friendly format as the original Minilogue.

Supplier's notes:
An evolved next-generation analogue synthesizer with huge potential for sound design and performance. We wanted to deliver a next-generation analogue synthesizer for a new generation of musicians new to analogue synthesis. That dream was realized in the development of the minilogue, which instantly made the analogue synthesizer approachable.

In addition to emphasizing the same real analogue sound and joy of controlling an electronic musical instrument offered by the original minilogue, the minilogue xd newly adds a digital multi-engine, effects, a powered-up sequencer, and micro tuning functionality, further expanding the possibilities for sound design and performance potential. Minilogue xd is a fitting addition to the original groundbreaking minilogue.

Four-voice polyphonic analogue synthesis. The analogue synthesizer circuit of the minilogue, whose genuine analogue sound had a huge impact on the synth world, has been further developed for the minilogue xd.

Voice structure of minilogue xd is 2VCO + MULTI ENGINE, 1VCF, 2EG, 1VCA, and 1LFO. In addition to the distinctive circuits found in the series, such as wave shaping to shape the overtones of the oscillator and a sync/ring switch, there's also cross modulation, a sharp two-pole filter, and a drive switch that adds thickness and drives signal into minilogue xd's filter. Every parameter has been tuned in detail based on what musicians want out of their synth. The sounds range from the warm pads typical of analogue to fat basses and crisp lead sounds, covering every situation.

Of course, programs that you create can also be saved in the unit. Out of the box, minilogue xd comes loaded with 200 presets, and a total of 500 programs can be saved.

Equipped with a digital multi-engine:

The additional sound design possibilities of digital sound are delivered by the multi-engine that's provided as a third oscillator in addition to the two analogue VCOs. This engine, which is equipped with three different types of sound generator (noise, VPM, and user slot) lets you take advantage of a sonic character that's different than analogue, and use it at the same time as the analogue engine, infinitely expanding the potential of hybrid sound design.
Noise generator

The noise generator provides four types of noise that are indispensable for percussive sounds or for sound effects. You can use the digital filter to directly change the colour of the noise.

VPM oscillator:

minilogue xd's multi-engine features a VPM (Variable Phase Modulation)/FM oscillator with a two-operator structure. It can produce sharp, metallic sounds with complex overtones beyond the possibilities offered by analogue systems. With 16 types of oscillator and a SHAPE knob control, you'll be able to create complex sounds intuitively.

User oscillators:

User oscillators allow you to load your own oscillator programs that you created or obtained via the internet. There are 16 user slots, as well as one type of morphing wavetable oscillator provided as a preset.

High-quality digital effects:

minilogue xd's high-quality digital effects use 32-bit floating point DSP processing, adding a finishing touch to its deep sound design platform. The three types (modulation effects, reverb, and delay) can be used simultaneously, letting you choose from a wide range of variations including chorus, ensemble, warm tape delay, and a diverse variety of reverb. The user effect slots allow you to load your own effect programs that you've created.

User customization brings out infinite potential:

The minilogue xd features a customizable open environment. The unit comes with 16 user oscillator slots and 16 user effect slots that you can customize. Oscillators and user programs that you've created with the SDK (Software Development Kit) can be loaded into the minilogue xd via the dedicated librarian software.

Polyphonic step sequencer controlled by 16 buttons:

The step sequencer provides 16 steps, and supports both realtime recording and step recording. You can use the 16 step buttons to select a step directly, allowing quick editing to replace the pitch of a step or to mute it, or even improvisatory performances. Motion sequence lets you record the movements of up to four knobs, adding time-varying change to the sound, and you can record not only smooth changes in value but also values that change precisely at each step. You can use this to design the sound differently at each step; for example, you might create a drum pattern or sound effect from just a single program. This allows countless ideas to be unleashed.

Notes: Subharmonicon is a semi-modular polyrhythmic analogue synthesizer that employs a 6-tone sound engine and multi-layered clock generator to explore the world of subharmonics, polyrhythms, and the unique relationships they create.

Subharmonicon's characteristic sound starts with two analogue VCOs and four Subharmonic Oscillators for a total of six powerful sound sources. Each subharmonic tone is mathematically derived from one of the two main VCOs, giving the resulting chord shapes a beautifully coherent quality. Onboard quantization lets you dial in perfect intervals every time with selections for multiple tuning systems. Choose from contemporary Equal Temperament settings, the heavenly intervals of Just Intonation, or the unlimited freedom of no quantization at all.

Animating Subharmonicon's distinctive chord shapes is done through a polyrhythmic pair of 4-Step Sequencers. Each sequencer is clocked by any or all of four Rhythm Generators that output mathematical divisions of the master tempo. Layer multiple Rhythm Generators on top of each other to create complex polyrhythms and discover inspiring new patterns and styles. Delve into Subharmonicon's dual Envelope Generators, Moog Ladder Filter, and analogue VCA to call up dynamic articulations ranging from lush pads and blurred edges to percussive plosives and ritualistic rhythms.

Although no patching is required to start creating, exploring Subharmonicon's modular patchbay unlocks worlds of possibilities as you make novel connections and plug into new ideas. The 32-point 3.5mm patchbay can be patched into itself, expanding Subharmonicon's onboard capabilities, or interfaced with Mother-32, DFAM, and other external Eurorack-compatible gear (MIDI Type A adapter included for DIN to 3.5mm MIDI input). Use as a standalone synth with included +12V DC power supply or simply remove the front panel to install into any Eurorack system.

The Moog Subharmonicon is a versatile analogue labyrinth of subharmonically derived synthesis and polyrhythmic sound, equally suited for losing oneself and simultaneously finding oneself.

Subharmonicon is inspired by Joseph Schillinger's mathematical system for musical composition and is influenced by two analogue innovations from the 1930s and 1940s: the Mixtur-Trautonium, which employed a series of subharmonic oscillators to generate electronic undertones, and the Rhythmicon (developed by Leon Theremin!), an instrument capable of sounding multiple harmonically related polyrhythm generators simultaneously.

The Mixtur-Trautonium created subharmonics by dividing the frequency of its primary oscillator, while the Rhythmicon created polyrhythms that were multiplications of its primary tempo. These concepts of subharmonics and polyrhythms form the historic roots of the Moog Subharmonicon.

The undertone series, or subharmonic series, results from the division of an initial fundamental frequency (f) by successive integer values (unlike the overtone series, which results from integer multiples of the fundamental frequency). Where overtones are found to occur naturally in acoustic sounds, undertones must be produced through more extreme or novel methods, such as electronic circuitry.

Polyrhythms employ multiple rhythms playing at once to create complex, interweaving phrases. In the same way that a subharmonic oscillator divides the fundamental frequency (f) to create a musically related subharmonic, each rhythm generator in Subharmonicon uses an integer value to divide the current tempo value (t) to create a new rhythm.

Specifications
Sound Engine: Analogue
Sources: VCO 1, SUB 1, SUB 2 / VCO 2, SUB 1, SUB 2
Filter: Self-Oscillating Ladder Filter, Low-Pass, 4-Pole (-24 dB/Octave)
Envelopes: VCA EG (Attack, Decay); VCF EG (Attack, Decay)
Sequencers: Analogue (x2)
Steps: 4 Steps per Sequencer, selectable Quantization
Clock: Driven by any and all of the Rhythm Generators

Notes: Outstanding DJ turntable, designed to bridge the gap between vinyl and Serato. Solid analogue turntable underneath, embellished with digital features like pads, performance modes and an LCD screen for track info.

Supplier's notes:
This turntable is designed for a seamless integration with Serato DJ Pro, offering the possibility of controlling up to 7 different performance modes via the pad section. And thanks to the unique Platter Play mode, the pads can be used to control the platter's rotation speed to create melodies and authentic musical performances. The RP-8000 MK2 represents the perfect balance of a first-class professional turntable and an innovative musical instrument.

Real Time LC Display:
Besides all creative improvements, the RP-8000 MK2 has everything a DJ turntable should be equipped with. A digital LC display shows information regarding pitch, BPM, deck assignment, scales and notes, elapsed/remaining time of current track, as well as firmware settings. In Serato DJ Pro, it is possible, for example, to show the current BPM value of a track, in order to exactly match your tracks without the need to look at your computer monitor.

Pad section with 7 New Performance Modes:
Developed for application with Serato DJ Pro, and thanks to the seamless plug-and-play integration, the RP-8000 MK2 in a DVS setup offers unparalleled creative possibilities. The 8 large pads with RGB illumination can control over 7 different performance modes (Cue, Sampler, Saved Loops, Pitch Play, Loop, Loop Roll, Slicer), as well as 2 user modes, which can be custom assigned with individual preferred functions. Furthermore, by using the multi encoder it is possible to browse tracks directly from the turntable unit itself, and load them instantly to the respective deck. Thanks to its MIDI compatibility, the RP-8000 MK2 can communicate with every MIDI compatible DJ software - this way, an additional controller for performance modes is not necessary.

Balanced S-Shaped Tone Arm with Upgraded Tone Arm Base:
The RP-8000 MK2 features a statically balanced S-shaped tone arm with hydraulic lift and anti-skating mechanism. The newly developed tone arm base provides improved stability and adjustable height/vertical tracking angle (VTA). The low-resonance tone arm comes with a universal connection for pick-up cartridge systems (SME).

Platter Play - Creative Platter Pitch Control:
Platter Play mode allows users to control the platter's pitch via the performance pads, opening up new possibilities for musical live performances and turning the RP-8000 MK2 into a legitimate musical instrument. A total of 22 scales and 34 notes are at your disposal with an option to create up to 9 user-defined scales. The two speed select buttons can be used for pitch bending in Platter Play mode and also to respectively increase or decrease the audio material's pitch in steps of one half-tone. Furthermore, the platter's speed can also be controlled via an external MIDI keyboard.

High-Resolution Pitch Section with Digital Fader:
By using the high-resolution pitch fader, you can adjust the platter speed in the classic turntable pitch range +/-8%. The RP-8000 MK2 is also cable of a wider, DJ-friendly +/- 16% pitch range and a massive +/-50% ultra-pitch, allowing for increased creativity when manipulating and mixing records. If quartz lock is active, the platter speed will remain unaffected by the fader position and will spin at zero pitch (0%).

Powerful Motor with Extensive Adjustment Possibilities:
The fine-tuned, quartz-driven motor with digital pitch correction operates at a starting torque of 2.8kg/cm, which can be adjusted up to a maximum of 4.5kg/cm. This makes the RP-8000 MK2 an extremely smooth running turntable. Also, the turntable break speed (platter stop) can be adjusted from 0.2 - 6 seconds and the precision-machined, heavy die-cast aluminium platter is lined with vibration-reducing rubber to eliminate unwanted vibrations and resonance.

Sturdy Casing Construction:
By using a combination of metal, rubber and synthetic materials, the RP-8000 MK2's housing is more reinforced and heavier than ever before. This results in a turntable that is extremely resistant to vibrations caused by heavy bass sounds, and its shock-absorbing feet help to further improve this isolation. The surface is coated with a scratch-resistant high-quality deep black metallic finish.

High-Quality Connections and Integrated Phono Pre-Amp:
Thanks to the recessed rear connection panel, the RP-8000 MK2 can easily be mounted in a flight case and seamlessly positioned next to other DJ gear. Due to the additional output, the turntable can be connected to 2 mixers simultaneously, also allowing an easy switch from DVS to vinyl. An optional ground terminal offers additional protection in club environments. All cable connections (RCA/mains) are detachable and easy to exchange, which also helps with transport and storage.

Notes: A typically unique take on multi-effects from Soma, designed to induce meditative states. Hybrid analogue-digital delay/reverb/granular processing gives a range of creative approaches.

Supplier's Notes:
COSMOS is a drifting memory station designed to work with meditative states through music. The design of the controls, functions and generated soundscapes are intended to evoke, in both performer and listener, states and experiences inherent in meditation, such as limitless space, fluidity, spontaneous development, presence, the ability to hear, tranquility, the experience of subtle harmony and happiness enveloping the whole world.

From a functional point of view, COSMOS is a large array of sound memory, in which recorded sounds undergo constant recombinations, spontaneously generating an ever-changing soundscape. This is achieved in three ways - by a mathematical shift based on the relationships between large prime numbers (the size of all delay lines are different primes), an asynchronous operation of the LFO, and modulation with a slowly changing chaotic signal. As a result, it allows the endless layering and processing of various sounds, as in a looper, but without an intrusive, repetitive loop.

COSMOS generates rich, fluid and evolving soundscapes perfect for ambient music. Using COSMOS, you can play an entire meditative solo concert while being in a spontaneous flow and without using studio-prepared sequences, backing tracks and other things that can't be a reflection of the "here and now".

Specifications

Minimum input voltage: 0.35 V peak-to-peak
Maximum output voltage at line outputs: 11.3 V peak-to-peak
The maximum output voltage at the headphones output: 10.4 V peak-to-peak
Frequency response: 10-22000 Hz
Sound memory: 44.7 sec
Supply voltage: 12 V *
Power connector polarity: centre plus
Current consumption: 0.25 A
Dimensions: 342 x 153 x 68 mm
Weight: 2.2 kg

* Use only the power supply supplied with the device! In case of failure, it can be replaced with a high-quality modern switched-mode power supply with an output voltage of DC 12 volts, the center is plus and an output current of at least 0.5 amperes (more is fine). The power supply must have a wide AC input voltage range of 100-240 volts. Such power supplies have excellent output voltage stabilization required for the device. It is forbidden to use COSMOS with nonstabilized voltage from transformer power supplies. It can lead to damage to the device, which is not covered by the warranty repair!

Notes: Successor to the excellent Metropolis, the Metropolix is a performance-focussed step sequencer with some really neat features, including modulation and sub-sequences in Loopy mode.

Supplier's Notes:
The Intellijel Metropolix is a unique and powerful Eurorack format musical sequencer. With an abundance of hands-on, tactile controls and a wealth of modulation possibilities (both internal and external) you can quickly and easily create infectiously musical sequences that are never boring. Even the simplest riff can be brought to life with seemingly endless options to create variations or real-time manipulations. Equally at home in the studio or a live improvised performance, the Metropolix is sure to become a staple source of fresh ideas and killer riffs in your creative process.

Width: 34HP
Depth: 25mm
Power: 95mA @ +12V 10mA @ -12V

On first blush, it appears to be a simple 8-stage sequencer - but there is far more functionality than first meets the eye:

There are two tracks (TRK 1 and TRK 2) that are variants of the single master pitch/gate sequencer, which is programmed via the PITCH sliders, PULSE COUNT and GATE TYPE switches. Each track interprets the master sequence in a variety of ways - creating complementary sequence variations that enable you to generate counterpoint, polyrhythms, and all manner of sonic movement (both subtle and extreme). Each of these tracks has its own playback ORDER, sequence LENgth, clock DIVision, SWING amount, SLIDE time, and track GATE lengths. Other track-based sequence variables are accessible from the TRACK MENU, and include Pitch Slider inversion; sequence note range; track transposition; and more. In addition, Tracks 1 & 2 both have multiple lanes of per-stage playback parameters, including: GATE override; PITCH override; RATCHet count; PROBability of playback; ACCUMulating transposition, and a dedicated CV lane. Each stage also has a SKIP feature, and a pitch SLIDE option.

8 separate and individual MODulation lanes are accessed via the MOD button. Each MOD lane has 8-stages of modulation values and its own playback ORDER, LENgth, and clock DIVision; and each lane is routable to one of Metropolix' two assignable outputs or to dozens of internal destinations, allowing for some sophisticated and powerful self-modulation.

A trio of AUX inputs allows for external modulation of user-assignable sequencer parameters for even greater variation, while two assignable CTRL knobs give you direct access to the parameters you want to adjust most frequently during a performance. With dedicated Pitch/Gate outputs for both Track 1 and Track 2; two totally user-assignable outputs (A and B); and internal MOD routing, Metropolix features a wealth of patching opportunities.

Metropolix also features a Loopy mode, allowing you to instantly play back short sub-sequences, or even "play" the stage buttons directly (like a 'keyboard').

Metropolix stores up to 64 preset configurations (in 8 banks of 8 presets), and all live settings are stored in EPROM, ensuring that your Metropolix will always power up exactly as you left it - even if you haven't saved them to a preset. By default presets can change all the structural (menu-based) elements of your sequencer without overwriting the front panel controls, but full recall is also available.

The operation of the Metropolix is optimized for live performance and jamming, with quick access to all the most important performance parameters, and the ability to greatly affect your sequences with a single slider or switch.

Notes: From basslines and rave sounds to massive drones and drums - the Erica Synths Bassline DB-01 synthesizer lets you explore new territories of sound and performance techniques and go from a melody to noise and back in no time. The DB-01 packs an analogue Erica Synths signature sound engine with an advanced sequencer on top of it.

Features:
All analogue sound engine
Aggresive acidbox filter design
One knob overdrive for even more destructive sound
Transistor based sub-oscillator
Independent amplitude, filter cutoff and pitch envelopes
BBD based detune for massive swarm sound
Syncable LFO with multiple waveforms for FM and VCF modulation
Noise source
Intuitive, easy to use sequencer for up to 64 step patterns
Sequence transposing
Pattern randomization
Arpeggiator
Modulation track with VCF cutoff automation
Built in and user defined scales with micro tonal possibilities
Analogue clock in and out
CV/Gate output/input
MIDI IN and THRU - play it with a keyboard!
8 banks of 16 pattern memory
Compact, durable aluminium enclosure

Notes: Updated version of Akai's excellent MPC One features increased storage, WiFi, Bluetooth and a striking new colour scheme. Full standalone beat creation masterpiece.

*** Introducing MPC Stems- March 2024 ***

Akai Professional now introduces the next chapter of sampling innovation and production powered by the groundbreaking MPC Stems bringing sampling into a new chapter.

With MPC Stems, you can access the raw building blocks of any sample or vinyl record, isolating the DNA of any record. Producers can now manipulate the Drums, Bass, Music, and Vocals, opening new creative possibilities.

Akai Professional introduces the ultimate creative workflow with Stems Separation seamlessly integrated into the leading MPC series, powered by MPC 2 Desktop Software.

With MPC Stems, producers and beat-makers can now unlock unmatched sampling creativity by easily isolating drums, bass, music, and vocals from any audio, vinyl recording, or sample revolutionizing the art of sampling.
Experience lightning-fast workflow with superior sound quality, keeping you inspired throughout the creative process.

Slice and isolate samples while maintaining chop regions across each of the four stem layers.

Take complete control with direct manipulation of stem layers from the pads, adjusting volume, pitch, pan, start, and end points with instant responsiveness.

MPC Stems requires MPC 2 Desktop Software running 2.14 or higher, compatible with MPC Live, MPC Live 2, MPC One, MPC One +, MPC X, MPC XSE, MPC Key 37, MPC Key 61, MPC Studio Mk 2 in Controller Mode.

Supplier's Notes:
MPC One +

Standalone MPC with 7" touchscreen / WiFi & Bluetooth

Supercharge your beats

Standalone supercharged

The new MPC One+ brings a jolt of energy to the standalone workflow to enhance creative speed and efficiency. With MPC One+, beatmakers producers to live performers can enjoy the creative journey like never before.

Pure standalone power in your hands

At the heart of MPC One+ is the powerful multi-core processor, the same featured in the flagship MPC X. This isn't a scaled down little brother, but a production unit built with the same DNA for high-level music creation. Instruments, audio, MIDI, and effects processing to bring the music to life. With an upgraded 16GB of internal storage, create and store more of your inspired moments right in MPC One+ for immediate access and recall.

Wireless for the future

New Wi-Fi and Bluetooth connectivity opens a new world of possibilities for your creative workflow. With Wi-Fi, you now have access to Ableton Link 3 to wirelessly connect and sync all your capable devices. Lock patterns and grooves for a mega creation without any cables or connections. Grab your Bluetooth enabled MIDI controller to lay down synths and melodies while your infectious rhythms have you vibing to the beat. Pair with a wireless QWERTY keyboard to search through folders and libraries accurately. With Wi-Fi and Bluetooth, your MPC One+ may be untethered but you are locked right into the music.

The centre of your creativity

MPC One+ is meant to be the focal point of your creative workspace. Whether you need compact, efficient beat-making or expanded interconnected production and composition, MPC One+ is versatile enough to accommodate any need. Connect your studio speakers to Stereo Outputs for accurate monitoring. A pair of Line Level Inputs are ready for keyboards, synths, instruments, hardware processors, and more. Expand your I/O with support for ClassCompliant Devices via a USB A host port. Connect your favorite plug-and-play USB MIDI Controllers, Audio Interface Devices, or removable storage drives, and take your production up another level with ease.

The workflow that sparks inspiration

MPC is the premier platform for all pattern-based music from EDM to Electro, Hip-Hop to House, and beyond. With 128 MIDI and 8 Audio Tracks per project, MPC One can capture any idea just as fast as you can think it. Browse thousands of MPC Plugin Instrument Presets to find that perfect sound to build melodies or shape harmonic phrases with massive sonics. Lay down serious drums and percussion with the signature MPC groove and precision. 16 Levels, Note Repeat, and Time Correct have defined the rhythmic feel for generations and continue to be the foundation for hit song after hit song. Use the pads in combination with Notes and Chords modes to unlock a completely new world of pad performance using the 16 velocity-sensitive RGB backlit pads.

One place for your sounds, samples, and songs

MPC One+ grows with you as you evolve on your music production journey. Update features, sounds, and samples wirelessly thanks to built-in Wi-Fi. When new MPC plugin instruments are available, you'll enjoy instant notifications as well as downloads and software authorizations right from your MPC One+. Browse and sync your curated Splice loops and samples and give your productions a breath of fresh inspiration whenever you need it. Keep all your sounds and instruments right within reach to instantly capture the most inspired moments anytime.

The next step of your MPC journey

MPC One+ is here for the producers and beatmakers ready to take the next step in the journey. Upgrade to MPC One+ from MPC Beats and load your old projects seamlessly on MPC One+. Your MPK mini or other class-compliant controller connects for powerful keyboard control of popular MPC plugin instruments like Hype, Mellotron, or Odyssey. For a limited time, receive a voucher for a free MPC Plugin instrument download from the MPC Store with the purchase and registration of a new MPC One+. MPC One+ has arrived and the musical possibilities ahead of you are endless with the power of its supercharged standalone workflow.

Technical Specifications

Pads
(16) velocity- and pressure-sensitive pads, RGB-backlit
(8) banks accessible via 4 Pad Bank buttons

Knobs
(4) 360- touch-sensitive Q-Link knobs for parameter adjustment
(1) data encoder for value adjustment and selection via push

Buttons
(31) dedicated-function buttons

Display
7.0" / 177 mm (diagonal)
5.9" x 3.7" / 151 x 94 mm (width x height)
Full-colour LED-backlit display with touch interface

Memory
Processor: Quad-core ARMr processor
RAM: 2 GB
Storage: 16 GB (over 7.8 GB available for user storage)

Power via power adapter (12 V, 3.0 A, center-positive, included)

Connections
(2) 1/4" (6.35 mm) TRS inputs (1 stereo pair)
(2) 1/4" (6.35 mm) TRS outputs (1 stereo pair)
(1) 1/8" (3.5 mm) stereo headphone output
(1) 5-pin MIDI inputs
(1) 5-pin MIDI output
(4) 4 TRS CV/Gate Jacks, 8 Outputs Total
(1) USB Type-A port
(1) USB Type-B port
(1) SD Card slot
(1) Power Adapter input

Dimensions (width x depth x height)
10.7" x 10.7" x 2.1"
272 x 272 x 53 mm

Weight
4.7 lbs / 2.1 kg

Notes: More knobs than you can shake a stick at. Add hands-on control to pretty much any MIDI-equipped hardware or software. Upgraded version of the classic PC44, featuring a whopping 72 rotary pots and 12 buttons.

Supplier's notes:
PC12 as successor of the PC44 is a universal controller for all kinds of MIDI controllable hardware and software.

You can combine two or more NEW MODULE devices to create a large system. The connections are on the right side to allow a back to back placing of two or more devices. Connect two NEW MODULES by a special extension port.

Furthermore, there are 4 MIDI-ports and one USB-port with various routing possibilities.

It is packed in a metal case with the same dimensions like the famous ELEKTRON devices so it's a great extension for these devices. But you can use the pot controller also with your DAW like a classical 12-track-mixer.

The device has 72 standard pots and 12 buttons in a 12-track-layout, various kinds of MIDI commands like control change, note on/off, pitchbend, aftertouch and program change are possible. You can program every MIDI command for every separate control on the device very fast and easily.

Of course you can assign the pots and keys to any of these commands by learning incoming MIDI commands, which is the same procedure you know from your software/DAW. The pots work with standard resolution of 7 bit to have full compatibility to any software and hardware instrument, effect and DAW. Use the internal 30 setups to save your individual settings. Backup and restore of all settings by sysex dumps is possible too.

The factory settings are perfect to control music and video software products out of the box if they are freely assignable. So any additional device programming isn't necessary for many applications.

Some special setups are preconfigured for use with ELEKTRON RYTM and ABLETON LIVE.

Check out this amazing power box and you will get a reliable mate...

Notes: Brilliantly unusual synth based on eight analogue tone generators, functioning more like an electric organ or FM synth than a conventional subtractive architecture. Unique sound.

Supplier notes:
Welcome to the world of sound of LYRA-8, the unique organismic analogue synthesizer designed by Vlad Kreimer. "Organismic" means that LYRA uses some principles that lie in the base of living organisms. The way how LYRA's modules interacting between each other and the behaviour of the instrument resembles a live conversation.

LYRA-8 is based on eight generators, which will be referred to as voices. Their design is not like a traditional subtractive synthesis VCO. Instead of having a linear or logarithmic dependency on control voltage, they resemble the tone generators in old electric organs. Hence the use of the term "voices" instead of VCOs. Lyra uses non-linearity a lot, and the voices are constructed in such a way that allows for non-linearity to express itself.

The voices are divided into four pairs (12, 34, 56, 78). All the pairs are divided in two groups, with two pairs in each (1234, 5678), creating tree-like structure.

The voices can function either in an electric organ mode or in an FM synthesis mode with each of the voices and its envelope acting as a separate FM operator. The voice's impact on FM synthesis will decrease along with the decay of its envelope.

LYRA-8 also has the next blocks:

The HYPER LFO is a complex low-frequency generator, whose waveform is synthesized from two simple LFOs by summation or multiplication of their frequencies. It also has a sync mode. The LFO can modulate the selected pairs of voices and the MOD DELAY.

The MOD DELAY consists of two lines of delay with cross-feedback and a special architecture that enables resonance between the two lines. Each line's delay time can be individually modulated from various sources, including external ones. The delay has a unique possibility of self-modulation where the output signal modulates the delay sample rate, creating cool effects.

The DISTORTION is last in the chain, after the delay. It enables the delay to also influence the distortion.

For all its experimental character, LYRA is a professional instrument. Its output dynamics and frequency response are balanced and ready for a live performance or studio recording without any additional processing.

Notes: BOUM is a full analog stereo warming unit, combining an easy-to-use compressor, a versatile distortion generator and a smooth low-pass filter. BOUM is the perfect tool when you need to add warmth, thickness, and character to your sounds, but also apply severe distortion and extreme compression treatments.

BOUM is based on an original and unique circuit, including the following stages :

INPUT GAIN : boost your signal up to +18db to adapt BOUM to various signal levels, and also improve the distortion content and the compression sensitivity.

COMPRESSOR : with a single knob, control the 3 essential parameters of a compressor, threshold, ratio and makeup gain, without thinking about how a compressor works ! The ratio ranges from 1:1 (no compression) to inf. :1 (limiter), but also negative compression up to 1: -1 !
6 different Attack and release times are available for fine tuning.

LO CUT FILTER : attenuate the distortion content of the bass frequencies with this 6 dB/Octave lo cut filter, making your distorted sound easier to mix with the original one.

DISTORTION GENERATOR : choose one of the 4 different distortion circuits :
BOOST : soft clipping amplifier, perfect for subtle harmonic enhancement.
TUBE : asymmetrical tube distortion emulator based on MOSFET technology. Generate mostly a second harmonic distortion.
FUZZ : symmetrical hard clipping amplifier, similar to an overdriven mixer preamp.
SQUARE : pure square wave generator based on a comparator. The ultimate fuzz !

HI CUT FILTER : soften the high frequencies with this smooth and musical 12 db / octave low pass filter.

NOISE GATE : remove the noise coming from the different treatments, or use it for interesting chopping effects.
All these analog effects are packaged in a compact format, with 36 user presets and full MIDI control.

BOUM will give you a wide range of compression, distortion and filtering effects, ranging from subtle harmonic enhancement to an insane square distortion, and everything in between!

Notes: Explore malleable sound. Mold, carve, bend.

The S-4 is a sculpting sampler designed to capture and transform sounds. Merging tape-era workflows with cutting-edge technology, the S-4 redefines sound mangling by providing a futuristic platform for crafting unique soundscapes and compositions, using samples and real-time audio processing.

S-4 is a tool made for sonic explorers. It has four parallel stereo tracks, each with an audio engine featuring a chain of audio devices including samplers, live granular processing, morphing resonators, and a range of audio effects. A novel modulation system allows anything and everything to be modulated with four modulators per track. Capture sounds on the fly with the onboard microphone and stereo line input, or load samples from the 4GB internal flash storage.

Use cases

The S-4 is a versatile powerhouse, capable of serving as an effects processor, transformative sound designer, tape machine, live looper, classic sample player, or textural synthesizer.

Tape machine

Capture your surroundings. Use S-4 as a transformative four-track tape machine.

Effect processor

Manipulate live audio, and add colour and textures to your beats, melodies, and sounds

Midi controlled sampler

Hook up a MIDI keyboard or sequencer and use S-4 as a powerful textural synthesizer and sample player.

Audio engine

Push the creative boundaries and transform audio into uncharted depths. S-4 has four parallel stereo tracks, each of which contains a chain of five audio devices tailored to cover specific sonic areas and applications. Create everything from glittering textures to broken soundscapes or evolving synth sounds.

Together, the devices form a playful toolbox for sculpting sample material and live audio.

Material

Stereo tape and sample players with live audio and looping capabilities.

Granular

Live granular processing with time-warping and pitch-shifting algorithms.

Filter

Morphing resonator: 48-band tuned filter bank with animation, tonal control, and classic filter functions.

Colour

Collection of destructive effects including bit crushing, drive, and compression.

Space

Combined reverb and delay with pitch-shifting and shimmer.

Modulation system

Animate and bring life to any parameter using the rich and unique modulation system. Each track has four configurable modulators that can be mapped to any parameter with unlimited mapping destinations. It is even possible to do cross-modulation between modulators. Choose between a range of different modulators from complex LFOs, and generative sequencers to envelopes.

Capture your surroundings

Utilize the built-in microphone to record sounds, sample and loop your external gear with the stereo line input, resample the internal tracks, or effortlessly load samples from the S-4's flash memory or an external drive.

Versatile powerhouse

The S-4 is designed with durable RGB buttons offering tactile feedback and a high-quality 3.5-inch LCD display ensuring all the visual feedback you need. It features USB connectivity for seamless connection to class-compliant devices and effortless file transfers to and from your laptop. Moreover, it can function as an audio interface when you require a simplified setup. You can also expand the number of inputs and outputs by connecting a class-compliant external USB interface.

Technical specifications

Audio engine features

4 parallel stereo audio tracks
Tape player with live looping capabilities
Polyphonic sample player
Live granular processing with time-warping and pitch-shifting algorithms
Morphing resonator (48-band filter bank)
Bit crushing, drive, and compression
Combined reverb and delay with pitch-shifting and shimmer

Modulation features

4 modulators per track
Modulate any parameter of the audio engine
Modulator types:
- Complex LFOs
- Generative sequencing tools
- Envelopes

Hardware

Quad-core 1.5 GHz processor
4 GB flash memory (sample pool)
24-bit / 48 kHz stereo audio in and out

I/O

2 line-inputs
2 line-outputs
Built-in microphone
Stereo headphone output
MIDI in/out
Analog sync in/out
USB-C

Miscellaneous

WiFi - Ableton Link
Class-compliant USB audio interface
Expandable number of inputs/outputs with class-compliant USB interfaces

User Interface

High-resolution LCD colour display, 3.5 inch
21 tactile RGB buttons
9 high-quality endless encoders

Physical

Matte black aluminium casing
Dimensions: 242 x 156 x 39 mm (9.5" x 6.1" x 1.5")
Weight: 820g (1.8 lbs)

Notes: Latest version of an interface that's become a modern classic. Up to 18 audio inputs and 22 outputs in total, spread over a mixture of analogue and digital connections. A true all-rounder that's hard to beat.

Supplier's Notes:
The MOTU UltraLite-mk5 is the latest incarnation of the best-selling UltraLite series (replacing the UltraLite-mk4). It takes the winning formula of the half-rack form factor with 18 in x 22 out analog and digital I/O and adds state-of-the-art enhancements at the same great price :

Best-in-class Audio Quality - the UltraLite-mk5 includes renowned ESS Sabre32 DAC technology, featuring the ES9026PRO DAC, to deliver 125dB dynamic range and -114 dB THD+N.

Ultra-low Latency - optimised Drivers for both Mac and PC deliver ultra-low latency performance. With a high-performance DAW the UltraLite-mk5 delivers an astonishing round-trip latency of 2.4ms (at 96kHz with a 32-sample host buffer

New Design - while retaining the same front and back panel layout as its predecessors the UltraLite-mk5 has a sleek new look, incorporating a high-resolution, high-contrast white OLED display providing precision metering for all analog inputs and outputs, along with digital I/O activity indicators and status info

Connectivity and Compatibility- the UltraLite-mk5 has a USB-C connector and is also class-compliant for operation with iOS devices. It is also compatible with MacOS 11 Big Sur and M1 Macs

New Software and Simplified Monitoring - live monitoring of inputs is controlled via the new CueMix 5 software

Rack-mount options - a half-rack mounting kit (sold separately) allows the steel-encased UltraLite-mk5 to be rack-mounted with thick steel brackets to withstand the punishment of touring. Alternatively, two UltraLite-mk5 units can be joined together with a Half-rack Coupler Kit (sold separately)

Technical Specifications:

Sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
Mic/line/guitar inputs: 2 x XLR/TRS "combo" jacks, 1 MO impedance on the line/instr inputs
Analog inputs: 6 x 1/4" TRS line in (balanced)
Analog outputs: 10 x 1/4" TRS line out (balanced, DC coupled)

Digital I/O:
1 bank (8 ch) of ADAT optical at 1x sample rates
1 bank (4 ch) of SMUX optical at 2x sample rates
Switchable to stereo TOSLink (optical S/PDIF)
1 x stereo S/PDIF on RCA (up to 96 kHz)

Computer I/O:
1 x USB-C 2.0 audio class compliant
Compatible with USB Type A (with adapter or C-to-A cable)

Total audio I/O:
18 in / 22 out (40 total) at 1x sample rates
14 in / 18 out (32 total) at 2x sample rates
8 in / 12 out (20 total) at 4x sample rates

MIDI I/O:
1 x MIDI IN
1 x MIDI OUT
16 MIDI channels to/from computer host

Headphone: 1 x 1/4" TRS stereo phone
Phantom power: 2 x individual +48V

Front panel:
2 x XLR/TRS combo inputs
1 x 1/4" TRS headphone output
1 x potentiometer - phone/monitor vol
2 x potentiometer - mic/instr input gain
4 x switches - (2) 48V and (2) pad
1x high-resolution white OLED display for metering/status
Power: External 12-18V DC power supply - 1.0A max - tip pos or neg

Dimensions and weight: (width x depth x height, enclosure only)
8.6 x 6.9 x 1.75 inches
22 x 17.5 x 4.5 cm
2.875 lbs / 1.31 kg

Notes: Cylonix and Intellijel have collaborated to bring you a very sophisticated and deeply complex Wavetable VCO. At the core of this module is very powerful FPGA board that he has pushed to the absolute max of its capabilities and crammed full of features. We wanted to create a module that really worked well in the modular context so there are a lot of modulation and control possibilities.

CHORDS
Oscillator 1 can be operated in a CHORD mode, which runs 8 copies of the oscillator in parallel with adjustable detuning, leading to very fat, rich waveforms. The oscillators have extensive modulation capabilities including audio rate (98KHz) Frequency and Phase Modulation (FM and PM) via external sources. Nonlinear combination processes allow the outputs of the two oscillators to interact to generate complex timbres and sonic textures.
There are 64 user selectable chords.

WAVEFOLDER
The SHAPESHIFTER module also includes the analog wave folder circuitry from
module to add analog warmth and metallic rasps to the digital oscillator output.
External signals can also be patched in.

PRESETS
The module includes a sophisticated preset mode where panel settings can be stored. There are 12 user-programmable preset slots and another 52 volatile slots that can be used as a scratchpad. These scratchpad slots are initialized to interesting presets on module powerup. The capabilities of the preset mode is not limited to mere passive storage of settings, however. In this mode the user can also step through, or sequence, the settings, either in order or randomly in response to pulses input to the external sync input. This gives the user the ability to generate complex sequences of sounds. The preset mode also allows the user to morph between the current panel settings and a preset providing a very powerful real-time performance tool.

SYNC
8 Different sync modes: HARD, SOFT, REV, HOLD, BUMP, 2=1, 1=2, OFF
with the ability to internally sync to a sub oscillator

PULSE
User selectable modes for the PULSE output: OR, AND, XOR, GLCH, +OSC1, EOC, +OSC2, -OSC2

MOD A modes: (audio rate modulation)
COMBO IN, SHAPE IN, PHASEMOD, VOCODER

MOD B options (all with CV control)

-Combo modes for OSC1 and OSC2:
NORMAL, RING, MIN, PONG, INLV, AND, XOR, GLCH
-Waveform TILT
-Chord mode overdrive
-Delay depth and FB
-Percussive mode decay time

Notes: The Intellijel/Cylonix RAINMAKER eurorack-format module provides a high-quality (96KHz sampling rate with 32-bit internal processing) stereo rhythmic delay and stereo comb resonator effect.

The stereo rhythm delay has 16 taps, each with its own resonant 2nd-order filter and granular pitch shifter. The filters have independently adjustable resonance and cutoff frequency, and can be set to either lowpass, bandpass, highpass or bypass operation. The filters are also capable of self-oscillation, enabling modal synthesis techniques. The granular pitch shifters have a range of 15 semitones up or 16 semitones down. Each tap can repeat at a rate value set in tap#'s in order to create regenerating echo effects. The feedback signal has a lowpass/highpass tone control and its own pitch shifter. The tap delay times can range from 0.1 millisecond up to a maximum of 20 seconds. The overall delay times can be set with the rotary encoder, the tap tempo button, or synced to an external clock.

The stereo comb resonator section has 64 time-delayed taps which are summed together. This produces a deep comb filter or resonating effect. At large comb sizes (long time delays) a multiple echo effect is produced. The density of the resonator can be varied from 2 to 64 taps. The tap with the longest delay time is fed back to the input. High feedback levels, with short comb sizes, produce "Karplus-Strong" types of plucked string sounds. The relative timing of the 64 taps are set according to one of 16 different preset patterns, which provide different resonator timbres or echo rhythms. The comb size can be set either with the rotary encoder, an external clock or through a transposable 1v/oct input voltage.

The Rainmaker module has extensive voltage control capabilities. Direct voltage control is available for the delay feedback level and tone, the global pitch shift for all delay taps, the comb resonator size, and comb feedback level. There are two assignable modulation inputs, which can be assigned to different parameters in each preset. A trigger input with assignable functionality can trigger built-in types of noise bursts, freeze the delay buffer, reverse the delay, randomize parameters, mute taps, and much more.

Notes: The Spherical Wavetable Navigator (SWN) is a six-channel synthesiser that makes it easy to create slowly morphing drones, polyphonic melodies, evolving sequences, and rich textures.

The SWN features six wavetable oscillators with independent pitch, level, and waveform controls. Six LFOs (Low Frequency Oscillators) can be used as modulation sources and/or envelopes, making it easy to add dynamic motion to your patch. Each channel is a full voice and can be "played" using the top row of buttons, the internal LFOs, or note-change detection on the 1V/oct jacks. The SWN ships with 12 three-dimensional (spherical) wavetables and an easy interface which allows you to record and edit custom wavetables from live audio. Open-source software for Mac, Windows, and Linux called SphereEdit can be freely downloaded and allows you computer to create, edit, and convert .wav files into Spherical wavetables to transfer into the SWN with an audio cable.

New firmware available which adds extra features, visit https://4mscompany.com/p.php?p=820&c=5 for details.

Notes: Flagship instrument based on NI's excellent Maschine software but presented here in standalone format as an all-in-one groovebox, capable of creating everything from beats to synths and samples.

Supplier's Notes:
MASCHINE+ is a sampler, a drum machine, a synth, and an on-stage superpower. In short, it's whatever you make it. Leave the laptop behind, jam with your other gear, and create beats in minutes with a wealth of on-board sounds, instruments, and effects.

It's the iconic MASCHINE workflow, with fewer strings attached.

Standalone means more focus, more freedom, and more music making. Plug in, power up, and get creating straight away in the embedded MASCHINE+ production environment - from first ideas to finished tracks. Dial in effects to tweak your sounds, or sample audio and make it your own with an intuitive interface designed to keep the creative juices flowing. And if you want to bring your ideas into a DAW, copy them over, and boot up the MASCHINE software on your computer to pick up where you left off.

As well as its classic groovebox workflow, MASCHINE+ includes MASCHINE+ Selection: A dedicated package of nine synths and sampled instruments, 35 effects, and seven Expansions (including two of your own choosing) that work seamlessly in standalone mode. It includes heavy-hitters like MASSIVE, FM8, MONARK, PRISM, the MASCHINE Factory Selection, RAUM, and PHASIS. That means its 16 pads can sound like a dusty vintage drumkit, a warped wavetable lead, or an organic modal synth - pretty much anything you can think of if you flex your sound design skills.

Whether you're digging records or ripping radio edits, record any sound into MASCHINE+ and quickly chop and stretch the results into your own custom kits. Or transform and twist them in real-time with the Audio plug-in. The same goes for guitars, vocals, drums, and anything else - more sounds means more creative ways to make music.

Bring real expression to live performances with intuitive control over your music - tap out beats, run arpeggiators, or tweak synth melodies in real time. MASCHINE+ is an intuitive live sequencer, a fully-fledged groovebox, and a powerful performance synthesizer rolled into one.

Clips let you arrange your ideas with even more freedom. Create transitions across scenes, add unique variation to patterns, record MIDI directly into the full arrangement, and freely add audio wherever you need it. Once you've fleshed out your ideas, you can use MASCHINE+ as a powerful tool to push tracks past the finish line.

Play and sequence outboard gear and capture the results, or manipulate external audio in real time with effects. MASCHINE+ can control, mix, and manipulate the rest of your setup with MIDI, line, and mic inputs to bring everything together instantly. And if you want to work with a computer, it doubles up as a classic MASCHINE controller too.

MASCHINE+ is Wi-Fi enabled, which means you can install new sounds, instruments, and effects at the touch of a button, without a computer in sight. When it comes to jamming with others or playing out live, keep in sync with other music apps, DAWs, and compatible gear with Ableton Link.

Need more sounds? Expansions are great for giving MASCHINE+ some sonic love, with presets for its synths, one-shot samples, loops, and kits.

AUDIO INTERFACE SPECIFICATIONS

Line-In
Full Scale Level: +18,6 dBu
Dynamic Range: 100 dB
THD+N: 0.003 %
Frequency Response:: 20Hz-20kHz +/- 0.1 dB
Crosstalk L/R: -96 dB

Mic Input (max gain)
Full Scale Level: -32 dBu
Dynamic Range: 90 dB
THD+N: 0.01 %
Frequency Response:: 20Hz-20kHz +/- 0.4 dB

Mic Input (min gain)
Full Scale Level: -3.4 dBu
Dynamic Range: 102 dB
THD+N: 0.004 %
Frequency Response:: 20Hz-20kHz +/- 0.15 dB

Line Out
Maximum Output Level: +18.0 dB
Dynamic Range: 102 dB
THD+N: 0.003 %
Frequency Response:: 20Hz-20kHz +/- 0.5 dB
Crosstalk L/R: -100 dB

Headphone Out:
Maximum Output Level: 29.4 mW @ 33 Ohm load
Dynamic Range: 102 dB
THD+N: 0.007 %
Frequency Response:: 20Hz-20kHz +/- 0.35 dB
Crosstalk L/R: -60 dB

Dimensions: 322 x 301 x 51 mm / 12.68'' x 11.85'' x 2.01''

Weight: 2.50 kg / 5.51 lbs

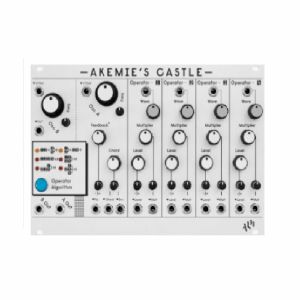

Notes: 'Akemie's Castle' is a dual voltage controlled oscillator with authentic 4 Operator digital FM using 'new-old-stock' Yamaha IC's for audio signal generation.

Each of the 4 operators feature independent waveform selection, frequency multiplier and level control via direct panel operation and voltage control. Operators can be combined in various ways across both oscillators, which together with independent feedback control on each VCO, offer an extremely wide palette of sounds.

Oscillator A also features a chord mode providing a range of up to 5 voice chords and voltage controlled inversion.

Notes: Rossum Electro-Music Software Architect Bob Bliss (who also, as it happens, fathered E-mu's famed "EOS" Emulator Operating System) has created Panharmonium, a unique music and sound design tool that analyses the spectral content of any audio signal and uses that analysis to drive a bank of from 1 to 33 oscillators. Depending on various control settings, Panharmonium can accurately reproduce the input spectrum in real time or modify it in a multitude of wildly creative ways. All with an interface whose immediacy encourages performance and interaction.

Panharmonium input can be anything from a single oscillator to an entire mix (including vocals). From dense, swirling pads and drones that evolve with the input's changing spectrum, to clock-syncable spectral arpeggiation, to as-yet unnamed harmonic effects, Panharmonium opens up an entirely new world of sonic possibilities.

Additionally, Panharmonium can take a snapshot of an instantaneous spectrum and use that as a complex harmonic oscillator, which can then be modified and modulated by all of Panharmonium's other controls.

Panharmonium accomplishes its magic though a combination of functional submodules:

Spectral Analyser:

The Spectral Analyser provides tools for defining the analysis process.

- The Slice parameter sets the rate at which the incoming audio is transformed to spectral data. It can be set by the Slice and Multiplier controls, the Tap button, or by an external clock signal. Very short slice times result in real-time spectral data, while longer times can create rhythmic spectral patterns.
- The Centre Freq and Bandwidth controls (and associated CV inputs and attenuverters) control the range of frequencies to be analysed. The Bandwidth control allows the selection of narrow to wide pass bands on the left side of the pot and narrow to wide notches on the right side of the pot. The ability to sweep the frequency and modify the bandwidth under CV control opens up a wide range of sonic effects.
- The Freeze button lets you freeze the spectral integrator, sustaining the currently analysed spectrum.

Spectral Modifiers:

These controls allow you to creatively modify the analysed spectra.

- The Voice parameter lets you select from 1 to 33 oscillators to resynthesise the spectrum.
- The Blur parameter (and associated CV input) is a spectral lag processor that controls how quickly the spectrum can change.
- The Feedback control (and associated CV input) lets you route the re-synthesised audio back into the entire processing chain for subtle or dramatic feedback effects. At its max, the output becomes self-sustaining, even if the input is removed.

Oscillator Bank:

The Oscillator Bank resynthesises the analysed spectra.

- The Waveform parameter selects the oscillators' waveform. In addition to the usual sine, triangle, sawtooth and pulse waveforms, two special crossfading sine and sawtooth waveforms are included.
- The Freq control lets you tune the oscillators over a +/-7 semitone range. The frequency is further controlled by the 1V/Oct input and the FM input and attenuverter.
- The Octave control, not surprisingly, shifts the pitch of the output by octaves.
- The Glide parameter sets the amount of polyphonic glide (i.e., each oscillator has its own glide circuit).
- The Mix control (and associated CV input) sets the balance between the original input audio and the resynthesised audio.

Optional Functions:

A number of optional functions can be selected by using the Output Mode and Tap buttons.

- Holding the Output Mode button and adjusting the Slice control enables Drums Mode, which optimizes the spectral analysis for drums and other percussive inputs.
- Holding the Output Mode button and adjusting the Centre Freq control allows you to instead set the lower frequency of the analysis range.
- Holding the Output Mode button and adjusting the Freq control enables Spectral Warping. In contrast to conventional frequency adjustment, where the harmonic relationships between the spectral elements are preserved, Spectral Warping shifts the harmonic elements individually, producing a variety of clangourous, swarming textures.
- Holding the Tap button and adjusting the Freq control quantizes the resulting frequency adjustments to semitones.

Spectra Memories and Presets:

Panharmonium provides 12 user Spectra memories and 12 user Presets (in addition to 12 each factory memories).

- The Spectra memories let you store up to 12 frozen slices. When selected, a spectrum (up to 33 oscillators wide!) replaces any live input and can have its pitch controlled by the 1V/Oct input and FM controls.
- A Preset is a snapshot of all of the module settings, along with the value of any CVs present at the moment the preset is saved.

Panharmonium is 26HP wide and 25mm deep.
Power requirements (max): 140mA +12V, 30mA -12V. Reverse polarity protected.

Notes: Based on a new digital hardware platform, the Spectraphon is a powerhouse spectral oscillator, capable of everything from analogue-style dual complex oscillators to FM and much more.

Supplier's Notes:
The Make Noise/Soundhack Spectraphon is a dual Spectral Oscillator coded by Tom Erbe of Soundhack. It uses real-time spectral analysis and resynthesis to create new sounds from those that already exist. It is inspired by classic electronic musical instruments of the past, including spectral processors, additive synthesis, vocoders, and resonators especially the Buchla 296 and Touche, but it takes a physical form more resembling the classic analogue dual complex oscillator in the lineage of the Buchla 259 and the Make Noise DPO.

The Spectraphon is the first module to be built by Make Noise on its new digital hardware platform. This hardware, engineered by Jeff Snyder and Tony Rolando, provides more i/o at higher resolutions, and a lower noise floor than we have ever had access to in a digital module, allowing us to unleash Tom Erbe's DSP code to a previously unattainable degree.

The Spectraphon has two nearly identical sides, A and B, which oscillate in one of two ways: Spectral Amplitude Modulation (SAM), or Spectral Array Oscillation (SAO). In SAM, instead of oscillating at all times like an analogue VCO, sound at the Spectraphon's input is used to modulate the amplitude of a set of harmonics. In SAM the Spectraphon can be sequenced and frequency modulated like any VCO. At any time the current spectrum can be used to create an Array for later use in SAO mode where the Spectraphon oscillates at all times, with the spectrum at the Odd and Even harmonic outputs being drawn from those stored Arrays.

The Slide and Focus controls are mode-dependent: in SAM, they determine how the Spectraphon responds to sound at the input for Spectral AM, while in SAO, they are used to modulate the Array.

In either mode (SAM or SAO), the Partials control works as a combined amplitude and timbre gate for the Odd and Even harmonic output and the FM Bus will create high definition internal frequency modulation from the opposing side of the Spectraphon. The two sides can also interact via the internal FM Bus, the Follow and Sync modes, and by patching them together.

Width: 34hp

Power:
230mA @ +12V
55mA @ -12V

Module Depth (incl power cable): 36mm

Notes: Based on the excellent LXR-02 drum machine, the LXR Eurorack module is a percussion all-round, with six voices, trigger inputs and CV modulation, plus the ability to generate synth parts. Versatile.

Supplier's Notes:
LXR eurorack module is a compact and great-sounding percussion synthesizer based on the sound engine of the LXR-02 drum machine. While retaining the core interface of the LXR-02, this module adds the essential eurorack ingredient - assignable CV control over parameters and many more tweaks in the user interface for better integration in any eurorack system

Features

6 drum/percussion voices
7 trigger inputs with accents
5 assignable CV inputs
4 assignable outputs
3 voices can be used as basslines due to 1V/oct tuning
Over 30 adjustable parameters per voice
Insert FX section
Kit memory
SD card for Kit exchange and easy firmware updates
Kits compatible with the LXR-02

Dimensions
28 HP
35 mm deep

Current Draw
88 mA +12V
10 mA -12V
0 mA 5V

Notes: Well on its way to becoming a cult favourite already, Empress's Zoia brings modular synthesis to a compact pedal format. Create effects, synths, controllers or modules to integrate with other instruments.

Supplier's Notes:

The ZOIA is basically a modular synthesizer in pedal form. Instead of being a delay effect or tremolo, the ZOIA provides the modules necessary to build a delay or tremolo from the ground up. But since you're the one building it, you can make it do whatever you want. With the ZOIA you can build your own custom effects, synthesizers, midi controllers, and virtual pedal boards. And to make life a little easier, these modules have been created for all your standard guitar effects. So for instance, if you want a phaser, you can just plop down a phaser. You don't have to break out the textbooks to learn that they're built out of all-pass filters. (Of course, if you're a nerd like us, you can use the ZOIA to build them out of all-pass filters).

Input Impedance: >= 1M ohms
Output Impedance: 100 ohms
Frequency Response (-3dB): 10Hz - 23.4kHz
Total Harmonic Distortion: 0.22%
Dynamic Range: 105.5 dBA
Input Headroom (no pad): +0.5 dBu
Input Headroom (6dB pad): +5.7 dBu
Input Headroom (12dB pad): +10.8 dBu
Output Headroom: +16.2dBu
Power Input Connector: 2.1mm Barrel Connector
Power Input Voltage: 9V DC (center negative)
Required Current: 300mA
Height (enclosure only): 1.75"
Height (including controls): 2.625"
Length: 5.7"
Width: 3.75"
Weight: 1.5lbs

Notes: Exceptionally versatile four-channel rotary mixer at a very reasonable price. Twelve inputs, three-band EQ, assignable multi-mode filter, isolator and assignable crossfader. Ultra flexible.

Supplier's Notes:
Omnitronic TRM-422: the rotary mixer on a new level

The desired child- Omnitronic's popular TRM series has been expanded: the TRM-422 combines all the proven features of the previous models, but additionally offers functions that numerous fans had wished for. During the development of the mixer, the focus was on the demands and suggestions of the community.

Full control- Each of the 4 input channels has 2 line inputs, one of which can become a phono input at the touch of a button. The channels are each equipped with a volume as well as a gain control. In addition to the master isolator (bass, mid & high), the DJ has the option to activate a filter with HPF, BPF, LPF, resonance and sweep controls in each of the 4 input channels.

The master output is available to the DJ in both XLR and RCA versions.

Effect ways- The use of external effect devices is possible through an FX-In and FX-Out via 6.3 mm jack. The mixer's master insert is also equipped with a send & return (unbalanced) path. This allows additional external effects to be looped into the mixer.

DVS integration- The mixer's timecode outputs allow easy integration of a DVS system (Digital Vinyl System) such as Traktor or Serato.

Monitor section- The booth output of the TRM-422 is provided with one XLR and one RCA connector. The signal of the booth output can be easily adjusted to the conditions in the DJ booth with the help of an EQ (High & Low).

Microphone inputs- The TRM-422 offers 2 microphone inputs. The first mic input gives the DJ the ability to modify the mic signal with EQ (high & low).

Backup source- With the help of the AUX input on the front panel, players such as smartphones, tablets or MP3 players can easily be connected via mini-jack (3.5 mm) and thus serve as a backup solution.

Activatable crossfader- If you don't want to do without a crossfader during your DJ set, you have the option to assign each of the 4 channels to the integrated crossfader. If the crossfader is not used, it can easily be switched off.

Set recording- The RCA record-out makes it easy to record your own DJ set.

Technical specifications

Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 24 W
Protection class: Class I
Power connection: Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Frequency range: Microphone 20 - 20000 Hz, Line 20 - 20000 Hz, Phono 40 - 18000 Hz
S/N ratio: >97,2 dB line, >91,7 dB Microphone
THD: Line <0,04 % at 1 kHz, Phono <0,13 % at 1 kHz, Microphone <0,008 % at 1 kHz
Gain: Microphone 44 dB, Line -16,5 dB to +8,5 dB Phono -48,5 dB to +23,5 dB
Isolators: Master Gain:- ? bis +9, Low/mid 300 Hz, 18db/oct , Butterworth, Mid/high 4000 Hz, 18db/oct , Butterworth
Crosstalk: >-68 dB
Control elements: Power switch, source selector, Crossfader, Crossfader selector switch, Crossfade curve switch; Cue mix split function, EQ controls

Connections
Input: 4 x line via stereo RCA
Input: 4 x line/phono via stereo RCA
Input: 2 x Microphone via 3-pin XLR
Output: 1 x headphones via 6.3 mm jack socket (stereo) mounting version
Output: 1 x headphones via 3.5 mm jack (stereo) mounting version
Output: 1 x rec. via stereo RCA
Output: 2 x booth via 3-pin XLR
Output: 1 x booth via stereo RCA
Output: 2 x master via 3-pin XLR
Output: 1 x master via stereo RCA
Output: 1 x AUX sends via 6.3 mm jack socket (stereo) mounting version
Output: 1 x AUX returns via 6.3 mm jack socket (stereo) mounting version

Channels:
Input chanel: 4 x stereo with Line-Line/Phono switch via RCA, channel control via Rotary, 3-band tone control EQ, source selector, gain control, CUE switch, FX routing switch, Crossfader selector switch,
Microphon chanal: 2 x mono via XLR, channel control via Rotary dial, ON AIR switch

Master output: 2 x stereo via XLR, channel control via Rotary
Booth output: 2 x stereo via XLR, channel control via Rotary
Rec. output: 1 x stereo via RCA
Headphones output: 1 x stereo via Plug 6,3mm/3,5mm (Jack), channel control via Rotary dial, Cue mix split function,
Max. level: Output: +18 dBu
Material: Metal
Housing design: Desktop console housing
Dimensions: Width: 41 cm, Depth: 28,5 cm, Height: 10,5 cm
Weight: 5,74 kg

Notes: *** NO POWER SUPPLY INCLUDED - USES GENERIC 12VAC ADAPTER ***

Basically, the Ekdahl Moisturizer is a spring reverb where the springs are exposed so they can be played/hit/fiddled with. As well as being capable of creating sound in itself, you can of course also play sound through the springs like a regular spring reverb - this makes for happy-fun-time finger-modulation of the reverb on whatever audio that's going through it. On top of this there's an analog multimode filter that can be used to attenuate or exaggerate certain frequencies in the sound, this is real handy while playing the springs as you can - for instance - cut all the highs and just make thunderous doomy sounds or do the opposite; cut all the lows and make that ear piercing high frequency special love. Also, it incorporates an LFO that's internally routable to the filter and that also has some external routing-stuff. The Ekdahl Moisturizer has tons of CV / Expression pedal options on the back for even more hillarious moments. The Moisturizer is a mono unit.

The Moisturizer was developed with the help of Jason Willett (Half Japanese, Leperchaun Catering), Martin Schmidt (Matmos, Instant Coffee), Joshua Atkins (Polygons, Major Powers), mom & dad and many more.

The Ekdahl Moisturizer contains exactly:
Preamp (up to 10 times gain)
Reverb
Reverb / Preamp wet/dry crossfader (Knob & CV/EP controllable)
State variable filter with
Lowpass/Bandpass/Highpass seamless crossover (Knob, CV/EP & LFO controllable)
Cutoff (Knob, CV/EP & LFO controllable)
Resonance (WITHOUT resonance limiter)
LFO with
Speed control (Knob & CV/EP controllable)
Square / Triangle crossover
External output with output amplitude knob
Filter / No filter wet/dry crossfader (Knob & CV/EP controllable)

The preamp section is designed for a max of 10 times gain, this to accomodate for low level output instruments such as guitars etc. The reverb tank has normal reverb signal gain on it, meaning that if you hit the springs hard they'll distort like crap which is real nice, if you hit them softly the sound won't be distorted.

The filter in the Ekdahl Moisturizer is abrasive, the fact that it doesn't have any resonance limiting makes it possible to get the filter to sound *really* bubbly & metallic (way more then any filter i've ever heard), but it's also of course capable of sounding completely "normal" - it all depends on the amount of resonance and/or gain. The fact that you can seamlessly fade inbetween lowpass, bandpass or highpass filter (or lowpass+bandpass and highpass+bandpass) makes the unit pretty damn versatile and by using the wet/dry filter/no filter crossfader there's some neat shit that can be done too. Now it should be said that due to the fact that there's no resonance limiter, if using very high gain, with high resonance and turning the cutoff frequency very high the filter might cut out - not to worry, just turn the cutoff back a bit and the filter pops in again. This happens because the filter gets overloaded and can be avoided with a resonance limiter, however if i had one of those all the super-awesome bounce would be gone and it'd sound like all the other filter out there.

The Ekdahl moisturizer has six CV/Expression pedal related jacks on the back, one of them is a LFO output so you can control other shit with The Moisturizer's LFO. All the other jacks are inputs and takes either CV or Expression pedal, they are: Reverb Mixture, VCF Cutoff, VCF Filter Mode (LP/BP/HP), Filter Mixture and LFO Speed.

Notes: Building on the success of the original HumminGuru record cleaner, the NOVA model takes things to the next level. More power, quieter operation, easier operation and lots of tweaks to make the winning formula even better.

Supplier's Notes:
Premium | Automatic | Efficient

The HumminGuru NOVA is an Advanced Ultrasonic Vinyl Record Cleaner that elevates your record-cleaning experience to the highest level of satisfaction. Utilizing 40kHz ultrasonic sweep frequency with an upgraded power drive, it delivers quieter and highly efficient cleaning performance. Furthermore, with the NOVA's upgraded fan power, experience rapid record-drying in just 3 to 6 minutes. It is recommend that you use The Small Bottle.

The NOVA also includes a patented design of adjustable rotation wheels, eliminating the need for 7" & 10" record adapters! The newly added countdown timer, a new draining mode, and a practical cover lid that doubles as a drying rack and a record display stand further enhance usability, delivering an even more satisfying experience.

With its innovative design and upgraded features, the HumminGuru NOVA delivers maximum convenience, exceptional cleaning, and efficient drying performance. The NOVA is quiet, compact, and lightweight- making it the perfect companion for all vinyl collectors.

Inside The Package

NOVA Advanced Ultrasonic Vinyl Record Cleaner
Cleaner Lid
Removable Water Tank
Water Funnel
Maintenance Tool
7" and 10" water basin supports
The Small Bottle (5ml)
Drying Rack Accessories
Drawstring Pouch
Air Filters x 6
Water Filters x 6
Interchangeable Plug Power Adapter (Compatible with 100-240V)
Owner's Manual

Specifications

Product Name: HumminGuru NOVA Advanced Ultrasonic Vinyl Record Cleaner
Model: HG05
Material: ABS and Stainless Steel
Product Size: 34 x 15 x 26.1 cm
Product Weight: 3.4 kg
Input: DC 12V 5.0A
Output Power: 60W

Notes: A unique take on delay and looping, the Meris LVX is designed for ultimate flexibility when processing guitar, synth or line level sources. Stereo in/out, fully customisable signal path and supreme sound quality.

Supplier's Notes:
Meris LVX Modular Delay System

LVX is a Modular Delay System which breaks the paradigm of pre-set delay types in favor of freedom and flexibility.

A completely new UI and user experience has been designed from the ground up to make LVX immediately intuitive to navigate. The architecture of LVX allows ultimate creative freedom to design a custom delay.

The pedal features discrete processing elements and control signal modifiers that can be connected as desired for nearly infinite flexibility in crafting custom sounds. Make room for new memories.

Specs

Conversion: 24 bit A/D and D/A
DSP: 32 bit floating point
Sample Rate: 48000 Hz
Input Impedance: 1 Meg Ohm
SNR: 115 dB Typical
Frequency Response: 20Hz-20kHz
Max Input Level: +9 dBu (instrument level setting), +12.5 dBu: (line/synth level setting)
Power: 9V DC center-negative, 300mA, 2.1mm jack
Bypass: Selectable True Bypass (Relay) or Analog Buffered Bypass
Dimensions 7.25" wide, 4.5"" long, 2" tall. (Same depth and height as all other pedals.)
Weight: 24 ounces

Notes: Compact version of a modern classic, based around a pair of complex analogue filter circuits with amazing sound and huge hands-on tweaking potential. One of our absolute favourites for studio, live use and even DJ setups.

Supplier's notes:
A classic, but smaller - The Sherman Filterbank is a powerful analog filtering and distortion unit with a huge frequency range and a killing overdrive behaviour. It's easy and FUN to use, live and in the studio processing every sound source, effect mixing, expanding modular systems, etc.

- Independent low pass, band pass and high pass filters with resonance, frequency and ADSR (positive - negative) controls
- These are switchable between parallel or serial
- The second filter has a 6 octave switch, and is synchronizable with the first filter
- 1 ADSR generator for these filters with an external output for use with more filterbanks or modular systems, triggered by the incoming signal, by a second sounds source, or by a gate
- 1 FM input for the filters, internal or external audio, LFO or CV
- 1 VCA overdrive with AR generator also

Connectors:

- MIDI In/Out, 3x Thru
- Main out, out1 (Filter1)
- Trigger AR, AM In, ADSR Out and Trigger In, Link In/Out, FM In, Sig. In, Pedal In

Notes: Brilliantly unusual synth based on eight analogue tone generators, functioning more like an electric organ or FM synth than a conventional subtractive architecture. Unique sound.

Supplier notes:
Welcome to the world of sound of LYRA-8, the unique organismic analogue synthesizer designed by Vlad Kreimer. "Organismic" means that LYRA uses some principles that lie in the base of living organisms. The way how LYRA's modules interacting between each other and the behaviour of the instrument resembles a live conversation.

LYRA-8 is based on eight generators, which will be referred to as voices. Their design is not like a traditional subtractive synthesis VCO. Instead of having a linear or logarithmic dependency on control voltage, they resemble the tone generators in old electric organs. Hence the use of the term "voices" instead of VCOs. Lyra uses non-linearity a lot, and the voices are constructed in such a way that allows for non-linearity to express itself.

The voices are divided into four pairs (12, 34, 56, 78). All the pairs are divided in two groups, with two pairs in each (1234, 5678), creating tree-like structure.

The voices can function either in an electric organ mode or in an FM synthesis mode with each of the voices and its envelope acting as a separate FM operator. The voice's impact on FM synthesis will decrease along with the decay of its envelope.

LYRA-8 also has the next blocks:

The HYPER LFO is a complex low-frequency generator, whose waveform is synthesized from two simple LFOs by summation or multiplication of their frequencies. It also has a sync mode. The LFO can modulate the selected pairs of voices and the MOD DELAY.

The MOD DELAY consists of two lines of delay with cross-feedback and a special architecture that enables resonance between the two lines. Each line's delay time can be individually modulated from various sources, including external ones. The delay has a unique possibility of self-modulation where the output signal modulates the delay sample rate, creating cool effects.

The DISTORTION is last in the chain, after the delay. It enables the delay to also influence the distortion.

For all its experimental character, LYRA is a professional instrument. Its output dynamics and frequency response are balanced and ready for a live performance or studio recording without any additional processing.

Specifications:

Max output voltage: 2 v 0-to-peak
Output connector: mono 6.3 mm TS or TRS (balanced) jack
Output resistance: 100 Ohm
EXT IN: 1 v 0-to-peak
EXT IN connector: 6.3 mm TS jack
HOLD GATE: full HOLD volume +5 V
HOLD GATE connector: 6.3 mm TS jack
CV DELAY : unipolar, range of 0 to +5 volt
CV DELAY connector: 6.3 mm TS jack
CV VOICES: unipolar, range of 0 to +5 volt
CV VOICES connector: 6.3 mm TS jack
Power supply: stabilised, +12 V, 0.2 A, centre positive
Power Consumption: 2 watt
Dimensions: 266 x 266 x 62 mm
Weight (without power supply and packaging): 2.5 kg

Notes: A unique graphical take on an oscillator design, E-RM's brand-new polygonal synthesis approach is unlike anything else we've seen. Stereo oscillator capable of a huge range of timbres. Innovative stuff.

Supplier's notes:
The polygonal synthesis is a kind of graphical complex amplitude shaping method. With the help of the built-in modulation sources, polygonal synthesis in polygogo opens up a wide range of sonic possibilities from clicky pinged sequences to unique dark thunderstorms, bass lines, leads and colored noise.

This mighty stereo oscillator impressed the audience with its wide range of possible timbres. The idea of sculpting a shape on the screen of the module that then translates into sound works really well and invites the user to interact with the module.

Notes: One of the most impressive granular synthesis approaches in Eurorack, combining looping and granular effects with buffer sizes up to five minutes. Hugely creative and powerful dual-module setup.

Supplier's Notes:
There's a long history behind the granular concept and many reinterpretations of it's core principles, this is ADDAC's take on it.

In a loose description digital Granular refer to pieces of sound files being played at the same time with slight or completely different parameters originating what is commonly referred to as granular clouds. Normally there's a buffer size from which the granular engine snips it's pieces from and plays them according to the parameters set. This buffer size is normally small in size where grains are so small that can reach the hearing spectrum and be heard as a sort of ever changing complex wavetable, this is the principle behind granular synthesis.

ADDAC have added the possibility of long buffer sizes up to 5 minutes, allowing "softer" approaches to the granular principle using it as an effect that can generate from "accidental" effects like slight "stutters" to extreme processing and transformation of any incoming audio signal.

This module is conceptually deep but easy to grasp and operate as all controls are in its dedicated panel, all jack inputs and outputs have its own separate panel to allow no compromise when playing it's controls.

There are three main sections in this module:
Looper Engine: The Looper is where all the Real-Time recording happens. The audio input feeds the recording buffer, multiple controls allow to record and play loops into a list so that any sample in the list can be accessed at ay time and more acting as a standard looper
Granular Engine: The Granular acts upon the buffer of whatever LOOP is selected.
Output Mix The output mix allow individual control for the Dry Input, Looper Volume and Grains Volume.
Besides these main sections there's also a simple strip down MENU mainly used to LOAD and SAVE Banks, no Menu diving guaranteed.

For more detailed info, please refer to the User's Guide.

Audio Specs:
Audio input: Stereo, 16bit 44.1Khz
Audio output: Stereo, 16bit 44.1Khz

Tech Specs:
32HP + 13HP
4.5cm deep
240mA +12V
70mA -12V

Notes: Latest update to a modern classic drum machine. Pure analogue sound and rock solid build. Externally untouched but now with revamped internal circuits and USB MIDI. Also available with new, improved trigger inputs.

Supplier's Notes:
Introducing the brand new update to the classic drum and percussion synthesizer VERMONA DRM1. The DRM1 is a key part in Vermona's history. Its first generation, released in the 90s as Syncussion DRM1, caught wide attention. The MKII-version then continued and broadened the success and breathed new life into the VERMONA brand at the turn of the millennium. With the DRM1 MKIII, that Vermona have been building since 2006, it has now been a total of 25 years of DRM1! This makes it one of the longest-lived electronic musical instruments. And launching the next quarter-century is this analog drum synthesizer from VERMONA.

DRM1 MKIV: Familiar, yet evolved

At first glance, you may not notice any difference from its predecessor. Indeed, from the outside, there isn't any! The overall concept and user interface have remained the same: There are eight instrument channels, each with nine knobs for sound shaping, pan and volume control. The DRM1 is a musical instrument, a creative tool that wants to be touched and played.

Instead of trying to reinvent or change an already well-proven external design, with this update to version MKIV Vermon decided to focus on the inside. Time was taken to thoroughly listen into the circuits and put energy and care into its details: Thoughtfully tweaking frequency ranges, revamping control curves, adjusting levels and redesigning sub-circuits. The goal was to make the DRM1 MKIV the best drum synthesizer Vermona have ever built!

DRM1 MKIV: Sociable and dynamic

To make integration into your studio more comfortable, the DRM1 MKIV was equipped with USB-MIDI in addition to the standard MIDI connections.

The optional trigger inputs have been significantly upgraded. Beyond gate pulses, they now also accept different voltage levels for triggering the instrument channels dynamically. The DRM1 MKIV with trigger inputs can also convert the analog signals into MIDI notes via USB or the newly added MIDI OUT connector making it an incredibly versatile MIDI interface.

Whether you're controlling the DRM1 MKIV via a DAW, a hardware sequencer, or a modular system, you'll have the proper connection and further the ability to send the MIDI notes to additional devices.

DRM1 MKIV: More power under the hood

The power supply of the DRM1 MKIV is completely new. It now works anywhere in the world, without having to manually change the mains voltage. This is a huge relief for all of you who use the instrument at live shows. No less important: it works more energy-efficient than the old one!

Notes: With our MORPHEUS digital filter module, we're finally able to unleash the full power of the 14-pole Z-Plane Filters that Dave invented for the E-mu Morpheus synthesizer.

The MORPHEUS Eurorack module includes over 280 filter configurations, what we call Cubes. Each Cube is composed of up to 8 complex filters that you can picture as being at the corners of a three dimensional cube (hence the name). Morpheus gives you the ability to smoothly interpolate between those 8 filters within the cube's three dimensional space.

Due to processor limitations back in the day, the original Morpheus was capable of real-time morphing in one dimension, but interpolation in the frequency and transform dimensions were set at note-on and remained static for the remainder of the note. But even with that limitation, Morpheus offered sonic capabilities that are unmatched to this day.

With the MORPHEUS filter module, you now have simultaneous real-time CV control of all three dimensions, for dynamic timbral effects unlike anything you've ever heard before. In stereo.

Notes: IThe Drum Sequencer is easy to use, classical X0X style live performance oriented sequencer module that provides the ultimate control over your system. Erica Synths Drum Sequencer might be the last modular sequencer for drums and basslines you will ever have to buy!

Features:
16x trigger outputs
12x accent outs
1x CV track with scales
1x Gate track
2x LFO with independent or synced to the BPM frequency
LFO attenuation per out
Max pattern length = 64 steps
Time signature per Track
Direction per track/pattern
Pattern length per Track
Shuffle per track
Probability per step
Retrigger per step
Time shift per step
Instant pattern switching
Solo/Mute tracks
Step/Tap record modes
8 Banks of 16 Patterns
Quick Copy/Paste per tracks & patterns
Pattern linking
Song mode
MIDI sync in with Start/Stop
External 4PPQ clock in
Firmware upgrade via MIDI SysEx??
Specifications and appearance are subject to change without notice for improvement.

Technical specifications:
Trigger amplitude: 5V
Panel Width: 42 HP
Module depth: 30mm
Power consumption: 152mA@+12V, 56mA@-12V

Notes: A tiny powerhouse of a mixer and audio interface. High-end electronics crammed into a compact, battery-powered format, featuring six stereo inputs, MIDI and Bluetooth support.

Supplier's Notes:
Ultra-portable pro-mixer and audio interface

TX-6 is an ultra-portable, battery-powered mixer and multi-channel audio interface. Comparable to larger units, but with even more tech packed into one sturdy little machine.

Mix 6 stereo input channels, use tempo sync, discover the internal synthesizer and sequencer or use the built-in tuner. MFi compatibility even lets you connect to your ios devices.

The smallest of its kind.

Tx-6 features a 6 channel stereo mixer with a configurable knob layout. Choose to have the three-band EQ at your fingertips, or customize each knob to control whichever setting you prefer. With more than meets the eye, TX-6 is packed full of features and connectivity options.

Battery powered

The rechargeable battery holds for about 8 hours. For energy efficiency, the display automatically goes to sleep when not in use, and led strength is completely adjustable.

Synthesizer & sequencer

TX-6 also functions as a portable synthesizer and sequencer with 4 oscillator waveforms and 4 synthesized drum sounds. Use tempo sync to stay on the beat.

8 built-in effects

Explore send effects like reverb, chorus and delay, and creative effects freeze, tape, filter, and distortion. Each channel has a three-band EQ and adjustable compressor.

Quality and engineering

TX-6 is a sturdy little machine. Encased in CNC aluminium with 2k moulding, custom-made encoders and faders, and custom PCB - engineered for portability.

Wireless connectivity

With BLE, you can use TX-6 as a wireless controller for other BLE MIDI devices or trigger and sync the internal synth and sequencer from other sources.

Super slimline cables

High quality, slimline cables custom-made for tx-6. The narrow profile allows you to use all 6 channels at once and makes for an easy pack down.

Customizable interface

When you're ready for the studio, use tx-6 as a 12 channel audio interface and connect to any daw over USB-C. MFi also allows you to connect to ios devices.

DJ mode

Turn TX-6 on its side and use it as a DJ mixer. Turn channel 1 into a fader to crossfade between the channel 5 and 6 so you can fade or cut between the two.

6.35 + 3.5 mm output

Connect your audio output through 3.5 mm mini jack or use the included and removable 6.35 mm jack to 3.5 mm mini jack adapter.

Field bags

Designed to fit TX-6 field mixer and constructed in heavy duty fabric and hardware, field bags are designed for durability, ready to be used out in the field.

Multitrack elegance.

The first portable pro-mixer that can be used as a multi-functional 32-bit 48khz audio interface that has an instrument tuner, built-in digital FX, synthesizer and drum machine.

Connect to your daw for 12 channel multitrack recordings. Use the internal synth and sequencer, or control them via external midi device. With MFi you can even connect to your ios device.inputs and outputs.

Specifications

Inputs and outputs.

32-bit/48kHz USB interface
3.5 mm mini jack to 6.3 mm jack
Headset mic input
Aux output
Connect to iPhoner, lightning cable
Stereo or mono for each input

Dimensions and weight

90 mm (102 mm with adapter) x 62 mm x 23 mm
160 g / 5.6 oz

Electrical characteristics
Audio inputs:
Impedance: 10 kOhm
Analog gain: 0 - 42 dB
Max level 8 dBu, 2 Vrms
TLV320ADC3140 burr-brown
SNR ~ 102 dBA
Audio output (main and aux):max level 8 dBu, 2 Vrms
Cirrus Logic Master Hifi CS43131
SNR > 120 dBA
Audio output (cue):max level 2 dBu, 1 Vrms
Cirrus logic CS47L35SNR > 110 dBA
Handling
Ambient working temperature: 0-50-C (32-122-F)
Ambient storage temperature: 0-30-C (32-86-F)

Clean the shell of the unit with a microfibre cloth. Use pressurized air to remove dust from the faders.

To keep the battery healthy, the unit should be charged at least every 6 months. If not used for a long time, it may not charge again.

Notes: The legendary Buchla 259 complex oscillator gets the officially licensed Eurorack treatment from TipTop Audio. One of the most versatile and characterful VCOs ever made, with endless cross-modulation options and wave shaping features. Iconic.

Supplier's Notes:
The 259t is the largest and most complex analogue oscillator from Don Buchla's legendary 200 modular synthesiser. The 259 originated the concept of the "Complex Oscillator" in the 1970s and has been reissued by Buchla and Tiptop Audio in Eurorack format. The module consists of two oscillators, called the Modulator and Principal, with a middle section that provides voltage control over the internal modulation paths between the two oscillators, resulting in highly complex timbres. Additionally, the principal oscillator passes through multiple unique voltage-controlled waveshapers and crossfaders for further signal processing. The module's pitch can be controlled with 1V/OCT or via its internal auto-tuner and ART control to create precisely pitched notes.

Notes: MX12 as successor of the UC44 is a universal controller for all kinds of MIDI controllable hardware and software.

You can combine NEW MODULE devices to a large system. The connections are on the right side to allow a back to back placing of two or more devices. Connect two NEW MODULES by a special extension port.

Furthermore, there are 4 MIDI-ports and one USB-port with various routing possibilities.

It is packed in a metal case with the same dimensions like the famous ELEKTRON devices so it's a great extension for these devices. But you can use the mix controller also with your DAW like a classical 12-track-mixer.

The device has 24 standard pots, 12 Faders and 24 buttons in a 12-track-layout, various kinds of MIDI commands like control change, note on/off, pitchbend, aftertouch and program change are possible. You can program every MIDI command for every separate control on the device very fast and easily.

Of course you can assign the pots and keys to any of these commands by learning incoming MIDI commands, which is the same procedure you know from your software/DAW. The pots work with standard resolution of 7 bit to have full compatibility to any software and hardware instrument, effect and DAW. Use the internal 30 setups to save your individual settings. Backup and restore of all settings by sysex dumps is possible too.

The factory settings are perfect to control music and video software products out of the box if they are freely assignable. So any additional device programming isn't necessary for many applications.

Some special setups are preconfigured for use with ELEKTRON RYTM and ABLETON LIVE.

Check out this amazing power box and you will get a reliable mate...

Notes: Endlessly customisable digital 'modular system within a modular system'. Includes more than 80 modules, allowing you to create effects, synths, control devices, oscillators, filters and much more.

Supplier's Notes:
What's a Euroboro?

The ZOIA Euroburo is a digital modular system that can be placed in your modular system, a real Russian nesting doll situation. We added a headphone output and a super-slim optional case so the Euroburo can live happily on your desktop or be easily mounted in a Eurorack case. Hence the euro + buro, pronounced "bureau"...get it!?

Create unique signature effects, synthesizers, sequencers and more while using 4 freely assignable CV ins and 4 outs to interface with other CV enabled devices. The additional headphone output and powered 9v case makes the module even more desktop friendly. With over 90 modules from CV utilities to audio effects, oscillators and envelopes to MIDI, the Euroburo can do almost anything to fill the gaps in your setup.

There's no need to worry about getting bogged down with endless menus or a cluttered interface. Creating patches and performing with the ZOIA is a tactile experience. Patching, deleting or moving modules and editing values can all be done quickly using the push-button grid and a flick of the encoder. With the addition of dedicated push buttons for the CV and Audio I/O, patching on the ZOIA has never been faster.

Notes: Updated version of the excellent Bitbox sampler module offers more powerful sound processing and an improved touch screen. Improved effects and mixing with all the same creative power of the original.

Supplier notes:
Bitbox mk2 delivers powerful sampling and mangling for Eurorack. With this module you can add recording, sample playback, clip launching, slicing, granular sounds and musically intelligent looping capabilities to your Eurorack rig. With a 3.5 inch touchscreen, bitbox mk2 makes easy work of selecting, editing, and tweaking your samples. You can stream large samples of up to 4 GB file size straight from the microSD card. Interact with other musical components via CV and MIDI. Tweak your configurations to get them just right, then save them to multiple presets for future reuse. With the new bitbox mk2 hardware, you can now do more with the new more powerful processor.

Sample Playback
Play up to 24 polyphonic notes when your samples fit in the 64 MB of internal memory or up to 8 larger samples streaming directly from the microSD card
Configure 16 sample pads per preset as single or multi-samples, clips, slicers, granular or new recordings
Stream long samples from the microSD card with a max sample size of 4 GB, which can be many hours of audio
Trigger samples with the touch screen, CV gate inputs, or MIDI input
Use MIDI for polyphonic playback of samples or slices
Control how samples start and stop by choosing from one-shot, toggle, and gate launch modes
Tweak playback through a variety of sample parameters, including start position, length, pitch, gain, filter, loop mode, launch quantization, ADSR, Exclusive Grouping, clip synchronization, slice placement and sequencing, grain size, grain spread, grain count, and MIDI note and channel mapping

Record Eurorack level audio straight into the module:

Record samples from a stereo audio input pair
Configure each pad for stereo or mono recording with the option to synchronize the start and stop times to clock inputs
Trigger recording via audio level threshold
Create perfectly sized loops by setting the recording length
Enable immediate playback after recording for live looping capabilities
Make recordings up to 4 hours in length
Store recorded samples as WAV files on the micro SD card then remove the card to transfer them to your computer
Sample Modes
Find creative ways of using your samples with our 5 sample playback modes:

Trigger one shots or launch loops using sample mode
Load a folder of samples into a sample mode pad to improve the quality of the pitch shifting when playing a sample chromatically or to trigger different samples with each note
Play time-synchronized loops with constant pitch time shifting in clip mode
Skip between slices of a WAV using slicer mode
Create rich textures and other worldly sounds with granular mode
Inputs and Outputs
Connect up to 8 CV modulators to control numerous sample parameters
Trigger each of the 16 pads with a dedicated gate input
Record through the dedicated stereo audio input pair
Use CV to keep time through the dedicated clock input
Confidently connect with both TRS MIDI Type A and Type B, no adapter needed
Route the audio from each pad out to one of 2 stereo audio output pairs or any of the corresponding single channels
Inputs and outputs are DC coupled so you can record and play out CV signals

External Control and Synchronization
Playback can be immediate or synchronized to internal clock, TRS clock in, or MIDI clock in and out
Trigger each pad independently through a dedicated gate input
Use MIDI to trigger pads via a note per pad
Play a single or multi-sample pad pitch shifted using MIDI notes or CV
Trigger different sample slices using MIDI notes or CV
Modulate a wide variety of sample parameters through the MIDI input and up to 8 CV signals
Quickly set up MIDI modulation using Learn mode- no need to look up CC numbers
Module Features
Use the 3.5? diagonal touch screen to intuitively explore the features of the module
Get more creative with double the processing power of the original bitbox
Fill out your sound with reverb and delay
Import or export WAV files with your Mac or PC using a microSD card
Save and recall multiple presets
Increase your capacity with larger microSD cards
Select Flipped UI mode to mount the unit with the screen on the bottom and use the screen, knobs, buttons, and CV jacks as you normally would

Notes: A beautifully realised instrument drawing on West coast and East coast synthesis concepts to create something new and beguiling. Three oscillators, smooth filter and Buchla-style dynamics controller.

Supplier's Notes:
Taiga Paraphonic Modular Synthesizer

Taiga is a complete, modern, modular instrument that allows us to explore beyond the boundaries of a traditional analog synthesizer. The sound of Taiga can be attributed to three uniquely Pittsburgh innovations. A trio of huge analog oscillators, the unmistakably smooth sound of the Pittsburgh Filter, and the warmth of the unique Dynamics Controller. These enable you to not only create sounds that would be traditionally expected from an analog synthesizer, but also to explore new sonic textures and performance possibilities.

Taiga oscillators

Waveforms generated by the three Taiga oscillators stretch beyond the basic geometric shapes and sounds associated with analog synthesis. Taiga waveforms pass through up to three proprietary, cascading waveshapers designed to precisely manipulate their symmetry and harmonic content. In addition, each oscillator includes a robust six-stage wave folder to add even more complexity and depth to the diverse sonic palate of Taiga.

The Pittsburgh Filter

The Pittsburgh filter has defined the sound of Pittsburgh Modular from the moment it was introduced. A signature gummy and relaxed sound with no dead spots that has been tweaked to perfection. It offers a warm, smooth sweep through the full frequency range and a sweet resonance that does not roll off the low end. This generation of the Pittsburgh filter is specifically designed to ensure a remarkable interplay with Taiga's oscillators.

Pittsburgh Dynamics Controller

Pittsburgh's new Dynamics technology imparts Taiga with a uniquely organic depth and presence. By simultaneously managing both amplitude and harmonic content, the Pittsburgh Dynamics Controller expands beyond the one-dimensional VCA found in other synthesizers. It does this by utilizing new advancements from traditional low pass gates to add additional definition and dimension to the voice of Taiga.

When used in low pass gate mode, sounds shed harmonic content and become warmer as they decrease in volume. This mimics how sound waves react to their environment. Because of this connection, the Taiga sounds more natural or complex compared to other instruments.

Analogue Echoes

Echos is a beautifully dark analog delay tuned to enhance the source material by repeating it over and over. Echos utilize a pair of bucket brigade delay chips to produce a classic voltage-controllable analog delay effect that helps to place the sounds of Taiga in a simulated environment.

Open Architecture

Taiga has an internally defined signal path. Patch cables are not necessary to begin exploring. Attach a midi keyboard and plug the output into a speaker or DAW and Taiga is ready to go with a robust but familiar workflow. When your ideas grow beyond the pre-defined signal path, a 60 point patch bay opens up a fully modular instrument with access to an even deeper set of features and tools.

Complete Set of Modular Tools

Taiga includes a host of fully modular, analog, and digital synthesis tools to support and enhance its core functionality. Analog tools include a flexible dual mixer, a pair of plucky four-stage envelope generators, noise, and sample and hold. Digital tools cover external MIDI, arpeggiator, clock sync'd modulation tools, and a robust collection of random generators. The Taiga toolset is deep enough for any type of sonic exploration.

Taiga features and other info:

Paraphonic synthesizer with unique additive elements

Fully patchable - use Taiga's components as separate modules with external devices or reroute its internal patching.
Controllable via MIDI, CV, and integrated pseudo random sequencing mode
Clock-synced arpeggiator
3x Pittsburgh Modular Synthesizer developed 100% analog oscillators
Oscillator waveforms - sine, triangle, and saw - Waveforms can be combined
3x Pittsburgh Modular Synthesizer 6 stage wave folder/shaper circuit - folds inputted waves back onto themselves to increase harmonic content
Oscillators include frequency modulation (FM)
Noise generator - pitched somewhere between pure white and pink noise. Perfect for percussion or adding a bit of edge to a sound.
Variable state, multi-mode "Pittsburgh No-Dead-Spots" filter (lowpass, bandpass, highpass, modes can be combined)
Sample & Hold circuit
2x Analog ADSR / envelope generators
Pittsburgh dynamics section - an alternative to an envelope generator and a VCA, the dynamics controller is a Pittsburgh Modular invention that adds a dimension of control over a vactrol-less lowpass gate circuit, adding release time. (read more on this in the user guide)
Dual range analog LFO with square and triangle wave outputs.
LFO Range High: 2 Hz to 500 Hz Low: 41 seconds to 5 Hz
Dual Channel Mixer - 2 channel mixer and a 3 channel mixer joined together, capable of mixing both audio or control voltages.

Notes: Not your average mixer. Erica Synths riff on the EMS Synthi-style matrix mixer, bringing it to a desktop format compatible with just about any other gear, including Eurorack. Uniquely creative.

Supplier's Notes:
As Eurorack users may know, it can be challenging to change a patch radically during a performance, therefore diverse performances require large systems or they end up being extremely experimental. But what if you could repatch your system with the push of a single button?

Features:
All analogue signal path
16 buffered, DC coupled inputs
16 independent, buffered, DC coupled outputs
256 connections, each with 3 attenuation levels
Random pattern mode with definable randomization area and density
254 pattern memory
Pattern change via MIDI program change messages
32 3,5mm jack sockets
4 6,3mm jack sockets
The Erica Synths Matrix Mixer is a 16-input, 16-output desktop patch matrix - it can route and mix signals with high precision, create buffered multiples and random patches. It can also interface external instruments with your Eurorack system, and it's not limited to Eurorack!

You can use the Matrix Mixer with semi-modular synthesizers, as well as through adapter cards with the EMS Synthi and Buchla Music Easel. Thanks to simple patch changes via panel buttons or MIDI program change messages, the Matrix Mixer will be particularly useful in performances that combine Eurorack and other performance instruments, such as drums, guitars, wind instruments, etc. Make your modular performance stand out and enjoy the Matrix Mixer!

Technical specifications:
Audio level: 10V ptp
Attenuation level: 1, 0.7, 0.3
Power supply: 12VDC (a universal AC/DC converter included)
Size of the instrument: 225 x 226 x 44mm
Net mass: 1.25kg

Notes: THE PIPE is a voice / breath / mouth-controlled dynamic FX processor and synthesiser.

It turns your voice into a powerful FX / beat / lead / soundscape synthesizer and it offers unprecedented levels of vocal processing, truly expanding the traditional boundaries of singing. Conventional singing with lyrics is also possible, and you can use the FX to add live modulations to your vocal performance.

Also, you can use the PIPE as a powerful FX processor for an external signal as a synth, drum machine etc.

THE PIPE has 12 different algorithms: ORPHEUS, FILTERRA, SYNTH, REVERB, MADELAY, PULSE, BASSDRUM (three versions), OCTAVA, GENERATOR, HARCHO!

The PIPE consists of the handheld part and a small break-out box with L R output jacks (1/4-inch) and DC IN for power. The handheld part and break-out box are connected by a single cable that contains both output channels and DC power.

The handheld part consists of the contact vocal mic (connected by a standard 1/4-inch jack), electronic components and the controls. You can easily attach a cable extension to the mic which opens up many more options. Attach it to a stand, or put it inside of or on the surface of acoustic instruments such as drums, guitars, trumpets etc. Also, you can use the mic in jack as external in and use the PIPE to process any signals you want.
