New releases today: Studio Equipment

Notes: The original SSL 2+ interface raised the bar by delivering a level of performance never seen before in its class. SSL 2+ MKII builds upon the success of its predecessor, with a series of significant enhancements and carefully curated feature additions. Designed for musicians, producers and engineers who demand the highest standards in sound quality, SSL 2+ MKII provides unmatched audio performance and a user-friendly design that caters for both those starting their creative journey and seasoned professionals.

The SSL 2+ MKII is equipped with two high-performance SSL-design microphone preamps delivering a massive 64 dB gain range, in conjunction with class-leading 116.5 dB dynamic range and -130.5 dBu EIN. The mic pre's can also operate in LINE mode for connecting synths or INSTRUMENT mode for connecting guitars/basses.

Located on the rear of the SSL 2+ MKII are four balanced outputs for connecting your studio monitors, rackmount kit, FX pedals, and more. With professional-grade outputs, the SSL 2+ MKII delivers 120 dB dynamic range, allowing you to hear every detail in your productions - from the most subtle riff to the deepest bassline. All outputs are DC-coupled, enabling you to send CV (control voltages) to synthesisers.

The SSL 2+ MKII features independent headphone outputs conveniently located on the front panel. These re-engineered outputs (featuring high-current NJM headphone amps) are capable of driving any type of headphones. Now boasting a jaw-dropping 119.5 dB dynamic range (MK I previously 111 dB), you have all the performance and clarity needed for accurate monitoring in any environment. SSL 2+ MKII allows you to create separate mixes for the artist and engineer.

The SSL 4000 series consoles (often referred to as '4K') are renowned for imparting a unique 'mojo' to sounds and instruments that pass through them. This mojo comes from multiple stages of harmonic distortion from compressor VCAs, VCA faders, and other crucial components such as the transistor mix amps. Using modern components, SSL has developed a circuit that distils the two essential characteristics of the 4K sound into a single design. Legacy 4K Analogue Enhancement injects a controlled amount of finely-tuned, sweet-sounding harmonic distortion and a 'forward' yet musical high-frequency EQ boost into the signal path, giving your sound the 4K mojo and presence that artists and engineers have loved for decades.

Front-access jack sockets provide convenient access to 2 instrument DI inputs and 2 independent headphone outputs. On the rear, SSL 2+ MKII provides Neutrik XLR Combo sockets for Mic/Line inputs, four balanced outputs, 5 pin DIN MIDI I/O and the USB connector.

Whether it's the professional-grade mic preamps, Neutrik XLR and jack connectors and Alps pots, or the exceptional level of performance delivered from next-gen converters - all SSL products, including SSL 2+ MKII, offer pro studio quality, from the front to the back. The MKII range of interfaces feature updated switches on the front panel with status LEDs so you know exactly how your device is configured when recording.

High-quality audio conversion is essential for artists and engineers alike and the SSL 2+ MKII is built around Next-Gen 32-bit 192 kHz Converters. The result? Clearer, more detailed recordings, preserving every nuance of your performance. Capture stunning acoustic performances, record drum machines and synths with more punch and texture. Make your live streams sound like professional broadcasts and mix quicker and easier as sounds are more defined.

Whether you are recording a podcast, live streaming via social media, or performing karaoke online with friends, SSL 2+ MKII is equipped with all the tools you need to make content with amazing sound. Class-leading mic preamps allow you to capture every nuance of your conversation or voiceover. The built-in Loopback functionality ensures your audience hears virtual guests or system audio with ease.

With dual professional-grade headphone outputs, SSL's next-gen converters and punchy mic/line inputs, you can capture sounds in all their detail and create music which stands out from the crowd. The SSL 2+ MKII interface is your production sidekick in the studio, and when combined with the SSL production Pack gives you everything you need to make professional quality music.

Notes: Make your music Hypersonic

Send your tone soaring with the HyperSonic 3-octave pitch rise.

New octaver blend modes

Create never-before-heard sonic textures with new octaver blend modes.

MIDI-capable

Ready to integrate with advanced performance rigs with support for 5-pin MIDI control.

Artist-inspired design

Unique artwork and signature style make the MonoNeon Signature Whammy a bold addition to your pedalboard.

The DigiTech MonoNeon Whammy pedal goes where no whammy pedal has gone before, with new octave blend modes and up to 3 octaves of HyperSonic pitch shifting. Developed in collaboration with trailblazing bassist MonoNeon, the MonoNeon Whammy delivers mind-blowing pitch manipulation for guitar and bass alike.

Included in the box:
MonoNeon Whammy Pedal
Power Supply
User's Manual
2 Guitar Case Stickers
Warranty Registration Information Card
Special MonoNeon Customizing Kit

> Gaffer's Tape - Neon Yellow & Neon Orange
> Mini Permanent Marker

Specifications

Input / Output
Instrument Input Type: Unbalanced 1/4" TS phone jack
Max Input Level: +5 dBu
Input Impedance: 1 MO
MIDI Input: 5-Pin DIN
Output Type: Unbalanced 1/4" TS phone jack
Max Output Level: +10 dBu
Output Impedance: 1 kO

Electronics

Frequency Response: 20 Hz to 20 kHz
Signal to Noise Ratio: >105 dB (A-weighted): ref = max level, 22 kHz bandwidth
THD: 0.004% @ 1 kHz; ref =1 dBu w/ unity gain
Sample Rate: 44.1 kHz
A/D Conversion: 24-bit
D/A Conversion: 24-bit

Physical

Dimensions: 6.5" (16.51cm) x 7.75" (19.68cm) x 2.5" (6.35cm) (WxDxH)
Shipping Weight: 3.8 lbs. (1720g)

Power
Power Consumption: 2.4 W (265 mA @ 9VDC)
Power Requirements: 9 VDC External Adapter (center negative)
Included Power Adapter: PS0913DC (9V DC @ 1.3 A) center negative

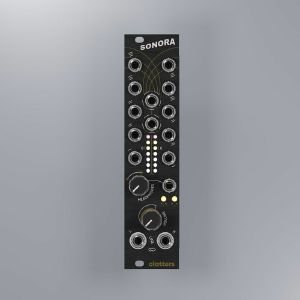

Notes: Sonora is a spectral mixing output module that aims to be the ultimate sound stage of a modular setup. A place where all your mixes meet and find a stereophonic solution for your final track thanks to its twelve fixed panning inputs that allow you to give each track its own space and importance in the stereo field.
While being a 12 inputs summing mixer, Sonora also features a LED meter, a soft clipping limiter circuit at the output stage, a headphone output section with loudness indicators and 3.5mm pro line output jacks.

Notes: Thererec is a 6hp smart dual-function generator based on a different approach! Two modern proximity sensors have replaced all the Attack/Decay thing, and this not only saved a lot of space but also turned Thererec into a whole new thing: a fusion between THEREmin gestural expressiveness and a tape RECorder,

Thererec, indeed, can quickly capture your hand movements and translate them into complex Envelopes and LFOs, adding a lot of expressiveness to your set. Once recorded, your movements can be mangled in both time and amplitude; they can be cycled or triggered in one-shot mode, letting you create complex but synchronized control voltage streams.

A straightforward movement with immediate feedback: move your fingers, listen, and connect yourself to the environment. Your body will do the rest.

Thererec sensors will track your movements to generate a voltage flow, and the LEDs and the CV outputs will reflect those movements.

Notes: Toolbox is the newest essential utility module for your modular system. It's designed to summarize and replace all those necessary small one-function modules, often overlooked due to their space and cost requirements. With a compact 12hp design, it offers a comprehensive selection of carefully curated blocks to expand and enhance the potential of every patch. The module is also specifically designed for internal interaction, allowing the combination of various basic blocks to achieve compelling outcomes, from complex rhythm creation to unusual sound shaper. Every system needs a Toolbox!

Since VCAs are always not enough, the first two blocks on the top row consist of two linear and very fast VCAs, which are also great for AM modulation. They are arranged from left to right: input (DC coupled), control voltage input (ranging from 0 to 8V), and output. The two inputs and control voltages are normalized from left to right, facilitating easy stereo operation. These VCAs, designed primarily for voltage attenuation, are versatile tools that excel in scenarios requiring linear response. With audio, their true strengths shine when applied to amplitude modulation (AM) scenarios, where the benefits of linear control become quite significant. Although they are optimized for AM and voltage control, using exponential envelopes with these VCAs can transform them into two highly effective and fast VCAs for audio applications.

The threshold CV (0-8V) is crucial for the functionality of the blocks labeled with an asterisk (*): AND/OR gates, sequential switches, and flip-flops. By default, the threshold for each block (the voltage that must be reached at every input for the circuit to operate) is set very low, allowing almost any positive signal to be used. By increasing the threshold with an external voltage, you will change the point at which the circuits marked with the * begin to operate. This may seem a little tricky at first, but once you master all the functionality of the Toolbox, the Threshold CV rarely found in other Eurorack modules will open up many more possibilities!

Still composed of two identical parts, the second and third rows contain two blocks of two-channel summing (A & B). This region offers many ways to combine two signals. From left to right, input A, B, SUM out inverted SUM out, and two Boolean operators: AND/OR While any input signal can be used here, the first two outputs are primarily intended for audio sources. In contrast, the Boolean outputs are more suitable for summing gates and logic signals. This setup also allows for the use of both logic and analog signals together; don't hesitate to experiment with Boolean operators using analog or audio signals.For example, connecting two different LFOs to the input of the summing section can create many gate rhythms from the two Boolean outputs by varying the threshold with external voltages.

Summing mixers/Mult Out: This section consists of two 3-input summing mixers connected in series: the output of the upper mixer is routed to the first input of the lower mixer, allowing you to combine a total of five signals with two outputs available. To break this connection, insert a patch cable into the first input of the lower mixer. This action separates the two sections, enabling you to sum two sets of three signals each. Additionally, the lower section includes a multed output by default.

A bidirectional sequential switch is located at the center of the module and labeled with three "I/O" tags. This often overlooked component allows for a wide range of functions, from the most practical to the most creative. When a voltage exceeding the threshold level is applied to the * input, the switch connects the upper left jack to the lower right one. If the voltage is below the threshold, the lower left jack is connected instead. Being bidirectional, each I/O can function as both an input and an output, enabling a 2:1 or 1:2 configuration. Try using the switch at audio rate; this can function as a versatile oscillator waveform shaper. Think of something other than this block as a simple channel switcher!

On the right side of the sequential switch, we have a more classic block: the flip-flop. This block outputs a square wave at half the frequency of any signal applied to the input, whether audio or gate. Two flip-flops are available, which can be used individually or normalized in series. This block is handy for creating sub-octaves of square format from any sound or as a clock divider.

Offset / Attenuverters: Located at the bottom are two offset and attenuverting channels.This section comprises two identical blocks that can easily attenuate, invert, and offset any input signal. Each block features an input jack, one output, and two small knobs. The first knob functions as an attenuverter, allowing you to invert and scale the signal at the same moment. The second knob, the offset, adds a static voltage of +/-0-8V to the resulting output. This functionality is crucial when seeking a more refined control over voltage or a signal. Without any signal at the input, you can use the offset knob as a manual control generator for any control voltage (CV) in your system. For example, try to change the threshold with it.

Notes: The TMA-2 Studio Wireless headphones provide a seamless wireless functionality for music creators seeking freedom of movement, cable free recording, and a light, comfortable build with exceptional performance for versatile use. Free yourself from cables with ultra-low latency wireless audio.

Connect wirelessly to all of your gear: Cable-like performance with under 10ms of latency via W+ Link technology, featuring 20+ hours of playback time.

Hear all the details: Detailed and balanced sound representation with strong frequency separation reveals the subtle details in your music.

Control your sound profile: Use the AIAIAI app EQ to shape the sound to your preference, whether that be flat and accurate for mixing or dialing up the bass for creative sessions.

Stay in the zone for hours: Over-ear cushions and padded headband using high grade memory foam covered in soft PU leather, for enhanced comfort during creative sessions or live performances.

Go beyond the studio: Use W+ Link for live performance or switch to Bluetooth mode for everyday listening and making calls, or plug directly in with the detachable cable.

Customise, replace and upgrade: The modular nature of TMA-2 Studio Wireless allows for endless customisation and easy upgrades or replacements of individual parts.

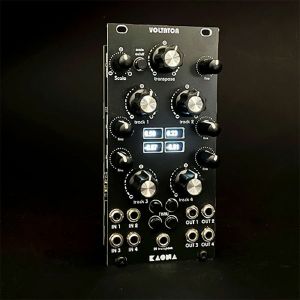

Notes: Voltator is a 4-channel analog controller designed for precise and versatile CV voltage management. Equipped with an integrated voltmeter, it displays the exact output voltage of each channel in real-time. It is the ideal tool for simultaneously tuning multiple VCOs from one location, generating chords, easily transposing notes and chords, or precisely adjusting your signals.
