Notes: Incredible value all-rounder from Zoom, the L-6 combines recording, mixing and performance features, with 10 studio-quality audio tracks, effects, MIDI and real-time sampling.

Supplier's Notes:
Small Just Got Very Big

The LiveTrak L6 is Zomo's most compact and portable digital mixer / recorder. With 10-tracks of studio quality audio, effects, MIDI, and sound pads, it's perfect for bands, synth players, live streaming, and more.

Full Featured Mixer

Don't let its size fool you. The L6 is designed with big mixer capabilities; a full channel strip for each track including aux sends, pan, effects, and a 3-band mid-sweepable EQ.

Powerful Multi-Track Recording

The L6 records 10 discrete tracks plus the full stereo mix on microSD cards up to 2TB. Share the live mix, or transfer your stems to your favorite DAW for editing and mixing.

MIDI Connectivity for Synths and Keyboards

Connect, program, and sync the L6 to your outboard gear via the 3.5mm MIDI I/O, or to a computer via USB.

Map parameter controls such as volume, pan, and EQ to outboard gear
Trigger sound pads and scene switching
Tempo sync delay and echo

Features

10-channel ultra-Compact digital mixer
2 XLR/TRS Combo inputs + 4-Stereo inputs
12-track simultaneous recording
MIDI In/Out for mixer control and USB MIDI interface
3 Scene memory for storing mixer and tempo setting
32-bit float multi-track recording to micro SD card
5 Internal Send Effects
2 AUX send outputs
4 Assignable sound pads (sample player)
3-Band EQ with MID freq control for each channel
Headphone output + Master output
Eurorack compatible
12-in / 4-out Audio interface
4 AA battery power operation or USB power

Specs
Input and output channels
Inputs MIC/LINE (mono) 2
LINE (stereo) 4
Outputs
AUX SEND (mono): 2
MASTER (stereo): 1
MONITOR (stereo): 1

Inputs

MIC/LINE:
Connectors: 2 XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
Input gain: Adjustment unnecessary (dual A/D converter circuits used)
Input impedance:XLR: 3.8 kO or more, TRS: 39 kO or more
Maximum input level XLR: +4 dBu, TRS: +24 dBu
Phantom power: +48 V, Channel total of 10 mA or less

LINE

Connectors: 8 TS phone jacks (unbalanced)
Input impedance: 10 kO
Maximum input level: +9 dBu

Outputs

AUX SEND
Connectors: 2 TRS phone jacks (impedance balanced)
Maximum output level: +9.5 dBu
Output impedance: 147 O

MASTER
Connectors: 2 TRS phone jacks (balanced)
Maximum output level: +15 dBu
Output impedance: 147 O

MONITOR
Connector: TRS phone jack
Maximum output level: 50 mW + 50 mW (63 O load)
Output impedance: 14.7 O

Buses

MASTER: 1
AUX SEND: 2
SEND EFX: 1

Channel strip

3 BAND EQ:
HIGH: 10 kHz, +/-15 dB, shelving
MID: 100 Hz - 8 kHz, +/-15 dB, peaking
LOW: 100 Hz, +/-15 dB, shelving

Level meters: 6 segments
Send effects: 5 types

Recorder

Maximum simultaneous recording tracks: 12
Maximum simultaneous playback tracks: 2
Recording formats: 48 kHz, 32-bit float, mono/stereo WAV
Recording media: microSDHC memory cards (Class 10 or higher), microSDXC memory cards (Class 10 or higher)

Audio interface

Input and output channels: Input: 12 channels, Output: 4 channels
Sampling frequency: 48 kHz
Bit depth: 32-bit float / 24-bit
Interface: USB 2.0

Card reader: Mass storage class USB 2.0 High Speed
Sampling frequency: 48 kHz
Frequency response: 20 Hz - 20 kHz / -1.0 dB
Equivalent input noise: -120 dBu or less (IHF-A) at 150O input

Power
4 AA batteries - Alkaline, Lithium, or Rechargeable NiMH
AC adapter: ZOOM AD-17 : DC 5V/1A
USB bus power is supported.

Estimated continuous recording time using batteries
Alkaline batteries: About 3 hours
NiMH batteries (1900 mAh): About 3.5 hours
Lithium batteries: About 7 hours

12-track recording, phantom power off, headphones used (63O load), no MASTER output connections
These values are approximate.
Continuous battery operation times were determined using in-house testing methods.
They will vary greatly according to use conditions.

Power consumption 5 W maximum
Dimensions: 223 mm (W) × 114 mm (D) × 46.5 mm (H)
Weight (main unit only): 526 g
Weight (including batteries): 618 g
Note: 0 dBu = 0.775 Vrms

Notes: The Zomo Flightcase P-SL-A9 NSE is a set case suitable for the Pioneer DJ DJM-A9 mixer and 2x Pioneer DJ PLX-1000 turntables and convinces with a lot of details. The P-SL-A9 NSE flight case adds a new equipment case to the popular NSE series. This modern flightcase is incredibly robust to survive the hard tour everyday life without problems.

Abrasion, as well as cigarette burns, cannot harm the Flightcase P-SL-A9 NSE, thanks to the solidly processed, laminated 9mm plywood. Developed for the strenuous tour use, the Zomo Equipment flight cases are definitely tour-ready and protect your more expensive DJ equipment from damage, moisture or falls.

Thanks to the extra wide and black painted profiles made of aluminum and the massive ball corners, the Zomo DJ Case offers a very high durability. To exclude slipping of the DJ mixer, the DJM-A9 Equipment Flightcase is equipped with an excellent inner padding, which reliably protects the equipment from damage and scratches.

Even while your gear is still in the case, the front panel can be easily and quickly removed at the gig. The Zomo EA-1 angle adapter is recommended as a seperate accessory to connect the headphones even easier to the mixer.

The Pioneer DJ Equipment Case in the black NSE (= Night Style Edition) offers not only professional quality, but also convinces with a classic look - definitely an eye-catcher! For an incredibly secure fit of the lid and easy unlocking and locking provide the helpful butterfly snap locks. Additionally all NSE equipment cases are lockable with an optional padlock for higher protection against theft.

Features Zomo Flightcase P-SL-A9 NSE

Provides effective protection against shocks and scratches
High quality and workmanship for hardest use
Extra solid construction
classic design
High quality inner padding for best hold
Practical ball corners
High-quality butterfly fasteners
Integrated carrying handles for easy transport
Removable lid

Technical data

Suitable equipment: 1x Pioneer DJ DJM-A9 and 2x Pioneer DJ PLX-1000
Outer material: 9mm plywood
Color: Black (NSE)
Weight: tba
Outer dimensions: 1449 (width) x 563 (depth) x 209 (height) mm
** The devices shown and/or mentioned on the photos are NOT included!

Suitable devices:
Pioneer DJ DJM-A9
Pioneer DJ PLX-1000

Suitable brands: Pioneer DJ

Laptop shelf included: No

Notes: The Zomo Flightcase P-Opus-Quad NSE Flight Case was produced suitable for the Pioneer DJ Opus Quad DJ controller DJ controller. The Flightcase P-Opus-Quad NSE in the noble NSE (= Night Style Edition) inspires thanks to its deep black look. This modern equipment case is extremely robust to survive the strenuous tour everyday life without any problems.

To prevent the controller from shaking, the Opus Quad Flightcase is equipped with an excellent inner padding, which protects the device from defects, scratches or external damage. To keep your valuable DJ equipment safe from the challenging DJ daily routine, the Zomo DJ Cases are of course road and flight ready. For easy transport the Zomo Flightcase is equipped with wheels.

Thanks to the high-quality processed, laminated 9mm plywood, the Flightcase P-Opus-Quad NSE Equipment Case is strongly shock and scratch resistant and therefore armed against abrasion or cigarette burns. The extra wide and black painted aluminum profiles and extra stable ball corners provide for noble and appealing optical details, which give the flight case a high durability.

Even if your equipment is still in the flightcase, the front cover can be easily and quickly removed before the performance. The ZOMO EA-1 ANGLE ADAPTER is recommended to plug in the headphones even easier to the DJ mixer.

Also in terms of design, the Pioneer DJ Equipment Flightcase can fully inspire. The noble design in the midnight black NSE edition is absolutely stylish and without question an eye-catcher. For an exceptionally tight fit of the lid and easy unlocking and locking provide the practical butterfly snap locks. Also all NSE Equipment Cases are lockable with an optional padlock for higher protection against theft.

Features Zomo Flightcase P-Opus-Quad NSE

Protects the equipment from defects, scratches or further damages
High quality for the hardest use
Extra sturdy design
Elegant design
High-quality processed interior padding
Ball corners
First class butterfly snap locks
Integrated grab handles
Wheels for easy transport
Removable lid

Technical data

Suitable equipment: 1x Pioneer DJ Opus Quad
Outer material: 9mm plywood
Colour: Black (NSE)
Weight: 20.1 kg
Outer dimensions: 979 (width) x 563 (depth) x 221 (height) mm
** The devices shown and/or mentioned on the photos are NOT included!

Suitable devices: Pioneer DJ Opus Quad
Suitable brands: Pioneer DJ
Laptop shelf included: No

Notes: The Zomo Flightcase Rane Four Plus NSE Flightcase is custom-made for the Rane FOUR controller. Zomo expands its selection with the stylish NSE (= Night Style Edition) Flightcase, adding a new equipment flightcase to the lineup. In addition to its stylish appearance, the equipment case also impresses with its robust construction.

Thanks to the extra strong, black-painted aluminum profiles and the extra solid ball corners, the Zomo DJ Case offers exceptional durability. The practical internal padding of the Flightcase Rane Four Plus NSE guarantees secure protection for the Rane DJ controller against scratches, defects, or other damage.

The stylish, advanced design in the black NSE (= Night Style Edition) complements the concept of the Zomo Flightcase, not only with incredible professional quality but also in terms of design. The helpful butterfly latches allow for easy opening and locking, ensuring a highly secure hold of the lid. All NSE equipment cases can also be locked with an optional lock.

Cigarette embers, heat, and abrasion cannot harm the Flightcase Rane Four Plus NSE, thanks to the high-quality, laminated 9mm plywood. Designed for the rough stage environment, Zomo equipment flightcases are naturally suitable for road and air travel.

The front strip can be quickly and easily removed, even while your DJ gear remains in the case.

Features Zomo Flightcase Rane Four Plus NSE

High-quality flightcase suitable for the Rane FOUR controller
Provides high protection against shocks, scratches, or external damage
Professional craftsmanship for rugged touring use
Extra stable construction
Classic design in dark black NSE optics
Removable front strip - controller can remain in the flightcase
Useful storage for notebooks
Sturdily crafted interior padding for optimal grip
Convenient ball corners offer reliable protection against shocks and vibrations
Premium butterfly latches for quick closure
Practical handles for easy transport
Detachable lid
Technical Specifications
Compatible devices: 1x Rane FOUR
Retractable shelf for 1x 17-inch notebook integrated
Outer material: 9mm plywood
Color: Black NSE (Night Style Edition)
Weight: 19.3 kg
External dimensions: 873 (width) x 522 (depth) x 218 (height) mm
** The devices shown and/or mentioned in the photos are NOT included in the delivery!

Suitable devices: Rane FOUR
Suitable brands: Rane
Laptop shelf included: Yes

Notes: Sound:
Vintage Keyboard Sound Engine with six incredibly detailed vintage keyboard types.

Each keyboard type matches a carefully chosen Drive and Tremolo setting to provide an incredibly musical pairing.

The six keyboard types are:

- RdI, early '70s tine electric piano

- RdII, late '70s tine electric piano

- Wr, late '60s reed electric piano

- Clv, 70s struck string Clavinet

- Toy, toy piano

- CP, Yamaha CP80 electric grand piano

128-note polyphony ensures dropout-free performance.

Five stomp box-style effects with direct control@
The effect types are:

- Drive (adds harmonics and distortion)

- Tremolo (Auto-Pan for Rd) or VCM Wah with adjustable depth and rate

- Chorus with adjustable depth and speed

- VCM Phaser with adjustable depth and speed

- Digital or Analog-Type Delay with adjustable time and depth

- Reverb with adjustable depth

Control:
- Based on the FS action found on the flagship Motif XF, HQ (High Quality) Mini Keys provide premium feel and response for fast, accurate and natural playing

- Sustain pedal input allows the sustain function for all electric piano sounds

Mobility & Connectivity:
- Speakers

2W 3cm stereo speaker system lets you play any place, any time.

Specially designed bass reflex port technology enhances bass response for full, rich sound.

- USB

USB "TO HOST" allows MIDI connectivity to your USB-equipped computer or iOS device.

- Audio output

Dual 1/4"unbalanced line outputs provide connection to mixers, audio interfaces, DI boxes and more.

- Audio input

A 3.5mm aux line input lets you connect and hear mobile devices, tablets and more through the instrument.

Battery Operation:
- Battery powered - uses six "AA" batteries with five hours of life

Create your Soundmondo. Inspire and be inspired:
Soundmondo is a free sound sharing community that lets you discover, create and share reface Voices and Set Lists using Google Chrome any place, any time you're online.

Powered by Web MIDI, Soundmondo is simple to use - just connect reface to Chrome and you're ready to create or start browsing.

Notes: In the 15 years since they were introduced, the HS Series powered studio monitors have become a favourite in professional, project and home studio environments.
The new special edition HS5 MP Set includes two HS5 monitors, both manufactured using a unique process and both utilising specially selected parts. The result is a pair of monitors, each as closely matched to one another as is possible.

2-way bass-reflex bi-amplified nearfield studio monitor with 5" cone woofer and 1" dome tweeter
54Hz - 30kHz (-10dB), 74Hz - 24kHz (-3dB) frequency response
45W LF plus 25W HF bi-amp system for high-performance 70W power amplification
ROOM CONTROL and HIGH TRIM response controls
XLR and TRS phone jack inputs accept balanced or unbalanced signals

The HS Series embodies the design philosophy on which Yamaha has long insisted for its studio monitors, and is now available as a special paired model that uses selected volume parts. The paired model series bears the designation of MP (Matched Pair), and MP stickers are affixed to the back of each unit. Manufactured at the same time and with paired serial numbers, the HS MP models can play a valued role in your recording, mixing, and mastering work.

Yamaha Pro Audio's history of aspiration and innovation goes back to 1969. Since the creation of Yamaha's first pro audio products (the VA120 and VA180 vocal amp systems), they've repeatedly aspired and innovated to create a wide-ranging lineup for applications including broadcast studios and commercial spaces, such as mixing consoles, power amplifiers, speakers, processors, and immersive sound solutions, each with the aim of becoming the new standard in their respective market.

Monitor speakers are one of the product areas that must be mentioned when speaking of Yamaha Pro Audio's fifty-year history. The NS10M STUDIO which went on sale in 1977 was a studio monitor speaker loved by numerous engineers, and earned a role in studios around the world. In 1998 came the MSP5 powered monitor speaker which focused on providing the painstakingly faithful playback of the original sound that is demanded from nearfield monitors. Subsequently, the MSP/MSP STUDIO series that appeared during the period 2000 through 2008 benefited from a full measure of the know-how and technology that has been accumulated in the field of pro studio monitor design, going on sale as a flagship model that boasted a stunning degree of perfection.

Yamaha have insisted on complete fidelity to the original sound and the ability to reproduce the subtle changes of tone and position in the mix, and these principles are exemplified in the HS series that appeared in 2005 with its bright white cones. As high-bit and high-sampling-rate continue as trends in the field of music production, leading to an increasing need for high-quality nearfield monitors, these speakers deliver the high-quality sound and accuracy that are ideal for the studio environment. In 2013, fusing the know-how and cutting-edge analysis technology that has been developed through many years of studio monitor design, and carefully rethinking every element, the next-generation HS series have been announced, adds yet more polish to the accuracy of these speakers.

Notes: Perennial favourite nearfield monitor with a look inspired by the classic NS-10s. Punchy sound with the clarity and accuracy needed for production and mixdowns. Great value.

Supplier's notes:
The Yamaha HS8 is the new flagship model of Yamaha's HS series of active studio monitors, taking its cues from the ever popular and much demanded NS-10.

The Yamaha HS8 Active Studio Monitor features biamplified full range 2 way speakers rated at 75W and 45W and has been developed by Yamaha to offer an exceptionally flat and accurate frequency response for use in music production and composition as well as the home project studio. The HS range of monitors has been designed in the same tradition of the legendary NS10M monitors.

Yamaha HS8 speakers feature a low resonance bass reflex enclosure which improves the rigidity of the overall speaker, and less cabinet resonance means that the signal remains clear and uncoloured. This is very important in getting an accurate mix which translates across all systems.

Port noise has also been audibly reduced by up to 6dB using the new Yamaha proprietary technology right across the HS range, which also helps to deliver a clean and precise signal. The HS8 is equipped with XLR and TRS jack connectors as well as room control and hi trim response controls.

Notes: 12-channel version of the MG mixer series packs a lot of functionality into a small footprint. Class A pre-amps, three-band EQ and neat, ergonomic design. Great value.

For a more precise control and enhancement of your sound, XU models of the MG Series come equipped with a suite of Yamaha's renowned SPX effects. Featuring high-resolution Chorus, Flanger, Distortions, Reverb and Delay, all with editable parameters, these are the same multieffects processors used on Yamaha's high-end mixing consoles, giving you the tools you need to elevate your mixes to a higher plane.

For more than a century, Yamaha has been building a legacy of superior craftsmanship and innovation exemplified in all of our products, from an unrivalled catalog of world-class musical instruments to touring-grade professional audio. Now in its third incarnation, the MG Series embodies this pursuit of design excellence, and incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and a rugged, reliable construction. With an intuitive, easy-to-use interface, the MG Series boasts an extensive lineup of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivalled in its class.

D-PRE (Discrete Class-A Mic Preamps): This is where it all starts. Everything you do as a sound engineer is dependent on the quality of your preamps, which determines the direction your mix will take, and ultimately how good it is going to sound. MG Series mixing consoles feature Yamaha's studio-grade discrete class-A D-PRE preamps, which utilize an inverted Darlington circuit comprising two cascading transistors in a configuration that provides more power with lower impedance. Delivering fat, natural sounding bass and smooth, soaring highs, with very low distortion, D-PRE preamps possess an impressively wide frequency range that allow them to handle signal from any audio source without overly amplifying any specific elements of the sound. Having such a pure sonic platform to build on will ultimately save you time and effort by eliminating the need for excessive EQing or additional effects processing in order to "fix" your mix.

High Quality Sound Op-amp: The head amp determines sound quality, and op-amp integrated circuits are one of the most important parts in the head amp circuit. MG Series mixers feature new, high-quality, custommade MG01 op-amps that we developed in cooperation with the semiconductor manufacturer. Although many other Op-amps prioritize electrical design and efficiency, we worked directly with the semiconductor manufacturer to focus on sound quality first. MG01 op-amps feature redesigned circuitry in which even the internal components and wiring have been optimized, and use materials such as high-quality silicon wafers and copper wire to achieve superb resolution.

Switchable Phantom Power & PAD Switch: With phantom power, MG Series consoles allow you to take full advantage of the greater frequency response and high sound quality of condenser microphones. The input channel with PAD switch accepts MIC to line level of inputs, PAD Switch attenuates high input signals that often accompany mic'ed instruments during performance, avoiding the clippingthat can seriously affect your mix.

When was the last time you heard guitar without EQ or a completely unprocessed vocal on one of your favorite songs? Probably never. Yamaha mixers are famous for their flat response and sonic purity, but it often takes more than a perfectly-captured instrumental performance or vocal to achieve a professional-sounding mix. Equipped with some of the same state-of-the-art functionality featured on Yamaha's high-end consoles, the MG Series gives you the tools you need to produce high quality sound that is uniquely your own.

Notes: *** App Update- August 2024 ***

Yamaha Music is proud to announce the release of SEQTRAK App v1.0.2, a significant upgrade now available on Web and App stores worldwide. This update marks a substantial improvement in the app's functionality, speed, and overall user experience.

Transformative Enhancements in v1.0.2:

1. Revolutionized Data Syncing: Users will experience dramatically faster load times thanks to intelligent cached data usage, making workflow smoother and more efficient than ever before.
2. Advanced Sorting Capabilities: The newly implemented Packs list sorting feature empowers users with enhanced organization tools, streamlining project management and creative processes.
3. Mac User Experience Boost: Mac users will enjoy improved accessibility with the addition of [ctrl + click] functionality for context menus, aligning with platform-specific user expectations.

Critical Issues Resolved:

This update doesn't just add features; it also significantly improves stability and reliability:

- Eliminated Visualizer scene loading issues, ensuring seamless visual performances
- Perfected Visualizer Reflection parameter value retention for consistent visual outputs
- Resolved UI display inconsistencies related to parameter-lock deletion, enhancing user interface reliability
- Optimized Sampler track Destination value changes for precise audio routing
- Rectified parameter-locked effects saving for Synth tracks, preserving complex sound designs

The culmination of these improvements results in a noticeably more robust, responsive, and user-friendly SEQTRAK App. Whether you're a professional musician, a live performer, or an enthusiastic hobbyist, v1.0.2 offers a substantially improved platform for your creative endeavours.

Users can immediately access this groundbreaking update through their respective App stores or via the Web platform.


Yamaha's all-in-one portable production tool offers an exciting new take on music making. Synth and sampler engines combine with a built-in sequencer, allowing you to create tracks from scratch.

Supplier's Notes:
Unlock your creativity anywhere

Introducing SEQTRAK, the ultimate music creation station that empowers you to capture, create and connect with fans - from anywhere you happen to be.

Capture

Capture ideas as quickly as they come.

All-in-one system

Drums. Synths. Sound design. Sequencing. All included. With an array of features, all loaded in a compact, lightweight design, SEQTRAK allows you to start producing right away - no matter where you are. It's got everything you need. And more.

Lightning-fast workflow

SEQTRAK makes capturing ideas simple with a clear 3-part user interface and real-time, hands-on controls. You'll produce your music without menu-diving or waiting for boot times. Seize moments of inspiration and unleash your creativity in no time at all.

Extensive sounds

SEQTRAK extensive library contains over 2,000 presets. You'll find a vast collection of professionally crafted sounds - from rich pianos, to shimmering synths and thundering drums. More will be available with updates to the SEQTRAK app.

Onboard sampling

Capture your own unique sound samples effortlessly. SEQTRAK's sampler offers seven sound slots and a variety of effects, allowing you to shape and transform your samples with ease. Say a phrase, tap a spoon, or record your favourite pet - then customize to create polished Tracks - all in high-quality 44.1 kHz/16-bit format.

Make music on the go

With its compact size, lightweight design, built-in speaker and microphone, as well as a rechargeable battery, you can take SEQTRAK anywhere - from the studio, to the stage, to the sofa. No need to worry about power outlets or tangled cables. Create, perform, and share your music - anytime, anywhere.

Create

Turn your ideas into original music.

Sound engines + effects

Double your creative potential with two versatile sound engines. AWM2 (Advanced Wave Memory 2) boasts an impressive 128-note polyphony and specializes in authentic sounds like pianos, strings, and guitars, while the four-operator FM engine produces stunning synth pads, leads, FM electric pianos, and more. Additionally, SEQTRAK includes powerful effects for a polished sound.

Sequencer

SEQTRAK's advanced Sequencer allows for intuitive and seamless composition, arrangement, and playback of musical Tracks. With its user-friendly interface, you can easily navigate and control various parameters, such as tempo, swing, and track settings.

Sound editing

Inside the included SEQTRAK app you'll find an intuitive graphic user interface that lets you quickly dive into each Track and shape your sounds with precision. Editing includes a comprehensive set of functions, including envelopes, filters, and effect manipulation, enabling you to refine your compositions with meticulous detail.

Connect

Share your music. Connect with your fans.

Performance

Take centre stage with the SEQTRAK's powerful performance features. Create arrangements on-the-fly by combining Tracks and Patterns, remixing beats, and muting/unmuting Tracks in real-time. Add polish and sparkle to your music using global effects - then control these sounds live while you perform.

Visualizer

The SEQTRAK app has a Visualizer mode that transforms your music into a captivating visual experience. With this free performance and production feature, you'll bring your music to life with stunning visuals that sync perfectly with your songs. Customize and tweak Patterns, motion effects and more, however you see fit. There's even an Augmented Reality (AR) mode that allows you to integrate 3D virtual objects into real-world live videos.

Connectivity

- Bluetooth MIDI: Connect wirelessly to the SEQTRAK App & Visualizer, enhancing convenience and mobility.

- Wi-Fi: Transfer WAV samples wirelessly, eliminating the need for cables.

- MIDI In/Out: Connect to other hardware synths, MIDI controllers, or a computer; expanding your sound options and enabling integration with external devices.

- USB-C: Establish a single cable connection for MIDI and stereo audio to a computer simplifying setup and streamlining workflow.

- AUX In: Connect to drum machines, synths, and other external sources, expanding and diversifying your sound.

*Wireless functions may not be available depending on your area. Check with your Yamaha dealer. Windows PC cannot use wireless functions.

Specs
Tone Generator: AWM2, FM: 4 operators
Maximum Polyphony: AWM2: 128, FM: 8
Wave: Preset: 800 MB (when converted to 16-bit linear format), User: 500 MB
Effects: Reverb × 12 types, Delay × 9 types, Master Effect × 85 types, Single Effect × 85 types, Master EQ 5 bands, LP-HP filters for each track

Tracks

Track Types: DRUM, SYNTH, DX, SAMPLER
Number of Tracks: 11

Sounds

Number of Sounds: Preset Sound: 2032 Preset Sampler Sound: 392 *Can be added from the SEQTRAK app
Connectivity


USB: USB Type-C (power, MIDI to host, MIDI to device, audio)
Headphones: [PHONES] (stereo mini jack)
A/D INPUT: [AUDIO IN] (stereo mini jack)
MIDI: [MIDI] IN/OUT *Only included cable can be used.

Functions
USB audio interface: [Sampling Frequency = 44.1 kHz (quantization bit depth: 24-bit)] Input: 2 channels (stereo 1 channel), Output: 2 channels (stereo 1 channel)
Bluetooth: MIDI transmission/reception (wireless capability varies by country)
Wi-Fi: Data transmission/reception with dedicated app (wireless capability varies by country) The highest SAR value: 1.11 W/kg

Sound System

Speakers: 2.3 cm, 1 W
Microphone: Internal MEMS microphone

Power Supply

Power Source: Rechargeable lithium-ion battery (2,100 mAh, 7.6 Wh) USB Power Delivery (PD) (Output voltage: 4.8 V to 5.2 V, Output current: 1.5 A or greater)
Power Consumption: 6 W
Battery life for continuous use: 3-4 hours
Battery charge time: 3-5 hours

Size/Weight

Dimensions

Width: 343 mm (13-1/2")
Height: 38 mm (1-1/2")
Depth: 97 mm (3-13/16")
Weight: 0.5 kg (1 lb 2 oz)

Packing Box

Width: 420 mm (16-9/16")
Height: 90 mm (3-9/16")
Depth: 165 mm (6-1/2")

Included accessories: USB-C to USB-C cable, dedicated MIDI Converter Cable, Quick Operation Guide, Safety Guide
Dedicated Software: SEQTRAK app
Sequencer Block - Maximum Steps: 128

Notes: *** Update- August 2024 ***

Yamaha Music is proud to announce the release of SEQTRAK App v1.0.2, a significant upgrade now available on Web and App stores worldwide. This update marks a substantial improvement in the app's functionality, speed, and overall user experience.

Transformative Enhancements in v1.0.2:

1. Revolutionized Data Syncing: Users will experience dramatically faster load times thanks to intelligent cached data usage, making workflow smoother and more efficient than ever before.
2. Advanced Sorting Capabilities: The newly implemented Packs list sorting feature empowers users with enhanced organization tools, streamlining project management and creative processes.
3. Mac User Experience Boost: Mac users will enjoy improved accessibility with the addition of [ctrl + click] functionality for context menus, aligning with platform-specific user expectations.

Critical Issues Resolved:

This update doesn't just add features; it also significantly improves stability and reliability:

- Eliminated Visualizer scene loading issues, ensuring seamless visual performances
- Perfected Visualizer Reflection parameter value retention for consistent visual outputs
- Resolved UI display inconsistencies related to parameter-lock deletion, enhancing user interface reliability
- Optimized Sampler track Destination value changes for precise audio routing
- Rectified parameter-locked effects saving for Synth tracks, preserving complex sound designs

The culmination of these improvements results in a noticeably more robust, responsive, and user-friendly SEQTRAK App. Whether you're a professional musician, a live performer, or an enthusiastic hobbyist, v1.0.2 offers a substantially improved platform for your creative endeavours.

Users can immediately access this groundbreaking update through their respective App stores or via the Web platform.


Unlock your creativity anywhere

Introducing SEQTRAK, the ultimate music creation station that empowers you to capture, create and connect with fans - from anywhere you happen to be.

Capture

Capture ideas as quickly as they come.

All-in-one system

Drums. Synths. Sound design. Sequencing. All included. With an array of features, all loaded in a compact, lightweight design, SEQTRAK allows you to start producing right away - no matter where you are. It's got everything you need. And more.

Lightning-fast workflow

SEQTRAK makes capturing ideas simple with a clear 3-part user interface and real-time, hands-on controls. You'll produce your music without menu-diving or waiting for boot times. Seize moments of inspiration and unleash your creativity in no time at all.

Extensive sounds

SEQTRAK extensive library contains over 2,000 presets. You'll find a vast collection of professionally crafted sounds - from rich pianos, to shimmering synths and thundering drums. More will be available with updates to the SEQTRAK app.

Onboard sampling

Capture your own unique sound samples effortlessly. SEQTRAK's sampler offers seven sound slots and a variety of effects, allowing you to shape and transform your samples with ease. Say a phrase, tap a spoon, or record your favourite pet - then customize to create polished Tracks - all in high-quality 44.1 kHz/16-bit format.

Make music on the go

With its compact size, lightweight design, built-in speaker and microphone, as well as a rechargeable battery, you can take SEQTRAK anywhere - from the studio, to the stage, to the sofa. No need to worry about power outlets or tangled cables. Create, perform, and share your music - anytime, anywhere.

Create

Turn your ideas into original music.

Sound engines + effects

Double your creative potential with two versatile sound engines. AWM2 (Advanced Wave Memory 2) boasts an impressive 128-note polyphony and specializes in authentic sounds like pianos, strings, and guitars, while the four-operator FM engine produces stunning synth pads, leads, FM electric pianos, and more. Additionally, SEQTRAK includes powerful effects for a polished sound.

Sequencer

SEQTRAK's advanced Sequencer allows for intuitive and seamless composition, arrangement, and playback of musical Tracks. With its user-friendly interface, you can easily navigate and control various parameters, such as tempo, swing, and track settings.

Sound editing

Inside the included SEQTRAK app you'll find an intuitive graphic user interface that lets you quickly dive into each Track and shape your sounds with precision. Editing includes a comprehensive set of functions, including envelopes, filters, and effect manipulation, enabling you to refine your compositions with meticulous detail.

Connect

Share your music. Connect with your fans.

Performance

Take centre stage with the SEQTRAK's powerful performance features. Create arrangements on-the-fly by combining Tracks and Patterns, remixing beats, and muting/unmuting Tracks in real-time. Add polish and sparkle to your music using global effects - then control these sounds live while you perform.

Visualizer

The SEQTRAK app has a Visualizer mode that transforms your music into a captivating visual experience. With this free performance and production feature, you'll bring your music to life with stunning visuals that sync perfectly with your songs. Customize and tweak Patterns, motion effects and more, however you see fit. There's even an Augmented Reality (AR) mode that allows you to integrate 3D virtual objects into real-world live videos.

Connectivity

- Bluetooth MIDI: Connect wirelessly to the SEQTRAK App & Visualizer, enhancing convenience and mobility.

- Wi-Fi: Transfer WAV samples wirelessly, eliminating the need for cables.

- MIDI In/Out: Connect to other hardware synths, MIDI controllers, or a computer; expanding your sound options and enabling integration with external devices.

- USB-C: Establish a single cable connection for MIDI and stereo audio to a computer simplifying setup and streamlining workflow.

- AUX In: Connect to drum machines, synths, and other external sources, expanding and diversifying your sound.

*Wireless functions may not be available depending on your area. Check with your Yamaha dealer. Windows PC cannot use wireless functions.

Specs
Tone Generator: AWM2, FM: 4 operators
Maximum Polyphony: AWM2: 128, FM: 8
Wave: Preset: 800 MB (when converted to 16-bit linear format), User: 500 MB
Effects: Reverb × 12 types, Delay × 9 types, Master Effect × 85 types, Single Effect × 85 types, Master EQ 5 bands, LP-HP filters for each track

Tracks

Track Types: DRUM, SYNTH, DX, SAMPLER
Number of Tracks: 11

Sounds

Number of Sounds: Preset Sound: 2032 Preset Sampler Sound: 392 *Can be added from the SEQTRAK app
Connectivity


USB: USB Type-C (power, MIDI to host, MIDI to device, audio)
Headphones: [PHONES] (stereo mini jack)
A/D INPUT: [AUDIO IN] (stereo mini jack)
MIDI: [MIDI] IN/OUT *Only included cable can be used.

Functions
USB audio interface: [Sampling Frequency = 44.1 kHz (quantization bit depth: 24-bit)] Input: 2 channels (stereo 1 channel), Output: 2 channels (stereo 1 channel)
Bluetooth: MIDI transmission/reception (wireless capability varies by country)
Wi-Fi: Data transmission/reception with dedicated app (wireless capability varies by country) The highest SAR value: 1.11 W/kg

Sound System

Speakers: 2.3 cm, 1 W
Microphone: Internal MEMS microphone

Power Supply

Power Source: Rechargeable lithium-ion battery (2,100 mAh, 7.6 Wh) USB Power Delivery (PD) (Output voltage: 4.8 V to 5.2 V, Output current: 1.5 A or greater)
Power Consumption: 6 W
Battery life for continuous use: 3-4 hours
Battery charge time: 3-5 hours

Size/Weight

Dimensions

Width: 343 mm (13-1/2")
Height: 38 mm (1-1/2")
Depth: 97 mm (3-13/16")
Weight: 0.5 kg (1 lb 2 oz)

Packing Box

Width: 420 mm (16-9/16")
Height: 90 mm (3-9/16")
Depth: 165 mm (6-1/2")

Included accessories: USB-C to USB-C cable, dedicated MIDI Converter Cable, Quick Operation Guide, Safety Guide
Dedicated Software: SEQTRAK app
Sequencer Block - Maximum Steps: 128

Notes: Another cracker from Xaoc, the Timiszoara is a take on digital multi-effects with stereo in and out, an intuitive interface and CV control of effect parameters. Big power with 176 factory programs.

Supplier's Notes:
Timiszoara is a stereo, Eurorack compatible, voltage-controlled multi-effect signal processor based on the popular Spin Semiconductor FV-1 DSP chip. It features a full stereo signal path with two adjustable audio inputs, two outputs, and a stereo voltage-controlled wet/dry mixer. In addition, there is a microSD memory card slot on the front panel that allows for loading factory and custom effects without any restrictions or copyright protection, which means you can use many effects available on the Internet and even create your own.

Effect programs are organized in banks of 8 and can be selected using a rotary encoder, as well as CV and trigger signals. Timiszoara features a crisp OLED screen that displays the program parameters and its name. It also facilitates navigating the list of banks. Up to three parameters per effect can be controlled from the front panel with illuminated slider potentiometers and dedicated CV inputs.

Xaoc Devices have prepared quite a few banks of algorithms (176 in total) that cover most effects needs: delays, reverbs, filters, modulation effects (such as choruses and flangers), pitch shifters, and, of course, shimmers (no multi-effects unit would be complete without its share of those). However, Xaoc Devices wanted to ensure that users had access to some more adventurous programs, so some special banks have been created to allow you to take a walk on the wild side.

For detailed description, please refer to the manual.

Technical details:

10hp, skiff friendly
Current draw: +120/-45 mA
Reverse power protection

Notes: Gorgeous stereo implementation of the classic frequency shifter sound, moving from tonal harmonics to atonal disharmony effortlessly. Separate outputs for down and up shifts, plus plenty of CV control.

Supplier's Notes:
Koszalin is a full stereo frequency shifter with two inputs and four outputs. If offers simultaneous exponential and linear through-zero control of the amount of frequency shift in 3 carefully scaled ranges (up to +/- 5kHz). Frequency shifting results in linear translation of signal spectrum producing all kinds of atonal sounds. It should not be confused with frequency scaling, also known as pitch shifting. Several stereo feedback topologies are offered with additional density control besides feedback depth, which results in spectacular stereo barberpole effects.

Through-zero modulation allows for using Koszalin's input as an FM operator. Koszalin is a digital module with a DSP behind an analog interface.

Main features:

full stereo frequency shifting
3 shift ranges: +/- 50Hz / 500Hz / 5kHz
exponential and linear through-zero inputs
internal feedback under voltage control.
10HP
12V: 140mA / -12V: 30mA

Notes: A big deal even by Xaoc's prolific and eclectic standards. Fully analogue VCO based on the none-more-old-school fonction d'onde formantique, implemented with extensive CV control. Transcendent waveforms indeed.

Supplier's Notes:
Sofia is a fully analogue voltage-controlled oscillator (VCO) based on an original waveforming principle. It features a modern, well-calibrated, temperature compensated triangle core and two elaborate waveshaping and modulating sections. The sound is a mixture of a warm, saturated base tone and two ripple components. Besides its main output, Sofia offers access to individual components of the sound plus a multitude of modulation inputs allowing for extensive self-patching and animation of the waveform. To better understand the device, it is strongly advised to read through the entire manual before using the module.

Sofia implements and extends the classic computer music method for synthesis of formant sounds called FOF (fonction d'onde formantique), which uses a combination of simple, time-domain components (decaying sinusoidal waves) to achieve desired spectral characteristics.

In Sofia, two of such ripple elements are added on top of a slightly saturated sinusoidal base tone. Each new cycle of the base tone spawns a new pair of ripple elements. The ripples' density and decay rate may be adjusted over a wide range. Additionally, the elements may be warped so that their density accelerates or decelerates within the cycle. Finally, their basic waveform may be switched from sine-like to square-like for additional richness.

Despite the seemingly divergent frequencies present in the signal, it remains strictly harmonic due to how all elements are waveshaped from the core tone and therefore phase coherent. Thus, Sofia is not a complex oscillator in the Buchla sense; however, it goes beyond the traditional set of primary waves and wavetables, hence the name.

Analogue VCO with complex waveforms
Extended FOF synthesis
3 frequency control inputs
8 parameter control inputs
6 signal outputs

24hp, 30mm deep
Current draw: +90mA/-80mA
Reverse power protection

The high quality Coal Mine black panels are available for all of Xaoc Devices modules. Sold separately. Ask your favourite retailer.

Notes: Belgrad is an all-analogue voltage controlled filter module which - on par with our other modules - brings something new to the table. While it can be used as a traditional VCF for "academic" subtractive synthesis, we guarantee countless hours of exciting timbral explorations thanks to its unique character, flexibility, and features. The most prominent feature is that it offers a multitude of frequency responses with two resonant peaks.

- Eurorack synth compatible
- 14HP, skiff friendly
- Current draw: +45mA / -42mA
- Reverse power protection

Notes: Sarajewo is an analog delay module based on old school (but newly manufactured) BBD (Bucket Brigade Delay) chips. It features three delay taps, an external clock input with various tempo sync factors, and a wide range of settings controllable via CV. It is based on high quality components with maximum effort put towards the highest sound quality possible, while still preserving the charm of the BBD technology. The module offers a clean and warm analog sound with tons of character and a comfortable user interface with a tap tempo button, signal level indicators, sync and CV inputs, four signal outputs, and an adjustable feedback filter.

TECHNICAL DETAILS:
Eurorack synth compatible
12hp, skiff friendly
Current draw: +180mA / -120mA
Reverse power protection

Notes: Chimera is a granular synthesis module that specializes in drum sounds. It offers a wide range of detailed sample sources as well as its own synthesis engine. Firmware updates can be performed via USB.

The module features various samples called Surfaces. The samples are mainly metallic sounds:

Tambourine
Bells
Drill
Wrenches
Cartridge cases
Coins
Chains
Metal housings
Broken modular front panels

Chimera uses impulsive sounds with lots of detail and long decay times to create detailed shaker-like sounds. The granular synthesizer was developed around the samples here, this has the advantage that the percussion sounds sound so more natural.

Power consumption: 63mA at +12V and 17mA at -12V

Depth: 38mm

HP : 8

Notes: Originally inspired by audience applause, hip-hop samples, and classic drum machines, Fracture is a multi-particle percussion synthesizer that applies concepts from classic analogue clap circuits to granular synthesis methods.

It all starts from proprietary micro-samples we recorded specifically for this purpose and ends with an engine built to suit these samples.
Unlike our other percussion module, Chimera, which uses impulse rich samples as it's tonal center, Fracture uses single impulse samples like claps, snaps, ping pong balls, opening a beer can, and many more. It then plays a group of similar samples back in a psuedo random order for unique hits. Density, Decay, and Tail affect tone and how "tight" your virtual clappers are to playing together.

Our goal was to design a clap percussion module covering the range from classic drum machine claps all the way to full audience applause. We ended up with a module that covers a huge range of timbres beyond claps. We hope this engine provides you with the tools to intuitively create wild percussion sounds that bring your system to life in a new way.

Features
Stereo output
Control over "how many people" and " how tight" they sound together
Built in Hall and Room reverb
Two Trigger inputs for different types of sounds
3 Filter types, 3 Envelope types
Free running, Voltage Controlled "applause" capability
CV over all parameters

Specifications:
Size: 8hp Depth: 38mm (with cables)
Power: +61mA, -17mA
All CV Inputs: 100k ohm impedance
CV inputs sum with knobs
Full sweep is 5V
Gate Inputs: 100k impedance 2V threshold Schmitt Trigger
Audio Outputs: 470 ohm impedance
20Vpp range
1ms latency max

Notes: Wee Noise Makers PGB-1 is an advanced yet portable synthesizer and sequencer that allows you to craft complex musical pieces anywhere. This all-in-one, open-source, customizable device is designed to empower aspiring musicians, seasoned creators, and makers. It isn't just an instrument-it's your gateway to the world of music production and audio synths.

PGB-1 has open-source stock firmware that makes it a playful and powerful groove box. It allows you to craft complex musical pieces with drums, bass, lead, samples, reverb, bitcrusher, overdrive, and others.

Orchestrated by an advanced sequencer with conditional steps, repeats/ratcheting, pattern chaining, chord sequencing, song mode, live sequencing effects, and more.

PGB-1 is Wee Noise Makers' response to the current landscape of entry-level hardware synthesizers and groove boxes. In recent years, we saw a plethora of new electronic instruments marketed as accessible, affordable, and designed for beginners. Yet, often these instruments can feel limited, tying users to a specific sound or ecosystem. These limits sometimes feel artificial, pushing you to combine multiple products of the same line to actually make meaningful music. At the same time leading to frustrating sequencing, connection, and mixing issues that defeat the portability and playfulness of the instruments.

With the PGB-1, Wee Noise Makers wanted to address all these shortcomings, bringing you an instrument that is:

All-in-one: you only need one device to craft complete music pieces
Powerful: Drums, bass, lead, samples, etc. with advanced sequencing features
Truly pocket-size: 10 x 6.6 x 1.5 cm, smaller footprint than a smartphone
Hackable: Designed for customization, open-source firmware, and compatible with several programming languages (including Python)
Creativity should not be limited by the tools you have, but empowered by them. With the PGB-1, Wee Noise Makers are dedicated to creating a platform that encourages innovation and experimentation. Whether you are a musician looking to explore new sounds, a developer eager to create unique software, or a hobbyist who enjoys tweaking and building.

PGB-1 is designed to be customized and modified to your taste. The front panel is a bare PCB, designed with the open-source software Kicad. The production file will be available so that anyone can make its own version with custom graphics and get it manufactured for a few bucks.

PGB-1 is also hackable with CircuitPython, C\C++, and Ada support for programming your own synthesizers, video games, or any audio-based projects.

By making the PGB-1 open source, a sandbox is provided for the audio community. Users can delve into the code, modify existing features, or add entirely new functionalities. This flexibility not only enhances the capabilities of the PGB-1 but also fosters a collaborative environment where users can share their creations and learn from each other.

Additionally, Wee Noise Makers have set up a dedicated Discord server for all PGB-1 users and enthusiasts to discuss, share, and contribute to the growing ecosystem.

Open-source software is not as common in the audio industry, but with this project, the aim is to follow the path of great manufacturers such as Mutable Instruments or Winterbloom.

Features & Specifications

Processor: Raspberry Pi RP2040

16 MB Flash
Audio IC: Cirrus Logic WM8960 (or equivalent)

Up to 32-bit at 48 kHz digital audio link
On-chip Headphone Driver, 1 W Stereo Class D Speaker Driver
Up to 3 stereo Line-in/Microphone interfaces
User Interface

128 x 64 monochrome OLED screen
24 addressable RGB LEDs
30 tactile switches
1 capacitive touch strip
Input & Outputs

1x USB Type-C (Power & Data)
1x 3.5 mm Headphone/Headset
1x 3.5 mm Audio Line-in
1x 3.5 mm MIDI Input (TRS type-A)
1x 3.5 mm MIDI Output (TRS type-A)
Internal microphone

Review: Dive back into the exhilarating world of Indiana Jones with this absolutely bumper box set featuring all five soundtracks from the legendary franchise released by Walt Disney. This unique collection brings together John Williams' iconic compositions which add up to global musical journey full of adventure and emotion. Each track captures the essence of the beloved characters and thrilling escapades that have defined the series that is so well loved and as well as no fewer than ten slabs of vinyl, five posters and a collectible map are also included.

Notes: Distortion and reverb meet in this unique pedal, sporting a joystick to tweak the sound and the option to flip the order of the two effects in the signal chain. Simple, quirky and effective.

Supplier's Notes:
Walrus Audio give you the two most quintessential effects that yield unruly amounts of power and influence to an instrumentalist: reverb and distortion. They have been harnessed and woven together for an eternity of ethereal power with The Melee: Wall of Noise. The Melee unapologetically uses a joystick to meld reverb and distortion into one massive blaze of sound. With the flip of the order switch, run the distortion into the reverb or reverb into distortion; signal chain is your call now. For the explorer, the Melee can run one of three different reverb programs Ambient, Octave, and Reverse.

In a less is more approach, Walrus Audio have intentionally decided on controls that are fun to use and will inspire a wealth of creative output. Use the joystick to control the amount of distortion by moving it up and down. Moving the joystick left and right will adjust your reverb mix. The tone and decay toggles have low, medium, and high settings. Modulation can be added to the wet signal by holding down the bypass switch and moving the decay toggle. The left position is no modulation, the middle is a slight modulation, and the right is a high modulation.

Algorithms

The Melee is equipped with three different reverb programs, which can be changed by simultaneously pressing the bypass and sustain stomp switches. Experiment with the order toggle switch to hear how differently these all react in front and after the distortion!

Ambient Reverb (Pink LED) - Huge reverb capable of massive trails and engulfing your chords into an angry wash of sound. Great for soaring melodic lines or shoegaze-driven chord progressions.
Octave Down Reverb (Yellow LED) - Similar to the Dark mode in the Slo, you'll find an eerie lower octave hovering in the reverb trail for a nice and dark atmospheric touch.
Reverse Reverb with Feedback (Blue LED) - Add reversed reverb trails back into your signal, create gentle melodies or push into reverse feedback overload. Big, slow, and sad chords love to hang out here.

Momentary

Press and hold the sustain switch to ramp up the reverb trails. Release and the trails will ramp back down to where the decay switch is currently set. The sustain switch can also latch in all three programs. Press and release the Sustain switch to capture and sustain the current reverb decay for long pad-like sounds in your wet mix. Press again to release the latch, and the reverb trail will taper off based on the position of the decay knob.

Specs

The Melee comes coated in a glossy neon pink enclosure with white, yellow, and green inks with art by
David Huttner.
The die-cast enclosure's exact size is 3.62" x 4.79" x 3.14" (including joystick height).
Three bypass modes, DSP, DSP + True, True Bypass
Power requirements are 9VDC, centre negative (200mA minimum).
The use of an isolated power supply is recommended for powering all Walrus Audio Pedals.
Daisy chain power supplies are not recommended.
Power supply not included.

Notes: In the high woodlands of the north, undiscovered by most inhabitants, there ruled a clan of old, mystic Treefolk. On the first new moon of spring, these Treefolk could be heard grafting limbs to grow their young - splicing bits of branches from each generation to produce the next line of Treefolk. These new beings keep the lifeblood of all who came before in their new skin. These sounds are in part very old, but in part very new. They are referred to as... Fable.

Let your storybook adventure grows with the Fable Granular Soundscape Generator. The Fable gives you five all-new programs centered around sample and chop delay algorithms to create bizarrely beautiful networks of sampled and resampled sounds. The Fable uses a powerful dual DSP architecture to combine delay programs in series with granular sampling algorithms, each with its own analogue feedback path. Find unique soundscapes ranging from smooth, flowing ambience; to bizarre, organic reverberance; to chaotic, glitchy swarms.

So, what exactly is this granular effect and why is it a magical experience when combined with delay? Granular is a digital processing technique of micro-sampling, wherein short samples called grains are read from a delay buffer. In the Fable, players can adjust these grains by manipulating their sampling length, position, and buffer size from which they're read. They can be played at double or half speed for pitch shift and time stretching effects, play them in reverse, read from multiple positions, and more, in order to achieve different effects.

It's a powerful but complex technique and Walrus Audio created five streamlined programs in the Fable that explore different aspects of its sonic range.

Programs

I. Reverse Delay into Reverse Granular

Program 1 runs a reverse delay into a reverse granular algorithm, in which sampled grains are played backwards. Reversal and re-reversal build up in the feedback paths, creating a complex and organically shifting soundscape. Turn grain size down for long, smooth reversed transients, and grain size up for stuttering reverse glitch madness.

II. Forward Delay into Octave Up Granular

Program 2 runs a forward delay into an octave-up granular program, in which sampled grains are played at double speed. Swarms of double-speed grains build up in the feedback path for bright and airy cascades of sound.

III. Analog Delay into Octave Down Granular

Program 3 runs a warm, dark analogue-style delay into an octave-down granular program, in which sampled grains are played back at half speed. Slowed down repeats combine with analogue-style processing to create deep, thunderous footfalls and thick, murky ambience.

IV. Multi-Tap Granular into Multi-Tap Granular (Grain-Verb)

Program 4 runs two multi-tap granular algorithms in series, in which multiple samples are played back from each granular buffer simultaneously. Multiple points of sampled sound build upon each other in the feedback paths to create glitchy clouds and unique organic reverberance. Time in this program controls time-stretching of both granular algorithms, changing both the length and tonal character of the granular effect.

V. Forward Delay into Randomized Pitch Granular

Program 5 runs a forward delay into a randomized pitch granular program, in which each grain is played back at a randomly selected speed and direction, varying between pitched up double speed, pitched down half speed, normal speed, plus forward and reversed playback from grain to grain. Pitch changes with each new grain, so play with the X knob in this program to control the rate of randomized pitch modulation.

Granular soundscape generator
Unique soundscapes ranging from smooth ambience to bizarre reverberance to chaotic glitchy swarms
Powerful dual DSP architecture with individual feedback paths
Combine delay programs in series with granular sampling algorithms
5 programs centered around sample and chop delay algorithms
Program 1: Reverse Delay into Reverse Granular
Program 2: Forward Delay into Octave Up Granular
Program 3: Analog Delay into Octave Down Granular
Program 4: Multi-Tap Granular into Multi-Tap Granular (Grain-Verb)
Program 5: Forward Delay into Randomized Pitch Granular
Manipulate sampling length, position and buffer size of grains (short samples)
Play grains at double- or half-speed, reverse or from multiple positions to achieve different effects
Tap Tempo switch
Top-mounted Input and Output
Coated in a slate grey enclosure with white, black, cream, red, and orange ink
9-volt DC, Centre Negative, 300mA minimum
Buffered bypass
Power supply not included.
Designed and assembled in USA

Notes: The [ACS1] is an amplifier and speaker cab simulator delivering the sound and feel of world-class amplifiers, complimentary speaker cabinet IRs created by Tone Factor and York Audio, and controllable room size. With the ACS1, players have expansive options to deliver their tone on stage, in the studio, or practicing at home. Simple controls, stereo in and out, onboard presets, and MIDI support make the ACS1 an essential tool in a guitarist's arsenal. Players can also load in their own IRs and update firmware.

The ACS1 contains six amplifier models based on fan-favourite amps, each with its place in music history, and twelve cab IRs (Impulse Responses) designed by world-class designers to give you the best tonal representation possible. The stock IRs for the Fullerton, London, and Dartford amp models were custom engineered by David Hislop and Kenyon Reed at Tone Factor, while the stock IRs for the Red, Citrus, and Tread amp models were designed by Justin York at York Audio.

Amplifiers

The ACS1 can mix and match stereo amp and cab combinations. Want to run an AC30-style amp on the left and an Orange-style amp on the right? Or perhaps a 5150 flavoured amp in both channels but with two different cabs for a wider stereo sound? When running the ACS1 in stereo, one amp can be used through both channels, or these combinations can be run independently left and right if you choose, leading to powerful, unique amp tones. Simply press down on the Middle encoder to choose individual settings for L, R, or L+R combined. Amps can be mixed and matched with no phase/polarity issues as well.

Onboard models include:

Three Vintage Amp Models

Fullerton - Inspired by the classically bright and clear Fenderr Deluxe Reverb. Crisp clean tones with loads of headroom that players have come to love over the years.
London - Inspired by a 1962 Marshallr Bluesbreaker with a harmonically rich, valve-driven breakup. Articulate and sensitive response.
Dartford - Inspired by the legendary jangly high-end tones from a 1960s Voxr AC30 with all the bite and chime from the British Invasion.

Three High Gain Amp Models

Red: Inspired by the distinctively raw and punchy Peaveyr 5150, producing heavy, aggressive modern metal and hard rock sounds. Powerful and saturated with a tight low end, strong midrange, and a bright, cutting high end.
Citrus: Inspired by the warm, rich, and harmonically complex Oranger Rockerverb. Classic British gain with a creamy midrange and punchy lows. Maintains clarity and definition across its entire tonal spectrum, even at high-gain settings.
Tread: Inspired by the world-famous Mesa Boogier Dual Rectifier with massive amounts of in-your-face gain. Versatile enough to be favoured by guitarists in genres from hard rock, punk, metal, and more, Tread offers up plenty of saturation that's heavy and ready to cut through the mix.

Cabinet IRs

The ACS1 includes six IRs custom-engineered by David Hislop and Kenyon Reed at Tone Factor and six by Justin York of York Audio. Each IR has been created with vintage and modern amps to deliver the best tonal representation possible.

Additional ACS1 Settings/Features:

Primary Controls

Volume, gain, and room make up the top three knobs. Volume and gain work together, as gain is increased and made louder, volume can be turned down to compensate.

Room The ACS1 has three different types of reverb effects:

Room - Simulates the size of the room that your amp and cabinet are in. At zero, it would resemble tracking your amp in an isolated environment with no reverb. At max would emulate a natural-sounding, large studio environment.

Hall - Simulates the acoustics of a large, live sound space.

Spring - Simulates spring reverb tanks found in tube amps.

Increase the room size or amount of reverb by adjusting the Room knob. The further clockwise you go, the bigger the room. Decay control can be adjusted for room in the Global Sound menu.

Bass/Mid/Treble EQ

Bass, mid, and treble control are adjustable on the home screen with the use of the encoder knobs. The left knob controls bass, the middle is mids, and the right is treble. This simple EQ control has clear visual feedback and can be used to adjust levels on the L, R, and L+R channels.

Noise Gate

A noise gate can be applied and adjusted within the navigation menu, which can be especially helpful when playing with the high-gain amp models.

Amp EQ

Presence and resonance controls are available within Amp EQ Settings in the menu, giving you even more control of your amp tone.

(Access the settings for noise gate, Amp EQ, and more by clicking the bottom left and middle encoder knobs simultaneously).

Bypass IRs or Amps

Cab IRs as well as amp models can both be bypassed with the ACS1, making it more flexible for ampless rigs that still have physical cabs, and vice versa.

Notes: The M1 MKII is a stereo, all-in-one modulation pedal featuring six studio-grade programs based on fan-favourite modulation tones: Chorus, Phaser, Tremolo, Vibrato, Rotary, and Filter. A sound explorer's delight, the M1 features a dedicated lo-fi knob allowing you to mix various lo-fi parameters to every program. From the swirling, lush sounds of the 80's to more subtle applications that give your tone a distinct flair, this is a hallmark for all kinds of modulation fans, offering limitless creative potential.


Program Controls
Each program can be fully customized to your taste and playing style with the left encoder knob for features like effect type, BPM, wave shape, and more. Refer to the manual for program-specific features.

Programs
Chorus - From subtle chorus to vibrant and lush tri-chorus that will instantly teleport you to the 80s. Type I is a traditional chorus great for tight smooth chorus tones. Type II finds its roots in the classic tri-chorus effect running three chorus units in parallel for a lush multi-dimensional chorus. Type III transforms into a sweeping, vintage-style flanger, a welcome addition for modulation fans.

Phaser - Classic 70s phaser sounds we all know and love, with added features that you wouldn't expect. Similar to the Lillian, Type I is a 2-stage Phaser that produces a single notch to the classic mild phaser. Type II is a 4-stage model producing 2 notches for a stronger effect. Type III is a phaser modelled after the unique tuning and LFO shape found in a Uni-Vibe.

Tremolo - This program emulates a tremolo with three algorithms containing all the bells, whistles, and stereo spread options. Type I is excellent for traditional sounds similar to optical and bias tremolos that raise and lower the entire frequency range - similar to the Monument in standard mode. Type II is a warm and cozy harmonic tremolo - similar to the Monument in harmonic mode. This unique sound is formed by raising and lowering your high and low frequencies opposite each other. Type III offers several predefined patterns for rhythmic sequenced pulsing tremolo.

Vibrato - Make good parts great with detuned, warbly, and vintage sounds that harken back to the 60s. Type I "Traditional" focuses on standard vibrato sounds. Old record players inspire Type II "Vinyl" with classic RPMs on the rate knob and some noise character you'd find in your dad's old dusty Foreigner LPs. The rate knob can select 33rpm, 45rpm, and 78rpm speeds in this mode. Type III "Tape" is our take on the wow and flutter pitch characters found in old tape players. Warm and charming with a hint of nostalgia.

Rotary - Because you can't fit a Leslie speaker on your pedalboard, Type I aims for that traditional watery sound of a well-oiled Leslie speaker. Type II only spins the horn but still plays the sound out of the drum. Type III only spins the drum but still plays sound from the horn. Further fine-tune the drum sounds by experimenting with mic distance in the program controls.

Filter - Add tone-shaping movement to your signal with different modulated filters. Type I is a lowpass filter good for modulated darker tones. Type II is a highpass filter used to creatively modulate your low frequencies. Type III is a bandpass filter forming a sliding "window" of frequencies.

Resonance, envelope speed, and release can all be adjusted on Filter mode, the result being dynamic sweeping sounds and an expressive touch, commonly heard in blues or funk. This program can be easily run as an Envelope Follower type filter.

Lo-Fi Controls:
The M1 Features 6 Lo-Fi-type global controls to make your High-Fidelity modulation machine sound...not so High-Fidelity. Using the Right encoder knob, take your signal back in time and degrade it to sound like tech of yesteryear then use the Lo-Fi knob to adjust in the overall mix.

Env: Envelope allows you to dynamically open the tone based on how hard you play.
Drive: Drive offers a crunchy analogue-style drive to be added to your signal simulating the warm sound of overdriven analogue circuitry.
Space: Space allows you to add some reverb to your modulation chain. Turn to minimum to disengage and turn up to increase mix and decay.
Age: Age engages a complex set of filters used to simulate the limited bandwidth of vintage audio players and recording equipment. From modern, full-frequency at minimum to subtle low-fidelity tones in lower positions and old, thin AM radio sounds in higher positions.
Noise: Noise adds lo-fi analogue inspired noise to your signal.
Warble: Warble manipulates the main LFO wave shape causing it to deform making interesting and less predictable modulation.

Presets
The M1 can save up to 128 onboard presets, which can be held in a preset bank made accessible by tapping down on the bottom left and bottom middle knobs simultaneously. Presets 0-9 are divided into Banks A, B, and C. Select a bank while in the preset menu. Bank A will cycle through presets 0-2, Bank B will cycle through presets 3-5, and Bank C will cycle through presets 6-9. Presets 10-128 can be accessed through manual selection or MIDI.

Notes: Sync all your time-based devices, seamlessly move through preset setlists, and simplify tempo matching with the Canvas Clock! Designed for any kind of rig you throw at it and deeply customizable, users can put their full trust in the Clock to be an all-in-one tempo solution for their board.

The Canvas Clock can interface to any device in your rig that accepts clock signal, whether MIDI, (via the 1/8 in or 5-pin MIDI ports) or analogue (via the 1/4 in jacks). Clock will send time signals for both MIDI and analogue devices, and will continue to do so as you move through your song list or manually adjust the tempo. As you edit, save, and recall songs in real-time or via the online editor at walrusaudio.io, Clock will send your specific settings for whichever song you are currently on out to all of the time-based devices you are connected to.

Customize your Clock

The four 1/4" in jacks aren't just for sending tempo. They can each be assigned one of four functions:

Tempo Out - Connect to any pedal or device that accepts external tap inputs or analogue time controls (ex: Walrus' Arp-87 Delay or Monument Tremolo). Canvas Clock can send analogue clock and MIDI clock at the same time. No more relying on your feet to keep perfect time.

CV (Control Voltage) Out - Control any device that accepts CV. Good for Analog Synths, Drum Machines, or similar devices.

Switch Input - Each jack can be configured to receive input from two external footswitch controls. The switches are connected to the Tip (left) and Ring (right) of the associated 1/4 in jack. These can be assigned to many functions available on the pedal with the ability to add more options via a software update.
Expression In - Connect an expression pedal, and use it to send a MIDI CC message out to a pedal connected to the Clock. The "Toe Down" and "Heel Down" values can be adjusted to fine-tune the controlled parameter range. Use this to adjust the mix of a reverb or the depth of a tremolo (via MIDI out).

Footswitches

Footswitches for the Clock are customizable. Eliminate the "bending over between songs to make adjustments portion of a set" by assigning one of the onboard functions to the A and/or B switches:

-Advance to the next song
-Go back to the previous song
-Advance to the next setlist
-Go back to the previous setlist
-Toggle the metronome start and stop
-Global tap tempo

Sync

The "Sync" jack found on top of the pedal can be set in two ways:
-Input - Great for accepting BPM from an external source.
-Output - Great for syncing external devices, such as a Eurorack device, a Roland Volca Synth, and many other devices.
Some external devices send/receive clock signals that are "double" the standard timing signals, so Walrus included the option to send/receive a 1x or 2x signal, depending on the specific device's needs. Users can also determine the subdivision of the BPM to send out.

Metronome


If active, the Clock metronome can be heard via the MET OUT port at the top of the pedal. This signal can be sent to a front of house console for live gigs or a monitor for practicing. Metronome type, volume, and accent note controls can all be edited in the Metronome Menu.

Songs

There are 128 "Song" slots available to users in the Canvas Clock. You can think of each song as an editable preset where you can adjust the song name, meter, BPM, MIDI Macros, and metronome start or stop. Once your song is edited to your liking, every time it is recalled it will operate just the way you set it!

Setlists

Keeping your songs organized is crucial for live sets, which is why with the Clock, songs can be grouped together and navigated through easily using the Setlist feature. Once you access setlist settings, you can select songs from your master song list to curate and reorder in the way you'd want them for a gig or practice. Once your setlist is saved and active, going through the setlist in real-time will recall these songs and all their settings in the order you curated them for that setlist.

MIDI Macros

For the MIDI-minded players who may want further control over their rig, there are standard MIDI commands that can be triggered when you recall songs with the Clock. MIDI Macros allow users to create one or a series of MIDI CC or PC messages that get sent out of the Canvas Clock when a specific song is recalled. Users have 128 adjustable Macros with 15 messages per MIDI Macro, which can be useful in further dictating how you want your MIDI devices to behave during certain songs, (ex: bypassing some pedals but engaging others).

Walrusaudio.io

While you can edit and customize your Canvas Clock settings using the menu on the pedal, users can also connect the pedal to a computer via the USB-C port and customize their Clock with the Canvas Clock Editor web-app. Quickly and easily set up songs, edit your Setlists, edit MIDI Macros, and more. Firmware updates will also be available via this site as well.

Specs

Power:
9VDC, 300mA,
Center-Negative, 2.1mm center pin OR Powered via USB-C
The use of an isolated power supply is recommended for powering all Walrus Audio Pedals. Daisy chain power supplies are not recommended. Power supply not included.
Computer Connectivity: Requires Chrome web browser on either Windows or Mac OS. Visit walrusaudio.io to use the Canvas editor and get firmware updates when available.
Enclosure: 2.3" x 2.96" x 4.84" including jacks & knobs

Hardware

Preset/Menu Encoder and Switch
Tempo/Save Encoder and Switch
Footswitch A
Footswitch B
1/4" Jack 1 (TS or TRS)
1/4" Jack 2 (TS or TRS)
1/4" Jack 3 (TS or TRS)
1/4" Jack 4 (TS or TRS)
MIDI In/Out (5-pin DIN)
MIDI In/Out (1/8th" TRS cable)
Sync (1/8th" TRS cable)
Met Out (1/8th" TRS cable - not intended to drive headphones, please plug into high impedance input)
USB-C

Notes: Unearth the Walrus Audio Silt Harmonic Fuzz, a collaborative creation with tube expert Jim Hagerman.

Wielding an internal pre-amp tube, the Silt is a two-in-one fuzz that creates massively rich fuzz tones perfect for chords and rhythmic parts or with the press of a switch, adds uniquely harmonic overtones to the signal before hitting the tube. Crafted specifically for those seeking a harmonically rich fuzz experience, the Silt boasts an analogue circuit with the distinctive warmth of a 12AU7 tube as its drive section, letting you explore a unique and wild sonic landscape.

Main Features:

1. 12AU7 Tube Drive

The Silt's 12AU7 tube section drives the warm, bone-rattling fuzz. We unearthed this sonic fossil to encase your sound in an amber warmth, while still providing the grit, growl, and harmonically complex textures that only a tube-driven fuzz can provide.

2. Harmonic Mode

Harmonic Mode acts as a frequency doubler before the drive section of the pedal. This produces crispy, octave-like sounds, lending a unique edge to your lead tones. Try this with your guitar tone knob rolled off.

3. Contour Control for Precision Tone Sculpting

Refine your fuzz tones with the precision of the Contour control to achieve a wide spectrum of timbres.

Toggle between highpass, flat, and lowpass curves in the pre-tube EQ stage, like uncovering layers of sonic strata. Especially helpful when switching between different styles of pickups. Whether you're chasing searing leads or wooley rhythm, the Silt adapts to your style with roaring precision.

4. Designed for Operation at 9v-12v for Plenty of Gain

Supercharge your fuzz experience by operating the Silt anywhere between 9v and 12v. Running the pedal at 12v will give you an extra gain boost, letting you push the primal boundaries of fuzz to deliver the searing tones you've been searching for.

5. True Bypass Circuit

Maintain the integrity of your original tone with the relay bypass circuit. When disengaged, the Silt ensures your signal remains pure, allowing your guitar's natural voice to shine through undisturbed.

Controls:

Volume: Control the output volume level of the pedal.
Tone: Sculpt your output tone with a lowpass/highpass tilt tone control.
Gain: Control the input gain into the fuzz circuit, from subtle, distortion-like crunch to full-throttle fuzz.
Contour: Toggle between highpass, flat, and lowpass curves in the pre-tube EQ stage.
Bypass Switch: Enable or disable the effect with the relay bypass switch, preserving your original signal when the Silt is not in use.
Harmonic Switch: Activate or deactivate the frequency doubler circuit before the clipping stages, infusing your sounds with octave-like textures for a unique sonic edge.

Notes: The D1 MKII is a feature-packed, high-fidelity all-in-one delay pedal with six algorithms for players to choose from: Digital, Mod, Vintage, Dual, Reverse, and Grain. The D1 can create inspirational delay trails ranging from dreamlike and bizarre, to rhythmic and clear, to warm and analogue sounding.

Program Controls:
Each program can be fully customized to your taste and playing style with the left encoder knob, which controls six parameters on all programs of the D1: Depth, Rate, Shape, Age, Tone, and Spread.

The Right encoder knob adjusts BPM, Swell, and Tap Division. BPM can also be set via the tap tempo switch or MIDI. Some programs will have additional options. See the manual for details.

Programs:
Digital - The Digital delay program offers a clean and crystal-clear delay that is perfect for rhythmic guitar parts where ultra-defined echoes are desired.

Mod - The Mod delay program has unique modulation LFOs applied to random repeats and run at multiple rates to create unpredictable pitch modulation. This results in unique sounding repeats perfect for warping minds and scattering trains of thought.

Vintage - The Vintage program allows for analogue tape delay-inspired tones to be achieved with complex filtering applied to the repeats. Use the tone knob at low settings for darker filtering and at higher settings to roll off the low end.

Dual - The Dual program employs two delays, one in each channel and both with different repeat subdivisions. The user has complete control over these subdivisions for both the L and the R channel, and can also choose to run their channel feedback in parallel, ping pong, or series. This effect can leave some jaw dropping trails, especially in stereo.

Reverse - The Reverse program reads the delay memory backward creating a unique delay repeat character known as a reverse delay. Select whether your repeats stay always reversed, or follow an analogue reverse feedback system where the repeats flip flop.

Grain - The Grain program can be as smooth, choppy, glitchy, or flowy as you want it to be, and for users who may want to try their hand at experimenting a little, this will be the perfect program for them to explore. The grain trails can be adjusted to short staccato sounding glitches, or opened up for full immersion. It's a whole new world, but the player is still firmly in control.

Presets:
The D1 can save up to 128 onboard presets, which can be held in a preset bank made accessible by tapping down on the bottom left and bottom middle knobs simultaneously. Presets 0-9 are divided into Banks A, B, and C. Select a bank while in the preset menu. Bank A will cycle through presets 0-2, Bank B will cycle through presets 3-5, and Bank C will cycle through presets 6-9. Presets 10-128 can be accessed through manual selection or MIDI.

Notes: The R1 MKII is an extremely powerful and versatile multi-function reverb that can go from intimate, small-room type subtle reverbs to huge, experimental euphoria. With six distinct programs based on fan-favourite reverb sounds that have been built from the ground up, players of all styles and genres will be able to find eternal inspiration with the R1.

Program Controls

Each program can be fully customized to your taste and playing style with the left encoder knob for features like modulation rate, ducking, and more. Refer to the manual for program specific features.

The R1 MKII includes a unique Ducking/Swelling control that modifies the reverb's behavior. Higher settings increase the swelling effect, making it more prominent, while lower settings enhance the ducking effect, helping to maintain a clear and focused mix.

The Right encoder knob adjusts parameters like reverb EQ and room size. See the manual for details.

Programs:
Spring: The Spring program emulates an excited spring reverb commonly found in tube amps with loads of transducing drip. Easily go from subtle to full-on surf rock. Experiment with the decay knob to get more than average amounts of reverb not found in traditional amp spring reverb tanks.
Hall: The Hall program provides the acoustics of large live sound spaces like concert halls to arenas. Longer decays result in a massive wash of ambiance.
Plate: The Plate program emulates a smooth analogue plate reverb with nice even diffusion for the classic plate sound that you know and love.
BFR: BFR is a no holds barred, big, f____, reverb. This is more than a giant arena reverb. It's a hall-esque reverb with rich and lush decay in a vast cavern filled with choirs of angels.
Refract: The RFRCT program allows for lovely, charming, and glitch-like textures hovering over a controllable amount of diffusion. The Rate controls on RFRCT set how often new grains trigger, while Depth controls the amount of modulation applied to the grains. The Time control sets the delay time of the grains, and the size control sets the size of the grains being pulled from the buffer. The diffuse control allows you to take the grains from super dry and stuttery to washed out in a reverb mix.
Air: The Air program offers a larger diffused reverb with a shimmer, as well as a distinct clarity to its decay. Adjust the shimmer control to really lean into that high-octave sound that ambient style artists have come to love over the decades. Explore slow-building complimentary sounds that don't get in the way of your playing.

Presets
The R1 can save up to 128 onboard presets, which can be held in a preset bank made accessible by tapping down on the bottom left and bottom middle knobs simultaneously. Presets 0-9 are divided into Banks A, B, and C. Select a bank while in the preset menu. Bank A will cycle through presets 0-2, Bank B will cycle through presets 3-5, and Bank C will cycle through presets 6-9. Presets 10-128 can be accessed through manual selection or MIDI.

Notes: The Sloer Stereo Ambient Reverb builds on our popular Slo lineup but adds two additional reverb algorithms, stereo width control, two additional modulation wave shapes, and the ability to control the sample rate. Now you can create immersive, lush, modulated, sleepy, and ambient soundscapes with more width and depth than ever before.

Save your favourite dreamscapes with three onboard presets by simultaneously pressing and holding down on the bypass and sustain switches. Scroll through them by simultaneously pressing and releasing bypass and sustain.

The five-way rotary dial allows five different reverb modes - the three you know and love from the Slo: Dark (Lower Octave), Rise (Ambient Swell), and Dream (Latching Pad); and the addition of two new modes: Rain (Delay Tap Diffusion) and Light (High Octave Shimmer). Secondary functions on the dial change between five different wave shapes for modulation on the reverb trail.

Combine deep modulation, long washy trails, and an immersive stereo field to experience Sloer.

5 reverb modes:

DARK - Add a lower octave to your reverb trail. Here you'll create deep and wide atmospheric sounds and channel nightmarish soundscapes. X knob sets the level of a -1 octave signal that feeds the reverb.

RISE - This is an auto-swell reverb for beautiful cinematic swells. Don't rush it. Let it breathe and gently wake up. X knob sets the amount of time it takes the reverb to swell in after a note is played. Set lower for shorter rise times and higher for longer rise times.

DREAM - Lush reverb with a latching pad function. Press the sustain switch to latch signal. Experiment with the X knob to add vibrato over the pad. Press sustain again and the pad will decrescendo according to where the decay knob is set. X knob sets the depth of vibrato applied to the reverb trail.

RAIN - Tappy and trippy, this program creates a unique effect with lower levels of diffusion allowing the reverb delay taps to audible create an echo-like effect within your reverb. Use the Xcontrol to set the amount of diffusion of the delay taps.

LIGHT - Bright and smooth reverb with an octave-up shimmer. Create a range of ethereal sounds with the X slider, keep it low for a smooth pad-like reverb or push it higher for a bright shimmer effect.

5 wave shapes

The Sloer also features five different wave shapes accessible by holding down bypass while switching the algorithm dial.

Sine - Smooth and even pitch up and down modulation.
Warp - Asymmetric pitch up modulation similar to a warped record.
Sink - Asymmetric pitch down modulation for sinking detune similar to a Bigsby.
Square - Symmetric pitch up and down modulation for stepped modulation.
Random - Uses sample and hold that picks new random values.

Momentary functions

Bypass: When the switch is in the off position, press and hold to temporarily activate the effect to add a moment of reverb texture. Releasing the switch turns the effect off, and fades it out.

Sustain: When pressed, the decay switch ramps up the reverb trail to maximum creating a long dreamy reverb trail, and then ramps back down to the decay knob setting when released. In the "Dream" algorithm, the sustain switch is latching. Press it once to capture and sustain the current reverb decay for extremely long pad-like sounds. Press it again to let the reverb trail taper off, based on the position of the decay knob.

Trails mode

The Sloer can run in trails or no trails mode. In trails mode, when you turn the pedal off, the reverb decay dies off naturally. In no trails mode, the decay is abruptly cut off when you turn the pedal off. To toggle between either mode, hold down the bypass switch for 1 second while applying power to the pedal. Unplug power and repeat to toggle to the other mode.

Preset spillover

When scrolling through presets, there is only preset spillover if the next preset is the same algorithm as the one preceding it. For example, if your red and green presets are both in Dream mode, switching from red to green will not cut your reverb trails.

Specs

The Sloer comes in a Lollipop Blue finish with light blue and off white ink featuring original artwork by Christi Du Toit OR a matte black finish with cream ink.
The die-cast enclosure's exact size is 4.79" x 3.62" x 2.25" including knobs.
Power requirements are 9VDC (100mA minimum).
The use of an isolated power supply is recommended for powering all Walrus Audio Pedals. Daisy chain power supplies are not recommended.
Power supply not included.

Notes: Offspring from a noble house, the little synthesizer machine with the big and evil sound.

Waldorf is back in the game. With the Blofeld.

This synthesizer offers all the unique qualities that made Waldorf a truly legendary brand.

The engine inside the heavy duty, full metal chassis of the Blofeld delivers the same fat and rich sound that so many Waldorf users worldwide love when they play their pulse, Q, Q+, micro Q, microwave, microwave II/XT, or even the flagship wave.

Review: Undeniably one of the most prolific anime soundtracks of all time, Yoko Kanno's band SEATBELTS was formed just to record this 1998 OST for Shinichiro Watanabe's smash success 'Cowboy Bebop'. Following the adventures of the crew of Bebop, a bounty hunter ship that chases criminals and turns them into the Inter Solar System Police for reward, Kanno's zany fusion of rock, blues and jazz oozes cool. The opening track 'Tank!' has been hugely influential, informing innumerable title sequences, from 'Danganronpa' to 'JoJo's Bizarre Adventure'. Focusing, as the Japanese often do, on Americana hallmarks, there is a distinct New York slant in the horns with some Afro-Cuban percussive influences as well, most notably on 'Rush' from the first 'COWBOY BEBOP' album. This boxset serves as a comprehensive rundown of all things SEATBELTS, an 11-vinyl boxset featuring all 7 albums the band have made for the legendary franchise housed in a box with art from the show.

Notes: There is almost no modular system without at least one filter-module. You can look at them as the stars within the giant Eurorack-jungle. twinVCFilter is such a star as well. A dual filter module with flexible routing and excellent audio properties. It covers a huge range of different applications without the slightest effort.

Features and Routing:

Each filter section of twinVCFilter works as low- or highpass-filter with a slope of 12 dB/octave or as bandpass-filter with 6 db/octave. Signals can be directed in three ways through the module:

- Serial: The incoming signal passes both filter sections in a row.
- Dual: The filter sections act completely separated of each other. As if they were two individual filter modules.
- Parallel: The incoming signal passes both filters at the same time.

With these routings you can i.e. generate bandpasses or notches with variable slopes and different resonance settings or doubling the filter's slope. These are the more obvious combinations but there is a lot more to discover.

The convenient link-feature allows to couple cutoff- and resonance of both filter sections for straightforward stereo use in dual mode.

Mix section:

The flexible signal-routing is supplemented by the mix-section. Here you can crossfade both filter sections manually or by control voltages. Seamless movements from low- to highpass-filter, is as easy as crossfading from half to doubled slope. Of course you can mix two completely individual signals or toggle between them by using a rectangle-LFO-modulation.

Resonance:

Resonance is a key factor in the context of sound-shaping and sound-generation using a filter. Therefore we carefully trimmed twinVCFilter's resonance to be as musically and stable as possible. You can apply subtle frequency-dependent emphasis to signals and tear them up to self-oscillation. The latter generates a solid sine-wave which is an excellent base for percussive sounds. Possible cross-modulations significantly enhance the sound-generator features. By the way: If you are missing a vibrato-LFO in a patch, twinVCFilter can do the job.

twinVCFilter offers a huge set of features to form impressive soundscapes. It can take subtle influence to signals or massively truncate frequencies. It leaves nothing to be desired. Despite, for those who need additional possibilities we especially designed the tVCF-Extension module.

Notes: Gorgeous analogue goodness in this all-rounder, featuring overdrive, filter, envelope, LFO and a nice retro spring reverb among others processing options. Tons of character.

Supplier's notes:
Today's digital effects and plug-ins can create almost perfect room simulations. However, when it comes to characteristic and charismatic reverb, analogue effect-processors are yet to beat. The reverberating sound of a spring is so lively and unique that its sound is almost impossible to recreate in the digital domain. In addition to this, Retroverb Lancet is not just a spring reverberation system - it is an analogue multi-effects-processor. It offers overdrive, filtering, VCA, envelope and LFO to manipulate the spring sound and create different sounds like auto-wah, tremolo, distortion, delay, gater and of course reverb.

The typical spring reverb sound is generated by a Belton/Accutronics type 4 spring tank with 3 individual springs. It can be placed pre or post the VCF/VCA section and equalized by the Tone parameter.

The Crash function generates the popular thunder effect that occurs when kicking an amplifier with spring tank. You don't have to kick Retroverb Lancet you simply can achieve this effect by pressing the Crash button. It also can be triggered by a Gate voltage.

The multimode filter works as lowpass or highpass with a slope of 24 dB per octave or as bandpass with 12 dB per octave. It is followed by a voltage controlled amplifier. The filter and amplifier can be modulated individually by different sources.

The Retroverb Lancet offers 3 internal modulationGorgeous analogue goodness
in this all-rounder, featuring overdrive, filter, envelope, LFO and a nice retro spring reverb among others processing options. Tons of character. sources:

Envelope follower: the envelope follower converts the amplitude characteristic of the audio input signal into a control voltage.
Envelope generator: the envelope generator can be triggered by the input signal itself, a second audio signal or a gate voltage. Depending on the trigger source it works as Attack-Decay or as Attack-Sustain-Release envelope.
LFO: the LFO offers saw up and saw down, square, sine as well as sample&hold. Additionally it can use the envelope generators settings as waveform. It can oscillate freely or reset by different trigger sources.

The Retroverb Lancet also offers a CV/Pedal input which can be feed by external control voltages or can be used with expression pedals.

Notes: The Vermona Filter Lancet is a compact but versatile stand-alone multimode filter for your desktop. It's the right weapon against static sound and boredom and made for any kind of audio signal. The filter section itself has 3 modes: low-pass, high-pass and band-pass. The last one works with a slope of 12 dB per octave whereas low- and high-pass are 24 dB filters.

You can give the filter some extra punch with the Balls knob, known from Kick Lancet. It pushes low and high frequencies of the signal before being filtered. And of course the resonance is self-oscillating.

Other than the filter section of Mono Lancet, the Filter Lancet is not based on (Moog-) cascade circuitry. It was inspired by the filters of the Vermona M.A.R.S. respectively DAF-1 and Action Filter.

Without modulation the Filter Lanced would still be a good filter but kind of boring. So it is equipped with a LFO, an envelope generator, an envelope follower and a CV/pedal input. The LFO has 2 frequency ranges and goes up to 250Hz - that's fast. At low frequencies the LFO can be re-triggered by gate- or audio signals. It has sample & hold and five waveforms: saw up and saw down, square, sine and triangle.

The envelope generator can be triggered by the input signal or an additional audio signal as well as by a gate voltage. If triggering it via gate it works as an attack-sustain-release envelope. With audio triggers its mode is attack-decay. The envelope follower transforms the contour of the input signal into control voltages that can serve as modulation source.

The LFO modulation intensity can be set separately from modulation intensity of envelope generator and envelope follower on the VCF- as well as on the VCA section.

The Filter Lancet features a drive circuit right in the input section to add subtle shades of overdrive up to solid distortions.

The Filter Lancet is packed with useful features. It's a great and powerful addition to any synthesizer including Mono Lancet with or without Modular Dock. But Filter Lancet also is designed for stringed instruments. It creates standard effects like WahWah and tremolo with ease and even adds a palette of extraordinary sounds to any effect repertoire.

Notes: Excellent Eurorack sequencer based on random chance and evolving patterns. Dial in a series of notes and build melodies, generate and tweak patterns in real time. Huge depth for studio production or live performance.

Supplier's Notes:
The Melodicer from Vermona is a CV/Gate sequencer with an innovative concept; the melody sequencer offers twelve faders for setting the note probability and two dice-(or random) buttons for generating melody and rhythmic structure.

Notes: One of the hardest in the game. Dedicated kick drum synth from analogue experts Vermona. Shape your own sounds from scratch. Killer.

Supplier's notes:
The Kick Lancet generator is a handy analogue percussion synthesizer with priority to kick-drum sounds.

The heart of the Kick Lancet's sound structure is an analogue oscillator that produces sine and square waves, which can blend seamlessly from one to the other. 2 independent envelope generators with a decay/release phase can modulate the oscillator's frequency and the VCA. Additionally the VCO pitch can be modulated by the fast LFO (3Hz to 3 kHz, triangle). Noise and a pulse signal can be added in the mixer section. Vermona have a balls-controller for making it really big.

The Kick Lancet can be triggered by MIDI but beside that there are 3 different trigger inputs. A gate trigger, which impulse can trigger the Kick Lancet in normal way with additional accent or completely dynamical depending on the incoming voltage, a simply short current trigger (i.e. momentary foot switch) and an audio input, which offers the possibility to trigger the Kick Lancet by an audio signal statically or dynamically. Drum pads can also be connected here.

Notes: Simple but effective stuff from Vermona. Four transformer-isolated channels take a Eurorack-level signal each and output it at +6 dBu line level via XLR connections.

Supplier's notes:

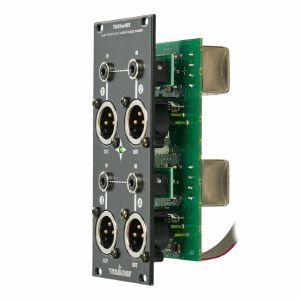

Quad Output Module

The inputs accept audio signals with a maximum level of +/-10V. These are output via balanced and galvanically isolated XLR outputs. The output level is +6 dBu when using standard Eurorack modules.

The TRANSfourMER circuitry allows all signals in the modular system to be output without distortion - no more annoying gain staging between Eurorack and audio interface / mixing console.

Power consumption: 20mA at +12 V and 20mA at -12 V

Depth: 43 mm

12 HP

Notes: Legendary Vermona drum synthesis circuits get reimagined for Eurorack. The Bass/Drum reworks the kick and 'drum' circuits from the DRM-1 for extra modular flexibility, maintaining the powerful analogue sound.

Supplier's Notes:
With BASS|DRUM, Vermona have transferred the sonic foundation of the DRM1's KICK and DRUM instrument channels to the Eurorack format. They reworked the existing circuitry in key areas to optimize it for the modular context. The result is an Eurorack sound generator that clearly reveals its origins and at the same time surpasses them many times over.

The modulation possibilities of BASS|DRUM offer enormous flexibility. Many parameters like the pitch of the oscillator, the decay time and the integrated wave shaper can be controlled by external voltages. For example, you can create rhythmically alternating long and short or low and high kicks or tonal variations by modulating the waveform.

Use the DYNAMIC input to control the amount of force your trigger source applies to the internal circuitry of BASS|DRUM. This not only changes the volume, but also many different nuances of the sound.

Bass or drum? BASS|DRUM can do both, without compromise. If you need drum sounds that follow the tuning of your music, you'll find what you're looking for here. At the same time, the module serves as a full-featured audio oscillator that can be used to create bass lines or melodies.

From deep, powerful bass drums, toms and tom-toms to high-frequency pings and percussive chirps - no problem with BASS|DRUM! In combination with other modulation sources, this spectrum can be extended infinitely. The module is also an excellent oscillator for anything other than classic analog drum sounds.

Notes: UDG have further fine-tuned what was already a great design concept of a flight case into one especially for the most discerning DJ/producer. Constructed from solid 9mm thick plywood, the outside is laminated in a black finished honeycomb/hexagonal "Stage Grip" pattern. The inner sides are protected with high density diamond embossed Eva foam protective padding. This extremely robust padding protects the equipment against scratches, dust or other damages, creating a unique stylish & practical finish.

Extra wide black finished aluminium profile & massive UDG logo embossed ball corners are incorporated to ensures longevity & maintaining a permanently attractive, professional design. In addition, in the UDG Ultimate Flight Case AlphaTheta DDJ-GRV6 Black Plus (Laptop Shelf), there is an extra notebook shelf included for your notebook, mouse and/or any other devices such as effect processor and interfaces. This flight case also features heavy-duty spring-loaded handles for a secured lift & load.

UDG Ultimate Flight Case AlphaTheta DDJ-GRV6 Black Plus (Laptop Shelf) not only transports your complete set up easily & securely but also facilitates devices to be setup within minutes. With these premium features incorporated, the UDG Ultimate Flight cases provide premium professional quality in a very stylish modern black coloured combination.

Colour: Black
Weight: 16.0 kg / 35.27 lb
Outer Dimensions (W x H x D): 82.0 x 53.0 x 24.0 cm | 32.3 x 20.8 x 9.4 inch
Material: Heavy duty construction of 9 mm thick plywood

Protection:
Powder coated and anodized hardware
High density diamond embossed EVA foam protective padding
Dual anchor rivets with included washer
Extra-wide black solid aluminum profiles
Secure stacking due to stackable ball corners
Sturdy construction
Full padded interior keeps controller well-protected
Recessed butterfly twist latch lock

Extras

Convenient 80 mm space at rear for connections & PSU storage
Laminated in a black finish with a honeycomb/ hexagonal "Stage Grip" pattern
High grade aluminium UDG logo plate
UDG heavy-duty spring-loaded handles
Cable access hole with removable UDG emblem cover
Removable front access panel
Adjustable laptop shelf

Fits: 1 x AlphaTheta DDJ-GRV6 + 1 x Laptop + Accessories

Notes: UDG have further fine-tuned what was already a great design concept of a flight case into one specially for the most discerning DJ/producer. Constructed from solid 9mm thick plywood, the outside is laminated in a black finished honeycomb/hexagonal "Stage Grip" pattern. The inner sides are protected with high density diamond embossed EVA foam protective padding. This extremely robust padding protects the equipment against scratches, dust or other damages, creating a unique stylish & practical finish.

Extra wide black finished aluminium profile & massive UDG logo embossed ball corners are incorporated to ensures longevity & maintaining a permanently attractive, professional design. This flight case also features built-in corner wheels on one side for convenient transport and heavy-duty spring-loaded handles for a secured lift & load.

UDG Ultimate Flight Case Single Turntable Battle/ PLX-CRSS12 & 10"/12" Mixer Black Plus (Laptop Shelf, Trolley & Wheels) not only transport your complete set up easily & securely, but also facilitates devices to be setup within minutes. With these premium features incorporated, the UDG Ultimate Flight cases provide premium professional quality in a very stylish modern black coloured combination.

Specifications

Colour: Black
Weight:18.0 kg / 39.68 lb
Outer Dimensions (W x H x D): 91.2 x 51.4 x 28.3 cm | 35.9 x 20.2 x 11.1 inch

Inner Dimensions (W x H x D)
Turntable compartment: 37.7 x 45.4 x 8.3 cm | 14.8 x 17.9 x 3.3 inch
Mixer compartment: 40.9 x 47.4 x 8.3 cm | 16.1 x 18.6 x 3.3 inch

Material: Heavy duty construction of 9 mm thick plywood

Protection
Extra-wide black solid aluminium profiles
Secure stacking due to stackable ball corners
Sturdy construction
Full padded interior keeps controller well-protected
High density diamond embossed EVA foam protective padding

Extras

Laminated in a black finish with a honeycomb/hexagonal "Stage Grip" pattern
Convenient 80 mm space at rear for connections & PSU storage
Removable front & rear access panel
Adjustable laptop shelf
High quality retractable trolley handle
Built-in corner wheels with high quality in-line skate bearings for convenient transport
Includes adjustable foam pads to fit various mixers

Fits

1x x PLX-CRSS12 / any turntable:
Technics SL-1200MK7, SL-1210 MK2
Reloop RP-8000MK2, RP-7000, RP-6000 RP-2000
Denon VL12 Prime
Pioneer PLX-1000
Stanton ST-150
Vestax PDX 3000
Numark TTX
Audio Technica LP120-USB/ LP1240-USB
American Audio Power Drive 2.2 etc.

or similar size turntables:

+ 1x any 10" & 12" mixer:
Reloop Elite
Denon DJ X1800 Prime
Pioneer DJM-S5, DJM-S9, DJM-909, DJM-707
Rane Seventy Two, Sixty Two, Sixty One, MP-2014, TTM57 MK2, TTM57 SL
NI Kontrol Z2
Thud Ruble TRX
Mixars Quattro, Duo
Vestax PMC 05 Pro4, PMC 07
or similar size mixers

Notes: UDG have further fined-tuned already a great design concept of a flight case into one specially for the most discerning DJ/producer. Constructed from solid 9mm thick plywood, the outside is laminated in a black finished honeycomb/hexagonal "Stage Grip" pattern. The inner sides are protected with high density diamond embossed EVA foam protective padding. This extremely robust padding protects the equipment against scratches, dust or other damages, creating a unique stylish & practical finish.

Extra wide black finished aluminium profile & massive UDG logo embossed ball corners are incorporated to ensures longevity & maintaining a permanently attractive, professional design. This flight case also features built-in corner wheels on one side for convenient transport and heavy-duty spring-loaded handles for a secured lift & load.

UDG Ultimate Flight Case Set Pioneer PLX-CRSS12 & 10"/12" Mixer Black Plus (Laptop Shelf + Wheels) not only transport your complete set up easily & securely, but also facilitates devices to be setup within minutes. With these premium features incorporated, the UDG Ultimate Flight cases provide premium professional quality in a very stylish modern black coloured combination.

Specifications

Colour: Black
Weight 20.5 kg / 45.19 lb
Outer Dimensions (W x H x D): 113.9 x 56.4 x 23.2 cm | 44.8 x 22.2 x 9.1 inch

Inner Dimensions (W x H x D)
Turntable compartment: 35.6 x 45.6 x 8.1 cm | 14.0 x 17.9 x 3.2 inch
Mixer compartment: 33.3 x 52.6 x 8.7 cm | 13.1 x 20.7 x 3.4 inch

Material: Heavy duty construction of 9 mm thick plywood

Protection

Extra-wide black/silver solid aluminium profiles
Secure stacking due to stackable ball corners
Sturdy construction
Full padded interior keeps controller well-protected
High density diamond embossed EVA foam protective padding

Extras

Laminated in a black finish with a honeycomb/hexagonal "Stage Grip" pattern
Removable case lid
Adjustable laptop shelf
Built-in corner wheels for convenient transport

Fits
2x Pioneer PLX-CRSS12
or similar size turntables
+ 1x any 10" & 12" mixer:
Reloop Elite

Denon DJ X1800 Prime
Pioneer DJM-S5, DJM-S9, DJM-909, DJM-707
Rane Seventy Two, Sixty Two, Sixty One, MP-2014, TTM57 MK2, TTM57 SL
NI Kontrol Z2
Thud Ruble TRX
Mixars Quattro, Duo
Vestax PMC 05 Pro4, PMC 07
or similar size mixers

*** Please note: the mixer and the laptop in the photos are not included, they are shown for demonstration purposes only. ***

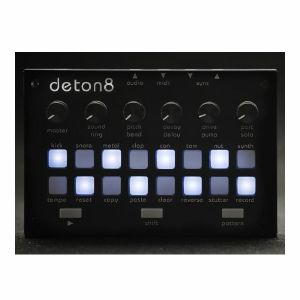

Notes: deton8 is a hybrid sampler/drum synthesizer using a mix of crunchy 8BIT samples and wavetable synthesis. and a plethora of real time fx and tricks.

Handle-assembled to order in France.

deton8 includes the following kits (but you will be able to upload your own samples):

DETON8 default (big beats, break)
AMY SISTER (jungle break)
HIP08 (for all your 808 hiphop needs)
TEK09 (Rave on)
MINTY POPS (Classic beats)
INDUSTRIAL (exclusive kit by our dear friend NKDM)
14 additional kits, thanks to Electronisounds!

Notes: Beautiful chiptune synth inspired by the RP2A07 sound chip found in the NES games console. Four-voice polysynth with plenty of sound sculpting options.

Supplier's Notes:
hapiNES is a multitrack chiptune synthesizer inspired by the RP2A07 sound chip found in the NES games console.

The 4 voices allow you to create authentic sounding tunes in real time!

The L(arge) version offers the same features as its slimsynth counterpart, with the addition of hardware MIDI (MIDI Type A) and analog sync in and out connectivity and packed in a rugged metal case.

FREQUENTLY ASKED QUESTIONS:

Q:How do I copy/paste a pattern?

A:Hold SLIDE and press OCT- to copy and OCT+ to paste.

Q:The briefly LEDS go out when I stop the sequencer - is something wrong?

A:This is normal and occurs when the memory is updated (a few seconds after the sequencer is stopped when a change has been made).

Notes: The Skorn da Bask table top module is the same module as the eurorack version but in a hammond 1590BB enclosure and aluminium panel, it can be powered thru a 2,1mm negative pin power jack, compatible with Boss and Ibanez standard power supplies.

Thanks to their routing options, the VCOs can not only be used to generate audio signals, but for modulating the VCF's cutoff frequency as well. Besides processing internally produced saw tooth waves, the filter is also usable for editing sound coming from other modules. Typical Touell Skouarn, the Skorn da Bask distorts like hell. Primary application: The creation of dirty, experimental sound structures and abstract rhythms.

The front panel of Skorn da Bask shows three areas highlighted in red. These zones contain the connectors and control elements for the oscillators. Each VCO comes equipped with a pitch CV input, a tune potentiometer and two switches for defining the routing as well as the frequency range used. In detail, the oscillators can be connected to the audio or CV input of the filter. Thanks to their range switches, each VCO is able to work with audio or low frequency rates. The pitch input does not follow the standard 1v per octave.

After all, Skorn da Bask is not an ordinary oscillator module, but an experimental sound generator.

The low pass filter features a slope of 24 dB per octave. A potentiometer named FreqaNs regulates the circuit's cutoff parameter, Dasson sets the resonance. For processing external signals, there is an audio input. As long as a cable is plugged into this socket, the VCOs are disconnected from the filter's audio path. Third-company modules, like an envelope or LFO, can influence the VCF's frequency via a CV input. For damping modulation signals coming from the oscillators, there is an attenuator knob. The audio output is equipped with a level potentiometer. High settings lead to juicy overdrive effects.

Notes: The Ar Merc'het Brao pedal is comprised of two filters and two overdrive sections.

The filters are resonant with a slope of -12dB. A switch allows to switch each filter from LowPass to HighPass. The filter cut-offs are voltage controlled thanks to dedicated CV inputs. Additionally, the Ar Merc'het Brao features global controls for cut-off and resonance.

It can be used with a stereo signal or with two mono signals. The module is modular as well as guitar friendly.

Both overdrive sections offer the classic and well known TouellSkouarn distortion sound.
