Notes: Expander module adds four more assignable CV inputs to Squid Salmple for advanced modulation and sample manipulation. A must for all Squid Salmple owners.

Supplier's Notes:
AXON-1 is a 4HP expander module for the SQUID SALMPLE that provides 4 additional freely assignable CV inputs.

The addition of AXON-1 brings Squid's total number of CV inputs to 7, greatly increasing the possibilities for vast modular sample manipulation.

Each modulation assignment includes digital attenuation and offset and behaves just like Squid's 3 built in CV inputs.

AXON-1 requires firmware 166 or later installed on the Squid Salmple to function!

Notes: ALM's first analogue oscillator is a typically smart design, featuring thru-zero FM, continuously morphing wave shapes, dual subs and voltage-controlled FM index.

Supplier's Notes:
The 'TAZM-O' is an analogue triangle core oscillator featuring through-zero frequency modulation and a collection of some of ALM's favourite features of classic oscillator designs.

It includes a continuous morphing wave/pulse width shape control inspired by the Serge NTO, dual SH-101 style varied pulse sub octave outputs, a voltage controlled FM Index typically found in larger complex oscillators, a built in output level VCA and voltage controlled octave transposition similar to the multipliers found on Akemie's Castle digital FM VCO.

Designed to act as the primary oscillator in your system the 'TAZM-O' offers a wide range of timbral and patch flexibility within a relatively compact 12HP size, making it the perfect fit for any modular system.

Continuous crossfading wave shape with direct and voltage control.
Through-zero FM input with direct and voltage controlled mod index.
Dedicated outputs for sine (or triangle), saw and square sub-1 & sub-2.
Primary output with level VCA.
V/Oct input with approx 8 octave range.
Octave transpose CV input ranging 3 octaves.
Hard Sync input.
LFO mode with bipoler LED indication.
Rear switches for selecting Sub-2 pulse width, and sine/triangle waves.
Skiff friendly with reverse power polarity protection.
Made in England.

Dimensions
12 HP
38 mm deep

Current Draw
70 mA +12V
60 mA -12V

Notes: The 'Mega Milton' is a smorgasbord of handy all analogue utilities in just 8HP that will greatly extend the functionality of your Eurorack system.

It includes a stereo line input converter for incorporating line level external sources into a Eurorack system, a fixed 4 input mixer with breakout attenuator for combining signals, a gated slew limiter for adding slides to sequences, a sample and hold with analogue white noise with a myriad of uses such as generative melodies or producing percussive textures and finally a buffered mult for droop free signal distribution with handy LEDs to monitor.

All sections are normalised to help with typical use cases such as generating random CV from the sample & hold section, a smooth random source from the slew output and breaking out a standalone attenuator from the fourth mixer input.

The 'Mega Milton' provides essential classic synthesizer building blocks for patching in any Eurorack system.

Ideal For

Incorporating stereo external sources easily into your Eurorack system.
Signal attenuation and basic mixing in a small space.
Building percussion sounds from an analogue noise source.
Producing clocked random to add interest and variation to patterns and sounds.
Adding gated 303 style slides to patterns.
Creating and Manipulating patterns with Sample and Hold.
Buffering and monitoring voltage across multiple VCOs or other destinations with no drop.

Tech Specs

Supply: +12V 70mA / -12V 70mA
Size: 8HP
Depth: 32mm

Notes: The mmMidi is a simple & compact MIDI interface for your Eurorack synthesiser. It translates two independent channels of MIDI note, velocity and gate information to corresponding control voltage signals via either a classic MIDI DIN type connection or as a driverless USB MIDI device.

The mmMidi also converts MIDI Clock to analogue x24 fixed clock and run outputs (i.e DIN Sync). The optional mmT expander provides a third MIDI channel of 8 key mapped gate outputs.

Requiring minimal configuration and a pain free set up, the mmMidi makes it easy to sync Pam's clock to your DAW, control multiple synth voices, and trigger drum or sample modules with the optional mmT expander. The new USB-C connection makes it easy to drive your modular not just from your computer but also via your tablet, phone or any USB MIDI Host.

(Note: New 2025 mkII version adds USB-C functionality.)

Technical Specifications

Power: +12V 50mA / -12V 0mA
Size: 4HP
Depth: 38mm
MIDI response latency: 200-400 uSec
Resolution: Factory calibrated 12 bit 0-8V CV outputs. +5V gates

Notes: AXON-2 is an 8HP expander module for the SQUID SALMPLE, MFX and Pamela's PRO Workout that like the AXON-1 provides 4 additional freely assignable CV inputs but additionally adds manual offset controls and 2 additional 'performance' buttons.

The addition of AXON-2 increases the Squid, MFX or Pam PRO's total number of CV inputs by 4, greatly increasing the possibilities for vast modular manipulation. Each of the CV inputs includes an offset for hands on control over parameters assigned to CV. Per assignment digital attenuation and offset via the host module is also available for fine tuning the modulation or control over parameters.

The AXON-2's large buttons are great for controlling select functions in a live performance environment or adding convenient quick navigation shortcuts when making edits. The buttons functionality and assignability are dependent on the host module. See respective manuals for details.

NOTE: AXON-2 support requires the latest firmware be installed for Pam Pro (120 or newer), Squid (187 or newer) and MFX (105 or newer).

Features
4 Additional freely assignable CV inputs for the SQUID SALMPLE, MFX or Pamela's PRO Workout
Manual offset knob controls
Two Assignable performance buttons for mutes, tap tempo, navigation, etc (dependant on module)
Powered directly from the module, no additional power header required
Made in England
Skiff friendly
Technical Specifications
Power: Additional approx 10mA on +12V

Size: 8HP

Depth: 38mm

Notes: The MCO MK II is a highly versatile digital VCO and voice module inspired by 90s/00s digital synths shrunk into just 6HP.

It offers a broad collection of unique, high-quality synth voices, each with extensive, customizable parameters. These parameters can be directly controlled or modulated through assignable internal and external sources. Certain per-voice parameters support audio-rate modulation, including FM, sync, and DSP. Each voice also supports up to four-voice chords, external-triggered envelopes, multiple LFOs, and dual audio outputs for comprehensive desktop like synth functionality.

Voices include a multi dimensional wavetable oscillator based on the original MCO, a complex additive synthesis engine, a multi mode 'JP' type digi-synth, a lush virtual analog implementation, a fully featured vocoder, a bass synth for both kicks and sub sonic tones and finally arebirth and porting of our discontinued SID GUTs chip voice.

Each voice includes factory presets as well as the ability to store and recall user presets. All state is preserved across power cycles.

The MCO is designed to be familiar, quick and easy to use with a high resolution colour display and a rich visual user interface.

A USB-C connection allows for easy firmware updates, user wavetables upload and device config backup and restore. Axon expander modules are also supported to increase CV control options.

Notes: Think of the MFD like a tiny DJ mixer: two stereo inputs, one stereo output, with the option to cue either input and crossfade between the two. A simple idea very well executed.

Supplier's Notes:
Inspired by DJ mixers, the MFD allows you to cue and crossfade between signals. Ideal for live performance as well as jamming out ideas in the studio.

Supplier's Notes:
The 'MFD' is a 2-channel stereo crossfader designed for live DJ-style mixing and jamming in Eurorack. Two mono or stereo inputs are mixed to a single stereo output via direct or voltage control. Additional Cue controls provide preview monitoring of either input pre-mix via dedicated Cue switches and an output.

Voltage control over the crossfade and DC coupling allow for further creative uses such as a high quality stereo VCA or as a mix processor for either stereo audio signals or CV.

The MFD is designed to have very low noise and cross bleed and employs equal power crossfading for smooth constant level blending between signal sources.

Features:

Two channel stereo crossfader with voltage control.
Approx equal power crossfading.
Cue output switches for direct monitoring of either stereo input (pairing well with HPO for headphone monitoring).
Can be used as a high quality stereo VCA.
DC coupled for use with both audio and CV.
Skiff friendly with reverse power protection.
Two year warranty.
Made in England.

Ideal For:

Smoothly blending and monitoring 'tracks' or 'scenes' during a live set.
High quality VCA use for stereo based sources.
Voltage controlled crossfading and mixing of both CV and Audio signals.
Other advanced uses including audio rate modulation, stereo panning effects and a CV controlled FX send.

Technical Specifications

Supply: +12V 70mA / -12V 70mA

Size: 6HP

Depth: 32mm

Notes: The 'MEGA-TANG' is a 4-channel linear VCA and stereo mixer providing per input control over level, effect send, pan and muting. Designed for live use in mind with a simple & compact layout, the 'MEGA-TANG' builds on the clean and transparent sounding Tangle Quartet VCA by adding a stereo mix output, effect sends (mono send with a stereo return) which pair great with the MFX, manual panning, soft mute buttons with LED indicators and an expansion port for future expandability.

Individual VCA outputs are available which remove the channel from the main mix (useful for cueing and monitoring). All signals are Euro level and bar the effects return, DC coupled for CV use as well as audio.

Technical Specifications

Power: +12V 125ma -12V 125ma
Size: 16HP
Depth: 32mm
Attenuation: approx -70db

Notes: The 'Stereo Sum' is a unity gain summing mixer that features four stereo input pairs summed as pairs to two independent mix outs or all as a single combined mix. It is a useful utility for efficiently combining outputs of multiple stereo sources, such as the MEGA-TANG and Jumble Henge mixers or multiple MFX returns. The inputs accept stereo or mono signals (via normalisation) which can be audio or CV (module is DC coupled) and the top mixer's outputs are normalised to the bottom mixer section meaning if the upper output is left unpatched the two upper inputs will be added to the lower output.

Stereo input pairs

Stereo inputs. Can be used with audio or CV (inputs are DC coupled).

Left ins normalised to Right for mono signals.

Stereo mix output 1

Stereo mix output. Normalised to bottom mixer section if ouput is left unpatched.

Stereo input pairs

Stereo inputs. Can be used with audio or CV (inputs are DC coupled).
Left ins normalised to Right for mono signals.

Stereo mix output 2

Final stereo mix output.

Technical specifications

Power: +12V 8ma / -12V 8ma
Size: 4HP
Depth: 32mm

Notes: Another banger from ALM. Based on the oscillators from the classic 1980s Casio CZ series, the Cizzle uses phase distortion synthesis for characterful, FM-adjacent synth tones.

Supplier's Notes:
The 'CIZZLE' is a dual digital 'phase distortion' VCO inspired by the classic Casio 'CZ' series synthesizers. It brings the specifics of 'CZ' style phase distortion (PD) synthesis into Eurorack with the inclusion of primary and secondary oscillator layering and detuning (with up to 8 voice chord generation), extended morphable PD wave generation algorithms, unique resonance wave generation, plus specific 'end of chain' ring modulation and noise modes that are key to the CZ sound.

The voices also feature built in VCAs and various modulation controls and inputs, a cv-able chord mode, tracking ability, triggered mode switching and can be output independently or mixed with stereo widening.

The 'CIZZLE' finally brings characteristic CZ style synthesis to Eurorack with a rich palette of sounds from mellow ambient tones, 90s Detroit Techno inspired chords, Reese style basses, and synth tones with unique faux resonance squelch.

Ideal For

Flexible and precise primary digital voice duties in a Eurorack system.
Creating basslines, rich chords, drones, morphing tones, percussive hits etc.
Unique digital squelch.

Tech Specs
Supply: +12V 65mA / -12V 25mA
Size: 16HP
Depth: 32mm

Notes: The mmT is an optional 3HP expander which connects directly to the expand socket on the rear of the mmMidi using supplied cable.
It maps the third configured MIDI channel key presses to corresponding trigger/gate outputs as shown on the mmT front panel.
It's useful for controlling drum modules and in particular the ALM Squid Salmple.

Dimensions
3 HP
38 mm deep

Current Draw
30 mA +12V
0 mA -12V

Notes: ***B-STOCK: Box opened, product in perfect working order***


'Beast's Chalkboard' is dual channel stepped voltage source and adder for your eurorack modular synthesizer system. It primarily is intended as a dual octave switcher for VCO's but has many other uses including sequence transposition, FM ratio creation, buffered CV distribution and VCO calibration.

Technical Specifications:

Supply: +/-12V (Reverse voltage & polyfuse protection)
Current Draw: ~30ma
Size: 6 HP
Depth: 22mm (including power header)
Offset Error: +/- 10mV

Notes: THE SBG-PRO supports mono, stereo, balanced, and unbalanced input and output via 6.35mm jacks with level matching controls with clipping indication. The module features both direct and voltagecontrolled equal power crossfading between wet and dry sources.

Additionally, an expression input, along with the included 'floating ring' cable and conditioned output, ensures safe, voltage-limited CV control of external devices from your modular system.

The module extends its sibling, the original S.B.G, by adding full size stereo balanced jack connections and voltage control focusing more on connectivity with not just pedals but also pro audio equipment including rack effects, 500 Series modules and mixing consoles.

Notes: Compact Analogue LFO & VCO

The 'Pip LFO' is a compact 4HP all analogue low frequency oscillator with a wide frequency range, voltage control, numerous outputs, reset input and a VCO mode.

LFO speed is set via a manual control and voltage control input. There is a unipolar square wave output along with both bipolar and uni-polar triangle, saw and sine waveform outputs.

When VCO mode is activated, the frequency jumps to audio range and will track V/Oct for approx 5 octaves. A reset input allows the LFO waveform cycle to be reset and produces hard sync functionality in VCO mode.


Technical Specifications

Size: 4HP
Power: +12V 40mA / -12V 20mA
Depth: 32mm (approx)

Notes: Great value from this compact filter module. The Pip Filter is a 12dB/oct resonant design with built-in normalled VCA and a trigger input for pinging. Lots of functionality and creative potential packed into 4 HP.

Supplier's Notes:
Compact Low Pass Filter and VCA

The 'Pip Filter' is a compact 4HP voltage controlled 2 pole low-pass filter with resonance, a 'pingable' trigger input and built in VCA.

Filter cutoff is controlled via both knob control and dual CV inputs with a built in attenuverter.

Resonance is manually controlled and will reach into self oscillation with rough V/Oct tracking.

A trigger input allows the filter to be pinged for percussive plucked type sounds. Finally, a built in VCA (normalled open) allows for additional independent amplitude control of the filtered signal.


Technical Specifications

Size: 4HP
Power: +12V 25mA / -12V 25mA
Depth: 32mm (approx)

Notes: The 'Quaid Megaslope' is a five stage function generator or modulator which operates in one of 3 modes; a multistage 'CZ' or 'Juno' style complex envelope, a super flexible LFO and a step sequencer with per step programmable slew or slides.

Each mode produces a varying output voltage moving from point to point across a set number of chained together stages. Each stage features a destination level, an overall rate or time to reach its destination level and a variable slope for the output path to take. As well as direct control, every stage feature voltage control of both level and rate. There are both unipolar and bipolar voltage outputs together with triggers emitted for the end of each stage and the end of a full cycle.

The Quaid Megaslope is designed to be fun, flexible and intuitive to use.

Notes: SWEnigiser Proto VCF/A

Enigiser multimode filter and VCA in 12hp. Circuit based on originalEnigiser prototype kindly loaned by Anthony Linell of Northern Electronics.

VCF
Unique configuration with 3 x 4 filter modes
2x audio input with drive
2x cutoff CV attenuverter inputs
1x cutoff CV input, tunable to 1v/oct

VCF output normalized to VCA input.

VCA
1x audio input with gritty drive, normalized from VCF output
2x CV input. CV1 knob adds offset for drone etc.
CLIP switch for old/new revision Enigiser diode setting adjusting drive character.
+12V 22mA
-12V 22mA
Skiff friendly
Includes power cable, 4 screws+ plastic washers

Available in sand blasted silver and black panel versions.

Notes: SWEnigiser Proto VCF/A

Enigiser multimode filter and VCA in 12hp. Circuit based on originalEnigiser prototype kindly loaned by Anthony Linell of Northern Electronics.

VCF
Unique configuration with 3 x 4 filter modes
2x audio input with drive
2x cutoff CV attenuverter inputs
1x cutoff CV input, tunable to 1v/oct

VCF output normalized to VCA input.

VCA
1x audio input with gritty drive, normalized from VCF output
2x CV input. CV1 knob adds offset for drone etc.
CLIP switch for old/new revision Enigiser diode setting adjusting drive character.
+12V 22mA
-12V 22mA
Skiff friendly
Includes power cable, 4 screws+ plastic washers

Available in sand blasted silver and black panel versions.

Notes: Very nice old-school vocoder for Eurorack, featuring a built-in mic pre-amp and full 10-band patch bay. Internal VCO and straightforward control setup help simplify operation.

Supplier's Notes:
The VXC-2220 is an 10-band analogue vocoder with patch-bay for each individual filter section. VXC-2220 vocoder is based on the iconic classics 222 vocoder. For stand alone usage the VXC-2220 is equipped with an internal oscillator generating saw and pulse waves form C1 to C6. A simple and efficient vocoder.

Specifications

Microphone input for speech signal
Line input for speech signal
Line input for carrier signal
Input level control for speech and carrier signal
Output level control
Line output
10-Band analyzer outputs
10-Band synthesizer input
Internal VCO (1 semi-nut step size);
* Saw wave (C1 - C6)
* 3x 10% Pulse wave (C1+C2+C3 - C4+C5+C6 )
* White noise
- Synthesis for 's' and 't' sounds
- Feed-trough level control for speech and carrier channel
- Bypass switch
- 10pin power connector (+/-12V)

Dimensions:
(36HP) 128,5×182.5mm (depth: ca. 35mm incl. power connector)

Power Consumption:
+12V = 125mA
-12V = -125mA

Notes: ***B-STOCK: Item refurbished, repaired and in perfect working order.***


Dimensions is a true stereo chorus effect for the Eurorack modular system featuring two algorithms. The first is a direct port of our Fluid chorus plug-in, and the second is taken from the unit's namesake. With automatic routing based upon what you plug in the I/O, Dimensions can do mono->mono, mono->stereo, and true stereo chorus duties.

Dimensions' Mode A operation is a ludicrously thick chorus. Most chorus effects have either a single delay line or a pair. Dimensions has six of them, each with its own modulation scheme. The Mode B operation changes the routing to match the vintage rack unit, but keeps the controls available. This results in a subtly different, but equally thick and appealing, effect.

Notes: Inamp is a dual pre-amp in just 4 HPs. Featuring 6,3 Jacks inputs as well as Minijacks.

Both inputs are summed so you can use them at the same time as an input mixer.

The unit is designed to amplify up to x20 the input signal, allowing to amplify most of the music machines out there (Domestic line levels) as well as some guitars (Humbucker-like pickups and so).

The first channel is normalled to second one in series, so it's possible to have two stages of amplification or two separate ones.

Notes: The BF-22 VCF is a dual Hi/Low-pass filter inspired by the Sallen-Key filter from the early MS-20.

DISCLAIMER: This filter brings to your modular system the character of early MS-20 sound: Kick-ass-rocking-dirty screams! It inherited not only it's amazing sound, also MS-20 noise floor. If noise floor is an issue for you, this might not be your filter.

Features:

Dual-channel Sallen-Key Filter. Inspired by the early MS-20
High and Lowpass operation.
Two CV inputs per channel with a dedicated atenuverter for the first one.
CV controlled resonance.
The first channel can be linked to the second one with the "Link" switch.

Specifications:

Current needs: +12V: 40mA, -12V: 20mA
Width: 17 HP
Depth: 30mm (including power connector)
Aluminiun, heat-treated front panel
Designed, kits prepared and completed modules assembled in Barcelona.

Notes: Crush Delay v3 is a special Echo-Delay unit based on the PT2399 IC, which is able to offer 400ms of clean delay and up to 2 seconds of dirty repetitions, having a special talent to generate noisy-glitch textures. The module bases its operation on controlling the PT2399 chip with circuit bending techniques, converting the unit in an advanced VC digital trash generator. This third version comes with some interesting new features like redesigned VCAs circuits, wider range for clean delay and reduced depth to make it skiff friendly.

The module features a few VCAs to provide a flexible signal route to maximize module's possibilities. First two VCAs at the inputs to control the amount of signal sent to the delay. The first is routed to both the dry/wet mix and the delay, and the second directly to the delay. Combining the second VCA and the FX Send output allows external feedback routings.

Compared with v2, this third version offers a bigger range of clean delay time as well as a revision of some of the Crush modifiers. Combining those modifiers you will have a access to a vast palette of noises and textures that can be used in many different ways. From ambient/drone patches to even percussion sounds.

The VC Feedback features an automatic gain control to keep levels stable at any feedback level.

- Current needs: +12V: 135mA, -12V: 35mA
- Width: 11 HP
- Depth: 30 mm (inc power connector)
- Aluminium, heat-treated front panel
- Designed, kits prepared and modules assembled in Barcelona

Notes: A compact attenuverting (attenuator-inverter) joystick controller and Gate Generator. With it, you can generate and process two control voltages using only one hand. Provided controls for CV ranges and offset adjust the boundaries of your control, this way it never gets out of the desired range, ensuring sensibility and playability even with wild performance gestures.

Specifications

Current needs: +12V: 25mA, -12V: 10mA
Width: 12 HP
Depth: 35mm (including power connector)
Aluminium, heat-treated front panel.
Designed, kits prepared and completed modules assembled in Barcelona.

Notes: Lich is a programmable multi-function module based in Rebel Technology OWL platform. This is a Befaco Rebel collaboration that brings back Owl’s platform with this new hardware iteration. It has stereo in and out, four pot controls summed to cv inputs (like the classic Owl module) And as addition, CV and Gate outputs, patch selection with display and USB MIDI host and device connections.

FEATURES
Stereo Audio IN and OUT at 48k 24 bits.
4 CV controls (Pot + Attenuated CV in)
2 CV outputs.
2 Gate intputs + buttons.
1 Gate Output.
Patch selection and visialization via display.
USB host and Device connections

SPECS
Current needs: +12V: 130mA, -12V: 30mA
Width: 12 HP
Depth: 26 mm (including power connector)
Aluminium, heat-treated front panel.
Designed, kits prepared and completed modules assembled in Barcelona.

Notes: Muxlicer is a sequential signal processor designed for add a huge range of special functions to your modular setup in the minimum space.

Muxlicer is divided in three main blocks: Digital Step Controller, Gate Generator and Analog Switch (a.k.a. Mux/DeMux).

The module is designed with high "function to HP ratio" philosophy, to have maximum flexibility in minimum space.

Notes: Befaco's new Output Module is designed to be the master output for your modular system, providing an extra Cue Input to monitor any signal.

Left IN is routed to both channels when no Right signal is present. Both Outputs are TRS balanced.

A Headphones out is available. You can route Headphone OUT to the main out or an independent signal with CUE switch. Like this you can either pre-listen your sounds with the CUE Input or listen to your main out without disturbing your neighbours!

Level LEDs are available to monitor levels of each signal on the module.

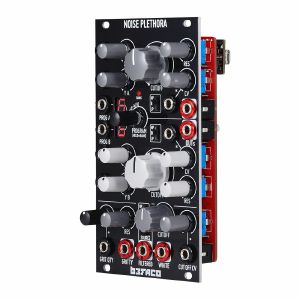

Notes: A typically comprehensive approach to noise sources from Befaco, featuring five different circuits plus two analogue multimode filters and plenty of CV controls for sculpting the output.

Supplier's Notes:
Noise plethora has three different noise generators:

The first two are identical and are composed of digital algorithms followed by a 12dB analog multimode filter.
Each program has two variables (Named X and Y) addressed by two manual controls and two associated control voltage INs.
Ships with an extensive (and expanding) algorithms library: textures, wave clusters, harsh noises, and glitches.

Generator C has three simultaneous outputs:

White. Flat Response Classic white noise.
Gritty. Granulous texture noise, with voltage-controlled grit quantity.
Filtered. Is the White or Gritty noise followed by a 24dB multimode VCF.

A total of 5 different noise sources in one module!

Dimensions:

14 HP
25 mm deep

Current Draw
110 mA +12V
67 mA -12V
0 mA 5V

Notes: Pony VCO is a fully analogue Thru-Zero oscillator with wavefolder and dedicated VCA in only 4HP. The module offers great stability and tuning capabilities thanks to its powerful core, based on Sound Semiconductors IC. It comes with a range selector, that allows it to go down to LFO range, as well as octave and waveform selectors.

Pony VCO is also available in 1U format keeping the same functionality and control layout.

Features

Through Zero Frequency Modulation
Wavefolding (Timbre)
Pulsewidth Modulation (PWM)
SYNC
VCA
LFO

Specs

Current Draw: +12v: 32 mA -12v: 25mA
Width: 4HP
Deepth: 30mm including power connector
Aluminium, heat-treated front panel.
Designed and assembled in Barcelona.

In Through Zero oscillators, frequency is controlled by either positive and negative voltage. If FM CV goes below zero, the core will continue oscillating inverting its phase. This "little" change of behaviour allows the core to create a whole new range of timbres that are just impossible to achieve with regular VCOs.
If you set the module as LFO, the range of funky modulations will be endless!

Notes: Out is a 1U stereo output module designed to convert audio signals from your modular to line-levels. The module is designed to be used on cases with onboard Jack connectors or Intellijel 7U and Palette series, as it uses the same pinout. The module also includes a high-quality Headphone amplifier with an auxiliar monitoring CUE input.

Features:

High-quality Headphones amplifier
Monitoring CUE Input with source selector
Fully compatible with Intellijel 7U and Palette cases rear Jack connectors.
1U Intellijel format.

Specs:

Current needs: +12V: 30mA, -12V: 30mA
Width: 16 HP
Depth: 30mm (including power connector)
Aluminium, heat-treated front panel
Designed, kits prepared and completed modules assembled in Barcelona

Notes: The EVEN VCO is a voltage-controlled oscillator that offers stability and high precision tuning over 10 octaves. A redesigned temperature compensation circuit maintains the oscillator stable against voltage and temperature drops.

Specifications:

Current needs: +12V: 36mA, -12V: 26mA
Width: 8 HP
Depth: 22mm, (28mm DIY) including power connector
Aluminium, heat-treated front panel.
Designed, kits prepared and completed modules assembled in Barcelona.

Notes: From trickling hi-hats to thunderous kicks. The Befaco Percall 4-Channel VCA/Delay Envelope Module is designed to take care of all percussive aspects of your Eurorack rig. You'll be able to create a whole host of percussion thanks to the 4 VCAs, volume control and decay options. By using the trigger you'll be free to open the VCA whilst the volume knob helps determine the level of the percussive sound you've sculpted. Take your tones to the next level thanks to the inclusion of an output on the envelope. You can apply this to the pitch of the oscillator to achieve a fat kick drum which offers excellent low frequency energy. The Percall 4-channel module is the ultimate addition to your Eurorack.

Notes: An accurate Manual Voltage Source.

Voltio fits somewhere between a music tool and a piece of electronics lab gear.

It generates voltages equivalent to all the notes on the 12-tone equal temperament scale throughout a ten-octave range, with an intuitive two-knob interface.

The Precision Adder In, lets you sum Voltio's Out with external voltages.

Additionally, the front panel banana connectors let you plug standard multimeter probes for hands-free operation on electronics lab.

Use it to transpose Oscillators and sequences in a musical way or as a reference to calibrate your analogue gear.

Features:

Easily adjust your oscillators in known intervals.
Transpose Musical phrases from sequencers, arpeggiators, or any other notes source.
Calibrate oscillators and filters on your DIY projects or during analogue gear maintenance.

Specs:

Current needs: +12V: 35mA, -12V: 15mA
Width: 6 HP
Depth: 30mm including power connector
Designed, kits prepared and assembled in Barcelona.

Notes: ***B-STOCK: Box opened, but product is in excellent condition and in perfect working order***


Befaco's unique GameBoy-based effects module allows you to change effects by swapping cartridges, all with CV control over key parameters. Effects include Skuara's harsh fuzz, Instruo's micro phaser and much more.

Supplier's Notes:
A crazy idea with the support of a bunch of crazy people.

A Multi FX module based on game carts!

FxBoy is a multi-FX module designed in collaboration with several talented manufacturers.

This is an effect unit with CV control over the parameters and Dry/wet control, with a Built-in CV controllable four bands EQ.

Each effect is physically hosted in a hot-swappable game cart and designed by a different manufacturer: Touell Skouarn with Skuara a harsh fuzz with overdrive, Instruo with micro Phaser, a two-flavoured Phaser, Feedback modules with a vintage Flanger, XOR with FX-Girl, a digital double effect module: Delay + Granularizer, Making sound machines with an analogue Wave folder, Tesseract with a bit crusher and Befaco Trash distortion!

What have these crazy people put in their cartridges?

Trash

Trash is a harmonic distortion that combines both clipping and folding flavours. Modes A and B will select between aggressive and more aggressive flavours!

Flanger

Analogue Wavefolder

Eskuara

AVMA
AVMA by Tesseract Modular is a bipolar VCA with one switchable wavefolder stage followed by an analogue frequency reducer. The VCA gain is x2, it can be used with i5V oscillator signals at the CV input for ring modulation effect.
Micro Phaser

Three cascaded all-pass filters, a built-in LFO and a saturator in the feedback path.

The purpose for this cartridge is to completely f&%k your phase up!

Instruo - We make sounds with the things that we make to make sounds with.

Technical Specifications

CV control over all parameters and Dry/wet
CV controllable four-band EQ, routable post or pre-effect.
Hot swap for all carts.
Selector for two different flavours of each cart.
Open specifications to design your own carts

Specs

Current needs: +12V: 125mA, -12V: 100mA, 5v: 0mA
Width: 12 HP
Depth: 35 mm (including power connector)
Aluminium, heat-treated front panel.
Designed and assembled in Barcelona.

Notes: Befaco's popular MIDI Thing interface module gets a major update, now with a screen, 12 assignable ports and much more. One of the best solutions for converting between MIDI and CV.

Supplier's Notes:
Mid Thing v2 is a flexible MIDI to CV converter. Allowing polyphonic notes handling, envelope and LFO generation as well as all available MIDI messages to be converted into CV.

This is a huge upgrade from the previous beloved MIDI Thing, which adds a screen for easy configuration, 12 assignable ports, TRS, USB Host and Device, MIDI merge OUT, a web configuration tool, and a VCV rack bridge counterpart.

Features

12 Configurable ports
TRS type A MIDI IN and OUT, USB host and device connectivity.
Configuration screen with intuitive menu diving.
Web configuration tool.

Specifications

Current Draw: +12V: 150mA, -12V: 5mA
Width: 6HP
Deepth: 30mm including power connector
Aluminium, heat-treated front panel.
Designed, kits prepared and assembled in Barcelona.

Notes: Really clever stuff here. The Octaves VCO takes an additive approach, layering harmonics on top of a fundamental frequency to create complex tones. Control the six bands via CV to adjust the harmonic content.

Supplier's Notes:
A harsh and funky take of an additive Oscillator.

Pile up multiplications of your frequency to get a lo-fi-retro wall of squared sound!

You get six doubled frequency pulses, or octaves, with common PWM and volume control for each of them.

The output of each is cascaded to the next one, so you can either have one output with all frequencies or break the chain and get several sums and modulate each independently!

Features
Six bands, multiple of the base frequency.
Square wave oscillator with Octaves selector PWM control and sync.
Range control for Tune pot.
Volume CV control and individual output for each band
Cascaded summing outputs.

Specifications
Current needs: +12V: 110mA, -12V: 84mA
Width: 12 HP
Depth: 22mm (assembled and DIY), including power connector
Aluminium, heat-treated front panel
Designed, kits prepared and completed modules assembled in Barcelona

Notes: Befaco's unique GameBoy-based effects module allows you to change effects by swapping cartridges, all with CV control over key parameters. Effects include Skuara's harsh fuzz, Instruo's micro phaser and much more.

Supplier's Notes:
A crazy idea with the support of a bunch of crazy people.

A Multi FX module based on game carts!

FxBoy is a multi-FX module designed in collaboration with several talented manufacturers.

This is an effect unit with CV control over the parameters and Dry/wet control, with a Built-in CV controllable four bands EQ.

Each effect is physically hosted in a hot-swappable game cart and designed by a different manufacturer: Touell Skouarn with Skuara a harsh fuzz with overdrive, Instruo with micro Phaser, a two-flavoured Phaser, Feedback modules with a vintage Flanger, XOR with FX-Girl, a digital double effect module: Delay + Granularizer, Making sound machines with an analogue Wave folder, Tesseract with a bit crusher and Befaco Trash distortion!

What have these crazy people put in their cartridges?

Trash

Trash is a harmonic distortion that combines both clipping and folding flavours. Modes A and B will select between aggressive and more aggressive flavours!

Flanger

Analogue Wavefolder

Eskuara

AVMA
AVMA by Tesseract Modular is a bipolar VCA with one switchable wavefolder stage followed by an analogue frequency reducer. The VCA gain is x2, it can be used with i5V oscillator signals at the CV input for ring modulation effect.
Micro Phaser

Three cascaded all-pass filters, a built-in LFO and a saturator in the feedback path.

The purpose for this cartridge is to completely f&%k your phase up!

Instruo - We make sounds with the things that we make to make sounds with.

Technical Specifications

CV control over all parameters and Dry/wet
CV controllable four-band EQ, routable post or pre-effect.
Hot swap for all carts.
Selector for two different flavours of each cart.
Open specifications to design your own carts

Specs

Current needs: +12V: 125mA, -12V: 100mA, 5v: 0mA
Width: 12 HP
Depth: 35 mm (including power connector)
Aluminium, heat-treated front panel.
Designed and assembled in Barcelona.

Notes: 1U TRS

Total flexibility for the Befaco 7U or Intellijel cases rear connectors Jacks.
The channels are reversible and can be used independently for Input or Output.
4 Inputs or Outputs (per module) can be obtained by "AND" cables.
Independent tip and ring attenuators are selectable for each channel to convert the Modular Input Level to Line Output Level.

Features

Selectable attenuator per channel
Fully compatible with Intellijel's 7U and Palette cases.
1U Intellijel format.

Specs

Current needs: Passive
Width: 6 HP
Depth: 20 mm (including power connector)
Designed, kits prepared and completed modules assembled in Barcelona

Notes: A spectral processing playground.

Bandit is a fun combination of band-pass filters, VCAs, and routing options.

It serves multiple functions including equalizer, crossover, multiband VCA, 4 band spectral mixer, and spectral external FX insert point.

It allows you to:

Cut or emphasise different frequency bands of a signal, acting as a voltage-controlled equalizer/isolator.
Split a sound into four different frequency bands for external processing, and if needed, insert them back
Mix four different signals with predefined tone placement in the mix.
Create four different sounds from one sound source by modulating the volume with four different envelopes.
Create evolving timbres by modulating one or more frequency bands using LFOs or audio-rate modulation.

Specs

Current needs: +12V: 80mA, -12: 70mA, 5v:0
Width: 8 HP
Depth: 30mm (including power connector)

Notes: A really interesting synth voice module from Befaco, the Oneiroi specialises in ambient pads, drones and soundscapes thanks to a combination of oscillators, looping, effects and randomisation. True stereo textures from a single module.

Supplier's Notes:
Experimental synth voice focused on ambient pads and drone-like soundscapes.

Shape your performance

At its core, there is a Sine Wave Oscillator, Wavetable/Supersaw, and a joyful Looper. This is followed by an FX section featuring a Multimode filter, a Resonator, a Delay, and a Reverb.

His randomizer creates instant patches at the touch of a button.

The Looper can record the external input or the output with "Sound On Sound" looping.

5-second Looper records either the stereo input or the module's output, the Wavetable oscillator uses the Looper buffer

The atmosphere creator

A full-stereo synthesiser that easily creates dense atmospheres for hypnotic music or cinematic sound design.

Featuring three oscillators, four effects, a looper, modulation with complex routing, and a randomizer.

Powerful randomizer with four different targets that acts in different ways depending on the position of the two switches, three levels of intensity and undo/redo.

Specs

Current needs: +12V=200mA, -12V=60mA
Width: 30 HP
Depth Assembled Version: 25mm
Designed, kits prepared and assembled in Barcelona.

Notes: Clock Multiple, Conditioner, and Divider in a compact 2HP format

Distribute your clocks throughout your system using minimal rack space.

The first three outputs maintain the same frequency as the input, while outputs 4 to 7 provide time divisions of 1/2, 1/4, 1/8, and 1/16.

The active topology allows you to patch clocks on the fly, avoiding the tempo interruptions that can occur with passive multiples.

To reduce the footprint, the input is a TRS jack, with the clock signal on the tip and the reset on the ring. For standard clock only operation, use a regular mono cable, or use the provided splitter to access the reset function.

Notes: Voltage-controlled lag processor and slope detector

Transforms stepped notes into smooth acid slides with independent speeds for both upper and lower notes.

The onboard slope detector generates gates while the output is rising or falling, allowing events to be activated when moving to upper or lower voltages.

Additionally, it can convert a gate signal into an Attack-Sustain-Release (ASR) envelope.

The shape control feature helps balance speed versus input range, enabling quicker speed while sliding to further notes allowing for time compensated portamento.

Features

Perfect pitch tracking (error < 1 mV)
Independent rise and fall controls
Assignable CV input for rise and fall times
Three selectable speed ranges
Fader-based interface allows for one-handed adjustment of rise and fall times

Specs

Current needs: +12V: 20mA, -12: 15mA, 5v:0 on additional rails
Width: 4 HP
Depth: 25 mm (including power connector)
Designed, kits prepared and modules assembled in Barcelona

Notes: ST Amp is a 1U stereo amplifier designed to boost your external signals into modular levels. The module is designed under the Intellijel 1U format and uses the same pinout, making it fully compatible with the Intelljel case's rear connectors.

Features

Stereo amplifier and signal booster.
Three selectable gain modes: x1, x5 and x10
Level meter LEDs
Fully compatible with Intellijel's 7U and Palette cases.
1U Intellijel format.

Specs

Current needs: +12V: 30mA, -12V: 30mA
Width: 10 HP
Depth: 37mm (including power connector)
Aluminium, heat-treated front panel
Designed, kits prepared and completed modules assembled in Barcelona

Notes: RACHAEL is an ideal companion to DECKARD'S VOICE or any other oscillator/sound source, bringing unique signal interaction and ring modulation capabilities to modular form. 100% analog, you'll find a wealth of facilities in this compact space, including full ring modulation, a dedicated VCO, a four-stage envelope with amount, and LFO.

Full-throated Ring Modulation
From tremolos to alien-invasion metallic screams, modulate any external source with RACHAEL's all-analog signal path, tunable to subtle, complex, and extreme sounds with the speed and depth controls. It's a perfect pairing for DECKARD'S VOICE or any input (via the signal input). In addition, there's both an internal reference oscillator and the ability to patch in your own external tone for even more complex and varied results.

Analog VCO
Set the oscillator to VCO mode, and RACHAEL is also a VCO with all the character of DECKARD'S DREAM and the classic CS synths that inspired it. That includes square, sine, and "csaw" waveforms -- the CSAW has the distinctive CS leading-edge pulse.

LFO
The oscillator is also configurable as an LFO, with standard sawtooth, square, and sine waves via switch. With a dedicated OSC output, you can use the LFO and ring modulation simultaneously, making RACHAEL both modulation source and creative processor.

A versatile, multipurpose envelope
RACHAEL's onboard envelope generator is more than just another ADSR. With the envelope generator amount control and switchable destinations, you can tune in an amount of the envelope to the modulation frequency, modulation depth, or both, for musical, creative sound shaping. In addition to the gate input, each stage of the envelope has dedicated CV control. And all of this comes with the distinctive vertical sliders beloved on DECKARD'S DREAM.

Notes: Bringing the sound of the legendary Roland Jupiter-8 crashing into Eurorack, the ISE-NIN is Black Corporation's 100% analogue monophonic synth voice, derived from the mega eight-voice ISE-NIN desktop synth.

Supplier's Notes:
(ISE-NIN) VOICE brings the legendary Japanese discrete analogue sound into a compact 100% analogue Eurorack creation. Ideal for combination with an x0x techno rig, the full depth of rich sonic potential and programmability of ISE-NIN can now be patched into new modular concoctions. A full complement of iconic analog oscillators, filters, envelopes, and modulation make this at once a full-featured semi-modular synth on its own, and a powerful addition to any rig with the addition of ISE-NIN BREAKOUT.

Two Oscillators with Deep Modulation

This is a no-compromise compact recreation of a complete voice - lacking only the desktop synth's polyphony. Two oscillators each include multiple waveforms (triangle, ramp, pulse, and square on the VCO-1, with sine and noise replacing triangle and square on VCO-2). Hard sync is available, as is configurable modulation, with dedicated PWM (controlled manually, via LFO, or via envelope 1), and tweakable modulation amounts from both LFO and envelope 1 to VCO-1, VCO-2, or both. The LFO section provides access to waveform (sine, saw, square, random), rate, and delay.

Unmistakable Filter, Dual Envelopes, Musical Control

The unique classic 80s Japanese filter sound is fully embodied here, with highpass filter, lowpass with two slope options (-12 dB, -24 dB), and resonance, all with their own controls. Dual envelopes, each with four stages, are assignable to the filter, VCO modulation (ENV-1), and VCA (ENV-2), with an envelope mod fader. Envelope 1 also sports a polarity switch. As with our desktop synths, musical control is front and center, literally: you'll find dedicated controls for toggling keyboard input to each envelope, a keyboard amount to VCF fader. If you're using ISE-NIN alone as a voice, you'll have access to 1v/octave and gate inputs with glide control.

Unprecedented Patchability

Start with ISE-NIN VOICE (36HP), and you'll already have a deep semi-modular instrument on its own. But add ISE-NIN BREAKOUT (22HP), and you can place every single control under one-to-one voltage control for unmatched patchability and programmability. This is a level of sound possibility that could would normally require investing in several rows of modules; here, they're all readily accessible on one convenient, compact front plate. Not only do you get dedicated inputs for the oscillators, filters, and each separate envelope stage for both of the two envelopes, but there are separate FM inputs to each oscillator and every possible routing of the LFO, envelope, and keyboard. XMOD amount and VCO-2 quantized range each get their own input.

Power consumption: 110mA at +12V and 30mA at -12V

Depth: 38mm

36 HP

Notes: Breakout for the ISE-NIN Voice

Extensive outputs, open-ended Functionality

The output section of the ISE-NIN BREAKOUT is a perfect match for the voice. Each waveform for each oscillator has its own independent instrument, as does each envelope and the inverse of envelope 1, each filter and slope, each LFO waveform, noise and low noise, and mix. There's also a dedicated headphone output so you can enjoy ISE-NIN without waking the neighbours. You'd be hard pressed to find as much tonal range, as many distinctive vintage Japanese tones, or as much expandability with as much horsepower as ISE-NIN VOICE and its BREAKOUT.

Notes: The idea behind Eclipse is to combine the raw character of vintage analog oscillators with modern features for crafting rich, complex, and expressive sounds.

Eclipse's development started with a high-precision analog triangle oscillator that tracks accurately over 10 octaves, with all the I/O expected from a premium analog oscillator.

While looking for ways to generate complex harmonics without relying on a classic wavefolder, we came across the VCS3's waveshaper. This unique feature of the EMS synth sparked the idea to design our own waveshaper from scratch, opening up a wide range of sonic possibilities and dynamic control to bring sound to life.

During the design process, we discovered the waveshaper's unique potential for stereo processing, which led to a dedicated stereo section to spread and move waveforms across the stereo field while maintaining perfect balance at any setting.

Eclipse offers full CV control across all parameters, with smart normalization enabling global modulation from a single source. With many special features like XFM, ULFO, Stereo Pulse Array Modulation, Stereo Pulsed Saw Modulation, RM/AM capabilities, Eclipse is much more than just a VCO.

Notes: Foxtrot is a quad, multimode virtual analogue filter with three different classic filter types.

Each of the four filter channels can be:

1) A ladder filter, based on the classic MOOG designs from the '60 and '70s
2) A Sallen-and-Key filter based on the Korg 35 module used in the MS-20
3) A State Variable filter as used in the Oberheim SEM

Each filter type produces Low Pass, Band Pass and High Pass responses which can be morphed between using the front panel control or CV.

In addition, any or all of the filter channels can be linked together internally producing a parallel filter bank controlled by a single cut-off control or CV. Check out some of the examples for how amazing this sounds.

The AUX CV input can be switched to allow CV control of the filter response, resonance or pan of each filter channel's dual outputs.

Finally, each filter can be overdriven to accentuate the unique sound of each filter type.

Specifications:
Width: 38HP
Depth: 22mm excl. power cable. Approx 32mm inc. shrouded power cable
Power Requirements:
+12v: 250mA
-12v: 100mA
+5v: 0mA

Inputs:
Signal (Zero attenuation): +/-5v nominal, +/-12v max
Cut-off CV (Zero attenuation): 0-5v nominal
AUX CV (Zero attenuation): +/-5v nominal

Outputs:
Dual Outputs: +/-5v nominal, +/-10v max

Notes: Oscar DSF is a complex, stereo Voltage Controlled Oscillator, based on the mathematics of Discrete Summation Formulae.

The Discrete Summation Formula used in Oscar DSF produces sounds rich in harmonics (or 'partials') in a similar way to FM.

The mathematics of DSFs is more complex than FM, but the way that you, the user, get the sounds you want is usually simpler. The basic sound is controlled by just two, intuitive knobs (with CVs, of course).

Oscar DSF can sound like a traditional oscillator, and it can make the usual clangs and tings associated with FM oscillators. It can handle fat bass sounds, or evolving ambient drones.

Oscar DSF has two complete DSF based, complex oscillators, controlled by the same basic pitch CV, but with a pitch offset control which can detune one oscillator up to i1 octave.

The output of the each oscillator passes through another complex FM stage, which acts like a wave folder. Technically, it's actually an FM operator with the carrier frequency set to zero. It sounds great, whatever you call it.

The final piece of the signal chain is a simple VCA, allowing Oscar DSF to be used as a stand alone synth voice with the addition of an envelope generator, or some other source of modulation.

Specifications:

Width: 10HP
Depth: 22mm excl. power cable. Approx 32mm inc. shrouded power cable
Power Requirements:
+12v: 200mA
-12v: 50mA
+5v: 0mA

Inputs:

VPO (Zero attenuation): 1 volt per octave
PAR CV[Zero attenuation]: +/-5v nominal
FOLD CV [Zero attenuation]: +/-5v nominal
PAN CV [Zero attenuation]: +/-5v nominal

Outputs:
Dual/Stereo: +/-5v nominal, +/-11v max

Notes: Alpha Duo is a stereo precision VCA with ring modulation, overdrive and distortion.

Alpha Duo's VCAs have three modes:

1) Two quadrant, for classic VCA behaviour
2) Four quadrant, where the VCA responds to both positive and negative Gain CVs. This creates a classic ring modulator.
3) In four quadrant separate (4S) mode, each of the two VCA channels is controlled by separate gain CVs, turning Alpha Duo into two independent VCA/ring modulators.

Alpha Duo also features three drive modes.

1) In Drive Mode zero the overdrive circuit is not active, giving a clean signal.
2) Drive Mode One is a tube style soft overdrive. Like a tube, the positive and negative parts of the waveform are distorted differently, producing a pleasing, warm fuzz.
3) Drive Mode Two is a harder clip - more like a transistor amplifier - for a harder edged distortion.

Alpha Duo's signal path is DC coupled, so it's great for processing CVs as well as audio.

Specifications:
Width: 10HP
Depth: 22mm excl. power cable. Approx 32mm inc. shrouded power cable
Power Requirements:
+12v: 200mA
-12v: 50mA
+5v: 0mA

Inputs:
Signal (Zero attenuation): +/-5v nominal, +/-12v max
GainCV [Zero attenuation]: +/-5v nominal
Pan CV [Zero attenuation]: +/-5v nominal

Outputs:
Dual/Stereo: +/-5v nominal, +/-11v max
