Notes: The 3-Tier Mantis Studio Brackets pair lets you connect three Mantis together in a robust and elegant solution. This setup is fixed and is recommended mainly for studio use. The brackets are cut precisely by laser from a sturdy metal and then coated twice for a nice smooth finish that matches the Mantis light gray color. They come with twenty screws and special washers that help hold the screw in place during assembly and keep a tiny gap between the brackets and the Mantis. Installation is fairly simple and takes about 30 minutes to complete.

Notes: This brick style AC power adapter is made to power your uZEUS/HEK's. When powering a uZEUS it will double the capacity of the uZEUS +12V rail up to 2000mA. This is especially great for system with digital modules that consume most of their current from the +12V rail. It is rated at 3000mA and is made with heavy gauge wire for better grounding and a specifically set output voltage that helps keep the uZEUS cooler. It is a good option for users maxing out the standard adapter shipped with the Happy Ending Kit.

Notes: A classic all analogue saw VCO core with 3 switchable modes, ART, 1V/Oct, LFO and is recommended as the basic building block for ART systems. It is designed for patching analog polyphonic synths from discrete modules or multi-mono patches in ART mode. When using ART the ATX1 takes care of the tuning including accounting for temperature changes. In 1V/Oct mode the ATX1 runs as a standard old school modular VCO. LFO mode drops the frequency range and is great for patching vibrato to other ATX1s among other things. The ATX1 outputs variable waveshapes with manual or CV control. Classic FM, PWM and hard sync are provided. A dedicated Gate Out in ART mode manages the voice envelopes or any modulation synced to that voice. TipTop consider the ATX1 the best sounding analogue VCO they have ever created.

Size: 8HP - Depth: 40mm / 1.5"

Power: +12V 105mA / -12V 33mA

Notes: Introducing the BD808, part of our new series of drum modules that brings analog percussion into the modular synth world, instantly turning your system into a self-contained music machine. Its small size, minimalist design, and modern production methods have allowed us to bring the world's most famous bass drum sound generator back at a very low cost. The real thing is here again.

The BD808 is the Roland TR-808's Bass Drum circuit adapted for use in Eurorack format and tuned to sound like a machine that comes fresh off the original 80's assembly line. The adaptation to modular format has allowed us to add some special features like independent Accent levels, a high-powered gain stage, dual-input pulse-shaper, and extended decay - all without compromising the signature sound of the TR-808.

A widely used technique with TR-808 machines is to run the drum sounds through outboard amplifiers to add gain and then pass the sound through just about anything to generate additional harmonics caused by clipping and distortion. In the BD808, we have already included this high-powered output gain stage capable of producing signals up to 20Vpp, extending from the original palette of sounds and allowing you to get an assorted array of harmonized bass drums ranging from sharp attacks to crushed tones using this simple yet effective technique! On the inputs, we have also designed a dual pulse-shaper circuit so you can trigger your BD808 with Trigger/Gate signals from step sequencers, clock dividers, or any other pulse/clock sources. This saves you the need to shape the pulses sent to the module and ensuring the same stable sound at its peak power, regardless of differences in your pulse source.

All these little, but unique, features make integrating this legendary sound generator into your modular easy, unleashing the power of real analog drums and making those speaker cones shake.

Notes: Introducing the BD808, part of TipTop's new drum module series that brings the iconic analogue percussion of the Roland TR-808 into the modular synth world. This compact, minimalist module is cost-effective due to modern production methods, reviving the renowned bass drum sound.

The BD808 adapts the TR-808's Bass Drum circuit for Eurorack format, retaining the classic 80's sound while adding new features. These include an independent Accent level, a high-powered gain stage, dual input pulse-shaper, and extended decay. The integrated high-powered gain stage can produce signals up to 20Vpp, allowing for a range of harmonized bass drum sounds from sharp attacks to distorted tones. The dual pulse-shaper circuit ensures stable sound from various pulse sources, making integration into your modular setup seamless. These enhancements unleash the power of true analog drums, delivering impactful bass sounds.

TR-808 is a Trademark of Roland Corp Japan

Size: 4HP
Depth: 14mm
Power: +12V 13ma / -12V 6ma

Notes: Reverse-engineered from the original machine, the BD909 is an identical recreation of the original all-analogue drum circuit of the TR-909. Tiptop have added additional controls and synthesis features that turn this classic circuit into a chest-pounding analog bass drum laboratory - all tightly packed into an 8HP module. The BD909 sound differs from the BD808 in that the main sonic energy is centered in the mid to low frequency range (as opposed to the low frequency range of the BD808). This frequency range gives the needed headroom allowing your bass lines to deeply fill up the low end while the kick drum rides on top - creating a clear and punchy mix.

The BD909 includes all the controls found in the original: Attack, Decay, Tune Decay, Accent, and Level. Tiptop have gone beyond that and added controls that further increase the palette of sound this circuit is capable of. First off, a tuning control knob has been added for the oscillator and included its own CV input and attenuator that let you tune the 909 kick with your bass lines. Next, control knobs have been added for the tuning attack and extending tuning decay. Each one affects the other, allowing for intuitive and interactive sound shaping, opening Z8000 up numerous "sweet spots" and provides the ability to center the energy peak at different parts of the sound. Finally, Tiptop have offered additional punch and distortion by giving complete control over the internal waveshaper, which allows you to overload the waveform manually or with voltage control.

Beginning with the classic and pure sound of the 909 kick, these additional functions greatly expand the BD909's flexibility and let it create powerful analogue bass drums that range from soft and smooth to punchy and aggressive - and everything in between.

TR-909 is a Trademark of Roland Corp Japan

Size: 8HP
Depth: 36mm
Power: +12V 34ma / -12V 21ma

Notes: The Circadian Rhythms, is a professional performance gate sequencer in Eurorack format. Sitting at the centre of your system the Circadian provides triggers and gates to all your drum modules and percussive sounds as well as clocking your other sequencers with exceptional timing accuracy. Each channel voice can be programmed directly from the intelligent, eight-channel, 512-step master gate sequencer designed for composers looking to make music on the modular and perform live. Building up from basic step programming, multi-channel patterns of musical phrases can be repeated, looped, chained, muted, and manipulated in real-time, and, most importantly, all through a simple, clearly labelled menu-free interface.

Led Grid

Built around 72 buttons set as a multi-colour illuminated 8×9 array, Circadian Rhythms displays both note data and settings in a clear and precise manner. It takes only one click to switch to vertical view, turning the grid into a set of programming and real-time playing functions like Mutes, Loops, Swing, Fills, Copy and Paste, Grouping, Randomizing, and Manual drum-machine-style trigger entry. Activate any of those functions with only a button press or two. Using an array of multi-colour, illuminated buttons and innovative grid views provides a highly functional live performance sequencer with a beautiful, glowing appearance that will look amazing on stage for both performer and crowd. As a master controller, the heart of the modular synthesizer, the Circadian Rhythms generates high precision clock and reset signals for all the other sequencers and devices in the system and can also act as a high precision bridge for DAW synchronization.

Clock

Inside the CR ticks an extremely precise clock with jitter and latency measured in mere microseconds for the ultimate feel of the groove. The four modes of clock sync make interfacing with other modules, hardware, or software simple. Whether driving a large Eurorack system or synced to a DAW, the groove always remains tight.

Under the Hood

When state of the art chip technology, musically driven firmware, and professionally engineered hardware design all come together in one electronic device, the result is a music sequencer with unparalleled specifications. Starting with a powerful, precise sequencing engine that has superb feel for the groove, add internal functions that automatically balance performance and smooth user interface operation, and finish with outstanding low power consumption placing minimal stress on power supplies even at maximum output, Circadian Rhythms has a design focused on the requirements of the most dedicated musicians and composers. Long-time pros will immediately feel a machine made for their needs, while newcomers can instantly dive into next-level programming and performance.

SyncBus Technology

The Tiptop-Audio-designed SyncBus enables the CR to connect to any number of other SyncBus devices with the highest possible level of synchronization. A SyncBus master directly injects its core clock and running status into every connected unit so they work seamlessly as one device. Hook up two CRs to make a 16 channel device or add a Trigger Riot (or three) to the mix for further experimentation. Plus, the connection is done behind the panel so there is no need to patch anything together.

Size: 36HP
Depth: 29.4mm
Power: +12V 160ma / -12V 0ma / +5v 0ma

Notes: The Circadian Rhythms is moving modular synthesizer technology another step forward by gluing all the pieces of a system together. Each module or voice can now be programmed to play straight from an intelligent, eight-channel, 512-step master trigger sequencer made for composers looking to make music on the modular. Building on the sequencing concept of step programing multi-channel patterns of musical phrases can be repeated, looped, chained, muted and manipulated on the fly in real-time, and most importantly, all of this is done through a simple, clearly labeled interface. Using an array of multicolor illuminated buttons and innovative grid views provides a highly functional live performance sequencer with a beautiful glowing appearance of the programmed music that will look amazing on stage for both performer and crowd. As a master controller, the heart of the modular synthesizer, Circadian Rhythms generates high precision clock and reset signals for all the other sequencers and devices in the system to align with and can also act as a high precision bridge for DAW synchronization.

Views - Unlike most hardware sequencers that have a single static display of a timeline, Circadian Rhythms offers four different horizontal views of the timeline and two unique vertical views that scale from macro to micro. Switch between viewing 64 steps at once or all 8 channels side by side instantly. Stretch gates over multiple patterns to drive envelopes or use Zoom view to move a single hit back a few milliseconds in time to get the right feel all from the same interface.

LED Grid Built for Quick Access - Built around 72 buttons set as a multi-color illuminated 8x9 array, Circadian Rhythms displays both note data and settings in a clear and precise manner. It takes only one click to switch to vertical view and the grid turns into a set of programming and realtime playing functions like Mutes, Loops, Swing, Fills, Copy and Pate, Grouping, Randomizing, Manual trigger entry drum machine style and many many more. Activate any of those functions with only a button press or two.

Clock - Inside the CR ticks an extremely precise clock with jitter and latency measured in mere microseconds for the ultimate feel of groove. The four modes of clock sync make interfacing with other modules, hardware or software simple. Whether driving a large Eurorack system or synced to a DAW, the groove always remains tight.

SyncBus Technology - The Tiptop Audio designed SyncBus enables the CR to connect to any number of other SyncBus devices with the highest possible level of synchronization. A SyncBus master directly injects its core clock and running status into every connected unit so they work seamlessly as one device. Hook up two CRs to make a 16 channel device or add a Trigger Riot (or three) to the mix for further experimentation. Plus, the connection is done behind the panel so no need to patch anything together.

Under The Hood - When state of the art chip technology, musically driven firmware, and professionally engineered hardware design all come together in one electronic device, the result is a music sequencer with unparalleled specifications. Starting with a powerful, precise sequencing engine that has superb feel for the groove, add internal functions that automatically balance performance and smooth user interface operation, and finish with outstanding low power consumption placing minimal stress on power supplies even at maximum output, Circadian Rhythms has a design focused on the requirements of the most dedicated musicians and composers. Long time pros will immediately feel a machine made for their needs, while the newcomers can instantly dive into next level programming and performance.

Notes: CONTROL PATH is an all in one voice dynamics module that helps build full voices quickly. It contains two analogue envelopes with velocity cv, and one VCA. In a typical voice patch the left envelope will control a filter and the right envelope will be the voice VCA. Velocity control is provided for each envelope and delay front panel trimmers are used to compensate for any miss match between incoming gate signal and velocity CV timings. Envelope cv outs are 0-5V, Velocity cv ins are 0-5V.

Size: 8HP - Depth: 40mm / 1.5"
Power: +12V 50mA / -12V 55mA

Notes: The CP909 is the TR-909's analogue clap sound generator in Eurorack format. This is yet another low-cost analogue drum generator from a legendary drum machine in your modular synthesizer, expanding your Tiptop Audio modular drum machine even further.

The CP909 is an exact reproduction of the original analogue circuit and with the addition of just one extra knob, "trashing" the frequency of the internal noise generator, Tiptop have added greatly to the spectrum of sounds that can be generated. All that without compromising the signature sound of the TR-909.

The CP909 clap effect is made by a special triple-saw envelope generator that controls the gain of a VCA. The sound source feeding into the VCA is made by a quasi-random logic- based noise generator. Some might call it "digital noise", though this term might be misleading in today's world of microcontrollers and sound samples. What really makes the noise generator is a ring of logic gates, so primitive, so 80s, and so much the sound of the 909 Clap!

The CP909 includes a high-powered output gain stage capable of producing hot signals. On the inputs, Tiptop have designed a pulse-shaper circuit so you can trigger the CP909 with trigger/gate signals from step sequencers, clocks, dividers, or any other pulse/clock sources. This eliminates the need to shape pulses sent to the module and ensures the same stable sound at peak power, regardless of your pulse source. Based on the architecture of the 909, the Accent input is versatile and able to take in both CV and Gate signals for continuously changing dynamics. All these unique features make integrating this legendary sound generator into your modular synth easy, unleashing the power of real analogue drums.

TR-909 is a Trademark of Roland Corp Japan

Size: 4HP
Depth: 36mm
Power: +12V 6ma / -12V 10ma

Notes: Introducing the CYMBL909, part of Tiptop's new series of drum modules that brings those classic percussion sounds into the modular synth world, instantly turning your system into a self-contained music machine.

CYMBL909 is a dual voice module containing the TR-909's original Crash and Ride circuits adapted for use in Eurorack modular synthesizer format and was designed to sound like a fresh machine coming out of the assembly line back in the 80's. On top of the original, Tiptop have added some great new features that expand the sound palette of what can be produced with these two voice circuits.

The original circuits use a combination of low-fi 6-bit sound samples that pass through a series of analogue elements that provide envelope and filtering to the source sound. The CYMBL909 module adds manual and voltage control of the sample's analogue tuning section creating tones which range from heavy industrial at the low end, to the original crash/ride sound at the mid range, and bright hats-like sounds at the top end. Modulating the tune with an envelope, CV sequencer, or LFO makes interesting sound bending effects, which can be applied either in or out of sync with the triggering of the sounds.

Just like the other drums in this series, the CYMBL909 high-powered output gain stage allows you to further enhance the sound through distortion and clipping. Tiptop have designed a dual pulse-shaper circuit on each gate input so you can trigger your CYMBL909 with trigger/gate signals from step sequencers, clock dividers or any other pulse/clock.

TR-909 is a Trademark of Roland Corp Japan

Size: 8HP
Depth: 46mm
Power: +12V 60ma / -12V 40ma

Notes: The Dual Mantis Studio Brackets pair lets you connect two Mantis together in a robust and elegant solution. This setup is fixed and is recommend mainly for studio use. The brackets are cut precisely by laser from a sturdy metal and then coated twice for a nice smooth finish that matches the Mantis light gray color. They come with sixteen screws and special washers that help hold the screw in place during assembly and keep a tiny gap between the brackets and the Mantis. Installation is fairly simple and takes about 30 minutes to complete.

Using the optional bracket accessory Mantis can be doubled up to 416HP! Multiply your Mantis and watch your studio setup grow...

Before you begin:
Please get a Phillips head screw driver. It is also recommended to have eight eurorack modules available to help align the Z-Rails but this is not mandatory.

The kit contains:
2 x Brackets, left and right
2 x Adhesive foam strips
12 x Phillips pan head machine screws
12 x Nylon washers
1 x Allen Wrench 3mm

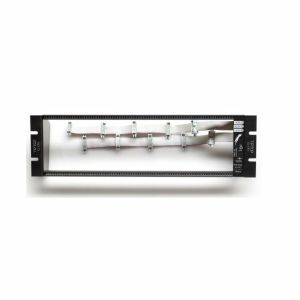

Notes: The Happy Ending Kit is an easy way to get everything needed to start a Eurorack modular system.

The Happy Ending Kit includes:
1 x Z-Rails set plus screws to attach to Z-Ears
1 x uZeus 4HP PSU with 2 x flying bus boards
1 x UK 3-pin mains adapter

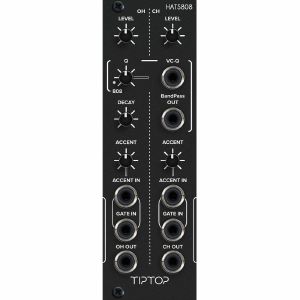

Notes: Introducing the HATS808, a drum module that brings the classic TR-808 closed and open hi-hat sounds to the Eurorack modular synth format. This module includes features like independent accent levels, a high-powered gain stage, dual input pulse-shaper, and adjustable Filter Q and VC-Q knobs for additional tuning.
The HATS808 uses six analogue square wave oscillators to create its signature sizzling sound, maintaining the unique metallic character of the original. The original "choke" circuitry is fully implemented but can be disabled if needed. The high-powered gain stage allows for further sound harmonization through distortion and clipping. The dual pulse-shaper circuit ensures consistent sound quality from any pulse source, making the HATS808 an easy and powerful addition to any modular synth setup.

TR-808 is a Trademark of Roland Corp Japan

Size: 8HP
Depth: 14mm
Power: +12V 30ma / -12V 25ma

Notes: ***B-STOCK: Without original box, old panel design, shows some signs of wear***


Introducing the HATS909, part of our new series of drum modules that brings those classic percussion sounds into the modular synth world, instantly turning your system into a self-contained music machine.

The HATS909 is the TR-909's original Closed and Open Hi-Hats circuits adapted for use in Eurorack modular synthesizer format and was tested to sound like a machine coming fresh off the assembly line back in the 80's Improving on the original, we have added some great new features that expand the sound palette of hats that can be produced with this small, powerful module.

The original TR-909 circuit is made with a combination of low-fi 6-bit sound samples that pass through a series of analog elements to provide envelope and filtering to the source sound. The HATS909 module allows for manual and voltage control of the sample's tuning, which provides anything from crushed hats and short ticks to the original sound and anything in between. A modulation switch allows you to tap a voltage control to either the tune input or the internal VCA for modulation with external control signals or for adding AM or FM synthesis in the audio range from external oscillators, other drum sounds, or just about any sound source. HATS909 also offers a switch for a direct tap to the output of the original sample, bypassing all other internal analog processing, giving you the pure source sound for synthesis any way you want with your own modules.

Just like the other drums in this series, the HATS909 high-powered output gain stage allows you to further harmonize the sound through distortion and clipping. On each gate input, we have designed a dual pulse-shaper circuit so you can trigger your HATS909 with trigger/gate signals from step sequencers, clock dividers, or any other pulse/clock sources.

Notes: Introducing the HATS909, part of TipTop's new series of drum modules that brings those classic percussion sounds into the modular synth world, instantly turning your system into a self-contained music machine.

The HATS909 is the TR-909's original Closed and Open Hi-Hats circuits adapted for use in Eurorack modular synthesizer format and was designed to sound like a machine coming fresh off the assembly line back in the 80's. Improving on the original, TipTop have added some great new features that expand the sound palette that can be produced with this small, powerful module.

The original TR-909 circuit is made with a combination of low-fi sound samples that pass through a series of analogue elements to provide envelope and filtering to the source sound. The HATS909 module allows for manual and voltage control of the sample's tuning, which provides anything from crushed hats and short ticks to the original sound and anything between. Additional controls allow you to send a voltage control signal to either the tune input or the internal VCA for modulation with external control signals and, using a modulation switch, add AM or FM synthesis in the audio range from external oscillators, other drum sounds, or just about any other sound source. Lastly, HATS909 also offers a switch that allows you to tap directly into the raw output of the module for a unique sound source that can used throughout your system.

Just like the other drums in this series, the HATS909 high-powered output gain stage allows you to further harmonize the sound through distortion and clipping. On each gate input, Tiptop have designed a dual pulse-shaper circuit so you can trigger your HATS909 with trigger/gate signals from step sequencers, clock dividers, or any other pulse/clock sources.

TR-909 is a Trademark of Roland Corp Japan

Size: 8HP
Depth: 36mm
Power: +12V 33ma / -12V 22ma

Notes: The M module is a 5-way Polytip signal multiplier. It takes a single polyphonic audio, CV, or gate signal set and routes it to up to five multiple outputs. The module is completely passive and requires no power. Like all Polytip jacks on Tiptop Audio modules, the jacks on the M module are top-quality components made in Japan.

Size: 4HP - Depth: 15mm

Power: no power required

Notes: The MA808 is a Eurorack module that recreates the TR-808's analogue Maracas drum voice and white noise generator at a low cost, expanding your Tiptop Audio modular drum machine. It features a fluffy, harmonically rich sound that enhances Hi-Hats dynamics. The Attack control knob allows adjustments from sharp Hi-Hat to slow-rise Maracas, with a marker for the original 808 setting.

The MA808 also includes the 808's continuous analogue white noise generator, ideal for creating custom drum sounds or general white noise use. It faithfully reproduces the original 1980s circuit and includes a high-powered gain stage for hot, distortable signals. The dual input pulse-shaper ensures stable triggering from various pulse sources, making the MA808 an easy and powerful addition to any modular synth setup.

TR-808 is a Trademark of Roland Corp Japan

Size: 4HP
Depth: 14mm
Power: +12V 16ma / -12V 14ma

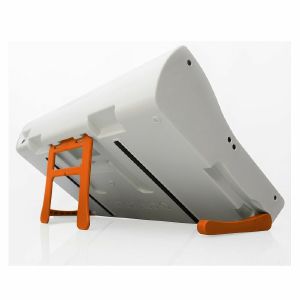

Notes: With Mantis, Tiptop took their years of experience with Eurorack to create a low-cost case that makes the Eurorack modular synthesizer look, work, and feel like a professional instrument. Mantis is an instrument that is at home on stage, touring, or in the center of the studio.

Mantis has two rows of 104HP for you to rack your modules. It comes fully powered and assembled, just drop in your modules and play.

Using its sophisticated leg mechanism, you can set it to three different positions: 0, 45, and 90 degrees.

Power Power and more Power! With Mantis, say bye-bye to the tedious, never-ending calculation of current consumption for the i12V power. Mantis comes with a juicy Zeus power supply that delivers plenty of power both now and for the future.

Mantis is beautiful and the color contrast between legs and body gives it its identity. Legs are offered in 4 different colors so anyone can find the right look.

Mantis comes with real Z-Rails made according to Eurorack enclosure standards. No sliding nuts or wrong spacing! It also has keyed power connectors to help protect your modules from damage from plugging the power in in reverse.

Using the optional bracket accessory Mantis can be doubled up to 416HP! Multiply your Mantis and watch your studio setup grow...

Weighing only 3kg/6.5lb, Mantis is so light, traveling has never been so relaxed.

The Dual Mantis Studio Brackets pair lets you connect two Mantis together in a robust and elegant solution. This setup is fixed and is recommend mainly for studio use. The brackets are cut precisely by laser from a sturdy metal and then coated twice for a nice smooth finish that matches the Mantis light gray color. They come with sixteen screws and special washers that help hold the screw in place during assembly and keep a tiny gap between the brackets and the Mantis. Installation is fairly simple and takes about 30 minutes to complete.

***UPDATE - MAY 2021 ***
As of May 2021, all Mantis cases shipped have a small update to the design. The connector for SyncBus is no longer included. This connector was never used as Tiptop didn't develop the cable for it, and the connector is no longer in production by the manufacturer so it was removed. The Mantis still has the same power supply and functions as before.

Notes: With Mantis, Tiptop took their years of experience with Eurorack to create a low-cost case that makes the Eurorack modular synthesizer look, work, and feel like a professional instrument. Mantis is an instrument that is at home on stage, touring, or in the center of the studio.

Mantis has two rows of 104HP for you to rack your modules. It comes fully powered and assembled, just drop in your modules and play.

Using its sophisticated leg mechanism, you can set it to three different positions: 0, 45, and 90 degrees.

Power Power and more Power! With Mantis, say bye-bye to the tedious, never-ending calculation of current consumption for the i12V power. Mantis comes with a juicy Zeus power supply that delivers plenty of power both now and for the future.

Mantis is beautiful and the color contrast between legs and body gives it its identity. Legs are offered in 4 different colors so anyone can find the right look.

Mantis comes with real Z-Rails made according to Eurorack enclosure standards. No sliding nuts or wrong spacing! It also has keyed power connectors to help protect your modules from damage from plugging the power in in reverse.

Using the optional bracket accessory Mantis can be doubled up to 416HP! Multiply your Mantis and watch your studio setup grow...

Weighing only 3kg/6.5lb, Mantis is so light, traveling has never been so relaxed.

The Dual Mantis Studio Brackets pair lets you connect two Mantis together in a robust and elegant solution. This setup is fixed and is recommend mainly for studio use. The brackets are cut precisely by laser from a sturdy metal and then coated twice for a nice smooth finish that matches the Mantis light gray color. They come with sixteen screws and special washers that help hold the screw in place during assembly and keep a tiny gap between the brackets and the Mantis. Installation is fairly simple and takes about 30 minutes to complete.

***UPDATE - MAY 2021 ***
As of May 2021, all Mantis cases shipped have a small update to the design. The connector for SyncBus is no longer included. This connector was never used as Tiptop didn't develop the cable for it, and the connector is no longer in production by the manufacturer so it was removed. The Mantis still has the same power supply and functions as before.

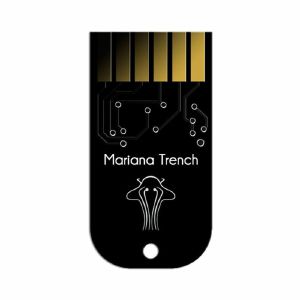

Notes: Mariana Trench is an FDN card for the Z-DSP. Feedback Delay Networks (FDNs) are built around multiple delays which are connected to their inputs thanks to a feedback matrix designed for its stability and lossless properties. FDN can mimic the recursive process of sound waves bouncing back and forth in an acoustic space. They were first suggested for artificial reverberation by Michael Gerzon (1971) and later John Stautner and Miller Puckette (1982) introduced four-channel FDN reverberator with general stability conditions.

FDN can also be used as a special case of digital waveguides, they can be tuned, or also used as complex delays. The Mariana Trench Z-DSP cartridge is designed to explore these more unusual sides of the FDN algorithms. Mariana Trench Z-DSP cartridge is designed by Christophe Duquesne Anckorage - Haken Audio developement team - La Voix du Luthier.

Notes: MIXZ is a multi-channel mixing module for mixing audio, CV, and gate signals with excellent linear response and low noise. Balancing a clear visual layout and multiple mixers in a small footprint makes the MIXZ easy to use in a variety of configurations within a modular synth. Its high-quality analog mixing circuitry makes for a great sounding mixer with plenty of headroom, providing a smooth, organic merge of dynamics and excellent separation of mixing sections and channels. MIXZ has three sections:

Mixer A: a low-noise, 4-channel mixer with independent gain control for each channel.
Mixer B: a low- noise, 4-channel mixer with master gain control.
MixBus: a multi-channel mixer that mixes signals from modules utilizing the Tiptop MixBus.

Mixer A and B can be configured as either two independent, 4-channel mixers or as a single 8-channel mixer. If the output of Mixer A is not in use, then Mixer A will be routed internally to Mixer B forming the 8-channel mixer.

Tiptop MixBus is a new method we have developed to mix audio signals through the Eurorack power bus board without patch cables. A little bit of magic, eh? Although this technique is not ideal for a low-noise mix, we found it to be useful for some applications, including mixing our drum modules, which all have a MixBus-enabled output. The result is that your drum modules are always available and mixed on the master out of the MIXZ with a flip of a switch. This will save you time and frees up cables for repatching sound again and again, while keeping the channels of MIXZ free to bring other signals into the mix.

Combining the MixBus with Mixer A and B, the MIXZ sums dozens of channels in only 10HP.

Dimensions:
10 HP
36 mm deep

Current draw:
14 mA +12V
14 mA -12V

Notes: Octo I/O is a bi-directional passive Polytip to 3.5mm expander and a Polytip Mult. The expander section lets you break out to each individual voice from a polyphonic module. The mult section lets you mult Polytip polyphonic signals from one source to multiple destinations. For example patching the OCTOSTAGES envelopes to control both your OCTOPASS filters and HEXAGAIN VCAs.

Dimensions:

6HP - Depth: 15mm

Current Draw:

Module does not draw current

Notes: Octogain is a eight voice polyphonic analogue audio VCA plus a eight voice mixer with master level control and odd/even (Right and Left) channels for a stereo output and clipping indicator. All eight VCA ins and outs are simultaneously available through Polytip jacks and 3.5mm jacks so the module can be used in a variety of ways both polyphonic or multi-voice monophonic. The fully analogue audio path has exponential CV control. CV inputs are 0-5V, typical audio input is 10Vp.p. A global Offset knob allow to open all VCAs manually or apply positive offset to incoming CV. The design uses very low power consumption with excellent audio quality.

Size: 16HP - Depth: 40mm
Power: +12V 42mA / -12V 35mA

Notes: OCTOPASS is an eight voice 24db/octave low pass filter based on the classic 2044 filter. All eight filters are fully analogue with gain compensation of resonance and the lovely lush sound of classic synths. A global frequency modulation CV using a 3.5mm jack can be used to modulate all eight incoming CVs of the Polytip jack. The typical use is to patch polyphonic synthesisers with the use of only a few Polytip patch cables for its audio ins and outs and its cut-off frequency controls. To tap each filter I/O or CV using discrete modules the OCTO I/O module can be used as an expander. As there are eight filters in the module special attention has been given to power consumption efficiency.

Size: 20HP

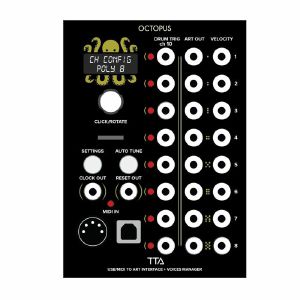

Notes: OCTOPUS is a powerhouse ART controller that takes MIDI in via the USB or DIN connector and outputs 8 ART channels with 8 velocity CV plus 8 drum triggers. Together with the ART oscillators the OCTOPUS provide unprecedented simplicity connecting the modular to your computer sequencers, hardware midi sequencers and keyboards. Each ART channel can play polyphonic notes, monophonic notes or create multi-channel polyphony using an internal voice manager. All together OCTOPUS can play more voices and notes from a single controller than ever was possible in modular. Using ART high speed control signals OCTOPUS can maintain low jitter for tight timing.

Please note, OCTOPUS is not a 1V/Oct midi to CV and should not be confused as one.

Size: 18HP - Depth: 40mm / 1.5"
Power: +12V 140mA / -12V 100mA

Notes: Part of TipTop's polyphonic range, the Octostages is based on the envelope circuits from the legendary Oberheim OB-X. Eight fully analogue envelopes with shared ADSR controls.

Supplier's Notes:
Octostages is an eight voice fully analogue envelope generator made with the original envelopes of the 1979 OBX. Each of the eight envelopes feature a Gate in, Envelope OUT, Velocity CV in and Attack CV in control as well as an output led indicator. A master output level knob and CV using standard mono jack are provided to control or modulate all envelope output levels globally. As there are eight EGs in the module special attention has been given for power consumption efficiency.

Size: 20HP - Depth: 40mm
Power: +12V 185mA / -12V 165mA

Notes: The Octovert is a CV processor capable of scaling, inverting, and offsetting up to eight polyphonic signals. It can also be externally controlled via CV! Its most obvious applications include inverting envelopes, reversing the direction of CV, and scaling plus offsetting any CV source to precisely fine-tune the modulation sweet spot of the target module. With the added feature of external control, it takes things even further by modulating the modulation signal itself for even deeper modulation motion.

Size: 6HP - Depth: 40mm

Power: +12V 18mA / -12V 15mA

Notes: Polytip is Tiptop Audio's new type of modular synthesiser patch cable that can pass multiple audio channels using minimal panel space. This innovative design finally adds to modular the capability to patch more than one signal at a time and unleash the full potential of polyphonic patching between modules. Polytips uses the industry standard USB Type C connector although it is not a USB cable (and USB cables do not work with Polytip). Internally multiple lines of shielded analogue audio lines pass from end to end with excellent sound quality.

Notes: Polytip is Tiptop Audio's new type of modular synthesiser patch cable that can pass multiple audio channels using minimal panel space. This innovative design finally adds to modular the capability to patch more than one signal at a time and unleash the full potential of polyphonic patching between modules. Polytips uses the industry standard USB Type C connector although it is not a USB cable (and USB cables do not work with Polytip). Internally multiple lines of shielded analogue audio lines pass from end to end with excellent sound quality.

Notes: Polytip is Tiptop Audio's new type of modular synthesiser patch cable that can pass multiple audio channels using minimal panel space. This innovative design finally adds to modular the capability to patch more than one signal at a time and unleash the full potential of polyphonic patching between modules. Polytips uses the industry standard USB Type C connector although it is not a USB cable (and USB cables do not work with Polytip). Internally multiple lines of shielded analogue audio lines pass from end to end with excellent sound quality.

Notes: polytip is Tiptop Audio's new type of modular synthesiser patch cable that can pass multiple audio channels using minimal panel space. This innovative design finally adds to modular the capability to patch more than one signal at a time and unleash the full potential of polyphonic patching between modules. Polytips uses the industry standard USB Type C connector although it is not a USB cable (and USB cables do not work with Polytip). Internally multiple lines of shielded analog audio lines pass from end to end with excellent sound quality.

Notes: Polytip is Tiptop Audio's new type of modular synthesiser patch cable that can pass multiple audio channels using minimal panel space. This innovative design finally adds to modular the capability to patch more than one signal at a time and unleash the full potential of polyphonic patching between modules. Polytips uses the industry standard USB Type C connector although it is not a USB cable (and USB cables do not work with Polytip). Internally multiple lines of shielded analogue audio lines pass from end to end with excellent sound quality.

Notes: Polytip is Tiptop Audio's new type of modular synthesiser patch cable that can pass multiple audio channels using minimal panel space. This innovative design finally adds to modular the capability to patch more than one signal at a time and unleash the full potential of polyphonic patching between modules. Polytips uses the industry standard USB Type C connector although it is not a USB cable (and USB cables do not work with Polytip). Internally multiple lines of shielded analogue audio lines pass from end to end with excellent sound quality.

Notes: Polytip is Tiptop Audio's new type of modular synthesiser patch cable that can pass multiple audio channels using minimal panel space. This innovative design finally adds to modular the capability to patch more than one signal at a time and unleash the full potential of polyphonic patching between modules. Polytips uses the industry standard USB Type C connector although it is not a USB cable (and USB cables do not work with Polytip). Internally multiple lines of shielded analogue audio lines pass from end to end with excellent sound quality.

Notes: The RS808 is a Eurorack module that brings the TR-808's analogue Rimshot and Claves sounds to your modular drum machine at a low cost. It offers the classic sounds plus two unique snappy "click" variations. Two control knobs, labeled Pitch and Snap, adjust the oscillator frequency and envelope decay, providing greater sound variation and control.

The RS808 faithfully reproduces the original 1980s TR-808 circuit and includes a high-powered gain stage for hot, distortable signals. It features a dual input pulse-shaper for stable triggering from various pulse sources. These enhancements make the RS808 an easy and powerful addition to any modular synth setup, delivering authentic analogue drum sounds.

TR-808 is a Trademark of Roland Corp Japan

Size: 4HP
Depth: 14mm
Power: +12V 14ma / -12V 13ma

Notes: The SD909 adapts the iconic TR-909 snare drum and noise generator for use in the Eurorack modular synthesizer format. Tiptop painstakingly tested the module in their lab to sound like a fresh machine coming off of the assembly line back in the 80s. On top of the original circuit, Tiptop have added new features that expand the palette of what can be produced with this analogue circuit.

The sound of the SD909 consists of two main sections: the binary noise generator and two modulated triangle oscillators. The oscillators provide the low end punch while the noise makes up the upper sonic spectrum, resulting in a combination that makes the 909 snare sound so rich. In the SD909 module, the noise generator and oscillators are variable and voltage-controllable, pushing the circuit beyond its original boundaries, offering new sounds and many variations of the original tone. The panel also has markings to guide setting the knobs to reproduce the vintage snare sound of the original machine.

Just like the other drums in this series, the SD909's high-powered output gain stage allows further enhancement of the sound through distortion and clipping. Tiptop have designed a dual pulse-shaper circuit on each gate input so you can trigger your SD909 with Trigger/Gate signals from step sequencers, clock dividers, or any other pulse/clock sources. Also, the SD909 is equipped with access to the MIXZ MixBus, matching the rest of the Tiptop line of percussive modules.

TR-909 is a Trademark of Roland Corp Japan

Size: 8HP
Depth: 46mm
Power: +12V 35ma / -12V 30ma

Notes: Tiptop Audio's revolutionary 3.5mm Stackcable is the world's first cable that combines low-noise shielded performance with the convenience of stacking banana cables. The patented Stackcable provides signal splitting directly on the back of the plug, giving you the flexibility to distribute signals without a multiple module.

Notes: Tiptop Audio's revolutionary 3.5mm Stackcable is the world's first cable that combines low-noise shielded performance with the convenience of stacking banana cables. The patented Stackcable provides signal splitting directly on the back of the plug, giving you the flexibility to distribute signals without a multiple module.

Notes: Tiptop Audio's revolutionary 3.5mm Stackcable is the world's first cable that combines low-noise shielded performance with the convenience of stacking banana cables. The patented Stackcable provides signal splitting directly on the back of the plug, giving you the flexibility to distribute signals without a multiple module.

Notes: Tiptop Audio's revolutionary 3.5mm Stackcable is the world's first cable that combines low-noise shielded performance with the convenience of stacking banana cables. The patented Stackcable provides signal splitting directly on the back of the plug, giving you the flexibility to distribute signals without a multiple module.

Stackcables vs Multiples:

The Stackcable opens up a whole new approach to the art of synthesizer patching. Complex signal flow is more visible and easier to follow and you'll never again have to interrupt your workflow to stop, trace back, and insert a multiple. Spend more time concentrating on music making and less time on figuring how to run multiple signal paths. In addition, when comparing multiple modules vs Stackcables, the Stackcables can come out cheaper and provide you with more mult points, whenever you need them, in any configuration, without taking up any rack space in your system.

Stackcables vs Regular Patch Cables:

When comparing the Stackcables with regular patch cables, the Stackcables always keep your jacks reusable no matter how many connections are running to or from a jack. Using standard patch cables effectively "seals up" a jack once patched in, a major limitation in the dynamic workflow of a modular synthesizer. And when it comes to carrying your audio signals, the Stackcable is superior to low-cost patch cables because they are made with heavy-gauge signal conductor and signal shielding, providing both low capacitance, low impedance, and excellent noise rejection. Additionally, by providing shielding from electrical interference, the Stackcable outperforms any other signal splitter at handling audio and control signals in a professional studio environment, keeping both your studio quiet and your modular synth signals clean.

Stackcables Unique Mechanism:

The Stackcable's elegant connectors hide a complex sub-miniature electromechanical design that tightly integrates a 3.5mm plug and a 3.5mm jack together at each end of the cable, all the while handling both ground and signal. This innovative mechanism is what makes the Stackcable a reality, yet it provides an even more compact connector than a single-conductor banana cable. So if you have never experienced stack-ability, then get ready to feel how effortless, creative, and mind- altering your patching will become with these Stackcables.

Stackcables Warranty:

As of July 2017, Stackcables are manufactured in-house under full quality control, allowing Tiptop Audio to provide customers with a 2-year warranty.

Stackcables are compatible with all audio gear that uses the 3.5mm / 1/8'' jack and plug. (Do not use Stackcables with Switchcraft Tini-Jaxr brand jacks.)

Notes: The TipTop Audio Stackcables allow you to stack your cables to give you complex signal flows with greater visibility

Notes: The TipTop Audio Stackcables allow you to stack your cables to give you complex signal flows with greater visibility

Notes: The TipTop Audio Stackcables allow you to stack your cables to give you complex signal flows with greater visibility

Notes: The TipTop Audio Stackcables allow you to stack your cables to give you complex signal flows with greater visibility.

Notes: The TipTop Audio Stackcables allow you to stack your cables to give you complex signal flows with greater visibility

Notes: The S1 is a promotional bundle that Tiptop Audio is offering to users, providing a 33% savings to get you started with ART. With these bundles, this incredible voice is included: the big, beefy 3 VCO stack. The bundles come in two options: Bundle S1, which uses the ART V/OCT Quantizer as a controller, and Bundle S2, which uses Octopus as a controller. In addition to the controllers, there are three ATX1 analogue oscillators, MIX7 for mixing them with plenty of headroom, and followed by the beloved 4-pole Z2040 filter that has been with TipTop since day one; it just sounds so good. Finally, we end up with Control Path dual envelope plus VCA dynamics modules. This special price is time limited and while supplies last.

ART QUAD QUANTIZER is a four channel CV to ART Quantizer to play ART oscillators from CV sequencers, LFOs and anything that outputs CV. This is Tiptop's second ART controller option and is designed for those of us playing ART without a computer or MIDI source. The inputs take in positive, negative, bipolar CV voltages. Scales include Major Minor and the five other modes (Dorian, Lydian, etc). The module is simple to set up with a simple menu and one knob with switch for navigation. The 4th channel can be set to generate Chords and polyphonic note streams for ART Polyphonic oscillators.

Size: 8HP - Depth: 40mm / 1.5"
Power: +12V 38mA / -12V 4mA

ATX1: a classic all analogue saw VCO core with 3 switchable modes, ART, 1V/Oct, LFO and is recommended as the basic building block for ART systems. It is designed for patching analogue polyphonic synths from discrete modules or multi-mono patches in ART mode. When using ART the ATX1 takes care of the tuning including accounting for temperature changes. In 1V/Oct mode the ATX1 runs as a standard old school modular VCO. LFO mode drops the frequency range and is great for patching vibrato to other ATX1s among other things. The ATX1 outputs variable waveshapes with manual or CV control. Classic FM, PWM and hard sync are provided. A dedicated Gate Out in ART mode manages the voice envelopes or any modulation synced to that voice. TipTop consider the ATX1 the best sounding analogue VCO they have ever created.

Size: 8HP - Depth: 40mm / 1.5"
Power: +12V 105mA / -12V 33mA

MIX7 is a seven channel analogue summing mixer module for Eurorack. It is designed for summing any of the different types of signals you'll find in a modular system: Audio, CV, Triggers, or Gate.

MIX7 gives ability to sweeten your mix with more headroom using the power of low noise analogue summing. A compact 3HP Eurorack utility module, MIX7 is an attractive mixing addition to any rig, especially with the ability to also combine rhythms, note patterns or CV automations from different control sources. The main output of one section can be connected to the input of another MIX7 to create larger mixing groups and complex signal routes inside your modular.

The MIX7 summing mixing circuit is built with low-noise operational amplifiers, giving it an excellent sound quality for mixing audio, the beautiful texture of classic analogue mixing with plenty of headroom to handle hot modular signals, and the versatility to sum non-audio signals in your system to open up new creative possibilities.

Each input is labelled with a number of dots, 1-7, yellow for input and green for output. The module matches Tiptop's system look with clean white faceplate styling.

At the back of the module is a user-configurable jumper allowing users to configure the MIX7 for either unity gain (OUT = IN) or give increased headroom (OUT = 0.4IN) for use with hot audio signals, which makes it a great pairing for Tiptop Audio percussive modules. A peak indicator light on the front panel warns the user of even the slightest audio clipping in the mix, helping to keep all the incoming sound sources at their full original quality.

Size: 3HP - Depth: 43mm - Power: +12V 25ma / -12V 20ma

CONTROL PATH is an all in one voice dynamics module that helps build full voices quickly. It contains two analogue envelopes with velocity cv, and one VCA. In a typical voice patch the left envelope will control a filter and the right envelope will be the voice VCA. Velocity control is provided for each envelope and delay front panel trimmers are used to compensate for any miss match between incoming gate signal and velocity CV timings. Envelope cv outs are 0-5V, Velocity cv ins are 0-5V.

Size: 8HP - Depth: 40mm / 1.5"
Power: +12V 50mA / -12V 55mA

The Z2040 is TipTop's redesign of the most famous analogue filter from the polysynths of the 80's and features Tiptop Audio's signature lush, big, and creamy sound. Its frequency sweeps make thick bass lines and leads with great dynamics. When modulated with audio frequencies through its various inputs, the Z2040 gets quite colourful and is capable of creating many new sounds and textures as the forces of the incoming waves and their harmonics blend through the filter's non-linear circuit. When set with Resonance feedback fully up, the Z2040 transforms into a pure sine-core VC-Oscillator, great for making snappy percussive elements and whistling sounds.

A look under the hood will find that the heart of the Z2040 is a discrete design 4-pole low pass filter with a core similar to that of the SSM2040 filter chip, used in the 80's Prophet 5 Rev 2 synthesizer, and its brother the SSM2044, used in the famous early EMU samplers and PPG synthesizers of the 80's. Both filters are considered by many to be, "the best sounding filter ever".

The Z2040's four modulation inputs are built to handle CV and audio signals, enabling deep modulation of the filter core and passing signals. A VC resonance input is provided to modulate and even clip the sine wave produced by the filter feedback loop. A Frequency Modulation input (FM) provides dynamic filter sweeps and the unique VC-FM index allows modulation of the incoming FM signals. On top of that, the Z2040 comes with an audio VCA that can be configured to act upon the input or the output of the filter.

Size: 8HP - Depth: 42mm - Power: +12V 20ma / -12V 20ma

Notes: A serious bargain for anyone putting together a modular system, TipTop bundle three VCOs and the Octopus controller with their mixer, filter, dual envelopes and VCA. Great value.

Supplier's Notes:
The S2 is a promotional bundle that TipTop is offering to users, providing a 33% savings to get you started with ART. With these bundles, TipTop have included an incredible voice: the big, beefy 3 VCO stack. The bundles come in two options: Bundle S1, which uses the ART V/OCT Quantizer as a controller, and Bundle S2, which uses Octopus as a controller. In addition to the controllers, there are three ATX1 analogue oscillators, MIX7 for mixing them with plenty of headroom, and followed by TipTop's beloved 4-pole Z2040 filter that has been with them since day one; it just sounds so good. Finally, we end up with Control Path dual envelope plus VCA dynamics modules. This special price is time limited and while supplies last.

OCTOPUS is a powerhouse ART controller that takes MIDI in via the USB or DIN connector and outputs 8 ART channels with 8 velocity CV plus 8 drum triggers. Together with the ART oscillators the OCTOPUS provide unprecedented simplicity connecting the modular to your computer sequencers, hardware midi sequencers and keyboards. Each ART channel can play polyphonic notes, monophonic notes or create multi-channel polyphony using an internal voice manager. All together OCTOPUS can play more voices and notes from a single controller than ever was possible in modular. Using ART high speed control signals OCTOPUS can maintain low jitter for tight timing. OCTOPUS is TipTop's first ART controller with more to follow, please select between Octopus or ART V/Oct Quantizer to get started with ART. Please note, OCTOPUS is not a 1V/Oct midi to CV and should not be confused as one.

Size: 18HP - Depth: 40mm / 1.5"
Power: +12V 140mA / -12V 100mA

ATX1: a classic all analogue saw VCO core with 3 switchable modes, ART, 1V/Oct, LFO and is recommended as the basic building block for ART systems. It is designed for patching analogue polyphonic synths from discrete modules or multi-mono patches in ART mode. When using ART the ATX1 takes care of the tuning including accounting for temperature changes. In 1V/Oct mode the ATX1 runs as a standard old school modular VCO. LFO mode drops the frequency range and is great for patching vibrato to other ATX1s among other things. The ATX1 outputs variable waveshapes with manual or CV control. Classic FM, PWM and hard sync are provided. A dedicated Gate Out in ART mode manages the voice envelopes or any modulation synced to that voice. TipTop consider the ATX1 the best sounding analogue VCO they have ever created.

Size: 8HP - Depth: 40mm / 1.5"
Power: +12V 105mA / -12V 33mA

MIX7 is a seven channel analogue summing mixer module for Eurorack. It is designed for summing any of the different types of signals you'll find in a modular system: Audio, CV, Triggers, or Gate.

MIX7 gives ability to sweeten your mix with more headroom using the power of low noise analogue summing. A compact 3HP Eurorack utility module, MIX7 is an attractive mixing addition to any rig, especially with the ability to also combine rhythms, note patterns or CV automations from different control sources. The main output of one section can be connected to the input of another MIX7 to create larger mixing groups and complex signal routes inside your modular.

The MIX7 summing mixing circuit is built with low-noise operational amplifiers, giving it an excellent sound quality for mixing audio, the beautiful texture of classic analogue mixing with plenty of headroom to handle hot modular signals, and the versatility to sum non-audio signals in your system to open up new creative possibilities.
Each input is labelled with a number of dots, 1-7, yellow for input and green for output. The module matches Tiptop's system look with clean white faceplate styling.

At the back of the module is a user-configurable jumper allowing users to configure the MIX7 for either unity gain (OUT = IN) or give increased headroom (OUT = 0.4IN) for use with hot audio signals, which makes it a great pairing for Tiptop Audio percussive modules. A peak indicator light on the front panel warns the user of even the slightest audio clipping in the mix, helping to keep all the incoming sound sources at their full original quality.

Size: 3HP - Depth: 43mm - Power: +12V 25ma / -12V 20ma

CONTROL PATH is an all in one voice dynamics module that helps build full voices quickly. It contains two analogue envelopes with velocity cv, and one VCA. In a typical voice patch the left envelope will control a filter and the right envelope will be the voice VCA. Velocity control is provided for each envelope and delay front panel trimmers are used to compensate for any miss match between incoming gate signal and velocity CV timings. Envelope cv outs are 0-5V, Velocity cv ins are 0-5V.
Size: 8HP - Depth: 40mm / 1.5"

Power: +12V 50mA / -12V 55mA

The Z2040 is TipTop#s redesign of the most famous analog filter from the polysynths of the 80's and features Tiptop Audio's signature lush, big, and creamy sound. Its frequency sweeps make thick bass lines and leads with great dynamics. When modulated with audio frequencies through its various inputs, the Z2040 gets quite colorful and is capable of creating many new sounds and textures as the forces of the incoming waves and their harmonics blend through the filter's non-linear circuit. When set with Resonance feedback fully up, the Z2040 transforms into a pure sine-core VC-Oscillator, great for making snappy percussive elements and whistling sounds.

A look under the hood will find that the heart of the Z2040 is a discrete design 4-pole low pass filter with a core similar to that of the SSM2040 filter chip, used in the 80's Prophet 5 Rev 2 synthesizer, and its brother the SSM2044, used in the famous early EMU samplers and PPG synthesizers of the 80's. Both filters are considered by many to be, "the best sounding filter ever".

The Z2040's four modulation inputs are built to handle CV and audio signals, enabling deep modulation of the filter core and passing signals. A VC resonance input is provided to modulate and even clip the sine wave produced by the filter feedback loop. A Frequency Modulation input (FM) provides dynamic filter sweeps and the unique VC-FM index allows modulation of the incoming FM signals. On top of that, the Z2040 comes with an audio VCA that can be configured to act upon the input or the output of the filter.

Size: 8HP - Depth: 42mm - Power: +12V 20ma / -12V 20ma

Notes: Introducing the TOMS909, the warmth of the classic, all-analogue, punchy tom-toms from the TR-909 drum machine. The TOMS909 contains all three of the TR-909's original LOW, MID and HIGH tom-tom circuits adapted for use in the modular format. The module was designed to sound like a fresh machine coming off the assembly line back in the 80's. To add flavour to the beast, Tiptop have extended each tom's tuning range so it's easier to dial soft bass drums on the low end and high-pitched toms on the other.

The toms circuitry is made up of 9 triangle oscillators and a stack of filters, VCAs, and envelopes which, in total, took about half of the space on the original 909's circuit board. Utilizing the latest in electronic design technology, Tiptop have managed to squeeze this enormous circuit, consisting of more than 450 components, into an area only 16HP wide. It is a beautiful board with hundreds of tiny, shiny components: it's a little analogue jewel.

Each tom includes a trigger and accent input with accent level control, manual tune, voltage-control tune input with attenuator and independent audio out. In addition, a MIX out is available that sums all three toms together as well as access to the MIXZ MixBus on the back. On each gate input, Tiptop have designed a dual pulse-shaper circuit so you can trigger your TOMS909 with trigger/gate signals from sequencers or any other pulse/clock sources.

TR-909 is a Trademark of Roland Corp Japan

Size: 16HP
Depth: 51mm
Power: +12V 120ma / -12V 100ma

Notes: Vortex 6 us a polyphonic 6-voice wavetable oscillator inspired by the hardware design and sound of the PPG Wave 2.2, and it is the only oscillator of this type that uses true 8-bit vintage audio converters from the '80s. Dozens of wavetables are provided internally, and user tables can be loaded via an SD card. VORTEX6 has built-in vibrato, glide, and six wavetable-scrolling envelopes, all with CV. The ART-in jack and a built-in voice manager take care of incoming notes and distribute them to audio, gate, and velocity outsieither through per-voice 3.5mm jacks or the Polytip jacks. Together with OCTOPUS, one or more OCTOSTAGES, OCTOPASS, and OCTOGAIN, along with a few Polytip patch cables, it forms the world's first complete six-voice polyphonic modular synth. Alternatively, VORTEX6 can be patched to discrete mono modules or use its voice mix-out for paraphonic soundscapes with up to 12 oscillators in detune mode.

Size: 20HP - Depth: 40mm

Power: +12V 190mA / -12V 50mA
