Notes: The excellent Bullfrog synth gets a new bigger brother in the form of the XL, an expanded and enhanced version of this collaborative analogue instrument, featuring built-in speakers, oscilloscope and plenty of new synth options.

Supplier's Notes:
Bullfrog invites you to unlock your musicality while combining the thrill of electronic music production with a comprehensive learning experience. Bullfrog XL is designed specifically for teachers to use in front of the classroom and it expands the concept of the regular Bullfrog by inflating its size by a factor of 3 (literally!). With its expanded size and built-in oscilloscope, Bullfrog XL isn't just for classrooms but will be a great addition to any studio.

Features

Fully analogue design
Highly accurate voltage controlled oscillator (VCO) that tracks great over 8 octaves
Manually adjustable and voltage controlled waveshapes - sine-shark fin and pulse wave with pulse width modulation (PWM)
Zener diode-based noise generator
Resonant lowpass voltage controlled filter (VCF)
Voltage controlled amplifier (VCA) with adjustable offset
Delay effect with adjustable delay time and feedback amount
Two looping attack-sustain-release envelope generators (EG)
Sample & Hold circuit with an individual clock
Attenuverter
Slew processor with adjustable slew time
Two buffered splitter circuits
Two channel oscilloscope
6.3 mm jack sockets
Manual gate button
Gate and Trigger out
Voice card slot
Built in speakers
DIN5 MIDI input
USB connector
Keyhole slots on the rear panel
Dimensions (mm): 820x505x65 (250 with the side panels)
Mass: 8.3 kg

What's included:

BULLFROG XL synthesizer with side panels
Universal 12VDC wall wart adapter with the power cable
User manual
12 1/4" patch cables
Sequencer, Sampler/Looper, Acid Bassline, Hi-pass filter, LFO and Electric Organ Voice cards
3 DIY voice cards

Created by Erica Synths & Richie Hawtin, Bullfrog is an educational electronic music instrument designed to captivate and inspire both youth and professionals alike. Bullfrog invites you to unlock musicality while combining the thrill of electronic music production with a comprehensive learning experience.

In order to provide a well-rounded understanding of the functionality of this synthesizer and sound synthesis in general, a comprehensive user manual is created to accompany the learning process.

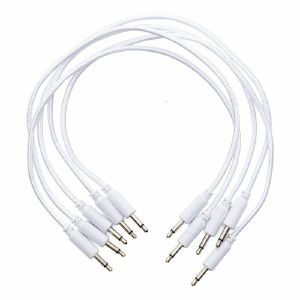

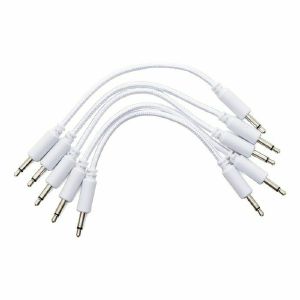

Notes: Set of 5 high-quality braided & soft 3.5mm patch cables for use with eurorack modules. The braided patch cables have a soft touch & are perfect for traveling with your eurorack system patched as they are super-bendable and much less likely to get tangled even with your case lid closed. Pleasant & practical for a better patching experience.

Notes: Set of 5 high-quality braided & soft 3.5mm patch cables for use with eurorack modules. The braided patch cables have a soft touch & are perfect for traveling with your eurorack system patched as they are super-bendable and much less likely to get tangled even with your case lid closed. Pleasant & practical for a better patching experience.

Notes: Set of 5 high-quality braided & soft 3.5mm patch cables for use with eurorack modules. The braided patch cables have a soft touch & are perfect for traveling with your eurorack system patched as they are super-bendable and much less likely to get tangled even with your case lid closed. Pleasant & practical for a better patching experience.

Notes: Set of 5 high-quality braided & soft 3.5mm patch cables for use with eurorack modules. The braided patch cables have a soft touch & are perfect for traveling with your eurorack system patched as they are super-bendable and much less likely to get tangled even with your case lid closed. Pleasant & practical for a better patching experience.

Notes: Set of 5 high-quality braided & soft 3.5mm patch cables for use with eurorack modules. The braided patch cables have a soft touch & are perfect for traveling with your eurorack system patched as they are super-bendable and much less likely to get tangled even with your case lid closed. Pleasant & practical for a better patching experience.

Notes: Set of 5 high-quality braided & soft 3.5mm patch cables for use with eurorack modules. The braided patch cables have a soft touch & are perfect for traveling with your eurorack system patched as they are super-bendable and much less likely to get tangled even with your case lid closed. Pleasant & practical for a better patching experience.

Notes: Set of 5 high-quality braided & soft 3.5mm patch cables for use with eurorack modules. The braided patch cables have a soft touch & are perfect for traveling with your eurorack system patched as they are super-bendable and much less likely to get tangled even with your case lid closed. Pleasant & practical for a better patching experience.

Notes: Set of 5 high-quality braided & soft 3.5mm patch cables for use with eurorack modules. The braided patch cables have a soft touch & are perfect for traveling with your eurorack system patched as they are super-bendable and much less likely to get tangled even with your case lid closed. Pleasant & practical for a better patching experience.

Notes: Set of 5 high-quality braided & soft 3.5mm patch cables for use with eurorack modules. The braided patch cables have a soft touch & are perfect for traveling with your eurorack system patched as they are super-bendable and much less likely to get tangled even with your case lid closed. Pleasant & practical for a better patching experience.

Notes: Set of 5 high-quality braided & soft 3.5mm patch cables for use with eurorack modules. The braided patch cables have a soft touch & are perfect for traveling with your eurorack system patched as they are super-bendable and much less likely to get tangled even with your case lid closed. Pleasant & practical for a better patching experience.

Notes: Set of 5 high-quality braided & soft 3.5mm patch cables for use with eurorack modules. The braided patch cables have a soft touch & are perfect for traveling with your eurorack system patched as they are super-bendable and much less likely to get tangled even with your case lid closed. Pleasant & practical for a better patching experience.

Notes: Set of 5 high-quality braided & soft 3.5mm patch cables for use with eurorack modules. The braided patch cables have a soft touch & are perfect for traveling with your eurorack system patched as they are super-bendable and much less likely to get tangled even with your case lid closed. Pleasant & practical for a better patching experience.

Notes: Erica Synths Acidbox III brings you the core of the famous Polivoks VCF in stereo version with a unique audio signal overdrive circuit, built in LFO and envelope follower in a compact, full aluminium case.

The Acidbox III has adjustable input gain, therefore it works with various sound sources - guitars, units with line level signals (synthesizers, grooveboxes, etc.) and modular synths. Configurable control input allows you to connect a bypass footswitch, expression pedal, external cut-off control voltage source and LFO synchronization trigger. This makes the Acidbox an ideal companion in almost every production or live performance setup.

Notes: ***B-STOCK: Item refurbished, repaired and in perfect working order.***


Erica Synths Bass Drum is developed in collaboration with the French company e-licktronick and it's our take on analogue bass drum circuits adapted for modular systems. Massive, punchy sound, Accent & CV control over key parameters of the module make it distinctively expressive in live performances.

Features
Pitch
Tune
Tune Depth controls
CV control with attenuators over Pitch, Decay and Drive
Manual trigger
Accent for better expression

Dimensions
14 HP
30 mm deep

Current Draw
60 mA +12V
30 mA -12V

Notes: Erica Synths Bassline is fully analogue synth voice module for ultimate basslines and leads.

It features AS3340 VCO with three waveforms, a filter inspired by Erica Synths Acidbox and unique features - transistor based suboscillator and two BBD lines that emulate VCO detune creating a sound of massive polysynth from one oscillator.

Accent provides more expression to the bassline, by adding volume and opening the VCF slightly.

Notes: Premium analogue delay from Erica's flagship Black Series range. Two bucket brigade device delay lines work simultaneously with smooth crossfading and tons of voltage control. Lovely.

Supplier's Notes:
Erica Black Series include high-end, unique functionality and superior quality modules. Only the best, highest quality components are used, all inputs and outputs are protected against undesired overvoltage. When designing Black Series, put design and usability superior. Big knobs are assigned to functions that make difference in sound. Erica Black series consist of range of modules that are needed to put together entire synth. Enjoy!

The Erica Synths Black BBD is one of kind analogue delay module. It features two BBD lines: short, 1024 stage and long, 4096 stage, that work simultaneously and you can smoothly fade between those two, thus creating distinct multitap effect.

Furthermore, an advanced BBD clock noise cancellation circuit is implemented that reduces unwanted BBD noise without filtering higher frequencies of audio signal. Most of parameters are voltage controlled, which allows to integrate the module in complex modular setups.

Time

This is delay time manual control.

Because of BBD clock suspension circuit, delay time can be pushed in extremely long regions, however in that case BBD clock noise may appear. The Time CV is added to the knob setting.

In level

This is the input attenuator switch. Select among full amplitude, half amplitude and audio off.

BBD mode

This control smoothly fades between short and long delays. Any setting in-between will result in distinct multitap delay effect.

LFO rate

Adjust the internal modulation LFO rate. The internal LFO controls delay time, and it's automatically disengaged, when an external modulation signal is connected. The LED gives visual feedback on the LFO rate.

LFO shape

Select the LFO shape. Three shapes are available - triangle, square and in-between shape - mix of triangle and square.

Input

This is the audio input of the module. This is manual Dry/Wet mix. The MIX CV is added to the knob setting.

Colour

Even though the module has BBD clock suspension circuit, the colour switch provides extra lowpass filtering of the signal. At top setting no filtering is applied, at lower settings increasing filtering is present.

Feedback

This is the delay feedback manual control. In extreme clockwise settings the module goes into self-oscillation, and by adjusting delay time and BBD mode settings, the module becomes a drone machine. The FBK CV is added to the knob setting.

CV level

This is the Time CV level attenuator. If nothing is patched into TIME CV socket, it controls the internal LFO amplitude.

WET out

This is the WET signal output of the module - use it for advanced patches.

Out

This is the main output of the module.

Time CV; FBK CV; Mix CV;
These are CV inputs for Time, Feedback and Dry/Wet mix.

SPECS:
Audio level 10Vptp
CV level (full span) -5V - +5V
Power consumption +95mA, -81mA
Module width 12HP
Module depth 35mm

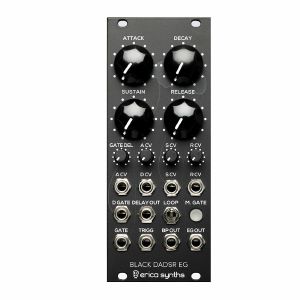

Notes: The Erica Synths Black DADSR (Delay-Attack-Decay-Sustain-Release) is a fully analogue envelope generator that gives you extended control over events in your modular synth. It's a looping exponential envelope generator that has voltage control over each stage of the envelope. An independent Gate Delay section adds extra functionality to design advanced soundscapes, like delayed modulation e ects, wave morphing, etc.

SPECS:
Attack time (with max CV) 0...2,5" (4,4")
Decay time (with max CV) 0...5" (12")
Sustain level 0...10V
Release time (with max CV) 0...4,5" (10")
Gate delay time 0,7"
CV level (full sweep) -5V - +5V
Panel width 10HP
Module depth 30mm
Power consumption 42mA@+12V, 58mA@-12V


ATTACK
Set the attack time of the envelope

GATE
Patch the gate signal here to start the envelope. If nothing is patched here, the gate input is normalled to the gate

DELAY OUT
CV ATTENUATORS
These are CV attenuators for attack, sustain and release stages

SUSTAIN
Set the sustain level of the envelope

GATE DEL
Set the gate delay time

TRIGG
You can retrigger the envelope at any stage by applying trigger signal here. The trigger alone initiates an AD envelope instead of ADSR

DELAY OUT
This is the gate delay output. The gate delay section can be used independently to control other modules in your modular setup

D GATE
If you wish to use gate delay functionality, patch the gate signal here

BP OUT
This is the bipolar output - the CV here is centered against 0V and this output serves as an LFO

EG OUT
This is the envelope generator output

M. GATE
This is the manual gate button. A built in LED gives a visual reference of the output voltage

RELEASE
Set the release time of the envelope

DECAY
Set the decay time of the envelope

LOOP
This is a LOOP switch. When it's ON, the envelope generator outputs a signal for which the rise time is defined by the Attack setting and the fall time is defined by the Release knob setting.

Notes: Erica Black Series include high-end, unique functionality and superior quality modules. Only the best, highest quality components are used, all inputs and outputs are protected against undesired overvoltage. When designing Black Series, put Erica Synths prioritised design and usability first Big knobs are assigned to functions that make difference in sound. Erica Black series consist of range of modules that are needed to put together entire synth. Enjoy!

The Erica Synths Black Dual ASR EG is a versatile, full analogue voltage controlled looping envelope generator and low frequency oscillator with manually and voltage controlled shape and rate, designed for use in advanced modular systems.

It has two identical parts, each featuring all typical envelope generator controls and bonus features - the end of the cycle output and bi-polar LFO output. When in loop mode the shortest attack and decay settings turn the module into voltage controlled drone oscillator with adjustable waveform (it will not track 1V/oct, though).

Notes: Multi-function eight-channel LFO, joystick, movement recorder and drone oscillator that packs in lots more functionality than you might expect. A real modulation powerhouse in a compact format.

Supplier's Notes:
Erica Synths Black Joystick2 is 8 channel multi functional CV and sound source - joystick, movement recorder, distinct LFO and drone/noise oscillator. It provides great interaction with the modular system and allows to develop unconventional modulation patterns instantly.

Notes: The Erica Synths Black Low Pass VCF is designed for analogue purists, who take sound design seriously. It's highly stable, 24dB/oct resonant low pass VCF with voltage control over cutoff (two CV inputs, one is with an attenuverter) and resonance. Bonus features are built in post-filter overdrive circuit with user adjustable drive amount and the Black Filter Coupler connector.

When used in combination with the Black High Pass VCF and the Black Filter Coupler, you get a Holy Trinity of VCFs for an ultimate analogue modular system.

Cutoff

This is the main control of the module - manual cutoff frequency adjustment. The incoming CV is added to the cutoff knob position.

Drive

For extreme results, flip the drive switch on! This will apply post-filter drive. You can preset drive level to your taste by adjusting a trimpot close to the switch on the back side of the module.

Reso CV In

This is the resonance CV input.

In Level

Adjust the audio signal level.

Resonance

Adjust the resonance level manually. On settings over 1PM the filter will start to self-oscillate. The incoming CV is added to the resonance knob position.

CV1 Level

This is cutoff CV attenuverter. Adjust the CV level to your taste!

ResoCV Level

Adjust the resonance CV level to your taste.

CV1; CV2
These are the cutoff CV inputs. The CV1 level is adjustable by CV1 LEVEL attenuverter knob, CV2 is applied to the cutoff without attenuation.

Input

Patch your audio signals here.

Out
This is the audio output of the module.

SPECS:
Audio level 10Vptp
CV level -10V - +10V
Filter slope 24dB/oct
Power consumption +25mA, -29mA
Module width 10HP
Module depth 35mm

The Black Low Pass VCF has a hidden feature - the Black Filter Coupler connector. The Erica Synths Black Filter Coupler is a satellite module for the Black High Pass and the Black Low Pass VCFs, and it adds versatile Bandpass and Band Reject filter functionality to your modular system.

Please note, that the Black Filter Coupler works only with Erica Synths modules and you need both Black High Pass and Low Pass VCFs.

Remove the jumper and connect the Erica Synths Black Filter Coupler. 2x5pin ribbon cable is supplied with the Black Filter Coupler module. Use this trimpot to adjust post-filter overdrive to your taste.

Notes: Introducing a four independently buffered input mixer and a buffered output signal splitter, in one module!

Erica Synths Black Mixer/Splitter V2 is an advanced replacement for stackable patchcables.

Everyone who knows a bit more about electronics will point out that stackable patchcables are not a really wise choice for such sensitive things as musical instruments because they mechanically connect electrical signals that at best can cause undesired modulations or even damage the modules.

Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, design and usability were prioritised first. Big knobs are assigned to functions that make difference in sound. Together the Erica Black series are a range of modules that make an entire synthesizer.

Technical specifications:

Input signal level: -10V - +10V
Power consumption: +25mA, -25mA
Module width: 4HP
Module depth: 25mm

Notes: Erica Synths Black Mixer is compact, high quality audio mixer with bonus features - mute switch on each input and three buffered outputs. This allows you to add audio signals to your mix instantly and in exactly right level, plus you can send signals to several post-mixer devices simultaneously, for example, split the output signal to LP and HP VCFs and create advanced bandpass and notch filters.

Technical specifications:
Max input level: -10V - +10V
Mixer gain: 1
Power consumption : +8mA, -8mA
Module width: 6HP
Module depth: 25mm

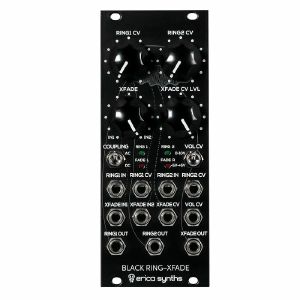

Notes: The Erica Synths Black Ring-Xfade is an extremely versatile module for sound shaping. It consists of two unconventional ringmodulators/waveshapers, a crossfader that works both for audio and CV and a VCA. Unlike conventional ringmodulator that works only with a signal present on both signal and carrier inputs, the Black Ring-Xfade passes through the signal without alteration, if no carrier is present, but low level signals on the carrier input result in unique waveshaping. Add the crossfader between two ringmodulators (or as a separate unit) topped up with the VCA, and you have an amplitude modulation powerplant in 10HP!

Ring1 CV; Ring2 CV
These are the ringmodulator carrier (CV level) level controls. Unlike conventional ringmodulator, this one passes signal unaltered, if RING CV is turned down. With increasing Ring CV level a slight waveshaping turns into proper ringmodulation.

Xfade
This is a manual Crossfade control. This fades smoothly between signals patched into XFADE IN1 and XFADE IN2. The XFADE CV is added to the knob position.

Coupling
Set the Crossfader mode - AC is optimized for use with the audio signals, DC - for control voltages (but it will work fine with audio, as well).

Ring 1; Ring 2
The green LEDs give visual feedback on signal levels, applied to XFADE IN1 and XFADE IN2 respectively.

Vol CV
Select the VCA CV response. A 0-10V setting is intended for use with the envelope generator, a -5V - +5V setting - for nice tremolos with a LFO.

Xfade IN1; Xfade IN2
These are the Crossfader inputs. They are normalled to the Ringmodulator ouputs, so, if nothing is patched here, you can crossfade between two ringmodulated signals.

Xfade CV
This is the Crossfader CV input. The CV is added to the XFADE knob setting.

VOL CV
This is the VCA CV input. The VCA is post-crossfade - it controls the amplitude of a resulting signal after the crossfader. It will also work with low frequency control voltages applied to the XFADE Ins - nice for designing unconventional modulations.

Ring1 Out; Ring2 Out
These are the ringmodulator outputs.

Xfade Out
This is the Crossfader output and the main output of the module.

Ring2 In; Ring2 CV
These are the second Ringmoduator signal and carrier inputs respectively. These two are normalled to the RING1 inputs, and if no signal is patched here, the duplicate the first Ringmodulator. Interesting trick is to set RING CVs at different levels and crossfade between two ringmodulator signals.

Ring1 IN; Ring1 CV
These are the first Ringmoduator signal and carrier inputs respectively.

Fade L; Fade R
The red LEDs indicate the crossfader position.

Xfade CV LVL
This is a crossfade CV level attenuator. By adjusting it you can control a span of fading between inputs.

Specs:
Audio level 10Vptp
CV level (full span) -5V - +5V
Power consumption +38mA, -32mA
Module width 10HP
Module depth 35mm

Notes: Erica Synths Black Spring Reverb is a different take on spring reverberation units. Firstly, it has built in vactrol based audio compressor, secondly, it can operate an external tank and combination of both internal and external ones for effects unheard before, thirdly, in order to animate reverb effect, the module has built-in feedback effects - pitch shifters, delay, ring-modulator, etc; feedback amount and effect parameters can be controlled manually and via CV, making the module an experimental instrument on its own. Module comes with compact spring reverberation tank which can be easily installed in most eurorack cases.

Features
Compact spring reverberation tank to install in a skiff case
Manually and CV controlled feedback amount
Vactrol-based compressor
7 distinct feedback effects
Selection between internal, external reverberation tanks or combination of both
Feedback Send and Return jack sockets
The module is designed to be used with wide variety of spring tanks, but the best results will be using tanks with low input impendance - 8-200ohm

Technical specifications:
Audio input level -5V - +5V
CV level (full span) -5V - +5V
Power consumption 43mA, -71mA
Module width 12HP
Module depth 30mm
Internal reverb tank dimensions 190mmx67mmx24mm (30mm with spacers)

Notes: The Erica Synths Black Reverb is a versatile hi-fi stereo FX module with lots of unique features based on Erica Synths' custom DSP engine. The reverb sources are selectable Tape, BBD and "dirty BBD" digital; emulations with three modes, each - Room, Hall and Cathedral. Delicate room size control, feedback, feedback tone and stereo spin controls allow for designing extremely delicate reverberation effects. CV control over various parameters and the ability to save up to 10 presets will make this module an integral part of any performance rack.

Features:

Reverb based on Tape, BBD and digital delay lines
Three room sizes
Manual and triggered FREEZE with 1V/oct tracking
10 preset patches
CV control over size, feedback, tone, dry/wet mix and preset selection
Adjustable stereo spin

Specs:

Max audio input level before clipping 16Vptp
CV input range (full span) -5V - +5V
Sampling frequency 48kHz, 24bit
Audio codecs -108 dynamic range, -98dB THD+N
Power consumption 120mA@+12V, 39mA@-12V
Module width 12HP
Module depth 35mm

Notes: Erica Synths Black VC Clock is the beating heart of your modular system.

The beating heart of your modular system in 10HP.

This module generates several clock signals simultaneously and has some more advanced features like tap tempo, shuffle and divide, both for controlled rhythmic music production and for experiments with high level of uncertainty. You may also find the adjustable and even random duty circle of shuffling and random clock outputs interesting. Bonus feature - the module can be used as a performance time stopwatch.

Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, design and usability was prioritised over module width. Big knobs are assigned to functions that make difference in sound. Together the Erica Black series are a range of modules that make an entire synthesizer.

Technical specifications:

Max input level: -10V - +10V
Clock signal level: 0 - +5V
Clock rate: 30 - 400BPM
CV input level (full sweep): -5V - +5V
Power consumption: 40mA@+12V, 5mA@-12V
Module width: 10HP
Module depth: 25mm

Notes: Erica Syths Black VC EG Expander takes the Black VC EG to the next level - it outputs gates or CVs for each active stage of the envelope so you can design some really advanced patches. Inverted and bipolar envelope outputs are also available.

Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we did not economise on the module width, we put design and usability first. Big knobs are assigned to functions that make difference in sound. Together the Erica Black series are a range of modules that make an entire synthesizer.

NB: This expander module can be connected only to the Black VC EG. It will not work as a standalone eurorack module.

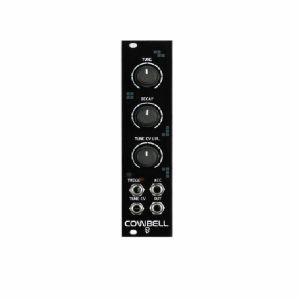

Notes: Erica Synths Cowbell module is an extended, modular version of Yocto (808) cowbell. For more sonic versatility we have added Tune and Decay controls, as well as Tune CV with an attenuator for nice vibratos.

Features
Manually and CV controlled tune
Decay control
Manual trigger
Accent input
Module width - 6HP
Module depth - 35mm
The module is developed in collaboration with the French company e-licktronic.

Technical specifications:

Decay range: 120ms - 1100ms
Audio output level: -5...+5V
CV level (full span): -5V - +5V
Trigger level: 5V
Trigger time: 1ms
Accent CV level: 10V
Power consumption: 14mA@+12V / 10mA@-12V
Module width: 6 HP
Module depth: 40 mm

Notes: From basslines and rave sounds to massive drones and drums - the Erica Synths Bassline DB-01 synthesizer lets you explore new territories of sound and performance techniques and go from a melody to noise and back in no time. The DB-01 packs an analogue Erica Synths signature sound engine with an advanced sequencer on top of it.

Features:
All analogue sound engine
Aggresive acidbox filter design
One knob overdrive for even more destructive sound
Transistor based sub-oscillator
Independent amplitude, filter cutoff and pitch envelopes
BBD based detune for massive swarm sound
Syncable LFO with multiple waveforms for FM and VCF modulation
Noise source
Intuitive, easy to use sequencer for up to 64 step patterns
Sequence transposing
Pattern randomization
Arpeggiator
Modulation track with VCF cutoff automation
Built in and user defined scales with micro tonal possibilities
Analogue clock in and out
CV/Gate output/input
MIDI IN and THRU - play it with a keyboard!
8 banks of 16 pattern memory
Compact, durable aluminium enclosure

Notes: IThe Drum Sequencer is easy to use, classical X0X style live performance oriented sequencer module that provides the ultimate control over your system. Erica Synths Drum Sequencer might be the last modular sequencer for drums and basslines you will ever have to buy!

Features:
16x trigger outputs
12x accent outs
1x CV track with scales
1x Gate track
2x LFO with independent or synced to the BPM frequency
LFO attenuation per out
Max pattern length = 64 steps
Time signature per Track
Direction per track/pattern
Pattern length per Track
Shuffle per track
Probability per step
Retrigger per step
Time shift per step
Instant pattern switching
Solo/Mute tracks
Step/Tap record modes
8 Banks of 16 Patterns
Quick Copy/Paste per tracks & patterns
Pattern linking
Song mode
MIDI sync in with Start/Stop
External 4PPQ clock in
Firmware upgrade via MIDI SysEx??
Specifications and appearance are subject to change without notice for improvement.

Technical specifications:
Trigger amplitude: 5V
Panel Width: 42 HP
Module depth: 30mm
Power consumption: 152mA@+12V, 56mA@-12V

Notes: To add some space to your compositions and nuances in sound design Erica Synths Dual FX module brings you two identical sections of 8 custom effects with two adjustable and CV controllable parameters.
Dual FX combines two Spin FV-1 chips in one module, each filled with eight custom effect programs with two adjustable and CV controlled parameters per effect and analogue dry/wet circuit. All parameter settings can be saved with the effect and recalled instantly during the performance. Also the output of the first FX section is normalised to the second input so creating huge layers of effects is easy.

FX:

Mono delay
Stereo delay
Hi-pass delay
Big reverb
Saturated reverb
Stalker reverb
Ripper
Dual pitch shifter

Technical specs:

Audio output level: -5...+5V
CV level (full span): -5...+5V
Power consumption: 118mA@+12V, 61mA@-12V
Module width: 10HP
Module depth: 45mm

Notes: Developed in conjunction with Dutch software dons 112dB, the Echolocator brings precise, ultra-controllable delay to the hardware realm. Full stereo design with filter and shimmer modes, freeze function and foot switch input.

Supplier's Notes:
The Echolocator is a hands-on precision tool that lets you take manual and very musical control over small nuances. Like a bat navigating its environment in the dark, you can feel your way through your live performances and shape the delay response and character on the fly. Featuring 12 parameters for detailed sound design, save/recall functions for all parameters, MIDI control over all parameters and a sleek aluminium case to match our lineup of compact desktop units, the Echolocator will let your setup take flight in any live show, studio or sonic experiment.

Notes: Excellent value here. Analogue filterbanks tend to be pricy affairs but Erica's Resonant FB gives you all that creative control of dynamic equalisation with the convenience of digital control.

Supplier's Notes:
The Graphic Resonant Filterbank (FB) is a ten-band analogue filterbank with digital control over each bands' boost or cut. Each band can be controlled individually via CV or manually, while complex control configurations turn the filterbank into an unconventional multimode filter and even an instrument in its own right when played with various resonance settings. The Expander module (works exclusively with the Graphic Resonant Filterbank and is available separately) provides hands-on adjustment of boost and cut for all bands.

Specifications:

Audio signal amplitude: 10Vptp
Bandpass filter frequencies: 29Hz,61Hz,115Hz,218Hz,411Hz,777Hz, 1,5kHz, 2,8kHz, 5,2kHz,11kHz +-10%
CV input amplitude (configurable): -10V - +10V
Number of presets: 128
Panel width: 20HP
Module depth: 30mm
Power consumption (with EXP): 138(145)mA@+12V,50mA@-12V

Notes: This Expander module provides hands-on adjustment over all bands' boost and cut without the need to select bands via pushbuttons on the Graphic Resonant Filterbank module. This makes sound design with the Graphic Resonant Filterbank much easier.

NB! The Expander works exclusively with the Graphic Resonant Filterbank!

Notes: Better known for analogue modules, it turns out Erica Synths are pretty damn good at digital too. Draw your own waveforms, build wavetables, tweak in real time and get freaky. Killer VCO.

Supplier's notes:
Erica Synths Graphic VCO allows you to draw your own waveforms, arrange them in wavetables and wavetable banks, morph between two selected waves and alter the resulting wave in advanced ways (FXes) - apply FM, phase distortion, ring modulation, wavefold/wavewrap, bitcrush.

Waves, wavetables, FXes and other settings can be saved and recalled from the memory instantly. The module has two outputs - the main output and the output with configurable suboscillator.

NB! To have the module functionality up to date, we recommend you to check the Erica Synths home pageor our social media from time to timefor announcements about firmware updates for the Graphic VCO. You can update the firmware of the module via miniUSB cable. More detailed instructions of the firmware update can be found in the User Manual.

The sound is clean, modern, punchy and detailed thanks to the unit running at 96kHz - quite different to some low bit-rate wavetable oscillators on the market. Wavetable interpolation is smooth as butter and with the built-in effects you can dirty things up in many different ways. The module scores highly on the sound front. The Graphic VCO is a very capable oscillator module with excellent sound quality and a lot of features that could make it the right choice, especially if live performance is your thing. - Sound On Sound
The bottom line is that the Graphic VCO is a joy to use. It's a module that's unashamedly digital, yet unmistakably eurorack. I think Erica showed a great deal of careful judgement and restraint in the design of this module. It would have been easy to have made it bloated and cumbersome trying to cram as many features as possible into it, but they kept it fairly simple which keeps the module fun and immediate in use. It's capable of a huge tonal palette ranging from beautiful to brutal that is bound to fit in with a lot of different styles and systems. - Ask Audio
The ability to draw and then effortlessly jump between different custom digital waveforms in this way feels unique on the Eurorack stage, and allows for a wide range of tones and transitions between them. - Orb Mag

Technical specifications:

Audio output amplitude
10Vptp
Octave range
C0-C8
Sample rate
96kHz
Unipolar CV input range
0 -+10V
Bipolar CV input range
-10V -+10V
Panel Width
16 HP
Module depth
30mm
Power consumption
152mA@+12V,
20mA@-12V

Notes: Black, 100% cotton T-Shirt with white Erica Synths logo printed on front and back.

!NB! Do not tumble dry!

!NB! Do not bleach!

Notes: Not your average mixer. Erica Synths riff on the EMS Synthi-style matrix mixer, bringing it to a desktop format compatible with just about any other gear, including Eurorack. Uniquely creative.

Supplier's Notes:
As Eurorack users may know, it can be challenging to change a patch radically during a performance, therefore diverse performances require large systems or they end up being extremely experimental. But what if you could repatch your system with the push of a single button?

Features:
All analogue signal path
16 buffered, DC coupled inputs
16 independent, buffered, DC coupled outputs
256 connections, each with 3 attenuation levels
Random pattern mode with definable randomization area and density
254 pattern memory
Pattern change via MIDI program change messages
32 3,5mm jack sockets
4 6,3mm jack sockets
The Erica Synths Matrix Mixer is a 16-input, 16-output desktop patch matrix - it can route and mix signals with high precision, create buffered multiples and random patches. It can also interface external instruments with your Eurorack system, and it's not limited to Eurorack!

You can use the Matrix Mixer with semi-modular synthesizers, as well as through adapter cards with the EMS Synthi and Buchla Music Easel. Thanks to simple patch changes via panel buttons or MIDI program change messages, the Matrix Mixer will be particularly useful in performances that combine Eurorack and other performance instruments, such as drums, guitars, wind instruments, etc. Make your modular performance stand out and enjoy the Matrix Mixer!

Technical specifications:
Audio level: 10V ptp
Attenuation level: 1, 0.7, 0.3
Power supply: 12VDC (a universal AC/DC converter included)
Size of the instrument: 225 x 226 x 44mm
Net mass: 1.25kg

Notes: We wanted to organize patch cables that were hanging on all possible objects in our Lab, therefore we decided to make patch cable holders.

Rigid, 2mm aluminium powder coated cable holders can host over 100 patch cables in perfect order! Two screws for fixing the cable holder are included.

Notes: Erica's superb Perkons returns with a stealthy new black paint job. Four hybrid voices each with a range of different sound engine modes, paired with analogue filters, overdrive and a superb sequencer.

Supplier's Notes:
PERKONS HD-01 is a unique live performance and sound design instrument that tears down the borders between drum machine, synthesizer, and drone instrument.

PERKONS features four sonically versatile hybrid voices (digital sound engine + analogue multimode filter with overdrive) and a sequencer with simultaneous control over all four percussion tracks.

Each voice has 3 sound engine modes, an HP/BP/LP filter and 8 controls for nuanced sound design, including an internal BBD FX send. All voice parameter settings can be saved as KITS. To add dynamics to the performance, parameter automation is implemented and a modulation LFO can be assigned to all parameters.

For a real thunderstorm, integration with external gear is considered - each voice has a dedicated trigger input, individual output, and FX send and return with 6.3mm jack sockets, along with extensive MIDI implementation. All voices are summed and run through a built-in compressor.

Time to ride the skies!

Erica Synths are pleased to see the enjoyment the PERKONS has brought to users worldwide over the past two years! To celebrate its success, they have decided to transform the beast by giving it a new demeanour - a timelessly black finish to match Erica Synths' other instruments and to visually complement the dark aesthetic that has become synonymous with Erica Synths modules and desktop instruments all over the world.

Notes: The brilliant Perkons drum machine comes to Eurorack. A single hybrid drum voice with digital sound engine and analogue filter/overdrive, the Perkons Voice is flexible and supremely powerful.

Supplier's Notes:
Erica Synths Perkons Voice is a eurorack incarnation of the percussion voices from the PERKONS HD-01 Drum machine. Like on the drum machine, the module has hybrid architecture, featuring a digital sound engine followed by an analogue multimode filter and overdrive. Users can select among 13 sound generation algorithms and save up to 99 presets that can be recalled easily. Tune and Patch CV inputs are configurable for various CV settings and are tuned to 1V/oct. Module also features a 4-voice poly overlap mode and samples on the "Rompler" engine can be easily replaced.

Specifications:

Audio output: 10Vptp
CV levels configurable: -5V - +5V
Power consumption: +59mA, -30mA
Module width: 14HP
Module depth: 35mm

Notes: Want some distorted drums or thicken up the final mix but you are short in rack space? Pico Drive is the answer! Pico Drive is combined wavefolder overdrive module that features manually adjustable Gain and Drive level, CV control over Gain and Drive adds more expression, while built in limiter prevents output signal to run into undesired clipping.

Features:
Manual Gain and Drive controls
CV control over Gain and Drive
Wavefolder
Output signal limiter
Input and output protection against undesired overvoltage

Technical specifications:
Audio output level: -5...+5V
CV level (full span): -5V - +5V
Power consumption: 29mA @ +12V, 29mA @ -12V
Module width: 3HP
Module depth: 35mm

Notes: Pico Drum2 is compact yet versatile percussion synthesizer in a 3 HP eurorack module. It features 8 drum synthesis algorithms created to deliver distinct sounds to your modular system. Each algorithm offers a lot of flexibility therefore a big sounding bass drum and a squelchy snare can be dialled in within the same algorithm. It also tracks 1V/Oct and all parameters can be mapped to the CV1 input.

Technical specifications:
Output level: 10Vptp
CV level (full span): -5V - +5V
Power consumption: +28mA, -5mA
Module width: 3HP
Module depth: 35mm

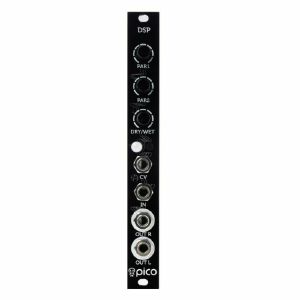

Notes: Pico DSP is a small brother of the popular stereo effects processor Black Hole DSP. It contains eight algorithms, in detail four delays, two types of reverb, Leslie speaker emulation and an Overdrive/Bitcrusher. Each effect is editable in two parameters. One of them can be modulated using the CV input. Pico DSP features clear, high-resolution sound. Alongside the established standards, it is also possible to generate lots of freaky special effects.

Notes: ***B-STOCK: Product with some signs of usage but in perfect working order***


Pico DSP is a small brother of the popular stereo effects processor Black Hole DSP. It contains eight algorithms, in detail four delays, two types of reverb, Leslie speaker emulation and an Overdrive/Bitcrusher. Each effect is editable in two parameters. One of them can be modulated using the CV input. Pico DSP features clear, high-resolution sound. Alongside the established standards, it is also possible to generate lots of freaky special effects.

Notes: Pico EF is Erica Synths' take on envelope follower module in 3hp! Pico EF features a preamp with +40dB gain (enough to boost even guitar and dynamic microphone signals for use in a modular system), envelope output with adjustable attack time and a gate output with adjustable threshold. The Pico EF can be used as a preamp, overdrive unit or for controlling VCFs with audio signal, or to use with external instruments to control your modular system in other creative and experimental applications.

Technical specifications:

Preamp boost: up to +40dB
Audio output level: 10Vptp
Envelope output level: 0 - +10V
Gate level: +5V
Power consumption: 25mA, -15mA
Module width: 3HP
Module depth: 35mm

Notes: Those, who own Moog Mother 32 know, that it requires -5V - +5V on 1V/oct input to operate in full range, while the eurorack standard is 0V - +10V. So, to control Moog Mother 32 from a eurorack sequencer you need to bias a sequencer output for 5 volts down. And vice versa, Moog Mother 32 sequencer outputs -5V - +5V on 1V/oct output, and, if you wish to control some eurorack VCO from Moog Mother 32, you need to bias it 5 volts up. This is exactly what MSCALE does: it has two sections, upper one adds 5V to the input voltage, other subtracts 5V form the input voltage.

Of course, the module is not limited for use with Moog Mother 32 only. You can use it as a regular eurorack precision voltage scaler.

Features:
Precision scaler to adapt Moog Mother 32 1V/oct to
Moog to eurorack section
Eurorack to Moog section
High precision, high temperature stability
Skiff friendly, compact design

Dimensions
3 HP
25 mm deep

Current Draw
6 mA +12V
6 mA -12V

Notes: Erica Synths Pico OUTPUT module is just what you need to monitor your music on headphones and have standardized connection to mixing desks.

Features

Stereo input
High quality headphones amplifier
3,5mm headphones output jack
Headphones volume control
3,5mm stereo line output jack
The 3,5mm stereo output jack in this module allows you to connect the Pico System directly to virtually any speaker system or line input. Even in your car!

With Pico Series we challenged ourselves - can we make ANY superior functionality synth module 3HP wide and affordable? Yes, we can.

Technical specification:

Input level: 10Vptp
Power consumption: +20mA, -7mA
Module width: 3HP
Module depth: 35mm

Notes: Erica Pico VC EG is versatile looping AD/ASR envelope generator with voltage control over attack and decay times. It has automatic Trigger/Gate detection, as well as "drone mode" - at full CW setting of the Decay knob, the envelope is full open. In the LOOP mode you can re-trigger envelopes for even more interesting modulations.

Features

AD/ASR envelope
Automatic Trigger/Gate detection
Manual and voltage control over
Attack and Decay time
Manual trigger button
Input protection against over-voltage
Protection against reverse PSU connection
Output amplitude 0V - 10V
Attack time 5ms - 1s
Decay time 5ms - 50s
CV level (Full span) -5V - +5V
Power consumption +17MA, -13MA
Module width 3 HP
Module depth 35 mm
