ハイファイ・カートリッジ

Notes: The Goldring philosophy is to promote the accurate reproduction of the original recording, maintaining the creative nuances, musicality and rhythm the artist intended you to hear. The E Series is designed to capture this experience when used with all medium to high mass tonearms found on the majority of budget to medium priced turntables. This is achieved through the use of Magnetic Duplex Technology and Goldring Expert Adjustment.

The E3 cartridge, the highest in the range features the same aluminium cantilever as the E2, but benefits from a superior bonded, super-elliptical (0.3 x 0.7 mil) stylus. This gives it superior high frequency groove detail retrieval ability over ordinary elliptical (0.4 x 0.7 mil) or spherical (0.6 mil) styli due to its smaller front to back radius. Its main effect is the reduction of sibilance, especially in high level vocal recordings.

Magnetic Duplex Technology:

All cartridges in the range feature Magnetic Duplex Technology - a 'dual magnet' generator assembly which more accurately traces the record groove providing better stereo separation and a more involving and musical sound stage.

Expert Adjustment:

The E-series cartridges have been designed to allow micro-adjustments to be made during production using a special adjustment screw. This means the cartridge can be safely installed in a typical turntable because the angle that the stylus makes with the record surface has been pre-set. The result is an optimised channel balance with zero degrees of horizontal tracking adjustment required. This ensures a consistent and reassuring performance for the life of the product.

Stylus/Cantilever:

Featuring spherical styli with a choice of cantilevers, the E1 and E2 models are ideal as an upgrade to any budget, pre-fitted or obsolete cartridge.

The E3 model with its refined super elliptical stylus is a worthwhile upgrade for those wishing to squeeze even more information and detail from the record groove.

Notes: AT-VM95E VM95 series Elliptical stereo cartridge - Aluminium cantilever, 4.0mV output voltage, Compatible body with all VM95 Series stylus assemblies and Replacement for AT95E and AT95EX

VM95 series Elliptical stereo cartridge
The AT-VM95E, the new Audio-Technica entry model Elliptical cartridge will replace the legendary AT95E and take advantage of the developments of the AT95EX introduced in 2015. The AT-VM95E features an improved and distinctive design resulting in a more rigid low resonance housing, and two threaded inserts in the cartridge body enabling it to be mounted to the headshell or on an integral tonearm with just two screws, no nuts.

Aluminium cantilever
4.0mV output voltage
Compatible body with all VM95 Series stylus assemblies
Replacement for AT95E and AT95EX
20 to 22,000Hz frequency response
VM95 Series - Styli compatibility
Every cartridge diamond stylus becomes worn after a period of play.

Around 500 hours for a conical stylus, 300 hours for an Elliptical stylus, 1000 hours for a Microlinear stylus, and 800 hours for a Shibata stylus.

Our VM95 Series dual moving magnet cartridges can be used almost forever by replacing the interchangeable stylus. It is no longer necessary to purchase a complete cartridge when your diamond is worn out, you can simply buy the matching replacement stylus, but also enjoy the experience of upgrading your cartridge with a different stylus.

The six models of VM95 Series cartridges all use the same electromagnetic engine-body, therefore each of the six replacement styli are perfectly compatible.

AT-VMN95C

AT-VMN95E

AT-VMN95EN

AT-VMN95ML

AT-VMN95SH

AT-VMN95SP

AT-VM9E Series compatibility with the AT-XP Series DJ Cartridges
The electromagnetic engine-body of XP-Series, is fully compatible with all replacement styli of VM95 Series and will deliver more output voltage than VM95 Series cartridge. So providing improved compatibility with phono inputs of Professional DJ Mixers.
VM95 Series electromagnetic engine-body is also compatible with the three replacement styli of the DJ cartridge AT-XP Series, nevertheless, the electromagnetic engine-body of XP-Series, will deliver more output voltage than VM95 Series cartridge in order to provide better compatibility with phono inputs of Professional DJ Mixers.
Note that typical tracking force when using XP Series styli is three grams as opposed to two grams for VM95 Series styli.
The suspension design and compliance of XP-Series styli have been optimized for intensive DJ’ing, including possible manual cueing and back-cueing.
The VM95 Series suspension design and compliances of VM95 Series have been designed for optimum audiophile reproduction.
ATN-XP7

ATN-XP5

ATN-XP3

Elliptical Bonded Stylus
Elliptical diamond stylus follows the groove modulation with greater precision compared to a conical stylus, offering improved frequency and phase responses whilst reducing distortion.

No use of nuts
VM95 Series cartridges features two M2.6 threaded inserts allowing the installation of the cartridge onto tonearm or removable headshell without the use of nuts.Each cartridge is provided with one pair of 8mm M2.6 screws, one pair of 11mm M2.6 screws and two plastic washers.

Cartridge & Stylus
Frequency Response 20 - 22,000 Hz
Channel Separation 20 dB (1 kHz)
Vertical Tracking Angle 23°
Vertical Tracking Force 1.8 to 2.2g (2.0g standard)
Stylus Construction Bonded Round Shank

Notes: AT-VM95E/H VM95 series Elliptical stereo cartridge on AT-HS6 Headshell - AT-VM95E mounted on AT-HS6BK headshell, The total set weight is 15.5g and Assembled and tested in the Audio-Technica Factory in Fukui-Japan

VM95 series Elliptical stereo cartridge on AT-HS6 Headshell
AT-VM95E mounted on AT-HS6BK headshell
The total set weight is 15.5g
Assembled and tested in the Audio-Technica Factory in Fukui-Japan
VM95 Series - Styli compatibility
Every cartridge diamond stylus becomes worn after a period of play.

Around 500 hours for a conical stylus, 300 hours for an Elliptical stylus, 1000 hours for a Microlinear stylus, and 800 hours for a Shibata stylus.

Our VM95 Series dual moving magnet cartridges can be used almost forever by replacing the interchangeable stylus. It is no longer necessary to purchase a complete cartridge when your diamond is worn out, you can simply buy the matching replacement stylus, but also enjoy the experience of upgrading your cartridge with a different stylus.

The six models of VM95 Series cartridges all use the same electromagnetic engine-body, therefore each of the six replacement styli are perfectly compatible.

AT-VMN95C

AT-VMN95E

AT-VMN95EN

AT-VMN95ML

AT-VMN95SH

AT-VMN95SP

Elliptical Bonded Stylus
Elliptical diamond stylus follows the groove modulation with greater precision compared to a conical stylus, offering improved frequency and phase responses whilst reducing distortion.

Preassembled With AT-HS6BK Headshell
The AT-VM95E cartridge is fitted onto the 9g aluminiumdie cast body headshell

Cartridge & Stylus
Frequency Response 20 - 22,000 Hz
Channel Separation 20 dB (1 kHz)
Vertical Tracking Angle 23°
Vertical Tracking Force 1.8 to 2.2g (2.0g standard)
Stylus Construction Bonded Round Shank

Notes: AT-VM95C/H VM95 series Conical stereo cartridge on AT-HS6 Headshell - AT-VM95C mounted on AT-HS6BK headshell, The total set weight is 15.5g and Assembled and tested in the Audio-Technica Factory in Fukui-Japan.

VM95 series Conical stereo cartridge on AT-HS6 Headshell
AT-VM95C mounted on AT-HS6BK headshell
The total set weight is 15.5g
Assembled and tested in the Audio-Technica Factory in Fukui-Japan
VM95 Series - Styli compatibility
Every cartridge diamond stylus becomes worn after a period of play.

Around 500 hours for a conical stylus, 300 hours for an Elliptical stylus, 1000 hours for a Microlinear stylus, and 800 hours for a Shibata stylus.

Our VM95 Series dual moving magnet cartridges can be used almost forever by replacing the interchangeable stylus. It is no longer necessary to purchase a complete cartridge when your diamond is worn out, you can simply buy the matching replacement stylus, but also enjoy the experience of upgrading your cartridge with a different stylus.

The six models of VM95 Series cartridges all use the same electromagnetic engine-body, therefore each of the six replacement styli are perfectly compatible.

AT-VMN95C

AT-VMN95E

AT-VMN95EN

AT-VMN95ML

AT-VMN95SH

AT-VMN95SP

Conical Bonded Stylus
The benefit of conical styli, even if the cartridge is "lean

Cartridge & Stylus
Frequency Response 20 - 20,000 Hz
Channel Separation 18 dB (1 kHz)
Vertical Tracking Angle 23°
Vertical Tracking Force 1.8 to 2.2g (2.0g standard)
Stylus Construction Bonded Round Shank

Notes: The Goldring philosophy is to promote the accurate reproduction of the original recording, maintaining the creative nuances, musicality and rhythm the artist intended you to hear. The E Series is designed to capture this experience when used with all medium to high mass tonearms found on the majority of budget to medium priced turntables. This is achieved through the use of our Magnetic Duplex Technology and Goldring Expert Adjustment.

The E2 cartridge, the middle in the range, features the same spherical stylus profile as the E1 but with the additional benefit of an upgraded aluminium cantilever. This is both stiff and light weight allowing the stylus to more accurately trace medium to high frequencies offering more detail and reducing distortion and mis-tracking during loud passages.

Magnetic Duplex Technology:

All cartridges in the range feature Magnetic Duplex Technology - a 'dual magnet' generator assembly which more accurately traces the record groove providing better stereo separation and a more involving and musical sound stage.

Expert Adjustment:

The E-series cartridges have been designed to allow micro-adjustments to be made during production using a special adjustment screw. This means the cartridge can be safely installed in a typical turntable because the angle that the stylus makes with the record surface has been pre-set. The result is an optimised channel balance with zero degrees of horizontal tracking adjustment required. This ensures a consistent and reassuring performance for the life of the product.

Stylus/Cantilever:

Featuring spherical styli with a choice of cantilevers, the E1 and E2 models are ideal as an upgrade to any budget, pre-fitted or obsolete cartridge.

The E3 model with its refined super elliptical stylus is a worthwhile upgrade for those wishing to squeeze even more information and detail from the record groove.

Notes: Replacement EP cartridge with elliptical stylus & T4P-type mounting

Notes: Plug-in type cartridge

Output voltage: 3mV (5cm/SEC)

Frequency response: 20Hz to 20KHz

Channel separation: 20 dB (1KHz)

Channel balance: 2dB or less

Load resistance: 47KO

Load capacity: 100pF

Cantilever: Aluminum alloy

Needle tip: 0.6mil cone, joining diamond

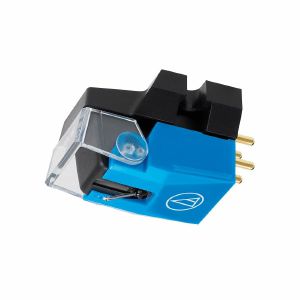

Notes: Dual Moving Magnet Stereo Cartridge with Conical stylus

Entry-level Audio-Technica VM510CB Dual Moving Magnet Cartridge equipped with a conical bonded stylus less likely to be affected by placement and boasts stable tracing performance.

Entry-level VM cartridge model equipped with a conical bonded stylus. The round stylus is less likely to be affected by placement and boasts stable tracing performance.

Audio-Technica's internationally-patented Dual Magnet design replicates the structure of the cutter head.

Instead of using a single, large magnet, the two magnets are arranged in the shape of a "V". The two magnets are positioned precisely to match the positions of the left and right channels in the stereo groove walls. Consequently, the VM design ensures outstanding channel separation, extended frequency response and superb tracking.

Para-toroidal generating system

Para-toroidal coils improve generating efficiency and offers superb linearity, since leakage of magnetic flux in this continuous and unitised magnetic circuit is low. Permeability of the cores is also optimised through the use of laminated cores.

Centre shield plate reduces crosstalk

A permalloy centre shield plate enables the effective separation of left and right channels, suppressing electrical crosstalk to below 40dB. This is similar to the actual crosstalk value found in the grooves of the record itself.

500 Series

Standard cartridge body fitted with the para-toroidal coils, centre shield plate, and 6N-OFC coil wire which is the same as 700 series.

Conical Bonded Stylus

The benefit of conical styli, even if the cartridge is "lean", is the ball surface of the stylus touches the groove of vinyl records precisely. Due to its stability, it has been used widely at radio stations.

Specifications

Cartridge & Stylus

Frequency Response: 20 - 20,000Hz
Channel Separation: 25dB (1kHz)
Vertical Tracking Angle: 23 degrees
Vertical Tracking Force: 1.8 to 2.2g (2.0g standard)
Stylus Construction: Bonded Round Shank
Recommended Load Impedance: 47,000O
Coil Impedance: 2,700O (1kHz)
Output Voltage: 5.0mV (1kHz, 5cm/sec.)
Output Channel Balance: 1.5dB (1kHz)
Stylus Shape: Conical Bonded
Cantilever: Aluminium Pipe
Static Compliance: 35 x 10-6 cm/dyne
Dynamic Compliance: 8 x 10-6 cm/dyne (100Hz)
Mounting: 1/2" centres
Dimensions: 17.3 (H) x 17.0 (W) x 28.2 (L) mm
Accessories Included: Cartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2
Recommended Load Capacitance: 100 - 200pF
Replacement Stylus: VMN10CB
Stylus Size: 0.6 mil
Type: VM Type
Weight: 6.4g

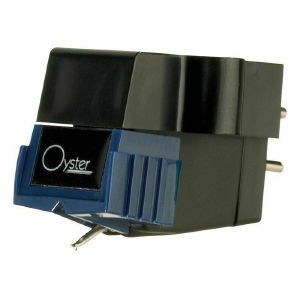

Notes: The bonded spherical stylus and rugged generator assembly of the Oyster makes it perfect for those seeking a cost-effective moving magnet cartridge that can be used in a wide range of applications.

The bonded spherical stylus, alloy cantilever and rugged generator assembly of the Oyster makes it perfect for those seeking a cost-effective moving magnet cartridge that can be used in a wide range of applications.

Designed to elevate the performance of nearly any entry-level turntable it adorns, the Oyster is the most affordable SUMIKO cartridge, but still embodies the company's core philosophy of truly engaging hi-fi sound regardless of the cost.

Frequency Response:: 30Hz - 20kHz
Output Voltage: 4.0mV
Load Impedance: 47kO
Channel Seperation: 25dB @ 1kHz
Channel Balance: <1.0dB@ 1kHz
Stylus Type: Spherical
Compliance: 12x10-6 cm/dyn
Tracking Force Range: 1.5g - 2.5g
Recommended Force: 2.3g
Cartridge Weight: 5.3g

Notes: ***B-STOCK: Box opened, product in perfect working order***

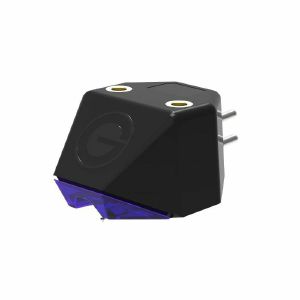

The Goldring philosophy is to promote the accurate reproduction of the original recording, maintaining the creative nuances, musicality and rhythm the artist intended you to hear. The E Series is designed to capture this experience when used with all medium to high mass tonearms found on the majority of budget to medium priced turntables. This is achieved through the use of Magnetic Duplex Technology and Goldring Expert Adjustment.

The E3 cartridge, the highest in the range features the same aluminium cantilever as the E2, but benefits from a superior bonded, super-elliptical (0.3 x 0.7 mil) stylus. This gives it superior high frequency groove detail retrieval ability over ordinary elliptical (0.4 x 0.7 mil) or spherical (0.6 mil) styli due to its smaller front to back radius. Its main effect is the reduction of sibilance, especially in high level vocal recordings.

Magnetic Duplex Technology:

All cartridges in the range feature Magnetic Duplex Technology - a 'dual magnet' generator assembly which more accurately traces the record groove providing better stereo separation and a more involving and musical sound stage.

Expert Adjustment:

The E-series cartridges have been designed to allow micro-adjustments to be made during production using a special adjustment screw. This means the cartridge can be safely installed in a typical turntable because the angle that the stylus makes with the record surface has been pre-set. The result is an optimised channel balance with zero degrees of horizontal tracking adjustment required. This ensures a consistent and reassuring performance for the life of the product.

Stylus/Cantilever:

Featuring spherical styli with a choice of cantilevers, the E1 and E2 models are ideal as an upgrade to any budget, pre-fitted or obsolete cartridge.

The E3 model with its refined super elliptical stylus is a worthwhile upgrade for those wishing to squeeze even more information and detail from the record groove.
