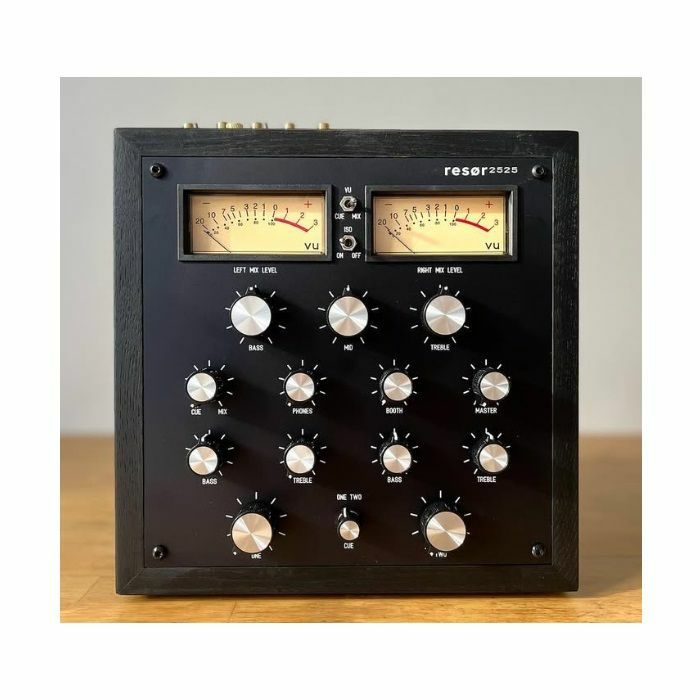

Part of Resor's two-channel mixer range, the 2525 offers a classic setup of two-band EQs per channel, three-band master isolator, large VU meters and discrete class-A electronics.

Supplier's Notes:
Resor 2525 features the same discrete class-A circuitry as Resor 2500, but it's equipped with a Master Isolator with a bypass toggle switch.

*** Please note: the wood is thinner than displayed in the picture. ***

Inputs

Channel ONE & TWO: selectable sources between LINE and PHONO (Stereo RCA)

Outputs

Master 1: Balanced XLR
Master 2: Unbalanced RCA
Booth: Balanced TRS
Rec: Unbalanced RCA

Channel EQ

2-band Baxandall: Bass + / - 18 dB (at 150 Hz), Treble: + / - 12dB (at 10 kHz)

Master isolator

3-band, 24 dB / Oct, Linkwitz-Riley filters, crossover frequencies at 310 Hz and 3100 Hz Full-cut to maximum +12 dB, ON / OFF true bypass with Audio Grade Relay

Master insert

Out: Stereo TRS (Tip - Left, Ring - Right, Sleeve - Ground)
In: Stereo TRS (Tip - Left, Ring - Right, Sleeve - Ground)

Other

2 x Analog VU Meters (1VRMS = 0db)
Cue / Mix Switch for the VU Meters, to display either the Cue or Mix signals
Rotary Switch to CUE between Channels ONE & TWO
Cue / Mix Blend potentiometer
External Power Supply Unit with lockable DC cable (both ends)
Travel Case (Dust and Water Proof)
3 Years International Warranty

Customisations

Wood: Natural Oak, Matte Black, Premium: Walnut
Faceplate: Black, Silver, Bronze; Premium: Metallic Red, Metallic Blue, Metallic Green
Knobs style: Standard, Urei; Premium: Silver Matte Aluminium, Black Matte Aluminium

Technical specifications

Line Inputs

Discrete, Class-A Op-Amps
Measured Line In to Master Out:
Frequency response + / - 0,3 dB, 20 Hz to 20 kHz
THD+N better than 0,004 %
SNR better than -95 dB

Phono Inputs

Discrete, Class-A Op-Amps, Gain 40 dB
Passive RIAA Equalization, polypropylene capacitors, close tolerance
Input impedance is 47 kohm
Input capacitance is 47 pF
Measured Phono In to Master Out:
RIAA accuracy within + / - 0,3 dB (20 Hz - 20 kHz)
THD+N better than 0,02 %
SNR better than -77 dB
Maximum input signal level before distortion 100 mVRMS

Master Output

Balanced XLR
Unbalanced RCA L and R
Impedance < 300 ohm

Booth Output

Balanced TRS
Impedance < 300 ohm

Record Output

Nominal level -10dBV
Impedance < 300 ohm

Crosstalk

Channel Fader offness < -100 dB
Channel L / R separation <-70 dB
Isolator offness < -90 dB

Dimensions

250 mm (W), 250 mm (D), 98 mm (H) - (please note that this does not include Knobs, Headphone Jack on the front side, RCA's and Sockets on the rear side of the mixer)

Weight

Mixer: 4 kg
Power Supply: 1 kg
With travel case: 8 kg
