Sound meets design

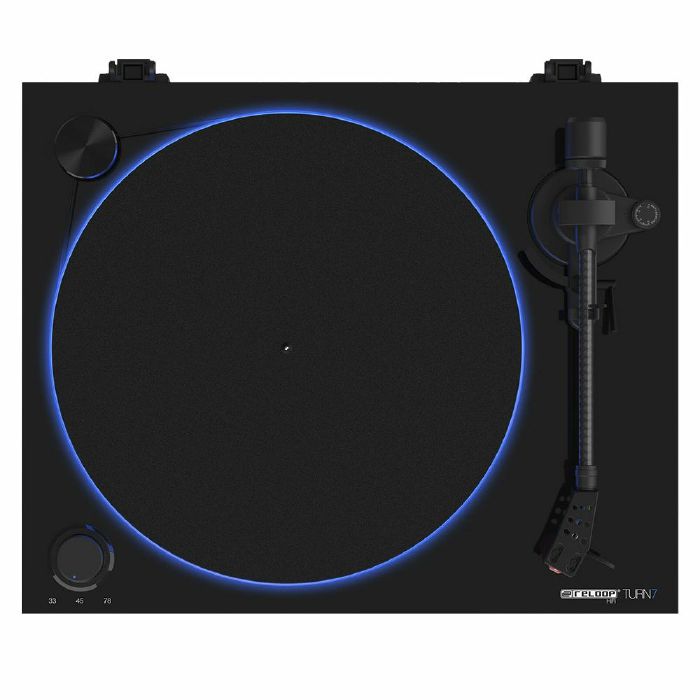

The Turn 7 bridges the gap between high-end HiFi turntables and uncompromising design. The belt-driven turntable meets the exacting demands of audiophile music fans thanks to precisely manufactured components. The acrylic platter with LED lighting and the external drive belt make the Turn 7 an absolute eye-catcher.

Powerful and steady drive

A decentralised, low-vibration DC motor drives the Turn 7. The integral flat belt runs gracefully along the turntable exterior, ensuring smooth operation and a sophisticated appearance. The start / stop rotary switch allows you to select between the turntable's two speeds (33 and 45 RPM).

Heart of acrylic: The turntable platter

The acrylic platter is 20 mm thick, weighs 1.7 kg, and has outstanding evenness thanks to precision manufacturing. It also has excellent antistatic characteristics. As a result, crystal-clear audio is possible without using a platter mat. The satin finish of the material creates a focal point and contrasts with the otherwise plain design of the belt-driven turntable.

Let there be light - LEDs inside

One of the unique features of the Turn 7 is the optional, blue platter illumination. Inconspicuously placed beneath the platter, multiple LEDs with a diffuser cover sets the mood and creates a warm and inviting ambience.

Top-class tone arm

The high-quality carbon tone arm has exceptional acoustic properties. The turntable's authentic sound is brought out to its full potential by effectively cancelling out vibrations. The ability to adjust the height (vertical tracking angle - VTA) and an anti-skating adjustment ensure maximum precision.

Ortofon 2M Red pre-installed

The turntable comes with the Ortofon 2M Red cartridge system pre-installed. The Ortofon 2M Red has an elliptical stylus tip and excellent sonic characteristics, including first-rate sound accuracy and reproduction. The Ortofon 2M Red is a highly versatile cartridge system with an open, dynamic sound and warm tones. The universal headshell connection (SME) adds more options for cartridge systems.

Meticulously perfected

In addition to its high-quality preamplifier, the Turn 7 also features versatile switching between line and phono signals. The gold-plated corrosion-resistant RCA connectors ensure the best possible signal transmission. The built-in USB output allows you to digitise vinyl records.

Simple design & pure functionality

The sturdy MDF wooden plinth and height-adjustable isolator feet with aluminium surround provide effective decoupling for the turntable. The high-gloss piano lacquer is a classy contrast to the timeless minimalism while emphasising the Turn 7's superior quality.

Technical Data

Turntable Section:
Type of turntable: Belt-Driven manual Turntable System with USB Interface
Drive: Belt drive
Motor: DC Motor
Rotation speeds: 33 1 / 3, 45 RPM
Starting Torque: / /
Start-up time / rpm change: / /
Wow and Flutter: 0,2% WRMS
S / N Ratio: >45dB or higher
Breaking System: Manually

Turntable Platter:
Turntable Platter: Acrylic glass
300 mm diameter
Weight About 1.7 kg

Tonearm Section:
Type: Straight Tonearm
Effective Length: 223.6 mm
Effective Tonearm Mass: 18.5g
Overhang: 18.61 mm
Tracking Error Angle: i1.5-
VTA Adjustment Range: - 2 ~ 4 mm
Applicable Cartridge Weight: 7.2 ~ 11.2 g (incl. Headshell)
Anti-Skating Range: 0 - 4 g

Cartridge:
Ortofon 2M Red
Output voltage at 1000 Hz, 5 cm / sec.: 5.5 mV
Channel balance at 1 kHz: 1.5 dB
Channel separation at 1 kHz: 22 dB
Channel separation at 15 kHz: 15 dB
Frequency response: 20-20.000 Hz + 3 / - 1 dB
Tracking ability at 315Hz at recommended tracking force: 70 um
Compliance, dynamic, lateral: 20 um / mN
Stylus type: Elliptical
Stylus tip radius: r / R 8 / 18 um
Tracking force range: 1.6 - 2.0 g (16-20 mN)
Tracking force, recommended: 1.8 g (18 mN)
Tracking angle: 24.7-
Internal impedance, DC resistance: 1.3 kOhm
Internal inductance: 700 mH
Recommended load resistance: 47 kOhm
Recommended load capacitance: 150-300 pF
Cartridge colour, body / stylus: Black / Red
Cartridge weight: 7.2 g

General:
Terminals: 1x PHONO / LINE Out, Build in Phono Stage (Pre Amp)
Power Supply: 12 V 1A DC
Power consumption: 12W
Dimensions: 420(W) x 356(D) x 148(H) mm
Weight: 8.2 kg
