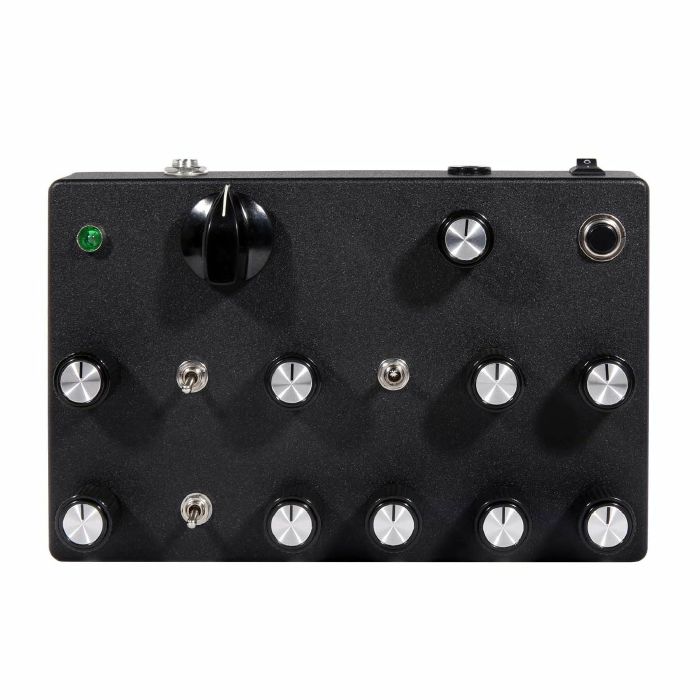

EGL-1 is a desktop analogue synthesiser that is ideal for a variety of duties. The unit's sub-oscillator can be configured to determine the emitted waveform and decays when the Push switch is pressed. There are four LFOs routed to the primary VCO for bountiful modulation capabilities. The VCO itself is routed through a boost circuit for a some extra flair that's sure to punish listeners in all the right ways.

EGL-1 Features

VCO routed through boost circuit
4 LFOs provide ample modulation possibilities
Integrated sub-oscillator
Push switch causes the sub-oscillator to decay
Two types of modulation can be applied to the MAIN VCO (oscillator).

The bottom stage mixes four LFOs and allows you to adjust the input level to the MAIN VCO with the level.

The middle stage allows you to input a WAVE to the SUB OSC (another oscillator) with adjustable rise and fall of the oscillator, which can then be fed into the MAIN VCO.

The push-button in the top right-hand corner rapidly decays the power of the SUB OSC as long as it is pressed. While it decays, it has an effect on the sound of the MAIN VCO.

The MAIN VCO output also has an output circuit to make the sound more powerful.

The EGL-1 operates from a 9V centre-minus or battery. Neither is included.
