***B-STOCK: Box opened, product in perfect working order***

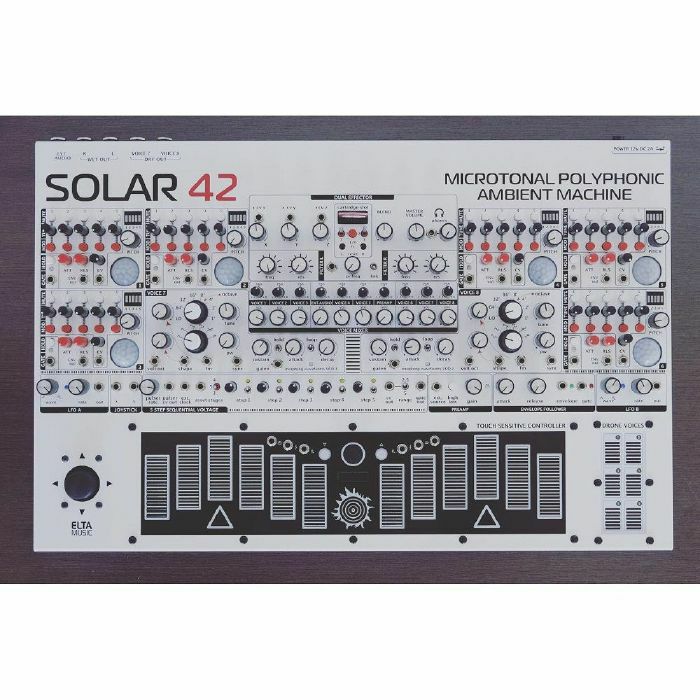

SOLAR 42 is an analogue microtonal ambient drone machine.

It is an improved model of the SOLAR 50.

On board:

Four drone voices as in SOLAR 50
Two new drone voices, totally different from SOLAR 50. To create space sound
effects
Two white noise generators.
Two Samples and Holds
Two volt octave VCO voices with different waveform variations, including
morphing.
Two LFOs as in SOLAR 50.
5 step analogue sequencer
Preamp for contact mic.
Envelope follower
Stereo mixer with panoramic left and right channels
Dual polyvox stereo filter
Dual cartridge effector combiner with CV control. Now you can load a different
effect on each channel.
Stereo audio output
Dry audio outputs volt octave voices
External audio input.
Joystick
Separate push-button keypad for six drone voices
Touch sensitive keypad controller for volt octave voices.
Power supply unit no longer needs to be reset.
Reduced output noise compared to SOLAR 50.

Size: 49,5 x 32 x 2,9 cm
Weight: 5,5 kg
Designed and engineered by Arseniy Tokarev
Elta Music

TOUCH SENSITIVE CONTROLLER settings

Behaviour:
- single: 12 key mode
- twin*: 2x6 key mode, the parameters are the same for both sides
- split*: 2x6 key mode, but with separate parameters for both sides (e. g.: you can have an arpeggiator on one side, but a basic keyboard controller on the other side)
* in twin and split modes the pressure output acts as the note CV output, therefore pressure parameters (output, rise and fall) have no effect

Arpeggiator state:
- off: the module acts as a keyboard controller
- on: enables arpeggiator

Arpeggiator hold:
- off: the arpeggiator will play only while the keys are held
- on: the arpeggiator will continue to play the last progression after the keys are released

Arpeggiator clock:
- sets the clock multiplication / division ratio for the arpeggiator

Arpeggiator direction:
- forward
- backward
- ping-pong
- random

Arpeggiator variation: when enabled the arpeggiated progression will be played again transposed by the selected interval.
- OFF
- x1
- x2
- x3
Arpeggiator variation interval: 1 - 12 semitones

Arpeggiator rhythm: an eight step trigger sequencer placed between the arpeggiators virtual clock input and clock source, applies a rhythmic pattern to the arpeggio. - turn steps on / off

Arpeggiator rhythm length: sets the length of the rhythm sequencer. 1 - 8 steps

Portamento: creates slew limiting effect on the CV output, sets the speed of gliding (ie: how much time it takes to transition from one pitch to the next). 0 - 255

Legato:
- off: portamento is always on
- on: gliding happens only when two or more note plates are touched simultaneously (this parameter has no effect when arpeggiator is enabled)

Vibrato speed: sets the speed of the LFO that's modulating the note CV output. 0 - 127

Vibrato depth: sets the modulation amount. 0 - 127

Vibrato delay: specifies a time delay before vibrato begins to apply until it reaches the full strength specified by the depth parameter. 0 - 127

Vibrato pressure control: when enabled, the modulation amount is altered by the pressure applied to keys.
- off
- on

Pressure output:
- pressure: voltage on the pressure output will continuously follow the pressure applied to key plates
- ASR: attack / sustain / release envelope generator
- AD: attack / decay envelope generator
- LOOP: looped AD envelope generator
- random: outputs a random voltage

Rise: creates slew limiting effect on rising edge in pressure and random modes, sets attack time in envelope modes. 0 - 255

Fall: creates slew limiting effect on falling edge in pressure and random modes, sets decay / release time in envelope modes. 0 - 255

Scale editor: turn notes on / off of the scale applied by the note quantiser, when all notes are disabled the module works as a microtonal keyboard.

Load scale: select and load a preset scale / mode.
- Semitones
- Ionian
- Dorian
- Phrygian
- Lydian
- Mixolydian
- Aeolian
- Locrian
- Blues major
- Blues minor
- Pentatonic major
- Pentatonic minor
-Folk
-Japanese
-Gamelan
-Gypsy
-Arabian
-Flamenco
-Whole Tone

Root note: sets the root note of the scale applied by the note quantiser. C - H
