EBS

Notes: EBS now introduces 1-to-1 power distribution cables in a super compact and sleek design to use with Multi Power Supplies.

They are made on the same concept as the latest EBS DC-split cables with flat contacts, with the difference that the 1-to-1 cables offer the option to choose between straight-to-angled or angled-to-angled contacts.

The cables are available in four different lengths.

Notes: Do you use pedals that don't match the outputs of your power supply? With EBS new power adapter cables, there's a way to solve most matters.

It sucks when you realize your coolest vintage pedal or latest digital processor-driven unit can't be fed from your pedalboard power supply because they are thirstier or uses different power inputs than your power supply features. At worst, you may even skip bringing your favourite toys to avoid the hassle. However, with the new EBS adapter cables, you can solve many of these issues easily and save the space that those extra power supplies may occupy.

Need to convert a 2.1 mm plug to 2.5 mm? No problem.
Need more current than you get from one output? No problem.
Need 18 or 24V DC power from 9 and 12V outputs? No problem.
You can even change the polarity from the common Center Negative to Center Positive using one of the new EBS adaptor cables.

Here's how you do it:
To go from 2.1 to 2.5 mm, use the DC1-48 90/0 2.5 adaptor.
Want to change the polarity? Use the DC1-48 90/0 RP adaptor.
To increase the current, use the DC1-48 90/0 PAR and connect two outputs from your power supply. The total current will be the current from both outputs added together.*
To increase the voltage, use the DC1-48 90/0 SER and connect two outputs from your power supply. The total voltage will be the voltage from both outputs added together.*

* IMPORTANT! Requires a power supply with isolated, floating outputs.

Notes: Do you use pedals that don't match the outputs of your power supply? With EBS' new power adapter cables, there's a way to solve most matters.

It sucks when you realize your coolest vintage pedal or latest digital processor-driven unit can't be fed from your pedalboard power supply because they are thirstier or uses different power inputs than your power supply features. At worst, you may even skip bringing your favourite toys to avoid the hassle. However, with the new EBS adapter cables, you can solve many of these issues easily and save the space that those extra power supplies may occupy.

Need to convert a 2.1 mm plug to 2.5 mm? No problem.
Need more current than you get from one output? No problem.
Need 18 or 24V DC power from 9 and 12V outputs? No problem.
You can even change the polarity from the common Centre Negative to Centre Positive using one of the new EBS adapter cables.

Here's how you do it:
To go from 2.1 to 2.5 mm, use the DC1-48 90/0 2.5 adapter.
Want to change the polarity? Use the DC1-48 90/0 RP adapter.
To increase the current, use the DC1-48 90/0 PAR and connect two outputs from your power supply. The total current will be the current from both outputs added together.*
To increase the voltage, use the DC1-48 90/0 SER and connect two outputs from your power supply. The total voltage will be the voltage from both outputs added together.*

* IMPORTANT! Requires a power supply with isolated, floating outputs.

Notes: With these power split cables, it is easy to distribute the power from an AD-9 to more than one pedal.

The new design introduces flat contacts (similar to the popular EBS flat patch cables) to further reduce space on your pedalboard.

Notes: EBS Flat Patch Cables have helped pedalboard users to optimize the use of space on their pedal boards and revolutionized the patch cable market.

With the EBS High Performance (HP) flat patch cables, you will have access to a cable that saves a lot of space and provides premium signal quality at the same time.

The new tin-plated copper braid shield improves the shielding capability immensely to guarantee no signal loss on your pedalboard. It also enhances the durability of the cables.

The cables also have extremely low capacitance & resistance to prevent any signal loss.

The contact is now 24K Gold plated in its entirety, features a 30% reduced size housing and has a ribbed surface on the side of the housing for better grip and identity.

The High Performance (HP) is the top-of-the-line flat patch cable from EBS in addition to the Premium Gold (most compact) and PCF-Deluxe (most affordable) cables.

Notes: EBS Flat Patch Cables have helped pedalboard users to optimize the use of space on their pedal boards and revolutionized the patch cable market.

With the EBS High Performance (HP) flat patch cables, you will have access to a cable that saves a lot of space and provides premium signal quality at the same time.

The new tin-plated copper braid shield improves the shielding capability immensely to guarantee no signal loss on your pedalboard. It also enhances the durability of the cables.

The cables also have extremely low capacitance & resistance to prevent any signal loss.

The contact is now 24K Gold plated in its entirety, features a 30% reduced size housing and has a ribbed surface on the side of the housing for better grip and identity.

The High Performance (HP) is the top-of-the-line flat patch cable from EBS in addition to the Premium Gold (most compact) and PCF-Deluxe (most affordable) cables.

Notes: Connect the 1/4" Stereo Contact of the ICY-30 or 100 to one of the Loops (Clean or Drive) on the Billy Sheehan or Stanley Clarke Acoustic Preamp pedals to add external effects, equalizers, or on/off switches to either the Clean or the Drive channel of the Billy Sheehan pedal. The cable works for any other item that makes use of a y-type insert cable too, of course.

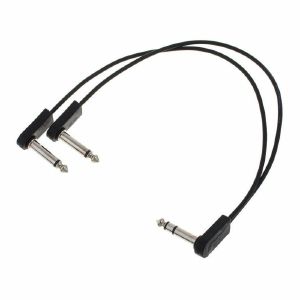

Flat Y-splitter cable with rectangular profile
Split TRS stereo signals into TS mono signals or as insert cable for TRS effects loops
Compact and super flat angled plugs
Flexible copper conductor 20 x 0.12 mm
Twisted copper shielding 34 x 0.12 mm
PE (polyethylene) signal insulation
Outer PVC insulation
1 x angled 6.3 mm TRS audio plug
2 x angled 6.3 mm TS audio plugs

Notes: The new Y-type insert cable is designed to be used with the Billy Sheehan Signature Drive loops. It features a 1/4" stereo connector at one end that splits into two 1/4" mono connectors at the other end representing TIP and RING on the stereo connector. The cable can of course be used with other products that call for an insert cable too.

Notes: The BlueDot MIDI cables are a unique design that allows for flexible angle of the contact that is desirable when space is limited.

Flip the angle of the contact 90 degrees either way or leave it straight. A blue bracket attaches the cable to the angled positions with a click.

The flat cable design fit within the EBS unmatched space-saving accessories program.

Flexible contact angle.

Flat cable design.

Notes: The BlueDot MIDI cables are a unique design that allows for flexible angle of the contact that is desirable when space is limited.

Flip the angle of the contact 90 degrees either way or leave it straight. A blue bracket attaches the cable to the angled positions with a click.

The flat cable design fit within the EBS unmatched space-saving accessories program.

Flexible contact angle.

Flat cable design.

Notes: The BlueDot MIDI cables are a unique design that allows for flexible angle of the contact that is desirable when space is limited.

Flip the angle of the contact 90 degrees either way or leave it straight. A blue bracket attaches the cable to the angled positions with a click.

The flat cable design fit within the EBS unmatched space-saving accessories program.

Flexible contact angle.

Flat cable design.

Notes: The EBS new flat design patch cables make possible to tighten up your pedal board and feature as many pedals you need.

Notes: The EBS new flat design patch cables make possible to tighten up your pedal board and feature as many pedals you need.

Notes: The EBS PCF flat patch cable is an original design by EBS that started the global trend of flat patch cables for pedalboards. Due to the clever space-saving design, the cables have become the patch cable-to-go for musicians all over the world.

If you have ever struggled with limited space on your pedalboard, the super compact and affordable EBS Flat Patch Cables will help end the frustration. They perform excellently on sound and flexibility while reducing the required space between pedals to a minimum with their unique design.

Notes: The EBS PCF flat patch cable is an original design by EBS that started the global trend of flat patch cables for pedalboards. Due to the clever space-saving design, the cables have become the patch cable-to-go for musicians all over the world.

If you have ever struggled with limited space on your pedalboard, the super compact and affordable EBS Flat Patch Cables will help end the frustration. They perform excellently on sound and flexibility while reducing the required space between pedals to a minimum with their unique design.

Notes: To end the frustration of limited space on your pedalboard, EBS have designed the truly unique, super compact, and affordable EBS Flat Patch Cables. Cables that won't let you down on sound and flexibility, and at the same time reduce the space needed between pedals to a minimum. The elegant Premium Gold (PG) series is the most compact and features 24K gold-plated contacts with even smaller housing than the original EBS PCF-Deluxe (PCF-D) cables.

Double-shielded cables and very low resistance keep your signal path clean and strong through the pedalboard.
Extremely compact size and flexible cables ensure effective use of ALL space on your pedalboard.

Since their introduction, these cables have made thousands of customers happy. We hope you will become one of them too. Buy the cables at local stores and online dealers all over the world. Great customer reviews and very few reported failures from hundreds of thousands of sold cables so far.

*** Please note: the pedals are not included, they are shown for demonstration purposes only. ***

Notes: To end the frustration of limited space on your pedalboard, EBS have designed the truly unique, super compact, and affordable EBS Flat Patch Cables. Cables that won't let you down on sound and flexibility, and at the same time reduce the space needed between pedals to a minimum. The elegant Premium Gold (PG) series is the most compact and features 24K gold-plated contacts with even smaller housing than the original EBS PCF-Deluxe (PCF-D) cables.

Double-shielded cables and very low resistance keep your signal path clean and strong through the pedalboard.

Extremely compact size and flexible cables ensure effective use of ALL space on your pedalboard.

*** Please note: the pedalboards are not included, they are shown for demonstration purposes only. ***

Notes: Space is essential when building a pedalboard. With the new Premium Gold Flat Patch Cables, EBS pushes the limits of how much space the choice of patch cables can save. The performance is improved as well, compared to EBS popular PCF-patch cables.

The tiny contact housing is made of 24 Carat Gold plated die cast Zink wrapped in a PVC sleeve for optimal protection and isolation. The flat angular double shielded cable is super flexible while wrapping the leads safely. Very low resistance and capacitance keeps your sound clean without signal loss.

EBS Premium Gold Flat Patch Cables are available in four different lengths; 10, 18, 28 and 58 cm

EBS Professional Patch cables are designed and developed by EBS in Sweden.

Notes: Space is essential when building a pedalboard. With the new Premium Gold Flat Patch Cables, EBS pushes the limits of how much space the choice of patch cables can save. The performance is improved as well, compared to EBS popular PCF-patch cables.

The tiny contact housing is made of 24 Carat Gold plated die cast Zink wrapped in a PVC sleeve for optimal protection and isolation. The flat angular double shielded cable is super flexible while wrapping the leads safely. Very low resistance and capacitance keeps your sound clean without signal loss.

EBS Premium Gold Flat Patch Cables are available in four different lengths; 10, 18, 28 and 58 cm

EBS Professional Patch cables are designed and developed by EBS in Sweden.

Notes: Stereo cable with 2 narrow angular 6.3 mm plugs.
