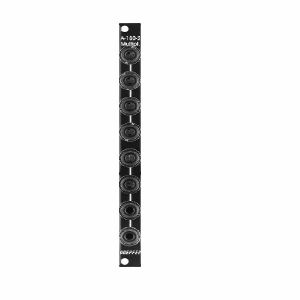

Notes: 2HP narrow version of the A-180 multiples module. It is a passive signal splitter suitable for audio or CVs. Two sets of four jacks are interconnected, by placing a solder bridge you can connect all eight jacks.

Dimensions
2 HP
18 mm deep

Current Draw
Module does not draw current

Notes: 2HP narrow version of the A-180 multiples module. It is a passive signal splitter suitable for audio or CVs. Two sets of four jacks are interconnected, by placing a solder bridge you can connect all eight jacks.

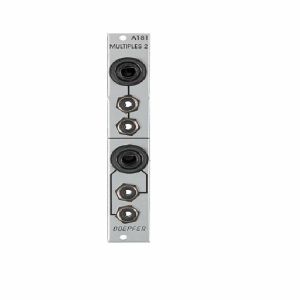

Notes: Doepfer's A-181 Multiples 2 is a simple multiple and cable format converter, suitable for translating 1/4" signals to 1/8" and vice versa. The upper mult is wired for monophonic signals, while the lower mult features a 1/4" stereo connector which offers direct 1/8" connection to the tip and ring, respectively, allowing use as a stereo splitter or dual 1/8" to stereo 1/4" converter.

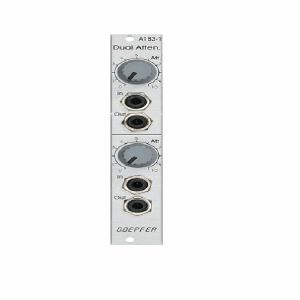

Notes: Module A-183-1 is a simple passive dual attenuator. Passive means, that each unit is made of two sockets and a 50k linear potentiometer only. There are no active parts like amplifiers or buffers and no power supply is required.

This is how the A-183-1 works: At the output socket appears the attenuated input signal, i.e. zero level at the fully CCW position and max. level and the fully CW position.

Applications:

Adjustable level of CV or audio signals to control other modules that do not have attenuators (e.g. Dual VCA A-132-1, Quantizer A-156, CV-to-Midi interface A-192 and modules of other manufacturers).

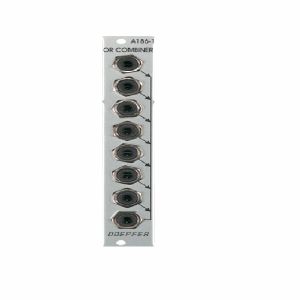

Notes: Module A-186-1 is a very simple, passive unit that combines up to 7 gate, trigger or analog signals by or-wiring.

Function:

- If all seven inputs are low or open the output is low
- If one or more of the seven inputs is "high" the output turns high

Applications:

- Combination ("or"-wiring) of gate and/or trigger signals (e.g. from LFOs, sequencers, keyboards, Midi-to-CV interfaces, ribbon controller, theremin, trigger delays or any other source of gate/trigger signals
- Maximum extractor for analog voltages: at the output the maximum voltage (minus ~ 0.7V because of the diodes) appears, similar function as the maximum output of the A-172 Maximum/Minimum Selector module, e.g. for simple waveshaping
- Simple half-wave rectifier
