Notes: Part of Sonicware's brilliant Liven series of affordable, creative groove boxes, the Ambient O packs in layers of drone, textures and noise sources to create engrossing soundscapes. Creative, experimental fun.

*** Firmware version 1.5 update- March 2025 ***

Temperament Settings for Each Track

In addition to the standard 12-tone equal temperament, you can now set 7 different temperaments per pattern, including Pure intonation, Pythagorean tuning, and Solfeggio frequencies.

64 Sound Pattern Palettes

Featuring 32 newly added sounds & patterns, along with 16 Sound Healing Vibes sounds.

Relaxation Playback Mode

Arrange your favourite patterns, set repeats and fade-outs, then let it gently fill your space with ambient sound. (Seamless pattern changes improved: if sound settings remain the same, transitions will now be smooth without audio interruptions.)

Master Tune Now Adjustable in Hz?Master tuning, previously adjustable in cents, can now also be set in Hz increments (410 - 470 Hz).

Line In Selectable on NOISE Layer

The NOISE layer can now be selected to Line In, allowing the application of Filter, LFOs, and other track-level controls to the input signal.

New LFO Waveforms & Assignment

Added three slow LFO waveforms (L.SIN, L.TRI, L.S.RN). Additionally, oscillator level can now be assigned as an LFO destination.

Pitch Bend Range Setting

You can now configure the pitch bend range in the system settings.

Changes in Oscillator Usage

Due to specification changes, the NOISE layer now consumes only one oscillator, while the ATMO 2 structure now consumes three oscillators.

Bug Fixes & Improvements

Fixed MIDI CC issues and addressed other minor bugs.


Supplier's Notes:
Your Personal Soundscape:

Conversations between Oscillating Tones and Your Mind

Immersive Ambient Generator

4 layers of tone and texture-Drone, Pad, Atmos, and Noise-merge to generate deep resonance and continuous transformation.

Ambient O (zero) is incredibly easy to use. Start by playing a tone from one layer using the note hold function. While listening closely, simply tweak the knobs to modify the tone and add other layers to shape a pleasing sound.

Blendwave Modulation Synthesis

Sonicware conducted extensive research into creating undulating and fluctuating tones for Ambient O, resulting in the development of a new wavetable-based synthesis.

Blendwave Modulation Synthesis combines 6 unique structures with 32 WAVEs featuring complex harmonic transitions, making it easy to create powerful low drones, lush pads, and transparent pizzicatos, perfect for Ambient Music.

4 knobs/8 parameters offer a wide range of tone creation.

A WAVE contains 128 harmonic tables, allowing for diverse tonal changes such as moving from basic waveforms to complex harmonics. The WAVE is represented by a yin-yang icon, with the yin representing moves in the reverse direction through the tables during modulation.

6 Structures - Each structure has a different number of oscillators and modulation circuits. ATMOS 1 applies ring modulation, while ATMOS 2 applies FM modulation.

Noise and Space

The Noise layer includes 8 specially selected nature sounds, offering noise blending, pitch adjustment and modulation to infuse unique spatial characteristics.

Additionally, it allows for up to 8 seconds of stereo sampling from the line input, letting you create personalized textures.

Extensive Effects Section

Ambient O is equipped with 9 types of lush reverb, each offering unique spatial dimensions and brightness settings. You can individually adjust the reverb send and shimmer send (for layering octaves) for each layer.

In addition to the reverb, the Ambient O offers an effect unit with Tape Delay, Reverse Delay, and 4 master effects; Overdrive, Bit/Rate Crush, Tilt EQ, and Stereo Chorus.

Sequence up to 64 steps per pattern.
Random playback of sequence phrases.
Probability of notes sounding can be set from 25 - 100%.
Program notes step by step or record them in real time. Additionally, you can also input notes to specific steps while the sequencer is playing to add variation.
Overwrite notes in real-time with one touch while playing back sequence phrases.
The Parameter Lock function allows you to record knob changes into your patterns. This can be recorded live, or programmed in step by step.

Specifications

[Synthesiser]

- Note Hold function
- 128 Sound Pattern Palettes (incl. 16 types of preset palettes)
- Mixing including level/pan for each layer
- Layer (Sound) copy and paste function
- Tune All function changes the pitch of all layers (i1 octave in 20-cent steps, adjustable in 1-cent step)
- Standard polyphony: 10 voices (depending the structure's oscillators x simultaneous voices)

4 Layer Construction
Drone, Pad, Atmos Layers
- New Blendwave Modulation Synthesis for creating undulating and fluctuating tones
- 6 Structures, 32 Waves
Drone 1: 2 oscillators, modulates Detune
Drone 2: 2 oscillators, modulates Harmonics
Pad 1: 3 oscillators, modulates Harmonics
Pad 2: 3 oscillators, modulates Harmonics
Atmos 1: 1 oscillator, ring modulation on output
Atmos 2: 2 oscillators (frequency modulation), modulates Pitch

- Polyphonic mode
- Mono mode (adjustable glide time)
- Legato mode (adjustable glide time)
- Unison mode (adjustable detune)
- Arpeggiator modes (Up, Down, UpDown, DownUp, Up&Down, Down&Up, Up+1, Up+2, Down-1, Down-2, Random, Play Order)

Noise Layer
- 1 Structure, 8 Waves
Noise: 1 oscillator, modulates Pitch
- Loop or One-shot playback, White noise mixing
- 16bit - 32kHz Linear PCM sampling (stereo)
- Up to 8 seconds of sampling per sample (crossfade settings from 1 to 4 seconds)
- Auto start sampling function with the input level (input level can be set)
- Import and export of a slot of samples (via MIDI)
*Import of audio files from PC/Mac is not supported.

- Polyphonic mode
- Mono mode (adjustable glide time)
- Legato mode (adjustable glide time)
- Arpeggiator modes (Up, Down, UpDown, DownUp, Up&Down, Down&Up, Up+1, Up+2, Down-1, Down-2, Random, Play Order)
Each layer has its own envelope, filter and 2LFOs.

- Attack
- Release

- Low Pass Filter
- High Pass Filter
- Band Pass Filter

- 2 LFOs assignable to various parameters (individually adjustable)
- Adjustable LFO Shapes and trigger count

[Effects]
9 types of high-quality reverb (Send amount to reverb and shimmer adjustable per layer)
- Small.L
- Small.M
- Small.H
- Large.L
- Large.M
- Large.H
- Infinity.L
- Infinity.M
- Infinity.H
6 types of diverse master effects
- Tape Delay
- Reverse Delay
- Overdrive
- Bit/Rate Crush
- Tilt EQ
- Stereo Chorus
The above reverb and master effects can also be applied to external sources from the LINE IN.

[Sequencer]
- 4 tracks (1 track on each layer)
- Up to 64 steps per pattern
- Step length can be set from 1/1 to 1/32 or 2/1(Breve) to 8/1(Maxima)
- Real-time recording
- Overwrite REC function for real-time sequence replacement
- Directly enter notes for each step when playback is on or off
- Enter longer notes (Tied notes)
- Metronome and pre-count function
- Step copy and paste function
- Track copy and paste function
- Duplicate to extend a sequence
- Transpose function
- Pattern BPM / Global BPM can be set
- Pattern chain function (Loop playback possible)
- Track level and pan can be set independently
- Parameter Lock function to record parameter settings for each step
- Sound Lock function to record sound settings for each step
- Note playback probability can be set from 25 to 100% for each step
- RANDOM function to play back steps in random order

[MIDI]
- Notes, control changes, clock input/output
- Import and export user data
- Firmware update via Sysex

[Unit]

27 keys (with a hold function)


- 15 physical control knobs
- Optional LATCH function prevents jumps in value when knob position and parameter values do not match.
- One physical encoder for fine adjustments.
- LCD dot indicates when a parameter value matches the saved value, or when the value has been changed.

Notes: Another innovative groovebox from Polyend, the Synth allows you to sequence and perform up to three synths from eight different synth engines. Unique Smart Grid feature allows single-button chords and note followers.

Supplier's Notes:
Compact Design. Massive Sound. Unmatched Innovation.

Easily Play 3 Synths at Once

The power of three synth engines is at your fingertips, all running together seamlessly. Whether you're in the studio or performing live, you can juggle between different engines, adjust parameters on the fly, and layer effects with ease. The built-in sequencers, arpeggiators, and all new smart grid system keep everything flowing smoothly, letting you focus on creativity without interruption. With instantly recallable scenes, you can save and recall every detail of your setup.

Eight Synth Engines to Explore

Dive into a world of sound with eight distinct synth engines, each offering its own unique character. Whether you're drawn to the classic analogue warmth of FAT or the evolving textures of GRAIN, you'll find the sound to shape your creations exactly the way you want:

PHZ: A modern take on phase distortion synthesis with options for both retro and cutting-edge tones.
PMD: Physical modelling technology that simulates realistic instruments or creates entirely new sonic expressions.
GRAIN: A granular engine with two modes, burst and cloud, ideal for rhythmic textures or sweeping ambient layers.
WAVS: Morph between wavetables with intricate control over scanning and phase shifting to create evolving textures.
VAP: A dual-oscillator polysynth that draws inspiration from the classics, offering rich, lush pads and detailed soundscapes.
FAT: Massive sound with three oscillators and vintage ladder filters for deep basses and expressive leads.
ACD: The ultimate recreation of iconic vintage monophonic synths, but with increased customization.
WTFM: A unique FM synthesis engine that uses wavetable-based oscillators for complex sounds without the usual FM complications.

Three Customizable Effects

Take your sound to the next level with three onboard effects, each fully customizable to suit your style:

MOD: This versatile modulation engine can take you from subtle choruses to wild, feedback-heavy flanging.
DEL: Dual delay lines with five unique models, giving you the flexibility to sync with your track or create complex delay effects.
REV: Three reverb modes - Natural, Plate, and Warp - let you add anything from subtle space to massive, otherworldly reverbs.

Reimagined Rhythms

Unlock your full creative potential with three independent sequencers and arpeggiators. Control every aspect of your rhythm, from swing to groove, transposition, and more. Whether you're building tight, rhythmic patterns or sweeping melodies, this system adapts seamlessly to your music.

For Performers, Sound Designers, and Innovators Alike

Always Musical Smart Grid for Live Play

Stay in control even during the most chaotic performances. The customizable Smart Grid ensures every note and chord stays in the desired scale, while making live performances smoother and more intuitive.

Scenes on Demand

Imagine having every setting - from synth engines to sequences - saved in one easy-to-recall Scene file. Build entire live sets and instantly access them with a touch. Plus, share your unique setups with the community

Combo Knobs for Quick Tweaks

Create dramatic builds or subtle shifts with customizable combo knobs. Whether controlling one or all three synths at once, adding movement and dynamics to your sound has never been easier.

Polyphonic Aftertouch

Express every nuance of your performance with polyphonic aftertouch. Adjust multiple parameters with just the pressure of your fingers, allowing for truly expressive, dynamic control over your sounds.

A Dream for Sound Designers

Intuitive 3x3 Knob Matrix

Designed for hands-on control, the 3x3 knob matrix lets you quickly access and tweak key parameters. No need to dive into endless menus - everything you need is right in front of you, ready for real-time adjustments.

Real-Time Visual Feedback

Every adjustment you make is instantly reflected in the visual interface, giving you clear, real-time feedback on how your sound is evolving. Whether you're tweaking filters, modulating oscillators, or adjusting LFOs, you'll see the changes happen as you hear them.

Endless Customization

Expand your creative palette with SD and USB storage. Easily load new wavetables, presets, and entire setups, or share your creations with others. With endless possibilities, this synth is designed to grow with you

Notes: Part of Teenage Engineering's high-end Field series, the OP-XY is best seen as a pro groovebox, combining polyphonic synthesis, sampling and sequencing. More music-focussed than its OP-Z predecessor, the OP-XY represents a new flagship for TE.

Supplier's Notes:
No-compromise, dual-CPU boosted and fully rebuilt sequencer, sampler, and performance instrument, based on the much-loved workflow of the OP-Z. Now including built-in cv, effect sends, and a best-in-class DAC. with 8 individual instrument tracks and 8 auxiliary tracks for controlling any external synthesizer, modular or otherwise, and adding effects. It's probably the most complete, portable sequencer ever built. It's here. It's real. it's black.

And it's got so much more than you've wished for.

The exterior is all black, and matches the exact dimensions of OP-1 field. A distinct grayscale gradient is at its centre, making it clear that OP-XY is all about serious sequencing. Hands-on graphics on the high-resolution display are all grayscale, with a bright red to indicate recording and parameter locks. all vital keys have LEDs to stay in full control.

Experience the ultra fast sequencing workflow. Punch-in FX lets you add quick, rapid-firing, unique, live variations and adding individual step components creates an extra dimension and deep rhythmic patterns. randomize note timing, velocity and pitch, or use live automation to alter filters. Use brain to create chord progressions, generating tracks that reinvent themselves. Literally.

Run every track, independently, at different speeds and lengths to form powerful polyrhythms. create new sequences every time with step components, variations that can be added to any step on the sequencer, controlling everything from altering pitch to bending, skipping or even multiplying steps.

Main audio-out

Multi-out, featuring:
MIDI
CV/gate
Sync
Aux audio
MIDI IN
AUDIO IN
USB-C

The 2 Vrms main output drives any sound system, real loud. Keep everything locked in sync and sequenced with the multi-out and take control with MID IN. process and sample external audio with the audio-in. control, record and charge with the audio/midi host over USB-C, plus a complete wireless experience with midi over Bluetooth LE -keine bedingungen [no strings attached].

Compose your album, head off to the gig, plug and play immediately, then keep everything locked-in with all the I/O you could ask for. 16-hour, battery-powered freedom lets you perform for hours on-end. create, produce and perform anywhere. Mit allen bedingungen [all strings attached]

The bottom left side features a pressure sensitive pitchbend

Instrument tracks:

8 individually sequenceable instrument tracks
8 unique synth engines
3 samplers
independent send levels per track

Step components
14 unique step components for advanced step sequencing
Apply up to all 14 to every step screen
480 x 222px IPS TFT display

Patterns
9 patterns per track
up to 64 bars per pattern
spread across 4 pages
presets per pattern

Effects: reverb, delay, chorus, distortion, lo-fi, phaser

Hardware
Dual blackfin processing cores
Dual DDR memory
Triple-core dsp co-processor
2x controller MCU's for wireless & low power IO domain

Sensors: 6-axis IMU accelerometer

Microphone: immediate, high quality sampling with the built-in microphone.

Connectors: 3.5 mm stereo line-out with headset mic support
3.5 mm multi-out
3.5 mm midi in
3.5 mm stereo line-in

Tactile input
2 octave musical keyboard
68 ultra low profile mechanical buttons
Pressure sensitive pitch bend
4 x multi purpose grayscale encoders

USB
USB type C connector
USB MIDI host & device
USB audio host & device

Notes: A clever take on generative sound, the Crum Hum is a three-voice soundscaping instrument, capable of creating unique melodic and harmonic tones based on 12 different sound engines.

Supplier's Notes:
Crum Hum is a 3-voice experimental and expressive soundscaping instrument with generative, ever evolving melodic and harmonic creation.

3 melodic voices with expressive touch control

12 different Sound engines

Generative & randomized melodic and chord generation

12 different Scales

Delay, Reverb, Overdrive, LFO

3.5mm CV output

3.5mm Clock input

Send and receive Midi sequencing and Midi CC.

Notes: No oscillators, 8 voice polyphony.

The Steampipe is a true physical modelling synthesizer developed in close collaboration with Dutch company 112.dB.

The Steampipe has no conventional oscillators. Instead, it mimics the way sound is created in wind instruments and it is fine-tuned to create a wide range of sounds - everything from wind instruments to strings, pipe organs, crazy effects and beyond. The Steampipe has three major sections - STEAM, PIPE and REVERBERATOR.

The STEAM section can be compared to the lungs and mouth of a musician. The generator creates the flow of air or "steam", the envelope in this section determines the force with which it is blown out. DC/noise is the noise you get when blowing out. DC/Noise on the Steampipe can also be replaced with an external audio source.

The PIPE section can be compared to a flute. In the pipe, the tune is formed. Push (in feedback) bounces the steam like it does in a flute and generates the tone. The delay box subsection changes the flute's tuning and shape.

The REVERBERATOR adds space and ambience to the sound.

The Steampipe is optimized for performance with wind MIDI controllers and it works great with any MIDI keyboard. The overtones the Steampipe produces are very organic and rich and it comes with great-sounding presets. The Steampipe is rather versatile and allows for nuanced sonic exploration, conjuring sonic imagery ranging from from wisps of cloud to fairground band organs, then to industrial horns of the railroad and finally, to massive, otherworldly ambiences.

Notes: Building on Supercritical's back catalogue, the Redshift provides a range of characters, based around the Demon Core Oscillator and Neutron Flux Filter. Six-voice analogue design with multitimbral options, MPE control and DSP effects.

Supplier's Notes:
Supercritical Synthesizers introduces their first desktop instrument, Redshift 6 - six voice analogue Variable Character Synthesizer

Supermassively dense analogue oscillator combined with a chameleon analogue filter with versatile gain staging. Now sixfold.

Redshift 6 combines technology from the company's previous products, the Demon Core Oscillator and the Neutron Flux Filter. Each of the six voices features a DCO with analogue waveforms generated under digital control. The filter core is an analogue 4-pole state variable filter also digitally controlled to act like almost any classic vintage synthesizer filter and more. In addition to the oscillators and filters, Redshift 6 has all the features expected of a modern synth - plenty of modulators, flexible voice routing, multitimbrality, MPE, and DSP effects.

Redshift 6's idea is something that is wrapped in the moniker "Variable Character Synthesizer". Each voice's analogue path regarding tuning, gain staging, filter, and more is under strict digital control. Redshift 6 has as lush and warm sweet spot inspired by the analogue polysynth tradition, but it can also cover the full range from almost digitally sterile and clean to distorted misbehaviour and beyond. No modelling here - it's all analogue until the bypassable stereo DSP effects processor.

The oscillator, already road-tested in the Demon Core Oscillator eurorack module, is featured in each of the six voices. The oscillator has multiple tricks up its sleeve, each one wrapped as an Engine for the user to choose between. Traditional twin oscillator engines, supersaw engines, flanging phase sync engines, and transistor organ engines are all powerful modes in user-friendly ways that are easily controllable and modulatable.

Redshift 6's six voices can be configured in plenty of ways. Choose between true six-voice polyphony, classic vintage poly dual layer mode with 3+3 voices, six individual voices each with their own patch and physical output, or any combination of the above. Each of the six voices can also operate as a paraphonic voice with up to 16 note paraphony. Additionally, multiple filters can be chained by routing audio from one voice to another.

The form factor of Redshift 6 is a modern, compact desktop device with a 2.7-inch colour screen. Menu diving is reduced to a minimum, with quick navigation via the shortcut button grid. A selection of familiar synth controls are featured on the front panel. A macro mode is included with six user-assignable controls. The back panel features main audio outputs with a DSP effects processor and four auxiliary voice outputs.

One of the major design principles of Redshift 6 is to have a versatile and capable analogue platform and a flexible UI for new Engines, easily updateable via software updates.

Supercritical Redshift 6 Desktop synthesizer module

Technical specifications

Six voices each featuring:
Full analogue signal chain
Digitally controlled analogue Supercritical Demon Core Oscillator
Analog four pole Variable Character Filter
Flexible gain staging with an analogue boost circuit
Physical audio output per voice (2 main outputs and 4 aux outputs)
Optional voice chaining
Bypassable digital effects in main outputs 1-2
2.7" TFT IPS colour screen with a bank of 8 endless clickable potentiometers and quick navigation via button grid
Quick powerful controls for oscillators and filters.
Six user-assignable macro controls
Six parts multitimbral
Modern MIDI implementation with USB-B connection and DIN IN/OUT
MPE
12V power supply
Physical dimensions: 378 mm x 254 mm x 63 mm

Notes: Limited-edition orange version of the superb Hydrasynth Explorer. A smaller, more affordable version of the Hydrasynth Keyboard. Advanced wavetable synthesis with 8-voice polyphony, hands-on control and an excellent keybed with polyphonic aftertouch.

Supplier's Notes:
The HYDRASYNTH EXPLORER is the ultimate in power and portability, combining the powerful Hydrasynth sound engine with battery-powered operation and the new, mid-sized Polytouch polyphonic aftertouch keybed. The user interface is designed with the utmost attention to detail, making sound creation a breeze. This is the ultimate, portable companion for any setup, and anywhere else a smaller footprint is needed.

With an advanced wavetable synthesis engine, 3 Oscillators, dual Wave Mutants, and 2 filters that can be configured in series or parallel, the tone generating capabilities are unmatched.

As for the performance capabilities, the Hydrasynth Explorer has the proprietary 37-note mid-sized Polytouch keybed with polyphonic aftertouch. This provides a level of expressive, per-note control found only in certain vintage synths.

Polytouch Keybed

The perennial pursuit of musical instrument manufacturers is to find better ways for musicians to express themselves. Options have been limited for keyboard players; ASM had to settle for a velocity-only approach to emphasize one note over another. Pressure-sensitive keyboards could only change all of the notes at the same time. Not anymore!

Enter ASM, with patented Polytouch technology. The semi-weighted keybed on the Hydrasynth Explorer provides fully polyphonic aftertouch, as well as Note On / Note Off velocity sensitivity and the monophonic aftertouch found on other keybeds. Finally, variations in key pressure can affect notes individually. It feels great, too: the 37-note Polytouch keybed on the Explorer features high quality, mid-sized keys, and you will feel right at home, right away. The revolutionary Hydrasynth Explorer Polytouch keyboard helps you be more in touch with the music you are making. Now every note you play can ebb and flow like the tide.

Battery-powered operation

The Hydrasynth Explorer is highly portable! In addition to its compact size, it can be powered by 8 AA batteries for hours of music-making anywhere you want to go.

Oscillators
The tone generation capability is the heart of any synthesizer, and the 3 Hydrasynth oscillators are alive with potential. Each of the oscillators lets you choose from a selection of 219 single-cycle waveforms. And on top of that, two of the oscillators have powerful wavemorphing capabilities. Wavemorphing is a feature usually found on synths with preset wavetables. But creating user wavetables on those products is arduous or downright impossible. Unlike most wavetable synths, the oscillators 1 & 2 have an easy-to-use WAVELIST mode. This mode lets you select any 8 waves from the diverse collection of 219 waves, arrange them in the order you want, and then morph from one wave to another. This can be done automatically with any modulation source, such as an LFO or an envelope, or manually with a physical control such as polyphonic aftertouch or a Macro. And now in version 2.0 you can choose the bit depth of each oscillator, which puts those sought-after vintage or grungy sounds at your fingertips.

Mutants
Oscillators 1 & 2 are routed into ASM's MUTANTS. The Mutants allow you to modulate, bend and sculpt the sound in new (and old) ways.

Each Mutant lets you choose from the following processes:
FM-Linear: This is for making classic FM sounds. Choose multiple FM sources, including external inputs.
WavStack™: Creates 5 copies of the input source and allows you to set a detune amount.
Osc Sync: This gives you those classic hard sync sounds. Try hard-syncing a morphing wavetable for some fun.
Pulse Width Modulation (PW-Orig): Performs the classic pulse width modulation on any waveform.
PW-Squeeze: Compresses the centre section of the waveform, for a unique type of PWM.
PW-ASM: Divides the incoming wave into 8 slices and lets you set the amount of FM that is applied to each segment. This is FM unleashed.
Harmonic Sweep: This will sweep the harmonics of the input source.
PhazDiff: Generates the difference of the incoming wave and a version that is inverted and phase-shifted.

The Mutants can also generate their own waveforms in both FM and Sync modes, so you don't have use another oscillator. Of course, the routing is flexible so you can choose the other oscillators as mod sources if you like.

Mixer / Filter Routing
The 3 Oscillators are fed into a mixer along with the Noise generator and Ring Modulator. The mixer gives you independent control over the levels and stereo positions of those 5 sources. After this you are able to choose how much signal from each source is routed to filters 1 and 2. The filters can be routed in parallel or series for ultimate flexibility. Who knew that a simple mixer could be so powerful?

Filters
If oscillators and tone generators are the heart of a synthesizer, the filters are the soul. The soul of a Hydrasynth is a complex thing; it can claw or caress, scream or soothe, mangle or melt. It has been known to speak. The multi-faceted Hydrasynth filters are right in the thick of it. Filter 1 has 16 different models ranging from 1 to 8 poles, many with high-, band-, and low pass options. There is also a flexible vocal filter with formant control. Even if Filter 1 were the only filter the Hydrasynth had, it would take a lifetime to exhaust the possibilities. But it is not alone. Filter 2 is a 12dB per octave state-variable filter, which means it can sweep continuously from either low pass > bandpass > high pass or low pass > notch > high pass. It is similar to the classic SEM filter in many ways.
These two formidable filters can be configured in series or parallel. This means the one can feed and be sculpted by the other (series), or they can complement one another (parallel). With careful use of source panning in the Mixer module, the left and right outputs can be completely different or rich in unified complexity.

LFO's
5 Low-Frequency Oscillators
Much like ASM's sound engine, the LFOs are not ordinary by any means.
The Hydrasynth LFOs feature a STEP mode that lets you create patterns with up to 64 steps. Having 5 mini step sequencers gives you an amazing number of possibilities for further shaping your sound.
Of course, there are also 10 standard waveforms available, including Sample and Hold, Noise, and Random.
Each LFO has delay, fade in, 3 triggering modes, smoothing, start phase, BPM sync, and a One-Shot mode so that they can act as envelopes.
The version 2.0 LFOs have some exciting new features, including a Step option for the One-Shot mode that allows the Step wave to advance by one step per trigger.
And LFOs now can be quantized to create stepped values. It's like bit reduction for your LFOs.
Wait...LFOs can be envelopes?! Can envelopes be LFOs? Glad you asked...

Envelopes
5 DAHDSR Envelopes
An advanced sound engine needs plenty of modulation sources. The 6-stage envelopes feature Delay, Attack, Hold, Decay, Sustain, and Release stages.
The durations of the ADR stages can be set to seconds or subdivisions of the tempo, giving you envelopes that play in sync to your song.
In fact, you can also loop the envelopes, which turns them into LFOs that can be shaped by any source in the modulation matrix.
Each envelope can be triggered by up to four different sources, and there's a Tap Trigger option too.
And now the envelopes can be quantized to different step levels as of version 2.0. Bit reduction strikes again!

Modulation Matrix
The modulation capabilities on the Hydrasynth are endless. With 32 user-definable Modulation matrix slots, there are plenty of ways to use the 35 modulation sources and 191 modulation destinations. Almost everything in the synth engine can be a modulation destination, including the effects and arpeggiator. The modulation routes themselves can also become modulation destinations, and can be targeted by the Macros too. Modulation sources & destinations include the CV Mod Out jacks as well as all 128 MIDI CCs. There are some hard-wired modulation routes located in other modules too. This means you don't have to burn up one of the 32 mod routes in the Modulation matrix to do certain basic functions.

Arpeggiator
The arpeggiator has all the standard arpeggio directions plus a few twists (up, down, and/or sideways, sort of). There's also a built-in phrase mode, and version 2.0 adds new features like Step Offset and increases the range to 6 octaves. Parameters like RATCHET and CHANCE will generate other semi-random rhythmic patterns to add life and spontaneity to your performance.
You can also modulate most of the parameters in the arpeggiator. Imagine using LFOs, Envelopes, Polyphonic Aftertouch or the Ribbon controller to modify your arpeggios in real time! It boggles the mind.

Notes: Super affordable but fun analogue synth, the LORE does two-oscillator FM synthesis to create experimental tones, drones and textures. Power via USB-C, output over 3.5mm jack socket.

Supplier's notes:
Lore takes two of the lush all-analogue oscillators from OVUM, and adds frequency modulation to unlock a wild new range of sounds. It's designed for exploring tones, drones, and frequency modulated textures. Each voice is made of an independently controlled triangle-core oscillators, with separate control for volume, pitch, and can be crossfaded between a bright square wave and a crisp triangle wave.

Lore is frequency modulation. The left oscillator can be sent to the audio output, where it will create harmony or dissonance with the right oscillator, or it can be switched to modulate the frequency of the right oscillator. This is a simplified and analog version of the kind of FM synthesis you'll find in digital synthesizers like the DX7 and it's descendants. It's hand-built from 100% analog circuitry, with no digital components, screens, quantization, or key-combinations to memorize - everything is immediate and at your fingertips.

Lore is enclosed in a sturdy transparent-green petroleum-free bioplastic case. It has a USB-C port for power, and a single 3.5mm audio output jack for headphones or line-out to connect to an amplifier, audio interface, or effects.

To reduce waste, by default Lore comes with just the instrument and a USB to USB-C power cable. If you don't have a spare USB power supply, they can be added to your purchase at checkout. Lore is portable, but does not contain a battery. It can be powered by any USB powerbank.

Notes: Drawing on the iconic Mono/Poly synth from 1981, the Multi/Poly reimagines Korg's heritage for the 21st century. Super versatile analogue modelling engine allows you to create unique synth voicings.

Supplier's Notes:
Explore breathtaking analogue-inspired sound with the limitless power of digital technology. The multi/poly is the first synthesizer to use Korg's next-generation analogue modelling technology, building on the distinctive combination of big, bold sounds and modular-derived experimental features that made the Mono/Poly legendary. It's like having a polyphonic modular system in a compact, hands-on package, offering limitless possibilities for sound designers and synth enthusiasts alike.

Create hardware mashups with East-coast, West-coast, and wavetable oscillators alongside a wide selection of newly modelled filters. Bring these sounds to life with models of different envelopes, VCAs, and portamento circuits, while virtual voice cards add organic timbral variation. The Layer Rotate feature triggers new Programs with each key press, while Kaoss Physics, Motion Sequencing 2.0, massive modulation capabilities, and more allow for deep sound exploration.

Next-Level Analogue Modelling

multi/poly features redesigned, incredibly detailed filters and oscillators, and advances in analogue modelling that take this technology to a new level. Each voice contains a Virtual Voice Card, where oscillators, filters, envelopes, LFOs, and portamento circuits are modelled to reflect analogue hardware component variations. As a result, each voice can have its own slightly different character, creating rich and naturally evolving timbres. Just like in an analogue synthesizer, voice cards continue to play even if you're not hearing them. Envelopes evolve naturally, meaning if you play a long pad with an extended-release time, newly played notes "catch" the envelope at its current state rather than restarting from zero. Oscillators and LFOs maintain phase, while resonance continues to ring out. Pitch drift mimics the subtle instabilities of true analogue hardware.

multi/poly also includes envelope curvature presets inspired by classic synths like the Mono/Poly, MS-20, ARP Odyssey, and Prophet 5. Additionally, analogue VCAs behave differently depending on voltage, with varying thresholds for turning on and off, which has a strong impact on the Amp Envelope's character. multi/poly models VCA responses from the Mono/Poly, MS-20, Prophet 5, Mini, Odyssey, and more, alongside a linear option.

Four Oscillators Per Program for Complex Tones

multi/poly offers four oscillators per Program, providing thick, multi-layered tones. You can choose from three types of oscillators:

Classic oscillators:

These faithfully model traditional analogue waveforms with stunning accuracy. The 11 options include both single and dual waveforms, giving you rich, thick sounds. Front-panel knobs offer control over pulse width, triangle "lean," dual-waveform blending, and more.

Digital oscillators

Play wavetables with up to 64 steps, like vintage hybrid synths or modern Eurorack modules. Start with over 200 factory wavetables or import your own using the Editor/Librarian software for macOS and Windows. You can even import Modwave wavetables or convert wavetables from popular software formats. The 30+ Modifiers allow you to reshape wavetables, while 8 Morph Types (Stretch, Flip, Mirror, etc.) process them in real time.

Waveshaper oscillators

Inspired by West-Coast synthesis, these oscillators take simple waveforms (sine or triangle) and process them through a shaper table, producing dynamic harmonics. Use the Berkeley shaper for traditional wavefolding timbres, or choose from over 90 shaper types for a vast array of tones. The multi/poly also supports modulatable pulse width, adding richness and motion to your sound.

Additionally, the multi/poly includes a noise generator with dedicated filtering and saturation, and a ring modulator with inputs from the oscillators. You can create powerful sounds by leveraging the enhanced sync and x-mod capabilities, which expand on the Mono/Poly's original design. Create unique tones by syncing oscillators 2, 3, and 4 to oscillator 1, or split sync and x-mod into pairs for independent control.

Dual Modelled Filters for Maximum Flexibility

multi/poly's filters are newly redesigned to offer a range of classic and modern options. The multi/poly also includes the MS-20 LP and HP 12dB/octave Korg 35 filters, recreating the aggressive, distinctive sound of the MS-20. For gentler tones, use the SE M/P 2-pole filter, which offers continuous control for sweeping between lowpass, band-reject, and highpass, with a separate bandpass mode. multi/poly's filters support audio-rate modulation, allowing you to modulate filters using any oscillator or the ring modulator for bright, fizzy, and bubbling effects.

M/Poly: A 4-pole self-resonating filter, modelled on the Mono/Poly.
Mini: A ladder filter from a famous American mono-synth, with reduced resonance at low frequencies-perfect for bass.
Pro: From the first programmable polyphonic synthesizer, offering strong resonant sweeps.
Ladder HP/BP: 4-pole self-resonating highpass and bandpass filters.
Use the Drive circuit to add weight or distortion, ranging from subtle thickening to extreme saturation. You can use two filters at once in series or parallel, with each source (oscillators, noise, and ring mod) having its own balance control to crossfade between filters. Modulate the A/B balance for even more creative sound shaping.

The Power of Four

multi/poly's structure allows you to build four Layers, each containing a separate Program. This adds an entirely new dimension of sonic complexity, as you can layer up to four Programs simultaneously in a Performance. These can be used to create massive, multi-layered sounds or creative splits and velocity-triggered variations. Each Program features its own set of oscillators, filters, envelopes, LFOs, and effects, allowing you to craft detailed, evolving performances that change with every key press.
Each Program starts with four oscillators, a noise generator, and both sync and x-mod capabilities. These are processed through two independent filters, providing massive tonal flexibility. For modulation, multi/poly includes four loopable DAHDSR envelopes, five LFOs, and six Mod Processors, allowing you to create detailed and evolving sounds.

Layer Rotate for Evolving Performances

The Layer Rotate feature allows you to cycle through these four Programs with each key press, ensuring dynamic, ever-changing performances. Inspired by the original Mono/Poly's paraphonic mode, Layer Rotate offers endless creative possibilities. You can set the Layers to trigger in random or repeating order and use them in combination with the arpeggiator for complex, mind-bending patterns.

Production-ready Effects

The multi/poly's effects ensure your sounds are polished and ready for the stage or studio. Each layer features three dedicated effects, along with a send to the Performance's master reverb and a master parametric EQ. In addition to standard effects like compressors, EQs, choruses, flangers, phasers, and stereo delays, you'll have access to unique sound-shaping processors such as the Wave Shaper, Talking Modulator, Reverse Delay, and Multiband Mod Delay, as well as the famous Overb from the OASYS and Kronos. multi/poly also includes modelled effects like Vox guitar amps, Vox wah, Vintage Distortion, CX-3 Rotary Speaker and Vibrato/Chorus, multi-head tape echo, and a collection of classic guitar pedals, giving you endless possibilities to shape your sound.

Built to Perform

An instrument that sounds this great deserves to look and feel fantastic, too. The new semi-weighted keybed is smooth and expressive, providing a responsive playing experience, while the knobs offer just the right amount of resistance, perfect for fine-tuning your sounds. The solid aluminium front panel ensures durability, making it road-ready for live performances, while the wooden side-panels and blue-on-black colour scheme are a stylish nod to the original Mono/Poly design. Plus, the multi/poly comes with a custom-made soft case, making it easy to transport and protect your instrument wherever you go.

Notes: Part of Sonicware's excellent Liven series of compact groove boxes, the Mega Synthesis draws on the unique sound of the Sega Mega Drive/Genesis games console to create characterful 80s/90s synths.

Supplier's Notes:
Revive the SONIC sensation of the golden era!

Create Diverse Game Music with a Sophisticated 6-Track Sequencer and 10 Types of Effects

You too must have fallen under the spell of the extraordinary visuals and sounds of the groundbreaking 16-bit video game console that once dominated the world! It was powered by the iconic "YM2612" sound chip, a legacy that endures even today.

The MEGA SYNTHESIS has resurrected the sound engine of this chip. Sonicware have faithfully recreated the 4-operator FM sound module, the 8-bit PCM sound module, and the "SN76489" PSG (Programmable Sound Generator) sound module used by the original console.

4-operator & 8-algorithm FM sound module with precise sound editing in Edit Mode - Including extra features like fine-tuning operator ratios, which was impossible at the time.

PSG (Programmable Sound Generator) sound module - Synthesize basic waveforms and white noise to recreate iconic retro-game-sounds.

And the 8-bit PCM sound part of YM2612 - Recreate the sound of PCM playback controlled by the Z80 microprocessor used at the time.

Sampling capabilities (8-bit - 12kHz: up to 8 seconds / 24kHz: 4 seconds / 48kHz: 2 seconds, 96 stored samples)

Legacy Mode to faithfully replicate the sound of the era

This feature simulates the characteristically grungy sounding quirks of the YM2612 sound and can be turned on/off for each track.

In the FM tracks, you can separately configure FILTER [frequency response simulation] and LADDER [replication of the unique 9-bit DAC]. And the PCM track can also be played back in 4BIT, allowing you to create the sound to your preferences.

Create Diverse Game Music with a Sophisticated 6-Track Sequencer and 10 Types of Effects

Creating game music is a breeze with this intuitive sequencer, featuring a straightforward 6-track layout comprising 3 FM synthesis tracks, 2 PSG synthesis tracks, and 1 PCM sample track. woo
Specifications

Synthesiser


FM sound module [Tracks 1, 2, 3]
- 4 operators - 8 algorithms
- Maximum polyphony: 6 voices
- Sound editing in FM Edit mode

- Polyphonic mode
- Mono mode with adjustable glide time
- Legato mode with adjustable glide time
- Arpeggiator modes (Up, Down, UpDown, DownUp, Up&Down, Down&Up, Up+1, Up+2, Down-1, Down-2, Random, Play Order)

PSG sound module [Tracks 4, 5]

- 11 types
Square wave
Noise (Low/Mid/High) -> Square wave
Pulse Wave
Noise (Low/Mid/High) -> Pulse Wave
Noise (Low/Mid/High)
- Maximum polyphony: 4 voices

- Polyphonic mode
- Mono mode with adjustable glide time
- Legato mode with adjustable glide time
- Arpeggiator modes (Up, Down, UpDown, DownUp, Up&Down, Down&Up, Up+1, Up+2, Down-1, Down-2, Random, Play Order)

PCM sound module [Track 6]

- 8bit - 12/24/48kHz (switchable) linear PCM sampling (mono)
- Up to 8 seconds of sampling per sample (12kHz), 4 seconds (24kHz) or 2 seconds (48kHz)
- Auto start sampling function with the input level (input level can be set)
- Auto-slice function (equal division by number of slices or length of one slice)
- Maximum polyphony: 3 voices (1 voice in One-shot mode)?- 96 sample memory slots (16 x 6 banks)
- Import and export of a slot or banks of samples (via MIDI)
*Import of audio files from PC/Mac is not supported.

- Drum mode (Drum kit performance)
- One-shot mode (Sample playback or chromatic performance)

- Sweep with adjustable speed, range, and curve
- Switchable between sweep envelope and LFO

[Effects]

Effect send amount can be set independently for each track

- Send Delay
- Insert Delay
- Reverb
- Crusher
- Distortion
- Compressor
- Low pass filter
- High pass filter
- Isolator
- Remix Performance effect

[Sequencer]

- 6 tracks
- Up to 128 steps per pattern
- 128 patterns
- Step length can be set from 1/1 to 1/32
- Real-time recording
- Directly enter notes for each step when playback is on or off
- Enter longer notes (Tied notes)
- Metronome and pre-count function
- Step copy and paste function
- Track copy and paste function
- Duplicate to extend a sequence
- Transpose function
- Swing function
- Pattern BPM / Global BPM can be set
- Pattern chain function (Loop playback possible)
- Track level and pan can be set independently
- Parameter Lock function to record parameter settings for each step
- Sound Lock function to record sound settings for each step
- Note playback probability can be set from 25 to 100% for each step
- RANDOM function to play back steps in random order
- STUTTER function to play back only the step being pressed

[MIDI]

- Notes, control changes, clock input/output
- Import and export user data
- Firmware update via Sysex

[Unit]


27 keys (with a hold function)

- 15 physical control knobs
- Optional LATCH function prevents jumps in value when knob position and parameter values do not match.
- One physical encoder for fine adjustments.
- LCD dot indicates when a parameter value matches the saved value, or when the value has been changed.

Notes: A legendary past, a powerful future.

microKORG is one of the world's most successful synths, having helped to shape music production for more than twenty years. Merging the essence of what made the original a global success with an array of powerful new features, the microKORG 2 once again redefines the landscape of music creation. It maintains the essence that has made its predecessor a mainstay in studios and on stages while introducing innovative, contemporary elements that resonate with today's musicians. The microKORG 2 is not just a new instrument; it's a new chapter in synth history.

Seamlessly sculpt your sound with refined controls

Dive into the microKORG 2 and discover how easy and intuitive creating the perfect sound can be. Korg have equipped it with five dynamic knobs, each one a gateway to fine-tuning your sound across any musical genre with speed and precision. Whether you're crafting lush pads or searing leads, the expanded bank selection puts every era of music right at your fingertips.

The centrepiece of the microKORG 2 is its stunning 2.8-inch colour display. It's not just about looks; this display makes tweaking your sound a visually immersive experience. Watch parameters come to life with animated effects, giving you instant visual feedback as you shape your sound. And for those who love to see music as well as hear it, a quick tap switches you to an oscilloscope view, literally showing you how your soundwaves evolve and change.

Korg have packed the microKORG 2 with the latest tech, but don't worry, it's all about enhancing your experience, not complicating it. Whether you're a synth veteran or just starting, you'll find its interface welcoming, straightforward, and comprehensive, letting you dive deep into sound creation without getting lost in the technicalities. It's all about keeping the joy in music making - and the microKORG 2 does just that.

Crafting vocal perfection: the new vocal processor

The original microKORG is renowned for making complex vocal synthesis accessible and fun. Known as the synthesiser with its own mic, it has been the choice for producing unique robotic voices for over two decades - a feat typically reserved for specialized equipment. The true magic of the microKORG has always been in its ability to simplify complex sound engineering. Taking a leap forward, Korg have outfitted the microKORG 2 with a new vocal processor that goes well beyond the beloved classic vocoder effects. Korg are introducing advanced vocal processing technology at your fingertips, including hard-tune pitch correction for creating smooth and polished vocal tracks. Additionally, the new harmonizer feature allows you to layer and pitch-shift your vocals, enriching your music with depth and complexity.
As for effects, the microKORG 2 offers a rich array of options. Layer your vocals with immersive reverb, crisp delay, and a diverse range of sonic textures to fully realise your creative vision. The iconic gooseneck mic, now featuring a stylish metallic neck, is the perfect complement to this powerful vocal processor. Whether you're aiming for rich harmonies or contemporary auto-tuned effects, the microKORG 2's vocal processor is a versatile tool for unleashing your vocal creativity.

Master live performances with loop recording and arpeggiator

Discover a new level of musical creativity with microKORG 2's loop recorder. This feature brings a familiar yet powerful tool for modern musicians into the microKORG world. Ideal for crafting layered backing tracks, the loop recorder allows you to loop segments of music and overlay your own performance, enhancing your creative expression in real-time. While loop recorders are well-known in the music world, their integration into the microKORG 2 opens up new avenues for experimentation and performance, perfectly complementing the synthesiser's robust capabilities.

The loop recorder is designed for simplicity and ease of use, featuring three simple buttons: record, play/stop, and undo/redo. The user interface is streamlined for immediate understanding and use- long-pressing the buttons reveals recording and playback settings, ensuring you're always in control and can focus on your performance.

The microKORG 2 also includes an arpeggiator, perfect for adding rhythmic complexity to your compositions. Activate it with a simple press of one of the eight program number buttons, and watch as it infuses your music with intricate patterns and textures. The combination of the loop recorder and arpeggiator opens up a world of possibilities, allowing you to craft a performance that is truly and uniquely yours.

Explore sounds across the ages

Discover microKORG 2's rich tapestry of sounds, where you get to play with a whole new range of tones. It's all about choice here - the new program selector is your gateway to genres far and wide. Fancy a bit of retro?

Specifications

Keyboard: 37 keys (velocity sensitive mini keys)

Synthesiser
Sound Engine: Analogue modelling synthesis system
Number of Timbers: Max. 2 (when Dual)
Maximum number of voices: Single 8 voices, Dual 4 voices

Vocal Processor
Maximum Polyphony: Vocoder 8 voices, Hard Tune 4 voices, Harmonizer 4 voices, Hard Tune & Harmonizer 2 voices

Effect types: Modulation, Delay, Reverb, Equalizer
Arpeggiator: 10 types, step arpeggiator function
Programs 256 programs (4 Banks x 8 Categories x 8 Programs)
Display: 2.8-inch IPS LCD display
Inputs/Outputs: OUTPUT - L/MONO, R terminals: 6.3mm TS phone jack, unbalanced
HEADPHONES jack: 6.3mm stereo phone jack, unbalanced
MIC IN - CONDENSER: +5V 3.5mm TRS mini phone jack, unbalanced
MIC IN - DYNAMIC: 6.3mm TS phone jack, unbalanced
AUX IN: 3.5mm mini stereo phone jack, unbalanced
DAMPER/SWITCH: 6.3 mm phone jack
MIDI IN,OUT
USB Type C

Power supply: 9V DC (AC adapter), six AA batteries (alkaline or NiMH)
Battery life: Approximately. 4 hours or more (when using alkaline batteries)
Dimensions (W x D x H) 542 x 238 x 65 mm
Weight: 2.1 kg (without batteries and microphone)
Included items Condenser microphone, AC adapter (DC 9V)

Notes: Introducing the revived version of LYRA-4 organismic synthesiser, the younger sister of the famous LYRA-8. "Organismic" means that LYRA uses some principles that lie in the base of living organisms. The way how LYRA's modules interacting between each other and the behaviour of the instrument resembles a live conversation. It's smaller and weighs less but is equally rugged in design, and still packs a lot of punch. This makes it easy to fit in a backpack and perfect for taking the LYRA sound on the road. And playing two LYRA-4s can actually sound very different than just one LYRA-8.

LYRA-4 is based on four generators, which will be referred to as voices. Their design is not like a traditional subtractive synthesis VCO. Instead of having a linear or logarithmic dependency on control voltage, they resemble the tone generators in old electric organs. Hence the use of the term "voices" instead of "VCOs". Lyra uses non-linearity a lot, and the voices are constructed in such a way that allows for non-linearity to express itself.

The voices are divided into two pairs (12, 34), creating tree-like structure.

The voices can function either in an electric organ mode or in an FM synthesis mode with each of the voices and its envelope acting as a separate FM operator. The voice's impact on FM synthesis will decrease along with the decay of its envelope.

LYRA-4 also has the next blocks:

The HYPER LFO is a complex low-frequency generator, whose waveform is synthesized from two simple LFOs by summation or multiplication of their frequencies. It also has a sync mode. The LFO can modulate the selected pairs of voices and the MOD DELAY.

The MOD DELAY consists of delay with feedback. The delay has a unique possibility of self-modulation where the output signal modulates the delay sample rate, creating cool effects.

The DISTORTION is last in the chain, after the delay. It enables the delay to also influence the distortion.

For all its experimental character, LYRA is a professional instrument. Its output dynamics and frequency response are balanced and ready for a live performance or studio recording without any additional processing.

Specifications

Max output voltage: 2 v 0-to-peak
Output connector: mono 6.3 mm TS jack
Output resistance: 10 KOhm
CV DELAY: unipolar, range of 0 to +5 volt
CV DELAY: 6.3 mm TS jack
CV VOICES: unipolar, range of 0 to +5 volt
CV VOICES connector: 6.3 mm TS jack
Power supply: stabilised, +12 V, 0.2 A, centre positive
Power Consumption: 1.2 watt
Headphones resistance: 6-64 Ohm
Power supply: stabilised, +12 V, 0.2 A, centre positive
Dimensions: 241 x 203 x 62 mm
Weight (without power supply and packaging): 1.2 kg

What's included:

LYRA-4 - 1 pc
Power supply - 1 pc

Notes: The legendary MicroKorg gets a major overhaul, bringing this iconic instrument right up to date. Eight voices of powerful, punchy and inspiring virtual analogue sound. A superb all-rounder, suitable for all styles of music.

Supplier's Notes:
A legendary past, a powerful future.

microKORG is one of the world's most successful synths, having helped to shape music production for more than twenty years. Merging the essence of what made the original a global success with an array of powerful new features, the microKORG 2 once again redefines the landscape of music creation. It maintains the essence that has made its predecessor a mainstay in studios and on stages while introducing innovative, contemporary elements that resonate with today's musicians. The microKORG 2 is not just a new instrument; it's a new chapter in synth history.

Seamlessly sculpt your sound with refined controls

Dive into the microKORG 2 and discover how easy and intuitive creating the perfect sound can be. Korg have equipped it with five dynamic knobs, each one a gateway to fine-tuning your sound across any musical genre with speed and precision. Whether you're crafting lush pads or searing leads, the expanded bank selection puts every era of music right at your fingertips.

The centrepiece of the microKORG 2 is its stunning 2.8-inch colour display. It's not just about looks; this display makes tweaking your sound a visually immersive experience. Watch parameters come to life with animated effects, giving you instant visual feedback as you shape your sound. And for those who love to see music as well as hear it, a quick tap switches you to an oscilloscope view, literally showing you how your soundwaves evolve and change.

Korg have packed the microKORG 2 with the latest tech, but don't worry, it's all about enhancing your experience, not complicating it. Whether you're a synth veteran or just starting, you'll find its interface welcoming, straightforward, and comprehensive, letting you dive deep into sound creation without getting lost in the technicalities. It's all about keeping the joy in music making - and the microKORG 2 does just that.

Crafting vocal perfection: the new vocal processor

The original microKORG is renowned for making complex vocal synthesis accessible and fun. Known as the synthesiser with its own mic, it has been the choice for producing unique robotic voices for over two decades - a feat typically reserved for specialized equipment. The true magic of the microKORG has always been in its ability to simplify complex sound engineering. Taking a leap forward, Korg have outfitted the microKORG 2 with a new vocal processor that goes well beyond the beloved classic vocoder effects. Korg are introducing advanced vocal processing technology at your fingertips, including hard-tune pitch correction for creating smooth and polished vocal tracks. Additionally, the new harmonizer feature allows you to layer and pitch-shift your vocals, enriching your music with depth and complexity.
As for effects, the microKORG 2 offers a rich array of options. Layer your vocals with immersive reverb, crisp delay, and a diverse range of sonic textures to fully realise your creative vision. The iconic gooseneck mic, now featuring a stylish metallic neck, is the perfect complement to this powerful vocal processor. Whether you're aiming for rich harmonies or contemporary auto-tuned effects, the microKORG 2's vocal processor is a versatile tool for unleashing your vocal creativity.

Master live performances with loop recording and arpeggiator

Discover a new level of musical creativity with microKORG 2's loop recorder. This feature brings a familiar yet powerful tool for modern musicians into the microKORG world. Ideal for crafting layered backing tracks, the loop recorder allows you to loop segments of music and overlay your own performance, enhancing your creative expression in real-time. While loop recorders are well-known in the music world, their integration into the microKORG 2 opens up new avenues for experimentation and performance, perfectly complementing the synthesiser's robust capabilities.

The loop recorder is designed for simplicity and ease of use, featuring three simple buttons: record, play/stop, and undo/redo. The user interface is streamlined for immediate understanding and use- long-pressing the buttons reveals recording and playback settings, ensuring you're always in control and can focus on your performance.

The microKORG 2 also includes an arpeggiator, perfect for adding rhythmic complexity to your compositions. Activate it with a simple press of one of the eight program number buttons, and watch as it infuses your music with intricate patterns and textures. The combination of the loop recorder and arpeggiator opens up a world of possibilities, allowing you to craft a performance that is truly and uniquely yours.

Explore sounds across the ages

Discover microKORG 2's rich tapestry of sounds, where you get to play with a whole new range of tones. It's all about choice here - the new program selector is your gateway to genres far and wide. Fancy a bit of retro?

Specifications

Keyboard: 37 keys (velocity sensitive mini keys)

Synthesiser
Sound Engine: Analogue modelling synthesis system
Number of Timbers: Max. 2 (when Dual)
Maximum number of voices: Single 8 voices, Dual 4 voices

Vocal Processor
Maximum Polyphony: Vocoder 8 voices, Hard Tune 4 voices, Harmonizer 4 voices, Hard Tune & Harmonizer 2 voices

Effect types: Modulation, Delay, Reverb, Equalizer
Arpeggiator: 10 types, step arpeggiator function
Programs 256 programs (4 Banks x 8 Categories x 8 Programs)
Display: 2.8-inch IPS LCD display
Inputs/Outputs: OUTPUT - L/MONO, R terminals: 6.3mm TS phone jack, unbalanced
HEADPHONES jack: 6.3mm stereo phone jack, unbalanced
MIC IN - CONDENSER: +5V 3.5mm TRS mini phone jack, unbalanced
MIC IN - DYNAMIC: 6.3mm TS phone jack, unbalanced
AUX IN: 3.5mm mini stereo phone jack, unbalanced
DAMPER/SWITCH: 6.3 mm phone jack
MIDI IN,OUT
USB Type C

Power supply: 9V DC (AC adapter), six AA batteries (alkaline or NiMH)
Battery life: Approximately. 4 hours or more (when using alkaline batteries)
Dimensions (W x D x H) 542 x 238 x 65 mm
Weight: 2.1 kg (without batteries and microphone)
Included items Condenser microphone, AC adapter (DC 9V)

Notes: Sampling meets the internet in the intriguing WoFi, a WiFi-enabled polyphonic instrument based around samples, granular synthesis and the online mywo.fi community platform.

Supplier's Notes:
WoFI is a portable Sampler keyboard that connects to the internet via WiFi, and features an innovative effect module called Texturer that combines elements of shimmer and granular synthesis to create unique and fascinating sounds. Its compact size and intuitive interface make it an ideal tool for musicians and producers who are always on the move. In addition, WoFI comes with a rechargeable battery, allowing you to create music anywhere you go without worrying about power. You can also share your patches and access sound banks from other sound designers through the mywo.fi community platform. Whether you're a beginner or a seasoned professional, WoFI offers endless possibilities for exploring new sonic territories and creating unique sounds.

Features

Player

The Player let you colour your sound with our emulations of classic samplers and their different sample player modes. Make it clean, dirty or anywhere in between.

Enveloppe

Sculpt your sound with the Enveloppe that can be assigned to WoFi's amp, filter or even both.

Manager

With the Manager and its display, get a visual feedback on all your tweakings, manage your sample library, access to mywo.fi content through WiFi and play with the touch strip. Oh, and there is no subscription needed for mywo.fi. Having WoFi gives you free access to community.

Filter

The Filter let you play the WoFi like classic subtractive synthesizers. It's a digital low-pass filter with two different slopes (12dB and 24dB) and a tasty resonance.

Texturer

The Texturer is here to bring you to unexplored sonic territories. Elevate your sound with this effect halfway between a shimmer FX and granular synthesis.

LFO

The LFO let you modulate your creation. With three different wave shapes, assign it to any parameter of the front panel and give motion to the sound.

Sequencer

The Sequencer let you build melodic patterns with the 16 polyphonic steps. It can be used as an arpeggiator. You can have your two hands free to play along the sequence and tweak your sound while it is looping. Oh, and you can also step sequence parameters, which makes it another modulation source in addition of the LFO and the Enveloppe.

Recorder

The Recorder let you either capture a sample from the line in or directly from the built-in microphone. It's easy as pie, pick your audio source with the switch, click on record and voila. Just like with the iconic first keyboard samplers.

Master

The Wofi is made to be played in many contexts, from your couch to the studio, so it has a full connectivity and two stereo audio outputs: one for your headphones and one for a master line-out and the WoFi internal speaker. Set your volumes easily.

Technical details

Player
- 48kHz 16 bits
- Direct streaming from flash, no preloading
- Polyphony 10 voices

Recorder
- 48kHz 16 bits mono
- Line / dynamic microphone / integrated microphone
- Gain adjust -6dB + 22dB
- Eurorack level compliant

Memory
- Flash embedded memory : 100 Mbytes, Flash cartridge memory : 100 Mbytes, Up to 200 User Patches + 50 Presets

100 MB allows storing 18 minutes of audio

Sequencer
- 16 steps track for notes
- 16 keys track for parameters sequencing


DSP
- Real time processing (No Preprocessing)
- Interpolation modes: sample & hold, linear, whittaker-shannon
- Pitch shift
- Time stretch
- Bit crusher
- Texturer
- Machine rendering emulation
- Resonant state variable filter (12dB/o-24dB/o)
- Parameter modulation from different sources : enveloppe, LFO, sequencer automations, external modulation (CV/MIDI), after touch, touch strip
- Texturer: self mixing renderer based on granular sampling - 8 grains - multi tap harmonizer

File servicing
- Direct file system management through USB
- Embedded sample editor

Network
- WIFI connectivity, up to 16 key pass
- Cloud access: Patch / Sample upload and download, sharing or backup.

Connectivity
- Sync clock + start/stop
- CV input, Gate input
- CV output, modulation output, gate output
- MIDI in, out, through DIN+USB
- Line In, Line out, Headphones


Miscellaneous
- USB powered
- Embedded battery - roughly 4h autonomy
- Integrated Microphone
- Integrated Speaker
- Full backup to Cartridge or mywo.fi
- User friendly workflow


- Aluminium / wood body
- Dimensions: 52cm x 23cm x 7cm

Notes: Multi/poly module

Breath-taking analogue-inspired sound with the limitless power of digital technology.

Summary

The multi/poly module takes analogue modelling to new heights, offering musicians and sound designers an incredible fusion of classic analogue warmth and cutting-edge digital power in a compact, rack-mountable module form. Inspired by the legendary Mono/Poly, this revolutionary synthesizer features four oscillators per program, advanced modulation capabilities, and a wealth of hands-on controls, allowing you to craft everything from rich, layered textures to futuristic, experimental tones. The new 19" rack-mountable enclosure has the same controls as the keyed model yet boasts an easily transportable form factor that fits neatly into any studio or desktop production system.

Overview

Inspired by the legendary Korg Mono/Poly, the new multi/poly analogue modelling synthesizer delivers breathtaking analogue sounds combined with extraordinary digital power and flexibility.

Korg is now pleased to introduce the multi/poly module: all of the multi/poly's incredible features and sounds in a compact 19" desktop/rackmount package. With support for MIDI 2.0 property exchange and poly aftertouch, the module is an excellent companion to Korg's Keystage controller. It's also fully compatible with programs from the multi/poly native software, as well as an increasing number of excellent third-party libraries, keeping the updated sounds and software fresh. The new 19" rack-mountable enclosure has the same controls as the keyed model, yet is easily transportable and fits neatly into any studio or desktop production system.

Next-level analogue modelling

multi/poly features redesigned, incredibly detailed filters and oscillators, and advances in analogue modelling that take this technology to a new level. Each voice contains a Virtual Voice Card, where oscillators, filters, envelopes, LFOs, and portamento circuits are modelled to reflect analogue hardware component variations. As a result, each voice can have its own slightly di6erent character, creating rich and naturally evolving timbres

Just like in an analogue synthesiser, voice cards continue to play even if you're not hearing them. Envelopes evolve naturally, meaning if you play a long pad with an extended release time, newly played notes "catch" the envelope at its current state rather than restarting from zero Oscillators and LFOs maintain phase, while resonance continues to ring out. Pitch drift mimics the subtle instabilities of true analogue hardware.

The multi/poly also includes envelope curvature presets inspired by classic synths like the Mono/Poly, MS-20, ARP Odyssey, and Prophet 5. Additionally, analogue VCAs behave di6erently depending on voltage, with varying thresholds for turning on and o6, which has a strong impact on the Amp Envelope's character. multi/poly models VCA responses from the Mono/Poly, MS-20, Prophet 5, Mini, Odyssey, and more, alongside a linear option.

MIDI 2.0 property exchange and polyphonic aftertouch support

All models of multi/poly, hardware and software, support MIDI 2.0 Property Exchange and easy access to Polyphonic Aftertouch - making them excellent companions to Korg's Keystage controller.

Rack-mount and desktop compatible

The multi/poly module is cleverly designed for both desktop and rack-mount use. The front panel is redesigned to fit into a standard 19" width, and the rear jack panel is recessed to allow easy access to cables even with gear mounted directly above. With desktop setups, brackets over a choice of panel angles: flatter for performing standing up, or more upright for working while seated in your studio

Specifications

Maximum Polyphony: 60 voices (varies depending on settings)
Dimensions (W× D × H) 483 x 172 x 107 mm / 19.02" x 6.77" x 4.21"
Weight: 1.7 kg / 3.75lb
Included items: AC adapter
Other specifications are the same as for multi/poly.

Notes: A complete system which really showcases Make Nose's experimental approach, the Resynthesizer features Make Noise classics like the Spectraphon and Morphagene and hands-on control via the PrssPnt, alll housed in a 4 Zone CV Bus Case.

Supplier's Notes:
The ReSynthesizer can trace its origins to Spring 2023, with Walker and Rodent putting together a collection of modules to announce and demonstrate the Soundhack Spectraphon at Superbooth '23. These modules would need to complement Spectraphon in a way that would show its true capabilities. As such, this specialized layout comprised a single-system overview of the last 8 years of Make Noise module designs.

After Superbooth, Walker and Peter continued to use a similar system configuration in videos for Make Noise's Youtube and Instagram Channels, prompting some folks to speculate if it was to be Make Noise's new 7U system. At that time there were no plans for a new system; in fact, this layout had been intended as temporary all along, but it was made a useful layout in almost all cases. (The layout even gained the popular unofficial moniker "System X" thanks to the speculative work of Cinematic Laboratory and others.) Choices like the unusual placement of the Morphagene, adjacent to Spectraphon, which was initially assumed would be mainly for a very specific use-case, quickly became second nature to patch. The Spectraphon and Morphagene work together to ReSynthesize raw materials into lush soundscapes, microsound manipulations, or wherever the path leads.

In early 2024, Make Noise announced DXG for the easy mixdown of mono or stereo signals, and PrssPnt to add physical touch interaction. With these pieces in place, the ReSynthesizer is born. Pairing the Spectraphon with the Morphagene and the core Make Noise CV generation suite, and housed in the powerful and portable 4 Zone CV Bus Case, the ReSynthesizer is an open design blackboard ready for experimentation and discovery.

Make Noise put this collection through its paces and have found it to hold up to any test thrown at it!

Specifications

Size: 7U
Total HP: 208 @ 3U, 104 @ 1U
Dimensions: 22.25" x 14" x 7.25" w/ lid

Notes: Vintage FM synthesis meets analogue character in the TWISTfm. Eight-voice polyphonic sound engine with superb versatility thanks to 15 filter modes including Heat saturation and adjustable resonance.

Supplier's Notes:
Unleash the full potential of FM synthesis with TWISTfm, a cutting-edge polyphonic synthesiser that blends vintage FM synthesis with advanced analogue filtering and modern control. Designed to offer a rich, dynamic sound palette, TWISTfm is the perfect tool for musicians and sound designers looking to push the boundaries of sonic creativity.

At the core of TWISTfm are two legendary Yamaha OPL-3 YMF262 FM chips paired with dual YAC512 stereo DACs, providing 8 discrete voices. Each voice is equipped with its own analog multimode filter for an unparalleled range of sound design possibilities.

With HEAT and Dual Resonance Modes: Featuring 8 individual analogue filters, inspired by the iconic designs of Mutable Instruments, TWISTfm gives you precise control over sound shaping with 15 filter modes, including low-pass, high-pass, band-pass, phaser, notch, and more. The HEAT parameter adds anything from warm, subtle saturation to harsh analog distortion, allowing you to push the filters to their limit. Additionally, you can switch between two resonance flavors-LIQUID, for smooth and subtle resonance, and MS20, for more aggressive, cutting tones. With digital control over resonance and cutoff, the filters offer flexible modulation and the ability to store settings with presets.

TWISTfm's MPE mode fully supports three dimensions of control-pitch (X), timbre (Y via CC74), and pressure (Z)-offering precise per-note modulation for unparalleled expressiveness and depth in your sound.

Whether you're composing in the studio or performing live, TWISTfm's robust feature set and intuitive design make it a powerful addition to any setup. Its combination of vintage FM tones and modern control capabilities offers a unique, versatile sound engine capable of producing everything from smooth ambient pads to aggressive basses and leads.

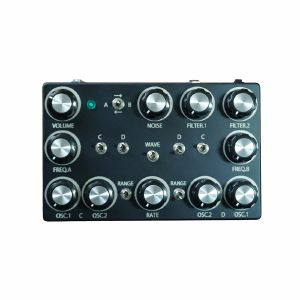

Notes: Two VCOs (oscillators) are input to the VCF (filter) and output through DELAY (can be turned off).

The VCO can be a 4LFO module, which is a mix of 4 LFOs, a noisegenerator, an LFO, and a SUB OSCILLATOR, and the VCF can be an LFO.

With a variety of tones, you can create various sounds even with a subtle knob position.

It can be used with a single 9V battery or a 9V DC center negative adapter.

CV IN can be used with CV input to the filter. (VCO1.2,VCF)

INPUT is capable of audio input. The input sound goes to the filter- delay (can be turned on and off) in parallel with the built-in VCO.

CV IN can be input from +8 volts to -8 volts.

This analogue synth runs on DC9V negativecenter or a 9V battery. 2 VCOs go to VCF and Delay. VCO receives 4 modulations inside. NOISE GENERATOR,4 mixed LFO and SUB OSC. VCF receives CV of LFO.It becomes the wave filter with it. ? Delay section has the on/bypass switch. INPUT goes to VCF and DELAY with internal VCOs.

Notes: Derived from the excellent Lyra-8, the Lyra-4 features a similar 'organismic' approach to synthesis. Four-voice non-linear architecture offers unique tones in a compact, portable format.

Supplier's Notes:
Introducing the revived version of LYRA-4 organismic synthesiser, the younger sister of the famous LYRA-8. "Organismic" means that LYRA uses some principles that lie in the base of living organisms. The way how LYRA's modules interacting between each other and the behaviour of the instrument resembles a live conversation. It's smaller and weighs less but is equally rugged in design, and still packs a lot of punch. This makes it easy to fit in a backpack and perfect for taking the LYRA sound on the road. And playing two LYRA-4s can actually sound very different than just one LYRA-8.

LYRA-4 is based on four generators, which will be referred to as voices. Their design is not like a traditional subtractive synthesis VCO. Instead of having a linear or logarithmic dependency on control voltage, they resemble the tone generators in old electric organs. Hence the use of the term "voices" instead of "VCOs". Lyra uses non-linearity a lot, and the voices are constructed in such a way that allows for non-linearity to express itself.

The voices are divided into two pairs (12, 34), creating tree-like structure.

The voices can function either in an electric organ mode or in an FM synthesis mode with each of the voices and its envelope acting as a separate FM operator. The voice's impact on FM synthesis will decrease along with the decay of its envelope.

LYRA-4 also has the next blocks:

The HYPER LFO is a complex low-frequency generator, whose waveform is synthesized from two simple LFOs by summation or multiplication of their frequencies. It also has a sync mode. The LFO can modulate the selected pairs of voices and the MOD DELAY.

The MOD DELAY consists of delay with feedback. The delay has a unique possibility of self-modulation where the output signal modulates the delay sample rate, creating cool effects.

The DISTORTION is last in the chain, after the delay. It enables the delay to also influence the distortion.

For all its experimental character, LYRA is a professional instrument. Its output dynamics and frequency response are balanced and ready for a live performance or studio recording without any additional processing.

Specifications

Max output voltage: 2 v 0-to-peak
Output connector: mono 6.3 mm TS jack
Output resistance: 10 KOhm
CV DELAY: unipolar, range of 0 to +5 volt
CV DELAY: 6.3 mm TS jack
CV VOICES: unipolar, range of 0 to +5 volt
CV VOICES connector: 6.3 mm TS jack
Power supply stabilised, +12 V, 0.2 A, centre positive
Power Consumption: 1.2 watt
Headphones resistance: 6-64 Ohm
Power supply stabilised, +12 V, 0.2 A, centre positive
Dimensions: 241 x 203 x 62 mm
Weight (without power supply and packaging): 1.2 kg

What's included:

LYRA-4 - 1 pc
Power supply - 1 pc

Notes: High-end digital synthesis from this boutique German brand. The Manatee combines distinctive spectral synthesis with virtual analogue and FM methods, creating multi-layered polyphonic sound with MPE control.

Supplier's Notes:
Manatee is the most advanced multitimbral synthesizer from Fred's Lab.

This project has been a labour of love, with 3 years of meticulous engineering work put into every aspect of its creation.

Powered by 2x dual-core DSPs and high-fidelity DACs, Manatee offers a minimum of 16 voices of pure digital sound shared between 4 parts. Coupled with a hands-on user interface putting all important synthesis parameters at fingertips reach, Manatee is a joy to explore and play with.

Fred's Lab new Spectral Engine, bolstered by a selection of modern VA Algorithms, delivers a beautifully unpolished raw sound, calling to be refined with the smooth multimode filter.

Manatee offers numerous per-voice and per-part complex modulation sources and wiring, including 'Meta Envelopes' and 'Custom LFOs'. MIDI expression controllers, such as polyphonic aftertouch, can shape modulation amounts at will. The additional 3-slot modulation matrix offers extra flexibility to the default routing options.

The multi-part architecture includes a dedicated stereo delay module and 2x equalizer sections for each part, providing up to 8 seconds of delay and various equalizer shapes like low cut, low shelf, high cut ... Additionally, a global insert reverb with various algorithms is there to add spaciousness to the entire mix.

Finally, the sturdy, powder-coated steel chassis of Manatee is full of robust parts, including metal potentiometers screwed to the panel, high-endurance switches, and high-reliability audio connectors. Built to withstand the rigors of touring and endless hours of use, Manatee is a durable choice for musicians and sound designers.

Connectivity

1x Line Level Main Bus - 6.35mm TR jacks
1x Line Level Aux Bus - 6.35mm TRS jacks (with return path)
1x Headphones Output - 3.5mm TRS jack
1x MIDI DIN5 Trio (IN, OUT, THRU)
1x Clock input - 3.5mm TRS jack (with start / stop)

Mechanics

Powder coated steel chassis
23x Metallic Potentiometers (panel screwed)
18x Illuminated Switches
8x Tactile Switches
Dimensions: 265 x 140 x 50 mm
Weight: 1.60kg

The Spectrum Generator

The Spectrum Generator uses pre-defined reference spectra and various harmonic manipulation tools to provide precise control and alteration of the timbre. Adjust formant, rotation of bins, the waveform used for signal reconstruction and more to craft the raw character. These parameters can be modulated for some complex soundscape creation.

The Sub-Oscillator

The Sub-Oscillator is designed to complement the Spectrum Generator, providing a wide range of sonic material to choose from. It features modern Virtual Analog Algorithms for classic waveform generation and super-saw and super-square waveforms. Additionally, it can play user-imported short waveforms for even greater versatility in sound creation.

The Noise Module

The Noise Module is an advanced source including a built-in continuous low-pass to high-pass filter for precise control over the noise spectral content. The noise sample rate can be programmed to generate crackles, glitches, or pure white noise, depending on the needs.

The Ring Modulator

The Ring Modulator is an iconic tool that multiplies the outputs of the two oscillators, making it perfect for generating inharmonic tones, special effects, and percussive sounds.

The Multimode Filter

The Multimode Filter uses hand-written assembly algorithms based on latest research on analogue modeling technology. It offers classic shapes in 12 and 24dB/octave, with filter tracking and self-resonance capabilities. The built-in saturations add subtle warmth and colour to the sound. The filter has a very smooth & natural ground character and react very fast to cutoff changes handling filter FM and fast envelopes with style.

The Overdrive

The Overdrive is a post-filter effect with a range of models, from gentle saturation and tube overdrive to more aggressive signal destruction through bitcrushing and clipping. It adds grit, warmth, and distortion to the sound for a dynamic and expressive performance. Algorithms are very natural sounding, analogue-like.

Meta-Envelopes
The Meta-Envelopes share their Attack, Sustain, and Release parameters, while each Decay stage is independent. Envelope stages can be switched on or off, allowing for a variety of shapes from a full ADSR to a simple gate. MIDI Velocity can be set to influence the Attack and Decay times, and envelope amplitude can be scaled with aftertouch. Envelopes can be looped and reset on triggering or set to keep its previous value.

Custom-LFOs

The Custom-LFOs provide an eclectic set of more than 16 waveforms, including noises and other algorithms, waveforms which can be chained together to create complex modulation sequences. Each LFO has its own AR envelope with Rise and Fall controls, and can be MIDI clocked and restarted for precise synchronization. Additionally, some MIDI parameters can influence the LFO amplitude.

The Modulation Matrix

The Modulation Matrix consists of 3x slots for each voice, providing extensive routing options to enhance the hardwired connections. The matrix offers a large selection of sources and destinations that cover almost all sound parameters. The modulation amount can be scaled by common MIDI parameters such as Aftertouch, Velocity, and more, allowing for expressive playing styles.

The Delay Module

The Delay Module offers Mono, Stereo, and Ping-Pong modes, with MIDI clock synchronization and adjustable feedback, mix, and colour controls. It supports a range of delay lengths, from very short - resonator-like - to free delay length up to 8 seconds. Each part has its own independent delay module.

The Equalizer Section

The Equalizer Section features two independent equalizers for each part, offering cut, boost, or shelf modes and adjustable corner frequencies. This is a powerful tool for blending the sounds of the different parts.

The Part Mixer

The Part Mixer provides flexible routing (audio buses), volume and panning controls for each part. It also defines the amount of signal sent to the master Reverb.

The Master Reverb

The Master Reverb is a high-quality algorithmic reverberation unit with a pleasant not bright but clean sound. It offers multiple programs with rooms and halls. This reverb is a handy mixing tool, making the overall sound more cohesive and polished.

Electronics

Manatee is powered by 2x 200MHz dual-core DSPs, offering advanced audio synthesis capabilities and an impressive dynamic range. Included too are 128 MBit of SRAM, 512 kBit of EEPROM, 4x 24-bit Burr Brown DACs, and transparent line and headphone drivers.

User Interface

The interface offers hands-on controls over all major synthesis parameters for all sound modules. The strong torque potentiometers feature Nylon knobs that provide a satisfying haptic feel. The high contrast 16x2 LCD screen clearly displays feedback through both text and small graphics.

Notes: A lovely creative approach to generative synthesis. Dual voices with triangle/square wave oscillators, shift register and envelopes can be patched via banana cables to create unique grooves and drones.

Supplier's Notes:
Double Knot v3

The Double Knot v3 is a small generative synthesizer with two voices and corresponding sequencers. This instrument has a simple architecture which is capable of a wide variety of sounds, including rhythms and drum patterns or textural and grating noise sounds. The interface is made up of knobs, switches, and banana plugs for patching. The two voices of this device each consist of a triangle/square wave oscillator, a shift register sequencer, an enveloper, and a voltage controlled amplifier. A clock sets the tempo of the shift registers.

The voices of the Double Knot are pre-wired, in a linear chain of functional blocks. The patch points are available to route modulations, influencing the simple linear voices. The game of this device is to investigate the relationships between the elements of the synth using the knobs, switches and patch-points.

FAQ

How many banana cables do I need? and what length?

8 or 10 cables around 12" long is a great start.

Can I patch this with my other synth?

Only what is safe for this synth. The banana ports of this device can handle max +/- 8V at all inputs and outputs assuming at least a 1k output impedance in the other device. The response range of the voltage inputs is ~1.2v - 8V (range of a TL07x powered by 9V).

Is this synth good by itself, or does it rely on other devices to be useful?

Some good sounds can be had using this device and a handful of banana cables.

Notes: *** As of November 2024, Firmware 1.1 has been installed, including effects such as 4-Pole Filter, Trim Filter, Ambient Hall, Ambient Infinity and Ambient Room ***

17 Distinctive Synth Engines-Unlike Anything You've Ever Heard
The ELZ_1 play's synth engines are built from scratch using 32-bit floating point math. From hard low-bit textures to organic FM tones to granular synthesis, the ELZ_1 play offers unique synth engines unlike any other synthesizer.

LOW-BIT OSC: 2 ~ 8 bit variable low-bit oscillator. Sine, square, triangle and sawtooth waves.
STANDARD OSC: 32-bit floating-point processing high resolution oscillator. Sine, square, triangle and sawtooth waves.
CUSTOM OSC: Choose 2 waveforms / period of cycles.
DNA EXPLORER: Extract and generate waveform DNA from audio.
SiGRINDER: Granular synthesizer engine.
MASKED NOISE: Noise oscillator.
SAND FLUTE: Extract and generate tone from noise.
8BIT WAVE MEMORY: Editing your own waveform.
8BIT WAV MEM (MORPH): Morphing 3 waveforms.
8BIT WAV MEM (FM MODE): 2 operators, 8bit FM mode.
8BIT WAV MEM (WARP): Generates an intermediate waveform by crossfading two waveforms.
8BIT WAV MEM (ADSAR): Waveforms change according to envelope.
8BIT WAV MEM (TIME): 3 waveforms change in the orders.
FM SYNTH: 4 operators with 31 algorithms, 32-bit floating point processing.
ZTRINGS: Physical Modelling Strings engine.
SUPER OSC: Super synth engine with 5 detunable sub-oscillators.
STK DRUMMER: Drum machine engine equipped with 5 types of drum kits. (SmplTrek .stk file compatible)

28 Effects to Elevate Your Sound-From Soothing to Striking
Unlock a world of sound by combining 3 insert effects from 18 types and 1 master effect from 10 types, including Shimmer Reverb.
Insert effects: overdrive, distortion, fuzz, crusher, chorus, stereo chorus, flanger, phaser, tremolo, vibrato, ring modulator, auto wah, delay, reverse delay, ping pong delay, auto pan, tape echo & reverb, 4 pole filter, trim filter.

Master effects: hall, room, plate, arena, tunnel, infinity, custom reverb, crusher, ambient room, ambient hall, ambient inf, vinyl simulator & cassette tape simulator.

Flexible 4-Track Looper-Layer, Loop, and Remix with Ease
The newly developed 4-track looper allows easy recording, playback, and overdubbing by simply pressing the track buttons. You can record not only ELZ_1 play performances, but also LINE input and USB audio input.

Instrument Redefined - Velocity-enabled keyboard, Built-in Stereo Speakers and More:
To make it a musical instrument that is pleasant and expressive to play, the keyboard has been improved to support velocity on all keys, and high-quality loud stereo speakers are built into the side panels. It is also equipped with an SD card slot, USB-C, and DIN-MIDI jacks for flexible handling of audio and MIDI.

Notes: A year ago, Jomox brought out the Mod FM as a eurorack module.

Now, Jomox present almost the same synth, but as a desktop unit, with its own PSU, Midi, standard 1/4" balanced outputs and analogue volume control.

The Mod FM D has an analogue side chain stereo input that gets routed into the Mod FM D effects, and can be mixed to the synth.

The ratio of synth + input/effects can be controlled via an analogue dry/wet potentiometer.

The Mod FM D is a completely self-contained 8 voice FM synth in desktop format, which can create powerful sounds out of the box without lacking the commonly provided CV modulation possibilities.

It provides 4 Operators and 2 LFOs/VCOs per voice. Additionally, it has 2 analogue filters and analogue VCAs per voice which apply analogue warmth and depth to the Mod FM D, although the FM engine is digital of course.

Each voice has its own CV/Gate inputs and an individual output. There is a mix output which separates even and odd voices. Here you can mix internal effects like delay and reverb to the stereo output signal.

Next to the CV/Gate control, the Mod FM D has Midi in and out and a USB C connector which handles Midi too.

Even without diving too much into complicated setups you can create extremely good sounding and metallic FM sounds, snappy bases but also soft and deep sounding analogue style sounds as tons of crazy weird stuff.

Furthermore, the Mod FM D offers a variety of external cv modulations in order to modulate each operator individually or control the FM envelopes.

The Mod FM D is fully multitimbral, i.e. each voice can play an own sound in Multi Mode which gets stored as a complete multi set (not only vectorized). That is, you can copy a single sound to the desired multi, but edits made on that particular multi get stored along with the multi set.

Hence, we have the biggest advantage of the hybrid approach:

Analogue and modular is great but can be very complex, and you might be trapped in a system where you never reach again the pretty sound of the latest session. Storability certainly helps.

The different sections in more detail:

Matrix FM:

4 operators are arranged in a matrix, in which every operator (= sine oscillator) can be modulated by each one of the other three.

The 16 endless potentiometers of the matrix adjust the modulation amount (FM amt) and the base frequency of the operators.

For each operator you can change the base frequency by the diagonal knobs.

There are several overtone modes that determine if one operator is controlled by the keynote (or CV) = base operator, or if it's locked in as overtone (= overtone operator) to the assigned base operator. For the base operator, the number resembles xxx semitones added to the keynote.

For the overtone operator, the adjusted number is the xxx = Nth overtone or harmonics to the base operator frequency.

The locked overtone operator tracks the base operator and is still able to modulate and being modulated.

Each operator has an ADSR envelope. This envelope can also be used to frequency-modulate the operator.

Algorithm:

The algorithms from the known FM synthesis are actually special cases to the whole matrix.

As it gets pretty quickly uncontrollable if you turn all the knobs due to the feedback, Jomox have decided to implement the algorithms. There are 26 algorithms, that are derived from the DX9 with its 4 operators.

At this menu it's even possible to change the frequency mode of each operator to a fixed frequency that is edited in single Hz and which does not follow the keynote, but only modulation. That makes sense for e.g. percussive sounds.

LFO/VCO:

Each voice has 2 LFOs which can modulate either the frequency (FM) or the amplitude (AM) of an operator. Every LFO addresses 64 different wave forms that are displayed in the right OLED display.

There is another feature: each LFO can be switched into a VCO that covers the whole audio range. You can even mix it into the signal chain and it tracks to the keynote. The former LFO rate parameter turns into a detune parameter. That is, you can create classic sounding rectangle/sawtooth analogue basses or string pads - and much more of course.

Filter:

Each voice contains an analogue filter which is build up with the chip SSI2140 from Sound Semiconductor, which is an improved modern version of the old SSM2040, designed by Dave Rossum, and which had been used in Oberheim synths and the early SCI Prophet-5.

The filter has a classic 24dB output and a 12dB state-variable multimode-filter. The three basic characteristic outputs LP/BP/HP can be cross-faded continuously with one parameter called shape.

Both filter outputs 24dB/12dB can be mixed independently.

The ADSR for the filter is fast and cuts in very quick and directly, the resonance is well adjustable.

The filter section contains an own LFO for the cutoff which is independent from the digital sound engine and has also 64 waveforms.

The ADSR for the filter is fast and cuts in very quick and directly, the resonance is well adjustable.

The filter section contains an own LFO for the cutoff which is independent from the digital sound engine and has also 64 waveforms.

The VCA is a fast transistor-vca which is important for snappy sounds. The same transistor-vca is used in all Jomox drum products. Therefore the ModFM can be used as a rich source for technoid drums and percussions of any kind.

On the analogue voice board there is another sound source: Metal Noise. It can be mixed into the filter independently from the digital engine (= FM synth) and offers again an inexhaustible pool of weird sounds.

FX:

The Mod FM D also has an FX section added: reverb and 2x delay. These only work on the stereo mix output. The delay can be beat-synchronized via midi clock and offers a very short delay time in millisecond range. That gives you flanging and oil-can-like effects.

Specifications

8 voices fully multi timbral FM synth
4 operators per voice
Full modulation matrix / 26 algorithms
2 LFO/VCOs per voice
Balanced stereo 1/4" jack outputs
Stereo Hi-Z 1/4" jack inputs
Analog effects mix
Outputs for each voice plus mix out
CV/Gate per voice
CV modulation inputs per operator
True audio FM modulation inputs
True analogue filters per voice
24db low pass
12dB multimode LP/BP/HP cont. shape
True analogue VCAs per voice
Midi in, out
USB C device
Digital reverb, 2x stereo delay
Full storability, also CV amounts
128 presets, 118 multi sets
2x 128x64px OLED displays

Power consumption: 12V=DC 2A max.

Dimensions:

Width: 318mm
Depth: 180mm
Height front: 44mm
Height back: 72mm

Weight: 1,9kg (4.4 lbs)

Notes: In collaboration with 4ms Befaco have designed this custom pod to achieve the perfect match of your Oneiroi with your desktop synthesizers, effects pedals, modular synthesizer or any kind of music gear.

A small and portable modular system to exploit the full potential of Oneiroi.

Notes: ***B-STOCK: Box damaged, product in perfect working order***


Part of Teenage Engineering's high-end Field series, the OP-XY is best seen as a pro groovebox, combining polyphonic synthesis, sampling and sequencing. More music-focussed than its OP-Z predecessor, the OP-XY represents a new flagship for TE.

Supplier's Notes:
No-compromise, dual-CPU boosted and fully rebuilt sequencer, sampler, and performance instrument, based on the much-loved workflow of the OP-Z. Now including built-in cv, effect sends, and a best-in-class DAC. with 8 individual instrument tracks and 8 auxiliary tracks for controlling any external synthesizer, modular or otherwise, and adding effects. It's probably the most complete, portable sequencer ever built. It's here. It's real. it's black.

And it's got so much more than you've wished for.

The exterior is all black, and matches the exact dimensions of OP-1 field. A distinct grayscale gradient is at its centre, making it clear that OP-XY is all about serious sequencing. Hands-on graphics on the high-resolution display are all grayscale, with a bright red to indicate recording and parameter locks. all vital keys have LEDs to stay in full control.

Experience the ultra fast sequencing workflow. Punch-in FX lets you add quick, rapid-firing, unique, live variations and adding individual step components creates an extra dimension and deep rhythmic patterns. randomize note timing, velocity and pitch, or use live automation to alter filters. Use brain to create chord progressions, generating tracks that reinvent themselves. Literally.

Run every track, independently, at different speeds and lengths to form powerful polyrhythms. create new sequences every time with step components, variations that can be added to any step on the sequencer, controlling everything from altering pitch to bending, skipping or even multiplying steps.

Main audio-out

Multi-out, featuring:
MIDI
CV/gate
Sync
Aux audio
MIDI IN
AUDIO IN
USB-C

The 2 Vrms main output drives any sound system, real loud. Keep everything locked in sync and sequenced with the multi-out and take control with MID IN. process and sample external audio with the audio-in. control, record and charge with the audio/midi host over USB-C, plus a complete wireless experience with midi over Bluetooth LE -keine bedingungen [no strings attached].

Compose your album, head off to the gig, plug and play immediately, then keep everything locked-in with all the I/O you could ask for. 16-hour, battery-powered freedom lets you perform for hours on-end. create, produce and perform anywhere. Mit allen bedingungen [all strings attached]

The bottom left side features a pressure sensitive pitchbend

Instrument tracks:

8 individually sequenceable instrument tracks
8 unique synth engines
3 samplers
independent send levels per track

Step components
14 unique step components for advanced step sequencing
Apply up to all 14 to every step screen
480 x 222px IPS TFT display

Patterns
9 patterns per track
up to 64 bars per pattern
spread across 4 pages
presets per pattern

Effects: reverb, delay, chorus, distortion, lo-fi, phaser

Hardware
Dual blackfin processing cores
Dual DDR memory
Triple-core dsp co-processor
2x controller MCU's for wireless & low power IO domain

Sensors: 6-axis IMU accelerometer

Microphone: immediate, high quality sampling with the built-in microphone.

Connectors: 3.5 mm stereo line-out with headset mic support
3.5 mm multi-out
3.5 mm midi in
3.5 mm stereo line-in

Tactile input
2 octave musical keyboard
68 ultra low profile mechanical buttons
Pressure sensitive pitch bend
4 x multi purpose grayscale encoders

USB
USB type C connector
USB MIDI host & device
USB audio host & device

Notes: A legendary past, a powerful future.

microKORG is one of the world's most successful synths, having helped to shape music production for more than twenty years. Merging the essence of what made the original a global success with an array of powerful new features, the microKORG 2 once again redefines the landscape of music creation. It maintains the essence that has made its predecessor a mainstay in studios and on stages while introducing innovative, contemporary elements that resonate with today's musicians. The microKORG 2 is not just a new instrument; it's a new chapter in synth history.

Seamlessly sculpt your sound with refined controls

Dive into the microKORG 2 and discover how easy and intuitive creating the perfect sound can be. Korg have equipped it with five dynamic knobs, each one a gateway to fine-tuning your sound across any musical genre with speed and precision. Whether you're crafting lush pads or searing leads, the expanded bank selection puts every era of music right at your fingertips.

The centrepiece of the microKORG 2 is its stunning 2.8-inch colour display. It's not just about looks; this display makes tweaking your sound a visually immersive experience. Watch parameters come to life with animated effects, giving you instant visual feedback as you shape your sound. And for those who love to see music as well as hear it, a quick tap switches you to an oscilloscope view, literally showing you how your soundwaves evolve and change.

Korg have packed the microKORG 2 with the latest tech, but don't worry, it's all about enhancing your experience, not complicating it. Whether you're a synth veteran or just starting, you'll find its interface welcoming, straightforward, and comprehensive, letting you dive deep into sound creation without getting lost in the technicalities. It's all about keeping the joy in music making - and the microKORG 2 does just that.

Crafting vocal perfection: the new vocal processor

The original microKORG is renowned for making complex vocal synthesis accessible and fun. Known as the synthesiser with its own mic, it has been the choice for producing unique robotic voices for over two decades - a feat typically reserved for specialized equipment. The true magic of the microKORG has always been in its ability to simplify complex sound engineering. Taking a leap forward, Korg have outfitted the microKORG 2 with a new vocal processor that goes well beyond the beloved classic vocoder effects. Korg are introducing advanced vocal processing technology at your fingertips, including hard-tune pitch correction for creating smooth and polished vocal tracks. Additionally, the new harmonizer feature allows you to layer and pitch-shift your vocals, enriching your music with depth and complexity.
As for effects, the microKORG 2 offers a rich array of options. Layer your vocals with immersive reverb, crisp delay, and a diverse range of sonic textures to fully realise your creative vision. The iconic gooseneck mic, now featuring a stylish metallic neck, is the perfect complement to this powerful vocal processor. Whether you're aiming for rich harmonies or contemporary auto-tuned effects, the microKORG 2's vocal processor is a versatile tool for unleashing your vocal creativity.

Master live performances with loop recording and arpeggiator

Discover a new level of musical creativity with microKORG 2's loop recorder. This feature brings a familiar yet powerful tool for modern musicians into the microKORG world. Ideal for crafting layered backing tracks, the loop recorder allows you to loop segments of music and overlay your own performance, enhancing your creative expression in real-time. While loop recorders are well-known in the music world, their integration into the microKORG 2 opens up new avenues for experimentation and performance, perfectly complementing the synthesiser's robust capabilities.

The loop recorder is designed for simplicity and ease of use, featuring three simple buttons: record, play/stop, and undo/redo. The user interface is streamlined for immediate understanding and use- long-pressing the buttons reveals recording and playback settings, ensuring you're always in control and can focus on your performance.

The microKORG 2 also includes an arpeggiator, perfect for adding rhythmic complexity to your compositions. Activate it with a simple press of one of the eight program number buttons, and watch as it infuses your music with intricate patterns and textures. The combination of the loop recorder and arpeggiator opens up a world of possibilities, allowing you to craft a performance that is truly and uniquely yours.

Explore sounds across the ages

Discover microKORG 2's rich tapestry of sounds, where you get to play with a whole new range of tones. It's all about choice here - the new program selector is your gateway to genres far and wide. Fancy a bit of retro?

Specifications

Keyboard: 37 keys (velocity sensitive mini keys)

Synthesiser
Sound Engine: Analogue modelling synthesis system
Number of Timbers: Max. 2 (when Dual)
Maximum number of voices: Single 8 voices, Dual 4 voices

Vocal Processor
Maximum Polyphony: Vocoder 8 voices, Hard Tune 4 voices, Harmonizer 4 voices, Hard Tune & Harmonizer 2 voices

Effect types: Modulation, Delay, Reverb, Equalizer
Arpeggiator: 10 types, step arpeggiator function
Programs 256 programs (4 Banks x 8 Categories x 8 Programs)
Display: 2.8-inch IPS LCD display
Inputs/Outputs: OUTPUT - L/MONO, R terminals: 6.3mm TS phone jack, unbalanced
HEADPHONES jack: 6.3mm stereo phone jack, unbalanced
MIC IN - CONDENSER: +5V 3.5mm TRS mini phone jack, unbalanced
MIC IN - DYNAMIC: 6.3mm TS phone jack, unbalanced
AUX IN: 3.5mm mini stereo phone jack, unbalanced
DAMPER/SWITCH: 6.3 mm phone jack
MIDI IN,OUT
USB Type C

Power supply: 9V DC (AC adapter), six AA batteries (alkaline or NiMH)
Battery life: Approximately. 4 hours or more (when using alkaline batteries)
Dimensions (W x D x H) 542 x 238 x 65 mm
Weight: 2.1 kg (without batteries and microphone)
Included items Condenser microphone, AC adapter (DC 9V)

Notes: Process and generate synth sounds with the unique Magnetar distortion synth, based around distortion and fuzz circuits in series. Adjustable feedback and LFO modulation give super distinctive tones.

Supplier's Notes:
Magnetar is a dual distortion synthesizer featuring distortion, fuzz (connected in series), equalization/feedback, delay, and LFO. However, the capabilities of this synth go far beyond a simple sound processor. It can generate incredible sounds without any input, simply by tweaking the controls to create unpredictable sounds, perfect for drone, ambient, noise, and more. You can see it in action in the video. It's highly recommended to read the manual carefully, as the synth is very sensitive to input level changes. The level pots not only control the levels but also produce unique textures and intriguing sound variations.

Signal Chain: IN + DISTORTION + FUZZ + DELAY + OUT EQ + FB LFO MAGNETAR

Controls:

Distortion Module: (From left to right and top to bottom) In
Input level to the distortion Dist 1
Distortion level Hue
Distortion tone (the associated switch changes the tone) Tone
Equalisation In
Input jack Mod
LFO frequency (modulates GIG) Level
LFO level (modulates GIG) Takes DC 28V Feedback
From the distortion module Out - Output NXPTD
Feedback delay D/W
Delay effect level On/Off switch BP
Unit bypass

Fuzz Module: Level
Input level (linked to the distortion input) Gain
Gain Dist 2
Fuzz distortion level Fog
Changes the fuzz tone

Notes: ***B-STOCK: Box opened, product in perfect working order***


Another innovative groovebox from Polyend, the Synth allows you to sequence and perform up to three synths from eight different synth engines. Unique Smart Grid feature allows single-button chords and note followers.

Supplier's Notes:
Compact Design. Massive Sound. Unmatched Innovation.

Easily Play 3 Synths at Once

The power of three synth engines is at your fingertips, all running together seamlessly. Whether you're in the studio or performing live, you can juggle between different engines, adjust parameters on the fly, and layer effects with ease. The built-in sequencers, arpeggiators, and all new smart grid system keep everything flowing smoothly, letting you focus on creativity without interruption. With instantly recallable scenes, you can save and recall every detail of your setup.

Eight Synth Engines to Explore

Dive into a world of sound with eight distinct synth engines, each offering its own unique character. Whether you're drawn to the classic analogue warmth of FAT or the evolving textures of GRAIN, you'll find the sound to shape your creations exactly the way you want:

PHZ: A modern take on phase distortion synthesis with options for both retro and cutting-edge tones.
PMD: Physical modelling technology that simulates realistic instruments or creates entirely new sonic expressions.
GRAIN: A granular engine with two modes, burst and cloud, ideal for rhythmic textures or sweeping ambient layers.
WAVS: Morph between wavetables with intricate control over scanning and phase shifting to create evolving textures.
VAP: A dual-oscillator polysynth that draws inspiration from the classics, offering rich, lush pads and detailed soundscapes.
FAT: Massive sound with three oscillators and vintage ladder filters for deep basses and expressive leads.
ACD: The ultimate recreation of iconic vintage monophonic synths, but with increased customization.
WTFM: A unique FM synthesis engine that uses wavetable-based oscillators for complex sounds without the usual FM complications.

Three Customizable Effects

Take your sound to the next level with three onboard effects, each fully customizable to suit your style:

MOD: This versatile modulation engine can take you from subtle choruses to wild, feedback-heavy flanging.
DEL: Dual delay lines with five unique models, giving you the flexibility to sync with your track or create complex delay effects.
REV: Three reverb modes - Natural, Plate, and Warp - let you add anything from subtle space to massive, otherworldly reverbs.

Reimagined Rhythms

Unlock your full creative potential with three independent sequencers and arpeggiators. Control every aspect of your rhythm, from swing to groove, transposition, and more. Whether you're building tight, rhythmic patterns or sweeping melodies, this system adapts seamlessly to your music.

For Performers, Sound Designers, and Innovators Alike

Always Musical Smart Grid for Live Play

Stay in control even during the most chaotic performances. The customizable Smart Grid ensures every note and chord stays in the desired scale, while making live performances smoother and more intuitive.

Scenes on Demand

Imagine having every setting - from synth engines to sequences - saved in one easy-to-recall Scene file. Build entire live sets and instantly access them with a touch. Plus, share your unique setups with the community

Combo Knobs for Quick Tweaks

Create dramatic builds or subtle shifts with customizable combo knobs. Whether controlling one or all three synths at once, adding movement and dynamics to your sound has never been easier.

Polyphonic Aftertouch

Express every nuance of your performance with polyphonic aftertouch. Adjust multiple parameters with just the pressure of your fingers, allowing for truly expressive, dynamic control over your sounds.

A Dream for Sound Designers

Intuitive 3x3 Knob Matrix

Designed for hands-on control, the 3x3 knob matrix lets you quickly access and tweak key parameters. No need to dive into endless menus - everything you need is right in front of you, ready for real-time adjustments.

Real-Time Visual Feedback

Every adjustment you make is instantly reflected in the visual interface, giving you clear, real-time feedback on how your sound is evolving. Whether you're tweaking filters, modulating oscillators, or adjusting LFOs, you'll see the changes happen as you hear them.

Endless Customization

Expand your creative palette with SD and USB storage. Easily load new wavetables, presets, and entire setups, or share your creations with others. With endless possibilities, this synth is designed to grow with you

Notes: ALM's latest complete modular system, the Turismo combines classics like the Squid Salmple sampler and ASQ-1 sequencer to create a cohesive, engaging synth. The ultimate Eurorack starting point?

Supplier's Notes:
The Turismo is our fully modern Eurorack modular workstation, blending a curated mix of our
flagship analog and digital modules for a versatile and creative patching experience. It offers
a distinctive ALM character, designed for both precision and fun.
The workstation delivers everything from analog bass, bleeps and leads, lush chords, filtering,
extensive sampling, and DSP effects combined with various sequencing styles and numerous
modulation options plus full MIDI integration. It's an all-in-one creative hub that's endlessly
explorable.
Designed also with live performance in mind, the travel-sized 84hp system fits in a rucksack
and comes with a Decksaver cover for added protection. With MIDI, stereo line-level input,
and headphone output, it's perfect for live sets, DAWless jamming, and seamless studio integration. The system features a custom design with unique coloured controls and neodyme
bronze anodized side panels.
The Turismo is a perfect starting point for Eurorack beginners, offering a seamless pain-free
entry into modern modular synthesis that's immediately playable. For seasoned users, it's a
ready-to-use and well balanced cutting edge system designed for effortless creative exploration.

Feature List:

Numerous analog and digital sound sources including oscillators, chords, samples, noise
and more.
Sample recording and eight channel sample playback.
Five analog VCAs and numerous patch-able digital level controls.
Two fully analog multimode resonant filters.
Three inbuilt Sequencing options to run numerous synced melody and rythmic patterns.
Numerous modulation sources including LFOs, Envelopes, randomisation, quantisation,
syncing etc.
Stereo FX Processing with 18 different programs including reverbs, delays, granular processing and more.
Various utilites - S&H, mults, mixers, slew limiter, etc.
Stereo line level in and headphones out.
Three channel MIDI pitch, trigger and clock synchronisation.
Custom look modules and neodyme coloured case only available as part of the Turismo.
Includes international power, deck saver and patch cables.

Tech Specs:
Dimensions: 440 x 264 x 120mm
Weight: 3.24kg
Size: 6u / 84HP
Power: 12V 4A (approx)
Connectivity: TRS MIDI IN, Stereo Line level In, Stereo Line/Headphone out, USB-C ports
for firmware upgrade.

What's Included:

Turismo System & Modules
ALM023 / mmMidi & mmT expander
ALM022 / SQUID SALMPLE
ALM020 / QUAID MEGASLOPE
ALM026 / MULT
ALM036 / TAZM-O
ALM042 / CIZZLE
ALM032 / MFX
ALM037 / MEGA MILTON
ALM035 / ASQ-1
ALM034 / Pamela's PRO Workout
ALM028 / Pip Slope (mk II)
ALM030 / MCFx2
ALM033 / MEGA-TANG
ALM019 / HPO

Included patch cables:

15cm (x10)
30cm (x10)
60cm (x10)
90cm (x3)
120cm (x2)
MIDI DIN to TRS adapter cable
Squid Salmple USB stick with full sample banks
Universal 12V 5A power supply
Decksaver
Printed Manual

Notes: Built on the AE modular system from Tangible Waves, the VSYSTEM-2 is a tiny, fully featured synth voice with patchable functions including wavetable oscillator, Polivoks filter and digital effects.

Supplier's Notes:
The VSYSTEM-2 is a complete synth in a case of exactly the size of the Korg Volca synths. It contains the following AE modules:

WAVETABLES (digital wavetable oscillator):

The WAVETABLES module is a digital oscillator that is based of wavetables, a technique that become popular first with the famous PPG synthesizer. Here, a huge number of digital waveforms can be "scanned", resulting in a morphing between a variety of interesting spectral structures.
The module offers seven different table sets, in each of them an interesting spectral move happens via the WAVE knob. Of course, this can be modulated by an external CV too.
To "fatten" the sound, the DETUNE/SPREAD knob adds a second oscillator with a variable detune up to one octave.
Pitch and wave modulation have an attenuator knob to set the amount of modulation, plus a switch to choose between unipolar (modulation CV is added to the current value) or bipolar (modulation swings above and below the current value).
The table position of the currently played waveform has a visual representation by an LED that changes its colour in the rainbow spectrum.
WAVETABLES is based on a quite powerful processor, the output is 16-bit audio, resulting in a high-quality sound.
This module was developed by Paula Maddox from DOVE audio; known by the excellent synthesizers MODAL 002, MODAL 008 and we are proud and happy that Paula offered to contribute this excellent work for the AE modular product line.

GRUNGE FILTER (Polivoks style filter):

The GRUNGE FILTER is the AE version of the filter that gave the famous Polivoks synth his unique, rough sound. The Polivoks was a Russian synth that was produced between 1982 and 1990.
Beyond the basic design, this filter offers some additional features:
two different resonance characteristics, hard and soft
an FM function, that adds the input signal to the modulation of the filter
an optional overdrive for the output, making the sound even more rough and untamed.

MODULATORS (containing LFO, envelope, random voltage, VCA):

MODULATORS is a multifunctional module offering different kinds of modulation sources in a 1U module. It is designed especially with very small AE systems in mind.

You get:
An AD envelope generator
an LFO with adjustable rate, square wave and triangle/sawtooth output, pulse width knob and CV control
a random CV source working in different modes (stepped, smoothed, quantized)
and a VCA

2ENV (dual CV controlled envelope generator):

ENV is a dual attack - decay envelope; it can be switched between full sustain (the output remains at full level as long as the GATE input is on) and zero sustain (for percussive envelopes). Another switch (SLOW/FAST) allows selecting the time range

For manual triggering there is a button for each envelope.

CV control: Both attack and decay time can be CV controlled; the CV "multiplies" the time by 1...approx. 8 times.

MULTIFX (digital stereo FX processor with reverbs, delays and other FX):

The MULTIFX module offers 15 different stereo audio FX programs, a wide variety from common FX like reverb and delay to unique effects like Ring Crusher or Glitch delay. Also a nice shimmer effect is onboard.

Each program has 3 parameters that can be adjusted and additionally be CV-controlled.

With a switch the sample rate can be reduced to half the normal rate, resulting in doubling the effect times (with reverb, delay...) and introducing a nice portion of aliasing.

It is based on the FV-1 DSP chip that is well-known from other FX-modules in the eurorack world; the MULTIFX module offers the 7 factory programs of the chip plus 8 new and unique ones created by tangiblewaves.

Stereo Headphone amplifier, 2 IN/OUT sockets via a stereo minijack

It is delivered completely with power wall adapter and patchwires; everything needed to get the modular system started!

This is a REAL modular synth system; all modules can be rearranged and swapped as you like.

Notes: An excellent combination of West Coast and East Coast synth philosophies, the Implexus features a complex wave generator and wave folder, analogue low-pass filter and sinkable LFOs and stereo delay.

Supplier's Notes:
The IMPLEXUS is a hardware desktop synthesizer combining west - and east-coast synthesis techniques into a single formfactor. The IMPLEXUS uses analogue waveshaping, folding and audio rate modulation to create a immense range of sounds and textures!

The IMPLEXUS is a performance-oriented musical instrument which will inspire you to compose music and explore its unique soundscape. The IMPLEXUS has a carefully designed analogue signal path with many unique ways to create intriguing sounds. The many sound shaping methods and modulation possibilities help you to create west-coast style harmonically rich sounds as well as thick east-coast analogue sounds.

The IMPLEXUS has a powerful "one-knob-per-function" interface with graphical feedback, utilizing LED rings to indicate modulators. The drone mode, tap tempo and looping envelopes let you explore the IMPLEXUS as a standalone sound generator. The MIDI and Eurorack compatibility and clock synchronisation options make sure it can be played in every setting. The IMPLEXUS is built to last. It has metal shaft potentiometers, an aluminium casing with scratch and solvent resistant graphics and an internal power supply (no adapter!). The IMPLEXUS is a characteristic, unique and complete musical instrument.

"West-Coast"

The characteristic sound of the IMPLEXUS comes from shaping and folding a sinewave, resulting in a complex waveform. The shaping and folding can be modulated at audio-rate in a single knob turn utilizing the second generator. Instead of subtracting you will be adding harmonics. After tweaking for a while you will be surprised to find out you didn't touch the filter... yet.

Unique filter design

The IMPLEXUS offers a 12dB/oct VCF with a unique analogue topology. This filter offers a lowpass and highpass mode. For cutoff modulation there is an envelope amount control with polarizer and a CV input on the back of the IMPLEXUS. There is an input mixer that has amplitude control over three inputs: complex generator, basic generator and the sub-oscillator.

Syncable delay

The IMPLEXUS has a stereo digital delay with dry/wet, delay-time and feedback control. There is a subtle modulation difference between the left and right channels to create a wide stereo image.
The delay can be synchronized to MIDI and external (modular) clock sources. Also the delay can be synchronized to Tap Tempo. For clock synchronization there are five divisions: 1/1 3/4 1/2 1/3 1/4.

Global pitch controls

The IMPLEXUS has a global pitch control section offering control over glide rate and pitch envelope amount. There is a dedicated vibrato LFO with manual control over amount and frequency.

Syncable LFO's

The IMPLEXUS has two LFO's with a variety of waveforms and multiple modulation destinations. The LFO's offer a wide range of 0.01 - 100Hz and can be BPM synced to MIDI and external clock. The LFO's can also be synchronized to Tap Tempo and can even be set in five different divisions.

Connections

The IMPLEXUS offers a 1/4" stereo balanced output. In addition to that there is a stereo headphone output with dedicated volume control.
There is standard MIDI input and thru over DIN and USB. Also there is a eurorack compatible patchbay on the back. This extends the sound and modulation possibilities of the IMPLEXUS even more!

Built in VCO tuner

There is a strobe tuner with 3 LED's on board, which lets you tune both the Complex and the Basic generator to a perfect "A" within just a couple of seconds.

A unique project by a small company

Majella Audio is a small company, and because of that, Majella Audio do most of the design and development themselves. The amount of hard work and effort that went into this project is what makes the IMPLEXUS a unique piece of gear with outstanding build quality. Majella Audio have created a few "How its made" videos to give you an insight into the design and development of the IMPLEXUS, which are viewable on their web page.

Features/specifications

Generators
Analog Complex Generator consisting of a waveshaper cascaded by a wavefolder to create Complex Waveforms
Analog Basic Generator
Sub-Ocscillator one octave below Complex Generator
Dedicated octave switches with 6 octave settings
Pitch modulation sources: Envelope, Vibrato, Glide, Pitchbend, External 1V/oct (CV)
Cross modulation: Linear FM, Folding, Folder DC Bias

Filter:
Analog VCF
12dB/oct Slope
Switchable Low-pass/High-pass
Mod Envelope to Cutoff with attenuverter
External CV for Cutoff
3x audio input from the Generators

2x LFO section:
Accurate digital waveform generation
5 waveform shapes: Random, Square, Sine, Ramp, Saw
Syncable from all clocking sources or "Free" running
Frequency range: 0.01 Hz-100 Hz
Clock divider options: 1/4 | 3/16 | 1/8 | 1/3 | 1/16
Destinations options LFO 1: Bias, Folder, Harmonics,
Destinations options LFO 2: Bias, Folder

2x Analog Envelope Generators:
1x Modulation EG and 1x Amplitude EG
Attack, Decay, Sustain, Release controls
Velocity amount per Envelope
MOD EG is Loopable as AD-LFO triggered by gate
MOD EG Destinations: Filter Cutoff, Harmonics, Folding, Global pitch
AMP EG has 'DRONE" mode for instant sound generation

Delay FX:
Digital Audio Delay with Analog Dry/Wet mixing
Maximum delay time: 1 second
Syncable delay time from all clocking sources
Clock divider options: 1/4 | 3/16 | 1/8 | 1/3 | 1/16

Performance Features:
"One Knob Per Function" philosophy
LED ring indicators for visual feedback and easy understanding of CV signal routing
Guitar Style Tuner for Basic and Complex Generator making it easy to tune the IMPLEXUS
Drone mode for instant sound without any external gear necessary

Physical:
2mm thick solid aluminium casing
Graphics are underneath the anodisation layer and thus scratch and solvent resistant
Handcrafted wooden side panels made from regional oak
All metal shaft potentiometers
High quality switches and connectors (Neutrik)
Internal power supply (AC Input 100-240 VAC)
No adapters needed
Dimensions: W 345 mm x D 206 mm x H 75 mm
Weight: ca. 3kg
Serial number plate

Connectivity:
External CV inputs: Pitch (1V/oct), Gate, Velocity, Folding, Harmonics, Bias, VCF cutoff
External CV outputs: Complex generator, Basic Generator, Clock output
MIDI IN over USB
MIDI IN over DIN
MIDI thru over DIN
1/4" TRS Balanced line outputs
1/4" Dedicated stereo heaphone amp

Clocking options:
External Modular/Eurorack Clock (automatic detection)
MIDI clock via DIN or USB (automatic detection)
Tap Tempo

Global Controls:
Master Volume
Headphone Volume
MIDI Channel selection

Notes: ***B-STOCK: Box opened, but product is in excellent condition and in perfect working order***


A legendary past, a powerful future.

microKORG is one of the world's most successful synths, having helped to shape music production for more than twenty years. Merging the essence of what made the original a global success with an array of powerful new features, the microKORG 2 once again redefines the landscape of music creation. It maintains the essence that has made its predecessor a mainstay in studios and on stages while introducing innovative, contemporary elements that resonate with today's musicians. The microKORG 2 is not just a new instrument; it's a new chapter in synth history.

Seamlessly sculpt your sound with refined controls

Dive into the microKORG 2 and discover how easy and intuitive creating the perfect sound can be. Korg have equipped it with five dynamic knobs, each one a gateway to fine-tuning your sound across any musical genre with speed and precision. Whether you're crafting lush pads or searing leads, the expanded bank selection puts every era of music right at your fingertips.

The centrepiece of the microKORG 2 is its stunning 2.8-inch colour display. It's not just about looks; this display makes tweaking your sound a visually immersive experience. Watch parameters come to life with animated effects, giving you instant visual feedback as you shape your sound. And for those who love to see music as well as hear it, a quick tap switches you to an oscilloscope view, literally showing you how your soundwaves evolve and change.

Korg have packed the microKORG 2 with the latest tech, but don't worry, it's all about enhancing your experience, not complicating it. Whether you're a synth veteran or just starting, you'll find its interface welcoming, straightforward, and comprehensive, letting you dive deep into sound creation without getting lost in the technicalities. It's all about keeping the joy in music making - and the microKORG 2 does just that.

Crafting vocal perfection: the new vocal processor

The original microKORG is renowned for making complex vocal synthesis accessible and fun. Known as the synthesiser with its own mic, it has been the choice for producing unique robotic voices for over two decades - a feat typically reserved for specialized equipment. The true magic of the microKORG has always been in its ability to simplify complex sound engineering. Taking a leap forward, Korg have outfitted the microKORG 2 with a new vocal processor that goes well beyond the beloved classic vocoder effects. Korg are introducing advanced vocal processing technology at your fingertips, including hard-tune pitch correction for creating smooth and polished vocal tracks. Additionally, the new harmonizer feature allows you to layer and pitch-shift your vocals, enriching your music with depth and complexity.
As for effects, the microKORG 2 offers a rich array of options. Layer your vocals with immersive reverb, crisp delay, and a diverse range of sonic textures to fully realise your creative vision. The iconic gooseneck mic, now featuring a stylish metallic neck, is the perfect complement to this powerful vocal processor. Whether you're aiming for rich harmonies or contemporary auto-tuned effects, the microKORG 2's vocal processor is a versatile tool for unleashing your vocal creativity.

Master live performances with loop recording and arpeggiator

Discover a new level of musical creativity with microKORG 2's loop recorder. This feature brings a familiar yet powerful tool for modern musicians into the microKORG world. Ideal for crafting layered backing tracks, the loop recorder allows you to loop segments of music and overlay your own performance, enhancing your creative expression in real-time. While loop recorders are well-known in the music world, their integration into the microKORG 2 opens up new avenues for experimentation and performance, perfectly complementing the synthesiser's robust capabilities.

The loop recorder is designed for simplicity and ease of use, featuring three simple buttons: record, play/stop, and undo/redo. The user interface is streamlined for immediate understanding and use- long-pressing the buttons reveals recording and playback settings, ensuring you're always in control and can focus on your performance.

The microKORG 2 also includes an arpeggiator, perfect for adding rhythmic complexity to your compositions. Activate it with a simple press of one of the eight program number buttons, and watch as it infuses your music with intricate patterns and textures. The combination of the loop recorder and arpeggiator opens up a world of possibilities, allowing you to craft a performance that is truly and uniquely yours.

Explore sounds across the ages

Discover microKORG 2's rich tapestry of sounds, where you get to play with a whole new range of tones. It's all about choice here - the new program selector is your gateway to genres far and wide. Fancy a bit of retro?

Specifications

Keyboard: 37 keys (velocity sensitive mini keys)

Synthesiser
Sound Engine: Analogue modelling synthesis system
Number of Timbers: Max. 2 (when Dual)
Maximum number of voices: Single 8 voices, Dual 4 voices

Vocal Processor
Maximum Polyphony: Vocoder 8 voices, Hard Tune 4 voices, Harmonizer 4 voices, Hard Tune & Harmonizer 2 voices

Effect types: Modulation, Delay, Reverb, Equalizer
Arpeggiator: 10 types, step arpeggiator function
Programs 256 programs (4 Banks x 8 Categories x 8 Programs)
Display: 2.8-inch IPS LCD display
Inputs/Outputs: OUTPUT - L/MONO, R terminals: 6.3mm TS phone jack, unbalanced
HEADPHONES jack: 6.3mm stereo phone jack, unbalanced
MIC IN - CONDENSER: +5V 3.5mm TRS mini phone jack, unbalanced
MIC IN - DYNAMIC: 6.3mm TS phone jack, unbalanced
AUX IN: 3.5mm mini stereo phone jack, unbalanced
DAMPER/SWITCH: 6.3 mm phone jack
MIDI IN,OUT
USB Type C

Power supply: 9V DC (AC adapter), six AA batteries (alkaline or NiMH)
Battery life: Approximately. 4 hours or more (when using alkaline batteries)
Dimensions (W x D x H) 542 x 238 x 65 mm
Weight: 2.1 kg (without batteries and microphone)
Included items Condenser microphone, AC adapter (DC 9V)

Notes: ***B-STOCK: Box damaged, product in perfect working order***


Keyboard version of Akai's iconic MPC workstation, combining the classic MPC sampling and sequencing approach with 16 pads and a 37-note synth keybed. A superb all-rounder for any production style.

*** Introducing MPC Stems- March 2024 ***

Akai Professional now introduces the next chapter of sampling innovation and production powered by the groundbreaking MPC Stems bringing sampling into a new chapter.

With MPC Stems, you can access the raw building blocks of any sample or vinyl record, isolating the DNA of any record. Producers can now manipulate the Drums, Bass, Music, and Vocals, opening new creative possibilities.

Akai Professional introduces the ultimate creative workflow with Stems Separation seamlessly integrated into the leading MPC series, powered by MPC 2 Desktop Software.

With MPC Stems, producers and beat-makers can now unlock unmatched sampling creativity by easily isolating drums, bass, music, and vocals from any audio, vinyl recording, or sample revolutionizing the art of sampling.
Experience lightning-fast workflow with superior sound quality, keeping you inspired throughout the creative process.

Slice and isolate samples while maintaining chop regions across each of the four stem layers.

Take complete control with direct manipulation of stem layers from the pads, adjusting volume, pitch, pan, start, and end points with instant responsiveness.

MPC Stems requires MPC 2 Desktop Software running 2.14 or higher, compatible with MPC Live, MPC Live 2, MPC One, MPC One +, MPC X, MPC XSE, MPC Key 37, MPC Key 61, MPC Studio Mk 2 in Controller Mode.


Supplier's Notes:
Introducing the Akai Professional MPC Key 37; a standalone keyboard workstation that has everything you need to produce music out of the box. The iconic MPC range has been the centrepiece of beatmakers' and producers' studios for over three decades, evolving into a production platform that combines sampling, sequencing and synthesis into a lightning-fast workflow that keeps you focused on your music. MPC Key 37 brings together the familiar 16 pad grid together with a synth-styled 37 note keybed; along with legendary MPC sounds and instruments, and all the connectivity you need to integrate with your outboard gear and computer - in a compact footprint.

Sound

MPC Key 37 ships with a core collection of sounds and samples from Akai MPC's industry standard plug-ins.

There are 8 plug-in instruments out of the box: including Hype, Odyssey, Mellotron and more; and over 10GB of production ready samples and drum kits. Together these offer over 1000 production-ready presets and if you want to dive deeper each plug-in instrument features advanced synthesis, deep parameter editing, and effects for programming in the exact sound you need. With 32GB of internal storage (plus removable media via SD Card and USB) there is enough space to expand your sample and instrument library in whatever direction you need to take it.

Effects

MPC Key 37 includes over 100 powerful studio-quality effects for creative production and mixing.

Insert lush Reverb & Delay effects into your tracks, add bounce and punch to your drums and mix using modern or vintage style compressors and limiters. MPC Key 37 also ships with cutting edge vocal FX plugins which can also be used for straight vocals or creative sound design.

Control surface

The MPC Key 37 features a synth action key-bed with aftertouch, alongside separate pitch and modulation wheels. The synth-style keyboard action has been designed with players and producers in mind; whether tracking basslines into your productions or jamming out synth leads on stage. The 16-velocity sensitive RGB pads are the same award-winning pads as the MPC One+, along with the renowned Time Correct, Swing, and Quantize features of MPC that continue to inspire producers at the top of the industry. Tweaking and editing take place on the 7' multi-touch display and 5 Q-link rotary encoders, giving you fine control as well as quick access to the parameters you need at your fingertips.

Connectivity

MPC Key 37 can also act as a hub for your outboard gear: Connect MIDI devices via USB or using the MIDI DIN In/Out ports; and integrate with modular rigs with the 8 CV/Gate outs. Onboard WiFi/Bluetooth allows for wireless synchronization with Ableton Link and MPC OS Updates, and the SD Card Reader allows for volumes of expandable sounds and tracks.

DAW Integration

MPC Key 37 features a built in 2-in 2-out USB audio/MIDI interface, so you can record audio and MIDI directly in and out of your computer. The included MPC software is a standalone DAW on your Mac or PC, so you get all the tactility and control of the hardware, but with as many tracks as your computer can handle. MPC software also comes as a VST/AU plug-in so you can open it in major DAWs such as FL Studio, Logic, Ableton, Pro Tools, Studio One and more, and combine your favourite workflows.

Notes: ***B-STOCK: Box opened, product in perfect working order***


Dreadbox go back to their roots with this reissued analogue beast. Simple but effective single-oscillator monophonic design with a three-pole resonant filter and analogue distortion.

Supplier's Notes:
Dreadbox's highly anticipated Bass Synthesizer is finally back.

Its Deep and Dark sound is here to haunt you ...

All Analogue Bass Synthesizer
Faithful Reproduction of the 2016 Hades
1 Oscillators with 2 Sub Octaves and 2 Waveforms with PW control
3-pole Resonating Low Pass Filter
1 AD/RS envelope and a AR Amp Envelope

OTA VCA
OTA Distortion
Wide Range Triangle LFO
11 patch points for an astonishing spectacular modular experience
Compact, USB powered, Eurorack Format (42HP)

Monophonic Epicness
Super Fat Oscillator
2x Sub Octaves for extra headroom
Special Internal Bass Boost Circuit
Warm Filter
Drive effect for aggressive sounds
CV outputs: Envelope, LFO, Mod Wheel, 1v/oct
CV inputs: PW, Cutoff, VCA, CV, Gate

Specifications & Connections

USB powered (1.5 Watts)
50 Playing hours with 20,000mA portable power bank
MIDI IN via DIN5
14 MONO TS Jack Out

Dimensions: 21.5 x 13 x 6.5 cm
Weight: 0.9 kg

Requirements

USB-A Adapter (5v) with 1000mA or more
MIDI device or keyboard that is equipped with DIN5 midi output
Monitor, Amp or Headphones

Included in the box

Hades Eurorack module
42 HP case
1x DIN5 to 3.5mm adapter (specs as found at midi.org)
1x Ribbon cable

Notes: The NVO-1 is an analogue noise synthesizer that's capable of producing a wide variety of sounds. Adjust the Main Frequency and Sub Frequency knob to create deep textures and flip the noise switch to bring out even more tones.

Notes: The NDE-1 is JMT Synth's flagship synthesiser, capable of a wide range of sounds. Consisting of two VCOs, a sample & hold function, a noise generator, a low-pass filter, a LFO, VCA, and an envelope generator. This combination can create a powerful and variable sound. The 4-pole filter works very smoothly, and an external audio input. It can be paired with a sequencer for live performance and a wider range of sounds.

Notes: ***B-STOCK: Box opened, product in perfect working order***


*** Synthesizer comes with a free copy of The Waldorf Edition software, including D Pole Filter Module, PPG Wave 2.V & Attack ***

Waldorf are back in the game. With the Blofeld. this synthesizer offers all the unique qualities that made Waldorf a truly legendary brand.

The engine inside the heavy duty, full metal chassis of the Blofeld delivers the same fat and rich sound that so many Waldorf users worldwide love when they play their Pulse, Q, Q+, Micro Q, Microwave, Microwave II/XT, or even the flagship Wave.

Yes, you've heard it right. The Blofeld is not only capable of producing these warm, organic analog sounds known from the Q synthesizer line, it also sports a wavetable engine like its predecessors with Wave in their names.

This unique synthesis system is based upon the revolutionary PPG Wave synthesizers of the early 80s. So when you listen to the Blofeld for the first time, you will instantly recognize those edgy, hard-hitting and bell-like timbres that have been an integral part of so many world hits from the PPG era on, and become increasingly popular once more.

In fact it is amazing to realize that nowadays this complex technology fits into such a slim and elegant device. And for a price no-one would have imagined a couple of years ago.

Notes: Hands-on hardware synth goodness in a boutique desktop format, feauting an eight-voice digital supersaw engine and four-pole filter. Built-in delay, reverb, chorus and freeze effects can be used to process external signals.

Supplier's Notes:
Design philosophy

Knob-For-Knob Functionality:

Artium Instruments are committed to knob-for-knob functionality. Every feature of The Swarm is directly mapped to a knob, button, switch, or jack, ensuring effortless control. There's no need for menu-diving or complicated sequences of button presses to access features; everything is conveniently accessible at your fingertips.

Curated, Onboard Effects:

With over a decade of experience in the effects industry, Artium have carefully curated a selection of effects that seamlessly complement the synth core. Unique to The Swarm is its capability to use the onboard effects with other equipment, allowing you to route external audio through the inputs on the back.

Plug and Play Functionality:

The Swarm utilizes a USB-C MIDI host for simplicity and ease of use. Most modern class-compliant MIDI controllers with USB functionality should plug in and work immediately with zero setup. Additionally, The Swarm provides power to your controller, streamlining your setup process. For older controllers that only have DIN connections, a USB to DIN converter can be used to ensure compatibility. (These converters typically cost $10-20)

Quality Craftsmanship, Intentional Design:

Artium have invested considerable thought into crafting the overall feel of the instrument. From the layout of the knobs to the choice of colours, artwork, and the weight of the enclosure, every detail has been considered. These details matter because the connection a user forms with a piece of gear is almost as crucial in the creative process as the sounds it produces. A lot of love and passion has been poured into every aspect of The Swarm, from its sonic capabilities to its design aesthetics.

Open Source Platform:

Artium desktop synths use an open source platform known as Axoloti or Ksoloti for development and implementation of its products.

Synth core

Oscillator:

The Swarm features a SuperSaw oscillator with 8-note polyphony. This oscillator is composed of seven individual saw waves stacked on top of each other. The magic unfolds when you detune the waveforms by applying a frequency offset, resulting in one of the most massive synth sounds available.

Control Modes:

The Swarm employs this massive sound through two distinct control modes: Polyphonic Mode and Arpeggiator Mode. In Polyphonic Mode, you can play up to eight notes simultaneously, exploring the full range of polyphony. Arpeggiator Mode offers a comprehensive monophonic arpeggiator, automatically sequencing held notes in a variety of patterns, enhancing your creative possibilities.

More Features & Controls:

To shape the sound further The Swarm has a 4 Pole Low Pass Filter with a subtle resonance as well as a simple attack and release envelope.

Onboard effects

All onboard effects can be used with other music equipment. Simply plug an external audio source into the rear input jacks, and The Swarm will seamlessly mix the external audio with its synth core, allowing for simultaneous processing of both signals.

Freeze:

By pressing the touchpad on the right, The Swarm records a 1000ms sample of the current audio. It then layers, and smears the sample, creating an infinite drone frozen in time-a perfect foundation for layering additional notes. The freeze effect facilitates overdubbing, and pressing the touchpad with the freeze knob at its minimum setting erases the memory, allowing the device to capture a fresh sample.

Delay:

The Swarm's delay is a digital delay with a subtle touch of warmth. The delay length synchronizes with the arpeggiator clock, which can be adjusted manually using the clock knob or via the tap tempo touchpad on the left. Additionally, the delay features a multiplier knob, offering a range of unique subdivisions that complement the synced arpeggiator, including quarter notes, dotted eighths, eighths, and triplets.

Reverb:

The reverb effect in The Swarm strives to enhance the natural body and ambience of the synth core without overshadowing it. Its stereo reverb algorithm is controlled by a single knob, which adjusts both the mix and decay simultaneously. This versatile control allows you to seamlessly transition from realistic room or hall effects to expansive cathedral-like soundscapes, offering a wide range of atmospheric possibilities.

Chorus:

The SuperSaw oscillator practically demands to be paired with a chorus effect. The Swarm employs a stereo 4-voice chorus effect alongside a gradually shifting LFO, aiming to craft dimensionality without becoming nauseating.

Controls

Synth core:

Detune - Detunes SuperSaw oscillator
Filter - Cutoff frequency of the filter
Attack - Rising edge of envelope
Release - Falling edge of envelope

Arpeggiator:

"ARP" Toggle - Activates Arpeggiator Mode
"HOLD" Toggle - Stores all notes played in memory
Direction - Selects the direction of arpeggiator (UP, DOWN, SEESAW, RANDOM, ORDER PLAYED)
Octaves - Selects the number of octaves played by the arpeggiator
Clock - Speed of the arpeggiator and delay clock
Clock Toggle - Switches between manual clock knob and tap tempo.
Tap Tempo (Yellow Pad) - Tap tempo for arpeggiator and delay clock

Effects:

Freeze (Yellow Pad) - Press to record. Pressing with Freeze Knob at minimum will erase sample
Freeze (Knob) - Sets the level of the frozen, infinite drone
D.Level - Delay signal level
D.Feedback - Number of delay repeats
D.Multiplier - Sets delay multiplier (quarter note, dotted eighth, eighth, triplets)
Reverb - Mix and Decay of reverb increase simultaneously
Chorus - Sets chorus level

Rear panel

Out(L) - Left Output (stereo headphone jack/TRS when Out(R) is unconnected)
Out(R) - Right Output
In(L) - Audio input to send external audio through onboard effects (If source is Mono, use In(L))
In(R) - Audio input to send external audio through onboard
Oct+: Shifts the entire synth up one octave for every press
Oct-: Shifts the entire synth down one octave for every press
MIDI HOST INPUT - Provides power and communication with your USB Midi Controller
USB POWER SUPPLY - USB-C plug to power synth

Notes: ***B-STOCK: Box opened, product in perfect working order***


*** Osmose 2.0 Firmware Update- August 2024 ***

What's New in Osmose 2.0?

Here's a quick overview of the new features:

Press Glide in External MIDI Mode
MPE Arpeggiator in External MIDI Mode
Preset Favourites & Playlists
2048 Preset Slots
Preset & Playlist Changes via Program Changes
New Soundbank Management System
and more!


Next-gen standalone expressive synthesizer. Add emotion & movement to your music with a simple touch.

Osmose is the new standard for musical expressivity. Use intuitive gestures to control this standalone synthesizer and upgrade your playing & production skills. Press, bend, shake, strum & more to interact with keyboards & electronic sounds in a new organic way. Whether you're a veteran keyboardist, a workflow-oriented producer, a daring sound designer, or anything in between, Osmose will take your musical journey to uncharted places.

Explore new ways to play

Behind the expressivity of Osmose lies a few natural gestures you already know well. Discover how they interact with Osmose and enhance your musicianship from the very first touch.

Design & build quality

Designed in France to stand the test of time and touring with style, Osmose is made of quality components and boasts a high repairability index.

A sound engine by Haken Audio

Made for expressivity by Haken Audio, the EaganMatrix sound engine is at home with FM, virtual analogue, and physical modeling synthesis, as well as everything in-between.

Fun to play

Easy-to-tweak presets, a playful interface, and an innovative keybed make for a fun & refreshing playing experience, for players of all levels.

Osmose's browser has been tailored to make it a hassle-free experience. It offers various filters and sub-filters based on both sound types and colours so you can find the sounds in your head quickly.

Main features:

49 Key MPE keyboard with polyphonic aftertouch
Full-size keys with 3-dimension MPE control
EaganMatrix sound engine by Haken Audio: a digital modular sandbox allowing subtractive, FM and different physical modeling synthesis
24 voices of polyphony
Assignable mod and pitch sliders
500 factory presets
128 user presets
Configuration modes: standalone synthesizer, MPE MIDI Controller, and classic MIDI Controller
Filters and sub-filters for browsing
Customisable sensitivity and velocity curves
Multi-mode MPE arpeggiator and innovative pressure glide feature
Digital stereo effects: select between reverb , mod delay, swept echo,analog echo or LPF and HPF delay
Large colour display
9 push encoders
2 Line outputs: Two 14" TS pseudo balanced line outputs
MIDI input, output, and MIDI-thru
USB MIDI
Separated 1/4" TRS headphone output on the front panel (with its dedicated volume knob)
2 continuous pedal inputs assignable to macro or sustain: 6.35 mm Jack
Power: External PSU with lockable connector, 12V, 1.5A, center positive
Dimensions (W x H x D): 894 x 316 x 87.5 mm / 35.2" x 12.4" x 3.4"
Weight: 8.3 kg / 18.4 lbs
Includes a software updater for new firmware and library versions
Includes a Mac/PC editor to create and edit sound

Notes: ***B-STOCK: Box opened, product in perfect working order***


Typhon has been developed with ultimate care and love, so as to be a great-sounding, portable and affordable synthesizer. It has a complex modulation routing, 256 preset memory, a 32 note sequencer, and powerful stereo effects developed by Sinevibes.

Since it is packed in a compact USB powered box, it can be carried everywhere you go!

Specifications & Connections:

USB powered (at least 500mA)
60 Playing hours with 20,000mA portable power bank
MIDI Din IN and OUT
1/4 in Stereo Out
1/8 in Headphone Out
1/8 in Mono Audio In (for routing via Typhon FX)

Dimensions: 23 x 13 x 6 cm
Weight: 1kg

Notes: ***B-STOCK: Box damaged, but product is in excellent condition and in perfect working order***


Streichfett combines the best of the now extinct species of String Synthesizers of the 70s and early 80s. Its dual sound engine features a fully polyphonic strings section and a monophonic solo section, which is essential for recreating how adult movies sounded thirty years ago. The Ensemble Effect handles lubrication of the String Section, while the Effects section adds adjustable Phaser or Reverb. Alternatively, the Effect section can be used to animate the strings registration, allowing spectacular sound morphs.

The Solo Section offset presets named Bass, E-Piano or Clavi, and just like in your typical string machine, the sound has little to do with that name. Instead, these are shimmering and slightly percussive sounds that blend well with the string section.

Although the User Interface is simple and easy to comprehend, it controls a rather complex sound engine which is capable to delivers rich and creamy pads unlike any other instrument.

Twelve patches can be stored and selected in the Memory section, USB and MIDI are of course on board.

Notes: ***B-STOCK: Box opened, product in perfect working order***


*** Osmose 2.0 Firmware Update- August 2024 ***

What's New in Osmose 2.0?

Here's a quick overview of the new features:

Press Glide in External MIDI Mode
MPE Arpeggiator in External MIDI Mode
Preset Favourites & Playlists
2048 Preset Slots
Preset & Playlist Changes via Program Changes
New Soundbank Management System
and more!


Next-gen standalone expressive synthesizer. Add emotion & movement to your music with a simple touch.

Osmose is the new standard for musical expressivity. Use intuitive gestures to control this standalone synthesizer and upgrade your playing & production skills. Press, bend, shake, strum & more to interact with keyboards & electronic sounds in a new organic way. Whether you're a veteran keyboardist, a workflow-oriented producer, a daring sound designer, or anything in between, Osmose will take your musical journey to uncharted places.

Explore new ways to play

Behind the expressivity of Osmose lies a few natural gestures you already know well. Discover how they interact with Osmose and enhance your musicianship from the very first touch.

Design & build quality

Designed in France to stand the test of time and touring with style, Osmose is made of quality components and boasts a high repairability index.

A sound engine by Haken Audio

Made for expressivity by Haken Audio, the EaganMatrix sound engine is at home with FM, virtual analogue, and physical modeling synthesis, as well as everything in-between.

Fun to play

Easy-to-tweak presets, a playful interface, and an innovative keybed make for a fun & refreshing playing experience, for players of all levels.

Osmose's browser has been tailored to make it a hassle-free experience. It offers various filters and sub-filters based on both sound types and colours so you can find the sounds in your head quickly.

Main features:

49 Key MPE keyboard with polyphonic aftertouch
Full-size keys with 3-dimension MPE control
EaganMatrix sound engine by Haken Audio: a digital modular sandbox allowing subtractive, FM and different physical modeling synthesis
24 voices of polyphony
Assignable mod and pitch sliders
500 factory presets
128 user presets
Configuration modes: standalone synthesizer, MPE MIDI Controller, and classic MIDI Controller
Filters and sub-filters for browsing
Customisable sensitivity and velocity curves
Multi-mode MPE arpeggiator and innovative pressure glide feature
Digital stereo effects: select between reverb , mod delay, swept echo,analog echo or LPF and HPF delay
Large colour display
9 push encoders
2 Line outputs: Two 14" TS pseudo balanced line outputs
MIDI input, output, and MIDI-thru
USB MIDI
Separated 1/4" TRS headphone output on the front panel (with its dedicated volume knob)
2 continuous pedal inputs assignable to macro or sustain: 6.35 mm Jack
Power: External PSU with lockable connector, 12V, 1.5A, center positive
Dimensions (W x H x D): 894 x 316 x 87.5 mm / 35.2" x 12.4" x 3.4"
Weight: 8.3 kg / 18.4 lbs
Includes a software updater for new firmware and library versions
Includes a Mac/PC editor to create and edit sound

Notes: ***B-STOCK: Box opened, product in perfect working order***


Suzuki's iconic Omnichord returns with the OM-108, a modern update of the classic formula featuring new digital synth sounds alongside the original omni1 and omni2 analogue synth circuits.

Supplier's notes:
Released in 1981, the Omnichord is an electronic musical instrument with an automatic accompaniment function (auto bass/chord) and equipped with a harp sensor. By pressing a chord button and sliding your finger on the harp sensor (strumplate), an arpeggio corresponding to the chord is heard, allowing anyone to easily accompany a song. Omnichord does not require any previous musical experience with an instrument, or even knowledge of staff notation. All that is needed are the chord names required to play a song which is a method commonly known as 'tab'. Combined with its portability, Omnichord became extremely popular, especially in Europe and America as a new musical instrument that anyone can enjoy - anywhere. In addition, due to the unique electronic sounds that are reminiscent of the 80's, and the tactile way musical expressions are achieved, Omnichord has developed cult status around the world. It not only appears in recorded music, but also publicity photos, and has featured in the titles of songs and albums. The Omnichord name was discontinued after the OM-300 (released in 1996), but its popularity as a unique musical instrument has endured the test of time, and now, over 40 years later the Omnichord returns with the OM-108.

Simply press a chord button and slide your finger on the strumplate. In this way, you can play accompaniment to almost any song on the very same day you first try the Omnichord!

Suzuki put a great deal of effort into the design of the Omnichord so that it accurately reproduces the sound of the OM-84, a model that is hailed as a masterpiece for its tone and versatility. To achieve this in the OM-108, Suzuki decided to apply the same method for sound creation as the OM84, incorporating real analogue circuitry into the new model. In total, the OM-108 is equipped with 10 types of strumplate tones, whilst "omni1" and "omni2" reproduce the classic sound of the OM-84, revived for future generations to enjoy.

The OM-108 includes a selection of timeless instrument tones that are both retro and current. The "celeste", "harp", and "piano" featured in previous models. The "FM piano" tone is new, this is an electric piano sound that helped define 1980s music. The OM-108 is equipped with. "omni1" and "omni2" which use real analogue circuitry. Other tones are reproduced using PCM sound generation.

There are 10 tones...omni1/omni2/harp/celeste/A.piano/guitar/FMpiano/organ /vibes/banjo(omni1 and omni2 have the same Main Voice but different Sub Voices).

The model OM-84 was equipped with two electronic harp tones, allowing the tones to be layered and played. OM-108 reproduces this function. A tone that sounds beautiful when layered with the Main Voice has been assigned as a Sub Voice. To control each layer, simply turn the appropriate Volume knob. This enables real time control changes adding expression to your sound.

Even though many rhythms included in the OM-108 share the same names as previous models, they have been updated to incorporate rhythm patterns that are current. Also, for the first time on Omnichord, a trap beat (Hip Hop) has been included. Suzuki have selected "usable" rhythms that will allow you to play a wider variety of songs.

There are 10 kinds of rhythm...rock1/rock2/slow rock/country/swing/disco/hip hop/funk/bossanova/waltz

The "sus4"' and "add9" chords, often used in popular music, have been added. It is now possible to play a total of 108 chord types, hence the model number 'OM-108'. The Omnichord has developed into an instrument that can be played more intuitively without having to substitute other chords.

Equipped with a wide type strumplate similar to models OM-100 onwards. Every corner of the plate responds sensitively to light touch, so you can concentrate on playing without stress.

In addition to the melody keyboard, the OM-108 is equipped with drum pad mode for the first time as a function (when the "KEYBOARD" button is pressed). Owners of the OM-108 will be pleased to note the drum pad is assigned not only to the chord button, but also to the strumplate. This allows for the creation of interesting beats using the OM-108 retro drum kits.

The OM-108 not only sends chords and strumplate data, but also drum performance information from MIDI OUT. Strumplate information can be sent on two MIDI channels, allowing you to layer tones with external MIDI sound sources, or to layer the OM-108 internal sounds with external sound sources. The OM-108 has evolved into an instrument that invites you to explore more creative sounds using MIDI.

The OM-108 includes rhythm voicing from the OM-84, which is extremely popular for its early 1980s retro sound. You can switch the rhythm tones between OM-108 and OM-84 by using a special 'power-on' operation.

Although it has a built-in speaker, the Omnichord is small, lightweight, and battery-powered*, making it easy to carry and play. Connect an external amplifier and headphones, and you can perform anywhere, such as in the studio, performing at a live venue, or just playing in your bedroom! *Powered by 8, AA batteries or dedicated AC adapter (both sold separately).

Using "REAL TIME CONTROL", the OM-108 integrates multiple functions for switching the way chords and rhythms are played. Whether you want to play at free tempo (without rhythm), add bass accompaniment, or start with a drum prelude, you can easily switch in real time even during a performance.

When connecting to an external speaker etc., you can turn on/off the sound produced by the speaker of the instrument. This is useful when you want to monitor your own sound during live performances. This is a new feature included on the OM-108 in direct response to user's requests.

Specifications

Chord buttons: 38
Chords: major, minor, 7th, major7th, minor7th, augmented, diminished, suspended4th, add9th
Voices: 10 tones (main, sub tones) / 4 octaves
Rhythm Pattern: 10 patterns
Control: Master Volume, Chord Volume, Main Voice Volume, Sub Voice Volume, Sustain, Rhythm Volume, Tempo
Button Controls: Power, Chord, KEYBOARD ON/OFF, Voice Select, Rhythm Select, Chord-Manual/Auto, Chord Hold, Rhythm-Start / Sync Start
Other Functions: Instant OFF, Transpose, Octave Shift, ON/OFF SPEAKER, Master Tuning
Speaker: 10cm
Amplifier output: 4.3W
Jack: DC inlet, LINE OUT (monaural standard), headphone output (Stereo mini), MIDI OUT
Power Supply: AC adapter, 8 AA alkaline or Ni-MH batteries (all sold separately)
Power consumption: 3.7W
Continuous battery operation time: Approximately 8 hours
Measurement: W45.7 x D25.0 x H5.18cm(17.99 x 9.84 x 2.04 in.)
Weight: 1.2kg(2.65lb)
Accessories: Melody keyboard overlayer

Accessories (sold separately, not included)

AC adapter 100-240V
AD1-1210A(100-120V)
AD3-1210A(220-240V)
Strap pin OSB-108
Gig Bag OGB-108

Notes: A nice middle ground between old-school analogue and modern convenience here. The Motas-6 features a fully analogue six-voice paraphonic signal path, all controlled by digital elements for preset storage, modulation and sequencing.

Supplier's Notes:
Motas-6 is a very powerful and flexible analogue paraphonic synth with digital control. It has three voltage-controlled oscillators (VCOs) including hard-sync options, analogue phase-modulation and a sub-oscillator. Each VCO has several waveforms that can be freely mixed and modulated and each VCO can be assigned to track notes in various ways for paraphonic playing. The mixer takes the signals from the 3 oscillators, noise source and external input and outputs to the filters. The mixer output will distort (intentionally) with the highest input levels and there is a boost mode for even greater distortion. An analogue noise source with selectable white/pink response has its own control for input level into the mixer.

Motas-6 has a unique 'vector morphing' feature allowing you to morph between 4 patches of your choice in real-time using external MIDI controllers or CV inputs. There are 5 instant-access patches available at any time (in RAM memory). In vector morphing mode dual external controllers allow the active patch to morph in 2-dimensions between the first 4 presets. On exit from this mode the resulting patch settings are stored to the 5th preset automatically.

There are has masses of modulation options. Each and every rotary knob parameter has independent modulation settings from key, velocity, 4 modulation sources (from MIDI and CV/gate inputs) as well as from its own EG (Envelope Generator) and LFO (Low Frequency Oscillator) - a total of 33 independent EGs and LFOs! There are also 4 global EGs and 4 global LFOs with individual amount settings for each parameter.

Motas-6 has very powerful filtering capabilities. There is a 6-pole voltage-controlled low-pass filter (VCF) with adjustable resonance to self-oscillation (with selectable 1, 2, 3, 4, 5 and 6-pole outputs), a 2-pole high-pass voltage-controlled filter and a second 4-pole resonant low-pass VCF (similar in design to that of a certain silver box from the '80s). The inputs and outputs of the filters can be connected together in various ways to give a huge range of filtering possibilities.

It has a built-in pattern sequencer. 1-bar patterns of notes and parameter change data can be stored and chained to together into a 2 track sequence. In the sequence each pattern can be transposed, repeated and delayed. 15 patterns are active at any one time (56 patterns can be saved to non-volatile memory arranged in 7 banks of 8 patterns). 16 sequences can be saved (2 banks of 8 sequences). Not only does the saved sequence contain all 15 RAM patterns, also the 5 complete RAM patches are also saved ensuring that every detail of the sequence is captured. It also has a built-in arpeggiator that can be synced to internal or external clock (MIDI or CV/gate). Options including hold-modes, direction, note-range, swing, pattern, note-length and delay. The settings are stored with the patch.

The output voltage-controlled amplifier (VCA) stage has a choice of analogue clipping/distortion options: dry, soft clip, hard clip, soft clip + hard clip, dry + soft clip + hard clip. External audio can be routed into the mixer with its own level control. However, when nothing is plugged into the external audio input socket an audio feedback loop from after the final VCA is fed into the mixer instead. Audio monitoring options include real-time oscilloscope, spectrum analyser, volume level and MIDI input monitor displayed on the fast and bright OLED display.

Notes: ***B-STOCK: Box opened, product in perfect working order***


The lovable oddball of the Arturia range, this brilliant hybrid synth combines versatile wavetable and digital oscillators with analogue filters. Touch keyboard gives uniquely expressive control.

*** New firmware update (26th October 2021) *** Arturia are happy to announce another major new firmware update for MicroFreak, bringing massive new creative functionality for users free of charge.

Firmware V4.0 elevates this hybrid desktop synthesizer's status as a sound design powerhouse even further:
New WaveUser sound engine
Allows for user wavetables(!!)
64-new presets
Sequencer Unison & Chord Voices
Faster Oscillator Encoder Response
....and more!

This update, plus ALL the of previous updates (see Vocoder & Noise Engineering oscillators etc.) cement the MicroFreak as one of the most interesting, powerful and flexible synthesizers on the market, whilst maintaining excellent value for money.

Supplier's Notes:

A synthesizer like no other, MicroFreak is a peculiar, exceptional instrument that rewards the curious musician. It blends wavetable and digital oscillators with analogue filters. It features a unique poly-aftertouch flat keyboard. It adds controlled randomness to sequences. This isn't a revolution, it's a mutiny.

This out-there little music machine features a versatile digital oscillator so you can create rare and interesting sounds with ease. Modes like Texturer, KarplusStrong, Harmonic OSC, and Superwave give adventurous musicians the chance to explore totally new, unheard possibilities. Like having dozens of synths in just one instrument, both wild-eyed newcomers and seasoned professionals will fall in love with MicroFreak's flexible, powerful synth engine.

Physical modelling, wavetable synthesis, virtual analogue, there is nothing as complete and exciting as the MicroFreak oscillator on the market. It's hard to believe from such a small synth, but here it is, ready for you to explore. Excite your creativity and reward your curiosity with a large, diverse sound palette. MicroFreak features 11 awesome oscillators, 4 bespoke Arturia engines, and 7 modes from our friends at Mutable Instruments.

Inspired by the trailblazing 12-dB Oberheim SEM filter, you can make MicroFreak's filter scream or whisper to taste. The filter is state-variable, and can even auto-oscillate! You can use this is any way you like, from taking the edge of the razor-sharp wavetable sounds, or automating the cut-off by modulating it with keyboard pressure or the in-built sequencer.

Record up to four automations, edit notes per step or use the innovative Spice and Dice sequencer functions to find happy accidents. Add randomization to create evolving, original patterns, and virtually rewire and reconfigure its signal chain and controls with the 5x7 modulation matrix.

Notes: The UNVO-1b powered by a centre negative DC 9V adapter or a single 9V battery.

It also contains two VCOs (oscillators) with a wide range.

The frequency and waveform of the SUB oscillator are changed, and they are input to the main, respectively. Each of them has a range switch, so it works like an LFO under the switch. The colour of the range switch (white, black) corresponds to the colour of the SUB.1 and SUB.2 on-off switches next to the FREQ knob of the main oscillator.

When the WAVE switch is turned on, the WAVE knob is activated, and the SUB OSCILLATOR.1 and 2 are shaken.

The main VCO×2 is mixed and fed into the strain + filter circuit. This special filter has a FREQ knob and a TUNE knob. The TUNE knob powerfully amplifies the input signal while also tracking specific pronunciations.

The filter is a circuit that has been fine-tuned so that it can very effectively enhance the bass and treble of this input signal.

Unlike other switches, the noise-on switch moves sideways, left (VCO.1), middle (OFF), and right (VCO.2). They are populated in VCO.1 and 2, respectively.

The UNVO-1b is a noise machine that can output a very strong signal that generates a variety of noise sounds.

The black painted aluminium die-cast case is painted with a black matte paint with a laser and scraped to make letters.

This analogue synth runs on DC9V negative centre or a 9V battery.

The main 2 VCOs can receive 2 oscillators and noise generator inside and go to 2 different filters.

2 oscillators can be tuned with each two FREQ. knobs and controlled with the wave knob.

RED switch is for wave knob working.
Black and White for tone of oscillators

Notes: ***B-STOCK: Box opened, product in perfect working order***


Tracing the footsteps of its bigger brother, Iridium features all the synthesis elements of Quantum as well in a rack-compatible format. The combination of the powerful engine, incredible flexibility and detailed sound shaping facilities creates sheer endless possibilities of sound. Yet, the comprehensive layout and easy-to-understand structure lets you design your own sounds in no time. Sporting a solid metal casing and the same high level of craftsmanship like Quantum, Iridium is now ready to take over studios and stages throughout the world.

Contributing another entry in Waldorf's rich history, Iridium joins the family as a direct descendant of the PPG Wave. Though, Iridium offers much more than its ancestor. Five different synthesis models are provided by Iridium for each of the three oscillators:

Wavetable
Waveform (Virtual Analog)
Particle (Sampling and Granular Sampling)
Resonator
Kernels

Kernel mode has been introduced with the OS 2.0 of Quantum. This huge upgrade allows one oscillator to be turned into up to six sub oscillators. These can be interlinked through FM at audio rate and arranged in user-definable constellations. Just this upgrade alone would have provided enough additional features to create a synthesizer on its own. Now, all those functions have been integrated into Iridium as well.

Up to 7000 patches can be saved in Iridium. Patches from Quantum can be loaded in Iridium and vice-versa.

Iridium features three digital filters per voice. Two in the Dual Filter section and another one in the Digital Former. Several types are available to choose from:

12 or 24dB and Lowpass/Highpass/Bandpass with optional saturation or dirtiness.
Various filter models are available including those from Waldorf Nave, Largo and PPG 3V.
The Dual Filter section can be controlled independently or together in several different link modes.
The Digital Former offers all the filter types and models from the Dual Filter plus unusual models like Comb, Drive, Bitcrusher and more in addition.

All filters retain a true stereo signal throughout the entire structure of the instrument.

Up and down, back and forth
6 Envelopes, 6 LFOs and many more are just waiting for being used as sources in the 40 slots of the Modulation Matrix. Each slot has one additional control amount. Modulations can be directed to almost every numerical value in Iridium. All sources and destinations can be used as many times as desired until the Modulation Matrix is full. If you ever happen to run out of LFOs or Envelopes, you can use the Komplex Modulator for generating a custom shape LFO or Envelope.

Even though Iridium features a staggering amount of parameters to control, everything is organized in a logic structure which is easy to master. The major controls have their own dedicated knob, while the rest is accessible through the touch screen and the encoders around. There are no long menus keeping you from doing what you had planned. Instead, you will find a workflow which you will soon miss on other synthesizers.

Embedded in the front panel, a 4x4 silicon pad matrix invites you to launch notes, chords, arpeggios and sequences with up to 32 steps for notes and multiple parameter lines. Direct access to the parameters is granted by the seven encoders to the left and the right hand side of the touch screen.

Iridium's large color touch screen keeps you informed at all times. Upon moving a knob, Iridium gives you an optical feedback of your changes in real-time. Filter curves move, Particle grain sizes change, Envelopes warp and much more:

Komplex Modulator curves can be drawn with your finger
Envelopes show at which point the voices currently are
Wavetables are displayed in comprehensive view modes
VU meters show which voices are used and the individual voice levels
Different Analyzers show the audio signal at different points

Two Audio Outputs allow you to listen to Iridium, while two Inputs allow Iridium to process external signals. 4 CV inputs plus Gate In and Trigger In are ready to forward external signals to the Mod Matrix. Furthermore, Clock In and Clock Out will get your gear in sync. MIDI connections can be made through USB and DIN MIDI. Iridium is also equipped with a USB Host port for MIDI devices. This port also handles data exchange, in addition to the MicroSD card slot.

Once again, Waldorf have underlined their status with a new and exciting synthesizer.

Notes: ***B-STOCK: Box opened, product in perfect working order***


SOLAR 42 is an analogue microtonal ambient drone machine.

It is an improved model of the SOLAR 50.

On board:

Four drone voices as in SOLAR 50
Two new drone voices, totally different from SOLAR 50. To create space sound
effects
Two white noise generators.
Two Samples and Holds
Two volt octave VCO voices with different waveform variations, including
morphing.
Two LFOs as in SOLAR 50.
5 step analogue sequencer
Preamp for contact mic.
Envelope follower
Stereo mixer with panoramic left and right channels
Dual polyvox stereo filter
Dual cartridge effector combiner with CV control. Now you can load a different
effect on each channel.
Stereo audio output
Dry audio outputs volt octave voices
External audio input.
Joystick
Separate push-button keypad for six drone voices
Touch sensitive keypad controller for volt octave voices.
Power supply unit no longer needs to be reset.
Reduced output noise compared to SOLAR 50.

Size: 49,5 x 32 x 2,9 cm
Weight: 5,5 kg
Designed and engineered by Arseniy Tokarev
Elta Music

TOUCH SENSITIVE CONTROLLER settings

Behaviour:
- single: 12 key mode
- twin*: 2x6 key mode, the parameters are the same for both sides
- split*: 2x6 key mode, but with separate parameters for both sides (e. g.: you can have an arpeggiator on one side, but a basic keyboard controller on the other side)
* in twin and split modes the pressure output acts as the note CV output, therefore pressure parameters (output, rise and fall) have no effect

Arpeggiator state:
- off: the module acts as a keyboard controller
- on: enables arpeggiator

Arpeggiator hold:
- off: the arpeggiator will play only while the keys are held
- on: the arpeggiator will continue to play the last progression after the keys are released

Arpeggiator clock:
- sets the clock multiplication/division ratio for the arpeggiator

Arpeggiator direction:
- forward
- backward
- ping-pong
- random

Arpeggiator variation: when enabled the arpeggiated progression will be played again transposed by the selected interval.
- OFF
- x1
- x2
- x3
Arpeggiator variation interval: 1 - 12 semitones

Arpeggiator rhythm: an eight step trigger sequencer placed between the arpeggiators virtual clock input and clock source, applies a rhythmic pattern to the arpeggio. - turn steps on/off

Arpeggiator rhythm length: sets the length of the rhythm sequencer. 1 - 8 steps

Portamento: creates slew limiting effect on the CV output, sets the speed of gliding (ie: how much time it takes to transition from one pitch to the next). 0 - 255

Legato:
- off: portamento is always on
- on: gliding happens only when two or more note plates are touched simultaneously (this parameter has no effect when arpeggiator is enabled)

Vibrato speed: sets the speed of the LFO that's modulating the note CV output. 0 - 127

Vibrato depth: sets the modulation amount. 0 - 127

Vibrato delay: specifies a time delay before vibrato begins to apply until it reaches the full strength specified by the depth parameter. 0 - 127

Vibrato pressure control: when enabled, the modulation amount is altered by the pressure applied to keys.
- off
- on

Pressure output:
- pressure: voltage on the pressure output will continuously follow the pressure applied to key plates
- ASR: attack/sustain/release envelope generator
- AD: attack/decay envelope generator
- LOOP: looped AD envelope generator
- random: outputs a random voltage

Rise: creates slew limiting effect on rising edge in pressure and random modes, sets attack time in envelope modes. 0 - 255

Fall: creates slew limiting effect on falling edge in pressure and random modes, sets decay/release time in envelope modes. 0 - 255

Scale editor: turn notes on/off of the scale applied by the note quantiser, when all notes are disabled the module works as a microtonal keyboard.

Load scale: select and load a preset scale/mode.
- Semitones
- Ionian
- Dorian
- Phrygian
- Lydian
- Mixolydian
- Aeolian
- Locrian
- Blues major
- Blues minor
- Pentatonic major
- Pentatonic minor
-Folk
-Japanese
-Gamelan
-Gypsy
-Arabian
-Flamenco
-Whole Tone

Root note: sets the root note of the scale applied by the note quantiser. C - H

Notes: JMT have designed a very complex interplay between the two oscillators, using two different oscillator circuits with different circuit configurations, and two different waveform conversion circuits attached to each. The output is then routed through a circuit that was developed from the SNB-2b, which emphasizes and distorts the bass, mids, and treble, and which have been tuned to work well with this oscillator.

Fine-tuning of circuit part values was performed to obtain a sound with depth as well as intense distortion by fine-tuning the knobs.

This runs on DC 9V negative center or a 9v battery.

Noisy analogue synthesizer oscillator with distortion function that can emphasize HI, MID, and LO.

The oscillator can be input to a VCO with a wide range and a SUB VCO adjustable by LEVEL.

The VCO and SUB VCO are designed to affect each other in complex ways, so a wide range of sounds can be created by subtle combinations of knob positions.

The MODE switch makes the connection between the SUB VCO and VCO more complex, and the LEVEL knob can be used to adjust the level of the SUB input to create different waveform changes.

By fine-tuning the LEVEL, SUB, VCO knob, you can create a variety of sounds by emphasizing high, mid, and low frequencies.

The CV IN jack is a 3.5mm jack. OUT PUT 6.5mm

Notes: ***B-STOCK: Box opened, product in perfect working order***


The VSYSTEM-1 is a complete synth in a case of exactly the size of the Korg Volca synths. It contains the following AE modules:

2OSC/d (dual oscillator)
The 2OSC/d module contains two 1V/octave hybrid oscillators.
Each of them has:
one frequency knob plus a range switch +2 octaves
CV input (1V / octave)
PWM input
SYNC input
Sawtooth / Square / Sub-octave output

The pulse width knob controls either the pulse width of the first oscillator (with the second one having a fixed pulse width), or via a switch the second oscillator is also controlled by the pulse width knob. Both oscillators can be pulse width-modulated independently by their PWM inputs.
The module is designed as a hybrid digital/analogue module; the oscillator frequencies are determined digitally and are therefore quite stable and have a good tracking; the output waveform itself is created analogue. It's a new idea/concept that I have implemented here; the design causes the waveform to gets a bit gritty at higher frequencies (but not "digital noise") - it's the character of this thing!

WASP FILTER
This filter module is a variant of the Wasp filter, a quite strange circuit used first in the EDP Wasp synth end of the seventies, which abuses digital chips in an analogue way leading to the characteristic sound of this filter type. In this module, vactrols are used for controlling the filter frequency.

MODULATORS (containing LFO, envelope, random voltage, VCA)
MODULATORS is a multifunctional module offering different kinds of modulation sources in a 1U module. It is designed especially with very small AE systems in mind.
You get:
An AD envelope generator
an LFO with adjustable rate, square wave and triangle/sawtooth output, pulse width knob and CV control
a random CV source working in different modes (stepped, smoothed, quantized) and a VCA

4ATTMIX
A versatile mixer / quadattenuator.
4ATTMIX offers four input channels which can be level controlled / attenuated by the corresponding knobs. The attenuated signals are sent to four outputs.
Additionally, each channel can be sent to an internal mixer by the switches beside the knobs. The mix signal is then sent to the mix output.
An additional switch selects the general operation mode for the mixer, for DC/CV signals or for audio signals.

SEQ8 (8-step sequencer)
The SEQ8 is an 8-step sequencer for controlling oscillator pitch and triggering envelopes.
Compared to "classic" analogue sequencers it works a bit different: Instead of setting the CV for each step independently (which means in fact "tuning" each step which can be a bit tedious), the SEQ8 has 4 knobs for presetting different CV's (= notes); each of the 8 step knobs selects one of these CVs, plus 0V (=base note) plus Pause (no trigger output). So some CVs have to be fine-tuned once; with the step knobs you can focus entirely on the sequence itself and you can even modify it on the fly, still remaining in tune.
Additionally, to the selected CV presets, the "raw" value of the step knobs is also accessible at an extra output.

DELAY
This module is a standard mono delay with the usual parameters
delay time
feedback
dry/wet mix.
It sounds not as clean and polished as a usual digital delay, but has quite a character on its own. High feedback settings allow endless and distorting loops.
(For the techies: It is based on the well-known PT2399 chip.)

Stereo Headphone amplifier, 2 IN/OUT sockets via a stereo minijack

It is delivered completely with power wall adapter and patchwires; everything needed to get the modular system started!

This is a REAL modular synth system; all modules can be rearranged and swapped as you like!
