Notes: Polyphonic sequencing from Elektrofon, the Klang allows you to program and perform chords and multi-layered harmonies. Circular clock-style display gives visual feedback and real-time indication of chord progressions.

Supplier's Notes:
«Klang» is a 4 voice polyphonic controller. It stores, traverses and manipulates chord progressions.

Overview

«Klang» is a unique take on polyphonic control within Eurorack.

Displaying chords in a circular clock-like display, and giving the user immediate control over every aspect without "menu diving" makes for an easy to use and inspiring module.

The module can store up to 99 chords, where each chord is made up of 4 voices.

Each voice is represented by a colored indicator on the clock-face which in turn is controlled by an encoder.

The indicators points to notes on the chromatic scale drawn in 360- around the clock-face.

Interface

The big grey encoder in the middle of the module lets you browse the chords - the active chord and total chord count is shown just above the encoder on the display.

The + button lets you ad a new chord. The new chord is added after the currently active chord, and the new chord is then set as the active chord.

The - button removes the current chord.

Inputs

The module has 3 inputs - 1 trigger input and 2 bipolar CV inputs.

Trigger input

The trigger input triggers a chord change.

If the direction input is unconnected, a single trigger results in a single step in the forwards direction.

Direction input (+-5V)

The direction input normalizes to a single step in the forwards direction.

You can feed this input a bipolar CV (+-5V).

Direction maps the total chord count to 5V. This means that +5V results in a single trigger progressing +n steps, where n is the total chord count.

A negative voltage will do exactly the same but resulting in backwards stepping.

0V equals no movement.

Transpose input (+-5V)

This bipolar CV lets you transpose the current chord up or down within 1 octave.

It is therefore a 5V/oct input.

The reason for this is that it is intended to be used with an analoge voltage source like the Pressure Points from Make Noise, or any other analoge sequencer.

It is much easier to fine tune a 5V/oct signal with a regular potentiometer than a 1V/oct signal.

Outputs

Each voice has a separate color coded 1V/oct CV output.

Notes: Mutes goes above and beyond basic muting by allowing you to split groups of signals to multiple destinations, making it great for FX dub performing and varied signal routing.

Vactrols on the circuit gives to the switching a pleasing decay for both audio and modulation as well a totally click free muting.

Three-position switch: MOMENTARY signal pass-through (it springs back to the center when released); OFF (or muted) in the center; and ON to the right.

Notes: The MCO MK II is a highly versatile digital VCO and voice module inspired by 90s/00s digital synths shrunk into just 6HP.

It offers a broad collection of unique, high-quality synth voices, each with extensive, customizable parameters. These parameters can be directly controlled or modulated through assignable internal and external sources. Certain per-voice parameters support audio-rate modulation, including FM, sync, and DSP. Each voice also supports up to four-voice chords, external-triggered envelopes, multiple LFOs, and dual audio outputs for comprehensive desktop like synth functionality.

Voices include a multi dimensional wavetable oscillator based on the original MCO, a complex additive synthesis engine, a multi mode 'JP' type digi-synth, a lush virtual analog implementation, a fully featured vocoder, a bass synth for both kicks and sub sonic tones and finally arebirth and porting of our discontinued SID GUTs chip voice.

Each voice includes factory presets as well as the ability to store and recall user presets. All state is preserved across power cycles.

The MCO is designed to be familiar, quick and easy to use with a high resolution colour display and a rich visual user interface.

A USB-C connection allows for easy firmware updates, user wavetables upload and device config backup and restore. Axon expander modules are also supported to increase CV control options.

Notes: Module A-145 is a low frequency oscillator, which produces cyclical control voltages in a very wide range of frequencies.

Five waveforms are available: sawtooth, inverted sawtooth, triangle, sine and square wave. The LFO can be used as a modulation source for any number of modules - for instance modulating the pulse width or frequency of a VCO, modulation of the cut-off frequency of a VCF, or amplitude modulation with a VCA.

A three-way switch lets you select three frequency ranges, spanning from one cycle every several minutes at the lowest, to moderate audio frequency at the highest (about 4-5 kHz).

The LFO signal can also be synchronised, via the reset input.

Identical to the A-145-1, but only 4 HP wide and with additional LEDs for the square wave and the sawtooth signal.

Power consumption: 30mA at +12V and 20mA at -12V
Depth: 45mm
4 HP

Notes: ADSR (Attack-Decay-Sustain-Release) is a module designed to generate a voltage, which acts as the envelope with the adjustable stages. This envelope, generated in response to the incoming gate signal or manually pushed button, can then be used to shape the sound amplitude via VCA, modulate filter's cutoff frequency or any other parameters expecting CV control.
It features exponential Attack, Decay and Release stages, switch to select fast/slow operation mode, push button with led indicator to manually activate the envelope.

Notes: Thererec is a 6hp smart dual-function generator based on a different approach! Two modern proximity sensors have replaced all the Attack/Decay thing, and this not only saved a lot of space but also turned Thererec into a whole new thing: a fusion between THEREmin gestural expressiveness and a tape RECorder,

Thererec, indeed, can quickly capture your hand movements and translate them into complex Envelopes and LFOs, adding a lot of expressiveness to your set. Once recorded, your movements can be mangled in both time and amplitude; they can be cycled or triggered in one-shot mode, letting you create complex but synchronized control voltage streams.

A straightforward movement with immediate feedback: move your fingers, listen, and connect yourself to the environment. Your body will do the rest.

Thererec sensors will track your movements to generate a voltage flow, and the LEDs and the CV outputs will reflect those movements.

Notes: In only 12hp, Axis condenses all the classical blocks for the audio amplitude management, redefining the classical envelope -> vca -> mixer path. The idea is to manipulate a sound over three axes: its length, its volume, and its place inside the stereo field.

Axis is a dual envelope generator that features an integrated VCA, a crossfader, and a voltage-controllable mixer section. The initial concept was to combine digital control over an analog VCA to closely emulate the classic Vactrol sound. After more than a year of refinement, Axis has evolved into more than just that. It offers exceptional versatility, providing a wide range of waveforms and the unique capability to simulate the natural percussive qualities of different materials. All this is in a complete analog path.

For the function generator section, we choose a faster method over the classic AD/ ADSR style: a selection of waveforms studied to give back a precise musical effect can be selected with the shape knob. The function length is independent from the actual wave shape and can be settled with the fader timeX from 30hz to 15 seconds. Also, setting the timeX fader at its maximum level will leave the VCA open.

A more typical collection of envelopes can be found in the first half of the dial. All kinds of sounds, from plucked notes to long volume swells passing through lead-friendly lines, can be obtained here.

More unusual, the last section of the knob is thought to simulate the acoustic vibration of a percussed object. Starting with a triangular envelope, from this point on, the more you turn the knob, the more rebounds will be added, simulating the natural ring of a material. Using this section at low rates can generate complex envelopes that could also be suitable for the vibrato-style AM effect. The envelope generator section includes a mode switch (cycle,trigger,hold), a trigger/gate input, an EOC trigger out, a function output, a CV for the envelope shape selection, and one CV for time.

As a cherry on the cake, a crossfader is placed at the end of the chain, blending both Axis halves. With a dedicated fader and CV control, raising it will invert the L/R output, creating nice stereo effects or moving the voices around the stereo field.

The VCA section is more straightforward: it has an audio input/output[1] and a VCA CV input[3].

You can plug the audio I/O to use Axis in its completeness and eliminate a lot of cables and mess!

Soundwise, here at Clank, we are all about vactrols LPGs, but since we knew it's not the most versatile option on the market, we came up with a different design. Blending together a VCA with a not-so-step filter, we obtained a VCA with a nice mild LPG flavor: enough to sound not so "clicky" but not too slow to inficiate really fast sounds.

By default, the envelope created by the function generator is normalized to the CV in of the VCA. Plugging a cable into the VCA in breaks the normalization, in this way you can use a different source to control the VCA and free the function generator for LFOs or modulation duties.

The range Y fader sets the strength of the envelope, but you can also see this control as a volume fader, which is nice since you won't necessarily need an additional volume for your voice after the Axis. Take into consideration that since the Axis VCA is actually a low-pass gate, lowering the rangeY fader also affects the cutoff frequency. The range fader also has its CV control to program dynamic changes to the sound. Basically, it's a VCA over a VCA that permits every note to be at different intensities. Last but not least, Range CV can also be fed by a unipolar modulation CV to obtain vibrato effects or audio rate AM modulations

Notes: Chaos is excellent for modulation purposes or as a clock multiplier/ divider, but that's only scratching the surface... It takes a different approach to writing sequences than traditional sequencers, as it is built on six touring machines combined with an effective pattern and clock generator. One of the biggest challenges in electronic music production, especially when it comes to sequencing, is finding that sweet spot between hands-on control and possibilities.

It can be frustrating because many sequencers with lots of fun and playable controls don't always pack the punch you need. On the flip side, you have those bigger menu-based sequencers with tons of options but can feel overwhelming with all the programming they require. It's designed to help you overcome these challenges and make your music-making experience smoother and more enjoyable, whether you're jamming or writing a song you want to execute live.

Typically, a sequencer starts with a blank canvas. However, with Chaos, you begin with all possibilities at your disposal and can easily narrow them down to fit your vision with just a few adjustments. This makes creating a sequence that conveys a specific mood quick and straightforward. Once you have established this initial mood, you can loop it from the last step to step 32 whenever you hear something you like. At this point, you can choose to modify the entire loop or adjust the parameters of any individual step. There is no need for extensive menu navigation; simply pressing a button and turning the encoder gives you control over parameters such as gate time, gate probability, gate width, gate ratcheting, gate swing, notes, scale, slew, and slew amount.

The LED bar continuously displays the voltage output of the selected channel, as well as the gate and each parameter's value, eliminating the need for a screen. You can save and recall the entire sequence of its six channels at any time. Additionally, there is an internal function that allows you to randomize all parameters or just a select few within a specified range, helping you discover new melodies to work with.

Chaos is an endless reservoir of tunes and is incredibly quick and powerful for composing sequences, gate patterns, or modulation. In a short time, it will become the brain of your system.

Six CV outputs can be used for a wide range of applications; everything from chaotic modulations to fine-tuned sequences can be obtained. Thanks to its interface you can quickly adjust the voltages from where the random engine picks new values and then edit them in every aspect.In addition, Slew amount, Quantization, and external sampling are available on every channel.

Thanks to its 6 gate outputs, Chaos can be used as your system's quick and effective clock manager and gate pattern generator. Chaos also provides a stable master clock (10mS to 10Sec) from a separate output and can be clocked from external devices. On every channel, you can set Probability, Width, Swing, Ratcheting, and Time as a multiplier/divider of the master clock or unquantized in mS.

You can freeze the last 1 to 32 steps of randomly generated CVs and Gates in a locked loop when you hear something you like. Loops are not static; every parameter of Chaos can be used again to change the loop behavior in a non-destructive way.

Entering sequencer mode means taking control of every aspect of the looped sequence generated by the random engine. You can change time, width, probability, ratcheting, slew, slew amount, note, note deviation, etc., for each of the 32 steps of all six channels.

Thanks to the external input, you can substitute the random generator with external voltages, transpose a sequence on the fly, and a lot more.

If you're more into generative stuff or want to add a bit of craziness to the patch, you can use the Chaos function to randomize all the parameters on a channel. A sophisticated control named entropy is available on every parameter to set the distance of the new value from the last one.

Chaos can save and recall 10 slots where you can save entire sets or preferred channel behavior. Recall can also be done with an external voltage.

Notes: The name, indeed, comes from ancient Greek mythology since Proteo was a shapeshifter who could assume whatever shapes he preferred. In this way, our Proteo, has not a precise sound on its own but a clever mechanism that permits to acquire and transform every signal into waveforms. What if you can use your envelopes, LFOs or any other signal as a sound source?

What sets it apart from other oscillators? What's very different in Proteo is its internal pseudo-tape recorder, which is capable of continuously acquiring and transforming any external signal into waveforms and morphing them from a basic sine.

In Proteo, waveforms are not a static digital representation of a sound; they can continuously evolve in a very organic way, and tape loop time is a fundamental factor: changing it will drastically affect the resulting output even with the same sources at the inputs. Slowing down the time will capture a bigger portion of the incoming source with more harmonics. As a result, increasing it allows to capture up to low audio rate signals or really small fragments of the signal.

Exploring the interaction between Proteo, the sources and the time will force you to change your mind about how sounds and harmonics can be generated: visualizing how different shapes can sound and looking for new sources to generate YOUR waveform is the fundamental idea behind Proteo.

Proteo is also stereo, thanks to the Span knob you can easily detune one oscillator from the other to create nice stereo effects. Beside the common pitch the two oscillators have independent acquisition paths and morph controls, each one can emit different waveform.

Notes: Toolbox is the newest essential utility module for your modular system. It's designed to summarize and replace all those necessary small one-function modules, often overlooked due to their space and cost requirements. With a compact 12hp design, it offers a comprehensive selection of carefully curated blocks to expand and enhance the potential of every patch. The module is also specifically designed for internal interaction, allowing the combination of various basic blocks to achieve compelling outcomes, from complex rhythm creation to unusual sound shaper. Every system needs a Toolbox!

Since VCAs are always not enough, the first two blocks on the top row consist of two linear and very fast VCAs, which are also great for AM modulation. They are arranged from left to right: input (DC coupled), control voltage input (ranging from 0 to 8V), and output. The two inputs and control voltages are normalized from left to right, facilitating easy stereo operation. These VCAs, designed primarily for voltage attenuation, are versatile tools that excel in scenarios requiring linear response. With audio, their true strengths shine when applied to amplitude modulation (AM) scenarios, where the benefits of linear control become quite significant. Although they are optimized for AM and voltage control, using exponential envelopes with these VCAs can transform them into two highly effective and fast VCAs for audio applications.

The threshold CV (0-8V) is crucial for the functionality of the blocks labeled with an asterisk (*): AND/OR gates, sequential switches, and flip-flops. By default, the threshold for each block (the voltage that must be reached at every input for the circuit to operate) is set very low, allowing almost any positive signal to be used. By increasing the threshold with an external voltage, you will change the point at which the circuits marked with the * begin to operate. This may seem a little tricky at first, but once you master all the functionality of the Toolbox, the Threshold CV rarely found in other Eurorack modules will open up many more possibilities!

Still composed of two identical parts, the second and third rows contain two blocks of two-channel summing (A & B). This region offers many ways to combine two signals. From left to right, input A, B, SUM out inverted SUM out, and two Boolean operators: AND/OR While any input signal can be used here, the first two outputs are primarily intended for audio sources. In contrast, the Boolean outputs are more suitable for summing gates and logic signals. This setup also allows for the use of both logic and analog signals together; don't hesitate to experiment with Boolean operators using analog or audio signals.For example, connecting two different LFOs to the input of the summing section can create many gate rhythms from the two Boolean outputs by varying the threshold with external voltages.

Summing mixers/Mult Out: This section consists of two 3-input summing mixers connected in series: the output of the upper mixer is routed to the first input of the lower mixer, allowing you to combine a total of five signals with two outputs available. To break this connection, insert a patch cable into the first input of the lower mixer. This action separates the two sections, enabling you to sum two sets of three signals each. Additionally, the lower section includes a multed output by default.

A bidirectional sequential switch is located at the center of the module and labeled with three "I/O" tags. This often overlooked component allows for a wide range of functions, from the most practical to the most creative. When a voltage exceeding the threshold level is applied to the * input, the switch connects the upper left jack to the lower right one. If the voltage is below the threshold, the lower left jack is connected instead. Being bidirectional, each I/O can function as both an input and an output, enabling a 2:1 or 1:2 configuration. Try using the switch at audio rate; this can function as a versatile oscillator waveform shaper. Think of something other than this block as a simple channel switcher!

On the right side of the sequential switch, we have a more classic block: the flip-flop. This block outputs a square wave at half the frequency of any signal applied to the input, whether audio or gate. Two flip-flops are available, which can be used individually or normalized in series. This block is handy for creating sub-octaves of square format from any sound or as a clock divider.

Offset / Attenuverters: Located at the bottom are two offset and attenuverting channels.This section comprises two identical blocks that can easily attenuate, invert, and offset any input signal. Each block features an input jack, one output, and two small knobs. The first knob functions as an attenuverter, allowing you to invert and scale the signal at the same moment. The second knob, the offset, adds a static voltage of +/-0-8V to the resulting output. This functionality is crucial when seeking a more refined control over voltage or a signal. Without any signal at the input, you can use the offset knob as a manual control generator for any control voltage (CV) in your system. For example, try to change the threshold with it.

Notes: Designed for Make Noise's New Universal Synthesizer System but compatible with all Eurorack modules, the Jumbled is a 6-in/6-out VCA-based signal router, designed to manipulate and reimagine control voltage signals.

Supplier's Notes:
The Jumbler music synthesiser module is a six by six channel analogue signal combiner and distributor for the New Universal Synthesizer System or any Eurorack modular synthesiser. Jumble is one of the N.U.S.S. concepts where the routings of a patch could be re-configured, or jumbled, instantly via voltage control to produce variations on a theme.

Jumbler gives you powerful two-parameter access to the rearrangement of both origins and destinations for up to six modular signals. One to six inputs are routed to one to six outputs, in an order determined by the Rotate control, and combination determined by the Radiate control. Unlike a simple switch module, Jumbler's analogue VCA-based design is specially geared for smooth transitions and hybrid signals.

Jumbler is a great module for hybrid control voltage mashing, complex waveform mixing, on-the-fly effects re-routing, gate and clock re-combinations and more. Some folks have said it is like patching a stack of 6 RxMx circuits.

Width: 10hp
Max Depth (incl. power cable): 43 mm

Power:
178mA@ +12V
92mA @ -12V

Notes: A typically clever approach to modulation from Make Noise, the MultiMod takes a control signal and modifies it into eight related outputs, adjustable by phase and timing. Hugely versatile.

Supplier's Notes:
With MultiMod...from one control signal, we create many.

In a modular synthesiser, it is easy to create complex results via complex means - patching an elaborate network of independent control signals, for example. This can be very powerful but also cumbersome to set up, and potentially difficult to control in a meaningful way. MultiMod represents a new approach: it takes a single control signal and copies it 8 times, not unlike a simple mult, except that it allows you to modify those copies by weighted adjustment of their relative phase and speed. The result is modulation that is related to the source, but not identical at each destination.

Phase sets the spacing of the signal copies in time, weighted by channel, with each progressive channel getting more out of phase from the original signal and from each other. Spread allows for varispeeding the copies by different amounts, with each getting progressively faster or slower than the original Signal. Time determines the range of time captured at the input and therefore also the depth of modulation across copies of the input signal when Phase and Spread are manipulated. MultiMod also includes Tempo, Hold, and Reset features, and a variety of Read Shapes for temporal rearrangement of input signals.

When the input is not patched, MultiMod generates an LFO that is copied eight times and manipulated in the same ways.

MultiMod is built with the latest DSP hardware which offers eight high resolution outputs, with signal input and output ranges approaching the upper limits of the analogue eurorack modular system. All I/O is capable of a 20V range at +/-10V, greatly exceeding the typical 0-5V CV input ranges on typical digital modules.

Specifications

Width: 10hp
Max depth (incl power cable): 39mm

Power:
195mA @+12V
10mA @-12V

Notes: Serious versatility from AJH here. Based on the circuits from the Oberheim Matrix 12, the Matrix VCF offers a whopping 16 different fully analogue filter modes, each with two different resonance models. All bases covered.

Supplier's Notes:
Presenting the new AJHSynth Matrix VCF - this may well be the most versatile Eurorack VCF ever.

This amazing multimode filter and VCA offers sixteen different filter types, and two different resonance models on each, totalling an incredible thirty two assorted resonant filters to choose from. AJH Synth have also included manual and CV control of filter type selection, along with 16 LED's that give a clear visual indication of which filter type is currently selected.

The filter core circuitry is based on that of the rare and highly sought after Oberheim Matrix 12 synthesiser, and of course has an all analogue signal path. The Matrix 12 VCF originally offered fifteen filter types, however AJH Synth have expanded this to 16 with the addition of AP4, a full four pole all pass phaser mode.

AJH Synth have added a unique P-Vox resonance distortion and overdrive circuit that changes the character of the resonance completely, and can force all of the filter modes into self oscillation. This effectively doubles the filter variants and hugely broadens what is already a very impressive sound pallet.

Other features include an inbuilt VCA with Input and Output Level controls, a Peak level LED, CV control of resonance, and of course the legendary AJHSynth build quality.

The Matrix VCF in depth

After two years of development AJH Synth have finally released what they consider to be the most versatile Eurorack VCF & VCA ever. Like many other AJHSynth modules it uses the very best vintage analogue circuitry as the starting point for the design, and in this case, the filter was chosen from the rare and very desirable Oberheim Matrix 12 synthesiser. AJH Synth expanded this from the original fifteen filter compliment to sixteen distinct filter types by adding in a really useful four pole phaser!

So, behind the compact 14hp front panel lies sixteen distinct filter types, including all of the favourites: Low Pass filters with a choice of one, two, three or four poles, Band Pass filtering with two or four poles, High Pass filtering with one, two or three pole options, along with Notch filtering and four complex, combination filter types. Finally, a four stage phaser with two types of emphasis that can be forced into tuneful self-oscillation!

However, this is far from the end of the story. AJH Synth decided to use their design expertise to add in some crazy resonance distortion circuitry, that could be switched on from the front panel. This was inspired by the filter from the Soviet Polivoks synthesiser, but again the implementation used here is considerably changed, improved, and best of all this can be applied to all filter types! This completely changes the filter character when engaged, and it forces all of the filters into self-oscillation at higher resonance settings. Better still, the oscillation waveforms are more harmonically rich than the usual sine waves - everything from gloriously fat to screaming and angry! Best of all, this takes the number of different filters up to a massive thirty two variations!

AJH Synth put a lot of thought into the ergonomics and how to select the individual filter type. Filter type can be changed either with the front panel Mode knob, or by using a control voltage patched to the MODE CV input. The selected filter mode is displayed by the LED next to the filter in use. This is also very helpful when using a step sequencer to change filter mode as it gives a real time display of the filter chosen as you take the step CV voltage up or down, while setting up each individual step.

Lastly, AJH Synth have also included a VCA hard-wired to the output - simply patch an envelope or an LFO to the VCA input, connect a VCO to the audio input and you have a synth voice (with a choice from 32 different filters!) using only three modules!

Thirty two Eurorack VCF's and a VCA would most certainly take up a lot of rack space - AJH Synth have got all of this into 14hp and managed to have a really finger-friendly user interface, without it feeling cramped.


Sixteen distinct filter modes to choose from

Here's a list of the different filter modes that are available:
1 - Four Pole Band Pass
2 - Three Pole High Pass combined with One Pole Low Pass
3 - Three Pole All Pass combined with One Pole Low Pass
4 - Two Pole Notch combined with One Pole Low Pass
5 - Two Pole Low Pass
6 - Four Pole All Pass (Phaser)
7 - Four Pole Low Pass
8 - Two Pole Band Pass
9 - Two Pole High Pass combined with One Pole Low Pass
10 - Three Pole High Pass
11 - Three Pole All Pass
12 - Two Pole Notch
13 - One Pole Low Pass
14 - Two Pole High Pass
15 - Three Pole Low Pass
16 - One Pole High Pass

All of the above filter types can be further altered by switching in P-Vox mode, this doubles the list up to thirty two different filter variants!

P-VOX MODE

Transforming the resonant character of every filter type

This magical switch completely transforms the resonance of the filter core by overdriving it in a similar fashion to the filter from the Soviet Polivoks synthesiser, which was renowned for it's powerful, aggressive character.
In common with the Oberheim Matrix 12 VCF, some of the sixteen filter types will not normally go into self-oscillation, however when you switch on P-Vox mode all sixteen filter types can be forced into self-oscillation at higher resonance settings. But that isn't the only change, the self-oscillation waveform is not the usual sine waveform, it is a rather more interesting and harmonically rich waveform that varies according to the filter type chosen - generally Low Pass modes produce the nearest to regular sine waves, whereas other filter types can produce very much more complex waveforms as can be seen in the diagrams below. It does not require any audio input for this, it can be a stand alone oscillator. Most of the filter types will track 1V/Oct reasonably well over a three to five octave range, so it can be used as a VCO with a few interesting waveshapes!

Of course, P-Vox mode isn't just useful for self-oscillation, it adds lots of character to any audio signal as P-Vox resonance is switched in.

Module Width: 14hp
Module Depth: 29mm (Including power lead)
Current Usage: 56mA Positive, 36mA Negative

Notes: The Ultimate Output Expander For Hermod+

Introducing xp32, the perfect expander for unlocking 32 assignable CV or Gate outputs, amplifying the creative power of your Hermod+ sequencer.

Transform your Hermod+ into a 16-track CV/Gate powerhouse, an expansive MIDI/USB-to-CV interface, a preset manager, or customize your outputs to suit even the most intricate modular setups.

The xp32 opens a new world of possibilities for both live performances and studio setups, giving you the flexibility to realize your most complex musical ideas.

Seamless Integration.

Setting up the xp32 is as easy as connecting the included expander ribbon cable to the back of your Hermod+.

The xp32 integrates seamlessly: Hermod+ will automatically recognize it, and your 32 additional outputs are ready to use instantly.

With the xp32, Hermod+'s 8 CV/Gate tracks remain untouched. Instead, the xp32's 8 additional voices are internally mapped to Hermod+'s MIDI tracks, offering maximum expandability without altering your existing workflow.

Unmatched Precision & Flexibility.

Each of the 32 output jack is powered by a dedicated 16-bit industrial grade DAC, ensuring the best accuracy for all your control voltage signals, from pitch to fine modulations.

Easily configure each output as a Gate (for notes, triggers, or clocks) or as a CV (for pitch, velocity, aftertouch, modulation...).

High-precision.

Low noise.

At the heart of the xp32 are highly-precise digital-to-analogue conversion circuits, developed with meticulous attention to detail. Squarp have incorporated high-end components to guarantee reliable, low-noise, high-performance outputs that you can depend on for both small and large modular systems.

The 32 signal LEDs are driven by a fully analogue current-control circuit, guaranteeing zero digital noise.

Specifications

Power

Consumption : -12V 70mA, +12V 80mA, +5V 20mA

Hardware
Width : 14HP
Depth : 33mm
Height : 128,5mm (3U)
Weight : 170gr (0.37lbs)
32x CV outputs resolution : 16-bit DAC (industrial grade)
32x CV outputs range : -10V to +10V

Notes: The mmMidi is a simple & compact MIDI interface for your Eurorack synthesiser. It translates two independent channels of MIDI note, velocity and gate information to corresponding control voltage signals via either a classic MIDI DIN type connection or as a driverless USB MIDI device.

The mmMidi also converts MIDI Clock to analogue x24 fixed clock and run outputs (i.e DIN Sync). The optional mmT expander provides a third MIDI channel of 8 key mapped gate outputs.

Requiring minimal configuration and a pain free set up, the mmMidi makes it easy to sync Pam's clock to your DAW, control multiple synth voices, and trigger drum or sample modules with the optional mmT expander. The new USB-C connection makes it easy to drive your modular not just from your computer but also via your tablet, phone or any USB MIDI Host.

(Note: New 2025 mkII version adds USB-C functionality.)

Technical Specifications

Power: +12V 50mA / -12V 0mA
Size: 4HP
Depth: 38mm
MIDI response latency: 200-400 uSec
Resolution: Factory calibrated 12 bit 0-8V CV outputs. +5V gates

Notes: The MetaModule Audio Expander (MetaAIO) adds an additional 6 CV/Audio inputs and 8 CV/Audio outputs to your MetaModule patches, via a ribbon cable connected to the main MetaModule. The MetaAIO provides the same high-quality as the MetaModule's Audio/CV jacks (24-bit, 48kHz default, up to 96kHz).

Notes: Another iconic Buchla module gets the Eurorack reissue treatment courtesy of TipTop. The 242t is the brand's unique voltage-controlled clock and trigger module, generating pulses based on a 4x12 matrix.

Supplier's Notes:
The Buchla and Tiptop Audio 242t Programmable Pulser is a reissue of the time-event-based generator from the 1970s 200 series. At its center is the Pulser, a voltage-controlled clock oscillator with a wide frequency range, extending up to audio frequencies, numerous outputs, and start/stop controls. The Pulser drives a programmable matrix with three rows of up to 12 stages: (A), (B), and (C). Stages are activated using the X/Y coordinate controls, and the total number of stages can be set using the (n) row. Clock and Reset inputs allow the 242t to sync with other devices, while the Reset input can also be used to control the number of stages with external pulses.

Notes: The Stereo I/O 1U is an all-in-one audio input/output module designed to bridge the gap between your Eurorack system and line-level devices. Whether you want to process external audio with your modules, monitor your patch with headphones, or connect your system to mixers or interfaces with line level - Stereo I/O 1U has got you covered.

Audio I/O allows you to effectively interface your Eurorack modular system to the balanced line-level world (+4 dBu). You can send and return to rack mount/desktop fx units, patch to external line-level instruments like synths and drum machines, interface to a DAW and much more.

The rear-mounted 3-pin CHAIN IN connector allows you to sum (in parallel) other audio sources to go from Eurorack level to the BAL LINE OUTPUTS. This could be from modules like the Mixup 3U, Xfade 1U, Stereo Mix 1U, and XY I/O 1U. You could also use this to connect with the 3-pin headers on the Palette and 7U cases audio i/o boards.

The rear-mounted 3-pin CHAIN OUT connector allows you to directly connect the level-shifted BAL LINE IN to the inputs of other compatible devices such as the Mixup 3U, Outs 3U, Stereo Mix 1U, XY IO 1U, and Headphones v2 1U. You could also connect the to the TRS jacks of the Palette and 7U cases audio i/o boards.

Dual Balanced ins and outs for the studio or the road. Interface your rack with the balanced line level world; send and return to pedals or desktop FX units; patch in and out of your DAW, external synths, drum machines and other line-level instruments.

A space-friendly, feature-rich, highly flexible solution for all your stereo line level input and output needs. Includes a dedicated headphone jack/volume and a clever cue bus for monitoring signals outside of the main output or to add a 2nd source to the main outputs.

Notes: The brilliant Perkons drum machine comes to Eurorack. A single hybrid drum voice with digital sound engine and analogue filter/overdrive, the Perkons Voice is flexible and supremely powerful.

Supplier's Notes:
Erica Synths Perkons Voice is a eurorack incarnation of the percussion voices from the PERKONS HD-01 Drum machine. Like on the drum machine, the module has hybrid architecture, featuring a digital sound engine followed by an analogue multimode filter and overdrive. Users can select among 13 sound generation algorithms and save up to 99 presets that can be recalled easily. Tune and Patch CV inputs are configurable for various CV settings and are tuned to 1V/oct. Module also features a 4-voice poly overlap mode and samples on the "Rompler" engine can be easily replaced.

Specifications:

Audio output: 10Vptp
CV levels configurable: -5V - +5V
Power consumption: +59mA, -30mA
Module width: 14HP
Module depth: 35mm

Notes: Analogue VCO with range from 16Hz up to 32.000Hz.

Variable Voltage Controlled Wave Shaper.

Advanced pitch control with Voltage Controlled Quantizer, so it is always in tune.

Hard Sync Input.

Separate Pulse Output, for use as a clock or to sync other oscillators
.
Power Consumption: 114mA @ +12V , 46mA @ -12V.

35mm depth.

Notes: NANO modules are excited to introduce you to OCTA, the upcoming 4-channel Analog Drum module, inspired by the iconic TR-808 and redesigned with a modern twist.

OCTA delivers punchy and dynamic analogue drums, with individual outputs, mute switches, CV control over Drive, and a built-in Tilt EQ and Compressor for creative shaping. Nano stayed faithful to the original circuits, but added key controls to give each voice more range and modular versatility.

Notes: A powerful utility module:

The 2+2 Mixer (left side) is a combo of two DC coupled 2-channel mixers with a sum out. For audio or CV purposes.

The Dual VCA is the audiophile and distortion friedly VCA taken from the Stereo Mixer. It has a special exponential response that imitates the behavior of the early Serge VCAs and allows massive amplification and overdrive. Beware - the resulting signal can get very high amplitudes (up to 16Vpp) and allows squaring of a sine or triangle wave.

Serge 2+2 Mixer / Dual VCA for eurorack:

Designed for audio performance
Eurorack format (3U), 18 hp
Power consumption: 55mA @ +12V, 50mA @ -12V
(NEW) Skiff-friendly: < 25mm (1")

Notes: Module A-188-9 is a so-called high speed VCO that tracks perfectly to the 1V/oct scale in the frequency range of about 15kHz ... 500 kHz. The main application is the exact drive of BBD modules (A-188-1/2) to generate sounds realized by means of the so-called Karplus-Strong synthesis. But even in cooperation with other modules featuring high speed inputs (e.g. digital noise, delay, frequency divider) the A-188-9 makes sense. In principle the module is made of a precision audio VCO followed by a PLL (phase locked loop) unit that multiplies the frequency of the audio VCO by 32. Thus the module can be used also as an audio VCO as it features the standard waveforms sawtooth, triangle and rectangle with adjustable pulse width.

Controls:
Frq: frequency control (coarse)
CV: attenuator for the frequency control input CV
Fine: frequency control (fine), small control without knob
PW: pulsewidth control for the rectangle output of the audio VCO, in HSVCO mode this control has to be in the range marked "HSVO", small control without knob

Sockets:
1V: frequency control input 1V/oct scale
CV: frequency control input with attenuator CV
socket with rectangle symbol: rectangle output of the audio VCO, the pulse width of this output is adjusted by means of the control PW, output level ~ 7Vpp (~ -3.5V/+3.5V)
socket with sawtooth symbol: sawtooth output of the audio VCO, output level ~ 7Vpp (~ -3.5V ... +3.5V)
socket with triangle symbol: triangle output of the audio VCO, output level ~ 7Vpp (~ -3.5V ... +3.5V)
socket with inverted comb symbol: high speed VCO output, waveform rectangle, output level ~ 5Vpp (~ -2.5V/+2.5V)

Switches:
Range
upper position: audio VCO mode (frequency range of the audio VCO about 15 Hz to 6 kHz, the high speed output is not usable in this mode! )
lower position: High Speed VCO mode (frequency range of the high-speed output about 15 kHz ... 500 kHz, frequency range of the audio VCO about 500 Hz ... 15 kHz), in this mode the audio VCO and the high speed VCO can be used simultaneously

Slew
upper position: medium slew time
centre position: short slew time
lower position: long slew time
Technical Note regarding the Slew parameter:

Besides the audio VCO the module contains a so-called PLL circuit (Phase Locked Loop) and a 1:32 frequency divider. A slew limiter is part of the PLL. It defines how fast the frequency of the PLL follows the frequency of the VCO. The PLL cannot follow the VCO without any delay. Rather one has to find a compromise between the residual ripple of the PLL frequency and the frequency follow rate. That is the job of the slew limiter (works in principle like a glide or portamento unit). For this the module is equipped with a 3-position switch that is used to switch the slew time in 3 ranges. When mostly higher frequencies are used ((~ 100kHz ... 500 kHz) a short slew time can be chosen. When also lower frequencies are required (< 100kHz) a longer slew time may be used to reduce the residual frequency ripple. More details about the working principle of a PLL can be found in the information about module A-196. Module A-188-9 is in principle an A-196 combined with an audio VCO and a 1:32 frequency divider.

Width: 4HP / 20.0 mm
Depth: 45 mm (measured from the rear side of the front panel)
Current: +30 mA (+12V) / -15 mA (-12V)

Notes: Intellijel have created a 1U version of the handy Atlantix Expander. It is exactly like the 3U version but arranged to fit in a 1U space. Comes with a cable for connecting to the Atlantix.

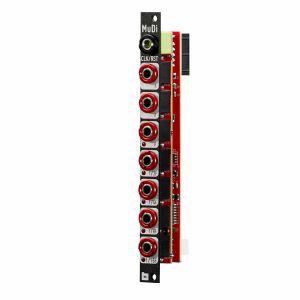

Notes: Clock Multiple, Conditioner, and Divider in a compact 2HP format

Distribute your clocks throughout your system using minimal rack space.

The first three outputs maintain the same frequency as the input, while outputs 4 to 7 provide time divisions of 1/2, 1/4, 1/8, and 1/16.

The active topology allows you to patch clocks on the fly, avoiding the tempo interruptions that can occur with passive multiples.

To reduce the footprint, the input is a TRS jack, with the clock signal on the tip and the reset on the ring. For standard clock only operation, use a regular mono cable, or use the provided splitter to access the reset function.

Notes: Part of TipTop's exceptional series of Eurorack-format Buchla modules, the 264t provides four sample-and-hold circuits, plus a logic circuit designed to control polyphonic patches. Deceptively simple but surprisingly creative, like most Buchla modules.

Supplier's Notes:
Four independent sample-and-hold circuits, plus a specialized logic circuit for expediently implementing polyphonic patches.

Sample-and-hold's are essentially one-cell analog memories. They are useful for "remembering" the instantaneous value of a control voltage (a detected envelope, for example), for generating equally spaced steps from a constant slope input (as from a 281t envelope generator), and for converting any continuously changing voltage (a random voltage, for instance) into a series of discrete values.

The 264's sample-and-hold circuits have two operating modes: sample and track. In the sample mode, the value of the input is sampled and applied to the output whenever a pulse is received. The output remains at this value until the next pulse arrives. The track mode diers in that an input is applied to the output for the duration of the pulse. The output tracks the input until the end of the pulse and remains at a constant value until the next pulse.

To use the 264t as four independent channels set the separate/common switch to separate. A single CV can be set to all four channels by setting the operate/common to common and plug CV in the the back jack on the with right side.

The Model 264t includes a polyphonic adaptor, which performs the logic necessary to implement four-voice polyphony. Facilities are incorporated for fine tuning and f.m. modulating the oscillators; light emitters display the adaptor's operation.

Specifications:

Size: 18 HP - Depth: 45mm
Power: +12V 60mA / -12V 30mA

Notes: A rock-solid all-rounder of a VCO, the Cycle 5 is a triangle-core oscillator with morphable wave shapes as well as conventional sine, triangle, saw and pulse outputs. Switchable octaves and 5th transposition make the module even more user friendly.

Supplier's Notes:
A small Eurorack oscillator that packs a punch: that's the best way to summarise Cycle 5.

At its heart lies a refined high-stability triangle core voltage controlled oscillator (VCO), with performance matching or exceeding that of much bigger and costly oscillator modules.

Instead of a coarse frequency knob, a 7-position octave switch is provided. This in combination with a perfect fifth transposition switch and factory pitch tuning, makes Cycle 5 an exceptionally straightforward and musical VCO to use: simply centre the fine tune knob, and the module will be instantly tuned to reference C.

Meanwhile, its dual precision volt per octave inputs add a great deal of versatility. For example, one could be used for pitch sequencing and the other as a generic exponential FM input, or both sequenced together for transposition effectsithe dual inputs serving as a built-in precision adder.

Sporting all the classic waveforms, ranging from sine wave, triangle, saw and square/saw, as well as a hard sync input and low frequency oscillator (LFO) mode, Cycle 5 makes for a real workhorse VCO. The novel trigonometric waveshaper results in a very clean sine wave, ideal for sub bass duty.

Cycle 5's highlight however, is its vari-wave feature. By adjusting the vari-wave knob, the waveform on the matching output will smoothly morph from sine, to triangle, saw, square and finally a very narrow pulse. The vari-wave parameter can be CV controlled, up to audio frequencies for some intense timbres.

Equally at home as a modest modulation companion to big VCOs, as being in the spotlight in miniature or polyphonic systems, Cycle 5 might just be the most multi-talented tiny analogue oscillator yet.

6 HP | +12: 75 mA, -12: 70 mA

Notes: The Endorphin.es 1U Cockpit X Black is a newly designed 6-channel stereo mixer with transparent VCAs, featuring four inputs on the front and two auxiliary inputs on the rear. Sidechain ducking makes it easy to get a great balanced sound, just input the trigger of your sound and you are good to go.

The perfect mixer for summing signals in your system while patching, or even as an end-of-chain mixer to go into your interface, mixer... whatever you fancy.

Power consumption: 55mA at +12V and 35mA at -12V

Depth: 30 mm

24 HP

Notes: The SELECTOR module is an electronic switch for any kind of signals to select one of up to eight sources or sending a signal to a specific destination (it's bidirectional). It is also known as "Sequential switch" in former modular synths. The SELECTOR has 8 inputs for any kind of signals, no matter if audio CV or gate, and one of them can be routed to an output in different ways: Either by a knob, or by a CV, or by clock pulses to advance by 1 plus a reset trigger input. By a switch it can be set to operate as a dual unit with 4 inputs each.

It's a quite useful tool for more complex patches, e.g. for selecting between different sequencers, or sending a modulation source to varying "receivers".

Notes: A typically well thought-out approach to matrix mixing from ADDAC, the 814 is a stereo, expandable 6x6 design with separate control and in/out modules. Suitable for line/synth level audio or CV.

Supplier's Notes:
Introducing ADDAC's take on matrix mixers, a 6x6 stereo matrix easily expandable to larger configurations.

Matrix mixers may need some time to get used to, but they are very much self-explanatory, each knob controls the volume of a matrix point routing the respective input to the desired output. The flexibility of a matrix mixer is far superior to a standard mixer, the possibility to route any input to any single or multiple outputs allow for very complex chains, combining parallel and series processing while easily reconfigurable without any extra patching.

All Inputs Left channels are normalled to the Right Inputs.

Blank areas on the left and bottom edges of the panel allow for the user to write all the inputs and outputs sources that each channel is connected to.

Different coloured knobs for faster visual recalling: Black for A,C,E Outputs Dark Red for B,D,F Outputs Cream knobs for potential feedback diagonal: 1A, 2B, 3C, 4D, 5E, 6F.

DC coupled circuitry, can be used to mix both audio or cv signals.

Jumpers on the back of both modules allow the user to set each channel independently to Line or Synth Level, making it easier to integrate with external sources, sound processors or guitar pedals.

Internal connections

The control and input modules are connected via a large 34 wire ribbon cable, only the control module needs to be connected to the Busboard.
Extra IDC sockets are used for connecting larger configurations like 12x12 or 18x18.
Other configurations are also possible: 6x12, 12x6, 12x12, etc...
Up to 12x12 all ribbon cables are provided, for larger matrixes custom ones will be necessary, contact us directly if planning to go BIG.

Potentiometers

Although ADDAC System are using Thonk's Tall Trimmer Topper for Knobs all potentiometers used have metal shaft and are not plastic trimmer potentiometers.

Tech Specs: 25HP + 8HP (33HP total, 4.5cm deep, 140mA +12V, 140mA -12V

Notes: PM DB25 MKII is an expander output for the MKII versions of the Performance Mixer and Channels.

Pre-fade and Post-fade connections are available for all channels. The DB25 has 16 outputs. All mixer channels are stereo, so one DB25 handles the main PM MKII (either pre or post), and the DB25 can handle 2x Channels (either pre or post).

Simply connect the cable to the Pre or Post headers on the back of the PM MKII or Channels MKII modules to choose pre/post.

The PM MKII has an additional header with both Aux Sends, Master Bus, and Submix Bus.

Connect a DB25 cable of your choice to the front connector and then straight to your DAW or recording interface.

For use with original WMD Performance Mixer, an adapter board can be added on. Please note that width behind panel is increased by 8mm when adapter board is added on. This may require some clever position in your case. The original Performance Mixer still only offers Pre Fader Outputs.

Notes: Upgraded version of WMD's excellent performance mixer module, the PM MKII features four stereo or dual mono channels, CV control of levels, panning and aux sends, plus soft mutes per channel.

Supplier's Notes:
Need More Inputs?

Add four channels at a time to your Performance Mixer MKII setup, or you can use the Channels MKII as a standalone four channel mixer.

The expansion is simple -- identical channels, just more of them. Four at a time, up to four Channels units, for 24 total stereo channels.

A simple 16 pin 2mm pitch expansion cable is provided and is the only connection necessary. Units can be daisy-chained easily resulting in a clean setup.

Additionally, the outputs on Channels MKII still work when connected to the PM MKII. So you get a submix of AUX1, AUX2, and MIX available for whatever you may want to do, drum submixing, FX routing, etc.

Not Just an Expansion -- Standalone Operation
As a standalone unit, you get three stereo outputs, MIX, AUX1, AUX2. The buttons are soft mutes. It's a robust four channel setup.

FYI -- You can not connect CHANNELS MKIIs together without a PM MKII. The summing, buttons, and control brain is in the master section of the PM MKII.

Recording Outputs:

Pre and Post fade headers are available on the rear for connection to the DB25 MKII. Each Chanels MKII will fill 1/2 of a DB25 with the Pre or Post connections.

Specifications:

24HP
36mm Depth behind Panel Including Cables
Board Height Between Rails 111.5mm
Channel Input Gain: -12dB to +20dB
Fader Gain: -100dB to +5dB (Applies to Aux1, Aux2 also)
Pan Curve: -100dB at Hard L/R, -3dB at Center
All Inputs and Outputs (Including Sends, Inserts, Headers, etc) are IN PHASE
HPF: -1.3dB at 20Hz

Notes: Analogue discrete Synthvoice with two VCOs, three SUB-VCOs, Wavefolder, Noise, Ring Modulator, two loopable ADRS, two LFOs/VCOs, MIXER, 24db Lowpass VCF, VCAOur new Eurorack flagship hits stores this summer. Very compact (pre-patched) discrete synth voice module with excellent analogue technology for endless soundscapes at a reasonable price.

Two discrete VCOs with highly stable tracking

Three analogue Suboscillators (3/4-1/2-1/4 with SQUARE, SAW, TRI) + Gravity Mix -Sync

Wavefolder (VCO 1 TRI WAVE)

White Noise

XOR Ringmodulator

Discrete VCA

24dB LP VCF with overdrive

Dual analogue LFO (one also usable as VCO) with incredible range and keytracking -Two superfast and punchy analog ADSR sections with LOOP function and four TRG outputs (End of ATT, End of DEC)

Mixer section with Master level -Glide presets and huge Patchfield to communicate with other Eurorack Modules.

Screwed metal shaft potentiometer

Rackspace: 36TE
Depth: 25mm

Notes: Expand the sound of your modular rack with incredibly lush, ethereal reverbs. Enhance signals with gorgeous chorus, flanging, and modulated delays. Create uniquely expressive synth voices with Karplus-Strong string synthesis. StarLab is a single module that will completely transform your modular rack.

The seemingly simple idea of allowing the pre-delay signal to be fed directly to the module's output led to the development of rich sounding delay, chorus, and flanger effects, all of which can be used together with or independent of the reverb.

While experimenting with short delay times using feedback and filtering, Strymon began finding very musical and expressive Karplus-Strong string synthesis sounds, and realized that StarLab could move beyond signal processing and become a truly unique voice module as well. All this ultimately resulted in the creation of a module that is equal parts reverb, delay/ modulation, and playable instrument.

From patch creation to live performance, StarLab's powerful features are easily accessible at the turn of a knob or the touch of a button. With no menus to wade through, StarLab's interface is designed for intuitive hands-on sonic exploration, while every function and control works together to respond musically and smoothly.

From perfectly voiced room ambience to vast, immersive, nearly infinite decays, StarLab offers the pinnacle of premium reverb sounds with unparalleled depth and spaciousness. Add musical intervals to the reverb signal with Shimmer, and enhance the harmonic spectrum with Glimmer, while enjoying real-time control over the size/pitch of the reverb process.

StarLab has vastly expanded what reverb pre-delay can do by allowing you to bus the pre-delay signal to the output while making the pre-delay time a modulation target. This results in the ability to create rich choruses, sweeping flanger effects, and beautiful modulated delays, while also processing signal through the reverb.

In addition to input signal processing, StarLab is a powerful Karplus-Strong string synthesis voice module that allows freely alternating bowing and plucking as well as dynamic string damping. This results in an astoundingly expressive and lifelike instrument with a unique voice all its own, which can be enhanced and expanded by the full range of StarLab's reverb capabilities.

Notes: Packed with powerful features while maintaining intuitive playability, Strymon's Magneto module is a stereo multi-head tape delay that also functions as a looper, phrase sampler, vintage spring reverb unit, phase-aligned clock multiplier, chaotic oscillator, zero latency sub-oscillator and more, with extensive CV I/O.

Turn simple monophonic signals into complex orchestrations. Create new oscillator tones using self-oscillation. Add rich stereo dimension to your sound, and enjoy the inherent warmth and sweet, subtle distortion characteristics of magnetic tape. Magneto transforms even the smallest rack into a fully expressive, immersive instrument.

To capture the full experience and complexity of a vintage tape echo machine, every last tape system attribute was relentlessly studied and faithfully recreated. From the sought-after natural saturation and soft clipping of magnetic tape when driven hard, to hands-on real-time controls for tape age, tape crinkle, and mechanical wow and flutter, Magneto delivers a rich multi-head delay experience that adds life and vibe to your sound.

Every function, control, gain stage, and signal path component in Magneto works together to respond musically and smoothly, even during the wildest live modular improvisations. All this is combined with a luxurious spring reverb to take the sound of your modular setup to a new level, and your sonic explorations into far-out territories.

Not only does Magneto deliver the warm, luscious delay signals that tape delays are known for, it is also capable of a high degree of saturation. Turn up the Record Level knob to send a hot signal to the record head for any amount of tape saturation you desire. Turn up the Tape Age control for warmer repeats. Add some truly beautiful Spring Reverb. Magneto adds organic heart and soul to the sound of your modular.

The effect of the Low Cut and Tape Age knobs are explored, followed by the mechanical 'deterioration' of the machine with the Crinkle and Wow and Flutter controls. The Speed knob is put to use for sonic enhancement.

In a typical digital effect the dry signal gets converted to digital, causing conversion noise and latency. Signals are often attenuated before combining digital dry and wet, with makeup gain amplifying the conversion noise. To avoid this scenario, Strymon have equipped Magneto with a completely analog dry path. Why go to all this trouble? Because the improvements in dynamic range and reduction in noise are so dramatic.

Strymon have outfitted Magneto with the powerful Analog Devices SHARC ADSP-21369 processor, which provides a 366 MHz core instruction rate, and an incredible 2.4 Gigaflops of peak performance. Thanks to this high-powered technology platform within Magneto, we had the freedom to craft our processor-intense tape echo algorithms without compromise.

Notes: A handy combination of two of Serge's most recent designs:

The GATE (left side) is an enhanced redesign of the classic Serge Gates which can be used as a linear or exponential VCA or ring modulator or some interesting combination of these.

The VCFX 2023 is a newly designed Serge filter that is essentially a Bandpass, but also offers a Lowpass output.

Serge NEW GATES / VCFX 2023 for eurorack:

Designed by Serge Tcherepnin 2023
Eurorack format (3U), 18 hp
Power consumption: 24mA @ +12V, 24mA @ -12V
(NEW) Skiff-friendly: < 25mm (1")

Notes: Versatile Sinevibes software power in Eurorack form, the Radiant offers six powerful algorithms: dub delay, pole phaser, chord wrapper, feedback shifter, distortion and re-trigger. Filter, morph between presets and add optional reverb to all algorithms.

Supplier's Notes:
The Radiant, developed in collaboration with Sinevibes, is a powerful and highly creative multi-effect processor designed to bring unique and dynamic sound-shaping capabilities to modular synthesis setups.

Multi-Effect Processor with Six Selectable Core Algorithms

Radiant offers a versatile collection of six distinct core algorithms, designed to be both familiar and experimental:

Dub Delay

Pole Phaser

Chord Wrapper

Feedback Shifter

Distortion

Re-Trigger

These algorithms contribute to a wide range of sonic possibilitiesifrom ambient soundscapes and subtle modulations to complex, evolving textures and otherworldly effects.

Morphing Between Presets

One of Radiant's standout features is its ability to morph between presets. This allows for seamless transitions between different effect states, creating evolving and dynamic sounds. The morphing feature makes it ideal for live performances, as users can shift smoothly between various sonic textures.

Three-Band Filter

Radiant includes an onboard three-band filter that lets users shape their sound by adjusting the low, mid, and high frequencies. This is particularly useful for fine-tuning the effects or isolating specific frequency ranges for more controlled sound sculpting.

Reverb and Sound Reverse

In addition to the core algorithms, Radiant provides a built-in reverb, adding space and depth to the sound. The sound reverse function allows for experimental sound manipulation by reversing the audio signal, creating eerie, backward effects that can be synced to the external clock.

Preset System and Save Function

Radiant features a straightforward preset system that allows users to save and recall different effect configurations across 3 available slots. These presets can be morphed in real-time, offering expanded creative possibilities.

User-Friendly Interface

Despite its complex capabilities, Radiant is designed with a simple and intuitive user interface. The module offers easy-to-use controls, allowing for quick adjustments and real-time tweaking of effects. This makes it accessible for both experienced modular users and those new to modular synthesis, providing a powerful yet approachable tool for creative sound design.

Notes: Dive into the world of subtle tone modulation with the revolutionary 2HP Eurorack compatible Slew Limiter. This compact but powerful module is the secret weapon in your synth setup to create smooth transitions between your sounds, giving you the opportunity to expand your musical expression in a unique way.

With its slim design of only 2HP, the Slew Limiter fits seamlessly into any Eurorack system without taking up valuable space.

Create smooth transitions between notes or modulate CV signals to create organic, vibrant effects such as portamento/glide, or complex modulated patches.

Adjustable rise and fall times give you complete control over the speed of signal changes, from instant jumps to smooth, slow transitions. Versatile uses: Whether for smoothing control voltages, creating legato effects for monophonic melodies or for creative sound design - this slew limiter is a true all-rounder.

Thanks to its clean layout and simple controls, you can make the settings you want instantly, making it ideal for live performances and studio sessions.

CV control via rise/fall

A unique feature is the ability to control rise and fall times via external CV signals, allowing you to dynamically react to your performance or patch.

Shape Control

The Shape slider allows you to fine-tune transitions over a wide area. Whether it's a slow exponential increase, linear transitions, or a subtle adjustment through the logarithmic characteristic, it's all at the service of the music

Notes: Clock generation meets waveform manipulation in this analogue harmonic oscillator. Combine with the Tobinski sequencer and/or interpolating scanner modules for the best creative results.

Supplier's Notes:
The Harmonic Timing Generator is a versatile Eurorack module that combines advanced clock generation with harmonic waveform manipulation. Combined with the Tobinski Sequencer, the module is a great tool for rhythmic and sonic creativity in the modular system.

As a reference clock generator, the Harmonic Timing Generator produces a base frequency with analogue multipliers (x1 to x8) to generate complex timing signals. Three selectors provide manual or voltage-controlled frequency switching, offering flexibility for intricate sequencing patterns. An LFO mode enables slower clocking rates, ideal for driving sequencers or generating modulation sources.

When used with the Interpolating Scanner, the sawtooth outputs of the Harmonic Timing Generator are transformed into sine waves. This allows the module to function as a harmonic oscillator at audio rates or as a versatile modulation source in LFO mode. Its dual functionality ensures that it can adapt to a wide range of patching needs, from rhythm generation to rich harmonic exploration.

The Harmonic Timing Generator is a versatile and creative tool, offering rhythmic and harmonic possibilities that complement any modular synthesizer setup. Its integration with other Tobinski modules ensures a cohesive and expansive sonic palette.

Power consumption: 235mA at +12V and 176mA at -12V and 20mA at +5V

Depth: 27mm

18 HP

Notes: Motion Pictures

(Delay And Reverb)

Motion Pictures combines lush delay and reverb with intuitive, powerful controls within a 10HP module. Choose between a crisp digital delay or a warm analogue delay and pair it with a spacious, large-hall stereo reverb. Delay and reverb levels can be adjusted independently, allowing you to use them separately or together. The delay time can be controlled using a knob, tap tempo, or CV. You can even send opposing CV signals to the tap tempo and delay time for glitchy, pitch-bending, rhythmic effects. Additionally, CV control extends to the feedback, delay, and reverb levels, providing greater flexibility. Motion Pictures offers rich ambient sounds in a compact design, combining delay and reverb in one module to optimize rack space while preserving sonic depth.

Notes: ***B-STOCK: Slight surface marks ***


Module A-192-2 contains two independent CV/Gate-to-Midi/USB interfaces. For each of the two sub-units these inputs are available:

- Gate Input (min. +5V)
- CVN Input (defines the Midi note number), 1V/octave standard, range 0...+10V (i.e. 10 octaves)
- CVV Input (defines the velocity value assigned to the Midi note message), can be used alternatively for Midi volume (CC#7), range 0...+5V
- CVC Input (free assignable to any Midi control change number), range 0...+5V

For both sub-units a common CV Transpose input is available (1V/octave, range 0...+10V). The voltage applied to this input is added internally to CVN before the Midi note number is generated. It can be used e.g. to transpose two sequences simultaneously by one voltage.

How it works:

Whenever the rising edge of the Gate input is recognized a Midi note on message is generated. The note number corresponds to the sum of the voltages applied to the CVN input and the common CV Transpose Input that is present at the rising edge of the gate signal.

Notes: ***B-STOCK: Box opened, product in perfect working order***


'Beast's Chalkboard' is dual channel stepped voltage source and adder for your eurorack modular synthesizer system. It primarily is intended as a dual octave switcher for VCO's but has many other uses including sequence transposition, FM ratio creation, buffered CV distribution and VCO calibration.

Technical Specifications:

Supply: +/-12V (Reverse voltage & polyfuse protection)
Current Draw: ~30ma
Size: 6 HP
Depth: 22mm (including power header)
Offset Error: +/- 10mV

Notes: ***B-STOCK: Product with some signs of usage but in perfect working order***


Pico DSP is a small brother of the popular stereo effects processor Black Hole DSP. It contains eight algorithms, in detail four delays, two types of reverb, Leslie speaker emulation and an Overdrive/Bitcrusher. Each effect is editable in two parameters. One of them can be modulated using the CV input. Pico DSP features clear, high-resolution sound. Alongside the established standards, it is also possible to generate lots of freaky special effects.

Notes: THE SBG-PRO supports mono, stereo, balanced, and unbalanced input and output via 6.35mm jacks with level matching controls with clipping indication. The module features both direct and voltagecontrolled equal power crossfading between wet and dry sources.

Additionally, an expression input, along with the included 'floating ring' cable and conditioned output, ensures safe, voltage-limited CV control of external devices from your modular system.

The module extends its sibling, the original S.B.G, by adding full size stereo balanced jack connections and voltage control focusing more on connectivity with not just pedals but also pro audio equipment including rack effects, 500 Series modules and mixing consoles.

Notes: OCTOPASS is an eight voice 24db/octave low pass filter based on the classic 2044 filter. All eight filters are fully analogue with gain compensation of resonance and the lovely lush sound of classic synths. A global frequency modulation CV using a 3.5mm jack can be used to modulate all eight incoming CVs of the Polytip jack. The typical use is to patch polyphonic synthesisers with the use of only a few Polytip patch cables for its audio ins and outs and its cut-off frequency controls. To tap each filter I/O or CV using discrete modules the OCTO I/O module can be used as an expander. As there are eight filters in the module special attention has been given to power consumption efficiency.

Size: 20HP

Notes: Vortex 6 us a polyphonic 6-voice wavetable oscillator inspired by the hardware design and sound of the PPG Wave 2.2, and it is the only oscillator of this type that uses true 8-bit vintage audio converters from the '80s. Dozens of wavetables are provided internally, and user tables can be loaded via an SD card. VORTEX6 has built-in vibrato, glide, and six wavetable-scrolling envelopes, all with CV. The ART-in jack and a built-in voice manager take care of incoming notes and distribute them to audio, gate, and velocity outsieither through per-voice 3.5mm jacks or the Polytip jacks. Together with OCTOPUS, one or more OCTOSTAGES, OCTOPASS, and OCTOGAIN, along with a few Polytip patch cables, it forms the world's first complete six-voice polyphonic modular synth. Alternatively, VORTEX6 can be patched to discrete mono modules or use its voice mix-out for paraphonic soundscapes with up to 12 oscillators in detune mode.

Size: 20HP - Depth: 40mm

Power: +12V 190mA / -12V 50mA

Notes: Octo I/O is a bi-directional passive Polytip to 3.5mm expander and a Polytip Mult. The expander section lets you break out to each individual voice from a polyphonic module. The mult section lets you mult Polytip polyphonic signals from one source to multiple destinations. For example patching the OCTOSTAGES envelopes to control both your OCTOPASS filters and HEXAGAIN VCAs.

Dimensions:

6HP - Depth: 15mm

Current Draw:

Module does not draw current

Notes: Introducing the HATS808, a drum module that brings the classic TR-808 closed and open hi-hat sounds to the Eurorack modular synth format. This module includes features like independent accent levels, a high-powered gain stage, dual input pulse-shaper, and adjustable Filter Q and VC-Q knobs for additional tuning.
The HATS808 uses six analogue square wave oscillators to create its signature sizzling sound, maintaining the unique metallic character of the original. The original "choke" circuitry is fully implemented but can be disabled if needed. The high-powered gain stage allows for further sound harmonization through distortion and clipping. The dual pulse-shaper circuit ensures consistent sound quality from any pulse source, making the HATS808 an easy and powerful addition to any modular synth setup.

TR-808 is a Trademark of Roland Corp Japan

Size: 8HP
Depth: 14mm
Power: +12V 30ma / -12V 25ma

Notes: Octogain is a eight voice polyphonic analogue audio VCA plus a eight voice mixer with master level control and odd/even (Right and Left) channels for a stereo output and clipping indicator. All eight VCA ins and outs are simultaneously available through Polytip jacks and 3.5mm jacks so the module can be used in a variety of ways both polyphonic or multi-voice monophonic. The fully analogue audio path has exponential CV control. CV inputs are 0-5V, typical audio input is 10Vp.p. A global Offset knob allow to open all VCAs manually or apply positive offset to incoming CV. The design uses very low power consumption with excellent audio quality.

Size: 16HP - Depth: 40mm
Power: +12V 42mA / -12V 35mA

Notes: The Octovert is a CV processor capable of scaling, inverting, and offsetting up to eight polyphonic signals. It can also be externally controlled via CV! Its most obvious applications include inverting envelopes, reversing the direction of CV, and scaling plus offsetting any CV source to precisely fine-tune the modulation sweet spot of the target module. With the added feature of external control, it takes things even further by modulating the modulation signal itself for even deeper modulation motion.

Size: 6HP - Depth: 40mm

Power: +12V 18mA / -12V 15mA
