Notes: Germaniac is a discrete VCA/warmer module build around with the sound characteristic of the vintage Russian germanium transistors.

Warm things up:

That fat Analog Character: It's not question here be in the area of the "most transparent VCA ». We specifically select our transistors to add harmonics and give a rich and thick saturation.

Variable Texture Control: Choose the amount of distortion with the "Warmth" knob, providing from a very soft and subtle one to a heavily pronounced distortion. you can also CV control this warmth variation to play with.

Some Applications:

Classical VCA

CV controllable distortion

Notes: Arad is an expander for the Oradea quadruple resonator. It adds three additional features. Arad features direct audio inputs for individual channels, so you can use each channel for a different audio source (the individual channel outputs are already incorporated into the main module). There are buttons and gate inputs for manual and/or remote clickless muting and unmuting of the channels. Another group of four buttons acts in parallel to the EXCITE inputs of Oradea, allowing for manual triggering.

Technical details
Eurorack synth compatible
6hp, 30mm deep (incl. ribbon bracket)
Current draw: +10mA / -0mA
Reverse power protection

Notes: The new ADDAC320 Servo Control is a nod to Neil Young's Whizzer, a device that was ahead of its time. This tool enabled control over amplifier pots through the use of pedals, resulting in far-reaching tonal variation. Inspired by this methodology, ADDAC's Servo Control incorporates a Servo motor into a 4 HP Eurorack module, enabling it to control any knob that doesn't have a CV input, or other gear such as guitar pedals - within certain distance constraints.

A servo is a specific type of motor that can be digitally controlled to work at precise angles. On the ADDAC320, it is controlled by a microcontroller which is able to receive an incoming CV voltage from 0 to +5v and linearly converts this voltage range to the 270 degree Servo motor range. Using a spring wire and metal couplers, the motor shaft is then attached to the target knob to be controlled, which will turn as the Servo turns.?Two other knobs, Maximum Angle and Minimum Angle, allow further control of the "sweet spot" of the target knob, establishing a smaller Servo range.

Notes: Crossover: enabling new processing possibilities: Commonly, audio crossovers are designed to split an audio signal into several frequency ranges so that each resulting signal is adequate for the speaker drivers they are connected to. Typically, low range is sent to the big woofers, mid range to smaller woofers and high range to the tweeters.

Introducing the ADDAC607, which enables users to split the signal into different bands. This creates many interesting processing possibilities. For example, by independently processing specific frequency ranges, one can add delay on only the high frequency range. Or, users split a signal to feed three different compressors for multi-band compression. Finally, DJs can use the Gain knob as a 'kill switch' to remove an entire frequency band, if desired.

Although ADDAC607 operates in Mono (for Stereo signals two modules can be used) there are two audio inputs, making it easy to achieve stereo to mono summing. The Mono Sum Out carries this summed signal. This is pre-gain and can also be used as a buffered Thru output.

The ADDAC607 is a great companion to the ADDAC220 Dual Envelope Follower+, since it allows extraction of dynamics from any signal in a focused frequency range. This allows it to separate the frequencies of a kick drum and a snare, for instance.

Notes: The Bohm:Groove adds a secondary kick voice, that can be triggered via clock divisions, allowing the user to build more complex grooves around the main kick. Craft dynamic percussive textures with ease. Sync a secondary kick to clock divisions and fine-tune every tap's level, pitch, and FX using intuitive controls.

Notes: Module A-160-2V is an enhanced version of the standard clock divider A-160. The module is a frequency divider for clock/trigger/gate signals, designed to be a source of lower frequencies, particularly for rhythm uses.

The Clock input will take any digital signal from, eg., an LFO, MIDI sync, or the gate from a MIDI-CV interface. At the outputs, you have access to three sets of seven different sub-divided clock signals, from half the clock frequency down to 1/128. The low/high levels of the output signals are 0V and about +10V.

The A-160-2V also has a reset input. Whenever a reset signal is sensed, all outputs are set to certain levels which depend upon the selected mode.

HP : 4

Notes: Pico Drum2 is compact yet versatile percussion synthesizer in a 3 HP eurorack module. It features 8 drum synthesis algorithms created to deliver distinct sounds to your modular system. Each algorithm offers a lot of flexibility therefore a big sounding bass drum and a squelchy snare can be dialled in within the same algorithm. It also tracks 1V/Oct and all parameters can be mapped to the CV1 input.

Technical specifications:
Output level: 10Vptp
CV level (full span): -5V - +5V
Power consumption: +28mA, -5mA
Module width: 3HP
Module depth: 35mm

Notes: The ‘Pip Slope’ (rev II) is a compact envelope and function generator. It supports both Attack/Decay and Attack/Sustain/Decay type envelopes with both direct and voltage control of Attack and Decay times. Envelope shapes can be morphed between exponential, linear and logarithmic type slopes. Envelopes can be made to loop, repeating infinitely or decreasing with time or amplitude for echo and bouncing ball type effects. An ‘End of Cycle’ trigger output further extends the envelopes functionality for both clocking and burst or fill type effects.

The improved Pip Slope adds a number of new features and updates over the original Pip whilst keeping the same size. Improvements include increased output resolution, finer control of fast envelopes, a new morphing shape control, switchable 5v or 8v maximum envelope level, additional loop modes and an additional trigger output.

Features:
Compact envelope and function generator in 4HP.
Trigger and gate inputs.
Voltage and direct control of attack and release times.
Snappy or super long envelope times – ranging approx 1ms to 7 minutes per stage.
Optional self looping ability with 3 different loop modes: Decreasing amplitude, decreasing time, and regular loop.
Shape control that morphs the envelope shape from logarithmic to linear to exponential curves.
End of Slope trigger output that fires a trigger at the end the envelope or loop cycle.
Selectable 5v or 8v max envelope level output.
Reverse polarity protection.
Skiff friendly.
Designed and Made in the UK.

Technical Specifications
Supply: +12V 30mA / -12V 10mA
Size: 4HP
Depth: 38mm

Notes: The Listen IO is a simple module which gets signals in and out of a Eurorack system by converting to and from normal modular levels. The top section converts any external signal to modular levels by providing up to 30x gain (+30dB), allowing you to use table-top synthesizers, keyboards, phones/tablets, computers, toys, microphones, etc. in your patches. The bottom section does the opposite: modular signals are converted to normal line level signals. The bottom two jacks can be used as line outs or as headphone jacks, so you and a friend can listen in stereo at the same time.

Each section has two inputs and outputs for use with a stereo signal or two mono signals. An LED bar graph for each output shows the signal level and clipping.

Notes: Rack power bringing 2.5A (2500mA) on both the +12V and -12V rails. There is a 5V rail, but it pulls from the +12V rail, up to 750mA. So only use the +5V rail if you have to.

Comes with 12-position flying bus cable and wall power supply. The wall power supply is the same unit as After Later Audio use on their cases, so there's plenty of headroom and you don't have to worry about memorizing which amperage is for which.

This should be roughly enough for 2 rows of modules in a 104hp case. If you just need power for 1 row, check out our Warp Drive module.

Notes: A cousin to the more complex Pressure Points, the PRSS PNT offers a single touch-sensitive copper pad which generates up to four channels of CV and gate signals based on the placement of your finger.

Supplier's Notes
The PrssPnt music synthesiser module is a controller in which several signals are generated by touching the printed copper wire at the bottom of the instrument. Touching PrssPnt, you become part of the circuit, generating a total of four simultaneous signals (two CV, two Gate).

The basic function of PrssPnt will be familiar to anyone who has used Pressure Points or 0-CTRL. It could be seen as a single "souped-up" channel of one of these devices. Since it is a single channel, the tuned voltage outputs are not relevant, and instead are replaced with more playable sensitivity controls and alternate pressure and gate outputs.

Features:

Momentary Gate output remains high as long as it is being pressed
Toggled Gate output goes high and low with each successive press of the plate: press it to make it go high, press it again to make it go low
Pressure output generates a positive control signal proportional to the amount of Pressure applied, further tailored by the Sensitivity Panel Control
Smooth Touch Function recreates the useful patch of sending a Pressure Output through a carefully tuned slew limiter for extended function generation
Turning up the Slew amount will allow for larger than life functions with very long decay to be generated by hand.
All four outputs available simultaneously

Specifications:

Width: 4hp
Max Depth (incl. power cable): 30mm
Power:14mA @+12V / 0mA @-12V

Notes: Analogue VCO with range from 16Hz up to 32.000Hz.

Variable Voltage Controlled Wave Shaper.

Advanced pitch control with Voltage Controlled Quantizer, so it is always in tune.

Hard Sync Input.

Separate Pulse Output, for use as a clock or to sync other oscillators
.
Power Consumption: 114mA @ +12V , 46mA @ -12V.

35mm depth.

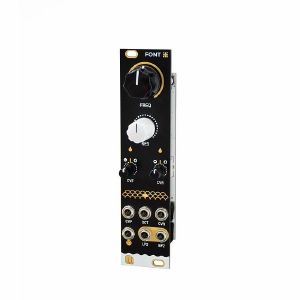

Notes: FONT is a massive sounding liquid filter- designed to bring you powerful basslines, tons of FM modulation and a clean resonance over your audio path.

It features two simultaneous outputs:
2-pole Low Pass
2-pole Band Pass

It can also work as a sine oscillator, tracking 1V/OCT when the resonance is at its maximum level.

FONT can be used to make basslines, acid patterns thanks to its organic and musically sounding resonance.

Ping it to produce percussion sounds such as, bongos, congas or toms.

Applying a pitch envelope, it really shines as a kick-drum machine!

22 mA +12V
25 mA -12V
0 mA 5V
15 mm deep
O 4.60 (10 Votes) Average Rating

Notes: Mutes goes above and beyond basic muting by allowing you to split groups of signals to multiple destinations, making it great for FX dub performing and varied signal routing.

Vactrols on the circuit gives to the switching a pleasing decay for both audio and modulation as well a totally click free muting.

Three-position switch: MOMENTARY signal pass-through (it springs back to the center when released); OFF (or muted) in the center; and ON to the right.

Notes: Module A-130-8 contains eight linear voltage controlled amplifiers (VCAs). Each VCA features a control voltage input (CV), a signal input (In) and a signal output (Out). In addition three mixers are included: the socket labelled "1-4" outputs the sum of the VCAs 1-4, the socket labelled "5-8" outputs the sum of the VCAs 5-8, the socket labelled "1-8" outputs the sum of all eight VCAs.

The signal inputs are able to process levels up to about 20Vpp without clipping (20Vpp = 20V peak-to-peak or about -10V...+10V) . Each CV input is equipped with a trimming potentiometer that is used to adjust the sensitivity of the CV input in question. In the factory the module is adjusted for the CV range 0...+5V but can be re-adjusted by the user for other control voltage ranges (e.g. 0...+10V).

The amplification range for each single VCA is 0...1. The signals of the sum outputs have a lower amplification to avoid distortion at the sum outputs.

The VCAs and mixers are fully DC coupled, i.e. the module can be used for the processing of both audio and control voltage signals. The control voltage and signal inputs can be normalled by means of small solder pads (e.g. 1 > 2 > 3 > 4 and so on, or 1 > 5, 2 > 6, 3 > 7, 4 > 8 for the stereo application mentioned below).

Typical applications

any kind of VCA application (e.g. voltage controlled attenuation of audio or control voltage signals)
two voltage controlled mixers with four channels each
voltage controlled stereo mixer with four channels each, for this the control voltage inputs have to be correspondingly patched or internally normalled: CV1=CV5 /CV 2=CV6 / CV3=CV7 / CV4=CV8
voltage controlled mixer with eight channels
add-on for the Joystick module A-174-4
Technical notes

The following document shows the positions and functions of the jumpers and trimming potentiometers of the module: A130_8_trimming_potentiometers_and_jumpers.pdf
When the trimming potentiometer in question is moved CCW (counterclockwise) the sensitivity of the CV input in question increases (view to the top edge of the module).
Trimming procedure: apply the max. CV voltage that will occur in your application (e.g. +8V) to the CV input and a constant audio signal to the audio input (e.g. a VCO sawtooth). Then adjust the trimming potentiometer in question until the max. output level is reached and does not become higher even if the trimming potentiometer is turned further. Possible the the trimming potentiometer has to be turned back again a bit to find the correct position.
With the trimming potentiometer adjusted to max. sensitivity the linear amplification starts at about +0.1 control voltage (CV). We introduced this small dead range of about 100 mV to make sure that the VCA fully closes with CV = 0V.
It's possible to change the amplifications of the internal mixers used for the sum outputs (1-4, 1-8, 5-8) also to 1. Pay attention that then clipping/distortion may occur at the sum outputs. For this the 22k resistors R41 (Sum 1-4), R44 (Sum 5-8) und R51 (Sum 1-8) have to be replaced by 47k. As they are smd resistors sufficient experience with soldering/desoldering of smd parts is essential. And we have to point out that warranty is void if such modifications are carried out by the customer. The positions of the resistors are shown in the document A130_8_trimming_potentiometers_and_jumpers.pdf.
If multiple exponential VCAs are required module A-132-4 is recommended.

Width: 6 HP / 30.1 mm
Depth: 40 mm (measured from the rear side of the front panel)
Current: +50 mA (+12V) / -50 mA (-12V)

Notes: Module A-101-8 is a 8-stage phase shifter which uses light-sensitive resistors (LDR) and is a replica of the Compact Phasing A manufactured by the company Schulte in the seventies. The actual phasing circuit is identical to the historic model. Only the illumination control of the LDRs is different: the A-101-8 uses LEDs to illuminate the LDRs, the historic model used incandescent miniature lamps. And the A-101-8 has no built-in LFO but can be controlled by any external control voltage source (e.g. LFO, ADSR, random, Theremin, ribbon controller, sequencer, midi). The phasing offset (i.e. the base value for the phase shifting) and the modulation depth of the external control signal can be adjusted separately. The Compact Phasing A had no offset control but only a depth control for the built-in LFO. Feedback and mixing ratio of the output signal are set by two controls. The audio input is equipped with an attenuator. The module has two audio outputs available (same as the historic model) and a visual display of the phase shifting.

The module has these controls and in/outputs available:

Control Man. : manual control of the phase shift offset (base value)

Control CV: attenuator for the signal applied to the CV socket

Control Feedb.: Feedback or Resonance (similar function as filter resonance/feedback/emphasis)

Control Mix: sets the mixing ratio between original and phase shift signal appearing at output 1

fully CCW: only the modified input signal appears at output 1 (see note below *)

center: a mixture between the modified input signal and the phase shift signal appears at output 1, that's the standard position for the classical phasing effect

fully CW: the pure phase shifted signal appears at output 1 (e.g. for vibrato effects)

Control Input Level: attenuator for signal applied to the In socket

Socket In: audio input

Socket CV: control voltage input

Socket Out 1: audio output 1 (mix signal)

Socket Out 2: audio output 2 (modified input signal)

LED: visual control of the phase shift

The module has some peculiarities (same as the historic model):

The input signal is processed at first by a pre-stage which outputs a "modified" input signal (*). This signal is not processed by the phase shift stages but is affected by the feedback setting. Only when feedback is set to zero this signal is identical to the input signal. Otherwise it contains feedback components.

This signal is output on socket Out 2.

When both output sockets Out 1 and Out 2 are used as stereo channels one obtains a spatial stereo sound effect.

The same signals is also used for the CCW position of the mix control. With mix control fully CCW the unmodified signal appears only if the feedback control is set to zero. Otherwise it contains feedback components.

The historic model had two audio inputs: one 5-pin DIN socket and a 1/4" jack socket. The DIN socket was intended for high-level line signals. When the 1/4" jack socket was used the amplification of the pre-stage increased by about 100. The 1/4" jack socket was intended for low level signals (e.g. electric guitars or microphones). For this feature the A-101-8 has an internal jumper that can be used to increase the amplification. As long as the module is used within the A-100 system usually the lower amplification is used to avoid distortion.

The 8 photo resistors and LEDs are assembled within an small lighproof box. In addition the pc boards are made of lighproof black material to avoid interfering light from other modules or the bus board.

Dimensions
4 HP
45 mm deep

Current Draw
30 mA +12V
30 mA -12V

Notes: A-135-2 is a miniature version of the A-135-1. Behind a front panel with 8 HP only four linear VCAs (voltage controlled amplifiers) and a voltage controlled mixer based on the VCAs are available.

Controls, In/Outputs and Functions of each VCA:

- Level (manual control of the VCA amplification), small rubberized knob (L1...L4)
- Control voltage input with associated attenuator (CV1...CV4), for the full VCA control range about 0...+5V control voltage are required (attenuator fully clockwise), for higher control voltages the attenuator is used, the attenuators are without knobs, just plastic shafts with white marker
- Signal Input
- Signal Output
- All inputs and outputs are DC coupled. Consequently the VCAs can be used to process both audio and control voltages (e.g. to control the level of LFOs or envelopes)
- The signal input is not equipped with an attenuator. But the VCAs can process all signals up to 15Vpp / -7.5...+7.5V without clipping. In case of higher levels an external attenuator is required (e.g. A-183-1).
- The available amplification range is 0...1, the maximal amplification is 1 (i.e. it "clips" and remains at 1 even if the control voltage goes beyond the value that corresponds to amplification 1)

Functions of the voltage controlled mixers:

- Two outputs ("Selected" and "All")
- Selected output: the ouput if a VCA is removed from this sum signal when a plug is inserted into the corresponding VCA output.
- All output: sum of all VCA outputs, regardless of inserted plugs into the VCA outputs
- The maximal amplification is about 0.6 to avoid clipping at the mixer outputs (otherwise the outputs may distort with 15Vpp signals at each signal input and full amplifications)

Special functions of the voltage controlled mixers (selectable by internal jumpers):

- Dual Stereo VCA: In this case the control unit of VCA1 (L1 + CV1) affects also VCA3 and the control unit of VCA2 (L2 + CV2) affects also VCA4, the control units of VCA2 and VCA4 are out of operation
- Quad VCA: In this case the control unit of VCA1 (L1 + CV1) affects all four VCAs. The control units of VCA2, VCA3 and VCA4 are out of operation. In this mode the module has the same function as module A-132-2. That's why module A-132-2 will be discontinued.
- Normalling of the signal inputs: by means of internal jumpers signal input 1 can be normalled to signal input 2, signal input 2 to signal input 3 and signal input 3 to signal input In 4. That way the same input signal can be distributed to four different channels by means of control voltages (e.g. quadrophonic distribution of audio signals). Suitable control voltage sources are e.g. A-144 (Morphing Controller) or A-143-9 (Quadrature LFO).

Notes: Erica Pico Quant is advanced CV quantizer with some unique features - quarter tone accuracy and the web-based interface for creating user generated scales.

- 8 preset scales
- Web based interface for user generated and extra preset scales
- Microtonal quarter tone scales
- Adjustable tolerance
- Adjustable CV glide between notes
- Clocked and independent quantization

Dimensions
3 HP
35 mm deep

Current Draw
25 mA +12V
6 mA -12V

Notes: Erica Synths Pico VCO is a great, deep sounding VCO with 32 selected waves: classical, fattened with sub-oscillator, FM synth and others.

Features
2 banks, 16 waves each
VCO/LFO mode
Voltage controlled wavesurfing
Wave morphing in LFO setting
Typically you would need several rather expensive modules to generate similar sounds, besides there's an extra feature: flip a switch, and you have a versatile LFO.

With Pico Series we challenged ourselves - can we make ANY superior functionality synth module 3HP wide and affordable? Yes, we can.


Technical specification:

VCO frequency range: 30Hz - 5kHz
LFO frequency range: 0,1Hz - 20Hz
1V/Oct input signal amplitude: 0V - +10V;
Output amplitude: 10V ptp
Power consumption: +26 mA, -4 mA
Module width: 3HP
Module depth: 35 mm

Notes: This Expander module provides hands-on adjustment over all bands' boost and cut without the need to select bands via pushbuttons on the Graphic Resonant Filterbank module. This makes sound design with the Graphic Resonant Filterbank much easier.

NB! The Expander works exclusively with the Graphic Resonant Filterbank!

Notes: Erica Synths Black VCO Expander essentially is an advanced waveform mixer plus two octaves down suboscillator, it allows you to explore wave design in brand new areas.

Features
Waveform mixer/inverter
Sine/Triangle/Tits waveform switch
Transistor-based -2 octave suboscillator
-1 and -2 octave suboscillator crossfade
Suboscillator lowpass filter
Diode limiter on output signal amplitude
Three simultaneous outputs

Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we did not economise on the module width, we put design and usability first. Big knobs are assigned to functions that make difference in sound. Together the Erica Black series are a range of modules that make an entire synthesizer.

NB! This expander module can be connected only to Black VCO and Black VCO2. It will not work as a standalone eurorack module.

Dimensions
10 HP
25 mm deep

Current Draw
5 mA +12V
5 mA -12V

Notes: Expander module adds four more assignable CV inputs to Squid Salmple for advanced modulation and sample manipulation. A must for all Squid Salmple owners.

Supplier's Notes:
AXON-1 is a 4HP expander module for the SQUID SALMPLE that provides 4 additional freely assignable CV inputs.

The addition of AXON-1 brings Squid's total number of CV inputs to 7, greatly increasing the possibilities for vast modular sample manipulation.

Each modulation assignment includes digital attenuation and offset and behaves just like Squid's 3 built in CV inputs.

AXON-1 requires firmware 166 or later installed on the Squid Salmple to function!

Notes: Pico DSP is a small brother of the popular stereo effects processor Black Hole DSP. It contains eight algorithms, in detail four delays, two types of reverb, Leslie speaker emulation and an Overdrive/Bitcrusher. Each effect is editable in two parameters. One of them can be modulated using the CV input. Pico DSP features clear, high-resolution sound. Alongside the established standards, it is also possible to generate lots of freaky special effects.

Notes: The 'S.B.G' is a compact utility module intended for the interfacing of guitar effect pedals with your eurorack modular system.

It provides both attenuation and amplification of audio signals for level matching together with a crossfade control to conveniently adjust the wet/dry mix of a processed signal. The module also offers regulation of outgoing CV signals for safer use of pedal expression inputs.

Technical Specifications:

Supply: +/-12V (Reverse voltage protection)
Current Draw: ~30ma
Size: 4 HP
Depth: 22mm (including power header)

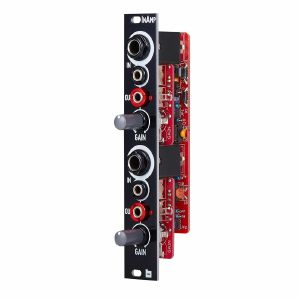

Notes: Inamp is a dual pre-amp in just 4 HPs. Featuring 6,3 Jacks inputs as well as Minijacks.

Both inputs are summed so you can use them at the same time as an input mixer.

The unit is designed to amplify up to x20 the input signal, allowing to amplify most of the music machines out there (Domestic line levels) as well as some guitars (Humbucker-like pickups and so).

The first channel is normalled to second one in series, so it's possible to have two stages of amplification or two separate ones.

Notes: The MetaModule Wi-Fi Expander lets you connect to your MetaModule wirelessly using a web browser.

Quickly transfer patches you created on the computer and play them on your MetaModule without swapping disks or USB drives.

4 HP
Power consumption: +12V max 50mA. -12V: none. -5V: none.

Notes: Based on similar circuits to the legendary Maths module, the CH.SVR ('channel saver' is a three-part function generator module based around sum/offset/attenuversion features. Great value for an accessible entry point to CV signal processing.

Supplier's Notes:
The Ch.Svr music synthesiser module is a small utility module, offering several channels of signal-processing that will be useful in just about any modular system. As a condensation/extension of the sum/offset/attenuversion aspects of MATHS, it continues the great tradition of sculpting the control signals we use to sculpt our sound signals.

Features:

Scale, amplify, attenuate, or invert an incoming signal using Channels 1 or 2
Generate DC offsets when Channel 1 or 2 is unpatched
Crossfade between two signals, or attenuate one signal, using Channel 3
SUM and INVerted Sum Bus for addition, subtraction, mirroring, inversion etc.
Individual Channel Outputs for Channels 1 and 2 allow independent use of all three channels
Anywhere you need more subtle modulation, Ch.Svr is there for you... now all your eurorack slivers may have subtle and intentional modulation they deserve!

Specifications:

Width: 6hp
Max Depth (incl. power cable): 30mm
Power: 20mA @+12V / 10mA @-12V

Notes: Enter a galaxy of rich and vibrant delays. The Dreadbox Nostalgia 3 Stage Delay is a superb effect module that can give you amazing results in moments. Delay is a true staple in the effects world and it can take your modular music to the next level via just a few cables.

The Dreadbox Nostalgia 3 Stage Delay is ideal for a range of modular music styles, from ambient to acid house. This 10HP module fits snugly in your system and has enough CV control to keep even the most avid patcher satisfied.

117 mA +12V
25 mA -12V
35 mm deep
10HP

Notes: This small utility is the pedal's lover best friend, it allows 2 diferent chains of pedals to be independently connected to your synth.

The Send channels attenuate the synth level to instrument level.

The Return channels amplify the signal from instrument to synth level.

Specs:
- Width: 4 HP
- Depth: 3 cm
- Max current: 10mA

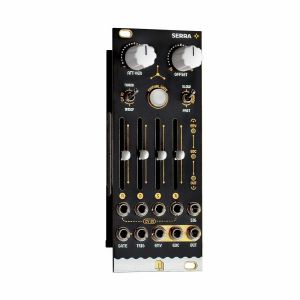

Notes: SERRA generates a fully controllable 4 segment function (Attack, Decay, Sustain, Release) that can be adjusted in time with its own sliders and external CV inputs.

Tweak and modulate shapes until they fit your taste thanks to its onboard Attenuverter & Offset controls.

Tweak it further.

Nano Modules have made these built-in Attenuverter & Offset feature applicable to an external signal if connected to the SIG input, and then extracted via the OUT output.

Wide range.

As fast as 1 millisecond and as slow as 40 seconds. You can even improve this range by applying external CV to the selected stage.

Clear layout.

Accessible and comfortable to use, the controls are easy to handle and you can always see the envelope state through the built-in LEDs.

Specifications

Dimensions: 10HP - 50×128,5mm
Current 53 mA +12V / 39 mA -12V / 0 mA +5V
Input & Output Signals: +/-10V
Impedance Input: 10k - Output 10k
Materials: PCB and Panel - FR4 1,6mm
Depth: 20mm - Skiff friendly

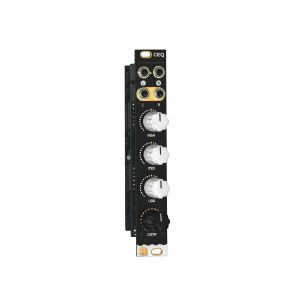

Notes: CEQ is an analogue 3-band Equalizer and Compressor module in 4HP. Enhance your synth voices, get some punch and have fun playing with the DJ-style EQ.

CEQ is perfect for your final live mix or you can even use several on individual synth voices.

Great versatility.

CEQ Compressor can be used to subtly tune the dynamics of your voice, saturate or distort it heavily and everything in between. Want to sound a little fatter? This one is for you.

Synth tracks will love it.

Thanks to a switch on the back of the module, you can adjust the compression speed between FAST and SLOW depending on your needs.

CEQ is an analogue module.
NO digital noise.
BIG headroom.

Specifications:

EQ Cuttoff Frequency
High: 2567Hz
Mid: 256Hz to 2567Hz
Low: 256Hz
Filter type Sallen Key configuration.
Filter Q 0.5

Dimensions 4HP - 20×128,5mm

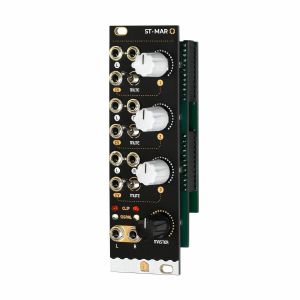

Notes: ST.MAR is a 3-channel Stereo Mixer with individual and master volume controls, CV modulation and mute switches. All the basics to blend your stereo signals in only 8HP.

Voltage controls for each channel.

Modulate the volume of each audio source using external control signals, such as envelope generators or sequencers.

Details

Dimensions 8HP - 40×128,5mm
Current 50 mA +12V / 52 mA -12V / 0 mA +5V
Input & Output Signals +/-10V
Impedance Input 47k - Output 10k
Materials PCB and Panel - FR4 1,6mm
Depth 35mm - Skiff friendly

Notes: The 333 is a summing and distribution module for Eurorack modular systems.

It is composed of three identical sections, the red, yellow and green, each of those featuring three inputs summing amplifier with three independently buffered outputs.

Derived directly from the CGM creative mixer series, the sum section is DC coupled, allowing the sum of control voltages as well as audio signals.

With an extremely low tolerance in both sum and output sections, it is suitable also for summing quantized voltages like the ones coming out from the quantized outputs of the SAPEL.

In case CVs or audio signals are particularly hot, the 6dB attenuator might be helpful to reduce exactly by 50% the incoming signals.

Red and yellow output are also normalled to the 1st jack socket of the yellow and green input: in this way this module can also work as a 1 to 9 buffered multiple.

Notes: What does this do?

This is an analogue filter based on the 1974 SEM filter. The original early design did not self oscillate into a sine wave. This one also does not self oscillate. The sound, however, makes up for that. You get the original notch sweep, and incredible band pass mode at such a low friendly price.

Added Features

-Onboard VCA
-Onboard envelope generator (decay)
-Variable trigger input circuit. Emulates a Vactrol.
-Dual audio input possible

Width: 10HP
Depth: 1 PCB stack, skiff compatible

Notes: Motion MTR allow you to mix, attenuate and invert signals while having clear visual feedback of their levels.

Each channel can function as:

Audio level control with VU meter
CV attenuator with voltage meter
CV inverter with voltage meter
Each input is normalled to 10v, so you can
use each of them to generate fixed voltages.
Also, the outputs of channels 1 and 2 are summed into Out 3 to be used as a mixer.
Patch it wildly to make it work as an attenuverter with offset, as a mixer, a VU meter or a combination of them all!
This module is our first collaboration with Robin Vincent from Molten modular.

Specs

Current Draw: +12v: 110 mA -12v: 43 mA
Width: 6HP
Depth: 30mm including power connector
Aluminium, heat-treated front panel.
Designed and assembled in Barcelona.
Idea by Robin Vincent

Notes: Bad Comrade V3 Eurorack Modular Device

(Glitch, Pitch, Slice, and Dice)

The Bad Comrade is a powerful glitch, delay, and chaotic distortion tool, packed in a tiny 4hp module. Freeze wrecked blips and oscillations in place, create scrambled gated delays, and straight-up over-the-top distortion, all mixed to taste with the original signal. CV available for mix and delay time.

Designed and assembled in Seattle, Washington. Includes a limited 1-year warranty, if registered within 30 days of purchase.

4hp, 30mm deep. 20ma current draw.

Notes: Theremin module for generating a variable control voltage by approaching/removing hand to/from an antenna.

The distance range is about 30 cm. Additionally the module is equipped with a Gate output with adjustable threshold level. To simulate the original Theremin two A-178, a VCO (e.g. A-110) and a linear VCA (e.g. A-130 or A-132) are required. But of course the A-178 can be used to control other functions in the A-100 (e.g. filter frequency, modulation depth and/or speed, tempo, attack/decay time and so on).

The CV output voltage of the A-178 can range - according to the setting of the front panel controls - from -10V...+10V.

The gate output switches from 0V to about +10V.

Power consumption: 60mA at +12V and 20mA at -12V

Depth: 40mm

HP : 8

Notes: A-135-2 is a miniature version of the A-135-1. Behind a front panel with 8 HP only four linear VCAs (voltage controlled amplifiers) and a voltage controlled mixer based on the VCAs are available.

Controls, In/Outputs and Functions of each VCA:

Level (manual control of the VCA amplification), small rubberized knob (L1...L4)

Control voltage input with associated attenuator (CV1...CV4), for the full VCA control range about 0...+5V control voltage are required (attenuator fully clockwise), for higher control voltages the attenuator is used, the attenuators are without knobs, just plastic shafts with white marker

Signal Input

Signal Output

All inputs and outputs are DC coupled. Consequently the VCAs can be used to process both audio and control voltages (e.g. to control the level of LFOs or envelopes)

The signal input is not equipped with an attenuator. But the VCAs can process all signals up to 15Vpp / -7.5...+7.5V without clipping. In case of higher levels an external attenuator is required (e.g. A-183-1).

The available amplification range is 0...1, the maximal amplification is 1 (i.e. it "clips" and remains at 1 even if the control voltage goes beyond the value that corresponds to amplification 1)

Functions of the voltage controlled mixers:

two outputs ("Selected" and "All")

Selected output: the ouput if a VCA is removed from this sum signal when a plug is inserted into the corresponding VCA output.

All output: sum of all VCA outputs, regardless of inserted plugs into the VCA outputs

The maximal amplification is about 0.6 to avoid clipping at the mixer outputs (otherwise the outputs may distort with 15Vpp signals at each signal input and full amplifications)

Special functions of the voltage controlled mixer (selectable by internal jumpers)

Dual Stereo VCA: In this case the control unit of VCA1 (L1 + CV1) affects also VCA3 and the control unit of VCA2 (L2 + CV2) affects also VCA4. The control units of VCA3 (L3 + CV3) and VCA4 (L4 +CV4) are out of operation.

Quad VCA: In this case the control unit of VCA1 (L1 + CV1) affects all four VCAs. The control units of VCA2, VCA3 and VCA4 are out of operation. In this mode the module has the same function as module A-132-2. That's why module A-132-2 will be discontinued.

Normalling of the signal inputs: by means of internal jumpers signal input 1 can be normalled to signal input 2, signal input 2 to signal input 3 and signal input 3 to signal input In 4. That way the same input signal can be distributed to four different channels by means of control voltages (e.g. quadrophonic distribution of audio signals). Suitable control voltage sources are e.g. A-144 (Morphing Controller) or A-143-9 (Quadrature LFO).

Additional technical specification for each VCA (based on the specifications of the VCA circuits CEM3360/AS3360 used in the module):

Crosstalk between VCAs: typ. - 80dB

Signal attenuation at 0V CV: typ. -70dB

Total harmonic distortion: typ. 1%

Control voltage feedthrough: max. 15mV

Width: 8 HP / 40.3 mm
Depth: 45 mm (measured from the rear side of the front panel)
Current: +40mA (+12V) / -40mA (-12V)

Notes: Module A-156 is a Dual Control Voltage Quantizer. A quantizer converts a continuous control voltage in the range 0...+10V into a stepped output voltage in the same voltage range (i.e. only certain voltages occur). Normally 1/12 V steps are used to obtain semitone steps. Quantizer 2 of the A-156 allows has more sophisticated quantizing modes like major scale (i.e. only voltages corresponding to the major scale), minor scale, major chord, minor chord, fundamental + fifth and addition of seventh or sixth when chords are selected. Only those voltages appear at the CV output which comply with the selection rule (e.g. minor chord with seventh). The mode setting of quantizer 2 is done with 3 switches (1-0-1 type with middle position). From the factory quantizer 1 is working in the semitone mode. But there is a jumper on the pc board that can be changed so that even quantizer 1 uses the same scale as quantizer 2.

For each quantizer the following in/outputs are available:

- Control voltage input (CV In): The input for the continuous voltage to be quantized
- Control voltage output (CV Out): The output of the quantized voltage
- Trigger input (Trig.In): If this jack is left open the quantizer is working permanently. If a rectangle voltage is applied quantisation happens only at the rising edge of the signal (e.g. from an LFO or MIDI-to-Sync interface). Thus the quantizing can be synchronized with other events
- Trigger output (Trig.Out): Whenever a quantisation happens (i.e. a new voltage is generated at the CV Out) a positive pulse occurs at this output. It may be used to trigger an envelope generator (ADSR) or for triggering other modules (sequential switch A-151, trigger divider/sequencer A-160/161, trigger delay A-162, ...). If none of these functions are used the jack is left open

On top of that the A-156 is provided with a common transpose CV input having an additive effect on both quantizers. This input is quantized in semitone steps. A typical application is the transposition of a sequence generated by the A-155 by a second control voltage (e.g. coming from the MIDI-CV interface A-190).

Typical applications:

- Quantizing the CV sequence generated by an A-155 (semitone, only major scale, only minor scale and so on)
- Quantizing the voltage coming from the Trautonium Manual / Ribbon Controller A-198, Theremin A-178 or Light-to-CV module A-179 to get accurate semitones or major/minor scale tones
- Arpeggio-like effects with LFO, random, noise, envelope generators as CV sources (for negative or symmetrical voltages an offset must be added, e.g. with the offset/attenuator module A-129-3, to obtain positive voltages for the A-156 input)

Width: 8 HP / 40.3 mm
Depth: 55 mm (measured from the rear side of the front panel)
Current: +50mA (+12V) / -10mA (-12V)

Notes: Module A-160-5 is a voltage controlled clock multiplier. The incoming clock signal (socket Clock In) is multiplied by a factor that depends upon the control voltage on socket CV In (0...+5V) and the position of the Mode switch. The multiplied clock signal is available at the socket Clock Out. According to the position of the Mode switch different clock multiplying factors are assigned to the control voltage. With 0V CV no clock output is generated. This state is indicated by "all LEDs off". With increasing CV integer factors (left position of the mode switch), power of two factors (middle position) or a mix of both (right position) are obtained. Nine LEDs are used to show the currently selected multiplying factor. In addition two LEDs are used to display the incoming and outgoing clock signal.

A manual control is used to adjust the clock multiplication factor manually without the need of an external control voltage. The voltage generated by this control ("Manual") is normalled to the CV In socket. As long as no plug is inserted into the CV In socket the clock multiplication factor is adjusted by means of the manual control knob and displayed by the LEDs. For dynamic applications (like the ratcheting function described below) the manually generated CV is overwritten by the external CV which has to be fed into the CV In socket.

The module can be used for all kind of clock multiplying applications. One important example is the generation of so-called ratcheting sequences. The band Tangerine Dream is famous for this kind of sequences. A normal sequencer generates only one gate signal per step. A ratcheting sequence may have also more than one gate pulses per step. This function can be obtained by using the A-160-5: one CV output of the sequencer is used to define the number of gate pulses per step. If the control of the step in question is fully CCW the generated CV is 0V and no gate signal is generated (mute of the step). When the control of the step in question is turned clockwise one, two or more gate pulses are generated depending upon the position of the mode switch and the voltage generated by the CV at this step.

Technical note: Due to the nature of clock multiplying it takes a few input clock pulses until the clock output is stable. One has to average a few input clock pulses to generate the multiplied clock output signal. Even when the input clock frequency changes it will take a few cycles until the output clock signal is correct as the module cannot foresee the future of the clock input signal. The generated clock output signal is derived from the last few cycles of the clock input signal. Consequently the module should be driven only by a clock signal with constant or slowly changing frequency.

Notes: Module A-160-5 is a voltage controlled clock multiplier. The incoming clock signal (socket Clock In) is multiplied by a factor that depends upon the control voltage on socket CV In (0...+5V) and the position of the Mode switch. The multiplied clock signal is available at the socket Clock Out. According to the position of the Mode switch different clock multiplying factors are assigned to the control voltage. With 0V CV no clock output is generated. This state is indicated by "all LEDs off". With increasing CV integer factors (left position of the mode switch), power of two factors (middle position) or a mix of both (right position) are obtained. Nine LEDs are used to show the currently selected multiplying factor. In addition two LEDs are used to display the incoming and outgoing clock signal.

A manual control is used to adjust the clock multiplication factor manually without the need of an external control voltage. The voltage generated by this control ("Manual") is normalled to the CV In socket. As long as no plug is inserted into the CV In socket the clock multiplication factor is adjusted by means of the manual control knob and displayed by the LEDs. For dynamic applications (like the ratcheting function described below) the manually generated CV is overwritten by the external CV which has to be fed into the CV In socket.

The module can be used for all kind of clock multiplying applications. One important example is the generation of so-called ratcheting sequences. The band Tangerine Dream is famous for this kind of sequences. A normal sequencer generates only one gate signal per step. A ratcheting sequence may have also more than one gate pulses per step. This function can be obtained by using the A-160-5: one CV output of the sequencer is used to define the number of gate pulses per step. If the control of the step in question is fully CCW the generated CV is 0V and no gate signal is generated (mute of the step). When the control of the step in question is turned clockwise one, two or more gate pulses are generated depending upon the position of the mode switch and the voltage generated by the CV at this step.

Technical note: Due to the nature of clock multiplying it takes a few input clock pulses until the clock output is stable. One has to average a few input clock pulses to generate the multiplied clock output signal. Even when the input clock frequency changes it will take a few cycles until the output clock signal is correct as the module cannot foresee the future of the clock input signal. The generated clock output signal is derived from the last few cycles of the clock input signal. Consequently the module should be driven only by a clock signal with constant or slowly changing frequency.

Notes: Module A-147-2 is the successor of the VCLFO A-147 but offers much more features than the predecessor. The module is made of these sub-units:

- VCLFO: voltage controlled low frequency oscillator
- VCA: voltage controlled amplifier, switchable to voltage controlled polarizer
- VC delay unit: voltage controlled linear attack envelope (only one parameter: attack) for delayed LFO operation in combination with the VCA (e.g. delayed vibrato/tremolo)

LFO: The voltage controlled LFO has the waveforms Triangle, Sine, Sawtooth and Rectangle available and features a Reset/Sync input. Triangle/Sine and Rectangle are displayed by means of dual-colour LEDs (probably red/green), Sawtooth has a unicolor LED available (probably blue). The output levels are about -4V...+4V for Triangle, Sine and Rectangle. The Sawtooth level is about 0...+8V.

The CV control can be switched to attenuator or polarizer ("CV Mode" switch). In polarizer mode the CV inputs affects the frequency in the reverse manner when the CV control is left from the centre position. In the centre position CV has no effect and right from the centre the control works like a normal attenuator. The frequency range (without external CV) is from about 0,005 Hz (i.e. about 3 minutes per period) to 200 Hz (with external CV max. frequency about 1kHz). In addition a ultra-low mode can be activated by means of an internal jumper. When the ultra-low jumper is set a fixed voltage is connected to the switching contact of the "LFO CV" socket. In polarizer mode of the CV control that way extremely low frequencies (up to one hour period and more) are possible. For this a jumper has to be installed on the pin header JP6. In the factory a dummy jumper is installed on the pin header JP7 "Dummy". JP7 has no function and is used only for "parking" of the jumper. Simply remove the jumper from JP7 and plug it on JP6. JP6 is located behind the CV control.

VCA: This is a linear VCA that can be switched to "normal" VCA (i.e. kind of a voltage controlled attenuator) or voltage controlled polarizer ("VCA Mode" switch). In the "normal" VCA mode amplification +1 is achieved with about +5V control voltage. In polarizer mode the amplification ranges from about -0.5 (i.e. inverted signal with about 50% level) with 0V CV to +0.5 (i.e. non-inverted signal with about 50% level) with +5V CV. With about +2.5V CV the signal is suppressed. Details about the functioning of a voltage controlled polarizer can be found in the description of the module A-133. In this mode the VCA can be treated also a DC coupled ring modulator (similar to A-114).

The VCA of the A-147-2 has three sockets available: "In" (signal input), "Out" (signal output) and "CV" (control voltage input).

The Triangle Output of the LFO is normalled to the VCA signal input by means of the switching contact of the "VCA In" socket. If another LFO waveform (or any other signal) should be processed by the VCA the corresponding signal has to be patched to the "VCA In" socket. The VCA can be used also independently from the LFO and the Delay CV. In this case the VCA sockets In, Out and CV have to be patched accordingly. The VCA can be used also as waveshaper for the LFO signals (e.g. by patching VCA In and VCA CV to different LFO signals, if necessary via attenuator A-183-1 or offset generator/attenuator A-183-2).

Attack/Delay: The third sub-unit of the module is a simple, voltage controlled envelope generator that has only the parameter "Delay" (or Attack) available. This unit generates a linear increasing voltage that starts from 0V after each Delay Reset until it reaches about +5V. Then the voltage remains at +5V until the next Delay Reset occurs. The inclination or gradient is controlled by the manual Delay control and the Delay control voltage ("Delay CV" input). The waveform is linear, the control scale is exponential. The output voltage is displayed by a green LED and available at the "Delay Out" socket.

The manual Delay control ranges - without external "Delay CV" - from about 5ms (fully CW) up to 2 minutes (fully CCW). By means of an external voltage applied to the "Delay CV" socket this range can be extended. A rising CV shortens the delay time (behaviour like a VCO)!

The Delay output voltage ranges from about 0V to +5V. The rising edge of the gate, clock or trigger signal applied to the "Delay Reset" sockets resets the Delay output voltage to 0 V.

"Delay Out" is normalled to the VCA CV input by means of the switching contact of the "VCA CV" socket and consequently controls the Triangle level provided that no other patch is made. A typical example is the usage of a Gate signal (e.g. from a USB/Midi-to-CV/Gate interface) as Delay Reset. That way a delayed vibrato or tremolo can be realized if the VCA output is patched to the frequency CV input of a VCO (or VCF), or the CV input of a VCA.

Notes: A-101-6 is a new filter module that uses so-called opto FET's to control the filter frequency. Opto FET's are very similar to Vactrols, but use light dependent field effect transistors (FET's) instead of light dependent resistors (LDR's). An opto FET is a combination of a light-dependent FET and an LED, both put into a small light-proof case. The advantage, compared to vactrols, is a much faster response of opto FET's compared to LDR's - this allows much faster attack/decay times and even FM effects.

The variable resistors corresponds to the opto FET. The brightness of the Opto FET LED's, and consequently the filter frequency, can be adjusted manually (Frequ. control) and controlled by means of an external control voltage (CV) with attenuator. The LED at the front panel reflects the LED brightness inside the opto FET's.

The type of filter is chosen by jumpers on the PC board (factory setting: low pass). The type of filter determined by the jumpers positions can be marked by means of a water-resistant felt pen at the front panel.

The resonance is controlled by the Feedback control up to self-oscillation. By means of a trimming potentiometer the maximal feedback can be adjusted. High feedback values can be used mainly in the all-pass mode to obtain very extreme self-oscillation sounds. Even an external feedback signal can be used instead of the internal feedback connection (FB In socket). Whenever the filter type is changed by means of the jumpers the trimming potentiometer for the maximal feedback has to be re-adjusted.

The Mix control is used to pan between the original signal (CCW position) and the effect signal (CW position). In filter mode (LP/HP) this control is usually set fully CW. In the all-pass modes one obtains phasing sounds at centre position or "pure" all-pass sound in fully CW position.

Notes: Module A-192-2 contains two independent CV/Gate-to-Midi/USB interfaces. For each of the two sub-units these inputs are available:

- Gate Input (min. +5V)
- CVN Input (defines the Midi note number), 1V/octave standard, range 0...+10V (i.e. 10 octaves)
- CVV Input (defines the velocity value assigned to the Midi note message), can be used alternatively for Midi volume (CC#7), range 0...+5V
- CVC Input (free assignable to any Midi control change number), range 0...+5V

For both sub-units a common CV Transpose input is available (1V/octave, range 0...+10V). The voltage applied to this input is added internally to CVN before the Midi note number is generated. It can be used e.g. to transpose two sequences simultaneously by one voltage.

How it works:

Whenever the rising edge of the Gate input is recognized a Midi note on message is generated. The note number corresponds to the sum of the voltages applied to the CVN input and the common CV Transpose Input that is present at the rising edge of the gate signal.

Notes: Module A-145 is a low frequency oscillator, which produces cyclical control voltages in a very wide range of frequencies.

Five waveforms are available: sawtooth, inverted sawtooth, triangle, sine and square wave. The LFO can be used as a modulation source for any number of modules - for instance modulating the pulse width or frequency of a VCO, modulation of the cut-off frequency of a VCF, or amplitude modulation with a VCA.

A three-way switch lets you select three frequency ranges, spanning from one cycle every several minutes at the lowest, to moderate audio frequency at the highest (about 4-5 kHz).

The LFO signal can also be synchronised, via the reset input.

Identical to the A-145-1, but only 4 HP wide and with additional LEDs for the square wave and the sawtooth signal.

Power consumption: 30mA at +12V and 20mA at -12V
Depth: 45mm
4 HP

Notes: ***B-STOCK: Slight surface marks ***


Module A-192-2 contains two independent CV/Gate-to-Midi/USB interfaces. For each of the two sub-units these inputs are available:

- Gate Input (min. +5V)
- CVN Input (defines the Midi note number), 1V/octave standard, range 0...+10V (i.e. 10 octaves)
- CVV Input (defines the velocity value assigned to the Midi note message), can be used alternatively for Midi volume (CC#7), range 0...+5V
- CVC Input (free assignable to any Midi control change number), range 0...+5V

For both sub-units a common CV Transpose input is available (1V/octave, range 0...+10V). The voltage applied to this input is added internally to CVN before the Midi note number is generated. It can be used e.g. to transpose two sequences simultaneously by one voltage.

How it works:

Whenever the rising edge of the Gate input is recognized a Midi note on message is generated. The note number corresponds to the sum of the voltages applied to the CVN input and the common CV Transpose Input that is present at the rising edge of the gate signal.

Notes: Module A-105-2 is a voltage controlled low pass filter with 24dB/octave slope.

It is the successor of the A-105 which had to be discontinued because the obsolete SSM2044 filter circuit. The A-105-2 is based on the SSI2144 which is in turn the successor circuit of the SSM2044. The features of both modules are nearly the same. The main difference is the clearly reduced front panel width of the A-105-2 (4HP instead of 8HP) and the associated changes of the controls and sockets positions. In addition the A-105-2 is equipped with 2 audio inputs.

The module has these controls and in/outputs available:

Control Frequ: manual frequency control
Control FCV2: attenuator for the frequency control voltage applied to socket FCV2
Control Q: manual resonance control
Control QCV: attenuator for the resonance control voltage applied to socket QCV
Control Input 1 Level: attenuator for the audio input signal applied to socket Input 1
Socket Input 1: audio input 1 (with attenuator)
Socket Input 2: audio input 2 (without attenuator)
Socket FCV1: frequency control voltage 1 (without attenuator, about 1V/oct scale)
Socket FCV2: frequency control voltage 2 (with attenuator)
Socket QCV: resonance control voltage (with attenuator)
Socket Out: audio output
Technical notes:

Frequency range: about 15Hz ... 15 kHz
Resonance up to self oscillation
Max. input voltage at Input 2 without clipping/distortion: about 15Vpp
Max. output voltage without clipping/distortion: about 15Vpp
The signals of both inputs are mixed before they are processed by the filter. This saves an external mixer for small setups.
Depth: 45 mm

HP : 4

Notes: Module A-188-9 is a so-called high speed VCO that tracks perfectly to the 1V/oct scale in the frequency range of about 15kHz ... 500 kHz. The main application is the exact drive of BBD modules (A-188-1/2) to generate sounds realized by means of the so-called Karplus-Strong synthesis. But even in cooperation with other modules featuring high speed inputs (e.g. digital noise, delay, frequency divider) the A-188-9 makes sense. In principle the module is made of a precision audio VCO followed by a PLL (phase locked loop) unit that multiplies the frequency of the audio VCO by 32. Thus the module can be used also as an audio VCO as it features the standard waveforms sawtooth, triangle and rectangle with adjustable pulse width.

Controls:
Frq: frequency control (coarse)
CV: attenuator for the frequency control input CV
Fine: frequency control (fine), small control without knob
PW: pulsewidth control for the rectangle output of the audio VCO, in HSVCO mode this control has to be in the range marked "HSVO", small control without knob

Sockets:
1V: frequency control input 1V/oct scale
CV: frequency control input with attenuator CV
socket with rectangle symbol: rectangle output of the audio VCO, the pulse width of this output is adjusted by means of the control PW, output level ~ 7Vpp (~ -3.5V/+3.5V)
socket with sawtooth symbol: sawtooth output of the audio VCO, output level ~ 7Vpp (~ -3.5V ... +3.5V)
socket with triangle symbol: triangle output of the audio VCO, output level ~ 7Vpp (~ -3.5V ... +3.5V)
socket with inverted comb symbol: high speed VCO output, waveform rectangle, output level ~ 5Vpp (~ -2.5V/+2.5V)

Switches:
Range
upper position: audio VCO mode (frequency range of the audio VCO about 15 Hz to 6 kHz, the high speed output is not usable in this mode! )
lower position: High Speed VCO mode (frequency range of the high-speed output about 15 kHz ... 500 kHz, frequency range of the audio VCO about 500 Hz ... 15 kHz), in this mode the audio VCO and the high speed VCO can be used simultaneously

Slew
upper position: medium slew time
centre position: short slew time
lower position: long slew time
Technical Note regarding the Slew parameter:

Besides the audio VCO the module contains a so-called PLL circuit (Phase Locked Loop) and a 1:32 frequency divider. A slew limiter is part of the PLL. It defines how fast the frequency of the PLL follows the frequency of the VCO. The PLL cannot follow the VCO without any delay. Rather one has to find a compromise between the residual ripple of the PLL frequency and the frequency follow rate. That is the job of the slew limiter (works in principle like a glide or portamento unit). For this the module is equipped with a 3-position switch that is used to switch the slew time in 3 ranges. When mostly higher frequencies are used ((~ 100kHz ... 500 kHz) a short slew time can be chosen. When also lower frequencies are required (< 100kHz) a longer slew time may be used to reduce the residual frequency ripple. More details about the working principle of a PLL can be found in the information about module A-196. Module A-188-9 is in principle an A-196 combined with an audio VCO and a 1:32 frequency divider.

Width: 4HP / 20.0 mm
Depth: 45 mm (measured from the rear side of the front panel)
Current: +30 mA (+12V) / -15 mA (-12V)

Notes: Module A-130-4 contains four linear VCAs with a common level control section for all four VCAs. It can be used for all applications of simultaneous amplitude/level control of up to four different audio or CV signals. A-130-4 is the replacement of the no longer available module A-132-2. Compared to the A-132-2 the width has been reduced from 8HP to 4HP.

The module has these controls and in/outputs available:

Control Man.: manual control of the amplification

Control CV: attenuator for the control voltage applied to socket CVo socket Input 1

Sockets In 1...4: VCA inputs 1...4

Sockets Out 1...4: VCA outputs 1...4

Application examples:

simultaneous amplitude/level control of up to four different audio or CV signals

polyphonic application 1: simultaneous control of the frequency modulation depth of 4 VCOs (Quad-LFO A-145-4 or Quad-VCLFO A-147-5 > A-130-4 > FM inputs A-111-4)

polyphonic application 2: simultaneous control of the pulsewidth modulation depth of 4 VCOs (Quad-LFO A-145-4 or Quad-VCLFO A-147-5 > A-130-4 > PWM inputs A-111-4)

simultaneous control of quadrophonic signals

Technical notes:

The maximum amplification for each VCA is about 1 ("Man." control fully CW). Even with an external control voltage applied to the CV input the maximum amplification is limited to 1.

The module is equipped with two internal connectors (pin headers with 4 pins each). Pin header #1 can be used to normalize the four inputs to other modules (e.g. Quad LFO A-145-4 or A-147-5, Quad ADSR A-143-2). Pin header #2 can be used to connect the four outputs to other modules.

The max. level at the VCA inputs without clipping/distortion is about 20Vpp or +/-10V.

Width: 4 HP / 20.0 mm
Depth: 45 mm (measured from the rear side of the front panel)
Current: +30 mA (+12V) / -30 mA (-12V)
