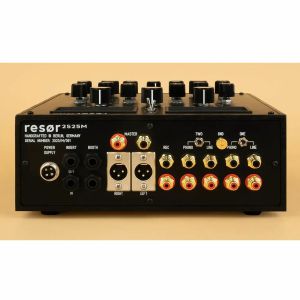

Notes: Mid-range model in the Resor two-channel series, the 2525 M features three-band EQ (as opposed to two-band on the standard 2525) and master isolator.

Supplier's Notes:
Resor 2525 M has a 3-band EQ per channel designed around their discrete class-A Op-Amp. The Bass control with a range of +/-18 dB at 100 Hz is great for sculpting the low-end frequencies, providing ample flexibility for enhancing or attenuating bass elements in the mix. The Mids control with a range of +/-12 dB at 800 Hz, and the Treble control with a range of +/-12 dB at 10 kHz enables adjustments to the high-frequency content, helping to add sparkle or tame any harshness.

Resor have encased the 2525M in a slim wooden chassis, which encompasses the faceplate, following the ethos of the four-channel models. Moreover, Resor have redesigned and improved the internal circuitry even further.

For a unique and personalised touch, among the extensive range of custom options, Resor offer Metallic Red, Metallic Blue, and Metallic Green faceplates; a Satin Dark wooden enclosure; as well as Urei, Matte Black, and Matte Silver Premium Aluminum Knobs.

Inputs

Channel ONE & TWO: selectable sources between LINE and PHONO (Stereo RCA)

Outputs

Master 1: Balanced XLR
Master 2: Unbalanced RCA
Booth: Balanced TRS
Rec: Unbalanced RCA

Channel EQ

3-band Baxandall: Bass +/- 18 dB (at 100 Hz), Mids: +/- 12dB (at 800 Hz), Treble: +/- 12dB (at 10 kHz)

Master isolator

3 Band, 24 dB /Oct, Linkwitz-Riley filters, crossover frequencies at 310 Hz and 3100 Hz Full-cut to maximum +12 dB, ON/OFF true bypass with Audio Grade Relay

Master insert

Out: Stereo TRS (Tip - Left, Ring - Right, Sleeve - Ground)
In: Stereo TRS (Tip - Left, Ring - Right, Sleeve - Ground)

Other
2 x Analog VU Meters (1VRMS = 0db)
Cue/Mix Switch for the VU Meters, to display either the Cue or Mix signals
Rotary Switch to CUE between Channels ONE & TWO
Cue/Mix Blend potentiometer
External Power Supply Unit with lockable DC cable (both ends)
Travel Case (Dust and Water Proof)
3 Years International Warranty

Customisations

Wood: Natural Oak, Matte Black, Premium: Satin Dark
Faceplate: Black, Silver, Bronze; Premium: Metallic Red, Metallic Blue, Metallic Green
Knobs style: Resor Standard, Urei; Premium: Silver Matte Aluminum, Black Matte Aluminum
*Microphone Input: a TRS jack on the rear panel, with a separate volume control

Line Inputs

Discrete, Class-A Op-Amps
Measured Line In to Master Out:
Frequency response +/- 0,3 dB, 20 Hz to 20 kHz
THD+N better than 0,004 %
SNR better than -95 dB

Phono Inputs

Discrete, Class-A Op-Amps, Gain 40 dB
Passive RIAA Equalization, polypropylene capacitors, close tolerance
Input impedance is 47 kohm
Input capacitance is 47 pF
Measured Phono In to Master Out:
RIAA accuracy within +/- 0,3 dB (20 Hz - 20 kHz)
THD+N better than 0,02 %
SNR better than -77 dB
Maximum input signal level before distortion 100 mVRMS

Master Output

Balanced XLR
Unbalanced RCA L and R
Impedance < 300 ohm

Booth Output

Balanced TRS
Impedance < 300 ohm

Record Output

Nominal level -10dBV
Impedance < 300 ohm

Crosstalk

Channel Fader offness < -100 dB
Channel L/R separation <-70 dB
Isolator offness < -90 dB

Dimensions

250 mm (W), 250 mm (D), 98 mm (H) - (please note that this does not include Knobs, Headphone Jack on the front side, RCA's and Sockets on the rear side of the mixer)

Weight

Mixer: 4 kg
Power Supply: 1 kg
With travel case: 8 kg

Notes: Part of Resor's two-channel mixer range, the 2525 offers a classic setup of two-band EQs per channel, three-band master isolator, large VU meters and discrete class-A electronics.

Supplier's Notes:
Resor 2525 features the same discrete class-A circuitry as Resor 2500, but it's equipped with a Master Isolator with a bypass toggle switch.

*** Please note: the wood is thinner than displayed in the picture. ***

Inputs

Channel ONE & TWO: selectable sources between LINE and PHONO (Stereo RCA)

Outputs

Master 1: Balanced XLR
Master 2: Unbalanced RCA
Booth: Balanced TRS
Rec: Unbalanced RCA

Channel EQ

2-band Baxandall: Bass +/- 18 dB (at 150 Hz), Treble: +/- 12dB (at 10 kHz)

Master isolator

3-band, 24 dB /Oct, Linkwitz-Riley filters, crossover frequencies at 310 Hz and 3100 Hz Full-cut to maximum +12 dB, ON/OFF true bypass with Audio Grade Relay

Master insert

Out: Stereo TRS (Tip - Left, Ring - Right, Sleeve - Ground)
In: Stereo TRS (Tip - Left, Ring - Right, Sleeve - Ground)

Other

2 x Analog VU Meters (1VRMS = 0db)
Cue/Mix Switch for the VU Meters, to display either the Cue or Mix signals
Rotary Switch to CUE between Channels ONE & TWO
Cue/Mix Blend potentiometer
External Power Supply Unit with lockable DC cable (both ends)
Travel Case (Dust and Water Proof)
3 Years International Warranty

Customisations

Wood: Natural Oak, Matte Black, Premium: Walnut
Faceplate: Black, Silver, Bronze; Premium: Metallic Red, Metallic Blue, Metallic Green
Knobs style: Standard, Urei; Premium: Silver Matte Aluminium, Black Matte Aluminium

Technical specifications

Line Inputs

Discrete, Class-A Op-Amps
Measured Line In to Master Out:
Frequency response +/- 0,3 dB, 20 Hz to 20 kHz
THD+N better than 0,004 %
SNR better than -95 dB

Phono Inputs

Discrete, Class-A Op-Amps, Gain 40 dB
Passive RIAA Equalization, polypropylene capacitors, close tolerance
Input impedance is 47 kohm
Input capacitance is 47 pF
Measured Phono In to Master Out:
RIAA accuracy within +/- 0,3 dB (20 Hz - 20 kHz)
THD+N better than 0,02 %
SNR better than -77 dB
Maximum input signal level before distortion 100 mVRMS

Master Output

Balanced XLR
Unbalanced RCA L and R
Impedance < 300 ohm

Booth Output

Balanced TRS
Impedance < 300 ohm

Record Output

Nominal level -10dBV
Impedance < 300 ohm

Crosstalk

Channel Fader offness < -100 dB
Channel L/R separation <-70 dB
Isolator offness < -90 dB

Dimensions

250 mm (W), 250 mm (D), 98 mm (H) - (please note that this does not include Knobs, Headphone Jack on the front side, RCA's and Sockets on the rear side of the mixer)

Weight

Mixer: 4 kg
Power Supply: 1 kg
With travel case: 8 kg

Notes: One of the most trusted names in audio, MOTU deliver as always with the 16A, offering a whopping 32-in/34-out configuration over Thunderbolt or USB, all with pristine audio quality.

Supplier's Notes:
The 16A Thunderbolt audio interface provides industry-leading dynamic range and large console style mixing. With 64 channels of audio I/O (32 ins and 32 outs), the 16A also supports USB 2.0 audio class compliant connectivity that is USB 3.0 compatible.

As an interface, standalone mixer or patchbay, the 16A provides 32 separate inputs and 32 separate outputs, including sixteen balanced TRS analog inputs, sixteen balanced TRS analog outputs, and two 8-channel banks of ADAT optical digital I/O. Powerful DSP delivers large console style mixing with 48 channels, 12 stereo busses, and 32-bit floating point effects processing, including modeled analog EQ, vintage compression and classic reverb. The unit's extensive routing grid patches ins to outs, or splits inputs to multiple destinations.

Use the 16A as a stand-alone mixer and control everything from the 16A's innovative web app running on your iPad, iPhone, tablet, smart phone, and laptop. Connect a second MOTU AVB interface (1248, 8M or 16A) with a simple Ethernet cable. Add more I/O with the MOTU AVB Switch (sold separately). Build an AVB audio network with multiple switches and sub-millisecond latency, even over long cable runs. Stream hundreds of channels among devices and computers on the network. From initial tracking to final mastering, the 16A delivers superb sound quality, state-of-the-art operation, and reliable performance.

This box contains everything you need to turn your computer into a powerful 24-bit/192 kHz digital audio workstation. As a "hybrid" audio interface, the 16A offers flexible connectivity to your computer via ultra-fast Thunderbolt technology or class compliant, hi-speed USB 2.0, with 32 channels of pristine analog I/O, combined with 32 channels of digital I/O, for a total of 64 simultaneous audio channels.

Connect all of your studio gear, including synths, keyboards, drum machines and even effects processors. Record, monitor, route and process all of these live inputs using the professional on-board digital mixer - with no latency and no processor strain on your computer. Apply hardware DSP-driven effects processing to inputs, outputs, and busses independent of your host computer. Add Classic Reverb with lengths up to 60 seconds. Further sculpt your sound with gating, 4-band parametric EQ, and vintage compression modeled after the legendary LA-2A leveling amplifier.

Add more MOTU interfaces as your needs grow, connected to a state-of-the-art audio network using standard AVB Ethernet switches and CAT-5e cabling, with near-zero network latency, even over long cable runs (several hundred meters). Record and monitor up to 128 audio channels in and out, simultaneously, to a host computer through Thunderbolt. Route hundreds of audio channels among multiple devices and computers on the network.

Control all DSP-based mixing and effects, device settings, and network audio routing using your favorite web browser running on your laptop, tablet or smart phone connected wirelessly or locally to the 16A audio network.

From initial tracking to final mastering, the 16A delivers superb sound quality, state-of-the-art operation, and reliable performance.

Notes: ***B-STOCK: Box opened, product in perfect working order***


All-in-one wireless controller from Pioneer's parent company. A fresh new take on DJ units, featuring a two-deck setup with large touchscreen, up to five hours' playback from the internal battery. A flexible, portable option for all DJs.

Supplier's Notes:
Portability and playability

Easily carry the OMNIS-DUO anywhere thanks to its compact size, modest weight, and rounded corners. The system's 2-deck + mixer layout feels great for DJing, and there are 2 modes for the touchscreen - Light and Dark - so you'll always see the displayed information, even in bright outdoor settings.

Bluetooth audio input

Invite a friend to connect their phone to the OMNIS-DUO via Bluetooth and you can drop their favourite track into your set. With the Bluetooth Playback function, you'll have control of the audio on the deck. So, you can adjust the volume and EQ, apply effects to the sound, change the tempo, use Hot Cues, and scratch.

5-hour battery

Play for up to 5 hours without plugging into the mains. You can also connect the AC adapter or plug in a compatible power bank (45W or more) to the dedicated USB Type-C terminal. And if you combine the OMNIS-DUO with the battery-powered WAVE-EIGHT speaker, which features ultra-low-latency SonicLink technology, you can enjoy wireless DJing for total freedom.

Support for multiple music sources

USB Type-A drives and SD cards can be plugged straight into the OMNIS-DUO, as well as a PC/Mac via the USB Type-C terminal for use with rekordbox Performance mode. The Wi-Fi function offers easy access to tracks on a PC/Mac, smartphone, or the cloud without a wired connection.

Flexible audio output options

There's no limit to the places you can hold a party, thanks to the Bluetooth audio output function. And when the time comes to play in a venue like a bar, you can use the professional XLR output, while the RCA terminals are perfect for plugging in monitor speakers at home.

Brand-new design

The OMNIS-DUO looks at home everywhere you take it - from professional events to spontaneous outdoor parties. Its new indigo colour is inspired by denim jeans, a classic and hugely versatile fashion item, and the unique curves of the unit create a sleek silhouette.

Specifications

Frequency Response: 20 Hz - 20 kHz
S/N Ratio: 112 dB (USB, SD)
Total Harmonic Distortion: <0.003% (USB, SD)
Battery Section Capacity: 47.52 Wh (Built-in rechargeable lithium-ion battery)
Play time: Approx. 5 hours
Charge time: Approx. 3 hours
Inputs: 2 MIC (1x XLR & 1/4" TRS Jack, 1x 1/4" TRS Jack), 1 LINE (Bluetooth [exclusive from output])
Outputs: 1 MASTER (XLR), 1 MASTER (RCA), 1 MASTER (Bluetooth [exclusive from input]), 1 BOOTH (Combined use with RCA output), 2 HEADPHONE MONITOR (1/4" Stereo Phone Jack, 3.5 mm Stereo Mini Jack)
USB: USB-A for thumb drive x 1, SD card x1, USB-C for PC/Mac control x 1 USB-C for power input (USB PD 45W) x 1
Maximum Dimensions (WxDxH): 500 × 307 × 71 mm / 19.7" x 12.1" x 2.8"
Weight: 4.6 kg / 10.1 lbs.

Wireless LAN section

Supported standards: IEEE 802.11 a/b/g/n/ac
Frequency band used: 2.4 GHz / 5 GHz

Bluetooth section

Wireless system Bluetooth: Ver.5.2
Frequency band used: 2.4 GHz
Compatible codecs: SBC, AAC

Notes: Updated version of WMD's exceptional performance mixer. Full stereo design with improved sound quality, revised layout and increased expandability. An even better version of what was already one of the best mixing solutions in Eurorack.

Supplier's Notes:
Enter the WMD Performance Mixer MKII - Eight years after the MKI was released, the MKII builds on all the valuable feedback received. This is a serious upgrade, with feature enhancements and engineering improvements affecting every bit of the design.

Decisions, decisions, decisions!

If you recall, WMD showed a previous version of the PM MKII a year ago. That version was very similar to the original, with a few enhancements. Primarily focused on manufacturability and overall noise floor with some great recording features. WMD moved to an 8-layer board, replaceable channel strips, developed the MIDI and bootloader, pre/post fader headers, and made it work on both AUXs simultaneously.

Noise Performance - The MKI was alright with noise, there was a little bleed too. Going to 8-layer boards meant I could put ground planes between trace layers, and spread the traces out triple the spacing of what they were on the MKI, this reduces bleed/crosstalk by a factor of about six.

Noise Performance 2 - On the Original, the Level VCA was before the Panning VCAs, which saved on parts/power, but it meant that the Panning VCAs were always connected to the mix bus, adding noise floor that couldn't be attenuated. Making all the channels stereo and putting the Pan circuit first eliminated this problem, now the noise add is controlled by the fader. This did force WMD to make every channel stereo, so the design got simpler through figuring this out.

Panning / Crossfader - The above panning/level improvement made it possible to convert the Pan control into a crossfader, buy simply routing the post pan signals through a switch to the opposing channel, summed at the Level control. This huge improvement allowed the A/&/B input switching scheme to still work on the PM MKII, a bit differently, but it's there in spirit.

Modular Design - The channel strips are all now stereo, and identical, which makes assembly much easier, and lowers the cost. It also makes replacing them easier should a mechanical part fail or get spilled into. Further, the Patchbay, Power board, and Master section are all separate parts, so if there's a failure, they can be quickly swapped without having to RMA the whole unit.

Patchbay - The MKI and rev E MKII still had jacks misaligned with channels. This was a source of frustration for d many users of the PM MKI. And I decided to just be done with it. It didn't make sense to try to put jacks over the channel, it wasted too much space on the panel... So all the jacks go left, keeping the mixer clear of cables, this let me space the knobs out a bit to take up all 3U. It's cleaner, simpler to make, and intuitive to use.

Expandability - It's super modular now, the DB25 can connect to any two headers that spits out audio, they're all the same format across PM MKII and Channels MKII. Pre, post, mixes, connect it however you want. And the connectors can't be hooked to power, meaning no more blown opamps and RMAs to the factory. They're all shrouded too so they won't get bent in shipping!

Features Overview:

Everything is stereo. Inputs, Busses, Auxes, and Cue Mix.
INPUTS: IN LEFT is normalled to IN RIGHT.
GAIN: Each channel has a Gain trim range of -12dB to +20dB, this will let you use line level devices easily.
GAIN CLIP LED: lights red 1dB before clipping the input stage.
LVL FADER: smooth intuitive curve for easily adjusting the mix level on the fly. A yellow indicator shows the level.
MUTE: Press the channel button and the channel will soft mute with a red LED indicator.

Notes: Blue version of the Bree6, GS Music's fully analogue six-voice synth module. Huge sonic power from the classic single-oscillator design, brought up to date with modern touches like balanced stereo outputs and USB control.

Supplier's Notes:
The Bree6 is a polyphonic analog synthesizer that features a fully analog sound generation. It offers six voices of polyphony, each equipped with a single voltagecontrolled oscillator (VCO), and a sub oscillator. The signal path includes a mixer, a 4-pole low-pass voltage-controlled ladder filter (VCF), and a voltage-controlled amplifier (VCA). The control signals are digitally generated, incorporating one low-frequency oscillator (LFO) and two ADSR-type envelope generators. Additionally, the Bree6 integrates an effects processor with chorus and delay.


The Bree6 interface is engineered for straightforward and intuitive use, featuring one knob per function and ensuring ease of access to its robust features, including MIDI connections, USB, balanced stereo audio outputs, headphone output, and CV inputs.

The signal path in the Bree6 is entirely analog, including a single VCO per voice, a sub oscillator, a mixer, a 4-pole low-pass ladder VCF, and a VCA. The control voltages are digitally generated, comprising one LFO and two ADSR-type envelope generators. It also features a stereo digital effects processor with Delay and Chorus.

The Bree6 features a single VCO plus a sub oscillator per voice. The oscillator includes sawtooth and pulse waveforms, with pulse width modulation control that can be modulated by the LFO. The oscillator tuning can be adjusted, and modulation can be applied from the LFO. The sub oscillator generates a square wave one octave below the main oscillator.

The Bree6's filter is a 4-pole ladder-type low-pass filter with resonance control. It can be modulated by EG1, with velocity affecting the modulation depth, and can also be modulated by the LFO. It can also be controlled by the modulation wheel and aftertouch.

The synthesizer offers a stereo ensemble type chorus effect. It simulates a string or vocal ensemble using multiple delay lines modulated by their dedicated LFOs. The stereo delay can reach a maximum delay time of up to 1 second.

The Bree6 contains one LFO with selectable waveforms (triangle, ramp up, ramp down, square, and random with sample and hold). The LFO's frequency can be set from 0.1Hz to 100Hz, and modulation can be applied to the VCO, VCF, and VCA.

There are two ADSR-type envelope generators in the Bree6, designed for precise control over the dynamics of both the filter and the amplifier.

The synthesizer supports MIDI Polyphonic Expression (MPE), facilitating detailed performance dynamics when used with compatible MPE controllers. The Bree6 has been carefully tested with Osmose, Linnstrument and Geoshred.

Notes: GS Music's fully analogue six-voice synth module. Huge sonic power from the classic single-oscillator design, brought up to date with modern touches like balanced stereo outputs and USB control. Also available in blue.

Supplier's Notes:
The JHS Pedals 3 SerieThe Bree6 is a polyphonic analog synthesizer that features a fully analog sound generation. It offers six voices of polyphony, each equipped with a single voltage controlled oscillator (VCO), and a sub oscillator. The signal path includes a mixer, a 4-pole low-pass voltage-controlled ladder filter (VCF), and a voltage-controlled amplifier (VCA). The control signals are digitally generated, incorporating one low-frequency oscillator (LFO) and two ADSR-type envelope generators. Additionally, the Bree6 integrates an effects processor with chorus and delay.

The Bree6 interface is engineered for straightforward and intuitive use, featuring one knob per function and ensuring ease of access to its robust features, including MIDI connections, USB, balanced stereo audio outputs, headphone output, and CV inputs.

The signal path in the Bree6 is entirely analog, including a single VCO per voice, a sub oscillator, a mixer, a 4-pole low-pass ladder VCF, and a VCA. The control voltages are digitally generated, comprising one LFO and two ADSR-type envelope generators. It also features a stereo digital effects processor with Delay and Chorus.

The Bree6 features a single VCO plus a sub oscillator per voice. The oscillator includes sawtooth and pulse waveforms, with pulse width modulation control that can be modulated by the LFO. The oscillator tuning can be adjusted, and modulation can be applied from the LFO. The sub oscillator generates a square wave one octave below the main oscillator.

The Bree6's filter is a 4-pole ladder-type low-pass filter with resonance control. It can be modulated by EG1, with velocity affecting the modulation depth, and can also be modulated by the LFO. It can also be controlled by the modulation wheel and aftertouch.

The synthesizer offers a stereo ensemble type chorus effect. It simulates a string or vocal ensemble using multiple delay lines modulated by their dedicated LFOs. The stereo delay can reach a maximum delay time of up to 1 second.

The Bree6 contains one LFO with selectable waveforms (triangle, ramp up, ramp down, square, and random with sample and hold). The LFO's frequency can be set from 0.1Hz to 100Hz, and modulation can be applied to the VCO, VCF, and VCA.

There are two ADSR-type envelope generators in the Bree6, designed for precise control over the dynamics of both the filter and the amplifier.

The synthesizer supports MIDI Polyphonic Expression (MPE), facilitating detailed performance dynamics when used with compatible MPE controllers. The Bree6 has been carefully tested with Osmose, Linnstrument and Geoshred.

Notes: ***B-STOCK: Box opened, product in perfect working order***


Serious mastering-grade kit. Stereo interface with high-end converters and headphone amp circuit for pristine sound quality. Proper clarity for critical listening.

*** Complimentary warranty on this product for 5 years if purchased from Juno- UK warranty only***

Supplier's notes:
The RME ADI-2 Pro FS is a two channel 24-bit / 768kHz AD/DA converter and USB 2 Digital Audio Converter, audio interface and high-end headphone amp with new jitter rejection SteadyClock FS technology.

The RME ADI-2 Pro FS is the most flexible converter available with balanced and unbalanced I/O, two headphone outputs, DSP-based signal processing and RME's latest Steady Clock FS jitter rejection technology. It offers Class Compliant USB compatibility, sample rates up to 768kHz as well as DSD record and Direct DSD playback.

It boasts a raft of analogue and digital I/O, including two servo-balanced analogue XLR/TRS Jack inputs, two separate balanced and unbalanced outputs on XLR and TS as well as two headphone outputs. Digital I/O include optical ADAT, Optical and coaxial SPDIF and AES accessible via a breakout cable.

Furthermore, its Class Compliant UAC 2 USB 2.0 port offers iOS compatibility and is necessary for firmware updates. It can also work as a 6-in / 8-out audio on Mac OSX and Windows via WDM and ASIO.

Using the latest in A-to-D technology the ADI-2 Pro FS offers best possible sound with highest signal-to-noise ratio, super low THD and noise. It supports sample rates up to 786kHz PCM and DSD recording in dual mono design, with 3dB improved signal to noise ratio. Two digital-to-analogue converters are used for the separate stereo outputs. The latest Integrated Sample Rate converter takes care of clocking issues between S/PDIF and AES thanks to RME's latest SteadyClock FS technology.

A high-resolution display shows controls for the ADI-2 Pro FS unique features including DSP effects like 5-band parametric EQ, binaural crossfeed, adjustable loudness filter, selectable AD/DA filters and four analogue reference levels. Furthermore, M/S processing is provided with stereo width control as well as phase loop. The display also shows RME's famous Spectral Analyser and 30-band bi-quad filtered analysis tool.

Notes: ***B-STOCK: Box opened, product in perfect working order***


Arturia's flagship audio interface is designed for maximum versatility as well as top quality sound. With 16 analogue inputs, 12 analogue outputs and an array of digital I/O including ADAT, MIDI and clock, your creative process won't be interrupted by reconfiguring your hardware.

Supplier's Notes:
AudioFuse 16Rig

Studio mastermind interface

AudioFuse 16Rig is a high-density audio interface that combines an unmatched array of connections with a creativity-first workflow, built to handle a hardware-focused setup and keep your devices always in sync, always sounding pristine, and always ready to go.

Make your sound count

Introducing an interface that lets you leave everything connected, route anything to anything, and be more creative with your projects.

A workhorse hub of connections and smart features designed to get the job done, no matter the complexity. A powerful, reliable production tool that can be moulded to suit your audio setup, your workflow, and your sound.

A standalone mixer

For DAWless recording, live mixing, and outside-the-box audio configuration, AudioFuse 16Rig just works. Fire up its two low-latency internal mixers for sessions away from the studio, process audio & MIDI without a computer connection, and save your configurations for instant recall and quick setup switching.

Intricate audio routing

Get hands-on with an interface that lets you configure its connections to suit any need, including multiple sends/returns for effects, quick A/B speaker monitoring, and more. The included AudioFuse Control Center even features a matrix for quick 'connect anything and everything' configuration.

Quantity, meet quality

Give every recording the shine, clarity, and projection it deserves with two high-quality digitally-controlled preamps and 24-bit AD/DA converters from ESS and Cirrus Logic. Whether it's red-hot synths, dynamic guitars, delicate vocals, or any combination of inputs, expect top-notch sound across the board.

Choose your workflow

Your interface should adjust to suit your setup, not the other way around. Control AudioFuse 16Rig's settings via the display or the included software, configure it for desktop or 1U rackmount operation, use the DC-coupled outputs to send signals to synth modules, and connect your high-impedance headphones.

It's time your music had an upgrade

x16 ADAT I/O
x8 Analog Line DC coupled Outputs
x16 Analog Line Inputs
x1 MIDI In & 2x MIDI Out/Thru
Wordclock I/O
24-bit AD/DA 192kHz
Creative FX Bundle Included

Smart design

Sometimes it's the little things that matter most. You need your gear to complement and enhance the way you work, and that's the driving force behind AudioFuse 16Rig.

See how every piece of the AudioFuse 16Rig puzzle fits together to deliver a dream interface for audio & music hardware lovers.

Premium FX included

Every AudioFuse interface comes with an ever-evolving suite of creative plugins curated from Arturia's award-winning FX Collection. Refine any incoming audio with vintage studio tools, get experimental with contemporary effects, and embark on a journey through classic & modern sounds with Analog Lab.

AudioFuse Range

The new studio reference

The AudioFuse interface range connects your computer to the world of music. Record with the highest quality, monitor with absolute precision, and bring all of your gear together to create the music you always wanted to.

Analogue signal path

The highest quality components are used in the input and output signal paths of the AudioFuse series, giving you an audiophile-quality experience with no compromise.

Powerful monitoring

Multiple outputs, integrated A/B switching, monitor mix options, and even headphone outputs with both 3.5mm and 6.35mm connectors. The AudioFuse makes monitoring a joy.

Huge versatility

Each AudioFuse interface has its own unique set of features designed to make recording as fun and easy as possible.

Main Features

16 x TRS analogue inputs
Includes 2 x high-quality digitally-controlled preamps
Inputs 3 & 4 also available as 3.5mm stereo input

12 x analogue outputs
Includes 8 x DC-coupled TRS line outputs
Stereo monitor outputs
6.35mm front-panel outputs for reamping, dual-headphones

2 x ADAT in, 2 x ADAT out

Up to 16 channels of I/O at 48kHz, 8 channels at 88.2/96kHz

Wordclock in & out

1 x MIDI in, 2 x MIDI out/thru
5-pin DIN connectors
Route MIDI standalone

Low-latency USB-C connection

Class-compliant MIDI
3 x USB hub connections

Two internal standalone mixers

No computer connection needed
Cue mixer for sub-mixing and added flexibility
Main mixer controllable by MIDI

Color display with rotary control & menu buttons
Desktop or 1U rackmount configuration
Includes AudioFuse Control Center
Includes AudioFuse Creative Suite

Analog Lab Intro
Comp DIODE-609* NEW
Pre 1973
Pre V76
Pre TridA
Filter MINI
Chorus JUN-6
Comp FET-76
Delay TAPE-201
Rev PLATE-140
Phaser BI-TRON

What's in the box

Box content
AudioFuse 16Rig unit
Power supply
2x USB cable

Instrument dimensions
size : 17.3 x 11.6 x 1.7 inches (493 x 294 x 43mm)

Platform requirements

Windows
Win 10+ PC: 4 GB RAM; Intel i5 CPU or faster
1GB free hard disk space
OpenGL 2.0 compatible GPU

Apple
10.13+: 4 GB RAM; Intel i5 CPU or Apple Silicon CPU
1GB free hard disk space
OpenGL 2.0 compatible GPU

Notes: ***B-STOCK: Box opened, missing a nut on left output, otherwise in perfect working condition***


Blue version of the Bree6, GS Music's fully analogue six-voice synth module. Huge sonic power from the classic single-oscillator design, brought up to date with modern touches like balanced stereo outputs and USB control.

Supplier's Notes:
The Bree6 is a polyphonic analog synthesizer that features a fully analog sound generation. It offers six voices of polyphony, each equipped with a single voltagecontrolled oscillator (VCO), and a sub oscillator. The signal path includes a mixer, a 4-pole low-pass voltage-controlled ladder filter (VCF), and a voltage-controlled amplifier (VCA). The control signals are digitally generated, incorporating one low-frequency oscillator (LFO) and two ADSR-type envelope generators. Additionally, the Bree6 integrates an effects processor with chorus and delay.


The Bree6 interface is engineered for straightforward and intuitive use, featuring one knob per function and ensuring ease of access to its robust features, including MIDI connections, USB, balanced stereo audio outputs, headphone output, and CV inputs.

The signal path in the Bree6 is entirely analog, including a single VCO per voice, a sub oscillator, a mixer, a 4-pole low-pass ladder VCF, and a VCA. The control voltages are digitally generated, comprising one LFO and two ADSR-type envelope generators. It also features a stereo digital effects processor with Delay and Chorus.

The Bree6 features a single VCO plus a sub oscillator per voice. The oscillator includes sawtooth and pulse waveforms, with pulse width modulation control that can be modulated by the LFO. The oscillator tuning can be adjusted, and modulation can be applied from the LFO. The sub oscillator generates a square wave one octave below the main oscillator.

The Bree6's filter is a 4-pole ladder-type low-pass filter with resonance control. It can be modulated by EG1, with velocity affecting the modulation depth, and can also be modulated by the LFO. It can also be controlled by the modulation wheel and aftertouch.

The synthesizer offers a stereo ensemble type chorus effect. It simulates a string or vocal ensemble using multiple delay lines modulated by their dedicated LFOs. The stereo delay can reach a maximum delay time of up to 1 second.

The Bree6 contains one LFO with selectable waveforms (triangle, ramp up, ramp down, square, and random with sample and hold). The LFO's frequency can be set from 0.1Hz to 100Hz, and modulation can be applied to the VCO, VCF, and VCA.

There are two ADSR-type envelope generators in the Bree6, designed for precise control over the dynamics of both the filter and the amplifier.

The synthesizer supports MIDI Polyphonic Expression (MPE), facilitating detailed performance dynamics when used with compatible MPE controllers. The Bree6 has been carefully tested with Osmose, Linnstrument and Geoshred.

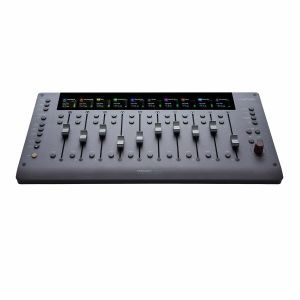

Notes: The latest incarnation of Softube's Console 1 Fader controller expands on the original with features including dual USB-C ports with the option to daisy chain multiple units, parameter mode, expanded DAW compatibility, haptic feedback and high-res screens.

Supplier's Notes:
Console 1 Fader Mk III gives you the control and feel of 100 mm high quality faders, featuring the new Analog Feel fader with capacitive touch to vastly improve your workflow in your DAW and round out the Console 1 Mixing System.

The Fader III is the perfect complement to Console 1 Channel Mk III. Set levels, automation, adjust pan, select tracks and many other functions with the tactile feel of faders - no mouse required! Daisy chain up to four units.

Fader Mk III offers the feeling of a high-quality analogue console, the recall and control of a modern DAW, and modularity that means the versatility you need.

World-class console sound

Authentic, timeless big studio sounds from the company known for exquisitely modeling big studio gear, from Tube-Tech to Weiss. Console 1 Fader Mk III comes with Softube's Core Mixing Suite software. It delivers the award-winning sounds of Softube Tape, FET Compressor Mk II, and Bus Processor in versatile preamp, shape, equalization, and compression sections, and an innovative drive befitting Softube's stellar saturation reputation. It's Softube's take on the perfect channel strip, but users will appreciate the ability to draw on Softube's one-of-a-kind catalogue to design their unique dream console.

Console 1 Fader Mk III key features:

Premium bead-blasted aluminium in a Nordic Night Sky finish.

Ten high-resolution screens that make track navigation a breeze. You'll always know exactly where you're at with screens that show you customizable information like track name, number, level meters, pan, and colour.

Refined Analog Feel faders with capacitive touch make for the smoothest experience possible.

Haptic feedback that feels amazing and communicates critical information in an uber-intuitive way.

Core Mixing Suite featuring:

Softube Tape/Preamp section
Shape: Transient Shaper plus new utility tools
Two equalizers: passive vintage and precise modern
Three compressors based on FET Compressor Mk II, Bus Processor, and OPTO Compressor
Core Modern Preamp and Core Vintage Preamp
Customize your workflow on the fly. Param mode (or parameter mode) gives you fast control over filters, drive, or even compression thresholds.
FabFilter and UADx control for Console 1 Mixing System
Dual USB-C ports with daisy chain compatibility without a hub. Fader offers single connectivity for as many faders as you want.

Technical Specifications

Included Software: Console 1 Core Mixing Suite
Connectivity: Dual USB-C ports
Daisy Chain Units: yes
Power: Incl. 20W USB-C PSU delivers power to multiple units

Operation Modes:
Console 1
Pro Tools HUI
Generic MCU (Volume, Pan, Sends, Solo, Mute)
UAD Apollo Central

DAW Control
Volume
Pan
Solo/Mute
6 Sends
Track Select

DAW Communication
Direct DAW Integration (Logic, Cubase)
Pro Tools HUI (Pro Tools)
Integrated DAW Control (Ableton Live, Reaper, Nuendo, FL Studio, LUNA, Digital Performer, Harrison Mixbus, Bitwig, Cakewalk, Samplitude)

Haptic Feedback
Notch on Zero (volume at unity or pan at center)
Event Mode (fader "vibrates" to indicate clipping)
Discrete Values Mode (fader "snaps" to nearest value when controlling a product with discrete values e.g. an EQ with set frequencies)
Faders: 10 x 100 mm Analog Feel™ Motorized Faders
High Resolution Screens: 10 high resolution screens showing track name, color, number, and VU meter

Unique Features:
Parameter Mode (maps fader to any Console 1 Channel parameter)
Quickly change modes (C1, Pro Tools HUI, MCU, UA Apollo Central)
Select track on solo
Select track on touch
Favourite and Compact mode
Fader Trim
Track Width
Load Strip/Section
Presets (Load/Save)

Buttons

10 buttons with RGB LEDs for track selection
37 buttons with RGB LEDs for Solo, Mute, Sends, and various other functions
Shift button for access to additional parameters

Knobs: 1 touch sensitive high-resolution Analog Feel™ potentiometer for pan and menu control
Mounting options: 100 mm M4 VESA on the bottom. M4 threads on the side
Construction: Anodized aluminum top, injection moulded smooth sides and back with integrated connectivity points

Included Cables
2m USB C to USB C braided
1m USB A to USB C braided
1m USB C to USB C braided

Included Screws:
4 x screws for VESA mounting option
Expandable: Connect up to four Console 1 Fader Mk III units and one Console 1 Channel Mk III units


Dimensions
Dimensions (mm and in):
435 mm / 17.1" length
219 mm / 8.66" width
45 mm / 1.77" height

Product Weight (kg and lbs): 1.8 kg / 3.96 lbs

Notes: Third-generation version of Arturia's exceptional KeyLab controller is presented here in a white, 88-key format. Top quality, expressive performance and Arturia's famed reliability.

Supplier's Notes:
Building on the success of their recent rev3. releases (Minilab 3, Keylab Essential 3 and Keylab MK3) Arturia are delighted to share their next gen 88 note controller keyboard, the Keylab 88 MK3.

With a full-size hammer-action aftertouch keybed and next-level software integration encased in hard wearing high-quality materials and hard-wood panelling - KeyLab mk3 88 not only looks the part but will stand the test of time on stage and in the studio.

Keylab 88 MK3 features all of the refinements found in the other MK3 keyboards, but it sports a massive upgrade to it's keybed over previous models, now equipped with a FATAR TP/110 the Keylab 88 MK3 delivers a stunning playing experience, unlike any other 88 note controller on the market.

With a stunning visual display that shows a range of contextual information on-screen alongside touch-sensitive controls and advanced creative features; it enhances every aspect of the music-making process. From integrating effortlessly with Analog Lab Pro and all major DAWs to supporting musical ideation, keyboardists, producers and composers alike can take full command of their setup like never before.

From customizable MIDI settings and intuitive controls to advanced creative features that support musical ideation - KeyLab mk3 is a powerful ally both in the studio and on stage

KeyLab mk3 offers advanced connectivity with all major DAWs including MCU/ HUI protocols, allowing you to view contextual information on-screen, create user programs and have complete control of your music making software and instruments.

With Analog Lab Pro, Ableton Live Lite and a range of timeless instruments from the world-renowned V Collection, discover a suite of pro-grade software to start making music right away.

Notes: More than just master keyboards, the SL mk2 series is a new chapter in musical keyboard controllers. From the innovative UX Logic interface, seamless integration with the Numa Player, high-definition MIDI 2.0, to the immersive realism of our new keybeds, every detail is crafted to bring your music to life.

The SL gets smarter. With the revolutionary Studiologic UX Logic, first introduced with the Numa X Piano, the SL mk2 series redefines simplicity and elegance. A sleek, modern control panel empowers your creativity, making navigation intuitive and effortless. Create, explore, and control with unparalleled ease.

SL Link, Studiologic's groundbreaking protocol, bridges the gap between your gear and your imagination. With compliant external apps taking full control of the SL mk2, every nuance of your performance stays in perfect sync.

Seamlessly connect the SL mk2 with Numa Player 2, our cutting-edge music software is built now to complement the SL series perfectly.

Numa Player is cross-platform and designed for ultimate versatility, offering a rich selection of high-quality sound libraries. Best of all, these libraries are free for every SL user1, providing you with a full musical experience straight out of the box. Whether you're composing, performing, or exploring, SL Link and Numa Player ensure your creativity knows no bounds.

The SL mk2 takes a leap into the future with MIDI 2.0. Unlock the full potential of your music with greater resolution, richer dynamics, and unprecedented precision. It's not just MIDI; it's music at its most expressive.

Take charge of your studio with dedicated DAW transport controls. From playback to recording, essential features are just a touch away, so you stay immersed in the creative process without breaking stride.

The SL mk2 doesn't just control; it delivers. With dual audio outputs and a headphone jack, it functions as a professional-grade audio interface. Powered entirely by USB-C, it delivers pristine sound from computer or mobile device directly to your speaker system no extra hardware needed.

Featuring the TP/400 Wood, our finest keybed ever. Designed to deliver an unparalleled touch, it offers a playing experience remarkably close to that of an acoustic grand piano. From the precise hammer action to the timeless beauty of wooden keys, every detail is crafted to inspire and elevate your performance

Notes: ***B-STOCK: Box opened, product in perfect working order***


Third-generation version of the go-to Traktor controller for most serious DJs. Motorised jog wheels, colour displays and all the goodies you'd expect from a pro option.

Supplier's notes:
TRAKTOR KONTROL S4 lets you connect with your tracks in entirely new ways: Not only do its motorized jog wheels spin and react to nudging, scratching, pitch-fading, and backspins, they transmit cue points, loop markers, and more direct to your fingertips. And with RGB LED rings and high-res colour displays keeping all the info you need front and centre in the booth, everything you need is right where you need it - so you're free to focus on your mix.

Haptic drive - the jog wheel, reinvented:

Haptic Drive gives you a new kind of feedback on touch-sensitive, motorized jog wheels. Change the torque and start/stop times to suit any DJ style - whether you're a laid-back beatmatcher or backspin aficionado. Get closer to your music in three modes - Turntable Mode, Jog Mode, and Beatgrid Adjust Mode.

Three modes - mix with more:

Spinning jog wheels in Turntable Mode let you nudge and scratch like you would with vinyl. Or use classic Jog Mode for spin-to-nudge response. Because you feel loops and cue points as you scroll past them, you can line up tracks in a second and let your fingers do the mixing. Beatgrid Adjust Mode lets you adjust the track's Beatgrid on the fly, so you're always in sync.

RGB light rings - your sound, surrounded:

RGB light rings around each jog wheel deliver quick, responsive tempo and nudging visualization on each deck. DJs using four decks can stay on-track with jog wheel color-coding, and track-end warnings make sure you're never caught out.

New mixer FX - your one-touch secret weapon:

Easy to use and instant - Mixer FX give you control over club-grade filters, delays, gates, reverbs, and more. They're great for big transitions, or to accentuate and control the nuances and ambience of your set - depending on the dancefloor. Use them either on their own, or in combination with the usual TRAKTOR Deck FX for fun ways to shift your sound.

Colour displays - all hands on deck:

Create quick and evolving mixes with everything you need in one place. Each high-resolution display shows track, key, tempo, looping, Hotcue, and waveform information. Control Stems and samples directly with dedicated controls, and access powerful software tools at your fingertips.

Hard to break - carbon protect faders:

Upside-down carbon strips in our revised fader design mean better protection from liquids, dust, and other substances, because they no longer fall onto the conductive carbon surface. It's a simple trick that makes a big difference to their durability - especially in a world of DJ-booth drinks and packed-out dancefloors.

All you need - expanded connectivity:

The TRAKTOR KONTROL S4 is equipped with an integrated, club-grade 24-bit / 96-kHz audio interface, with external input options on every channel. Connect turntables for crate-diggers, drum machines and synths for hybrid wizards, or anything else you can think of to push the boundaries of your mix. When connected to TRAKTOR PRO 3, the software adds headroom to the signal, before TRAKTOR KONTROL S4 gives it an analogue boost - meaning better sound at club levels.

Traktor Pro 3 - crafted to perform:

Audio engine improvements and a redesigned user interface make TRAKTOR PRO 3 the best-sounding and most powerful version yet. Dig into extensive re-editing and mixing possibilities with loops, Hotcues, Flux Mode, samples, beat-syncing, and the industry's largest FX suite - for easy experimentation and soundscape creation.

Notes: ***B-STOCK: Item refurbished, repaired and in perfect working order.***


Building on the success of the original HumminGuru record cleaner, the NOVA model takes things to the next level. More power, quieter operation, easier operation and lots of tweaks to make the winning formula even better.

Supplier's Notes:
Premium | Automatic | Efficient

The HumminGuru NOVA is an Advanced Ultrasonic Vinyl Record Cleaner that elevates your record-cleaning experience to the highest level of satisfaction. Utilizing 40kHz ultrasonic sweep frequency with an upgraded power drive, it delivers quieter and highly efficient cleaning performance. Furthermore, with the NOVA's upgraded fan power, experience rapid record-drying in just 3 to 6 minutes. It is recommend that you use The Small Bottle.

The NOVA also includes a patented design of adjustable rotation wheels, eliminating the need for 7" & 10" record adapters! The newly added countdown timer, a new draining mode, and a practical cover lid that doubles as a drying rack and a record display stand further enhance usability, delivering an even more satisfying experience.

With its innovative design and upgraded features, the HumminGuru NOVA delivers maximum convenience, exceptional cleaning, and efficient drying performance. The NOVA is quiet, compact, and lightweight- making it the perfect companion for all vinyl collectors.

Inside The Package

NOVA Advanced Ultrasonic Vinyl Record Cleaner
Cleaner Lid
Removable Water Tank
Water Funnel
Maintenance Tool
7" and 10" water basin supports
The Small Bottle (5ml)
Drying Rack Accessories
Drawstring Pouch
Air Filters x 6
Water Filters x 6
Interchangeable Plug Power Adapter (Compatible with 100-240V)
Owner's Manual

Specifications

Product Name: HumminGuru NOVA Advanced Ultrasonic Vinyl Record Cleaner
Model: HG05
Material: ABS and Stainless Steel
Product Size: 34 x 15 x 26.1 cm
Product Weight: 3.4 kg
Input: DC 12V 5.0A
Output Power: 60W

Notes: ***B-STOCK: Item refurbished, repaired and in perfect working order.***


Endlessly customisable digital 'modular system within a modular system'. Includes more than 80 modules, allowing you to create effects, synths, control devices, oscillators, filters and much more.

Supplier's Notes:
What's a Euroboro?

The ZOIA Euroburo is a digital modular system that can be placed in your modular system, a real Russian nesting doll situation. We added a headphone output and a super-slim optional case so the Euroburo can live happily on your desktop or be easily mounted in a Eurorack case. Hence the euro + buro, pronounced "bureau"...get it!?

Create unique signature effects, synthesizers, sequencers and more while using 4 freely assignable CV ins and 4 outs to interface with other CV enabled devices. The additional headphone output and powered 9v case makes the module even more desktop friendly. With over 90 modules from CV utilities to audio effects, oscillators and envelopes to MIDI, the Euroburo can do almost anything to fill the gaps in your setup.

There's no need to worry about getting bogged down with endless menus or a cluttered interface. Creating patches and performing with the ZOIA is a tactile experience. Patching, deleting or moving modules and editing values can all be done quickly using the push-button grid and a flick of the encoder. With the addition of dedicated push buttons for the CV and Audio I/O, patching on the ZOIA has never been faster.

Notes: ***B-STOCK: Box opened, product in perfect working order***


Updated version of IK's MTM monitors offer even better performance in the same compact package. Available here as a pair bundled with ARC measurement microphone for precise calibration.

Supplier's notes:

IK Multimedia iLoud MTM MKII Active Studio Monitor (single)
Deeper. Louder. More accurate.

iLoud MTM MKII offers sonic perfection and volume levels previously unavailable in this class of reference monitors. Maintaining its iconic form, MTM MKII sports more efficient drivers and twice the processing power under the hood to turn any space into the ideal mixing and mastering setup.

Enjoy clear, neutral sound with the deep, controlled low end you'd expect from a speaker twice the size and linear phase response that rivals speakers twice the price. Its MTM design and precise time alignment make hours of fatigue-free listening possible while minimizing acoustic interactions, which is ideal for desktop use.

With advanced ARC auto-calibration, MTM MKII guarantees improved acoustic performance in any space in seconds. Connected to a computer, award-winning X-MONITOR software adds deep customization and breathtaking emulations of 20+ top studio monitors and other playback systems to A / B your mixes instantly for the perfect translation.

MTM MKII is like having an entire suite of precision-tuned monitoring tools.

Ultra-nearfield monitors for critical mixing

iLoud MTM MKII features a pair of 3.5" high-performance woofers and one 1" high-definition, back-chamber loaded tweeter with improved speaker drivers for superior volume and low end, plus improved clarity and articulation in the midrange. The Midrange-Tweeter-Midrange symmetrical design (D'Appolito configuration) provides ultra-precise, defined, point-source sound that can't be achieved by traditional 2-way systems at close distances, meaning you'll mix better and with less ear fatigue.

Designed to work faster in more situations

In addition to improved speaker drivers, iLoud MTM MKII maintains tight vertical dispersion, minimizing the acoustic impact of desktop placement and ceiling and floor reflections to ensure the most accurate possible sound. MTM MKII offers a wider horizontal dispersion, creating a broader sweet spot for easier mixing than other MTM designs while maintaining the smoothest in-room response. Better power efficiency and extended max SPL mean iLoud MTM MKII also offers superior performance as an FOH mixing monitor, immersive speaker or other volume-dependent tasks.

Next-generation ARC room correction

iLoud MTM MKII adds a deeper, more comprehensive ARC auto-calibration derived from IK's flagship iLoud Precision series. Connected via USB to a Mac / PC with X-MONITOR, this 4-space measurement offers an unmatched definition and reliable translation in virtually any environment, so your mixes will always sound their best. A rapid, single-point measurement option can be done anywhere without a computer. Connect an ARC MEMS microphone (sold separately) to each speaker's mic input, and you'll be up and running in moments.

X-MONITOR integration

Also inherited from IK's flagship iLoud Precisions, iLoud MTM MKII now offers full X-MONITOR integration. This exclusive, award-winning software gives you complete control over every speaker element beyond the rear controls. Also, it allows for precise delay compensation between units for improved stereo imaging.

A single solution to A / B mixes

In addition, X-MONITOR allows you to switch between virtual monitoring voices, emulating the frequency and phase response of other top studio monitors and reference systems. With 4 buttons to quickly recall various voices, X-MONITOR with MTM MKII becomes an entire reference monitoring system in one elegant solution.

Stereo to immersive sound anywhere

IK have packed all this technological sophistication into a compact format that takes up 30% - 50% less space than comparable designs and weighs just 5 pounds. With tilting desktop mounts included, it's the ideal desktop solution for home, project or mobile recording. There's also an included isolation pad for horizontal placement wherever needed.

Bottom mic stand mounts securely position iLoud MTM MKII behind a console for studio or FOH use or even on boom arms to create immersive setups anywhere quickly with no tools required. A custom mounting bracket is also available to easily install MTM MKII as overheads or wall speakers in any studio.

The ideal immersive audio solution

All these amazing features, plus a selectable 80 Hz low-frequency cutoff, also make iLoud MTM MKII the ideal monitor for today's immersive studios. Learn how iLoud MTM MKII is ideal for use with ATMOSr and other multi-channel audio systems!


Specs

iLoud MTM MKII Specifications

Type: 2-Way / 3-speakers bi-amped, digitally controlled studio monitor
LF drivers: 2 x 3.5" composite cellulose fiber, custom-made mid-woofers
HF drivers: 1" low distortion, back chambered silk dome tweeter
Acoustic design: DSP tuned bass reflex
Number of amps per speaker: 2
Amplifiers type: High efficiency Class-D
Total power: 100 W RMS
LF power: 70 W RMS
HF power: 30 W RMS
Crossover type: Digital, linear phase
Crossover frequency: 2.8 kHz
Frequency response: 48 Hz to 28 kHz + / - 2 dB, 36 Hz to 32 kHz @ -10 dB
Phase response: System remains coherent within + / - 15- from 200 Hz to 20 kHz
Sensitivity at +4 dBu: -6 dBu signal generates a 94 dB SPL @ 1 m
Sensitivity at -10 dBV: -17 dBu signal generates a 94 dB SPL @ 1 m
Continuous, long term SPL free field, 1 m distance, one speaker, ANSI-2034 Weigthed Pink Noise: 97 dB
Peak SPL free field, 1 m distance, one speaker, ANSI-2034 Weigthed Pink Noise: 110.5 dB
Peak SPL, half space, 1 m distance, one speaker, ANSI-2034 Weigthed Pink Noise: 112.5 dB
Placement setup: Manual switches for LF Extension, LF trim, HF trim, Desk position
LF extension switch: Sets -3 dB point of the frequency response at 40, 50, 60 or 80 Hz (LFE)
LF switch: Low shelf, +2 dB or -3 dB from 100 Hz down
HF switch: High shelf, +2 dB or -3 dB from 8 kHz up
Desk switch: -4 dB at 160 Hz and +1 dB at 1.8 kHz
Calibration: Fully automatic and built-in digital calibration
Full DSP control
Total Latency (TOF): 2.44 ms
Connectors: 1x combo XLR-1 / 4" TRS balanced input; 1 / 8" TS ARC microphone input, 1 x USB type-B, AC POWER socket
Power requirement: 90 to 240 V AC, auto-ranging, 50 or 60 Hz, 120 W max power consumption

Dimensions

Size: 264 mm / 10.39" x 160 mm / 6.3" x 130 mm / 5.12"
Weight (per speaker): 2, 5 kg / 5.5 lbs (speaker + foot)

Package includes

1 x iLoud MTM MKII monitor
Power cord
Tilting stand
Horizontal support feet
Locking key
1 x ARC Microphone
1 x ARC Microphone clamp
1 x XLR to 1/8" (3.5mm) TS cable for ARC microphone (2.5m/8.2ft)

Notes: A lovely creative approach to generative synthesis. Dual voices with triangle/square wave oscillators, shift register and envelopes can be patched via banana cables to create unique grooves and drones.

Supplier's Notes:
Double Knot v3

The Double Knot v3 is a small generative synthesizer with two voices and corresponding sequencers. This instrument has a simple architecture which is capable of a wide variety of sounds, including rhythms and drum patterns or textural and grating noise sounds. The interface is made up of knobs, switches, and banana plugs for patching. The two voices of this device each consist of a triangle/square wave oscillator, a shift register sequencer, an enveloper, and a voltage controlled amplifier. A clock sets the tempo of the shift registers.

The voices of the Double Knot are pre-wired, in a linear chain of functional blocks. The patch points are available to route modulations, influencing the simple linear voices. The game of this device is to investigate the relationships between the elements of the synth using the knobs, switches and patch-points.

FAQ

How many banana cables do I need? and what length?

8 or 10 cables around 12" long is a great start.

Can I patch this with my other synth?

Only what is safe for this synth. The banana ports of this device can handle max +/- 8V at all inputs and outputs assuming at least a 1k output impedance in the other device. The response range of the voltage inputs is ~1.2v - 8V (range of a TL07x powered by 9V).

Is this synth good by itself, or does it rely on other devices to be useful?

Some good sounds can be had using this device and a handful of banana cables.

Notes: ***B-STOCK: Box opened, product in perfect working order***


Welcome to the world of sound of LYRA-8, the unique organismic analogue synthesiser designed by Vlad Kreimer. "Organismic" means that LYRA uses some principles that lie in the base of living organisms. The way how LYRA's modules interacting between each other and the behaviour of the instrument resembles a live conversation.

LYRA-8 is based on eight generators, which will be referred to as voices. Their design is not like a traditional subtractive synthesis VCO. Instead of having a linear or logarithmic dependency on control voltage, they resemble the tone generators in old electric organs. Hence the use of the term "voices" instead of "VCOs". Lyra uses non-linearity a lot, and the voices are constructed in such a way that allows for non-linearity to express itself.

The voices are divided into four pairs (12, 34, 56, 78). All the pairs are divided in two groups, with two pairs in each (1234, 5678), creating tree-like structure.

The voices can function either in an electric organ mode or in an FM synthesis mode with each of the voices and its envelope acting as a separate FM operator. The voice's impact on FM synthesis will decrease along with the decay of its envelope.

LYRA-8 also has the next blocks:

The HYPER LFO is a complex low-frequency generator, whose waveform is synthesized from two simple LFOs by summation or multiplication of their frequencies. It also has a sync mode. The LFO can modulate the selected pairs of voices and the MOD DELAY.

The MOD DELAY consists of two lines of delay with cross-feedback and a special architecture that enables resonance between the two lines. Each line's delay time can be individually modulated from various sources, including external ones. The delay has a unique possibility of self-modulation where the output signal modulates the delay sample rate, creating cool effects.

The DISTORTION is last in the chain, after the delay. It enables the delay to also influence the distortion.

For all its experimental character, LYRA is a professional instrument. Its output dynamics and frequency response are balanced and ready for a live performance or studio recording without any additional processing.

Specifications:

Max output voltage: 2 v 0-to-peak
Output connector: mono 6.3 mm TS or TRS (balanced) jack
Output resistance: 100 Ohm
EXT IN: 1 v 0-to-peak
EXT IN connector: 6.3 mm TS jack
HOLD GATE: full HOLD volume +5 V
HOLD GATE connector: 6.3 mm TS jack
CV DELAY : unipolar, range of 0 to +5 volt
CV DELAY connector: 6.3 mm TS jack
CV VOICES: unipolar, range of 0 to +5 volt
CV VOICES connector: 6.3 mm TS jack
Power supply: stabilised, +12 V, 0.2 A, centre positive
Power Consumption: 2 watt
Dimensions: 266 x 266 x 62 mm
Weight (without power supply and packaging): 2.5 kg

Notes: Based on technology from the award-winning LVX and MercuryX pedals, the Enzo X is a superbly powerful six-voice modular synth, with polyphonic pitch detection and no special pickup needed on your guitar.

Supplier's Notes:
Combining 5 synth modes, Enzo X incorporates each of these into a modular system UI/architecture from both the award-winning LVX and MercuryX pedals.

In addition to being a 6-voice poly synth, Enzo X includes 3 reverbs which are adapted from Mercury X (Prism algorithm), 5 Drives (including Bitcrush), a full stereo 2.5 second Delay and 5 modulation types.

To make this complex system immediately intuitive to navigate, Meris again leveraged the simple and easy to use UI first developed for LVX.

Notes: Based on the ADDAC501 Complex Random module, the 511 expands the concept to become an even more powerful random/stochastic voltage generator. Four channels, all capable of being used for envelopes, modulation sources, sequencers and much more.

Supplier's Notes:
This module greatly expands on the principles of the ADDAC501 Complex Random from 2013.

This is a fully fledged 4 channel voltage generator capable of all things random, with quantization, probability, distribution, interpolation, time control, clock, states and a 32 step sequencer.

The module operation relies on its screen for all parameter editing, each button accesses one single page where parameters can be changed allowing a fast and fluid workflow across all settings.

Long presses on all buttons have a secondary function allowing fast Channel selection plus Mute and Hold functions.

The combination of having 2 Encoders with Push buttons allow swift navigation and editing across all pages and their settings.

Tech Specs:
20HP
4.5cm deep
200mA +12V
100mA -12V

Notes: ***B-STOCK: Item refurbished, repaired and in perfect working order.***


MX12 as successor of the UC44 is a universal controller for all kinds of MIDI controllable hardware and software.

You can combine NEW MODULE devices to a large system. The connections are on the right side to allow a back to back placing of two or more devices. Connect two NEW MODULES by a special extension port.

Furthermore, there are 4 MIDI-ports and one USB-port with various routing possibilities.

It is packed in a metal case with the same dimensions like the famous ELEKTRON devices so it's a great extension for these devices. But you can use the mix controller also with your DAW like a classical 12-track-mixer.

The device has 24 standard pots, 12 Faders and 24 buttons in a 12-track-layout, various kinds of MIDI commands like control change, note on/off, pitchbend, aftertouch and program change are possible. You can program every MIDI command for every separate control on the device very fast and easily.

Of course you can assign the pots and keys to any of these commands by learning incoming MIDI commands, which is the same procedure you know from your software/DAW. The pots work with standard resolution of 7 bit to have full compatibility to any software and hardware instrument, effect and DAW. Use the internal 30 setups to save your individual settings. Backup and restore of all settings by sysex dumps is possible too.

The factory settings are perfect to control music and video software products out of the box if they are freely assignable. So any additional device programming isn't necessary for many applications.

Some special setups are preconfigured for use with ELEKTRON RYTM and ABLETON LIVE.

Check out this amazing power box and you will get a reliable mate...

Notes: An interesting creative approach to programming and performing with MIDI instruments, the NGEN allows you to generate 16 tracks based on algorithmic and generative principles. Create sequences, then tweak and manipulate in real time.

Supplier's Notes:
NGEN is a unique 16-track MIDI sequencer designed in Sao Paulo / Brazil that lets you combine multiple algorithmic / generative generators and MIDI FXs to sequence multiple hardware or software MIDI instruments.

It offers a completely new way of creating and performing music by abstracting the composition process. Instead of writing sequences from scratch, NGEN lets you quickly generate a new sequence for your drums, basslines, melodies, and chord progressions with a push of a button.

NGEN includes classic Spektro Audio generators (ACDGEN and Polyform), completely new algorithmic generators (Drumgen, Samba, Arper, MARP, Pop, Turing, Shuffler), and practical generators (Input Sequencer, MIDI Player, Thru).

Each generator features an unique algorithm that combines different composition techniques with randomness so each generated sequence is unique.

After generating a sequence, you can tweak it in real time using the parameters available for each of the generators. Take things even further by applying MIDI FXs such as Chord or Glitch to your sequences.

All tracks in NGEN follow the same key and scale so it's easier to get multiple sequences that work well with each other.

Quickly save and restore your creations using patterns and projects stored in the microSD card.

NGEN's design is primarily focused on live performance so it features a 1.3" OLED screen, a minimalistic and easy to read interface, mechanical switches (Gateron Green), shortcuts for accessing different features, per track Program Change selector and auto-variation, extensive MIDI CC implementation, and a Performance mode for controlling up to 4 parameters at the same time.

NGEN also includes a variety of tools to let you explore this world of algorithmic sequencing such as assignable CV outputs, a built-in MIDI monitor, different clock generators, and much more.

Generators

ARPER- Algorithmic arpeggiator with real time controls
ACDGEN- Design to generate basslines and melodies using 8 different algorithms.
DRUMGEN- Generate drum patterns based on 3D probability templates based on different genres.
INPUT SEQ- Record incoming MIDI notes into a step sequencer then adjust transposition, density, and direction in real time.
MARP- Unique and experimental polyrhythmic arpeggiator.
MIDI PLAYER- Playback .mid files stored in the microSD card (1 track, up to 128 events).
POP- Generate chord progressions and control how they're played.
SAMBA- Percussive generator based on a 4-part euclidean sequencer.
SHUFFLER- Sequence and rearrange sliced loops (in a software or hardware sampler).
THRU- Modify sequences coming from other tracks or an external MIDI generator.
TURING- Generative generator based on a lockable 16-bit shift register (inspired by Music Thing's Turing Machine).

Hardware

USB-C
MIDI via USB or 3.5mm (Type A)
1.3" OLED Display
Internal Storage
microSD Storage
Mechanical Switches (Gateron Green)
4 CV Outputs (0-3V)
I2C via 3.5mm (for future development)
Carbon Steel case (1.5mm)
High Quality 3M Polycarbonate Label

Specs

Product Weight: 650g
Product Size: 155 x 105 x 50 mm
Product Box Size: 18 x 13.5 x 9 cm
Shipping Box Size: 22 x 16 x 12 cm
Shipping Weight: 750g

Notes: Introducing the new Buchla Auxiliary Oscillator Card, a brand new revision of the BEMI era AUX Card, designed to perfectly compliment 208c series / Easel instruments.

Buchla Music Easel users remember fondly the BEMI-Era Easel Aux Expander Card, which added an auxiliary modulation source which could also be used as an audio rate oscillator and more!

Now, the Aux Card returns as the Aux Osc Card - A new Auxiliary Oscillator Card which perfectly compliments the current generation Music Easel Modern, Retro, Easel Command, and Anniversary Edition.

The new AUX Card unlocks an incredible range of features, dramatically expanding the Easel's capabilities and taking your creative potential to the next level.

Notes: Modbap's three-voice drum module gets a major update, introducing new modal synthesis and metallic FM/RM algorithms, 12 customisable presets (four per channel), 12-pad finger drumming mode and much more. Super versatile.

Supplier's Notes:
Modbap Trinity 2.0 - Digital Drum Synth Array for Eurorack

Introducing Trinity 2.0, the updated and improved digital drum synth array eurorack module from Modbap Modular. This compact 20HP design packs innovative features, such as six different drum synth algorithms - including the newly added ORB and CLANG - as well as enhanced connectivity and expanded control options. Each of the three independent drum channels offers a wide range of sound design possibilities, with seven main controls for shaping tone, pitch, and texture, in addition to extensive CV and USB-C MIDI inputs.

Trinity 2.0 now incorporates advanced preset management, featuring 12 customizable presets (four per channel), a MIDI-based 12-pad finger drumming mode, and the capability to select presets via CV. Additionally, it retains its legacy features such as Cycle Modes (Round Robin and Random) and Stack Modes (layering two or three voices), providing infinite creative potential. With dimmable LEDs and USB-C connectivity, Trinity 2.0 caters to modular synth enthusiasts, hobbyists, beatmakers, and sound designers, offering a vast array of percussive textures and tonal possibilities. Compatible with both the original and refreshed hardware, Trinity 2.0 firmware elevates modular percussion to new levels of versatility. More than a module, Trinity is a powerful drum synth brain disguised as a Eurorack module.

Drum Synth Algorithms

BLOCK (Analogue Inspired): Drum synth building blocks featuring sine and triangle core. Great for traditional electronic drum creation.

HEAP (Additive): Additive drum synth with 8 partials. Great for fun natural sounds and pitched percussive sounds (i.e. bells, chimes, steel drums, and wood blocks etc.).

NEON (FM): FM drum synth engine. Great for high quality FM drums, clangourous metallic percussion and more.

ARCADE (Noise): Quirky noise generator synth, reminiscent of classic 1980's arcade games sounds - zaps, crashes, explosions etc. Great for claps, hats, even some vinyl noise approximations, and all sorts of fun percussive and degraded noises.

New with Trinity 2.0

Orb (Modal): Modal synthesis for resonant tonal percussion, ideal for creating rich, bell-like tones, tuned drums, and dynamic resonant textures. This algorithm excels in producing harmonic structures with natural decay, making it perfect for adding depth, warmth, and intricate timbres to rhythmic compositions.

Clang (Metallic FM / RM): Metallic FM/RM synthesis for bright, resonant cymbals and hi-hats, perfect for designing sharp, cutting high-frequency percussion. It is particularly suited for crafting hi-hats, cymbals, and other metallic percussion sounds with complex overtones and a crisp attack. It excels at producing metallic textures, chimes, and clangourous timbres with complex overtones.

Modes

Cycle Modes

The cycle modes can be enabled and disabled per channel.

'Round Robin' mode will switch between each drum synth type sequentially with each new trigger to the drum channel.

'Random' mode will generate a new random drum sound with each new trigger to the drum channel.

Stack Modes

The stack modes group the channels together allowing 2 or 3 drum channels to be triggered by the primary channel's trigger and v/oct inputs.

Stacked drums can be spread out similar to unison mode on a traditional synthesizer. Stack modes are inspired by the characteristics of chopped breaks where drums tend to overlap and fan out depending on the content of the chopped source material.

MIDI Finger Drumming Mode

MIDI Finger Drumming Mode allows control of drum voices and presets using an external MIDI pad controller connected via USB-C. It allows for triggering drum sounds with assigned MIDI notes via drum pads or keyboard controller. This mode enhances real-time performance and integrates seamlessly into MIDI-based music setups for dynamic, hands-on beatmaking and sound design.

This module features six drum algorithms utilizing various synthesis methods:

BLOCK: Classic drum synth using subtractive synthesis
HEAP: Additive drum synthesis with rich partials
NEON: Frequency modulation (FM) drum synth
ARCADE: Noise-based synthesis inspired by retro gaming sounds
ORB: Modal synthesis for resonant tonal percussion
CLANG: Metallic FM/RM synthesis for bright, resonant cymbals, hi-hats, and metallic percussion

Width: 20HP
Depth: 28mm
Power requirements: 153mA +12V, 7mA -12V (160mA peak on power-up)

Notes: An exact replica of the legendary Pearl SY-1 Syncussion drum machine, featuring expanded I/O board. Classic analogue sound with individual trigger inputs, two voices and six different oscillator modes per voice.

Supplier's Notes:
The Michigan Synth Works SY-1 Drum synth is a full size, exact replica of the Pearl SY-1 Syncussion. Every detail has been replicated from the original board layouts to the mechanical construction. The assembled version has been modernized to use current manufacturing processes while still using the original board layouts and all parts have been carefully chosen to match the behaviour of the original. Case, boards, and I/O Boards are all interchangeable with the original Pearl device.

Assembled versions come with the METAL back standard, the wood case is available as a DIY kit separately.

The Syncussion:

The Syncussion is a 2 voice drum synthesizer with two oscillators per voice and six different modes. Five modes mix and modulate the oscillators plus a noise channel. Each voice has controls for TUNE, DECAY, SWEEP amount, SWEEP Speed, Sweep up/off/down, LFO amount, and LFO speed, LFO Shape (Tri or Square), and sample and hold.

OSC Modes:

A: One oscillator sound, at this position the regular drum synthesizer sweep can be effected.

B. Sound of one oscillator adjusting the other oscillator frequency; produces a metallic sound.

C. Sound of a mix of two oscillator outputs; sound is similar to that of a vibraphone.

D. Sound of mix of two oscillator outputs; produces a low to high sweep and is done by hitting pad softly or hard; there is no connection to SWEEP SPEED and SWEEP RANGE

E. Sound of one oscillator adjusting the other oscillator frequency with a mix of noise; produces a sound similar to hitting thin metal.

F. Sound of only noise

Triggering:

The SY-1 is designed to be triggered via drum triggers which output a very low pulse signal. Modern 5V trigger signals (v-trig) can be used, how it i recommended experimenting with simple audio samples or more dynamic triggers. One of the more interesting features of the Syncussion is the dynamic response to the drum triggers and just sending a straight pulse which maxes out the trigger inputs does not do the device justice.

Tuning:

The original SY-1 uses a tune pedal to adjust the pitch of both oscillators while playing. This functionality has been retained in the original configuration but is of limited use without the pedal. The expanded version DOES have per voice CV control (1v/Oct) as well as the MIDI.

The inputs and outputs use 1/4" Stereo to 1/4" (3 included) to greatly expand the capabilities of the device. The Mod input is prewired to VCF freq but can easily be switched to decay via jumper on the voice cards.

The SY-1 ships with a metal base panel but the DIY wood case can be used instead. It is provided UNFINISHED and sold separately.

Whats included:

SY-1 Synthesiser

Universal Power adapter (100-240V, 12V DC out, Tip Positive)

Expanded I/O: 3x 1.5m TRS 1/4" Phone to 2x TS 1/4" Phone

Notes: A super impressive offering from Xaoc, the Samarkanda is a quad delay module designed for hands-on, real-time performance. Dial in everything from loops to stereo delays, resonators, modulation effects and much more.

Supplier's Notes:
Xaoc Devices Samarkanda is a digital quad delay module with extensive patching capabilities and a lot of flexibility for signal mangling. It can be used as four entirely independent delays, a dual stereo delay, a complex/multi-tap or multi-channel delay, a quad/polyphonic resonator, dual chorus, dual flanger, reverb, looper (with sound on sound!), and granulator, or any combination of those. You can reverse the delayed signal, hold it, squeeze and stretch it beyond all recognition and still go back to the original piece of audio captured in the buffer! The internal lossless normalization (the signal doesn't leave the digital domain) combined with top-notch components (including 24-bit AKM converters and 32-bit internal processing) are responsible for high sound quality. Samarkanda has been conceived in the truly modular spirit. Not only can you control almost all its features remotely with CV/gates, but the external feedback path gives you the opportunity to process the delayed signal with other modules.

Samarkanda offers a wide range of delay times beginning at a mere 0.5ms and reaching up to 15 seconds per channel. That means that, by stacking its four channels, you can achieve up to one minute delay! There are two operating modes switchable individually for each channel. Analogue delivers pitch changes that resemble classic analogue tape and BBD delays. When you combine it with the looping Hold function, you can play Samarkanda with any 1V/octave CV source. By using the Sync function you can even loop single wave cycles. The Digital mode gives you a granular buffer-scrubbing effect (no pitch change) across the whole delay time range. You can seamlessly switch back and forth between modes without losing any information. You can use Samarkanda for multiple tasks at the same time - from four independent delay lines through any combination of channels processing the same signal up to a quad behemoth. You can also use the linking feature for ease of operation (the first channel in the chain acts as the main control source for the others).

As most settings operate on a per-channel basis, you can freely combine different features (such as analog/digital behaviour, delay time range, reverse and hold functions, etc.) in a configuration of your choosing. You can synchronize each of its channels separately to a different source, either via the Sync input, or by using the tap-tempo functionality (with multiplication and division galore). Should you ever get lost, the Purge button comes in handy when/if things start to spiral out of control!

Notes: ***B-STOCK: Box damaged, but product is in excellent condition and in perfect working order***


Updated version of Akai's excellent MPC One features increased storage, WiFi, Bluetooth and a striking new colour scheme. Full standalone beat creation masterpiece.

*** Introducing MPC Stems- March 2024 ***

Akai Professional now introduces the next chapter of sampling innovation and production powered by the groundbreaking MPC Stems bringing sampling into a new chapter.

With MPC Stems, you can access the raw building blocks of any sample or vinyl record, isolating the DNA of any record. Producers can now manipulate the Drums, Bass, Music, and Vocals, opening new creative possibilities.

Akai Professional introduces the ultimate creative workflow with Stems Separation seamlessly integrated into the leading MPC series, powered by MPC 2 Desktop Software.

With MPC Stems, producers and beat-makers can now unlock unmatched sampling creativity by easily isolating drums, bass, music, and vocals from any audio, vinyl recording, or sample revolutionizing the art of sampling.
Experience lightning-fast workflow with superior sound quality, keeping you inspired throughout the creative process.

Slice and isolate samples while maintaining chop regions across each of the four stem layers.

Take complete control with direct manipulation of stem layers from the pads, adjusting volume, pitch, pan, start, and end points with instant responsiveness.

MPC Stems requires MPC 2 Desktop Software running 2.14 or higher, compatible with MPC Live, MPC Live 2, MPC One, MPC One +, MPC X, MPC XSE, MPC Key 37, MPC Key 61, MPC Studio Mk 2 in Controller Mode.

Supplier's Notes:
MPC One +

Standalone MPC with 7" touchscreen / WiFi & Bluetooth

Supercharge your beats

Standalone supercharged

The new MPC One+ brings a jolt of energy to the standalone workflow to enhance creative speed and efficiency. With MPC One+, beatmakers producers to live performers can enjoy the creative journey like never before.

Pure standalone power in your hands

At the heart of MPC One+ is the powerful multi-core processor, the same featured in the flagship MPC X. This isn't a scaled down little brother, but a production unit built with the same DNA for high-level music creation. Instruments, audio, MIDI, and effects processing to bring the music to life. With an upgraded 16GB of internal storage, create and store more of your inspired moments right in MPC One+ for immediate access and recall.

Wireless for the future

New Wi-Fi and Bluetooth connectivity opens a new world of possibilities for your creative workflow. With Wi-Fi, you now have access to Ableton Link 3 to wirelessly connect and sync all your capable devices. Lock patterns and grooves for a mega creation without any cables or connections. Grab your Bluetooth enabled MIDI controller to lay down synths and melodies while your infectious rhythms have you vibing to the beat. Pair with a wireless QWERTY keyboard to search through folders and libraries accurately. With Wi-Fi and Bluetooth, your MPC One+ may be untethered but you are locked right into the music.

The centre of your creativity

MPC One+ is meant to be the focal point of your creative workspace. Whether you need compact, efficient beat-making or expanded interconnected production and composition, MPC One+ is versatile enough to accommodate any need. Connect your studio speakers to Stereo Outputs for accurate monitoring. A pair of Line Level Inputs are ready for keyboards, synths, instruments, hardware processors, and more. Expand your I/O with support for ClassCompliant Devices via a USB A host port. Connect your favorite plug-and-play USB MIDI Controllers, Audio Interface Devices, or removable storage drives, and take your production up another level with ease.

The workflow that sparks inspiration

MPC is the premier platform for all pattern-based music from EDM to Electro, Hip-Hop to House, and beyond. With 128 MIDI and 8 Audio Tracks per project, MPC One can capture any idea just as fast as you can think it. Browse thousands of MPC Plugin Instrument Presets to find that perfect sound to build melodies or shape harmonic phrases with massive sonics. Lay down serious drums and percussion with the signature MPC groove and precision. 16 Levels, Note Repeat, and Time Correct have defined the rhythmic feel for generations and continue to be the foundation for hit song after hit song. Use the pads in combination with Notes and Chords modes to unlock a completely new world of pad performance using the 16 velocity-sensitive RGB backlit pads.

One place for your sounds, samples, and songs

MPC One+ grows with you as you evolve on your music production journey. Update features, sounds, and samples wirelessly thanks to built-in Wi-Fi. When new MPC plugin instruments are available, you'll enjoy instant notifications as well as downloads and software authorizations right from your MPC One+. Browse and sync your curated Splice loops and samples and give your productions a breath of fresh inspiration whenever you need it. Keep all your sounds and instruments right within reach to instantly capture the most inspired moments anytime.

The next step of your MPC journey

MPC One+ is here for the producers and beatmakers ready to take the next step in the journey. Upgrade to MPC One+ from MPC Beats and load your old projects seamlessly on MPC One+. Your MPK mini or other class-compliant controller connects for powerful keyboard control of popular MPC plugin instruments like Hype, Mellotron, or Odyssey. For a limited time, receive a voucher for a free MPC Plugin instrument download from the MPC Store with the purchase and registration of a new MPC One+. MPC One+ has arrived and the musical possibilities ahead of you are endless with the power of its supercharged standalone workflow.

Technical Specifications

Pads
(16) velocity- and pressure-sensitive pads, RGB-backlit
(8) banks accessible via 4 Pad Bank buttons

Knobs
(4) 360- touch-sensitive Q-Link knobs for parameter adjustment
(1) data encoder for value adjustment and selection via push

Buttons
(31) dedicated-function buttons

Display
7.0" / 177 mm (diagonal)
5.9" x 3.7" / 151 x 94 mm (width x height)
Full-colour LED-backlit display with touch interface

Memory
Processor: Quad-core ARMr processor
RAM: 2 GB
Storage: 16 GB (over 7.8 GB available for user storage)

Power via power adapter (12 V, 3.0 A, center-positive, included)

Connections
(2) 1/4" (6.35 mm) TRS inputs (1 stereo pair)
(2) 1/4" (6.35 mm) TRS outputs (1 stereo pair)
(1) 1/8" (3.5 mm) stereo headphone output
(1) 5-pin MIDI inputs
(1) 5-pin MIDI output
(4) 4 TRS CV/Gate Jacks, 8 Outputs Total
(1) USB Type-A port
(1) USB Type-B port
(1) SD Card slot
(1) Power Adapter input

Dimensions (width x depth x height)
10.7" x 10.7" x 2.1"
272 x 272 x 53 mm

Weight
4.7 lbs / 2.1 kg

Notes: About as good as closed-back studio headphones get. The Lensys Pros feature 40mm aluminium-magnesium 'M' dome drivers for flat frequency response, exceptional sound isolation and ergonomic memory foam earpads for comfort during long sessions.

Supplier's Notes:
Closed-Back Headphones of Excellence

Experience limitless possibilities with Lensys Professional. Whether you're in the studio or on the move, these headphones provide the comfort and durability you need. Their closed design, meticulous ergonomics, and robust materials make them the ideal choice for any environment. With Focal drivers delivering extremely accurate sound, you can trust these headphones for professional use. Plus, the included case and two cables add further convenience and flexibility to your experience.

Comfort & Insulation

Comfort is essential for headphones used during extended work sessions. The Lensys Professional headphones are designed to be lightweight and feature memory foam ear cushions for a comfortable fit and excellent sound insulation. Additionally, the aerated fabric headband provides a consistent curvature, making it perfect for extended wear.

Accuracy. Anywhere.

The Lensys Professional headphones are designed to offer a neutral tonal balance and high accuracy, making them an excellent choice for mixing. Their versatility and reliability make them a valuable tool in any setting, instilling confidence when working with audio. Additionally, they provide an immersive experience for binaural work.

Focal Expertise

The 40mm aluminium-magnesium 'M' dome drivers provide linear frequency response, low distortion, and improved sound dispersion, resulting in highly accurate sound. Their slightly angled position in the earcups enhances the stereo image, while their acoustic load has been optimized for operation similar to that of a bass-reflex loudspeaker.

Notes: Super versatile granular filtering. Incoming sounds are granulated, then processed with eight contrasting filters. Hands-on and CV controls allow you to manipulate and modulate the output.

Supplier's Notes:
Sisyphus is built around a granular engine and a palette of eight original filters. Its granular system allows multiple grains to coexist within a single stereo audio stream, where they combine and interact with each other.

This filter is based on a comprehensive granular approach to sound: rather than a granular engine followed by a filter, it offers true integration of filtering into the grain-generation process. Each generated grain carries the filtering characteristics defined by the musician and will be combined with other grains according to evolving, configurable patterns.

These filters have been developed entirely from scratch in-house, without using typical filter libraries, so they each have their own unique color for you to explore!

Filters

Lowpass: Attenuates high frequencies above the cutoff frequency. 12 dB/oct slope.
Highpass: Attenuates low frequencies below the cutoff frequency. 12 dB/oct slope.
Bandpass: Lets through a band of frequencies around the cutoff frequency. 12 dB/oct slope.
Notch: Dips around the cutoff frequency while letting the rest of the spectrum pass through.
Peak: Boosts the band around the cutoff frequency while allowing the rest of the spectrum to pass without a drastic cut.
Comb: Creates a series of cancellations and resonances based on an internal delay and feedback.
Karplus (Karplus-Strong: Simulates the vibration of a string or looping resonance by combining a short delay, feedback, and damping.
Ladder: Inspired by Moog-style analogue filters, with four stages in cascade. Features a steep slope (24 dB/oct) and a distinctive resonance that can reach self-oscillation.

Filter Controls

Cutoff (Cutoff Frequency):Defines the filter's cutoff frequency or center frequency (depending on filter type), ranging from 10 Hz to 20 kHz.

Resonance: Emphasises frequencies near the cutoff frequency, from a slight bump up to the edge of self-oscillation.

Feedback: Re-injects part of the output back into the filter input.

Variations: Introduces an instability in the setting of the cutoff frequency, resonance, or feedback (depending on the selected filter), allowing for a more or less "organic" filter character.

Grain Controls: The incoming sound is continuously sampled and segmented into buffers. Each segment is analysed, filtered, and then extracted to become a grain. You can change the length of each grain, the interval between grains, the way grains follow one another, how they are arranged in relation to each other, and their density (number and influence).

Grain Length: Adjusts the length of the audio grains. The shorter the grains, the more the sound fragments into a "grained" granular texture; the longer the grains, the closer the result is to the original sound, but filtered and delayed. When multiple grains are played simultaneously, longer grains make echo effects more noticeable.

Grain Interval: Determines the time between the start of two successive grains (or the probability of automatic triggering).

Pattern: Grains are organized according to predefined, adjustable patterns. Several scenarios allow you to explore different ways grains can combine, from highly organized to more chaotic.

Density: Determines how many grains are played simultaneously and their intensity.

Variability: Sets the magnitude of the special effects specific to each pattern.

Transition: Defines the shape of the envelope applied to the grains as they link together.

Input and Output: Sisyphus works with two parallel channels that share the same settings. You can use it either in stereo mode or as two separate mono audio channels.

CV Inputs: Four CV inputs allow control of Sisyphus using other Eurorack modules. These inputs accept the standard Eurorack voltages (0 to 8 V).

The four basic parameters that can be controlled via CV are: Grain Length, Density, Cutoff, and Resonance.

However, you can configure the module differently using an external file on an SD card. In that case, any CV input can be assigned to any control, the input voltage range (from 1 to 8 V) can be set, LED brightness can be adjusted, and more.

Specifications

Width: 24 HP

Power Consumption:
+12 V: 200 mA
-12 V: 10 mA
+5 V: 0 mA

Depth: 28 mm

Carefully built in France, with all potentiometers bolted to the front panel, and shipped in a metal storage box.

Power cable and knurlies included.

Notes: In collaboration with 4ms Befaco have designed this custom pod to achieve the perfect match of your Oneiroi with your desktop synthesizers, effects pedals, modular synthesizer or any kind of music gear.

A small and portable modular system to exploit the full potential of Oneiroi.

Notes: Developed in conjunction with Dutch software dons 112dB, the Echolocator brings precise, ultra-controllable delay to the hardware realm. Full stereo design with filter and shimmer modes, freeze function and foot switch input.

Supplier's Notes:
The Echolocator is a hands-on precision tool that lets you take manual and very musical control over small nuances. Like a bat navigating its environment in the dark, you can feel your way through your live performances and shape the delay response and character on the fly. Featuring 12 parameters for detailed sound design, save/recall functions for all parameters, MIDI control over all parameters and a sleek aluminium case to match our lineup of compact desktop units, the Echolocator will let your setup take flight in any live show, studio or sonic experiment.

Notes: ***B-STOCK: Box opened, product in perfect working order***


Upgraded second-generation version of the high-end DT 1990 features improved sound, increased comfort and top quality sound, all based around the new generation Tesla 45mm driver.

Supplier's Notes:
DT 1990 PRO MKII - the evolution of a studio legend

The DT 1990 PRO MKII open-back studio headphones are the second generation of the popular premium model. They boast improved sound, increased comfort and industry-leading workmanship made in Germany. At the heart is the newly developed TESLA.45 driver technology. Suitable for mixing, mastering and editing, they are the perfect choice for discerning users who want to take their tracks to the next level.

The open-back reference

Thanks to their open-back design, the DT 1990 PRO MKII offers a natural, spatial sound pattern, which makes them ideal for professional mixing, mastering and editing.

The new generation of TESLA technology

TESLA.45

The DT 1990 PRO MKII feature the latest generation of TESLA driver technology TESLA.45. Redesigned from the ground up, the 45mm driver system boasts an excellent resolution, extremely low distortion and outstanding impulse behaviour. The TESLA.45 provides signal fidelity even at high volumes. Beyerdynamic's engineers have managed to combine studio-sound and flexibility thanks to weight-optimized materials. The DT 1990 PRO MKII has an impedance of 30 ohms, which means that the studio headphones can be used with a variety of end devices.

When it comes to sound, the reference headphones boast precise bass response right down to the lowest octaves. The slightly reduced highs compared to the previous model offer a high amount of information and help to avoid wrong decisions when mixing. Thanks to the wide soundstage, instruments and voices can be precisely pinpointed.

The sound transducers are manufactured at the company headquarters in Heilbronn, Germany. Each DT 1990 PRO MKII contains two TESLA.45 sound transducers, which are measured several times during the various production steps.

Maximum comfort

The DT 1990 PRO MKII is designed for several hours of use in the studio and offers outstanding comfort. The robust, flexible spring steel headband design ensures optimum contact pressure. Thanks to the skin-friendly velour ear pads, the headphones are comfortable to wear even during long sessions. The headband, consisting of soft memory foam and durable leatherette, adapts perfectly to the shape of the head. And thanks to the fontanelle recess, potentially pain-sensitive areas on the head are avoided. Both the headband and the ear pads can be replaced if necessary.

Two sound signatures

Designed to maximise flexibility, the DT 1990 PRO MKII is supplied with two different types of ear pads. The 'Producing Velours' fitted as standard deliver a full sound thanks to a slight bass boost. The 'Mixing & Mastering Velours' offer a more analytical sound. Two cables are also included: a 3m straight cable and a 5m coiled cable. Both cables have a lockable 3-pin mini-XLR plug. Everything is safely stored in a high-quality hard case.

Industry-leading workmanship

Thanks to German manufacturing expertise, the DT 1990 PRO MKII sets the benchmark in workmanship and durability. The TESLA.45 driver systems are measured within tight tolerances several times during production. High-quality materials such as anodised metal and hard-wearing plastics make the DT 1990 PRO MKII a long-term investment. In the interest of sustainability, almost every part of the premium headphones can be replaced.

Notes: ***B-STOCK: Box damaged, product in perfect working order***


Classy stuff from the London label's debut collab with one of our favourite synth brands. Classy stereo delay with analogue filtering and creamy valve distortion. Perfect for studio or live use.

Supplier's Notes:
Ninja Tune - an English independent record label based in London and Erica Synths have teamed up to create a custom dub delay effects unit, the Zen Delay.

Features
Controls: delay time, feedback, delay mod (5 presets), tap button, dry/wet, bypass switch, filter cutoff, resonance, drive, input level, filter mode

Inputs
Stereo In: 2x standard jack

MIDI In: standard MIDI socket

CV In: standard jack

Outputs

Stereo Out: 2 x standard jack

Delay times: 1-5000ms with 1/8...x8 of clock/tap rate in beat mode

Inspired by a trip to Berlin's trailblazing music hardware trade show Superbooth, Coldcut's Matt Black and longtime friend Dr Walker (Liquid Sky artist collective / Air Liquide) envisaged the exciting possibilities of a custom hardware effects unit. The result is the creation of the Zen Delay i the first-ever hardware effects unit produced in collaboration with an electronic music label.

Bringing together the best of the digital and analogue worlds, the Zen Delay is a BPM-synced stereo delay line, combining extreme feedback ranges for dub and experimental lo-fi effects with a multi-mode 24 dB synth filter and valve overdrive.

Created and manufactured by Erica Synths, the unit is housed in a metal case with Erica Synths' signature bakelite knobs and a valve circuit for extra analogue warmth. While sonically versatile, it is incredibly easy to use each function has a physical knob that you can play around with without diving into manuals or scrolling through menus on a tiny screen.

Crafted in close collaboration with DJs and producers, the Zen Delay was uniquely developed with both live and studio use in mind and is suitable for many different performance situations, musical styles and instruments. While most delay devices are designed as 'stomp boxes' for guitarists, the device is equally powerful in the hands of electronic music producers, artists and DJs, adding a unique, warm and powerful sonic character to drum machines, loops, vocals, synths, samples or any other source. Even full tracks or a live stereo mix can be enhanced by the combination of analogue and digital circuitry, breathing new life into iPad performances and giving traditional digital synths and drum machines a huge kick.

The Zen Delay is a product of our expertise on vacuum tube designs, our powerful, custom DSP platform and the great sound of our filter ICs made and developed in Latvia. It by far exceeded expectations in terms of how it sounds and feels when played. - Girts Ozolin

The Zen Delay is the analogue delay unit I've been waiting for. Stereo warmth, tone and texture. Perfect for live abusage, and studio madness love it - The Bug

The Zen excels at the sort of extreme dub possibilities Coldcut love. Feed it back! - Matt Black

For years I have dreamed of a state-of-the-art stereo valve dub delay for my MPC that perfectly masters all sound aesthetics from "badass" to "psychedelic hypnotically trashed" and now, have a look! There it is... the Zen Delay! - Dr Walker

Power: 12v (power supply for worldwide use is included)
In/Out levels: 3.2v peak to peak
DAC
114 dB dynamic range

-100dB THD+N

ADC
108 dB dynamic range

-98 dB THD+N

Dimensions: 21 x 15 x 5 cm
Weight: 870g

Notes: ***B-STOCK: Box opened, product in perfect working order***


Valve-based pre-amps meet cabinet simulation in this ultra-flexible pedal. Dial in your tone, patch in effects, and control the lot via MIDI or USB. A brilliant combination of analogue and digital.

Supplier's Notes:
Tsakalis is proud to release their most ambitious product to date. Seamlessly blending the authentic analogue warmth of real tubes with a highly configurable cabinet simulator, plus flexible outputs and control options, the MOTHERSHIP - Real Tube Preamp stands out as possibly the most highly featured and flexible front end for any guitar rig currently available.

The MOTHERSHIP is a complete solution for authentic vintage and modern genuine tube amp tones, in a user-friendly and lightweight, yet rugged package that is designed to slot in easily into any setup.

Both channels on the MOTHERSHIP are identical, yet highly configurable.

Featuring three gain modes (High, Medium and Low) on each channel, along with a toggle switch for selecting between your three chosen speaker simulations, the MOTHERSHIP can conjure up a multitude of both iconic, familiar and unique tones easily and intuitively. Each channel also features two master gain controls along with two master volumes, allowing four different voices to be instantly recalled, either by pressing the relevant footswitch or via MIDI command.

Demonstrating its prowess as a fully comprehensive plug and play device, the MOTHERSHIP also features over 70 free custom cabinet simulations to choose from (when connected to Tsakalis' own TAW Editor app via USB), separate dedicated simultaneous outputs for both the cabinet simulator and a "dry" output for your amp of choice, MIDI control of channel, A/B selection and bypass and also a serial mono FX loop for added tonal versatility.

Fully-featured all-analogue real tube preamp design

The MOTHERSHIP represents the perfect "amp-in-a-box" pedal, seamlessly blending a beautifully designed, real tube front end with a highly flexible cabinet modelling solution. However, it also shines as a genuine tube overdrive pedal when connected to the front of your amplifier, or when running it as the tone defining preamp section of your setup, directly into your power amp. It can also do both of these things simultaneously.

Quad channel tube preamp and drive

This preamp pedal has two completely independent channels, each featuring a four-band EQ, two different Gain/Volume sections, three selectable gain-stages and three selectable cabinet simulations, plus a serial mono effects-loop for your external effects, MIDI in and free access to Tsakalis Audioworks' full free online library of carefully selected and curated digital cabinet simulations.

The MOTHERSHIP's two independent channels were carefully designed with a real tube audio path, providing a huge range of tones from warm or sparkling cleans all the way to high gain tube driven distortion. The two ECC83 (12AX7) tubes, run at a comfortable 240 Volts, providing touch sensitivity, headroom and plenty of gain and tube sag as required.

Each channel features a four band EQ (Bass, Mid, Treble and Presence) and two different Gain and Volume controls (Gain A-Volume A / Gain B-Volume B) transforming the MOTHERSHIP into a quad channel powerhouse.

The dedicated MODE switch for each channel is responsible for the tube audio path structure, giving 3 different gain modes L = Low, M = Mid and H = High, allowing you to easily customize completely different lead and rhythm tones with different gain structures as well as a solo volume boost for each and access them on-the-fly by simply pressing the relevant footswitch.

Notes: Analogue discrete Synthvoice with two VCOs, three SUB-VCOs, Wavefolder, Noise, Ring Modulator, two loopable ADRS, two LFOs/VCOs, MIXER, 24db Lowpass VCF, VCAOur new Eurorack flagship hits stores this summer. Very compact (pre-patched) discrete synth voice module with excellent analogue technology for endless soundscapes at a reasonable price.

Two discrete VCOs with highly stable tracking

Three analogue Suboscillators (3/4-1/2-1/4 with SQUARE, SAW, TRI) + Gravity Mix -Sync

Wavefolder (VCO 1 TRI WAVE)

White Noise

XOR Ringmodulator

Discrete VCA

24dB LP VCF with overdrive

Dual analogue LFO (one also usable as VCO) with incredible range and keytracking -Two superfast and punchy analog ADSR sections with LOOP function and four TRG outputs (End of ATT, End of DEC)

Mixer section with Master level -Glide presets and huge Patchfield to communicate with other Eurorack Modules.

Screwed metal shaft potentiometer

Rackspace: 36TE
Depth: 25mm

Notes: In 2025, MOOER has announced that it will be set to release its latest multi-effects pedal, the GS1000 Intelligent Amp Profiling Processor, an augmented intelligent amp profiling processor. Built on MOOER's advanced third-generation digital platform, the GS1000 introduces groundbreaking MNRS 2.0 technology, allowing guitarists around the world to emulate their favorite gear with immense precision -specifically, for distortion pedals, preamps, amplifier heads, and cabinets.

With this innovation, guitarists can fully capture the essence of their favorite guitar gear without owning the physical hardware, enabling them to carry their favorite tones wherever they go. Users are even able to use third-party IRs for cabinets of their choice, further enhancing the flexibility of this feature.

It's unforgettable how much MOOER's multi-effects pedals have impressed audiences so far, primarily thanks to their robust tone libraries. However, even still, the GS1000 continues to build upon this with storage for up to 120 sampling profiles, along with continued integration with the MOOER Cloud app. Essentially, this cloud integration facilitates infinite upload and download possibilities, giving users access to a global community of shared tones, widely expanding the number of accessible tones. More still, the GS1000's previously mentioned third-party IR cabinet simulations support up to 2048 sample points, guaranteeing studio-grade tonal accuracy across the board.

Even more impressive for the price is how the GS1000 inherits the dual-chain effects architecture that made previous MOOER gear so versatile, making it suitable for highly complex usage scenarios. With over 350 factory effects models and a Sub-Patch preset grouping mode, the GS1000 makes it far simpler for users to make seamless transitions between tones, all while maintaining effect tails to guarantee seamless transitions. Additionally, the reintroduction of the innovative AI-driven EQ Master builds upon MOOER devices' previous capabilities, using intelligent adjustments in real-time to match the musical style of players to tones, while still allowing manual tweaks for precise control.

Impressively, the GS1000 also comes packed with a Groove Station module, consisting of a combination of drum machine and looper features - including 56 high-quality drum kits! It offers a 480-second phrase looper with infinite overdubs, automated detection, and synchronization capabilities, resulting in an intuitive platform for solo jamming, composition, and live loop-based performance. Overall, the Groove Station acts as an all-in-one suite for creating full arrangements, without having to depend on additional backing tracks or bandmates.

Visually and functionally, the GS1000 really stands out thanks to its sleek visual design and enhanced user experience. For example, it features a convenient 5-inch high-resolution touch screen, which is also paired with ambient lighting to add a visually stunning element to the pedal. As a result, the GS1000 is not only designed for convenient touch-based control but also as a standout centerpiece in any guitar rig.

In addition to this touchscreen control system, the GS1000 also provides expanded connectivity options, improving upon the already impressive flexibility of past pedals. Most notably, it supports connectivity with the MOOER F4 wireless footswitch, as well as the ability to control presets via external MIDI devices.

As is expected from MOOER these days, the GS1000 also excels when it comes to routing opportunities, going above and beyond the typical stereo 14" inputs and outputs that would be expected from other brands. Yes, it still includes such staples, but it also includes an XLR microphone input, alongside balanced TRS outputs for long-distance signal clarity. The configurable serial/parallel stereo effects loop enables seamless integration of external effects, and the addition of Bluetooth audio input and MIDI compatibility broadens its wide range of use cases for live and practice-based applications.

Furthermore, the pedal also serves as a professional audio solution thanks to its low-latency 2-in/2-out ASIO USB sound card. Supporting up to 192kHz sampling rates, the GS1000 makes recording and live streaming effortless, as it can easily be used with software DAWs, MOOER's editing software, as well as the USB-based MIDI control.

The GS1000 will be available in two versions - the standard white edition, which is powered by mains power, and the GS1000 Li version, which introduces a 7.4V 4750mAh lithium battery, chargeable through its power port. With this upgrade, users can enjoy up to six hours of continuous power-free playtime, making it ideal for practicing, busking, and generally performing on the go.

Overall, for fans of MOOER's previous amp simulation offerings, the GS1000 represents a natural evolution, building on everything that made its predecessors great while introducing cutting-edge features and expanded capabilities. Most importantly, MOOER has promised to continuously update its MOOER 4.0 tonal algorithms on the MOOER Cloud in line with the release, keeping things fresh for the company's dedicated user base.

Notes: Best known for Eurorack synth modules, Noise Engineering's Batverb builds on the brand's extensive experience, offering a performance-focused take on echoes, dynamics and tone.

Supplier's Notes:
Batverb is the stereo reverb that dreams are made of. Taking inspiration from Noise Engineering's famed tail-generating synth modules, Batverb brings reverberation and delay to a whole new level with extensive control of timbre, echoes, and dynamics.

Start by setting a predelay time and adjusting Regen to taste: this will set the length of the tail, from a short slapback-style echo to an infinite wall of reverberation. Add in some chaotic suboctaves with Doom, or some haunting overtones with Shimmer - or both at the same time. If you need to carve the range for your reverb, Batverb has low and high damping settings for the reverb tank. Batverb even has settings for saturation that can be applied to only the reverberant signal, or to the whole output.

Batverb is easy to balance with the rest of the effects in your chain, thanks to its onboard dry/wet Blend control, as well as input and output gain parameters. It also features a unique Duck switch that allows the reverb to duck out of the way of an input signal, or match the dynamics of your playing, similar to a gated reverb.

Batverb was designed to integrate perfectly into your performances. The left switch mutes the input to the reverb and sets the feedback to maximum, creating a wall of sound as long as it's held down. The expression input can also be routed to any parameter on the pedal. Plus, if you're a fan of MIDI, Batverb can store and recall 16 different presets and recall them in response to program change messages.

Batverb is an advanced pedal with state-of-the-art features, but it's incredibly easy to use and immediately fun to play.

Notes: Quirky synth fun from JMT, the NDE-1 is based around two oscillators, sample and hold, noise generator and a four-pole low-pass filter. Generate random tones, control via a sequencer or process external audio.

Supplier's Notes:
This model consists of two VCOs (oscillators), SAMPLE & HOLD, noise generator, low-pass filter, LFO, VCA, and envelope generator to create a powerful sound.

By itself, a wide range of sounds can be created, including random and regular intermittent sounds, mute timing, and fine-tuning of levels.

If you input sounds from other equipment through the A IN, you can apply a variety of filters, LFOs that oscillate the filters, and mutes to the input sounds in parallel with the built-in oscillator.

The variable range is wide enough to produce a variety of sounds. The filter is a 4-pole filter that works very smoothly, and external audio can be input via A IN.

You can also use it with a sequencer to create even more sounds.

CV INPUTs can accept - + 9V. Do not exceed this voltage.

The adapter is not included.

Please use centre negative 9V POWER SUPPLY or A 9V battery.

Notes: Clock generation meets waveform manipulation in this analogue harmonic oscillator. Combine with the Tobinski sequencer and/or interpolating scanner modules for the best creative results.

Supplier's Notes:
The Harmonic Timing Generator is a versatile Eurorack module that combines advanced clock generation with harmonic waveform manipulation. Combined with the Tobinski Sequencer, the module is a great tool for rhythmic and sonic creativity in the modular system.

As a reference clock generator, the Harmonic Timing Generator produces a base frequency with analogue multipliers (x1 to x8) to generate complex timing signals. Three selectors provide manual or voltage-controlled frequency switching, offering flexibility for intricate sequencing patterns. An LFO mode enables slower clocking rates, ideal for driving sequencers or generating modulation sources.

When used with the Interpolating Scanner, the sawtooth outputs of the Harmonic Timing Generator are transformed into sine waves. This allows the module to function as a harmonic oscillator at audio rates or as a versatile modulation source in LFO mode. Its dual functionality ensures that it can adapt to a wide range of patching needs, from rhythm generation to rich harmonic exploration.

The Harmonic Timing Generator is a versatile and creative tool, offering rhythmic and harmonic possibilities that complement any modular synthesizer setup. Its integration with other Tobinski modules ensures a cohesive and expansive sonic palette.

Power consumption: 235mA at +12V and 176mA at -12V and 20mA at +5V

Depth: 27mm

18 HP

Notes: ***B-STOCK: Box damaged, product in perfect working order***


Meet Stardust, a cosmic tape looper.

The foundation of Stardust is a stereo looper with all the essential controls to record and manipulate sound, while supporting click-less looping transitions, an ultra-low noise floor, and high-fidelity audio hardware. However, getting the perfect loop is only half of the equation, Stardust also focuses on the texture and vibe of your recordings. Dial in a classic tape machine style warmth with wow & flutter/tape hiss controls, or take Stardust to new horizons with DSP effects. And, much like the tape-machines it takes it's inspiration from, Stardust can splice and rearrange its loops at the twist of a knob.

With an impressive set of front panel controls, the ability to save, recall, or export recordings, load samples via an included USB flash drive, and a host of configurable settings via our web editor Narwhal, Stardust is a comprehensive looper device.

Power Consumption: +12V=201mA, -12V=13mA, +5V=0mA

Notes: ***B-STOCK: Box opened, product in perfect working order***


Another innovative groovebox from Polyend, the Synth allows you to sequence and perform up to three synths from eight different synth engines. Unique Smart Grid feature allows single-button chords and note followers.

Supplier's Notes:
Compact Design. Massive Sound. Unmatched Innovation.

Easily Play 3 Synths at Once

The power of three synth engines is at your fingertips, all running together seamlessly. Whether you're in the studio or performing live, you can juggle between different engines, adjust parameters on the fly, and layer effects with ease. The built-in sequencers, arpeggiators, and all new smart grid system keep everything flowing smoothly, letting you focus on creativity without interruption. With instantly recallable scenes, you can save and recall every detail of your setup.

Eight Synth Engines to Explore

Dive into a world of sound with eight distinct synth engines, each offering its own unique character. Whether you're drawn to the classic analogue warmth of FAT or the evolving textures of GRAIN, you'll find the sound to shape your creations exactly the way you want:

PHZ: A modern take on phase distortion synthesis with options for both retro and cutting-edge tones.
PMD: Physical modelling technology that simulates realistic instruments or creates entirely new sonic expressions.
GRAIN: A granular engine with two modes, burst and cloud, ideal for rhythmic textures or sweeping ambient layers.
WAVS: Morph between wavetables with intricate control over scanning and phase shifting to create evolving textures.
VAP: A dual-oscillator polysynth that draws inspiration from the classics, offering rich, lush pads and detailed soundscapes.
FAT: Massive sound with three oscillators and vintage ladder filters for deep basses and expressive leads.
ACD: The ultimate recreation of iconic vintage monophonic synths, but with increased customization.
WTFM: A unique FM synthesis engine that uses wavetable-based oscillators for complex sounds without the usual FM complications.

Three Customizable Effects

Take your sound to the next level with three onboard effects, each fully customizable to suit your style:

MOD: This versatile modulation engine can take you from subtle choruses to wild, feedback-heavy flanging.
DEL: Dual delay lines with five unique models, giving you the flexibility to sync with your track or create complex delay effects.
REV: Three reverb modes - Natural, Plate, and Warp - let you add anything from subtle space to massive, otherworldly reverbs.

Reimagined Rhythms

Unlock your full creative potential with three independent sequencers and arpeggiators. Control every aspect of your rhythm, from swing to groove, transposition, and more. Whether you're building tight, rhythmic patterns or sweeping melodies, this system adapts seamlessly to your music.

For Performers, Sound Designers, and Innovators Alike

Always Musical Smart Grid for Live Play

Stay in control even during the most chaotic performances. The customizable Smart Grid ensures every note and chord stays in the desired scale, while making live performances smoother and more intuitive.

Scenes on Demand

Imagine having every setting - from synth engines to sequences - saved in one easy-to-recall Scene file. Build entire live sets and instantly access them with a touch. Plus, share your unique setups with the community

Combo Knobs for Quick Tweaks

Create dramatic builds or subtle shifts with customizable combo knobs. Whether controlling one or all three synths at once, adding movement and dynamics to your sound has never been easier.

Polyphonic Aftertouch

Express every nuance of your performance with polyphonic aftertouch. Adjust multiple parameters with just the pressure of your fingers, allowing for truly expressive, dynamic control over your sounds.

A Dream for Sound Designers

Intuitive 3x3 Knob Matrix

Designed for hands-on control, the 3x3 knob matrix lets you quickly access and tweak key parameters. No need to dive into endless menus - everything you need is right in front of you, ready for real-time adjustments.

Real-Time Visual Feedback

Every adjustment you make is instantly reflected in the visual interface, giving you clear, real-time feedback on how your sound is evolving. Whether you're tweaking filters, modulating oscillators, or adjusting LFOs, you'll see the changes happen as you hear them.

Endless Customization

Expand your creative palette with SD and USB storage. Easily load new wavetables, presets, and entire setups, or share your creations with others. With endless possibilities, this synth is designed to grow with you

Notes: ***B-STOCK: Box damaged, product in perfect working order***


Another innovative groovebox from Polyend, the Synth allows you to sequence and perform up to three synths from eight different synth engines. Unique Smart Grid feature allows single-button chords and note followers.

Supplier's Notes:
Compact Design. Massive Sound. Unmatched Innovation.

Easily Play 3 Synths at Once

The power of three synth engines is at your fingertips, all running together seamlessly. Whether you're in the studio or performing live, you can juggle between different engines, adjust parameters on the fly, and layer effects with ease. The built-in sequencers, arpeggiators, and all new smart grid system keep everything flowing smoothly, letting you focus on creativity without interruption. With instantly recallable scenes, you can save and recall every detail of your setup.

Eight Synth Engines to Explore

Dive into a world of sound with eight distinct synth engines, each offering its own unique character. Whether you're drawn to the classic analogue warmth of FAT or the evolving textures of GRAIN, you'll find the sound to shape your creations exactly the way you want:

PHZ: A modern take on phase distortion synthesis with options for both retro and cutting-edge tones.
PMD: Physical modelling technology that simulates realistic instruments or creates entirely new sonic expressions.
GRAIN: A granular engine with two modes, burst and cloud, ideal for rhythmic textures or sweeping ambient layers.
WAVS: Morph between wavetables with intricate control over scanning and phase shifting to create evolving textures.
VAP: A dual-oscillator polysynth that draws inspiration from the classics, offering rich, lush pads and detailed soundscapes.
FAT: Massive sound with three oscillators and vintage ladder filters for deep basses and expressive leads.
ACD: The ultimate recreation of iconic vintage monophonic synths, but with increased customization.
WTFM: A unique FM synthesis engine that uses wavetable-based oscillators for complex sounds without the usual FM complications.

Three Customizable Effects

Take your sound to the next level with three onboard effects, each fully customizable to suit your style:

MOD: This versatile modulation engine can take you from subtle choruses to wild, feedback-heavy flanging.
DEL: Dual delay lines with five unique models, giving you the flexibility to sync with your track or create complex delay effects.
REV: Three reverb modes - Natural, Plate, and Warp - let you add anything from subtle space to massive, otherworldly reverbs.

Reimagined Rhythms

Unlock your full creative potential with three independent sequencers and arpeggiators. Control every aspect of your rhythm, from swing to groove, transposition, and more. Whether you're building tight, rhythmic patterns or sweeping melodies, this system adapts seamlessly to your music.

For Performers, Sound Designers, and Innovators Alike

Always Musical Smart Grid for Live Play

Stay in control even during the most chaotic performances. The customizable Smart Grid ensures every note and chord stays in the desired scale, while making live performances smoother and more intuitive.

Scenes on Demand

Imagine having every setting - from synth engines to sequences - saved in one easy-to-recall Scene file. Build entire live sets and instantly access them with a touch. Plus, share your unique setups with the community

Combo Knobs for Quick Tweaks

Create dramatic builds or subtle shifts with customizable combo knobs. Whether controlling one or all three synths at once, adding movement and dynamics to your sound has never been easier.

Polyphonic Aftertouch

Express every nuance of your performance with polyphonic aftertouch. Adjust multiple parameters with just the pressure of your fingers, allowing for truly expressive, dynamic control over your sounds.

A Dream for Sound Designers

Intuitive 3x3 Knob Matrix

Designed for hands-on control, the 3x3 knob matrix lets you quickly access and tweak key parameters. No need to dive into endless menus - everything you need is right in front of you, ready for real-time adjustments.

Real-Time Visual Feedback

Every adjustment you make is instantly reflected in the visual interface, giving you clear, real-time feedback on how your sound is evolving. Whether you're tweaking filters, modulating oscillators, or adjusting LFOs, you'll see the changes happen as you hear them.

Endless Customization

Expand your creative palette with SD and USB storage. Easily load new wavetables, presets, and entire setups, or share your creations with others. With endless possibilities, this synth is designed to grow with you

Notes: Part of Knobula's excellent polyphonic Eurorack range, the Monumatic is an eight-voice poly/monophonic synth module with 16 oscillator modes, covering everything from virtual analogue to cutting-edge tone generation algorithms.

Supplier's Notes:
Monumatic is a fully polyphonic 8-voice synthesiser and a monophonic synthesiser packed into a compact 12HP module.

It features16 selectable oscillator modes to provide a diverse range of both classic and futuristic tone generation using exclusively virtual analog algorithms. These include; Roland super-saw, Polymoog vox humana, Casio phase distortion, Solina string synth, percussive drawbar organs , "noisy cassette" strings, pulse width modulation and some gnarly asymmetric sync oscillators, all modelled without samples and each one of these customisable using the Detune control and each providing the foundation for further signal processing though the filter and effects sections.

6 powerful filter types are provided, including a vocal vowel filter, a 24db/oct Butterworth low pass filter, a dual peak notch filter and a phase shifter, each of which features an overdrive setting.

Like its sibling module Poly Cinematic, Monumatic is designed to be simple to use yet versatile, offering minimal controls to access a wealth of sounds, avoiding the need to scroll through 1000s of complex presets.

Monumatic supports full analog control of every parameter, with two instantly assignable CV inputs, as well as dedicated CV inputs for Gate, V/Oct and Filter cutoff, with additional digital control using comprehensive Midi CC and MPE implementation. An altogether unparalleled potential for expansion and integration into the eurorack universe.

As well as full midi capability, the 8 built-in chord presets can be custom programmed to provide polyphonic stabs and pads and using a single CV/Gate input, arpeggios can be layered polyphonically or "plucked" using long release times. The mono/poly function allows the Monumatic to switch between a fully capable poly synth or a mono synth at the touch of a button.

In polyphonic mode Monumatic introduces an advanced micro-tuning system to modular synthesis, it can replicate the organic drift of vintage analogue oscillators or it can apply realtime tuning temperaments to enhance harmonic authenticity using 'just' intonation, this parameter can even be assigned to CV control.

Notes: ***B-STOCK: Item refurbished, repaired and in perfect working order.***


One of our favourite DJ turntables, courtesy of German DJ brand Reloop. Classic Technics-inspired design updated with nice features like reverse mode, 78rpm setting and second start/stop button.

Supplier notes:
With the RP-7000 MK2, Reloop has built a turntable that caters to the high demands of professional DJs and modern nightclubs. With its powerful direct drive motor and rugged construction we were able to develop a sturdy and indestructible turntable that can take on harsh everyday life with ease.

Sturdy Casing Construction:

By using a combination of metal, rubber and synthetic materials, the RP-7000 MK2's housing is more reinforced and heavy than ever before. This results in a turntable that is extremely resistant to vibrations that can be caused by heavy bass sounds in DJ booths and its shock-absorbing feet help to further improve isolation. The surface is coated with a scratch-resistant high-quality deep black or classic silver metallic finish.

Balanced S-Shaped Tone Arm with Upgraded Tone Arm Base:

The RP-7000 MK2 features a statically balanced S-shaped tone arm with hydraulic lift and anti-skating mechanism. The newly developed tone arm base provides improved stability and adjustable height/vertical tracking angle (VTA). The low-resonance tone arm comes with a universal connection for pick-up cartridge systems (SME).

Dual Start/Stop Buttons, Precise Motor Control and Reverse Function:

As well as the above technical innovations, the RP-7000 MK2 is equipped with a few functions that will make any DJ's life much easier. The newly developed aluminium LED target light is freely moveable to help you find the stylus position in dark surroundings. The target light is also removable and easily exchanged. An additional start/stop button has also been integrated to facilitate a vertical setup (battle position) and by using the buttons on the RP-7000 MK2's top panel, you can switch between the three motor speeds (33 1/3, 45 & 78 rpm). Dedicated buttons for forward and reverse mode allow for further creativity in your mix.

High-Resolution Pitch Section with Digital Fader:

Using the high-resolution pitch fader you can adjust the platter speed in the classic turntable pitch range +/-8%. However, the RP-7000 MK2 is also cable of a wider, DJ-friendly +/- 16% pitch range and a massive +/-50% ultra-pitch. This allows for increased creativity when modulating the playing record's tone. If quartz lock is active, the platter speed will remain unaffected by the fader position and will spin at zero pitch (0%).

High-Quality Connections and Integrated Phono Pre-Amp:

Thanks to the recessed rear connection panel, the RP-7000 MK2 can easily be mounted in a flight case and seamlessly positioned next to other DJ gear. The switchable integrated phono pre-amp makes it is possible to use the gold-plated RCA connectors for both phono and line output signals. An optional ground terminal offers additional protection in club environments. All cable connections (RCA/mains) are detachable and easy to exchange, which also helps with transport and storage.

Powerful Motor with Extensive Adjustment Possibilities:

The fine-tuned, quartz-driven motor with digital pitch correction operates at a starting torque of 2.8kg/cm, which can be adjusted up to a maximum of 4.5kg/cm. This makes it an extremely smooth running turntable with wow and flutter of just 0.01% WRMS*. Furthermore, the turntable break speed (platter stop) can be adjusted from 0.2 - 6 seconds and the precision-machined, heavy die-cast aluminium platter is lined with vibration reducing rubber to eliminate unwanted vibrations and resonance.

Notes: Inspired by 'fill' effects found on old-school drum machines, the DeFeel module is unique approach to manipulating sequences, designed to 'degenerate the monotony' of rhythmic patterns, creating variations in real time.

Supplier's Notes:
With DeFeel, Enjoy Electronics have redesigned and applied the Fill concept to make it usable in the world of modular synthesisers.

This device is designed to break the chain between the sequencer and everything that comes after it, allowing you to intervene at the right time and create unique variations.

A modular device that's not going to generate anything, but is created to degenerate the monotony.

DeFeel isn't about complex button presses or cryptic menus. Here, creativity reigns supreme. Design your rhythmic patterns with an intuitive touch. Simple lines and vectors come to life on the multitouch display, allowing you to experiment and craft unique sequences with remarkable ease.

DeFeel, offers musicians and performers a powerful and versatile tool to enrich their performances and compositions. With its intuitive programming, sleek design, and innovative translucent panel, DeFeel stands out as a unique device poised to revolutionize the way modular synthesizers are used and perceived.

Notes: AlphaTheta's ultra-low-latency SonicLink tech makes these flagship headphones some of the most versatile DJ cans on the market. Top quality sound and extremely durable build. (HP-TX01 SonicLink transmitter sold separately).

Supplier's Notes:
The HDJ-F10 is a new model of professional DJ headphones with ultra-low-latency SonicLink
wireless technology. By combining the headphones with the HP-TX01 transmitter, which can be bought separately or in a bundle, DJs can use the SonicLink connection to seamlessly deliver wireless audio to their ears. This means they can move freely in the DJ booth without ever tangling or pulling on a wire. The headphones also feature high-resolution, powerful sound, and outstanding insulation and durability. Bluetooth connectivity is included too, with Noise Cancelling and Transparency modes available.

Ultra-low-latency wireless communication via SonicLink*
The uniquely developed SonicLink technology in the HDJ-F10 headphones enables DJs to move around as they play, without the constraints of cables. When the HP-TX01 transmitter is connected to a DJ mixer, SonicLink transmits sound to the headphones with just 9 msec of latency - 20 times faster than the commonly used Bluetooth SBC codec so DJs will never notice the delay - enabling accurate monitoring and mixing. The transmitter is compact, lightweight, and easy to carry with other DJ gear.

High-volume playback and sound insulation for accurate monitoring
DJs can hear their music loud and clear, even in an extremely noisy DJ booth or onstage, when using the SonicLink wireless connection. The headphones can deliver high-quality sound reproduction at high volumes. And, thanks to newly developed earpads and housing structures, they achieve an outstanding level of sound insulation that's higher than even the Pioneer DJ flagship HDJ-X10 model.

Tight kick sound and wide-ranging audio
The HDJ-F10 is the flagship headphones model under the AlphaTheta brand, designed with a meticulous focus on sound quality. The newly developed 40 mm driver achieves a high-resolution sound, from low to high frequencies, where even the smallest details in the music can be clearly heard. The housing structure combines a bass-reflex duct and air chamber to ensure a high level of sound insulation while also expanding and enhancing low frequencies. This enables DJs to monitor crisp, punchy kick sounds, even in a loud DJ booth, and provides a studio-level monitoring environment for a wide range of situations, from DJing to music production and listening to tracks when preparing for gigs.

Ruggedness for professional use
DJs can rely on the HDJ-F10 headphones to handle life in any environment. They're highly robust and they've passed the stringent US Military Standard MIL-STD-810H shock test.

Bluetooth connectivity and Noise Cancelling mode to serve a complete DJ workflow
While preparing tracks, DJs can choose whether they want to reduce or let in the sound from the world around them when connected to a device via Bluetooth. In Noise Cancelling mode, ambient noise is shut out - even in a busy city - so DJs can immerse themselves in the music as if listening to it in the studio. With Transparency mode, external sounds are let in so it's possible to continue having in-person conversations while listening to music.

Long battery life for extended DJ sets
A full battery gives 9 hours' use with SonicLink or 30 hours' use with Bluetooth. DJs can also play with a wired connection.

*HP-TX01 transmitter enables SonicLink connection - available separately or in the HDJ-F10-TX bundle

Notes: ***B-STOCK: Box opened, product in perfect working order***


Hands-on hardware synth goodness in a boutique desktop format, feauting an eight-voice digital supersaw engine and four-pole filter. Built-in delay, reverb, chorus and freeze effects can be used to process external signals.

Supplier's Notes:
Design philosophy

Knob-For-Knob Functionality:

Artium Instruments are committed to knob-for-knob functionality. Every feature of The Swarm is directly mapped to a knob, button, switch, or jack, ensuring effortless control. There's no need for menu-diving or complicated sequences of button presses to access features; everything is conveniently accessible at your fingertips.

Curated, Onboard Effects:

With over a decade of experience in the effects industry, Artium have carefully curated a selection of effects that seamlessly complement the synth core. Unique to The Swarm is its capability to use the onboard effects with other equipment, allowing you to route external audio through the inputs on the back.

Plug and Play Functionality:

The Swarm utilizes a USB-C MIDI host for simplicity and ease of use. Most modern class-compliant MIDI controllers with USB functionality should plug in and work immediately with zero setup. Additionally, The Swarm provides power to your controller, streamlining your setup process. For older controllers that only have DIN connections, a USB to DIN converter can be used to ensure compatibility. (These converters typically cost $10-20)

Quality Craftsmanship, Intentional Design:

Artium have invested considerable thought into crafting the overall feel of the instrument. From the layout of the knobs to the choice of colours, artwork, and the weight of the enclosure, every detail has been considered. These details matter because the connection a user forms with a piece of gear is almost as crucial in the creative process as the sounds it produces. A lot of love and passion has been poured into every aspect of The Swarm, from its sonic capabilities to its design aesthetics.

Open Source Platform:

Artium desktop synths use an open source platform known as Axoloti or Ksoloti for development and implementation of its products.

Synth core

Oscillator:

The Swarm features a SuperSaw oscillator with 8-note polyphony. This oscillator is composed of seven individual saw waves stacked on top of each other. The magic unfolds when you detune the waveforms by applying a frequency offset, resulting in one of the most massive synth sounds available.

Control Modes:

The Swarm employs this massive sound through two distinct control modes: Polyphonic Mode and Arpeggiator Mode. In Polyphonic Mode, you can play up to eight notes simultaneously, exploring the full range of polyphony. Arpeggiator Mode offers a comprehensive monophonic arpeggiator, automatically sequencing held notes in a variety of patterns, enhancing your creative possibilities.

More Features & Controls:

To shape the sound further The Swarm has a 4 Pole Low Pass Filter with a subtle resonance as well as a simple attack and release envelope.

Onboard effects

All onboard effects can be used with other music equipment. Simply plug an external audio source into the rear input jacks, and The Swarm will seamlessly mix the external audio with its synth core, allowing for simultaneous processing of both signals.

Freeze:

By pressing the touchpad on the right, The Swarm records a 1000ms sample of the current audio. It then layers, and smears the sample, creating an infinite drone frozen in time-a perfect foundation for layering additional notes. The freeze effect facilitates overdubbing, and pressing the touchpad with the freeze knob at its minimum setting erases the memory, allowing the device to capture a fresh sample.

Delay:

The Swarm's delay is a digital delay with a subtle touch of warmth. The delay length synchronizes with the arpeggiator clock, which can be adjusted manually using the clock knob or via the tap tempo touchpad on the left. Additionally, the delay features a multiplier knob, offering a range of unique subdivisions that complement the synced arpeggiator, including quarter notes, dotted eighths, eighths, and triplets.

Reverb:

The reverb effect in The Swarm strives to enhance the natural body and ambience of the synth core without overshadowing it. Its stereo reverb algorithm is controlled by a single knob, which adjusts both the mix and decay simultaneously. This versatile control allows you to seamlessly transition from realistic room or hall effects to expansive cathedral-like soundscapes, offering a wide range of atmospheric possibilities.

Chorus:

The SuperSaw oscillator practically demands to be paired with a chorus effect. The Swarm employs a stereo 4-voice chorus effect alongside a gradually shifting LFO, aiming to craft dimensionality without becoming nauseating.

Controls

Synth core:

Detune - Detunes SuperSaw oscillator
Filter - Cutoff frequency of the filter
Attack - Rising edge of envelope
Release - Falling edge of envelope

Arpeggiator:

"ARP" Toggle - Activates Arpeggiator Mode
"HOLD" Toggle - Stores all notes played in memory
Direction - Selects the direction of arpeggiator (UP, DOWN, SEESAW, RANDOM, ORDER PLAYED)
Octaves - Selects the number of octaves played by the arpeggiator
Clock - Speed of the arpeggiator and delay clock
Clock Toggle - Switches between manual clock knob and tap tempo.
Tap Tempo (Yellow Pad) - Tap tempo for arpeggiator and delay clock

Effects:

Freeze (Yellow Pad) - Press to record. Pressing with Freeze Knob at minimum will erase sample
Freeze (Knob) - Sets the level of the frozen, infinite drone
D.Level - Delay signal level
D.Feedback - Number of delay repeats
D.Multiplier - Sets delay multiplier (quarter note, dotted eighth, eighth, triplets)
Reverb - Mix and Decay of reverb increase simultaneously
Chorus - Sets chorus level

Rear panel

Out(L) - Left Output (stereo headphone jack/TRS when Out(R) is unconnected)
Out(R) - Right Output
In(L) - Audio input to send external audio through onboard effects (If source is Mono, use In(L))
In(R) - Audio input to send external audio through onboard
Oct+: Shifts the entire synth up one octave for every press
Oct-: Shifts the entire synth down one octave for every press
MIDI HOST INPUT - Provides power and communication with your USB Midi Controller
USB POWER SUPPLY - USB-C plug to power synth

Notes: Excellent polyphonic hybrid synth module from Michigan Synth Works, based on the Mutable Instruments Ambika. Six digitally generated voices are processed through a Polivoks-derived low-pass filter. Also available with Roland-style Shruthi SMR4mkII filter.

Supplier's Notes:
Xena is a rework of the legendary Mutable Instruments Ambika DIY synthesiser. Now fully machine assembled with an updated layout and an improved modern power supply. Available with all original 3 voice cards and compatible with 3rd part operating systems as well as a new AS3109 (modern reissue of the original Roland filter chip) filter

Xena Features:

6 voices with individual outputs, one Mix output (Mono)
2 digital oscillators per voice, with 36 oscillator algorithms/wavetables.
1 sub-oscillator, also configurable as a transient generator.
Pre-filter overdrive and bit-crushing effect.
Analogue 4-pole filter (or 2-pole multimode filter depending on the type of voicecard used) and VCA.
3 ADSR envelopes, 3 patch-level LFOs, 1 voice-level LFO.
Modulation matrix with 14 slots and 4 modulation modifiers.
1 arpeggiator, 1 note sequencer and 2 step sequencers per part.
Flexible mapping of the 6 voices. A single patch with 6 voice-polyphony, 6 independent mono parts, 2 layered patches with 3-voices polyphony, a 3-voice unison bass line on the lower half of the keyboard with a 3-voice unison lead on the upper half... all are possible!
MicroSD storage allows the storing of a life-long of patches, programs and multis, along with the history of editing operations for undo/redo.
Easy to change voice cards
Case size: 10.5"x6.5"x1.75"

Filter Options:

The device is available with the original 3 Mutable voice cards (more will be added later one). Mixing voice cards is possible but not recommended.

SMR Filter: This filter uses the same topology as the Shruthi SMR4mkII. It is a low pass 4 pole OTA-C filter. Its is a smooth "Roland-ish" type filter.
4P Filter: This filter uses the same core as the Shruhti 4-Pole Mission but only offers the LP4 output. The 4P filter is perhaps a a bit fuzzier than the SMR type.
SVF Filter: This filter board features a 2-pole state variable filter with low-pass, band-pass and high-pass modes. It is half of the Shruthi SVF Filter.

Includes:

Xena Desktop Synth
12V DC universal (100-240V) Power Supply
Preformatted SD card
