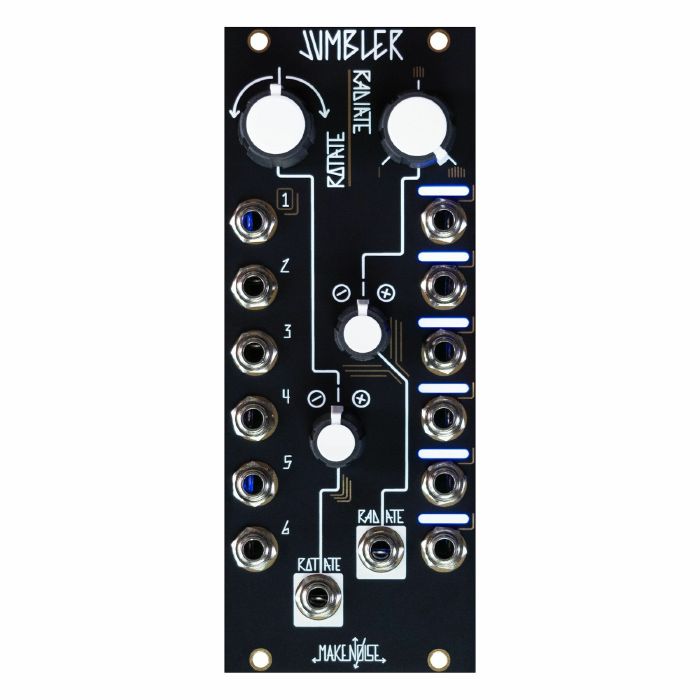

Designed for Make Noise's New Universal Synthesizer System but compatible with all Eurorack modules, the Jumbled is a 6-in / 6-out VCA-based signal router, designed to manipulate and reimagine control voltage signals.

Supplier's Notes:
The Jumbler music synthesiser module is a six by six channel analogue signal combiner and distributor for the New Universal Synthesizer System or any Eurorack modular synthesiser. Jumble is one of the N.U.S.S. concepts where the routings of a patch could be re-configured, or jumbled, instantly via voltage control to produce variations on a theme.

Jumbler gives you powerful two-parameter access to the rearrangement of both origins and destinations for up to six modular signals. One to six inputs are routed to one to six outputs, in an order determined by the Rotate control, and combination determined by the Radiate control. Unlike a simple switch module, Jumbler's analogue VCA-based design is specially geared for smooth transitions and hybrid signals.

Jumbler is a great module for hybrid control voltage mashing, complex waveform mixing, on-the-fly effects re-routing, gate and clock re-combinations and more. Some folks have said it is like patching a stack of 6 RxMx circuits.

Width: 10hp
Max Depth (incl. power cable): 43 mm

Power:
178mA@ +12V
92mA @ -12V
