Notes: When Empress released the original Compressor back in 2011, it quickly became a favourite among guitar and bass players alike who were searching for something more than the typical oversimplified controls found on most compressor pedals. Although our original Compressor sounded great on bass (and still does!) we set out to do even better.

On top of the full range of features and controls normally only seen in high end studio equipment, such as input and gain reduction metering, independent attack and release controls, a mix knob for parallel compression, and an external sidechain insert, we've now added a fully variable sidechain high pass filter, and a two position 'tone + colour' circuit which adds gentle tone sculpting and harmonic distortion, giving your bass some delicious character.

Specifications:
Input Impedance 1M
Output Impedance 2.2k
Frequency Response (-3dB) 10Hz - 20kHz
Distortion less than 0.1%
Noise -101dB
Power Input Voltage 9 - 18 V DC (Negative tip)
Power Input Connector 2.1mm barrel connector (Negative tip)
Power Consumption ~ 100mA
Enclosure Material Die Cast Aluminum
Input connector 1/4" Jack
Output connector 1/4" Jack
Height (Enclosure only) 1.5"
Height (including controls) 2.5"

Notes: The JHS Pedals Flight Delay was made with one goal in mind: to be everything you need in a delay and nothing you don't. In a world full of complex effects pedals, we worked hard to bring you the opposite - a beautifully simple stompbox that combines the most essential delay types with the features that matter. With three modes (Analog, Reverse, and Digital) inspired by some all-time favorite delays - EHX Memory Man, Boss DD-5, and Line 6 DL4 "Reverse Mode" - the Flight Delay is familiar, inspiring, and versatile enough for players in any genre. If you are tired of delay pedals that require frustrating menu diving to find the sound you want, endless scrolling on option screens, and complicated user interfaces, look no further!

Notes: Inspired by the vintage Bell and Howell 385 Filmosound projector that guitarists have modified and used as guitar amps, Walrus has created a dynamic and responsive overdrive modeled after the projector's tone.

The 385 was developed to have the same simple but effective tone control as it's older relative, but unlike the projector, the 385 breaks up the single tone control and integrates separate, boost and cut bass and treble, allowing the player to get more creative with mid-frequency scoops and bumps allowing for a much wider array of tones to be achieved.

The pedal is internally running at 18v, which helps us nail the same dynamic feel of the amp in a stomp box.

This means it is extremely sensitive to how hard you dig in - just like the amp.

Updated for 2023.

Controls:

Bypass: Soft touch, relay true-bypass. Press the switch to engage/disengage the pedal. LED indicates whether the circuit is engaged or not.
A/B: Soft touch switch. Press to swap between using either A (White) or B (Red) Volume and Gain controls. LED indicates which controls are being used - White for A, Red for B.
Volume A: Controls the overall volume in the A setting. Turn clockwise for more volume, counter-clockwise for less volume.
Gain A: Controls the overall gain in the A setting. Turn clockwise for more gain, counterclockwise for less gain.
Volume B: Controls the overall volume in the B setting. Turn clockwise for more volume, counter-clockwise for less volume.
Gain B: Controls the overall gain in the B setting. Turn clockwise for more gain, counterclockwise for less gain.
Treble: Used to adjust the level of the treble frequencies. Turn clockwise to increase the level of the treble frequencies. Turn counter-clockwise to reduce the level of the treble frequencies.
Bass: Used to adjust the level of the bass frequencies. Turn clockwise to increase the level of the bass frequencies. Turn counter-clockwise to reduce the level of the bass frequencies.
385+ Switch: When the switch is down, you are able to achieve classic 385 sounds. Flip the switch up to add an additional gain stage to the input of the pedal, achieving heavier gain sounds and driving the pedal harder.

Specifications

The 385 comes in a matte black finish with yellow and red ink featuring original artwork of a vintage Belle and Howell 385 projector by David Huttner ready to give you the dynamic tone you've been searching for.
The die cast enclosure's exact size is 12.1 x 6.6 x 3.5 cm
Power requirements are 9VDC (100mA minimum). The use of an isolated power supply is recommended for powering all Walrus Audio Pedals.
Daisy chain power supplies are not recommended. Power supply not included.
Input: 1/4" TS, Unbalanced, 1M impedance
Output: 1/4" TS, Unbalanced, 10k impedance
True Bypass

Notes: Introducing a new addition to the DigiTech Whammy Family -- Whammy DT! We've taken the premier pitch shifting effects pedal added drop tuning and true bypass to bring you the ultimate Whammy pedal, the Whammy DT. With the Whammy DT, you can modify your tuning without having to change guitars or pause awkwardly to make adjustments for the next song. Key changes are at the tips of your toes and take just moments, which is crucial when the audience is feeling your vibe. Pitch shifting effects really help your guitar performance stand out and the Whammy pedal has been the core pitch shifting effect for famous artists for over 20 years. Now add full drop and raised tuning in addition to classic Whammy shifting to your effects arsenal and find out why the Whammy DT is the premiere pitch shifting effects pedal for every guitarist.

General Specifications
D/A Conversion24 bit
Pitch Bend Range+2/-3 Octaves
Detune Range-4 to -30 cents
Drop Tune Range1-7 Semitones, Octave, Octave + Dry
Power Consumption2.6 Watts (< 288 mA @ 9 VDC)
Power Adapter9 VDC External Adapter
Sample Rate44.1 kHz
Frequency Response20 Hz to 20 kHz
Signal to Noise Ratio> -105 dB (A weighted); ref = max level, 22 kHz bandwidth
THD0.004% @ 1 kHz; ref = 1 dBu w/ unity gain
Dimensions
Height2.36"
Width8.2"
Depth7.73"
Audio Output
Output Type1/4" Unbalanced TS
Max Output Level+10 dBu
Output Impedance1 kO
Audio Input
Instrument Input Type1/4" Unbalanced TS
Max Input Level+5 dBu
Input Impedance1 MO
MIDI Input5-Pin Din
Footswitch Input1/4" TRS - for use with optional FS3X Footpedal

What's in the box?
1 x Whammy DT Pedal
1 x Power Supply

Notes: For those about to rock... Crazy Tube Circuits have created the Heatseeker!

The sound of a classic wireless system meets three iconic amps that helped shape the history of rock. From its inception/invention, in the mid-70s, this wireless system has been the secret recipe to major rock guitar rigs. The magic ingredient lies to its analogue preamp/ tone enhancer circuit that expands the dynamic response and harmonics of any signal that goes through it. By producing a modern recreation of this hidden gem, there is enough percussive attack to spice up your tone.

Utilizing an all-analogue JFET circuit, running on 27 volts via an internal voltage boost, Crazy Tube have captured the tone and feel of three British tube amplifiers synonymous with the sound of rock and roll with excellent clean-to-mean dynamic response. The "WoS" (Wall of Sound) circuit opens up the soundstage by increasing output and adding thundering lows and dense high mids. The effect is similar to "adding" a wall of amp heads and full stacks to your rig!

A passive effects loop gives you the option to connect your beloved pedals between the two sections, building your ideal rig.

Follows the successful concept of Crazy Tube's "Unobtanium", "Hi Power", and "Crossfire": All-analogue dual pedal designed to recreate a legendary pedal and amp combination.

Inspired by the tones of the gear setup used by Angus Young.

Right side: re-creation of the preamp/tone enhancer circuit of the Schaffer Vega Diversity System.

Left side: 3 distinct Marshall amps-in-a-box: JTM45, 1959 Super Lead, JMP 2203.

Passive series effects loop to connect pedals between the two sections or use them separately as independent effects.

Notes: Mar Karit is a tube pedal preamplifier.

It contains 2 tubes, one NOS EF86 for the preamp section and one 6J1P (6ak5) for the buffer output. It is an all tube Preamp.

It runs on a 9V power supply (center positive) - and operate internally at 35volts. Furthermore, it produces a warm, rich, and full-bodied sound, and can capture both the softest and loudest sounds with great accuracy and clarity.

Pushed a little too far, it can produce pleasing harmonic distortions and warm saturations. The two volume knobs control the level of each stage.

All tube preamp
EF86 and 6J1P
High end components (Nichicon, Panasonic caps, Alpha pots and Switch, Rean Jacks...)
Made in France
True Bypass
9V DC / input power supply positive tip

Notes: Seeking to recreate the sounds of the Klon Centaur overdrive pedal and Dumble guitar amps, the Crazy Tube Unobtanium combines the holy grails of germanium diodes and all-analogue amp-in-a-box tone. Incredible value.

Supplier's Notes:
Introducing the Unobtanium, a rare sonic element born out of legendary tones.

A mythical overdrive meets the tone and feel of two iconic amplifiers. Crazy Tube Circuits have accurately recreated the circuit of the high headroom overdrive with the magic blend of clean and overdriven tones and added extra features for versatility. The amp-in-a-box section uses an all-analogue circuit to capture the essence of two legendary D-style tube amplifiers. From tube-like compressed fat clean to sweet singing overdrive with blooming harmonic overtones. Combine both sides for near infinite smooth sustain and enter sonic bliss while a passive series effects loop gives you the option to connect your beloved pedals between the overdrive and amp section, building your ideal rig

Right side: K-style pedal overdrive circuit including the fabled germanium diodes
Controls: gain, treble (tone), volume, bypass mode and clipping / compression
Wide gain range control: from transparent boost to high headroom overdrive
Treble control is an active circuit to boost or cut treble
Volume knob sets overall output. Huge amount of dB boost available
Toggle switch to select between the original buffer bypass to add clarity and run long cables or
true bypass
Toggle switch to select between stock clipping / compression or enhanced gain and
headroom/output

Left side: D-style Amp in a box overdrive
Controls: gain, emphasis, tone, volume, amplifier voicing toggle
Gain control: from clean boost to sweet singing overdrive
Emphasis control is a pre-drive EQ to control presence and bottom end response
Tone knob controls the amount of post overdrive high end frequencies
Volume knob sets overall output. Match bypassed volume or use as a clean boost or preamp
Toggle switch selects between 2 distinct D-style overdrive circuits
SSS: clean and transparent overdrive with natural organic compression
ODS: higher gain overdrive with enhanced mid frequencies and harmonic overtones
External footswitch input to select amplifier voicing (bypasses on board toggle switch)
Internal trimmers adjust EQ and volume boost of D-style overdrive voicings

Features:

Dual overdrive with independent operation
Two legendary sonic elements combined in one device
Passive series effects loop to connect other pedals between the two sections or use them separately
Runs internally at 18V DC for higher headroom and tube-like performance
Exceptional pick attack response - almost infinite smooth sustain when both sides are combined
Top mounted jacks
Click-less True Bypass design via high quality relay
Power Supply: Use only 9V DC center negative power supply (not included)
Current consumption 83mA
Pebble grey die-cast enclosure with black ink in old school type print
Made in Greece

Notes: The Voyager MKII is a mid-focused overdrive/preamp that contains all the mythical magic from the original Voyager and adds a wealth of features not seen before in a Klon-style pedal.

From its lowest to highest settings, the Voyager provides a uniquely superb amount of clarity to any playing style. At lower gain settings, it brightens the signal and adds clarity to each note. With the gain turned up, the Voyager transforms into a thick overdrive, providing depth to chorded playing while retaining the clarity needed to break through solos.

The Voyager MKII breaks out of the traditional Centaur three-knob topography by adding a foot-switchable parametric mid-frequency EQ with a boost/cut range of +/-12dB. The Freq (Frequency) knob then controls the centre frequency of where the Mid knob is set, giving a range of 250Hz-2kHz. Great for accommodating any guitar and pickup combination and tailoring your tone to your own style of playing.

Further customize the Voyager's sound with the five-way rotary switch:
1. Classic 1N34A Germanium Diodes (most compressed). This is the original Voyager sound.
2. Classic 1N34A Germanium Diodes with bass boost (trust us).
3. Symmetric Silicon Diodes (more open and dynamic).
4. Asymmetric Silicon Diodes (least compressed, open & driven).
5. Asymmetric Silicon Diodes with bass boost (least compressed, open & driven with a bass boost.)

Think of each position as a different "flavour" of the pedal. Fine-tune each of these modes with the Mid/Freq EQ for a near-infinite supply of gain options.

Notes: Diamond Pedals proudly announces the launch of the Dark Cloud, an innovative delay pedal that represents the pinnacle of hybrid analogue-digital design. Drawing on the company's rich heritage in crafting exceptional analogue effects, the Dark Cloud merges classic tone with cutting edge technology to deliver a delay pedal like no other.

At the heart of the Dark Cloud is Diamond's revolutionary Digital Bucket Brigade Delay (dBBD) technology, which seamlessly blends the organic warmth of analogue companding with the precise control of an embedded digital system. This unique architecture allows the Dark Cloud to deliver three distinct and creative delay modes (Tape, Harmonic and Reverse), each meticulously crafted to provide a wide range of sonic possibilities.

Where analogue warmth meets digital precision, the Dark Cloud redefines delay effects to create a pedal like no other.

The Dark Cloud holds special significance as the final project conceived by the original Diamond team before their closure. What began as a modest attempt to repurpose older designs evolved into a masterful blend of the company's most beloved delay algorithms, combined with an entirely new Reverse Delay setting.

As a result, the Dark Cloud is essentially a "greatest hits" of Diamond's delay technology, refined into one powerful pedal that pushes the boundaries of what delay effects can achieve.

Notes: Amazingly versatile phaser business in this brilliantly designed pedal. Watch the demo video to hear the amazing range of sounds this one can do. Best phaser ever? Might just be.

Supplier's Notes:

Jump into spaceship Horizont and begin your trek into star- filled galaxies, all while discovering the incredible vastness of the sounds created by this inter-dimensional multi-spatial stereo analog JFET Phaser. The unexpected is waiting for you behind the far away horizon and it will be a journey you'll never forget!

The Horizont's mission is to push way beyond the classic phasing sounds of yesteryear, and take you to uncharted phaser worlds the second you plug in. By combining lush analog JFET phasing with digitally controlled dynamics, Horizont creates a vivid and expressive modulation experience, all while providing experimental and creative features that'll kick phasing well into the 21st century.

Besides the more common phaser controls, the Horizont offers a plethora of new and exciting options for all the interstellar tone chasers out there. To greatly broaden the range of phasing tones available, KMA implemented a digital LFO with no less than eight different waveforms: Ramp Up/Down, Sine/Triangle/Square wave, a sweeping waveform, Sample & Hold and a random slope waveform going from 20s down to 40ms.

The implemented envelope generator is one of Horizont's absolute key features. It transforms your input signal into a control source to modulate the speed of the digitally controlled LFO or lets you manually phase for a resonant touch wah- like sound, depending on the state of the SWP- and SPURTCONTROL-Switch.

Set the SPURTCONTROL switch to LFO to let the SPURT knob adjust the internal phasing speed. However, by flicking the switch to ENV (Envelope) mode, it allows you to dynamically modulate the speed along the full LFO speed range, based on how loud the input source is (e.g. when you attack the strings hard). You can also combine the SPURT knob and the envelope by flicking the toggle to LFO+ENV where SPURT then sets the minimum speed. For even more control, you can even plug in an external expression pedal/CV-source (0-5V) to alter the minimum speed on-the-fly or you can use the TAP TEMPO switch (tap just twice) to set the speed to fit in with the tempo of your music.

The EXP-Mode switch also lets you choose between a manual phasing mode, controlled by an expression-pedal or an external CV source. Setting the EXP-Mode switch to the middle position will disable any external expression control.
The SWP (Sweep) switch lets you decide to use either the LFO or the envelope of your instrument signal to control the phasing.

The envelope can be set to upwards or downwards operation via the ENV switch, seeing the LFO either slowing down or speeding up, or flipping the orientation when phasing manually from lows to highs and vice versa. In conjunction with the FUEL (Sensitivity) and the DECAY controls, the envelope can be tailored perfectly to your needs.

The EMPH (Emphasis) mode from the original Astrospurt Phaser was kept, but have reworked and refined it extensively for the Horizont. The four toggle-switches determine the stage in which the phase-shifted signal is fed back into itself, while the REG (Regeneration) control sets the feedback amount. We also smoothed out the overall sound of the EMPH mode for a more pronounced, and crisp vocal-like tone. Each of the different switch variations and turn of the REG control will yield different results, seeing you discover new wild, fuzzy and noisy galaxies as you travel deeper down this sonic wormhole.

In order for you to levitate through spacetime, a stereo output has been added to the Horizont. You can switch between a standard stereo output or a panning output, via the STEREOPAN switch. Synchronized with the LFO speed, the upper cycle of the LFO sends the signal to the OUT1 and the bottom cycle to the OUT2. This is without a shadow of a doubt the most liquid and astonishing phasing experience you'll ever embark upon. But wait, there's more! Stop and take a deep breath, set the MIX control to fully clean and the Horizont is transformed into a Tremolo on-the-spot, with all the other aforementioned features.

Last but by no means least, the Horizont was equipped with an FX-Loop right in front of the phase-shifting line. This enables you to add your own secret sonic weapons to this spaceship, seeing you create your very own unique phasing sounds.The pedals' headroom was also increased drastically by boosting the internal circuit voltage to 18V, from the regular 9V input, to give the cleanest phasing possible no matter what instrument or line source you use.

Notes: The latest EarthQuaker Device actually is the same as the latest Death By Audio device - the TIME SHADOWS II - Subharmonic Multi-Delay Resonator. This new pedal is a joint collaboration that brings their sonic soundscape trips to your melted mind.

With the switch to the left Time Shadow's controls are completely the brainchild of EarthQuaker Devices resident genius Jamie Stillman. Flip the switch to the right, and you enter the head of the madman Oliver Ackermann from Death By Audio barely clutching to reality. Place the switch in the middle and enter a whole new realm of pitch warping delays brought to you by a telepathic mind-meld with a 5th dimensional dream being.

All three sounds are wildly different from each other and yet share a perfectly designed harmony to be completely complementary and suitable for every style and genre of music.

The EarthQuaker Devices side transforms whatever you play into the sound of a jazz space bazooka! It's a pitch morphed fuzz delay filter with so much attitude that you are actually intimidated. It takes the input signal, blows it out with power of digital distortion, blends it with a polyphonic sub octave, feeds it into a delay, then spits it out into a highly resonant envelope controlled lowpass filter.

The Death By Audio side is a multi-delay filter remorphinator that goes from icy shimmers to cosmic space caves of bouncing repeats.

The middle position is an energy beam that brings your earthly transmissions repetitively closer to the heavens while simultaneously diving deep into the hells.

In addition to all this madness we also bring you a user assignable expression jack and 6 preset slots to save and recall your favourite settings!

With these three unearthly delights, you should have everything you need to break brains and destroy monotony!

Notes: Excellent value from the updated Mooer delay/reverb/looper. The Ocean Machine II features improved sound quality all round, plus expanded loop memory up to a total of 120 seconds.

Supplier's Notes:
Similarly to the original, the Ocean Machine II offers two independent delay modules, each with nine different delay types of up to two seconds, including household names such as digital, tape, and echo delays, as well as more abstract options, such as galaxy, crystal, and rainbow. A high-fidelity reverb module complements these delays with nine reverb types, as well as a shimmer effect. Each delay and reverb effect can also be 'frozen,' creating static ambient drones, an effect that sounds particularly impressive considering the pedal's DSP upgrades.

While the original Ocean Machine's looping capabilities provided just 44 seconds of loop storage, the new addition features an impressive 120 seconds. To experiment with this feature, along with Ocean Machine II's other sonic capabilities, users can use an intuitive LCD screen along with 12 knobs (four for each delay and reverb module) to easily adjust parameters within the device's 'Play Mode.' Three footswitches are also provided to facilitate independent effect toggling, tap tempo control, looper interfacing, and a preset selector.

Once the guitarist has crafted an interesting effect chain, they can save their work as a preset and enter 'Patch Mode,' in which they can toggle between saved settings with each of the three footswitches. In total, the Ocean Machine II provides eight preset storage banks, each of which supports up to three presets, resulting in a total of 24 save slots.

The pedal's versatility is further enhanced by its programmable parallel and serial effect chain hybrid, a signature element of Devin Townsend's tone creation. This feature allows users to customize the order of effects, providing endless creative possibilities. Further programming options can be accessed through the LED screen, which impressively includes synchronizable MIDI connectivity, a feature that was absent in the original Ocean Machine.

In addition to MIDI, the pedal supports various external control systems, including expression pedal input through a TRS cable. Furthermore, the pedal is compatible with MOOER's F4 wireless footswitch, allowing for extended capabilities for mapping presets and other features. A USB-C port is also available for firmware updates, ensuring that the pedal remains up-to-date with the latest features and improvements.

Considering the experimental nature of Devin Townsend's performances, MOOER has also gone above and beyond to facilitate the seamless integration of Ocean Machine II into any audio setup. The device features full stereo inputs and outputs, as well as adjustable global EQ settings, letting users tailor their sound to suit different environments. Guitarists can also customize their effect chains to be used with true bypass or DSP (buffered) bypass, depending on their preferences and specific use cases.

Overall, Ocean Machine II brings higher quality delay and reverb algorithms, augmented looping support, and various updated connections to Devin Townsend's original device. As per MOOER's typical standard, the pedal is engineered to withstand the rigors of touring and frequent use, allowing guitars to bring their special creations and atmospheric drones to the stage.

*Dimensions: 215 x 127 x 56 mm

*Weight: 1.1 kg

*Power Supply: 9V DC

*Sampling Rate: 44.1 kHz

*Sampling Accuracy: 24-bit

*Includes USB-C to USB-A cable, power adaptor, stickers, and artist signature card from Devin Townsend

Notes: Atlas Compressor

The Atlas Compressor offers a comprehensive collection of compression circuits that perfectly capture the tone and feel of the industry's most sought-after compressors. Straight out of the box, Atlas delivers six different styles of compression, ranging from classic stompbox compressors like the now-discontinued Diamond Optical Compressor to high-end rack units such as the snappy 1176 compressor and the smooth and gentle LA2A optical compressor. Atlas also features advanced dual-band compression, which provides an independent set of controls for both the high and low frequencies. Each compression engine has onboard controls for Threshold, Ratio, Attack, Release, Output, Tone, and Blend, allowing for fine-tuned control over the compact One Series hardware.

A History Lesson in Compression

The Atlas is packed with so many different types of compression that it could serve as a tour guide through the history of compressor equipment. First stop: classic stompbox squashers such as the legendary the Dan Armstrong Orange Squeezer and the excellent (but discontinued) Diamond Compressor. Next stop: universal and ubiquitous studio rack gear like the smooth and gentle LA2A optical compressor and the ultra-responsive 1176 FET compressor. Finally, we're taking you to all-out nerd territory with Peak, RMS, VCA, and Dual compression, and an onboard Expander circuit... the Atlas has it all and does it well.

Optical Rack

The Optical Rack compressor engine is based on the legendary LA2A studio opto compressors from the early 60s. Optical compression controls its output level with light. Increasing the incoming audio level in the original units caused an electro luminescent panel to shine brighter. A photo resistor monitors that light panel and decreased the audio output level, as the panel got brighter. The result is a very smooth and gentle attack that imparts a full-bodied and natural sound on guitar, bass, or vocal. This compressor sounds great with clean strummed or arpeggiated guitar lines as well as acoustic guitars.

Studio 76
The Studio 76 compressor is based on the 1176 studio rack compressors of the late 60s and early 70s. This solid state FET compressor is known for its full body and super-fast attack. All of the attack times in 1176 compressors clock in at less than a millisecond. Studio 76 is a great compressor for fast and aggressive country pickin' (think Johnny Hiland), slap bass, slide guitar and much more.

Cubic Zirconia

The Cubic Zirconia was inspired by opto compressors that use an LED in place of the LA2A's electro luminescent panel. This technology is usually what you find inside effects pedals. Using an LED as an optical compressor's light source creates faster attack and release times, which generate artifacts that tend to make the compression sound a bit dirtier. This is a great sound for playing tight and funky riffs on the guitar.

Studio snap

A very aggressive and modern sounding compressor. It's based on hard-knee, VCA feed forward type compressor. It uses two compressors in parallel to handle both RMS level controls ("Root Mean Square" compression means that the compressor will react according to the "average loudness") AND the peaks. The combination of these two compression approaches gives STUDIO SNAP its character.

Dual band

The Atlas has two independent compressors that can be routed in a number of different ways. They can run in Series Mode (one running into another). They can also run in Parallel Mode and be mixed together with a Crossfade control. The Dual Band compressor runs in Band Split Mode, which is a version of parallel routing where one compressor controls only the higher frequencies (everything above 333Hz) and the other controls the lower frequencies (everything below 333Hz). With the Dual Band Compressor the high frequencies release faster than the lower frequencies, so as you sustain a chord the low frequencies remain compressed while the second compressor releases the high frequencies. The result is a beautiful blooming effect that accentuates high harmonics. This is a great compressor for slow ringing chords or lead lines with long sustained notes.

Includes 9v DC power supply (300mA / Negative Tip)
Includes 1/8" to 1/4" cable for Neuro Mobile App connection.
Power Consumption - 165mA
USB port - Connects to Mac or Windows PC for firmware updates and the forthcoming in-depth effects editing software.
Brushed anodized aluminum housing.
Dimensions: L: 4.5 in./11.4cm x W: 2.75 in./7cm x H: 2 in./5.1cm (including knobs)

Notes: A warm grittiness to the warble, a rippling, wooshing, bubbling irregularity to the modulation and a dynamic response to your picking are all hallmarks of the true vibe experience. Thicker and chewier than any chorus, earthier than any phaser and uniquely magical in front of a driven amp, the perfect vibe pedal moves you to dig in and play without inhibition. This feeling has been difficult to find outside of large and expensive fully-analog boutique units, but the search for that elusive experience is now over.

UltraViolet's simple and responsive controls provide a wider range of sounds than traditional vibe pedals. In addition to the familiar Chorus (50% wet) and Vibrato (100% wet) settings, there is a new Blend setting (30% wet) for an inspiring variety of more subtle effects. A Bias switch gives you three distinct flavors of sweep shape and tone emphasis, allowing for tons of sonic variation. At slow speeds, the intensity range has been expanded beyond that of traditional vibe circuits to push even further into warmly undulating sonic territory.

For UltraViolet's new vibe algorithm, all the elements of the classic optical vibe circuit (and their interdependencies) have been meticulously recreated for a dynamic playing response. From the effects of bias, speed and LFO waveshape on the pulsing of the lamp, to the response of the light-dependent resistors that set the center frequencies of the staggered phasing filters, the entire system has been duplicated and carefully tuned to produce the very best sounds a vibe pedal can offer.

TRS stereo input and output in a dual mono configuration means you can place UltraViolet at any point in your pedal chain with no impact on your stereo image.

Full MIDI implementation with 300 available preset locations ensures that UltraViolet is ready for your MIDI rig. In addition to TRS MIDI, there is a USB-C jack for controlling the pedal via MIDI from a computer or for performing firmware updates. For hands-free control without MIDI you can connect an expression pedal for control over any combination of knobs in any direction (Expression pedal controls Speed by default.) Or attach an optional external switch for tap tempo or favorite recall.

Finally, a high-impedance, ultra-low noise discrete Class A JFET stereo input preamp provides exceptional touch sensitivity, dynamics and feeliall in a rugged and elegantly compact form factor.

Notes: A fresh, original take on pitch shifting, the HammerOn generates hammer-on pitch shifts which alternate between two different intervals. Seven modes provide a range of effects, from simple hammer-ons to automatic techno guitar sequencing with trills.

Supplier's Notes:
Hands-free Hammer-Ons

Hammer-on notes in conjunction with your hands to create never-before-heard licks and riffs - the only limit is your imagination.

7 pedals in 1

Seven modes range from pitch jumps and harmony effects to pitch sequences and drop/capo tunings - HammerOn is like seven pedals in one.

Play the Impossible

Impossible Mode allows you to hammer-on pitch shifts that alternate between two selectable pitch amounts.

The DigiTech HammerOn is a versatile effects pedal with an amazing amount of flexibility and options to create and channel your musical ideas. Take the time to get to know the many options and see if it sparks new creative ideas.

The PITCH 1 footswitch is dedicated to always be a hammer-on selectable momentary pitch shift above or below what you are playing. PITCH 2 footswitch has 3 different modes of operation selectable using the MODE button. There is a button called DRY+ that can turn on the dry signal and a button called TRILL that can mimic rapid presses of the footswitches.

With all these options it's like having 7 pedals in one:

1. HAMMER-ON: An instantaneous momentary pitch shifter pedal
2. HAMMER-ON with TRILL: A rapid fire hammer-on action pedal
3. HARMONY-ON: An instantaneous harmony creation pedal
4. The IMPOSSIBLE Pedal: A dual alternating momentary pitch shift pedal
5. DROP/CAPO SEQUENCE: A multi-setting pitch transposition pedal
6. SEQUENCE with TRILL: An automatic guitar riff sequencer
7. SEQUENCE with DRY and TRILL: An automatic techno guitar sequencer

Specifications

Electronics
Sample Rate: 44.1 kHz in classic mode, 22 kHz in chords mode
Frequency Response: 20 Hz-16 kHz (classic mode), 20 Hz-11 kHz (chords mode)
Signal to Noise Ratio: > -106dB (A weighted); ref = max level, 22 kHz bandwidth
THD: 0.004% @ 1kHz; ref= 1 dBu w/ unity gain
A/D/A Conversion: 24-bit

Input / Output
Input Type: 1/4" Unbalanced TS
Max Input Level: +5 dBu
Input Impedance: 1MO
Output Type: 1/4" Unbalanced TS
Max Output Level: +10 dBu
Output Impedance: 1kO (Effect enabled or effect bypassed), True Bypass

Physical

Dimensions: 5.12"(13.00cm) x 3.57"(9.06cm) x 1.84"(4.67cm) (L x W x H)
Weight: 1.12 lbs. (508g)

Power

Power Consumption: 2.3 Watts (258 mA @ 9VDC) typical
Power Requirements: External Adapter (included), 9 VDC 1300 mA

Notes: Transform your electric guitar into a sitar!

Very few instruments offer as much harmonic and dynamic flexibility as a sitar. Electro-Harmonix has streamlined the essence of the sitar into a compact enclosure that offers a polyphonic lead voice and tuneable sympathetic string drones that dynamically react to your playing. With the EHX Ravish Sitar Emulator, you can create your own custom scales for the sympathetic strings while you set the decay time for the lead voice.

Two expression pedal inputs allow you to bend the pitch of the lead voice and control the volume of the sympathetic strings simultaneously. These unique controls offer the player the ability to program the Ravish to become a totally unique and organic instrument unto itself.

The Ravish is a truly new design with the flexibility to be a crossover tonal wonder.

Download free Ravish settings

Transform your electric guitar into a sitar
Lead sitar voice tracks your notes polyphonically with a wide range of tonal possibilities
Selectable decay speed for the Lead voice
Sympathetic string drone simulation with a wide tonal range
Selectable keys and scales including major, minor and exotic provided for the Sympathetic strings
Power adapter included

Specifications

Circuit: Digital
Bypass: Buffered Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 5.75 x 4.75 x 2.5
Current Draw: 160mA
Year Released: 2011

Notes: Little box, big reverb. Specially designed for huge, cavernous echo effects and ideal for infinite tails and frozen sounds, the Blackhole is an exceptionally high quality pedal at a very reasonable price.

Supplier's Notes:
Create haunting echoes, ethereal landscapes and otherworldly ambience with Blackhole, a reverb pedal as big and as mysterious as the cosmos. Blackhole takes you there - beyond the ambience of mere earthly Halls, Rooms, Plates or Springs. Blackhole will take you on a journey from cathedral-type spaces to a universe of out-of-this-world soundscapes.

It includes onboard tone controls, modulation, and infinite reverb settings with mono or stereo operation, MIDI control, preset storing, and most importantly a new compact, easy-to-use interface.

Blackhole features two types of infinite reverb. Infinity mode continuously layers new sound on top of a suspended reverb. Freeze mode holds the effect allowing you to play over the reverb tail. The Freeze Footswitch allows instant access to this feature.

Unlike other reverbs which may offer pre or post modulation, Blackhole features modulation built into the reverb structure itself. It's essentially a big multi-voice chorus, with unique tone-shaping ability. You can utilize extreme settings to smooth out the edges.

Like all Eventide pedals, Blackhole allows you to fine tune every aspect of the effect. With a new, user-friendly, intuitive interface, just about anyone can shoot for the moon and land beyond the stars.

Input: 1/4" TRS / Mono = Tip, Stereo = Tip & Ring
Out 1: 1/4" TS Mono / Mono Output
Out 2: 1/4" TS Mono / Stereo Output
EXP: 1/4" TRS / Expression pedal, Aux Switch or MIDI I/O
Mono/Stereo Switch: Sets Input to Mono (Tip) or Stereo (Tip + Ring)
Guitar/Line Level Switch: Optimizes internal gain structure
Mini USB Software updates, MIDI I/O
DC Input Jack: 5.5mm / 2.1mm plug / Center Negative (-)

Input Impedance: 700k ohms Mono, 990k ohms Stereo
Max Input, Guitar: +8dBu
Max Input, Line: +14dBu
Output Impedance: 220 ohms
Recommended Load Impedance: 10k ohms

Power: 9V DC @ 200mA / Center Negative (-)
Dimensions (product): 4" W x 4.25" D x 1.68" H / 102 mm x 108 mm x 43 mm
Weight (product): 1.06 lb / 0.48 kg
Dimensions (package): 7.7" W x 4.75" D x 2.8" H / 178 mm x 121 mm x 71 mm
Weight (package): 1.68 lb / .77 kg

Notes: Simply sophisticated

With the 200 series, BOSS introduces a new generation of pedals that pack advanced sound and versatility into a streamlined size that saves space on your board. Grab-and-go controls and multi-function switches make operation easy and intuitive, while onboard memories allow you to store multiple setups for instant recall. All 200 series pedals feature premium audio quality with 32-bit internal processing and offer support for external control via footswitches, an expression pedal, or MIDI.

The DD-200 Digital Delay brings together sounds and features inherited from the flagship DD-500 into an even smaller footprint. Twelve different modes offer an inspiring variety of delay colours from modern digital to classic analogue, letting you dial up everything from basic echoes to rich ambient pads and everything in-between. There's also a looper that's always ready to use, plus a selectable carryover function for seamless transitions between memories.

Version 1.1 Update: User Memory Expansion

The free Version 1.1 software update brings increased flexibility to the BOSS 200 series, greatly expanding the onboard memory capacity for storing and recalling sounds. There are now 128 user setups available. Setups can also be recalled directly via MIDI program change.

For optimal performance, stay up to date with the current DD-200 system software

Twelve Modes, Unlimited Sounds

With 12 different modes to choose from, the DD-200 provides nearly any flavour of delay in an amazingly compact size. At your command are super-clean digital delays, gritty analogue echoes, and spot-on retro sounds from the Roland RE-201 Space Echo and Binson Echorec 2. There's also a variety of options for creating reverse effects, lo-fi tones, and pulsing rhythmic sounds with layered delays. And with the Tera Echo, Shimmer, and Pad Echo modes, immersive ambient colours are just a knob twist away.

Dial in Sounds Fast

The DD-200 features a no-nonsense interface, making it easy to craft inspiring sounds in the heat of the moment. Essential delay parameters are provided on dedicated controls for direct, hands-on access. And in each mode, the function of the PARAM knob changes to parameters tailored for the selected type, delivering extended control with no need to menu dive.

Save and Recall Your Favourite Setups

The DD-200 features 127 user memories plus a real-time panel setting, giving you 128 total setups to choose from. Any range of consecutive memories and the panel setting can be assigned for scrolling access from a footswitch. It's also possible to limit the scrolling range or assign memories directly for even faster recall. If you crave deeper control, setups can be directly recalled via program change messages from an external MIDI device. And by enabling the carryover function, delay repeats will keep sounding as you change memories for smooth, free-flowing transitions.

Deep Real-Time Control

By default, the DD-200's multi-function footswitches provide access to basic functions like bypass, memory scrolling, tap tempo, and looper control. But you can easily reassign them to hold, warp, and many other functions. External control is also possible via footswitches or an expression pedal, and MIDI I/O is even provided on space-saving mini TRS jacks. Via MIDI, you're able to chain multiple 200 series pedals and select memories on all of them at once, and also control a wide range of functions from MIDI devices like the ES-8 and ES-5 effects switchers.

Ready-to-Go Looper

Any time you're ready, pressing the DD-200's two footswitches together puts you into looper mode. Up to 60 seconds of mono recording time is available, and operation is simple and direct with the onboard switches. And since the looper engine functions independently, you're able to develop expressive loops with any of the DD-200's rich delay sounds.

DD-200 Delay Modes

Standard-Clear digital delay. PARAM adjusts the delay attack.
Analog-Emulates classic analogue "BBD" delays like the BOSS DM series. PARAM controls character and distortion amount.
Tape-Emulates the warm tape-based sound of the legendary Roland RE-201 Space Echo. PARAM selects different combinations of three playback heads, and also adjusts the amount of distortion in the delay sound.
Drum-Models the drum-based Binson Echorec 2. PARAM selects different combinations of four playback heads, and also adjusts the amount of distortion in the delay sound.
Shimmer-Pitch-shifted delay for lush, heavenly textures. PARAM adjusts the delay brightness.
Tera Echo-Spacious, animated ambience effect derived from the BOSS TE-2 pedal. PARAM adjusts the sound character.
Pad Echo-Newly developed delay sound for creating drifting ambient textures. PARAM adjusts the delay attack.
Pattern-Rhythmic sounds with 16 delay lines layered together. PARAM selects different pattern variations.
Lo-Fi-Delay sound with fat, distorted character. PARAM adjusts the distortion effect.
Dual-Two different delay lines connected in series. PARAM adjusts the time of the second delay.
Reverse-Backwards delay for cool psychedelic effects and other unique tones. PARAM adjusts the delay attack.
Ducking-Delay with a built-in ducking effect. PARAM adjusts the input sensitivity.

*The product names mentioned on this page are registered trademarks or trademarks of their respective owners. These names are used because it is the most practical way of describing the sounds that are simulated.

Specifications

Sampling Frequency: 96 kHz
AD/DA Conversion: 32 bits
Processing: 32-bit floating point

Modes: 12 modes
STANDARD, ANALOG, TAPE, DRUM, SHIMMER, TERA ECHO, PAD ECHO, PATTERN, LO-FI, DUAL, DUCKING, REVERSE

Memory127 + Manual
Nominal Input Level: INPUT A/MONO, B: -10 dBu
Maximum Input Level: INPUT A/MONO, B: +7 dBu
Input Impedance: INPUT A/MONO, B: 2 M ohm
Nominal Output Level: OUTPUT A/MONO, B: -10 dBu
Maximum Output Level: OUTPUT A/MONO, B: +7 dBu
Output Impedance: OUTPUT A/MONO, B: 1 k ohms
Recommended Load Impedance: OUTPUT A/MONO, B: 10 k ohms or greater
Bypass: Buffered bypass

Controls:
ON/OFF switch, MEMORY/TAP switch
MODE knob, TIME knob, FEEDBACK knob, E. LEVEL Knob, PARAM knob, TONE knob, MOD DEPTH knob
TAP DIVISION button, MEMORY button

Display: 7 segments, 3 characters (LED)
Indicator: TAP DIVISION indicator, MEMORY (MAN, 1--4) indicators

Connectors:
INPUT (A/MONO, B) jacks, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type
CTL 1, 2/EXP jack: 1/4-inch TRS phone type
MIDI (IN, OUT) jacks: Stereo miniature phone type
DC IN jack
USB port: USB micro B-type (program update only)

Power Supply: Alkaline battery (AA, LR6) x 3, AC adaptor (sold separately)
Current Draw: 225 mA

Expected Battery Life Under Continuous Use
Alkaline: Approx. 4 Hours
* These figures will vary depending on the actual conditions of use.

Accessories: Leaflet "USING THE UNIT SAFELY", Leaflet "To obtain the Owner's Manual", Alkaline battery (AA, LR6) x 3, Rubber foot x 4

Options (sold separately):
AC adaptor: PSA-S series
Footswitch: FS-5U
Dual footswitch: FS-6, FS-7
Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
MIDI/TRS connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535

Size & weight

Width: 101 mm / 4 inches
Depth: 138 mm / 5-7/16 inches
Height: 63 mm / 2-1/2 inches
Height (including rubber foot): 65 mm / 2-9/16 inches
Weight: 610 g / 1 lb 6 oz
Weight (including battery): 680 g / 1 lb 8 oz

0 dBu = 0.775 Vrms

Notes: The Germanium Filter is Death By Audio's love letter to sticking a pencil in your speaker.

Start with a console-style drive circuit, add in a dash of obsolete germanium transistors and finish it off with a super intense DBA-style filter - BLAMO! You've got a sound heavy enough to crush on and sharp enough to slice a tomato.

The Filter control is extremely unconventional - it'll take you from bottomless, sub-woofered out lows to super searing and brittle highs, with a universe of tone in between. The Germanium Filter will help you find the sweet spot for your instrument in any situation - at a show, in the studio, or even stranded on the side of the highway after your tour van catches fire - hey, it happens!

The Gain knob starts with a dirty boost that then spans through saturated drive, spitting distortion, and a blistering fuzz tone. Get ready for your sound to be cranked up to infinity-and-a-half and captured on tape by the most incredible recording engineer you've ever heard - only there's no engineer and no studio. Just you, your guitar, your amp and the Germanium Filter.

Controls

Filter: Controls the frequency response of the pedal, featuring huge low end, scooped mids, and sharp, piercing highs.

Gain: Sweeps from mild overdrive to blasted-out fuzz. Very interactive with your guitar's volume control.

Volume (internal): Controls the overall output level of the pedal.

Specifications

Dimensions: 5" x 2.5" x 2.25" (including hardware).

Weight: 10.6 oz

Power: 9V (runs on standard 2.1mm negative center 9V adapter or included 9V battery).

Current Draw: 5 mA.

Notes: Multi-tap delays go next-level with Eventide's incredible heritage distilled into this compact pedal format. Line level options allow you to process synths, drums, guitars and just about any other signal.

Supplier's Notes:
A Multiverse of Tone UltraTap is a unique multi-tap effect pedal capable of rhythmic delays, glitchy reverbs, huge pad-like volume swells, and extraordinary modulation.

It's the perfect tool for staccato leads, swelling chords, and other evolving effects - everything from reversed reverbs to the sound of ripping it up in the Grand Canyon!

Think of UltraTap as the mother of all Echoplexes and you won't be too far off.

That's basically how it operates but with the flexibility to add as many 'tape heads' as you want and expressively control their positions and levels.

UltraTap's controls make possible new and unexpected effects. The controls that you would expect in a multi-tap delay pedaliNumber of Taps, Delay and Feedback- are just the basics.

Controls for Spread, Slurm, and Chop open up a new world of possibilities.

Effect Features:

"Slurm" An exclusive and innovative control that smears/slurs taps together to create truly unique reverbs and choruses.

"Chop" and "Spd/Rise/Rel" combine to allow unusual and expressive modulation of the taps based on LFO shapes or the audio's envelope.

"Feedback" unlocks further tone shaping capability.

"Taps" selects up to 64 taps to create simple repeats or morph delays into chorus and reverb.

"Spread" controls the 'distance' between' taps. With the knob centered, the taps are equally spaced, turn clockwise and the later taps are bunched together, counterclockwise and the early taps are bunched together. Use this control to dial in the perfect rhythmic space between taps.

Onboard LFOs and envelopes to chop the sound source into stuttered rhythms.

"Tap Footswitch" allows you to set the tempo of the taps.

Connectors:

Input: 1/4" TRS / Mono = Tip, Stereo = Tip & Ring
Out 1: 1/4" TS Mono / Mono Output
Out 2: 1/4" TS Mono / Stereo Output
EXP: 1/4" TRS / Expression pedal, Aux Switch or MIDI I/O
Mono/Stereo Switch: Sets Input to Mono (Tip) or Stereo (Tip + Ring)
Guitar/Line Level Switch: Optimizes internal gain structure
Mini USB: Software updates, MIDI I/O
DC Input Jack: 5.5mm / 2.1mm plug / Center Negative (-)

Analog I/O:

Input Impedance: 700k ohms Mono, 990k ohms Stereo
Max Input, Guitar: +8dBu
Max Input, Line: +14dBu
Output Impedance: 220 ohms
Recommended Load Impedance: 10k ohms

Specifications:

Power: 9V DC @ 200mA / Center Negative (-)
Dimensions (product): 4" W x 4.25" D x 1.68" H / 102 mm x 108 mm x 43 mm
Weight (product): 1.06 lb / 0.48 kg
Dimensions (package): 7.7" W x 4.75" D x 2.8" H / 178 mm x 121 mm x 71 mm
Weight (package): 1.68 lb / .77 kg

Notes: Raise the bar when it comes to creating synth effects, sound layers, glissandos, infinite sustain and more!

Building on the synthesis platform of the award-winning Superego, the EHX Superego+ Synth Engine raises the bar when it comes to creating synth effects, sound layers, glissandos, infinite sustain and more. Plus, we've added a complete effects section featuring 11 effects types, an EXP input for effect parameter control/preset recall and an EXT jack for a 3-button controller.

The Superego+ is equipped with the following effects:
DETUNE: pitch detune, EXP pedal controls pitch
DELAY: warm, analog sounding delay, feedback is preset, EXP controls delay time up to 2 seconds
ECHO: pristine digital delay, feedback is preset, EXP pedal controls delay time up to 2 seconds
FLANGE: Electric Mistress style w/filter matrix, rate and feedback. EXP pedal controls rate
PHASE: Small Stone style phase shifting with rate and depth control. EXP controls rate
MOD: pitch-based vibrato or chorus. EXP controls rate
ROTARY: rotary speaker style sound. Depth controls tweeter/horn balance. EXP pedal controls rate
TREM 1: sine wave tremolo. EXP controls rate
TREM 2: square wave tremolo. EXP controls rate
PITCH: pitch shifting effect over a +/- one octave range. EXP controls whammy
FILTER: resonant low-pass filter. EXP pedal controls frequency

The pedal provides enough sound shaping control to please the most sonically adventurous player and is equipped with Dry, Effect, Attack, Decay, Threshold, Layer and Gliss knobs, plus Rate and Depth knobs for the Effects Section. Four foot-switchable Freeze modes: Moment, Sustain, Auto and Latch, plus a Live Effects mode where the dry signal is routed thru the built-in effects and the internal synth engine is disabled, are included.

The polyphonic Superego+ works with guitar as well as other instruments including bass, keyboards, vocals, drums, etc. and comes equipped with an EHX 9.6DC-200 AC Adaptor.

Creates synth effects, sound layers, glissandos, infinite sustain and more
Four Freeze modes
Built-in effects section with 11 effect types
EXP input for effect parameter control
EXP Presets sweep between snapshots of 7 knob parameters; create and save one set of snapshots for each FX type
Live Effects mode where the dry signal is routed thru the built-in effects and the internal synth engine is disabled
EXT jack for a 3-button controller
Power adapter included

Specifications
Circuit: Digital
Bypass: Buffered Bypass
Audio: Mono
Effects Loop: Yes
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 5.75 x 4.75 x 2.5
Current Draw: 140mA
Year Released: 2017

Notes: Bad Comrade Pedal

(Glitch, Pitch, Slice, and Dice)

Is it a distortion pedal? Is it a ring modulator? Delay? Just call it the Bad Comrade, the world's first hand-wired glitch, pitch, slice, and dice pedal. For the adventurous guitarist (or anyone wielding a 1/4" jack) that craves unthinkable tones, the Bad Comrade lets you distort, modulate, glitch, and slice on the fly.

The Bad Comrade is hand-wired in Seattle, Washington. True bypass, chrome plated LED, lead-free solder. It operates on a standard Boss style 9vdc power supply, not included. Includes a limited lifetime warranty, if registered within 30 days of purchase.

Important: power up the Bad Comrade with Glitch and Time wide open.

Enclosure size: 4.67" x 3.654" x 1.547"

Notes: ***B-STOCK: Box opened, product in perfect working order***


Excellent value from the updated Mooer delay/reverb/looper. The Ocean Machine II features improved sound quality all round, plus expanded loop memory up to a total of 120 seconds.

Supplier's Notes:
Similarly to the original, the Ocean Machine II offers two independent delay modules, each with nine different delay types of up to two seconds, including household names such as digital, tape, and echo delays, as well as more abstract options, such as galaxy, crystal, and rainbow. A high-fidelity reverb module complements these delays with nine reverb types, as well as a shimmer effect. Each delay and reverb effect can also be 'frozen,' creating static ambient drones, an effect that sounds particularly impressive considering the pedal's DSP upgrades.

While the original Ocean Machine's looping capabilities provided just 44 seconds of loop storage, the new addition features an impressive 120 seconds. To experiment with this feature, along with Ocean Machine II's other sonic capabilities, users can use an intuitive LCD screen along with 12 knobs (four for each delay and reverb module) to easily adjust parameters within the device's 'Play Mode.' Three footswitches are also provided to facilitate independent effect toggling, tap tempo control, looper interfacing, and a preset selector.

Once the guitarist has crafted an interesting effect chain, they can save their work as a preset and enter 'Patch Mode,' in which they can toggle between saved settings with each of the three footswitches. In total, the Ocean Machine II provides eight preset storage banks, each of which supports up to three presets, resulting in a total of 24 save slots.

The pedal's versatility is further enhanced by its programmable parallel and serial effect chain hybrid, a signature element of Devin Townsend's tone creation. This feature allows users to customize the order of effects, providing endless creative possibilities. Further programming options can be accessed through the LED screen, which impressively includes synchronizable MIDI connectivity, a feature that was absent in the original Ocean Machine.

In addition to MIDI, the pedal supports various external control systems, including expression pedal input through a TRS cable. Furthermore, the pedal is compatible with MOOER's F4 wireless footswitch, allowing for extended capabilities for mapping presets and other features. A USB-C port is also available for firmware updates, ensuring that the pedal remains up-to-date with the latest features and improvements.

Considering the experimental nature of Devin Townsend's performances, MOOER has also gone above and beyond to facilitate the seamless integration of Ocean Machine II into any audio setup. The device features full stereo inputs and outputs, as well as adjustable global EQ settings, letting users tailor their sound to suit different environments. Guitarists can also customize their effect chains to be used with true bypass or DSP (buffered) bypass, depending on their preferences and specific use cases.

Overall, Ocean Machine II brings higher quality delay and reverb algorithms, augmented looping support, and various updated connections to Devin Townsend's original device. As per MOOER's typical standard, the pedal is engineered to withstand the rigors of touring and frequent use, allowing guitars to bring their special creations and atmospheric drones to the stage.

*Dimensions: 215 x 127 x 56 mm

*Weight: 1.1 kg

*Power Supply: 9V DC

*Sampling Rate: 44.1 kHz

*Sampling Accuracy: 24-bit

*Includes USB-C to USB-A cable, power adaptor, stickers, and artist signature card from Devin Townsend

Notes: Another banger from Dreadbox's excellent effects series. Stereo echo effects based around multiple hybrid delay stages, giving bags of character for reverb, modulation effects and classic delays.

Supplier's Notes:
Dreadbox Raindrops is a Hybrid Delay/Pitch Shifter/Reverb pedal that takes the concept of short echoes to a different level.

It is equipped with multiple delay stages and different chips and you can choose between 3 different play modes, where in each one you can have a whole new experience and alternative soundscapes. You can achieve from simple short echoes, to long, dirty and lo-fi delays and from simple pitch shifting bursts to extensively lasting reverbs.

Specifications

Circuit: Analogue Dry signal / Hybrid Delay / Digital Reverb
Bypass: Buffered OpAmp
Audio: True Stereo IN/OUT
Inputs / Outputs: TS Unbalanced 6.4mm jack
Power Supply: 9VDC BOSS style center pin negative 2.1mm (NOT INCLUDED)
Dimensions (cm): 14 x 10 x 5.6
Current Draw: 220mA

Notes: The Beam Splitter is a single pedal meant to create a massive sound. It is three different takes on overdrive, voiced to work together perfectly. Two of them can be delayed in time, and all three can be run in parallel or split out to three separate sources.

Beam Splitter takes a mono input and makes it wildly bigger than before. Things stretch in time and compress in dynamics, and a rich harmonic wash is achieved without sacrificing clarity.

To be washed in sound, does it have to be one big sound, or will a number of small sounds do the trick? To create a wall of sound, same question, but also how does it stay solid? How can sound waves make a wall, and is it just a moment in time; will it always crash down?

Why record your guitar thrice when Beam Splitter exists?

Beam Splitter is best seen in three sections - Purple, Green and Blue.

Purple is a hard-clipping distortion that can be seen as the core gain sound of Beam Splitter.

Of Beam Splitter's three gain sections, it is arguably the heaviest and most compressed. It has three controls, identified by their purple knobs and labels - Gain, Volume and Tone.

Green is an overdrive with both soft and hard clipping. It is the lightest and brightest of the three gain sections in Beam Splitter. Also featuring Gain, Volume controls the green gain circuit features a Time knob, which sets the delay time, up to 125 sections. When blended in parallel with the other drives, this delay time can create anything from tight comb filters to loose doubling delays to short slapback.

Additionally, there is a Decay knob, which sets the feedback of the delay, from one repeat up to many repeats trailing off. In comb filter settings this can increase resonance.

Blue is a transistor Overdrive and the most neutral and reactive of the three gain circuits, with a gain range somewhere in the middle. Its Gain switch sets the amount of breakup. In the down setting, it is less overdriven, with less compression in the mids and highs. In the up setting, it is more overdriven and aggressive. It also boasts Time and Decay controls, on top of the Tone and Volume knobs and gain switch.

The pedal's Deviate control is a shared knob that sets the amount of random variation in the delay time of the Blue and Green drive sections. The more it is turned up, the farther their delay times can deviate, and the faster those deviations happen. When at zero, the delay times are fixed, above zero, each Time knob sets that sections delay time.

Deviate intends to create a more realistic sense of doubled players, with random variations in timing as if you were playing to the track twice. It can also give the impression of flanging, chorusing or broken vibrato, depending on the settings.

The Expression jack is used to externally control the Deviate knob using a TRS expression devices with standard polarity and tip connected to the wiper.

Beam Splitter has a mono input. From there the signal goes out to Purple, Green and Blue drive sections in parallel. If only plugged into the Purple Out Jack, all three sections will join in parallel mono at that Output. Green and Blue can each be broken off into their own output by plugging into the corresponding Out jacks.

In this way you can have a full 'stereo' setup.

Notes: It's a multi-tap delay, it's a looper, it's an echo with reverse... it's got all the Hazarai!

The EHX Stereo Memory Man is a real time performance tour de force. World class echoes with modulation and reverse are just a few of the choices. As a Looper, it has up to a full 30 seconds of loop time. The Stereo Memory Man with Hazarai is destined to be one of the most creative instruments you will ever own. Ethereal tone-scapes to full musical performances are only limited by your imagination. And it's all in stereo.

Specifications

Circuit: Digital
Bypass: Buffered Bypass
Audio: Stereo
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 5.75 x 4.75 x 2.5
Current Draw: 170mA
Year Released: 2007

Notes: A reverb processing powerhouse!

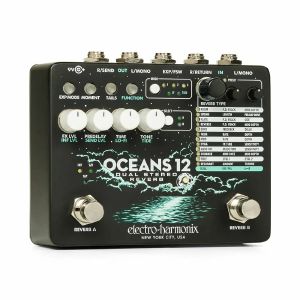

The EHX Oceans 12 is the Oceans 11's big brother with even more reverbs and functionality. It features two simultaneous, independent, stereo reverb engines, series and parallel control for the dual reverbs, 24 presets and advanced I/O allowing for stereo in/out or mono send/return with pre and post reverb options. The pedal also includes a new Tide Control for stereo image alteration, a Lo-fi Control, an infinite attenuation control and an input jack for external expression and 3-button footswitch control.

A Tails switch provides a choice of whether the reverb effect fades out naturally or stops immediately when the pedal is switched to bypass. In most settings the pedal is also capable of producing infinite reverb which can be played over with a different reverb effect.

The Oceans 12's reverbs are:

ROOM - two modes: reverb algorithms modelled after a lively room and a spacious performance hall
SPRING - two modes: vintage 1962 Fender 6G15 tube reverb emulation and the spring algorithm from the EHX Holy Grail
PLATE - two modes: two emulations of the smooth, metal plate reverb often used in high-end recording studios during the 1960s and '70s
REVERSE - two modes: a reverse reverb effect as well as true reversed echoes
ECHO - three modes: a digital delay with various echo rhythms feeding into a plate reverb
TREM - three modes: a classic, periodic volume envelope with various shapes applied to both the wet and dry mix of a hall reverb
MOD - three modes: combinations of chorus and flange reverbs that create rich reverb tails
DYNA - three dynamic, experimental reverb algorithms: swell, gate and duck
AUTO-INF - three modes: auto-infinite reverb (w/optional chorus or flange) that "listens" to your playing and crossfades to a new reverb wash upon detection of newly struck notes.
SHIMMER - two modes: two configurations of a rich octave-shifted reverb wash
POLYPHONIC - two modes: two configurable bi-directional pitch shifts that add dimensionality to the reverb tail
RESONANT - two modes: reverb excited by tuneable resonators and configurable self-oscillating filters on the reverb tail

Specifications

Circuit: Digital
Bypass: Buffered Bypass
Audio: Stereo
Effects Loop: Yes
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 4.75 x 3.9 x 2.5
Current Draw: 150mA
Year Released: 2020

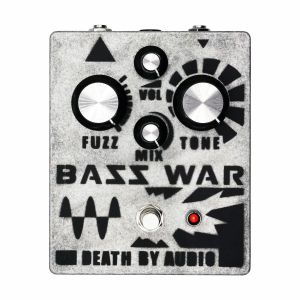

Notes: The Bass War was born with a clear mission: to take Death By Audio's legendary Fuzz War and craft it into the ultimate weapon for bass. Death By Audio didn't just tweak the formula, they reimagined it from the ground up, infusing classic circuit designs with our own twist. The result? A harmonically rich octave fuzz that doesn't just deliver - it dominates, with exceptional gain, a wide tonal range and a MIX control that puts the power of mind-blowing bass fuzz at your fingertips.

This pedal isn't here to play nice, it's here to push boundaries. The super-extended control ranges let you sculpt your sound from a gritty, grinding drive all the way to a thick, bone-crushing distortion. The FUZZ knob is your key to unlocking everything from a subtle growl to an all-out sonic assault.

The TONE knob is your secret weapon, acting like a notch filter that lets you sweep through a massive arsenal of fuzz tones, each one rich, heavy, and impossible to ignore. And with the MIX control, you can blend just the right amount of fuzz with your clean bass, keeping your sound powerful and balanced, no matter how intense things get.

The Bass War isn't just another Fuzz pedal, no it's your ticket to a bass tone that demands attention and leaves its mark. If you're ready to take your sound to the next level and carve out your own sonic territory, the Bass War is your go-to pedal. Plug in and let your bass do the roaring.

Notes: 50th Anniversary Limited Edition

Hand-built in the USA - only 1,974 units will be made!

3 Overdrives in One

Switch between vintage-authentic SILICON clipping, Ge/ASYM Germanium asymmetrical clipping, or LIFT for no diode clipping for either clean boost use or op-amp rail clipping at higher levels.

Mod-Friendly Components

Equipped with a socketed LM741 op-amp and through-hole components for easier modding just as the original 250 were known for.

For Players and Collectors Alike

Whether you're hitting the stage or simply celebrating a history-making overdrive pedal, you won't be disappointed.

The Overdrive Preamp 250 - 50th Anniversary Edition pedal celebrates the introduction of the original 250 pedal in 1974. Widely considered to be one of the most influential overdrive pedals, the original 250 helped shape the sound of rock and metal in the late '70s and early '80s. The Overdrive Preamp 250 - 50th Anniversary Edition pedal is hand-built in the USA using the authentic design of the original pedal, while adding two extra modes for modern sonic versatility.

The Overdrive Preamp 250 - 50th Anniversary Edition is actually three overdrive pedals in one. Set it to Silicon mode for a faithful reproduction of the original 250's bite and grind, courtesy of an authentic LM741 op-amp. Select Ge/ASYM mode to engage a Germanium diode for asymmetrical even-order clipping that provides a distinct tonal character with incredible touch response. Or switch to Lift mode to remove diode clipping completely from the signal path, for use as a clean boost and preamp.

Complete with a commemorative 50th Anniversary badge, custom artwork and colour-matched LED, and a 50th Anniversary pedal topper, the Overdrive Preamp 250 - 50th Anniversary Edition pedal is ideal for players and collectors alike.

What's in the box

1 x DOD Overdrive Preamp 250 - 50th Anniversary Edition
1 x 50th Anniversary Pedal Topper w/Hex Wrench
1 x Serialized Certificate of Authenticity
4 x Stickers
4 x Guitar Picks
Full-colour owner's Manual


General Specifications

Dimensions: 4.68" (11.88cm) x 2.63" (6.68cm) x 2.25" (5.71cm) / (L x W x H) - (Jack W = 2.92" (7.41cm))
Weight: 0.60 lbs. (272g)
Input: 1/4" Instrument Phone Jack
Input Impedance: >300kO typical
Output: 1/4" Instrument Phone Jack
Output Impedance: 9.1kO - 27.5kO (based on Level control position)
Gain: +9.5 dB to +46.7 dB
Power Input: 2.1mm DC Barrel Jack, centre (tip) negative
Chassis: Aluminium
Power Supply: 9V Alkaline Battery, DigiTech PS0913DC Power Supply, Other well-regulated 9V centre (tip) negative supply +18V tolerant
Consumption: 7mA typical
Warranty:1 year

External dimensions

Dimensions: 6.94" (17.62cm) x 3.38" (8.58cm) x 2.88" (7.31cm) (L x W x H)
Weight: 0.87 lbs. (367g)

Notes: The Pulp N Peel V4 is the truly transparent compressor pedal you've been dreaming of. Its smooth-sounding parallel compression circuit offers you the power to blend in your ideal balance of compressed and uncompressed signal. You're able to add a touch of grit to your tone thanks to the pedal's Dirt mini toggle. Also, whether you're a bassist sending your signal direct or a guitarist running the Pulp N Peel on your pedalboard, the pedal's 1/4", balanced XLR outputs have you covered. This compressor/preamp pedal sports a ton of tone-shaping power, so no matter what your compression needs are, the Pulp 'N' Peel V4 is your go-to solution.

JHS know how much effort you put into getting your tone exactly right. That's why we worked so hard to ensure the Pulp N Peel V4 maintains your instrument's natural attack, has a very low noise floor, and adds a professional polish to every chord, lead line, and note from your amplifier.

Whether you're looking to warm up your sound in the studio or want to add some grind for the stage, flip the Dirt mini toggle and you're there. Want to push your amp hard for even more grind? The V4 has been improved with greatly increased headroom and output on the volume control.

No matter what electric instrument you play, we've outfitted the Pulp N Peel compressor/preamp pedal with enough connectivity options to make it your go-to compressor in the studio, on your pedalboard, at home, or anywhere else.

Notes: Robotise, harmonise... rule the vocoder world!

The EHX V256 Vocoder welds your voice to your axe inspiring the twist of creativity that can make all of the difference. Bend your gender, drone your tone and invite aliens into your work of art. You want flexibility? The V256 lets you adjust the vocoder from 8 to 256 bands taking you back to the 80's and propelling you into the future at the same time. Bring your vocals up to snuff with advanced processing "Reflex Tune"... today's most popular pitch correction effect.

Specifications:

Circuit: Digital
Bypass: Buffered Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 5.75 x 4.75 x 2.5
Current Draw: 200mA
Year Released: 2009

Notes: The MOD REX is a kinetic tour-de-force that lets you weave compelling, shifting, musical tapestries. Whether you are a guitarist, synthesist or electronic musician you will find it inspires your creativity and stretches your musical boundaries.

Four independent modulation sections:

The heart of the pedal is its four, independent modulation sections synced in time, they are:

MOD features great sounding EHX Vibrato, Flanger, Chorus or Phaser. The Depth knob lets you set the amount of the effect while Feedback controls the resonance of the Flanger and Phaser.

TREM delivers tremolo, an effect that modulates the volume of your signal. The Depth control sets tremolo intensity.

PAN modulates between left and right in stereo operation. In mono operation the PAN section acts as another tremolo section, but with the wave shapes all inverted!

FILTER offers a choice of a modulated LPF, HPF or BPF. In LPF (low pass filter) frequencies above a modulated cut-off point are cut. In HPF (high pass filter) frequencies below a modulated cut-off point are cut, and in BPF (band pass filter) frequencies above and below a modulated centre point are cut.

Each section also features a choice of four LFO shape options: rising sawtooth, triangle, falling sawtooth or square wave. They affect the way the modulation transitions and provide advanced creative control over the specific section as well as the way they interact with each other.

Tempo control that's flexible and powerful:

The MOD REX delivers virtually limitless polyrhythmic possibilities.

Its TEMPO component gives you nine note-length choices for each of the four modulation sections. They are independently selectable in increments starting at a whole note and ranging thru subdivisions that go up to a 16th note. In addition, any of the sections can be bypassed.

The MOD REX's tempo (displayed as beats per minute or BPM) is adjustable with the Tempo knob, Tap Tempo footswitch or by using an expression pedal into its EXP input. It can also be synced to an external device with MIDI Clock or an external pulse clock.

MIDI and the MOD REX:

The pedal's robust MIDI implementation enables you to sync devices quickly and easily as well as automate functions and changes so they occur precisely when and where you want them whether you are working at home, in a studio or live.

The MOD REX accepts MIDI to enable it to tempo sync the modulation rate with an external device, to recall presets via MIDI Program Change messages and to control any parameter on the MOD REX via Control Change messages.

Extras:

The MOD REX lets you save and recall up to 100 presets. It comes from the factory with 20 great programs.

The pedal features full stereo input and output.

An external foot controller input makes banking up and down thru presets quick and easy.

Specifications

Circuit: Digital
Bypass: Buffered Bypass
Audio: Stereo
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 5.75 x 4.75 x 2.5
Current Draw: 100mA
Year Released: 2018

Notes: Part of the new Boss 200 series, the RV-200 is a seriously classy reverb. With a choice of 12 algorithms, things quickly move from classic ambience to the pitch-shifted arpeggiated madness of the new Arpverb program.

Supplier's Notes:
Ambient Bliss

The RV-200 delivers inspiring reverbs and premium sound in the streamlined BOSS 200 series design. Twelve versatile reverb types-including the newly developed Arpverb-provide everything from subtle spatial colour to complex, dreamy textures for ambient explorations. Quickly dial in sounds with the fast-access interface. Save favourites in 127 memories. And take performances to the next level with flexible onboard footswitches, deep external control support, and head-turning creative tools like Warp, Twist, and more.

Studio-Grade Processing

The RV-200 features a powerful reverberation engine with class-leading sound quality, backed by custom BOSS DSP, 32-bit AD/DA, 32-bit floating point processing, and a 96 kHz sampling rate. Every algorithm offers true studio-grade performance, with exceptional detail and definition from the shortest early reflections to long, floating tails spanning multiple seconds.

Twelve Distinctive Reverbs

From essentials like Room and Hall to deeply immersive reverbs like Shimmer, Slowverb, and the cool new Arpverb, the RV-200 gives you the ambient colours you need for every song and style.

Room

Simulates the reverberation characteristics of a small room. Select from four room sizes with the Param knob.

Hall

Simulates the reverberation characteristics of a concert hall. Select from three hall sizes with the Param knob.

Plate

Simulates the reverberation characteristics of a studio plate reverb. Balance the high and low damping of the reverb with the Param knob.

Spring

Simulates the distinctive sound of the hardware spring reverb effect found in guitar amplifiers. Select the number of springs with the Param knob.

Shimmer

Creates long, dreamlike reverberations rich in harmonic content. Adjust the harmonic character and diffusion with the Param knob.

Arpverb

A newly developed BOSS reverb that creates an arpeggio type of sound with evocative pitch-shifted tails. Use the Param knob to adjust the attack of the arpeggio sound.

Slowverb

A sweet ambient reverb with gentle attack and soft harmonics. Param adjusts the amount of direct sound blended with the reverb, allowing you to create deep, immersive tones.

Modulate

Adds a modulation effect to a rich hall reverb sound. Adjust the modulation depth with the Param knob.

+Delay

Combines a delay with reverb, with the length of both effects controlled with the Time knob. Use the Param knob to adjust the delay level.

Lo-Fi

A specialty reverb with limited bandwidth and added distortion. Adjust the distortion amount with the Param knob.

Gate

A distinctive reverb effect that abruptly cuts off the reverb tail. Use the Param knob to control the timing of the gate effect.

Reverse

Plays the reverb sound in reverse. Adjust the high-frequency character with the Param knob.

Instant Sound Creation

Like all 200 series pedals, the RV-200 offers a powerful yet intuitive panel that lets you realize great sounds with minimal effort. Along with core parameters such as reverb time, effect level, and pre-delay, there are variable high and low filters to perfectly balance the verb for your application. You also have a density control to adjust the weight of the sound, plus a parameter knob with access to multiple sound-shaping tools that are unique to each type.

Expressive Performance Control

The RV-200 includes memories for storing 127 reverb sounds, so your favourite setups are always ready to go. Two onboard footswitches pack a lot of performance versatility, with numerous options to reassign their targets to suit your needs. For example, you can bypass the effect, scroll through memories, and activate a Hold function to carry on the reverb effect for as long as the switch is pressed. It's also possible to assign powerful performance effects such as Warp, Twist, and Fade.

Specifications

Sampling Frequency: 96 kHz
AD/DA Conversion: 32 bits
Processing: 32-bit floating point
Modes: 12 modes- ROOM, HALL, PLATE, SPRING, SHIMMER, ARPVERB, SLOWVERB, MODULATE, +DELAY, LO-FI ,GATE, REVERSE
Memory127 + Manual
Nominal Input Level: INPUT A/MONO, B: -10 dBu
Maximum Input Level: INPUT A/MONO, B: +7 dBu
Input Impedance: INPUT A/MONO, B: 2 M ohms
Nominal Output Level: OUTPUT A/MONO, B: -10 dBu
Maximum Output Level: OUTPUT A/MONO, B: +7 dBu
Output Impedance: OUTPUT A/MONO, B: 1 k ohm
Recommended Load Impedance: OUTPUT A/MONO, B: 10 k ohms or greater
Bypass: Buffered bypass
Controls: ON/OFF switch, MEMORY/HOLD switch, MODE knob, TIME knob, PRE-DELAY knob, E. LEVEL knob, PARAM knob, LOW knob, HIGH knob, DENSITY button, MEMORY button
Display: 7 segments, 3 characters (LED)
Indicator: DENSITY indicator, MEMORY (MAN, 1--4) indicators

Connectors
INPUT (A/MONO, B) jacks, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type, CTL 1, 2/EXP jack: 1/4-inch TRS phone type, MIDI (IN, OUT) jacks: Stereo miniature phone type, DC IN jack, USB port: USB2.0 micro B (program update only)
Power Supply: Alkaline battery (AA, LR6) x 3, AC adapter (sold separately)
Current Draw: 260 mA

Expected Battery Life Under Continuous Use: Alkaline: Approx. 4 Hours
* These figures will vary depending on the actual conditions of use.
Accessories: Leaflet "USING THE UNIT SAFELY", Leaflet "To obtain the Owner's Manual", Alkaline battery (AA, LR6) x 3, Rubber foot x 4

Options (sold separately):
AC adaptor: PSA-S series
Footswitch: FS-5U
Dual footswitch: FS-6, FS-7
Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
TRS/MIDI connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535

Size & weight

Width: 101 mm / 4 inches
Depth: 138 mm / 5-7/16 inches
Height: 63 mm / 2-1/2 inches
Height(including rubber feet): 65 mm / 2-9/16 inches
Weight: 610 g / 1 lb 6 oz
Weight (including battery): 680 g / 1 lb 8 oz

Notes: Launched in 1976, the CE-1 Chorus Ensemble was not only the world's first chorus effect pedal, but also the very first BOSS pedal. Three years later, this inventive new sound was squeezed into the blue CE-2 Chorus, and chorus pedals have remained in the compact lineup ever since. Four decades on, the spacious modulated tone of the signature BOSS effect is still loved by musicians everywhere. In 2016, to celebrate the 40th anniversary of BOSS innovation, the original analogue chorus sounds are now reborn with the Waza Craft CE-2W. The CE-2W's Standard mode faithfully recreates the classic CE-2 chorus sound, and adds an expansive new sound field with stereo output, which was unavailable in the mono CE-2. CE-1 mode fully reproduces the stereo chorus and vibrato sounds of the legendary CE-1, with the addition of variable chorus depth not available in the original pedal. To commemorate the birth of BOSS effects, the CE-2W is made exclusively in Japan, just as the original CE-1 and CE-2 were.

Waza Craft: The Art of Superior Tone

Since the beginning, the engineers at BOSS have been committed to achieving the finest guitar tones using any technology necessary, from old-school analogue circuits to high-tech DSP. This enthusiastic spirit continues on with the Waza Craft series, which brings you exceptional tone and touch response through carefully selected analogue components, refined circuitry, and meticulous attention to detail. In Japan, "Waza" is the term for art and technique, and these special edition pedals proudly carry the Waza symbol to represent the pinnacle of BOSS design and craftsmanship.

Specifications

Modes: 3 modes, Standard, CE-1 Chorus, CE-1 Vibrato
Nominal Input Level: -20 dBu
Input Impedance: 1 M ohm
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater
Bypass: Buffered bypass
Controls: Pedal switch, Standard/CE-1 Mode switch, RATE knob, DEPTH knob
Indicator: CHECK indicator (Serves also as battery check indicator)
Connectors: INPUT jack: 1/4-inch phone type, OUTPUT A (MONO) jack: 1/4-inch phone type, OUTPUT B jack: 1/4-inch phone type, DC IN jack
Power Supply: Alkaline battery (9V, 6LR61) or Carbon-zinc battery (9V, 6F22), AC adapter (sold separately)
Current Draw: 25 mA
Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.): Alkaline: Approx. 32 hours, Carbon: Approx. 18 hours
Accessories: Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information"), Alkaline battery (9V, 6LR61), Alkaline battery (9V, 6LR61)
Options (sold separately) AC adapter: PSA series

Size & weight

Width: 73 mm/ 2-7/8 inches
Depth: 129 mm / 5-1/8 inches
Height: 59 mm/ 2-3/8 inches
Weight (including battery): 450 g / 1 lb

* 0 dBu = 0.775 Vrms

Notes: The genuine BOSS and Roland Dimension effect is back, and it's now more versatile than ever! Designed in the premium Waza Craft analogue tradition, the DC-2W offers not just a perfect sonic recreation of the original DC-2 Dimension C pedal, but also the legendary SDD-320 Dimension D studio rack effect it was based on. The DC-2W features the same intuitive four-button preset interface as the original '80s-era effects, now evolved with electronic switching that unlocks a multitude of sonic variations not available on the vintage units.

Highly sought-after by musicians and audio engineers, the Dimension's unique spatial processing magically enhances the width and depth of any sound, from electric and acoustic guitars to keyboards, vocals, and other sources. Built from the original circuit designs and updated with modern refinements, the DC-2W is the only pedal available that delivers the classic Dimension experience with complete sonic authenticity.

Enhance Your Sound with Natural Width and Depth

The vintage Dimension effect is famous for its innovative 3D spatial processing that just makes everything sound a little better. It's often mistakenly called a chorus effect, but it's actually not. Though time-based like a chorus, the Dimension's circuit is quite unique and sophisticated, subtly enhancing the width and depth of the source audio without any prominent modulated movement. The resulting sound is more open and natural, gently enriching any instrument or mix without making it sound overly processed.

Four Switches, Expanded Sonic Possibilities

Just like the original Dimension effects, the DC-2W offers a simple and direct interface with four preset switches that provide sonic variations with increasing width and depth. While the originals had mechanical switches, the DC-2W is equipped with modern electronic switches and status LEDs for more solid performance. The new switches also allow you to press two at once to access a variety of additional sounds. Across the DC-2W's two effect modes (S and SDD-320), 20 different Dimension variations are possible with just four switches.

Authentic Tones with Modern Refinements

In the Waza Craft tradition, the DC-2W delivers vintage analogue tones with modern design refinements for enhanced performance and versatility. Along with the new electronic mode switches, the pedal features a newly designed internal bypass circuit that greatly improves on that found in the original DC-2. In addition, versatile I/O enables the pedal to blend in with any mono or stereo rig, from regular guitar setups to audio interfaces and studio mixing consoles. And like all Waza Craft pedal models, the DC-2W includes a premium buffer circuit for ultra-transparent tone when the pedal is switched off.

The Roland SDD-320 Dimension D: A Studio Legend

Very quickly after its debut in 1979, the Roland SDD-320 Dimension D became a go-to secret weapon for audio engineers and music producers around the world. It can be heard on countless classic records in all genres, and is still regularly used today. From guitars, electric pianos, and synths to strings, backing vocals, and more, the Dimension D injects instant spatial mojo and sonic glue without creating an obvious "effect" sound.

The DC-2W's SDD-320 mode fully captures the original Dimension D vibe in every way. Many engineers like to press multiple buttons on the Dimension D rack for new and different sounds. But in truth, only two actual sound variations are technically possible with this undocumented feature. With its modern switching, the DC-2W's SDD-320 mode enables six sound variations when two buttons are pressed, including four "in-between" sounds and two all-new voices.

The BOSS DC-2 Dimension C: 3D Sound in a Compact Pedal

Introduced in 1985, the DC-2 Dimension C pedal brought the Dimension D's distinctive spatial effect to the BOSS compact pedal format. While the Dimension D was designed as a studio effect that supported either mono or stereo input sources, the DC-2 was specifically created for mono sources like guitar, and features a modified circuit that produces a Dimension effect with a slightly different tonal flavour.

Specifications

Modes: S (Standard), SDD-320
Nominal Input Level-20 dBu
Input Impedance: 2.2 M ohms
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance:10 k ohms or greater
Bypass: Buffered bypass
Controls: Pedal switch, S/SDD-320 switch, MODE SELECTOR [1]--[4] buttons
Indicators: CHECK indicator (Serves also as battery check indicator), MODE SELECTOR [1]--[4] indicators
Connectors: INPUT A (MONO) jack: 1/4-inch phone type, INPUT B jack: 1/4-inch phone type, OUTPUT A (MONO) jack: 1/4-inch phone type, OUTPUT B jack: 1/4-inch phone type, DC IN jack
Power Supply: Alkaline battery (9 V, 6LR61), AC adapter (PSA series: sold separately)
Current Draw: 65 mA
Expected battery life under continuous use: Alkaline: Approx. 6 hours *These figures will vary depending on the actual conditions of use.
Accessories: Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information"), Alkaline battery (9 V, 6LR61)
Options (sold separately)AC adaptor: PSA series

Size & weight

Width: 73 mm / 2-7/8 inches
Depth: 129 mm / 5-1/8 inches
Height: 59 mm / 2-3/8 inches
Weight (including battery): 450 g / 1 lb

* 0 dBu = 0.775 Vrms

Notes: The signature tones of a guitar legend on your pedalboard

Joe Satriani's TONEX ONE is the latest product of IK's ongoing relationship with one of the guitar world's most respected players. It is truly something special. Handmade in Italy in a custom chrome finish, this limited-edition pedal comes preloaded with 20 presets created by Joe. These exclusive presets feature Tone Models from his Amp Vault Signature Collection, also included, but go beyond that by incorporating Joe's choice of TONEX FX to recreate the great moments of his recording career.

"The TONEX ONE roars and shimmers like its full-size big brother, the mighty TONEX Pedal. You can use it as a standalone amp, a recording interface, or even a headphone practice amp. And it looks amazing!"
Joe Satriani

20 Custom presets with TONEX FX

Exclusively with TONEX ONE Joe Satriani, you'll immediately experience 20 presets custom-designed by the artist himself. All presets feature Tone Models from Joe's TONEX Amp Vault collection, plus the new TONEX FX blocks to recreate his essential tones in one compact pedal.

The preloaded tones range from the early years to new sounds featuring his latest Signature 3rd Power Dragon Amplifier. The presets are inspired by and named after classic songs, including "Time Machine," "The Extremist," "Summer Song," "Ice 9," "Crush of Love," "Love Thing," and many more.

Includes Joe's Amp Vault Signature Collection
This limited-edition pedal includes Joe's complete Amp Vault Signature Collection for TONEX, featuring 28 amplifiers from his private collection. Joe handpicked each amplifier, dialed in his favorite settings and captured them using IK's Advanced AI Machine Modeling at Sammy Hagar's Red Rocker Studios.

The 67 Tone Models are incredible and a testament to Joe's relentless pursuit of great tone and generosity in sharing them with the TONEX community.

Specs

TONEX ONE

20 customizable presets
Ultra-low noise, 24-bit/192 kHz converters.
5 Hz-24 kHz frequency response
Up to 123 dB dynamic range
USB connection/ 24-bit/44.1 kHz audio interface
Power Source: 9V DC, 120 mA (not included) or via USB-C
Size: 48 mm/1.89" (W) x 94 mm/3.7" (D) x 53 mm/2.09" (H)
Weight: 160 g/ 5.6 oz

Package includes

TONEX ONE
USB C-Type to USB C-Type connection cable (0.6 m/2 ft)

Notes: Premium tone for players on the go

Ultra-portable and easy to use, the GT-1 delivers pro-level tones everywhere you play. Driven by the powerful BOSS GT-series engine, it gives you access to a huge selection of world-class amps and effects for all types of music. A streamlined interface enables quick and intuitive sound creation, while an assignable control switch and expression pedal provide dynamic real-time effects adjustment. And by connecting to BOSS TONE CENTRAL, you can download free pro patches, editing software, and more. Equally suited for beginners, weekend warriors, and traveling players, the GT-1 packs premium sound in a compact and rugged package.

Exceptional Sound

Thanks to its Premium BOSS sound engine, the GT-1 provides tone quality and sound-shaping ability that far exceeds typical compact multi-effects. A history of BOSS processing is at your fingers, from classics such as the OD-1 Overdrive to modern effects powered by innovative MDP technology. There's a huge selection of COSM amp tones on tap too, including vintage legends and BOSS original amps optimized for ideal tone and response. Specialized effects like Acoustic Simulator, Guitar Simulator, and others provide numerous tonal options, and there's even a looper to enhance your practice sessions and stage performances.

Portable Tone Partner

The GT-1 was designed for musicians on the move. It's surprisingly lightweight and compact, yet still delivers the rugged durability that BOSS is famous for. The modern design is easy to slip in and out of a guitar bag's accessory compartment, with no worries of hard edges causing damage to your axe. AC or battery power provides flexibility for any performing situation, and up to seven hours of battery life is available for street performing and other mobile gigs.

Easy Patch Selection and Sound Creation

With the GT-1, it's simple to find fantastic tones for your style, and just as simple to customize them to taste. Beginners can get great sounds right away, while more experienced players will appreciate how quick and intuitive it is to adjust sounds. The Easy Select function allows you to choose patches by genre, distortion, or effect type, while Easy Edit lets you tweak drive, modulation, and echo tones to perfection with little effort. Dedicated panel buttons provide quick on/off switches for effect groups, and also unlock deep-dive parameters for microscopic fine-tuning.

BOSS Tone Central and BOSS Tone Studio

At BOSS Tone Central, you'll find tons of free patch collections for playing all types of music with the GT-1. Created by pro guitarists, these patches are dialled-in and ready to use, and make great starting points for advanced players who like to create their own custom sounds. The free BOSS Tone Studio software provides a full-featured editor/librarian for the GT-1, as well as integrated access to all the patch collections at BOSS Tone Central.

Maximum Control in a Small Space

The GT-1's three footswitches are smartly designed to provide patch selection, tuner access, looper control, and more in a minimal footprint. The dedicated CTL1 switch is freely assignable to functions like tap tempo, effects on/off, and numerous others, while the expression pedal and toe switch are assignable to volume, wah, and various effects parameters. If you crave more control, there's even a jack for connecting up to two external footswitches or an expression pedal. And in addition to providing access to BOSS Tone Central and BOSS Tone Studio, the GT-1's USB jack lets you record tones with your favourite DAW.

Specifications

Sampling Frequency: 44.1 kHz
AD Conversion: 24 bits + AF method
* AF method (Adaptive Focus method) is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.
DA Conversion: 24 bits
Effects: 108 types
Patches: 99 (User) + 99 (Preset)
Phrase Loop: 32 sec
Nominal Input Level: INPUT: -10 dBu, AUX IN: -20 dBu
Maximum Input LevelINPUT: +7 dBu, AUX IN: 0 dBu
Input Impedance: INPUT: 1 M ohm, AUX IN: 27 k ohms
Nominal Output LevelOUTPUT (L/MONO, R): -10 dBu, PHONES: -10 dBu
Output Impedance: OUTPUT (L/MONO, R): 1 k ohm, PHONES: 44 ohms
Recommended Load Impedance: OUTPUT (L/MONO, R): 10 k ohms or greater, PHONES: 44 ohms or greater
Controls: DOWN switch, UP switch CTL1 switch, EASY SELECT button, EASY EDIT button, FX1/COMP button, OD/DS button, PREAMP button, FX2/MOD button, DELAY button, REVERB button, MEMORY EDIT button, EXIT button

Display: Graphic LCD (132 x 32 dots, backlit LCD)
Connectors: INPUT jack, OUTPUT (L/MONO, R) jacks: 1/4-inch phone type, CTL2, 3/EXP2 jack: 1/4-inch TRS phone type, AUX IN jack: Stereo miniature phone type, PHONES jack: Stereo miniature phone type, USB COMPUTER port: USB type B, DC IN jack
Power Supply: Alkaline battery (AA, LR6) x 4, AC adaptor (sold separately)
Current Draw: 200 mA

Expected battery life under continuous use:
Alkaline: Appro

Notes: EarthQuaker Devices is proud to introduce you to your new best bud, Gary. This little big guy was dreamt up by the one and only Lee Kiernan from the crushing and most necessary band, Idles!

Gary started as a simple request to create a compact version of the now discontinued Gray Channel, which was a mainstay on Lee's board and a big part of his main drive tone. This was all fine and good, and sounded quite sick, but it was worth and exploring his dark side a little more, Gary after dark, Saturday night Gary. So, he was sat down and began the trek of figuring old Gare-Bear out once and for all. The result is a real exercise in light and dark; smooth to shredded and everything in between.

Gary's right brain consists of a dynamic and destructive fuzz that is both domineering and interactive. It is a ripping fuzz tone with an envelope-controlled variable pulse width and enough volume to blow everything up. This nasty little fuzz turns the signal into a square wave and allows you to dynamically adjust the duty cycle with pick attack. Yes! Controls the sensitivity of the envelope. When this is all the way down you will get an unadulterated thick and heavy square wave fuzz tone that will sustain for days and go dead quiet when you stop playing. As you increase the Yes! control, the envelope becomes more interactive, and the pulse width narrows the harder you hit it. As the pulse width narrows, the tone becomes more nasal and biting until it gets so narrow that Gary goes to his dark place and disappears completely. In other words, with higher sensitivity settings, the sound will disappear entirely and come cruising back to Gary's big guy tone. With proper playing dynamics, this creates a very cool effect that can sound like an exploding amp coming in and out of life, blown through a phase shifter.

This effect can also be controlled with an expression pedal for manual operation or for finding just the right pulse width to cut through the mix for a set-and-forget operation. When using an expression pedal, Yes! operates in conjunction with the expression pedal to set the peak of the sweep. Set Yes! to the desired stopping point and express yourself as you please without worry of taking Gary over the edge!

Oosh acts as the master volume for Gary's nasty side. There is an insane amount of volume on tap so use this control wisely!

Gary's left brain displays his softer side. This is a simple and natural sounding overdrive that keeps your tone lively and drives your amp crazy. This side is based on the green channel of the Gray Channel, which is Earthquaker's take on the classic little yellow overdrive that started it all. Lee used this pedal with the clipping switch permanently set to the middle position, which removes all the diodes from the circuit, producing a full-bodied, cutting opamp distortion with plenty of volume on tap. Earthquaker have reproduced that tone here with exacting precision. Go sets the opamp drive and can range from a simple full-range clean boost all the way up to a smooth and natural distortion. In conjunction with That's It, which is the master volume for the drive side, you can use Gary's softer side as a clean boost to push your amp into overdrive or turn up Go and use all of Gary's internal magic to create the finely tuned dirt you desire.

Gary's signal path is fuzz into overdrive for total tonal integrity and cannot be changed. This is where Gary put his foot down.

Each and every Gary was softly brought to life by the delicate hands of EarthQuaker Devices in the elegantly unrefined canal-front city of Akron, Ohio USA.

Notes: The GALACTAVISE is Allpedal's flagship compressor. Built with the musician's needs in mind, it boasts an uncompromisingly sweet compressor circuit with a Mix control for dialling in that perfect balance of compressed tone and clean tone.

The top end can often be make or break with many compressor circuits, so AllPedal also added the ability to adjust just the right amount with the Presence control. Made with the highest quality components for a low noise floor and road-worthy durability.

Let the GALACTAVISE blast your tone into orbit!

GALACTAVISE is the best guitar compressor pedal for musicians seeking to balance their sound's dynamics. As the best compression pedal on the market, it allows guitarists to control their volume levels efficiently, ensuring a consistent sound output. This guitar compression pedal is an essential tool for both studio recording and live performance.

As with all their effect pedals, AllPedal took special care in the GALACTAVISE's aesthetics with its finish, sophisticated artwork and anodized knobs.

GALACTAVISE is proudly made by hand in Paducah, KY in the USA using the latest cutting-edge technology in the pursuit of ultimate tone.

Notes: The polyphonic STRING9 String Ensemble transforms a guitar into nine different string ensembles and string synthesizers while requiring zero modifications, special pickups, or MIDI implementation. It relies on the same technology powering all EHX 9 Series pedals. In a 9 Series first, the STRING9 includes the signature EHX Freeze effect on 3 of the presets to sample and hold notes and chords with infinite sustain.

A rotary switch on the STRING9 allows the player to select the sound of their choice, as follows:

SYMPHONIC: Re-creates the sound of a large symphony orchestra and features an octave down effect on the lower range of the guitar for a full sound
JUNE-O: Emulates the Junor analogue string synthesizer sound
PCM: Sound of a small string section sampled by a vintage PCM keyboard producing a warm vintage string sound
FLOPPY: Emulates the sound of an Orchestronr optical disc playback sampler, warble included
AARP: Emulates the classic ARP Solinar string synthesizer
CREWMAN: Emulates the Crumar Performerr analogue string and brass synthesizer; Floyd in a box
ORCH FREEZE: Orchestral sound with EHX Freeze effect
SYNTH FREEZE: String synthesizer sound with EHX Freeze effect
VOX FREEZE: Mellotronr choir and strings sound from the EHX MEL9 with EHX Freeze effect
The pedal is equipped with independent Effect and Dry volume controls so players can precisely tune their mix at the Effects output jack, plus a Dry output jack that always outputs the input signal at unity gain.

Controls 1 and 2 have been designed to adjust specific parameters for each of the nine programs adding usability and flexibility to each sound.

Specifications

Circuit: Digital
Bypass: Buffered Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 4.75 x 4 x 2.25
Current Draw: 100mA

Notes: Phonkify X

Envelope Filter and Octave

Maximise your funk with the Tsakalis Audioworks Phonkify X pedal. A potent pairing of fabulous filters and outstanding octaves. Expanding on the esteemed original Phonkify, the Phonkify X turns up the funk-o-meter with three selectable flavours of envelope filter and three types of octave voicings. This makes the pedal not only perfect for juicing up your jams and dripping your tone in cosmic gravy, but also delivers filters and octave tones that go way beyond and into the spaces between. Featuring flexible momentary or latching operation for each effect, plus a dedicated toggle switch for selecting the order of the filter and octave, the Phonkify X is ready to pour on the funk gravy and turn up the stank factor!

Phonkify X's Filter section warps and wiggles your tone into a kaleidoscope of grooves.

Flip the dedicated toggle switch to find your filter flavour: Low Pass for warm, buttery tones, Band Pass for that snappy, in-your-face attitude or a cosmic combo of Low Pass-to-High Pass for sweeping, interstellar effects. Got an expression pedal? Slide it in and ride the funk wave with hands-free control over your freaky frequencies.

While the Octave section can make the floor rumble and shake! No matter if you're feeling that high-flying octave-up, a deep-diving octave-down or a spaced-out blend of both, hit that footswitch and squeeze out every last funky drop.

Need more juice? Crank the master volume to fine-tune your output, while the pedal's internal voltage doubling gives your tone headroom for days. True Bypass keeps your original signal pure when you step off the funk train.

The Phonkify X isn't just a pedal. It's a total vibe machine, a groove generator and a tone tailor for the funky-hearted. Whether you're laying down tight pocket grooves or blasting off into experimental soundscapes, the Phonkify X has the tools to elevate your sounds right into the stratosphere.

Notes: How It Works

Chaining up an EQ, compressor and overdrive pedal will never give you the same result as SkarBassOne achieves, not by a long shot! The precise filters in SkarBassOne is what gives you the extremely surgical tone and the wide range of possibilities without breaking a sweat!

No matter the settings you will always keep the clean powerful low end with this multiband overdrive and that is a must for bass. Controlling the mids of a bass sound has never been easier! You will get out of the way from other instruments masking frequencies and take up all the space that is ment for you and ONLY you!

It might look simple on the outside, but I assure you the inside is a matrix of years with development. The flexible multiband drive is smooth all the way thru it's range and I promise you it will never ever mess with your low end!

Details

Compression:

One knob FET compressor with fast attack and release. It handles dynamics with ease and creates a solid wall of tone.

Compression LED:

Visual indication of how hard the compressor is working.

Mid:

Mid filter to achieve the surgical studio tone! Create a defined, in the pocket frequency response for the bass to sound massive and to make it sit with other instruments. Your band mates will never beg you to turn down your bass again!

Mix:

Quickly set the tonal balance between low frequencies and high frequencies. Find the sweet spot in any situation.

Footswitch:

On/Off switch for Drive and Tone.
Red channel =Drive and Tone active.
Blue channel = Drive and Tone off.
Compression, Mid and Mix is active on both channels.

Drive:

Set the amount of multiband drive, from gentle push to full on bark!

Tone:

Hi-cut filter to control the high frequencies of the output.

Notes: Sometimes pedals can change. Parts drift, pots break, transistors go bad. They go to new homes; they get neglected and resold. Sometimes people get in there and try to revive them to their original state and sometimes they just throw whatever is laying around inside and hope it does the trick. In this case, EQD are pretty sure all the above happened to the fuzz pedal that made its way to James Murphy and ended up finding a forever home with LCD Soundsystem.

Chelsea really does have something special. It's heavy without being too heavy, clean but not too clean. A simple set of controls yet it has an expansive array of tones that makes it very versatile on a wide variety of instruments, has clarity when you need it and can blur all discernable lines when you don't. It still retains the familiar foundation of the classic fuzz it was intended to be, but something special happened to it over the years and it has very much grown into its own thing

Notes: Lo-fi looks, killer sound. Serious filth here from Death By Audio. Surprising versatility with simple controls, offering mild overdrive if you want but specialising in grimy fuzz.

Supplier's Notes:
Call in the Army, the Navy, Scotland Yard, your mom, and the Mario Brothers! You'll need all the help you can get to stop this endless wall of fuzz from raging! This kill-all circuit explodes the meanest, nastiest, most insane distortion to make you the ruler of the fuzz universe.

This Death By Audio pedal has hand spray-painted graphics covering up meaty components and sound, giving you a high-tech fuzz mutilator at a punk rock price. With three knobs it can create a multitude of ultimate fuzz, boost, overdrive, and distortion sounds. Listen for yourself and you will see, this is the thickest-sounding sustaining fuzz pedal we have ever heard.

Controls

Volume: Controls the overall output level.

Fuzz: Controls the gain of the fuzz circuit. At its lowest setting the pedal just acts as a tone shifter. As the fuzz knob is turned up it sweeps from a booster to an overdrive to a thick distortion to a full on blown out war of fuzz.

Tone: A specially designed multi-curve shaping filter which changes the timbre of the pedal from super deep bass sludge to screaming highs.

Specs

Dimensions: 5.87" x 4.72" x 2.5" (including hardware)
Weight: 18 oz.
Power: 9V (runs on standard 2.1mm negative center 9V adapter or included 9V battery)
Current Draw: 1 mA

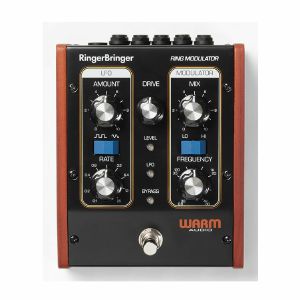

Notes: Analogue Ring Modulation Pedal With LFO, MOD, Frequency & RATE Controls.

Reviving An Avant-Garde Pedal For Music's Trailblazers

From light Lo-Fi modulation all the way to the piercing sound of infinity ring-modulation, the Warm Audio RingerBringer accurately recreates the ultimate all-analogue ring modulation effect used for experimental tones. Like the original, loved by artists like Jeff Beck, Radiohead, Omar Rodriguez-Lopez, Trent Reznor, and many more, RingerBringer delivers the original distinct set of controls, extensive in/out options, and rich sonic textures to inspire boundless sonic experimentation.

Don't Just Play, Create

The ideal platform for the sonic tinkerer, RingerBringer inspires you to generate layered frequencies and harmonics, explore a wide range of sonic possibilities for guitar & beyond, and design your own sounds from the ground up. Extensive controls including LFO, MOD, Frequency & RATE open up sonic possibilities that range from subtle overdriven textures all the way to wobbling, warped leads soaked in texture and tone. RingerBringer is 100% analogue and sports premium components including hand-selected op-amps and transistors. RingerBringer is no emulation or "patch", instead it delivers true-to-spec performance of the boutique, analogue original.

For Original Artists Building Memorable Sounds

Delivering tones ranging from nuanced drive to out-of-this world modulation, RingerBringer helps develop a unique sonic signature for any instrument, on any track.

A Sandbox For Synths & Keys:

Send any keyboard or synth through the WA-RB for added harmonic content and endless modulation. Try sending digital synths, keys, and pads from your interface through the WA-RB for added analogue vibe and "fattened up" tone on otherwise dry digital signals.

Technical Specifications

100% Analogue Ring Modulation Pedal With LFO, MOD, Frequency & RATE Controls
Accurate Recreation Of The Ultimate Ring Modulator For Experimental Tones
Premium Components Including LM13700M & TL072ACDR Op-Amps + Hand-Selected Transistors (DMMT3906W & MMBT3904) For True-To-Spec Performance
LFO Controls: Amount, Rate, & Sine/Square Wave Switch
Modulation Controls: Mix, Frequency, & Lo/Hi Switch
Universal Drive Control + LED Indicators For Level, LFO, & Bypass
CV Inputs: Rate | Amount | Mix | Frequency
1/4" Input Jacks: Audio In | Audio Out | LFO Out | Carrier IN/Out
Output Impedance: 600 Ohms | Buffered Bypass
9-Volt Battery Or /External 9V Regulated (Centre-Negative) DC Adapter
Nominal Current Draw: 100 mA (9V)
Custom Black Panel Enclosure With Retro Faux-Wood Sides
Dimensions: 6.5" x 5.25" x 3" | Product Weight: 1.90 lbs

Notes: Dusky drama

Gloamer is an all-analogue, polyphonic amplitude synthesizer that alters the attack and decay time of any sound source without sacrificing the fidelity of the original tone. Its attack function provides a pick-triggered volume swell: a cinematic "slow gear" effect that is smooth and controllable with variable timing from extremely fast to very slow. The volume swell cycle can be reset at any moment by muting, allowing players to craft bowed string-like lines and chords with ease. Gloamer also features a powerful optical compressor that can add subtle punch or extreme sustain, helping to maintain a smooth volume swell effect even with very long attack times. A Volume knob controls loudness at the peak of the attack cycle, while a master Blend control allows players to layer an uncompressed clean sound in with the volume swell effect. Additionally, when activated, the Decay function causes notes to fade out once the attack cycle is complete. When the decay cycle is completed, an auto-reset function causes the attack to begin again immediately, as long as there is audio input. This allows you to create a wide range of undulating, asymmetrical tremolos at slower settings as well as pulsating stutter effects when using faster attack and decay times.

Knob-by-knob

Volume: Sets the master output volume of the effect when engaged.
Compression: Determines the balance of clean and compressed signal.
Blend: Determines the balance of clean signal and effect.
Attack: Determines the duration of time it takes for a note to swell in from silent to full volume.
Decay: Determines the duration of time it takes for a note to fade out from full volume to silence.
Sensitivity: Determines how much input signal is needed to reset the attack and decay cycle.
Ready (LED): Signals when the pedal is armed and ready to begin the attack and/or decay cycle.

A hi-fi attack and decay master
Gloamer was designed to allow players to change the nature of their attack and decay while maintaining pristine, hi-fidelity audio. Easily swell blooming single note lines or full, lush chords and become the string section you've always wanted to hire but can't afford.

Model name: Gloamer
SKU: ATS
Function: Volume Swell with Compressor
Category 1: Modulation
Category 2: Compression

Bypass: True Bypass

Electronics

Voltage: 9VDC
Current draw: 100mA
Input impedance: 470K
Output impedance: 150 ohms

Body:

Length (in): 3.5
Width (in): 4.75
Height (in): 2.5
Weight (lbs): 1

Notes: The JamMan Solo HD has all the same great features as the JamMan Solo XT including stereo looping, Micro SD/SDHC compatible memory card support, Auto Record, selectable Stop Modes, and the revolutionary JamSync feature which allows for syncing of multiple JamSync compatible devices. Even better, as its name suggests, the JamMan Solo HD features improved High-Definition audio performance with its Next-Gen HD A-D/D-A Audio Converter!

The JamMan Solo HD features 200 internal memory locations that can hold up to 35 minutes of loops. Installing a Micro SD/SDHC card into the memory card slot adds another 200 memory locations which can store over 32 hours of loops! (Compatible with Micro SD/SDHC cards up to 32Gb)

The JamMan Solo HD has USB connectivity for syncing to DigiTech's free JamManager HD software. JamManager HD organizes and saves your loops to a computer (PC) and lets you quickly create JamLists to take to your gig. The JamMan Solo HD is the perfect stereo looper/phrase sampler for practicing, composing, and performing.

Use the JamMan Solo HD to:

Record rhythm loops, then solo over them on the fly, completely Hands-Free.
Slow down or speed up the tempo of any loop without changing pitch.
Sync multiple JamSync compatible JamMan devices for multi-track looping capabilities.
Seamlessly transition between recorded loops during playback.

Next-Gen HD Audio Performance

Sound better than ever with improved high definition, low-noise, low-distortion A-D/D-A audio converter.

32 Hours of Looping Time

Compact stereo looper with 35 minutes of on-board memory, PLUS up to 32 hours of looping time with a MicroSD card. (MicroSD card not included)

Professional Drum Loops

Includes 10 carefully mastered drum loops from Pat Mastelotto (King Crimson, Stick Man, Mr. Mister).

Glitch-Free Time Stretching

Adjust the tempo of your loops anyway you like, completely glitch-free.

JamSync Enabled

Sync multiple JamSync compatible JamMan devices for multi-track looping capabilities.

JamManager HD

Connect via USB to transfer loops to and from your PC using JamManager HD.

Notes: The Pitch Forkr+ features two independent pitch shifting engines with full control over each. Both will transpose your pitch up or down over a +/- three octave range and detune +/-99 cents. With rock solid tracking, an organic, musical tone and extensive control, it's your ultimate harmonizer.

Notes: The Nectar "Tone Sweetener" strikes aperfect balance between versatility and simplicity. It offers a wide range of tones, spanning from a vintage tweed-style crunch to a full-bodied overdrive, and even a modern high-gain fuzz that pairs wonderfully with any guitar, pedal or amp.

Use the mode toggle to switch between the DRIVE and FUZZZ modes, while the LEDS indicate the selected mode, even when the effect is bypassed. Fine-tune your sound with the TASTE control to set the perfect eq for each guitar or amp.

The Nectar's responsiveness is truly unparalleled, like a delicate bee collecting pollen. Every nuance of your playing is enhanced and sweetened in the best way possible, with plenty of headroom.

True Bypass Design
Power requirement: 9V, 30mA
Made in California, USA

Notes: The smallest member of the polyphonic POG clan provides impeccable tracking and sound!

The EHX Nano POG can simultaneously generate multiple octaves from your input signal. Whether you play single notes, arpeggios, or full chords, the Nano POG will precisely track every note or chord that you play.

With the Nano POG, you can mix together your dry signal with two different octaves (one above and one below your original note) to create totally new, inspiring tones.

Separate level controls for dry, sub octave and octave up plus an extra Dry out and silent footswitching provide the perfect formula for this compact jewel.

Super, space saving design
Tracks chords, sweeps or single notes with no hitches or glitches
Great 12-string guitar sound or turn your guitar into a bass
Amazing organ-like sounds
Adjustable original pitch volume, one octave up volume and one octave down volume
Dry output jack in addition to the effect output jack
Silent footswitching and road worthy die-cast package
Power adapter included

Specifications

Circuit: Digital
Bypass: Buffered Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included (optional 9V battery not included)
Dimensions (in): 4.5 x 2.75 x 2.1
Current Draw: 25mA
Year Released: 2015
