Notes: The best value rotary mixer on the market. Entry-level rotary option from German brand Omnitronic offers similar features and sound to boutique mixers three or four times the price.

Supplier notes:
The TRM-202 MK3 by Omnitronic with its classic ALPS potentiometers (Blue Velvet RK27) and the integrated 3-band frequency isolator offers the classic features of a rotary mixer.

Due to its high quality components, the sound pattern is good and appealing. The large potentiometers of both input channels allow very smooth transitions, hardly realizable with a conventional mixer. Both input channels can be switched between line and phono. A microphone input is also at hand. The kill characteristic provides a total erasure of basses, mids and highs and so enables creative mixing. Due to its booth output and a separate volume control, the TRM-202 MK3 can also be used in clubs without a problem. Thanks to the record output, it is also possible to record own's DJ set.

*** Please note: the 3-pin adapter is not included. ***

Notes: Still a classic, still a brilliant mixer. Nearly 20 years on the market but sounding just as good as ever, the Xone:92 seems like a bit of a bargain now.

Supplier's Notes:
The industry-standard Xone:92 is a versatile six channel analogue mixer, renowned for its expansive, involving sound. With its solid construction and easy to use interface, the 92 is on the riders of most of the world's top DJs and is a permanent fixture in the booth at many of the biggest superclubs.

The Xone:92 was one of the first professional DJ mixers to incorporate MIDI for control of DJ software or external devices, and the first to include the innovative dual VCF filters. With its two stereo FX sends, twin Mic/returns, and one of the best EQ sections around, this mixer is a DJ's dream tool.

For those who prefer to blend with rotary faders the Xone:92R is also available.

Notes: Top-of-the-range option from A&H, with a focus on pure analogue sound and ease of use. 4+2 channel design with four-band EQ, built-in soundcard and the brand's trademark Xone filters.

Supplier's notes:
Xone:96. The long-awaited follow-up to a genuine club classic.

A new, uncompromising analogue DJ mixer, destined to be the heart of your creativity, Xone:96 takes the legendary soul of the acclaimed Xone:92 and redelivers it, enhanced, and with state-of-the-art digital connectivity.

It's all here. The huge, detailed, space-shaking analogue sound that only Xone delivers. A refined, precision 4-band EQ. Unrivalled dual Xone:VCF filters with CRUNCH harmonic distortion. And a dual 32-bit USB soundcard (24 Channels @ 96kHz) with Traktor Scratch certification right out of the box.

Xone:96 lets you connect your whole rig, from laptops and turntables, to pedals, synths and drum machines.

Two dedicated FX sends, four stereo input channels (with 4-Band EQ), two stereo input channels with all new 3-Band Parametric EQ + two auxiliary stereo return channels. And a separate master insert for your outboard hardware.

Explore new possibilities with a familiar layout of beautifully tactile controls. And rely on the industrial build quality that exceeds the demands of relentless back-to-back performances, night after night.

Xone96: You mixed. We listened.

Notes: Four-channel version of the hugely popular TRM-202 rotary mixer. Solid sound quality with three-band isolator section and two-band EQ per channel. Killer value for money.

Supplier notes:
The 2-channel version of this mixer, the TRM-202 MK3 from Omnitronic, was particularly popular with DJs of electronic music all over the world. With the TRM-402 4-channel rotary mixer, the popular concept is extended by 2 channels: Now nothing hinders a creative 4-deck DJ set or a flying change during a gig. Of course, this version also incorporates the classic features of a rotary mixer in the form of ALPS rotary controls (Blue Velvet RK27) and a 3-band frequency isolator.

Smooth transitions:

The high-quality components of the TRM-402 ensure an appealing sound image. The large rotary knobs of the 4 channels allow the DJ to create very smooth transitions, which are so difficult to set with a conventional mixer (with faders). All channels can be switched between line & phono inputs or sources. A microphone input is also available. The kill characteristic of the isolator ensures the complete elimination of bass, midrange and treble and thus creative mixing.

Recording your own set:

The TRM-402 is equipped with a booth output and a separate volume control. So the use of the mixer in the club is no problem at all. Thanks to the record out, it is also possible to record your own DJ set.

Notes: Mid-range DJ mixer from the leading UK brand. Fully analogue four-channel design with A&H's much-loved Xone filter section. Very tempting alternative to the flagship Xone:96. Excellent value.

Supplier notes:
Created for DJs and electronic music purists, Xone:43 is a 4+1 channel DJ mixer that offers the very best of analogue audio quality, including the legendary Xone filter with resonance control, 3 band EQ, crossfader with three curve settings and X:FX for send/return to your favourite FX unit.

The crossfader has three switchable curve settings for blending or scratching styles and can be easily replaced or upgraded to a custom Innofader for ultimate crossfader performance.

With balanced XLR main outputs, independent booth and record outputs, Xone:43 excels in the club and in high end personal DJ setups.

Notes: Entry-level DJ mixer from the ever-trustworthy Reloop. Very simple two-channel design with three-band EQ and a Bluetooth option for convenience.

Supplier notes:
RMX-10 BT - a compact 2-channel DJ mixer, which facilitates wireless music streaming directly to the mixer via the integrated Bluetooth interface.

This way it is possible to use a smartphone or tablet as playback source and route the signal through the mixer. The Bluetooth signal can be routed to both channels. Moreover, the 45-mm crossfader is user-replaceable and the smooth linefaders make mixing more comfortable.

The RMX-10 BT has a 6.3-mm microphone input with separate volume adjustment, as well as a 6.3-mm headphones output with volume adjustment and cue-mix function. Master output volume can be monitored via an integrated LED display. The space-saving and sturdy construction is made of metal.

Notes: Numark Scratch is a 24-bit two-channel mixer that redefines what you can do with an affordable 2-channel scratch mixer. With Scratch, you'll be able to create and perform at a higher level than you ever thought was possible - especially with a mixer in the affordable price category. Scratch combines professional-level performance and outright DJing fun in a way nothing else ever has. You've got to experience it to really see what it's all about!

Scratch is really something special - It brings a new look and design to the mixer category. It boasts an all-metal build with professional features such as a built-in Innofader crossfader, performance pads, instant loop encoder, and toggle paddles to trigger software-based effects. To top it off, it comes with Serato DJ Pro and Scratch is Serato DVS ready.

Its soft responsive performance pads give you the freedom to access cues, rolls, and sampler quickly. The pad mode makes it very convenient to set hot cue points, roll temporary loops, and trigger samples at ease.

Six dedicated software-based FX to apply to individual channel or both using the premium performance base toggle paddles. You can adjust your FX mix from Dry to Wet as you feel the mix.

Play your best with the best! With amazing sound quality thanks to its 24-bit circuitry, the sound is pristine. Your digital song collection never sounded so good, whether you're using Serato DJ Pro or other preferred software. This is also a great mixer to play vinyl records, with a full EQ and a dedicated low/high pass filter.

The butter-smooth Innofader crossfader is designed with the turntablist in mind to perform most intricate and accurate scratches. You have two switches above the crossfader; 1.) reverse the channels and the other 2.) change the slope for a hard cut or a soft curve for mixing.

Easily connect to the Numark Scratch, whether you use traditional turntables or media players. Scratch unlocks Serato DVS for Serato DJ Pro instantly.

Looping made easy. Keep the beat going by pressing the encoder down, and it will lop to the default parameters set in your software. Turn the knob to the right to extend the beat and to the left to shorten the loop.

Scratch has all the necessities with premium features for any setup. There is an XLR main output and unbalanced booth output for the best booth/dance floor experience. There are unbalanced inputs for both line and phono inputs for each channel. A microphone/auxiliary input for XLR or 1/4-inch TS controlled by the mic level knob on the mixer gives you all the versatility you could ask for.

Power supply:
Internal 100v - 240v

Dimensions
12.05" (L) x 9.61" (W) x 3.32" (H)

Notes: Super portable and lightweight DJ mixer. Its small dimensions, just a bit larger than a large smartphone, and its little weight of merely 500 grams offer many advantages. A Gnome can be taken anywhere, as it doesn't require a lot of space - perfect as back up for mobile DJs. In many small bars, space is also a problem - here a Gnome is really helpful too. You should and will always find a place for this smart mixer. Thanks to the variety of five colours, it always matches the furniture. The Gnome forgoes a battery - the input signal is amplified by using a cord.

Notes: Exceptionally versatile four-channel rotary mixer at a very reasonable price. Twelve inputs, three-band EQ, assignable multi-mode filter, isolator and assignable crossfader. Ultra flexible.

Supplier's Notes:
Omnitronic TRM-422: the rotary mixer on a new level

The desired child- Omnitronic's popular TRM series has been expanded: the TRM-422 combines all the proven features of the previous models, but additionally offers functions that numerous fans had wished for. During the development of the mixer, the focus was on the demands and suggestions of the community.

Full control- Each of the 4 input channels has 2 line inputs, one of which can become a phono input at the touch of a button. The channels are each equipped with a volume as well as a gain control. In addition to the master isolator (bass, mid & high), the DJ has the option to activate a filter with HPF, BPF, LPF, resonance and sweep controls in each of the 4 input channels.

The master output is available to the DJ in both XLR and RCA versions.

Effect ways- The use of external effect devices is possible through an FX-In and FX-Out via 6.3 mm jack. The mixer's master insert is also equipped with a send & return (unbalanced) path. This allows additional external effects to be looped into the mixer.

DVS integration- The mixer's timecode outputs allow easy integration of a DVS system (Digital Vinyl System) such as Traktor or Serato.

Monitor section- The booth output of the TRM-422 is provided with one XLR and one RCA connector. The signal of the booth output can be easily adjusted to the conditions in the DJ booth with the help of an EQ (High & Low).

Microphone inputs- The TRM-422 offers 2 microphone inputs. The first mic input gives the DJ the ability to modify the mic signal with EQ (high & low).

Backup source- With the help of the AUX input on the front panel, players such as smartphones, tablets or MP3 players can easily be connected via mini-jack (3.5 mm) and thus serve as a backup solution.

Activatable crossfader- If you don't want to do without a crossfader during your DJ set, you have the option to assign each of the 4 channels to the integrated crossfader. If the crossfader is not used, it can easily be switched off.

Set recording- The RCA record-out makes it easy to record your own DJ set.

Technical specifications

Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 24 W
Protection class: Class I
Power connection: Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Frequency range: Microphone 20 - 20000 Hz, Line 20 - 20000 Hz, Phono 40 - 18000 Hz
S/N ratio: >97,2 dB line, >91,7 dB Microphone
THD: Line <0,04 % at 1 kHz, Phono <0,13 % at 1 kHz, Microphone <0,008 % at 1 kHz
Gain: Microphone 44 dB, Line -16,5 dB to +8,5 dB Phono -48,5 dB to +23,5 dB
Isolators: Master Gain:- ? bis +9, Low/mid 300 Hz, 18db/oct , Butterworth, Mid/high 4000 Hz, 18db/oct , Butterworth
Crosstalk: >-68 dB
Control elements: Power switch, source selector, Crossfader, Crossfader selector switch, Crossfade curve switch; Cue mix split function, EQ controls

Connections
Input: 4 x line via stereo RCA
Input: 4 x line/phono via stereo RCA
Input: 2 x Microphone via 3-pin XLR
Output: 1 x headphones via 6.3 mm jack socket (stereo) mounting version
Output: 1 x headphones via 3.5 mm jack (stereo) mounting version
Output: 1 x rec. via stereo RCA
Output: 2 x booth via 3-pin XLR
Output: 1 x booth via stereo RCA
Output: 2 x master via 3-pin XLR
Output: 1 x master via stereo RCA
Output: 1 x AUX sends via 6.3 mm jack socket (stereo) mounting version
Output: 1 x AUX returns via 6.3 mm jack socket (stereo) mounting version

Channels:
Input chanel: 4 x stereo with Line-Line/Phono switch via RCA, channel control via Rotary, 3-band tone control EQ, source selector, gain control, CUE switch, FX routing switch, Crossfader selector switch,
Microphon chanal: 2 x mono via XLR, channel control via Rotary dial, ON AIR switch

Master output: 2 x stereo via XLR, channel control via Rotary
Booth output: 2 x stereo via XLR, channel control via Rotary
Rec. output: 1 x stereo via RCA
Headphones output: 1 x stereo via Plug 6,3mm/3,5mm (Jack), channel control via Rotary dial, Cue mix split function,
Max. level: Output: +18 dBu
Material: Metal
Housing design: Desktop console housing
Dimensions: Width: 41 cm, Depth: 28,5 cm, Height: 10,5 cm
Weight: 5,74 kg

Notes: Broadcast-ready update of ARS's flagship audiophile rotary mixer. Small design changes mean even better sound quality and improved cueing. Still hand built in Japan to the highest standards.

Supplier's Notes:
Model 9100B Music Mixer

4 channel table top mixer

Model 9100B (broadcast mixer) Music Mixer Wood TYPE (Headphone Monitor Trim: Cue-Mix-Pgm special version)

ARS Model 9100B DJ Mixer is a Japanese made, 4ch. rotary mixer with world's first 3band hybrid isoeq Hi-EQ Mid-EQ Low -Iso on each channel.

This 4 channel High Quality Rotary DJ Mixer has a 3 band Isolator on the master. Potentiometer and Switch are All ALPS .

A long time in the development phase this mixer is a beautiful example of Japanese hand made precision workmanship- highly recommended.

It is designed with purist ideals with only essential features.

ARS 9100 has 3 band hybrid iso-EQ hi-EQ mid-EQ low-iso on each channel and 3band Iso on the master.

The Master Isolators can be boost of cut from +18db ~ -8.

The Ch hi-EQ mid-EQ can boost or cut from +12db ~ -12db. LOW-ISO boost of cut from +6db ~ -8.

Each channel has Post Fader Send. also Return and Effect Loop.

* Due to the Model-9100 is designed for a professional use, The body is no power switch to avoid accidentally power off while playing.

* Minimizing the power noise by designing the All circuit board and the power circuit board independently and setting them apart.

Specifications
Frequency Response: +-1dB 20Hz-20Khz
Input: 3 x Phono: 47K Ohm / 5 x Line: 20K Ohm
House Output:RCA Unbalanced Impedance 600 Ohm/ XLR Balanced Impedance 50 Ohm
Booth Output:RCA Unbalanced Impedance 600 Ohm/ XLR Balanced Impedance 50 Ohm
Effect Loop: RCA Unbalanced Impedance 20K Ohm
Effect Loop Output: RCA Unbalanced Impedance 600 Ohm
Send Output: RCA Unbalanced Impedance 600 Ohm
Retrun: RCA Unbalanced Impedance 20K Ohm
Isolator Frequency Response:
3band hybrid isoeq 1-4Ch /Low-ISO /MID-EQ/HI-EQ
Master 3Band Iso: 10 - 300 Hz / 300 - 3000 Hz / 3000 - 20000Hz boost of cut from +18db ~ -8.

Headphone Monitor Trim: Cue-Mix-Pgm
Power Consumption: 25w
Power Requirement: US-115V/EU-230V(Selectable)
Dimensions: (W)306 x (H)250 x (D)100 mm
Front Panel Colour: Black

Notes: Ultra-compact, ultra-affordable DJ mixer from a reliable brand. Two-band EQ per channel with individual channel gain and a crossfader, plus a microphone input. Small but capable.

Supplier's Notes:

Super portable and lightweight DJ mixer. Its small dimensions, just a bit larger than a large smartphone, and its little weight of merely 500 grams offer many advantages. A Gnome can be taken anywhere, as it doesn't require a lot of space - perfect as back up for mobile DJs. In many small bars, space is also a problem - here a Gnome is really helpful too. You should and will always find a place for this smart mixer. Thanks to the variety of five colours, it always matches the furniture. The Gnome forgoes a battery - the input signal is amplified by using a cord.

Notes: Upgraded to broadcast-ready specification for 2022, ARS's flagship Model 9100 is a thing of beauty. True hand-built Japanese audiophile quality, available here with wooden end cheeks.

Supplier's Notes:
Model 9100B Music Mixer

4 channel table top mixer

Model 9100B (broadcast mixer) Music Mixer Wood TYPE (Headphone Monitor Trim: Cue-Mix-Pgm special version)

ARS Model 9100B DJ Mixer is a Japanese made, 4ch. rotary mixer with world's first 3band hybrid isoeq Hi-EQ Mid-EQ Low -Iso on each channel.

This 4 channel High Quality Rotary DJ Mixer has a 3 band Isolator on the master. Potentiometer and Switch are All ALPS .

A long time in the development phase this mixer is a beautiful example of Japanese hand made precision workmanship- highly recommended.

It is designed with purist ideals with only essential features.

ARS 9100 has 3 band hybrid iso-EQ hi-EQ mid-EQ low-iso on each channel and 3band Iso on the master
.
The Master Isolators can be boost of cut from +18db ~ -8.

The Ch hi-EQ mid-EQ can boost or cut from +12db ~ -12db. LOW-ISO boost of cut from +6db ~ -8.

Each channel has Post Fader Send. also Return and Effect Loop.

* Due to the Model-9100 is designed for a professional use, The body is no power switch to avoid accidentally power off while playing.

* Minimizing the power noise by designing the All circuit board and the power circuit board independently and setting them apart.

Specifications

Frequency Response: +-1dB 20Hz-20Khz
Input: 3 x Phono: 47K Ohm / 5 x Line: 20K Ohm
House Output:RCA Unbalanced Impedance 600 Ohm/ XLR Balanced Impedance 50 Ohm
Booth Output:RCA Unbalanced Impedance 600 Ohm/ XLR Balanced Impedance 50 Ohm
Effect Loop: RCA Unbalanced Impedance 20K Ohm
Effect Loop Output: RCA Unbalanced Impedance 600 Ohm
Send Output: RCA Unbalanced Impedance 600 Ohm
Retrun: RCA Unbalanced Impedance 20K Ohm
Isolator Frequency Response:
3band hybrid isoeq 1-4Ch /Low-ISO /MID-EQ/HI-EQ
Master 3Band Iso: 10 - 300 Hz / 300 - 3000 Hz / 3000 - 20000Hz boost of cut from +18db ~ -8.

Headphone Monitor Trim: Cue-Mix-Pgm
Power Consumption: 25w
Power Requirement: US-115V/EU-230V(Selectable)
Dimensions: (W)306 x (H)250 x (D)100 mm
Front Panel Colour: Black

Notes: Super portable and lightweight DJ mixer. Its small dimensions, just a bit larger than a large smartphone, and its little weight of merely 500 grams offer many advantages. A Gnome can be taken anywhere, as it doesn't require a lot of space - perfect as back up for mobile DJs. In many small bars, space is also a problem - here a Gnome is really helpful too. You should and will always find a place for this smart mixer. Thanks to the variety of five colours, it always matches the furniture. The Gnome forgoes a battery - the input signal is amplified by using a cord.

Notes: Great value mid-range rotary mixer from Omnitronic, a big step up from the popular TRM-202. Large format two-channel design, featuring three-band channel EQs, master isolator, multi-mode filter and dedicated channel VU meters.

Supplier's Notes:
Rotary in its most beautiful form: Omnitronic TRM-222

With the TRM-222, Omnitronic presents an analogue rotary mixer that has been developed with direct feedback from the community.

Proven features have remained

Like its predecessors, the TRM-222 is equipped with a 3-band master frequency isolator, which uses classic ALPS rotary potentiometers (Blue Velvet RK27) for precise sound control. The kill characteristic allows bass, midrange and treble to be completely cancelled out, giving DJs creative freedom in shaping their sound.

The switchable filter section with HPF, BPF, LPF, resonance and sweep controls allows creative processing of the frequency bands. Two stereo input channels with gain control, clip LED, 3-band EQ and phono/line switching as well as a microphone input channel with gain control, 2-band EQ and on-air switch extend the mixer's range of applications. The LED level display for the master signal (L+R) and cue signal provide a good overview.

New functions at the request of users

During the further development of the mixer, great importance was attached to feedback from the community. New functions such as the VU meter display per channel, dipswitches for individual adjustment of the EQ curve and a booth output (XLR or RCA) with 2-band EQ and volume control testify to the sophisticated functionality of the TRM-222. At the request of the fans, the mixer now has a crossfader in VCA technology with adjustable crossfade characteristics, an adjustable send-return effect path and an adjustable record-out.

In addition, the TRM-222 offers two direct outputs for timecode applications and a variety of outputs: Master and Booth (XLR/ RCA L/R), Record (RCA L/R), Master Insert Send/Return (RCA L/R) and FX In/Out (stereo jack).

Technical specifications

Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 15 W
Protection class: Protection class I
Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Cable length: 1,5 m detachable
Frequency range: 20 - 20000 Hz
S/N ratio: >100 dB
THD: <0,05 % at 1 kHz
Gain: Line -12 dB to +12 dB
Phono -40 dB to +5 dB
FX 20 dB
Microphone: 55 dB
DJ filter: Routable: LPF, HPF,
Isolators: Master Gain:- 8 bis +9
Low/mid 300 Hz, 18db/oct , Butterworth
Mid/high 4000 Hz, 18db/oct , Butterworth
Housing colour: Black; silver
Control elements: Power switch, source selector, Crossfader, Crossfader selector switch, Crossfade curve switch; Cue mix split function, tone control
Status LED: Power, master level meter, clip, CUE

Connections:

Input: line via 2 x stereo RCA
Input: line/phono via 2 x stereo RCA
Input: Microphone via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Input: AUX returns via 2 x 6.3-mm-jack (bal.)
Output: Timecode via 2 x stereo RCA
Output: headphones via 2 x 6.3 mm jack socket (stereo) mounting version
Output: headphones via 1 x 3.5 mm jack (stereo) mounting version
Output: rec. via 1 x stereo RCA
Output: booth via 2 x 3-pin XLR
Output: booth via 1 x stereo RCA
Output: master via 2 x 3-pin XLR
Output: master via 1 x stereo RCA
Output: AUX sends via 2 x 6.3-mm-jack (bal.)

Channels:

Input channel: 2 x stereo with Line-Line/Phono switch via RCA, channel control via Rotary, 3-band tone control EQ, source selector, gain control, CUE switch, FX routing switch
Microphone channel: 1 x mono via Combination socket (XLR/jack), channel control via Rotary, 2-band tone control EQ, ON AIR switch
Master output: 1 x stereo via XLR or RCA, channel control via Rotary
Booth output: 1 x stereo via XLR or RCA, channel control via Rotary, 2-band tone control EQ
Rec. output: 1 x stereo via RCA, channel control via Rotary

Headphones output: stereo via Jack, channel control via Rotary
Max. level: Output: +21 dBu
Material: Metal; aluminium
Housing design: Desktop console housing

Dimensions:

Width: 45 cm
Depth: 26 cm
Height: 16 cm

Weight: 5,80 kg

Notes: Very limited numbers for this boutique audiophile mixer. Two-channel rotary design with hybrid three-band iso-EQ on each channel. Top quality sound and build.

Supplier's Notes:
ARS MODEL 1100 DJ Mixer is a Japanese made, 2ch. rotary mixer with world's first 3band hybrid isoeq Hi-eq Mid-eq Low -Iso on each channel.

This 2 channel High Quality Rotary DJ Mixer has a 3 band Isolator on the master.

Potentiometer and Switch are All ALPS .

A long time in the development phase this mixer is a beautiful example of Japanese hand made precision workmanship.

Highly recommended- it is designed with purist ideals with only essential features.

ARS 1100 has 3 band hybrid iso-eq hi-eq mid-eq low-iso on each channel and 3band Iso on the master.

The Master Isolators can be boost of cut from +18db ~ -8.

The Ch hi-eq mid-eq can boost or cut from +12db ~ -12db. LOW-ISO boost of cut from +6db ~ -8.

Each channel has Post Fader Send. also Return and Effect Loop.

* Due to the Model-1100 is designed for a professional use, The body is no power switch to avoid accidentally power off while playing.

* Minimizing the power noise by designing the All circuit board and the power circuit board independently and setting them apart.

Frequency Response: +-1dB 20Hz-20Khz
Input: 2 x Phono: 47K Ohm /2 x Line: 20K Ohm
House Output: RCA Unbalanced Impedance 600 Ohm/ XLR Balanced Impedance 50 Ohm
Booth Output: RCA Unbalanced Impedance 600 Ohm/ XLR Balanced Impedance 50 Ohm
Effect Loop: RCA Unbalanced Impedance 20K Ohm
Effect Loop Output: RCA Unbalanced Impedance 600 Ohm
Send Output: RCA Unbalanced Impedance 600 Ohm
Retrun: RCA Unbalanced Impedance 20K Ohm
Isolator Frequency Response: 3band hybrid isoeq 1-2Ch /Low-ISO /MID-EQ/HI-EQ
Master 3Band Iso: 10 - 300 Hz / 300 - 3000 Hz / 3000 - 20000Hz boost of cut from +18db ~ -8.
Headphone Monitor Trim: Cue-Mix-Pgm
Power Consumption: 20w
Power Requirements: US-115V/EU-230V(Selectable)
Dimensions: (W)260 x (H)250 x (D)100 mm
Front Panel Colour: Black

Notes: Combining the signature warm analogue Xone sound with class leading digital connectivity, Xone:PX5 breathes life and soul into electronic music performance. The built-in FX technology offers new levels of manipulation with our new Xone:Xcite FX suite of performance-focused delays, reverbs, modulators, flangers and distorters which are all assignable through simple hands-on control for fine-tuning the FX and expressing the DJ's inner creativity.

Xone:PX5 is a 4+1 channel mixer, equipped with the legendary Xone filter, 3 band EQ on all channels and an intuitive layout.

The versatile Send/Return feature allowing for the connection of external FX hardware with both Send/Return and Master Insert mode connections (Line or Hi-Z) equips Xone:PX5 for numerous enhanced setup scenarios. Each channel has its own dedicated send control for external FX processing and can also be routed to the internal Xone:FX engine.

Connect your laptop or computer to the premium internal 20 channel 24bit 96kHz USB2 soundcard for easy integration into digital DJ workflows, plus plug n' play connection via X:LINK to Xone:K series controllers for expanded MIDI control.

The crossfader has three switchable curve settings for blending or scratching styles and can be easily replaced or upgraded to an Innofader Pro 2 for ultimate crossfader performance.

No matter what your mixing style, Xone:PX5 combines a modern approach to DJing with all the tools required for creating your own individual sound.

Key Features

High quality internal soundcard

Xone:PX5 incorporates a high specification 20 Channel 96kHz, 24bit USB Soundcard, allowing it to be seamlessly integrated into digital DJ workflows.
Additionally the Xone:PX5 Soundcard supports DVS control of Native Instruments' TRAKTOR SCRATCH PRO 2 DJ software. Plug your PC/Mac into the Xone:PX5 and use the TRAKTOR SCRATCH PRO 2 control media (control vinyl or CDs) to intuitively control and scratch with digital audio files stored on your computer.

Xone:FX
Xone:PX5 features the Xone:Xcite FX suite, a new breed of FX specifically tailored for DJ performance. The array of spectral delays, resonators, gritty reverbs and more is accessed through familiar, hands-on controls for instant, instinctive operation, making it easy to add energy and excitement to a track or create entire FX soundscapes. A hybrid FX mode combines the internal and external send & return FX for more advanced FX processing.

Xone filter system

The original and best. The Xone filter is a legend in the DJ booth - none of its imitators come close. Xone:PX5's filter includes HPF, BPF, LPF, resonance control and frequency sweep, plus the option to route the Aux channel and External Return to the filter.

Xone:Sync MIDI clock engine

Xone:PX5 features an integrated MIDI clock engine which can send start/stop messages to external equipment. The 5-pin MIDI Sync/Out connection integrates external software/hardware instruments such as drum machines and synthesizers which can be connected via 14" jack input connections (mono/stereo). Xone:PX5 can also send/receive MIDI clock information through the USB connection.

X:Link
For the ultimate DJ setup, connect Xone:K series controllers to the Xone:PX5 over X:Link for hands-on control over your software, saving USB ports on your computer.

4+1 channels

On top of its four fully featured phono/USB/line channels, Xone:PX5 has a flexible mic / aux channel with XLR and 14" jack connectors and full 3 band EQ. If you don't perform with mics, the additional inputs allow this channel to be used as an extra stereo music source or USB Return channel.

Innofader compatible

Upgrade to an Innofader Pro 2 crossfader (available separately) for ultimate performance. Always a popular choice for scratch DJs.

Technical Specs
Type: Analogue
Channels: 4 + 1
EQ: 3-band / Total Kill (CH 1-4 + CH A)

USB Soundcard:
20 Channel (10 in / 10 out)
USB2 / Class Compliant
24bit / 96kHz
1 x MIDI IN
1 x MIDI Out

Line Inputs: 4 x RCA (CH 1-4), 1 x 1/4" TRS (CH A) Mono/Stereo
Phono Inputs: 4 x RCA (CH 1-4), LN/PH Switch for DVS
USB Inputs: 5 x USB (CH 1-4 + CH A)
Mic Input: 1 x XLR
Master Output: 1 x XLR (Balanced)
Master 2 Output: 1 x RCA (Un-balanced)
Booth Output: 1 x 1/4" TRS
Record Output: 1 x RCA (Un-balanced)
Master Insert: 1 x 1/4" TRS
MIDI Sync/Out: 1 x 5-Pin DIN, DIN Offset Control

Send/Return I/O
1 x 1/4" TRS Send
1 x 1/4" TRS Return
1 x LN/Hi-Z Switch

Internal Xone: FX Yes
Hybrid FX Mode: Yes (Internal < Dual > External)
FX Send: 1 x Pre/Post Selectable (CH 1-4 + CH A)

Filter:
1 x VCF Filter
HPF / BPF / LPF
Adjustable Frequency & Resonance
Assignable CH 1-4 + CH A + External Return

X-Link: 1 x RJ45

Headphones:
1 x 1/4"
1 x 3.5mm
Split Cue Monitoring

Channel Faders: 60mm VCA / Replaceable
Chanel Meters: 12 Segment LED
Channel Fader: Curve 3 Types
X-Fader: 45mm VCA / Replaceable / Innofader Compatible
X-Fader Curve Settings 3 Types
MIDI: Clock Send + Receive; Start / Stop / Pause / Tempo Bend (-/+)
MIDI Assignable: Yes (MIDI CC / MIDI Notes)
BPM Detection: Auto / Manual / Tap Tempo
Earth Ground Terminals: x 2
Headroom: 20dB

AC Mains:
100 to 240V
AC 50/60Hz
Consumption 35W max

Mains Adaptor: 3 pin IEC socket with cable clamp
Fuse Rating: 250V AC T1AL 20mm

Height: 4.3"
Width: 12.6"
Depth: 14.8"
Weight: 11.5 lbs.

Notes: Compact, affordable DJ mixer that focuses on the basics with minimal fuss. Includes a lot of professional-level features like three-band EQ, balanced outputs, separate booth output and adjustable crossfader.

Supplier's Notes:
Whether you're a beginner or a professional, this Gemini MXR-01BT 2 Channel Professional DJ Mixer with Bluetooth Input will meet your needs. Beginners will find its simple and user-friendly layout easy to understand while professionals will value its all metal construction as a durable and reliable back up mobile DJ mixer. It's packed with the features you want including Bluetooth input, 3-band EQs per channel, crossfader curve and reverse controls, and complete output section.

Notes: More bang for your buck? Omnitronic's four-channel offering is a competitively priced alternative to entry-level mixers from Pioneer or A&H. Built-in mp3 playback from USBs and audio streaming over Bluetooth.

Supplier notes:
- 4 input channels with gain control, LED level meter, 3-band equalizer, cue button and channel fader
- DJ microphone channel with level control, 2-band equalizer, on/off and talkover switch
- Integrated Bluetooth audio streaming for your smartphones and tablets
- MP3 player with USB port and blue LCD screen
- Pre-fader listening to all input channels and the master output via adjustable stereo headphones output
- Crossfader with assignment switches and adjustable curve
- Master channel with level and balance control
- 10-digit stereo LED level meter
- Adjustable monitor output (DJ booth)
- 10 line and 2 phono inputs via RCA jacks
- Balanced XLR and RCA outputs
- Record output, independent of the master

Notes: Brand new for 2021, premium rotary mixer from Japanese audiophile specialists ARS. Two-channel design with three-band EQs and three-band master isolator.

Supplier's Notes:
ARS MODEL 1100 DJ Mixer is a Japanese made, 2ch. rotary mixer with a 3-band hybrid isoeq: Hi-eq Mid-eq Low -Iso on each channel.

This 2 channel High Quality Rotary DJ Mixer has a 3 band Isolator on the master.

Potentiometer and Switch are All ALPS .

A long time in the development phase, this mixer is a beautiful example of Japanese hand made precision workmanship.

Highly recommended.


It is designed with purist ideals with only essential features.

ARS 1100 has 3 band hybrid iso-eq hi-eq mid-eq low-iso on each channel, aand 3band Iso on the master.

The Master Isolators can be boost of cut from +18db.

The Ch hi-eq mid-eq can boost or cut from +12db ~ -12db. LOW-ISO boost of cut from +6db.

Each channel has Post Fader Send. also Return and Effect Loop.

* Due to the Model-1100 is designed for a professional use, The body is no power switch to avoid accidentally power off while playing.

* Minimizing the power noise by designing the All circuit board and the power circuit board independently and setting them apart.


Frequency Response: +-1dB 20Hz-20Khz


Input: 2 x Phono : 47K Ohm /2x Line: 20K Ohm


House Output: RCA Unbalanced Impedance 1K Ohm/ XLR Balanced Impedance 100 Ohm


Booth Output: RCA Unbalanced Impedance 1K Ohm/ XLR Balanced Impedance 100 Ohm


Tape Output: RCA Unbalanced Impedance 1K Ohm


Effect Loop: RCA Unbalanced Impedance 600 Ohm


Effect Return: RCA Unbalanced Impedance 600 Ohm


Send Output: RCA Unbalanced Impedance 600 Ohm


Retrun: RCA Unbalanced Impedance 20K Ohm


Headphone Monitor Trim: Cue-Mix-Pgm Trim


Power Consumption: 25w


Power Requirements: US-115V/EU-230V(Selectable) 50/60Hz


Dimensions : (W)260 x (H)250 x (D)100 mm


Front Panel Colour: Black

Notes: Low-budget flexibility from the German brand. Three channels with three-band EQ, plus streaming from Bluetooth or USB for added connectivity.

Supplier notes:
- 3 input channels with gain control, 3-band equalizer, cue button and channel fader
- DJ microphone channel with level control and 2-band equalizer
- Integrated Bluetooth audio streaming for your smartphones and tablets
- MP3 player with USB port and blue LCD screen
- Pre-fader listening to all input channels and the master output via adjustable stereo headphones output
- Crossfader with adjustable curve and reverse function
- Master channel with level control and 6-digit stereo LED level meter, switchable between master and PFL signal
- 6-digit stereo LED level meter
- 6 line and 2 phono inputs via RCA jacks
- Balanced XLR and RCA outputs
- Record output, independent of the master

Notes: The legendary Xone:92 gets a big update. Improved sound, mini innoFader Pro, updated build and more. The iconic filter circuits see major upgrades, with refined curves, silent switching and tweaked resonance. Better than ever.

Supplier's Notes:
The Xone:92 defined club music for a generation. Now, it's back to set new standards. Analog warmth, precision control, and bulletproof reliability - elevated for the next generation of underground innovators and Big Room stars.

The Evolution of a Classic

Building on the Xone:92's revered legacy and featuring hardware enhancements from the acclaimed Xone:92 Limited Edition, we've added silent VCF switching, a new custom innoFADERr crossfader, and a collection of precision upgrades that preserve the legendary 92 DNA while improving performance.

The Iconic 92 Sound. Refined

For two decades, the Xone:92 set the sonic standard for dance music with its all-analogue signal path.

The new Xone:92 delivers the iconic sound that DJs and clubbers have come to love, but with the latest high-performance analogue components in the audio path.

Experience bass that moves crowds, highs that cut through, and a warmth digital can't touch. Connect with your audience on a physical level - from intimate clubs to massive festivals.

The Legendary Filter. Perfected

The Xone:92 filter changed the game when it made its debut in 2004. Twenty years on, it's still the benchmark, and the new Xone:92 takes it further.

The updated filter provides extended frequency precision thanks to an optimised control curve while retaining the 92's fabled filter sound. Silent filter switching enables seamless transitions, and enhanced resonance lets you explore new dimensions in your performances.

Built for the Booth
The new Xone:92 is built to withstand the rigours of clubs, festivals, and relentless touring thanks to its rugged, tried and tested chassis designed for night after night of high-energy sets.

The crossfader has been updated to the industry-favourite mini innoFADER Pror, tuned to match the curve of the original 92 fader while providing a smoother, more precise and longer-lasting mixing experience.

The new Xone:92 revamps the classic Storm Grey colourway with enhanced UV printing for low light legibility, and a refocused legend for increased visibility of key controls, with recessed Filter and XFade assign switches further improving ergonomics.

The Ultimate Analogue EQ

The Xone:92's unrivalled analogue EQ delivers all the control you need to sculpt your sound and get creative with your transitions.

All phono/line channels feature our renowned 4-band EQ with total kill on HF and LF bands, plus dual mid-frequency controls for the ultimate in tonal control.

Mic channels include a 4-band EQ with +/- 15dB on all bands.

Precision Tuned Preamps

The Xone:92 phono preamp has been fine-tuned to get the best out of your vinyl with an RIAA curve tailored specifically for techno and house, and improved Line/Phono source matching for easy integration of analogue and digital sources.

Includes: Spare Knobs, Dual Ground Adapter, Mains Lead, QR Card, Safety & Regulatory Information

Notes: Updated version of Gemini's tiny MM1 DJ mixer adds Bluetooth streaming to allow you to play music wirelessly via a phone or other Bluetooth device. Compact two-channel format with two-band EQ.

Supplier's Notes:
Ultra-compact 2-channel stereo mixer with built-in Bluetooth connectivity allows you to wirelessly stream music from your smartphone/tablet directly to your mixer. Fully functional DJ mixer with 2-line RCA inputs and 2-band rotary EQ with Gain control. Features screwless bottom panel for unobstructed mixing, rotary headphone volume control, and a smooth crossfader for flawless blends. Features 1/4" headphone output and a 1/4" microphone input with volume control.

Notes: Co-designed by Richie Hawtin, the Model 1 is an obvious choice for DJs who want great sound and creative performance options. Easily one of the best high-end mixers on the market.

Supplier's Notes:

MODEL 1 is a performance instrument providing new creative possibilities to artists, and empowering them to PLAYdifferently.A mixer of uncompromising build quality, intuitive tactile controls and beautifully warm analog circuitry. Engineered by Andy Rigby-Jones and co-designed by Richie Hawtin, with two years of testing, insight and refinement with artists, clubs and engineers from across the electronic music community.

MODEL 1 has a unique offering of six fully featured input channels plus two stereo returns in a small format frame. It has many features not currently available on any comparable device, such as Input pre-amplifier drive control, hybrid filter/swept bell EQ, dual cue system, dual mixer linking system, and a fully balanced Tascam DB25 connector system. It's a purely analogue mixer featuring technology normally found in the finest studio consoles, such as a fully balanced mix buss, zero crossing detection for seamless filter & master EQ routing along high voltage differential power rails.

Features:
2 stereo sends
2 stereo returns
3 high performance phono preamps
3 high performance turntable inputs, optimized for the club environment in order to minimise the tonal imbalance between vinyl and Digital audio, and to eliminate sub frequency feedback. Each phono input has it's own Individual Turntable Earth Binding for greater flexibility.
Custom TKD 60mm faders. These twin rails faders have been carefully chosen to ensure long life and smooth operation and feature a heavy feel for greater precision.
Precision Sculpting EQ
Contouring low & high pass filters
Analog overdrive
Two independent Cue systems, A and B.
Mixer Link, allows multiple mixers to be linked together
Balanced Mix Bus
Master high & low pass resonant filters
Three-band master EQ
Two-band Booth EQ
100% analog

Notes: - Super portable and lightweight DJ mixer
- 2 stereo channels with gain control and 2-band EQ, RCA connectors
- Integrated Bluetooth audio streaming for your smartphones and tablets
- MP3 player with USB port and blue LCD screen
- Adjustable microphone input via 6.3 mm jack
- Adjustable headphones output via 6.3 mm jack for pre-fader listening (CUE)
- 2 adjustable master outputs via RCA connectors
- Crossfader
- Anodized metal housing
- Operation via supplied power unit

Notes: Four-channel version of Richie Hawtin-designed Play 1 mixer, engineered by music tech royalty Andy Rigby-Jones. Immense sound quality and performance features, including analogue filters, overdrive and DualCue system for back-to-back sets.

Supplier's Notes:
With MODEL 1, PLAYdifferently hit the apex of pure analogue DJ mixer design. MODEL 1 brings performance to an ultra-compact 4-channel design, ideal for home studio use, or as the ultimate tour-able analogue mixer- so you can take your analogue core wherever you go.

Engineered by Andy Rigby-Jones and co-designed by Richie Hawtin with feedback from artists, clubs and engineers, MODEL 1.4 features the same uncompromising approach to build quality, precision and detail that set MODEL 1 in a class of its own.

MODEL 1.4 can be used standalone or paired with a MODEL1 using unique mixer-link functionality to deliver an unrivalled 10-Channel Live mix experience.

Technical specifications:

Maximum output level: +28dBu Balanced, +23dBu Unbalanced
Output Impedance: 50R Balanced, 68R Unbalanced
Residual Noise: -100dBu Un-weighted, 22Hz to 20k
Dynamic range: > 112dB
Frequency Response: 20Hz - 40kHz +0/-2dB
Distortion (THD+N): 0.008% Line In to Mix 1 out, 0dBu Unity Gain
Inter-channel Crosstalk: < -100dB
Left/Right Crosstalk:-80dB 1kHz
Power consumption: 45W maximum
Weight: 5.00kg
Dimensions: L 368mm x W 248mm x H 111mm

Notes: - Super portable and lightweight DJ mixer
- 2 stereo channels with gain control and 2-band EQ, RCA connectors
- Integrated Bluetooth audio streaming for your smartphones and tablets
- MP3 player with USB port and blue LCD screen
- Adjustable microphone input via 6.3 mm jack
- Adjustable headphones output via 6.3 mm jack for pre-fader listening (CUE)
- 2 adjustable master outputs via RCA connectors
- Crossfader
- Anodized metal housing
- Operation via supplied power unit

Notes: One of the smaller options from Omnitronic's PM mixer series, the 222P offers exceptional value for newcomers to DJing. Two-channel design with three-band EQ plus the added convenience of Bluetooth streaming and built-in MP3 player.

Supplier's Notes:

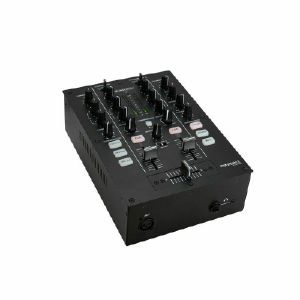

2-channel DJ mixer with Bluetooth and MP3 player

2 input channels with gain control, 3-band equalizer and channel fader
DJ microphone channel with level control and 2-band equalizer
Integrated Bluetooth audio streaming for your smartphones and tablets
MP3 player with USB port and blue LCD screen
Pre-fader listening to all input channels and the master output via adjustable stereo headphones output
Crossfader with adjustable curve and reverse function
Master channel with level control and 6-digit stereo LED level meter, switchable between master and PFL signal
4 line and 2 phono inputs via RCA jacks
Additional recording output
Controlling by Bluetooth
Monochrome LCD display for easy controlling
Desktop console housing

Power supply: 100-240 V AC, 50/60 Hz
Power consumption: Max. 5 W
Protection class: Class II
Power connection: Mains input via C8 "figure 8" mounting version power supply cord with Euro plug (provided)
Frequency range: 20 - 20000 Hz
S/N ratio: >70 dB
THD: <0,025 % at 1 kHz
Impedance: Input Microphone: 47 kOhm
Input line: 47 kOhm
Input phono: 47 kOhm
Gain: Input: variable
Control: Bluetooth
Bluetooth: Version: 4,2 + EDR
Profiles: A2DP, AVRCP
Display type: Monochrome LCD display
Control elements: Audio player, Crossfader, Cue-mix-function, source selector, Crossfade curve switch; Crossfade reverse switch
Status LED: Switchable master level meter, clip, CUE, power

Connections:

Input: Microphone via 1 x 6.3 mm jack socket (mono) mounting version
Input: line via 4 x stereo RCA
Input: phono via 2 x stereo RCA
Output: master via 1 x stereo RCA
Output: rec. via 1 x stereo RCA
Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version
Channels:

Input channel: 2 x stereo with Line-Line-Phono switch via RCA, channel control via fader, 2-band tone control EQ, gain control,
Microphone channel: 1 x mono via Plug 6,3mm/3,5mm (Jack), channel control via Rotary dial, Cue-mix-function,
Master output: 1 x stereo via RCA, channel control via Rotary dial
Headphones output: 1 x stereo via Plug 6,3mm/3,5mm (Jack), channel control via Rotary dial

Format: MP3, WAV; WMA
Carrier frequency: 2,4 GHz
Max. level: Output: master +19 dBu
USB port: Type A
Housing design: Desktop console housing

Dimensions:
Width: 19 cm
Depth: 26 cm
Height: 13,7 cm
Weight: 2,10 kg

Audio player
Available storage media: USB devices max. 32GB (FAT 32)

Notes: Next-generation rotary mixer from Pioneer's parent company, AlphaTheta. Cutting-edge digital tech meets analogue richness thanks to output transformers from the legendary Rupert Neve Designs. The best of both worlds.

Supplier's Notes:
Euphoric sound with digital clarity and analogue richness from Rupert Neve Designs transformer

The euphonia produces a euphoric sound with the clarity of digital and the richness of analogue that's never been heard from a DJ mixer before.

To deliver a clearer sound quality that accurately reproduces the expression of the music, the euphonia uses high-quality 32-bit A/D and D/A converters as well as 96kHz/64bit floating point mixing processing operations in the DSP, utilizing the digital signal processing technology AlphaTheta has developed over many years.

All sound coming out of the euphonia passes through a transformer circuit co-designed by AlphaTheta and Rupert Neve Designs, the legendary makers of outstanding analogue audio circuitry and mixing desks revered by artists and sound engineers around the world. This transformer circuit, tuned specifically for the euphonia, adds harmonics to the music and creates a glossy and energetic sound that's smoother for mixing. Low frequencies such as kicks and bass are more stable and punchy, mid frequencies like vocals and instruments have more presence and gloss, and high frequencies such as hi-hats sound silky and natural. The transformer breaks down the barrier between vintage live and modern electric sounds, making mixing easier and surprisingly natural, as if recordings in different styles were originally one piece of music.

Specially developed rotary fader makes you feel one with the music

When you touch the faders on the euphonia, you won't want to let go. To enhance its intuitive mixing experience, the unit is loaded with rotary faders that feature a brand-new carefully developed design to give you the feeling that you and the mixer are one. After extensive testing, the perfect knob sizes were chosen, with an elastomer applied to the outer circumference of each to ensure a comfortable and reliable grip as well as a high level of vibration absorption.

The uniquely developed mechanism for the faders also benefits from optimum weighting. You'll notice a difference in the feel of the knobs when you turn them at different speeds, as a smooth load is applied when you turn a knob slowly for delicate fine-tuning and a limited load level is applied when you turn a knob quickly to instantly reach your intended volume level. And the fader volume curves have been optimized through feedback from numerous DJs, enabling smooth and natural mixing without equalizing, so you can concentrate on volume control. This innovative fader allows for musical expression that will move your audience and enhance your performance.

Energy Visualizer for understanding overall sound at first glance

Get an instant visual grasp of the status of your mix and the balance of track volume levels by glancing at the euphonia's Energy Visualizer. Conventional VU meters only have 1 needle meter, making it difficult for DJs to grasp multiple channel levels at the same time. But the euphonia's uniquely developed Mix Level Meter features a needle meter for each channel so you can visually check the levels for all channels and mix smoothly while keeping the groove going. You can even keep an eye on the balance of the master output by looking at the Spectrum Analyzer, which helps you keep your mixes sounding consistent and smooth, even in a long set, as you "watch" the euphonia's output and adjust it to create your perfect sound.

Next-generation 3Band Master Isolator that transforms sensibility into sound at your will

Highest-quality isolator

The size of the isolator knobs is perfect for rapid turns from centre to maximum or minimum, and the torque load is perfectly balanced for both quick operation and fine sound quality adjustment, with a luxurious feel that's not too light. The cut-off frequency and slope are set to control and highlight the kick, melody, and rhythm bands in a natural yet sharp manner.

Brand-new Boost Send for one-handed effects application

Add one of the built-in Send Effects, or an effect from an external unit, to the sound of any of the master isolator frequency bands.

Specifications

Max. external dimensions (W × D × H): 429.2 × 331.0 × 119.9 mm / 16.90" × 13.03" x 4.72"
Main unit weight: 9.5 kg / 20.94 lbs.
Frequency response: 20 Hz - 40 kHz (LINE)
S/N Ratio: 107 dB (USB, DIGITAL IN)
88 dB (PHONO)
105 dB (LINE)
79 dB (MIC)
Power requirements: AC 110 V - 240 V, 50 Hz / 60 Hz
Power consumption: 43 W
Accessories: Power cord
Warranty (for some regions)
Quick start guide
Precautions for use

Compatible software:
rekordbox
Serato DJ Pro

Terminals

Inputs:
DIGITAL IN × 4 (coaxial)
LINE × 4 (RCA)
PHONO × 4 (RCA)
MIC x 1 (XLR & 1/4" TRS jack)

Outputs:
MASTER × 1 (XLR)
BOOTH × 1 (1/4" TRS jack)
REC × 1 (RCA)
PHONES × 2 (1/4" stereo phone jack, 3.5 mm stereo mini jack)
USB: USB Type-C × 1

Others:
SEND × 2 (1/4" TS jack)
RETURN × 2 (1/4" TS jack)

Notes: Exceptional value from this versatile three-channel mixer. Reloop's extensive experience is distilled into a classic format, with three-band EQs, a dedicated mic channel and the convenience of Bluetooth streaming.

Supplier's Notes:
All-round DJ Mixer

The Reloop RMX-30 BT is the ideal all-round DJ mixer for home use and small events. Combining advanced features with robust construction, this mixer is perfect for beginners as well as experienced DJs looking for flexibility and connectivity.

Built-in Bluetooth connectivity

The convenience of wireless music streaming with the RMX-30 BT's built-in Bluetooth functionality allows to Stream your favourite tracks directly from your smartphone or tablet and flexible Bluetooth routing to either Channel 1 or Channel 2. This feature enhances the setup by seamlessly integrating digital music source without the need for additional cables with your analogue DJ setup.

Extensive connectivity options

Designed to accommodate a wide range of audio sources, the RMX-30 BT offers extensive connectivity with 8 inputs and 4 outputs. Each channel strip includes 3-band EQ and gain control, providing frequency control over the sound. The mixer also features a dedicated mic channel with 2-band EQ and gain control, as well as a 6.3 mm mic input and dedicated volume control for easy vocal integration.

Essential mixing features

Create smooth transitions and dynamic mixes with the replaceable 45 mm crossfader and three smooth-running line faders. The mixer also features a 6.3 mm headphone output with volume control and a cue mix function. The main output offers both balanced (XLR) and unbalanced (RCA) connections, ensuring compatibility with a wide range of sound systems. In addition, LED level meters on the main signal helps to monitor the levels for optimal performance.

Reliable Build for Home DJs

The RMX-30 BT is crafted with a durable all-metal construction in a deep black metallic finish. As an affordable, all-rounder mixer, it's an ideal choice for beginner DJs to dive into the world of mixing.

Technical data

Power supply: AC 100 - 240V, 50/60 Hz
Power consumption: 3.5W
Frequency response: 20 Hz - 20 kHz
Inputs: 2x Phono RCA, 4x Line RCA, Mic TS, 1x Bluetooth In
Outputs: Main RCA, Rec RCA, headphones 6.3 mm jack
EQ range at 100 Hz, 1 kHz, 10 kHz
Dimensions: 255(w) x 306(d) x 106(h) mm
Weight: 2.59 kg
Accessories included: power cable, RCA cable, alternative feet and instruction manual

Notes: Wooden side panel version of ARS's brilliant Model9500 mixer. Four-channel rotary design with unique three-band hybrid iso-EQ plus three-band isolator and five-band master EQ.

Supplier's Notes:
MODEL9500BW Music Mixer

4-channel table top mixer

MODEL9500BW (broadcast mixer) Music Mixer Wood TYPE

ARS MODEL 9500BW DJ Mixer is a Japanese made, 4ch. rotary mixer with world's first?3band hybrid isoeq Hi-eq Mid-eq Low -Iso on each channel.

This 4 channel High Quality Rotary DJ Mixer has a 3 band Isolator and 5Band Equalizer on the master.

5Band Equalizer Control: 75Hz 300Hz 1Khz 3Khz 10Khz 5Band

Potentiometer and Switch are All ALPS .

A long time in the development phase this mixer is a beautiful example of Japanese hand made precision workmanship.

Highly recommended.

It is designed with purist ideals with only essential features.

ARS 9500 has 3 band hybrid iso-eq hi-eq mid-eq low-iso on each channel and 3band Iso and 5band EQ on the master.

The Master Isolators can be boost of cut from +18db ~ .

The Ch hi-eq mid-eq can boost or cut from +12db ~ -12db. LOW-ISO boost of cut from +6db ~ .

Each channel has Post Fader Send. also Return and Effect Loop.

* Due to the Model-9500 is designed for a professional use, The body is no power switch to avoid accidentally power off while playing.

* Minimizing the power noise by designing the All circuit board and the power circuit board independently and setting them apart.

Wood is a natural material, so there may be unevenness in the wood grain. Thank you for your understanding.

Specs

Frequency Response: +/-1dB 20Hz-20Khz
Input: 3 x Phono: 47K Ohm / 5 x Line: 20K Ohm
House Output :RCA Unbalanced Impedance 600 Ohm/ XLR Balanced Impedance 50 Ohm
Booth Output: RCA Unbalanced Impedance 600 Ohm/ XLR Balanced Impedance 50 Ohm
Effect Loop: RCA Unbalanced Impedance 20K Ohm
Effect Loop Output: RCA Unbalanced Impedance 600 Ohm
Send Output: RCA Unbalanced Impedance 600 Ohm
Return: RCA Unbalanced Impedance 20K Ohm

Isolator Frequency Response:
3band hybrid isoeq 1-4Ch /Low-ISO /MID-EQ/HI-EQ
Master 3Band Iso: 10 - 300 Hz / 300 - 3000 Hz / 3000 - 20000Hz boost of cut from +18db ~.
5Band Equalizer Control: 75Hz 300Hz 1Khz 3Khz 10Khz 5Band

Headphone Monitor Trim: Cue-Mix-Pgm
Power Consumption: 30w
Power Requirement: US-115V/EU-230V(Selectable)
Dimensions: (W)366 x (H)250 x (D)100 mm (WOOD 20MM Thickness)
Model: 9500BW
Unit weight:5400g
ACBOX:1100g
Front Panel Colour: Black

Notes: Celebrating a quarter of a century for ARS, the Model 1100 gets a red makeover. Same two-channel design with elite audiophile quality. Limited to 50 units worldwide.

Supplier's Notes:
MODEL1100 RED LE Music Mixer

2 channel table top mixer

MODEL1100 RED LE(broadcast mixer) Music Mixer
ARS Anniversary limited edition red face model

ARS MODEL 1100 DJ Mixer is a Japanese made, 4ch. rotary mixer with world's first 3band hybrid isoeq Hi-eq Mid-eq Low -Iso on each channel.

This 4 channel High Quality Rotary DJ Mixer has a 3 band Isolator on the master. Potentiometer and Switch are All ALPS .
A long time in the development phase, this mixer is a beautiful example of Japanese hand made precision workmanship.

Highly recommended.


It is designed with purist ideals with only essential features.

ARS 1100 has 3 band hybrid iso-eq hi-eq mid-eq low-iso on each channel and 3band Iso on the master.

The Master Isolators can be boost of cut from +18db ~ -8.

The Ch hi-eq mid-eq can boost or cut from +12db ~ -12db. LOW-ISO boost of cut from +6db ~ -8.

Each channel has Post Fader Send. also Return and Effect Loop.

* Due to the Model-1100 is designed for a professional use, The body is no power switch to avoid accidentally power off while playing.

* Minimizing the power noise by designing the All circuit board and the power circuit board independently and setting them apart.

Specs

Frequency Response: +/-1dB 20Hz-20Khz
Input: 2 x Phono: 47K Ohm /2 x Line: 20K Ohm
House Output: RCA Unbalanced Impedance 600 Ohm/ XLR Balanced Impedance 50 Ohm
Booth Output: RCA Unbalanced Impedance 600 Ohm/ XLR Balanced Impedance 50 Ohm
Effect Loop: RCA Unbalanced Impedance 20K Ohm
Effect Loop Output: RCA Unbalanced Impedance 600 Ohm
Send Output: RCA Unbalanced Impedance 600 Ohm
Return: RCA Unbalanced Impedance 20K Ohm
Isolator Frequency Response:
3band hybrid isoeq 1-2Ch /Low-ISO /MID-EQ/HI-EQ
Master 3Band Iso: 10 - 300 Hz / 300 - 3000 Hz / 3000 - 20000Hz boost of cut from +18db ~ -8.


Headphone Monitor Trim: Cue-Mix-Pgm
Power Consumption: 20w
Power Requirement: US-115V/EU-230V(Selectable)
Dimensions: (W)220 x (H)250 x (D)100 mm
Front Panel Colour: Red

Notes: ARS's four-channel Model9100 gets the red makeover to celebrate the brand's 25th birthday. Same beautiful audiophile design with three-band hybrid iso-EQ, master isolator and post-fader aux sends.

Supplier's Notes:
MODEL9100B RED Music Mixer

4 channel table top mixer

MODEL9100B RED LE(broadcast mixer) Music Mixer
ARS Anniversary limited edition red face model
(Headphone Monitor Trim: Cue-Mix-Pgm special version)

ARS MODEL 9100B DJ Mixer is a Japanese made, 4ch. rotary mixer with world's first 3band hybrid isoeq Hi-eq Mid-eq Low -Iso on each channel.

This 4 channel High Quality Rotary DJ Mixer has a 3 band Isolator on the master.

Potentiometer and Switch are All ALPS.

A long time in the development phase, this mixer is a beautiful example of Japanese hand-made precision workmanship.

Highly recommended.

It is designed with purist ideals with only essential features.

ARS 9100 has 3 band hybrid iso-eq hi-eq mid-eq low-iso on each channel and 3band Iso on the master. The Master Isolators can be boost of cut from +18db ~ -8. The Ch hi-eq mid-eq can boost or cut from +12db ~ -12db. LOW-ISO boost of cut from +6db ~ -8. Each channel has Post Fader Send. also Return and Effect Loop.

* Due to the Model-9100 is designed for a professional use, The body is no power switch to avoid accidentally power off while playing.

* Minimizing the power noise by designing the All circuit board and the power circuit board independently and setting them apart.

Specs

Frequency Response: +/-1dB 20Hz-20Khz
Input: 3 x Phono: 47K Ohm / 5 x Line: 20K Ohm
House Output: RCA Unbalanced Impedance 600 Ohm/ XLR Balanced Impedance 50 Ohm
Booth Output: RCA Unbalanced Impedance 600 Ohm/ XLR Balanced Impedance 50 Ohm
Effect Loop: RCA Unbalanced Impedance 20K Ohm
Effect Loop Output: RCA Unbalanced Impedance 600 Ohm
Send Output: RCA Unbalanced Impedance 600 Ohm
Return: RCA Unbalanced Impedance 20K Ohm
Isolator Frequency Response:
3band hybrid isoeq 1-4Ch /Low-ISO /MID-EQ/HI-EQ
Master 3Band Iso: 10 - 300 Hz / 300 - 3000 Hz / 3000 - 20000Hz boost of cut from +18db ~ -8.

Headphone Monitor Trim: Cue-Mix-Pgm
Power Consumption: 25w
Power Requirement: US-115V/EU-230V(Selectable)
Dimensions: (W)306 x (H)250 x (D)100 mm
model9100BW Unit weight:4700g
ACBOX: 1100g
Front Panel Colour: Red

Notes: For Alpha Recording Systems' 25th birthday, the Model 9500 gets a limited-edition red paint job. Classic four-channel design with three-band EQ and world-class sound. Limited to 100 units worldwide.

Supplier's Notes:
MODEL9500 Music Mixer

4 channel table top mixer

MODEL9500 (broadcast mixer) Music Mixer STD

ARS MODEL 9500 DJ Mixer is a Japanese made, 4ch. rotary mixer with world's first 3band hybrid isoeq Hi-eq Mid-eq Low -Iso on each channel.

This 4 channel High Quality Rotary DJ Mixer has a 3 band Isolator and 5Band Equalizer on the master.

5Band Equalizer Control: 75Hz 300Hz 1Khz 3Khz 10Khz 5Band

Potentiometer and Switch are All ALPS. A long time in the development phase, this mixer is a beautiful example of Japanese hand made precision workmanship.

Highly recommended.

It is designed with purist ideals with only essential features.

ARS 9500 has 3 band hybrid iso-eq hi-eq mid-eq low-iso on each channel and 3band Iso and 5band EQ on the master.

The Master Isolators can be boost of cut from +18db ~ -8.

The Ch hi-eq mid-eq can boost or cut from +12db ~ -12db. LOW-ISO boost of cut from +6db ~ -8.

Each channel has Post Fader Send. also Return and Effect Loop.

* Due to the Model-9500 is designed for a professional use, The body is no power switch to avoid accidentally power off while playing.

* Minimizing the power noise by designing the All circuit board and the power circuit board independently and setting them apart.

Wood is a natural material, so there may be unevenness in the wood grain. Thank you for your understanding.

Specs

Frequency Response: +/-1dB 20Hz-20Khz
Input: 3 x Phono: 47K Ohm / 5 x Line: 20K Ohm
House Output: RCA Unbalanced Impedance 600 Ohm/ XLR Balanced Impedance 50 Ohm
Booth Output: RCA Unbalanced Impedance 600 Ohm/ XLR Balanced Impedance 50 Ohm
Effect Loop: RCA Unbalanced Impedance 20K Ohm
Effect Loop Output: RCA Unbalanced Impedance 600 Ohm
Send Output: RCA Unbalanced Impedance 600 Ohm
Return: RCA Unbalanced Impedance 20K Ohm
Isolator Frequency Response:
3band hybrid isoeq 1-4Ch /Low-ISO /MID-EQ/HI-EQ
Master 3Band Iso: 10 - 300 Hz / 300 - 3000 Hz / 3000 - 20000Hz boost of cut from +18db ~ -8.
5Band Equalizer Control: 75Hz 300Hz 1Khz 3Khz 10Khz 5Band

Headphone Monitor Trim: Cue-Mix-Pgm
Power Consumption: 30w
Power Requirement: US-115V/EU-230V(Selectable)
Dimensions: (W)366 x (H)250 x (D)100 mm
model9500BW Unit weight:5400g
AC BOX:1100g
Front Panel Colour: Red

Notes: Two channel mixer ideal for mobile DJ setups and home use.

Power supply: 100-240 V AC, 50/60 Hz
Power consumption: Max. 8 W
Protection class: Protection class II
Power connection: Mains input via C8 (M) "figure 8" mounting version power supply cord with Euro plug (provided)
Frequency range: 20 - 20000 Hz
S/N ratio: >80 dB
THD: <0,1 % at 1 kHz
DJ filter: Per channel: LPF/HPF bipolar,
DJ-FX: Master: CHORUS, REVERB, DELAY, FLANGER
Master: WHA, PHASE,
Control: Bluetooth
Bluetooth device name: PM-202FX
Range: Bluetooth: range up to 15m
Crosstalk: >60 dB
Control elements: Crossfader, Crossfade curve control, crossfade reverse switch, FX Parameter control, power switch
Status LED: Power, master level meter
Connections: Input: line/phono via 2 x stereo RCA
Input: line via 2 x stereo RCA, microphone via 1 x 3-pin XLR (F) mounting version, antenna via 1 x SMA (F) mounting version, Earthing connection via 2 x screw terminal
Output: master via 2 x 3-pin XLR (M) mounting version, master via 1 x stereo RCA, rec. via 1 x stereo RCA, headphones via 1 x 6.3 mm jack socket (stereo) mounting version, headphones via 1 x 3.5 mm jack (stereo) mounting version
Channels: Input channel: 2 x stereo with Line-Line/Phono-Bluetooth switch via RCA, channel control via 60mm fader, 2-band tone control EQ, gain control, CUE switch
Microphone channel: 1 x mono via XLR, channel control via rotary dial, 2-band tone control EQ
Master output: 1 x stereo via XLR or RCA, channel control via rotary dial, balance control
Headphones output: stereo via jack, channel control via rotary dial, cue mix function
Rec. output: stereo via RCA
Material: Metal

Colour: Black
Housing design: Desktop console housing
Dimensions: Length: 30,5 cm
Width: 19,0 cm
Height: 11,0 cm
Weight: 2,18 kg

Power cord

Cable length: 2,10 m detachable

Notes: ***B-STOCK: Box damaged, product unused & in perfect condition***


Exceptionally versatile four-channel rotary mixer at a very reasonable price. Twelve inputs, three-band EQ, assignable multi-mode filter, isolator and assignable crossfader. Ultra flexible.

Supplier's Notes:
Omnitronic TRM-422: the rotary mixer on a new level

The desired child- Omnitronic's popular TRM series has been expanded: the TRM-422 combines all the proven features of the previous models, but additionally offers functions that numerous fans had wished for. During the development of the mixer, the focus was on the demands and suggestions of the community.

Full control- Each of the 4 input channels has 2 line inputs, one of which can become a phono input at the touch of a button. The channels are each equipped with a volume as well as a gain control. In addition to the master isolator (bass, mid & high), the DJ has the option to activate a filter with HPF, BPF, LPF, resonance and sweep controls in each of the 4 input channels.

The master output is available to the DJ in both XLR and RCA versions.

Effect ways- The use of external effect devices is possible through an FX-In and FX-Out via 6.3 mm jack. The mixer's master insert is also equipped with a send & return (unbalanced) path. This allows additional external effects to be looped into the mixer.

DVS integration- The mixer's timecode outputs allow easy integration of a DVS system (Digital Vinyl System) such as Traktor or Serato.

Monitor section- The booth output of the TRM-422 is provided with one XLR and one RCA connector. The signal of the booth output can be easily adjusted to the conditions in the DJ booth with the help of an EQ (High & Low).

Microphone inputs- The TRM-422 offers 2 microphone inputs. The first mic input gives the DJ the ability to modify the mic signal with EQ (high & low).

Backup source- With the help of the AUX input on the front panel, players such as smartphones, tablets or MP3 players can easily be connected via mini-jack (3.5 mm) and thus serve as a backup solution.

Activatable crossfader- If you don't want to do without a crossfader during your DJ set, you have the option to assign each of the 4 channels to the integrated crossfader. If the crossfader is not used, it can easily be switched off.

Set recording- The RCA record-out makes it easy to record your own DJ set.

Technical specifications

Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 24 W
Protection class: Class I
Power connection: Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Frequency range: Microphone 20 - 20000 Hz, Line 20 - 20000 Hz, Phono 40 - 18000 Hz
S/N ratio: >97,2 dB line, >91,7 dB Microphone
THD: Line <0,04 % at 1 kHz, Phono <0,13 % at 1 kHz, Microphone <0,008 % at 1 kHz
Gain: Microphone 44 dB, Line -16,5 dB to +8,5 dB Phono -48,5 dB to +23,5 dB
Isolators: Master Gain:- ? bis +9, Low/mid 300 Hz, 18db/oct , Butterworth, Mid/high 4000 Hz, 18db/oct , Butterworth
Crosstalk: >-68 dB
Control elements: Power switch, source selector, Crossfader, Crossfader selector switch, Crossfade curve switch; Cue mix split function, EQ controls

Connections
Input: 4 x line via stereo RCA
Input: 4 x line/phono via stereo RCA
Input: 2 x Microphone via 3-pin XLR
Output: 1 x headphones via 6.3 mm jack socket (stereo) mounting version
Output: 1 x headphones via 3.5 mm jack (stereo) mounting version
Output: 1 x rec. via stereo RCA
Output: 2 x booth via 3-pin XLR
Output: 1 x booth via stereo RCA
Output: 2 x master via 3-pin XLR
Output: 1 x master via stereo RCA
Output: 1 x AUX sends via 6.3 mm jack socket (stereo) mounting version
Output: 1 x AUX returns via 6.3 mm jack socket (stereo) mounting version

Channels:
Input chanel: 4 x stereo with Line-Line/Phono switch via RCA, channel control via Rotary, 3-band tone control EQ, source selector, gain control, CUE switch, FX routing switch, Crossfader selector switch,
Microphon chanal: 2 x mono via XLR, channel control via Rotary dial, ON AIR switch

Master output: 2 x stereo via XLR, channel control via Rotary
Booth output: 2 x stereo via XLR, channel control via Rotary
Rec. output: 1 x stereo via RCA
Headphones output: 1 x stereo via Plug 6,3mm/3,5mm (Jack), channel control via Rotary dial, Cue mix split function,
Max. level: Output: +18 dBu
Material: Metal
Housing design: Desktop console housing
Dimensions: Width: 41 cm, Depth: 28,5 cm, Height: 10,5 cm
Weight: 5,74 kg

Notes: ***B-STOCK: Box opened, product in perfect working order***


Super portable and lightweight DJ mixer. Its small dimensions, just a bit larger than a large smartphone, and its little weight of merely 500 grams offer many advantages. A Gnome can be taken anywhere, as it doesn't require a lot of space - perfect as back up for mobile DJs. In many small bars, space is also a problem - here a Gnome is really helpful too. You should and will always find a place for this smart mixer. Thanks to the variety of five colours, it always matches the furniture. The Gnome forgoes a battery - the input signal is amplified by using a cord.

Notes: ***B-STOCK: Box opened, product in perfect working order***


Mid-range DJ mixer from the leading UK brand. Fully analogue four-channel design with A&H's much-loved Xone filter section. Very tempting alternative to the flagship Xone:96. Excellent value.

Supplier notes:
Created for DJs and electronic music purists, Xone:43 is a 4+1 channel DJ mixer that offers the very best of analogue audio quality, including the legendary Xone filter with resonance control, 3 band EQ, crossfader with three curve settings and X:FX for send/return to your favourite FX unit.

The crossfader has three switchable curve settings for blending or scratching styles and can be easily replaced or upgraded to a custom Innofader for ultimate crossfader performance.

With balanced XLR main outputs, independent booth and record outputs, Xone:43 excels in the club and in high end personal DJ setups.

Notes: ***B-STOCK: Box opened, product in perfect working order***


Co-designed by Richie Hawtin, the Model 1 is an obvious choice for DJs who want great sound and creative performance options. Easily one of the best high-end mixers on the market.

Supplier's Notes:

MODEL 1 is a performance instrument providing new creative possibilities to artists, and empowering them to PLAYdifferently.A mixer of uncompromising build quality, intuitive tactile controls and beautifully warm analog circuitry. Engineered by Andy Rigby-Jones and co-designed by Richie Hawtin, with two years of testing, insight and refinement with artists, clubs and engineers from across the electronic music community.

MODEL 1 has a unique offering of six fully featured input channels plus two stereo returns in a small format frame. It has many features not currently available on any comparable device, such as Input pre-amplifier drive control, hybrid filter/swept bell EQ, dual cue system, dual mixer linking system, and a fully balanced Tascam DB25 connector system. It's a purely analogue mixer featuring technology normally found in the finest studio consoles, such as a fully balanced mix buss, zero crossing detection for seamless filter & master EQ routing along high voltage differential power rails.

Features:
2 stereo sends
2 stereo returns
3 high performance phono preamps
3 high performance turntable inputs, optimized for the club environment in order to minimise the tonal imbalance between vinyl and Digital audio, and to eliminate sub frequency feedback. Each phono input has it's own Individual Turntable Earth Binding for greater flexibility.
Custom TKD 60mm faders. These twin rails faders have been carefully chosen to ensure long life and smooth operation and feature a heavy feel for greater precision.
Precision Sculpting EQ
Contouring low & high pass filters
Analog overdrive
Two independent Cue systems, A and B.
Mixer Link, allows multiple mixers to be linked together
Balanced Mix Bus
Master high & low pass resonant filters
Three-band master EQ
Two-band Booth EQ
100% analog

Notes: Part of Resor's two-channel mixer range, the 2525 offers a classic setup of two-band EQs per channel, three-band master isolator, large VU meters and discrete class-A electronics.

Supplier's Notes:
Resor 2525 features the same discrete class-A circuitry as Resor 2500, but it's equipped with a Master Isolator with a bypass toggle switch.

*** Please note: the wood is thinner than displayed in the picture. ***

Inputs

Channel ONE & TWO: selectable sources between LINE and PHONO (Stereo RCA)

Outputs

Master 1: Balanced XLR
Master 2: Unbalanced RCA
Booth: Balanced TRS
Rec: Unbalanced RCA

Channel EQ

2-band Baxandall: Bass +/- 18 dB (at 150 Hz), Treble: +/- 12dB (at 10 kHz)

Master isolator

3-band, 24 dB /Oct, Linkwitz-Riley filters, crossover frequencies at 310 Hz and 3100 Hz Full-cut to maximum +12 dB, ON/OFF true bypass with Audio Grade Relay

Master insert

Out: Stereo TRS (Tip - Left, Ring - Right, Sleeve - Ground)
In: Stereo TRS (Tip - Left, Ring - Right, Sleeve - Ground)

Other

2 x Analog VU Meters (1VRMS = 0db)
Cue/Mix Switch for the VU Meters, to display either the Cue or Mix signals
Rotary Switch to CUE between Channels ONE & TWO
Cue/Mix Blend potentiometer
External Power Supply Unit with lockable DC cable (both ends)
Travel Case (Dust and Water Proof)
3 Years International Warranty

Customisations

Wood: Natural Oak, Matte Black, Premium: Walnut
Faceplate: Black, Silver, Bronze; Premium: Metallic Red, Metallic Blue, Metallic Green
Knobs style: Standard, Urei; Premium: Silver Matte Aluminium, Black Matte Aluminium

Technical specifications

Line Inputs

Discrete, Class-A Op-Amps
Measured Line In to Master Out:
Frequency response +/- 0,3 dB, 20 Hz to 20 kHz
THD+N better than 0,004 %
SNR better than -95 dB

Phono Inputs

Discrete, Class-A Op-Amps, Gain 40 dB
Passive RIAA Equalization, polypropylene capacitors, close tolerance
Input impedance is 47 kohm
Input capacitance is 47 pF
Measured Phono In to Master Out:
RIAA accuracy within +/- 0,3 dB (20 Hz - 20 kHz)
THD+N better than 0,02 %
SNR better than -77 dB
Maximum input signal level before distortion 100 mVRMS

Master Output

Balanced XLR
Unbalanced RCA L and R
Impedance < 300 ohm

Booth Output

Balanced TRS
Impedance < 300 ohm

Record Output

Nominal level -10dBV
Impedance < 300 ohm

Crosstalk

Channel Fader offness < -100 dB
Channel L/R separation <-70 dB
Isolator offness < -90 dB

Dimensions

250 mm (W), 250 mm (D), 98 mm (H) - (please note that this does not include Knobs, Headphone Jack on the front side, RCA's and Sockets on the rear side of the mixer)

Weight

Mixer: 4 kg
Power Supply: 1 kg
With travel case: 8 kg

Notes: Mid-range model in the Resor two-channel series, the 2525 M features three-band EQ (as opposed to two-band on the standard 2525) and master isolator.

Supplier's Notes:
Resor 2525 M has a 3-band EQ per channel designed around their discrete class-A Op-Amp. The Bass control with a range of +/-18 dB at 100 Hz is great for sculpting the low-end frequencies, providing ample flexibility for enhancing or attenuating bass elements in the mix. The Mids control with a range of +/-12 dB at 800 Hz, and the Treble control with a range of +/-12 dB at 10 kHz enables adjustments to the high-frequency content, helping to add sparkle or tame any harshness.

Resor have encased the 2525M in a slim wooden chassis, which encompasses the faceplate, following the ethos of the four-channel models. Moreover, Resor have redesigned and improved the internal circuitry even further.

For a unique and personalised touch, among the extensive range of custom options, Resor offer Metallic Red, Metallic Blue, and Metallic Green faceplates; a Satin Dark wooden enclosure; as well as Urei, Matte Black, and Matte Silver Premium Aluminum Knobs.

Inputs

Channel ONE & TWO: selectable sources between LINE and PHONO (Stereo RCA)

Outputs

Master 1: Balanced XLR
Master 2: Unbalanced RCA
Booth: Balanced TRS
Rec: Unbalanced RCA

Channel EQ

3-band Baxandall: Bass +/- 18 dB (at 100 Hz), Mids: +/- 12dB (at 800 Hz), Treble: +/- 12dB (at 10 kHz)

Master isolator

3 Band, 24 dB /Oct, Linkwitz-Riley filters, crossover frequencies at 310 Hz and 3100 Hz Full-cut to maximum +12 dB, ON/OFF true bypass with Audio Grade Relay

Master insert

Out: Stereo TRS (Tip - Left, Ring - Right, Sleeve - Ground)
In: Stereo TRS (Tip - Left, Ring - Right, Sleeve - Ground)

Other
2 x Analog VU Meters (1VRMS = 0db)
Cue/Mix Switch for the VU Meters, to display either the Cue or Mix signals
Rotary Switch to CUE between Channels ONE & TWO
Cue/Mix Blend potentiometer
External Power Supply Unit with lockable DC cable (both ends)
Travel Case (Dust and Water Proof)
3 Years International Warranty

Customisations

Wood: Natural Oak, Matte Black, Premium: Satin Dark
Faceplate: Black, Silver, Bronze; Premium: Metallic Red, Metallic Blue, Metallic Green
Knobs style: Resor Standard, Urei; Premium: Silver Matte Aluminum, Black Matte Aluminum
*Microphone Input: a TRS jack on the rear panel, with a separate volume control

Line Inputs

Discrete, Class-A Op-Amps
Measured Line In to Master Out:
Frequency response +/- 0,3 dB, 20 Hz to 20 kHz
THD+N better than 0,004 %
SNR better than -95 dB

Phono Inputs

Discrete, Class-A Op-Amps, Gain 40 dB
Passive RIAA Equalization, polypropylene capacitors, close tolerance
Input impedance is 47 kohm
Input capacitance is 47 pF
Measured Phono In to Master Out:
RIAA accuracy within +/- 0,3 dB (20 Hz - 20 kHz)
THD+N better than 0,02 %
SNR better than -77 dB
Maximum input signal level before distortion 100 mVRMS

Master Output

Balanced XLR
Unbalanced RCA L and R
Impedance < 300 ohm

Booth Output

Balanced TRS
Impedance < 300 ohm

Record Output

Nominal level -10dBV
Impedance < 300 ohm

Crosstalk

Channel Fader offness < -100 dB
Channel L/R separation <-70 dB
Isolator offness < -90 dB

Dimensions

250 mm (W), 250 mm (D), 98 mm (H) - (please note that this does not include Knobs, Headphone Jack on the front side, RCA's and Sockets on the rear side of the mixer)

Weight

Mixer: 4 kg
Power Supply: 1 kg
With travel case: 8 kg

Notes: ***B-STOCK: Without original box, product in perfect working order***


Mid-range DJ mixer from the leading UK brand. Fully analogue four-channel design with A&H's much-loved Xone filter section. Very tempting alternative to the flagship Xone:96. Excellent value.

Supplier notes:
Created for DJs and electronic music purists, Xone:43 is a 4+1 channel DJ mixer that offers the very best of analogue audio quality, including the legendary Xone filter with resonance control, 3 band EQ, crossfader with three curve settings and X:FX for send/return to your favourite FX unit.

The crossfader has three switchable curve settings for blending or scratching styles and can be easily replaced or upgraded to a custom Innofader for ultimate crossfader performance.

With balanced XLR main outputs, independent booth and record outputs, Xone:43 excels in the club and in high end personal DJ setups.

Notes: ***B-STOCK: Box opened, product in perfect working order***


- Super portable and lightweight DJ mixer
- 2 stereo channels with gain control and 2-band EQ, RCA connectors
- Integrated Bluetooth audio streaming for your smartphones and tablets
- MP3 player with USB port and blue LCD screen
- Adjustable microphone input via 6.3 mm jack
- Adjustable headphones output via 6.3 mm jack for pre-fader listening (CUE)
- 2 adjustable master outputs via RCA connectors
- Crossfader
- Anodized metal housing
- Operation via supplied power unit

Notes: ***B-STOCK: Item refurbished, repaired and in perfect working order.***


Co-designed by Richie Hawtin, the Model 1 is an obvious choice for DJs who want great sound and creative performance options. Easily one of the best high-end mixers on the market.

Supplier's Notes:

MODEL 1 is a performance instrument providing new creative possibilities to artists, and empowering them to PLAYdifferently.A mixer of uncompromising build quality, intuitive tactile controls and beautifully warm analog circuitry. Engineered by Andy Rigby-Jones and co-designed by Richie Hawtin, with two years of testing, insight and refinement with artists, clubs and engineers from across the electronic music community.

MODEL 1 has a unique offering of six fully featured input channels plus two stereo returns in a small format frame. It has many features not currently available on any comparable device, such as Input pre-amplifier drive control, hybrid filter/swept bell EQ, dual cue system, dual mixer linking system, and a fully balanced Tascam DB25 connector system. It's a purely analogue mixer featuring technology normally found in the finest studio consoles, such as a fully balanced mix buss, zero crossing detection for seamless filter & master EQ routing along high voltage differential power rails.

Features:
2 stereo sends
2 stereo returns
3 high performance phono preamps
3 high performance turntable inputs, optimized for the club environment in order to minimise the tonal imbalance between vinyl and Digital audio, and to eliminate sub frequency feedback. Each phono input has it's own Individual Turntable Earth Binding for greater flexibility.
Custom TKD 60mm faders. These twin rails faders have been carefully chosen to ensure long life and smooth operation and feature a heavy feel for greater precision.
Precision Sculpting EQ
Contouring low & high pass filters
Analog overdrive
Two independent Cue systems, A and B.
Mixer Link, allows multiple mixers to be linked together
Balanced Mix Bus
Master high & low pass resonant filters
Three-band master EQ
Two-band Booth EQ
100% analog

Notes: ***B-STOCK: Box damaged, product in perfect working order***


DAP's entry-level club-style mixer offers a lot of bang for your buck. This four-channel design features three-band EQ, eight inputs and an assignable crossfader.

Supplier's Notes:
The DAP CORE Club is a 4-channel DJ mixer and can be considered the little brother of the DAP Core MIX-4 USB. It has 8 Line/MP3 inputs, a microphone input and Bluetooth playback module. Each channel has a volume fader, 3-band equalizer, gain and cue knob. The crossfader can be assigned to channel 1/2 or 3/4.

The CORE Club has an output with volume control for both master and booth. In addition, you can choose from three crossfader curves. VU indicators are provided for both the master output and for each channel separately to prevent clipping.

Bluetooth playback module & mic input
Talk over function
3 crossfader curves
VU channel indicators
8 line/MP3 inputs

Specifications

Inputs

Mono Inputs: 1
Mono Input Connector: 3-pin XLR, TRS balanced 6.3 mm
Stereo Inputs: 8
Stereo Input Connector: RCA

Outputs

Main Outputs: 1
Main Output Connector: RCA
Monitor Outputs: 1
Monitor Output Connector: RCA
Record Output: 1
Record Output Connector: RCA

Audio Specifications

THD Level: < 0.05 %
Signal-to-noise Ratio: > 80 dB
Crosstalk: 75 dBu
Signal-to-noise Ratio (Mic): > 85 dB
Signal-to-noise Ratio (Line): > 80 dB
Frequency Response Minimum: 20 Hz
Frequency Response Maximum: 20000 Hz
Phantom Power: No

Sound Editing:

Parametric Channel Equalizer: 3 Bands
Input Channel Equalizer Gain Range: 12 dB
Input Channel Fixed Frequencies: 100, 1.000, 10.000 Hz
Microphone Input Equalizer Gain Range: 12 dB
Parametric Microphone Equalizer: 2 Bands
Microphone Input Fixed Frequencies: 100, 10.000 Hz

Wireless Specifications

Bluetooth Audio Profile: A2DP
Bluetooth Range: 25 m

Product Properties

LED Indicators: BT Pairing, Input level, Output level, Power

Electrical Specifications and Connections

Power Supply: 240 V AC 50/60 Hz
Output voltage: 15 V AC
Power Consumption: 8.2 W
Power Connector In: Low Voltage DC plug

Mechanical Specifications

Fader Length: 60 mm
Height (mm): 84 mm
Width (mm): 292 mm
Length (mm): 356 mm
Flightcase Size: 14"
Housing: Metal
Colour: Black
Weight: 4.2 kg

Included Items

Included Accessories: Adapter

Notes: ***B-STOCK: Box opened, product in perfect working order***


Super portable and lightweight DJ mixer. Its small dimensions, just a bit larger than a large smartphone, and its little weight of merely 500 grams offer many advantages. A Gnome can be taken anywhere, as it doesn't require a lot of space - perfect as back up for mobile DJs. In many small bars, space is also a problem - here a Gnome is really helpful too. You should and will always find a place for this smart mixer. Thanks to the variety of five colours, it always matches the furniture. The Gnome forgoes a battery - the input signal is amplified by using a cord.

Notes: ***B-STOCK: Box opened, product in perfect working order***


Broadcast-ready update of ARS's flagship audiophile rotary mixer. Small design changes mean even better sound quality and improved cueing. Still hand built in Japan to the highest standards.

Supplier's Notes:
Model 9100B Music Mixer

4 channel table top mixer

Model 9100B (broadcast mixer) Music Mixer Wood TYPE (Headphone Monitor Trim: Cue-Mix-Pgm special version)

ARS Model 9100B DJ Mixer is a Japanese made, 4ch. rotary mixer with world's first 3band hybrid isoeq Hi-EQ Mid-EQ Low -Iso on each channel.

This 4 channel High Quality Rotary DJ Mixer has a 3 band Isolator on the master. Potentiometer and Switch are All ALPS .

A long time in the development phase this mixer is a beautiful example of Japanese hand made precision workmanship- highly recommended.

It is designed with purist ideals with only essential features.

ARS 9100 has 3 band hybrid iso-EQ hi-EQ mid-EQ low-iso on each channel and 3band Iso on the master.

The Master Isolators can be boost of cut from +18db ~ -8.

The Ch hi-EQ mid-EQ can boost or cut from +12db ~ -12db. LOW-ISO boost of cut from +6db ~ -8.

Each channel has Post Fader Send. also Return and Effect Loop.

* Due to the Model-9100 is designed for a professional use, The body is no power switch to avoid accidentally power off while playing.

* Minimizing the power noise by designing the All circuit board and the power circuit board independently and setting them apart.

Specifications
Frequency Response: +-1dB 20Hz-20Khz
Input: 3 x Phono: 47K Ohm / 5 x Line: 20K Ohm
House Output:RCA Unbalanced Impedance 600 Ohm/ XLR Balanced Impedance 50 Ohm
Booth Output:RCA Unbalanced Impedance 600 Ohm/ XLR Balanced Impedance 50 Ohm
Effect Loop: RCA Unbalanced Impedance 20K Ohm
Effect Loop Output: RCA Unbalanced Impedance 600 Ohm
Send Output: RCA Unbalanced Impedance 600 Ohm
Retrun: RCA Unbalanced Impedance 20K Ohm
Isolator Frequency Response:
3band hybrid isoeq 1-4Ch /Low-ISO /MID-EQ/HI-EQ
Master 3Band Iso: 10 - 300 Hz / 300 - 3000 Hz / 3000 - 20000Hz boost of cut from +18db ~ -8.

Headphone Monitor Trim: Cue-Mix-Pgm
Power Consumption: 25w
Power Requirement: US-115V/EU-230V(Selectable)
Dimensions: (W)306 x (H)250 x (D)100 mm
Front Panel Colour: Black

Notes: ***B-STOCK: Box opened, product in perfect working order***


Two channel mixer ideal for mobile DJ setups and home use.

Power supply: 100-240 V AC, 50/60 Hz
Power consumption: Max. 8 W
Protection class: Protection class II
Power connection: Mains input via C8 (M) "figure 8" mounting version power supply cord with Euro plug (provided)
Frequency range: 20 - 20000 Hz
S/N ratio: >80 dB
THD: <0,1 % at 1 kHz
DJ filter: Per channel: LPF/HPF bipolar,
DJ-FX: Master: CHORUS, REVERB, DELAY, FLANGER
Master: WHA, PHASE,
Control: Bluetooth
Bluetooth device name: PM-202FX
Range: Bluetooth: range up to 15m
Crosstalk: >60 dB
Control elements: Crossfader, Crossfade curve control, crossfade reverse switch, FX Parameter control, power switch
Status LED: Power, master level meter
Connections: Input: line/phono via 2 x stereo RCA
Input: line via 2 x stereo RCA, microphone via 1 x 3-pin XLR (F) mounting version, antenna via 1 x SMA (F) mounting version, Earthing connection via 2 x screw terminal
Output: master via 2 x 3-pin XLR (M) mounting version, master via 1 x stereo RCA, rec. via 1 x stereo RCA, headphones via 1 x 6.3 mm jack socket (stereo) mounting version, headphones via 1 x 3.5 mm jack (stereo) mounting version
Channels: Input channel: 2 x stereo with Line-Line/Phono-Bluetooth switch via RCA, channel control via 60mm fader, 2-band tone control EQ, gain control, CUE switch
Microphone channel: 1 x mono via XLR, channel control via rotary dial, 2-band tone control EQ
Master output: 1 x stereo via XLR or RCA, channel control via rotary dial, balance control
Headphones output: stereo via jack, channel control via rotary dial, cue mix function
Rec. output: stereo via RCA
Material: Metal

Colour: Black
Housing design: Desktop console housing
Dimensions: Length: 30,5 cm
Width: 19,0 cm
Height: 11,0 cm
Weight: 2,18 kg

Power cord

Cable length: 2,10 m detachable
