Notes: Part of Knobula's excellent polyphonic Eurorack range, the Monumatic is an eight-voice poly/monophonic synth module with 16 oscillator modes, covering everything from virtual analogue to cutting-edge tone generation algorithms.

Supplier's Notes:
Monumatic is a fully polyphonic 8-voice synthesiser and a monophonic synthesiser packed into a compact 12HP module.

It features16 selectable oscillator modes to provide a diverse range of both classic and futuristic tone generation using exclusively virtual analog algorithms. These include; Roland super-saw, Polymoog vox humana, Casio phase distortion, Solina string synth, percussive drawbar organs , "noisy cassette" strings, pulse width modulation and some gnarly asymmetric sync oscillators, all modelled without samples and each one of these customisable using the Detune control and each providing the foundation for further signal processing though the filter and effects sections.

6 powerful filter types are provided, including a vocal vowel filter, a 24db/oct Butterworth low pass filter, a dual peak notch filter and a phase shifter, each of which features an overdrive setting.

Like its sibling module Poly Cinematic, Monumatic is designed to be simple to use yet versatile, offering minimal controls to access a wealth of sounds, avoiding the need to scroll through 1000s of complex presets.

Monumatic supports full analog control of every parameter, with two instantly assignable CV inputs, as well as dedicated CV inputs for Gate, V/Oct and Filter cutoff, with additional digital control using comprehensive Midi CC and MPE implementation. An altogether unparalleled potential for expansion and integration into the eurorack universe.

As well as full midi capability, the 8 built-in chord presets can be custom programmed to provide polyphonic stabs and pads and using a single CV/Gate input, arpeggios can be layered polyphonically or "plucked" using long release times. The mono/poly function allows the Monumatic to switch between a fully capable poly synth or a mono synth at the touch of a button.

In polyphonic mode Monumatic introduces an advanced micro-tuning system to modular synthesis, it can replicate the organic drift of vintage analogue oscillators or it can apply realtime tuning temperaments to enhance harmonic authenticity using 'just' intonation, this parameter can even be assigned to CV control.

Notes: Clock generation meets waveform manipulation in this analogue harmonic oscillator. Combine with the Tobinski sequencer and/or interpolating scanner modules for the best creative results.

Supplier's Notes:
The Harmonic Timing Generator is a versatile Eurorack module that combines advanced clock generation with harmonic waveform manipulation. Combined with the Tobinski Sequencer, the module is a great tool for rhythmic and sonic creativity in the modular system.

As a reference clock generator, the Harmonic Timing Generator produces a base frequency with analogue multipliers (x1 to x8) to generate complex timing signals. Three selectors provide manual or voltage-controlled frequency switching, offering flexibility for intricate sequencing patterns. An LFO mode enables slower clocking rates, ideal for driving sequencers or generating modulation sources.

When used with the Interpolating Scanner, the sawtooth outputs of the Harmonic Timing Generator are transformed into sine waves. This allows the module to function as a harmonic oscillator at audio rates or as a versatile modulation source in LFO mode. Its dual functionality ensures that it can adapt to a wide range of patching needs, from rhythm generation to rich harmonic exploration.

The Harmonic Timing Generator is a versatile and creative tool, offering rhythmic and harmonic possibilities that complement any modular synthesizer setup. Its integration with other Tobinski modules ensures a cohesive and expansive sonic palette.

Power consumption: 235mA at +12V and 176mA at -12V and 20mA at +5V

Depth: 27mm

18 HP

Notes: Tobinski 8-Channel interpolating scanner with integrated VCAs

This Eurorack module combines an 8-channel interpolating scanner with a powerful array of 8 independent VCAs, providing unparalleled flexibility for dynamic audio and CV routing for creative sound design.

Key Features:

1. Interpolating Scanner

8-Channel Interpolation: Smoothly blend between up to 8 stages with high precision, using either bipolar CV or manual control.

Scan Stage & Width Control: Dedicated controls for selecting active stages and defining the range of the interpolation window.

Multiple Outputs: Individual outputs for odd stages, even stages, and a combined all stages output provide versatile routing options.

2. Integrated VCAs

8 VCAs with CV Control: Each VCA has its own dedicated control voltage input, allowing for intricate amplitude shaping.

Mix Outputs: Summed outputs for odd channels, even channels, and all channels, perfect for mixing duties or creating complex stereo effects.

Subtractive Mixing: Individual VCA outputs are excluded from the mix outputs when patched, allowing for flexible routing and advanced signal processing.
3. Parallel and Flexible Signal Flow

Parallel Input Routing: The 8 inputs feed both the scanner and VCAs simultaneously, making it easy to use the module in multiple roles at once.

Switchable Sliders: 8 high-quality sliders can control input levels to the scanner, the VCAs, or both, adapting to your workflow needs.

Creative Patching Examples:

Stereo Mixer:
Use 2 scanner channels and route their outputs through the odd and even mix outputs to create a dynamic stereo mix.

4-Channel Mixer:
Combine 4 inputs through the VCA sections and use the mix outputs to create a versatile sub-mixer for blending multiple signals.

VCA Control:

Independently use 2 or more VCAs for precise amplitude modulation of separate signals.
All the above options can be implemented simultaneously, making this module an exceptionally powerful tool for complex patches.

Expandable with Tobinski Harmonic Timing Generator (HTG):

This module seamlessly integrates with the Tobinski Harmonic Timing Generator (HTG) via an internal ribbon cable that goes to the switched (normalled) connections of the input jack sockets. The scanner inputs automatically link to the HTG outputs via sine shaping circuitry, enabling the two modules to function as a sinewave harmonic oscillator. This pairing unlocks harmonic interpolation and complex timbre creation, expanding your sonic palette.

Connections:

Inputs:
8 for audio or CV

Outputs:
8 individual VCA outputs

Mix outputs for odd, even, and all channels
Scanner outputs for odd stages, even stages, and all stages

Control Inputs:
Bipolar CV for scan stage and scan width

Dedicated CV inputs for each VCA
Sliders: 8, switchable between scanner, VCAs, or both

Power consumption: 205mA at +12V and 190mA at -12V

Depth: 27mm

18 HP

Notes: OCTOPASS is an eight voice 24db/octave low pass filter based on the classic 2044 filter. All eight filters are fully analogue with gain compensation of resonance and the lovely lush sound of classic synths. A global frequency modulation CV using a 3.5mm jack can be used to modulate all eight incoming CVs of the Polytip jack. The typical use is to patch polyphonic synthesisers with the use of only a few Polytip patch cables for its audio ins and outs and its cut-off frequency controls. To tap each filter I/O or CV using discrete modules the OCTO I/O module can be used as an expander. As there are eight filters in the module special attention has been given to power consumption efficiency.

Size: 20HP

Notes: Part of TipTop's polyphonic range, the Octostages is based on the envelope circuits from the legendary Oberheim OB-X. Eight fully analogue envelopes with shared ADSR controls.

Supplier's Notes:
Octostages is an eight voice fully analogue envelope generator made with the original envelopes of the 1979 OBX. Each of the eight envelopes feature a Gate in, Envelope OUT, Velocity CV in and Attack CV in control as well as an output led indicator. A master output level knob and CV using standard mono jack are provided to control or modulate all envelope output levels globally. As there are eight EGs in the module special attention has been given for power consumption efficiency.

Size: 20HP - Depth: 40mm
Power: +12V 185mA / -12V 165mA

Notes: Octogain is a eight voice polyphonic analogue audio VCA plus a eight voice mixer with master level control and odd/even (Right and Left) channels for a stereo output and clipping indicator. All eight VCA ins and outs are simultaneously available through Polytip jacks and 3.5mm jacks so the module can be used in a variety of ways both polyphonic or multi-voice monophonic. The fully analogue audio path has exponential CV control. CV inputs are 0-5V, typical audio input is 10Vp.p. A global Offset knob allow to open all VCAs manually or apply positive offset to incoming CV. The design uses very low power consumption with excellent audio quality.

Size: 16HP - Depth: 40mm
Power: +12V 42mA / -12V 35mA

Notes: A handy combination of two of Serge's most recent designs:

The GATE (left side) is an enhanced redesign of the classic Serge Gates which can be used as a linear or exponential VCA or ring modulator or some interesting combination of these.

The VCFX 2023 is a newly designed Serge filter that is essentially a Bandpass, but also offers a Lowpass output.

Serge NEW GATES / VCFX 2023 for eurorack:

Designed by Serge Tcherepnin 2023
Eurorack format (3U), 18 hp
Power consumption: 24mA @ +12V, 24mA @ -12V
(NEW) Skiff-friendly: < 25mm (1")

Notes: A powerful utility module:

The 2+2 Mixer (left side) is a combo of two DC coupled 2-channel mixers with a sum out. For audio or CV purposes.

The Dual VCA is the audiophile and distortion friedly VCA taken from the Stereo Mixer. It has a special exponential response that imitates the behavior of the early Serge VCAs and allows massive amplification and overdrive. Beware - the resulting signal can get very high amplitudes (up to 16Vpp) and allows squaring of a sine or triangle wave.

Serge 2+2 Mixer / Dual VCA for eurorack:

Designed for audio performance
Eurorack format (3U), 18 hp
Power consumption: 55mA @ +12V, 50mA @ -12V
(NEW) Skiff-friendly: < 25mm (1")

Notes: A typically clever approach to modulation from Make Noise, the MultiMod takes a control signal and modifies it into eight related outputs, adjustable by phase and timing. Hugely versatile.

Supplier's Notes:
With MultiMod...from one control signal, we create many.

In a modular synthesiser, it is easy to create complex results via complex means - patching an elaborate network of independent control signals, for example. This can be very powerful but also cumbersome to set up, and potentially difficult to control in a meaningful way. MultiMod represents a new approach: it takes a single control signal and copies it 8 times, not unlike a simple mult, except that it allows you to modify those copies by weighted adjustment of their relative phase and speed. The result is modulation that is related to the source, but not identical at each destination.

Phase sets the spacing of the signal copies in time, weighted by channel, with each progressive channel getting more out of phase from the original signal and from each other. Spread allows for varispeeding the copies by different amounts, with each getting progressively faster or slower than the original Signal. Time determines the range of time captured at the input and therefore also the depth of modulation across copies of the input signal when Phase and Spread are manipulated. MultiMod also includes Tempo, Hold, and Reset features, and a variety of Read Shapes for temporal rearrangement of input signals.

When the input is not patched, MultiMod generates an LFO that is copied eight times and manipulated in the same ways.

MultiMod is built with the latest DSP hardware which offers eight high resolution outputs, with signal input and output ranges approaching the upper limits of the analogue eurorack modular system. All I/O is capable of a 20V range at +/-10V, greatly exceeding the typical 0-5V CV input ranges on typical digital modules.

Specifications

Width: 10hp
Max depth (incl power cable): 39mm

Power:
195mA @+12V
10mA @-12V

Notes: Four-part probabilistic rhythm crossfader

Confundo Funkidos is a rhythm crossfader and mute utility. Patch two pairs of rhythms to the left and right inputs, then use the CV-controllable crossfader and three Curve algorithms to fade between them and combine them in different ways. Each channel has a mute switch which can be used to bring a voice in and out of a patch at will. Tap the Burn button for some instant fills, and your percussion performances will never be the same.

New to the second version is the addition of four Accent outputs. Accent patterns are generatively created using the rhythms at the inputs, adding a new, dynamic dimension to even the simplest of trigger sequences. The Accent jacks output high or low gates, which can be used with dedicated percussion modules or as modulation sources in a patch.

The Burn functionality has also been expanded, with the addition of a potentiometer for more versatile and hands-on fill creation. Even the Mute switches have been expanded with three positions: each channel can output triggers but not receive Burn fills or output accents when set to the middle position.

If you want to liven up your percussion system with a completely unique and hands-on utility, Confundo Funkidos brings modular performance to a whole new level.

Size and Power

12HP Eurorack
+12v: 55mA
-12v: 15mA
Confundo from Latin confundo - "to blend"

Funkidos agitation disease - from Flemish fonck "agitation" with suffix dos for "two"

"Second blended agitation"

What's in the box?

Module
Power cable

Noise Engineering no longer include screws with newly packaged modules, but Bulk screws are available for purchase separately.

Notes: At its heart, Alpha Pro is four identical VCAs, each with overdrive and stereo outputs. However, it's also possible to link any of the VCAs together to form a voltage controlled mixer. This flexibility allows Alpha Pro to replace a bank of VCAs, sub-mixers and even your output mixer.

Each VCA has two Signal inputs and a summing mixer with individual attenuators.

There are two mix buses, allowing each VCA to act stand-alone or as part of the mix. So you can configure two separate sub-mixes, with any of the VCAs contributing to the mix, or use all channels to make an 8 input, stereo output main mix.

The VCA gain is controlled by the Initial Gain knob, and two Gain CVs - again mixed together, each with an attenuator. Having two Gain CV inputs allows for more complex modulation possibilities without needing another CV sub-mixer.

Gain response can be set to exponential or linear.

The XING switch enables zero crossing detection to prevent clicks on very fast CV inputs.

Two drive modes are available, a soft clip and a harder fuzz, with the DRIVE control increasing the gain into the overdrive circuit to increase the effect.

The VCA output is stereo, with manual and CV control of pan - again, with an attenuator.

Alpha Pro is available now as a 'founders edition' which includes the Alpha Switch as standard.

Specifications:
Width: 38HP
Depth: 22mm excl. power cable. Approx 32mm inc. shrouded power cable

Power Requirements:
+12v: 250mA
-12v: 100mA
+5v: 0mA

Inputs:
Signal (Zero attenuation): +/-5v nominal, +/-12v max
Gain CV (Zero attenuation): 0-5v nominal
Pan CV (Zero attenuation): +/-5v nominal

Outputs:
Stereo: +/-5v nominal, +/-10v max
With Drive Modes 1&2 outputs are normalised to around +/-5v max

Notes: Foxtrot is a quad, multimode virtual analogue filter with three different classic filter types.

Each of the four filter channels can be:

1) A ladder filter, based on the classic MOOG designs from the '60 and '70s
2) A Sallen-and-Key filter based on the Korg 35 module used in the MS-20
3) A State Variable filter as used in the Oberheim SEM

Each filter type produces Low Pass, Band Pass and High Pass responses which can be morphed between using the front panel control or CV.

In addition, any or all of the filter channels can be linked together internally producing a parallel filter bank controlled by a single cut-off control or CV. Check out some of the examples for how amazing this sounds.

The AUX CV input can be switched to allow CV control of the filter response, resonance or pan of each filter channel's dual outputs.

Finally, each filter can be overdriven to accentuate the unique sound of each filter type.

Specifications:
Width: 38HP
Depth: 22mm excl. power cable. Approx 32mm inc. shrouded power cable
Power Requirements:
+12v: 250mA
-12v: 100mA
+5v: 0mA

Inputs:
Signal (Zero attenuation): +/-5v nominal, +/-12v max
Cut-off CV (Zero attenuation): 0-5v nominal
AUX CV (Zero attenuation): +/-5v nominal

Outputs:
Dual Outputs: +/-5v nominal, +/-10v max

Notes: The brilliant Perkons drum machine comes to Eurorack. A single hybrid drum voice with digital sound engine and analogue filter/overdrive, the Perkons Voice is flexible and supremely powerful.

Supplier's Notes:
Erica Synths Perkons Voice is a eurorack incarnation of the percussion voices from the PERKONS HD-01 Drum machine. Like on the drum machine, the module has hybrid architecture, featuring a digital sound engine followed by an analogue multimode filter and overdrive. Users can select among 13 sound generation algorithms and save up to 99 presets that can be recalled easily. Tune and Patch CV inputs are configurable for various CV settings and are tuned to 1V/oct. Module also features a 4-voice poly overlap mode and samples on the "Rompler" engine can be easily replaced.

Specifications:

Audio output: 10Vptp
CV levels configurable: -5V - +5V
Power consumption: +59mA, -30mA
Module width: 14HP
Module depth: 35mm

Notes: The world's favorite CV to Midi chord generator, now available in black.

Chord Pilot is an algorythmic chord generator that lets you create chords by defining their size and shape, instead of by their name. So forget about major, minor Dorian 7th augmented add 9ths, Chord Pilot lets you tweak your way to musical nirvana. You can store up to 196 original chords and fire them at will using the 8 buttons, CV control or MIDI.

Connect it up to any MIDI synth or a Poly Cinematic or a Pianophonic and let Chord Pilot navigate you through a musical journey of inspiring arpeggios, orbiting chord sequences and stunning polyphonic spreads of up to 8 notes at once.

Notes: Four-part probabilistic rhythm crossfader

Confundo Funkidos is a rhythm crossfader and mute utility. Patch two pairs of rhythms to the left and right inputs, then use the CV-controllable crossfader and three Curve algorithms to fade between them and combine them in different ways. Each channel has a mute switch which can be used to bring a voice in and out of a patch at will. Tap the Burn button for some instant fills, and your percussion performances will never be the same.

New to the second version is the addition of four Accent outputs. Accent patterns are generatively created using the rhythms at the inputs, adding a new, dynamic dimension to even the simplest of trigger sequences. The Accent jacks output high or low gates, which can be used with dedicated percussion modules or as modulation sources in a patch.

The Burn functionality has also been expanded, with the addition of a potentiometer for more versatile and hands-on fill creation. Even the Mute switches have been expanded with three positions: each channel can output triggers but not receive Burn fills or output accents when set to the middle position.

If you want to liven up your percussion system with a completely unique and hands-on utility, Confundo Funkidos brings modular performance to a whole new level.

Size and Power
12HP Eurorack
+12v: 55mA
-12v: 15mA
Confundo from Latin confundo - "to blend"

Funkidos agitation disease - from Flemish fonck "agitation" with suffix dos for "two"

"Second blended agitation"

What's in the box?

Module
Power cable

Nosie Engineering no longer include screws with newly packaged modules, but Bulk screws are available for purchase separately.

Notes: ***B-STOCK: Without original box, item shows small amount of damage but in perfect working order***


FLAME "TAKT" rhythm sequencer.

"TAKT" is a compact 30HP Eurorack sequencer module for playing or programming trig- ger/gate/velocity rhythm sequences.

The sequencer has 8 tracks with trigger/gate outputs, 8 velocity/modulation CV outputs and full MIDI functionality. The CV track can also be used independently as a modulation track. Live sequencing in looper mode is possible in two ways: SHOTS for playing "note repeats" or quantized triggering via keys or sensors.

Four tracks can be triggered simultaneously with four external distance sensors. These sensors are just 2HP slim modules that can be rack mounted at desired locations. These are connected directly to the module with narrow and sufficiently long ribbon cables, which also supplies the sensors with the necessary operating voltage. The 4 sensors and the connection cables are included in the scope of delivery. The sensors generate trig- gers/gates and can be switched live as a set between tracks 1-4 and 5-8 (e.g. via foots- witch).

Four syncable LFOs with VCOs for amplitude adjustment are also provided. The LFOs are equipped with many interesting functions. This includes 26 different waveforms, phase, amplitude, speed and output voltage. This can be unipolar or bipolar (0..+5v or +/- 5v) and additionally attenuated by AMP (amplitude) with built-in VCA. This means that the LFO outputs can also be adapted to modules that do not have an input attenuator.

Patterns can be switched live and are each up to 4 bars long. 4 patterns plus a fill pat- tern are saved as a scene. 50 scenes can be permanently stored in the module. This means that 250 patterns are available in total.

Additional inputs and outputs for controls are available. There are 4 CV inputs to be defi- ned by the user, as well as 2 programmable analog clock outputs. On the front there are MIDI input and output as 3.5mm TRS sockets. Firmware updates can be done via MIDI- SYSEX.

HP : 30

Notes: Legendary Vermona drum synthesis circuits get reimagined for Eurorack. The Bass/Drum reworks the kick and 'drum' circuits from the DRM-1 for extra modular flexibility, maintaining the powerful analogue sound.

Supplier's Notes:
With BASS|DRUM, Vermona have transferred the sonic foundation of the DRM1's KICK and DRUM instrument channels to the Eurorack format. They reworked the existing circuitry in key areas to optimize it for the modular context. The result is an Eurorack sound generator that clearly reveals its origins and at the same time surpasses them many times over.

The modulation possibilities of BASS|DRUM offer enormous flexibility. Many parameters like the pitch of the oscillator, the decay time and the integrated wave shaper can be controlled by external voltages. For example, you can create rhythmically alternating long and short or low and high kicks or tonal variations by modulating the waveform.

Use the DYNAMIC input to control the amount of force your trigger source applies to the internal circuitry of BASS|DRUM. This not only changes the volume, but also many different nuances of the sound.

Bass or drum? BASS|DRUM can do both, without compromise. If you need drum sounds that follow the tuning of your music, you'll find what you're looking for here. At the same time, the module serves as a full-featured audio oscillator that can be used to create bass lines or melodies.

From deep, powerful bass drums, toms and tom-toms to high-frequency pings and percussive chirps - no problem with BASS|DRUM! In combination with other modulation sources, this spectrum can be extended infinitely. The module is also an excellent oscillator for anything other than classic analog drum sounds.

Notes: ***B-STOCK: Without original box, product in perfect working order***


Basimilus Iteritas Alter is a parameterized digital drum synthesizer with its roots in the analog world. At its heart, it is a simple six-oscillator additive synthesizer with adjustable waveform, harmonic spread and decay. Adjustable attack including a noise oscillator is also included. dLese are summed and fed into an in..nifolder for crunch and variety.

Basimilus Iteritas Alter is an improved version of Basimilus Iteritas. It is 2HP smaller, includes CV of switches, adds an third mode, and pitch range and knobs know offset rather than attenuate.

Size: 10HP Eurorack
Depth: 1.5 Inches
Power: 2x8 Eurorack
Draw +12V: 150 / 80
Draw -12: 5 / 5
Draw +5v: 0 / 90

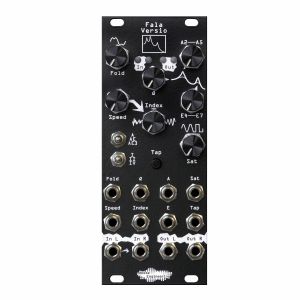

Notes: Stereo formant filter with wavefolding, saturation, and a tap-tempo LFO

Fala Versio is a stereo formant filter designed with pure musicality in mind. Rather than creating classic vowel shapes, Fala gives the sounds it shapes a vocal quality while retaining the musicality of the sound. Fala's signal chain features up to 24 bandpass filters, post-filter saturators, three allpass filters, a pre-filter wavefolder, and a suite of dynamics-control utilities. Fala makes it fun to make nice or gnarly tones, and easy to morph between them.

Fala also features a built-in clockable stereo LFO with sine or noise oscillators to modulate the filters and to bring some panning animation into your patches.

Whether you want resonant, vocal tones or uniquely modulated filth, Fala Versio is the perfect tool to take your patches to new timbral spaces.

Already own a Versio? Try Fala and all the Versio firmwares now at the Firmware Swap app for free. Overlays will be available in January 2025.

Size and power:
10 HP
+12v 125 mA
-12v 10 mA
Fala - from Portuguese falar: "to speak"

Versio - from Latin: "versatile"

"Versatile speech"

What's in the box?

Module
Power cable
Micro USB cable

Noise Engineering no longer include screws with newly packaged modules, but Bulk screws are available for purchase separately.

Notes: Multi-operator phase-modulation platform oscillator ideal for lovers of drone

Toros Iteritas Alia is a multi-operator, three-algorithm phase-modulation oscillator. Taking inspiration from Nosie Engineering's favourite things about FM synthesizers and doing away with complicated interfaces and mysterious controls, Toros prioritizes immediacy and, of course, epic sounds.

The unique Blendex controls allow the user to route each oscillator to be a PM for the next oscillator in the algorithm or direct to the output. Fine-tune the output for your needs with the frequency controls that constrain the range to span a minor third, an octave, or two octaves. Dial in and morph between anything from dark and noisy to tonal to sub-shaking sounds with ease with the completely CV-able interface.

Designed with drones in mind, Toros is the perfect tool for long, evolving textures and dark drones - or big, clangorous tones if that suits your patch better.

Toros Iteritas Alia is available on Noise Engineering's 10HP Alia oscillator platform. Buy an Alia module and use the included USB cable to connect to the Firmware Swap app and check out any other Alia firmware, free of charge, any time. More info can be found on the World of Alia page here.

Hotswappable overlays are coming in January, so you can easily panel your module to match your firmware, no assembly required.

Size and Power
10HP Eurorack
+12v:100mA
-12v: 15mA
Toros - perforated lizard - from Latin Torosaurus "foundation" with suffix -lus "small"

Iteritas - repetitiousness - from Latin itero "repeat" with suffix -tas "state of being"

Alia - supreme, from Latin alia

"Lizards reign supreme, as always"

What's in the box?

Module
Power cable
Micro USB cable

Noise Engineering no longer include screws with newly packaged modules, but Bulk screws are available for purchase.

Notes: Multi-operator phase-modulation platform oscillator ideal for lovers of drone

Toros Iteritas Alia is a multi-operator, three-algorithm phase-modulation oscillator. Taking inspiration from Nosie Engineering's favourite things about FM synthesizers and doing away with complicated interfaces and mysterious controls, Toros prioritizes immediacy and, of course, epic sounds.

The unique Blendex controls allow the user to route each oscillator to be a PM for the next oscillator in the algorithm or direct to the output. Fine-tune the output for your needs with the frequency controls that constrain the range to span a minor third, an octave, or two octaves. Dial in and morph between anything from dark and noisy to tonal to sub-shaking sounds with ease with the completely CV-able interface.

Designed with drones in mind, Toros is the perfect tool for long, evolving textures and dark drones - or big, clangorous tones if that suits your patch better.

Toros Iteritas Alia is available on Noise Engineering's 10HP Alia oscillator platform. Buy an Alia module and use the included USB cable to connect to the Firmware Swap app and check out any other Alia firmware, free of charge, any time. More info can be found on the World of Alia page here.

Hotswappable overlays are coming in January, so you can easily panel your module to match your firmware, no assembly required.

Size and Power
10HP Eurorack
+12v:100mA
-12v: 15mA
Toros - perforated lizard - from Latin Torosaurus "foundation" with suffix -lus "small"

Iteritas - repetitiousness - from Latin itero "repeat" with suffix -tas "state of being"

Alia - supreme, from Latin alia

"Lizards reign supreme, as always"

What's in the box?

Module
Power cable
Micro USB cable

Noise Engineering no longer include screws with newly packaged modules, but Bulk screws are available for purchase.

Notes: Stereo formant filter with wavefolding, saturation, and a tap-tempo LFO

Fala Versio is a stereo formant filter designed with pure musicality in mind. Rather than creating classic vowel shapes, Fala gives the sounds it shapes a vocal quality while retaining the musicality of the sound. Fala's signal chain features up to 24 bandpass filters, post-filter saturators, three allpass filters, a pre-filter wavefolder, and a suite of dynamics-control utilities. Fala makes it fun to make nice or gnarly tones, and easy to morph between them.

Fala also features a built-in clockable stereo LFO with sine or noise oscillators to modulate the filters and to bring some panning animation into your patches.

Whether you want resonant, vocal tones or uniquely modulated filth, Fala Versio is the perfect tool to take your patches to new timbral spaces.

Already own a Versio? Try Fala and all the Versio firmwares now at the Firmware Swap app for free. Overlays will be available in January 2025.

Size and power:
10 HP
+12v 125 mA
-12v 10 mA
Fala - from Portuguese falar: "to speak"

Versio - from Latin: "versatile"

"Versatile speech"

What's in the box?

Module
Power cable
Micro USB cable

Noise Engineering no longer include screws with newly packaged modules, but Bulk screws are available for purchase separately.

Notes: Flame Black Filterbank is an analogue moving resonance filter bank.

The module is based on the Flame Curves and combines its most important functions in a more compact format. As a result, the individual outputs for the filter channels no longer found a place on the front panel.

The filterbank includes twelve-channel and a pattern player programmable via a software editor. You can use a freeware "Curves editor software" (Win/Mac) for setup and user pattern editing. The module needs a clock to run in pattern-mode. It also features a reset input to set the sequence back to the first step. The memory in the module can save up to 99 patterns. The active pattern can be seen on the display and selected thanks to two buttons.

When the Black Filterbank is in sequencer mode, the Envelope potentiometer controls the AR envelope, the Variation knob adds random velocity and release, and the Fill potentiometer controls the level of all the channels.

In manual mode, when the sequencer is off, you can select different filter-types with the Variation potentiometer: allpass, lowpass, bandpass 1-3 and highpass. Thanks to the Fill knob it is possible to sweep through the twelve filter bands. The Envelope knob smooths the sweep by activating a second band next to the selected filter band. Thus, the change from one band to another is not so abrupt.

It is also possible to play the twelve filters via MIDI like a drum module, thanks to the supplied MIDI to minijack cable. It even reacts to velocity.

There are several CV inputs for controlling Envelope, Variation and Fill parameters as well as the pattern number.

Power consumption: 250mA at +12V and 180mA at -12V
Depth: 42mm
22 HP

Notes: A typically well thought-out approach to matrix mixing from ADDAC, the 814 is a stereo, expandable 6x6 design with separate control and in/out modules. Suitable for line/synth level audio or CV.

Supplier's Notes:
Introducing ADDAC's take on matrix mixers, a 6x6 stereo matrix easily expandable to larger configurations.

Matrix mixers may need some time to get used to, but they are very much self-explanatory, each knob controls the volume of a matrix point routing the respective input to the desired output. The flexibility of a matrix mixer is far superior to a standard mixer, the possibility to route any input to any single or multiple outputs allow for very complex chains, combining parallel and series processing while easily reconfigurable without any extra patching.

All Inputs Left channels are normalled to the Right Inputs.

Blank areas on the left and bottom edges of the panel allow for the user to write all the inputs and outputs sources that each channel is connected to.

Different coloured knobs for faster visual recalling: Black for A,C,E Outputs Dark Red for B,D,F Outputs Cream knobs for potential feedback diagonal: 1A, 2B, 3C, 4D, 5E, 6F.

DC coupled circuitry, can be used to mix both audio or cv signals.

Jumpers on the back of both modules allow the user to set each channel independently to Line or Synth Level, making it easier to integrate with external sources, sound processors or guitar pedals.

Internal connections

The control and input modules are connected via a large 34 wire ribbon cable, only the control module needs to be connected to the Busboard.
Extra IDC sockets are used for connecting larger configurations like 12x12 or 18x18.
Other configurations are also possible: 6x12, 12x6, 12x12, etc...
Up to 12x12 all ribbon cables are provided, for larger matrixes custom ones will be necessary, contact us directly if planning to go BIG.

Potentiometers

Although ADDAC System are using Thonk's Tall Trimmer Topper for Knobs all potentiometers used have metal shaft and are not plastic trimmer potentiometers.

Tech Specs: 25HP + 8HP (33HP total, 4.5cm deep, 140mA +12V, 140mA -12V

Notes: Sibilla is a DSP digital stereo oscillator that aims to translate into music the beauty and harshness of a semi-barren mountain. Its sound is sculpted by various saw and sine waves running through intricate delay networks, altered by LFOs, white noises and creating constructive and destructive interferences.

Both stereo channels are the output stages of two feedback audio loops.

Each loop is made up by a main sub sinusoidal wave oscillator and two saw and sine waves with frequencies affected by the generation of harmonics (right channel) and subharmonics (left channel). All waves have different phases whose offset is constantly affected by minor variations created by two pairs of grains randomly fluctuating within the waves amplitude spectrum and being sampled at a certain speed.

Waves then meet to each other to a common point, together with two white noise sources, creating constructive and destructive interferences constantly affected by two LFOs movements.

Interferences are then run into a resonant low pass filter and then distributed to four different delay lines from which they are fed back into the audio loops at different time intervals depending on the grain's movements.

Width: 10HP
Max depth: 29.6mm
Current draw: +12V: 125mA, -12V: 30mA, +5V: 0mA;
Material: 2mm anodised brushed aluminium

Notes: The Futureretro Transfer is a 12hp analogue filter featuring 16 different types of fully controllable filters with CV inputs, a voltage controlled amplifier, and an input overdrive. While the included 4 types of commonly used low pass filters, and the 12 specially crafted unique filters were specifically engineered to be the perfect sonic pairing with our Trax and Transient models, the Transfer also functions perfectly with any modular setup.

3 larger control pots give immediate and easy access to cutoff, input drive, and resonance control with the three smaller attenuators/attenuverters control input from the type CV, cutoff CV, and resonance CV input jacks. A VCA (voltage controlled amplifier) jack is conveniently placed at the bottom row along with standard input and output jacks.

Notes: The Flame FM Kosmos is a full-featured 4-voice polyphonic FM synthesizer with integrated multi-effects unit. With 6 operators per voice and 32 selectable FM algorithms, it offers a wide range of sounds from classic FM tones to complex modulations. Each operator has a loopable ADSR envelope for detailed sound shaping.

It also allows morphing between two sound variations (A and B) and real-time control of effects. The integrated multi-effects processor includes stereo chorus, MIDI-syncable delay and reverb. Intuitive operation is paramount, with 8 knobs and easily accessible menus for all key parameters.

The module supports both analogue CV signals and MIDI control, making it extremely versatile. With 128 preset sounds and 128 memory slots, there is plenty of room to store and recall your own sounds.

Power consumption: 120-140mA at +12V and 60-70mA at -12V
Depth: 30mm
22 HP

Notes: Meet Stardust, a cosmic tape looper.

The foundation of Stardust is a stereo looper with all the essential controls to record and manipulate sound, while supporting click-less looping transitions, an ultra-low noise floor, and high-fidelity audio hardware. However, getting the perfect loop is only half of the equation, Stardust also focuses on the texture and vibe of your recordings. Dial in a classic tape machine style warmth with wow & flutter/tape hiss controls, or take Stardust to new horizons with DSP effects. And, much like the tape-machines it takes it's inspiration from, Stardust can splice and rearrange its loops at the twist of a knob.

With an impressive set of front panel controls, the ability to save, recall, or export recordings, load samples via an included USB flash drive, and a host of configurable settings via our web editor Narwhal, Stardust is a comprehensive looper device.

Power Consumption: +12V=201mA, -12V=13mA, +5V=0mA

Notes: ***B-STOCK: Item refurbished, repaired and in perfect working order.***


Loquelic Iteritas Percido is an extension of the original Loquelic Iteritas. Like Loquelic Iteritas, it is a digital VCO with interpretations of three classic synthesis algorithms involving dual pitch control parameterized by four tone controls. LIP adds an envelope that can be shaped, modulated, and routed to pitches and tone controls, making it into a stand-alone voice.

Notes: Tiptop's reissues of iconic Buchla modules continue with the 285 frequency shifter. Edgy, twangy harmonic modulation with ring mod options and stereo operation via sum and difference outputs.

Supplier's Notes:
The 285t combines two sets of functions: the top section features a frequency shifter, while the lower section includes both balanced modulation and classic ring modulation, all with voltage control. The frequency shifter can shift incoming audio using either its internal oscillator or external audio. Both SUM and Difference outputs are available simultaneously for analogue stereo widening effects and more.

As Tiptop Audio continues its aural odyssey of preserving and transforming the hallmark engineering prowess of Don Buchla's namesake synthesizer modules, the 285t brings a constellation of blistering sonic-contouring tools to your Eurorack array. Like its predecessor, the Tiptop Audio Buchla 285t is a menagerie of modulation madness, offering variable degrees of ring, frequency, and amplitude styles of modulation. Plus, its dyad of modulation sub-modules operates independently, with dedicated audio and CV I/O for each, functionally giving you the sum of performance possibilities you'd get with two modules, all in one instrument. Suffice it to say: Sweetwater's synthesists commend Tiptop Audio on capturing the electric magic of Don Buchla's imaginative engineering while transposing it for the world of Eurorack to experience. For a constellation of timbral sculpting and summitting heretofore unknown peaks of daring synthesis exploration, the Tiptop Audio Buchla 285t Frequency Shifter module is your key. Discover what awaits at the fringes of Eurorack possibility!

Note: This module is not compatible with Buchla system voltages. CV signals require a distinct connectivity configurations. Please contact your Sweetwater Sales Engineer with any questions or concerns regarding compatibility or use in your Eurorack case.

Type: Frequency Shifter
Depth: 1.77" (45mm)
HP Size: 18HP
Power Usage: +12V/70mA, -12V/40mA
Power Supply: Requires Eurorack Case and Power Supply
Manufacturer Part Number: 285t

Notes: Vinia is a new powerful 8-channel audio generator and processor for Eurorack. Each channel is independent and has its own signal chain. This can be a multi-engine instrument, an FX processor, a combination of both, or a chain of several FX.

The sound generator section offers 2 sample players (one plays from the 16 MB internal flash memory and the other directly from the microSD card), various VCOs (VCO, multi-VCO, harmonic VCO), Karplus, a Chord generator, noise, a drum synth and modulation generators (LFO, envelope follower, envelope).

Each of these generators has a rich set of parameters for setting up your sounds. Then, there is a powerful multi-FX processor.

Tesseract Modular has added 20 different algorithms in Vinia: FM operator, filters (multimode, ladder, rubber, bandpass), a wave folder, tube saturation, delays (filter delay, delay, long delay), reverb, metallizer, grain pitch shift, and more.

These can be flexibly set in a chain per channel and offer many customization possibilities. The module also hosts a mixer. You can also save your channels in presets and work with macro parameters.

Each of the 8 channels can be independently configured as a multi effect processor, VCO, sample player...

Audio outputs are DC coupled so it can be used to generate complex CV modulation sources too.

There are 2 types of modulation in Vinia, the first is stepped (occurs every 1,4 milliseconds approx.) and very flexible, any modulation source can modify any parameter of any track. The second is the 'audio rate' one (44,1 KHz), only a few parameters admit this type and both sources and destinations will be within the same track.

Audio sources: Audio Input, Flash Sample Player, MicroSD Sample Player, VCO, Multi VCO, Harmonic Oscillator, Karplus, Chords, LFO, Envelope Follower, Envelope, Noise, Drum Synth

Audio processors: FM Operator, Multimode Filter, Ladder Filter, Rubber Filter, Bandpass Filter, VCA / Polarizer, Folder, Tube Saturation, Exponential Envelope, Delay, Filter Delay, Long Delay, Long Filter Delay, Reverb, Metalizer, Chorus, Modulator, Vocoder 16, Vocoder 32, Bit Crusher, Rectifier, Grain Pitch Shift, Ring Modulator

Notes: Introducing the TOMS909, the warmth of the classic, all-analogue, punchy tom-toms from the TR-909 drum machine. The TOMS909 contains all three of the TR-909's original LOW, MID and HIGH tom-tom circuits adapted for use in the modular format. The module was designed to sound like a fresh machine coming off the assembly line back in the 80's. To add flavour to the beast, Tiptop have extended each tom's tuning range so it's easier to dial soft bass drums on the low end and high-pitched toms on the other.

The toms circuitry is made up of 9 triangle oscillators and a stack of filters, VCAs, and envelopes which, in total, took about half of the space on the original 909's circuit board. Utilizing the latest in electronic design technology, Tiptop have managed to squeeze this enormous circuit, consisting of more than 450 components, into an area only 16HP wide. It is a beautiful board with hundreds of tiny, shiny components: it's a little analogue jewel.

Each tom includes a trigger and accent input with accent level control, manual tune, voltage-control tune input with attenuator and independent audio out. In addition, a MIX out is available that sums all three toms together as well as access to the MIXZ MixBus on the back. On each gate input, Tiptop have designed a dual pulse-shaper circuit so you can trigger your TOMS909 with trigger/gate signals from sequencers or any other pulse/clock sources.

TR-909 is a Trademark of Roland Corp Japan

Size: 16HP
Depth: 51mm
Power: +12V 120ma / -12V 100ma

Notes: ***B-STOCK: Box damaged, product in perfect working order***


The Falistri is a fully analogue multi-purpose movement manager designed to generate and edit voltages to easily accomplish any patch.

The module can be divided into two big parts: in the upper two-thirds of the panel take place two specular function generators, while the lower third is composed of a dual cascaded frequency divider, a linear slew limiter, and a four-quadrant multiplier.

Key features:

Two Function Generators: Envelopes, LFOs, Oscillators
Adjust the Shape Without Changing the Time
Exclusive Shapes per Stage
Trig Buttons: Play Those Envelopes!
Three Play Modes (Voltage-Selectable)
Interacting Functions: Quadrature Mode
All the Outputs, Everywhere
Cascaded Frequency Dividers
Four-Quadrant Multiplier
Linear Slew Limiter

Size 18 HP
Depth 38 mm

Current draw
170 mA @ +12 V
170 mA @ -12 V

Notes: Excellent value here. Analogue filterbanks tend to be pricy affairs but Erica's Resonant FB gives you all that creative control of dynamic equalisation with the convenience of digital control.

Supplier's Notes:
The Graphic Resonant Filterbank (FB) is a ten-band analogue filterbank with digital control over each bands' boost or cut. Each band can be controlled individually via CV or manually, while complex control configurations turn the filterbank into an unconventional multimode filter and even an instrument in its own right when played with various resonance settings. The Expander module (works exclusively with the Graphic Resonant Filterbank and is available separately) provides hands-on adjustment of boost and cut for all bands.

Specifications:

Audio signal amplitude: 10Vptp
Bandpass filter frequencies: 29Hz,61Hz,115Hz,218Hz,411Hz,777Hz, 1,5kHz, 2,8kHz, 5,2kHz,11kHz +-10%
CV input amplitude (configurable): -10V - +10V
Number of presets: 128
Panel width: 20HP
Module depth: 30mm
Power consumption (with EXP): 138(145)mA@+12V,50mA@-12V

Notes: Control Eurorack using your breath with this unique module from ADDAC. A melodica pipe connected to the front panel allows you to generate two independent CV signals from breath inputs. Funky.

Supplier's Notes:
This module expands ADDAC's line of expressive controls, it follows the heritage of wind/breath controllers with one major difference, the pipe has no air escape creating pressure inside the tube controlled by the user's mouth. For a seasoned woodwind or brass musicians this working principle may sound unorthodox, however this way pressure can be controlled for longer without the need to breath in or learning circular breathing techniques. It's relatively easy to control the pressure in your mouth while still breathing through the nose.

The module is provided with a standard melodica pipe which connects to an air filter (providing a receptacle for condensation to form and isolate the sensor) and lastly connects to the module frontpanel.

The signal captured by the sensor is then sent to two independent sections with exactly the same functions as seen in the signal flow diagram below.

As an example the two sections can be used with different settings to independently control the VCA and VCF of any standard analogue voice patch.

Pipe

ADDAC are using a standard Melodica pipe into an air filter that will keep condensation away from the sensor. The air filter is then connected to the frontpanel sensor input using a silicone tube.

Sensor calibration

[RESPONSE] is the main control to calibrate the pressure curve, the knob goes from exponential to logarithmic with linear at 12 o'clock. Exponential will be more reactive to high pressures, logarithmic to lower pressures.

Hold function

This feature allows to hold the current voltage value with the hold is engaged (button led on), the state can be changed either by the push button in a latching manner (push to change state) or via the gate input in a momentary manner (hold on while gate is on)

Extra Pipe

Extra Pipes are available separately.

Tech Specs:
10HP
4.5cm deep
70mA +12V
40mA -12V

Notes: The perfect pairing of a virtual analogue kick drum and side chain compressor. Designed as a single, easy-to-control module, Kickain revolutionizes your kick drum workflow by managing low-frequency artifacts and transients. The result? A cleaner, tighter mastering-standard mix featuring a truly powerful kick drum.

Spectral Compression

Kickain offers two spectral compressor modes that intelligently EQ the mix to fit around the triggered drum sound, adjusting continuously thousands of times a second. This optimizes the kick's loudness without intrusive 'pumping,' ensuring tracks sound tighter and richer in the low end.

Reverb

A 24-bit stereo drum room simulator, linked to the decay envelope, provides ambient reflections or explosive bass drops.

Notes: Inspired by vintage tape echoes and spring reverbs, the Echo Cinematic combines EQ, delay, reverb, filtering and extensive automation options to create a highly playable echo module. From dub madness to more subtle ambience, this one's a real beauty.

Supplier's Notes:
Echo Cinematic is a practical stereo effects device inspired by the dub music culture that emerged from Jamaica and landed in London during the early 1980s. Analogue tape delays were routinely patched into the mixing desk through a channel strip, to be EQ'd and fed back to themselves via the FX send bus. The engineer could manipulate the EQ and FX send controls to create a constantly evolving rhythmic texture, a feedback loop teetering on the edge of self-oscillation. Echo Cinematic does away with the need for a sophisticated mixing desk and expands on this principle with a versatile resonant filter and five independent sources of automation built into the module; two LFOs for both EQ and delay modulation, a 30 second knob recorder capable of simultaneously controlling every knob on the front panel, and two external CV inputs, instantly assignable to any control as you insert a patch cable.

The EQ section features three filter types: a high/low-pass filter, a peak/notch filter, and a classic comb filter. Each of these can be patched into either the feedback loop (Dub Mode), the delay output, or the entire signal path, including the dry signal. The delay section offers up to two seconds of delay with a tap delay facility that also applies grid snapping, allowing your delay settings to be constantly locked to your beat or to a clock signal. Reverb duties are taken care of by the lush 24-bit stereo reverb, as featured on Knobula's other cinematic modules.

Notes: Excellent modular take on 909 drum sounds here, featuring analogue kick, snare and clap combined with sample-based hi-hats and cymbals, plus the option to load your own custom samples. Super versatile.

Supplier's Notes:
909 inspired drum module with 3 analogue sound sources & 4 sample based sound sources - 30HP

3 Analogue-based discrete analogue TR-909 drums: bass drum, snare drum and hand clap circuits with advanced noise spectrum animation

4 sample-based drums (e.g. hi-hats, ride and crash cymbal - or simply use your own samples via SD card) - including a set of freshly recorded samples for modern electronic music using handcrafted Paiste 602 15" and 18" cymbals

Zero-latency sample playback directly from SD card

Hybrid analogue sound generation: 3x band-limited LSRF binary noise generators with spectrum animation, injected into discrete analogue circuits

On-board effect processor with 2 banks consisting of 16 effects in total, including additional auxiliary input and firmware update over audio

Master isolator-style LP/HP filter with VCA control and saturator booster

Drums that make you dance: Fit all music styles of music - specifically tuned for EDM and Techno

Factory sample banks by Nicolas Bougaieff (Mute, Novamute) including processed custom sampled Paiste 602 cymbals

wide-palette sample library available from Nero Bellum, Maman Kusters

Effect processor as found in famous Grand Terminal / Milky Way / Blck_Noir

Power consumption:
350 mA +12V
90 mA -12V
0 mA 5V

Dimensions:
30 HP
26 mm deep with inserted power cable

Notes: A really interesting synth voice module from Befaco, the Oneiroi specialises in ambient pads, drones and soundscapes thanks to a combination of oscillators, looping, effects and randomisation. True stereo textures from a single module.

Supplier's Notes:
Experimental synth voice focused on ambient pads and drone-like soundscapes.

Shape your performance

At its core, there is a Sine Wave Oscillator, Wavetable/Supersaw, and a joyful Looper. This is followed by an FX section featuring a Multimode filter, a Resonator, a Delay, and a Reverb.

His randomizer creates instant patches at the touch of a button.

The Looper can record the external input or the output with "Sound On Sound" looping.

5-second Looper records either the stereo input or the module's output, the Wavetable oscillator uses the Looper buffer

The atmosphere creator

A full-stereo synthesiser that easily creates dense atmospheres for hypnotic music or cinematic sound design.

Featuring three oscillators, four effects, a looper, modulation with complex routing, and a randomizer.

Powerful randomizer with four different targets that acts in different ways depending on the position of the two switches, three levels of intensity and undo/redo.

Specs

Current needs: +12V=200mA, -12V=60mA
Width: 30 HP
Depth Assembled Version: 25mm
Designed, kits prepared and assembled in Barcelona.

Notes: ***B-STOCK: Without original box, product in perfect working order***


Rene is the world's only Cartesian Sequencer for music synthesizers.

Named for the French philosopher & mathematician Rene Descartes, it uses his Cartesian coordinate system to unlock the analog step sequencer from the shackles of linearity.

Notes: An unusual but enticing form of generative music in Eurorack, Kaona's Zazou module offers MIDI or CV sequencing based on a series of algorithms, allowing you to define parameters and generate melodies and patterns of up to four tracks.

Supplier's Notes:
Zazou is a generative music module based on numerous configurable algorithms. It acts as both an accompanist capable of syncing to a regular sequence and an improviser within a given framework. Its function is to produce notes: no sound comes directly from Zazou, as it's intended to be connected to one or more synthesizers or other Eurorack modules.

It features both a multitimbral MIDI output and Eurorack-compatible CV outputs.

To generate notes, Zazou requires "gate" signals to trigger each note. Therefore, it follows the rhythm imposed by a sequencer or any generator producing gate output. It pairs ideally with Skippy, Kaona's algorithmic rhythm generator.

Zazou produces music based on the equal temperament scale and follows the note division corresponding to keyboard instruments (piano, organ, etc.). Thus, in Zazou, as in a piano, a C sharp corresponds to a D flat.

Zazou produces notes on four independent channels that can nevertheless be tuned together.

Interface

Seven CV inputs:
One gate per channel: red, yellow, green, blue

One "Reset" input: realigns the tracks, resets the sequence, interrupts all MIDI notes currently playing.

One "Change" input: allows external sequence control.

One "Play/Stop" input: stops (or restarts) all produced notes and pauses the current sequence. This input also measures an external beat to determine the quarter note value (BPM) that Zazou will use (this value can also be set manually). The input can be a clock (set to one beat per quarter note) or a sequencer.

Seven buttons:
One per channel, matching its colour: they function differently depending on the displayed screen. (Selection, Pause, or Manual Gate).

One Play/Stop button: stops or starts all tracks simultaneously.

One "Change" button: manually advances the sequence.

One "Reset" button: realigns the tracks, resets the sequence, interrupts all MIDI notes currently playing.

Three encoders:
Their functions vary depending on the displayed screens.

One MIDI output:
The output is in TRS format. It's possible to choose between cable A or B using a switch on the back of the card.

Twelve CV outputs:
Four "gate" outputs: mirror the input signals but add ornamentation notes.

Four CV outputs: export velocity (selectable between 5V or 8V).

Four Note outputs: in 1V/octave format, across 10 octaves.

Basic Functions
All functions are identical for each channel but can be synchronized according to your composition criteria.

Root Note: determines the key each track plays in.

Scale: constrains Zazou to adhere to a given scale (22 scales available).

Sequence: dictates that the composition follows a given sequence.

Algorithm: allows the selection of melodic behaviour.

Sequences
It's possible to instruct Zazou to follow a sequence track by track, but it's often more musical to let the four tracks follow a single sequence. For example, you can choose the common II-V-I progression or the circle of fifths, but also use less common sequences. The sequence behaviour can be customized by selecting the number of notes in the sequence, passing notes, alternating major and minor chords, etc.

Algorithms
The algorithms determine the note behaviour for each track.

It's possible to freely mix algorithms track by track, choose the same algorithm for all tracks, or the same algorithm for all tracks but with different behaviours.

Depending on the chosen parameters, they will generate more or less repetitive, varied, or complex melodies. Even though each note depends on an external gate, some algorithms additionally produce ornamentation notes like triplets or appoggiaturas.

Random:
Allows for completely random and unpredictable operation. However, one can influence how randomness occurs by changing event frequency or velocity, for example.

Walkingbass:
Walkingbass precisely follows the sequence in a classic Jazz walking bass manner, with one quarter note per beat. Numerous forms are offered, and it's possible to enrich the progression with ornaments or emphasize strong or weak beats, for example.

Arpeggiator:
Several types of arpeggios are available, and it's possible to choose direction (including random), chords used, ornaments, and their frequency, etc.

Intervals:
Starting from a reference note chosen within the scale, Zazou will traverse a selected number of octaves and notes according to a given interval.

Serial:
Zazou will generate note sequences respecting the rules and principles of serial music. All theoretical parameters are available to practice the specific genre of dodecaphonic composition (inverse sequence, retrogrades, etc.).

Cantor:
The Cantor set starts with a segment (the complete range of available notes) and repetitively divides it, eliminating central segments. This creates a more or less detailed repetitive pattern depending on the chosen parameters.

Fibonacci:
The Fibonacci sequence is used to calculate note heights within a scale starting from a chosen note and modifying it according to selected Fibonacci numbers. Interval modulation allows staying within a playable range while exploring rhythmic and melodic patterns generated by the sequence.

Sierpinski:
The approach divides an octave into three equal parts (triads) and selects two for repetition, imitating how the Sierpinski Triangle is drawn by removing the central triangle and repeating the process on the remaining triangles. This divides the musical space according to the specified depth and plays notes based on this division, simulating the repetitive structure of the Sierpinski Triangle.

Mandelbrot:
The Mandelbrot set is one of the most famous fractal objects. Zazou maps this set into a musical representation to offer unique and varied sound structures. Since calculations are done in real-time, parameters can vary the melody's behaviour infinitely.

Julia:
Like the Mandelbrot set, the Julia set offers fertile ground for musical experimentation, with opportunities to explore fractal complexity through sound. Julia sets are defined in the complex plane and produce complex fractal patterns. Here too, real-time calculations allow parameters to vary the melody's behaviour infinitely.

System Functions
It is possible to choose a corresponding MIDI port for each track. Depending on your setup, you can use Zazou in polyphonic mode (same MIDI number), multitimbral mode (one port per channel), or multichannel mode (multiple synthesizers).

The quarter note duration (BPM) can be adjusted manually or automatically (clock signal, sequencer, etc.).

For all algorithms, you can choose the note duration proportionally to the quarter note value or match this duration to the incoming "gate" duration for each track. Thus, it is possible to play very dynamically with a variety of connected instruments as long as they provide a "gate" signal.

The velocity value can be selected within the range of 0V -> 5V or 0V -> 8V depending on your modular equipment.

Zazou operates across 10 octaves, in MIDI or CV (1V/oct) for modular use. However, it is possible to limit the number of octaves, either to accommodate synthesizers that poorly support very high notes or to limit the voltage in a modular environment.

Two settings allow adjustment of the overall pitch and fine interval between notes (only for modular use).

Saving
The internal SD card allows you to save, within its capacity limit, either track parameters (and load them for another track, for example), sequence parameters, or the entire composition.

Technical Specifications
18 HP

Depth: 32 mm

Power consumption:
+12 V 200 mA
-12 V 0 mA
+5 V 0 mA

Supplied with power cable and Knurlies.

Notes: ***B-STOCK: Item refurbished, repaired and in perfect working order.***


Cylonix and Intellijel have collaborated to bring you a very sophisticated and deeply complex Wavetable VCO. At the core of this module is very powerful FPGA board that he has pushed to the absolute max of its capabilities and crammed full of features. We wanted to create a module that really worked well in the modular context so there are a lot of modulation and control possibilities.

CHORDS
Oscillator 1 can be operated in a CHORD mode, which runs 8 copies of the oscillator in parallel with adjustable detuning, leading to very fat, rich waveforms. The oscillators have extensive modulation capabilities including audio rate (98KHz) Frequency and Phase Modulation (FM and PM) via external sources. Nonlinear combination processes allow the outputs of the two oscillators to interact to generate complex timbres and sonic textures.
There are 64 user selectable chords.

WAVEFOLDER
The SHAPESHIFTER module also includes the analog wave folder circuitry from
module to add analog warmth and metallic rasps to the digital oscillator output.
External signals can also be patched in.

PRESETS
The module includes a sophisticated preset mode where panel settings can be stored. There are 12 user-programmable preset slots and another 52 volatile slots that can be used as a scratchpad. These scratchpad slots are initialized to interesting presets on module powerup. The capabilities of the preset mode is not limited to mere passive storage of settings, however. In this mode the user can also step through, or sequence, the settings, either in order or randomly in response to pulses input to the external sync input. This gives the user the ability to generate complex sequences of sounds. The preset mode also allows the user to morph between the current panel settings and a preset providing a very powerful real-time performance tool.

SYNC
8 Different sync modes: HARD, SOFT, REV, HOLD, BUMP, 2=1, 1=2, OFF
with the ability to internally sync to a sub oscillator

PULSE
User selectable modes for the PULSE output: OR, AND, XOR, GLCH, +OSC1, EOC, +OSC2, -OSC2

MOD A modes: (audio rate modulation)
COMBO IN, SHAPE IN, PHASEMOD, VOCODER

MOD B options (all with CV control)

-Combo modes for OSC1 and OSC2:
NORMAL, RING, MIN, PONG, INLV, AND, XOR, GLCH
-Waveform TILT
-Chord mode overdrive
-Delay depth and FB
-Percussive mode decay time

Notes: Quad random, highly controllable, quantized-voltage generator and generative CV sequencer

Gamut Repetitor is a four-channel random quantized voltage generator with looping, range, key, and scale settings. It features a built-in quantizer with 27 scales grouped across a selection of three CV-controllable switches, so it's easy and fun to generate patterns you'll love. The trigger outputs can simply pass through the input trigger or they can generate random triggers for more modular merrymaking.

Patching GR is as simple as sending in a trigger pattern and turning Length up. Then you can use the built-in quantizer, key, and range controls to change the way voltages are generated. Once you hear something you like, turn the Length down to a sequence length you like (up to 32) and loop away!

Size and Power

10HP Eurorack
+12v: 55mA
-12v: 15mA
Gamut from medieval Latin: "a complete scale of musical notes; the compass or range of a voice or instrument."

Repetitor from Latin repetito with suffix -tor to make the noun: "thing which repeats"

"Thing which repeats all the things"

What's in the box
Module
Power cable

*** Noise Engineering no longer include screws with newly packaged modules. Bulk screws are available for purchase. ***

Notes: Stereo version of the HUE module, the CLRS does what it says on the tin, adding colour via effects including filtering, overdrive, sample rate and bit depth reduction, plus one-knob compression and CV modulation of parameters.

Supplier's Notes:
C Introducing the CLRS (pronounced colours) module by Modbap, a powerful 10HP reimagining of the HUE eurorack module, now expanded to stereo.

At the core of CLRS is a versatile DJ-style filter, equipped with a single large top-centre knob that controls both the high pass and low pass filters. With the low pass to the left and the high pass to the right, effortlessly sculpting your sound in the stereo field becomes second nature. Find the ideal frequency balance and bring your audio creations to life with a seamless and harmonious blend.

Experience a transformative sonic journey with the Drive effect. From subtle saturation to edgy distortion, CLRS's Drive empowers you to sculpt the ideal sonic character that complements your creative vision. It adds warmth, character, and texture, taking your sound to harmonically rich territories.
The newly added stereo width control enables precise adjustments to the stereo field, providing greater control over the spatial aspects of your audio.

The Lofi effect on CLRS is a powerful feature that introduces a lo-fi or low-fidelity aesthetic to your audio. By reducing the sample rate, the "Lofi" knob emulates the characteristics of lower-quality audio recordings or older digital devices. This reduction in sample rate produces a vintage, degraded, or "lo-fi" sound, perfect for creating a nostalgic or retro vibe in your recordings.

The Bit Depth knob decreases the bit depth. This introduces a sort of aliasing sound and distortion, adding to the lo-fi character of the audio. The result is a gritty, distorted, or "bit-crushed" sound reminiscent of older digital devices or low-quality audio formats.
The Lofi CV input affects the combination of sample rate reduction and bit depth, opening up a range of possibilities to explore vintage recordings, nostalgia, and unique audio textures.

The "Mag" effect, short for "Magnet," combines the characteristics of tape saturation and tape distortion into a single control knob. Adjusting the "Mag" knob introduces a magnetic-like effect to the audio signal, emulating the warmth, saturation, and subtle distortion associated with analogue tape recordings. This feature allows you to add vintage and analogue-style tonal qualities to your audio, bringing warmth and depth to digital recordings or achieving a vintage vibe. The "Mag" effect can also introduce light tape distortion, adding a touch of grit, character, and a slight edge to the sound, imparting a vintage or lo-fi aesthetic.

CLRS offers an intuitive one-knob compressor, effortlessly controlling your audio dynamics. Elevate your mix to a professional level with depth and balance. The newly integrated 3-way switch for ratio control provides the freedom to choose between light, medium, and heavy compression settings. Also included in this expanded Compressor is a 'Duck' input which simulates side chain compressions allowing you to send LFOs, envelopes and the like to control the side chaining. Whether you seek gentle levelling or impactful squashing, CLRS's compressor adapts to your musical needs.

In addition, CLRS features CV inputs for modulation of the filter, drive, mag, and lo-fi effects. This allows for dynamic and expressive control over your sound, adding an extra layer of creativity to your music production.

Whether you're using CLRS in a Eurorack modular system or in your groovebox signal chain, it seamlessly integrates into your setup, providing you with a versatile and powerful tool for end-of-chain audio processing. Its CV inputs for modulation of the filter, drive, mag, and lo-fi effects add an extra layer of expressiveness and creativity to your music production, allowing you to dynamically shape and transform your sound.

Experience the flexibility of audio processing with CLRS and unlock a world of sonic possibilities for your Eurorack or groovebox setup. From side chain compression and shaping frequencies to adding warmth, character, and vintage vibes, CLRS is the ultimate companion for taking your music to new heights.

Features

Audio processing effect
DJ Style Filter (HP and LP)
Tape Saturation (mag), Drive, and Lofi effects
One knob compressor with switchable ratio
Ducking input
Width Control - stereo field widening parameter
CV inputs for Filter, Mag, Drive, Lofi.
Stereo input and output

Tech Specs

Width: 10HP
Depth: 24 mm
Power: 110mA +12V, 8mA -12V

Notes: Distresan, a stereo 3-band EQ which enables DJ-style effects and is geared towards quick hands-on manipulation and CV manipulation of its bands. Distresan is a Dual Cut/Boost EQ!

Stereo inputs and outputs

3 band EQ, cut and boost: Hi (+/-14dB@15 kHz), Mid (+/-8dB@1kHz), Lo (+/-10db@30Hz)

Stereo EQ offset per band

Crude CV input for highs and lows (animate the stereo field)

A jumper on the back attenuates the input by 20dB, removing it adds more gain, line level input will not need additional amplification to be used with Distresan

Notes: Etna is an advanced triple-control Analogue Multimode Morphing Filter & Digital Control, that has been meticulously designed for precise and dynamic sound shaping. It allows for rapid or smooth transitions between diverse filter settings, known as snapshots.

Each snapshot comprehensively defines all of the filter's parameters, which can be adjusted either swiftly or gradually. These transitions are controlled through an applied voltage or clock and triggers, with the flexibility to use up to eight distinct stages for creating complex filtering effects in various audio applications.

In addition to its morphing capabilities, Etna incorporates analog controls that enable real-time, expressive modifications to the parameters of each saved snapshot. This enhancement not only enriches the morphing process but also provides a tactile, live experience that adds significant depth and nuance to the audio output, making it a powerful tool for both studio and live performance settings.

The response of each filter has been designed with top-end components, incorporating Q and passband compensation. This enables its use as three multimode filters, with all necessary analog control.

Dimensions: 20 HP
Power consumption: 165mA@+12V, 88mA@-12V

Notes: Ohm Force's genre-defining 'shaper' distortion plugin comes to Eurorack in this neatly designed module. Over 100 distortion programs in full stereo, with plenty of hands-on control and extensive CV modulation options.

Supplier's Notes:
Time to get away with murder

From the plugin that redefined distortions forever

111 different distortions and shapers in one single 14hp module

Full stereo

Advanced performer modes

Back on Eurorack

Ohmicide Eurorack is an adaptation of the legendary distortion plugin that defined the now well populated category of "shaper" effects. Amongst the numerous things that made it a hallmark plugin was the carefully crafted distortion library covering all things known and many more unknown. All of those 111 distortions are now ready to burn your finger tips in a remarkably versatile module delivering huge sonic possibilities. ant let you change the texture of your VCOs, drums and samples in subtle or brutally unsubtle ways. Use all sorts of distortions, including bitcrusher, freezer, filtering and jellyfish variety.

Wiggle. Listen. Drool.

With a routing redesigned for Eurorack you'll need little learning to go straight to soundscape heaven (or hell, preference may vary). Shape the frequencies you want with the XOVER and the two Low Pass Filters. Explore the impact on all of your sounds, from mono VCO to stereo drums loops. Cycle through TYPE to find a fit or get nice surprises then tweak BIAS and MOD to explore new forms of madness.

It's alive

Ohmicide Eurorack features CV for all of its parameters including four with attenuverters. It also has automatic gain staging that is essential to the distortion delivering texture, not just loudness. And for your live experience we incorporated a performer mode that let you store and even automate preset switching. Ohmicide is lovingly crafted based on decades of experience in distortions. It's a module to lose yourself in for long sessions of sound exploration - or simply to get uniquely aggressive leads and drones.

Specifications:

Width: 14HP
Depth: 26mm
+12V: 120mA
-12V: 10mA
+5V: 0mA

Audio

Sample Rate: 48kHz
Hardware audio converters bit-depth: 24-bit
Internal processing bit-depth: 32-bit floating point
True Stereo Audio
High fidelity Texas Instruments Burr-Brown audio converters

Controls

Knob resolution: 16-bit (65536 distinct values)
CV inputs
Voltage: +5V (0..5V compatible)
Resolution: 16-bit (65536 distinct values)

Memory

Current distortion type, screen contrast and saver mode, TYPE and FAM CV +5V or 0..5V options
16 sequences
8 steps, each step being a snapshot of all knobs and switches
All knob options
Sequence length
Step reset mode

USB Port

Type: Micro-B
The USB port is only used to update the module firmware.

Notes: Simple but effective stuff from Vermona. Four transformer-isolated channels take a Eurorack-level signal each and output it at +6 dBu line level via XLR connections.

Supplier's notes:
Quad Output Module

The inputs accept audio signals with a maximum level of +/-10V. These are output via balanced and galvanically isolated XLR outputs. The output level is +6 dBu when using standard Eurorack modules.

The TRANSfourMER circuitry allows all signals in the modular system to be output without distortion - no more annoying gain staging between Eurorack and audio interface / mixing console.

Power consumption: 20mA at +12 V and 20mA at -12 V

Depth: 43 mm

12 HP

Notes: Befaco's popular MIDI Thing interface module gets a major update, now with a screen, 12 assignable ports and much more. One of the best solutions for converting between MIDI and CV.

Supplier's Notes:
Mid Thing v2 is a flexible MIDI to CV converter. Allowing polyphonic notes handling, envelope and LFO generation as well as all available MIDI messages to be converted into CV.

This is a huge upgrade from the previous beloved MIDI Thing, which adds a screen for easy configuration, 12 assignable ports, TRS, USB Host and Device, MIDI merge OUT, a web configuration tool, and a VCV rack bridge counterpart.

Features

12 Configurable ports
TRS type A MIDI IN and OUT, USB host and device connectivity.
Configuration screen with intuitive menu diving.
Web configuration tool.

Specifications

Current Draw: +12V: 150mA, -12V: 5mA
Width: 6HP
Deepth: 30mm including power connector
Aluminium, heat-treated front panel.
Designed, kits prepared and assembled in Barcelona.

Notes: Really neat stuff from Hexinverter. Designed with synth sounds and drum processing in mind, the Hot Glue is a unique twist on a four-channel mixer, helping to integrate effects and voltage-controlled distortion alongside built-in bus compression.

Supplier's Notes:
The Mutant Hot Glue is a versatile bus mixer for analogue effects chain design. The included analogue compressor offers series or parallel compression and a sidechain input, making it particularly well suited to drum processing. The voltage controlled distortion is based on ideas borrowed from the guitar pedals responsible for a lot of yesterday's acid style techno sounds, but improved over the guitar equivalents, and made specifically for synthesizer and drum processing. The distortion can be used in its default position, normalized to the effects send, or like every other part of the module, broken out and used elsewhere in your modular system.

Features

4 Channel Mixer with Effects Send

4 input channels, each with their own level and effects send control
Channel A mixer bypass switch and dedicated output for easy sidechain compression
Channel B is dual input, but shares level/send controls (for dual output modules, like the Mutant Hihats)
Channel C+D summed output
Main mixer output normalized to compressor input

Hi-Fidelity Analogue Compressor

Soft-knee compressor based on the same family of premium audio ICs used in some 500 Series studio gear
Dedicated threshold and compression ratio controls
Gain control dials in up to +40dB of compressor make-up gain
Compressor sidechain input for creating pumping effects
LED indicator actively displays the amount of compressor gain reduction

Voltage Controlled Analogue Distortion

A classic distortion topology reborn for modular analogue synthesizers and drum processing
In/Outputs are conveniently normalized to the module's send and return jacks
Blend control lets you adjust the mix of distorted and clean input signal
Fast responding CV input allows for complex modulation patterns and even modulating with audio signals

By default, the 4 channel mixer's output conveniently feeds into the compressor's input, giving access to easy New York style parallel compression by way of the compressor blend control. The dedicated output and mixer bypass switch for channel A allow you to use it as a sidechain source for the compressor. An effects send and return allow you to create complex effects routings within your modular system. With the number of excellent DSP and other effects modules on the market today, this makes it easy to combine modules to great effect, all within the eurorack modular domain.

Redesigned by Erica Synths in close collaboration with Hexinverter. Minor alterations were made in mechanical assembly and digital controls to address Erica synths manufacturing routines and chip shortages, but the analogue signal path is 100% identical to the original version.

In September 2022 Stacy Gaudreau - the founder of Hexinverter Electronique, announced closing down the operations. Following their announcement, Erica Synths in cooperation with Hexinverter Electronique saw a way for their incredible and truly unique music instruments to keep on inspiring musicians and finding a home in countless studios to come.
The effort and innovation incorporated in Hexinverter Electronique eurorack modules are far too great to prematurely become history. Erica Synths will take over the manufacturing, sales, and support of several Hexinverter Electronique modules. While retaining all functionality of Hexinverter Electronique modules, Erica Synths redesigned the hardware of modules and will provide support for reissue modules only.

Technical specifications

Width: 24HP | Depth: 30mm
Current draw: +70mA, -70mA @ 12V
