Notes: Representing a new generation of portable recording, the H2n is Zoom's most innovative handheld recorder to date. Zoom have packed groundbreaking features into an ultra-portable device that allows you to record pristine audio anywhere you go. From film and broadcast, to journalism, podcasting, musical performance, songwriting and rehearsal, the H2n provides amazing recording quality. No matter the application, the H2n brings the very best in stereo recording to a convenient, user-friendly package that fits in your pocket.

The H2n's onboard 90- X/Y stereo condenser mics are arranged with the right and left mics on the same axis. This design ensures that the mics are always equidistant from the sound source for perfect localization and no phase shifting. The result is brilliant stereo recording with natural depth and accurate imaging.

The H2n features Zoom's best microphones yet and is the only portable recorder with five mic capsules onboard. This design enables the H2n to offer four unique recording modes: Mid-Side (MS) stereo, 90- X/Y stereo, 2-channel and 4-channel surround sound.

The Zoom H2n Handy Recorder, the new standard in portable recording.

Notes: With the LiveTrak L-12, you can finally mix, record, and monitor with a single piece of gear. It's the only digital console that lets you mix your live performance and record up to 12 discrete channels - all while providing five individual custom headphone mixes.

Effortless Live Mixing:

LiveTrak's 12 discrete channels (eight mono plus two stereo) have a 3-band mid-parametric EQ and 16 built-in send effects. Its eight mono channels also have a dedicated compressor. With all these controls plus its 12-segment LED metering, the L-12 offers just what you need for intuitive mixing.

Record Everything, Remix Anywhere:

LiveTrak lets you record 12 discrete tracks up to 24-bit/96 kHz WAV audio to an SD card while simultaneously mixing your live show. Tracks are recorded pre-EQ and effects, so they can be transferred to your favourite DAW for further mixing and editing.

Five Custom Monitoring Mixes:

Each of LiveTrak's five monitor outputs provides a unique mix, so every performer can create and save a mix that's tailored to their preferences. Its headphone amplifier delivers volume that stands up in any live environment without the need for a separate headphone monitoring setup.

USB Connectivity for Your DAW:

LiveTrak is also a 14-in/4-out USB audio interface with flexible routing options, offering unlimited possibilities. Class compliant mode, which enables connection with iOS devices, is also supported.

Here's what comes included with the L-12:

- AC adapter (AD-19)
- USB 2.0 cable
- Quick Guide

Notes: The Zoom F6 is the first professional field recorder to feature both 32-bit float recording and dual AD converters, providing an unprecedented amount of dynamic range. With 6 inputs, Zoom's solid time code, multiple power options and wireless control, the F6 is poised to be your new secret weapon.

32-Bit Float Recording:
In the field, fluctuating dynamics can prove challenging. Loud sounds can cause clipping and quiet sounds can get lost in the noise. The F6 uses 32-bit float recording with dual A/D converters to capture both explosive and subtle sounds at full audio quality - without ever adjusting gain!

For Those Hard to Reach Places:
Rugged enough to withstand the most demanding scenarios and small enough to fit into the tightest spaces, the F6 will become your go-to recorder.

Mic Preamps:
The F6 is equipped with six professional-grade preamps. Featuring a super-low noise floor (-127 dBu EIN), high gain (up to 75 dB), and selectable mic/line levels for each input, the F6 is built for location sound.

Precision Time Code:
Keep your tracks perfectly synced even when you power down for lunch. On or off, the F6's Temperature Compensated Crystal Oscillator (TCXO) generates time code at 0.2 ppm accuracy.

Advanced Look-Ahead Hybrid Limiters:
When recording in 24-bit, the F6 uses advanced look-ahead hybrid limiters to provide overload protection. By adding a 1-millisecond delay, the limiters "look ahead" anticipating clipping before it's recorded.

Zoom AutoMix:
Zoom AutoMix lets you keep your eyes on the action by automatically adjusting the levels of your mix to reduce ambient sound.

What's included with the F6:

- F6 Field Recorder
- Camera mount adapter
- AA batteries (x4)
- Cubase LE and WaveLab LE download codes
- Quick Start Guide

Notes: The APH-5 is the perfect companion for your Zoom H5 Handy Recorder.

The APH-5 Includes
RCH-5 wired Remote Controller
AD-17 USB-type AC adapter
Hairy Windscreen

Notes: Whether you're a game developer, filmmaker or musician, virtual reality is the undeniable future of content creation. While 360-video is exploding in popularity, the ability to easily create 360-audio has lagged behind...until now.

The Zoom H3-VR virtual reality audio recorder is the complete solution for capturing and processing spatial audio for VR, AR and mixed-reality content. With a built-in Ambisonic mic, recorder and decoder, the H3-VR puts 360-audio in the palm of your hand.

In the past, capturing VR audio required a dedicated Ambisonic mic, a separate recorder and a computer for encoding the audio from raw Ambisonics A format to VR-ready Ambisonics B format. Now, with the H3-VR, all of the encoding and decoding is done on board, saving time, money and effort at every step.

Ambisonics Audio for VR:

The H3-VR's 4-capsule Ambisonic mic captures precise 360-degree VR audio recordings up to 24 bit/96 kHz. And without ever connecting to a computer, the onboard decoder allows you to export Ambisonics B-format files directly.

Binaural 3D Stereo:

The H3-VR also records stereo binaural WAV files up to 24 bit/48 kHz. Stereo binaural provides a hyper-realistic spatial recording that enhances 2D productions with 3D audio.

Standard Stereo:

The H3-VR even offers standard stereo recording for recordings that will be played out of speakers rather than headphones.

5.1ch Surround for Video:

Free to download, ZOOM Ambisonics Player software can easily convert Ambisonics audio to a 5.1ch surround file that is pre-aligned to the proper speakers, and is exported to your video or audio editor for syncing with standard video.

Live Streaming 360:

The H3-VR also enables you to live stream events in 360 degrees so that wherever your fans are, they'll have access to the best seats in the house.

Notes: Great value multi-effects pedal based on all of Zoom's extensive experience. Chain up to nine effects including amp emulation and cabinet simulation. A proper all-rounder offering a huge range of tones.

Supplier's Notes:
Jaw dropping effects combined with powerful amp modeling, the G6 is in a class of its own.

The culmination of 30 years of Zoom's engineering know-how, passion for audio and love of guitar. The G6 is brimming with some of the best sounds you'll ever hear.

Your sounds may be complex but building them shouldn't be. With easy-to-use, application driven technology, the G6's 4.3-inch color touchscreen lets you drag, drop and swipe your way to new sounds.

All the best amps in amp history are in here (and a few new ones, too), along with 70 pre-loaded, precisely recorded impulse responses (IR) and room to add more than 100 of your own.

The G6 also delivers the ultimate collection of Zoom's legendary guitar effects and tones, including brand new Distortion and Modulation effects.

The G6 has room for 240 patches, including 100 presets so you can build patches for each song in your repertoire and easily cycle through your setlist. Create patches of up to nine effects.

The four Play Modes on the G6 will change the touchscreen and footswitch layout to give you quick access to the controls you need.

In addition to the internal 45-second looper, you can insert an SD card and record a loop up to 2 hours long. Choose the groove you want from 68 internal rhythm patterns, styles and measures.

Portable, versatile, and packed with tonal possibilities, the G6 can be tucked into a guitar bag or backpack, and off you go.

The G6 has a mono input, stereo outputs with output volume control, a mono fx loop, aux in, control in and headphone out. Using the USB port, the G6 also functions as a 2in/2out audio interface for Mac and PC.

Wirelessly connect the G6 directly to the Handy Guitar Lab app via Bluetooth. Using the optional BTA-1 adaptor, you can browse and upload/download an endless assortment of amps, effects and artists patches as provided on Guitar Lab software. Guitar Lab is also available for both PC and Mac.

What's in the Box:

G6 Multi-Effects Processor
Zoom AD-16 AC adapter
Quick guide
Steinberg Cubase LE Software

Optional Accessories:

FP02M Expression Pedal
BTA-1 Bluetooth Adapter

Specs:

MAXIMUM NUMBER OF SIMULTANEOUS EFFECTS: 7
USER PATCHES: 240
SAMPLING FREQUENCY: 44.1 kHz
A/D CONVERSION:24-bit 128x oversampling
D/A CONVERSION: 24-bit 128x oversampling
SIGNAL PROCESSING: 32-bit
FREQUENCY CHARACTERISTICS: 20 Hz - 20kHz (+0.5 db/-0.5 dB) (10k load)
DISPLAY: 4.3" TFT color LCD (480x272)

Notes: For podcasters, videographers, bloggers, journalists and more, the F2 is the perfect audio solution for creators on the move.

The F2 is incredibly small, but its audio quality will amaze you.

The F2 features 32-bit float recording technology, allowing you to record the loudest audio signals without worrying about clipping. It will also record the quietest signals in beautiful detail. And the best part is you don't have to worry about setting the gain. Just plug in the lav and hit record.

Once you start your recording, use the F2's HOLD switch to ensure you don't accidentally stop recording.

Screw-lock connectors keep your lav plugged-in securely no matter the situation.

With the F2 actors can record and playback their lines to perfect their delivery.

The F2 Editor for PC and Mac allows you to adjust settings, format SD cards and more. Simply connect your F2 or F2-BT via a USB cable and launch the editor. The USB connection also makes it easy to transfer files to your computer. See the F2 Editor features here.

Whether a stroll through your garden, or the whispers and shouts of a dramatic reading, the F2 provides crystal clear recordings.

The F2 can record up to 15 hours (14 hours on the F2-BT) with two AAA batteries.

Record on microSD, microSDHC, and microSDXC cards up to 512GB.

The LMF-2 omnidirectional lavalier microphone has a low-profiled design, captures high-quality audio, and includes a windscreen and lapel mic clip.

The F2 Field Recorder gives you the option to choose the recording format that works best for your projects. Choose from 44.1 kHz/32-bit float or 48 kHz/32-bit float mono WAV files.

The F2 Is Perfect For Recording Interviews Anywhere.

Input
Connector: 3,5 mm stereo mini (with screw lock) Supports plug-in power (2.5 V)
Input impedance: 2 kO or more
Maximum input level: -5,5 dBu
Output
Connector: 3,5 mm stereo mini (with screw lock)
Maximum output level: 20 mW + 20 mW (into 32 ? load)
Recording media
Cards compatible with microSD/microSDHC/microSDXC specifications (Class 4 or higher, 512 GB maximum)
Recording formats
WAV, 44.1kHz/32-bit float, 48kHz/32-bit float Mono, BWF format supported WAV
USB
USB Typ-C
Note: Use a USB cable that supports data transfer. USB bus power is supported.
Mass storage operation: USB 2.0 High Speed
PC app operation: USB 2.0 High Speed
Power
2 AAA batteries (alkaline, lithium or rechargeable NiMH batteries)
AC adaptor
Bluetooth
Bluetooth Ver4.2 (F2-BT only)

External dimensions: 57,5 mm (w) x 46,4 mm (D) x 22,4 mm (H)
Weight (main unit only): 32 g

Notes: For podcasters, videographers, bloggers, journalists and more, the F2 is the perfect audio solution for creators on the move.

The F2 is incredibly small, but its audio quality will amaze you.

The F2 features 32-bit float recording technology, allowing you to record the loudest audio signals without worrying about clipping. It will also record the quietest signals in beautiful detail. And the best part is you don't have to worry about setting the gain. Just plug in the lav and hit record.

Once you start your recording, use the F2's HOLD switch to ensure you don't accidentally stop recording.

Screw-lock connectors keep your lav plugged-in securely no matter the situation.

With the F2 actors can record and playback their lines to perfect their delivery.

The F2-BT comes with built-in Bluetooth. And with the free Zoom F2 Control app the F2-BT can wirelessly start/stop recordings, display battery levels, adjust output volume, control lo-cut and more.

You can also pair the F2-BT with a Bluetooth timecode synchronization device to receive and write timecode to recorded files. See Bluetooth Control features here.

The F2 Editor for PC and Mac allows you to adjust settings, format SD cards and more. Simply connect your F2 or F2-BT via a USB cable and launch the editor. The USB connection also makes it easy to transfer files to your computer. See the F2 Editor features here.

Whether a stroll through your garden, or the whispers and shouts of a dramatic reading, the F2 provides crystal clear recordings.

The F2 can record up to 15 hours (14 hours on the F2-BT) with two AAA batteries.

Record on microSD, microSDHC, and microSDXC cards up to 512GB.

The LMF-2 omnidirectional lavalier microphone has a low-profiled design, captures high-quality audio, and includes a windscreen and lapel mic clip.

The F2 Field Recorder gives you the option to choose the recording format that works best for your projects. Choose from 44.1 kHz/32-bit float or 48 kHz/32-bit float mono WAV files.

The F2 Is Perfect For Recording Interviews Anywhere.

TECHNICAL SPECIFICATIONS

LMF-2
Lavalier mic
Connector: 3,5 mm stereo mini (with screw lock)
Directionality: Omnidirectional
Sensitivity: -32 dB/Pa at 1 kHz
Maximum sound pressure input: 115 dB SPL
Cable length: 160 cm

F2 / F2-BT
Input
Connector: 3,5 mm stereo mini (with screw lock) Supports plug-in power (2.5 V)
Input impedance: 2 k? or more
Maximum input level: -5,5 dBu
Output
Connector: 3,5 mm stereo mini (with screw lock)
Maximum output level: 20 mW + 20 mW (into 32 O load)
Recording media
Cards compatible with microSD/microSDHC/microSDXC specifications (Class 4 or higher, 512 GB maximum)
Recording formats
WAV, 44.1kHz/32-bit float, 48kHz/32-bit float Mono, BWF format supported WAV
USB
USB Typ-C
Note: Use a USB cable that supports data transfer. USB bus power is supported.
Mass storage operation: USB 2.0 High Speed
PC app operation: USB 2.0 High Speed
Power
2 AAA batteries (alkaline, lithium or rechargeable NiMH batteries)
AC adaptor
Bluetooth
Bluetooth Ver4.2

The above values are approximate. Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.

External dimensions: 57,5 mm (w) x 46,4 mm (D) x 22,4 mm (H)
Weight (main unit only): 32 g

Notes: A multi track recorder that redefines 'easy' - With a familiar touchscreen interface, the R20 makes it insanely simple to track, edit and mix your songs, letting you focus on the music.

Musicians, be prepared to get blown away - The R20 has the best preamps and noise floor of any multi track recorder Zoom has ever designed. With six XLR inputs, two combo inputs, and 16 tracks of recording, the R20 is perfect for singer-songwriters to full bands.

Drag, drop, pinch, swipe, create - Navigate and edit with ease, via the R20's 4.3-inch color LCD touchscreen interface.

Colour-coded for clarity - Improve your workflow with color-coded faders, gain dials, and touchscreen track regions, making sure you are always adjusting the correct channel.

Put the pieces together - Cut, copy, combine and loop. The R20's interface provides intuitive editing. You'll immediately feel at home.

Spice things up - Polish your tracks and mixes with professional effects such as EQ, compression, and more.

The R20 provides a full MFX processor compatible with Guitar Lab software.

The rhythm is gonna get ya - 30 genres, 150 rhythm patterns and song form variations, it's hard to find a drummer this versatile

18 built-in synth sounds - Plug in a MIDI keyboard via USB-C or use the touchscreen to add sonic textures with the R20's internal synthesizer.

Backing tracks - The R20 can import and playback standard MIDI files allowing you to import bass lines, melodies, piano parts, and more.

Record to SD - The R20 records directly to SDHC or SDXC cards up to 1 TB, giving you plenty of space to track your next song or album.

Monitor & plyabck - The R20 has a headphone jack for monitoring while recording and dedicated outputs for mixing on your favorite monitors.

Inputs - H1-Z is available on input 1, while 48V phantom power is available on inputs 5-8.

Locking AC Adapter - The new Zoom locking adapter ensures security against accidental unplugging.

Click - Access the fully adjustable click track with just a press of a button.

Wireless control app - Use the optional Zoom BTA-1* Bluetooth Adaptor to control the R20 wirelessly from your iOS device.

*BTA-1 available separately.

** R20 Control App available in 2022

Let's move forward together - accessibility for the Visually Impaired

The first multi-track recorder that allows accessibility for the visually impaired, the R20 Control App features VoiceOver and VoiceOver Gestures.

SPECS

Inputs/Outputs

INPUTS
MIC/LINE (mono): 8
OUTPUTS - Master out: 8 - Phones: 1

INPUTS
MIC/LINE (MONO)
Connectors: XLR/TRS combo jacks × 2 XLR × 6 (XLR: 2 HOT/TRS: TIP HOT)
Input gain: +6 ~ +50 dB
Input impedance: XLR: 3.9 kO TRS: 5.3 kO/1 MO (when Hi-Z is ON, for INPUT 1 only)
Maximum input level: +4 dBu (@0 dBFS)
Phantom power: +48 V (INPUTS 5-8, switchable in pairs)
Equivalent input noise: -121 dBu or less (IHF-A) with +50dB/150O input
Frequency response: -1.0 dB: 20 Hz - 20 kHz

OUTPUTS
MASTER OUT
Connectors: 2 TRS phone jacks (balanced)
Maximum output level: +14 dBu
Output impedance: 200 O

PHONES
Conncetor: 1 standard stereo phone jack
Maximum output level: 20 mW + 20 mW (into 32O load)
Output impedance: 33O

TRACK SETTINGS
EQ: High: 10 kHz, i12 dB, shelving - Middle: 2.5 kHz, i12 dB, peaking - Low: 100 Hz, i12 dB, shelving

RECORDER
Maximum simultaneous recording tracks: 8
Maximum simultaneous playback tracks: 16
Recording format: 44.1kHz, 16/24-bit, mono/stereo WAV
Recording media: 4-32GB cards compatible with the SDHC specification

EFFECTS
Maximum number of simultaneous effects: 3 effects (One insert effect on one channel or one send effect available to all tracks)
Patch memories: 50
Tuner: Chromatic/Guitar/Bass/Open A/Open D/Open E/Open G/DADGAD

METRONOME
Time signatures: 3/4, 4/4, 6/8
Tempo range: 40.0-250.0 BPM

RHYTHM LOOPS
Polyphony: 8
Sound source format: FM
Number of sound types: 18 + PCM drum kit
Display: 4.3" (480×272) full-color touchscreen LCD

USB
Connector: USB Type-C
Audio interface operation
Stereo mix: USB 2.0 Full Speed, 44.1kHz, 16/24-bit, 2-in/2-out
Multitrack: USB 2.0 High Speed, 44.1 kHz, 16/24-bit, 8-in/4-out

MASS STORAGE OPERATION (Host/Device): USB 2.0 High Speed (5V/500mA power supplied when host)
GUITAR LAB CONNECTION (Host/Device): USB 1.1 Full Speed
USB MIDI KEYBOARD CONNECTION (Host/Device): USB 1.1 Full Speed (5V/500mA power supplied)
DAW CONNECTION (CONTROL SURFACE) FUNCTION: USB 1.1 Full Speed

MISC
REMOTE: Dedicated wireless adapter (ZOOM BTA-1)
POWER: AC adapter (ZOOM ZAD-1220): 12 V/2.0 A
Power consumption: 11 W maximum
External dimensions: 378 mm (W) × 206 mm (D) × 58 mm (H)
Weight (unit only): 1.33 kg

Note: 0 dBu = 0.775 V

What's In The Box?

Zoom R20
ZAD-1220 AC adapter
Quick Tour
Steinberg Cubase LE Software

Notes: A tiny but powerful field recorder capable of recording two channels in extremely high resolution. Records directly to microSD via a pair of mic/line inputs, with up to 8 hours recording time from a pair of AA batteries.

Supplier's Notes:
The small and mighty field recorder

Small design, big sound

With 32-bit float recording, the F3 effortlessly captures the quietest raindrops and the loudest explosions. Its small footprint allows for this recorder to be placed anywhere, as you capture and monitor up to 192 kHz of high-quality audio.

Focus on the scene

When you're working in the field or on set, sound levels can fluctuate often and quickly. The F3 allows you to adapt to your scene without having to set the gain or worry about clipping. In post, you'll be able to work with your capture, regardless of extremely low or high levels.

Award winning audio

Featuring the dual A/D converters and low-noise preamps found in our professional F-Series recorders, the F3 guarantees high-quality recordings in any setting or situation.

Battle tested

The F3 is built with durable side bars, standard tripod mount and slide-resistant rubber feet ensuring that you can mount it on your gear or hide it in any scene. It's sturdy metal casing and locking XLR connectors is designed for use in a variety of environments.

Wav watching

Monitor your recordings with seamless accuracy as the F3 displays your audio as real-time waveforms.

Record & listen

The headphone output allows you to keep an ear on your recordings, plus a line output enables you to go to your camera or other gear.

The F3 is well-equipped for long location shoots or remote fieldwork, with a variety of power options and massive storage.

With two alkaline AA batteries, take advantage of over eight hours of battery life.

Set yourself up for an unlimited charge via the AD-17 AC adapter or USB power supply.

Use a micro SD card up to 1TB to record over 180 hours of audio at the highest possible sample rate/bit-depth.

30' of control

Versatile control options give your production more flexibility than ever. Stay out of the shot and record from a distance of up to 30-feet (10m) using the F3 control app for iOS and Android*.
*F3 control app for Android available Spring 2022.
BTA-1 Bluetooth adapter sold separately.

Audio interface & streaming

Connect your F3 to a computer or iOS device via USB as an audio interface and record or stream up to two channels in crystal-clear 24-bit/96 kHz resolution. The loopback function allows you to combine your computer's audio with the F3 inputs to complete the sound for your stream.
*Available in 32-bit float/ 96 kHz with a firmware update in Spring 2022.

What's in the box

F3 Field Recorder
AA Batteries (x2)
Quick Tour

Specifications

Input and output channels
Inputs - MIC/LINE (mono): 2
Outputs - LINE OUT: 1, PHONE OUT: 1
Inputs
MIC/LINE (MONO)

Connectors: 2 XLR (2: HOT)

Input gain: Adjustment unnecessary (dual AD converter circuits used)
Input impedance: MIC: 3 kO or more, LINE: 3 kO or more
Maximum input level: MIC: +4 dBu,
LINE: +24 dBu

Phantom power: +24/48 V, Combined channel total of 10 mA or less

Equivalent input noise: ?127 dBu or less (IHF-A) when waveform magnification is ×1024 with 150 ? input
Outputs

Line out

Connector: 1 stereo mini jack

Maximum output level: +1 dBu

Output impedance: 100O or less
Phone out
Connector: 1 stereo mini jack
Maximum output level: 50 mW + 50 mW (into 32 O load)

Output impedance: 15O or less
Recorder

Maximum simultaneous recording tracks: 2

Maximum simultaneous playback tracks: 2

Recording format: WAV - 44.1/48/ 88.2/96/192 kHz, , 32-bit float mono/stereo,
BWF and iXML formats supported
Recording media: 4 - 32 GB cards compatible with the microSDHC specification

64 GB - 1 TB cards compatible with the microSDXC specification

Display: LCD with backlight (96×64 resolution)

USB
Connector: USB Type-C - Use a USB cable that supports data transfer. USB bus power is supported.

Audio interface operation:
USB 2.0 High Speed, 44.1/48/88.2/96 kHz, 24-bit, 2-in/2-out
Mass storage operation: USB 2.0 High Speed
Remote

Dedicated wireless adapter (ZOOM BTA-1)

Power:
2 AA batteries (alkaline, NiMH or lithium)
AC adapter (ZOOM AD-17): DC 5 V/1 A
USB bus power is supported

Notes: For Solo Musicians

AMS-22 | 2-In, 2-Out

Perfect for mobile recording or streaming, the AMS-22 includes an XLR/TRS combo input, plus a stereo line in. It also includes a headphone output and 2 TRS outputs for external monitors.

Quick Control

With onboard hardware switches, the AMS-22 is designed to simplify common streaming challenges without the need for additional software.

Onboard Monitoring

Use the Direct Monitor Switch to directly send the input signal to your headphones while routing the same signal to your DAW or streaming software.

Loop It Back

The Loopback Switch combines the input audio with playback from your computer and routes it to your streaming software. This is perfect for adding background music to your stream or singing live with an instrumental track.

Power Options

All three AMS interfaces can be powered from your PC or Mac via USB-C. Use external power when working from a tablet or mobile phone.

Plug it in...

Use the AMS Series on any device thanks to its support for Mac and PC, along with iOS and Android devices.

...And perform

The AMS Series is designed to integrate seamlessly with commonly used software, apps and platforms.

In Streaming mode, connect with your audience by streaming to popular platforms like YouTube, Facebook, Twitch, Instagram and Patreon.

In Music mode, record with software like Adobe Audition, Pro Tools, Cubase and GarageBand.

What's in the box

AMS-22 USB Audio Interface
USB-C Cable
Quick Tour

Technical Specifications

Input and Output Channels

Number of input channels - Mono (MIC/GUITAR): 1
Stereo (LINE IN): 1
Number of output channels - Stereo (TRS): 1
Stereo (PHONES): 1

Connectors

MIC/GUITAR - Type: XLR/TRS combo jack
(XLR: 2 HOT, TRS: TIP HOT)
Input Gain: +8 - +54 dB (MIC) / +8 - +54 dB (GUITAR)
Input impedance: XLR: 2 kO (MIC)
TS: 1 MO (GUITAR)
Maximum input level: XLR: +0.6 dBu (MIC)
TS: +11 dBu (GUITAR)
Phantom power: +48 V

OUTPUT (standard phone jacks - Type: TRS phone jacks (impedance balanced)
Maximum output level: -2 dBu (at 0 dBFS)
Output impedance: 100 O
OUTPUT (headphone jack) - Type: 3.5mm stereo mini jack
20 mW + 20 mW (32 O load)
Output impedance: 10 O
USB: USB Type-C (audio interface function)
Use a USB cable that supports data transfer. USB bus power is supported.
DC 5V: USB Type-C (for power supply)
LINE IN Type: 3.5mm stereo mini jack
Input impedance: 20 kO
Maximum input level: +1.5 dBu
Frequency Response: 44.1 kHz: +0/-2 dB (20 Hz - 20 kHz) - 96 kHz: +0/-3 dB (20 Hz - 40 kHz)
Equivalent Input Noise: -120 dBu or less (IHF-A) at +54dB/150O input

Audio Interface

Input and output channels: Recording: 2 channels
Playback: 2 channels
Sampling frequencies: 96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz
Bit Depth: 24-bit
Interface: USB 2.0
Class: USB Audio Class 2.0

Power: AC adapter (ZOOM AD-17): DC 5 V/1A - USB bus power is supported.
Rated Current: USB bus power / DC 5 V power supply: 170 mA
Power Consumption: 1.8 W maximum
Dimensions: 68.0 mm (W) × 57.7 mm (D) × 46.0 mm (H)
Weight (unit only): 85 g
Note: 0 dBu = 0.775 Vrms

Notes: AMS-24 - For One or More Musicians

Flip the switch

The AMS-24 and AMS-44 feature our innovative Music / Streaming Switch.

When switched to Music mode, you can record into your DAW with expanded input and output routing options.

When switched to Streaming mode, all inputs are combined into a single signal so you can easily stream without needing additional complicated software.

Record & stream with ease

AMS Audio Interfaces are designed for musicians who want to record music with their DAW or easily livestream on platforms like YouTube and Twitch, without all the typical complications.

AMS-24 | 2-In, 4-Out

The AMS-24 is perfect for solo streams and multi-instrument sessions. It features two XLR/TRS combo inputs along with Zoom's low-noise preamps. Also included are two headphone outputs and two TRS outputs for external monitors.

Quick control

With their onboard hardware switches, the AMS-24 and AMS-44 are designed to simplify common streaming challenges without the need for additional software.

Little switch, big streams

Toggle from recording to livestreaming with the Music / Streaming Switch. When in Music mode, each input acts independently with individual gain control. It also sends separate mixes to each headphone output.

When in Streaming mode all inputs are combined into one signal to work seamlessly with your streaming software.

Onboard monitoring

Use the Direct Monitor Switch to send the input signal directly to your headphones while routing the same signal to your DAW or streaming software.

Loop it back

The Loopback Switch combines the input audio with playback from your computer and routes it to your streaming software. This is perfect for adding background music to your stream or singing live with an instrumental track.

Mic/line guitar

Switch Input 1 from mic or line level to guitar level (Hi-Z).

Stereo link

Links two inputs for stereo recording or streaming and allows you to control both inputs with one gain knob.

Phantom power

Provides +48V phantom power for condenser microphones.

Power options

All three AMS interfaces can be powered from your PC or Mac via USB-C. Use external power when working from a tablet or mobile phone.
Additionally, the AMS-24 can also use two AA batteries.

Plug it in...

Use the AMS Series on any device thanks to its support for Mac and PC, along with iOS and Android devices.

...And perform

The AMS Series is designed to integrate seamlessly with commonly used software, apps and platforms.

In Streaming mode, connect with your audience by streaming to popular platforms like YouTube, Facebook, Twitch, Instagram and Patreon.

In Music mode, record with software like Adobe Audition, Pro Tools, Cubase and GarageBand.

What's in the box

AMS-24 USB Audio Interface
USB-C Cable
Quick Tour

Technical Specifications

Input and Output Channels

Number of input channels: Mono (MIC/LINE): 2
Number of output channels: Stereo (TRS): 1
Stereo (PHONES): 2

Connectors

Input 1-2 - Type: XLR/TRS combo jacks
(XLR: 2 HOT, TRS: TIP HOT)
Input gain: -8 - +58 dB / -8 - +50 dB (when set to GUITAR)
Input impedance: XLR: 2.7 kO
TRS: 18 kO / 330 kO (when set to GUITAR)
Maximum input level: XLR: +6 dBu
TRS: +22 dBu / +8.5 dBu (when set to GUITAR)
Phantom: +48 V

OUTPUT A (standard phone jacks)
Type: TRS phone jacks (impedance balanced)
Maximum output level: +10 dBu (at 0 dBFS)
Output impedance: 100 O

OUTPUT A-B (headphone jacks) - Type: 3.5mm stereo mini jacks
30 mW + 30 mW (32 O load)
Output impedance: 10 O

USB: USB Type-C (audio interface function)
Use a USB cable that supports data transfer. USB bus power is supported.
DC 5V - USB Type-C (for power supply)

Frequency Response

44.1 kHz: 1 dB (20 Hz - 20 kHz)
96 kHz: 1.5 dB (20 Hz - 40 kHz)
Equivalent Input Noise: -120 dBu or less (IHF-A) at +58dB/150O input

Audio Interface
Input and output channels
Recording: 2 channels
Playback: 4 channels
Sampling frequencies: 96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz
Bit depth 24-bit
Interface: USB 2.0
Class: USB Audio Class 2.0

Power:
2 AA batteries (alkaline, lithium, or rechargeable NiMH)
AC adapter (ZOOM AD-17): DC 5 V/1A
USB bus power is supported.
Rated Current
USB/AC adapter (5 V): 380 mA
Batteries (2.4 V): 470 mA

Estimated continuous operation time using batteries
44.1 kHz, 48 V off, with 32O headphone load
Alkaline batteries: about 4 hours
NiMH batteries (1900 mAh): about 5.5 hours
Lithium batteries: about 11 hours
The above values are approximate. Continuous battery operation times were determined using in-house testing methods. They could vary greatly according to use conditions.
Power Consumption: 5 W maximum

Dimensions: 94.5 mm (W) × 74.0 mm (D) × 46.0 mm (H)
Weight (unit only): 134 g
Weight (including batteries): 180 g

Notes: Great value little 4-in/4-out interface, designed for portability when making music or streaming. Dual headphone outputs and four XLR/TRS combo inputs with pre-amps give you plenty of versatility.

Supplier's Notes:
AMS-44 For One or More Musicians

AMS-44 | 4-In, 4-Out

Whether you're recording or streaming, the AMS-44 keeps your setup simple. It features four XLR/TRS combo inputs along with Zoom's high-performance, low-noise preamps. The interface also includes two headphone outputs and two TRS outputs for external monitors.

Quick control

With their onboard hardware switches, the AMS-24 and AMS-44 are designed to simplify common streaming challenges without the need for additional software.

Little switch, big Streams

Toggle from recording to livestreaming with the Music / Streaming Switch. When in Music mode, each input acts independently with individual gain control. It also sends separate mixes to each headphone output.

When in Streaming mode all inputs are combined into one signal to work seamlessly with your streaming software.

Onboard monitoring

Use the Direct Monitor Switch to send the input signal directly to your headphones while routing the same signal to your DAW or streaming software.

Loop it back

The Loopback Switch combines the input audio with playback from your computer and routes it to your streaming software. This is perfect for adding background music to your stream or singing live with an instrumental track.

Mic/line guitar

Switch Input 1 from mic or line level to guitar level (Hi-Z).

Stereo link

Links two inputs for stereo recording or streaming and allows you to control both inputs with one gain knob.

Phantom power

Provides +48V phantom power for condenser microphones.

Power options

All three AMS interfaces can be powered from your PC or Mac via USB-C. Use external power when working from a tablet or mobile phone.

Additionally, the AMS-24 and AMS-44 can also use two AA batteries.

Plug it in...

Use the AMS Series on any device thanks to its support for Mac and PC, along with iOS and Android devices.

...And perform

The AMS Series is designed to integrate seamlessly with commonly used software, apps and platforms.

In Streaming mode, connect with your audience by streaming to popular platforms like YouTube, Facebook, Twitch, Instagram and Patreon.

In Music mode, record with software like Adobe Audition, Pro Tools, Cubase and GarageBand.

What's in the box

AMS-44 USB Audio Interface
USB-C Cable
Quick Tour

Technical Specification

Input and Output Channels
Number of input channels: Mono (MIC/LINE): 4
Number of output channels: Stereo (TRS): 1
Stereo (PHONES): 2

Connectors

INPUT 1-4 - Type: XLR/TRS combo jacks
(XLR: 2 HOT, TRS: TIP HOT) Input gain: -8 - +58 dB / -8 - +50 dB (when set to GUITAR)
Input impedance: XLR: 2.7 kO
TRS: 18 kO / 330 kO (when set to GUITAR)
Maximum input level: XLR: +6 dBu
TRS: +22 dBu / +8.5 dBu (when set to GUITAR)
Phantom power: +48 V
OUTPUT A (standard phone jacks)
Type: TRS phone jacks (impedance balanced)
Maximum output level: +10 dBu (at 0 dBFS)
Output impedance: 100 O
OUTPUT A-B (headphone jacks): Type: 3.5mm stereo mini jacks - 30 mW + 30 mW (32 O load)
Output impedance: 10 O
USB: USB Type-C (audio interface function)
Use a USB cable that supports data transfer. USB bus power is supported.
DC 5V: USB Type-C (for power supply)
Frequency Response: 44.1 kHz: 1 dB (20 Hz - 20 kHz) - 96 kHz: 1.5 dB (20 Hz - 40 kHz)
Equivalent input noise: -120 dBu or less (IHF-A) at +58 dB/150O input

Audio interface

Input and output channels: Recording: 4 channels
Playback: 4 channels
Sampling frequencies: 96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz
Bit depth: 24-bit
Interface: USB 2.0
Class: USB Audio Class 2.0

Power

2 AA batteries (alkaline, lithium, or rechargeable NiMH), AC adapter (ZOOM AD-17): DC 5 V/1 A -USB bus power is supported.
Rated Current
USB/AC adapter (5 V): 350 mA
Batteries (2.4 V): 560 mA
Estimated continuous operation time using batteries
44.1 kHz, 48 V off, with 32O headphone load
Alkaline batteries: about 3 hours
NiMH batteries (1900 mAh): about 4.5 hours
Lithium batteries: about 8.5 hours
The above values are approximate. Continuous battery operation times were determined using in-house testing methods. They could vary greatly according to use conditions.
Power Consumption: 5 W maximum

Dimensions: 129.0 mm (W) × 74.0 mm (D) × 46.0 mm (H)
Weight (unit only): 177 g
Weight (including batteries): 223 g

Notes: Great value from this compact, portable multi-track recorder. Record instruments or vocals anywhere. Pre-loaded drum loops and built-in synth instruments help you get started.

Supplier's Notes:
The R12 Multitrak - Live to make music.

The R12 is made for musicians who live to make music. And they want the freedom to make music wherever they go.

All you need on-board

Compact and mobile, you can record and mix songs without a computer. Use the R12's full-colour LCD touchscreen to cut, copy, loop, and edit your tracks.

Amazing sound

The R12 has super-clean preamps and you'll love the way they sound. With two XLR/TRS inputs, and 8 tracks of audio, the R12 is perfect for recording everything from demos to release-ready songs.

Fully loaded

The R12 includes a send effects channel offering reverb, chorus and delay with a ddedicated effects return fader. For advanced tones, you can use presets and effects from Zoom's Guitar Lab.

Take it everywhere

The R12 provides up to 5 hours on four AA batteries allowing you to bring your production anywhere. Additionally, you can use the R12 with the included AD-17 power adapter, or a USB battery.

The R12 also has pan and a 3-channel EQ for each track and a compressor on inputs 1 and 2.

Playback. Play along.

Use Sequence Play to create a playlist of your projects. Then use them as backing tracks, whether you're playing live or rehearsing a set.

It starts with a groove

With 150 preloaded drum loops in a variety of patterns and genres, the R12 provides a versatile rhythm section for any project.

Import audio files

Add additional audio samples by importing files into your R12 via Micro SD card or USB thumb drive.

From headphones to monitors

The R12 includes an 1/8" stereo headphone jack as well as dedicated 14" monitor outputs.

Interface + control surface

Use the R12 as a stereo audio interface with your favorite DAW or streaming platform, via USB-C. As a control surface, the transport controls and faders make it easy to adjust and control your software during production.

Attention to detail

Connections

Connect microphones, instruments or line level devices like keyboards, mixers and more.

Hi-Z

Input 1 on the R12 has a Hi-Z switch, allowing you to plug your guitar directly into the recorder.

Phantom Power

Both inputs on the R12 offer 48V Phantom Power for condenser microphones.

Stay in time. Every time.

Activate the fully customizable click track with the press of a button. Click balance blends the metronome with your playback audio and routes it to your headphones and/or the main outputs.

Add some synth

The R12 has 18 FM synth instruments built in. They can be played by plugging in a MIDI keyboard via USB-C or programmed using the touchscreen.

What's in the box:
R12 MultiTrak
AD-17 AC Adapter
USB Cable

Specs

INPUTS / OUTPUTS
INPUTS - MIC/LINE (mono): 2
OUTPUTS - MASTER OUT: 1
PHONES: 1

INPUTS
MIC/LINE (MONO) Connectors: 2 XLR/TRS combo jacks (Balanced, XLR: 2 HOT / TRS: TIP HOT)
Input gain: +6 ~ +50 dB
Input impedance: XLR: 3.9 kO TRS: 3.9 kO/1 MO (when Hi-Z ON, INPUT 1 only)
Phantom power: +48 V (switchable separately for INPUTS 1 and 2)
Equivalent input noise: -121 dBu or less (IHF-A) at +50 dB/150 O input
Frequency response: -1.0/+0.5 dB: 20 Hz - 20 kHz

OUTPUTS
MASTER OUT - Connectors: 2 TRS phone jacks (balanced)
Maximum output level: +14 dBu
Output impedance: 200 O
PHONES Connectors: 1 stereo 3.5mm mini jack
Maximum output level: 45 mW + 45 mW (into 32 O load)
Output impedance: 10 O

RECORDER
Maximum simultaneous recording tracks: 2
Maximum simultaneous playback tracks: 8
Recording format: 44.1kHz, 16/24-bit, mono/stereo WAV
Recording media: Cards compatible with microSDHC specifications 4 GB - 32 GB

TRACK SETTINGS
EQ
High: 10 kHz, 12 dB, shelving
Middle: 2.5 kHz, 12 dB, peaking
Low: 100 Hz, 2 dB, shelving
Pan: L100 - R100

EFFECTS
Input Dynamics: Comp/Limiter/Gate
Patch memory effects: 3 types can be used simultaneously
50 patch memories
Guitar Lab supported
Can be assigned and used as an insert (input) or send effect
Dedicated send effects: 10 types of spatial effects

TUNER: Chromatic/Guitar/Bass/Open A/Open D/Open E/Open G/DADGAD

CLICK (METRONOME)
Time signatures: 3/4, 4/4, 6/8
Tempo range: 40.0 - 250.0 BPM

POWER
Batteries: 4 AA (alkaline, lithium, or rechargeable NiMH)
AC adapter: ZOOM AD-17 (5V/1.0A)

RHYTHM LOOPS
Sound source format: PCM
Number of loops: 150

SYNTH
Sound source format: FM
Polyphony: 8
Number of sound types: 18 (and a PCM drum kit)

DISPLAY: 2.4" (320×240) full-color touchscreen LCD

USB
CONNECTOR: USB Type-C
Note: Use a USB cable that supports data transfer. USB bus power is supported.

AUDIO INTERFACE FUNCTION:
2-in/2-out or 2-in/2-out (iPad): USB 2.0 Full Speed - 44.1 kHz, 16/24-bit
2-in/4-out: USB 2.0 High Speed - 44.1 kHz, 16/24-bit

MASS STORAGE FUNCTION
Device: USB 2.0 High Speed (5 V/200 mA power supplied when host)
GUITAR LAB CONNECTION: USB 1.1 Full Speed
DAW CONNECTION (CONTROL SURFACE): USB 1.1 Full Speed

MASS STORAGE FUNCTION
Host: USB 2.0 High Speed (5V/200 mA power supplied)

USB MIDI KEYBOARD CONNECTION: USB 1.1 Full Speed (5 V/200 mA power supplied)

ESTIMATED CONTINUOUS OPERATION TIME USING BATTERIES
During playback with +48V off and 32O headphone load
Alkaline batteries: about 5 hours
NiMH batteries (1900 mAh): about 5 hours
Lithium batteries: about 11 hours
* The above values are approximate. Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.

POWER CONSUMPTION: 5 W maximum
DIMENSIONS: 256 mm (W) × 158 mm (D) × 61 mm (H)
WEIGHT (including batteries): 827 g
NOTE: 0 DBU = 0.775 VRMS

Notes: With its novel microphone capsule and 32-bit float technology, the M2 MicTrak enables any user to make very good-sounding recordings in one take.

X/Y microphone with honeycomb protective grille
2-track recording (mono/stereo)
Monochrome LCD display (waveform display)
2x AA battery operation (up to 11 hours)
32-bit float USB mic function for Mac/Windows and iOS/Android
Improved coating to reduce grip noise during recording

Best possible results - guaranteed

The M2 MicTrak is Zoom's latest innovation in mobile recording. Featuring a new X/Y microphone capsule design and 32-bit float technology, the M2 delivers great sound from the first take.

One take - that's all you need

The M2 records clipping-free audio always. Thanks to 32-bit float recording, there's no need for leveling. Whether you're recording softly spoken dialogue or thundering drums, you'll always get the sound you want.

Podcasting, no matter where

When you're on the road, you need no other recorder than the M2 to deliver high-resolution, transparent stereo voice recordings anytime.

For breaking news, there's only one take

When there's only one opportunity to record the story, the M2 won't let you down.

Extremely quiet grip noise

Combined with the specially designed high-gloss finish, the M2's unique, resiliently suspended X/Y stereo microphones ensure that hand noise is drastically minimised.

Stereo and mono modes

Record in either mono or stereo mode. Stereo is recommended for music performances, while mono is the perfect choice for recording interviews and dialogue.

Normalize function

The M2 offers a NORMALIZE function that allows you to optimise the levels of your recordings by raising or lowering the volume. This saves time and makes the post-production process more efficient.

Always in sight

Thanks to the real-time waveform display on the M2's LCD screen, you can always keep an eye on your recordings.

Always in control

Use the headphone output to listen to your recordings or use the internal speaker for quick reference.

USB microphone with 32-bit float

Connect the M2 via USB to record and stream with a PC, Mac or in iOS or Android.

Integrated microphone mount

For stationary recording, mount the Zoom M2 on a microphone stand using the supplied microphone holder.

Long battery life

Up to 11 hours of battery life via Type AA batteries, securely housed via a new locking system, ensures the M2 is always ready to record when you need it.

Tech Specs

USB-C port (2.0)
USB bus power supported
Recording media
4GB-32GB microSDHC cards
64GB-1TB microSDXC cards
Built-in speaker
Headphone jack
Recording format: 44.1/48/96kHz, 32-bit float (48kHz in Audio Interface Mode), mono/stereo BWF and iXML

Whats in the box
Quick Guide
Windscreen
Microphone clamp

Optional power supply
Zoom AD-17

Notes: The new lightweight stereo in-camera recorder that records in 32-bit float to ensure perfectly modulated audio on every recording. The M3 has a line output to send audio directly to the camera input and has a selectable mono/90-/120- recording pattern.

Stereo shotgun microphone with stereo recorder
High level stability (133dB SPL)
Support for mid-side (M/S) raw recording
Shock mount for camera included
REC/ PLAY button and mono/90/120
2xAA battery operation (up to 12 hours)
Perfect sound with every picture. In one take.

The M3 MicTrak offers filmmakers the ability to enhance their content with pristine sound quality. Designed to be mounted on a camera, the stereo microphone with built-in recorder records every sonic nuance with 32-bit float technology.

32-bit float recording

The M3 records clipping-free audio at all times. Thanks to 32-bit float recording, no equalisation is necessary. Whether it's dialogue, sound effects or ambience in outdoor recordings, you'll always get a perfect recording.

Absolutely ready at all times

The specially designed elastic mount keeps weight to a minimum and ensures minimal transmission of handheld noise.

Mono and stereo modes

Switch easily between mono and stereo modes. Mono mode is ideal for dialogue recording. 90O provides accurate, transparent stereo recording. 120O stands for a generous stereo pick-up, which is especially recommended for atmosphere or sound effects.

More flexibility in post-production

The M3 saves a backup file in mid-side RAW format at any time, giving you the flexibility to adjust the stereo width of the recording in post-production.

Backup for your recordings

Use the 3.5mm stereo output to connect the M3 to your camera and record a backup there. This is especially useful for synchronising audio to a video.

Effectiveness in post-production

With the M3 Edit and Play software, you can adjust the stereo width of your recordings and normalise your files to prepare them for dubbing and post-production.

USB Mic

Connect the USB-C port to a PC or Mac to use the M3 as a USB microphone for streaming or recording.

Monitoring

Listen to your recordings via the 3.5mm headphone output.

Power supply

Power the M3 on long production days with up to 12 hours of recording from two Type AA batteries.

Storage

Record onto SDXC cards with a capacity of up to 1 TB.

Tech specs
USB-C connector (2.0)
USB bus power supported
Recording media
4GB-32GB microSDHC cards
64GB-1TB microSDXC cards
Headphone jack
12 hours battery life
Recording format: 44.1/48kHz, 32-bit float (48kHz in audio interface mode), mono/stereo BWF and iXML

Whats in the box

Quick Guide
Windscreen
3.5 mm mini-jack coiled cable
Elastic microphone holder

Notes: Top quality recordings anywhere you want from Zoom's smartly designed M4, incorporating a 32-bit recording unit into a microphone format. Built-in timecode generator makes life easy for filmmakers.

Supplier's Notes:
The first portable recorder to feature both 32-bit recording and a built-in timecode generator for easy synchronisation with video. This innovative and compact recorder offers 4 tracks and is the perfect solution for musicians and filmmakers.

X/Y microphone with honeycomb protective grille
4-track recording (L+R and 2 XLR/combo inputs)
Colour LCD display (waveform display)
Time code generator (in-out) for synchronisation with video applications
4x AA battery operation (up to 18 hours)
32-bit float USB mic function for Mac/Windows and iOS/Android
Improved coating to reduce grip noise during recording

Perfect tracks. In one take.

The M4 MicTrak is the first portable recorder with 32-bit float recording and built-in timecode generator, providing everything filmmakers and musicians need for outstanding audio recording.

Audio without clipping

On set, you can't risk working with audio that is overdriven or too quiet. The M4 records with 32-bit float, which allows you to record audio perfectly in any situation, even without clipping.

Attention... And... Action!

Filmmakers can use the two XLR inputs to record dialogue, while you record atmosphere via the X/Y microphones. In post-production, the M4's built-in timecode generator makes it easy to synchronise recordings to a video.

Create great sounding music videos

Combine the audio recorded with the internal X/Y microphones with two external microphones to give your videos studio-quality sound regardless of the environment.

Wav-watching
Keep track of your tracks at all times via the M4's proprietary colour LCD display with real-time waveform display.

Extremely low hand noise

The goal in designing the M4 was to create the quietest handheld recorder ever. The unique, resiliently suspended X/Y microphones and high-gloss finish minimise hand noise, ensuring clean, clear audio at all times.

Timecode on board

Serious videographers use timecode to perfectly synchronise audio and video. The M4's built-in timecode generator provides professional accuracy of 0.2 ppm.

Powerful inputs

The M4 features two XLR/TRS inputs equipped with the same professional, low-noise preamps as the flagship F-Series recorders.

Perfect outputs

Connect the line output to your camera to record a backup or sync track to your video. Listen to recordings via the built-in headphone output.

Normalisation in one step

Save time in post-production by automatically raising or lowering the volume of your recordings to the optimum level, even without audio compression, using the built-in NORMALIZE function.

Listening options

Use the headphone output to listen to your recording, or use the built-in speaker for quick reference playback.

Six seconds for safety

The PRERECORD function captures and stores audio six seconds at a time before you press the RECORD button - perfect for any surprise recording start.

Record all day

With 18 hours of battery life, the M4 can record all day if needed.

RC4 remote control

Control your M4 from up to 5 metres away using the Zoom RC4 (sold separately).

32-bit float audio interface

The M4 can be used as an audio interface with 32-bit float technology and 4 inputs and 2 outputs.

Tech Specs

USB-C connector (2.0)
USB bus power supported
2x XLR/jack combo sockets with 48V phantom power
Recording media
4GB-32GB microSDHC cards
64GB-1TB microSDXC cards
Built-in loudspeaker
Headphone jack
Line-out
Time code in/out
Connection for Zoom RC4 remote control (not included)
Recording format: 44.1/47.952/48/48.048/96/192kHz (48kHz in audio interface mode), 32-bit float mono/stereo BWF and iXML

Whats in the box

Quick Guide
Windscreen

Optional accessories

Power supply Zoom AD-17
Zoom RC4 remote control

Notes: The Zoom G1 FOUR features over 60 effects and amp models, looper and drum machine. Plus, access ZOOM Guitar Lab's additional library of downloadable effects. Plug in and be amazed!

Sounds That Inspire:
The pedal has more than 60 traditional and boutique effects, including ring modulator, pitch-shifting delay and even sitar simulation.

Your Favourite Amps & Cabinets:
With 13 classic amps and cabinets like Fender, Marshall, Orange and more, the G1 series brings big stage sound wherever you go.

You'll Love The Free Guitar Lab Software:
With ZOOM Guitar Lab, explore an endless world of artist patches, effects and more. And with its ability to manage and backup all of your patches, you can experiment and create endless combinations.

Drums Included:
Play along with 68 great-sounding rhythm patterns in different time signatures, including 4/4, 3/4 and more.

Stay Looped In:
The built-in looper can record up to 30 seconds of playing, allowing you to create dynamic, multi-part arrangements.

Auto Patch Backup:
Your patches and level settings are instantly backed up when using the Auto Save function, ensuring you never lose your latest creation.

Perform Live:
Seamlessly switch up your sounds during live shows using either of 2 performance modes.

PRESELECT mode lets you jump from patch to patch without affecting the patch your currently playing.

STOMP mode lets you turn individual effects on and off with the tap of your foot.

Off the Floor:
The G1 FOUR control panel is also designed for hands-on, desktop use. Dial in tones and adjust level settings with absolute precision to craft your perfect sound.

Power Options:
The G1 FOUR runs on just four AA batteries. Alternatively, it can be powered using the optional Zoom AD-16 AC adapter or via USB bus power.

Notes: The Zoom G1X FOUR features over 70 effects and amp models, looper and drum machine. Plus, access ZOOM Guitar Lab's additional library of downloadable effects. Plug in and be amazed!

X is for Xpression:
The G1X FOUR comes with ZOOM's expression pedal, which provides control over effects such as volume, wah, delay and pitch.

Sounds That Inspire:
The pedal has more than 60 traditional and boutique effects, including ring modulator, pitch-shifting delay and even sitar simulation.

Your Favourite Amps & Cabinets:
With 13 classic amps and cabinets like Fender, Marshall, Orange and more, the G1 series brings big stage sound wherever you go.

You'll Love The Free Guitar Lab Software:
With ZOOM Guitar Lab, explore an endless world of artist patches, effects and more. And with its ability to manage and backup all of your patches, you can experiment and create endless combinations.

Drums Included:
Play along with 68 great-sounding rhythm patterns in different time signatures, including 4/4, 3/4 and more.

Stay Looped In:
The built-in looper can record up to 30 seconds of playing, allowing you to create dynamic, multi-part arrangements.

Auto Patch Backup:
Your patches and level settings are instantly backed up when using the Auto Save function, ensuring you never lose your latest creation.

Perform Live:
Seamlessly switch up your sounds during live shows using either of 2 performance modes.

PRESELECT mode lets you jump from patch to patch without affecting the patch your currently playing.

STOMP mode lets you turn individual effects on and off with the tap of your foot.

Off the Floor:
The G1X FOUR control panel is also designed for hands-on, desktop use. Dial in tones and adjust level settings with absolute precision to craft your perfect sound.

Power Options:
The G1X FOUR runs on just four AA batteries. Alternatively, it can be powered using the optional Zoom AD-16 AC adapter or via USB bus power.

Notes: Portable recording made with musicians in mind, the R4 records up to four tracks in 32-bit float resolution, with on-board EQ and effects, amp simulation and the option to bounce recordings down then overdub.

Supplier's Notes:
The Little Recorder For Big Ideas

Introducing the Zoom R4 MultiTrak

Designed By Musicians

All of our engineers are musicians and they designed the R4 to empower musicians to explore big ideas. With a unique dedicated 'bounce track' and 32-bit float recording, the R4 is perfect for capturing your most ambitious compositions.

Record. Bounce. Repeat.

With the R4, you can record up to four tracks, mix and then bounce them to the dedicated 'bounce track.' This lets you free up additional tracks to keep adding layers.

You can choose to do a 'quick' bounce or mix and bounce in real time.

The R4 also allows you to 'undo' your last bounce, if you're not satisfied with the results.

32-Bit Float Recording

The R4 captures perfect audio with every take, without the need to set gain.

Combo Inputs

The R4 has 2 XLR/TS combo inputs with legendary Zoom preamps. You can plug in microphones, instruments, keyboards, and more.

Track Effects

Each track features a 3-band EQ, pan, echo, and reverb to refine your mix.

Input Effects

Apply effects to input A such as amp simulations, delays, distortions and more.

Built-In Microphone

The R4 features a high-quality built-in microphone, perfect for acoustic guitars, vocals, or capturing a quick reference recording.

Much More Than A Metronome

The R4 has a rhythm section preloaded with over 80 different drum patterns to play along with featuring genres such as rock, hip hop, funk, heavy metal, and more.

Every Take Is Saved

Tracks that you record are automatically saved individually, even after they have been bounced.

32-Bit Float Audio Interface

The R4 is also a powerful 2-in/ 2-out USB audio interface with 32-bit float technology. Connect it to either your computer or smartphone.

Control and Create

With a fader for each track and dedicated hardware buttons for the most used functions, you won't need to menu dive to record your music.

Powered For Your Ideas

The R4 can be powered by 4 AA Batteries, or through its USB-C port.

Specs

Inputs/outputs
Inputs: Built-in mic (mono): 1
XLR/TS inputs (mono): 2
Output: Headphones: 1

Inputs
XLR/TRS inputs:
Connectors: 2 XLR/TRS combo jacks (Balanced, XLR: 2 HOT)
Input gain: No adjustment required (dual A/D converter circuit used)
Input impedance XLR: 2.3 kO; TS: 1 MO
Maximum input level: XLR: +4 dBu, TS: +10 dBu
Phantom power: +48 V (switchable separately for INPUTS A and B)
Equivalent input noise: XLR: -120 dBu or less (IHF-A); TS: -107 dBu or less (IHF-A)
Frequency response: XLR: -0.5 /+0.0 dB : 20 Hz - 20 kHz; TS: -0.2 /+0.0 dB : 20 Hz - 20 kHz

Built-in mic input
Directionality: Omnidirectional
Input gain: No adjustment required (dual A/D converter circuit used)
Maximum sound pressure input:
115 dB SPL
Output

Headphone

Connector: 1 stereo 3.5mm mini jack
Output impedance: 10 O
Maximum output level: 20 mW + 20 mW (into 32O load)

Recorder

Maximum simultaneous recording tracks: 2
Recording format: WAV: 48kHz, 32-bit float, mono
Recording media: Cards compatible with microSDHC specifications 4 GB - 32 GB; Cards compatible with microSDXC specifications 64 GB - 1 TB

Display: 2" full-colour LCD (240 × 320)

USB

Connector: USB Type-C
Note: Use a USB cable that supports data transfer. USB bus power is supported.
Audio interface function
Class: USB 2.0 High Speed
Sampling frequency: 48 kHz
Bit rate: 24-bit/32-bit float
Input / output channels: 2 in/2 out
Mass storage function: USB2.0 High Speed

Power supply

Batteries: 4 AA (alkaline, lithium, or rechargeable NiMH)
AC adapter: ZOOM AD-17 (5V/1.0A)
* USB bus power is supported.
Estimated continuous operation time using batteries

Alkaline batteries: about 7 hours
NiMH batteries (1900 mAh): about 6 hours
Lithium batteries: about 14 hours
* Use conditions: Recording 1 track, playing 1 track, phantom power off, headphones into 32O load, power saving on
* The above values are approximate. * Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.

Power consumption: 5 W
External dimensions: 74 mm (W) × 138 mm (D) × 36 mm (H)
Weight (including batteries): 287 g
Note: 0 dBu = 0.775 Vrms

Notes: Exceptional value from one of Zoom's entry-level recorders. Quick and easy to set up and use, the H1essential offers excellent stereo sound quality. Records to microSD card, with option to transfer files via USB.

Supplier's Notes:
Zoom H1essential - 32-Bit Float Recording for All

The World's Easiest Recorder, Just Got Easier

With the push of a button the H1essential captures perfect audio for musicians, podcasters, filmmakers, and content creators. Simply hit record and discover the power of 32-bit float.

32-Bit Float Magic

With 32-bit float recording, you never have to adjust levels. The H1essential captures every nuance of your sound ensuring high-quality audio with every take

The First Handy Recorders with Accessibility

The Essential Series was designed with Accessibility for the blind and visually impaired. Navigate the menu with audible descriptions through the built-in speaker or headphones. Creators can choose English, Spanish, French, Japanese, German, Italian or Chinese.

Loud and Clear

The onboard X/Y microphones capture clean audio up to 120 dB SPL, equivalent to the sound of a high-performance engine.

The Perfect Practice Companion for Musicians

Musicians can use the H1essential to record every rehearsal, a great way to improve your playing. Features like overdubbing and playback-speed-adjustment are great for writing and practicing.

Sound Makes the Scene

The H1essential is great for filmmakers. Record and send audio directly to your camera or use it to record sound effects to complete your scene.

For Storytellers

Podcasters can mount the H1essential on a tripod for sit down conversations or use 'mono mode' for on-the-go interviews.

Big Features, Small Package

The H1essential has advanced features such as overdubbing, pre-record, auto record, and playback speed adjustment.

Features

32-bit float recording: perfect audio with no need to set gain
120 dB SPL 90 degree XY Mics
Records up to 96kHZ sample rate
New OLED Display
Overdubbing, auto record, pre-record and timer functions
USB Microphone Function
Audio guidance function for the blind and visually impaired
10 hours of battery life on 2 AAA Batteries or USB-C Bus power

Specs

Inputs

Built-in mic: 90 degree XY stereo format
Directionality: Unidirectional
Sensitivity: -37 dB/1 Pa at 1 kHz
Maximum sound pressure input: 120 dB SPL

MIC/LINE IN jack

Connector: Stereo mini jack
Input impedance: 2 kO or more
Plug-in power: 2.5 V

Built-in mic
90 degree XY stereo format
Directionality: Unidirectional

Outputs

PHONE / LINE OUT jack
Connector: Stereo mini jack
Maximum output level: 20 mW + 20 mW(into 32O load)
Output impedance: 10 O or less
Built-in speaker Type: 20 x 30mm oval dynamic speaker
Practical maximum output: 250mW

Recorder
Recording formats:
WAV
44.1/48/96 kHz, 32-bit Float
Stereo / Mono
BWF and iXML formats supported

Recording media
4-32GB cards compatible with the microSDHC specification
64GB-1TB cards compatible with the microSDXC specification

Display
OLED: 128 x 64

USB
Connector: USB Type-C (Use a USB cable that supports data transfer.)
USB Mic: USB 2.0 High Speed
48 kHz, 24-bit
File transfer: USB 2.0 High Speed

Power

2 AAA batteries Alkaline, Lithium, or Rechargeable NiMH
AC adapter: ZOOM AD-17: DC 5 V/1 A
USB bus power is supported.

Estimated continuous operation time using batteries

Alkaline batteries: About 10 hours
NiMH batteries (800 mAh): About 9 hours
Lithium batteries: About 18 hours
Stereo recording, 48kHz/32-bit float, no headphones, Power Save 1min
These values are approximate.
Continuous battery operation times were determined using in-house testing methods.
They will vary greatly according to use conditions.

Power consumption: 5 W maximum
Dimensions: 53.9 mm (W) × 136.6 mm (D) × 29.0 mm (H)
Weight (including batteries): 92 g
Note: 0 dBu = 0.775 Vrms

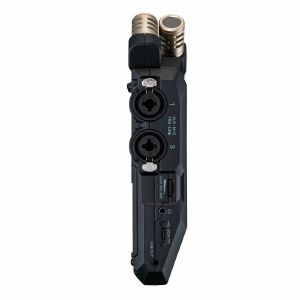

Notes: Zoom H4essential Handy Recorder

Four Tracks. More Options

With four tracks, 32-bit float recording, advanced X/Y mics and 2 XLR/TRS inputs, creators have more ways to record their music, podcasts, and audio-for-video.


Features

4-track 32-bit float recorder with Dual A/D Converters
Clip-free recording with no need to set gain
Records up to 96kHZ sample rate
Colour LCD Screen
130 dB SPL XY Mic
2 XLR/TRS combo inputs with locking connector
3.5mm mic/line input for lavalier mics and line level sources
Built-in mixer to adjust each track's audio level
Built-in speaker for quick reference playback
3.5mm line output for headphones or to connect to a camera
Voice Guidance accessibility for the visually impaired
32-Bit Float audio interface for PC, Mac, iOS, and Android devices via USB-C port
Use as an interface and record to SD card simultaneously
Using the BTA-1* Bluetooth Adapter, sync with wireless timecode devices via Bluetooth
Use the BTA-1* Bluetooth Adapter to pair with the H4essential Control App for iOS
Record to SD cads up to 1TB
10 hours of battery life on AA battery (2x) or USB-C Bus Power
*Please note: BTA-1 Adapter not included

Now in colour

The new full-colour LCD screen makes it easy to navigate through the H4essential's menu and functions.

Advanced X/Y mics

The onboard X/Y microphones capture crystal clear audio up to 130 dB SPL.

High capacity storage

The H4essential supports SDXC cards up to 1TB to record hours and hours of audio.

For interview and podcasts

Podcasters can use the H4essential's XLR inputs with external mics for one-on-one conversations and the X/Y mics for interviews on-the-go.

Big stage sound for musicians

The H4essential is perfect for recording music. With 2 XLR/TRS inputs and the stereo X/Y microphones it's easy to record live shows, rehearsals and songs.

Pair with your iOS device

Use the BTA-1* Bluetooth Adapter to pair with your iOS device to remotely hit record, adjust your mix, view your waveforms, and change settings.

Bluetooth timecode

With the BTA-1* Bluetooth Adapter you can also pair with Bluetooth timecode devices for audio and video sync. *BTA-1 Adapter not included

Specifications

Input & output channels

Inputs
Built-in mic (stereo): 1
XLR/TRS: 2
MIC/LINE IN: 1

Outputs
Headphones: 1
Built-in speaker (mono): 1

Inputs
Built-in mic: 90O XY stereo format
Directionality: Unidirectional
Sensitivity: -43 dB/1 Pa at 1 kHz
Maximum sound pressure input: 130 dB SPL

INPUT1-2
Connector: XLR/TRS combo jacks ×2, (XLR:2 HOT TRS:TIP HOT)
Input gain: Adjustment unnecessary
Input impedance: MIC: 3.8 kO or more, LINE: 39 kO or more
Maximum input level: MIC: +4 dBu, LINE: +24 dBu
Phantom power: +48 V
Channel total: 10 mA or less
Equivalent input noise MIC: -120 dBu or less(IHF-A) @150 O input, LINE: -95 dBu or less(IHF-A) @600 O input

MIC/LINE IN (supports plug-in power)
Connector: Stereo mini jack
Input gain: Adjustment unnecessary
Input impedance: 2 kO or more
OUTPUTS
Headphones
Connector: Stereo mini jack
Maximum output level: 20 mW + 20 mW(into 32 O load)
Output impedance: 15 O or less

Built-in speaker
Type: 20 x 30mm elliptical dynamic speaker
Effective maximum output: 250mW

RECORDER
Maximum simultaneous recording tracks: 4
Maximum simultaneous playback tracks: 4

Recording formats:
WAV
44.1/48/96 kHz,
32-bit float mono/stereo
BWF and iXML formats supported

Recording media:
4-32GB cards compatible with the microSDHC specification
64GB-1TB cards compatible with the microSDXC specification

Display: 2.0-inch full-colour LCD: 360 x 240

USB
Connector: USB Type-C (Use a USB cable that supports data transfer).
USB Mic: USB 2.0 High Speed, 44.1/48 kHz, 24-bit /32-bit float, 4-in/2-out
File transfer: USB2.0 High Speed

Remote
Dedicated wireless adapter: ZOOM BTA-1

Power:

2 AA batteries; Alkaline, lithium or rechargeable NiMH batteries
AC Adapter:
ZOOM AD-17:DC 5V / 1 A - USB bus power is supported.

Estimated continuous operation times using batteries: 2-track recording (built-in XY mic)
Alkaline batteries: About 9 hours
NiMH batteries (1900 mAh): About 9 hours
Lithium batteries: About 19 hours

48 kHz/32-bit float, phantom power off, no headphones, no remote, display power saving on, display brightness at Medium
These values are approximate.
Continuous battery operation times were determined using in-house testing methods.They will vary greatly according to use conditions.

Estimated continuous operation times using batteries: 4-track recording (built-in XY mic with INPUT 1-2)
Alkaline batteries: About 2 hours 30 minutes
NiMH batteries (1900 mAh): About 4 hours
Lithium batteries: About 8 hours
48 kHz/32-bit float, phantom power off, headphones used (33O load), no remote, display power saving on, display brightness at Medium
These values are approximate.
Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.

Estimated continuous operation times using batteries : 4-track recording (plug-in power mic with INPUT 1-2)
Alkaline batteries: About 40 minutes
NiMH batteries (1900 mAh): About 1 hour 30 minutes
Lithium batteries: About 3 hours 30 minutes
48 kHz/32-bit float, phantom power off, headphones used (33O load), no remote, display power saving on, display brightness at Medium
These values are approximate.
Continuous battery operation times were determined using in-house testing methods.They will vary greatly according to use conditions.

Power consumption: 3 W maximum
Dimensions: 66.9 mm (W) × 156.1 mm (D) × 38.0 mm (H)
Weight (including batteries): 243 g
Note: 0 dBu = 0.775 Vrms

Notes: Zoom's top-of-the-range handheld recording option, the H6essential records up to six tracks via built-in stereo mics and four mic/line inputs. Top quality 32-bit/96 kHz recording quality.

Supplier's Notes:
Zoom H6essential Handy Recorder

The Flagship - Zoom's most robust handheld recorder, the H6essential is a recording powerhouse. With 6 tracks of 32-bit float recording, the H6essential provides unprecedented quality and unmatched versatility.

Features

6-track 32-bit float recorder with Dual A/D Converters
Clip-free recording with no need to set gain
Records up to 96kHZ sample rate
Interchangeable Mic Capsule System 3.0 with 32-bit float support
Included X/Y Mic Capsule captures up to 135 dB SPL
4 XLR/TRS combo inputs with locking connector
Colour LCD Screen
Built-in mixer to adjust each track's audio level
Built-in speaker for quick reference playback
3.5mm headphone output plus 3.5mm line output
Voice Guidance accessibility for the visually impaired
32-Bit Float audio interface for PC, Mac, iOS, and Android devices via USB-C port
Use as an interface and record to SD card simultaneously
Using the BTA-1* Bluetooth Adapter, sync with wireless timecode devices via bluetooth
Use the BTA-1* Bluetooth Adapter to pair with the H6essential Control App for iOS
Record to SD cads up to 1TB
10 hours of battery life on AA battery (2x) or USB-C Bus Power
*Please note: BTA-1 Adapter not included

Outputs you need

Use the line output to connect to a camera and the headphone output to monitor your audio.

Quieter controls

Recording and rotary controls have been meticulously designed to allow for silent operation.

Onboard speaker

Use the improved onboard speaker to listen to your recordings for quick reference.

Six perfect tracks

The 4 XLR/TRS combo inputs feature ultra-clean Zoom preamps, and the included X/Y microphones can capture up to a booming 135 dB SPL, equivalent to a jet taking off.

Record and stream

Use the USB-C port to connect to PC, Mac, iOS, and Android device to use the H6essential as a 32-bit float interface while simultaneously recording all 6 tracks to an SD card.

Pair with your iOS device

Use the BTA-1* Bluetooth Adapter to pair with your iOS device to remotely hit record, adjust your mix, view your waveforms, and change settings.

Bluetooth timecode

With the BTA-1* Bluetooth Adapter you can also pair with Bluetooth timecode devices for audio and video sync. *BTA-1 Adapter not included.

Specs

Input & output channels

Inputs
Mic capsule: 1
MIC/LINE (mono): 4

Outputs
LINE OUT: 1
Headphones: 1
Built-in speaker (mono): 1

INPUTS
XY mic: XYH-6e: 90O XY stereo format
Directionality: Unidirectional
Sensitivity: -42dB/1Pa at 1kHz
Maximum sound pressure input: 135 dB SPL

MIC/LINE (mono)
Connectors: 4 XLR/TRS combo jacks (XLR:2 HOT TRS:TIP HOT)
Input gain: Adjustment unnecessary (dual A/D converter circuits used)
Input impedance: MIC: 3.8 kO or more, LINE: 39 kO or more
Maximum input level: MIC: +4 dBu, LINE: +24 dBu
Phantom power: +48 V
Channel total: 32 mA or less
Equivalent input noise MIC: -120 dBu or less(IHF-A) @150 O input, LINE: -95 dBu or less(IHF-A) @600 O input

OUTPUTS

LINE OUT
Connector: Stereo mini jack
Maximum output level: +1 dBu
Output impedance: 110 O or less

Headphones
Connector: Stereo mini jack
Maximum output level: 20 mW + 20 mW(when 32 O load)
Output impedance: 10 O or less

Built-in speaker
Type: 20 mm x 30mm elliptical dynamic speaker
Effective maximum output: 250mW

RECORDER
Maximum simultaneous recording tracks: 8
Maximum simultaneous playback tracks: 6

Recording formats:
WAV
44.1/48/96 kHz,
32-bit float mono/stereo
BWF and iXML formats supported

Recording media: 4-32GB cards compatible with the microSDHC specification, 64GB-1TB cards compatible with the microSDXC specification

Display: 2.0-inch full-colour LCD 360 x 240

USB
Connector: USB Type-C - Use a USB cable that supports data transfer.
Audio Interface : USB 2.0 High Speed
Input and output channels: 6 in / 2 out (Multi), 2 in / 2 out (Stereo)
Sampling frequency: 44.1/48/96 kHz (AIF only), 44.1/48 kHz (AIF + onboard recording)
Bit depth: 24-bit, 32-bit float
File transfer: USB 2.0 High Speed

Remote

Dedicated wireless adapter: ZOOM BTA-1

Power

4 AA batteries: Alkaline, lithium or rechargeable NiMH batteries
AC Adapter: ZOOM AD-17 (DC 5 V/1 A) - USB bus power is supported.

Estimated continuous operation times using batteries: 2-track recording (XYH-6e)
Alkaline batteries: About 18 hours
NiMH batteries (1900 mAh): About 14.5 hours
Lithium batteries: About 30 hours

48 kHz/32-bit float with phantom power off, no headphones, no LINE OUT, no REMOTE, Power Saving on, Display Brightness Medium
These values are approximate.
Continuous battery operation times were determined using in-house testing methods.They will vary greatly according to use conditions.

Estimated continuous operation times using batteries: 6-track recording (XYH-6e and inputs 1-4)
Alkaline batteries: About 3.5 hours
NiMH batteries (1900 mAh): About 4 hours
Lithium batteries: About 9 hours
48 kHz/32-bit float with phantom power off, headphones used (33O load), no LINE OUT, no REMOTE, Power Saving on, Display Brightness Medium
These values are approximate.
Continuous battery operation times were determined using in-house testing methods.They will vary greatly according to use conditions.

Power consumption: 5 W maximum

Dimensions
Recorder: 78.1 mm (W) × 160.1 mm (D) × 42.8 mm (H)
XYH-6e: 69.1 mm (W) × 50.8 mm (D) × 43.0 mm (H)
Weight Recorder: 381 g (including batteries)
XYH-6e: 42 g
Note: 0 dBu = 0.775 Vrms

Notes: Incredible value all-rounder from Zoom, the L-6 combines recording, mixing and performance features, with 10 studio-quality audio tracks, effects, MIDI and real-time sampling.

Supplier's Notes:
Small Just Got Very Big

The LiveTrak L6 is Zomo's most compact and portable digital mixer / recorder. With 10-tracks of studio quality audio, effects, MIDI, and sound pads, it's perfect for bands, synth players, live streaming, and more.

Full Featured Mixer

Don't let its size fool you. The L6 is designed with big mixer capabilities; a full channel strip for each track including aux sends, pan, effects, and a 3-band mid-sweepable EQ.

Powerful Multi-Track Recording

The L6 records 10 discrete tracks plus the full stereo mix on microSD cards up to 2TB. Share the live mix, or transfer your stems to your favorite DAW for editing and mixing.

MIDI Connectivity for Synths and Keyboards

Connect, program, and sync the L6 to your outboard gear via the 3.5mm MIDI I/O, or to a computer via USB.

Map parameter controls such as volume, pan, and EQ to outboard gear
Trigger sound pads and scene switching
Tempo sync delay and echo

Features

10-channel ultra-Compact digital mixer
2 XLR/TRS Combo inputs + 4-Stereo inputs
12-track simultaneous recording
MIDI In/Out for mixer control and USB MIDI interface
3 Scene memory for storing mixer and tempo setting
32-bit float multi-track recording to micro SD card
5 Internal Send Effects
2 AUX send outputs
4 Assignable sound pads (sample player)
3-Band EQ with MID freq control for each channel
Headphone output + Master output
Eurorack compatible
12-in / 4-out Audio interface
4 AA battery power operation or USB power

Specs
Input and output channels
Inputs MIC/LINE (mono) 2
LINE (stereo) 4
Outputs
AUX SEND (mono): 2
MASTER (stereo): 1
MONITOR (stereo): 1

Inputs

MIC/LINE:
Connectors: 2 XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
Input gain: Adjustment unnecessary (dual A/D converter circuits used)
Input impedance:XLR: 3.8 kO or more, TRS: 39 kO or more
Maximum input level XLR: +4 dBu, TRS: +24 dBu
Phantom power: +48 V, Channel total of 10 mA or less

LINE

Connectors: 8 TS phone jacks (unbalanced)
Input impedance: 10 kO
Maximum input level: +9 dBu

Outputs

AUX SEND
Connectors: 2 TRS phone jacks (impedance balanced)
Maximum output level: +9.5 dBu
Output impedance: 147 O

MASTER
Connectors: 2 TRS phone jacks (balanced)
Maximum output level: +15 dBu
Output impedance: 147 O

MONITOR
Connector: TRS phone jack
Maximum output level: 50 mW + 50 mW (63 O load)
Output impedance: 14.7 O

Buses

MASTER: 1
AUX SEND: 2
SEND EFX: 1

Channel strip

3 BAND EQ:
HIGH: 10 kHz, +/-15 dB, shelving
MID: 100 Hz - 8 kHz, +/-15 dB, peaking
LOW: 100 Hz, +/-15 dB, shelving

Level meters: 6 segments
Send effects: 5 types

Recorder

Maximum simultaneous recording tracks: 12
Maximum simultaneous playback tracks: 2
Recording formats: 48 kHz, 32-bit float, mono/stereo WAV
Recording media: microSDHC memory cards (Class 10 or higher), microSDXC memory cards (Class 10 or higher)

Audio interface

Input and output channels: Input: 12 channels, Output: 4 channels
Sampling frequency: 48 kHz
Bit depth: 32-bit float / 24-bit
Interface: USB 2.0

Card reader: Mass storage class USB 2.0 High Speed
Sampling frequency: 48 kHz
Frequency response: 20 Hz - 20 kHz / -1.0 dB
Equivalent input noise: -120 dBu or less (IHF-A) at 150O input

Power
4 AA batteries - Alkaline, Lithium, or Rechargeable NiMH
AC adapter: ZOOM AD-17 : DC 5V/1A
USB bus power is supported.

Estimated continuous recording time using batteries
Alkaline batteries: About 3 hours
NiMH batteries (1900 mAh): About 3.5 hours
Lithium batteries: About 7 hours

12-track recording, phantom power off, headphones used (63O load), no MASTER output connections
These values are approximate.
Continuous battery operation times were determined using in-house testing methods.
They will vary greatly according to use conditions.

Power consumption 5 W maximum
Dimensions: 223 mm (W) × 114 mm (D) × 46.5 mm (H)
Weight (main unit only): 526 g
Weight (including batteries): 618 g
Note: 0 dBu = 0.775 Vrms

Notes: One of the most reliable brands of portable recorders turn out the goods once again. The H5studio records up to six tracks simultaneously, and also functions as a 4-in/2-out USB interface. High quality and versatile.

Supplier's Notes:
The H5studio was made for seamless and professional production. Creators can record flawless audio with stunningly clear microphones, studio-grade preamps, and 32-bit float recording.

The 19.4mm microphones capture audio with incredible frequency response, 140 dB max SPL, and an expansive dynamic range. Their increased size captures recordings with unmatched depth and clarity.

The H5studio features Zooms F-series preamps, giving your audio unmatched clarity (-127 dBu EIN). With dual AD converters and 32-bit float, it delivers an impressive 132dB dynamic range, capturing everything without noise or distortion.

32-bit float and 16/24-bit formats each have their advantages. 32-bit float prevents clipping but requires post-production. 16/24-bit eliminates the need for post-processing but requires gain adjustment to prevent clipping. The H5studio offers the best of both worlds with 32-bit float and dedicated gain knobs - no clipping and no need for post-production.

The H5studio captures up to six tracks (four iso-tracks plus a stereo mix) with sample rates up to 192 kHz.

Carefully engineered RF shielding keeps interference from smartphones and Wi-Fi routers out of your recordings, anywhere you go.

The H5studio features "advanced look-ahead" limiters which anticipate potential overloads and prevent distortion before it reaches your track.

The two locking XLR/TRS inputs support +48V phantom power and +4dBu line level. There is also a 3.5mm stereo jack with plug-in power.

The H5studio's 3.0 capsule system supports 32-bit float and gives creators more options to use the right mic for their recording.

Monitor input levels and real-time waveforms with the full color LCD, making it easy to adjust and monitor audio in real time.

Use the loud 20 mW headphone output to monitor or listen back to your recordings in any environment.

Use the 3.5mm stereo LINE OUT to connect directly to a camera, easily syncing your audio and video.

The built-in speaker has a maximum output of 250mW for previewing recordings on the spot.

The H5studio is a 4-in/2-out USB audio interface for Mac, Windows, iOS, and Android, supporting 32-bit float and 16/24-bit recording. Stream live and simultaneously record a backup to microSD.

Notes: The H2essential is the only Handy Recorder with three internal microphones. With the ability to select different mic patterns, it gives creators more options than ever before. With two cardioid mics facing front and rear and a bi-directional mic facing side to side, the H2essential allows you to choose the perfect pick-up pattern for every recording.

Set your pickup pattern to 90O or 120O stereo, or choose mono for a hyper directional pickup, reducing background noise. Then choose to record from the front, rear, or activate both sides for surround sound pickup. Record in 32-bit float up to 96kHz ensuring high-quality audio without ever having to set gain.

When connected to a PC, Mac, iOS, or Android device using the USB-C port, the H2essential can be used as a USB microphone while simultaneously recording to the SD card. Connect the H2essential to your mobile device via USB and record professional audio directly onto your phone's video. Perfect for video podcasts and live streams.

Record in MS Raw and adjust the width of the stereo image in post production. This is helpful when you want to control ambient noise. The H2essential has advanced features such as a low cut filter, pre-record, auto record, and playback speed adjustment.

Using the BTA-1* Bluetooth Adapter, pair one or more H2essentials with your iOS device to remotely hit record and sync timecode. The H2essential is designed with Accessibility for the blind and visually impaired. Navigate the menu with audible descriptions through the built-in speaker or headphones. Creators can choose English, Spanish, French, Japanese, German, Italian or Chinese.

The specially designed windscreen for the H2essential provides wind protection when recording outdoors. The custom fit gives access to controls while the windscreen is attached. The 3.5mm input can accommodate audio players, keyboards, and lav mics with plug-in power. You can record with the front mic and the 3.5mm input simultaneously.

Use the mixer to easily adjust each track's audio level. The color LCD screen makes it easy to navigate through the H2essential's simple interface.The real-time waveform display lets you see your audio as it records.

Use the 3.5mm headphone output for headphones or connect directly to a camera. The onboard speaker allows you to listen to your recordings for quick reference as well as utilize the Accessibility functions. The H2essential supports SDXC cards up to 1TB.

The H2essential has a dedicated Marker button to instantly set reference points while recording. The H2essential can be powered by two AA batteries or via the USB-C port. This includes bus-power as well as external USB battery pa

Notes: One Small Stomp For Man - One Giant Leap For Chorus, Delays & Reverbs

The Zoom MS-70CDR+: Your New Modulation Station

The MS-70CDR+ gives musicians 149 spatial effects ranging from lush choruses to crystal-clear delays to atmospheric reverbs. This single stompbox can shape your tone and provide endless depth and textures.

A Deep Dive into Chorus, Delays, Reverbs & More

Chorus - 43 different chorus and modulation effects that add depth and motion to your sound including phasing, flanging, tremolo, vibrato, detuning, and pitch shifting.

Delays - Featuring 29 mono and stereo delays, with delay times of up to 4 seconds. Everything from reverse and multi-tap to pitch-shifted and self-oscillating delays.

Reverbs - 33 sophisticated studio-quality effects. From spring and plate reverbs to giant hall and arena reverbs.

Dynamics / Filters - Round out your sound with 44 dynamics and filters such as EQ's, compression, noise reduction, and special effects.

Expanded Controls

The MS-70CDR+ offers expansive parameters for each effect, allowing you to dive deep into tweaking your tone.

Define Your Sound
Use a singular effect or up to 6 simultaneously to create unique tones. Save your creations in one of the 100 patch slots or use the 80 preset patches as inspiration to get you started.

Next Generation Circuitry

Newly designed analogue circuits provide more fidelity for improved sound quality. The flat phase response provides sharp attacks and clean low end.

Everything's Better in Stereo.

The MS-70CDR+ has stereo input jacks that accept signals from passive and active guitars, as well as line-level devices such as synthesizers. Its dual line-level output jacks enable you to record and perform with the MS-70CDR+'s 58 stereo effects.

Soundscapes Are Key

For musicians looking to add lush layers to their synths or keyboards, the MS-70CDR+ provides high-quality effects that are perfect for adding atmosphere and character to your sound.

Change Patches With MIDI

With USB MIDI, you can connect the MS-70CDR+ to other MIDI gear to remotely trigger patch changes.

Enhanced Navigation

Cross Key Switches

The Cross Key switches allow you to instantly switch between effects and patches with a tap of your foot.

Control Knobs

Adjusting and tweaking parameters for each effect can be done with the four encoder knobs.

Colour Coded LCD Screen

The LCD backlight changes colour to make it easier to distinguish each category of effects while scrolling.

Sturdy Build

The MS-70CDR+ is built around a metal frame designed to withstand the rigors of live performances.

Power Options

The MS-70CDR+ runs on 2 AA batteries, USB power or AC power.

Tune-Up

The onboard chromatic tuner uses the colour backlight to give visual feedback to help you tune quickly and accurately. It supports all standard guitar tunings as well as open & drop tunings.

Handy Guitar Lab

With a growing library of patches and effects, guitarists can continue to expand their sound with the Handy Guitar Lab for MS-70CDR+ app for iOS. *Coming Soon to the App Store.

Technical Specifications

Maximum number of simultaneous effects: 6 effects
User patch memories: 100
Sampling frequency: 44.1 kHz
A/D conversion: 24-bit 128× oversampling
D/A conversion: 24-bit 128× oversampling
Signal processing: 32-bit
Frequency response: 20 Hz - 20 kHz (+0.5 dB/-0.5 dB) (when 10kO load)
Display: 160×128 dot-matrix LCD

Inputs L/R
Standard mono phone jacks
Rated input level: -20 dBu
Input impedance (line): 470 kO
Input S/N: 122 dB

Outputs L/R
Standard mono phone jacks
Maximum output level: +7.2 dBu (when output impedance 10 kO or higher)
Noise floor (residual noise) L/R: -100 dBu

Power
AC adapter: 9V DC 500mA centre negative (ZOOM AD-16 optional)
2 AA batteries (alkaline, lithium or rechargeable NiMH batteries)
Estimated operation time using batteries
These values are approximate. Battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.
Alkaline batteries: about 7 hours (about 5 hours using stereo input)
NiMH batteries (1900 mAh): about 6.5 hours (about 5 hours using stereo input)
Lithium batteries: about 14 hours (about 10 hours using stereo input)

USB Port:
USB 2.0 Type-C / Supported cable type: Type-C
Handy Guitar Lab: USB 1.1 Full Speed
Use a USB cable that supports data transfer. USB bus power is supported.

Dimensions: 133 mm (D) × 79 mm (W) × 61 mm (H)
Weight: 368 g (excluding batteries) / 415 g (including batteries)
Note: 0 dBu = 0.775 V

Notes: The Zoom MS-90LP+ is a versatile stereo looper. With the tap of your foot you can add loops, layers, effects and rhythm patterns. And with 32-bit float processing, the MS-90LP+ gives creators flawless audio quality every time.

Notes: The APH-6 is the perfect companion for your Zoom H6 Handy Recorder.

The APH-6 accessory kit for H6 includes:
- RCH-6 wired Remote Controller
- AD-17 USB-type AC adapter
- Hairy Windscreen

Notes: The Zoom G2x Four is a compact, easy-to-use multi-effects processor that offers a huge range of sounds with new amp modelling, multi-layer IR technology and over 100 effects:

Features

22 amp/cabinet models with newly developed multi-layer IR technology
79 guitar effects including boutique pedal modelling
Use of up to 7 effects simultaneously
250 preloaded patches with sounds that recreate guitar sounds from the 50s to today
300 patch memories in total
Additional effects/patches can be installed, edited and saved via the Handy Guitar Lab app for iOS and Android.
Expression pedal lets you control effects such as volume, pitch and wah in real time
Lightweight and compact design that fits in the pocket of your guitar case
80-second looper function
68 rhythm patterns that can be played in sync with the looper
Output EQ for quick adjustment of the overall sound to the playing environment
AUX IN jack for connecting a music player, etc.
Autosave function that automatically saves effect settings
Tuner function that supports open tuning and drop tuning
USB connection for Handy Guitar Lab, 2-in/2-out audio interface and firmware updates
Can be powered via USB bus (computer or power bank) or via the supplied AC adapter (AD-16)

Sounds without end

Using all-new amp modelling and innovative IR technologies, the Zoom G2X Four gives guitarists more sound variations to choose from than ever before. You can create amazing sounds right out of the box.

Comprehensive amp models

The G2X Four takes amp modelling to the next level. Carefully recreated emulations of classic amps are combined with speaker simulations using our new multi-layer IR technology. As a result, guitarists benefit from great sounds and always have the feeling of being on the "big stage", regardless of the environment.

Multi-layer IR

Each amp model is based on Zoom's innovative Multi-Layer IRs, which capture the sound characteristics as well as the feel of classic amps and speaker cabinets. These IRs have been miked at three volume levels through legendary cabinets and can be crossfaded and activated depending on the volume of your guitar.

Historical guitar sounds

Preloaded in the form of 250 presets, these patches were designed to document the sonic evolution of guitar sound. Each patch recreates the sound of a legendary song from the 1950s to the present day.

Brimming with effects

The internal patches include over 100 effects, recreating a wide range of traditional and boutique sounds, from classic spring reverbs to extreme distortion and modulation effects to wah-wah and more. Mix and match up to 7 effects to create your own patches.

Controls

Zoom's new cross-key navigation concept helps you control the pedal with just your feet and make adjustments on the fly. In addition, four endless knobs allow you to quickly adjust effect parameters as well as output settings.

Programming

The redesigned control surface makes it even easier to edit effect parameters, rearrange effect chains, and access the looper and tuner.

The perfect addition to your pedalboard
The G2X Four's compact design and diverse effects selection make it a powerful addition to any existing pedalboard.

Optimised for amps, monitor speakers and headphones

The G2X Four is designed to connect to guitar amps, studio monitors, PAs and headphones. After switching on, set up the G2X Four perfectly for your setup by selecting between LINE and AMP.

Looper

Use the built-in 80-second looper for songwriting or enhance your performance with additional sound layers.

Play to the beat

Play along to any of the 68 beats on the built-in rhythm machine. This rhythm section is the perfect accompaniment when practising, whether it's metal, blues or any other genre.

Express yourself

The G2X Four features an expression pedal for controlling volume, wah-wah and more.

Audio interface

Record at home or in the studio with your favourite effects and amp models by connecting the G2X Four to your computer via USB-C.

Guitar lab

Thanks to the ever-growing library of patches and effects, every guitarist can expand their sound selection via the Guitar Lab app (for iOS / Android).

Notes: The Zoom G2 Four is a compact, easy-to-use multi-effects processor that offers a huge range of sounds with new amp modelling, multi-layer IR technology and over 100 effects:

Features

22 amp/cabinet models with newly developed multi-layer IR technology
79 guitar effects including boutique pedal modelling
Use of up to 7 effects simultaneously
250 preloaded patches with sounds that recreate guitar sounds from the 50s to today
300 patch memories in total
Additional effects/patches can be installed, edited and saved via the Handy Guitar Lab app for iOS and Android.
An external expression pedal can be used to control effects such as volume, pitch and wah in real time
Lightweight and compact design that fits in the pocket of your guitar case
80-second looper function
68 rhythm patterns that can be played in sync with the looper
Output EQ for quick adjustment of the overall sound to the playing environment
AUX IN jack for connecting a music player, etc.
Autosave function that automatically saves effect settings
Tuner function that supports open tuning and drop tuning
USB connection for Handy Guitar Lab, 2-in/2-out audio interface and firmware updates
Can be powered via USB bus (computer or power bank) or via the supplied AC adapter (AD-16)

Sounds without end

Using all-new amp modelling and innovative IR technologies, the Zoom G2 Four gives guitarists more sound variations to choose from than ever before. You can create amazing sounds right out of the box.

Comprehensive amp models

Zoom G2 Four takes amp modelling to the next level. Carefully recreated emulations of classic amps are combined with speaker simulations using our new multi-layer IR technology. As a result, guitarists benefit from great sounds and always have the feeling of being on the "big stage", regardless of the environment.

Multi-layer IR

Each amp model is based on Zoom's innovative Multi-Layer IRs, which capture the sound characteristics as well as the feel of classic amps and speaker cabinets. These IRs have been sampled at three volume levels through legendary cabinets and can be crossfaded and activated depending on the volume of your guitar.

Historic guitar sounds

Preloaded in the form of 250 presets, these patches were designed to document the sonic evolution of guitar sound. Each patch recreates the sound of a legendary song from the 1950s to the present day.

Brimming with effects

The internal patches include over 100 effects, recreating a wide range of traditional and boutique sounds, from classic spring reverbs to extreme distortion and modulation effects to wah-wah and more. Mix and match up to 7 effects to create your own patches.

Controls

Zoom's new cross-key navigation concept helps you control the pedal with just your feet and make adjustments on the fly. In addition, four endless knobs allow you to quickly adjust effect parameters as well as output settings.

Programming

The redesigned control surface makes it even easier to edit effect parameters, rearrange effect chains, and access the looper and tuner.

The perfect addition to your pedalboard
The G2 Four's compact design and diverse effects selection make it a powerful addition to any existing pedalboard.

Optimised for amps, monitor speakers and headphones
The G2 Four is designed to connect to guitar amps, studio monitors, PAs and headphones. After switching on, you set up the G2 Four perfectly for your setup by selecting between LINE and AMP.

Looper

Use the built-in 80-second looper for songwriting or enhance your performance with additional sound layers.

Play to the beat

Play along to any of the 68 beats on the built-in rhythm machine. This rhythm section is the perfect accompaniment when practising, whether it's metal, blues or any other genre.

Audio interface

Record at home or in the studio with your favourite effects and amp models by connecting the G2 Four to your computer via USB-C.

Guitar lab

Thanks to the ever-growing library of patches and effects, every guitarist can expand their sound selection via the Guitar Lab app (for iOS / Android).

Notes: The Zomo VS-Box 200 is a practical way to store your vinyl in a stylish and efficient way.

The VS-Box 200 is made of solid wood and laminated with tough water-repellent decor. This model is easy to install, multi-stackable and can be combined with other VS-Boxes. The Box is also compatible to vinyls in protection covers. The capacity can be various by the thickness of your vinyl.

Notes: The Zomo VS-Box 7/100 is a practical way to store your vinyl in a stylish and efficient way.

The Zomo VS-Box 7/100 is made of solid MDF (Medium Density Fibreboard) and laminated with tough water-repellent decor. This model is easy to install, multiple stackable and can be combined with other VS-Boxes. The Box is also compatible to vinyls in protection covers.

The capacity can vary by the thickness of your vinyl.

Sheer genius and totally cool! It's ZOMO!

Notes: The Zomo VS-Box 200 is a practical way to store your vinyl in a stylish and efficient way.

The VS-Box 200 is made of solid wood and laminated with tough water-repellent decor. This model is easy to install, multi-stackable and can be combined with other VS-Boxes. The Box is also compatible to vinyls in protection covers. The capacity can be various by the thickness of your vinyl.

Notes: The Zomo VS-Box 100/1 is a practical way to store your vinyl in a stylish and efficient way.

The Zomo vinyl box is made of sturdy MDF wood and laminated with tough water-repellent dekor. This model is easy to assemble and can be combinated with other VS-Boxes. The box is also compatible with vinyls with protective covers.

The capacity can variate by the thickness of your vinyl.

Technical Data

Dimensions: 360 (W) x 260 (H) x 335 (D) mm
Internal dimensions: 330 (W) x 260 (H) x 320 (D) mm
Weight: 2,5 kg
Format: LPs
Capacity: 100-150
Material: Wood

Notes: The Recordcase Vinyl Stabilizer gets the most out of your record collection. The VS-10 is mounted on the middle of the turntable. Thanks to its high dead weight, it stabilizes the record and ensures a smoother run and an improvement in sound quality. The integrated spirit level allows the optimal alignment for the best run of the record.

No matter whether in loud environments where the bass vibrations interfere with the optimal reproduction of the record or at home to optimize the audio quality. The Disk Stabilizer is an indispensable tool for DJs and music enthusiasts and should not be missing in any setup.

Technical data:
Weight: 290 gram

Notes: The Zomo 7 inch single sleeves keep your sensitive record covers in good condition for many years. Of course, the protective covers can also be used as pure vinyl storage. Essential for record stores and collectors and ideal for DJs.

The sleeves are an inexpensive and space-saving way to archive or transport 7 inch singles and their covers. Large quantities of the popular data carriers can be stored in cases or bags in the smallest of spaces and can be carefully archived!

Features:

For the preservation of 7 inch single record covers or for vinyl storage
Set with a total of 100 pieces
Colour: transparent
Poly flat bags
Technical specifications
Material: 100% polypropylene
Protective covers dimension: 182 x 187 x 0.05 mm

Notes: The Zomo VS-Box 7/200 is a practical way to store your vinyl in a stylish and efficient way.

The Zomo VS-Box 7/200 is made of solid MDF (Medium Density Fibreboard) and laminated with tough water-repellent decor. This model is easy to install, multiple stackable and can be combined with other VS-Boxes. The Box is also compatible to vinyls in protection covers.

The capacity can vary by the thickness of your vinyl.

Sheer genius and totally cool! It's ZOMO!

Notes: The Zomo VS-Box 50 is a practical way to store your vinyl in a stylish and efficient way.

The Zomo VS-Box 50 is made of solid wood and laminated with tough water-repellent dekor. This model is easy to install, multi-stackable and can be combined with other VS-Boxes. The Box is also compatible to vinyls in protection covers. The capacity can be various by the thickness of your vinyl.

Notes: The replacement pad set made of velour is available in many fashionable colours and fits the headphones Sennheiser HD25, HD25-13, HD25 SP, HMD25, HME25, HMEC25 and AKG K518. 2 x ear pads and 2 x head pads (self-adhesive) can be mounted in a few moments.

With this earpad set you can give your headphones an individual touch and make them look like new again very quickly after a little more use. In addition, you can be sure that your professional Sennheiser DJ headphones will retain their value and look perfect.

Velour cushions are very comfortable to wear, even if it gets a little hotter and the "normal" cushions drip with sweat.

- Material: Velour (100% Polyester)
- Weight: 18 g

*** Please note: the headphones are not included, they are shown for demonstration purposes only. ***

Notes: Finally it's here! The new cable for the Sennheiser HD-25 headphones. This spiral cable in different colours is an absolute eye-catcher and enhances your HD-25 visually. It's not standard, but it makes your headphones special.

This will make your Sennheiser HD-25 unique and stand out from the crowd!

The cross-section of the spiral cable is also thicker than conventional cables, which brings technical and optical advantages.

Fits the following Sennheiser headphones
Sennheiser Sennheiser HD25
Sennheiser HD25-13
Sennheiser HD25 II
Sennheiser HD-25-13 II
Sennheiser HD25 C II
Sennheiser HD25-1 II

Details

Length: 3,5m
3,5 mm stereo jack plug incl. 6,3mm adapter

Gold-plated connections
Connection of cable 1: 1x 3.5mm Jack
Connection of cable 2: special (Sennheiser HD 25)
Cable length: 3.5 m

Notes: The Zomo LP Sleeves Fine 85 are a space saving and convenient possibility to transport or archive your LP collection. You can store or file a large quantity of vinyl in a bag or case because of the slim sleeves, inasmuch the sleeves are protecting your LPs and covers perfectly against every damage. The Zomo LP-Sleeves are keeping your Vinyl covers in good shape permanently.

It's a prerequisite for recordstors and favorably for DJs.

Features
Colour: transparent
For conserving or archiving Vinyl
Poly flat bag
Material: 100% polypropylene

Technical Data
100 pieces
Sleeve Size : 325 x 325 x 0,10 mm
Pack Size : 325 x 325 x 25 mm
Weight: 1,66 kg

Notes: The Zomo Earpad set made of synthetic leather is suitable for the headphones Sennheiser HD25, HD25-13, HD25 SP, HMD25, HME25, HMEC25 and AKG K518. The set includes 2 x Earpads and 2 x Headpads(self-adhesive) and can be mounted in a few seconds.

With this set you can give an old headphone a new look within seconds. Also you can save the stable value and the great look of your professional Sennheiser DJ headphones.

Features:

Material: PUE (100% Polyurethane)
Colour: red
Weight: 18 g

Suitable for the following headphones
Sennheiser HD25
Sennheiser HD25-13
Sennheiser HD25 SP
Sennheiser HMD25
Sennheiser HME25
Sennheiser HMEC25
AKG K518

Notes: The Zomo Earpad set made of synthetic leather is suitable for the headphones Sennheiser HD25, HD25-13, HD25 SP, HMD25, HME25, HMEC25 and AKG K518. The set includes 2 x Earpads and 2 x Headpads(self-adhesive) and can be mounted in a few seconds.

With this set you can give an old headphone a new look within seconds. Also you can save the stable value and the great look of your professional Sennheiser DJ headphones.

Features

Material: PUE (100% Polyurethane)
Colour: white
Weight: 18 g

Suitable for the following headphones
Sennheiser HD25
Sennheiser HD25-13
Sennheiser HD25 SP
Sennheiser HMD25
Sennheiser HME25
Sennheiser HMEC25
AKG K518

Notes: If you've worn out the earpads or headband on your Sennheiser headphones, then browse through Juno's special products section and track down the replacement part.

Notes: The Zomo Earpad set made of velour in many colours is suitable for the headphones Technics RP-DJ1200 and RP-DJ1210. With these pads you can leave a creative note on your headphones and you can give an old headphone a new look within seconds.

Also, you can save the stable value and the great look of your professional Technics DJ headphones. Velour Earpads are very comfortable to wear even if it's getting hotter and the normal earpads are full of sweat.

Features:

Perfect fit
Simple mounting
Comfortable velour material
Comfortable to wear for hours

Technical data

Material: Velour (100% Polyester)
Weight: 18 g
Suitable for
Technics RP-DJ1200
Technics RP-DJ1210

** The illustrated or mentioned headphones are not included in delivery.

Notes: The Zomo carbon fiber brush VBC-01 is the perfect way to clean your vinyl without electrostatic charge. A gentle brush with the microniser prior to record playing enables a million tiny filaments to discharge the harmful deposits from the grooves and bring a new dimension to record care.

Notes: ***B-STOCK: Box opened, product in perfect working order***


The Zomo Earpad set made of velour in many colours is suitable for the headphones Technics RP-DJ1200 and RP-DJ1210. With these pads you can leave a creative note on your headphones and you can give an old headphone a new look within seconds.

Also, you can save the stable value and the great look of your professional Technics DJ headphones. Velour Earpads are very comfortable to wear even if it's getting hotter and the normal earpads are full of sweat.

Features:

Perfect fit
Simple mounting
Comfortable velour material
Comfortable to wear for hours

Technical data

Material: Velour (100% Polyester)
Weight: 18 g
Suitable for
Technics RP-DJ1200
Technics RP-DJ1210

** The illustrated or mentioned headphones are not included in delivery.

Notes: With the Zomo Flightcase D-Live-2 NSE, you expand your DJ gear with a reliable partner that securely houses and stylishly showcases your Denon DJ SC Live 2 DJ controller. This high-quality flight case stands out for its robustness and elegance, and it belongs to the trendy NSE series - Night Style Edition, which is known for its unique aesthetics and durability.

As the ultimate protector for your DJ controller, the D-Live-2 NSE flight case takes on any challenge, whether you're traveling by car or flying. These resilient cases are ready to face any challenge and keep your valuable equipment safe from the harshest stage conditions.

Constructed from 9mm thick laminated plywood, this flight case offers an extra dose of stability. It withstands shocks, scratches, and effortlessly meets the demands of touring life. Sturdy ball corners and particularly robust, black lacquered aluminium profiles complete the durable construction and give the case an attractive and long-lasting aesthetic.

The handling of the D-Live-2 NSE flight case is incredibly easy. Before every performance, you can quickly and effortlessly remove the lid and front panel, even when the DJ controller is still inside the case. You'll always be ready to go and can fully focus on your performance.

The Zomo flight case not only excels in terms of practicality but also boasts an attractive appearance. The elegant NSE edition in black immediately catches the eye and enhances your professionalism. The convenient butterfly latches ensure secure handling by enabling easy opening and closing of the lid.

You can rely on high durability and optimal fit, providing your DJ controller with the space it deserves - safe, protected, and stylish.

Features of Zomo Flightcase D-Live-2 NSE:

Perfect fit: The Zomo Flightcase D-Live-2 NSE is tailor-made for the Denon SC Live 2 to ensure optimal protection and precision fit. Your DJ controller is always safe and well-protected.

High-quality construction: The flight case is made of laminated 9mm plywood, guaranteeing a robust and durable structure. It withstands both shocks and scratches.

Additional protection with interior padding: Interior padding protects your DJ controller from damage and unwanted influences, providing a secure and protected storage space.

Quick and easy access: The lid and front panel of the flight case can be quickly and easily removed, even when the DJ device is still inside the case. Ideal for quick access before and after performances.

Elegant and eye-catching design: The Zomo flight case captivates with its elegant design in the black NSE edition, drawing all attention and emphasizing your professionalism as a DJ.

Robust butterfly latches: They ensure a secure closure of the flight case while remaining easy to use. They also offer the option to attach an optional lock for additional security.

Transport-friendly: Integrated handles make it easy and comfortable to transport the flight case.

High lifespan: The flight case's sturdy ball corners provide additional protection against shocks and vibrations, contributing to its high lifespan.

Technical Specifications:

Suitable devices: 1x Denon DJ SC Live 2
Exterior material: 9mm plywood
Colour: Black (NSE)
Weight: 11.3 kg
Exterior dimensions: 716 (width) x 483 (depth) x 206 (height) mm
** The devices shown and/or mentioned in the photos are NOT included!

Suitable devices: Denon DJ SC Live 2
Suitable brands: Denon
Laptop shelf included: No

Notes: With the Zomo Flightcase D-Live-4 NSE, you can expand your DJ gear with a reliable partner that securely accommodates and stylishly showcases your Denon DJ SC Live 4 DJ controller. This high-quality flight case stands out for its robustness and elegance and belongs to the trendy NSE Series - Night Style Edition, which is renowned for its unique aesthetics and durability.

The Flightcase D-Live-4 NSE is the perfect shield for your DJ controller, whether you're traveling by car or air. These resilient cases are ready to face any challenge and protect your valuable equipment from the toughest stage conditions.

The flight case is made from 9mm thick laminated plywood, providing extra stability. This material safeguards against impacts and scratches, effortlessly withstanding the demands of touring. The sturdy construction is further enhanced by robust ball corners and specially reinforced, black lacquered aluminum profiles that ensure long-lasting durability while adding an attractive appearance to the case.

The Zomo Flightcase D-Live-4 NSE is incredibly user-friendly. The lid and front panel can be quickly and easily removed before each gig, even with the DJ controller still inside the case. This allows you to be ready for action at any time and focus entirely on your performance.

Not only does the Zomo Flightcase excel in practicality, but it also boasts an impressive visual appeal. Its elegant NSE Edition in black is a true eye-catcher that commands attention and emphasizes your professionalism. The case features convenient butterfly latches for secure handling, allowing for easy opening and closing of the lid.

You can rely on its high durability and optimal fit, ensuring your DJ controller receives the placement it deserves-secure, protected, and stylish.

Zomo Flightcase D-Live-4 NSE Features

Perfect fit: Custom-made for the Denon SC Live 4, the Zomo Flightcase D-Live-4 NSE provides optimal protection and a snug fit, keeping your DJ controller safe and well-protected.
Premium construction: Crafted from laminated 9mm plywood, the flight case offers a robust and durable structure that withstands both impacts and scratches.
Additional protection through interior padding: Soft interior padding safeguards your DJ controller from damage and unwanted influences, providing a secure and protected storage space.
Quick and easy access: The lid and front panel of the flight case can be quickly and easily removed, even with the DJ device still inside the case. This is ideal for fast access before and after performances.
Elegant and eye-catching design: With its sleek design in the black NSE Edition, the Zomo Flightcase captures attention and highlights your professionalism as a DJ.
Sturdy butterfly latches: These ensure a secure closure of the flight case while remaining easy to use. They also provide the option to attach an optional lock for additional security.
Transport-friendly: Integrated handles make the flight case easy and comfortable to transport.
Long lifespan: The flight case's sturdy ball corners offer additional protection against impacts and vibrations, contributing to its extended lifespan.

Technical Specifications

Compatible devices: 1x Denon DJ SC Live 4
Exterior material: 9mm plywood
Colour: Black (NSE)
Weight: 13.7 kg
Exterior dimensions: 716 (width) x 501 (depth) x 206 (height) mm
