エフェクト・ペダル

Notes: Reach Infinity

Let's dive into a Black Hole!

The Black Hole Symmetry is a Modulated Delay / Pitch shifted Reverb / Destruction Fuzz pedal.

Travel through the Ergosphere, the Event Horizon and the Singularity. The 3 parts of the pedal which can be played together or separetely.

Each pedal is designed, assembled, tested and numbered by hand in the Collision Devices workshop in France.

The B.H.S. has a lifetime warranty.

3 effects, one pedal

Singularity

Destruction Fuzz
The single setting "Disintegrate" allows you to raise your sound.
Forget the fact that your drummer plays loudly.
Settings :
Desintegrate : Volume setting with a huge fuzz.
Protect your ears please.

Event horizon
Pitch shifted Reverb
Long reverb based on the FV1 chip.
Harmonizes the reverb signal with a pitch shifter.

Settings:
Mix: Proportion of wet signal in the mix
Echo: Echo time (max 15s)
Radiancy: Proportion of pitch shifter in the echo signal
Pitch: Shifts the pitch of the note

Ergosphere
Modulated Delay
Based on the PT2399 chip to have a warm echo.
The echo signal is modulated by two oscillators.

Settings:
Mix: Proportion of wet signal in the mix
Time: Time between each repetition (From 0s to 1s)
Feedback: Number of repetitions
Modulation: Proportion of modulation in the delay signal
Speed: Speed of the main oscillator
Trimmer: Speed of the triangle oscillator

Specifications

Maximum current draw: 250 mA
Input Impedance: 1 MOhm
Size: 186 x 119 x 56mm

The use of an isolated power supply is recommended for powering all Collision devices Pedals.

Power supply not included.

The pedal is true bypass

Lifetime warranty

Voltage: +9V DC (negative center)
Output Impedance: 1 KOhm
Weight: 200 grams

Notes: Harvezi Hazze is a versatile and unique distortion pedal with a wide tonal palette.

The heart of Harvezi Hazze is a waveshaper designed around a unijunction transistor, a relic from the early days of the semiconductor industry unearthed from the e-waste bins of flea markets in Tbilisi, Georgia.

The unique properties of the unijunction transistor allow one simple component to replace a number of very complex devices: depending on the operating mode, we can get a distortion, a limiter, a waveshaper and a generator - with a smooth transition between them. Experiments have shown that this transistor is an excellent basis for a distortion stompbox.

The name translates from Georgian as "a fault on the transmission line" or "signal jamming", and both the semantic and phonetic natures of it unequivocally imply what to expect - an impediment to the input signal, ranging from pleasant harmonic distortions to complete obliteration. The signal chain of the unit consists of an optical compressor with fixed parameters; a dual-mode distorting amplifier with either softer or harsher clipping; a waveshaper built around a unijunction transistor; and a tone stack section trying to tame all this mess.

Signal Chain:

Input -> Compressor -> Distorting amplifier -> Waveshaper -> Tone stack -> Output

Controls:

Gain - controls the output amplitude of the signal in the distorting amplifier section. Depending on the position of the switch, the distortion introduced by this section is soft (switch in the left position) or more aggressive with an abundance of high harmonics (middle position).

Spoil and Spread - control the operation of the unijunction transistor (waveshaper section). Spoil sets the point on the amplitude axis at which the wave will fold, and Spread sets the amplitude of the folding. The sonic meaning of these knobs can be described as follows: the higher the Spread value, the more severe the distortion will be, and Spoil changes timbre and response threshold. By adjusting Spoil you can achieve various gating and cutoff effects. At low Spread values, distortion sounds are mixed into the clean sound.

Tone - adjusts the brightness of the sound; the higher the value, the more high harmonics are present in the signal.

The switch regulates either the distortion mode in the amplifier section (left and center positions), or it turns on the total feedback mode (right position), when the values of all knobs begin to influence each other and effects occur such as resonance at certain frequencies and self-oscillation.

Level - controls the output volume of the signal.

The footswitch routes the signal through the effect circuitry or from input to output directly (true bypass).

The array of switches on the side of the unit gives a few more tonal options:

TONE STACK - routes the signal through the tone stack section (Tone knob).

BASS BOOST - enhances bass frequencies.

TONE MODE - changes the behaviour of the Tone knob (tilt or lowpass).

NOTCH FREQ - changes the central frequency of the filter.

HIGH CUT - attenuates high frequencies.

COMPRESSOR - routes the signal through the compressor.

The lower position of the switch enables the function.

Examples:

Compression:

Switch in the central position, Spoil, Spread, Gain - min, Tone - 12 o'clock.

TONE STACK - on. BASS BOOST - on, TONE MODE - off, NOTCH FREQ - off, HIGH CUT - off, COMPRESSOR - on.

Soft clipping:

Switch in the left position, Spoil, Spread - min, Tone - 12 o'clock, Gain - 2 o'clock.

TONE STACK - on. BASS BOOST - on, TONE MODE - off, NOTCH FREQ - on, HIGH CUT - off, COMPRESSOR - on.

Distortion:

Switch in the middle, Spoil, Spread - min, Tone - 1 o'clock, Gain - max.

TONE STACK - on. BASS BOOST - on, TONE MODE - off, NOTCH FREQ - off, HIGH CUT - off, COMPRESSOR - off.

Fuzz:

Switch in the left position, Spoil - 1 o'clock, Spread - max, Tone - 11 o'clock, Gain - 10 o'clock.

TONE STACK - on. BASS BOOST - on, TONE MODE - on, NOTCH FREQ - off, HIGH CUT - off, COMPRESSOR - on.

Black:

Switch in the left position, Spoil - 12 o'clock, Spread - 1 o'clock, Tone - 3 o'clock, Gain - 3 o'clock.

TONE STACK - on. BASS BOOST - off, TONE MODE - off, NOTCH FREQ - off, HIGH CUT - off, COMPRESSOR - off.

Feedback:

Switch in the right position, Spoil - 11 o'clock, Spread - 4 o'clock, Tone - 2 o'clock, Gain - 9 o'clock.

TONE STACK - on. BASS BOOST - on, TONE MODE - off, NOTCH FREQ - off, HIGH CUT - off, COMPRESSOR - on.

Technical specifications:

Input - 1/4-inch/6,35mm mono jack.

Input impedance - 750 kOhm.

Output - 1/4-inch/6,35mm mono jack.

Output impedance - 100 Ohm

True bypass.

Power - DC 9V, 50mA, DC jack 2.1mm, centre negative.

Notes: Based on Mooer's extensive experience producing looper pedals, the GL100 offers affordable, powerful dual looping options and drum machine features. Two foot switches provide hands-free control for guitarists and keyboard players.

Supplier's Notes:
Throughout MOOER's track record of producing electric guitar pedals, the company has put a lot of its innovative prowess into its range of loop pedals, including 2023's VP3 Loopation. Ever since, MOOER's engineers have been hard at work designing the GL100, a feature-packed dual-footswitch stereo phrase looper and drum machine that has far more on offer than its younger looper siblings.

Perhaps the most impressive upgrade that MOOER has integrated into the GL100 is the sheer amount of looping time that this pedal can provide. In total, the pedal supports 300 minutes of looping time, all of which can be manually or automatically saved into 100 different storage slots.

The two footswitches are the primary means for controlling this feature, used through short presses and holds to trigger phrase recording, playback, overdubs, cancellations, and, most impressively, undo and redos. Most importantly, the pedal's position-jumping function gives users the flexibility to switch between storage slots with the footswitches while performing, providing them with the potential to perform fully structured loop-based music.

In synchronization with the phrase looper, users of the GL100 can also leverage the pedal's integrated drum machine, which contains 11 variations of 20 different drum pattern styles in various time signatures. Ultimately, this ensures that just about every musical genre is covered, regardless of whether it's for music performance, rehearsals, or simply experimenting at home. It's very simple to use, being triggerable with the device's footswitches, editable through the touchscreen, and, of course, tap-tempo synchronisable. Four different stop modes are also provided to facilitate perfect drum machine endings. More still, for the first time, MOOER has integrated its AI Band Technology feature, an intelligent accompaniment system that automatically matches suitable drum patterns based on the character of real-time guitar input, facilitating control-free synchronization.

Notably, MOOER has also made a serious effort to ensure that it is easy to record the perfect loop with the GL100. For example, the count-in function is very easy to use, as is the auto-record feature, which allows users to capture perfect loops by triggering it based on signal detection, preventing the need for perfectly timed footswitch presses. Better still, this signal detection feature can be toggled on or off with a single button press, and the signal threshold is easily adjustable, helping to support instruments of varying signal ranges.
A simple footswitch press also primes the pedal for various drum synchronization features, triggering the drum pattern to stop after one bar, repeat, or reset the looper, making it easy to perfect the loop's ending and creation-not just the beginning. To aid in this, an internal quantizer function is active to ensure that users always trigger and stop recording perfectly, even if they are slightly late with the footswitch press. Better still, the phrase looper even has a time-stretch feature, facilitating the changing of the tempo of a recorded loop but without changing the pitch, allowing any loop to sync perfectly, in key, with the drum machine.

As with any other MOOER product, the team's designers have really pushed the boundaries when it comes to the user experience. Despite packing so many features into such a small device, MOOER's signature multi-purpose footswitches, dials, and, most notably, touchscreen have all been integrated into this pedal to ensure users can squeeze as much dynamic use out of it as possible. A perfect example of this is how users have two different ways to browse through their phrase loop creations-both through using the pedal's menu encoder and by pressing and holding the footswitches, enabling dynamic looping control and real-time phrase selection without needing to stop playing the guitar.

Furthermore, the GL100 also stands out from MOOER's past loop stations for its flexible audio routing functionalities. As you would expect from a modern looping pedal, stereo input, and output are provided, but these inputs and outputs can be used with different amplifiers or instruments depending on the routing settings, allowing performers to coordinate complex loop phrases and drum patterns together in a coherent and sonically diffused manner. This includes mono connections, dual-channel connections, and even the isolation of both drum machine and instrument channels.

Finally, the GL100 comes with its own MOOER Studio software, compatible with both Windows and iOS, which users can use to save, export, import, and delete phrase recordings, expanding the device's storage capabilities. This same software can also be used to download firmware upgrades to the device when available and to complete a factory reset if ever necessary. Overall, this pedal combines an expanded showcase of MOOER's impressive looper and drum machine functions, along with a focus on innovative user experience, convenient performance flexibility, and, most importantly, accessibility to create the perfect loop from start to finish.

2 x 1/4" mono input and output jacks
1 x 1/8" stereo headphone jack
Sample rate: 44.1kHz
Sample depth: 24 bit
Export file format: .wav
9V 300mA power supply (included)
Weight: 200g

Notes: Last year in 2023, MOOER released its Prime Stomp S1 multi-effects pedal, to great critical acclaim. The device expanded on MOOER's previous pedalboard creations, applying a more sleek, lightweight, and, most importantly, chargeable design. Now, the company is turning heads once again with the Prime Minimax M1, an upgraded device that improves functionality not only for electric guitarists, but for bassists too.

Packed inside the Prime Minimax M1 are 149 high-quality effect models across 10 banks, each of which contains 4 patches. These include amp and cabinet simulations and overdrives, along with dynamic, modulation, delay, reverb, and EQ effects, as well as empty user slots. Most notably, though, 20 of the amp and cabinet simulations have been curated specifically for bass guitarists, showing MOOER's dedication to providing support for this additional audience.

As with the Prime Stomp S1 and other recent MOOER multi-effects pedals, the Prime Minimax M1 is supported by the MOOER Cloud, a cutting-edge framework for preset sharing. Not only does this allow guitarists to customize and share their favourite M1 creations via the Bluetooth-compatible MOOER Prime app, but it also supports the importing of third-party IR files of up to 512pts. As a result, the 149 built-in effects are greatly expanded, with users able to simulate their favourite classic amplifiers, cabinets, and tones, whether they have downloaded them online or recorded the IRs themselves.

Taking an all-in-one approach to guitar practice and performance, the M1 also includes a built-in drum machine, complete with 40 different drum grooves and 10 metronomes. This goes hand-in-hand with the 80-second looper, with which guitarists can record electric and bass guitar phrases, play them back, and overdub them, all with simple footswitch presses. The looper can even be triggered automatically through signal detection, ensuring that loops always begin perfectly to form a perfect loop. Moreover, the looper can also be synced with the drum machine, a combination of which results in an all-in-one suite for songwriting.

Rather than the four footswitches found on the Prime Stomp S1, the Minimax M1 features just two footswitches, facilitating a more compact and streamlined design. Each footswitch is multi-functional, supporting a variety of tasks, such as browsing preset slots, triggering loop recordings, activating the device's built-in tuner, the tap tempo functionality, and interacting with the drum machine. The status and information of these features are visualized through the device's LED screen, along with indicators for Bluetooth activation, charging, battery life, and footswitch status. Two buttons are also provided-one to activate the drum machine and another for the device's power toggle.

In contrast to MOOER's recent flagship device, the GE1000 Li, the Prime series focuses heavily on portability and compactness. Weighing up at just 190g and 12cm in length, the Minimax M1 can fit comfortably into any backpack and most pockets, facilitating on-the-go guitar practice and performance. To add to this convenience, the M1 can be charged by USB through its built-in 2000mAh lithium battery. As a result, with the device's portability, guitarists can truly use this multi-effect pedal anywhere, anytime.

Continuing MOOER's reputation for providing flexible audio routing options, the design of the Prime Minimax M1 inputs and outputs are varied. Of course, the usually 14" mono input and 14" stereo output are available, as well as the 3.5mm output for headphone practice and monitoring. However, further options are available, such as Bluetooth 5.0 support for audio playback, allowing users to stream audio from another device to play along with. The device's USB-C port can even be used for OTG recording, allowing users to record their creations directly into the MOOER Prime mobile app.

Overall, the Prime Minimax M1 is yet another welcome addition to the pedal producer's range of multi-effects pedals. In particular, it marks a new level of portability for MOOER's device portfolio, showing just how much functionality its design team can pack into such a small box.

Notes: The Larva is a 6-stage analog phaser with a built-in preamp and morphing capabilities. It offers two phaser settings, letting you easily switch between different sounds or morph between them for unique transitions. Whether used as a classic phaser, a vibe pedal, or just a preamp, the Larva delivers versatility and creative possibilities, always with the Beetronics unique signature.

The interface is intuitive and simple, yet the pedal can produce a huge amount of sounds and movements unique to this phaser. A bar of LEDs tracks the ramp movement, showing if you're in phase one or two, while the bypass LED doubles as a meter to monitor preamp distortion.

As our first phaser, the Larva brings together a large swathe of creative options with a streamlined, user-friendly design-modulation sweetness with a touch of gain.

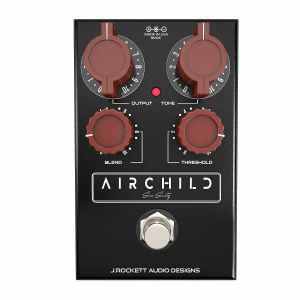

Notes: The Fairchild 660 studio compressor is consistently regarded as the best compressor ever made. For years, the original Fairchild 660 and 670 (Stereo) compressors have been extensively used in studios. This inspired J. Rockett to offer that sonic signature to the guitar community at a fraction of the $30k+ price tag.

The typical guitar compressor is the "Dynacomp", which has created iconic tones throughout the history of music, especially in Country music. That said, it's widely acknowledged that there are already countless Dynacomp variants available.

"The 'typical Dynacomp circuit' tends to crush the sound more like a limiter. This characteristic has cemented its sound into certain genres of music, which some may find desirable.

The Team at J. Rockett aimed to provide a compressor that works like a studio compressor, enhancing harmonic richness and evening out transients without crushing the entire spectrum.

The Airchild Six Sixty simply makes you want to play more. It increases sustain without crushing your output, imparts richness to your overall tone, and adds feel to your playing. The target tones were the slide tones of Lowell George and the singing lead/rhythm tones of Mark Knopfler.

The Fairchild 660 Compressor was designed by Rein Narma, who had worked with Les Paul to build a recording mixer for use with Les Paul's Ampex 8-track. Les Paul asked Narma if he would build a compressor/limiter. Sherman Fairchild, who was friends with Les Paul, learned of the compressor and licensed Narma's compressor design, hiring Narma to be chief engineer at Fairchild Recording Equipment Corporation. The first 10 Fairchild 660's were built by Narma himself. The first unit was sold to Rudy Van Gelder who used it to cut lacquer masters for Blue Note Records and Vox Records. The second unit went to Olmsted Sound Studios in New York City and the third 660 built went to Mary Ford and Les Paul.

Notable users: Abbey Road Studios purchased 12 Fairchild 660s after staff engineer Peter Bown heard it during a visit to Capitol Records in America. They used it on recording sessions for the Beatles, primarily for vocals. Beginning in 1966, Geoff Emerick began using the 660 on Ringo Starr's drum tracks as well as piano and guitar tracks. As of 2014, Abbey Road still had 8 of the original 660s purchased in the 1960s.

"We put the drum sound through Fairchild 660 valve limiters and compressors. It became the sound of Revolver and Sgt Pepper really. Drums had never been heard like that before." (Geoff Emerick)

Compressors are probably the most misunderstood effect that also have incredible impact on the delivery of music. There is not a professional recording in history that does not have some sort of compression. Gain is a form of compression, even EQ is a form of compression.

A compressor is used to reduce a signal's dynamic range-that is, to reduce the difference in level between the loudest and quietest parts of an audio signal.

Compression is commonly used to attenuate loud transient peaks (e.g., when a singer suddenly belts out a high note or a guitar player digs in to a note with muscle) compression helps maintain a consistent level. Compression essentially causes distortion in a signal, in that it changes the original sound of the signal through its processing. The compressor typically achieves this by emphasizing certain harmonics based on how the compressor is hitting the incoming signal. The job of this peda;l is to make that distortion feel transparent and to use dynamics to create the best-sounding performance possible. Use your ears!

In compression, the dynamic range becomes narrower - the highest peaks and the quietest parts have fewer dB of level difference between them. In contrast, a compressor can also help support or bring to life soft notes as well. For guitar, compression helps with sustain and feel. Using compression in front of an amp with gain or a gain pedal essentially just adds more compression and is typically not very audible. A good compressor will help sustain notes without introducing noise or artifacts in an amp or pedal with gain but typically works best in a clean amp to hear the effect. You will typically hear compression on country guitar, at least as an audible full throttle effect. Most players do not utilize this sound because a squished signal limits dynamics, however, if used correctly it can increase dynamics across the board. One of the best descriptions about compression is that it is the opposite of reverb. If you think about that it is true. Compression brings the full dynamic force forward in a balanced manner where Reverb creates space and distance.

Notes: The Qi Etherealizer (pronounced "chee ethereal-izer"), a collaborative creation with Yvette Young, is a multi-effects pedal that combines Chorus, Delay, Granular effects, and, of course, Reverb, into a creative playground for atmospheric exploration.

Known for her innovative and explorative fingerstyle playing technique, love of guitar pedals, and leadership of the math rock band Covet, the Qi reflects her approach to creating lush, evolving soundscapes. Named after the vital life energy that flows through all living things, the Qi is designed to deliver rich textures, expansive atmospheres, and dynamic layers. By blending Yvette's artistic vision with cutting-edge design, the Qi opens the door to immersive, otherworldly sounds.

The Qi allows you to mix and match the chorus, delay, and grain and run in series or parallel to create your own inspiring universe of possibility in a stereo field. With the ability to save presets and bypass the chorus, delay, and grain controls, you can quickly and instantly change settings by simultaneously pressing the Bypass and Freeze stomp switches. Go from a traditional chorus with a little bit of delay, or go all in and let the Qi take over with unexplainable washes of glitchy and lush ambiance. Whatever your style is, the Qi will give it a new life.

The Qi is the first creation to emerge from Walrus' groundbreaking proprietary digital processing platform, MDSP. Designed in-house by their talented engineering team, MDSP sets a new benchmark for high-fidelity audio and innovative design, delivering decades of inspiration to creators seeking practical yet forward-thinking gear.

At the core of MDSP is the powerful ARM-based Cortex M7 processor, renowned as the highest-performing processor in its class. With a proven history in high-level electronics, the Cortex M7 has been meticulously tailored for advanced audio algorithm processing in the MDSP platform. This unique system integrates a microcontroller and a DSP into a single compact unit, enabling a smaller, modular design that can seamlessly adapt to a wide range of pedal formats.

This modular and "mini" approach empowers Walrus Audio to push the boundaries of audio processing. The enhanced capabilities of Walrus's MDSP allow for the development and execution of more sophisticated algorithms than ever before, delivering unparalleled creative possibilities for musicians and audio professionals alike.

The MDSP platform also boasts a superior audio codec, supporting faster sample rates, increased bit depth, greater headroom, and an exceptional signal-to-noise ratio. These enhancements ensure outstanding audio performance, setting a new standard in digital signal processing for the music industry.

The introduction of MDSP reflects Walrus Audio's commitment to providing creators with cutting-edge tools that inspire innovation and creativity.

Global Controls


Space Knob: Space adds a delightfully charming reverb to your affected signal. Use this knob to modify the mix and decay of the reverb. Go from smaller room sounds to a huge, diffused ambient reverb at maximum settings. It's lush and complimentary, and adding it in with the other effects will put you squarely in dreamscape territory.


Tone Knob: The Tone parameter controls the cutoff of a synth-style resonant low pass filter, allowing you to shape the tone of the effect output.


Series and Parallel: In series, effects will feed into each other in the order of Chorus > Delay > Grain > Output.


In parallel, all of the effect outputs on Chorus, Delay, and Grain are summed together and do not feed into each other. The top row of knobs will act as level controls, and the user can control the level of each effect.


The Mix/Dry parameter controls the mix of wet and dry signal in series mode and dry level in parallel mode.

Grain Controls


The featured Grain effect features two 'flavours' of operation:


Grain Cloud: This mode triggers small samples (grains) randomly from your playing, which gives you unpredictable, yet charming glitchy texture for your sound. The X knob controls the length of time between grains, so you can go from dense clusters to sparse accents.


Phrase Sample: This mode triggers grains rhythmically from your playing. Initial peaks in your playing are detected and grains are played back starting at these peaks, creating a rhythmic and intentional effect. The X knob controls the tempo at which the samples will be played back. Turning the X knob to the minimum position will sync the Phrase Sample time to the Delay time so that repeated grains are in time with the Delay repeats.


The Grain effect also features 5 playback modes that dictate different ways the grain samples are projected.


x1: Normal
x2: Double-speed and +1 octave
x.5: Half-speed and -1 octave
REV: Reverse playback
RNDM: Randomized combination of the previous four modes.


Delay Controls

The delay effect is a full, clean digital delay that offers repeats for up to two seconds. Use the time knob to control the time between delays as well as the feedback knob to control the amount of delays. The TAP/OSC switch on the bottom right of the pedal can also be used to control the delay effect via tap tempo, or when held down will ramp up the feedback and cause the delay to oscillate.

Subdivisions

Delay trails can be projected in three subdivision modes:

Quarter Note
Dotted Eighth Note
Eighth Note

Chorus Controls

The Chorus effect offers two modes:
Tri Chorus: A multi-dimensional chorus favourite. Lush, complex, modulated sounds combining three voices for a full, vibrant sound.

Stereo Chorus: This mode is a classic chorus effect but with the modulation of the chorus being offset 180 degrees to the right channel to achieve the stereo width effect.


Other Features

Three on-board presets (red, green, blue) plus a live mode (white).
TRS MIDI 1/8" in and thru ports for MIDI control.
USB-C port included for future firmware updates.
Momentary Grain Freeze
Momentary Grain + Max Reverb Freeze

Notes: Best known for Eurorack synth modules, Noise Engineering's Batverb builds on the brand's extensive experience, offering a performance-focused take on echoes, dynamics and tone.

Supplier's Notes:
Batverb is the stereo reverb that dreams are made of. Taking inspiration from Noise Engineering's famed tail-generating synth modules, Batverb brings reverberation and delay to a whole new level with extensive control of timbre, echoes, and dynamics.

Start by setting a predelay time and adjusting Regen to taste: this will set the length of the tail, from a short slapback-style echo to an infinite wall of reverberation. Add in some chaotic suboctaves with Doom, or some haunting overtones with Shimmer - or both at the same time. If you need to carve the range for your reverb, Batverb has low and high damping settings for the reverb tank. Batverb even has settings for saturation that can be applied to only the reverberant signal, or to the whole output.

Batverb is easy to balance with the rest of the effects in your chain, thanks to its onboard dry/wet Blend control, as well as input and output gain parameters. It also features a unique Duck switch that allows the reverb to duck out of the way of an input signal, or match the dynamics of your playing, similar to a gated reverb.

Batverb was designed to integrate perfectly into your performances. The left switch mutes the input to the reverb and sets the feedback to maximum, creating a wall of sound as long as it's held down. The expression input can also be routed to any parameter on the pedal. Plus, if you're a fan of MIDI, Batverb can store and recall 16 different presets and recall them in response to program change messages.

Batverb is an advanced pedal with state-of-the-art features, but it's incredibly easy to use and immediately fun to play.

Notes: Instant ambient bliss coupled with the powerful ambience processing is a brand-new Ensemble engine, capable of creating pads and soundscapes that follow your playing organically - so if you change pickups or play in a different place on the neck you get different results. It's unlike anything you've ever heard or played before, all wrapped in a smaller form factor that still manages to house full stereo I/O, TRS MIDI and USB-C connectors on the back panel. Prepare to be inspired!

Cloudburst's Ensemble switch reveals a whole new world of captivating sounds never previously heard from a reverb pedal. Use it subtly to add harmonically rich and otherworldly dimensions to your ambient reverb soundscapes, or use it liberally to hear a lush synthesized string section swell under your guitar playing. Ensemble reacts to your entire guitar signal in an organic and musical way, delivering a richly responsive and uniquely inspiring playing experience.

Cloudburst gives you multiple reverb experiences, with beautifully-tuned and natural small spaces at one end of the Decay knob and vast, expansive atmospheres at the other. As you turn the Decay control numerous internal parameters are automatically adjusted, allowing this ambient reverb pedal to produce outstanding studio-quality spaces of any size at the turn of a single knob.

All of the premium components, sound quality and road-worthiness you expect from a Strymon reverb pedal are here in Cloudburst's new compact format. Featuring unbeatable ease of use and some of the finest reverb sounds we've ever created, Cloudburst could easily be the only reverb pedal you need on your pedalboard.

Notes: A warm grittiness to the warble, a rippling, wooshing, bubbling irregularity to the modulation and a dynamic response to your picking are all hallmarks of the true vibe experience. Thicker and chewier than any chorus, earthier than any phaser and uniquely magical in front of a driven amp, the perfect vibe pedal moves you to dig in and play without inhibition. This feeling has been difficult to find outside of large and expensive fully-analog boutique units, but the search for that elusive experience is now over.

UltraViolet's simple and responsive controls provide a wider range of sounds than traditional vibe pedals. In addition to the familiar Chorus (50% wet) and Vibrato (100% wet) settings, there is a new Blend setting (30% wet) for an inspiring variety of more subtle effects. A Bias switch gives you three distinct flavors of sweep shape and tone emphasis, allowing for tons of sonic variation. At slow speeds, the intensity range has been expanded beyond that of traditional vibe circuits to push even further into warmly undulating sonic territory.

For UltraViolet's new vibe algorithm, all the elements of the classic optical vibe circuit (and their interdependencies) have been meticulously recreated for a dynamic playing response. From the effects of bias, speed and LFO waveshape on the pulsing of the lamp, to the response of the light-dependent resistors that set the center frequencies of the staggered phasing filters, the entire system has been duplicated and carefully tuned to produce the very best sounds a vibe pedal can offer.

TRS stereo input and output in a dual mono configuration means you can place UltraViolet at any point in your pedal chain with no impact on your stereo image.

Full MIDI implementation with 300 available preset locations ensures that UltraViolet is ready for your MIDI rig. In addition to TRS MIDI, there is a USB-C jack for controlling the pedal via MIDI from a computer or for performing firmware updates. For hands-free control without MIDI you can connect an expression pedal for control over any combination of knobs in any direction (Expression pedal controls Speed by default.) Or attach an optional external switch for tap tempo or favorite recall.

Finally, a high-impedance, ultra-low noise discrete Class A JFET stereo input preamp provides exceptional touch sensitivity, dynamics and feeliall in a rugged and elegantly compact form factor.

Notes: The pedal that revolutionized compact reverb pedals has evolved. Plug into blueSky for the most lush, majestic reverbs imaginable. Transform a single note or chord into vast sonic atmospheres with impossibly gorgeous, incredibly long reverb tails. Hear the inspiring splash of an upgraded spring algorithm dripping with vintage vibe. Lose track of time and space as you interact with deep and expansive new Shimmer sounds never heard anywhere before. Whether you're a classic spring reverb fan, a studio rack aficionado, or an ambient soundscape creator searching for new sonic textures, the sounds you are looking for are here.

BlueSky provides three different reverb types: plate, room, and spring, and each type can produce everything from stunning realism to expanded sounds far beyond what would be physically possible, while always remaining musical and beautiful. Intuitive and powerful tone shaping controls allow you to easily dial in an endless variety of inspiring sounds. And with ultra low noise, high performance 24-bit 96kHz A/D and D/A converters and a 20Hz to 20kHz frequency response, blueSky is equally at home on top of a studio console or in front of a tube amp.

Our second generation blueSky offers true studio quality reverbs in a compact pedal, and adds significant new features, incorporating technological advancements, hardware improvements and design enhancements to give you additional flexibility, power, and ease of use on stage and in the studio. A dedicated Shimmer knob and new Shimmer behaviors yield an inspiring variety of immersive new sounds. A new Mod switch allows you to select the modulation depth for each reverb type. A beautiful new Spring algorithm creates extraordinary vintage spring reverb sounds, as well as expanded spring textures and hauntingly unique interactions with an octave-down Shimmer. A premium analog JFET input circuit ensures superb responsiveness to your playing, and you can select mono or stereo input with the flick of a rear panel switch. In addition, you can now control blueSky with an expression pedal or MultiSwitch Plus.

All this, plus a new ARM DSP chip provides more processing power for every sonic nuance, with less energy consumption on your pedalboard. Full MIDI implementation allows you to control just about every knob, switch, and setting remotely via the EXP/MIDI jack or USB. And you can save and recall all the new sounds you create via 300 onboard MIDI preset locations.

Notes: Limited black edition of the excellent stereo Dark Star pedal, offering premium reverb with beautifully creative pitch shifting, filtering and bit crushing options. Superb value for money.

Supplier's Notes:
Dark Star Stereo Flagship Reverb Pedal

The continued pull, the drift unabated, the controlled wash of gravity and the chaotic meander of its combined uncertainties. In fact, the original and highly loved Dark Star is a pedal that historically was OBNE's most popular reverb. People bonded with its warmth and aliasing, its long trails and the way it encouraged you to turn the mix fully up. Now, it's in with the new. Dark Star Stereo expands on the promise of ambient reverb and is a pitch shifting, bit crushing, filtered reverb pedal with just about every feature you could ask for. One massive stereo voice, with a wide suite of controls that likes to go anywhere in your signal chain - all that's left is for you to decide just how dark you must go.

Reviving the magic of the long-trail lo-fi reverb algorithm that made Dark Star a breakout hit years ago, Old Blood Noise Endeavors announces a new Dark Star for a new era, with a drastically expanded feature set and improved signal quality that is sure to draw in old fans and new. New features like Stereo Input and Output, on-board Presets, Trails, Expression control over all parameters and MIDI control, of both Parameters and Presets, all help to give more versatility to this device than ever before. Beyond that, the new Dark Star does away with the three-mode toggle, instead creating a single mode combining all the Pitch-Shifting, Bit-Crushing, delayed goodness of the original. Access your favourite sounds as well as new combinations, with new shapers like Filter, Multiply, Volume and Stereo-Spread.

Notes: Inspired by modular synthesis, the C4 Synth is a unique pedal which allows you to play synth tones via bass or guitar. Edit using the Neuro Desktop Editor and then get freaky with a wide range of synth sounds.

Supplier's notes:
The C4 Synth unites all the sound creation tools of a classic Eurorack modular synthesizer and packages them in a compact and easy-to-use effects pedal for guitar or bass. Out of the box the C4 offers six dynamic synth tones that range from vintage analogue to the thoroughly modern. It is essentially a modular synth in a small pedal with unprecedented tracking abilities, lightning-fast response, and countless sound options. With the addition of the Neuro Desktop Editor (a free download for Mac and Windows machines) and Mobile App. (for iPhone and Android) it's easy to browse from the ever-growing library of highly-inspired presets created by the Source Audio crew and the expanding community of C4 enthusiasts.

Neuro Editor Features

Connect the C4 Synth to the Neuro Desktop Editor (a free download for Mac or Windows computers) or the Neuro Mobile App (free for iPhone and Android) and explore the power of effect downloading, customization, and sharing that comes with every One Series pedal.

Growing Library of Published Presets: For quick and easy access to a world of great tones, try sampling sounds from a vast collection of published presets created by the Source Audio team and the ever-growing C4 Neuro Community.

Unprecedented Sound Sculpting Options: The Neuro Desktop offers maximum sound exploration possibilities. Use Neuro's modular synthesizer inspired editor to create custom C4 Synth presets that can be burned directly to the pedal, saved to a private cloud based library or published and shared the entire Neuro Community.

Four Independent Voices: Mix together any of the C4's four independent Voices. Assign any of the Voices to an oscillator wave shape, monophonic or polyphonic pitch shifter, intelligent harmonizer, sequencers, or dry signal to distortion, tremolo, and filter effects.

Three Types of Oscillators: Mix and match any of the C4's three oscillator wave shapes for pure synthesizer tones. Choose from sine, square, and saw shaped oscillators.

Eleven Envelope Followers: Select from a comprehensive collection of envelope followers with adjustable attack/decay as well as ADSR triggering envelopes.

25 Filter Effects: Choose from a huge collection of filters, controllable with an envelope follower or independently modulating LFOs.

14 Different LFO Wave Shapes: Use LFO (Low Frequency Oscillators) to control the modulation of filter, vibrato, or tremolo effects. Choose from eight different LFO wave shapes, including sine, square, sample and hold, saw tooth, and more.

Two Programmable 16-Step Sequencers: Run two simultaneous sequencer patterns. Choose from several preprogrammed sequencer patterns or create custom patterns.

USB Connection - Use the pedal's mini USB port to connect the C4 to the Neuro Desktop Editor, which can be used to edit presets or download the latest pedal firmware.

USB to Mobile App Connectivity - Connect the Mobile App to your C4 Synth via the USB port on the top of the pedal and enjoy two-way communication between the pedal and your Neuro Mobile App. This means you can see all of your C4 preset settings on the App. in real time. (Lightening to mini Type B USB cable for iPhone) (Type-C to mini Type B USB cable for Android).

MIDI features

The C4 Synth responds to MIDI Program Change (PC) and Continuous Controller (CC) messages via its mini USB port. The USB port handles communication between the C4 and digital audio workstations (DAW) on Mac and Windows machines as well as external MIDI controllers with USB host support (we recommend the DMC.micro from Disaster Area Designs)

Preset Saving - Save up to 128 effect presets.

MIDI Mapping - Use the Neuro Desktop Editor to easily map MIDI Continuous Controller (CC) messages to a comprehensive list of parameters.

Preset Recall - Use MIDI CC numbers 103 & 104 to recall any of the C4's 128 MIDI accessible presets.

MIDI Clock - Sync the C4's LFO rate with external MIDI clock messages.

The Neuro Hub - Connect the C4 to the Neuro Hub and use MIDI CC messages to control parameters or recall presets.

Note: As of Hub fw 1.18 and C4 fw 1.14, the C4 can now be added to scenes, is visible through the Hub, and can be controlled by PC messages, giving you the full access to 128 preset slots.

Specifications

Includes 9v DC power supply (300mA / Negative Tip)
Includes 1/8" to 1/4" cable for Neuro Mobile App connection.
Power Consumption - 165mA
USB port - Connects to Mac or Windows PC for firmware updates and the forthcoming in-depth effects editing software.
Brushed anodized aluminum housing.
Dimensions: L: 4.5 in./11.4cm x W: 2.75 in./7cm x H: 2 in./5.1cm (including knobs)

Notes: In 2025, MOOER has announced that it will be set to release its latest multi-effects pedal, the GS1000 Intelligent Amp Profiling Processor, an augmented intelligent amp profiling processor. Built on MOOER's advanced third-generation digital platform, the GS1000 introduces groundbreaking MNRS 2.0 technology, allowing guitarists around the world to emulate their favorite gear with immense precision -specifically, for distortion pedals, preamps, amplifier heads, and cabinets.

With this innovation, guitarists can fully capture the essence of their favorite guitar gear without owning the physical hardware, enabling them to carry their favorite tones wherever they go. Users are even able to use third-party IRs for cabinets of their choice, further enhancing the flexibility of this feature.

It's unforgettable how much MOOER's multi-effects pedals have impressed audiences so far, primarily thanks to their robust tone libraries. However, even still, the GS1000 continues to build upon this with storage for up to 120 sampling profiles, along with continued integration with the MOOER Cloud app. Essentially, this cloud integration facilitates infinite upload and download possibilities, giving users access to a global community of shared tones, widely expanding the number of accessible tones. More still, the GS1000's previously mentioned third-party IR cabinet simulations support up to 2048 sample points, guaranteeing studio-grade tonal accuracy across the board.

Even more impressive for the price is how the GS1000 inherits the dual-chain effects architecture that made previous MOOER gear so versatile, making it suitable for highly complex usage scenarios. With over 350 factory effects models and a Sub-Patch preset grouping mode, the GS1000 makes it far simpler for users to make seamless transitions between tones, all while maintaining effect tails to guarantee seamless transitions. Additionally, the reintroduction of the innovative AI-driven EQ Master builds upon MOOER devices' previous capabilities, using intelligent adjustments in real-time to match the musical style of players to tones, while still allowing manual tweaks for precise control.

Impressively, the GS1000 also comes packed with a Groove Station module, consisting of a combination of drum machine and looper features - including 56 high-quality drum kits! It offers a 480-second phrase looper with infinite overdubs, automated detection, and synchronization capabilities, resulting in an intuitive platform for solo jamming, composition, and live loop-based performance. Overall, the Groove Station acts as an all-in-one suite for creating full arrangements, without having to depend on additional backing tracks or bandmates.

Visually and functionally, the GS1000 really stands out thanks to its sleek visual design and enhanced user experience. For example, it features a convenient 5-inch high-resolution touch screen, which is also paired with ambient lighting to add a visually stunning element to the pedal. As a result, the GS1000 is not only designed for convenient touch-based control but also as a standout centerpiece in any guitar rig.

In addition to this touchscreen control system, the GS1000 also provides expanded connectivity options, improving upon the already impressive flexibility of past pedals. Most notably, it supports connectivity with the MOOER F4 wireless footswitch, as well as the ability to control presets via external MIDI devices.

As is expected from MOOER these days, the GS1000 also excels when it comes to routing opportunities, going above and beyond the typical stereo 14" inputs and outputs that would be expected from other brands. Yes, it still includes such staples, but it also includes an XLR microphone input, alongside balanced TRS outputs for long-distance signal clarity. The configurable serial/parallel stereo effects loop enables seamless integration of external effects, and the addition of Bluetooth audio input and MIDI compatibility broadens its wide range of use cases for live and practice-based applications.

Furthermore, the pedal also serves as a professional audio solution thanks to its low-latency 2-in/2-out ASIO USB sound card. Supporting up to 192kHz sampling rates, the GS1000 makes recording and live streaming effortless, as it can easily be used with software DAWs, MOOER's editing software, as well as the USB-based MIDI control.

The GS1000 will be available in two versions - the standard white edition, which is powered by mains power, and the GS1000 Li version, which introduces a 7.4V 4750mAh lithium battery, chargeable through its power port. With this upgrade, users can enjoy up to six hours of continuous power-free playtime, making it ideal for practicing, busking, and generally performing on the go.

Overall, for fans of MOOER's previous amp simulation offerings, the GS1000 represents a natural evolution, building on everything that made its predecessors great while introducing cutting-edge features and expanded capabilities. Most importantly, MOOER has promised to continuously update its MOOER 4.0 tonal algorithms on the MOOER Cloud in line with the release, keeping things fresh for the company's dedicated user base.

Notes: Designed in collaboration with JHS, the Lizard King is an octave fuzz pedal for bass which builds on the success of the guitar-focussed Lizard Queen. Dynamically responsive fixed gain fuzz can be blended from fully wet to dry, while octave tone can be blended separately.

Supplier's Notes:
Octave Fuzz for bass and beyond!

Make way for the new heir to the octave fuzz throne, the Lizard King from Electro-Harmonix. Directly inspired by the EHX x JHS collaboration released in 2023, the Lizard King takes the gnarly and responsive octave fuzz circuit from the Lizard Queen and optimizes it for bass and beyond. With updated tone controls and a new Blend knob, the bass's fundamental tone and low-end is preserved while the top-end of the fuzz tone is shaped to fit or dominate any mix!

The EHX Lizard King is a fixed-gain fuzz that is dynamically responsive. Adjustments to your instruments volume affects the amount of fuzz. Lower instrument volumes create a clear, fuzzy overdrive, while full instrument volume sends the gain over the top for ripping riff and searing solo tones. The familiar VOLUME and OCTAVE knobs control overall output and octave blend volume respectively. New to the Lizard King, the BLEND knob sets the mix between your clean and fuzz tones to create the perfect balance of fuzz while retaining your bass's attack and low-end. The TONE knob is a low pass filter that rolls off the highs, while the SUN/SHADOW switch further enhances the tone of the octave fuzz and clean tones. SUN boosts the octave fuzz with a more driving midrange, and the clean tone accessed by the BLEND knob has more treble and bass frequencies. When the switch is set to SHADOW, the clean tone is unchanged, and fuzz tone is tighter.

Specifications

Circuit: Analogue
Bypass: True Bypass
Audio: Mono
Power Supply:9V battery included
Dimensions (in): 4.5 x 2.75 x 2.1
Current Draw: 8mA
Year Released: 2024

Notes: ALM's versatile MFX effects module translates to a compact pedal format, suitable for guitar, synth or any other instrument. Understated looks conceal a super versatile combo of 18 stereo programs with assignable parameters and MIDI control.

Supplier's Notes:
Standalone stereo multi effects processor

The 'MFX Pedal' brings all the effects and functionality of ALM's popular Eurorack MFX module to both guitars and synths in standalone form with 18 different fully featured effects programs and additional MIDI, Knob and Expression pedal control, tap tempo, an optional analogue gain stage and true relay (or DSP) based bypass.

Inspired by ALM's favourite classic hardware effects processors, the MFX incorporates DSP effect technologies from the dawn of digital effects in the 70s to the present day. Reshape sounds with the distortion and dynamics engines. Bend time space and pitch with multiple feature rich reverb and delay engines. Modulate signals with the flexible panner, frequency shifter, and range of ensemble effects. Fracture sounds with the one-of-a-kind granular and glitch engines.

The MFX Pedal user interface is designed to be familiar, quick and easy to use. Each program contains a wide range of controllable parameters both directly editable or freely assigned to knobs, MIDI or expression control. Each program includes factory presets as well as the ability to store and recall user presets. All states are preserved across power cycles.

Available for the first time outside of modular, the MFX pedal easily brings the character and uniqueness of ALM effects to your guitar rig, DAW-less setup, mixer effects send or synth collection.

Tech Specs
Power: 9V DC power, center negative
Current Draw: 100mA (200mA+ supply recommended)
Input Impedance: 1MOhm
Output Impedance: 1Kohm
Max Input level: +8 dBu (2 Vrms ~ approx 5Vpp)
Optional Gain Stage: +10 dB
Bypass: True Relay & Buffered DSP based
Expression input: 0-3V
Dimensions: 125x65x70mm
16 Bit / 44.1Khz Stereo processing with 32 bit floating point DSP
ARM CPU based DSP

Notes: Black Fountain Stereo Characterful Delay Building on the inimitable Black Fountain, a pedal that put OBNE on the map and for many a favourite always-on device, Black Fountain Stereo is much more than just turning things from mono into stereo. It truly expands Old Blood Noise Endeavors' highly regarded 'oil-can delay' pedal right into a multi-tool.

With a wider control set that's complete with added sonic options, a lower noise floor, dual delay lines that play together in a multitude of ways, presets, MIDI and expression control over everything, Black Fountain Stereo combines a sonic powerhouse of creative delay tones and into a pedalboard friendly package.

Black Fountain Stereo emulates the sound of a spinning oil-can delay. This is a warm, modulated and a little gritty type of tone that's perfect for chorusing, doubling, slap back and long rhythmic delays alike. You choose the amount and rate of modulation, the tone and grit of the core voice, the two delay times and their feedback. Plus, to top it off the mono/stereo voicing of it all can be set exactly as you like and everything can be saved into presets, for easy recall.

The Rate and Depth controls sets the amount of modulation and speed, Tone shapes the warmth of the repeats, while Grit sets the amount of drive in the repeats. To help maintain the clarity of your tone or for more special effects, you can set the mix of volume of either the Dry and/or Wet levels. Space defines the mono delay mode or stereo width and adds diffusion past the noon position.

Separate controls are available for setting the Left and Right Delay Time as well as being able to choose between six subdivisions for each side when holding the Tap footswitch. That little Tap switch (surprise) helps you set the delay repeats in time with your tempo, while holding it down will give for infinite feedback. Optionally, it can also be used as a preset switcher.

Product Height (cm): 6.9
Product Width (cm): 10.8
Product Depth (cm): 12.6
Product Weight (kg): 0.454

Box Height (cm): 7.06
Box Width (cm): 11.43
Box Depth: 12.7cm
Boxed Weight (kg): 0.596kg

Notes: Black Fountain Stereo Characterful Delay Building on the inimitable Black Fountain, a pedal that put OBNE on the map and for many a favourite always-on device, Black Fountain Stereo is much more than just turning things from mono into stereo. It truly expands Old Blood Noise Endeavors' highly regarded 'oil-can delay' pedal right into a multi-tool.

With a wider control set that's complete with added sonic options, a lower noise floor, dual delay lines that play together in a multitude of ways, presets, MIDI and expression control over everything, Black Fountain Stereo combines a sonic powerhouse of creative delay tones and into a pedalboard friendly package.

Black Fountain Stereo emulates the sound of a spinning oil-can delay. This is a warm, modulated and a little gritty type of tone that's perfect for chorusing, doubling, slap back and long rhythmic delays alike. You choose the amount and rate of modulation, the tone and grit of the core voice, the two delay times and their feedback. Plus, to top it off the mono/stereo voicing of it all can be set exactly as you like and everything can be saved into presets, for easy recall.

The Rate and Depth controls sets the amount of modulation and speed, Tone shapes the warmth of the repeats, while Grit sets the amount of drive in the repeats. To help maintain the clarity of your tone or for more special effects, you can set the mix of volume of either the Dry and/or Wet levels. Space defines the mono delay mode or stereo width and adds diffusion past the noon position.

Separate controls are available for setting the Left and Right Delay Time as well as being able to choose between six subdivisions for each side when holding the Tap footswitch. That little Tap switch (surprise) helps you set the delay repeats in time with your tempo, while holding it down will give for infinite feedback. Optionally, it can also be used as a preset switcher.

Product Height (cm): 6.9
Product Width (cm): 10.8
Product Depth (cm): 12.6
Product Weight (kg): 0.454

Box Height (cm): 7.06
Box Width (cm): 11.43
Box Depth: 12.7cm
Boxed Weight (kg): 0.596kg

Notes: Add warm dimensionality and luscious tape saturation to your signal. Teleport the tones of yesteryear to your board. Effortlessly create a huge range of beautiful, distinctive, and enveloping vintage sounds. From the inherent warmth and luscious tape saturation to the forgotten art of how these machines were manipulated, Deco brings this original inspiration back, giving you these vintage tape effects from the earliest recording studios, right on your pedalboard.

Deco's Tape Saturation smooths out your sound with familiar and delicious tape compression and saturation, while fattening your tone with subtle tape-driven transparent overdrive.The Doubletracker provides the power to shift your sound in many ways, easily allowing you to achieve syrupy slapback tape echoes, psychedelic tape flanging, and gorgeous tape chorusing sounds.
Our second generation Deco gives you the same gorgeous reel-to-reel tape sounds from our original, while adding several significant new features, incorporating technological advancements, hardware improvements and design enhancements to give you additional flexibility, power, and ease of use on stage and in the studio.

Full MIDI implementation means you can control just about every switch, knob, and setting remotely by sending MIDI commands from your controller or DAW via Deco's EXP/MIDI jack or USB-C connection. Lag Deck delay time can be synchronized via MIDI Clock Sync, and the sync setting can be saved for each preset. 300 MIDI preset locations are available for loading and saving your favorite settings.

Deco now comes with an all-new cassette tape voicing that employs an auto level control (ALC) process common to many high-end cassette tape recorders, resulting in a compressed, fat tone. In addition, a new dedicated Tone knob lets you adjust the tone of the Tape Saturation exactly to your liking, from dark to bright.

A premium analog JFET input circuit ensures superb responsiveness to your playing, and you can select mono or stereo input with the flick of a rear panel switch. All this, plus a new ARM DSP chip provides more processing power for every sonic nuance, with less energy consumption on your pedalboard.

Features

High impedance ultra low-noise discrete Class A JFET TRS stereo input.

Low impedance independent TS stereo outputs.

Expression pedal input allows the connection of a TRS expression pedal, MiniSwitch, MultiSwitch Plus, or TRS MIDI connection.

USB jack for controlling via MIDI from a computer or for performing firmware updates.

Dedicated tap tempo & On/Off footswitches

Premium JFET analog front end

Ultra low noise, high performance 24-bit 96kHz A/D and D/A converters provide uncompromising audio quality

520MHz ARM Superscalar processor

32-bit floating point processing

20Hz to 20kHz frequency response

Audio Input Impedance: 1M Ohm

Audio Output Impedance: 100 Ohm

Strong and lightweight anodized dark gray aluminum chassis

9V DC power supply included

Power requirements: maximum 9 volts DC center-negative, with a minimum of 300mA of current

Dimensions: 4.5" deep x 4" wide x 1.75" tall (11.4 cm deep x 10.2 cm wide x 4.4 cm tall)

Designed and built in the USA

Notes: In designing the Ola dBucket Chorus and Vibrato, Strymon started with the dBucket building blocks and used them to craft a beautiful and versatile modulation effect. Keeping in line with the same philosophy as the Brigadier delay, the high performance DSP is entirely dedicated to and focused on providing the most lush and organic chorus and vibrato sounds available. Strymon also drew influence from some of their favorite vintage chorus effects and a certain little blue box vibrato with a strong cult following. On top of that they threw in true bypass, a favorite preset, stereo input and output, and a super high quality analog front end and output section.

Features

Hand crafted dBucket algorithm for highly accurate reproduction of every stage of an analog bucket brigade chip. Built on the dBucket building blocks developed for our Brigadier delay.

Super low noise, high performance A/D and D/A converters w/ 110dB signal to noise

High performance DSP stuffed into a compact form factor

3 modulation types (chorus, muti-mode chorus, vibrato)

3 dynamic modes (normal, ramp, envelope)

Controllable ramp speed | envelope sensitivity

Global tone control for the overall color of your modulation

Mix control for dialing in various modulation intensities

TRUE BYPASS (electromechanical relay switching)

Stereo input and output

Favorite footswitch for saving your favorite setting

Powered with a standard 9V center negative DC supply. Compatible with all major DC supply brands. Current consumption 200mA - (250mA recommended supply)

Premium analogue front end and output section

No-nonsense user interface

Strong and lightweight blue anodized aluminum chassis

Crafted with love in the USA

Notes: Iridium

Leave Your Amp At Home.

Nothing reveals the true nature of your guitar and your playing like a world-class tube amp driving a perfectly matched speaker cabinet in a great sounding room. Now there is a pedal that truly delivers that sound and feel, with simple controls for effortlessly dialling in the perfect amp tone when going direct. Discover inspiring tube amp responsiveness, unprecedented impulse response speaker cabinet realism, and controllable natural sounding room ambience.

Iridium gives you three iconic amplifiers, with a total of nine impulse response speaker cabinets that complement the tonality of the amp. Skip the hassle of lugging around or miking amps. Place Iridium on your pedalboard and send gorgeous stereo amplifier tones, stunningly realistic cabs, and lush room ambience direct to a recording interface or PA system. With Iridium, it's a snap to dial in a direct tone that will truly inspire and sound great whether you are monitoring through in-ears, floor wedges, reference monitors, or studio headphones.

Three Iconic Amplifiers

The Matrix Modeling process captures all the subtleties and unique tonal qualities of each amplifier. Strymon have taken three iconic tube amps with distinct characters and mathematically modelled every aspect of their circuitry with absolute precision to deliver the response, feel, and inspiring experience of playing through the original amps at their best. Taking the process a step further, Strymon have hot-rodded each amp to provide an extended range of tonal options beyond what was available from the original designs.

Nine Stereo IR Cabinets

Iridium's speaker cabinets offer a level of realism and responsiveness unprecedented in outboard effects. Iridium delivers full stereo 24bit 96kHz resolution for the entire 500 milliseconds of its speaker cabinet impulse responses. Until now, IRs of this resolution have only been available for use within studio recording software. Iridium's breakthrough technology means you can use the very best impulse responses available, bringing maximum realism to your pedalboard.

Adjustable Room Ambience

Iridium's hybrid room reverb combines a 256 millisecond stereo impulse response with Strymon's reverb tank algorithm for extended decay. This combination places your amp and cab in a natural sounding room (small, medium, or large), creating a space for your amp to open up and breathe.

Round Amp - Based on* a Fender Deluxe Reverb

The Deluxe is one of the most recorded amps in history for good reason. This amp is clean, bright, and mid-scooped, with plenty of headroom. At higher Drive settings it delivers an overdriven sound unique to its architecture. Strymon chose the Deluxe's Normal channel for its round tone that plays well with pedals. While preserving access to all the tones originally available with this channel, our model gives you something extra: a midrange control. With the midrange at noon, you get the original fixed-resistor value and standard tonal characteristics of the Deluxe. Turn down the midrange for a more scooped sound, or turn it up for tweed-era tones.

Chime Amp - Based on* the Brilliant channel of a Vox AC30

The amp that defined the guitar sound of the British Invasion. Our model of the AC30 Brilliant channel (Top Boost) is jangly, bright, and chimey, providing air for subtle passages with a light touch, and bite when you want to dig in. For this amp, the Middle knob acts a Tone Cut knob, providing high-end roll-off just before the power tubes, per the original AC30 design. In addition to the full available gain of the original amp, toward the top end of the Drive knob's range of travel, Strymon have added a frequency-shaped front end boost to tighten the low end while driving the amp further into saturation.

Punch Amp - Based on* a Marshall Plexi (Super Lead model number 1959)

This powerful amp is meatier, with higher gain than the other two amps, and has a powerful midrange response. This amp features a buttery, smooth overdrive. At higher Drive settings it will deliver all the high gain distortion and growl this amp is known for, and then some. Setting the Drive control at around 2 o'clock gets you the maximum gain the original Plexi design allowed. Beyond that, our model has some additional gain on tap, giving you access to custom hot-rodded Plexi high gain tones.

*All product names are trademarks of their respective owners, which are in no way associated or affiliated with Strymon. These product names, descriptions and images are provided for the sole purpose of identifying the specific products that were studied during Strymon's sound design process. Fender and Deluxe Reverb are registered trademarks of Fender Musical Instruments Corporation. Vox is a registered trademark of Vox R&D Limited. Marshall is a registered trademark of Marshall Amplification Plc.

A Carefully Curated Cab Collection.

Iridium comes pre-loaded with a carefully curated collection of premium cabinet impulse responses from OwnHammer, Celestion, cabIR and ValhallaIR.

Round A - Deluxe Reverb 1×12" by OwnHammer
Impulse captures a vintage Fender Deluxe Reverb open back 1×12" combo loaded with a 1978 Fender CTS ceramic 12" speaker.

Round B - Blues Junior 1×12" by CabIR
Impulse captures a 1×12" Blues Junior cabinet, loaded with a Jensen C12N speaker.

Round C - Vibrolux 2×10" by cabIR
Impulse captures a Fender Vibrolux from 1965 with 2×10" Jensen C10NS speakers from 1965.

Chime A - AC30 2×12" Alnico by OwnHammer
Impulse captures a Vox AC30/6 open back fawn 2×12" combo with 2001 Celestion T0530 Blue AlNiCo speakers.

Chime B - 1×12" Alnico by Celestion
Impulse captures Celestion Blue Alnico speaker in a closed back 1×12" cab.

Chime C - Mesa 4×12" by ValhallaIR
Impulse captures a 4×12" Mesa Boogie "Halfback", which is loaded (open back) with two Black Shadow MC-90 speakers from CelestionTM and two Black Shadow EVM12-L from ElectroVoice.

Punch A - GNR 4×12" by OwnHammer
Impulse captures a 1971 Marshall 1960B "basketweave" 4×12" cabinet.

Punch B - 2×12" Vintage 30 by Celestion
Impulse captures a Celestion Vintage 30 in an open back 2×12" cab.

Punch C - Marshall 8×12" Alnico by cabIR
Impulse captures a re-issue of the 1965 Marshall 8×12" full stack cabinet, loaded with Celestion T652 AlNiCo speakers.

Load Your Own Impulses.

It's easy to replace the pre-installed IRs with custom IRs from your own collection by using Strymon Impulse Manager software.

Stereo Output
Operates at instrument and Line Level input sources
Discrete transistor headphone amplifier
Expression pedal input provides seamless morphing between knob positions (Expression mode), or smooth pre/post volume control with logarithmic taper (Volume mode)
USB jack for connecting to Strymon Impulse Manager software
to add and edit your own speaker cabinet IRs
Compatible with Strymon MultiSwitch Plus for remote selection of up to 4 presets
Full featured MIDI control accessible via EXP Jack for remote parameter control and access to 300 preset locations (requires Strymon MIDI EXP cable or MIDI to TRS interface)

Audio Quality

Ultra-low noise, high performance 24-bit 96kHz A/D and D/A
converters provide uncompromising audio quality
Super high performance SHARC and ARM co-processors
32-bit floating point processing

More

Transparent Analogue Buffered Bypass
Strong and lightweight anodized black aluminum chassis
9V DC power supply included
Power requirements: maximum 9 volts DC center-negative, with a minimum of 500mA of current
4.5" deep (11.43 cm) x 4" wide (10.16 cm) x 2.4" tall (6.1 cm)
Designed and built in the USA

Notes: Discover your amp's potential

Riverside's cascading gain stages create harmonically rich tones that are immensely musical and natural-from silky clean overdrive to colossal distortion, and all points between. The analogue JFET front-end ensures that Riverside responds to your guitar with uncompromised dynamics and feel. The precision crafted DSP generates dynamic complexity and pleasing harmonics at every stage, letting your amp shine at any gain level. Riverside takes your amp to places you never knew it could go.

Overview

Infinite sweet spot

Riverside's continuously variable circuit tuning dynamically tweaks multiple parameters under the hood so that the sweet spot follows you at any gain setting. As you turn the Drive knob, Riverside makes continuous adjustments, tuning the circuit for optimum tone. This results in an incredibly versatile drive pedal that is equally capable of providing sparking cleans, mild overdrives, high-gain leads, and heavy saturated distortions.

Flexibility to adapt to any amp

Your amp choice has a large influence on the sound of any drive pedal connected to it. Riverside's musical 3-band EQ, with independent Bass, Middle and Treble knobs, is designed to complement your amp's tone with the flexibility needed to dial in your sound effectively and efficiently. The three-position Presence switch tailors the highest frequencies, allowing Riverside to integrate perfectly with any amp or setup, no matter how dark or bright.

Digital or analogue? Strymon choose both

The first stage of Riverside's custom multistage drive topology is an all-analogue, ultra low noise, discrete, class-A JFET circuit. This gain stage is digitally controlled to maximize headroom while adding as much as 20dB of pure analogue gain, with tight integration to the subsequent DSP gain stages. With Strymon's hybrid approach you get the best of both analogue and digital worlds: The JFET stage provides exceptional touch sensitivity and dynamic interaction with your guitar, while the incredibly powerful SHARC DSP facilitates the great level of detailed complexity and responsiveness you'll want to hear.

Tone Adjustment and Shaping

Drive adjusts the amount of gain applied to the signal. Employs continuously variable circuit tuning which adjusts many parameters as you turn the knob.

Level controls the output volume level when the effect is engaged.

Gain toggles between low or high gain channels.

Low sets a gain structure allowing for a wide range of low to medium gain sounds. At high Drive settings the sound is heavily overdriven, and slightly 'loose' like a dimed vintage amp.

High increases the gain throughout the signal path and tightens things up. Stays relatively clean at low Drive settings, shifting to heavy saturated distortion at maximum.

Push toggles between flat or enhanced midrange frequencies.

Norm can be used for cleaner, more transparent tones.

Mid adds a mid-band EQ push just after the analogue front-end gain. This pushes the subsequent drive stages harder, tightening up the response. Perfect for fat drive tones, or pushing a distorted or on- the-edge amp into further breakup.

Bass is an active shelving/parametric low frequency control. The control is post-drive, shaping your drive tones before they reach your amp.
Middle is a parametric mid boost/cut control with optimized frequency centre. The control is post-drive, shaping your drive tones before they reach your amp.

Treble is a wide-ranging high frequency active shelf control. The control is post-drive, shaping your drive tones before they reach your amp.

Rear Panel

Presence is a three position switch that tailors the highest frequencies of the output signal.

Minus (-) provides clarity with a controlled top end that works well with many amps that have a brighter voice.

Enhanced (centre) extends the top end to allow for more sizzle on high gain tones. Useful if you want enhanced detail in the uppermost frequencies.

Plus (+) delivers extended high end detail to the darkest amps, and is also useful when plugging directly into a power amp.

In is a high impedance mono input. Plug your instrument in here.

Out is a mono signal output. Connect to your amp, other pedals, mixing board, etc.

Boost allows use of an external switch to toggle up to +6dB of post boost on/off. Or connect to the EXP input of another Strymon pedal and simultaneously engage the Favorite settings on both pedals with Riverside's Favorite switch.

Expression Pedal Input provides continuous expression pedal control over any or all of the knobs, in any direction, with your foot. Or can be used in Volume Mode to control the volume level of the effect.
Power - Plug your power supply in here. Maximum 9 volts DC centre-negative, with a minimum of 250mA of current. Standard 5.5mm x 2.1mm barrel connection.

Secondary Functions

Press and hold ON footswitch to enter Secondary Function mode. Release the footswitch, then turn the desired knob to adjust the parameter.

Optional variable-threshold Noise Reduction tames hum, buzz, and system noise when you're not playing. A downward expander with advanced signal detection techniques creates a seamless transition to noise reduced silence with all types of input signal dynamics.

Boost Level sets up to +6dB of available boost when using an external Boost footswitch.

Ins, Outs, Switches

High impedance mono input
Mono output
Favorite footswitch to save a favorite setting
Favorite Input to connect an external MiniSwitch to recall a Favorite preset
Expression pedal input allows the connection an expression pedal for simultaneous morphing control over multiple parameters (Expression mode), or logarithmic taper for smooth volume control (Volume mode)
MIDI accessible via Expression jack for remote parameter control and access to 300 preset locations
Boost pedal input allows connection of an external footswitch for up to +6dB of analog boost, or to toggle the Favorite preset on other Strymon pedals (Favorite Out mode)

Analogue Quality

Ultra low noise, high performance 24-bit 96kHz A/D and D/A converters provide uncompromising audio quality
Premium analog front end and output section
Super high performance SHARC DSP in a compact form factor
32-bit floating point processing

More

True Bypass (electromechanical relay switching) or selectable transparent Analog Buffered Bypass
Strong and lightweight anodized gold aluminum chassis
9V DC power supply included
Power requirements: maximum 9 volts DC center-negative, with a minimum of 250mA of current
4.5" deep (11.43 cm) x 4" wide (10.16 cm) x 2.4" tall (6.1 cm)
Designed and built in the USA

Notes: Diamond Pedals proudly announces the launch of the Dark Cloud, an innovative delay pedal that represents the pinnacle of hybrid analogue-digital design. Drawing on the company's rich heritage in crafting exceptional analogue effects, the Dark Cloud merges classic tone with cutting edge technology to deliver a delay pedal like no other.

At the heart of the Dark Cloud is Diamond's revolutionary Digital Bucket Brigade Delay (dBBD) technology, which seamlessly blends the organic warmth of analogue companding with the precise control of an embedded digital system. This unique architecture allows the Dark Cloud to deliver three distinct and creative delay modes (Tape, Harmonic and Reverse), each meticulously crafted to provide a wide range of sonic possibilities.

Where analogue warmth meets digital precision, the Dark Cloud redefines delay effects to create a pedal like no other.

The Dark Cloud holds special significance as the final project conceived by the original Diamond team before their closure. What began as a modest attempt to repurpose older designs evolved into a masterful blend of the company's most beloved delay algorithms, combined with an entirely new Reverse Delay setting.

As a result, the Dark Cloud is essentially a "greatest hits" of Diamond's delay technology, refined into one powerful pedal that pushes the boundaries of what delay effects can achieve.

Notes: MG-101 is a complete guitarist's tone companion in a compact yet versatile floor unit. Hiding inside the minimalist housing is a full suite of amplifier tones and a huge palette of guitar and bass effects across 10 distinct audio processing blocks. Amp modelling is based on TSAC-HD White Box Amp Modeling Technology, which delivers high definition analogue circuit simulation for pro quality guitar tones, with speaker cabinet emulation processed via an impulse response (IR) loader with 25 internal models and 12 additional user slots for importing your own files. A built-in expression pedal covers wah and swell effects amongst other possibilities. All settings can be edited onboard with parameters shown on the full colour display or via USB using the downloadable PC/Mac Quicktone software and then stored into one of 36 internal memory locations for recalling at will. In addition to the internal metronome, the built-in Jam function has a fully featured drum machine and 30 second stereo (60s mono) phrase looper. To integrate with a DAW studio suite, the USB also functions as a high quality audio interface, completing the studio-ready guitar rig. The main output can deliver stereo or mono audio directly to a PA or to guitar amplifiers, with a separate TRRS minijack output for headphones or 2-way connection to a smart phone for live streaming. Without breaking the bank, you can have world-class amp modelling and effects with all the essential tools a recording and gigging guitarist needs in a portable and convenient package.

Power supply: 9Vdc DC5521 pin-negative (power adaptor included)
Current consumption: <250mA
Inputs: 6.3mm jack (guitar), 3.5mm jack (aux input)
USB port: USB-C audio interface and PC/Mac editing
Sampling format: 48kHz, 32-bit
Frequency response: 20Hz - 20kHz (+/-1dB)
Output: 6.3mm stereo jack line out (to amp or mixer)
Headphone connector:3.5mm jack (TRRS for smartphone livestreaming)
Input impedance: Guitar 470k Ohms, Aux 25k Ohms
Dynamic range: 104dB
Output impedance: 1k Ohm
Dimensions: 289 x 160 x 71mm
Weight: 920g

In the Box:

MG-202 multi-effect pedal
9Vdc 500mA power adaptor
USB cable
User manual
Warranty card

Notes: The Reissue series 63 Diamond pedal offers players a range of overdrive that emulates the sound of a classic British 30-watt class-A valve amplifier, much-revered by guitarists since 1959 for its tonally rich clean and crunchy overdrive sound. The styling of the 63 Overdrive is a nod towards the cabinet that stood behind the bands of the British blues invasion and rock bands of the 1970's through to present day guitar bands. Volume and Master controls let you dial in the drive, with a tone Cut control just like the real amplifier. A Top boost switch introduces additional bite and was a later addition to the design in 1963, which is where this pedal gets its name. Invoking 60's British cool in a single pedal was never this easy before.

Batteries: 9V PP3 (supplied)
Power supply: Optional 9Vdc 300mA regulated (not supplied)
Controls: Volume, Master, Cut, Top Boost & foot switch
Input impedance: 1M Ohms
Output impedance: 10k Ohms
Dimensions: 121 x 77 x 48mm
Weight: 230g

In the Box

63 Diamond overdrive pedal
9V PP3 battery

Notes: The Bass War was born with a clear mission: to take Death By Audio's legendary Fuzz War and craft it into the ultimate weapon for bass. Death By Audio didn't just tweak the formula, they reimagined it from the ground up, infusing classic circuit designs with our own twist. The result? A harmonically rich octave fuzz that doesn't just deliver - it dominates, with exceptional gain, a wide tonal range and a MIX control that puts the power of mind-blowing bass fuzz at your fingertips.

This pedal isn't here to play nice, it's here to push boundaries. The super-extended control ranges let you sculpt your sound from a gritty, grinding drive all the way to a thick, bone-crushing distortion. The FUZZ knob is your key to unlocking everything from a subtle growl to an all-out sonic assault.

The TONE knob is your secret weapon, acting like a notch filter that lets you sweep through a massive arsenal of fuzz tones, each one rich, heavy, and impossible to ignore. And with the MIX control, you can blend just the right amount of fuzz with your clean bass, keeping your sound powerful and balanced, no matter how intense things get.

The Bass War isn't just another Fuzz pedal, no it's your ticket to a bass tone that demands attention and leaves its mark. If you're ready to take your sound to the next level and carve out your own sonic territory, the Bass War is your go-to pedal. Plug in and let your bass do the roaring.

Notes: EarthQuaker Devices is proud to introduce you to your new best bud, Gary. This little big guy was dreamt up by the one and only Lee Kiernan from the crushing and most necessary band, Idles!

Gary started as a simple request to create a compact version of the now discontinued Gray Channel, which was a mainstay on Lee's board and a big part of his main drive tone. This was all fine and good, and sounded quite sick, but it was worth and exploring his dark side a little more, Gary after dark, Saturday night Gary. So, he was sat down and began the trek of figuring old Gare-Bear out once and for all. The result is a real exercise in light and dark; smooth to shredded and everything in between.

Gary's right brain consists of a dynamic and destructive fuzz that is both domineering and interactive. It is a ripping fuzz tone with an envelope-controlled variable pulse width and enough volume to blow everything up. This nasty little fuzz turns the signal into a square wave and allows you to dynamically adjust the duty cycle with pick attack. Yes! Controls the sensitivity of the envelope. When this is all the way down you will get an unadulterated thick and heavy square wave fuzz tone that will sustain for days and go dead quiet when you stop playing. As you increase the Yes! control, the envelope becomes more interactive, and the pulse width narrows the harder you hit it. As the pulse width narrows, the tone becomes more nasal and biting until it gets so narrow that Gary goes to his dark place and disappears completely. In other words, with higher sensitivity settings, the sound will disappear entirely and come cruising back to Gary's big guy tone. With proper playing dynamics, this creates a very cool effect that can sound like an exploding amp coming in and out of life, blown through a phase shifter.

This effect can also be controlled with an expression pedal for manual operation or for finding just the right pulse width to cut through the mix for a set-and-forget operation. When using an expression pedal, Yes! operates in conjunction with the expression pedal to set the peak of the sweep. Set Yes! to the desired stopping point and express yourself as you please without worry of taking Gary over the edge!

Oosh acts as the master volume for Gary's nasty side. There is an insane amount of volume on tap so use this control wisely!

Gary's left brain displays his softer side. This is a simple and natural sounding overdrive that keeps your tone lively and drives your amp crazy. This side is based on the green channel of the Gray Channel, which is Earthquaker's take on the classic little yellow overdrive that started it all. Lee used this pedal with the clipping switch permanently set to the middle position, which removes all the diodes from the circuit, producing a full-bodied, cutting opamp distortion with plenty of volume on tap. Earthquaker have reproduced that tone here with exacting precision. Go sets the opamp drive and can range from a simple full-range clean boost all the way up to a smooth and natural distortion. In conjunction with That's It, which is the master volume for the drive side, you can use Gary's softer side as a clean boost to push your amp into overdrive or turn up Go and use all of Gary's internal magic to create the finely tuned dirt you desire.

Gary's signal path is fuzz into overdrive for total tonal integrity and cannot be changed. This is where Gary put his foot down.

Each and every Gary was softly brought to life by the delicate hands of EarthQuaker Devices in the elegantly unrefined canal-front city of Akron, Ohio USA.

Notes: The JamMan Solo HD has all the same great features as the JamMan Solo XT including stereo looping, Micro SD/SDHC compatible memory card support, Auto Record, selectable Stop Modes, and the revolutionary JamSync feature which allows for syncing of multiple JamSync compatible devices. Even better, as its name suggests, the JamMan Solo HD features improved High-Definition audio performance with its Next-Gen HD A-D/D-A Audio Converter!

The JamMan Solo HD features 200 internal memory locations that can hold up to 35 minutes of loops. Installing a Micro SD/SDHC card into the memory card slot adds another 200 memory locations which can store over 32 hours of loops! (Compatible with Micro SD/SDHC cards up to 32Gb)

The JamMan Solo HD has USB connectivity for syncing to DigiTech's free JamManager HD software. JamManager HD organizes and saves your loops to a computer (PC) and lets you quickly create JamLists to take to your gig. The JamMan Solo HD is the perfect stereo looper/phrase sampler for practicing, composing, and performing.

Use the JamMan Solo HD to:

Record rhythm loops, then solo over them on the fly, completely Hands-Free.
Slow down or speed up the tempo of any loop without changing pitch.
Sync multiple JamSync compatible JamMan devices for multi-track looping capabilities.
Seamlessly transition between recorded loops during playback.

Next-Gen HD Audio Performance

Sound better than ever with improved high definition, low-noise, low-distortion A-D/D-A audio converter.

32 Hours of Looping Time

Compact stereo looper with 35 minutes of on-board memory, PLUS up to 32 hours of looping time with a MicroSD card. (MicroSD card not included)

Professional Drum Loops

Includes 10 carefully mastered drum loops from Pat Mastelotto (King Crimson, Stick Man, Mr. Mister).

Glitch-Free Time Stretching

Adjust the tempo of your loops anyway you like, completely glitch-free.

JamSync Enabled

Sync multiple JamSync compatible JamMan devices for multi-track looping capabilities.

JamManager HD

Connect via USB to transfer loops to and from your PC using JamManager HD.

Notes: ***B-STOCK: Item refurbished, repaired and in perfect working order.***


Like the Iguana that's malleable to its environment, blending into its surroundings for harmonious balance or standing out with vibrant confidence, the Polychrome Flanger is a uniquely colourful tool for adding modulated textures to songs.

The Polychrome Flanger is a true bypass, all analogue Flanger pulling in familiar layout controls from the Julia and Lillian.
Dial in a wealth of colourful flange with the D-F-V blend knob and the shape and voice switches.
The Shape Switch lets you select from sine, triangle, or random LFO wave to modulate the delay line

The Voice Switch lets you select between two voices for the flanging effect.
In the down position, the flanger is more traditional and full frequency.
In the up position, you get a more complex and notched flange effect with less low end.

Like the other members of the Walrus Audio modulation family, the Polychrome has a blend knob. The D-F-V (Dry, Flange, Vibrato) knob lets you blend the dry and delayed signal from full dry at minimum (no effect), to traditional flange at noon to full pitch vibrato at maximum. Don't sleep on the vibrato sounds in the Polychrome.
Set the D-F-V knob to maximum, feedback to a minimum, and the voice switch up for some unique pitch vibrato.

Top mounted input, output, and power jacks as well as soft switch relay bypassing make the Polychrome fit well on your board and ensure smooth operation for years to come.

Specs
The Polychrome comes in a flat black enclosure with purple, yellow, coral, green and white ink, featuring original artwork by David Huttner.
Power supply not included.

Dimensions and power consumption:
0.25kg
6,6 x 12,2 x 5,6 cm (W x D x H)
50 mA

In the box:

Walrus Audio Polychrome
Manual
Sticker
Guitar pick
Pouch

Notes: Based on technology from the award-winning LVX and MercuryX pedals, the Enzo X is a superbly powerful six-voice modular synth, with polyphonic pitch detection and no special pickup needed on your guitar.

Supplier's Notes:
Combining 5 synth modes, Enzo X incorporates each of these into a modular system UI/architecture from both the award-winning LVX and MercuryX pedals.

In addition to being a 6-voice poly synth, Enzo X includes 3 reverbs which are adapted from Mercury X (Prism algorithm), 5 Drives (including Bitcrush), a full stereo 2.5 second Delay and 5 modulation types.

To make this complex system immediately intuitive to navigate, Meris again leveraged the simple and easy to use UI first developed for LVX.

Notes: Launched in 1976, the CE-1 Chorus Ensemble was not only the world's first chorus effect pedal, but also the very first BOSS pedal. Three years later, this inventive new sound was squeezed into the blue CE-2 Chorus, and chorus pedals have remained in the compact lineup ever since. Four decades on, the spacious modulated tone of the signature BOSS effect is still loved by musicians everywhere. In 2016, to celebrate the 40th anniversary of BOSS innovation, the original analogue chorus sounds are now reborn with the Waza Craft CE-2W. The CE-2W's Standard mode faithfully recreates the classic CE-2 chorus sound, and adds an expansive new sound field with stereo output, which was unavailable in the mono CE-2. CE-1 mode fully reproduces the stereo chorus and vibrato sounds of the legendary CE-1, with the addition of variable chorus depth not available in the original pedal. To commemorate the birth of BOSS effects, the CE-2W is made exclusively in Japan, just as the original CE-1 and CE-2 were.

Waza Craft: The Art of Superior Tone

Since the beginning, the engineers at BOSS have been committed to achieving the finest guitar tones using any technology necessary, from old-school analogue circuits to high-tech DSP. This enthusiastic spirit continues on with the Waza Craft series, which brings you exceptional tone and touch response through carefully selected analogue components, refined circuitry, and meticulous attention to detail. In Japan, "Waza" is the term for art and technique, and these special edition pedals proudly carry the Waza symbol to represent the pinnacle of BOSS design and craftsmanship.

Specifications

Modes: 3 modes, Standard, CE-1 Chorus, CE-1 Vibrato
Nominal Input Level: -20 dBu
Input Impedance: 1 M ohm
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater
Bypass: Buffered bypass
Controls: Pedal switch, Standard/CE-1 Mode switch, RATE knob, DEPTH knob
Indicator: CHECK indicator (Serves also as battery check indicator)
Connectors: INPUT jack: 1/4-inch phone type, OUTPUT A (MONO) jack: 1/4-inch phone type, OUTPUT B jack: 1/4-inch phone type, DC IN jack
Power Supply: Alkaline battery (9V, 6LR61) or Carbon-zinc battery (9V, 6F22), AC adapter (sold separately)
Current Draw: 25 mA
Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.): Alkaline: Approx. 32 hours, Carbon: Approx. 18 hours
Accessories: Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information"), Alkaline battery (9V, 6LR61), Alkaline battery (9V, 6LR61)
Options (sold separately) AC adapter: PSA series

Size & weight

Width: 73 mm/ 2-7/8 inches
Depth: 129 mm / 5-1/8 inches
Height: 59 mm/ 2-3/8 inches
Weight (including battery): 450 g / 1 lb

* 0 dBu = 0.775 Vrms

Notes: The genuine BOSS and Roland Dimension effect is back, and it's now more versatile than ever! Designed in the premium Waza Craft analogue tradition, the DC-2W offers not just a perfect sonic recreation of the original DC-2 Dimension C pedal, but also the legendary SDD-320 Dimension D studio rack effect it was based on. The DC-2W features the same intuitive four-button preset interface as the original '80s-era effects, now evolved with electronic switching that unlocks a multitude of sonic variations not available on the vintage units.

Highly sought-after by musicians and audio engineers, the Dimension's unique spatial processing magically enhances the width and depth of any sound, from electric and acoustic guitars to keyboards, vocals, and other sources. Built from the original circuit designs and updated with modern refinements, the DC-2W is the only pedal available that delivers the classic Dimension experience with complete sonic authenticity.

Enhance Your Sound with Natural Width and Depth

The vintage Dimension effect is famous for its innovative 3D spatial processing that just makes everything sound a little better. It's often mistakenly called a chorus effect, but it's actually not. Though time-based like a chorus, the Dimension's circuit is quite unique and sophisticated, subtly enhancing the width and depth of the source audio without any prominent modulated movement. The resulting sound is more open and natural, gently enriching any instrument or mix without making it sound overly processed.

Four Switches, Expanded Sonic Possibilities

Just like the original Dimension effects, the DC-2W offers a simple and direct interface with four preset switches that provide sonic variations with increasing width and depth. While the originals had mechanical switches, the DC-2W is equipped with modern electronic switches and status LEDs for more solid performance. The new switches also allow you to press two at once to access a variety of additional sounds. Across the DC-2W's two effect modes (S and SDD-320), 20 different Dimension variations are possible with just four switches.

Authentic Tones with Modern Refinements

In the Waza Craft tradition, the DC-2W delivers vintage analogue tones with modern design refinements for enhanced performance and versatility. Along with the new electronic mode switches, the pedal features a newly designed internal bypass circuit that greatly improves on that found in the original DC-2. In addition, versatile I/O enables the pedal to blend in with any mono or stereo rig, from regular guitar setups to audio interfaces and studio mixing consoles. And like all Waza Craft pedal models, the DC-2W includes a premium buffer circuit for ultra-transparent tone when the pedal is switched off.

The Roland SDD-320 Dimension D: A Studio Legend

Very quickly after its debut in 1979, the Roland SDD-320 Dimension D became a go-to secret weapon for audio engineers and music producers around the world. It can be heard on countless classic records in all genres, and is still regularly used today. From guitars, electric pianos, and synths to strings, backing vocals, and more, the Dimension D injects instant spatial mojo and sonic glue without creating an obvious "effect" sound.

The DC-2W's SDD-320 mode fully captures the original Dimension D vibe in every way. Many engineers like to press multiple buttons on the Dimension D rack for new and different sounds. But in truth, only two actual sound variations are technically possible with this undocumented feature. With its modern switching, the DC-2W's SDD-320 mode enables six sound variations when two buttons are pressed, including four "in-between" sounds and two all-new voices.

The BOSS DC-2 Dimension C: 3D Sound in a Compact Pedal

Introduced in 1985, the DC-2 Dimension C pedal brought the Dimension D's distinctive spatial effect to the BOSS compact pedal format. While the Dimension D was designed as a studio effect that supported either mono or stereo input sources, the DC-2 was specifically created for mono sources like guitar, and features a modified circuit that produces a Dimension effect with a slightly different tonal flavour.

Specifications

Modes: S (Standard), SDD-320
Nominal Input Level-20 dBu
Input Impedance: 2.2 M ohms
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance:10 k ohms or greater
Bypass: Buffered bypass
Controls: Pedal switch, S/SDD-320 switch, MODE SELECTOR [1]--[4] buttons
Indicators: CHECK indicator (Serves also as battery check indicator), MODE SELECTOR [1]--[4] indicators
Connectors: INPUT A (MONO) jack: 1/4-inch phone type, INPUT B jack: 1/4-inch phone type, OUTPUT A (MONO) jack: 1/4-inch phone type, OUTPUT B jack: 1/4-inch phone type, DC IN jack
Power Supply: Alkaline battery (9 V, 6LR61), AC adapter (PSA series: sold separately)
Current Draw: 65 mA
Expected battery life under continuous use: Alkaline: Approx. 6 hours *These figures will vary depending on the actual conditions of use.
Accessories: Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information"), Alkaline battery (9 V, 6LR61)
Options (sold separately)AC adaptor: PSA series

Size & weight

Width: 73 mm / 2-7/8 inches
Depth: 129 mm / 5-1/8 inches
Height: 59 mm / 2-3/8 inches
Weight (including battery): 450 g / 1 lb

* 0 dBu = 0.775 Vrms

Notes: TARS DLX is a dual fuzz with 2 analogue filters inspired by the MS-20.

Probably the only pedal with 4 poles - resonant - Low Pass and High Pass Filters.

It is a stage & studio tool to shape your sound with high precision or an experimental device for loud noise makers.

It is an evolved version of TARS, a robot looking for life in space too. (and a pedal we released a year ago).

Notes from the designers :

Collision Devices took TARS and we pushed it forward.

The Fuzz circuit has been reworked to be opened in high end - so that it can now sound amazing as a low gain fuzz/distortion. The creamy one we all like in those post-hardcore riffs. It is also more aggressive when Gain is maxed out.

+ Collision Devices worked another fuzz (BLAST) which feedbacks a part of the circuit to give this "burning" feeling for HUGE and abrasive sounds.

The frequency response from both filters has been improved to better work on very low end sources with subby bass sounds.

TARS DLX can be used as clean blend on bass or in insert of a track mix.

The "ADD FUZZ" configuration which is found nowhere else is better than ever with the addition of the high pass after the low pass. It adds a filtered fuzz to the fuzz signal so that the filters can be used as EQ shape / phasing effects. This is amazing.

Of course, Fuzz and filters can be used separately in parallel or in serial. This truly is a beast of a dirt and filtering pedal.

Notes: DEL-mini

Compact Stereo Delay Pedal

The diminutive, yet feature packed, Nobels DEL-mini delay pedal combines an outstanding selection of delay tones in a budget-friendly and space-saving enclosure.

While Nobels has a heritage of past delay units, this newly engineered pedal offers maximum versatility in a super compact package.

Providing an expertly curated selection of timeless delay effects with either a mono or spacious stereo image, DEL-mini delivers a wealth of sonic possibilities, far beyond its modest size and is an excellent addition to any size of setup.

Featuring three carefully crafted delay flavours, Tape (up to 553 ms), Analog (up to 402 ms) and Digital (up to 1000 ms), all three modes all faithfully capture the iconic delay tones that have shaped music across genres, past and present. Each mode is simply selected by the pedal's convenient mode switch right on the face of the pedal.

Adding to its flexibility, the DEL-mini features full tap tempo functionality, but in a single switch design. Simply holding the footswitch for approximately two seconds enters the pedal into "Tap Tempo Mode", following which the pedal will respond to rhythmic tapping instantly. Further defying expectations based on its compact appearance, there are dedicated toggles for selection between mono and stereo (TRS) operation as well as true or buffered bypass modes, making the pedal suitable for almost any musical situation, anywhere, any time.

As with all other current Nobels pedals, the DEL-mini features 4 integrated Mounty-P Mounting Plates for safe and secure attachment to pedalboards. With its full metal enclosure and Glow in the Dark pointer knobs, the DEL-mini is a pint-sized powerhouse that's built for performance!

Product Height (cm): 5.100
Product Width (cm): 4.850
Product Depth (cm): 9.370
Product Weight (kg): 0.210

Box Height (cm): 6.540
Box Width (cm): 7.000
Box Depth (cm): 12.100
Boxed Weight (kg): 0.301

Notes: Dark Star Stereo Flagship Reverb Pedal

The continued pull, the drift unabated, the controlled wash of gravity and the chaotic meander of its combined uncertainties. In fact, the original and highly loved Dark Star is a pedal that historically was OBNE's most popular reverb. People bonded with its warmth and aliasing, its long trails and the way it encouraged you to turn the mix fully up. Now, it's in with the new. Dark Star Stereo expands on the promise of ambient reverb and is a pitch shifting, bit crushing, filtered reverb pedal with just about every feature you could ask for. One massive stereo voice, with a wide suite of controls that likes to go anywhere in your signal chain - all that's left is for you to decide just how dark you must go.

Reviving the magic of the long-trail lo-fi reverb algorithm that made Dark Star a breakout hit years ago, Old Blood Noise Endeavors announces a new Dark Star for a new era, with a drastically expanded feature set and improved signal quality that is sure to draw in old fans and new. New features like Stereo Input and Output, on-board Presets, Trails, Expression control over all parameters and MIDI control, of both Parameters and Presets, all help to give more versatility to this device than ever before. Beyond that, the new Dark Star does away with the three-mode toggle, instead creating a single mode combining all the Pitch-Shifting, Bit-Crushing, delayed goodness of the original. Access your favourite sounds as well as new combinations, with new shapers like Filter, Multiply, Volume and Stereo-Spread.

Notes: Sometimes pedals can change. Parts drift, pots break, transistors go bad. They go to new homes; they get neglected and resold. Sometimes people get in there and try to revive them to their original state and sometimes they just throw whatever is laying around inside and hope it does the trick. In this case, EQD are pretty sure all the above happened to the fuzz pedal that made its way to James Murphy and ended up finding a forever home with LCD Soundsystem.

Chelsea really does have something special. It's heavy without being too heavy, clean but not too clean. A simple set of controls yet it has an expansive array of tones that makes it very versatile on a wide variety of instruments, has clarity when you need it and can blur all discernable lines when you don't. It still retains the familiar foundation of the classic fuzz it was intended to be, but something special happened to it over the years and it has very much grown into its own thing

Notes: For those about to rock... Crazy Tube Circuits have created the Heatseeker!

The sound of a classic wireless system meets three iconic amps that helped shape the history of rock. From its inception/invention, in the mid-70s, this wireless system has been the secret recipe to major rock guitar rigs. The magic ingredient lies to its analogue preamp/ tone enhancer circuit that expands the dynamic response and harmonics of any signal that goes through it. By producing a modern recreation of this hidden gem, there is enough percussive attack to spice up your tone.

Utilizing an all-analogue JFET circuit, running on 27 volts via an internal voltage boost, Crazy Tube have captured the tone and feel of three British tube amplifiers synonymous with the sound of rock and roll with excellent clean-to-mean dynamic response. The "WoS" (Wall of Sound) circuit opens up the soundstage by increasing output and adding thundering lows and dense high mids. The effect is similar to "adding" a wall of amp heads and full stacks to your rig!

A passive effects loop gives you the option to connect your beloved pedals between the two sections, building your ideal rig.

Follows the successful concept of Crazy Tube's "Unobtanium", "Hi Power", and "Crossfire": All-analogue dual pedal designed to recreate a legendary pedal and amp combination.

Inspired by the tones of the gear setup used by Angus Young.

Right side: re-creation of the preamp/tone enhancer circuit of the Schaffer Vega Diversity System.

Left side: 3 distinct Marshall amps-in-a-box: JTM45, 1959 Super Lead, JMP 2203.

Passive series effects loop to connect pedals between the two sections or use them separately as independent effects.

Notes: Introducing the Octa Psi Transfigurating Fuzz Pedal, the ultimate combination of polyphonic Pitch-Shifter, Octave Generator and Analog Fuzz! Imagine merging a powerful pitch-shifter, octave generator, and analogue fuzz into one intuitive pedal. With the new Octa Psi, we've made that dream a reality!

Octave/Pitch before or after fuzz? Well, now you can experience the best of both worlds, simply by holding down both foot switches on the Octa Psi at the same time to switch the effect order. For even more control, a quick double-tap of the Blend switch allows you to seamlessly toggle between an All-Wet effect or a Wet/Dry blend, while with a simple press and hold of the Fuzz switch, you can seamlessly shift between momentary and latching octave modes, giving you immense additional options to tailor your sound.

The polyphonic octave and pitch shifter features three distinct modes: Up, Down and Dual. These unlock an array of possible harmonic intervals ranging from power chords to stacked fourths and even diminished chords across a +/- two octave range.

Momentary mode is perfect for wild dive-bombs and multi-octave bends, while an adjustable ramp speed adds creative flair by letting you control pitch bending just as if you had an in-built expression pedal on board.

With its all-analogue, transistor-based fuzz circuit, Octa Psi brings wave after wave of gain staging, making your pickups sound enormous and leading to full on hard clipping and immense tones on tap. With the three-way tone switch, you can easily dial in your desired fuzz tone by switching between the Scoop, Punch, or Psi bass response modes.

Octa Psi is not only powerful, but also it is beautifully designed for simplicity and durability. Its high-octane circuitry is housed in a proprietary angled aluminium enclosure, combining stunning looks with rugged functionality.

Upgrade your sound and explore new sonic possibilities with the Octa Psi Transfigurating Fuzz Pedal.

Notes: The ZOIA 10k is a celebration of Empress' milestone of 10,000 ZOIA units sold, marking the occasion with a special limited-edition beige finish and a striking blue OLED screen. The ZOIA is more than a pedal-it's an entire modular effects environment, letting you create custom sounds, from effects to synthesizers and utilities, in a compact and powerful stompbox.

Modular Synthesis Meets Multi-Effects

The Empress ZOIA 10k blends modular synthesis with multi-effects, putting limitless sound design possibilities at your feet. With over 80 modules, including oscillators, filters, and LFOs, you can craft anything from classic delays and reverbs to complex synth patches-perfect for live performances or studio sessions.

Creative Freedom on Your Pedalboard

At the core of ZOIA's design is an intuitive, customizable interface that invites musicians to explore and create unique sounds without ever needing a computer. With its illuminated grid and high-definition OLED screen, the ZOIA 10k makes it easy to see and shape every aspect of your patches in real time.

Exclusive Colourway

The ZOIA 10k limited edition celebrates ZOIA's impact on sound design with a special beige finish and blue OLED screen, making it a must-have for collectors and ZOIA fans. This exclusive colourway is available only in 500 units worldwide.

Specifications
Input Impedance: >= 1MO
Output Impedance: 100O
Frequency Response (-3dB): 10Hz - 23.4kHz
Total Harmonic Distortion: 0.22%
Dynamic Range: 105.5 dBA
Input Headroom (no pad): +0.5 dBu
Input Headroom (6dB pad): +5.7 dBu
Input Headroom (12dB pad): +10.8 dBu
Output Headroom: +16.2dBu
Power Input Connector: 2.1mm Barrel Connector
Power Input Voltage: 9V DC (center negative)
Required Current: 300mA
Length: 5.7"
Width: 3.75"
Weight: 1.5lbs

Notes: The EarthQuaker Devices Passive ABY box is the perfect solution if you can't decide when and where you would like your signal to go. In its most basic form, this passive little box is commonly used to run a single input out to two destinations and lets you choose between using either individually or both at the same time.

The most common problem an ABY is used to solve, is one input being sent to out to two amplifiers, but it doesn't have to stop there! Because of its completely passive circuitry, Passive ABY can also be used in reverse to choose between two inputs to a single output. Use it to simultaneously run two different instruments to one source input. An oboe and a bass, a keyboard and a harmonica, a lute and a modular synth... you know, whatever!

This compact little device has a small footprint, won't take up much real estate on your board and is built using high quality parts that will withstand years of use and keep going.

Notes: A buffer is an important tool to combat tone loss with long cable runs or in signal chains running lots of true bypass pedals. With its high 1 M ohm input impedance and low 100 ohm output impedance, the EarthQuaker Devices Buffer/Preamp will restore your tonal integrity, to give you back the clear and dynamic signal you deserve and your amp craves.

Want more? Not only will Buffer/Preamp restore high end loss, this device has a little trick up its sleeve that will also give your low end a subtle, yet powerful, little kick for some added dimension. While it is commonplace to add a buffer at the beginning of the signal chain, we find this to best at the end for optimum results. That said, it'll work great anywhere you decide to place it. For best results, make sure the EarthQuaker Devices Buffer/Preamp is placed AFTER any fuzz pedals that typically like to see the guitar at their input.

Notes: This diabolical fuzz pedal takes your tone on a nightmarish journey through crushing distortion and eerie synth tones.ACreated with the visual design by renowned artist Rob Jones, Knife Drop's visceral appearance perfectly matches its aggressive sound. Whether you're creating monstrous growls or supernatural melodies, Knife Drop is designed to haunt your sound.A

Notes: ***B-STOCK: Item refurbished, repaired and in perfect working order.***


Based on the legendary Roland Space Echo, the RE-202 brings tape-style delay effects into the future. Classic vintage sound in a modern, user-friendly package.

Supplier's Notes:
A Masterpiece Returns in the Modern Era

Introduced in 1974, the Roland RE-201 Space Echo stands among the most legendary and sought-after effect units ever produced. This tape-based classic remained in production for over 14 straight years, and its distinctive rhythmic echo sounds, warm character, and highly playable sonic quirks still inspire musicians, producers, and audio mixers over four decades on.

Backed by intensive R&D and Boss' latest innovations, the RE-202 faithfully delivers the authentic sound and behaviour of the Space Echo like never before. Built by the company that designed the original, this advanced pedal captures the RE-201's magic in flawless detail, from the magnetic tape and motor properties to the vibrant spring reverb and colourful preamp circuit. And to take things even further, Boss have expanded the vintage Space Echo experience with lots of new features tuned for today's music.

Tape Echo Magic

Tape echo was the first delay effect and one of the first effect processors available for electronic musicians. In contrast with today's CPU-based digital units, a tape echo is a simple machine that uses a motor to pull magnetic tape across one or more record/playback heads. Warm, full, and dynamic, the tape echo sound is influenced by many factors. The ever-changing input level colours the sound with varying amounts of tape saturation and compression. In addition, motor speed fluctuations, friction, wow and flutter, and other elements introduce an appealing modulated character that's subtle and continually evolving.

RE-201 Space Echo: Simply Legendary

The RE-201 was a benchmark Roland product and one of the leading tape echo units of its era. It featured three evenly spaced heads that produced a wider range of echo effects than typical single-head designs, plus an innovative free-running tape system that provided superior performance with minimal tape wear. Grab-and-go controls enabled quick access to clean, single delays or various head combinations for dense, rhythmic echoes. A spring reverb tank was included too, making the RE-201 a one-stop shop for quality ambience effects. Last but not least, analogue preamp circuitry was another key ingredient in the Space Echo's rich sonic recipe.

A Masterpiece Reborn

Realized through the latest technologies and exhaustive analysis of several vintage RE-201s-including a pristine original unit from the BOSS and Roland factory archive-the RE-202 brings the complete Space Echo experience to life in a versatile modern pedal.

While previous BOSS designs captured the true sonic flavour and essential characteristics of the Space Echo, new advancements have allowed us to go much deeper than ever before. With the RE-202, Boss' engineers have fully reproduced all the complex, non-linear behaviours that contribute to the RE-201's immortal character. Everything that influences the sound was carefully examined and recreated with all-new algorithms, including the tape path, record/playback mechanism, motor variations, preamp coloration, tape age, spring reverb character, and more.

Retro Sound at Your Fingertips

The RE-202 delivers the full vintage vibe of the RE-201-without the need for regular tape replacement and hardware maintenance. All the core controls of the original are here, including the iconic 12-position mode selector. Every behaviour is replicated with complete accuracy, such as the gradual pitch change that occurs when the Repeat Rate knob is tweaked, or the cool runaway feedback that happens when the Intensity knob is maxed.

With selectable tape age and variable controls, you can dial in everything from a brand-new Space Echo to the worn character and quirks of a well-loved vintage piece. The Saturation control has been carefully calibrated based on the actual magnetic tape and preamp behaviours of the RE-201, with the sound becoming warmer and more compressed as you turn up the knob.

Sampling Frequency: 48 kHz

AD Conversion: 24 bits + AF method
AF method (Adaptive Focus method) This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD converter.

DA Conversion: 32 bits
Processing: 32-bit floating point
Modes: 12 modes
Memory127 + Manual
Nominal Input Level: INPUT A/MONO, INPUT B: -10 dBu
Maximum Input Level: INPUT A/MONO, INPUT B: +7 dBu
Input Impedance: INPUT A/MONO, INPUT B: 1 M ohm
Nominal Output Level: OUTPUT A/MONO, OUTPUT B: -10 dBu
Maximum Output Level: OUTPUT A/MONO, OUTPUT B: +7 dBu
Output Impedance: OUTPUT A/MONO, OUTPUT B: 1 k ohm
Recommended Load Impedance: OUTPUT A/MONO, OUTPUT B: 10 k ohms or greater
Bypass: Buffered bypass
Controls: ON/OFF switch, MEMORY switch, TAP switch, SATURATION knob, WOW & FLUTTER knob, MODE SELECTOR knob, BASS knob, TREBLE knob, REVERB VOL knob, REPEAT RATE knob, INTENSITY knob, ECHO VOL knob, MEMORY button, INPUT button, TAPE button

Connectors: INPUT A/MONO jack, INTPUT B jack, OUTPUT A/MONO jack, OUTPUT B jack: 1/4-inch phone type
CTL 1, 2/EXP jack: 1/4-inch TRS phone type
MIDI (IN, OUT) jacks: Stereo miniature phone type
DC IN jack
USB port: USB micro B-type (program update only)
Power Supply: AC adapter
Current Draw: 140 mA
Accessories: AC adapter, Owner's Manual, Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information"), Rubber foot

Options (sold separately)
Footswitch: FS-5U
Dual footswitch: FS-6, FS-7
Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
MIDI/TRS connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535

Size & weight

Width: 192 mm / 7-9/16 inches
Depth: 133 mm / 5-15/64 inches
Height: 52 mm / 2-3/64 inches
Height (including rubber foot): 53 mm / 2-3/32 inches
Weight: 860 g / 1 lb 15 oz

Notes: A fresh, original take on pitch shifting, the HammerOn generates hammer-on pitch shifts which alternate between two different intervals. Seven modes provide a range of effects, from simple hammer-ons to automatic techno guitar sequencing with trills.

Supplier's Notes:
Hands-free Hammer-Ons

Hammer-on notes in conjunction with your hands to create never-before-heard licks and riffs - the only limit is your imagination.

7 pedals in 1

Seven modes range from pitch jumps and harmony effects to pitch sequences and drop/capo tunings - HammerOn is like seven pedals in one.

Play the Impossible

Impossible Mode allows you to hammer-on pitch shifts that alternate between two selectable pitch amounts.

The DigiTech HammerOn is a versatile effects pedal with an amazing amount of flexibility and options to create and channel your musical ideas. Take the time to get to know the many options and see if it sparks new creative ideas.

The PITCH 1 footswitch is dedicated to always be a hammer-on selectable momentary pitch shift above or below what you are playing. PITCH 2 footswitch has 3 different modes of operation selectable using the MODE button. There is a button called DRY+ that can turn on the dry signal and a button called TRILL that can mimic rapid presses of the footswitches.

With all these options it's like having 7 pedals in one:

1. HAMMER-ON: An instantaneous momentary pitch shifter pedal
2. HAMMER-ON with TRILL: A rapid fire hammer-on action pedal
3. HARMONY-ON: An instantaneous harmony creation pedal
4. The IMPOSSIBLE Pedal: A dual alternating momentary pitch shift pedal
5. DROP/CAPO SEQUENCE: A multi-setting pitch transposition pedal
6. SEQUENCE with TRILL: An automatic guitar riff sequencer
7. SEQUENCE with DRY and TRILL: An automatic techno guitar sequencer

Specifications

Electronics
Sample Rate: 44.1 kHz in classic mode, 22 kHz in chords mode
Frequency Response: 20 Hz-16 kHz (classic mode), 20 Hz-11 kHz (chords mode)
Signal to Noise Ratio: > -106dB (A weighted); ref = max level, 22 kHz bandwidth
THD: 0.004% @ 1kHz; ref= 1 dBu w/ unity gain
A/D/A Conversion: 24-bit

Input / Output
Input Type: 1/4" Unbalanced TS
Max Input Level: +5 dBu
Input Impedance: 1MO
Output Type: 1/4" Unbalanced TS
Max Output Level: +10 dBu
Output Impedance: 1kO (Effect enabled or effect bypassed), True Bypass

Physical

Dimensions: 5.12"(13.00cm) x 3.57"(9.06cm) x 1.84"(4.67cm) (L x W x H)
Weight: 1.12 lbs. (508g)

Power

Power Consumption: 2.3 Watts (258 mA @ 9VDC) typical
Power Requirements: External Adapter (included), 9 VDC 1300 mA

Notes: Powerful GX-100 tone tools in a compact guitar/bass processor with a color touch display, multi-function footswitches, and a built-in expression pedal.

Players everywhere love the GX-100 for its streamlined design, free-flowing interface, and high-quality tones. Armed with the core GX-100 engine, the compact GX-10 brings you the same inspiring experience in an even more portable footprint.

You get loads of AIRD amps and effects for covering every style, plus speedy sound building with the intuitive colour touch display and panel knobs. Adding in multi-mode footswitches, an integrated expression pedal, and USB audio connectivity, the GX-10 seamlessly transitions from nightly stage performing to desktop recording, song creation, and daily practice sessions.

Compact amp/effects processor for guitar and bass

The same sound engine and colour touch display as the GX-100 in a portable, travel-ready design
Exceptional audio quality with 24-bit AD and 32-bit DA conversion, 32-bit floating-point processing, and 48 kHz sampling rate
Authentic tube amplifier tone and touch response with AIRD technology
32 amplifier types and 170 BOSS effects
Ultra-flexible amp/effect routing up to 15 assignable blocks
Wide selection of onboard speaker types and support for loading WAV speaker IRs
Streamlined modern design with a rugged metal chassis
Three footswitches with flexible control modes
Onboard expression pedal with toe switch
Connect up to two footswitches or an expression pedal for expanded control
Send/return loop for external pedals
Record and play tracks in music production software on a computer or mobile device* via a USB-C
Edit sounds from your computer with BOSS Tone Studio for macOS and Windows
Download and share Livesets at BOSS Tone Exchange (compatible with GX-100 Livesets)
Optional Bluetooth Audio MIDI Dual Adaptor allows you to edit sounds and stream audio from an iOS or
Android mobile device
*Compatibility with all third-party devices and software is not guaranteed.

Weights & measures
Product
300 (W) x 183 (D) x 74 (H) mm
11-13/16 (W) x 7-3/16 (D) x 2-15/16 (H) inches
2.2kg (4lb 14oz)

In the box
AC adaptor (PSB-1U + AC Cord Set)
Owner's manual
Leaflet "USING THE UNIT SAFELY"

2.2kg (4lb 14oz)

IN THE BOX
AC adaptor (PSB-1U + AC Cord Set)
Owner's manual
Leaflet "USING THE UNIT SAFELY"

Notes: The [ACS1] is an amplifier and speaker cab simulator delivering the sound and feel of world-class amplifiers, complimentary speaker cabinet IRs created by Tone Factor and York Audio, and controllable room size. With the ACS1, players have expansive options to deliver their tone on stage, in the studio, or practicing at home. Simple controls, stereo in and out, onboard presets, and MIDI support make the ACS1 an essential tool in a guitarist's arsenal. Players can also load in their own IRs and update firmware.

The ACS1 contains six amplifier models based on fan-favourite amps, each with its place in music history, and twelve cab IRs (Impulse Responses) designed by world-class designers to give you the best tonal representation possible. The stock IRs for the Fullerton, London, and Dartford amp models were custom engineered by David Hislop and Kenyon Reed at Tone Factor, while the stock IRs for the Red, Citrus, and Tread amp models were designed by Justin York at York Audio.

Amplifiers

The ACS1 can mix and match stereo amp and cab combinations. Want to run an AC30-style amp on the left and an Orange-style amp on the right? Or perhaps a 5150 flavoured amp in both channels but with two different cabs for a wider stereo sound? When running the ACS1 in stereo, one amp can be used through both channels, or these combinations can be run independently left and right if you choose, leading to powerful, unique amp tones. Simply press down on the Middle encoder to choose individual settings for L, R, or L+R combined. Amps can be mixed and matched with no phase/polarity issues as well.

Onboard models include:

Three Vintage Amp Models

Fullerton - Inspired by the classically bright and clear Fenderr Deluxe Reverb. Crisp clean tones with loads of headroom that players have come to love over the years.
London - Inspired by a 1962 Marshallr Bluesbreaker with a harmonically rich, valve-driven breakup. Articulate and sensitive response.
Dartford - Inspired by the legendary jangly high-end tones from a 1960s Voxr AC30 with all the bite and chime from the British Invasion.

Three High Gain Amp Models

Red: Inspired by the distinctively raw and punchy Peaveyr 5150, producing heavy, aggressive modern metal and hard rock sounds. Powerful and saturated with a tight low end, strong midrange, and a bright, cutting high end.
Citrus: Inspired by the warm, rich, and harmonically complex Oranger Rockerverb. Classic British gain with a creamy midrange and punchy lows. Maintains clarity and definition across its entire tonal spectrum, even at high-gain settings.
Tread: Inspired by the world-famous Mesa Boogier Dual Rectifier with massive amounts of in-your-face gain. Versatile enough to be favoured by guitarists in genres from hard rock, punk, metal, and more, Tread offers up plenty of saturation that's heavy and ready to cut through the mix.

Cabinet IRs

The ACS1 includes six IRs custom-engineered by David Hislop and Kenyon Reed at Tone Factor and six by Justin York of York Audio. Each IR has been created with vintage and modern amps to deliver the best tonal representation possible.

Additional ACS1 Settings/Features:

Primary Controls

Volume, gain, and room make up the top three knobs. Volume and gain work together, as gain is increased and made louder, volume can be turned down to compensate.

Room The ACS1 has three different types of reverb effects:

Room - Simulates the size of the room that your amp and cabinet are in. At zero, it would resemble tracking your amp in an isolated environment with no reverb. At max would emulate a natural-sounding, large studio environment.

Hall - Simulates the acoustics of a large, live sound space.

Spring - Simulates spring reverb tanks found in tube amps.

Increase the room size or amount of reverb by adjusting the Room knob. The further clockwise you go, the bigger the room. Decay control can be adjusted for room in the Global Sound menu.

Bass/Mid/Treble EQ

Bass, mid, and treble control are adjustable on the home screen with the use of the encoder knobs. The left knob controls bass, the middle is mids, and the right is treble. This simple EQ control has clear visual feedback and can be used to adjust levels on the L, R, and L+R channels.

Noise Gate

A noise gate can be applied and adjusted within the navigation menu, which can be especially helpful when playing with the high-gain amp models.

Amp EQ

Presence and resonance controls are available within Amp EQ Settings in the menu, giving you even more control of your amp tone.

(Access the settings for noise gate, Amp EQ, and more by clicking the bottom left and middle encoder knobs simultaneously).

Bypass IRs or Amps

Cab IRs as well as amp models can both be bypassed with the ACS1, making it more flexible for ampless rigs that still have physical cabs, and vice versa.

Notes: The legendary Strymon deliver quality goods once again with this analogue-inspired stereo delay. Single head sound gives a classic 60s vibe with modulation and subtle imperfections.

Supplier's Notes:
Experience the dreamy sound of a classic '60s tape echo complete with the harmonic richness of the accompanying tube preamp. Enjoy organic and ethereal modulation produced by countless subtle mechanical imperfections, and easily dial in anything from warm slapback to expansive echo feedback beds with a strikingly gorgeous stereo image. With beautifully-tuned low frequency response, lush tape saturation and sublime echo decay, EC-1 provides all the best of what a tube driven tape echo can deliver.

EC-1 offers impressive power and flexibility in a small and elegant form factor: Selectable tube-modeled preamp voices. Artifact-free tap tempo. Discrete stereo operation for independent processing of the left and right stereo inputs. Straightforward controls and expression pedal capability. High-impedance, ultra-low noise discrete Class A JFET stereo input preamp for exceptional touch sensitivity, dynamics and feel. MIDI control of tempo, patch save/recall and more. Premium components, rugged construction and a USB jack for performing firmware updates or controlling the pedal from a computer.

Featuring meticulous tube modeling techniques, EC-1 offers a choice of two authentically reproduced preamp circuits that lend a subtle vintage character to your input signal. One is based on the classic EP-2 tube preamp and features an enhanced high-end shelf perfect for brightening up darker humbuckers. The other preamp option (the default setting) produces a warm, balanced response based on the modded preamp circuit in the EP-2 unit that we studied during the development of EC-1. This option adds a pleasing sense of heft, especially to single-coils. Both preamp choices offer an optional boost of up to +6dB, or the preamp can be bypassed for an unprocessed dry signal if desired.

Strymon's unique dTape technology was first developed for El Capistan, and they have expanded on it to reproduce all the inspiring nuances weencountered while studying a recently-acquired tube Echoplex that was in uncommonly superb condition. Our dTape system allows precise replication of every aspect of every tape echo we've studied, and in EC1 this includes the effect of the moving head, the tape condition, the bias setting, the mechanical effects of motors, capstan slippage and all the irregularities that add up to create the unmistakable, inspiring sound of vintage tape echo repeats.

Whether you want the cleanest repeats, subtle fattening or even downright dirty echos, you can instantly dial in the desired amount of tape saturation with the flip of a switch. Providing pleasing tonal shifts from thinner to fatter, EC-1's three-way Record Level toggle switch selects the gain of the signal fed into the virtual record head. Choose the low position for unity gain with optimized bias for the cleanest repeats, medium for a 6dB input signal boost with increased bias for slightly saturated repeats, or high for a 12dB input signal boost with further increased bias for heavily saturated repeats. This control also gives you a fast and easy way to match EC-1's response to your input signal level to obtain the desired sound from any pickup type or pedalboard configuration.

For EC-1, fluctuations from motors and mechanical components were thoroughly studied to accurately capture their imperfections. At the lower end of the Mechanics control's range only slower motor-related wow and flutter are present, but at around one o'clock these fluctuations are reduced in favor of faster disturbances from crinkle, splices, and capstan slippage which accurately replicate the sound of our golden EP-2 unit.This setting can create uniquely reverberant and three-dimensionalechos that spread across the stereo spectrum. The slower fluctuations are mixed back in more prominently as you approach the maximum Mechanics setting, and the unique combination of multiple imperfections create truly gorgeous, organic stereo modulation effects unlike anything you've ever heard.

The frequency characteristics of tape echo repeats are determined in part by the bandwidth of the actual tape stock, so older tapes will have a lower bandwidth with a warmer top end. EC-1 allows you to faithfully reproduce these characteristics by turning up the Tape Age knob for warmer repeats, or turning it toward minimum for the full-bandwidth sound of fresh tape.

EC-1 is designed to allow high levels of repeats that are truly lush but that don't spiral into uncontrollable feedback. That wide sweet spot on the edge of runaway feedback can create intriguing sound beds under your lead or rhythm playing. Of course if you want to crank the Repeats control to maximum and play with the unique pitch effects that only a sliding record head tape echo can produce, those effects are all precisely replicated in sound and response.

Notes: The EarthQuaker Devices Flexi Loops is a dual effects loop featuring our world renowned Flexi-Switch Technologyr!

Using an effect loop switcher on your pedalboard allows you to easily remove all your effects from the signal path creating a path of least resistance, to help maintain full tonal integrity when they aren't in use. Flexi Loops allows you to create two distinct loops of effects and then introduce or remove them all on the fly with ease and with its dual silent relay-based and true bypass switching, the pedal allows you to simultaneously use momentary and latching style switching.

Flexi Loops allows you to create two distinct loops of effects and then introduce or remove them all on the fly with ease and with dual silent relay-based true bypass switches, the pedal allows you to simultaneously use momentary and latching style switching.

Using high quality, soft touch momentary switches for durability and quick action to ensure a lifetime of switching enjoyment, Flexi Loops is entirely passive and there is no circuitry in the signal path. However, it will require power for the relays to pass signal. For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass. While for momentary operation, hold the footswitch down for as long as you'd like to use the effect. Once you release the switch the effect will be bypassed.

But you aren't just limited to using the Flexi Loops as a loop switcher either! You can use one channel as a tuner out/mute or even a plain old mute. Use the sends to run out to different sources and easily select between them. The Flexi Loops uses high quality, soft touch momentary switches for durability and quick action to ensure a lifetime of switching enjoyment. This device is entirely passive and there is no circuitry in the signal path, but it will require power for the relays to pass signal.

Powered by a regular 9 V DC PSU (centre -, 2.1 mm, ~25 mA current draw - not supplied)

Notes: The EarthQuaker Devices A/B Box is a simple tiny tool that lets you choose between two of pretty much anything. Because of its completely passive design, there is no circuitry between the input and outputs which means it can be used in both directions. Use it to switch between two amps, switch between two channels on a multi-channel amp, use it as tuner out/mute switch, run a dry path and a wet path or even switch between two instruments!

The time to passively choose is now!

Notes: The ARTIFAKT Lo-fi Elements is the first pedal of its kind - a comprehensive collection of all the hazy, scratchy, wobbly, and broken tones that epitomize the term 'lo-fi'.

Like a mega-delay or mega-reverb, Artifakt is a "one-stop shop" for all the most sought-after lo-fi effects including old vinyl replications, tape modulation and saturation, bit crushing, sample rate reduction, dark reverb and echo, filtering, compression, glitch, and more.

Source Audio has dedicated much of the past three years to meticulously honing each of these sounds as well as engineering an entirely new hardware design with an easyto-use interface that places the pedal's full capabilities at your fingertips.

Navigating through the seven positions of Artifakt's effect selector knob unleashes a symphony of sonic transformations, each akin to engaging a new pedal with its own unique brand of lo-fi.

The first effect on the dial is Radio, tune into its crackling nostalgic tones where static frequency filtering and noise generation evoke the charm of a vintage radio struggling to dial in a signal.

The Tape engine conjures the sound of vintage tape machines by blending subtle compression, overdrive, tape flutter, and pitch modulation to invoke effects like slapback, chorus, doubling, and tape saturation.

uVerb is a primitive reverb effect with bouncing echoes similar to the reverb on 8-bit gaming systems.

The Crush effect voyages the realm of bit-depth quantizing and sample rate reduction, all finely sculpted with the resonance of a MoogTM-style ladder filter.

Ladder, inspired by the revered R-2R ladder filter, offers both envelope and LFO modulation control for classic and dramatic filter sweep effects.

Vinyl faithfully emulates the crackle and pop of vintage records, from pristine 180-gram vinyl to well-loved gramophone platters.

Glitch adds an unpredictable edge, capturing fragments of your performance and hurling them back at random speeds and pitches.

Pairing the Artifakt Lo-fi Elements with Source Audio's completely reimagined and reengineered Neuro 3.0 software elevates an already great pedal to new heights. Access free, stage-ready presets from Neuro's expanding library of factory and Neuro Community presets.

Explore Neuro's extensive editing capabilities to blend and experiment with the various lo-fi elements mentioned earlier-it's a limitless effects palette for crafting unique lo-fi sounds. Artifakt also boasts stereo inputs and outputs, full MIDI control via the 3.5mm TRS in and thru jacks, dual footswitches, 128 presets, and more.
