MIDIコンバーター・アクセサリー

Notes: The ideal MIDI routing solution for those with large hardware setups, the MRCC 880 simplifies MIDI setup over a range of DIN, USB and 3.5mm TRS connections, including preset storage and advanced options like filtering and merging.

Supplier's Notes:
Essential MIDI patch bay features give you exactly the connectivity you require. Slim, beautiful, and easy to configure without a PC, the MRCC 880 gets you quickly setup and productive

MRCC 880 - MIDI Router Flexibility, Configuration Without a PC

The MRCC 880, with dedicated per port routing buttons, makes routing MIDI connections super quick! Simply select an input, then pick which outputs to route to. MIDI merging is automatic. Status and activity are displayed on per-port LED indicators. More advanced features such as Filtering, Channel Split, Panic and MIDI monitoring are configured with dedicated buttons. When your performance setup is complete, save it for recall later. All without needing a PC for configuration.

Essential Features for Your MIDI Studio

When you need the matrix MIDI patching of a MIDI Router, or you have outgrown a MIDI thru box or 1×1 USB MIDI interface, the MRCC 880 is what you are looking for. It has just the right number of inputs and outputs for a small desktop or live jamming rig:

4x 5-pin DIN inputs, plus a shared 3.5mm MIDI TRS
4x 5-pin DIN outputs, plus a shared 3.5mm MIDI TRS thru
4x USB MIDI virtual Inputs and Outputs
It's killer for DAW-less jamming, but of course you can use it in the studio as a USB MIDI interface for your PC, Mac, or tablet. It's great for playing stand-alone soft synths, or connect it to your DAW and plug-in instruments. With the dedicated routing buttons, you can choose which inputs get routed to which output(s) at any time.

Specifications

Requirements

Power:

USB 2.0, 5V DC, 80mA, USB type B connector

USB Power Supply not included. Power from your PC or other host port, or for use without a PC, power with a USB charger or USB battery

USB MIDI Interface:
Works with PCs, Mac, Tablets and most other USB hosts that support a USB MIDI Class Compliant device.

Firmware Updates:
Requires a Windows PC, macOS or other computing device that supports USB mass storage mode.

Limited Warranty

Conductive Labs LLC provides a limited warranty for 1 year (or the minimum required by law in your country) to the original purchaser with proof of date of purchase. In case of failure due to defects in material or workmanship, for the duration of the warranty period, Conductive Labs will repair or replace the device at their discretion. If a replacement is not available, it may be replaced with a device of similar functionality.

MIDI I/O
Ports:

4x 5-Pin DIN, and 1x 3.5mm TRS (Type A) optically isolated Inputs.1
4x 5-Pin DIN, and 1x 3.5mm TRS (Type A) thru Outputs. Traditional 5V MIDI spec for maximum compatibility with vintage gear.
1x USB 2.0 Type B device port for computer connection with 4x USB MIDI virtual inputs and outputs.
1 First input pair, choose one of the 2 jacks; 5-pin DIN or 3.5mm MIDI type A
*Unlike MRCC MIDI Router Control Center, MRCC 880 is not expandable, or compatible with MRCC expansion modules such as Remote 7 or XpandR.

Features:
Save/Load
4x Save slots
1x Init (clears settings)

Filters (per input):
MIDI Clock
Stop/Start/Continue messages

Panic button:
Sends MIDI "All Notes Off" to routed ports.

Channel Split:
Select an input and the channels will be split sequentially to the 4 DIN outputs.
For example, when Chan Split enabled for Input 1:
Output port 1 will send MIDI channels 1, 5, 9 and 13.
Output 2 channels 2, 6, 10, 14.
Output 3 channels 3, 7, 11, 15.
Output 4 channels 4, 8, 12, 16.

The MRCC 880 MIDI Monitor button to optionally indicate MIDI activity on port LEDs.
The MIDI Merging is automatic. Just select the same output from a different input.
This product also has a Dedicated Power Switch.

Notes: ***B-STOCK: Box damaged, product in perfect working order***


The ideal MIDI routing solution for those with large hardware setups, the MRCC 880 simplifies MIDI setup over a range of DIN, USB and 3.5mm TRS connections, including preset storage and advanced options like filtering and merging.

Supplier's Notes:
Essential MIDI patch bay features give you exactly the connectivity you require. Slim, beautiful, and easy to configure without a PC, the MRCC 880 gets you quickly setup and productive

MRCC 880 - MIDI Router Flexibility, Configuration Without a PC

The MRCC 880, with dedicated per port routing buttons, makes routing MIDI connections super quick! Simply select an input, then pick which outputs to route to. MIDI merging is automatic. Status and activity are displayed on per-port LED indicators. More advanced features such as Filtering, Channel Split, Panic and MIDI monitoring are configured with dedicated buttons. When your performance setup is complete, save it for recall later. All without needing a PC for configuration.

Essential Features for Your MIDI Studio

When you need the matrix MIDI patching of a MIDI Router, or you have outgrown a MIDI thru box or 1×1 USB MIDI interface, the MRCC 880 is what you are looking for. It has just the right number of inputs and outputs for a small desktop or live jamming rig:

4x 5-pin DIN inputs, plus a shared 3.5mm MIDI TRS
4x 5-pin DIN outputs, plus a shared 3.5mm MIDI TRS thru
4x USB MIDI virtual Inputs and Outputs
It's killer for DAW-less jamming, but of course you can use it in the studio as a USB MIDI interface for your PC, Mac, or tablet. It's great for playing stand-alone soft synths, or connect it to your DAW and plug-in instruments. With the dedicated routing buttons, you can choose which inputs get routed to which output(s) at any time.

Specifications

Requirements

Power:

USB 2.0, 5V DC, 80mA, USB type B connector

USB Power Supply not included. Power from your PC or other host port, or for use without a PC, power with a USB charger or USB battery

USB MIDI Interface:
Works with PCs, Mac, Tablets and most other USB hosts that support a USB MIDI Class Compliant device.

Firmware Updates:
Requires a Windows PC, macOS or other computing device that supports USB mass storage mode.

Limited Warranty

Conductive Labs LLC provides a limited warranty for 1 year (or the minimum required by law in your country) to the original purchaser with proof of date of purchase. In case of failure due to defects in material or workmanship, for the duration of the warranty period, Conductive Labs will repair or replace the device at their discretion. If a replacement is not available, it may be replaced with a device of similar functionality.

MIDI I/O
Ports:

4x 5-Pin DIN, and 1x 3.5mm TRS (Type A) optically isolated Inputs.1
4x 5-Pin DIN, and 1x 3.5mm TRS (Type A) thru Outputs. Traditional 5V MIDI spec for maximum compatibility with vintage gear.
1x USB 2.0 Type B device port for computer connection with 4x USB MIDI virtual inputs and outputs.
1 First input pair, choose one of the 2 jacks; 5-pin DIN or 3.5mm MIDI type A
*Unlike MRCC MIDI Router Control Center, MRCC 880 is not expandable, or compatible with MRCC expansion modules such as Remote 7 or XpandR.

Features:
Save/Load
4x Save slots
1x Init (clears settings)

Filters (per input):
MIDI Clock
Stop/Start/Continue messages

Panic button:
Sends MIDI "All Notes Off" to routed ports.

Channel Split:
Select an input and the channels will be split sequentially to the 4 DIN outputs.
For example, when Chan Split enabled for Input 1:
Output port 1 will send MIDI channels 1, 5, 9 and 13.
Output 2 channels 2, 6, 10, 14.
Output 3 channels 3, 7, 11, 15.
Output 4 channels 4, 8, 12, 16.

The MRCC 880 MIDI Monitor button to optionally indicate MIDI activity on port LEDs.
The MIDI Merging is automatic. Just select the same output from a different input.
This product also has a Dedicated Power Switch.

Notes: Sync all your sequencers with ease and control the BPM - that's what we designed the midiclock for!

It's an ultra-stable hardware MIDI-Masterclock generator & has a great knob to give you full control over the tempo of your performances.

The midiclock generates incredibly accurate MIDI Clock messages.

It has two DIN MIDI outputs to connect to your gear. The clock signal can be distributed to more than two slaves by using MIDI Thru and you can start and stop everything with a single button.

Simply attach all devices that have MIDI Clock slave capabilities: Sequencers, synthesizers, drummachines and software like 'Live' from Ableton.

How to actually set the current BPM depends on the operating mode:

While using 'Live' mode, the BPM change immediately by turning the knob. You can use this mode if you want to make smooth tempo changes in your performance and are aware, that every turn of the knob changes the BPM.

In the 'Normal' mode, the changed value must be confirmed with a single click of the knob. This mode is perfect if you want to set your tempo once and simply need a stable clock signal. Accidental turning of the knob doesn't affect your BPM.

Notes: This converter has 16 GPI inputs (general purpose interface) arranged on 2 x 9 pin D sockets. It can output MIDI messages as notes, controllers (CCs) or program changes. The references to MIDI note numbers also applies to controller numbers or program numbers if that is the output mode currently in use.

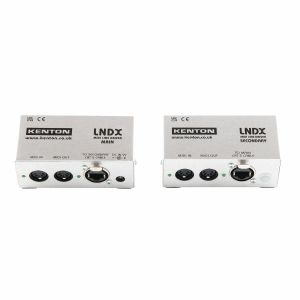

Notes: The LNDX MIDI Line Driver Pro extends MIDI beyond its 15 metre (50 feet) specification using CAT5 cable terminated with etherCON connectors.

Extending MIDI to 500m

LNDX comes as a main and secondary pair that allows MIDI to be sent accurately in both directions at the same time, across distances of over 500 metres (1640 feet) using a standard CAT5e cable terminated by Ethercon connectors.

This is over 33 times the distance achievable using standard MIDI cables.

The LNDX MIDI Line Driver Pro's combination of balanced line drivers and twisted pair cable (CAT5e) gives a high degree of immunity to noise, which results in a very high degree of signal integrity - in plain language, a very reliable MIDI link over much greater distances than can be achieved with ordinary MIDI connections.

CAT5e cable is recommended: CAT5 cable will limit the transmission length to 100m.

The CAT5 cable from an LNDX main unit should only be connected to an LNDX secondary unit, not to another main unit, and NEVER to any other device, even if it has a similar connector. (e.g. Ethernet).

The main unit is mains powered using the included power supply, and the secondary unit is powered by the main unit over the Cat5e cable.

etherCON for rugged, lockable interconnect

etherCON is a ruggedised and lockable RJ45 connector system ideal for professional applications. CAT5e cables are available with etherCON connectors already fitted, and connector shells are also available that can be used to convert existing RJ45 CAT5e cables to etherCON. The etherCON connector on the LNDX MIDI Line Driver Pro is compatible with cables terminated with both etherCON and standard RJ45 connectors.

*** Please note: etherCON cable is not included; it is sold separately. ***

The CAT5 cable from an LNDX main unit should only be connected to an LNDX secondary unit, not to another main unit, and NEVER to any other device, even if it has a similar connector. (e.g. Ethernet).

Specifications

Power Supply: Power 9V DC via 2.1mm centre-positive jack socket (Power Supply included)
Current Draw: 85mA
Connectors (each unit): etherCON B series RJ45: RS485 full duplex over CAT5. Note the LNDX requires exclusive use of the CAT5 cable.
2 x 5 pin DIN: MIDI IN, MIDI OUT
Range: 500 metres between main & secondary units over CAT5e cable
LEDs: 2 LEDs to indicate Power, MIDI IN, MIDI OUT activity
Dimensions (each unit): 98 x 54 x 43mm
Weight (each unit): 96g (excluding power supply)
Accessories included: User Manual
9V regulated Multi-Region Power Supply (suitable for use in the UK, EU, US/Canada and AUS/NZ.)

Notes: The MIDI Solutions F8 8 input MIDI Footswitch Controller provides eight 1/4" phone jack inputs for connection to footswitches or contact closures which can be used to trigger MIDI events. Triggered MIDI events are merged with incoming MIDI messages and sent to the MIDI output of the F8.

Triggered event types are programmable and include:

Note

Control Change

Pitch Bend

Program Change

Start/Stop

System Exclusive

Other functions include:

Program Change INC/DEC

Rechannelize

Transpose

Tap Tempo

Note-on Filter


MIDI Echo and Footswitch Toggle parameters are selectable on/off.

The Polarity of each footswitch can be determined automatically on power-up, or can be programmed to normally-open or normally-closed. It's also possible for the F8 to send out the state of its footswitches immediately on power-up rather than waiting for each to be depressed.

The F8 is programmed by sending it MIDI System Exclusive messages (see FAQs - Programming). This can be done easily with the Programming Tools software for the F8 and R8. One of our customers has also developed a Programming Tools application for Mac OS X, we do not provide support for this application but it is available here: www.crfmw.be/MS

Once programmed, the F8's settings are retained even after power is removed. The F8 can be reprogrammed with new settings as often as needed.

The F8 is MIDI-powered, and requires no batteries or power supply to operate with most MIDI products (see FAQs - Power and FAQs - LED for more information). A MIDI indicator LED lights up when the product is powered and flashes when MIDI data passes through it.

weight: 4.2 lbs.
dimensions: 19" x 6.5" x 1.75"

Notes: The MIDI Solutions M8 8 input MIDI Merger is an 8 in 1 out MIDI Merger. All MIDI messages appearing at any of the eight inputs are merged to the output (including System Exclusive, MIDI Clock, and MIDI Time Code messages). A fast merging algorithm ensures that all MIDI data is processed accurately with the minimal possible delay.

The M8 is MIDI powered, and requires no batteries or power supply to operate with most MIDI products (see FAQs - Power and FAQs - LED for more information). A MIDI indicator LED lights up when the product is powered and flashes when MIDI data passes through it.

weight: 4.3 lbs.
dimensions: 19" x 6.5" x 1.75"

Notes: The MIDI Solutions MultiVoltage T8 is a 1-in 8-out MIDI Thru Box. All MIDI messages appearing at the T8's MIDI input are passed to each of its eight MIDI Thru outputs. Active circuitry cleans up any skewing of MIDI data bits that has occurred at the input, ensuring reliable operation in setups that require daisy chaining or long cable runs.

The T8 is MIDI-powered, and requires no batteries or power supply to operate with most MIDI products (for more information read the Power FAQs). A MIDI indicator LED lights up when the product is powered and flashes when MIDI data passes through it.

MIDI Solutions MultiVoltage products are compatible with both the original 5V and new 3.3V MIDI specifications, for more information read the MultiVoltage FAQ.

Weight: 1.9 kg (4.2 lb)
Dimensions: 483 x 171 x 44 mm (19" x 6.75" x 1.75")
